One odd form inserter can auto insert the terminal, eyelet pin, tact switch components to PCB. Help you to realize automatical. Contact me through: angela_kuo@126.com or Skype ID to find more PCB assembly solutions

1. www.smthelp.com
Email: angela_kuo@126.com
HP:+86-139 23898396
Tel: +86-755-83203237
Fax:+86-755-23240492
Skype ID: angela7140
Prepare by: Angela Guo

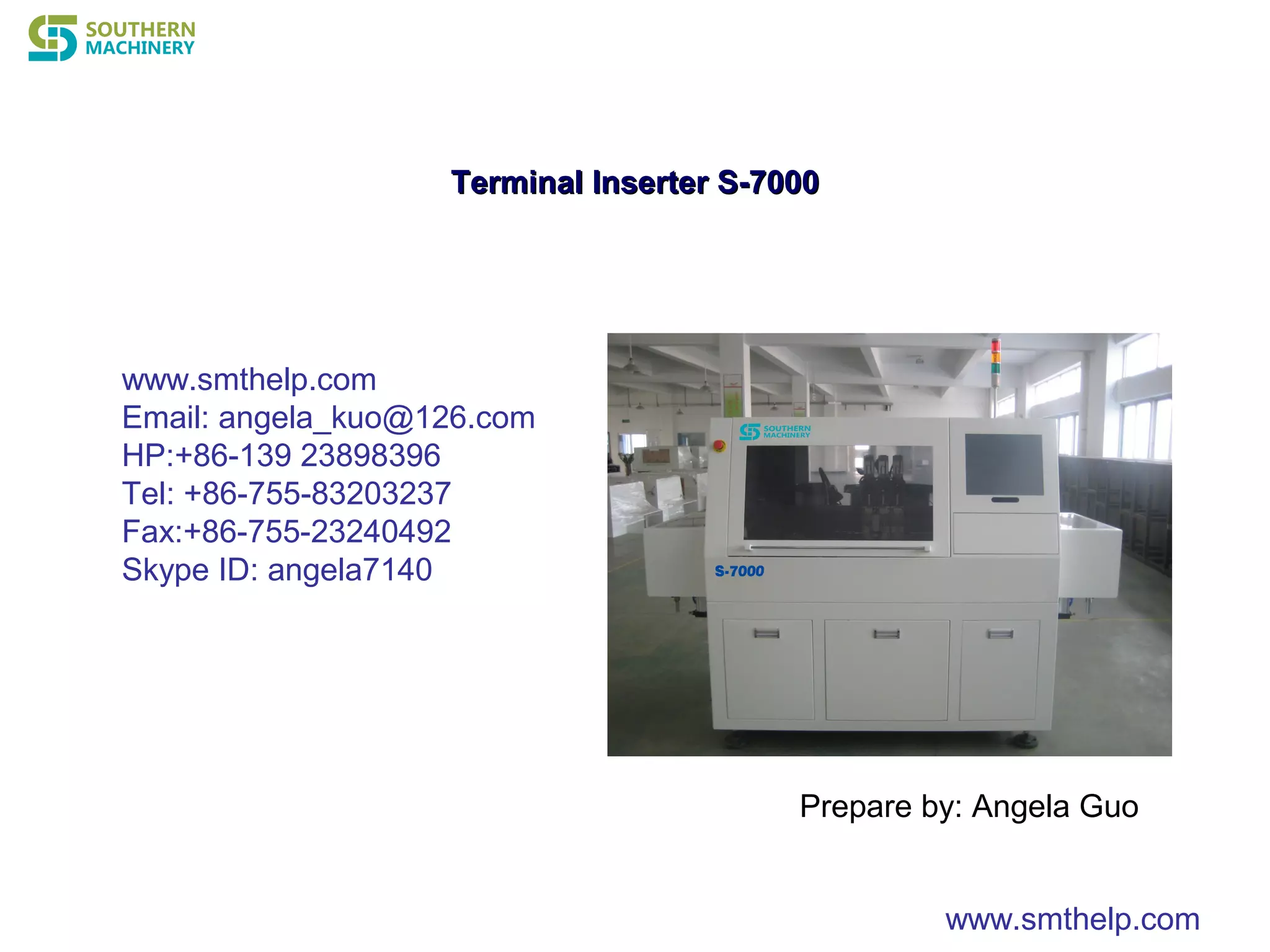

Terminal InserterTerminal Inserter S-7000S-7000
www.smthelp.com

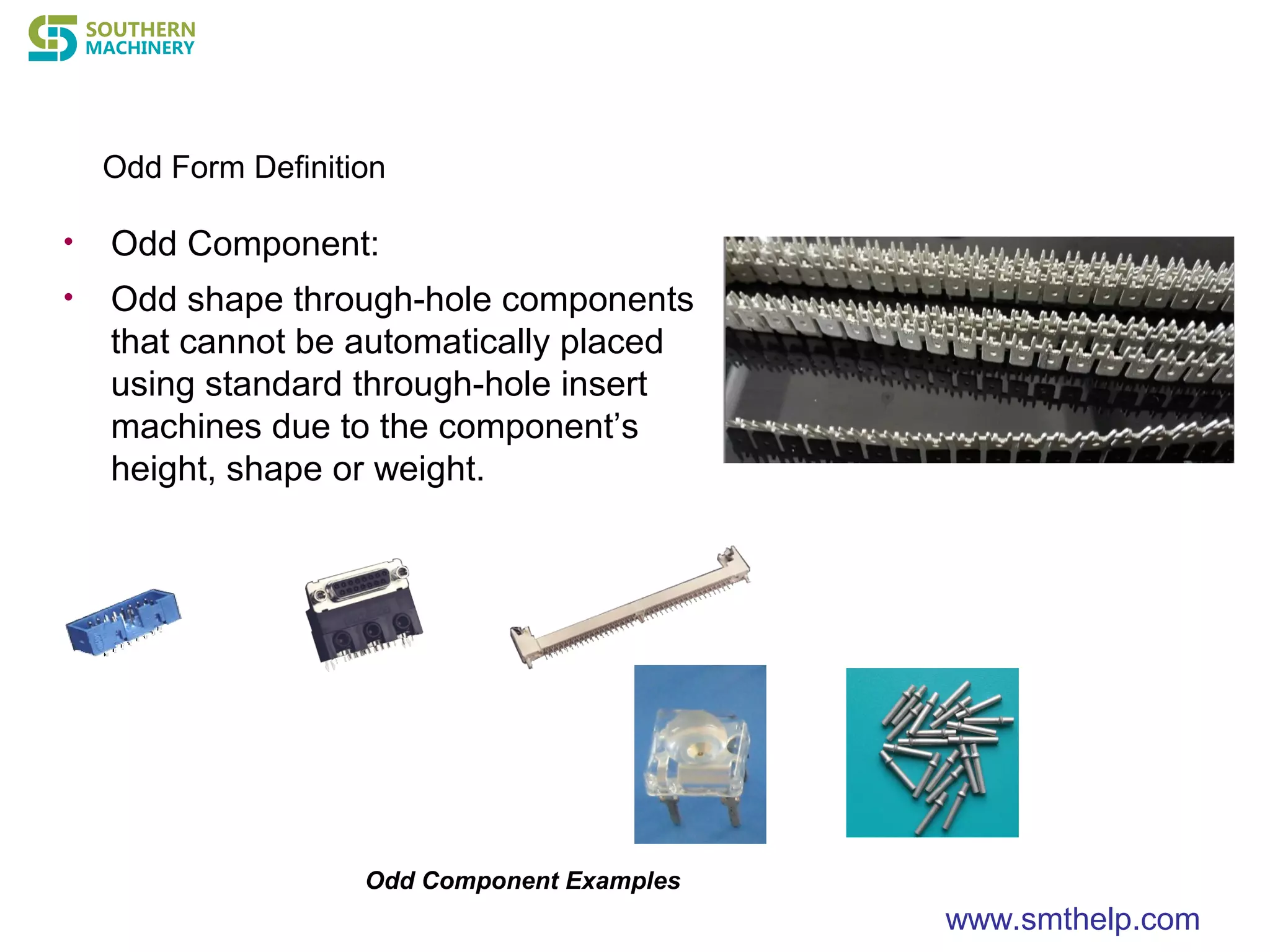

2. Odd Form Definition
• Odd Component:
• Odd shape through-hole components
that cannot be automatically placed
using standard through-hole insert
machines due to the component’s
height, shape or weight.
Odd Component Examples
www.smthelp.com

3. Odd Form Trends
– Drive to reduce defects
– Increase throughput
– Cost/availability of manual labor
– Packages becoming available
– Reduce cost of manufacturing
www.smthelp.com

4. Market Focus – Odd Form AssemblyMarket Focus – Odd Form Assembly
• Odd form factor component handling for PCB
assembly
– Market Challenges
• Irregular packaging
• Conversion from Hand assembly
• Competing in low cost markets
• No industry standards governing assembly process
• Large / heavy components
• High force requirements
– S7000 Advantage
• Most flexible head available on the market
• Vision component inspection enables use in Pin in
Paste applications
• Vision component inspection finds quality problems
before insertion
• Data driven programming and component database
bridges the gap between custom automation and
Surface Mount assembly machines
www.smthelp.com

5. Terminal Inserter S-7000

Single Head to Four Head (Optional)

Insertion speeds up to 8,000/hour

Lowest cost of ownership in the industry
Through Hole Products
www.smthelp.com

6. •
Tact Switch InserterTact Switch Inserter S-7000S-7000 - In Detail- In Detail
-Highest Throughput
•8,000 CPH Spec Speed
-Insertion Head
• Single Head to Four Head (Optional)
- Lowers Cost of Ownership
• Low Energy costs. Power supply: 2.0KVA
• Minimal preventative maintenance required.
RMB2,000/Month/Unit
- Easy to Use User Interface
• Easy operation, use Excel program and USB input.
• Off-line programming available
• Components available: Tact Switch, Outer diameter: 6.0×6.0-
10×10 、 Handle length ≤3.5mm.
www.smthelp.com

7. S7000 Terminal Insertion Specification Parameter
www.smthelp.com

8. S7000 Terminal
Insertion can meet
the needs of a
variety of different
types of terminal
Insertion.
www.smthelp.com

9. The two braid packaging components
www.smthelp.com

10. PCB makeup style
figure (32 spell)
Finished product and
curved foot requirements
after instrumentation
www.smthelp.com

11. Successful case
example ：
www.smthelp.com

12. Terminal Inserter S-7000
S-7000 Video
https://youtu.be/IC_Ap_Csw5s
