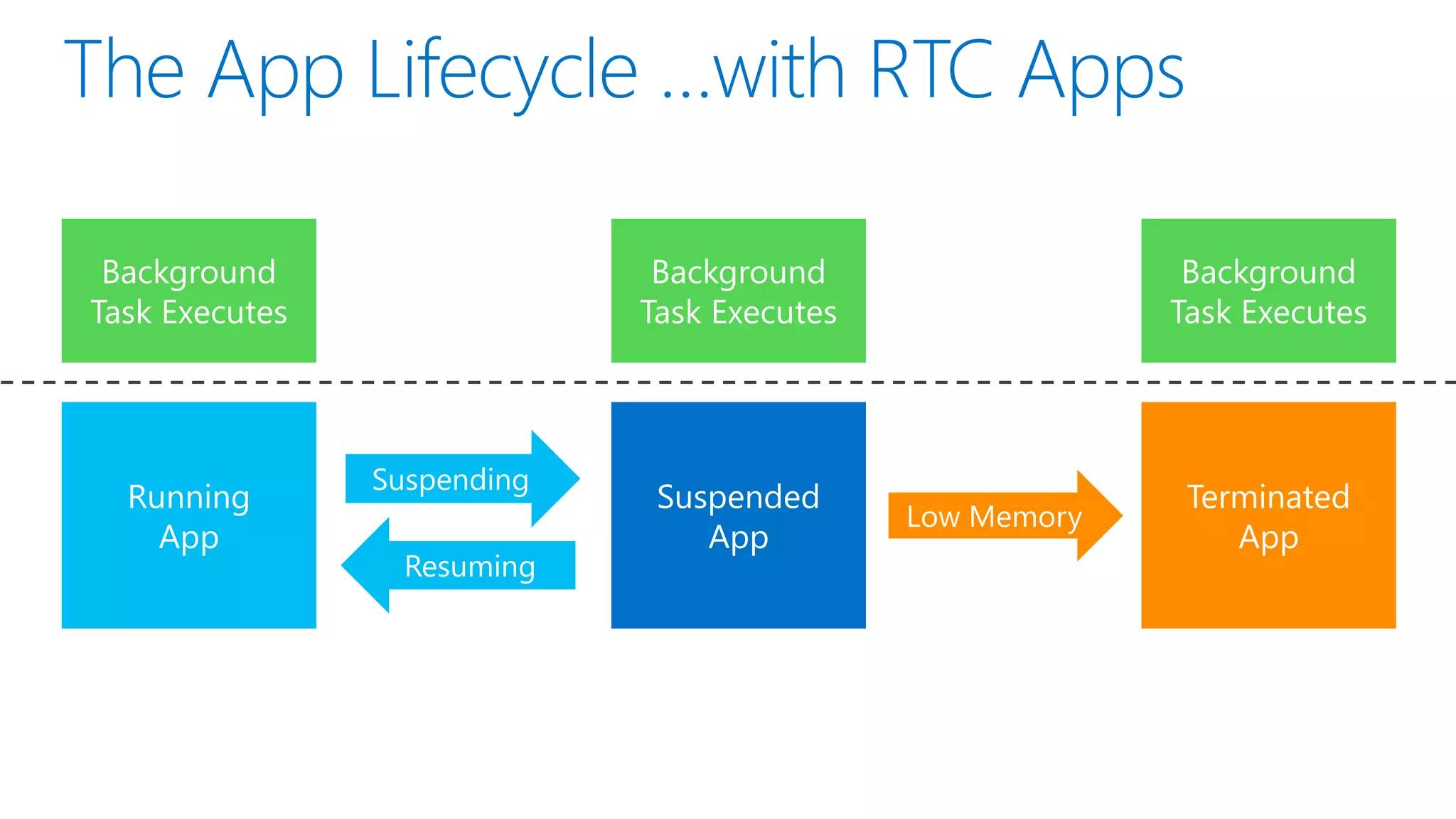

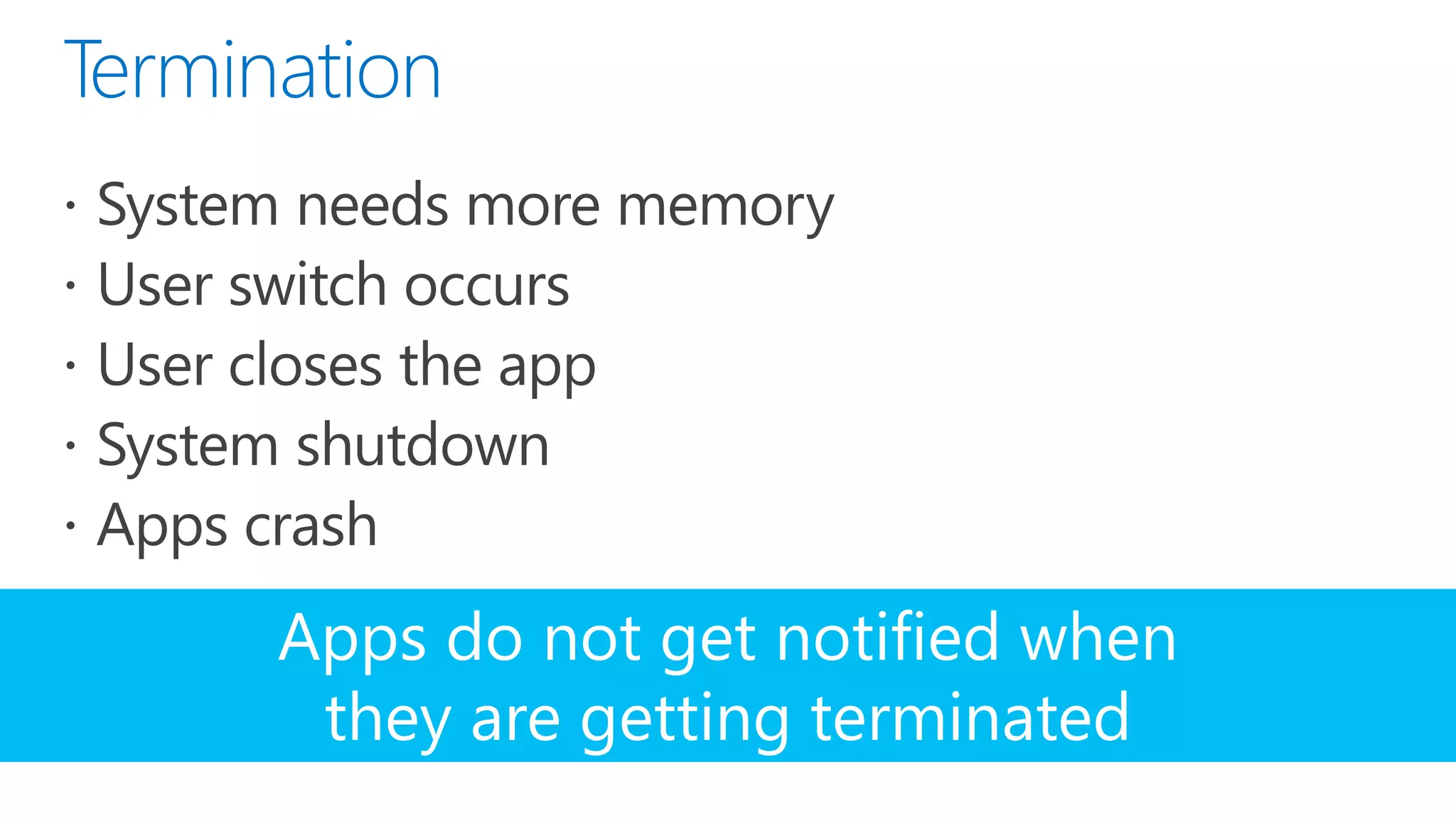

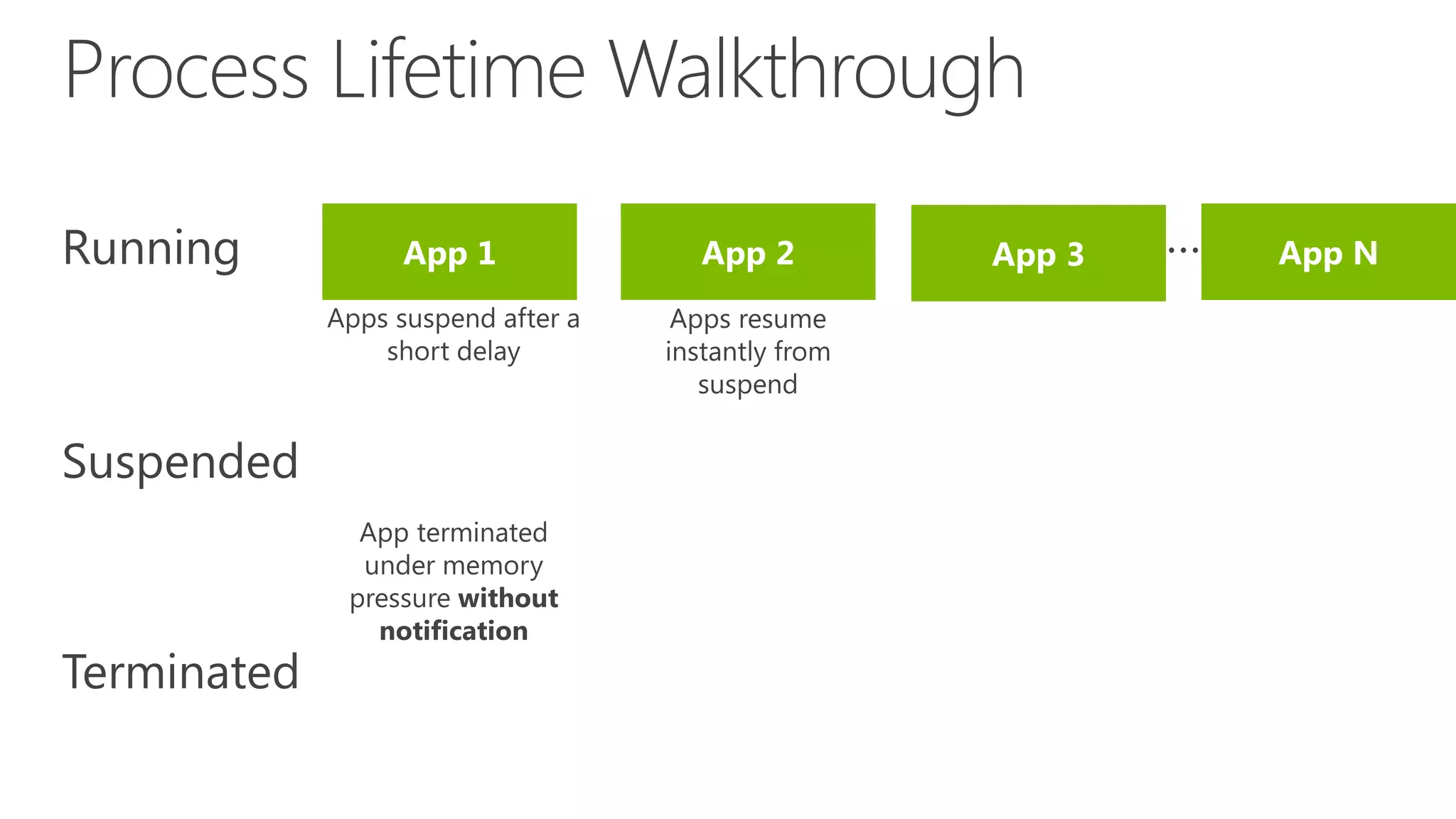

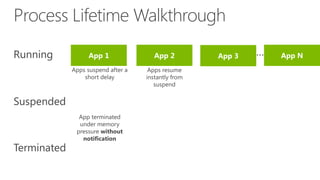

6. Apps do not get notified when
they are getting terminated

7. demo

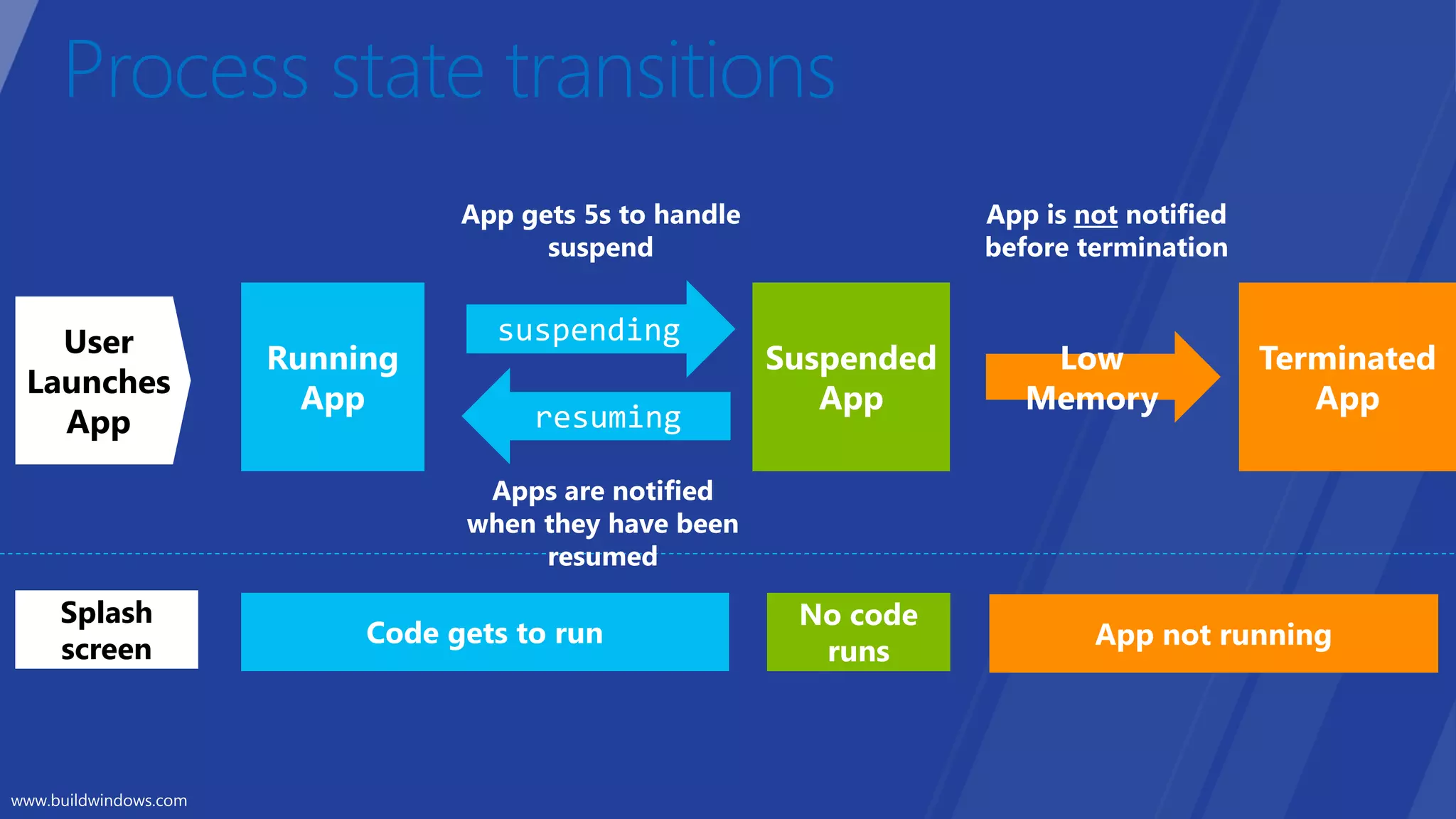

8. User
Launches
App
Splash
screen

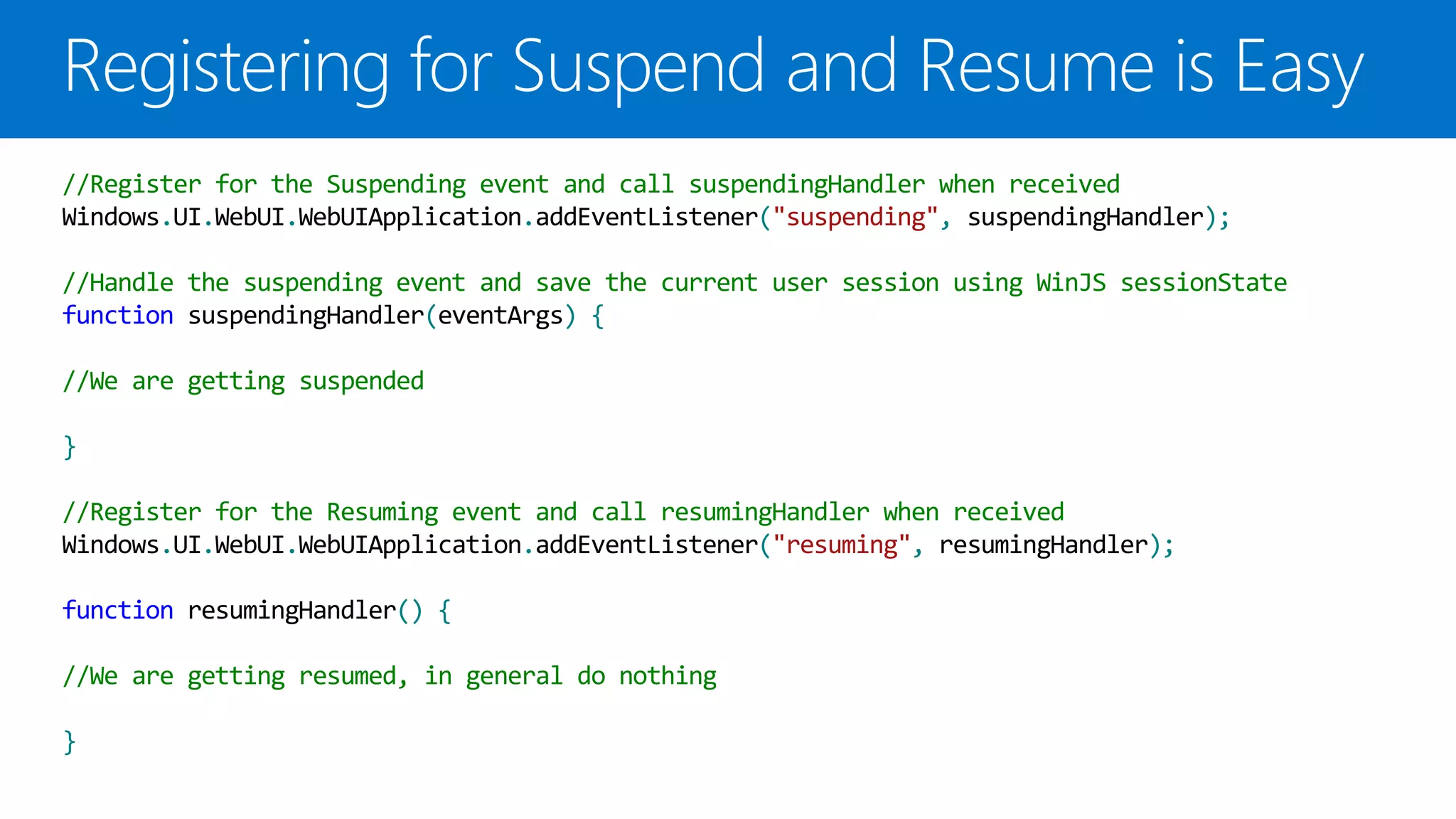

9. //Register for the Suspending event and call suspendingHandler when received
Windows.UI.WebUI.WebUIApplication.addEventListener("suspending", suspendingHandler);

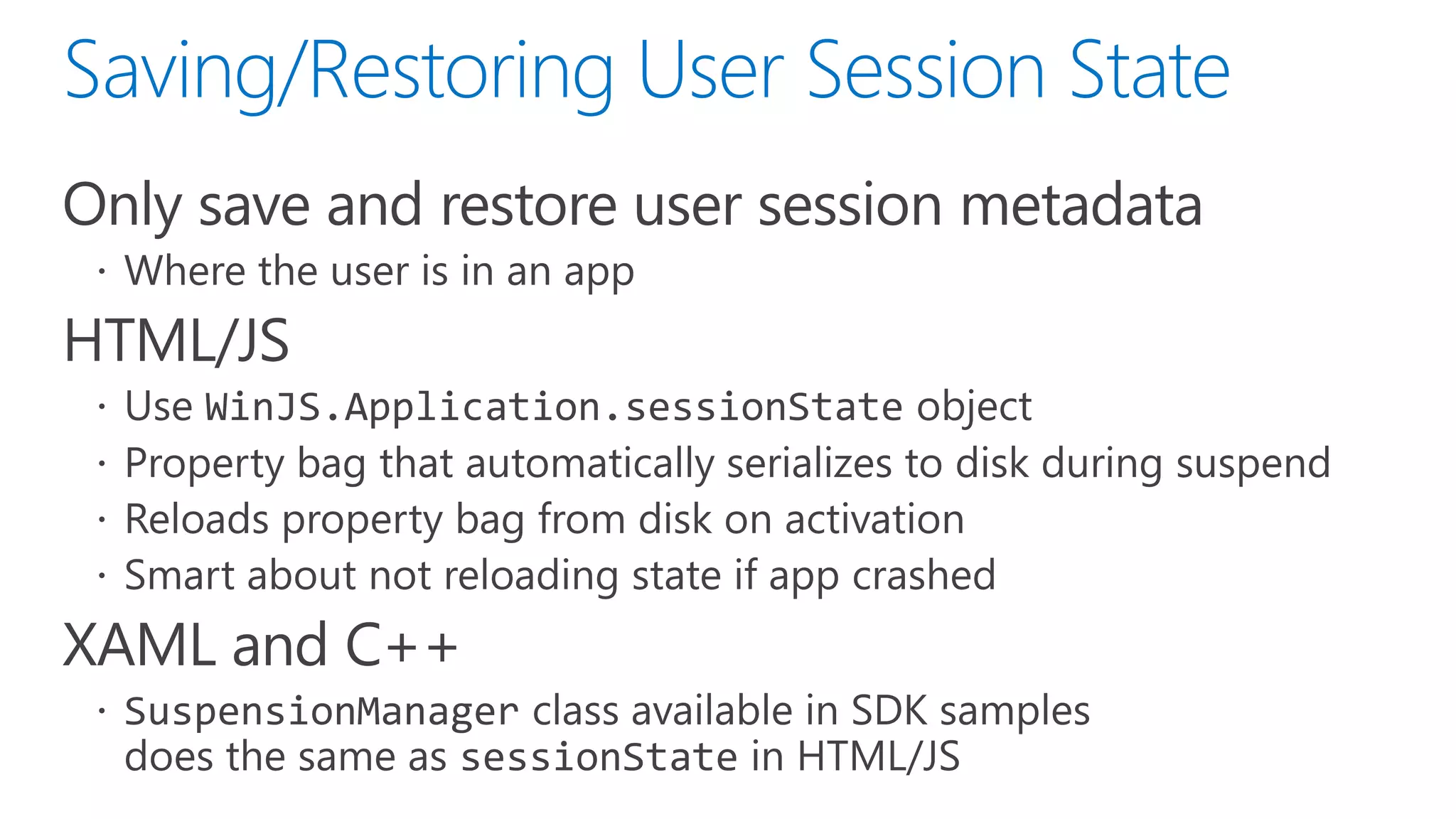

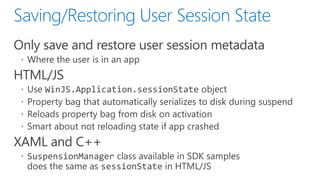

//Handle the suspending event and save the current user session using WinJS sessionState
function suspendingHandler(eventArgs) {
//We are getting suspended
}
//Register for the Resuming event and call resumingHandler when received
Windows.UI.WebUI.WebUIApplication.addEventListener("resuming", resumingHandler);
function resumingHandler() {
//We are getting resumed, in general do nothing
}

11. demo

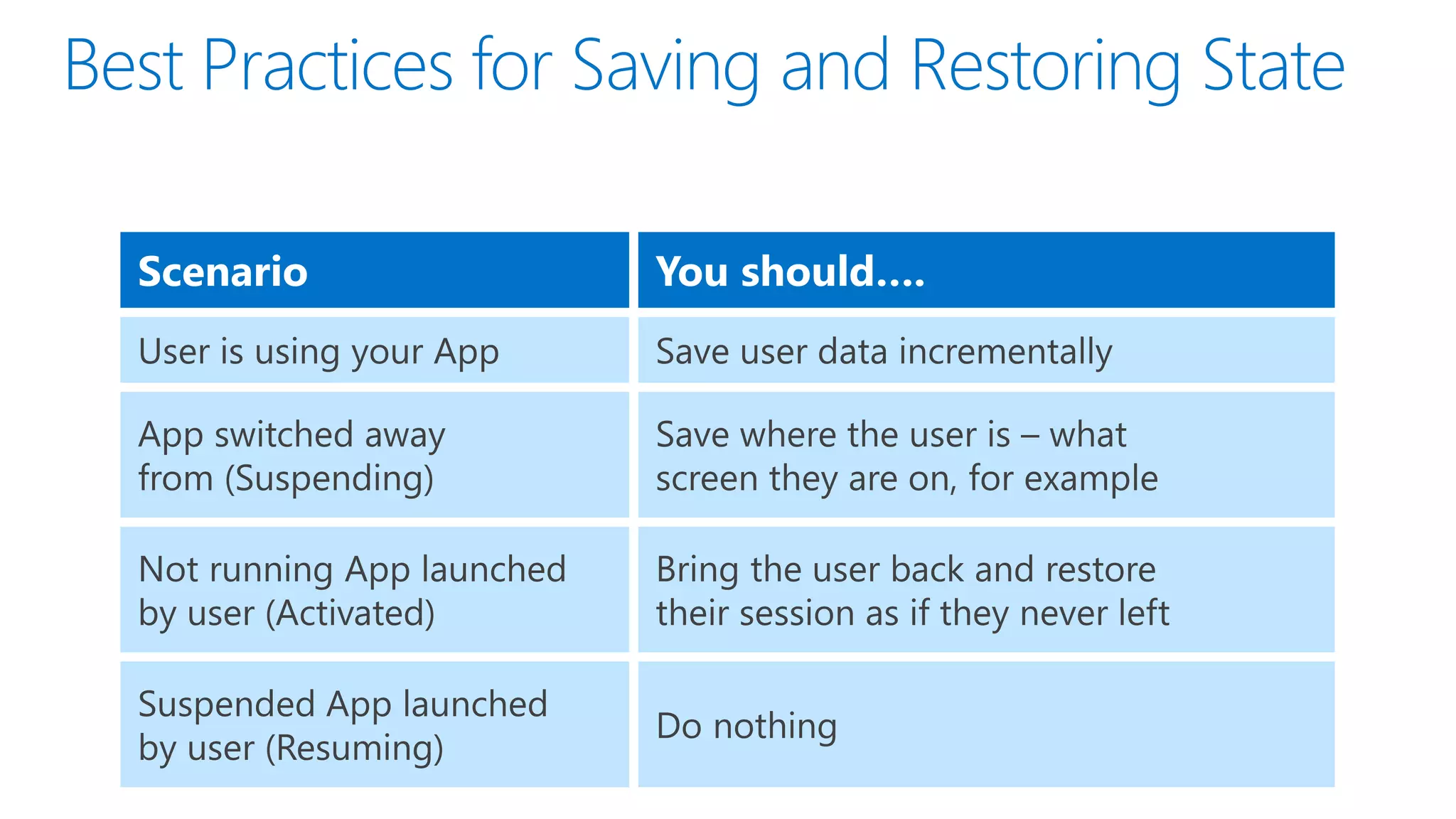

14. Scenario You should….

15. demo

20. demo

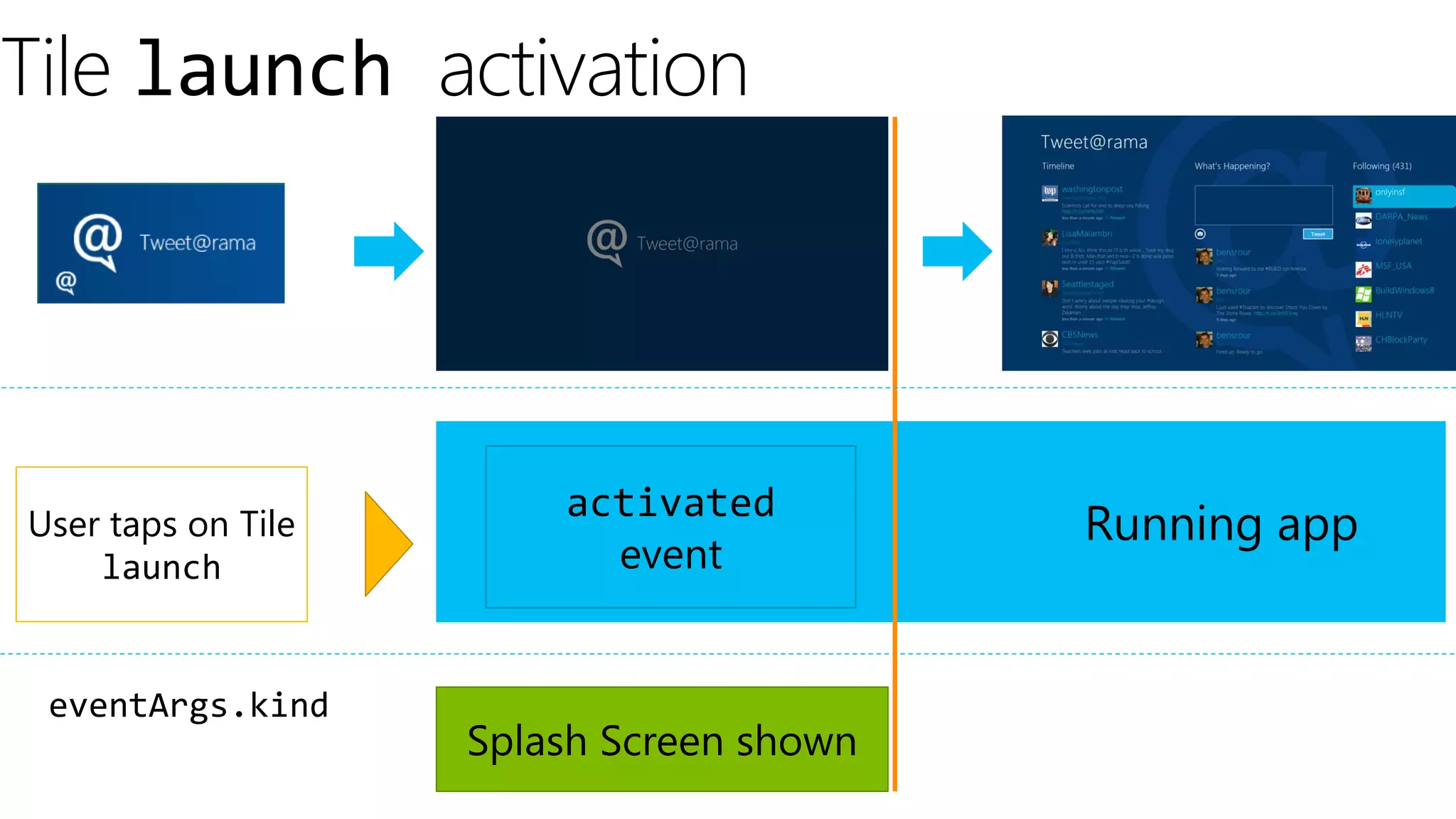

23. Tile launch activation
activated
User taps on Tile Running app
launch event
eventArgs.kind
Splash Screen shown

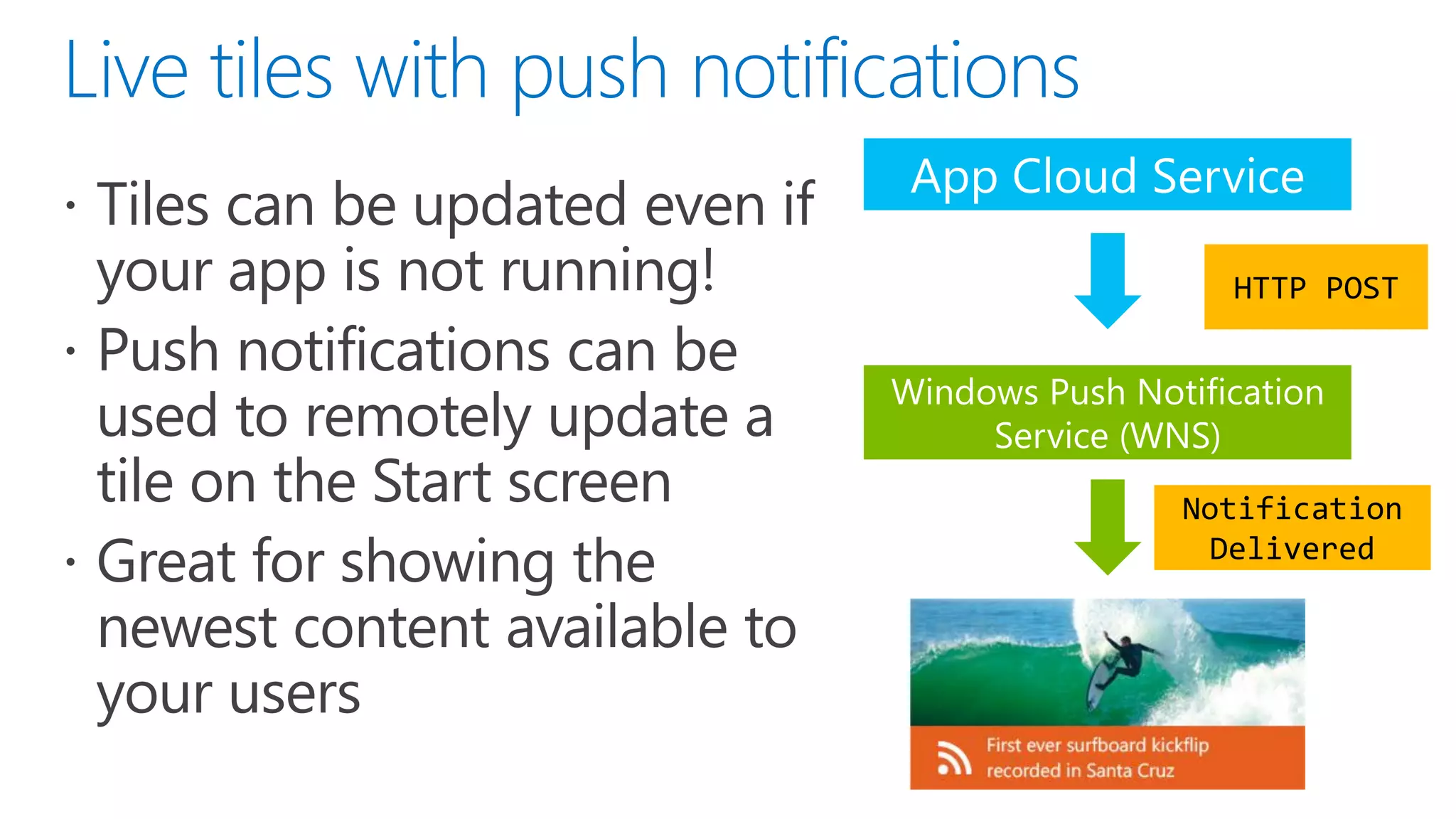

27. HTTP POST
Notification
Delivered

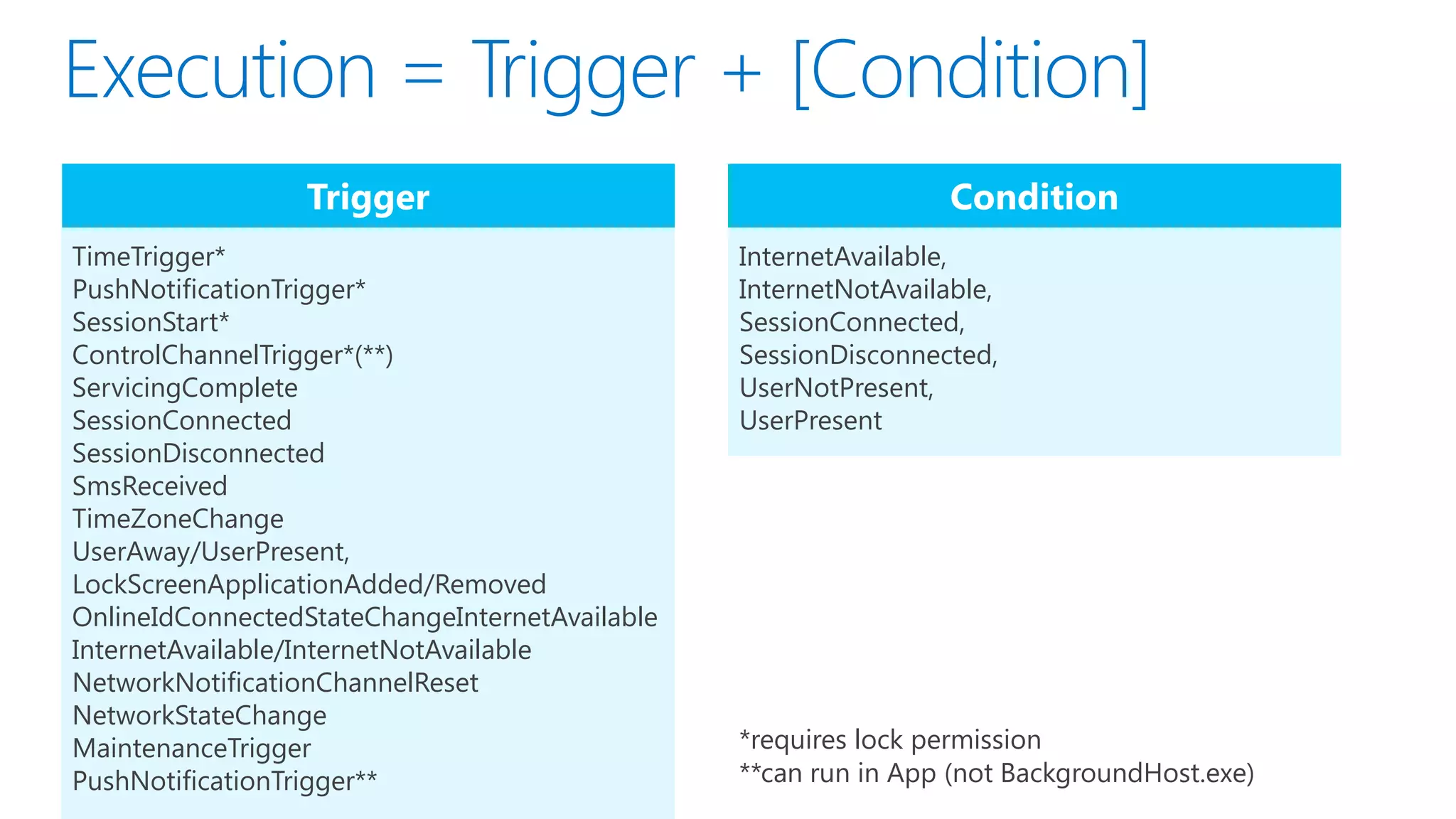

34. Trigger Condition
TimeTrigger* InternetAvailable,
PushNotificationTrigger* InternetNotAvailable,
SessionStart* SessionConnected,
ControlChannelTrigger*(**) SessionDisconnected,
ServicingComplete UserNotPresent,
SessionConnected UserPresent
SessionDisconnected
SmsReceived
TimeZoneChange
UserAway/UserPresent,
LockScreenApplicationAdded/Removed
OnlineIdConnectedStateChangeInternetAvailable
InternetAvailable/InternetNotAvailable
NetworkNotificationChannelReset
NetworkStateChange
MaintenanceTrigger *requires lock permission
PushNotificationTrigger** **can run in App (not BackgroundHost.exe)

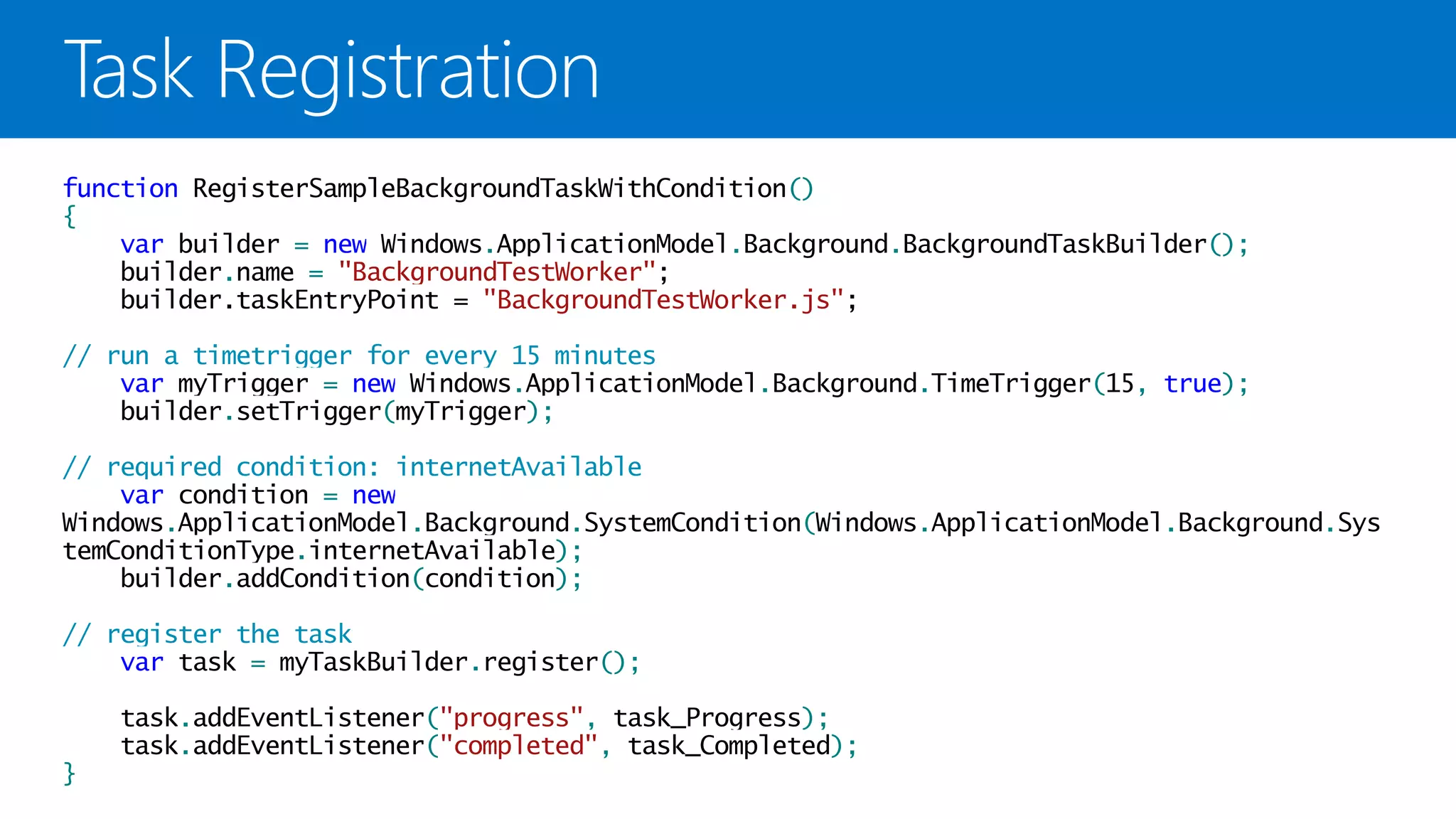

35. function RegisterSampleBackgroundTaskWithCondition()
{
var builder = new Windows.ApplicationModel.Background.BackgroundTaskBuilder();
builder.name = "BackgroundTestWorker";
builder.taskEntryPoint = "BackgroundTestWorker.js";
// run a timetrigger for every 15 minutes
var myTrigger = new Windows.ApplicationModel.Background.TimeTrigger(15, true);
builder.setTrigger(myTrigger);
// required condition: internetAvailable
var condition = new
Windows.ApplicationModel.Background.SystemCondition(Windows.ApplicationModel.Background.Sys
temConditionType.internetAvailable);
builder.addCondition(condition);
// register the task
var task = myTaskBuilder.register();
task.addEventListener("progress", task_Progress);
task.addEventListener("completed", task_Completed);
}

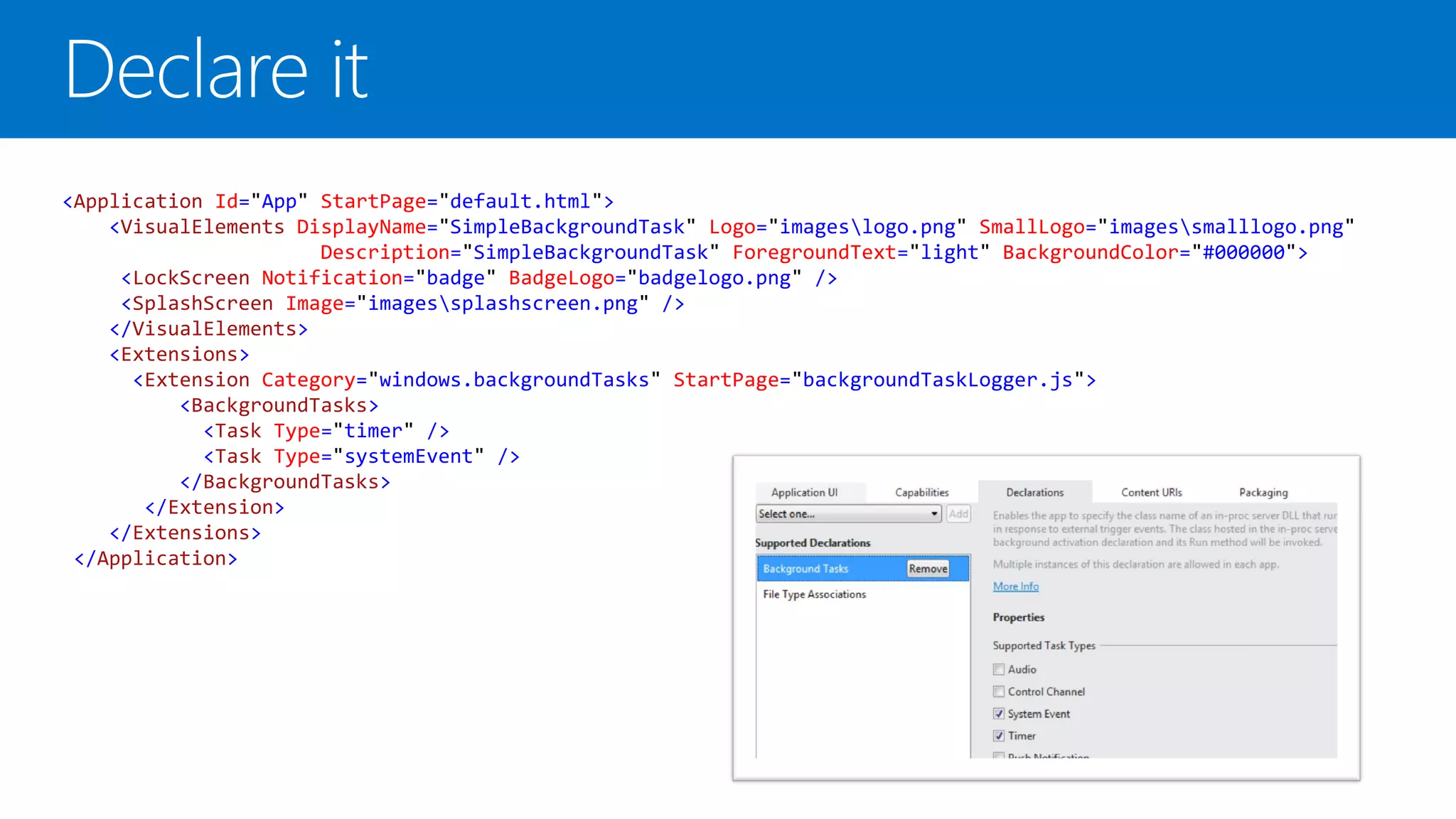

36. <Application Id="App" StartPage="default.html">
<VisualElements DisplayName="SimpleBackgroundTask" Logo="imageslogo.png" SmallLogo="imagessmalllogo.png"
Description="SimpleBackgroundTask" ForegroundText="light" BackgroundColor="#000000">
<LockScreen Notification="badge" BadgeLogo="badgelogo.png" />
<SplashScreen Image="imagessplashscreen.png" />
</VisualElements>
<Extensions>
<Extension Category="windows.backgroundTasks" StartPage="backgroundTaskLogger.js">
<BackgroundTasks>
<Task Type="timer" />
<Task Type="systemEvent" />
</BackgroundTasks>
</Extension>
</Extensions>
</Application>

37. demo

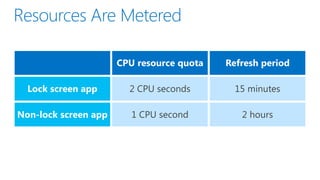

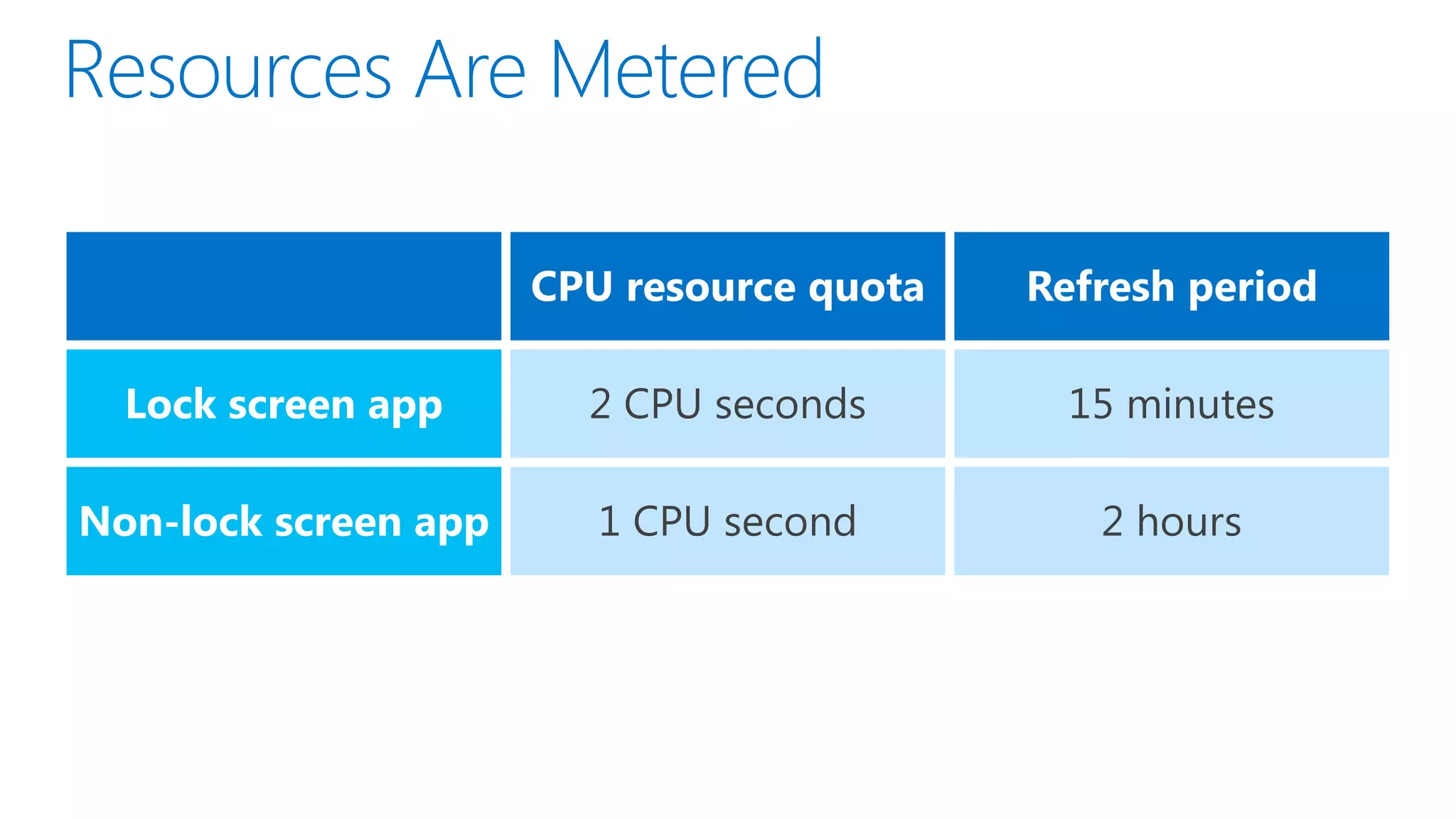

39. CPU resource quota Refresh period
Lock screen app
Non-lock screen app
