This document discusses web UI testing in Scala using Selenium. It recommends Selenium for cross-browser and cross-platform testing. Tests can be run continuously using Jenkins. The Page Object pattern is advocated to model pages without exposing implementation details. Examples show initializing the WebDriver, defining PageObjects that represent pages, and writing a test that logs in and navigates to the user management page.

1. Web UI testing in Scala
Radim.pavlicek@gmail.com
@radimpavlicek

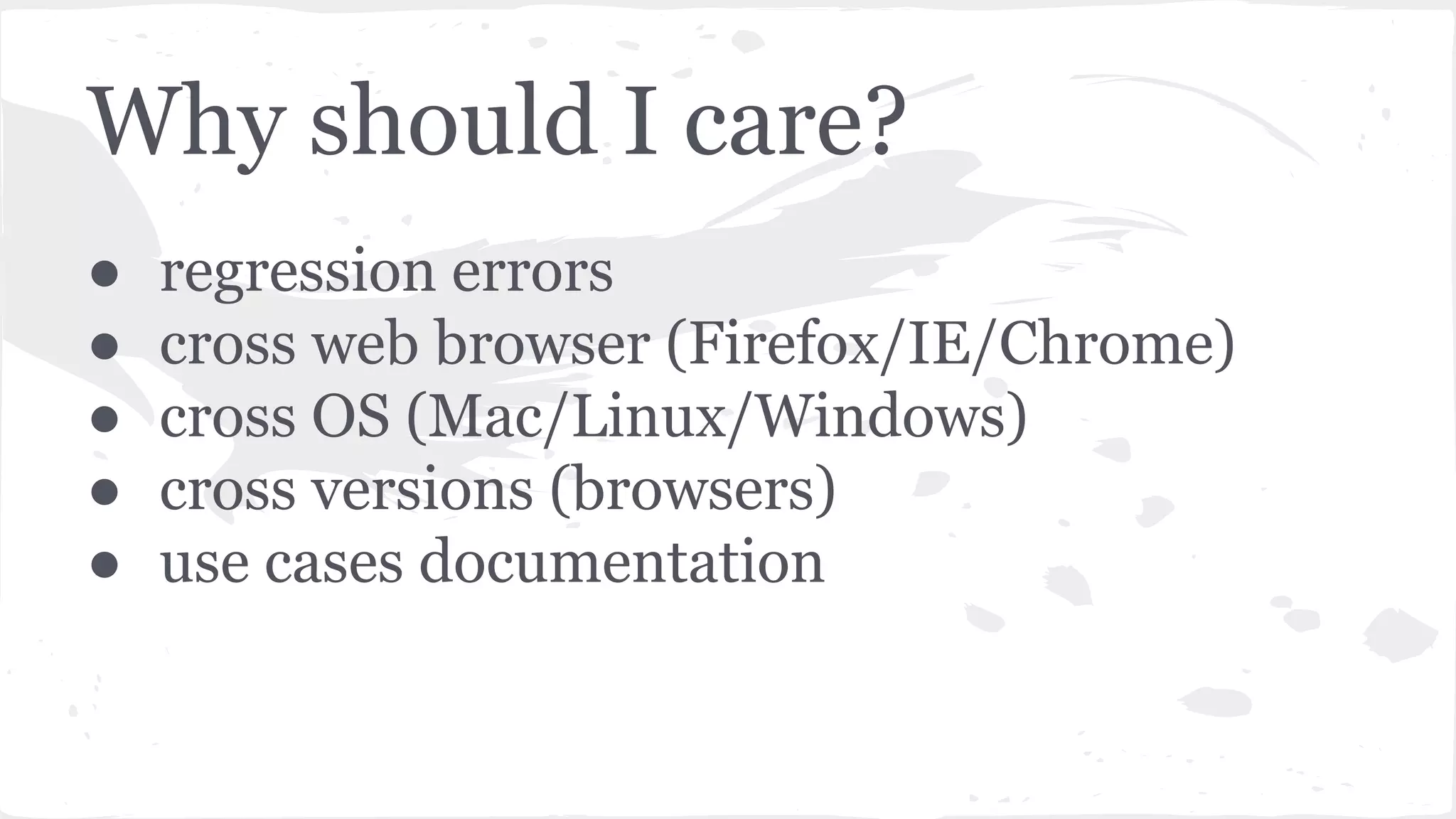

2. Why should I care?
●
●
●
●
●
regression errors
cross web browser (Firefox/IE/Chrome)
cross OS (Mac/Linux/Windows)
cross versions (browsers)
use cases documentation

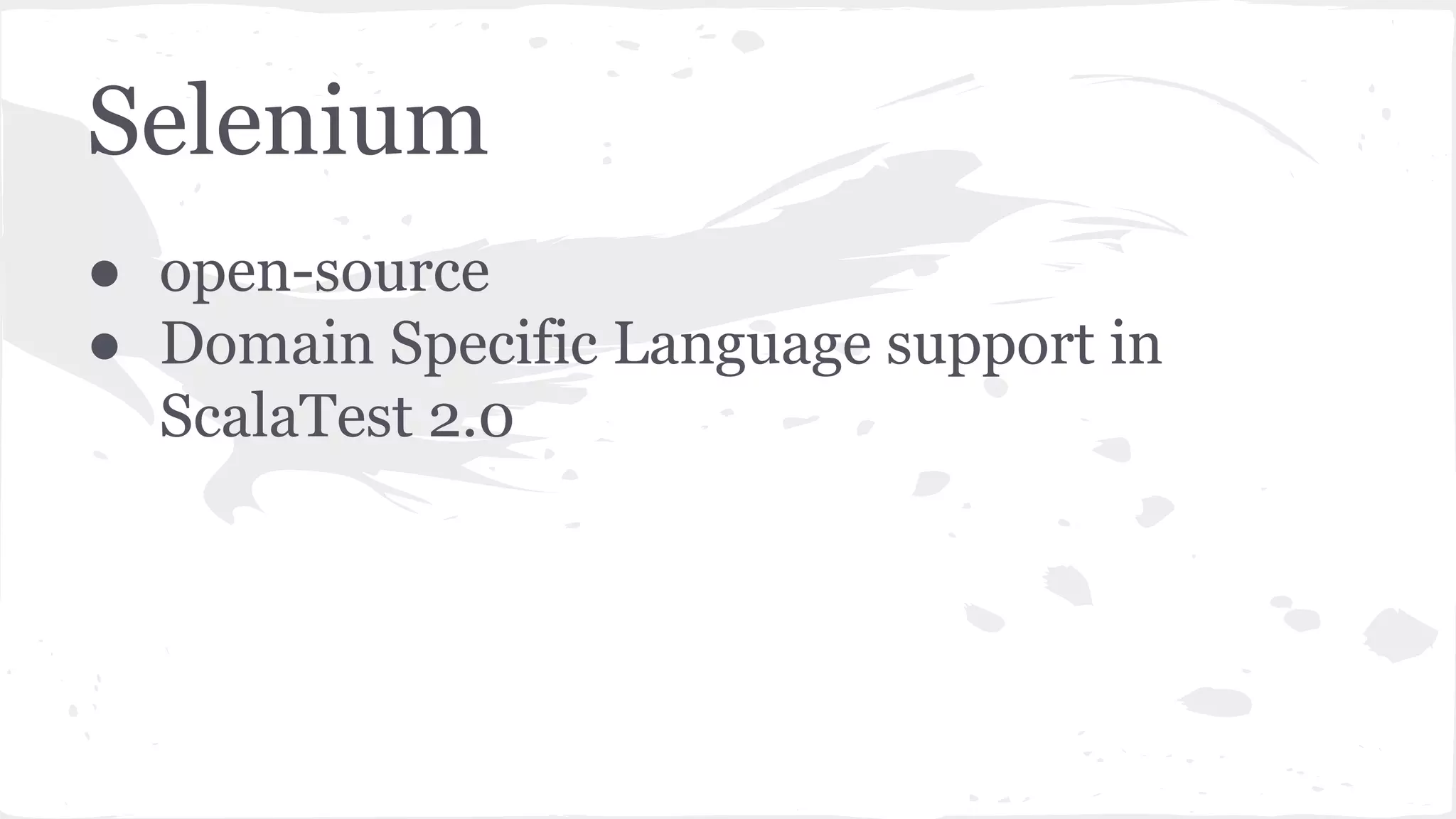

3. Selenium
● open-source
● Domain Specific Language support in
ScalaTest 2.0

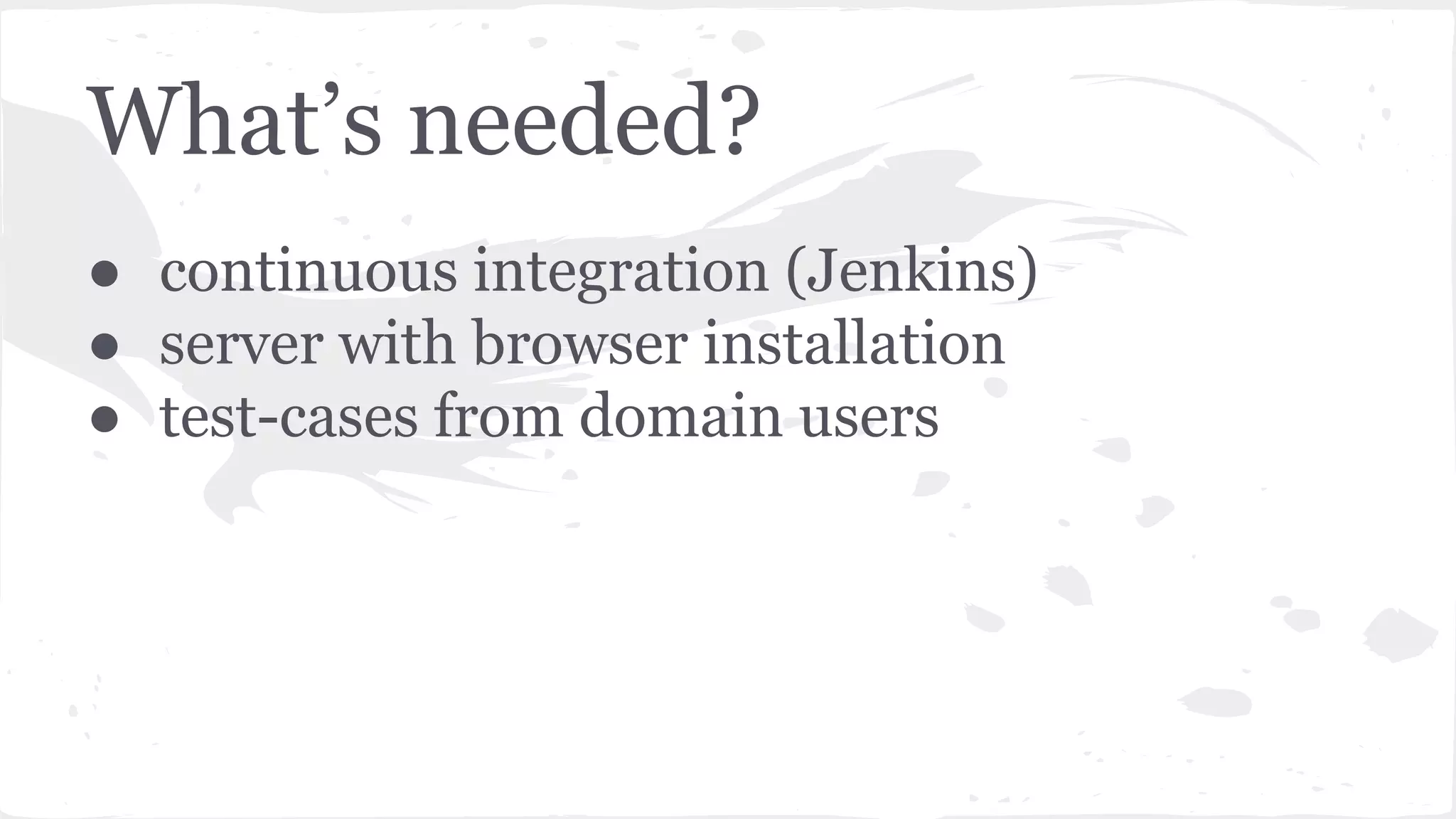

4. What’s needed?
● continuous integration (Jenkins)
● server with browser installation
● test-cases from domain users

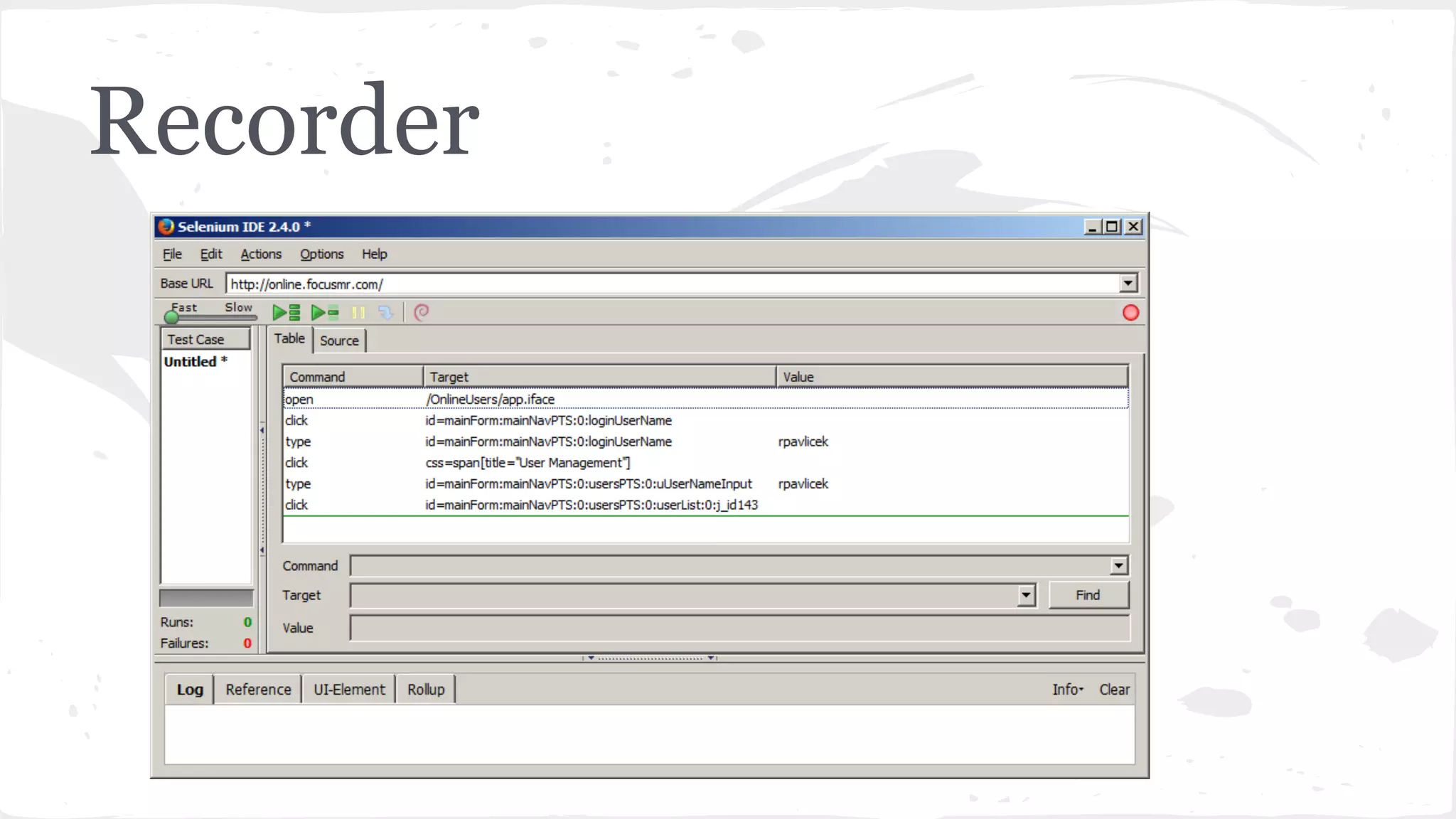

5. Recorder

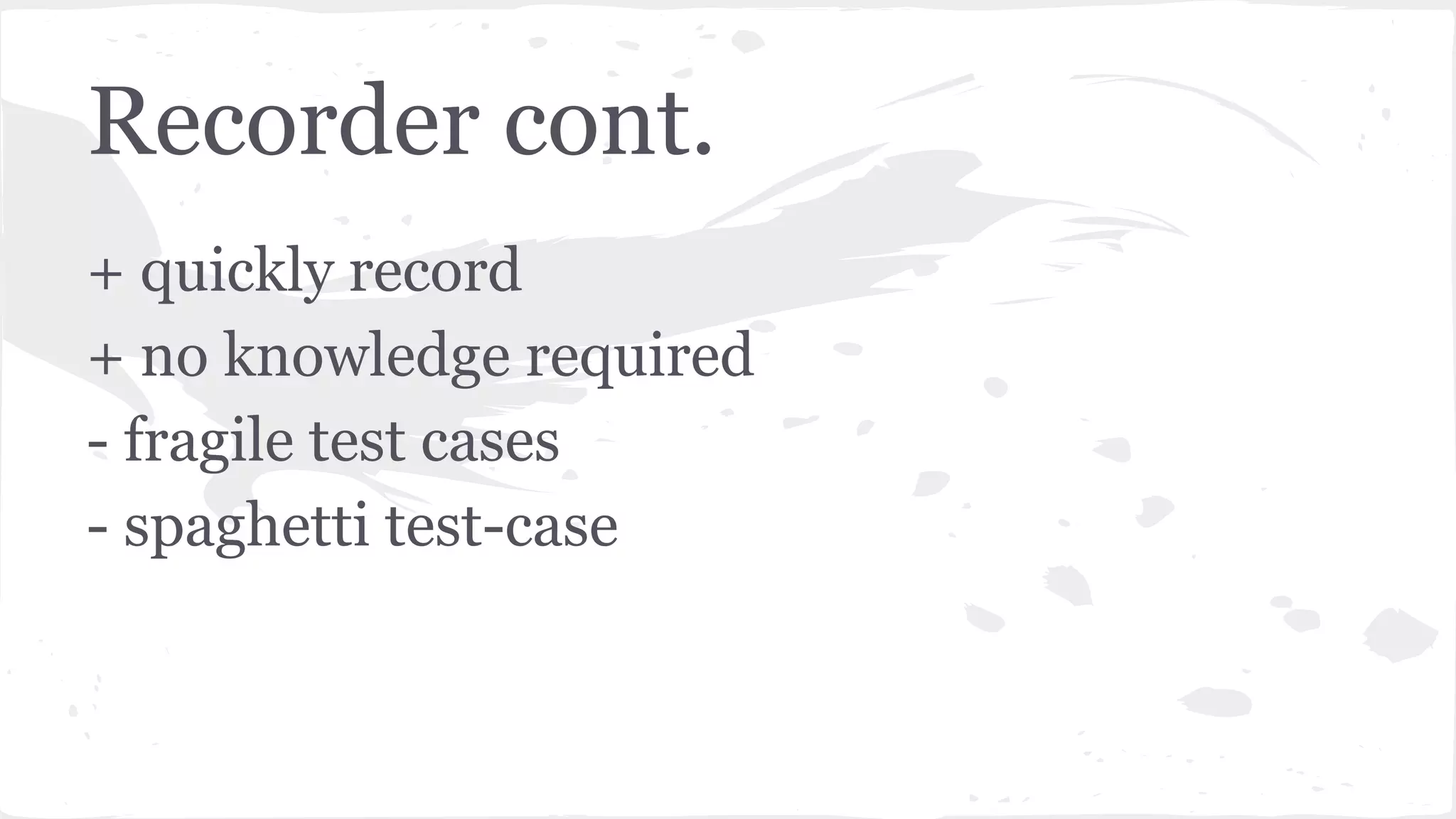

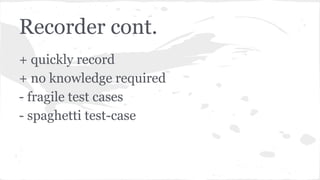

6. Recorder cont.
+ quickly record
+ no knowledge required
- fragile test cases
- spaghetti test-case

7. Example

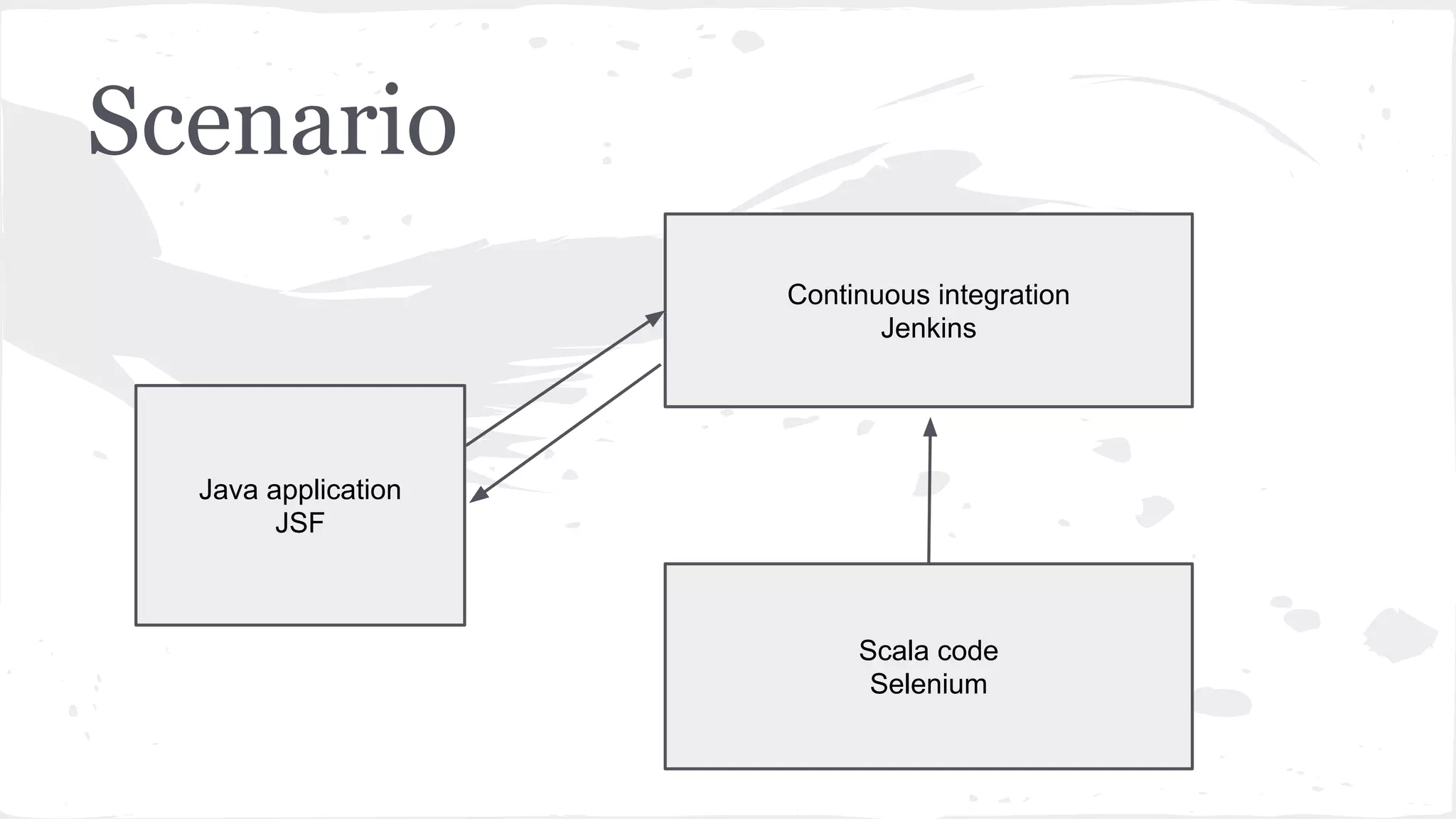

8. Scenario
Continuous integration
Jenkins
Java application
JSF
Scala code
Selenium

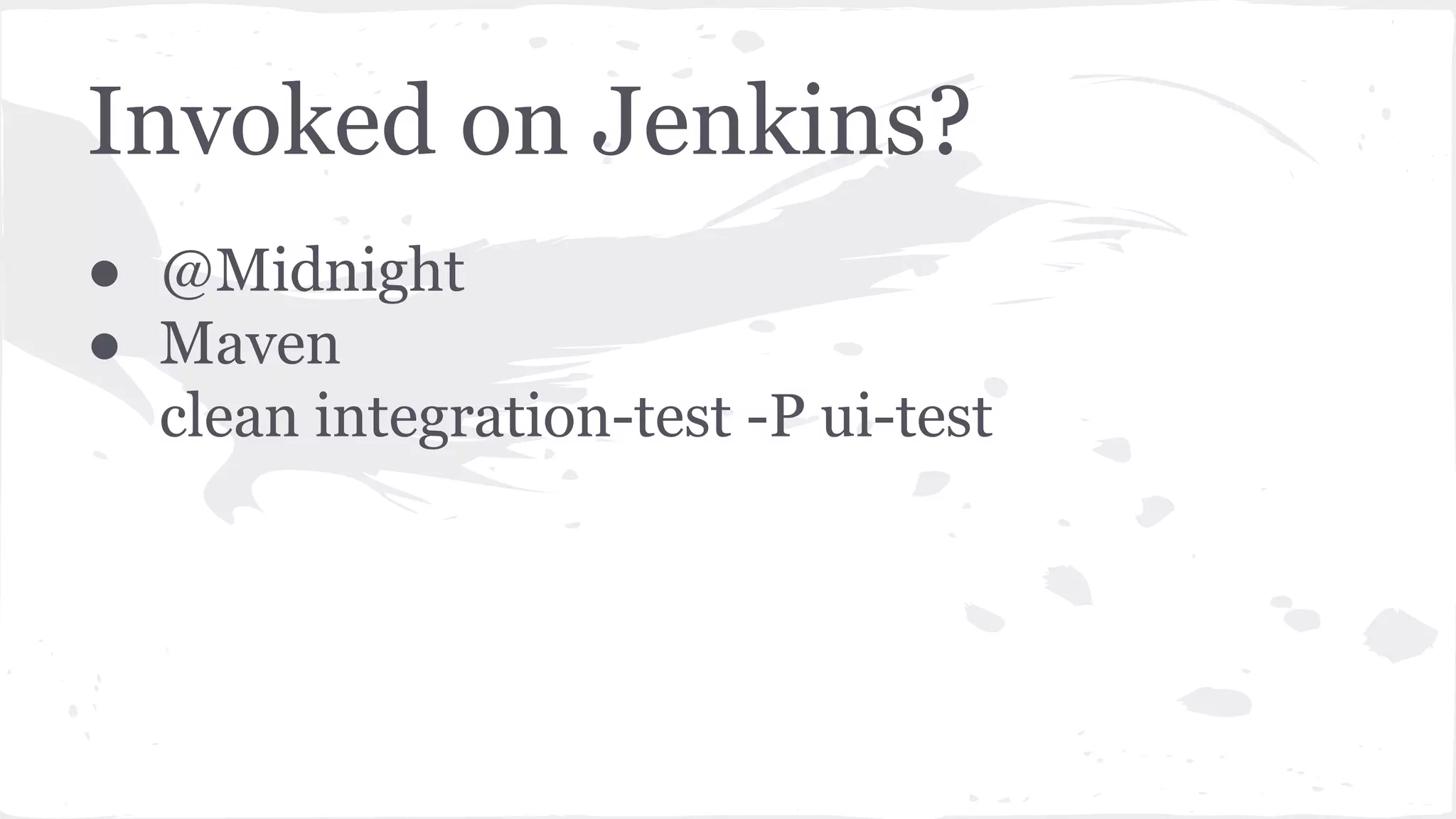

9. Invoked on Jenkins?
● @Midnight
● Maven
clean integration-test -P ui-test

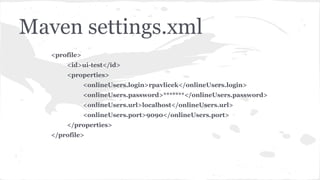

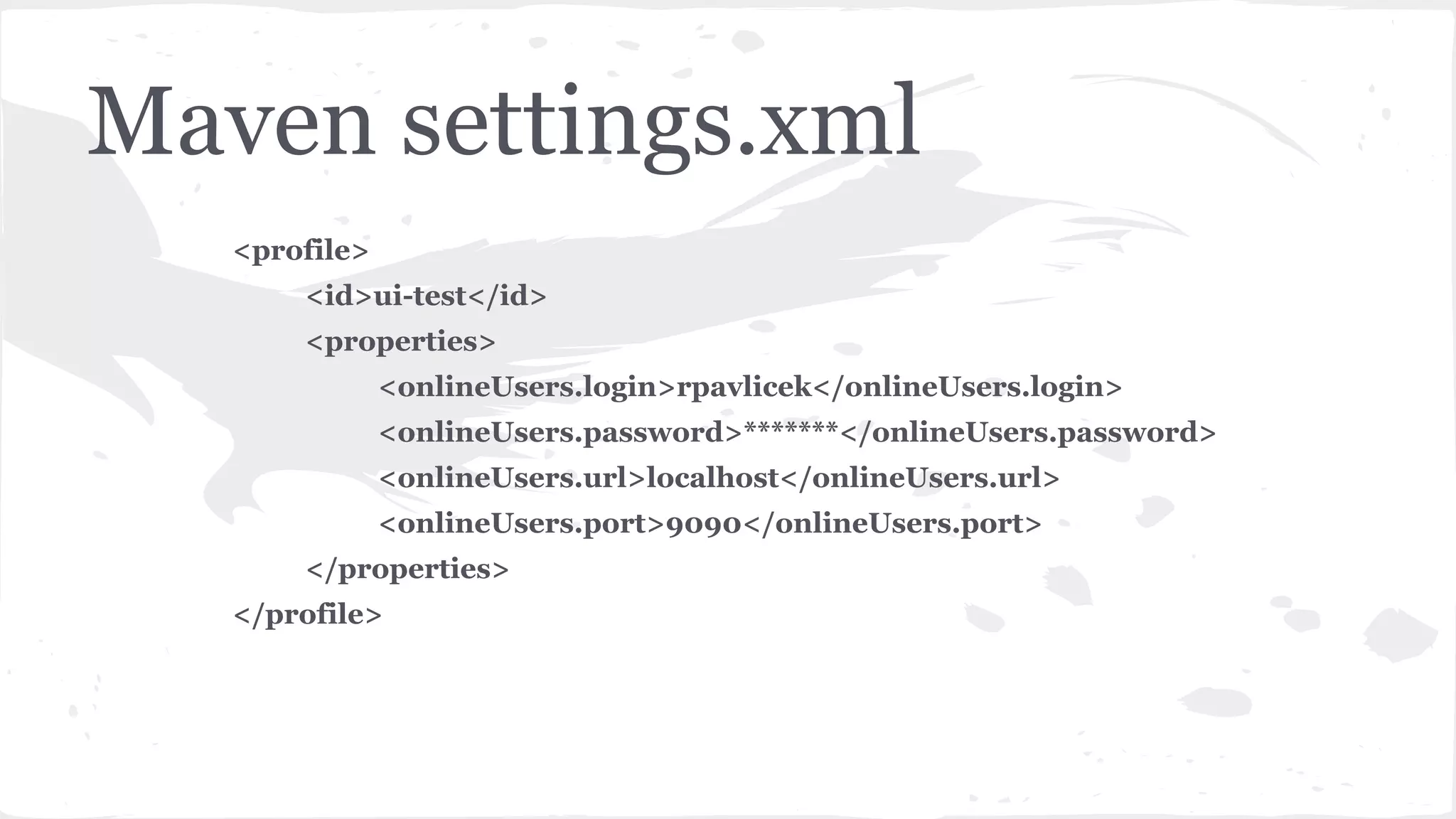

10. Maven settings.xml
<profile>
<id>ui-test</id>
<properties>
<onlineUsers.login>rpavlicek</onlineUsers.login>
<onlineUsers.password>*******</onlineUsers.password>
<onlineUsers.url>localhost</onlineUsers.url>
<onlineUsers.port>9090</onlineUsers.port>
</properties>
</profile>

11. Scala part

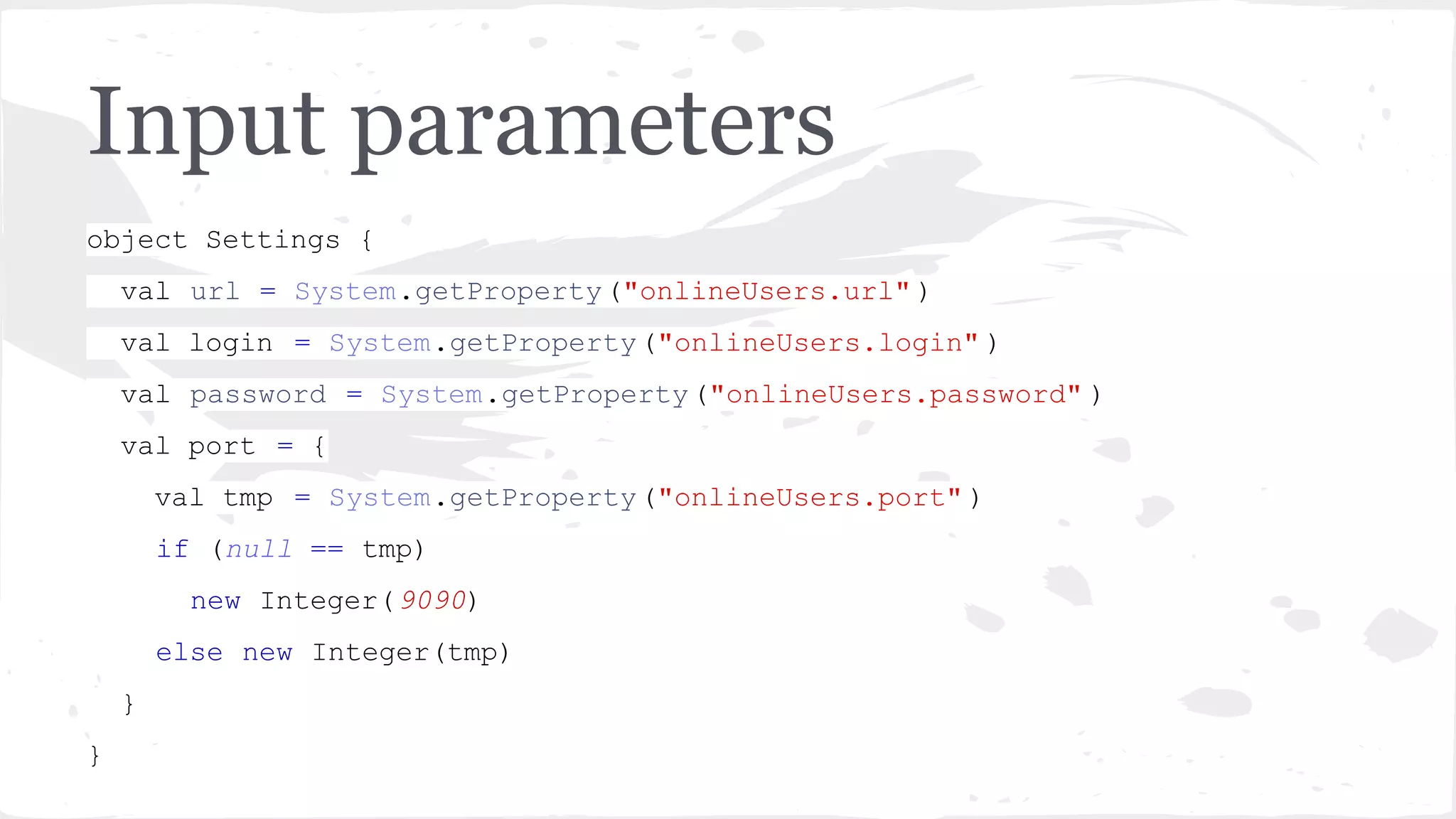

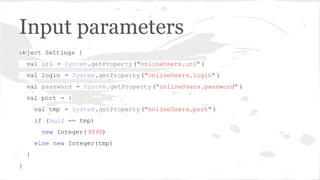

12. Input parameters
object Settings {
val url = System.getProperty ("onlineUsers.url" )
val login = System.getProperty ("onlineUsers.login" )
val password = System.getProperty ("onlineUsers.password" )
val port = {
val tmp = System.getProperty ("onlineUsers.port" )
if (null == tmp)
new Integer(9090)
else new Integer(tmp)
}
}

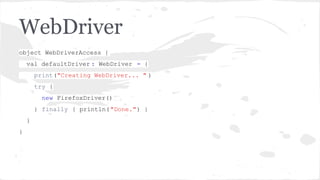

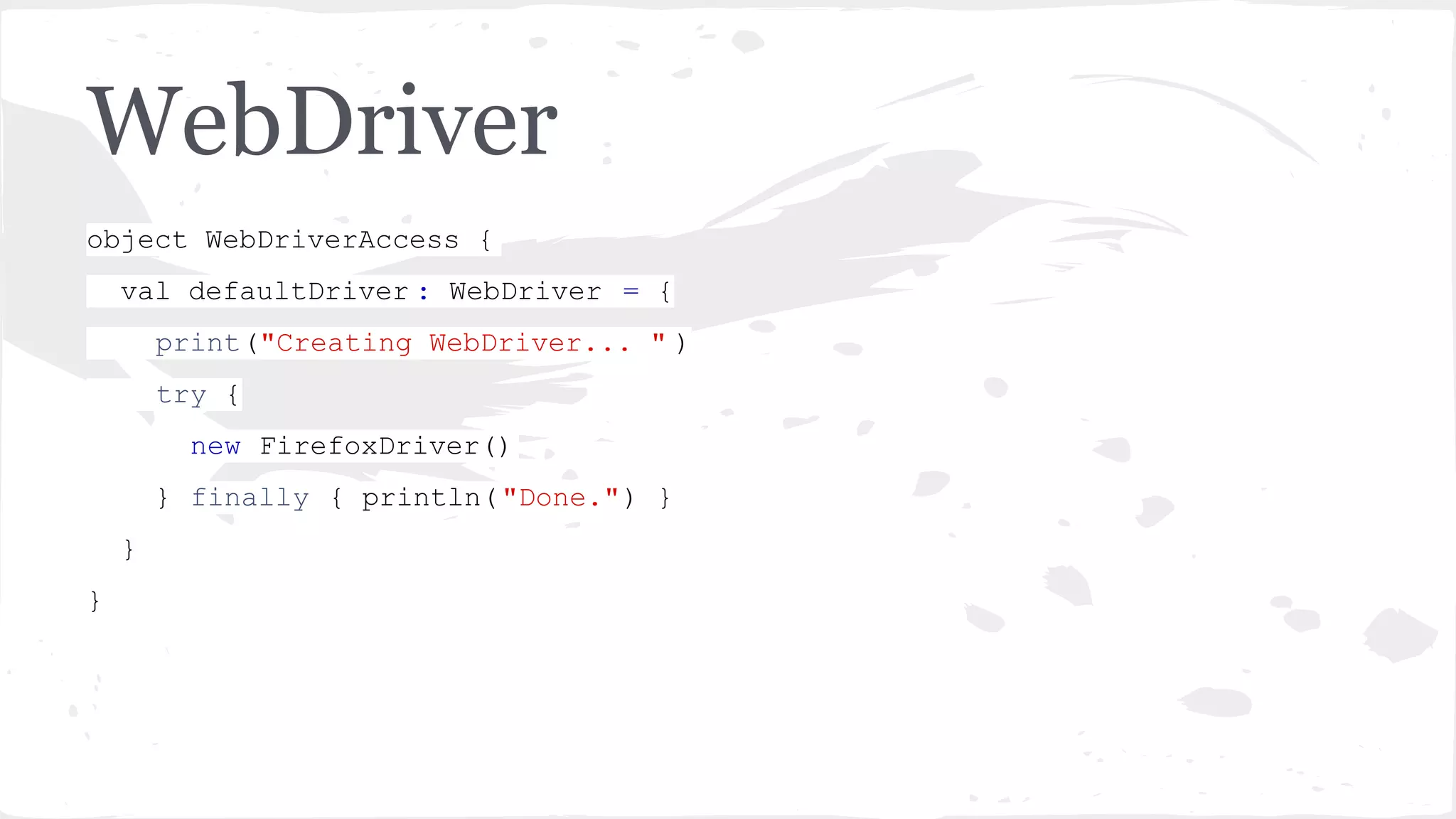

13. WebDriver
object WebDriverAccess {
val defaultDriver : WebDriver = {
print("Creating WebDriver... " )
try {
new FirefoxDriver()
} finally { println( "Done.") }
}
}

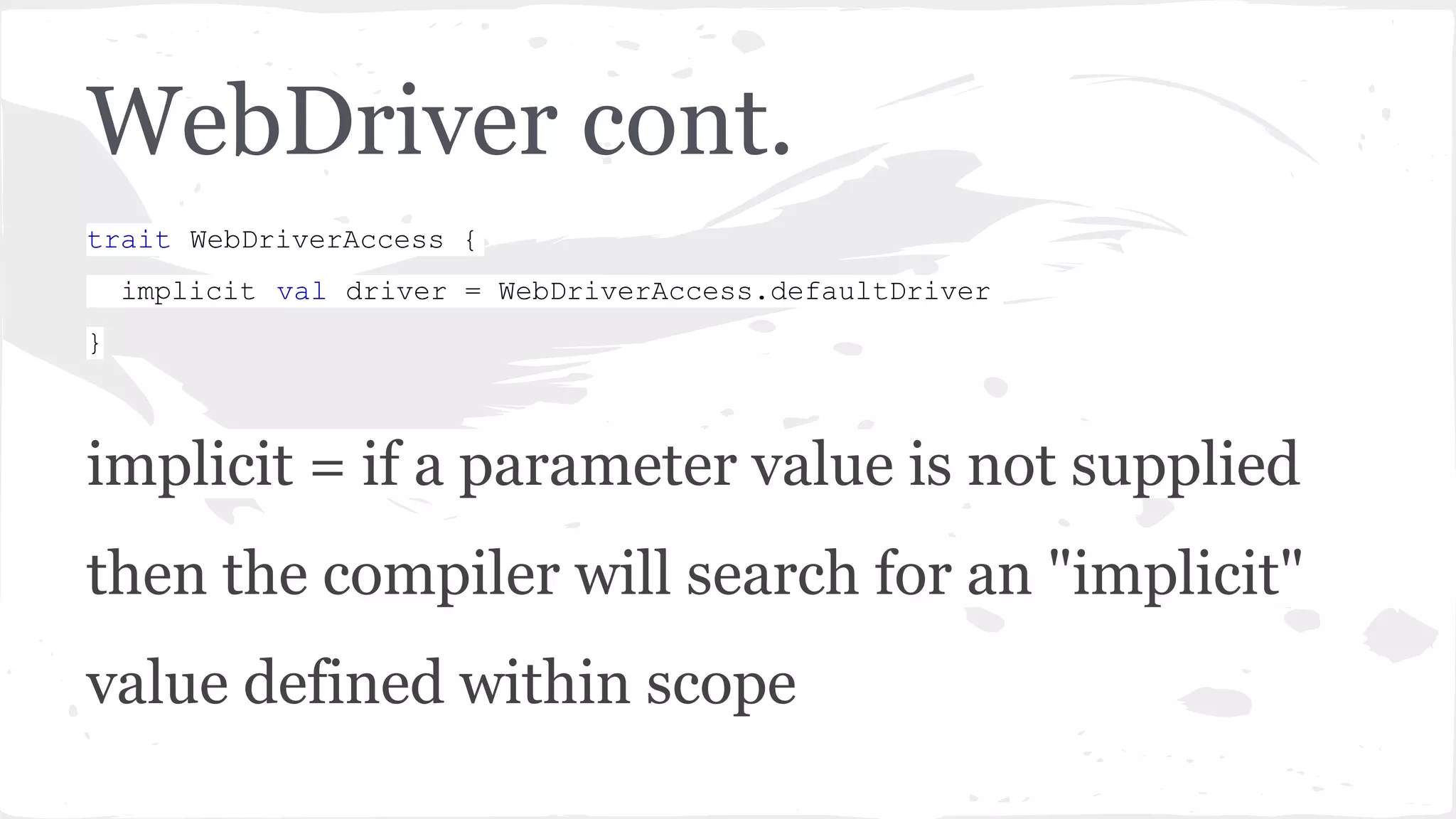

14. WebDriver cont.
trait WebDriverAccess {
implicit val driver = WebDriverAccess.defaultDriver
}
implicit = if a parameter value is not supplied
then the compiler will search for an "implicit"
value defined within scope

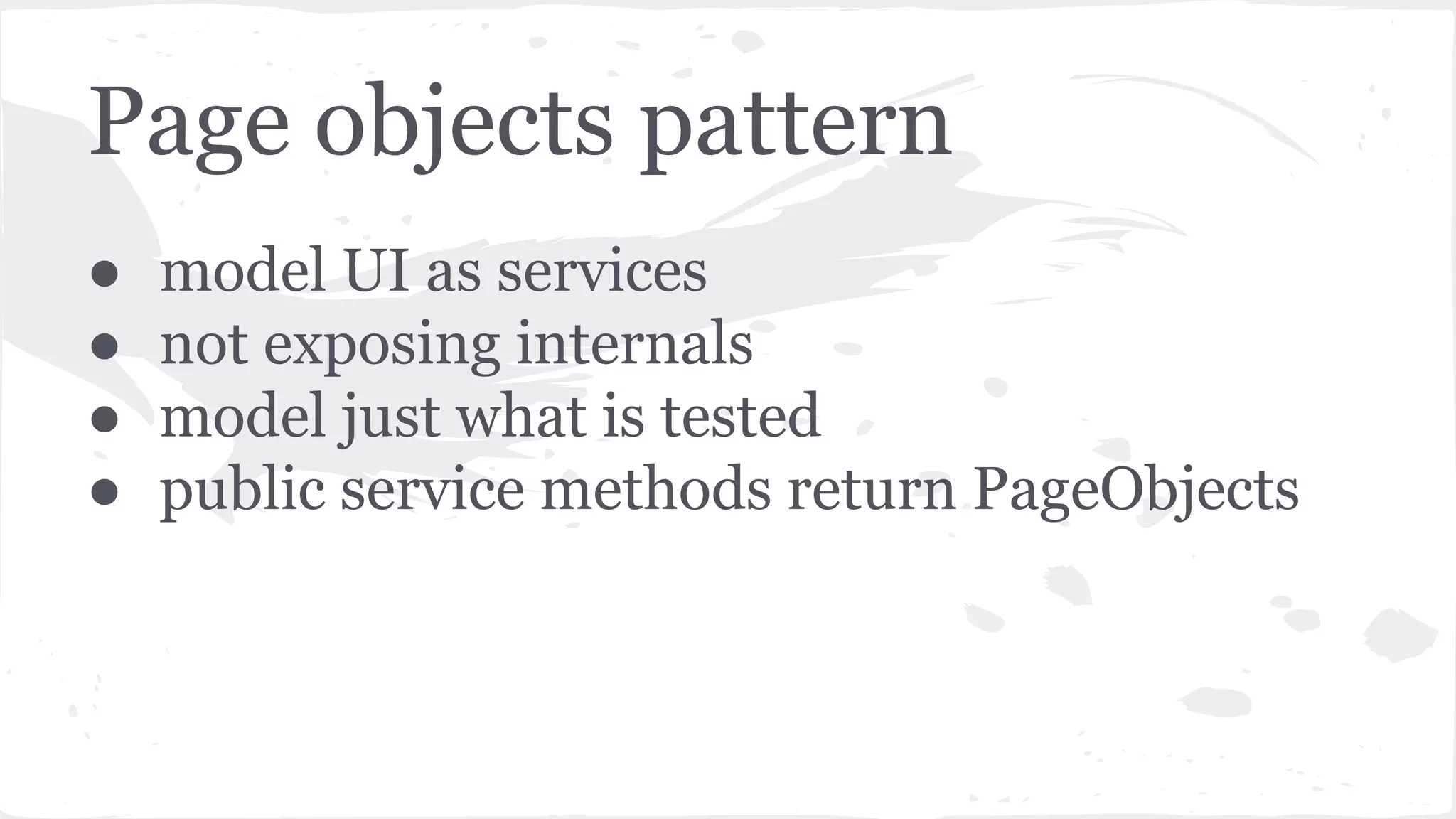

15. Page objects pattern
●
●
●
●
model UI as services
not exposing internals
model just what is tested
public service methods return PageObjects

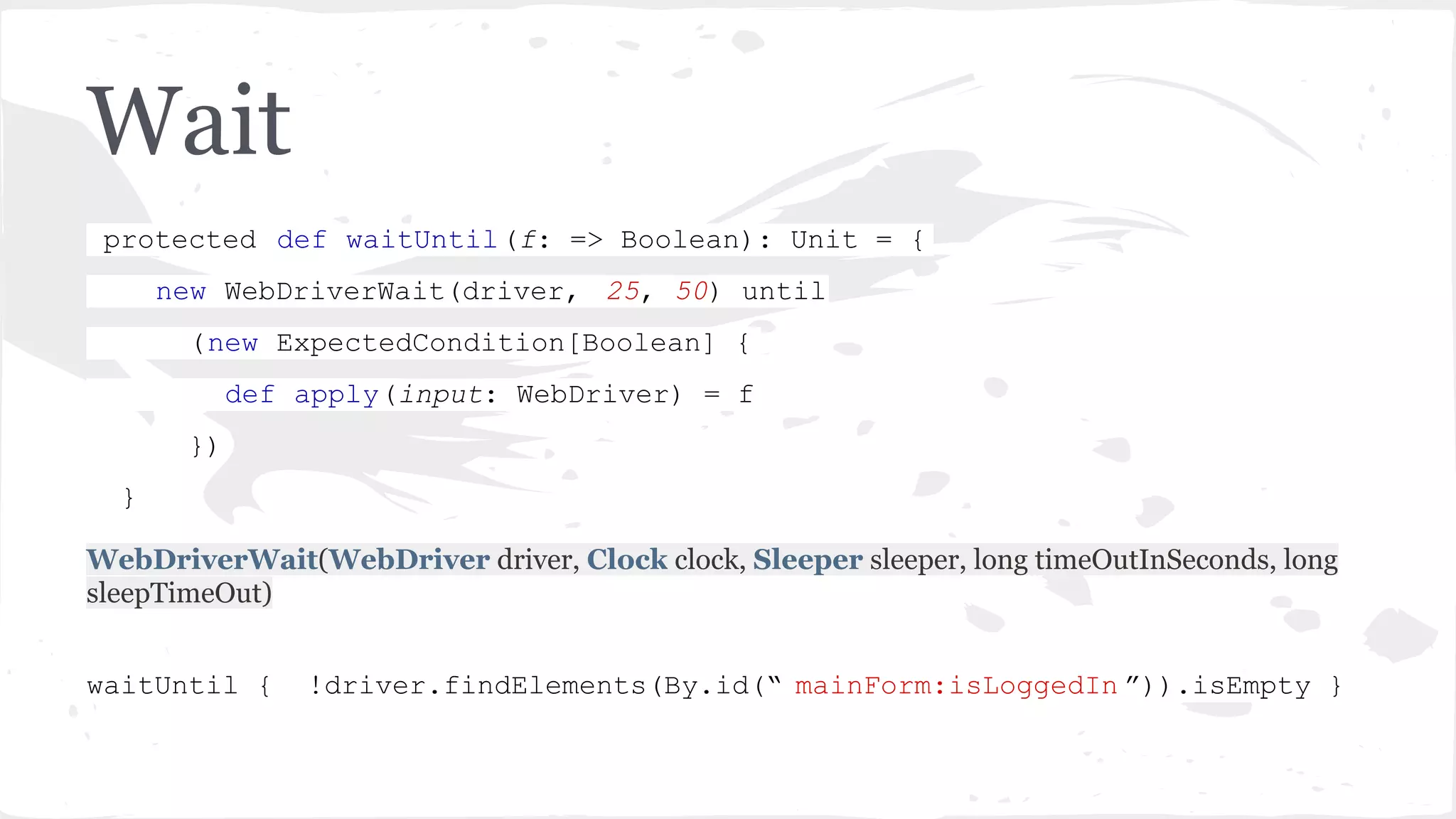

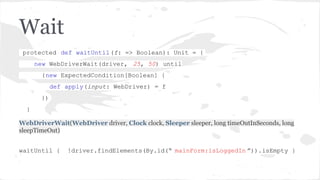

16. Wait
protected def waitUntil(f: => Boolean): Unit = {
new WebDriverWait(driver, 25, 50) until
(new ExpectedCondition[Boolean] {
def apply(input: WebDriver) = f
})
}
WebDriverWait(WebDriver driver, Clock clock, Sleeper sleeper, long timeOutInSeconds, long
sleepTimeOut)
waitUntil {
!driver.findElements(By.id(“ mainForm:isLoggedIn ”)).isEmpty }

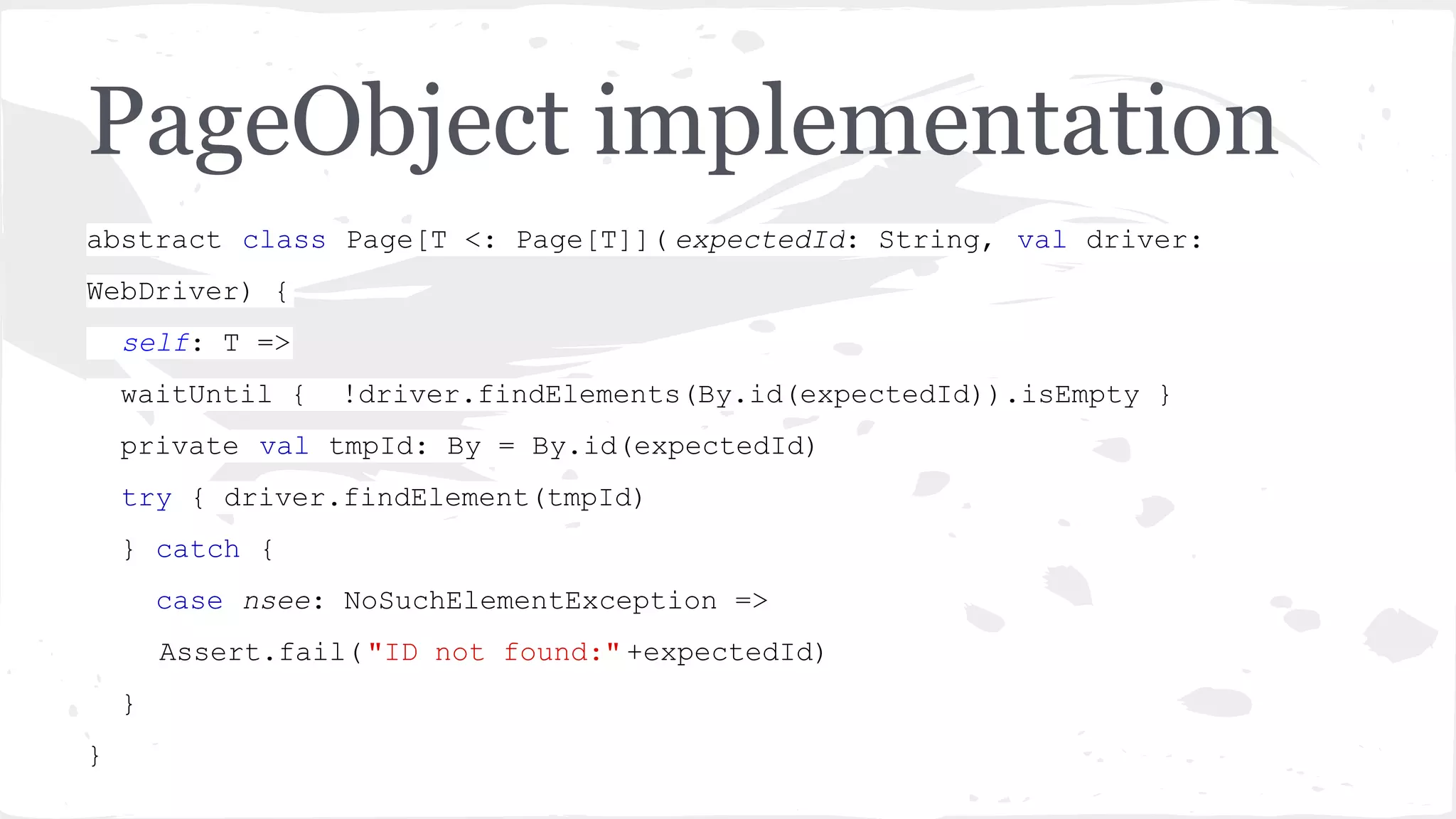

17. PageObject implementation
abstract class Page[T <: Page[T]]( expectedId: String, val driver:
WebDriver) {
self: T =>
waitUntil {
!driver.findElements(By.id(expectedId)).isEmpty }
private val tmpId: By = By.id(expectedId)
try { driver.findElement(tmpId)
} catch {
case nsee: NoSuchElementException =>
Assert.fail( "ID not found:" +expectedId)
}
}

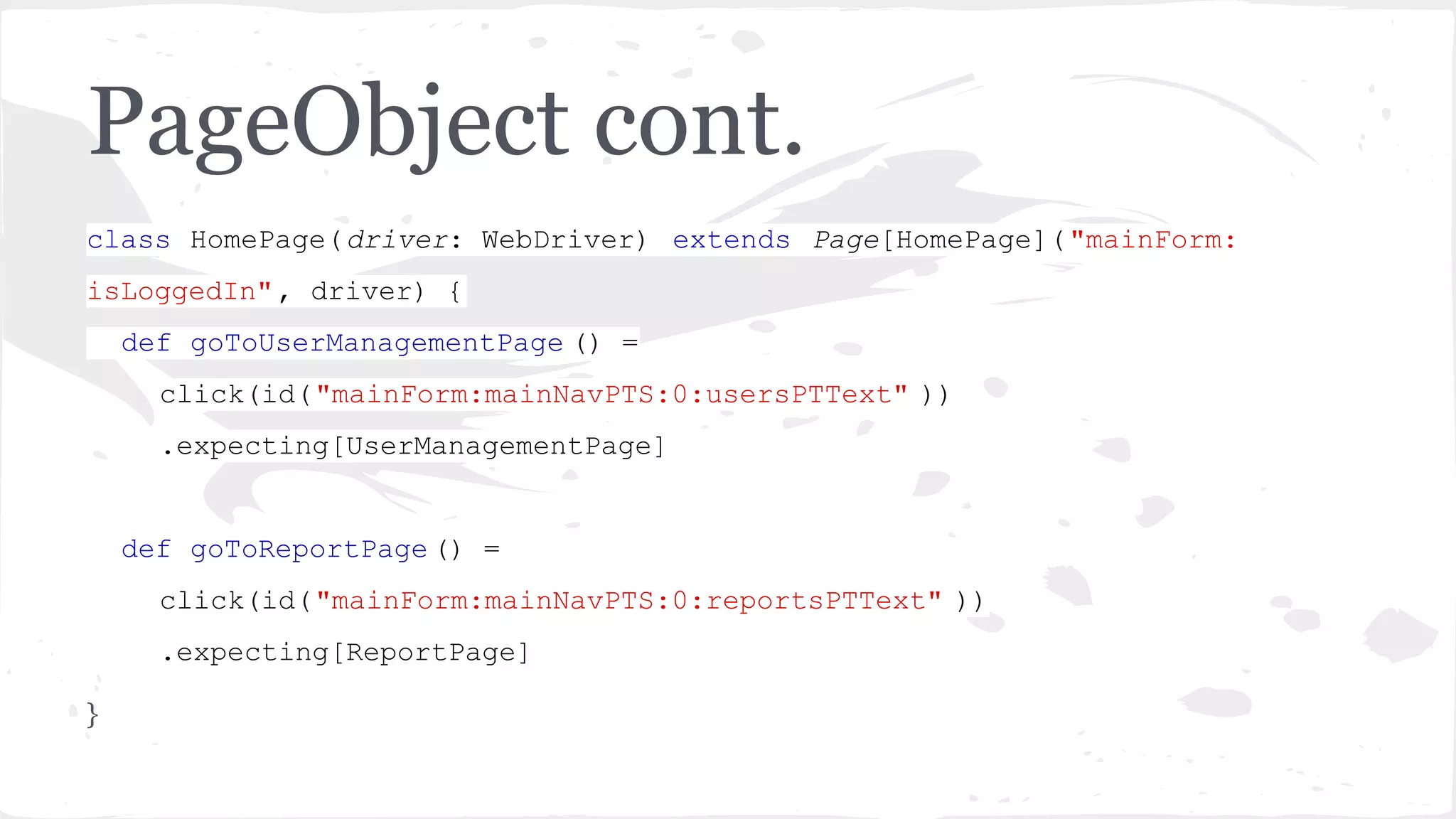

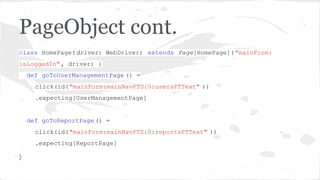

18. PageObject cont.
class HomePage( driver: WebDriver) extends Page[HomePage]( "mainForm:
isLoggedIn" , driver) {
def goToUserManagementPage () =
click(id("mainForm:mainNavPTS:0:usersPTText" ))
.expecting[UserManagementPage]
def goToReportPage () =
click(id("mainForm:mainNavPTS:0:reportsPTText" ))
.expecting[ReportPage]
}

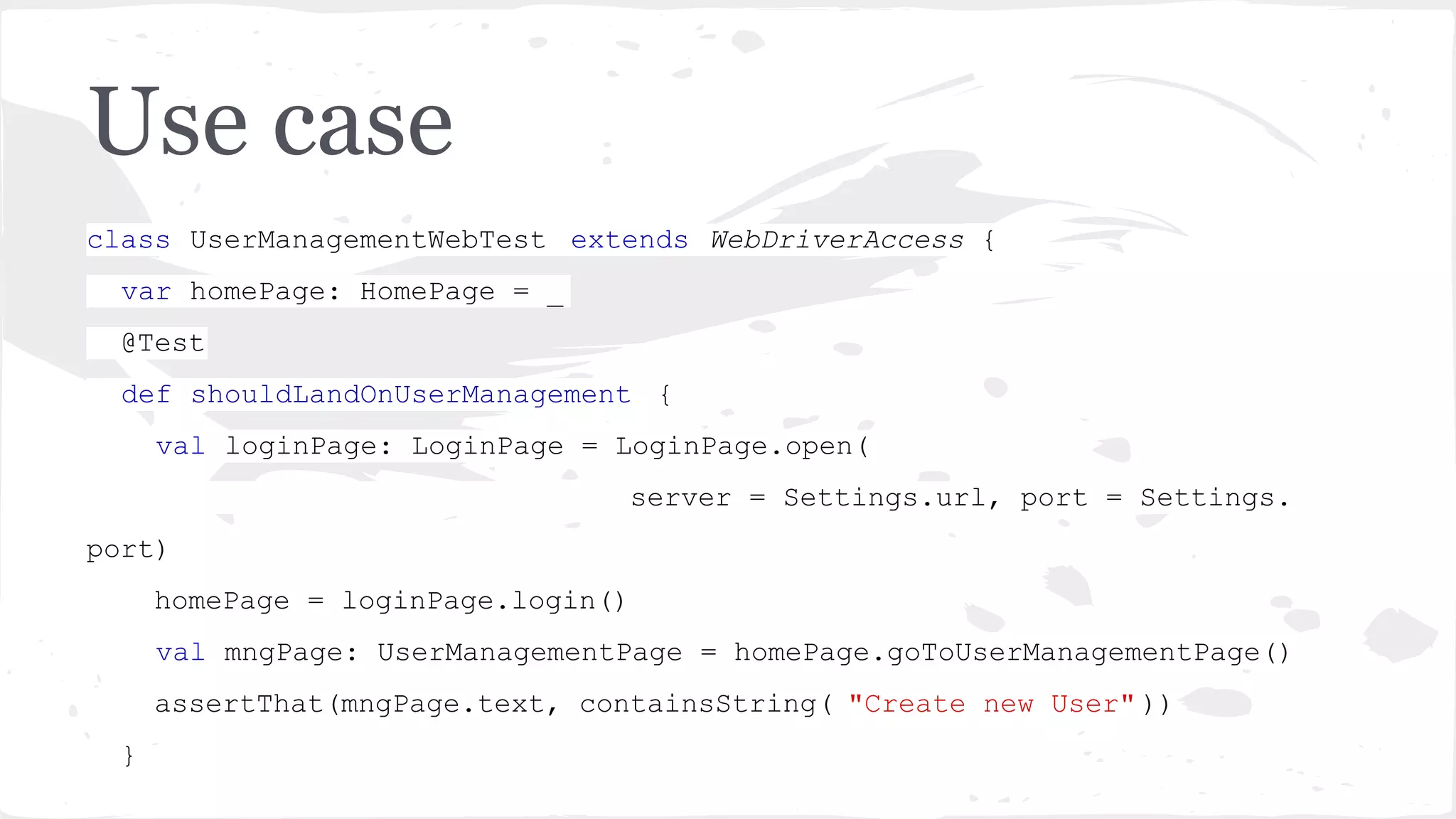

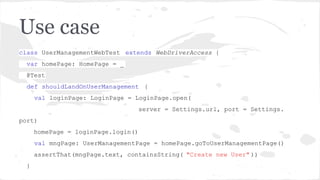

19. Use case
class UserManagementWebTest extends WebDriverAccess {
var homePage: HomePage = _
@Test
def shouldLandOnUserManagement {
val loginPage: LoginPage = LoginPage.open(
server = Settings.url, port = Settings.
port)
homePage = loginPage.login()
val mngPage: UserManagementPage = homePage.goToUserManagementPage()
assertThat(mngPage.text, containsString( "Create new User" ))
}

20. That’s it!
Q&A
