- 1. What’s The Use?! RealCustomer Use Cases Paul Angus Cloud Architect paul.angus@shapeblue.com Twitter: @ShapeBlue
- 2. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Real Customer Use Cases How they’re using CloudStack Their challenges Their solutions (if they’ve got them) Features and improvements they would like to see. What’s The Use?!
- 3. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Who am I Cloud Architect with ShapeBlue Worked with CloudStack since 2.2.13 View CloudStack from ‘What can I practically do with it’ point-of-view About Me
- 4. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 “ShapeBlue are expert builders of public & private clouds. They are the leading global independent CloudStack / CloudPlatform integrator & consultancy” About ShapeBlue
- 5. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013
- 6. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 The UK’s Largest Satellite Broadcasting Company Noel King / John Turner - Paddy Power Lee Walker - Trader Media Stuart Jennings - Citrix Geoff Higginbottom - ShapeBlue Acknowledgements
- 7. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 What’s The Use?! Use Cases (summarised)
- 8. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Test & Dev Highly scalable public facing applications High speed server resource deployment Reduced reliance on corporate infrastructure teams Use Cases I FIND YOUR LACK OF TESTING DISTURBING
- 9. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 What’s The Use?! In a real private cloud

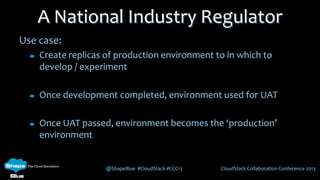

- 10. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Use case: Create replicas of production environment to in which to develop / experiment Once development completed, environment used for UAT Once UAT passed, environment becomes the ‘production’ environment A National Industry Regulator
- 11. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 A National Industry Regulator Work Flow Production Environment Snapshot Backups Production Templates DEV / UAT Environment Machine Templates ISO Images
- 12. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Trader Media Owns ‘AutoTrader’ which started in print media Website receives 10 million unique users per month An average of 833,000,000 page views per month CloudStack environment is still in development
- 13. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 ` Hits Early Morning Lunchtime Late Evening Burst Threshold Traffic Profile (indicative) Trader Media
- 14. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 ‘Standard deployment’ Trader Media DC1 DC2 Hosts Hosts Hosts Hosts Hosts Hosts Hosts MySQL MySQL CS Man CS Man LB Hosts

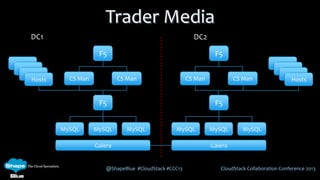

- 15. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Trader Media DC1 DC2 Hosts Hosts Hosts Hosts Hosts Hosts F5 CS ManHosts CS Man CS Man CS Man Hosts F5 MySQL Galera MySQL MySQL F5 MySQL Galera MySQL MySQL F5

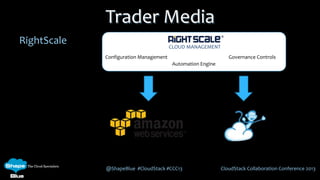

- 16. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 RightScale Trader Media CLOUD MANAGEMENT Configuration Management Automation Engine Governance Controls
- 17. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Paddy Power “If we haven’t yet done the marketing equivalent of running up and slapping you in the face, then please allow us to introduce ourselves. Paddy Power is Ireland’s biggest, most successful, security conscious and innovative bookmaker”
- 18. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Paddy Power Facts and figures paddypower.com has 1.6 million users* Annual revenue of $535m from online users* CloudStack environment is still in development *2012 figures

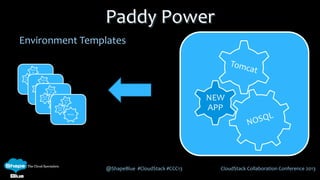

- 19. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Environment Templates Paddy Power NEW APP NOSQL NEW APP Tomc at NOSQL NEW APP Tomc at NOSQL NEW APP Tomc at NOSQL NEW APP Tomc at
- 20. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Chaos Monkey / Simian Army (Problems as a Service) Guest instances which are designed specifically to disrupt or test elements to prove the robustness of the overall architecture. Paddy Power
- 21. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Faster transition from Development to Production Paddy Power Web App DB Virtual Cisco ASA Web App DB Physical Cisco ASADevelpoment ntier Environment Production ntier Environment
- 22. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 UK Satellite Broadcaster Mobile viewing application has 3.26 million users 51 million monthly streamed items 12 million monthly streamed VOD views Mobile Apps have a combined 6.3 million user base 23 million weekly on-demand downloads

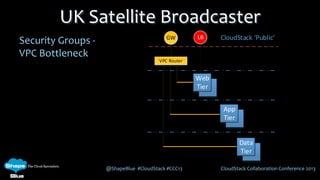

- 23. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Security Groups - VPC Bottleneck UK Satellite Broadcaster Web Tier App Tier CloudStack Public Data Tier GW LB VPC Router

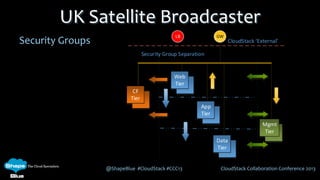

- 24. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Security Groups UK Satellite Broadcaster Web Tier App Tier CloudStack External CF Tier Data Tier Mgmt Tier GWLB Security Group Separation
- 25. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 SSL Offload Cavium Nitrox SSL accelerator card in every host Host level scalability & redundancy Specific Nitrox card provides 8 virtual interfaces Enable PCI pass-through from host (requires customised kernel) Xen & KVM drivers available UK Satellite Broadcaster

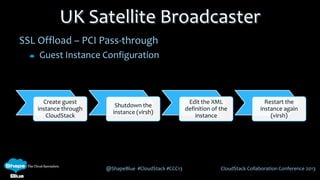

- 26. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 SSL Offload – PCI Pass-through Guest Instance Configuration Create guest instance through CloudStack Shutdown the instance (virsh) Edit the XML definition of the instance Restart the instance again (virsh) UK Satellite Broadcaster
- 27. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Ultra Low Latency Pipelines UK Satellite Broadcaster DEA DEA DEA DEA DEA DEA Cassandra Cassandra Cassandra Cassandra Cassandra Cassandra CF Router CF Router

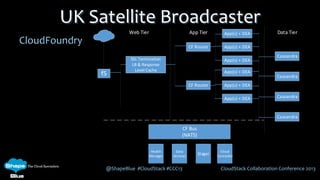

- 28. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 CloudFoundry UK Satellite Broadcaster CF Router CF Router Cassandra Cassandra Cassandra Cassandra Health Manager Cloud Controller Stager Data Services Web Tier App Tier Data TierApp(s) + DEA App(s) + DEA App(s) + DEA App(s) + DEA App(s) + DEA App(s) + DEA f5 CF Bus (NATS) SSL Termination LB & Response Level Cache
- 29. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Cassandra Requires anti-affinity of instances ‘Snitch’ maps IPs to racks and data centers – requires control over IP addressing in conjunction with VM placement UK Satellite Broadcaster 110.100.200.105
- 30. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Bursting to Amazon Requires VPN/direct link to maintain database consistency UK Satellite Broadcaster
- 31. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 What’s The Use?! Feature Requests
- 32. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Feature Requests Storage Options Multiple local storage pools per host Kerberos (Read Active Directory) Real thin provisioning monitoring RBAC Low latency Pipelines (Affinity / Anti- Affinity + vApps)
- 33. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Feature Requests Public – Private cloud integration Security Groups in Advanced Zones Multiple VLAN separated networks with SG separation within them. Post deployment actions Push configuration information to VMs without requiring virtual router DHCP. (Altiris-like behaviour)
- 34. @ShapeBlue #CloudStack #CCC13CloudStack Collaboration Conference 2013 Questions ?
- 35. What’s The Use?! PaulAngus Cloud Architect paul.angus@shapeblue.com Twitter: @ShapeBlue
