What are Software Testing Methodologies | Software Testing Techniques | Edureka

IMPORTANCE OF SOFTWARE TESTING
SOFTWARE TESTING METHODOLOGIES
SOFTWARE TESTING TECHNIQUES
➢ BLACK-BOX TECHNIQUES
➢ WHITE-BOX TECHNIQUES
➢ EXPERIENCED-BASED TECHNIQUES
www.edureka.co

www.edureka.co
Disasters Due to Software Flaws
Power Blackout
Launch Error
Satellite Failure
Plane Crashes
Radioactive
Overexposure
Register
Malfunction
ETCS bugs
Smart Ship
Drowning

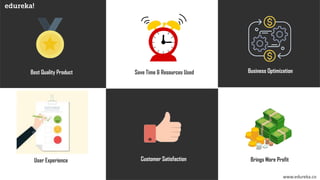

Best Quality Product
www.edureka.co
Save Time & Resources Used
Customer Satisfaction Brings More ProfitUser Experience
Business Optimization

www.edureka.co

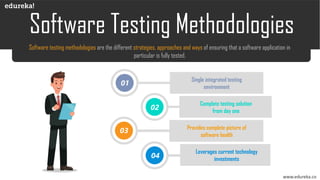

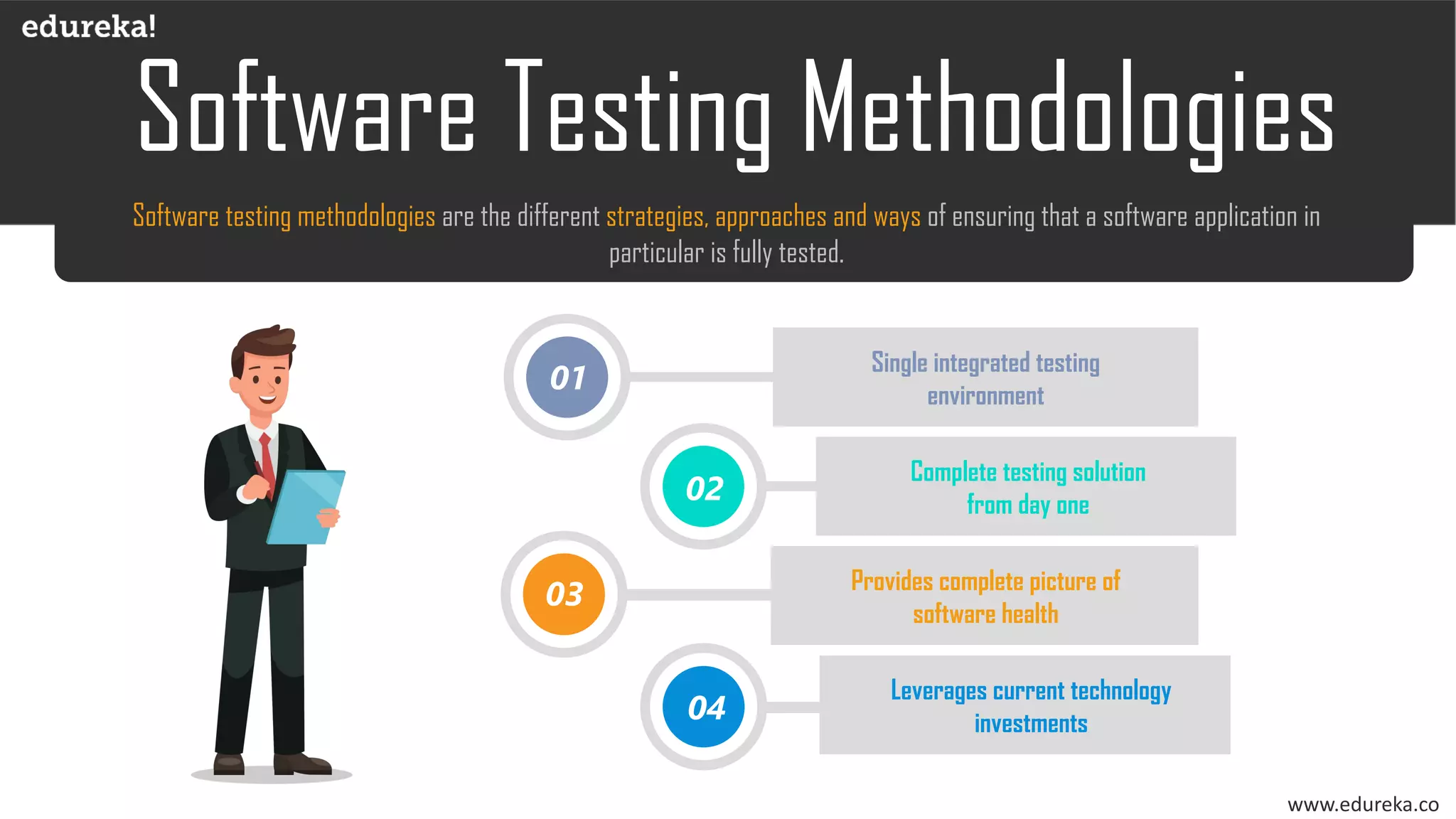

Software testing methodologies are the different strategies, approaches and ways of ensuring that a software application in
particular is fully tested.
04
Leverages current technology
investments
01
Single integrated testing
environment
02
Complete testing solution
from day one
03 Provides complete picture of
software health

www.edureka.cowww.edureka.co

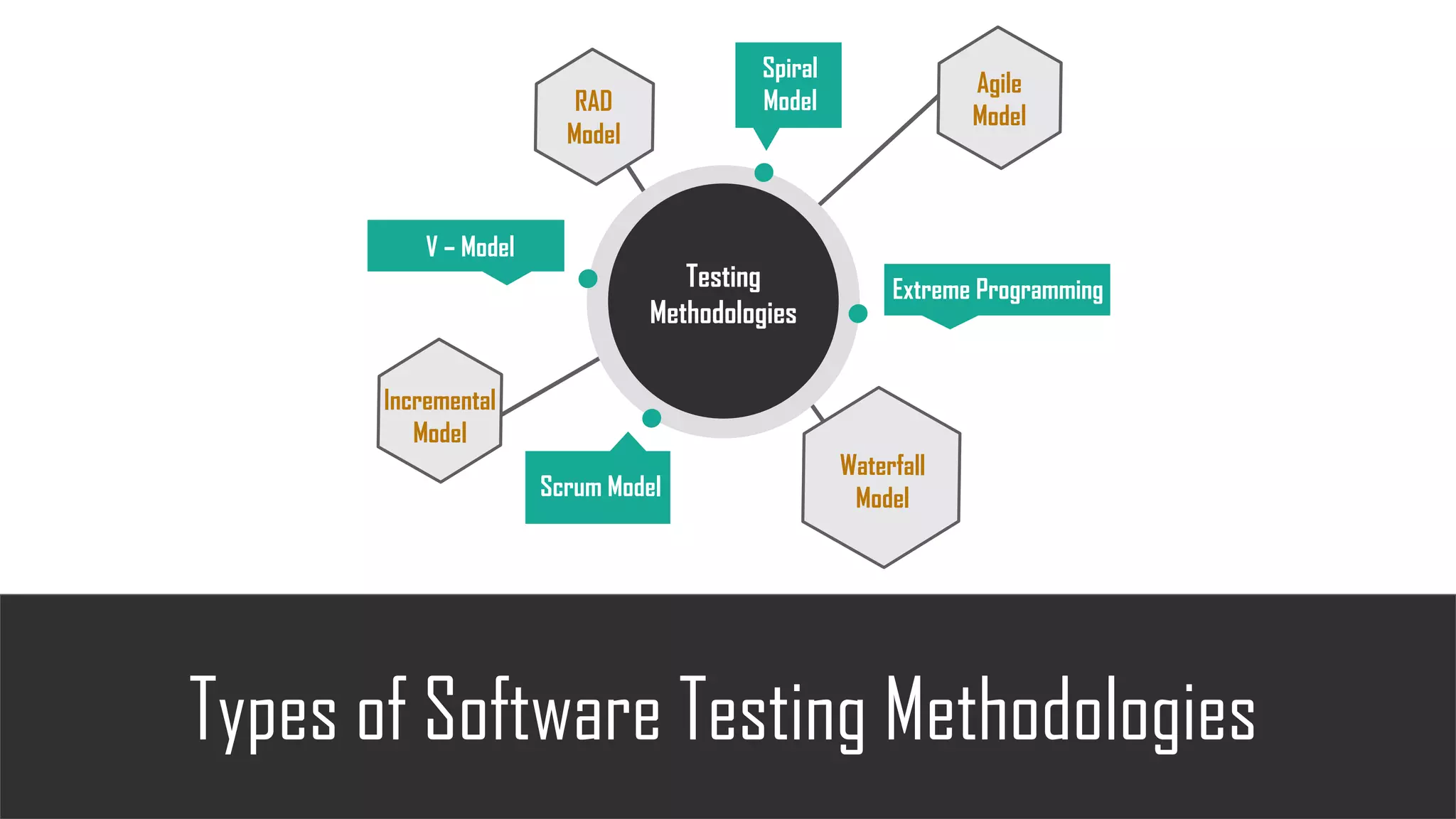

Types of Software Testing Methodologies
Agile
Model
Spiral
Model
V – Model
Extreme Programming
Scrum Model
Testing
Methodologies
RAD
Model
Waterfall
Model
Incremental
Model

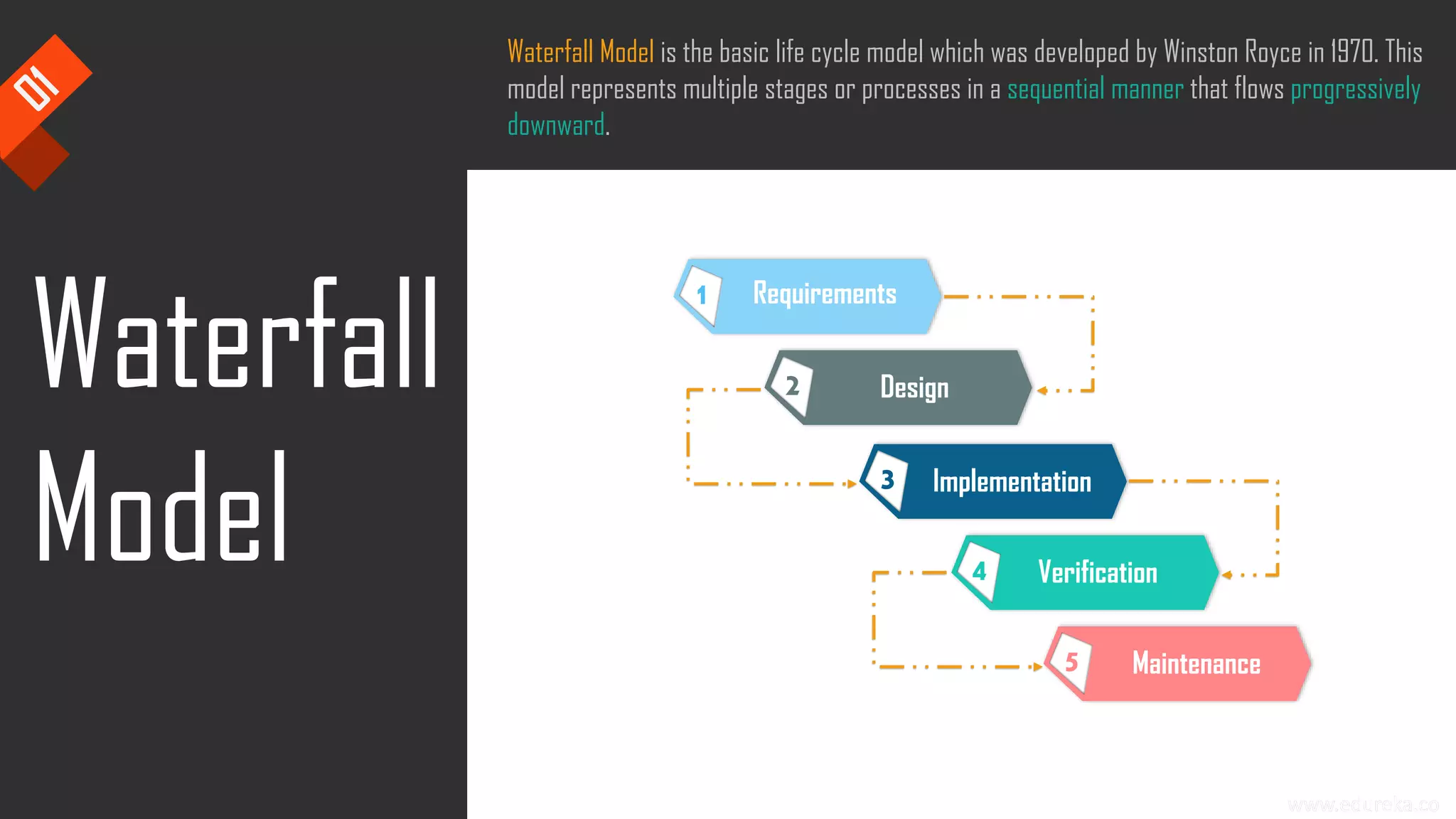

Requirements1
Design2
Implementation3
Verification4
Maintenance5
Waterfall Model is the basic life cycle model which was developed by Winston Royce in 1970. This
model represents multiple stages or processes in a sequential manner that flows progressively
downward.

www.edureka.co

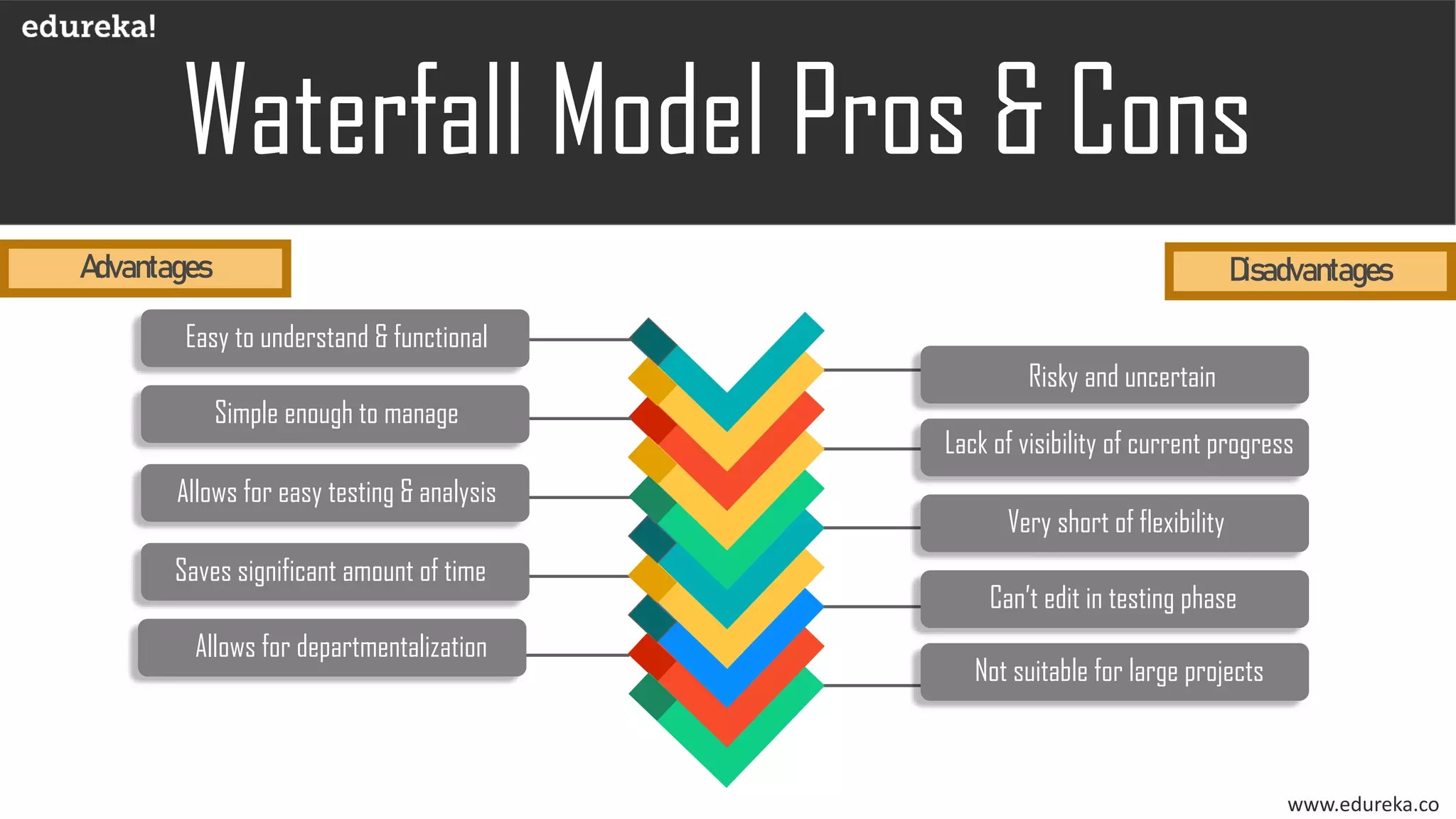

Easy to understand & functional
Simple enough to manage
Saves significant amount of time
Allows for easy testing & analysis
Allows for departmentalization
Risky and uncertain
Very short of flexibility
Lack of visibility of current progress
Can’t edit in testing phase
Not suitable for large projects
Advantages Disadvantages

www.edureka.co

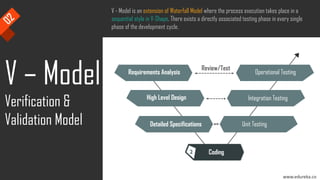

Verification &
Validation Model
V - Model is an extension of Waterfall Model where the process execution takes place in a
sequential style in V-Shape. There exists a directly associated testing phase in every single
phase of the development cycle.
Coding2
Detailed Specifications
High Level Design
Requirements Analysis
Integration Testing
Operational Testing
Unit Testing
Review/Test

www.edureka.co

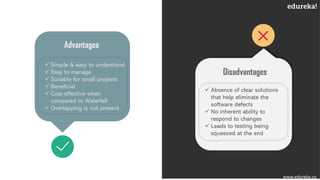

Advantages
✓ Simple & easy to understand
✓ Easy to manage
✓ Suitable for small projects
✓ Beneficial
✓ Cost-effective when
compared to Waterfall
✓ Overlapping is not present
Disadvantages
✓ Absence of clear solutions
that help eliminate the
software defects
✓ No inherent ability to
respond to changes
✓ Leads to testing being
squeezed at the end

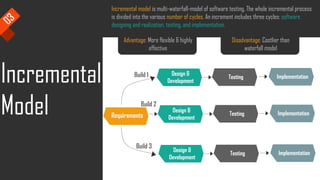

Incremental model is multi-waterfall-model of software testing. The whole incremental process
is divided into the various number of cycles. An increment includes three cycles: software
designing and realization, testing, and implementation.
Requirements
Design &
Development
Testing Implementation
Design &
Development
Design &
Development
Build 1
Build 2
Build 3
Advantage: More flexible & highly
effective
Disadvantage: Costlier than
waterfall model

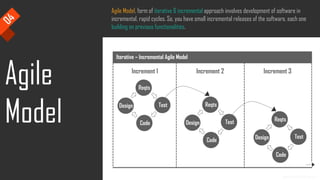

Agile Model, form of iterative & incremental approach involves development of software in
incremental, rapid cycles. So, you have small incremental releases of the software, each one
building on previous functionalities.
Increment 1 Increment 2 Increment 3
Iterative – Incremental Agile Model
Reqts
Test
Code
Design Reqts
Test
Code
Design
Reqts
Test
Code
Design

www.edureka.co

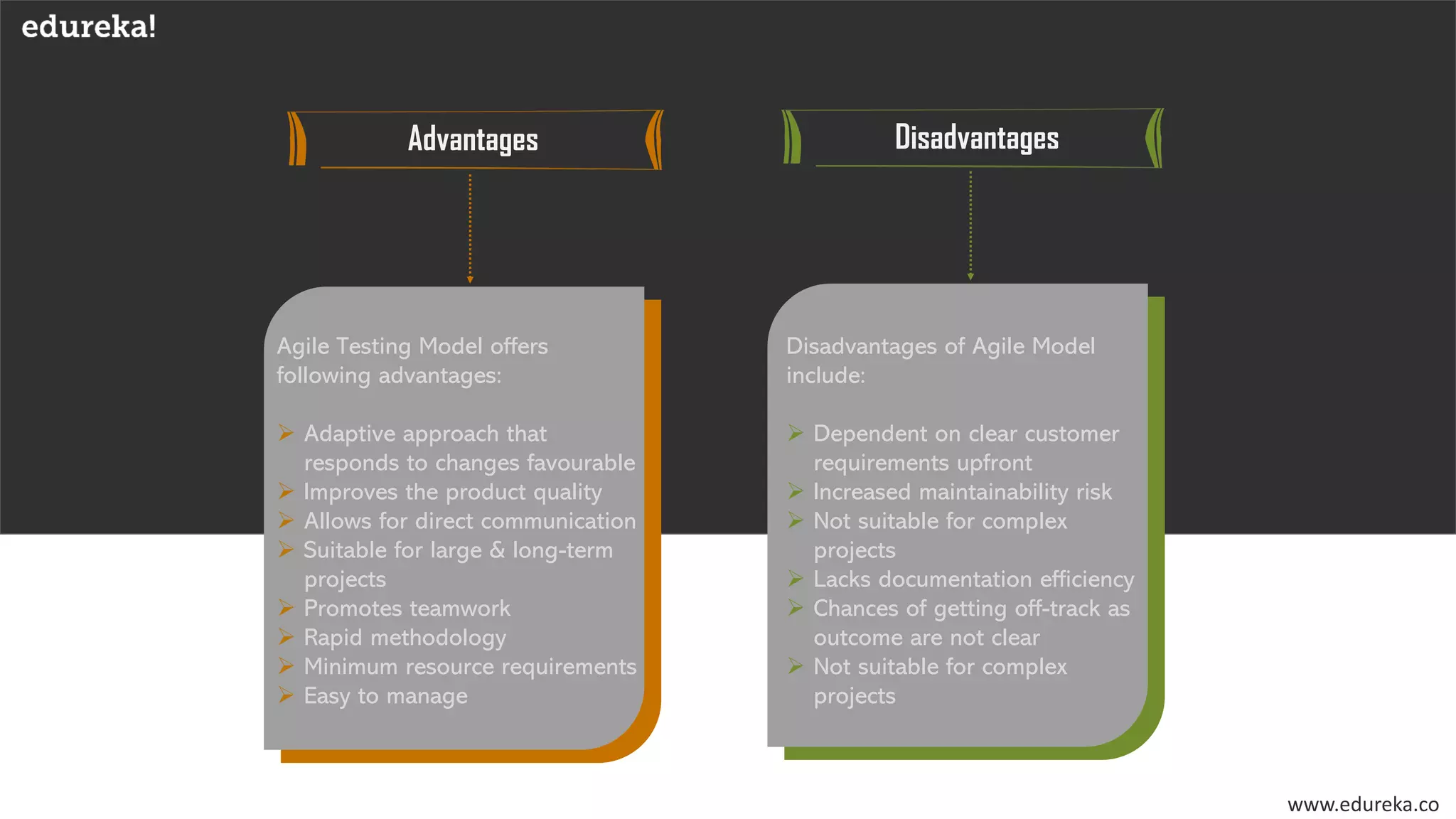

Agile Testing Model offers
following advantages:
➢ Adaptive approach that
responds to changes favourable
➢ Improves the product quality
➢ Allows for direct communication
➢ Suitable for large & long-term
projects
➢ Promotes teamwork
➢ Rapid methodology
➢ Minimum resource requirements
➢ Easy to manage
Disadvantages of Agile Model
include:
➢ Dependent on clear customer
requirements upfront
➢ Increased maintainability risk
➢ Not suitable for complex
projects
➢ Lacks documentation efficiency
➢ Chances of getting off-track as
outcome are not clear
➢ Not suitable for complex
projects

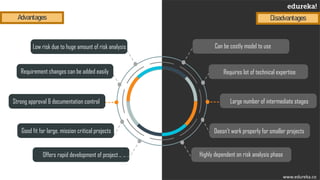

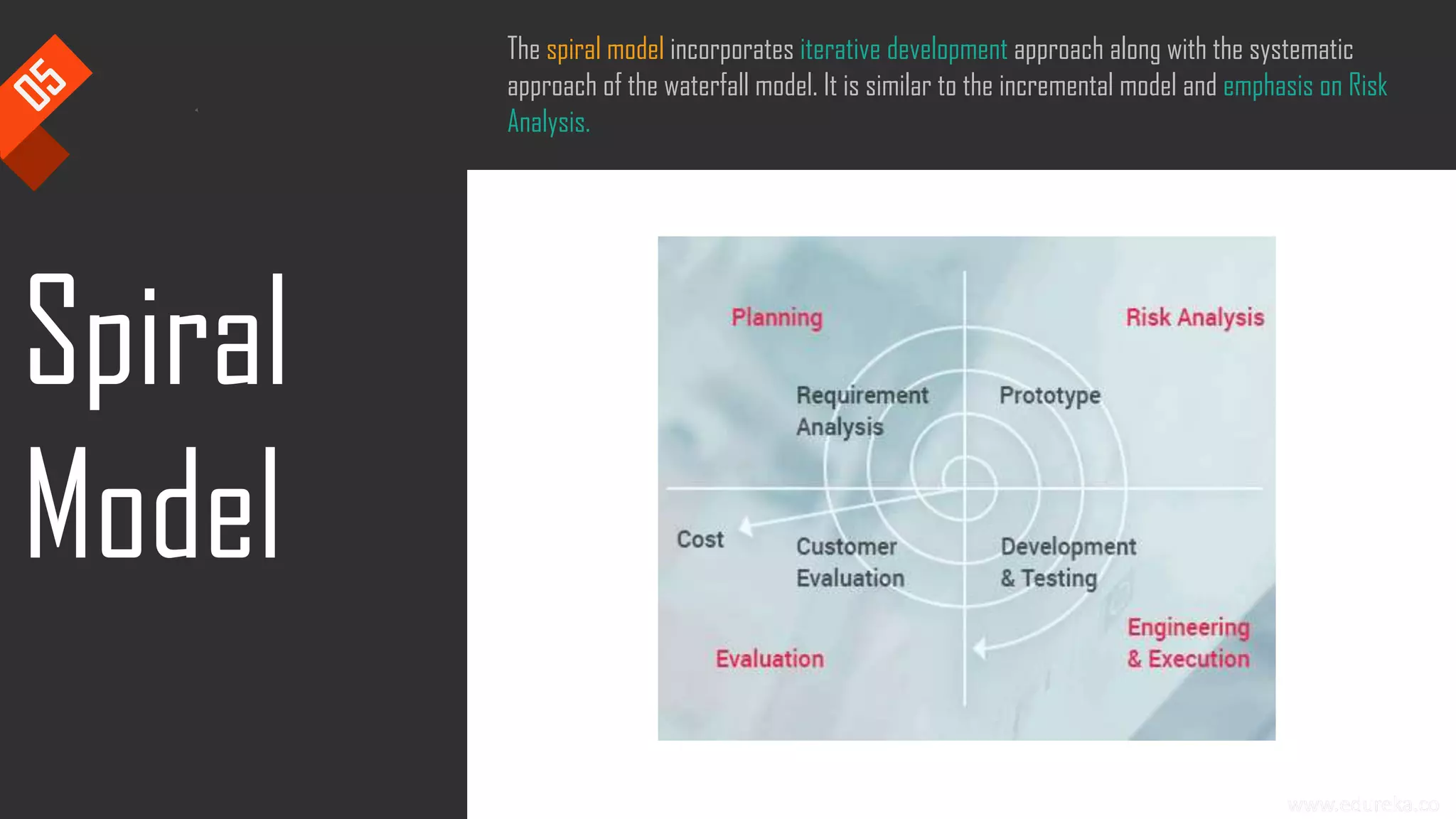

The spiral model incorporates iterative development approach along with the systematic
approach of the waterfall model. It is similar to the incremental model and emphasis on Risk
Analysis.

www.edureka.co
Can be costly model to use
Requires lot of technical expertise
Large number of intermediate stages
Highly dependent on risk analysis phase
Doesn’t work properly for smaller projects
Low risk due to huge amount of risk analysis
Requirement changes can be added easily
Strong approval & documentation control
Good fit for large, mission critical projects
Offers rapid development of project

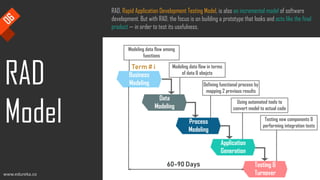

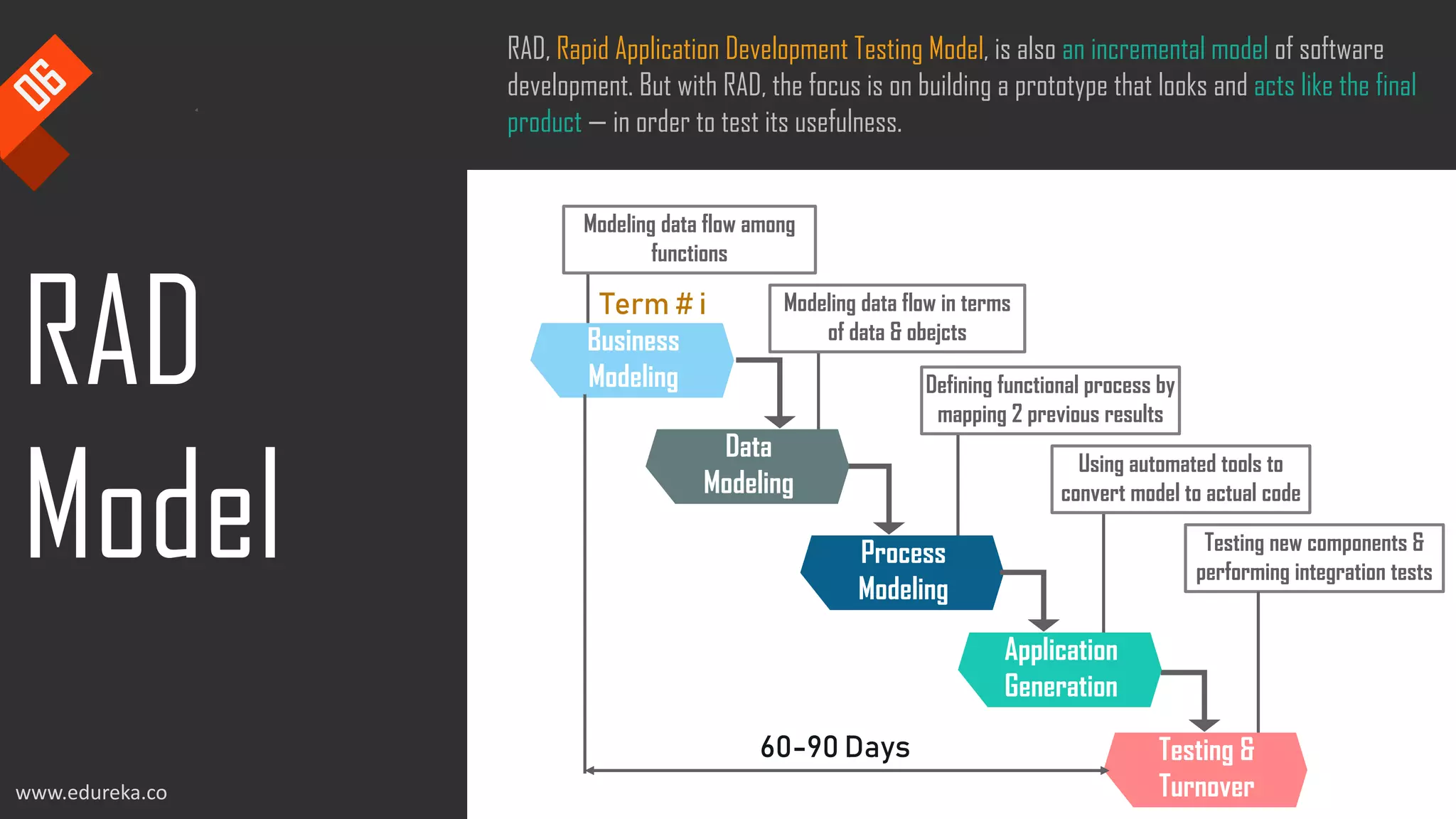

RAD, Rapid Application Development Testing Model, is also an incremental model of software
development. But with RAD, the focus is on building a prototype that looks and acts like the final
product — in order to test its usefulness.
www.edureka.co
Process
Modeling
Modeling data flow among
functions
Business
Modeling
Modeling data flow in terms
of data & obejcts
Data
Modeling
Defining functional process by
mapping 2 previous results
Using automated tools to
convert model to actual code
Application
Generation
Testing new components &
performing integration tests
Testing &
Turnover
Term # i
60-90 Days
www.edureka.co

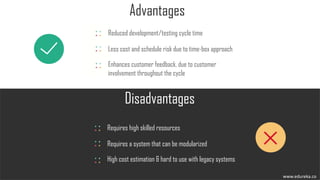

Advantages
Disadvantages
Reduced development/testing cycle time
Less cost and schedule risk due to time-box approach
Enhances customer feedback, due to customer
involvement throughout the cycle
Requires high skilled resources
Requires a system that can be modularized
High cost estimation & hard to use with legacy systems

www.edureka.co

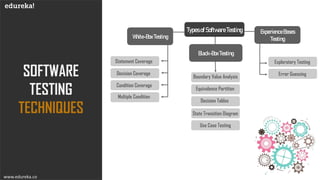

SOFTWARE
TESTING
TECHNIQUES
Exploratory Testing
Error Guessing

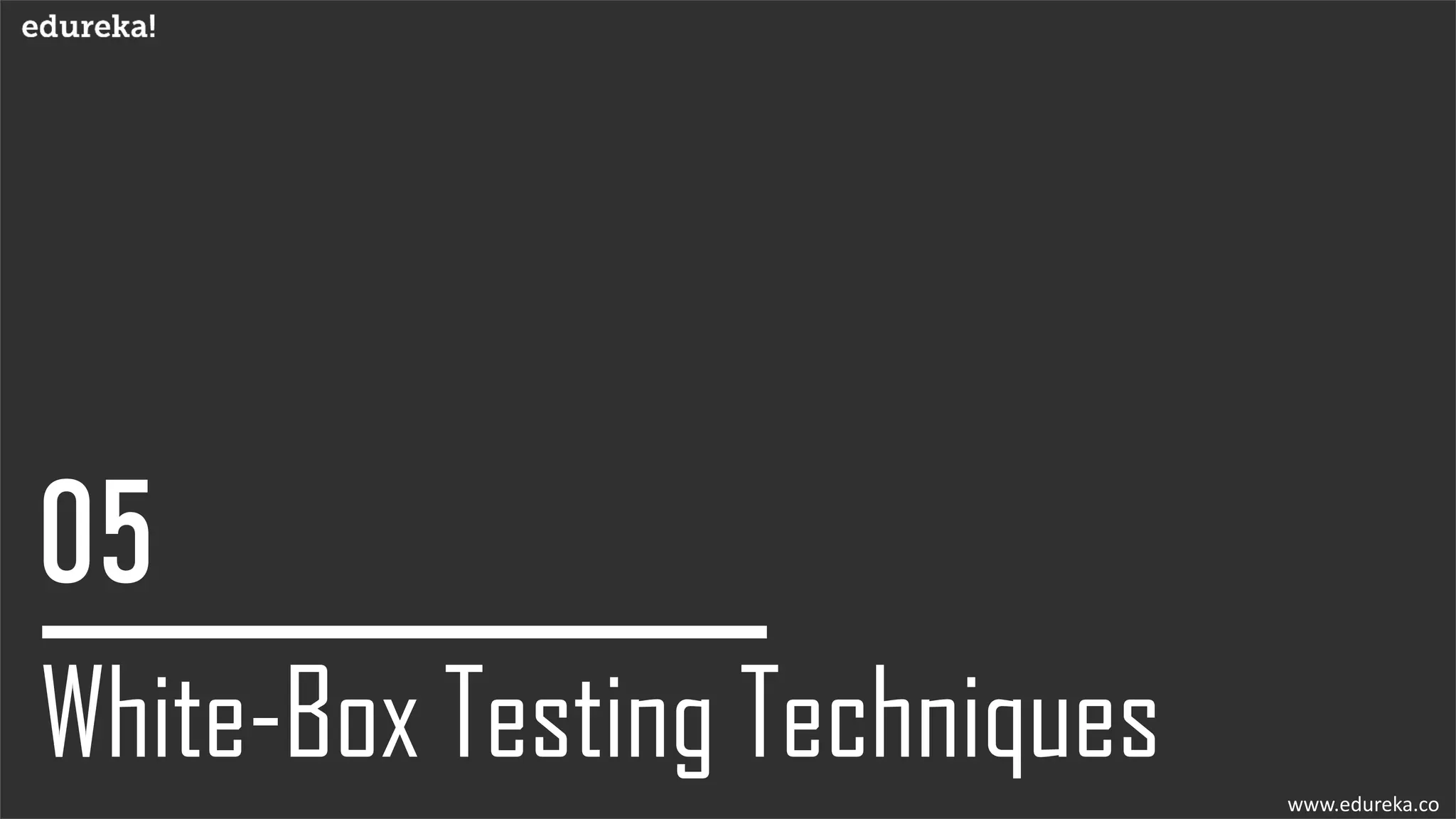

White-BoxTesting
Statement Coverage
Decision Coverage
Condition Coverage
Multiple Condition
Black-BoxTesting
TypesofSoftwareTesting
Boundary Value Analysis
Equivalence Partition
Decision Tables
State Transition Diagram
Use Case Testing
ExperienceBases
Testing

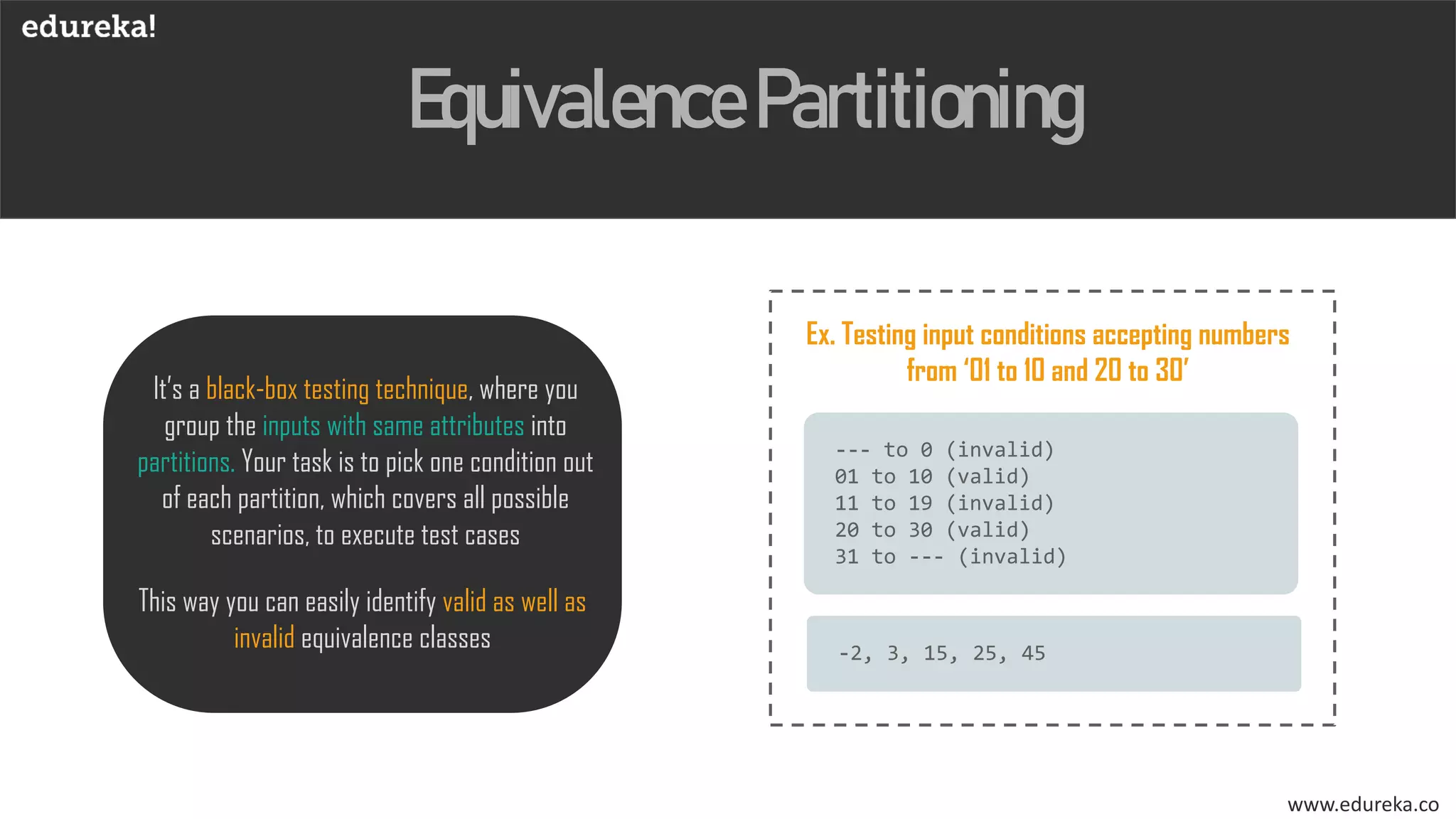

EquivalencePartitioning
www.edureka.co
It’s a black-box testing technique, where you
group the inputs with same attributes into
partitions. Your task is to pick one condition out
of each partition, which covers all possible
scenarios, to execute test cases
This way you can easily identify valid as well as
invalid equivalence classes
Ex. Testing input conditions accepting numbers
from ‘01 to 10 and 20 to 30’
--- to 0 (invalid)
01 to 10 (valid)
11 to 19 (invalid)
20 to 30 (valid)
31 to --- (invalid)
-2, 3, 15, 25, 45

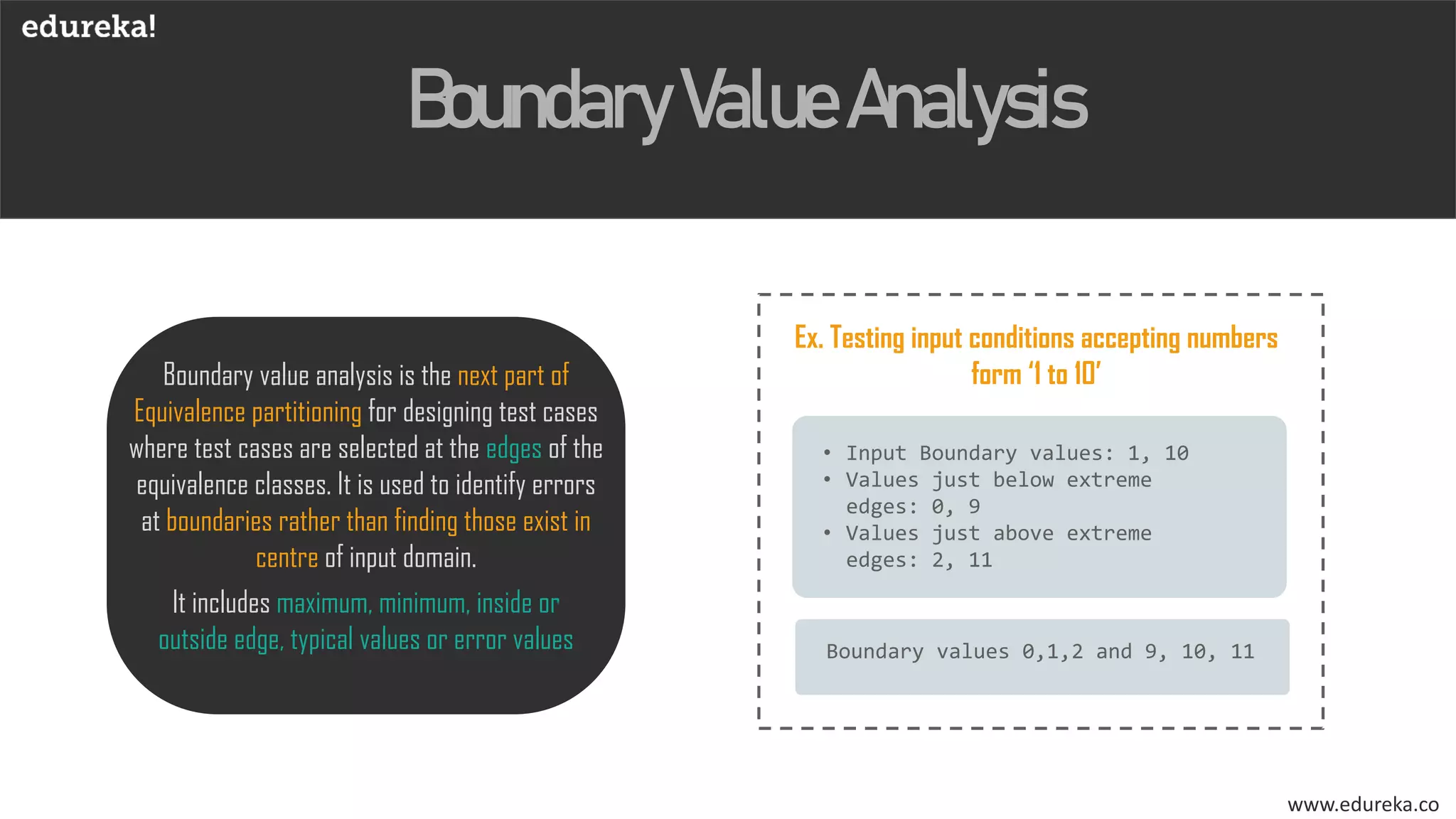

BoundaryValueAnalysis
www.edureka.co
Boundary value analysis is the next part of
Equivalence partitioning for designing test cases
where test cases are selected at the edges of the
equivalence classes. It is used to identify errors
at boundaries rather than finding those exist in
centre of input domain.
It includes maximum, minimum, inside or
outside edge, typical values or error values
Ex. Testing input conditions accepting numbers
form ‘1 to 10’
• Input Boundary values: 1, 10
• Values just below extreme
edges: 0, 9
• Values just above extreme
edges: 2, 11
Boundary values 0,1,2 and 9, 10, 11

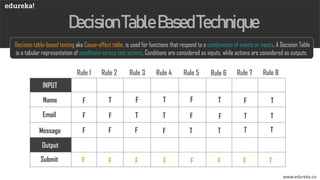

DecisionTableBasedTechnique
www.edureka.co
Decision table-based testing aka Cause-effect table, is used for functions that respond to a combination of events or inputs. A Decision Table
is a tabular representation of conditions versus test actions. Conditions are considered as inputs, while actions are considered as outputs.
Rule 1 Rule 2 Rule 3 Rule 4 Rule 5 Rule 6 Rule 7 Rule 8
INPUT
Name
Email
Message
Output
Submit
F
F
F F
F
F
F F
F
F
F
FT
T T
T T
TT
T
T T
T
T
F F F F F F F T

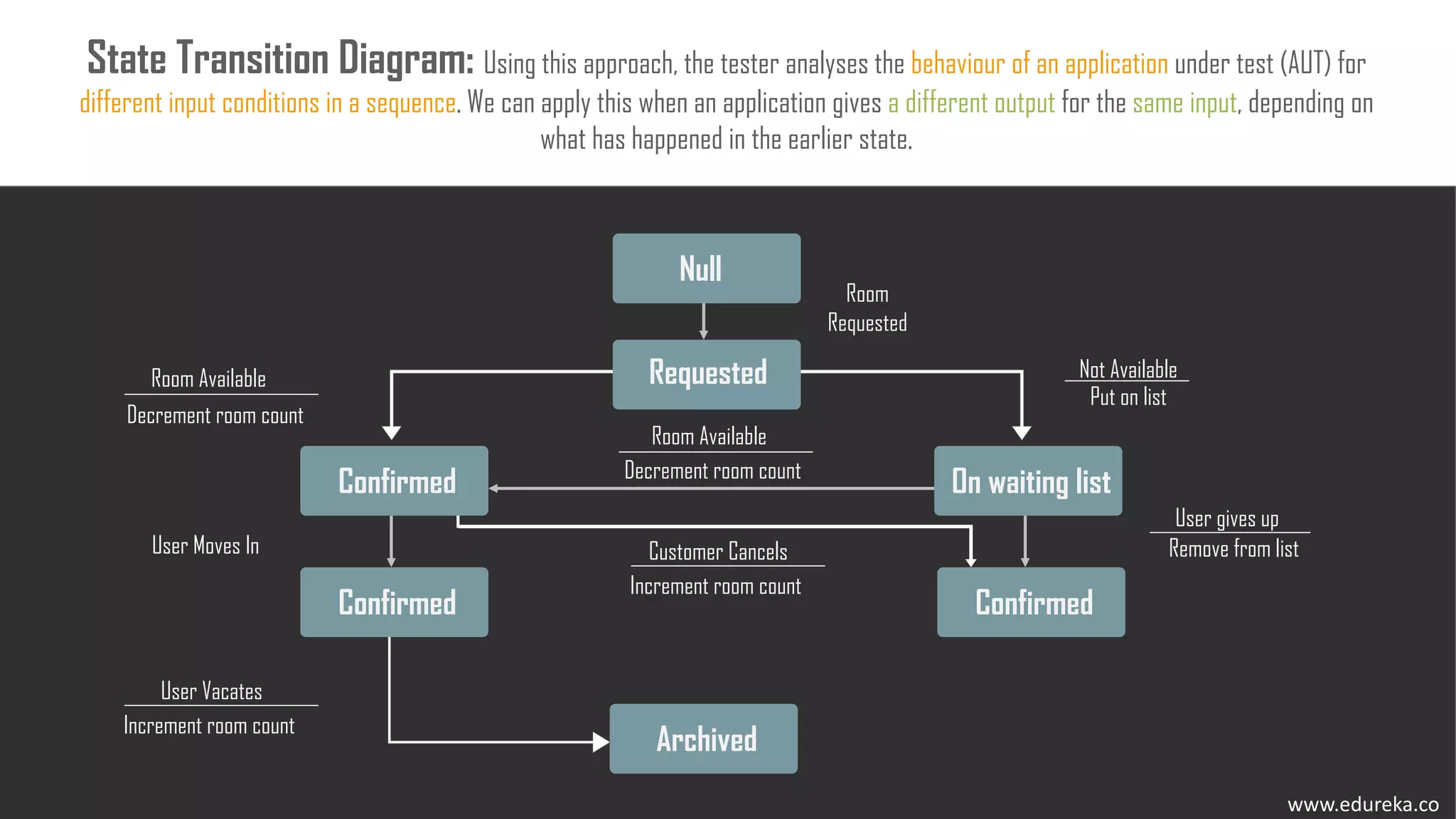

State Transition Diagram: Using this approach, the tester analyses the behaviour of an application under test (AUT) for
different input conditions in a sequence. We can apply this when an application gives a different output for the same input, depending on
what has happened in the earlier state.
On waiting list
Confirmed
Archived
Null
Requested
Confirmed
Room
Requested
Not Available
Put on list
User gives up
Remove from list
Room Available
Decrement room count
User Moves In
User Vacates
Increment room count
Confirmed
Room Available
Decrement room count
Customer Cancels
Increment room count

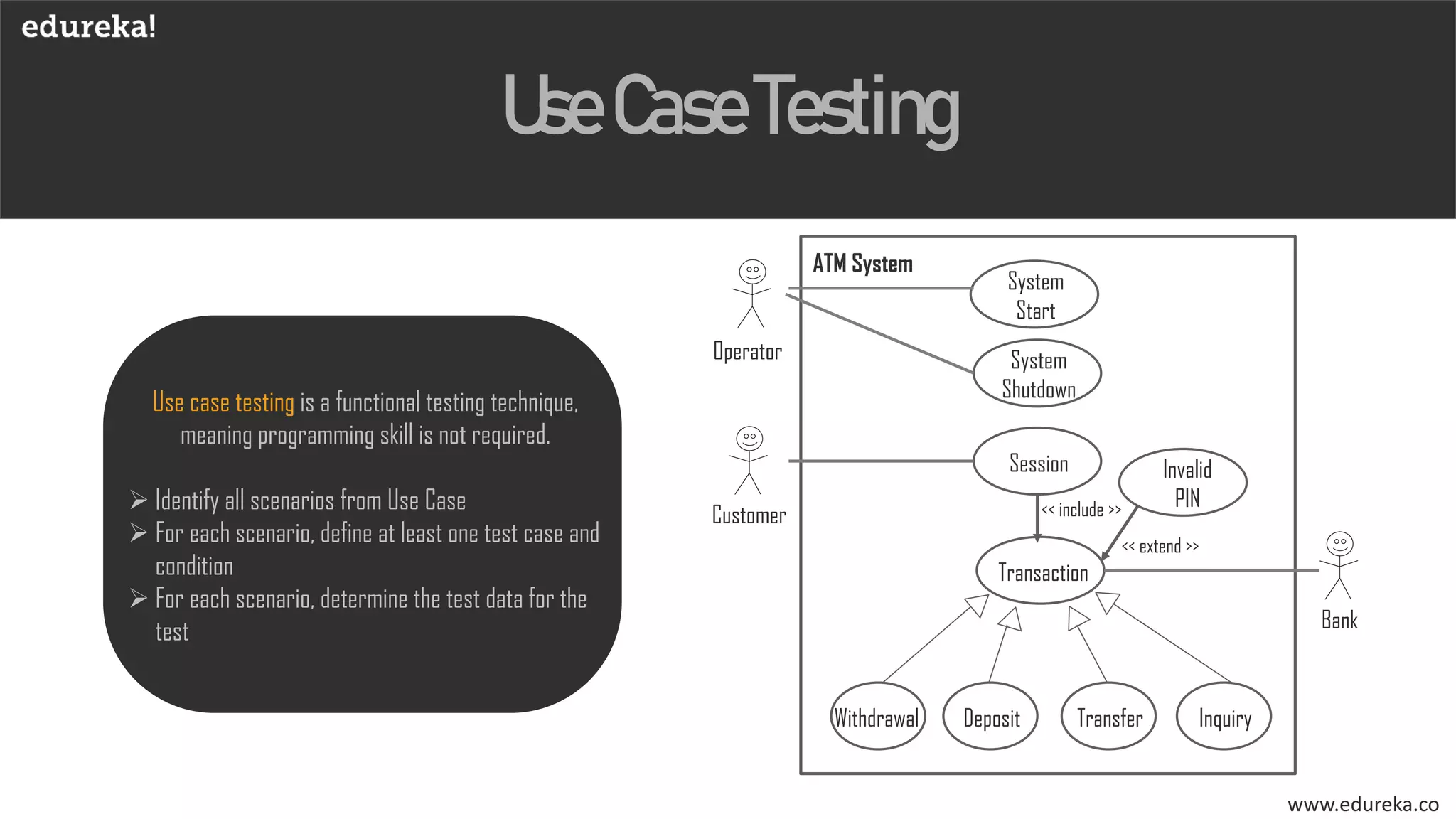

UseCaseTesting
www.edureka.co
Use case testing is a functional testing technique,
meaning programming skill is not required.
➢ Identify all scenarios from Use Case
➢ For each scenario, define at least one test case and
condition
➢ For each scenario, determine the test data for the
test
System
Start
System
Shutdown
Session Invalid
PIN
Transaction
Withdrawal Deposit Transfer Inquiry
Operator
Customer << include >>
<< extend >>
ATM System
Bank

www.edureka.co

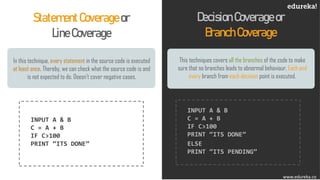

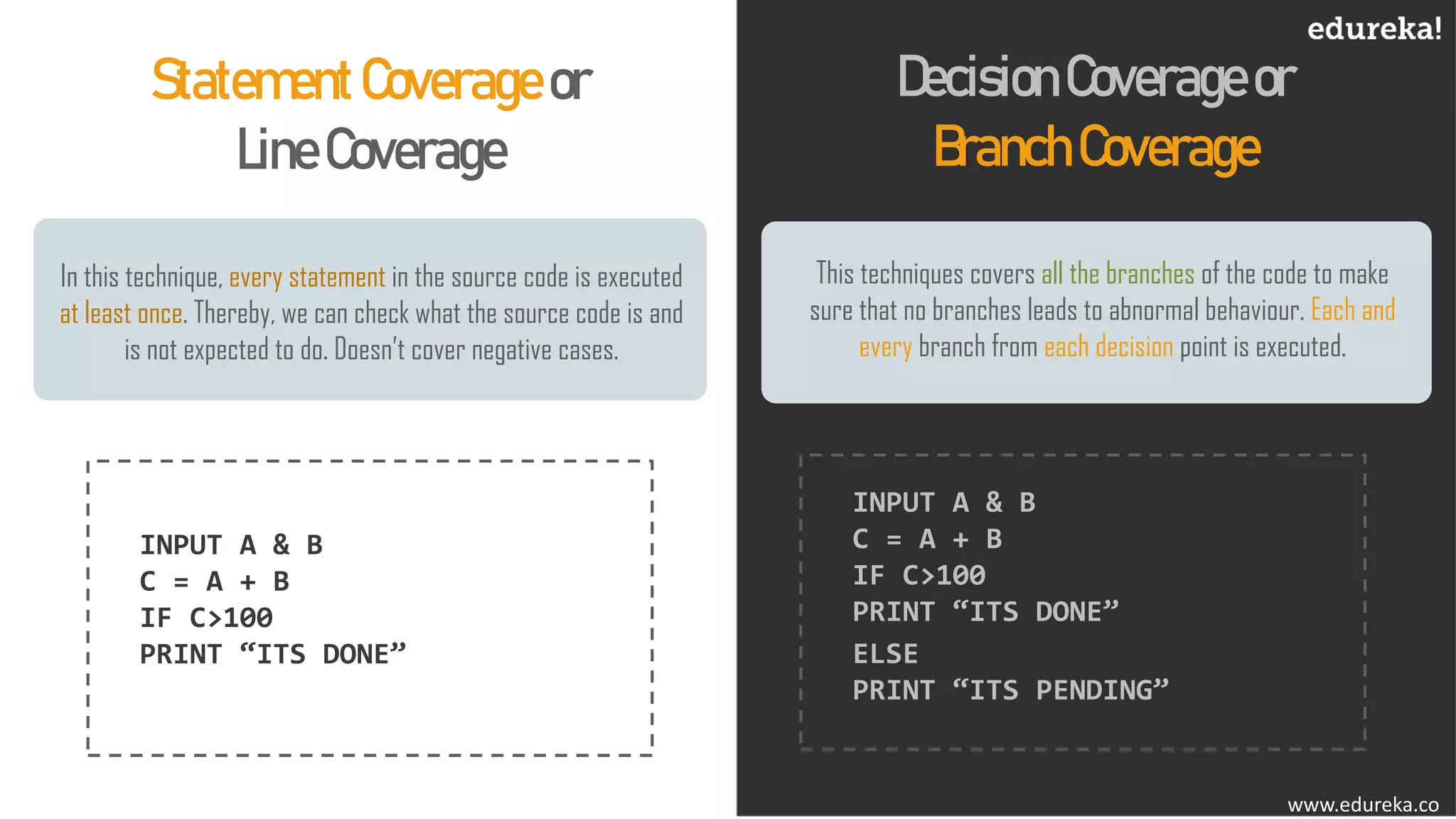

StatementCoverageor
LineCoverage
In this technique, every statement in the source code is executed
at least once. Thereby, we can check what the source code is and
is not expected to do. Doesn’t cover negative cases.
DecisionCoverageor
BranchCoverage
This techniques covers all the branches of the code to make
sure that no branches leads to abnormal behaviour. Each and
every branch from each decision point is executed.
INPUT A & B
C = A + B
IF C>100
PRINT “ITS DONE”
INPUT A & B
C = A + B
IF C>100
PRINT “ITS DONE”
ELSE
PRINT “ITS PENDING”

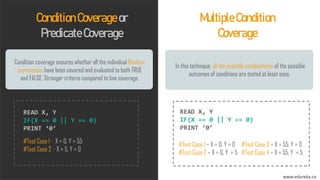

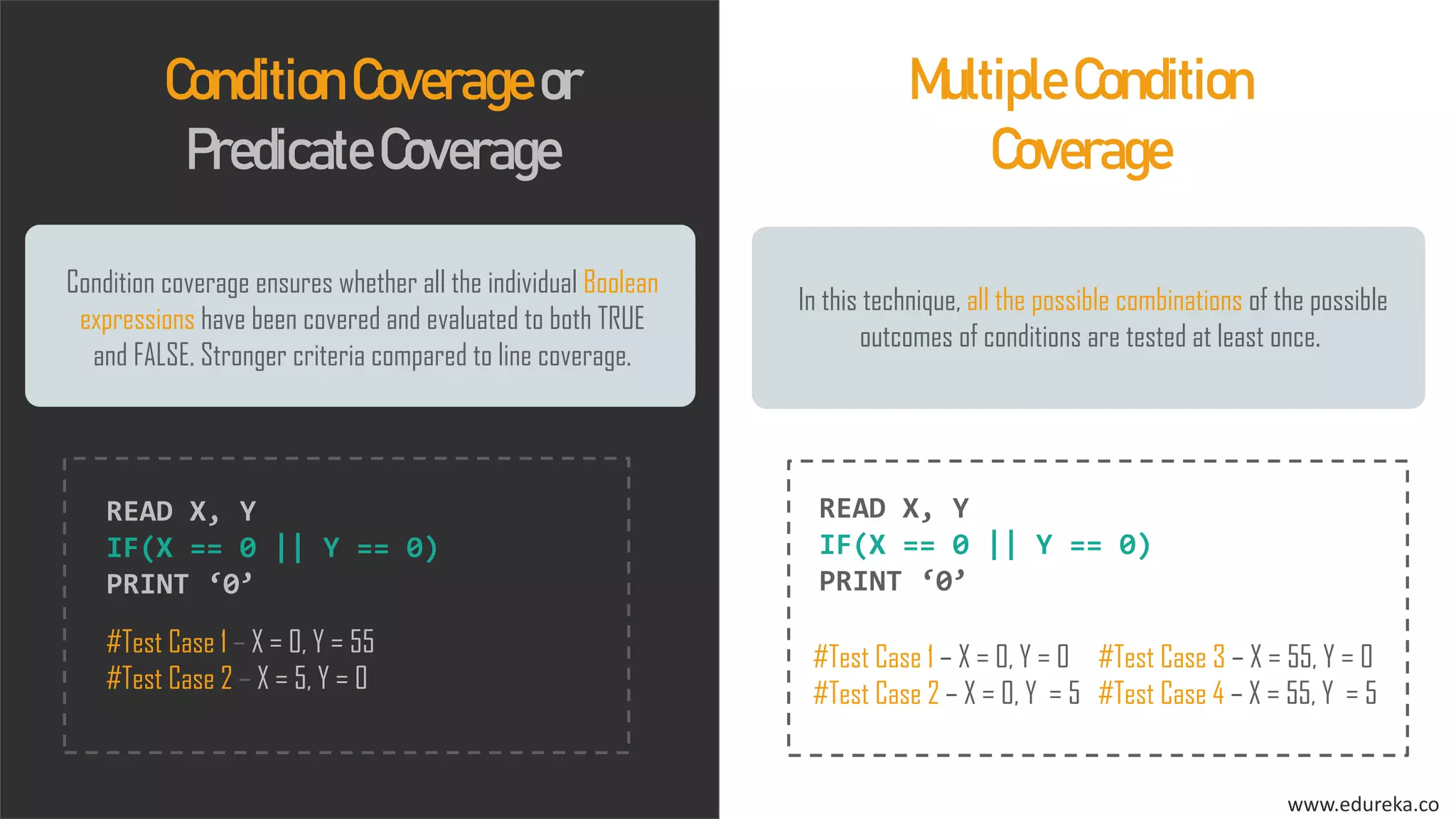

ConditionCoverage or
PredicateCoverage
Condition coverage ensures whether all the individual Boolean
expressions have been covered and evaluated to both TRUE
and FALSE. Stronger criteria compared to line coverage.
READ X, Y
IF(X == 0 || Y == 0)
PRINT ‘0’
MultipleCondition
Coverage
In this technique, all the possible combinations of the possible
outcomes of conditions are tested at least once.
#Test Case 1 – X = 0, Y = 55
#Test Case 2 – X = 5, Y = 0
READ X, Y
IF(X == 0 || Y == 0)
PRINT ‘0’
#Test Case 1 – X = 0, Y = 0
#Test Case 2 – X = 0, Y = 5
#Test Case 3 – X = 55, Y = 0
#Test Case 4 – X = 55, Y = 5
www.edureka.co

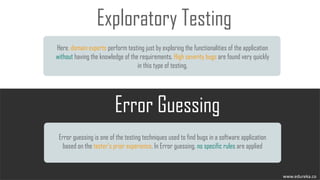

Exploratory Testing
Error Guessing
Here, domain experts perform testing just by exploring the functionalities of the application
without having the knowledge of the requirements. High severity bugs are found very quickly
in this type of testing.
Error guessing is one of the testing techniques used to find bugs in a software application
based on the tester’s prior experience. In Error guessing, no specific rules are applied
