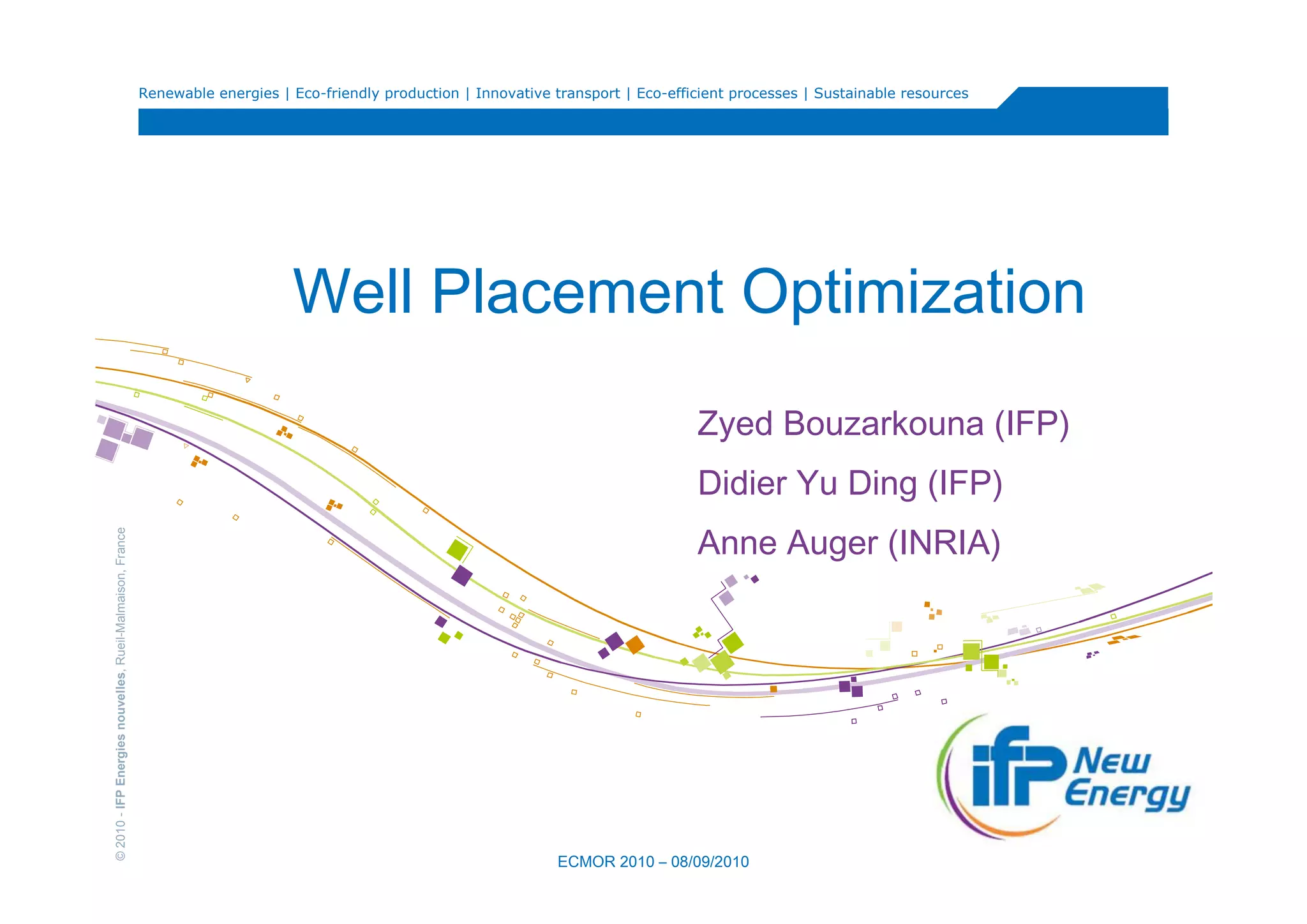

Well Placement Optimization
Zyed Bouzarkouna (IFP)
Didier Yu Ding (IFP)
Anne Auger (INRIA)
© 2010 - IFP Energies nouvelles, Rueil-Malmaison, France

ECMOR 2010 – 08/09/2010

Outline

 Well placement optimization

 Covariance Matrix Adaptation – ES (CMA-ES)

 Comparison with the genetic algorithm

 CMA-ES with meta-models

 Summary

2

Well Placement Optimization Problem

 multi-modal
 non-smooth
 non-convex
non-separable


 with a large dimension
 computationally expensive
 ... Onwunalu & Durlofsky (2010)

The use of a stochastic optimization algorithm
3

CMA-ES
Covariance Matrix Adaptation – Evolution Strategy (Hansen &
Ostermeier, 2001)

Initial population

Evaluating individuals

Next
generation x i( g 1)  m ( g )   ( g )N i (0, C( g ) )  i  1..

New population
4

5

CMA-ES (Cont’d)
Covariance Matrix Adaptation

CMA-ES (Cont’d)

 Moving the mean

m ( g 1)
  i x i(:λ1)
g

i 1

with 
i 1
i  1, 1  2  ...     0

 Adapting the covariance matrix rank-one update

rank-μ update


ccov 1
) i y i(:g 1) y i(:g 1)
T T
C( g 1)  (1  ccov )C( g )  p cg 1)p cg 1)  ccov (1 
( (
 
 cov cov i 1
( g 1)
m  m( g )
where p ( g 1)
 (1  cc )p (g)
 cc (2  cc )  eff
 (g)
c c

Step-size control p σg 1)
(
 c
 ( g 1)
 (g)
exp( (  1))
d E N (0, I )
1
(g)2 m ( g 1)  m ( g )
where p ( g 1)
 (1  c )p (g)
 c (2  c )  eff C
 (g)
σ σ

6

Handling Constraints with CMA-ES
 Adaptive penalization with rejection
 Adaptive penalization
 m = nbconstraints
2
1 m dj
f ( x)  f ( x)    j
m j 1  j

 where j are weights increased if the distribution mean moved
away from the feasible domain.

 Rejecting and resampling
 If an individual is far away from the feasible domain.

7

Why CMA-ES ?

 A problem difficult to solve
 multimodal;
 non-smooth;
 non-separable;

 with a high dimension;
 an expensive objective function;
 ....

CMA-ES is one of the most powerful continuous
optimization algorithms (Hansen et al. 2010)

8

Comparison with the Genetic Algorithm
Genetic Algorithm
Initial population

Evaluating individuals

Next
generation
Selection, Crossover, Mutation

New population

constraints handled with Genocop III (Emerick et al. 2009)
9

Test Case
Di
me
ns
ion
 PUNQ S-3: 19 x 28 x 5. = 12

 2 wells to be placed:
vertical, horizontal or deviated.

 1 unilateral producer
 1 unilateral injector Lmax = 1000 m.

 NPV = the objective function
T
 Qo   Co 
Q  C  )  C
Y
1
NPV   ( n  g  g
n 1 (1  APR )
d

Qw  n Cw  n
   
10

11

14 runs
CMA-ES vs. GA

CMA-ES vs. GA (Cont’d)
Position of solution wells (Producers, Injectors)

CMA-ES GA

12

13

CMA-ES: Handling Constraints

First Conclusions

 CMA-ES outperforms GA: Higher NPV with less
simulations.

CMA-ES proposes solutions in a well-defined zone.



 Well configurations generated by CMA-ES are, in
general, either feasible or close to feasible domain.

14

Meta-Models (MM)

f : 'true' objective ˆ
f : approximate
function function (MM)

 Local quadratic regression

point q to be evaluated
points used to evaluate q
other points from the training set

15

Approximate Ranking Procedure
^ ^ ^
 evaluate with f  evaluate with f  evaluate with f
^ ^ ^
 rank with f (Rank0)  rank with f (Rank1)  rank with f (Ranki)
Training Set ...
n elements  evaluate with f the  if (NO criteria)  if (NO criteria)
best from Rank0 evaluate with f the evaluate with f the best
best from Rank1 with Ranki

ad

ad
ad
dt

dt
dt
ot

ot
ot
he

he
he
Tra

Tra
Tra
ini

ini
ini
ng

ng
ng
Se

Se
Se
t

t
t

Training Set Training Set Training Set
(n + 1 ) elements (n + 2 ) elements (n + i ) elements

16

MM Acceptance Criteria (nlmm-CMA)
Bouzarkouna et al. (2010)

 The meta-model is accepted if it succeeds in keeping:

the best individual and the set of the best individuals unchanged



or
 the best individual unchanged, if more than one fourth of the
population is evaluated.

17

Well Placement with lmm-CMA
10 runs

The number of reservoir simulations is reduced by 19 - 25%

18

Well Placement with lmm-CMA (Cont’d)
n layers
Map of    S o
k 1

 Engineer's proposed config.
INJ-2  Producers: Horizontal in layer 1;
INJ-1
Injectors: Horizontal in layer 5.


INJ-O

PROD-O  Optimized config.
 Wells: inclined in layer 3.

PROD-1/2

19

Well Placement with lmm-CMA (Cont’d)
n layers Production Curves
Map of    S o
k 1

INJ-2
INJ-1

INJ-O

PROD-O

PROD-1/2

20

Meta-Models: Conclusions

 Using Meta-Models reduces the number of simulations
by ≈ 20%.

 The methodology adds ≈ 60% to engineer's proposed
well configurations' cumulative oil production.

21

Summary

 A successful application of CMA-ES in well placement
optimization.

Constraints handled using an adaptive penalization with


rejection technique.

 Meta-Models coupled to CMA-ES to reduce the number
of simulations.

22


Thank You for Your Attention

Zyed.Bouzarkouna@ifp.fr

ECMOR 2010 – 08/09/2010


Well Placement Optimization
Zyed Bouzarkouna (IFP)
Didier Yu Ding (IFP)
Anne Auger (INRIA)

Zyed.Bouzarkouna@ifp.fr

ECMOR 2010 – 08/09/2010
