WebSmatch is a platform for integrating open data from heterogeneous sources (1). It addresses problems with large numbers of data sources in different formats, including many Excel files that are poorly structured (2). WebSmatch crawls, classifies, documents and references data sources, then extracts and structures the data for visualization through APIs (3). It uses machine learning and concept matching to extract metadata from Excel files, including detecting tables, attributes, and concepts (4,5,6,7,10,11). The results are exported in structured formats like DSPL for third party use and visualization (13,14,16). Future work includes automating extraction at scale, clustering documents, and integrating with other tools (

1. 1
WebSmatch : a platform
for data and metadata
integration
Remi Coletta, Emmanuel Castanier,
Patrick Valduriez,
Christian Frisch, DuyHoa Ngo, Zohra Bellahsene

2. 2
Motivations
Context: open data in France
Problems
• High number of data sources
• Heterogeneous formats
• Poorly structured
Example (DataPublica): the web crawl for french open data
sources found 148509 Excel files and only 369 RDF files
Needs: integrate and visualize data sources to yield high-
value information
2

3. 3
www.data-publica.com
Business: market place for open data
Functions: crawl, classify, document and reference data
sources in a search engine
The data is extracted and structured in a database in order to
be visualized and accessible through APIs
Problem: scale to high numbers of heterogeneous, poorly
structured sources
3

4. 4
DataPublica Workflow
DataPublica provides more than 10 000 XLS files (from several
sources such as INSEE, various public organizations...)
WebSmatch is integrated in their workflow
4

5. 5
Example of input
URL : http://www.data-publica.com/publication/4736
Problem : where are
data and metadata?
incomplete lines,
unnamed attributes
Existing tools such
as OpenII or Google
Refine work only on
clean files
5

6. 6
Example of input
URL : http://www.data-publica.com/publication/4736
Find data table
Remove blank lines
or columns
6

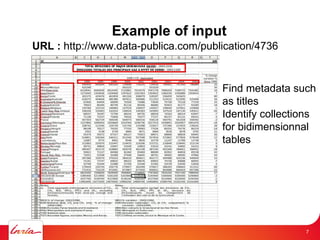

7. 7
Example of input
URL : http://www.data-publica.com/publication/4736
Find metadata such
as titles
Identify collections
for bidimensionnal
tables
7

8. 8
WebSmatch workflow
Focus on metadata extraction service
This service is not used if the input is in a structured format
(such as RDF, RDFS, OWL...)
8

9. 9
MetaData Extraction: XLS example
First step :
Table detection
using vision
algorithms
(dilate/erode)
9

10. 10
MetaData Extraction: XLS example
Second step :
Attribute detection
using
machine learning
on cell content
and neigboorhood
10

11. 11
MetaData Extraction: XLS example
Third step : automatic detection of concepts using YAM++
(14 matching techniques such as string matching, instance
based, wordnet...)
YAM++ came 1st and 2nd at OAEI 2011 : http://oaei.ontologymatching.org/2011/results/
11

12. 12
WebSmatch Workflow
Focus on matching service
Relies on YAM++, combining different metrics (String, Wordnet,
Instance based)
12

13. 13
Data Visualization
Structured export formats easy to use for third parties : DSPL
DSPL : DataSet Publishing Language from Google Inc. see
https://developers.google.com/public-data/
For bidimensionnal tables, we need to denormalize as DSPL
uses flat CSV files for data
=>
13

14. Exporting the Results : integrated
14
metadata
How to make richer datasets : aggregation or intersection
– using generic concepts such as time or location
– find a specific concept using the matching
14

15. 15
Visualizing the Results
15

16. 16
Visualizing the Results
http://api.data-publica.com/…/content.json?
limit=10&filter={revenue_fiscal_par_foyer:{$gt:25000}}
• Multi format (json, xml, spreadsheet,csv)
• Geolocalized queries
• Mashups
16

17. 17
Perspectives
1. Automating large volume extraction: confidence / machine
learning
2. Clustering documents (on specific concepts & concept
instances)
• Integration with other tools
• Google Refine
• RDF export
17

18. 18
Conclusion
WebSmatch is a flexible environment for Open Data
integration
End-to-end process: importing, data cleansing and
integrating data sources
DSPL export format for visualization
Real validation with DataPublica data sources
18
