1. WEB SERVERS(IIS, APACHE,
NGINX)

2. WEB SERVER
• Processes requests via HTTP
• Every Web server has an IP address and possibly a domain
name.
1. URL http://www.webopedia.com/index.html
2. sends a request to webopedia.com
3. sends index.html to your browser.
1

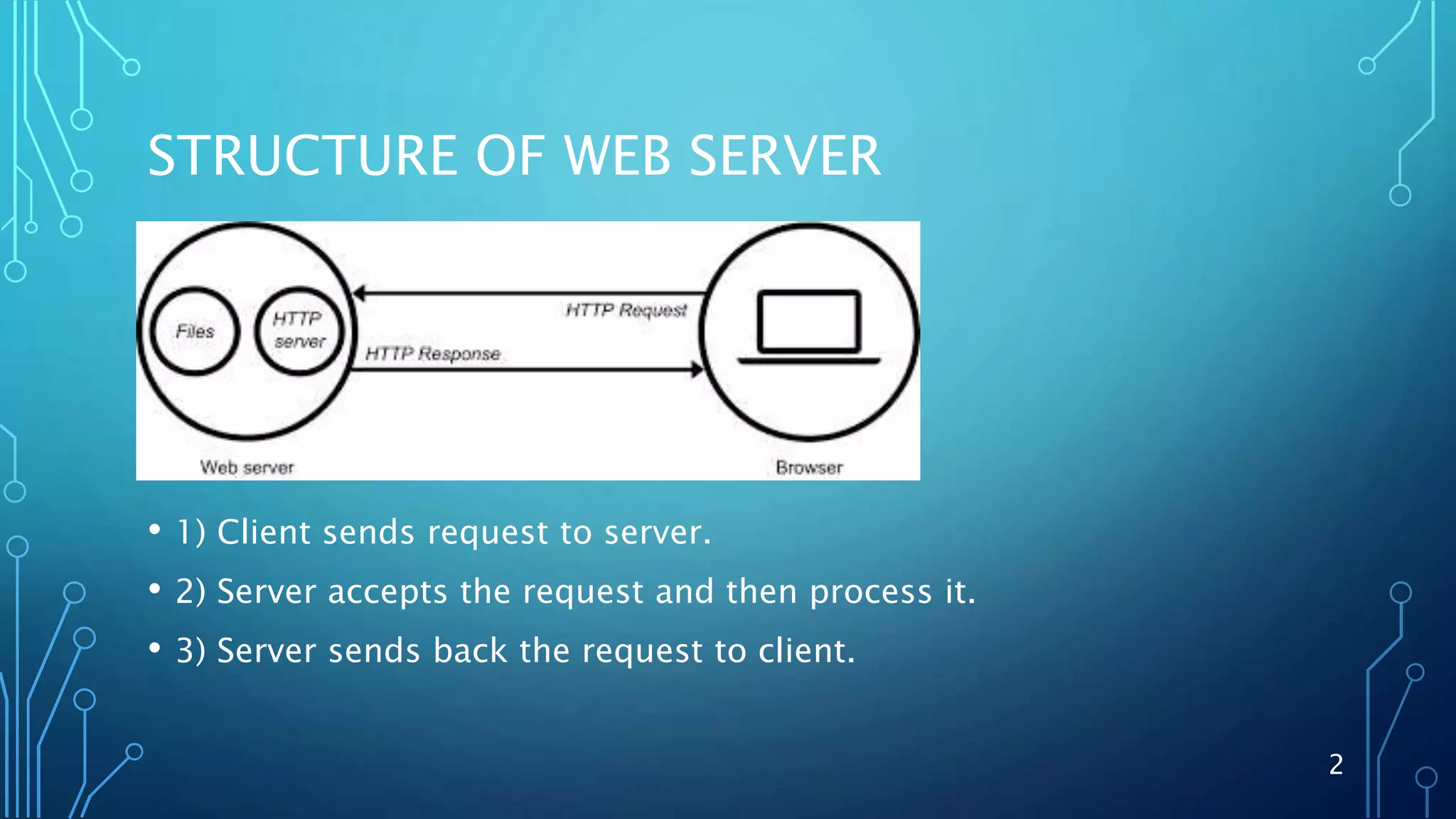

3. STRUCTURE OF WEB SERVER
• 1) Client sends request to server.
• 2) Server accepts the request and then process it.
• 3) Server sends back the request to client.
2

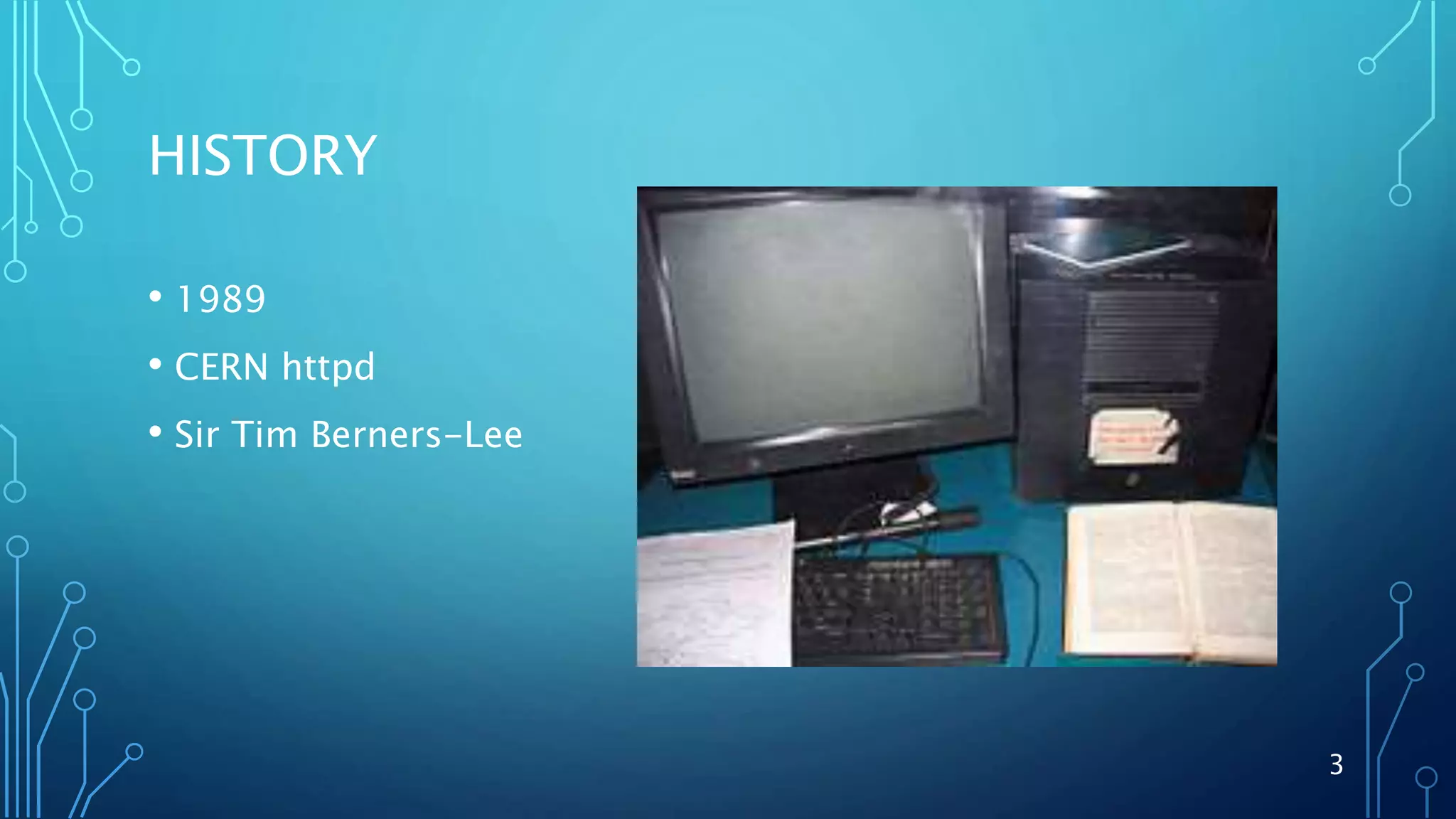

4. HISTORY
• 1989
• CERN httpd
• Sir Tim Berners-Lee
3

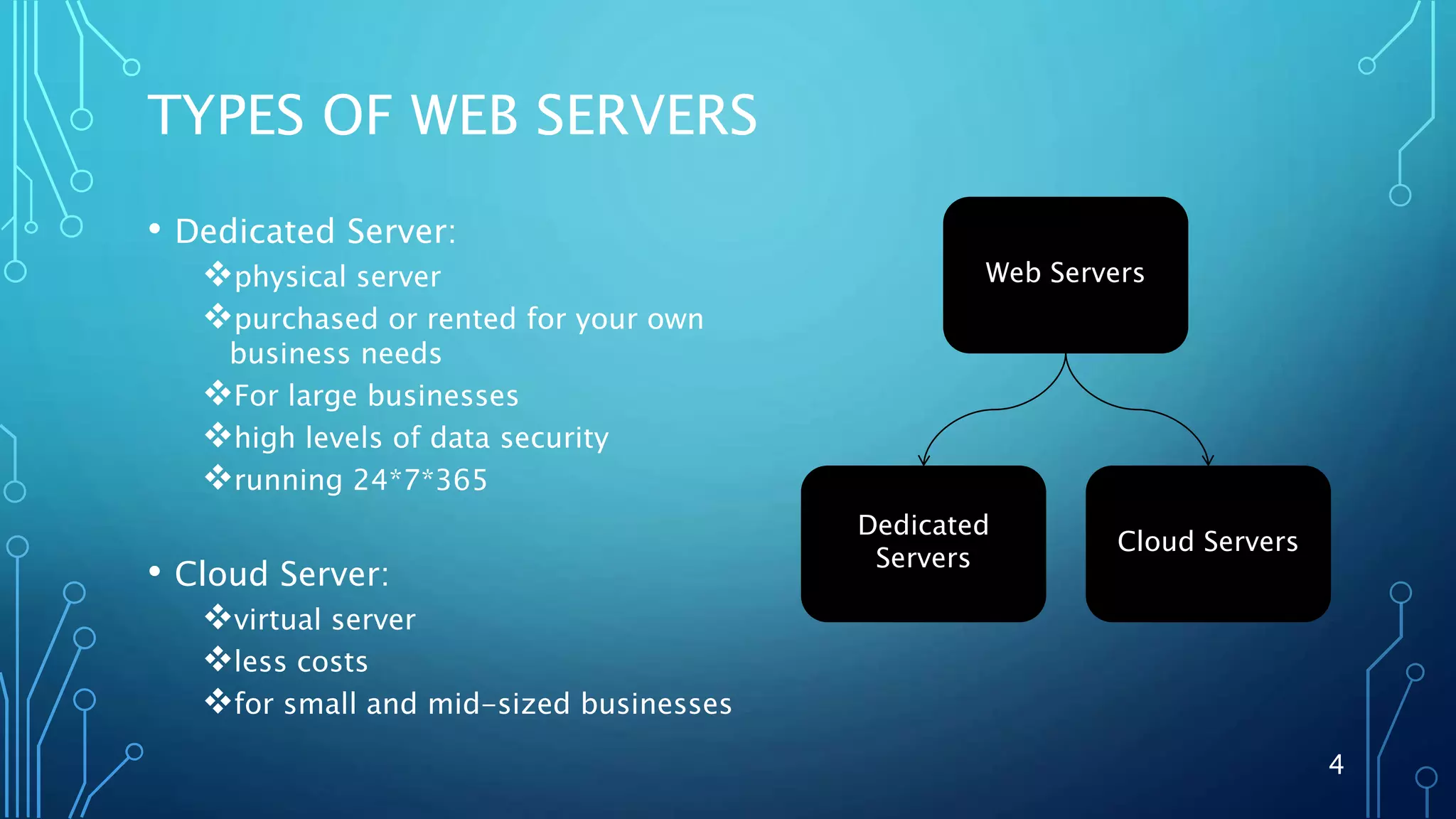

5. TYPES OF WEB SERVERS
• Dedicated Server:
physical server
purchased or rented for your own
business needs
For large businesses
high levels of data security
running 24*7*365
• Cloud Server:
virtual server
less costs
for small and mid-sized businesses
Web Servers
Cloud Servers
Dedicated
Servers
4

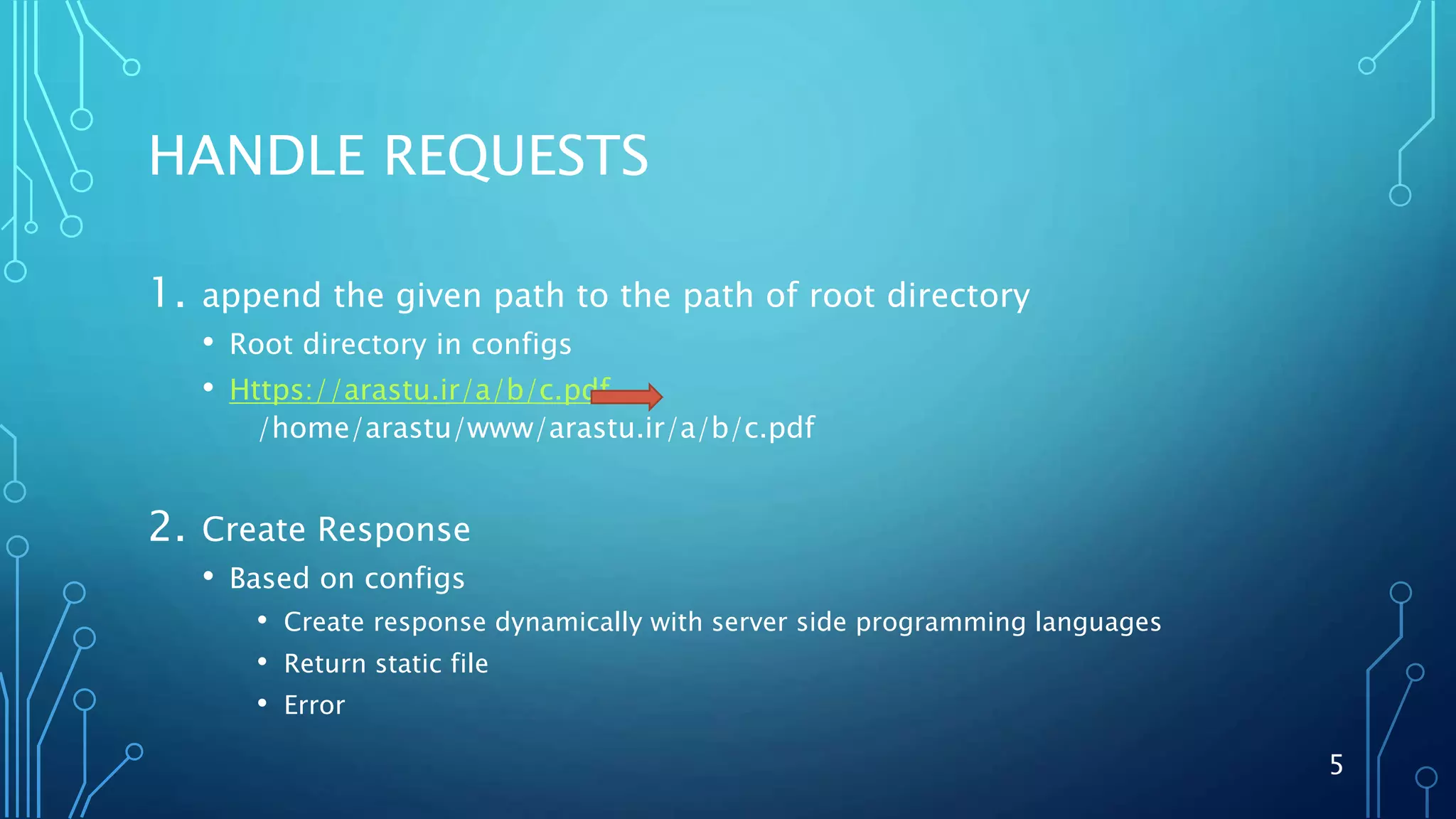

6. HANDLE REQUESTS
1. append the given path to the path of root directory
• Root directory in configs
• Https://arastu.ir/a/b/c.pdf
/home/arastu/www/arastu.ir/a/b/c.pdf
2. Create Response
• Based on configs
• Create response dynamically with server side programming languages
• Return static file
• Error
5

7. WEB SERVERS
•IIS
•Apache
•Nginx
6

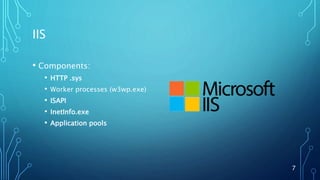

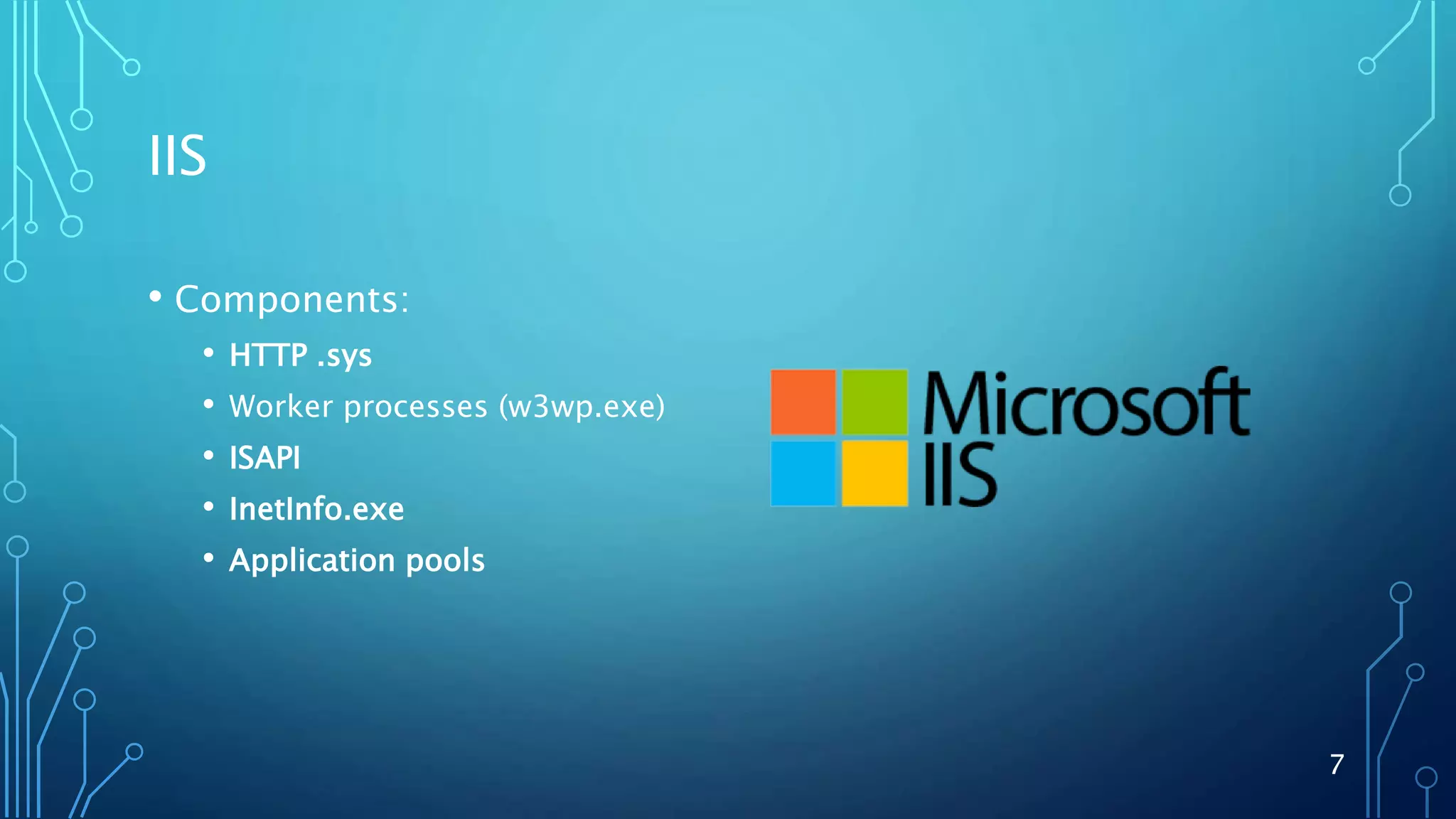

8. IIS
• Components:
• HTTP .sys
• Worker processes (w3wp.exe)
• ISAPI
• InetInfo.exe
• Application pools
7

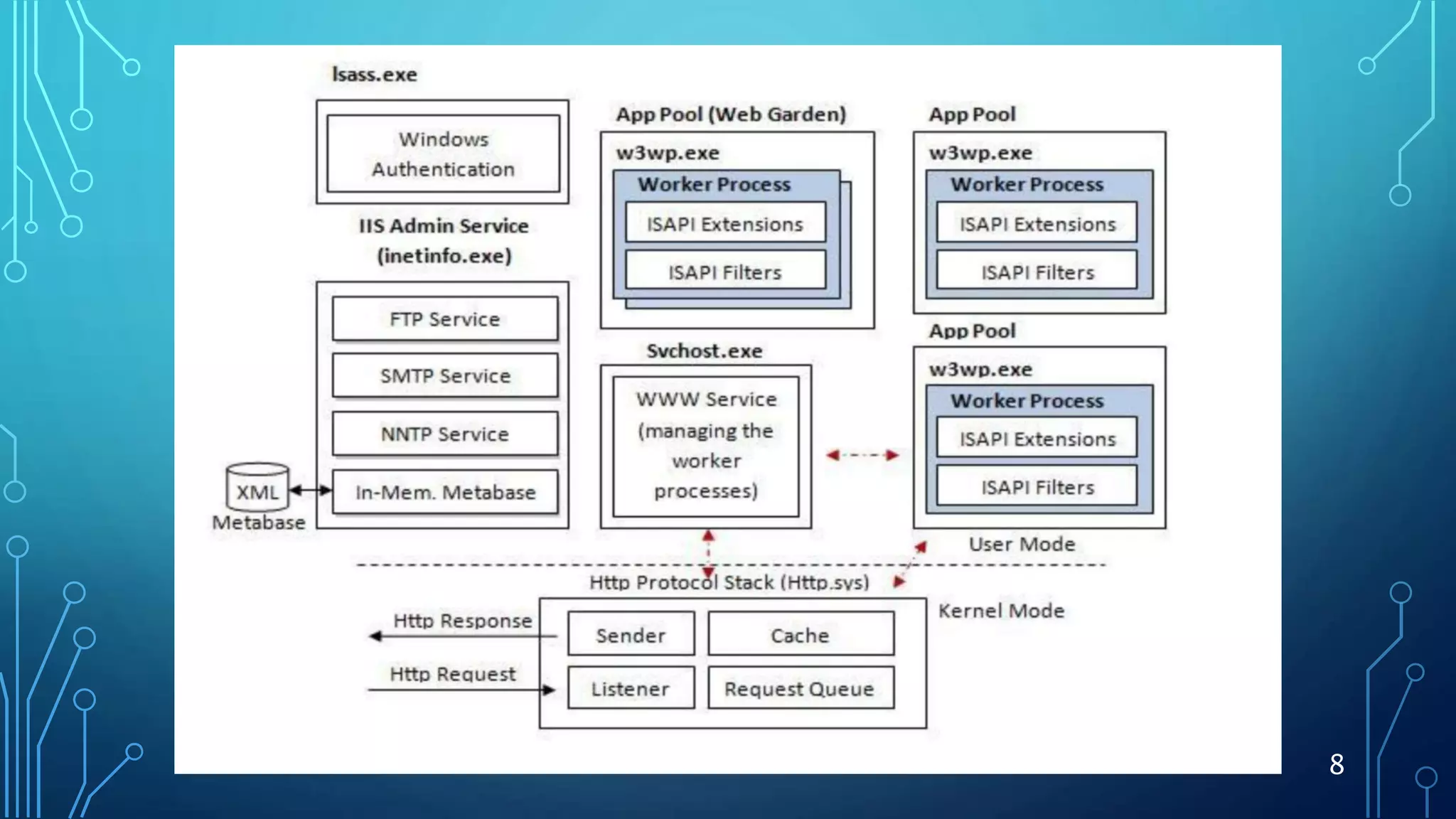

9. 8

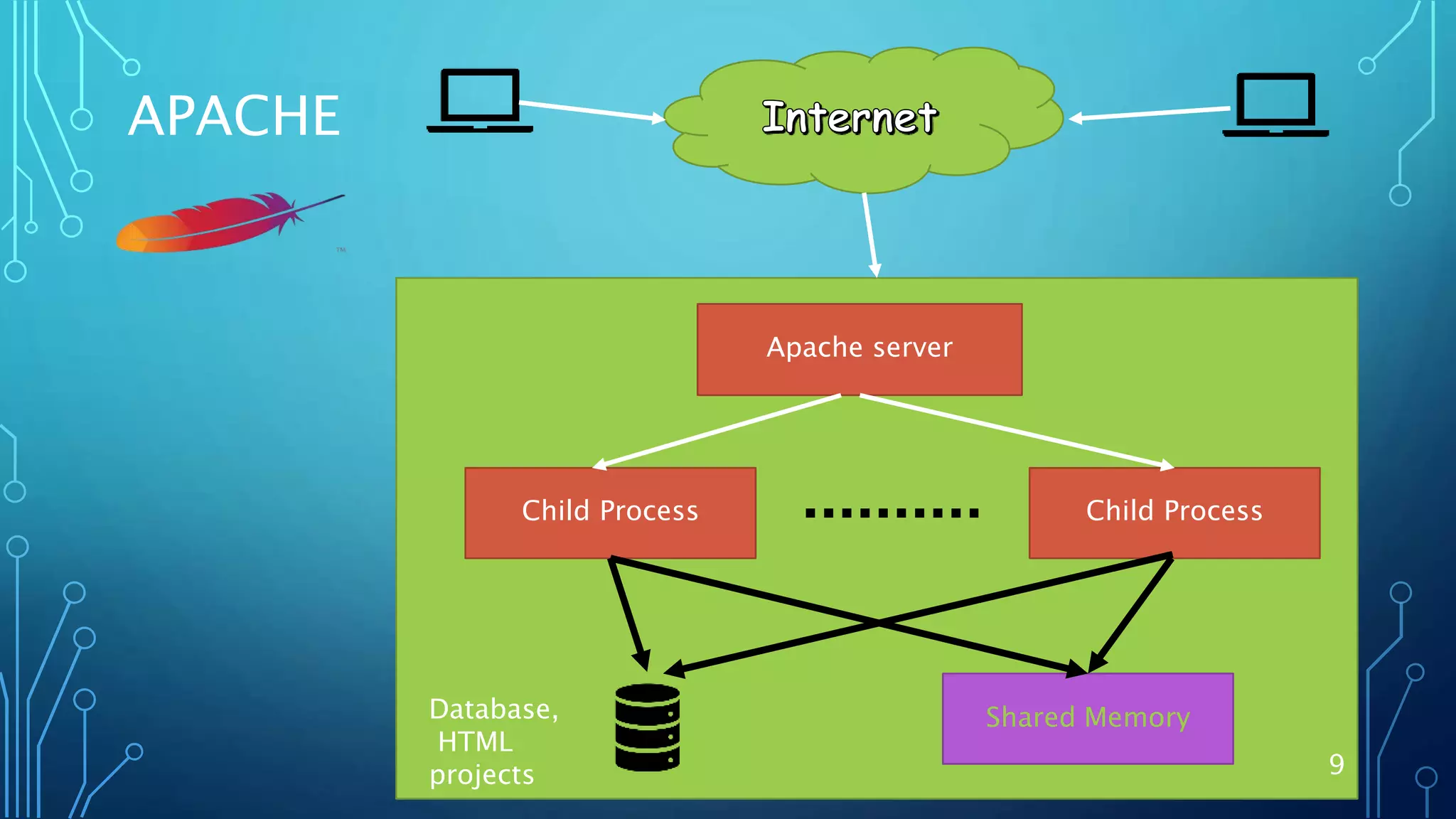

10. Apache server
Child Process
Shared Memory
Child Process
Database,
HTML
projects
APACHE
9

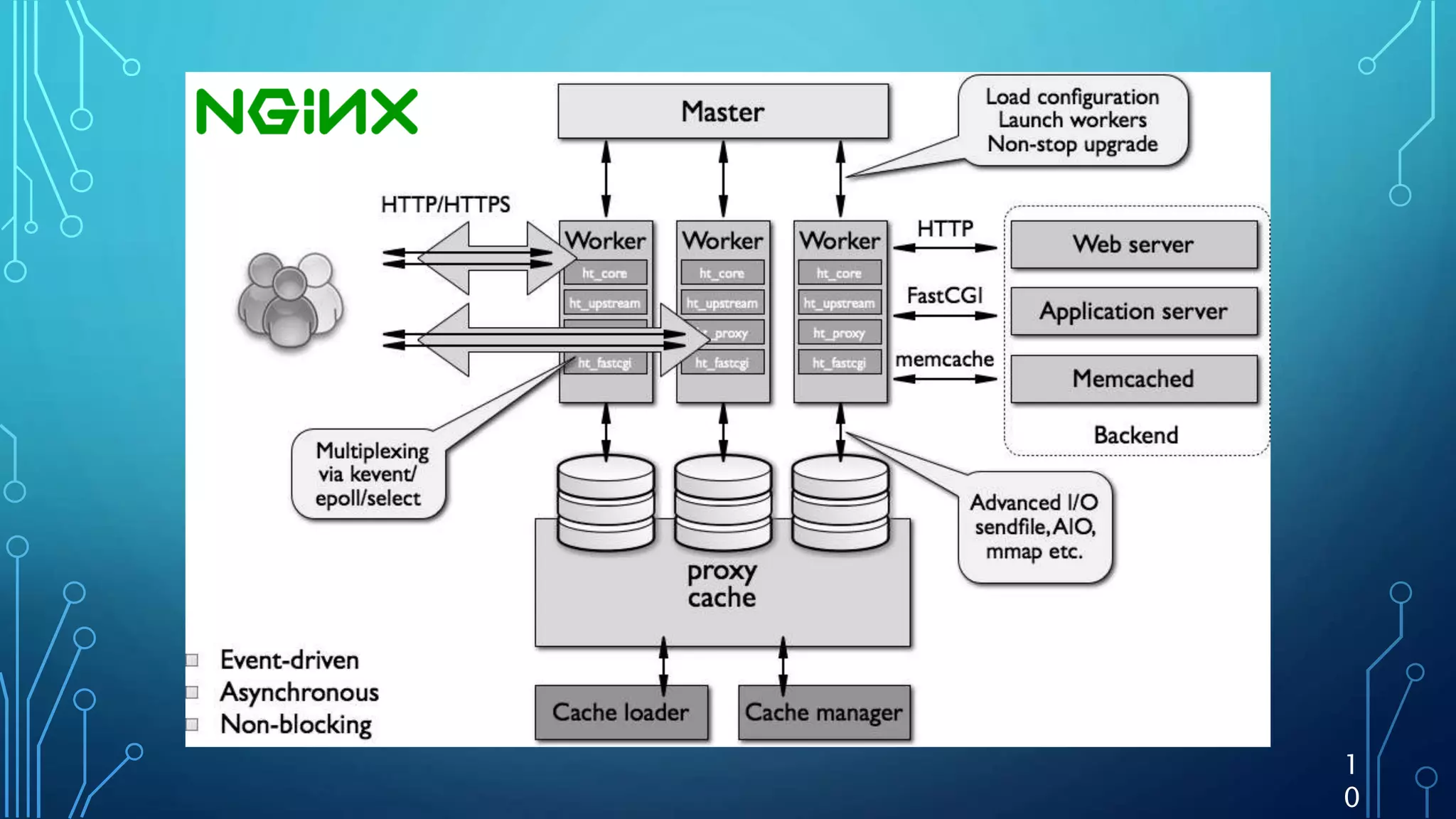

11. 1
0

12. APACHE VS NGINX
• Ubuntu 18.04
• Apache 2.4.29 (mpm_event)
• Nginx 1.14.0
• Default settings
• 1GB ram
• 1 CPU
1
1

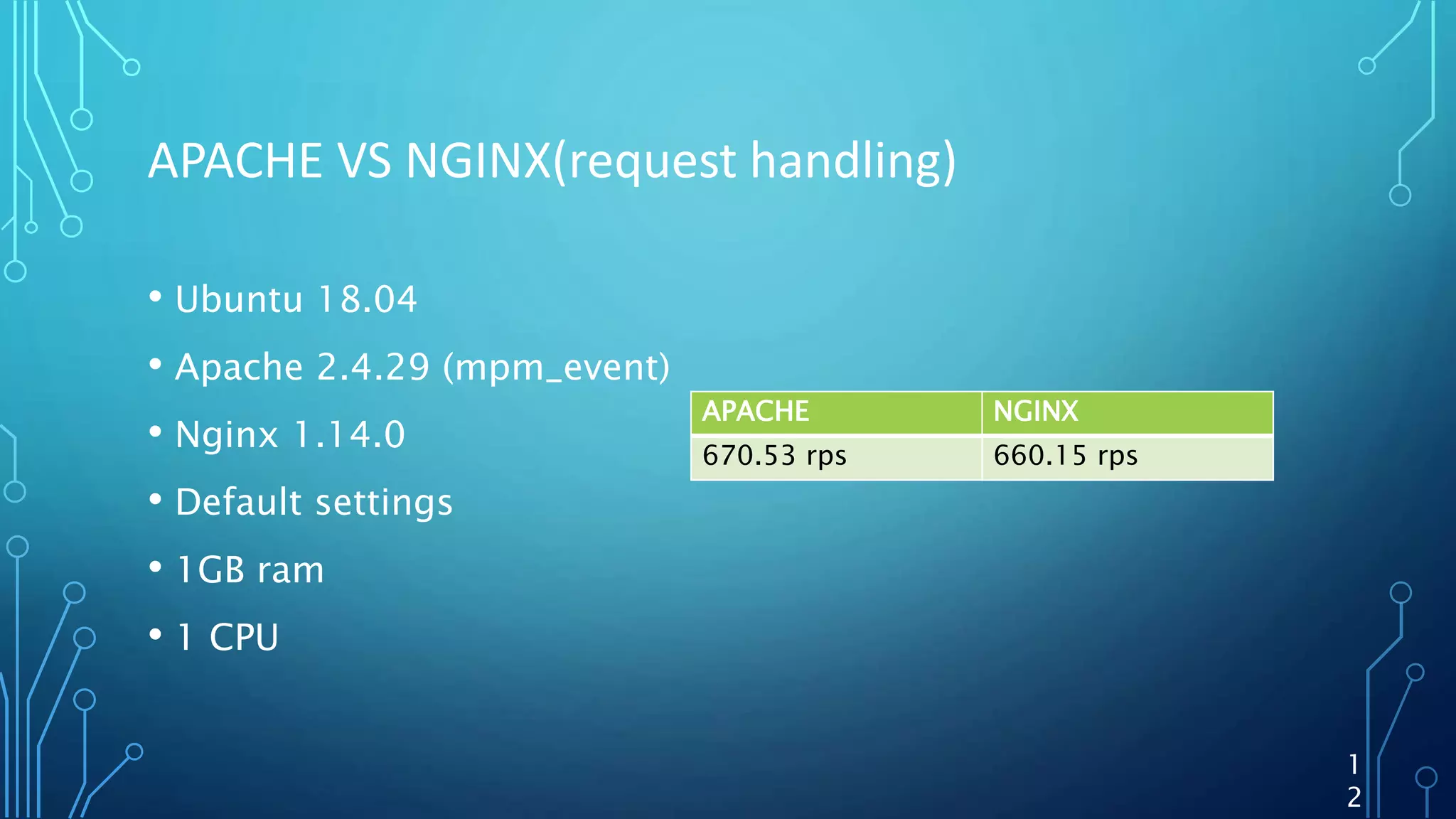

13. APACHE VS NGINX(request handling)
• Ubuntu 18.04
• Apache 2.4.29 (mpm_event)
• Nginx 1.14.0
• Default settings
• 1GB ram
• 1 CPU
APACHE NGINX
670.53 rps 660.15 rps
1
2

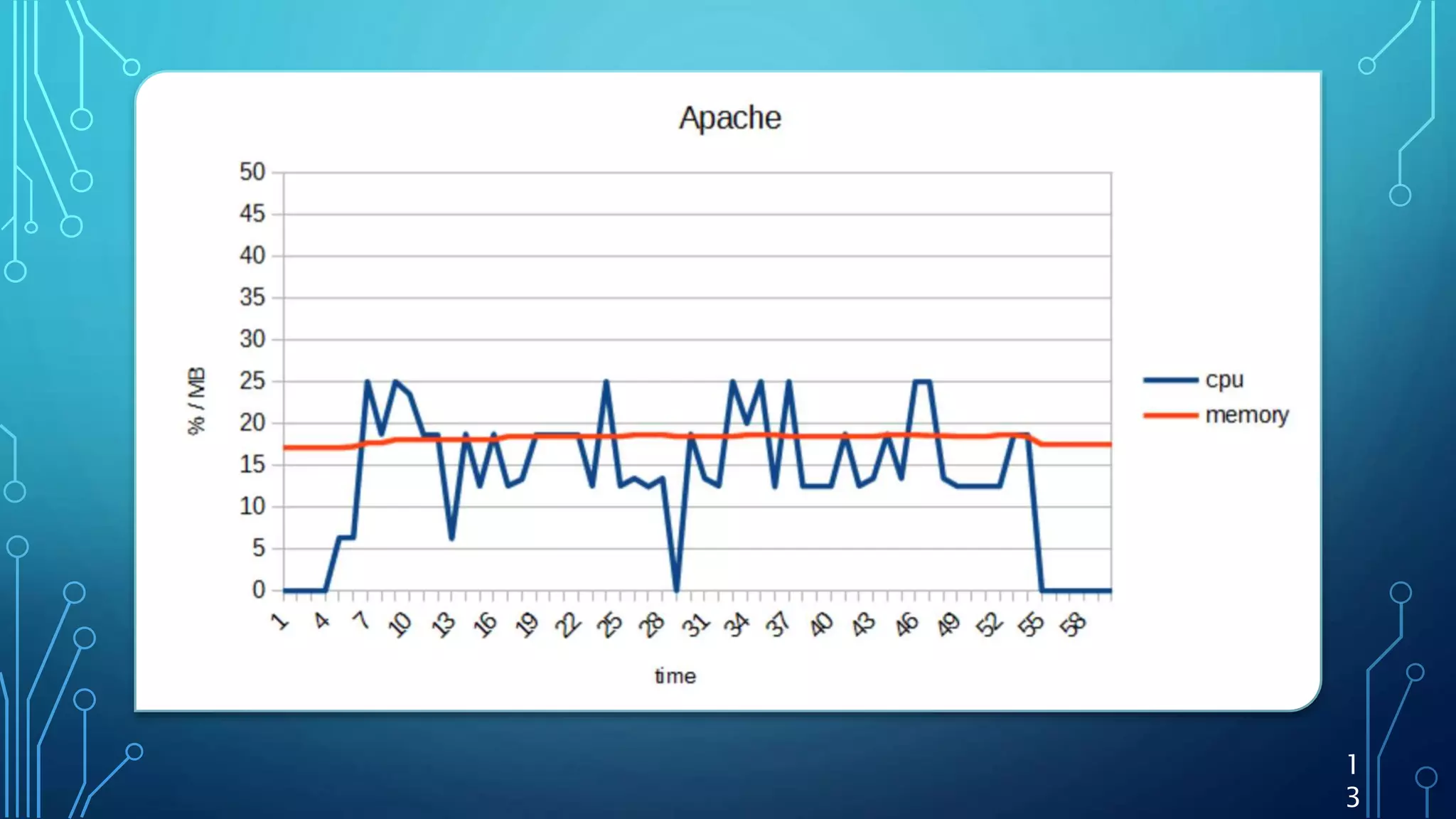

14. 1
3

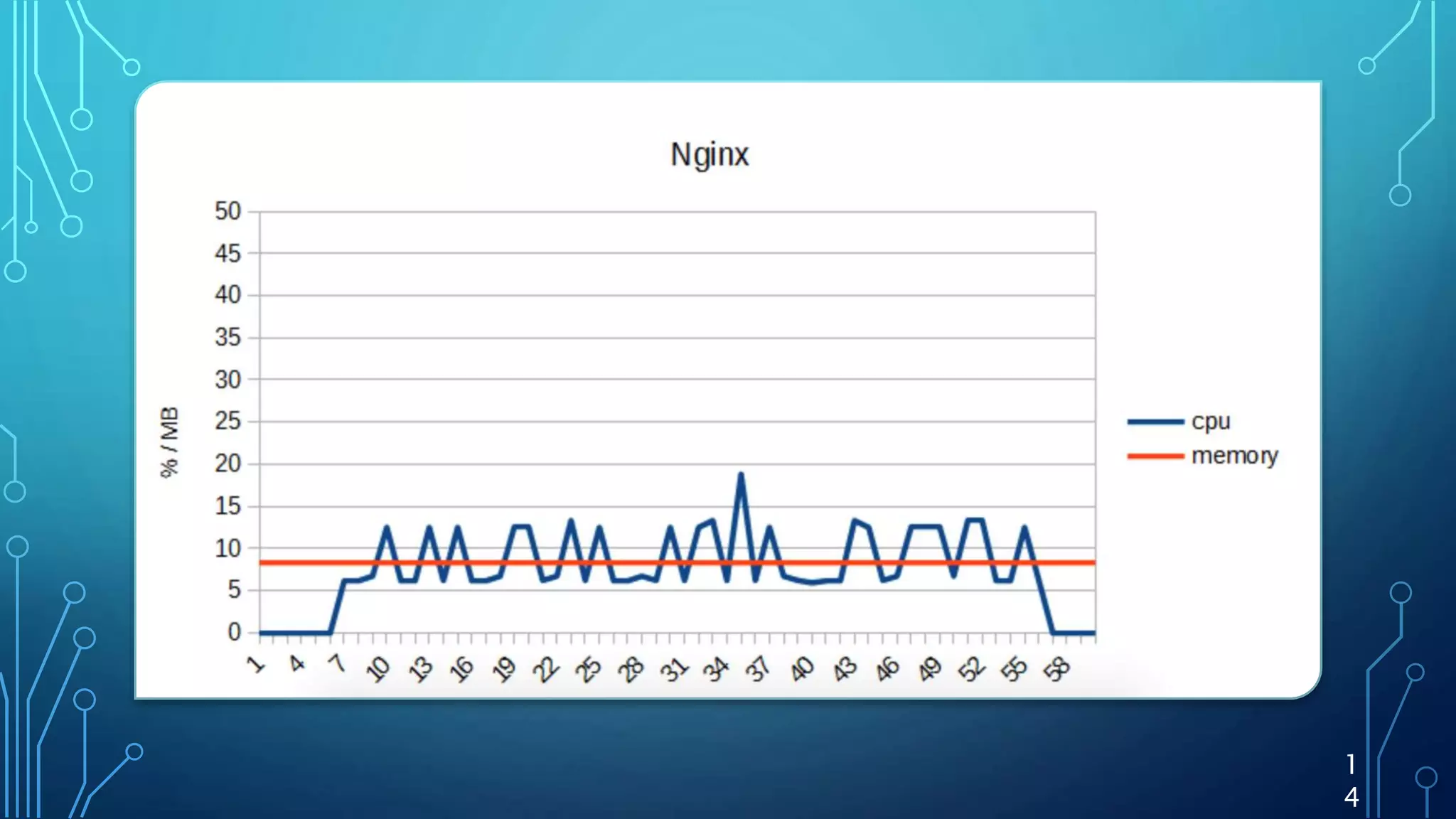

15. 1
4

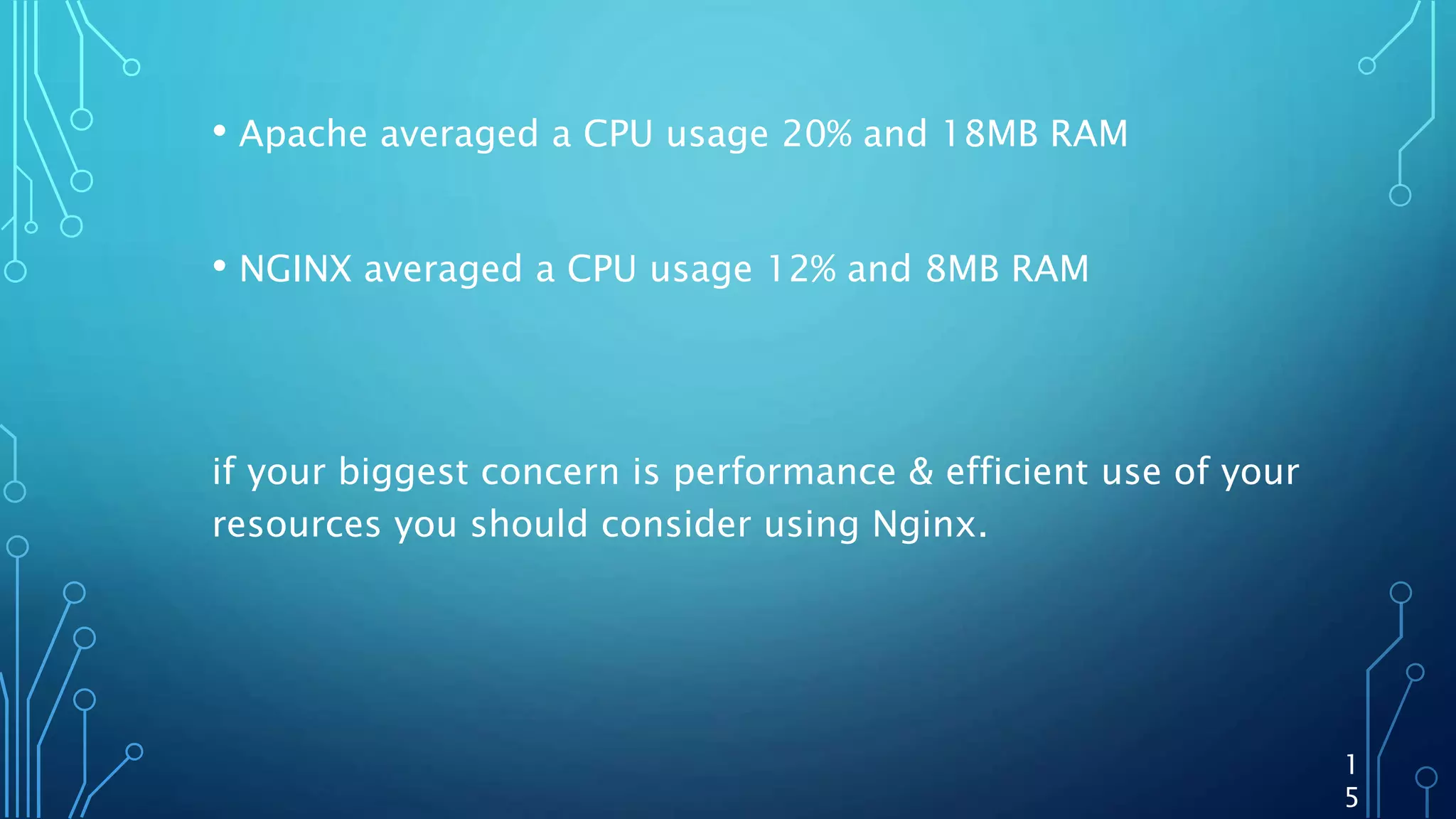

16. • Apache averaged a CPU usage 20% and 18MB RAM
• NGINX averaged a CPU usage 12% and 8MB RAM
if your biggest concern is performance & efficient use of your
resources you should consider using Nginx.
1
5

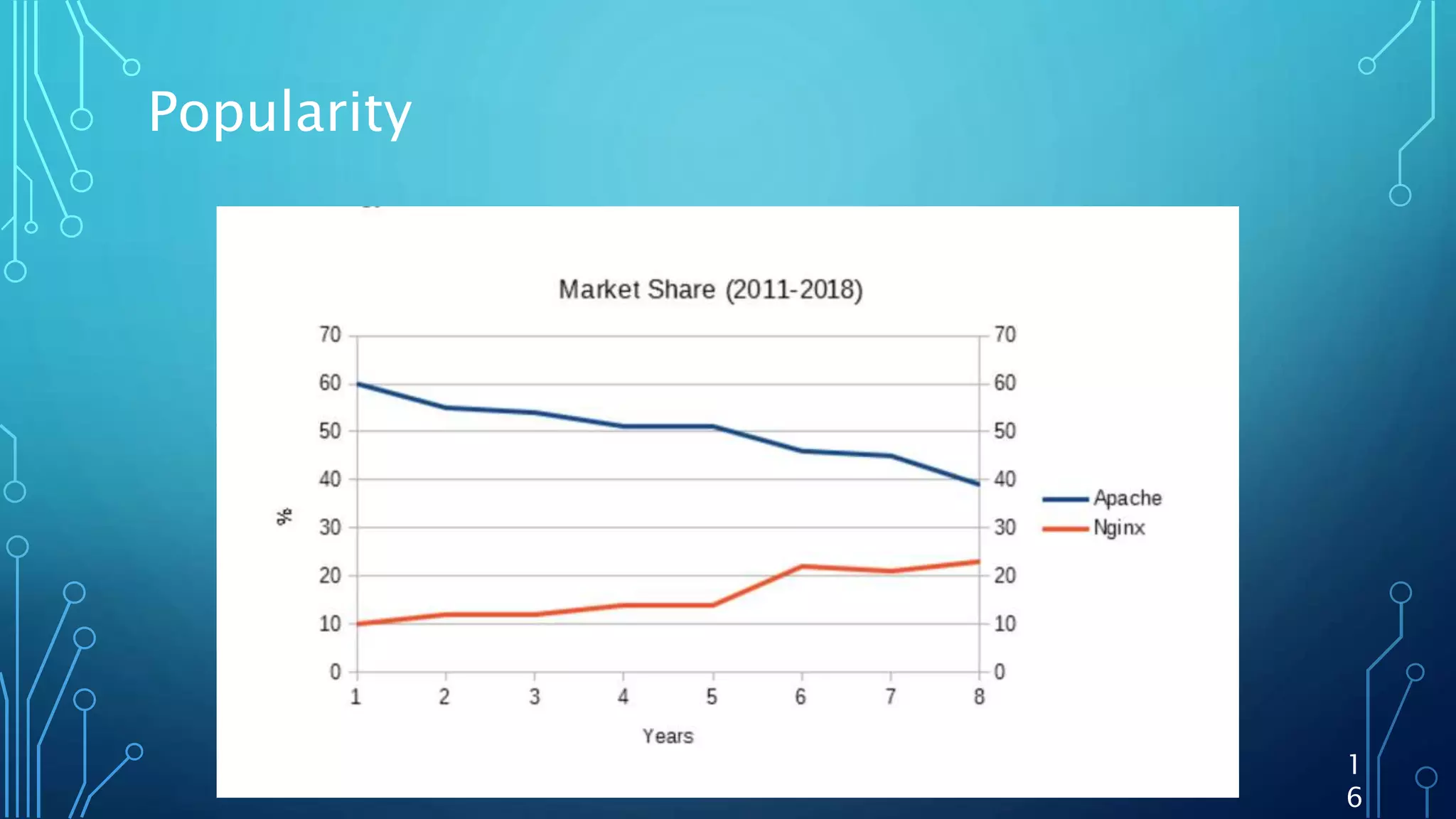

17. Popularity
1
6

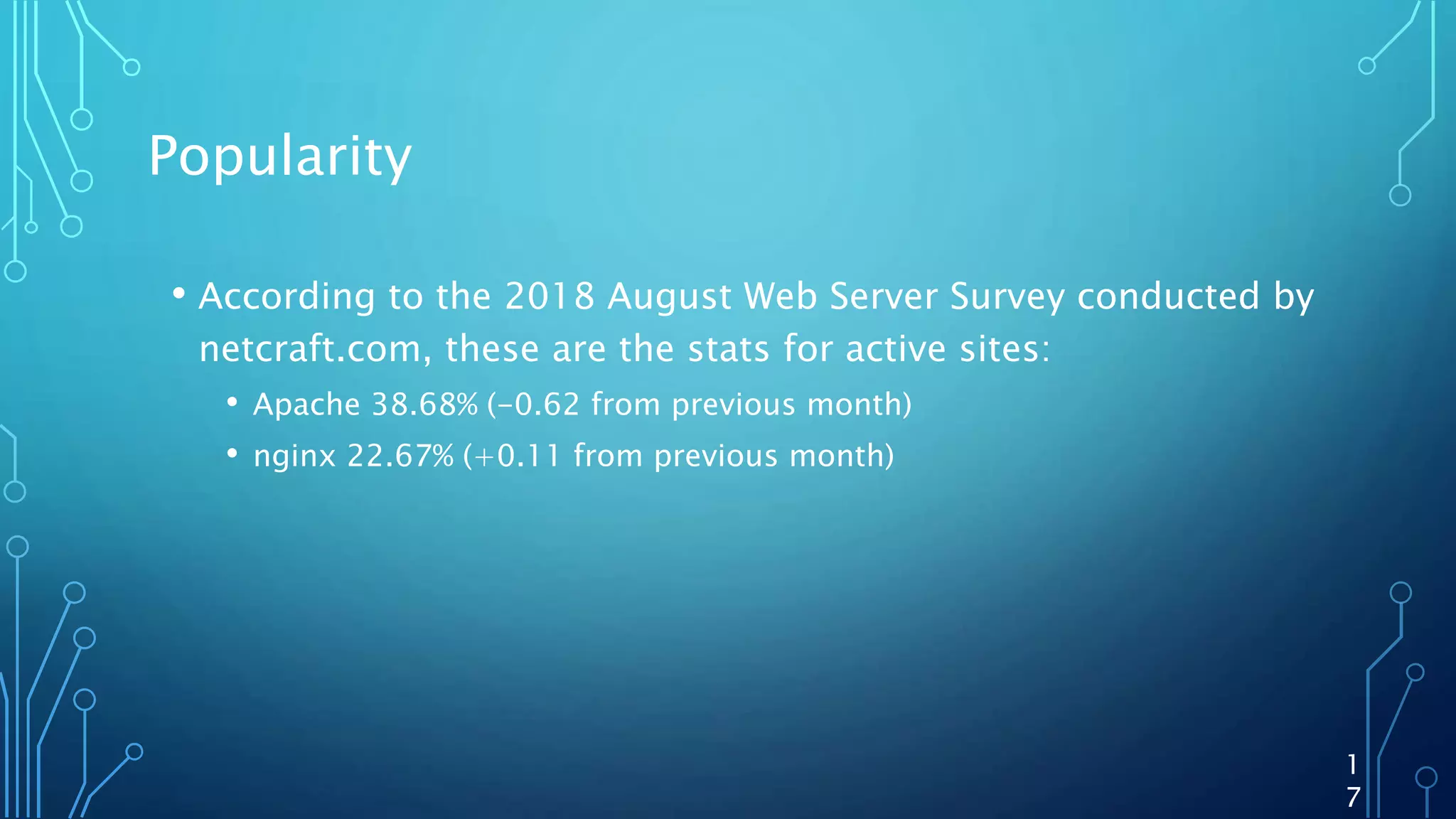

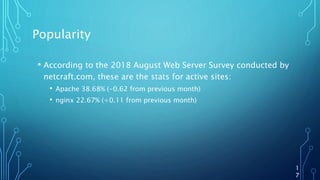

18. Popularity
• According to the 2018 August Web Server Survey conducted by
netcraft.com, these are the stats for active sites:
• Apache 38.68% (-0.62 from previous month)
• nginx 22.67% (+0.11 from previous month)
1
7

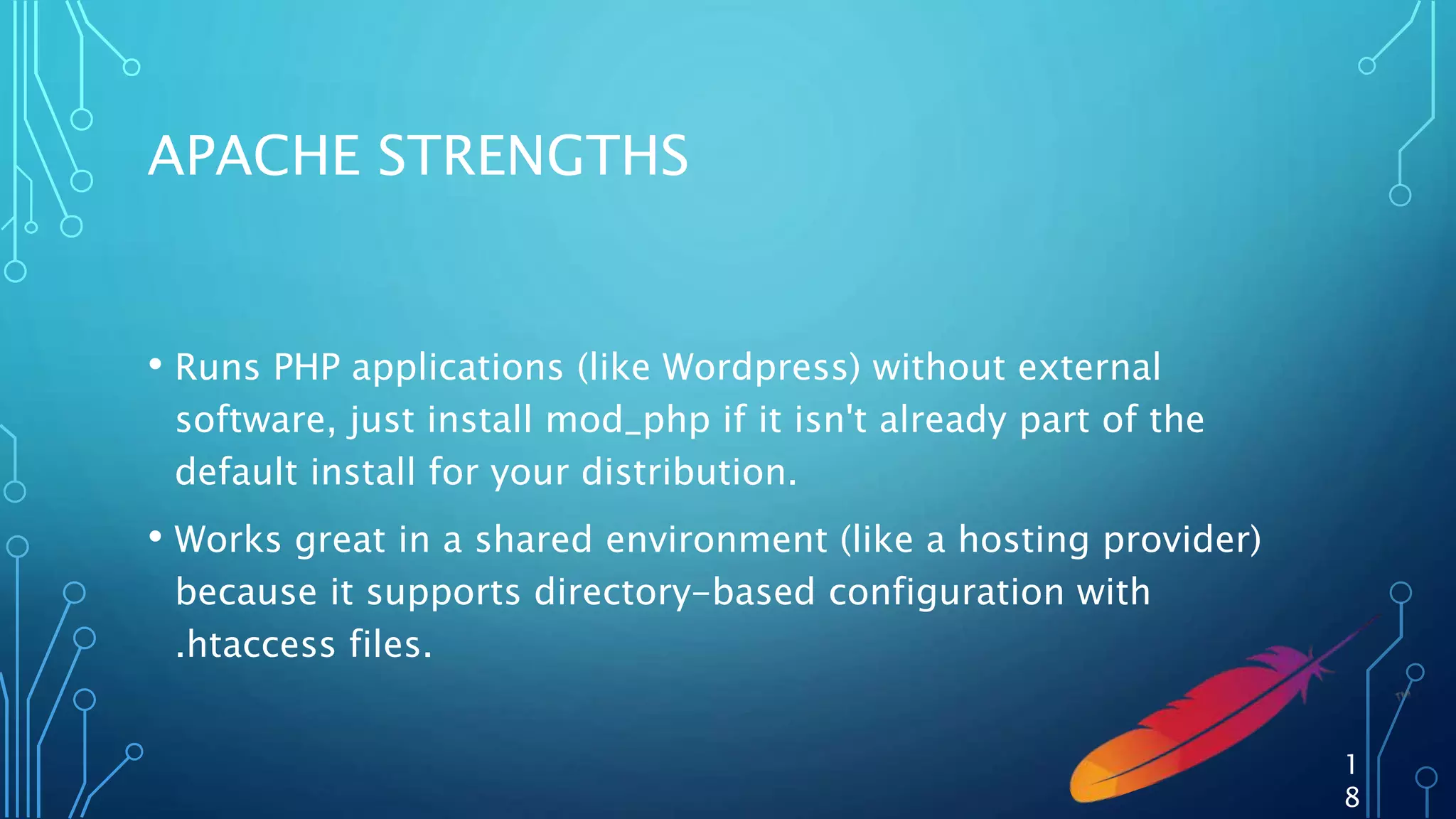

19. APACHE STRENGTHS
• Runs PHP applications (like Wordpress) without external
software, just install mod_php if it isn't already part of the
default install for your distribution.
• Works great in a shared environment (like a hosting provider)
because it supports directory-based configuration with
.htaccess files.
1
8

20. NGINX STRENGTHS
• Serves static assets very efficiently thanks to its event-driven
approach to handling requests.
• Is a great proxy & cache layer for the same reason.
1
9

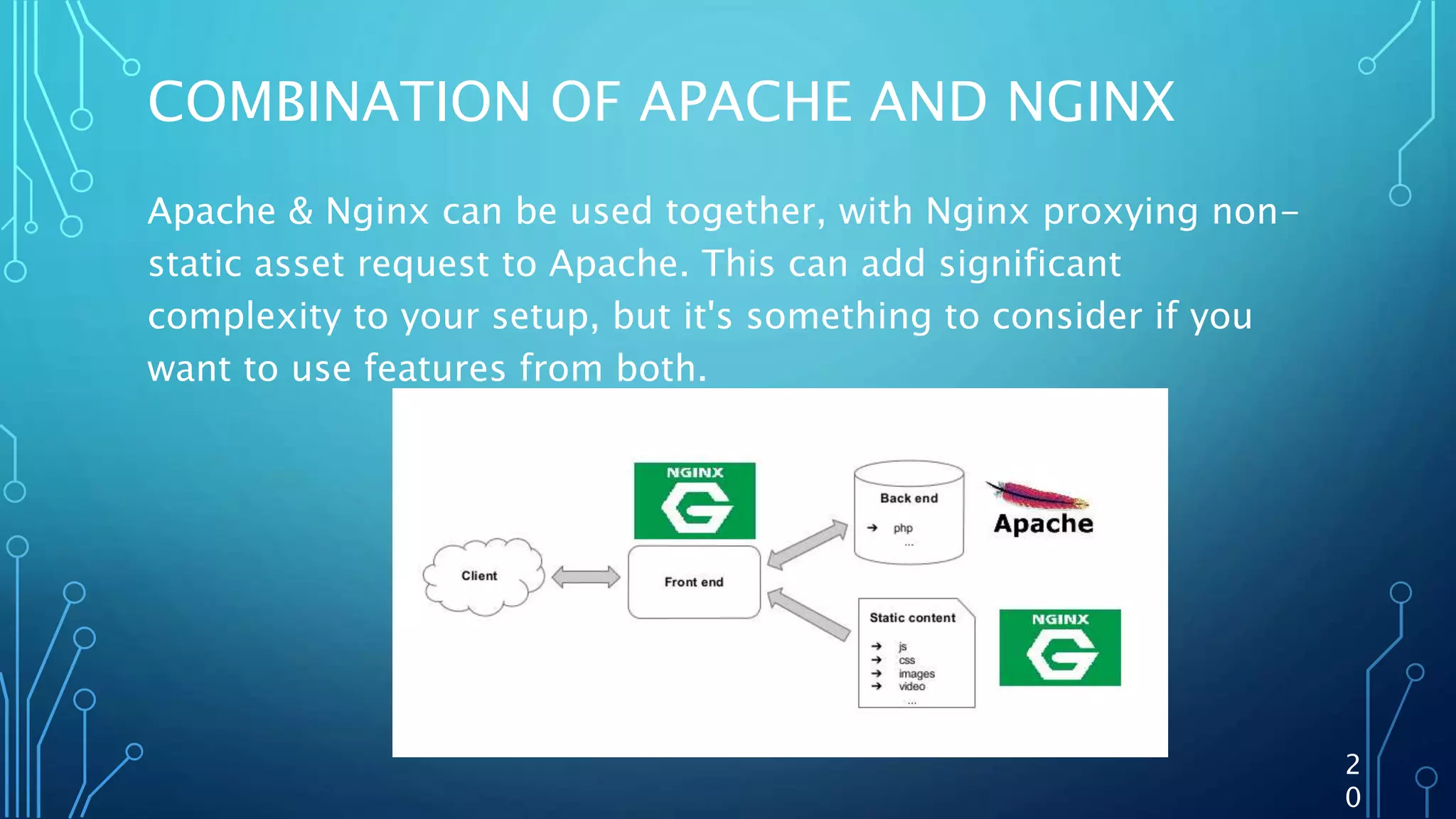

21. COMBINATION OF APACHE AND NGINX
Apache & Nginx can be used together, with Nginx proxying non-
static asset request to Apache. This can add significant
complexity to your setup, but it's something to consider if you
want to use features from both.
2
0

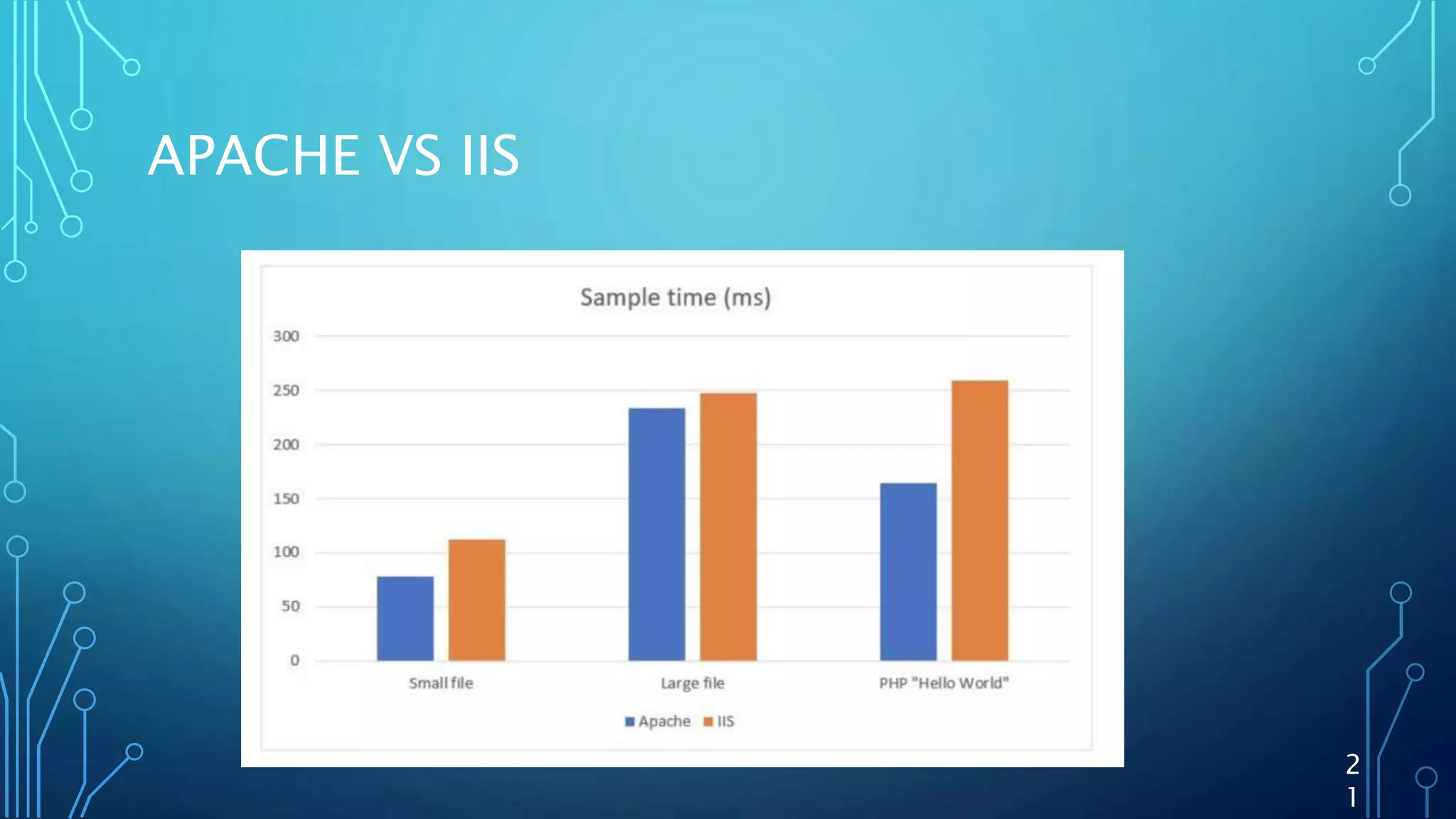

22. APACHE VS IIS
2
1

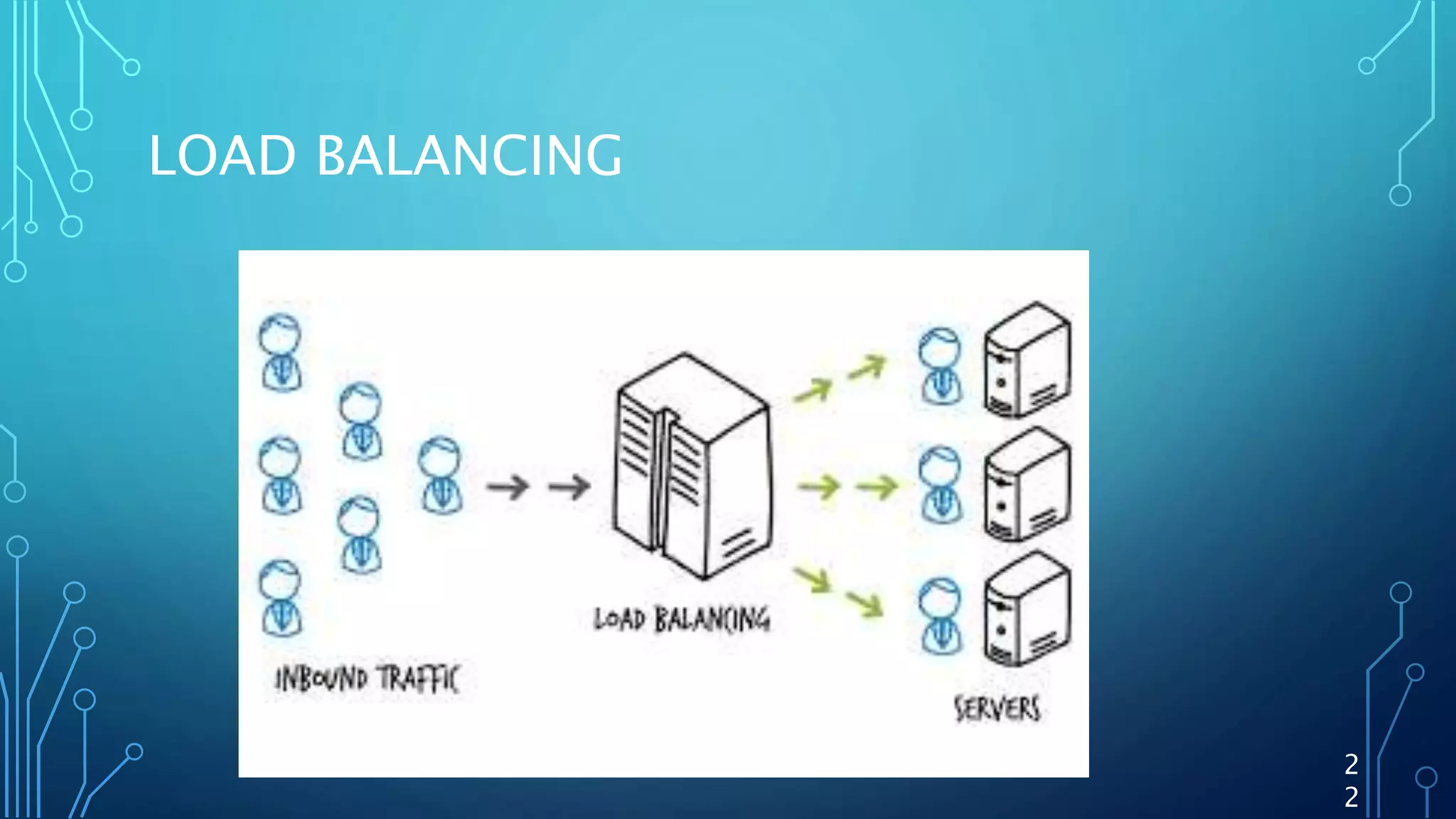

23. LOAD BALANCING
2
2

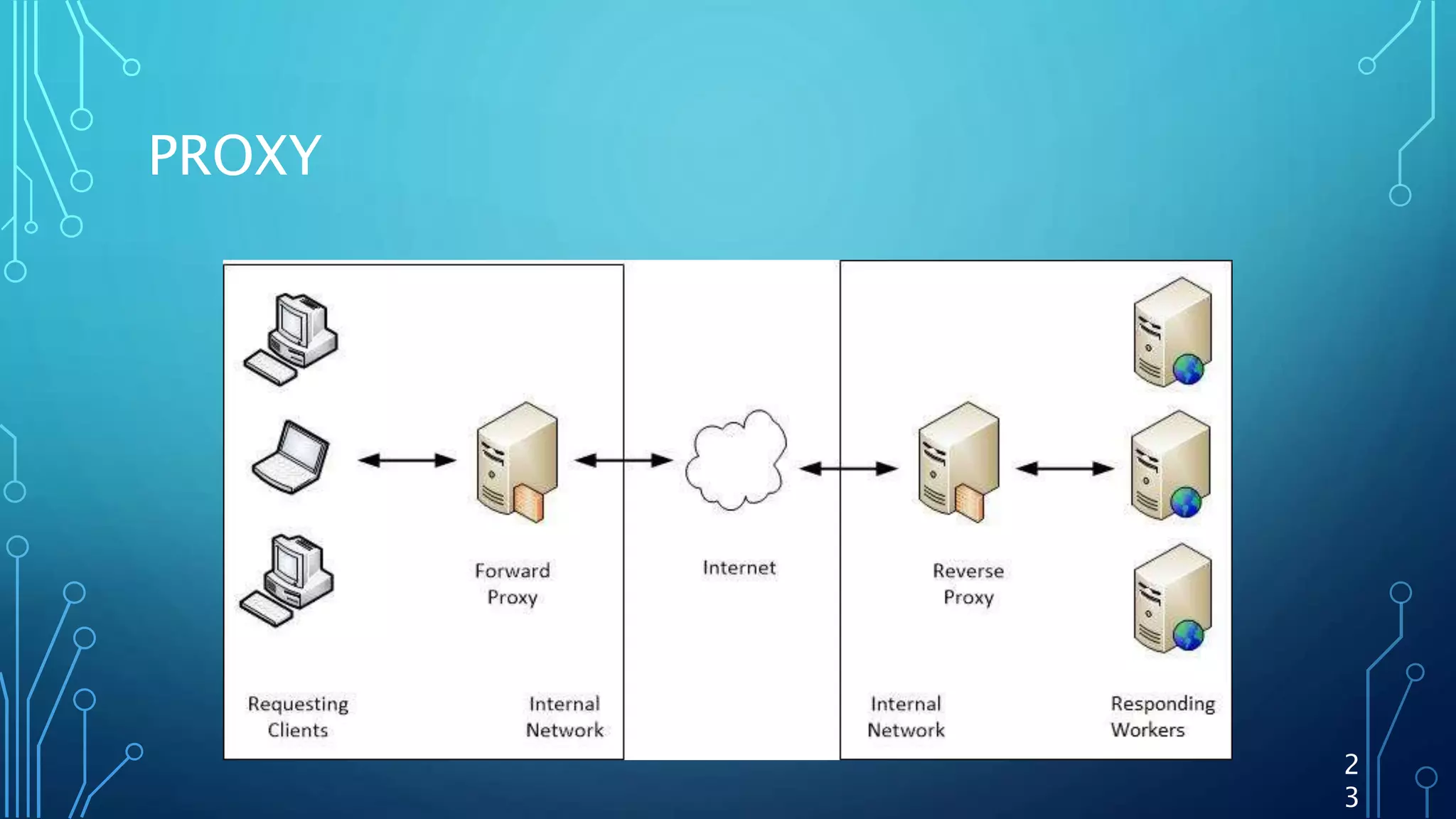

24. PROXY
2
3
