Web Design
BY
CISCO MARK
Chapter 1: Introduction

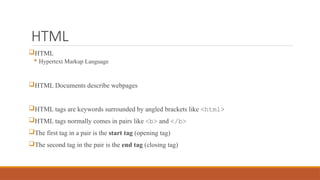

HTML
HTML
 Hypertext Markup Language
HTML Documents describe webpages
HTML tags are keywords surrounded by angled brackets like <html>
HTML tags normally comes in pairs like <b> and </b>
The first tag in a pair is the start tag (opening tag)
The second tag in the pair is the end tag (closing tag)

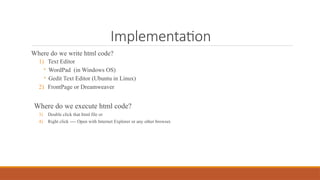

Implementation
Where do we write html code?
1) Text Editor
◦ WordPad (in Windows OS)
◦ Gedit Text Editor (Ubuntu in Linux)
2) FrontPage or Dreamweaver
Where do we execute html code?
3) Double click that html file or
4) Right click ---- Open with Internet Explorer or any other browser.

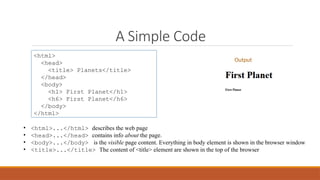

A Simple Code
<html>
<head>
<title> Planets</title>
</head>
<body>
<h1> First Planet</h1>
<h6> First Planet</h6>
</body>
</html>
• <html>...</html> describes the web page
• <head>...</head> contains info about the page.
• <body>...</body> is the visible page content. Everything in body element is shown in the browser window
• <title>...</title> The content of <title> element are shown in the top of the browser
Output

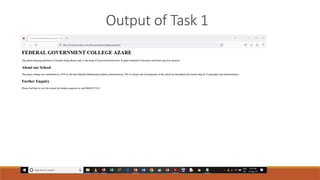

Task 1
<html>
<body>
<h1>FEDERAL GOVERNMENT COLLEGE AZARE</h1>
<p>This great learning institution is located along Misau
road, in the heart of Azare historical town. It spans hundreds of hectares
and boast top level security.<p>
<h2>About our School</h2>
<p> This great college was established in 1977 by the then
Murtala Muhammad military administration. We’ve witness the development of
the school throughout the tenureship of 12 principals and
administrators</p>
<h2>Further Enquiry</h2>
<p>Please feel free to visit the school for further enquiries
or call 08065475318 </p>
</body>
</html>

Web Design
BY
CISCO MARK
Chapter 2: Text

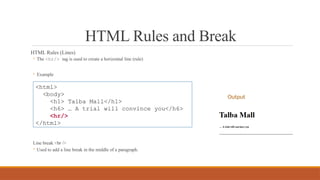

HTML Rules and Break
HTML Rules (Lines)
◦ The <hr/> tag is used to create a horizontal line (rule)
◦ Example
Line break <br />
◦ Used to add a line break in the middle of a paragraph.
<html>
<body>
<h1> Talba Mall</h1>
<h6> … A trial will convince you</h6>
<hr/>
</html>
Output

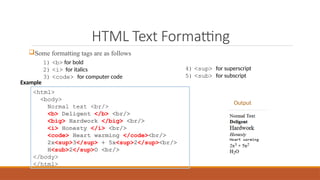

HTML Text Formatting
Some formatting tags are as follows
<html>
<body>
Normal text <br/>
<b> Deligent </b> <br/>
<big> Hardwork </big> <br/>
<i> Honesty </i> <br/>
<code> Heart warming </code><br/>
2x<sup>3</sup> + 5x<sup>2</sup><br/>
H<sub>2</sup>O <br/>
</body>
</html>
1) <b> for bold
2) <i> for italics
3) <code> for computer code
4) <sup> for superscript
5) <sub> for subscript
Output
Example

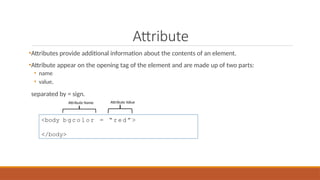

Attribute
•Attributes provide additional information about the contents of an element.
•Attribute appear on the opening tag of the element and are made up of two parts:
• name
• value,
separated by = sign.
<body b g c o l o r = “ r e d ” >
</body>
Attribute Name Attribute Value

Web Design
BY
CISCO MARK
Chapter 3: Lists

HTML Lists
•HTML list allow web developers to grap a set of related items in lists.
•HTML supports
• Ordered list,
• Unordered list and
• Definition list
• Book
• Pen
• Maths Set
• Bag
1. Philip
2. Daniel
3. Garba
4. Joshua
Mathematics
Studies of calculations
Biology
Studies living organisms
Macro organisms mainly Plants and Animals
Micro organisms like Amoeba
Geography
Study of earth and its surrounding
Unordered List
Ordered List Definition List

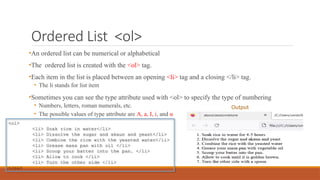

Ordered List <ol>
•An ordered list can be numerical or alphabetical
•The ordered list is created with the <ol> tag.
•Each item in the list is placed between an opening <li> tag and a closing </li> tag.
• The li stands for list item
•Sometimes you can see the type attribute used with <ol> to specify the type of numbering
• Numbers, letters, roman numerals, etc.
• The possible values of type attribute are A, a, I, i, and α
<ol>
<li> Soak rice in water</li>
<li> Dissolve the sugar and akaun and yeast</li>
<li> Combine the rice with the yeasted water</li>
<li> Grease masa pan with oil </li>
<li> Scoop your batter into the pan. </li>
<li> Allow to cook </li>
<li> Turn the other side </li>
</ol>
Output

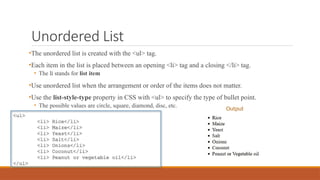

Unordered List
•The unordered list is created with the <ul> tag.
•Each item in the list is placed between an opening <li> tag and a closing </li> tag.
• The li stands for list item
•Use unordered list when the arrangement or order of the items does not matter.
•Use the list-style-type property in CSS with <ul> to specify the type of bullet point.
• The possible values are circle, square, diamond, disc, etc.
<ul>
<li> Rice</li>
<li> Maize</li>
<li> Yeast</li>
<li> Salt</li>
<li> Onions</li>
<li> Coconut</li>
<li> Peanut or vegetable oil</li>
</ul>
Output

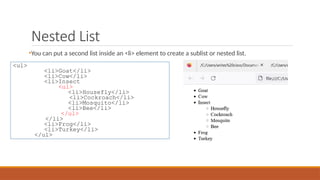

Nested List
•You can put a second list inside an <li> element to create a sublist or nested list.
<ul>
<li>Goat</li>
<li>Cow</li>
<li>Insect
<ul>
<li>Housefly</li>
<li>Cockroach</li>
<li>Mosquito</li>
<li>Bee</li>
</ul>
</li>
<li>Frog</li>
<li>Turkey</li>
</ul>

Web Design
BY
CISCO MARK
Chapter 4: Links

HTML Links <a>
HTML Links
 Links are created using the <a> tag (anchor tag)
 Users can click on anything between the opening <a> tag and the closing </a> tag.
 You specify which page you want to link to using the href attribute
Example
< a h r e f = “ w w w . y a h o o . c o m ” > Y a h o o < / a >
<html>
<body>
<a href = “www.yahoo.com”> Yahoo </a>
</body>
</html>
Output
THIS IS THE PAGE THE LINK TAKES YOU TO THIS IS THE TEXT THE USER CLICK

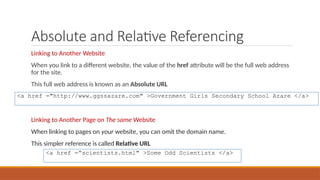

Absolute and Relative Referencing
Linking to Another Website
When you link to a different website, the value of the href attribute will be the full web address
for the site.
This full web address is known as an Absolute URL
Linking to Another Page on The same Website
When linking to pages on your website, you can omit the domain name.
This simpler reference is called Relative URL
<a href ="http://www.ggssazare.com" >Government Girls Secondary School Azare </a>
<a href =“scientists.html" >Some Odd Scientists </a>

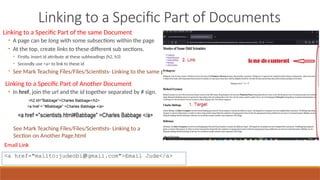

Linking to a Specific Part of Documents
Linking to a Specific Part of the same Document
• A page can be long with some subsections within the page
• At the top, create links to these different sub sections.
• Firstly, insert id attribute at these subheadings (h2, h3)
• Secondly use <a> to link to these id
◦ See Mark Teaching Files/Files/Scientists- Linking to the same page.html
Linking to a Specific Part of Another Document
• In href, join the url and the id together separated by # sign.
<a href="mailto:judeobi@gmail.com">Email Jude</a>
See Mark Teaching Files/Files/Scientists- Linking to a
Section on Another Page.html
Email Link

Summary
•Links are created using the <a> element.
•The <a> element uses the href attribute to indicate the page you are linking to.
•If you are linking to a page within your own site, it is best to use relative links rather than
qualified URLs.
•You can create links to open email programs with an email address in the “mailto" field.
•You can use the id attribute to target elements within a page that can be linked to

Web Design
BY
CISCO MARK
Chapter 5: Images

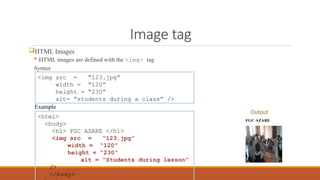

Image tag
HTML Images
 HTML images are defined with the <img> tag
Syntax
<img src = “123.jpg”
width = “120”
height = “230”
alt= “students during a class” />
<html>
<body>
<h1> FGC AZARE </h1>
<img src = “123.jpg”
width = “120”
height = “230”
alt = “Students during lesson”
/>
</body>
Example
Output

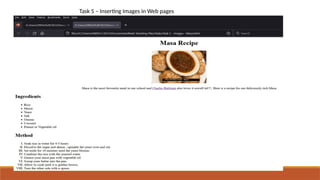

Task 5 – Inserting Images in Web pages

Web Design
BY
CISCO MARK
Chapter 6: Tables

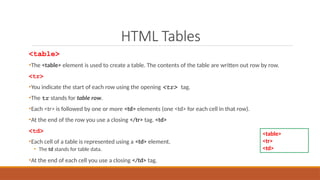

HTML Tables
<table>
•The <table> element is used to create a table. The contents of the table are written out row by row.
<tr>
•You indicate the start of each row using the opening <tr> tag.
•The tr stands for table row.
•Each <tr> is followed by one or more <td> elements (one <td> for each cell in that row).
•At the end of the row you use a closing </tr> tag. <td>
<td>
•Each cell of a table is represented using a <td> element.
• The td stands for table data.
•At the end of each cell you use a closing </td> tag.
<table>
<tr>
<td>

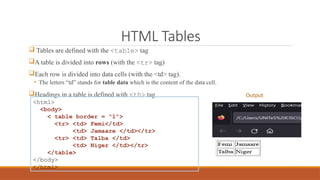

HTML Tables
 Tables are defined with the <table> tag
A table is divided into rows (with the <tr> tag)
Each row is divided into data cells (with the <td> tag).
• The letters “td” stands for table data which is the content of the data cell.
Headings in a table is defined with <th> tag
<html>
<body>
< table border = "1">
<tr> <td> Femi</td>
<td> Jamaare </td></tr>
<tr> <td> Talba </td>
<td> Niger </td></tr>
</table>
</body>
</html>
Output

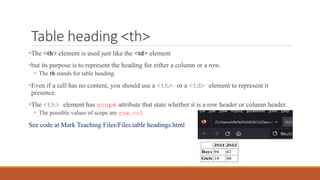

Table heading <th>
•The <th> element is used just like the <td> element
•but its purpose is to represent the heading for either a column or a row.
• The th stands for table heading.
•Even if a cell has no content, you should use a <th> or a <td> element to represent it
presence.
•The <th> element has scope attribute that state whether it is a row header or column header.
• The possible values of scope are row, col
See code at Mark Teaching Files/Files.table headings.html

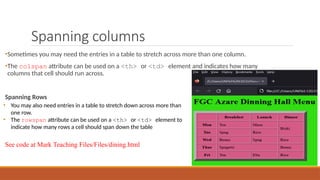

Spanning columns
•Sometimes you may need the entries in a table to stretch across more than one column.
•The colspan attribute can be used on a <th> or <td> element and indicates how many
columns that cell should run across.
Spanning Rows
See code at Mark Teaching Files/Files/dining.html
• You may also need entries in a table to stretch down across more than
one row.
• The rowspan attribute can be used on a <th> or <td> element to
indicate how many rows a cell should span down the table

Other attributes used in <table>
The HTML attributes above are outdated hence should not be use in new websites. Use CSS to
style your table
Attributes Description Some of its value
width Wideness of the table <table>, <th>, <td>
cellpadding add space inside each cell of the table <table>
cellspacing Create space between each cell of the table <table>
border Indicate the width of the border line <table>
bgcolor Indicate color of whole table or a cell <table>, <th>, <td>

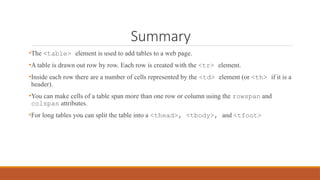

Summary
•The <table> element is used to add tables to a web page.
•A table is drawn out row by row. Each row is created with the <tr> element.
•Inside each row there are a number of cells represented by the <td> element (or <th> if it is a
header).
•You can make cells of a table span more than one row or column using the rowspan and
colspan attributes.
•For long tables you can split the table into a <thead>, <tbody>, and <tfoot>

Web Design
BY
CISCO MARK
Chapter 7: Forms

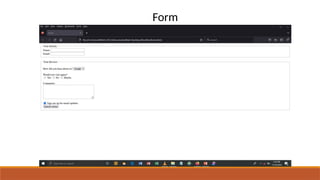

Forms
•The best known form on the web is probably
the search box that sits right in the middle of
Google's homepage.
In addition to enabling users to search, forms
also allow users to perform other functions
online.
•You will see forms
• when registering as a member of a website,
• when shopping online and
• when signing up for newsletters or mailing lists

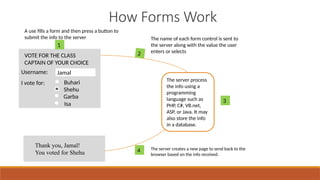

How Forms Work
A use fills a form and then press a button to
submit the info to the server The name of each form control is sent to
the server along with the value the user
enters or selects
The server process
the info using a
programming
language such as
PHP, C#, VB.net,
ASP, or Java. It may
also store the info
in a database.
The server creates a new page to send back to the
browser based on the info received.
VOTE FOR THE CLASS
CAPTAIN OF YOUR CHOICE
Username: Jamal
I vote for: Buhari
Shehu
Garba
Isa
1
Thank you, Jamal!
You voted for Shehu
2
4
3

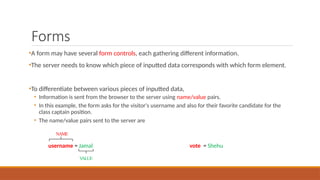

Forms
•A form may have several form controls, each gathering different information.
•The server needs to know which piece of inputted data corresponds with which form element.
•To differentiate between various pieces of inputted data,
• Information is sent from the browser to the server using name/value pairs.
• In this example, the form asks for the visitor's username and also for their favorite candidate for the
class captain position.
• The name/value pairs sent to the server are
username = Jamal vote = Shehu
NAME
V
ALUE

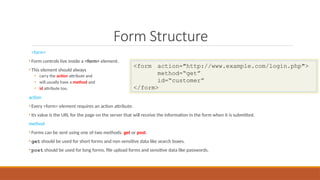

Form Structure
<form>
• Form controls live inside a <form> element.
• This element should always
• carry the action attribute and
• will usually have a method and
• id attribute too.
action
• Every <form> element requires an action attribute.
• Its value is the URL for the page on the server that will receive the information in the form when it is submitted.
method
• Forms can be sent using one of two methods: get or post.
• get should be used for short forms and non sensitive data like search boxes.
• post should be used for long forms, file upload forms and sensitive data like passwords.
<form action="http://www.example.com/login.php">
method=“get”
id=“customer”
</form>

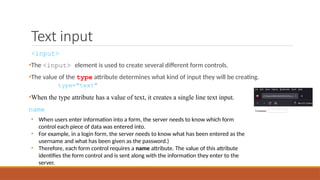

Text input
<input>
•The <input> element is used to create several different form controls.
•The value of the type attribute determines what kind of input they will be creating.
type="text"
•When the type attribute has a value of text, it creates a single line text input.
name
• When users enter information into a form, the server needs to know which form
control each piece of data was entered into.
• For example, in a login form, the server needs to know what has been entered as the
username and what has been given as the password.)
• Therefore, each form control requires a name attribute. The value of this attribute
identifies the form control and is sent along with the information they enter to the
server.

<form action="http://www.example.com/login.php">
<p>Username:
<input type="text"
name="username"
size="15"
maxlength="30" />
</p>
</form>

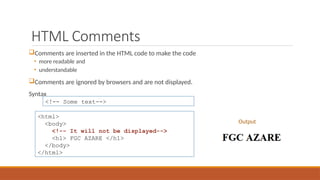

HTML Comments
Comments are inserted in the HTML code to make the code
• more readable and
• understandable
Comments are ignored by browsers and are not displayed.
Syntax

<html>
<body>

<h1> FGC AZARE </h1>
</body>
</html>
Output

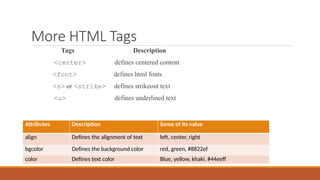

More HTML Tags
Tags Description
<center> defines centered content
<font> defines html fonts
<s> or <strike> defines strikeout text
<u> defines underlined text
Attributes Description Some of its value
align Defines the alignment of text left, center, right
bgcolor Defines the background color red, green, #8822ef
color Defines text color Blue, yellow, khaki, #44eeff

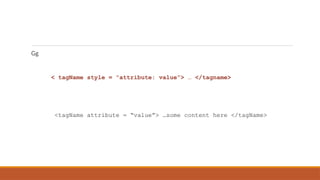

Gg
< tagName style = “attribute: value”> … </tagname>
<tagName attribute = “value”> …some content here </tagName>

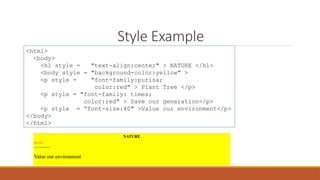

Style Example
<html>
<body>
<h1 style = "text-align:center" > NATURE </h1>
<body style = "background-color:yellow" >
<p style = "font-family:purisa;
color:red" > Plant Tree </p>
<p style = "font-family: times;
color:red" > Save our generation</p>
<p style = “font-size:40" >Value our environment</p>
</body>
</html>

Web Design HTML for beginners and advanced learners .pptx

More Related Content

Similar to Web Design HTML for beginners and advanced learners .pptx

Recently uploaded

Web Design HTML for beginners and advanced learners .pptx

Editor's Notes
