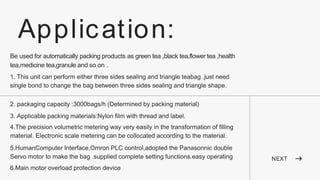

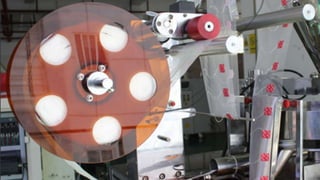

Application:
Be used for automatically packing products as green tea ,black tea,flower tea ,health
tea,medicine tea,granule and so on .
1. This unit can perform either three sides sealing and triangle teabag .just need
single bond to change the bag between three sides sealing and triangle shape.
2. packaging capacity :3000bags/h (Determined by packing material)
3. Applicable packing materials:Nylon film with thread and label.
4.The precision volumetric metering way very easily in the transformation of filling
material. Electronic scale metering can be collocated according to the material.
5.HumanComputer Interface,Omron PLC control,adopted the Panasonnic double
Servo motor to make the bag .supplied complete setting functions.easy operating
6.Main motor overload protection device
4.

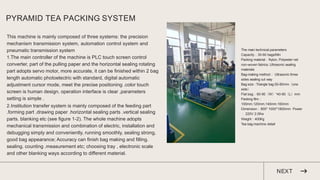

5. PYRAMID TEA PACKING SYSTEM
This machine is mainly composed of three systems: the precision
mechanism transmission system, automation control system and
pneumatic transmission system

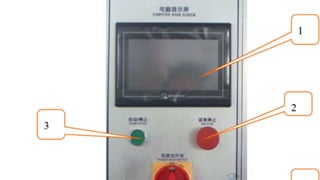

1.The main controller of the machine is PLC touch screen control
converter, part of the pulling paper and the horizontal sealing rotating
part adopts servo motor, more accurate, it can be finished within 2 bag
length automatic photoelectric with standard, digital automatic
adjustment cursor mode, meet the precise positioning .color touch
screen is human design, operation interface is clear ,parameters
setting is simple .

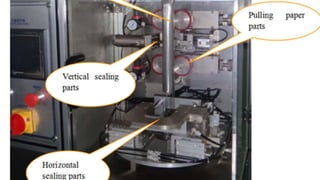

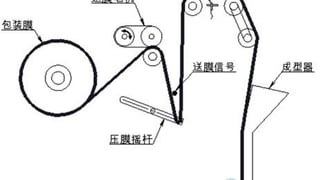

2.Institution transfer system is mainly composed of the feeding part
.forming part .drawing paper .horizontal sealing parts .vertical sealing
parts. blanking etc (see figure 1-2). The whole machine adopts
mechanical transmission and combination of electric, installation and
debugging simply and conveniently, running smoothly, sealing strong,
good bag appearance; Accuracy can finish bag making and filling.
sealing. counting .measurement etc; choosing tray , electronic scale
and other blanking ways according to different material.
NEXT
The main technical parameters
Capacity:30-60 bags/Min
Packing material:Nylon, Polyester net
non-woven fabrics. Ultrasonic sealing
materials
Bag-making method: Ultrasonic three
sides sealing cut way
Bag size : Triangle bag 50-80mm(one
side)
Flat bag:60-90(W)*40-80(L)mm
Packing film:
100mm.120mm.140mm.160mm
Dimension:800* 1000*1800mm Power
: 220V 2.0Kw
Weight:400Kg
Tea bag machine detail
6.
7. NEXT

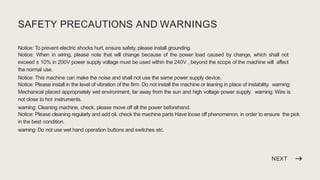

SAFETY PRECAUTIONS AND WARNINGS
Notice: To prevent electric shocks hurt, ensure safety, please install grounding.
Notice: When in wiring, please note that will change because of the power load caused by change, which shall not
exceed ± 10% in 200V power supply voltage must be used within the 240V , beyond the scope of the machine will affect
the normal use.
Notice: This machine can make the noise and shall not use the same power supply device.
Notice: Please install in the level of vibration of the firm. Do not install the machine or leaning in place of instability. warning:
Mechanical placed appropriately wet environment, far away from the sun and high voltage power supply. warning: Wire is
not close to hot instruments.
warning: Cleaning machine, check, please move off all the power beforehand.
Notice: Please cleaning regularly and add oil, check the machine parts Have loose off phenomenon, in order to ensure the pick
in the best condition.
warning: Do not use wet hand operation buttons and switches etc.
8.

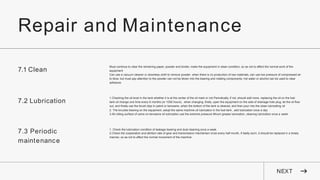

9. Repair and Maintenance
NEXT
7.1 Clean
Must continue to clear the remaining paper, powder and binder, make the equipment in clean condition, so as not to affect the normal work of the
equipment
Can use a vacuum cleaner or downless cloth to remove powder .when there is no production of raw materials, can use low pressure of compressed air
to blow, but must pay attention to the powder can not be blown into the bearing and rotating components. hot water or alcohol can be used to clear
adhesive.
7.2 Lubrication
1.Checking the oil level in the tank whether it is at the center of the oil mark or not Periodically, if not ,should add more. replacing the oil on the fuel
tank oil change one time every 6 months (or 1000 hours) . when changing ,firstly ,open the equipment on the side of drainage hole plug, let the oil flow
out, and finally use the brush dips in petrol or kerosene ,when the bottom of the tank is cleaned, and then pour into the clean lubricating oil
2. The knuckle bearing on the equipment ,adopt the same machine oil lubrication in the fuel tank , add lubrication once a day
3.All rolling surface of cams on kerosene oil lubrication use the extreme pressure lithium grease lubrication, cleaning lubrication once a week
7.3 Periodic
maintenance
1. Check the lubrication condition of leakage bearing and dust cleaning once a week
2.Check the cooperation and attrition rate of gear and transmission mechanism once every half month, if badly worn, it should be replaced in a timely
manner, so as not to affect the normal movement of the machine
10.
