1. All Microbes Live in an Aqueous
Environment
• Ecology of aquatic
environments is complex
• Most aquatic
environments are
teaming with life
• Microbes have evolved to
live in:
– Saturated salt solutions
– Below freezing to >110°C
– Waters full of toxic
substance , i.e. copper,
cyanide, lead, silver,
gasoline, oil, benzene, and
many others

2. Water Quality in TN (2004)*
• Sources of Agricultural Pollution in
Assessed Streams and Rivers
– Grazing related 60 %
– Crop related 37 %
– Intensive Animal Ops. 3 %
* TN 305 (b) Report 2004

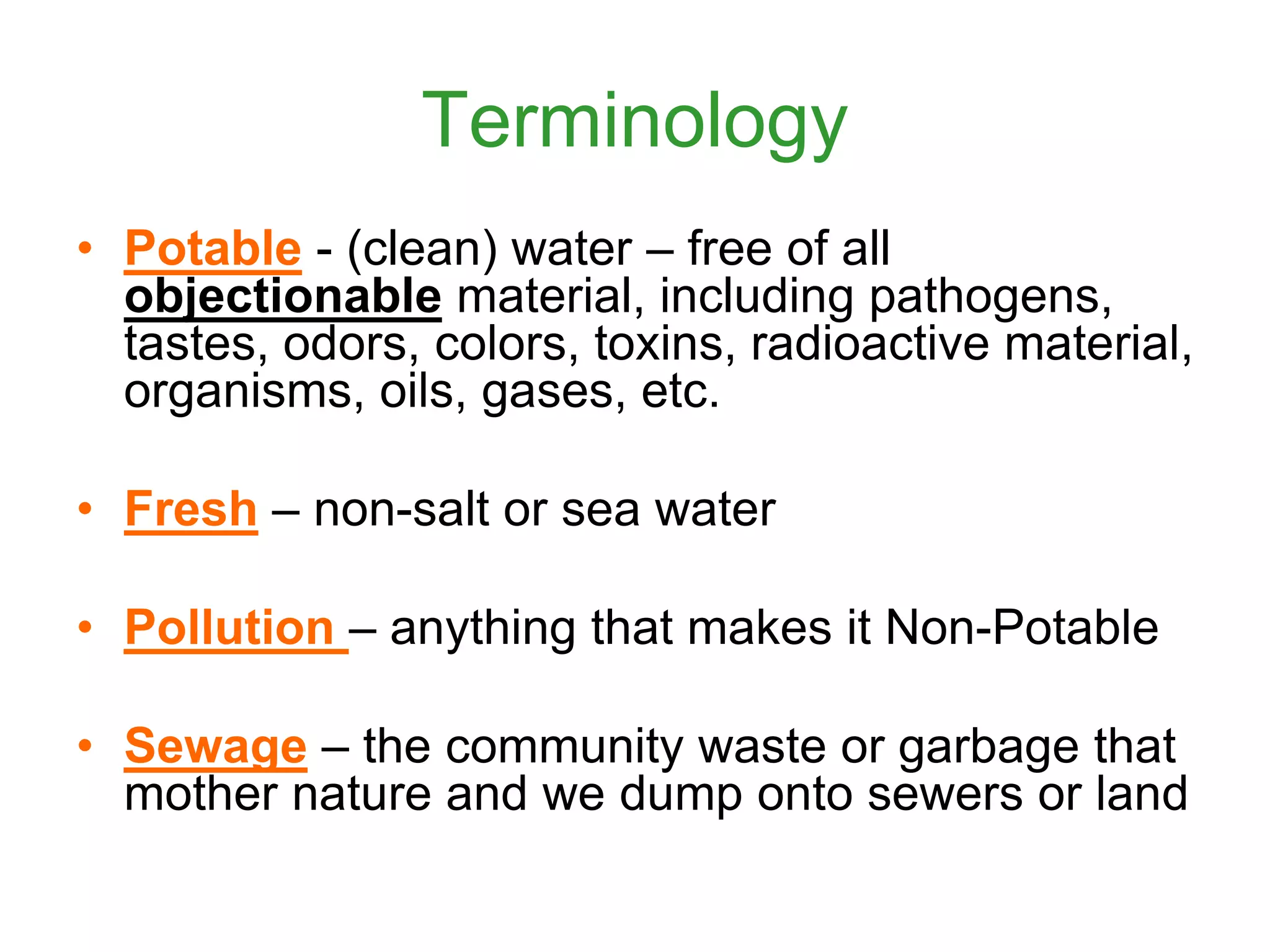

3. Terminology
• Potable - (clean) water – free of all
objectionable material, including pathogens,
tastes, odors, colors, toxins, radioactive material,
organisms, oils, gases, etc.
• Fresh – non-salt or sea water
• Pollution – anything that makes it Non-Potable
• Sewage – the community waste or garbage that
mother nature and we dump onto sewers or land

4. Typical Water Quality Standards
• Drinking Water
– No coliforms contamination
acceptable
• Recreational water
– 200 fecal coliforms /100 ml
• Fish and wildlife habitat
– 5000 fecal coliforms/100 ml
• Shellfish
– 14 fecal coliforms/100 ml

5. Most Probable Number
• 10 ml, 1 ml and 0.1ml of water inoculated
in lactose broth
• Coliforms identified by gas production
• Refer to tables and determine statistical
range of number of coliforms
Does not:
Detect total number of bacteria
Specific pathogens

6. Bacteria Disease/ infection Symptoms
Aeromonas Enteritis Very thin, blood- and
mucus-containing diarrhea
Campylobacter jejuni Campilobacteriose Flue, diarrhea, head- and
stomachaches, fever,
cramps and nausea
Escherichia coli Urinary tract infections,
neonatal meningitis,
intestinal disease
Watery diarrhea,
headaches, fever, homiletic
uremia, kidney damage
Plesiomonas shigelloides Plesiomonas-infection Nausea, stomachaches and
watery diarrhea, sometimes
fevers, headaches and
vomiting
Typhus Typhoid fever Fevers
Salmonella
Salmonellosis Sickness, intestinal cramps,
vomiting, diarrhea and
sometimes light fevers
Streptococcus (Gastro) intestinal disease Stomach aches, diarrhea
and fevers, sometimes
vomiting
Vibrio El Tor (freshwater) (Light form of) Cholera Heavy diarrhea
Bacteria Found In Surface Water

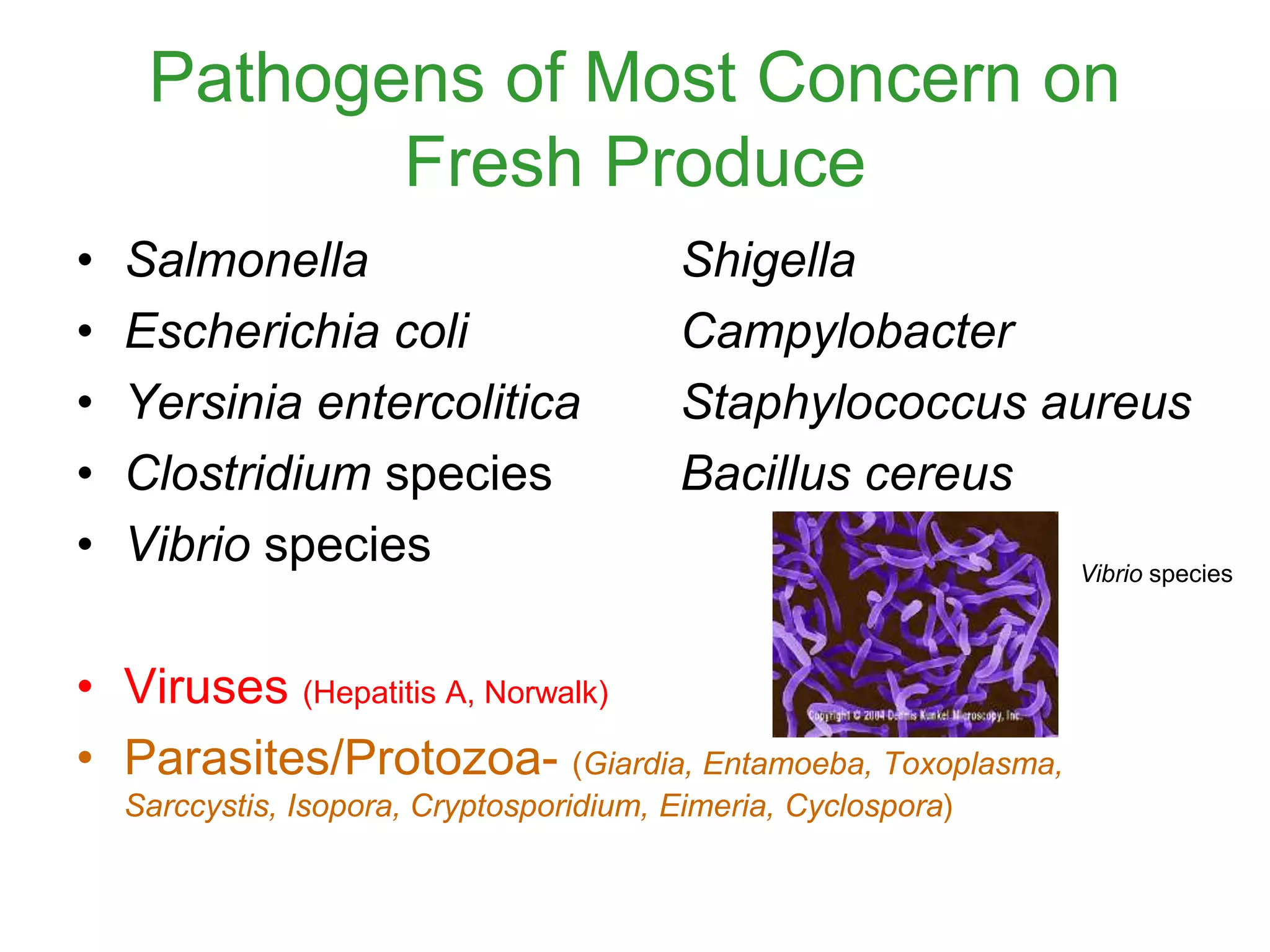

7. Pathogens of Most Concern on
Fresh Produce
• Salmonella Shigella
• Escherichia coli Campylobacter
• Yersinia entercolitica Staphylococcus aureus
• Clostridium species Bacillus cereus
• Vibrio species
• Viruses (Hepatitis A, Norwalk)
• Parasites/Protozoa- (Giardia, Entamoeba, Toxoplasma,
Sarccystis, Isopora, Cryptosporidium, Eimeria, Cyclospora)
Vibrio species

8. Waterborne Infectious Disease
(U.S. 1997-1998)
Disease Agent Outbreaks Cases
Shigellosis Shigella sonnei 1 183
Giardiasis Giardia lambia 4 159
Cryptoporidiosis Cryptosporidium parvum 2 1432
Gastroenteritis E. Coli 0157:H7 3 164
Acute Unknown 5 163
gastrointestinal
illness
Shigella

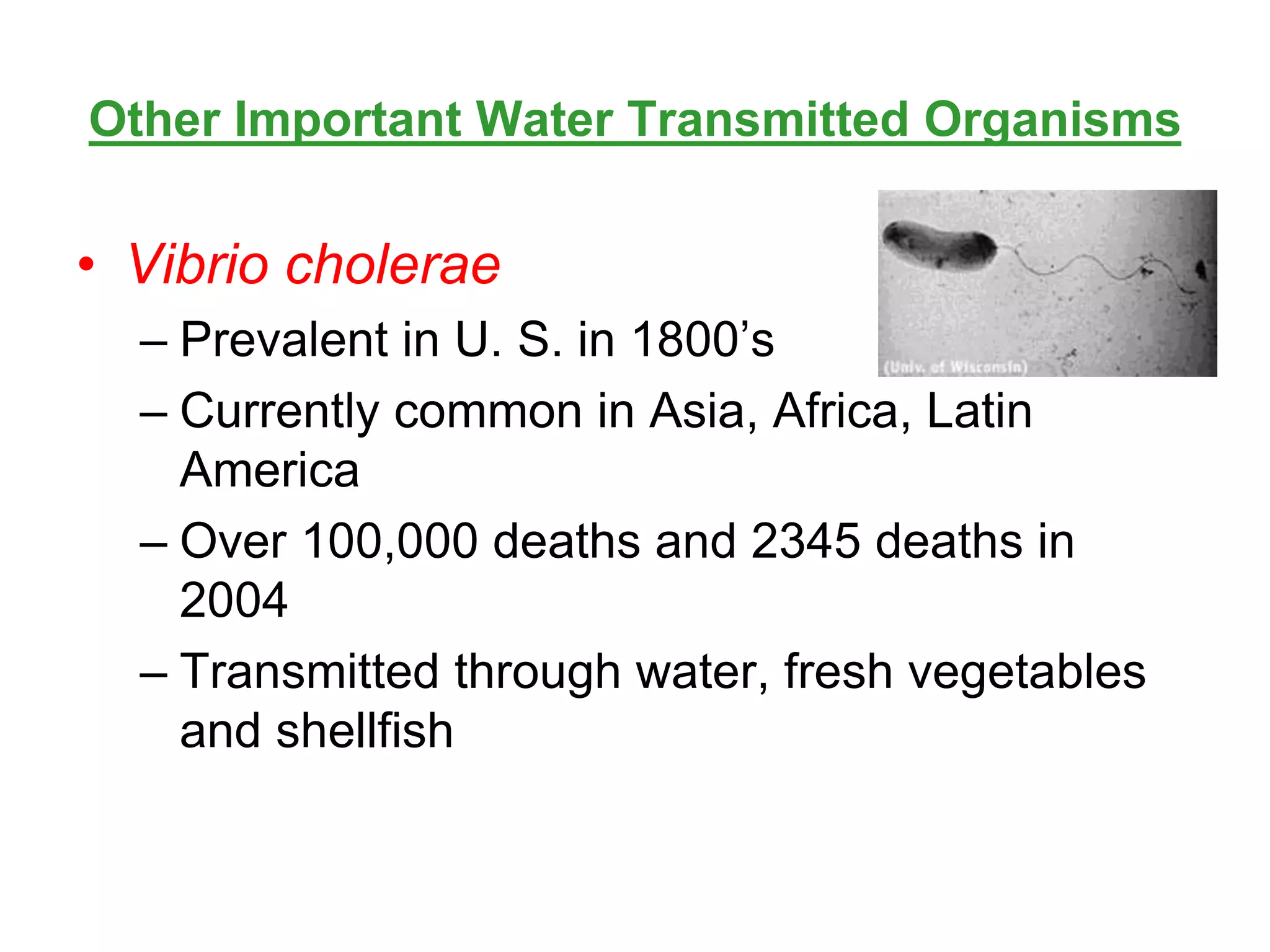

9. Other Important Water Transmitted Organisms
• Vibrio cholerae
– Prevalent in U. S. in 1800’s
– Currently common in Asia, Africa, Latin
America
– Over 100,000 deaths and 2345 deaths in
2004
– Transmitted through water, fresh vegetables
and shellfish

10. Microrganism Disease Symptoms
Amoeba Amoebic dysentery Severe diarrhea, headache, abdominal pain,
chills, fever; if not treated can cause liver
abscess, bowel perforation and death
Cryptosporidium
parvum
Cryptosporidiosis Feeling of sickness, watery diarrhea, vomiting,
lack of appetite
Giardia Giardiasis Diarrhea, abdominal cramps, flatulence, belching,
fatigue
Toxoplasm
gondii
Toxoplasmosis Flu, swelling of lymph glands
With pregnant women subtle abortion and brain
infections
Protozoa Found in Surface Water

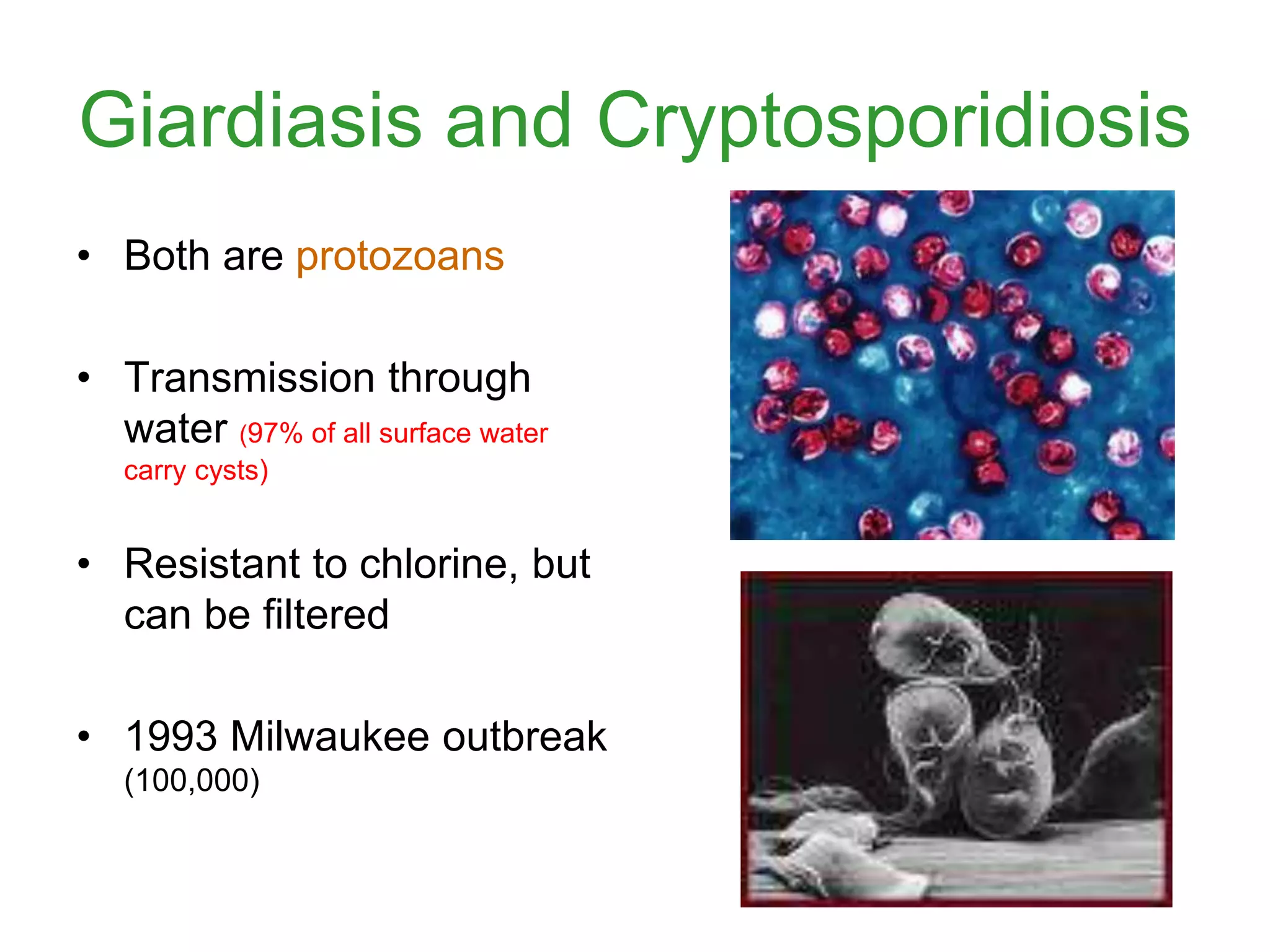

11. Giardiasis and Cryptosporidiosis
• Both are protozoans
• Transmission through
water (97% of all surface water
carry cysts)
• Resistant to chlorine, but
can be filtered
• 1993 Milwaukee outbreak
(100,000)

12. Some Costly Cases
• Cryptosporidium, 1993, Milwaukee, $55
million
• Pfiesteria piscicida, 1997, Chesapeake
bay, $43 million
• 3700 beach closing in 1996
Mild case of diarrhea cost ~$280 for
treatment and diagnosis

13. Life cycle of Cryptospoidium
Transmission occurs mainly through
Contaminated water.

14. Agricultural Water
• Identify source and distribution of
water used
• Be aware of current and historical
use of land
• Review existing practices and
conditions to identify potential
sources of contamination.
• Maintain wells in good working
condition
• How are you applying the water?
Minimize contact of edible portion
of fresh produce with contaminated
irrigation water.

15. Water Source Irrigation Pesticide App. Hand Produce
wash wash
Open source, canal,
Reservoir, pond, etc.
Munciple water source
Capped well, Annual test date
Uncapped well, canal,
reservoir, etc.
Quarterly test date
Municipal water source
Quality report date
Y N Y N Y N
Y N Y N Y N
Y N
Y N
Water Quality Evaluation Log

16. Public Health and Water Supply
Routine monitoring of water quality using
indicator organisms, indicating fecal
contamination.
To determine if fecal coliforms are from
humans or other animals – must test for
fecal streptococci

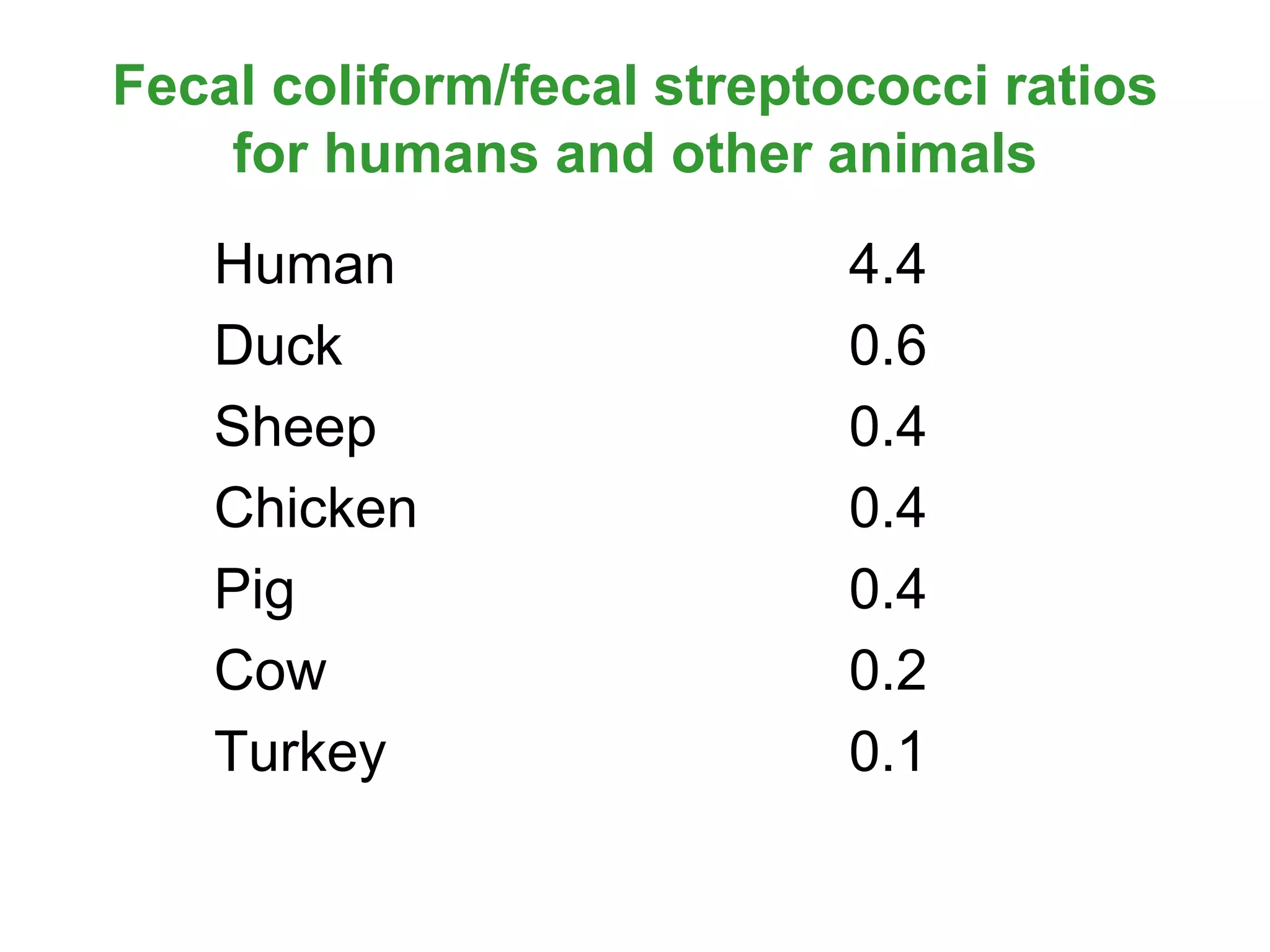

17. Fecal coliform/fecal streptococci ratios
for humans and other animals
Human 4.4
Duck 0.6
Sheep 0.4
Chicken 0.4
Pig 0.4
Cow 0.2
Turkey 0.1

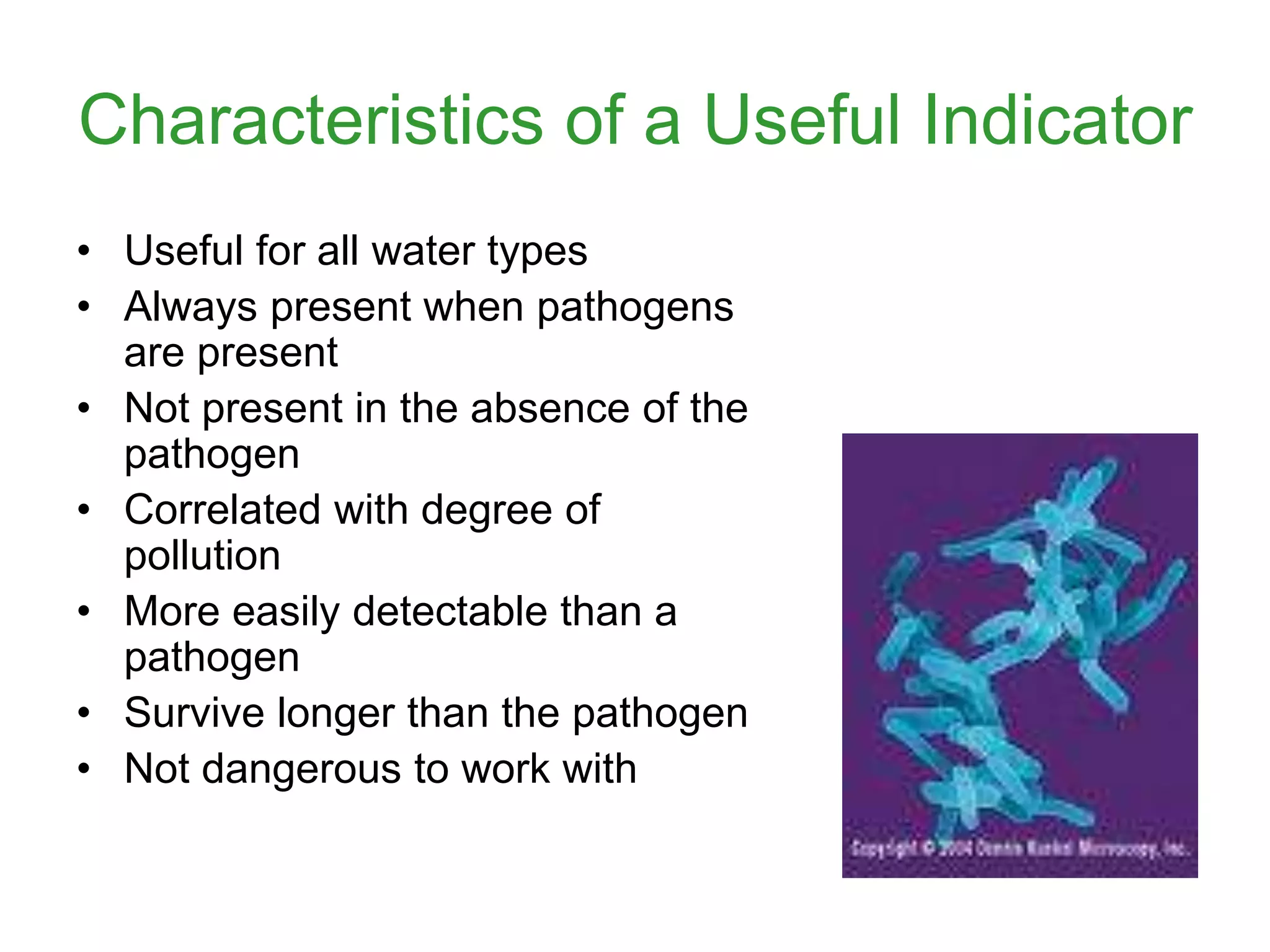

18. Characteristics of a Useful Indicator
• Useful for all water types
• Always present when pathogens
are present
• Not present in the absence of the
pathogen
• Correlated with degree of
pollution
• More easily detectable than a
pathogen
• Survive longer than the pathogen
• Not dangerous to work with

19. Bacterial-Indicator Organisms
Common Groups
• Coliforms
 Total coliforms
 Fecal coliforms
 Escherichia coli
• Streptococci
 fecal streptococci
 enterococci
• Spore Formers
Clostridium
perfringens

20. Indicator Organisms
• General coliforms – indicate
water in contact with plant or
animal life (universally present)
• Fecal coliforms – mammal or
bird feces in water
• Enterococcus bacteria (type of
fecal streptococci)– feces from warm
blooded animals in water
These are not what generally make
people sick

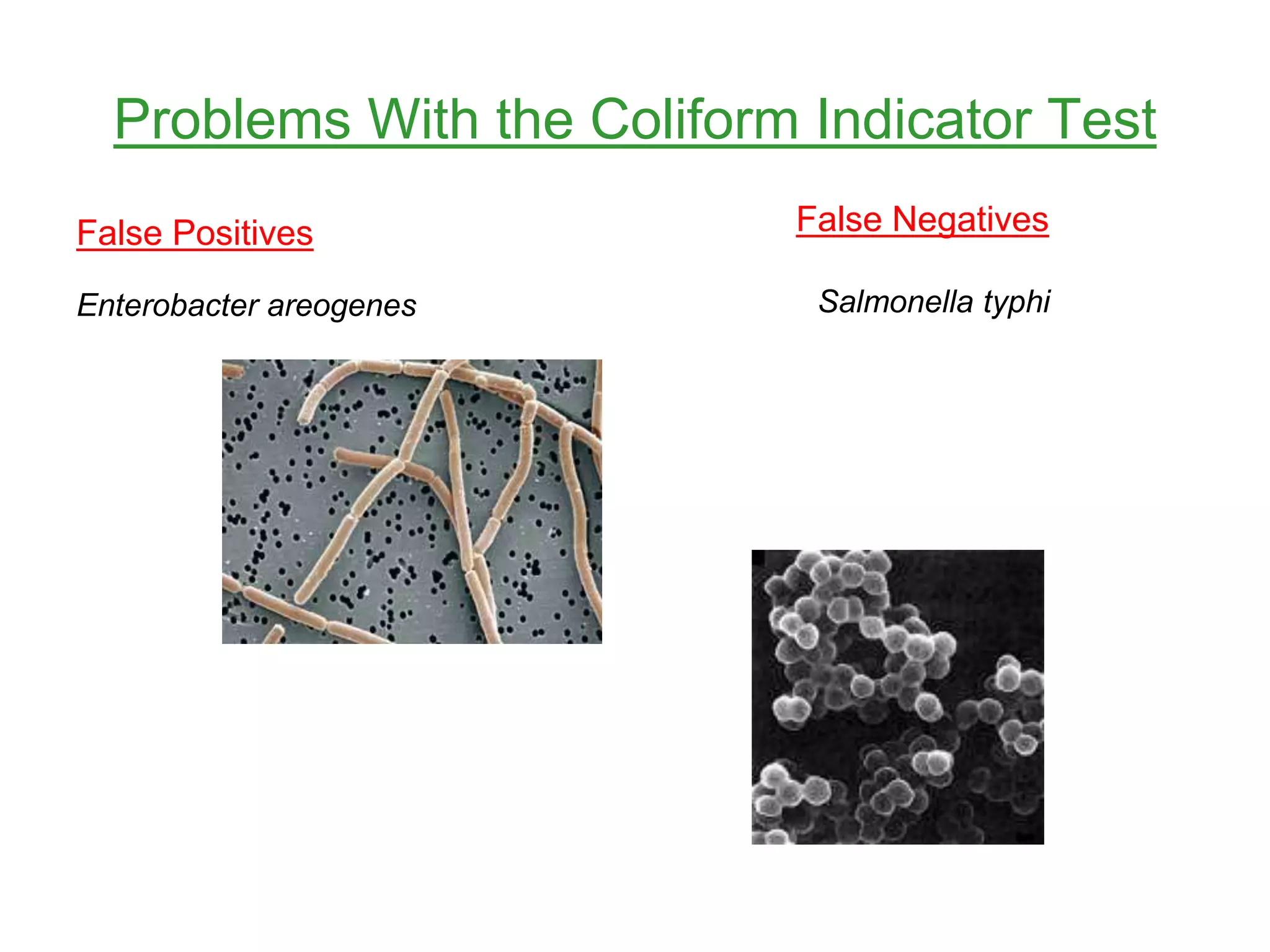

21. Problems With the Coliform Indicator Test
False Positives
Enterobacter areogenes
False Negatives
Salmonella typhi

22. Some Factors Affecting Ratio of Indicator
Organisms to Pathogens
• Feces from human populations with higher
infection rates are of greater concern
• All treatment methods and environmental
conditions affect pathogens and indicators
differently
- Chlorinated water may have zero indicators and pathogens, but
loaded with viruses.
- Pathogens can “hide” from treatment inside suspended solids.
The ratio of indictors to actual pathogens is not fixed

23. Direct Tests For Pathogens
• Involves selective cultivation to large
numbers
– Time consuming
– Expensive
– Potentially dangerous to lab personnel
• Molecular tests
– Require testing for each pathogen
– Expensive
– Require expertise

24. Viral Sources of Waterborne
Disease
• Hepatitis A: inflammation and
necrosis of liver
• Norwalk-type virus: acute
gastroenteritis
• Rotaviruses: acute
gastroenteritis, especially in
children
• Enteroviruses: many types
affect intestines and upper
respiratory tract
• Reoviruses: infects intestines
and upper respiratory tract

25. Virus Detection
Very difficult and costly
– Electron microscopy
– Immunoassays
– Cell cultures
– Reverse transcription-polymerase chain reaction
(RT-PCR)

26. Chlorination of Water
The most commonly used sanitizer!

27. Methods of Treatment
• Shock Chlorination (50-100 ppm, contact of at
least 6 hours)
• Continuous Chlorination – for recurring bacterial
contamination problems – a measurable amount of free
residual chlorine

28. Chlorine Terms
• Chlorine Dosage – total added
• Chlorine Demand - inorganic
• Combined Residual Chlorine - organic
• Free Residual Chlorine

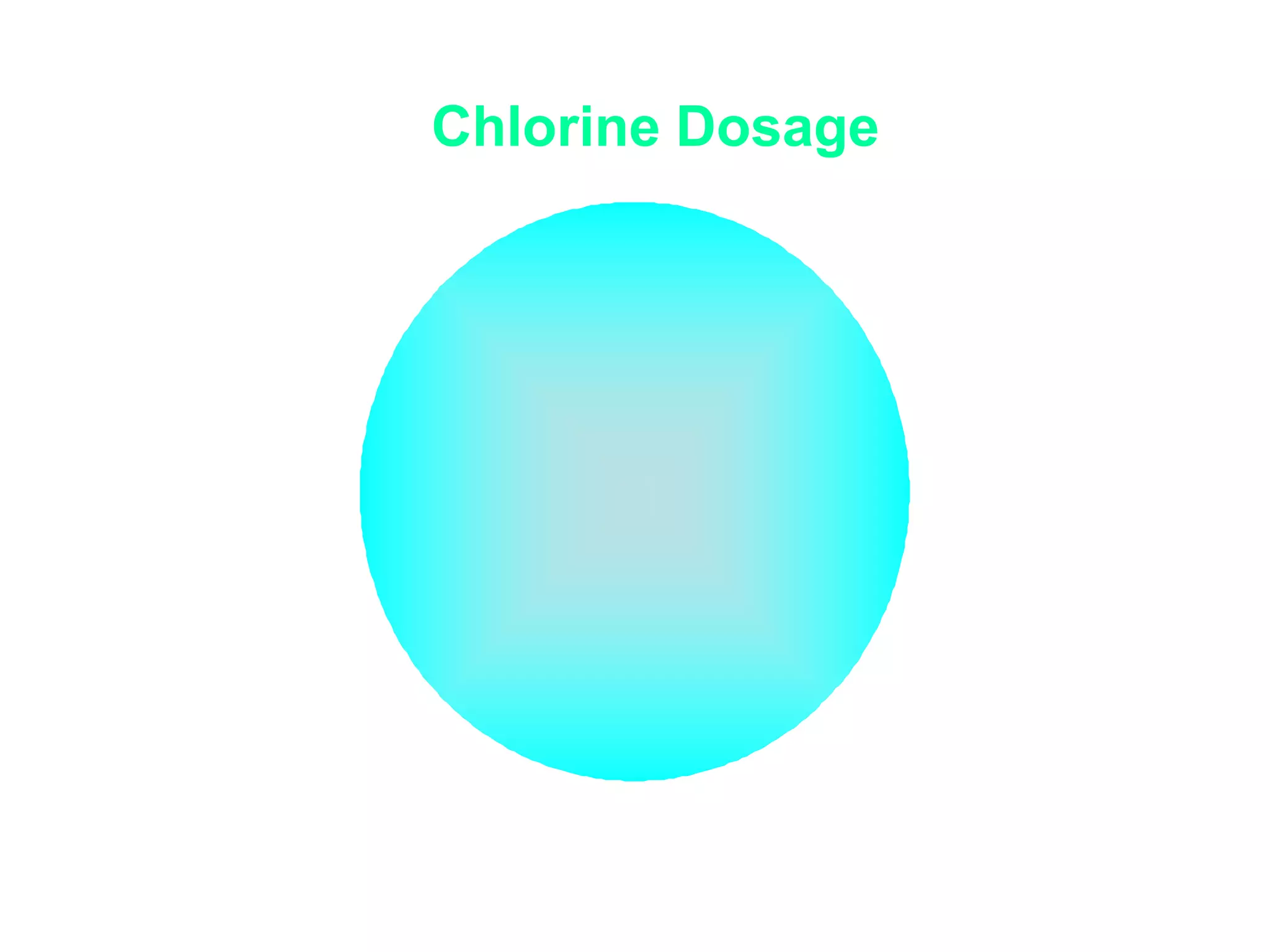

29. Chlorine Dosage

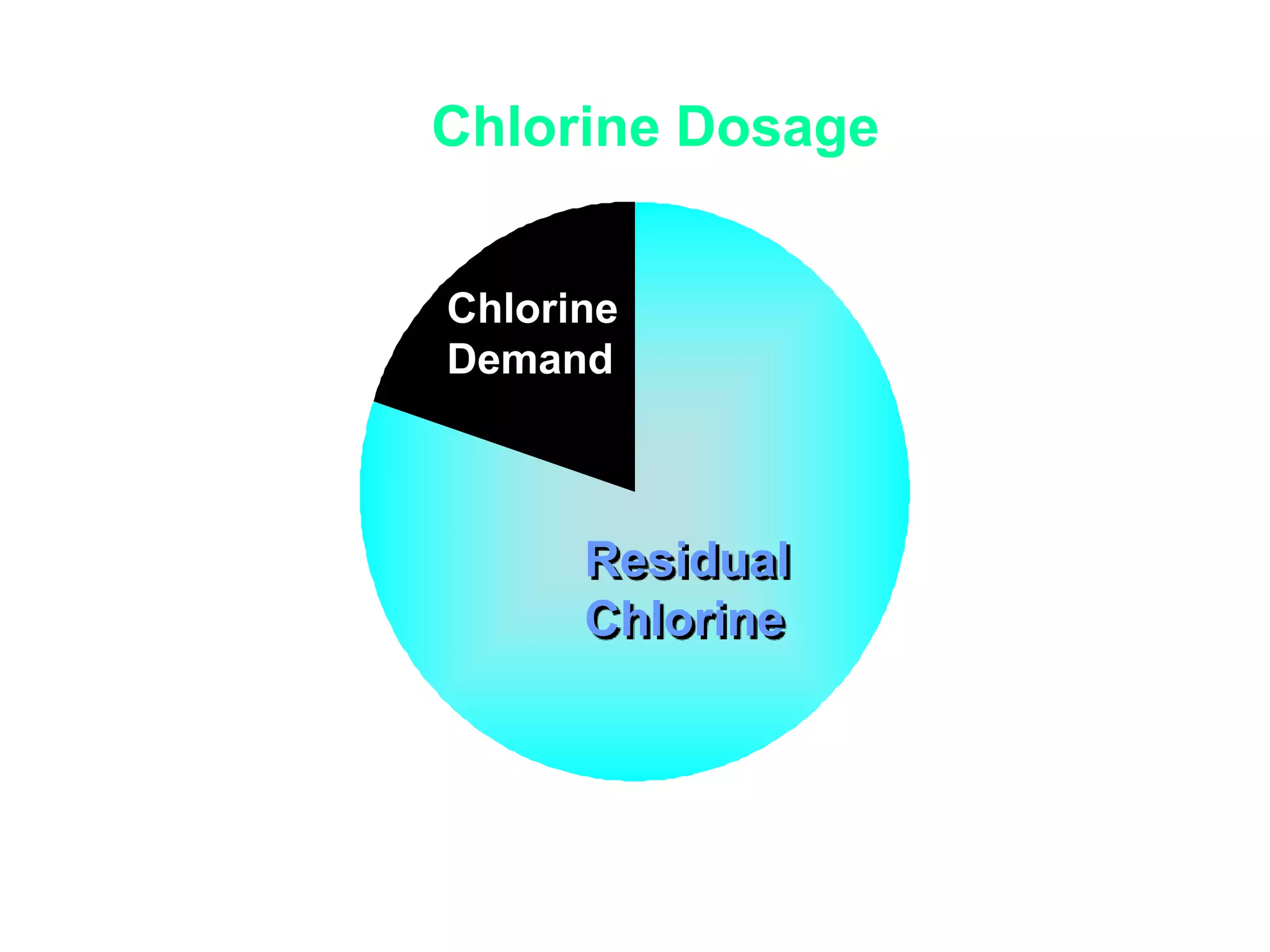

30. Chlorine Dosage
Chlorine
Demand
Residual
Chlorine

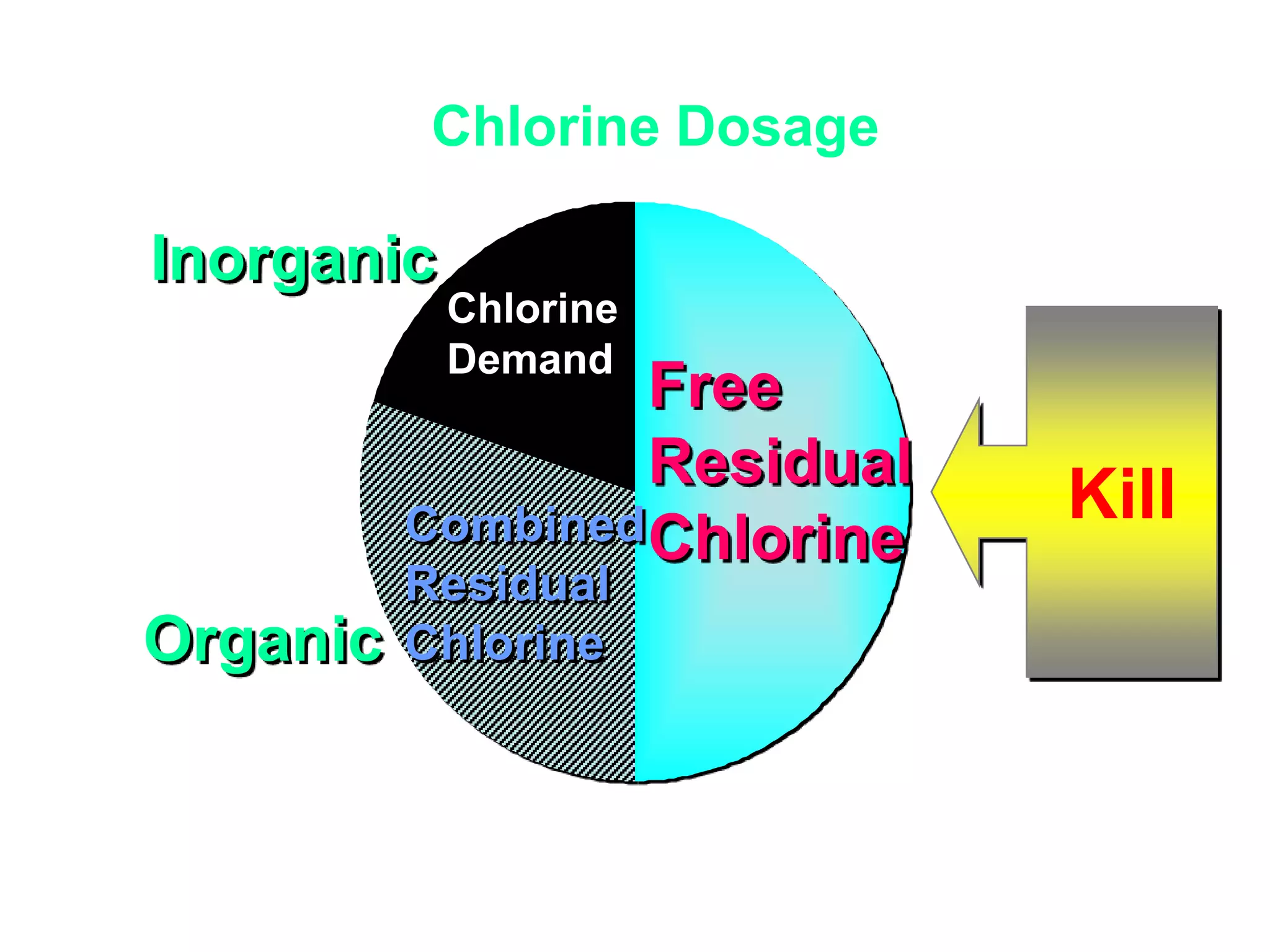

31. Chlorine Dosage
Combined
Residual
Chlorine
Chlorine
Demand
Free
Residual
Chlorine
Inorganic
Organic
Kill

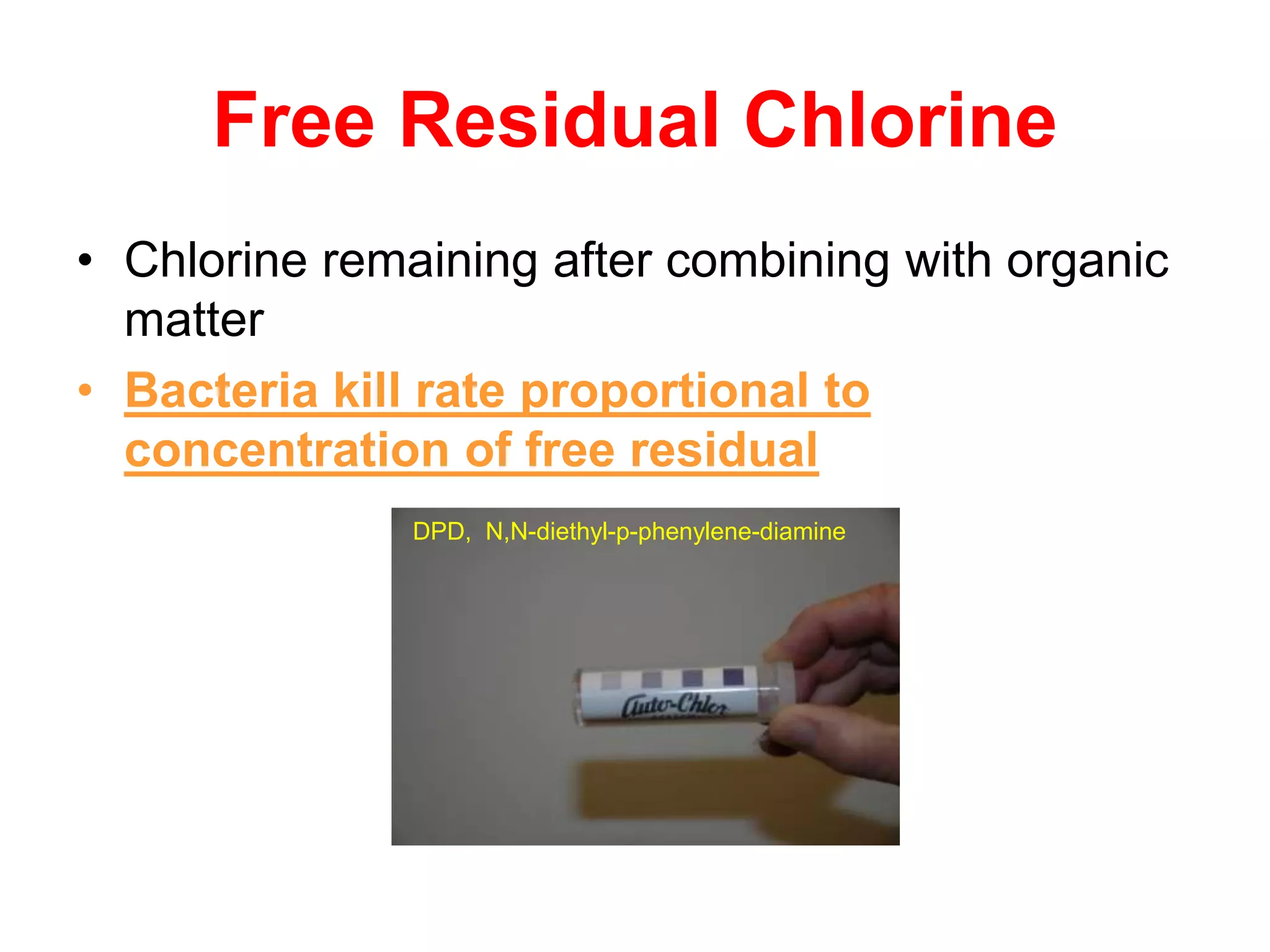

32. Free Residual Chlorine
• Chlorine remaining after combining with organic
matter
• Bacteria kill rate proportional to
concentration of free residual
DPD, N,N-diethyl-p-phenylene-diamine

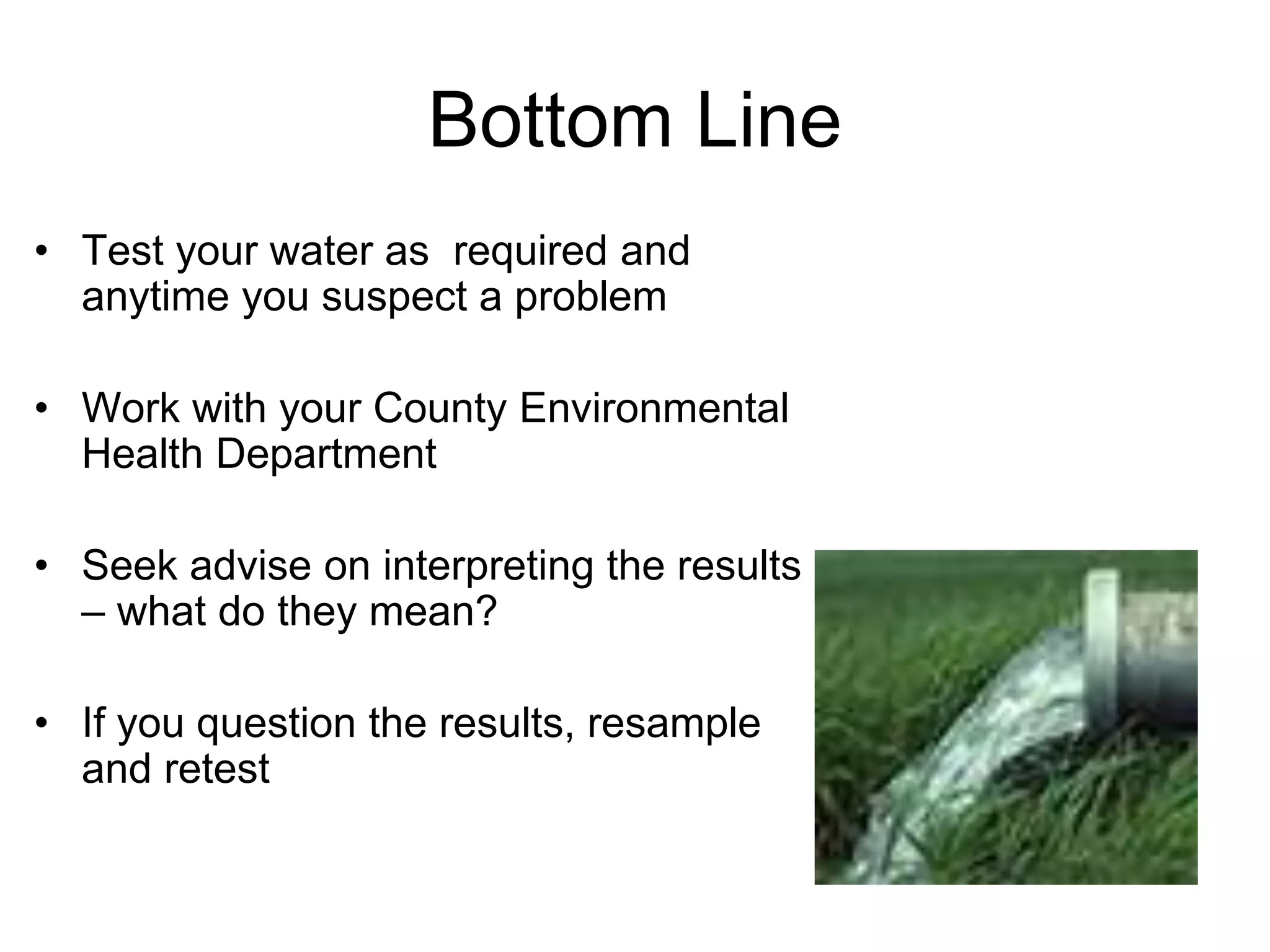

33. Bottom Line
• Test your water as required and
anytime you suspect a problem
• Work with your County Environmental
Health Department
• Seek advise on interpreting the results
– what do they mean?
• If you question the results, resample
and retest

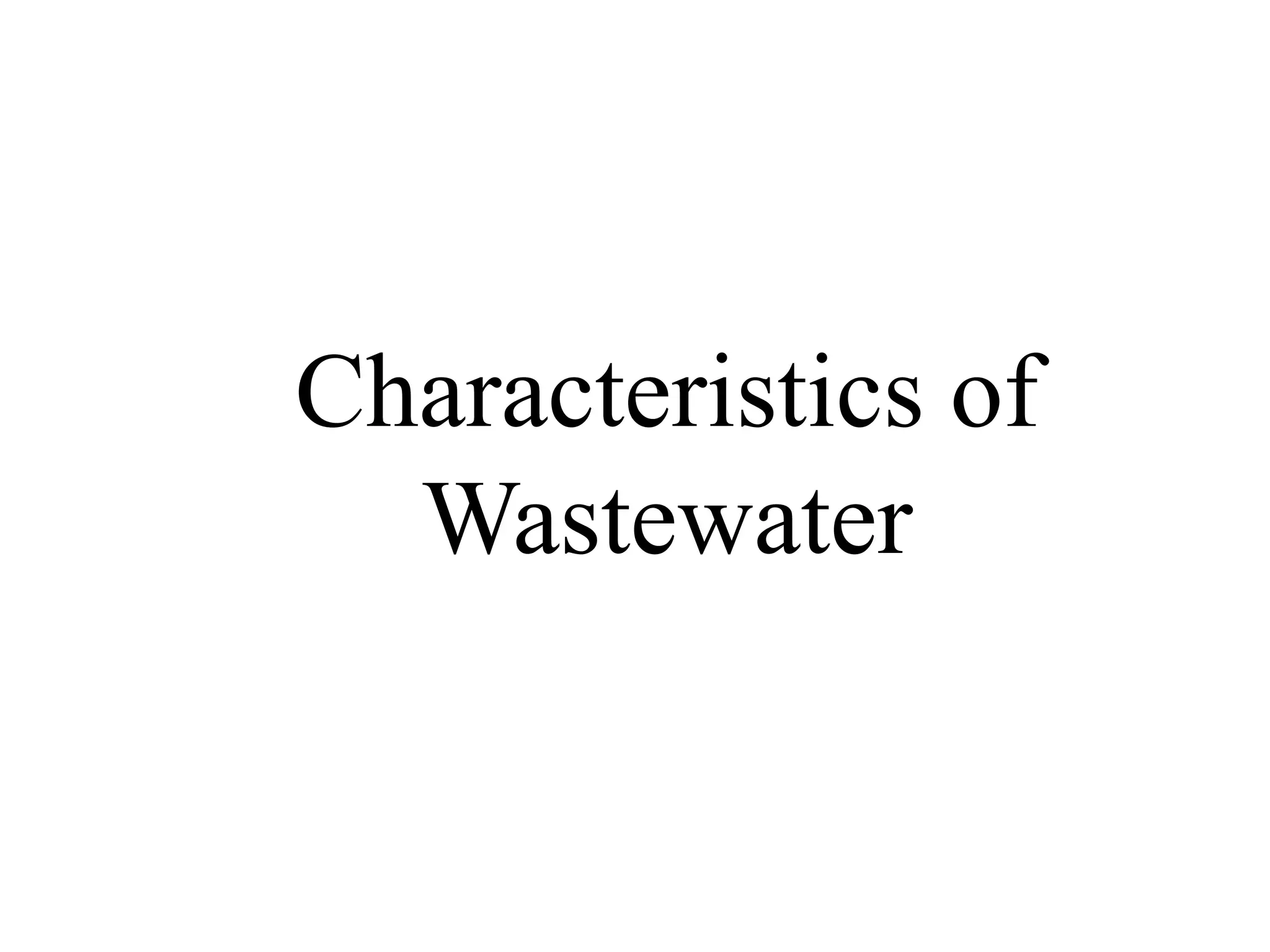

34. Characteristics of
Wastewater

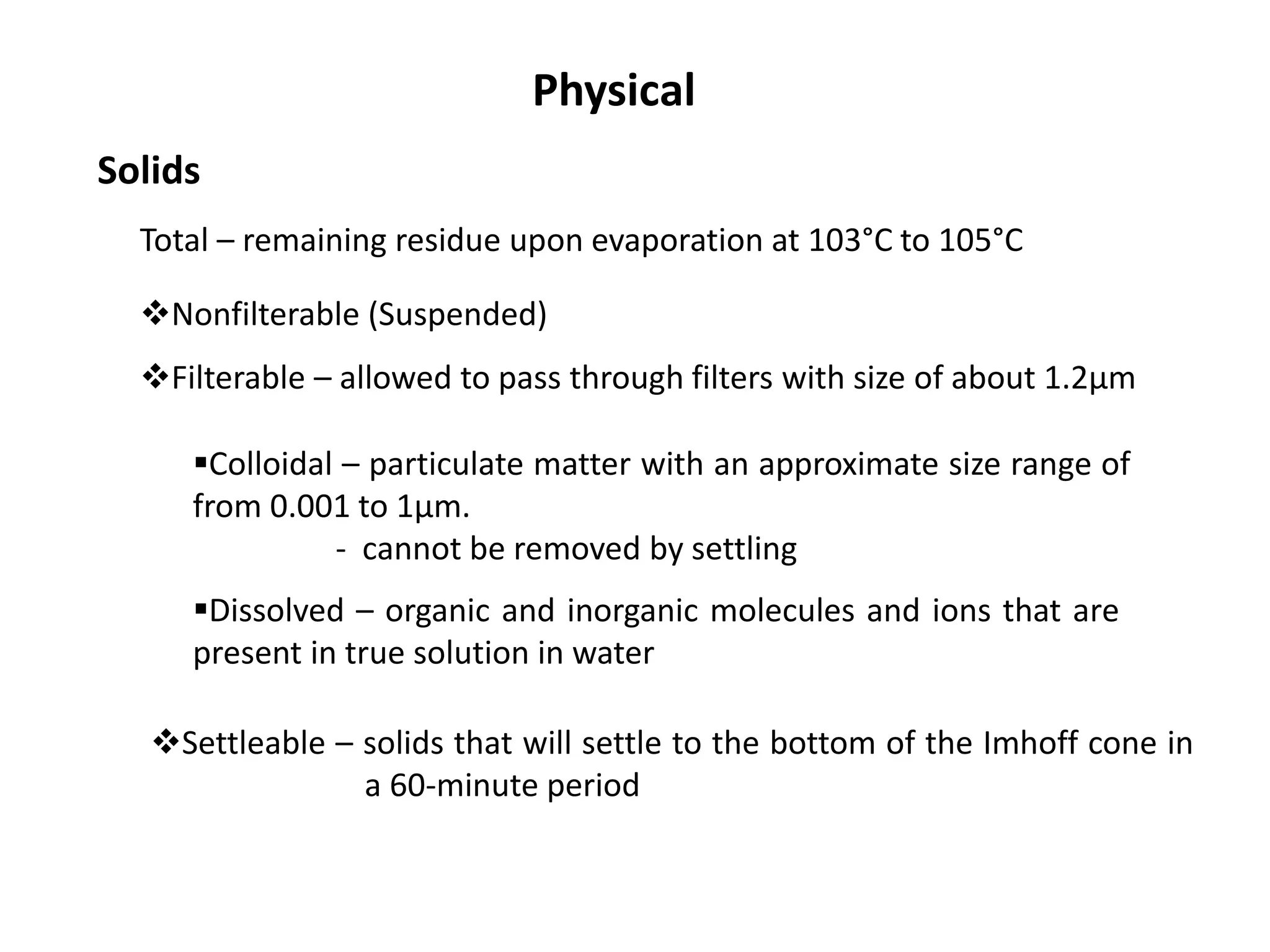

36. Physical
Solids
Total – remaining residue upon evaporation at 103°C to 105°C
Settleable – solids that will settle to the bottom of the Imhoff cone in
a 60-minute period
Nonfilterable (Suspended)
Filterable – allowed to pass through filters with size of about 1.2µm
Colloidal – particulate matter with an approximate size range of
from 0.001 to 1µm.
- cannot be removed by settling
Dissolved – organic and inorganic molecules and ions that are
present in true solution in water

38. Physical
Odor
produced by decomposition of organic matter or by substances added
to wastewater
Effects
psychological stress
poor appetite
lowered water consumption
impaired respiration
nausea and vomiting
mental perturbation

39. Effects
deterioration of personal and community pride
interfere with human relation
discourage capital investment
lower socio-economic status
 deter growth
Detection – use of olfactory system

41. Odor Threshold, ppvVb
Odorous Compound Detection Recognition
Ammonia 17 37
Chlorine 0.08 0.314
Dimethyl Sulfide 0.001 0.001
Diphenyl Sulfide 0.0001 0.0021
Hydrogen Sulfide <0.00021 0.00047
Indole 0.0001 --
Methyl Amine 4.7 --
Methyl Mercaptan 0.0005 0.001
Skatole 0.001 0.019

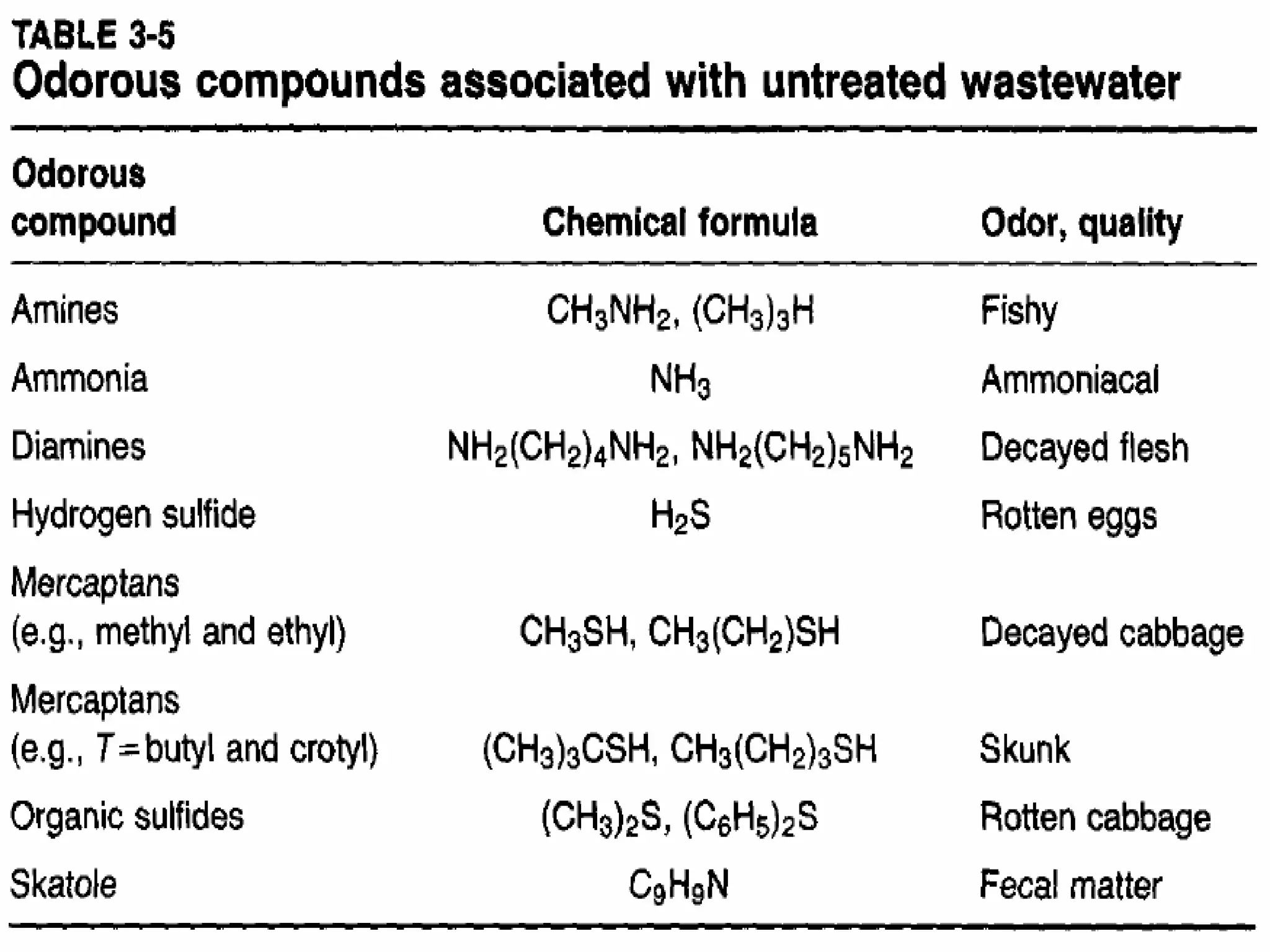

Odor Thresholds Odorous Compounds Associated
With Untreated Wastewater

42. Factors that must be considered for the complete
characterization of an odor
Factor Description
Character Relates to the mental associations
Detectabilit
y
The number of dilutions required to reduce an odor to its
minimum detectable threshold odor concentration (MDTOC)
Hedonics The relative pleasantness or unpleasantness of the odor
sensed by the subject
Intensity Strength of odor; usually measured by the butanol
olfactometer of from the dilutions to threshold (D/T) when the
relationshipp is established

43. Physical
Temperature
usually wastewater posses higher temperature than of the water
supply
affects chemical reaction and reaction rates, aquatic life, and
suitability of water for beneficial use
oxygen is less soluble in warm water than in cold water
abnormally high temperatures can foster the growth of undesirable
water plants and fungus
25°C to 35°C – optimum temperatures for bacterial activity
50°C – anaerobic digestion and nitrification stop
15°C – methane-producing bacteria become quite inactive
 5°C – autotrophic-nitrifying bacteria practically cease functioning
 2°C – chemoheterotrophic bacteria acting on carbonaceous material
become essentially dormant

44. Physical
Density
formation of density currents in sedimentation tanks
Solid
Concentration,%
Type of sludge SG Range Typical
Primary
Medium-strength wastewater 1.03 4-12 6
From combined sewer system 1.05 4-12 6.5
Primary and waste activated sludge 1.03 2-6 3
Primary and trickling-filter humus sludge 1.03 4-10 5
Typical information on the specific gravity and
concentration of sludge from primary sedimentation
tanks

45. Physical
Color
readily determines the condition of wastewater
fresh water is usually light brownish-gray
septic water is depicted by black color
Turbidity
measures the light-transmitting properties of water
affected by colloidal and suspended matter

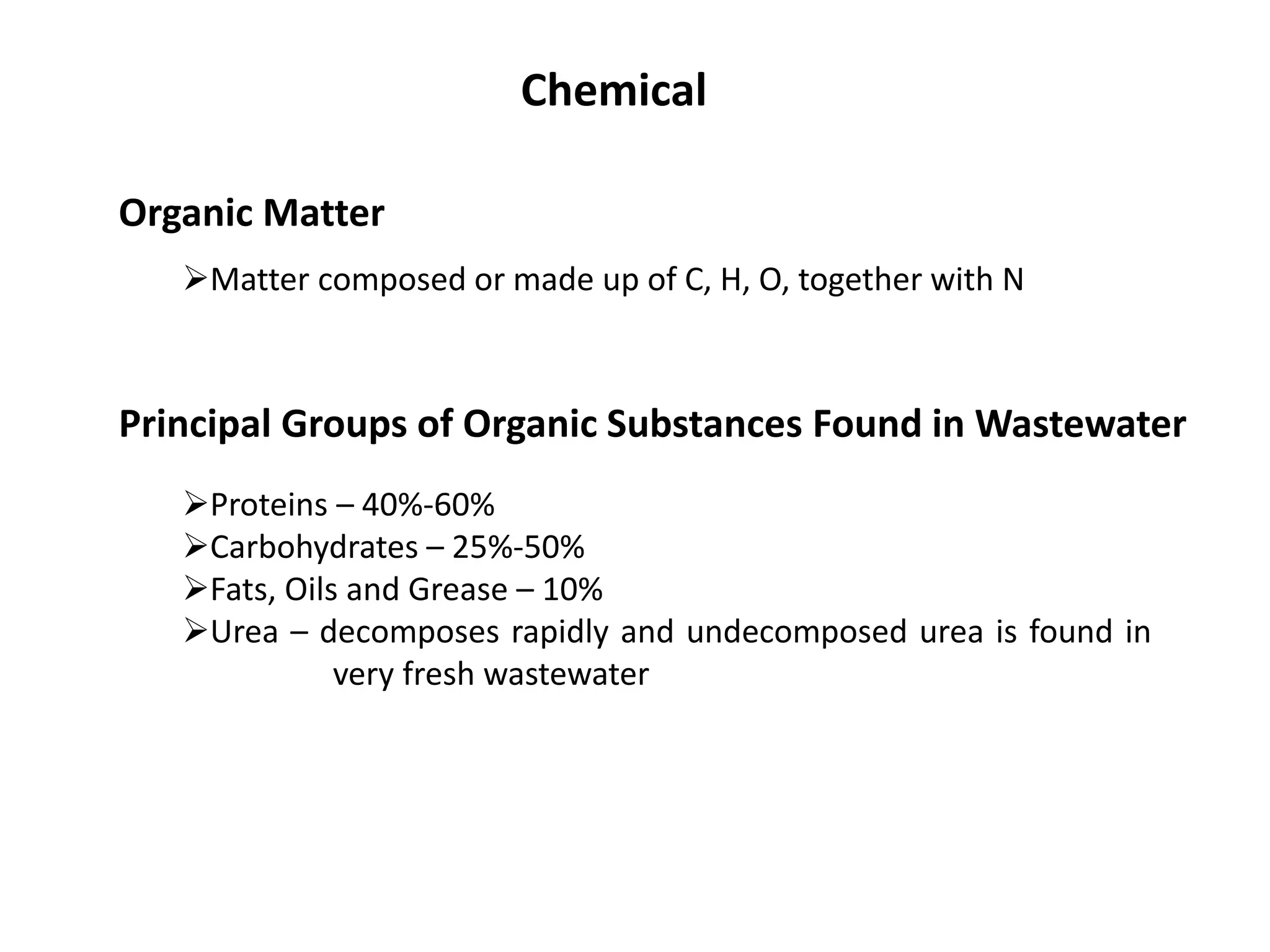

46. Chemical
Organic Matter
Matter composed or made up of C, H, O, together with N
Principal Groups of Organic Substances Found in Wastewater
Proteins – 40%-60%
Carbohydrates – 25%-50%
Fats, Oils and Grease – 10%
Urea – decomposes rapidly and undecomposed urea is found in
very fresh wastewater

47. Protein
Chemical
Principal constituents of the animal organism
High and constant proportion of N, thus main source of N in
wastewater.
When present in large quantities, foul odor are produced by their
decomposition
Carbohydrates
Widely distributed in nature
Includes sugar, starches, cellulose, and wood fiber
Sugar is soluble in water, when decompose certain bacteria aids
fermentation and produces alcohol and CO2

48. FOGs
Chemical
Contributed to domestic wastewater in butter, lard, margarine,
and vegetable fats and oils.
More stable organic compound thus does not decomposes easily
Interfere with the biological life in the surface water and create
unsightly floating matter and films
Surfactants
Causes foaming in wastewater treatment plants
Methylene blue active substance (MBAS)

49. Volatile Organic Compounds
Chemical
Organic compounds that have a boiling point ≤ 100°C and/or a
vapor pressure > 1mmHg at 25°C
Once in vapor state it is more likely to be released to the
environment
Presence of such compounds in the atmosphere may pose
significant public health risk
Contribute to a general increase in reactive hydrocarbons in the
atmosphere ,which can lead to the formation of photochemical
oxidant

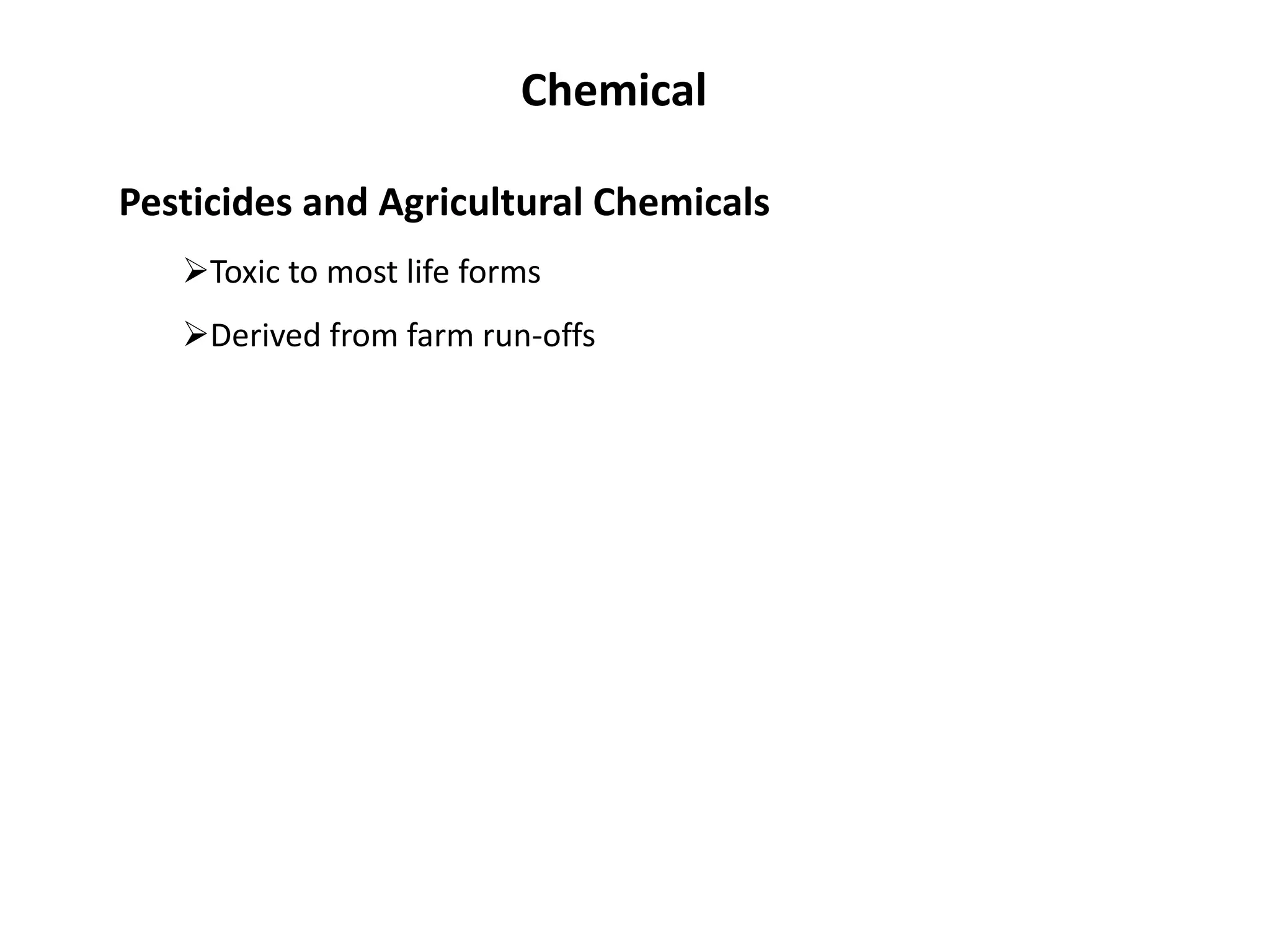

50. Pesticides and Agricultural Chemicals
Chemical
Toxic to most life forms
Derived from farm run-offs

51. Inorganic Matter
Exhibited by presence minerals such as N, P, S, Cl
pH
Chemical
The term pH is used to describe the acid or base properties of
water solutions.
A pH value less than 7 in the wastewater plant influent may
indicate septic conditions of wastewater.
Pretreatment of these wastes at the source is usually required
since extreme pH values may damage biological treatment units.
The pH values less than 5 and more than 10 usually indicate
that industrial wastes exist and are not compatible with
biological wastewater operations.

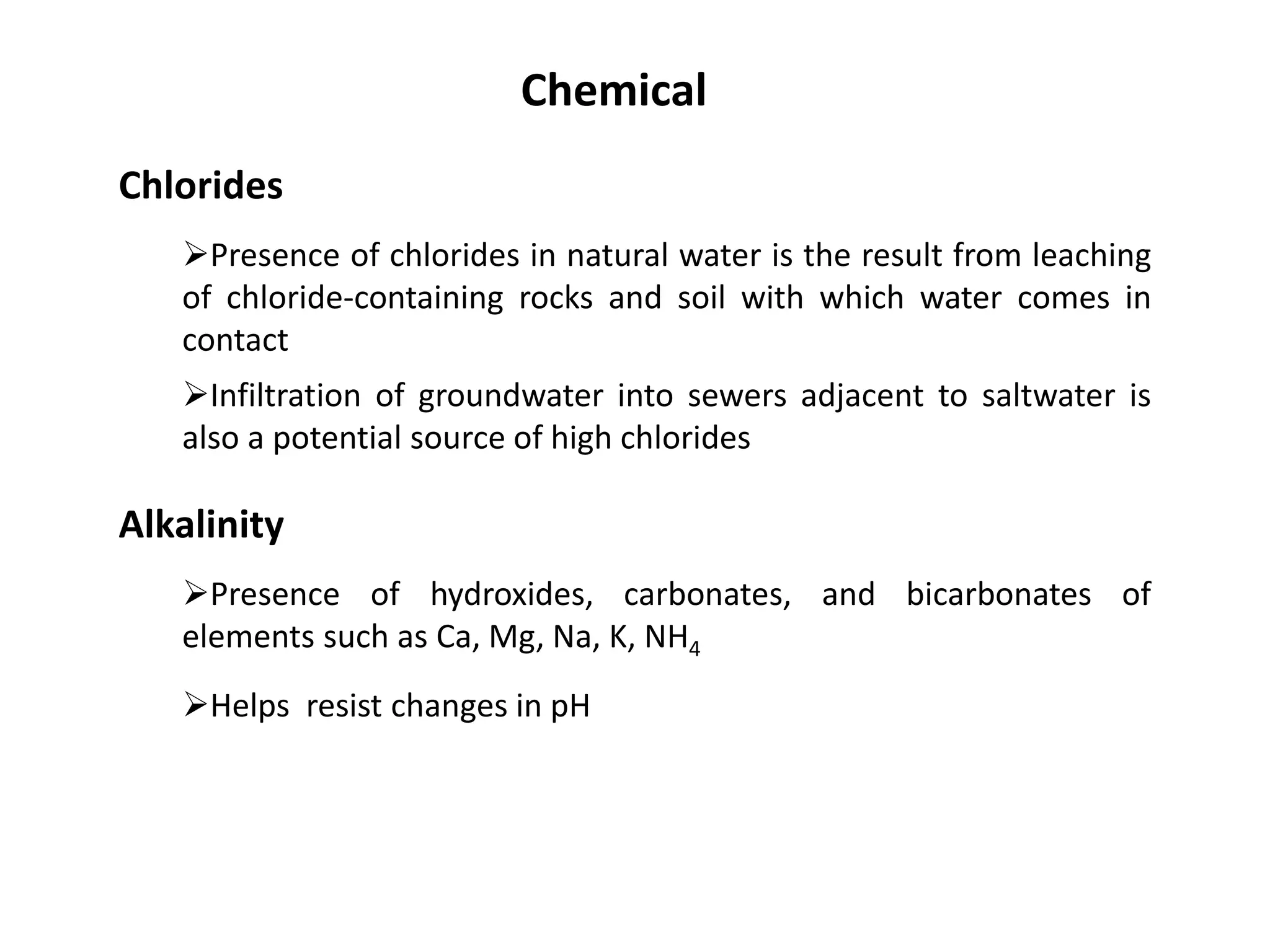

52. Chlorides
Presence of chlorides in natural water is the result from leaching
of chloride-containing rocks and soil with which water comes in
contact
Chemical
Infiltration of groundwater into sewers adjacent to saltwater is
also a potential source of high chlorides
Alkalinity
Presence of hydroxides, carbonates, and bicarbonates of
elements such as Ca, Mg, Na, K, NH4
Helps resist changes in pH

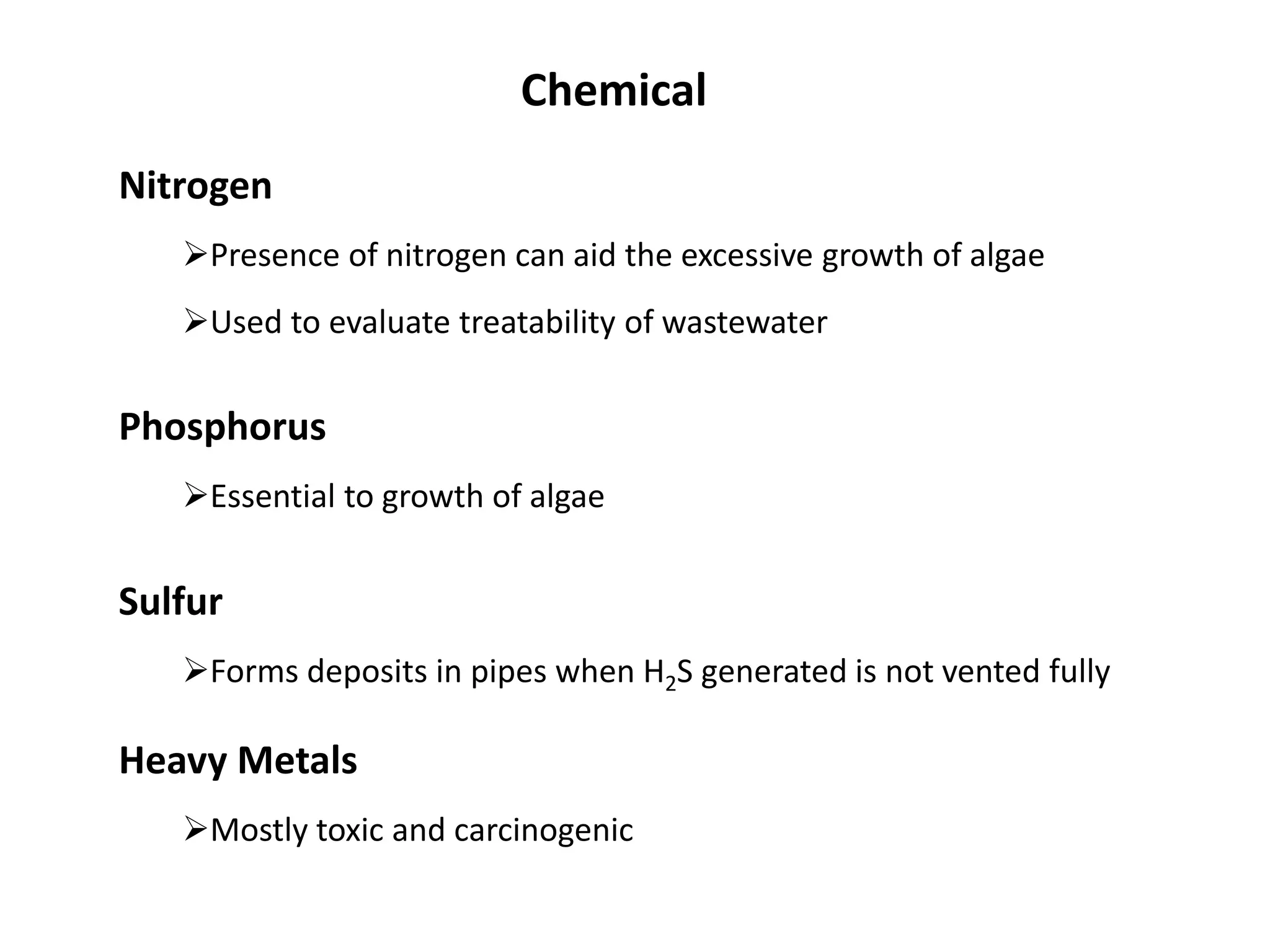

53. Nitrogen
Presence of nitrogen can aid the excessive growth of algae
Chemical
Phosphorus
Essential to growth of algae
Used to evaluate treatability of wastewater
Sulfur
Forms deposits in pipes when H2S generated is not vented fully
Heavy Metals
Mostly toxic and carcinogenic

54. Gases
Dissolved Oxygen
Required for the respiration of aerobic microorganisms and
other aquatic life forms
Rotten egg smell
Chemical
Hydrogen Sulfide
Not formed in the presence of an abundant supply of oxygen
Colorless, odorless, and combustible hydrocarbon which is a
principal by-product of anaerobic decomposition of organic
matter
Methane

55. Bacteria
Fungi
Biological
Decomposes and stabilized organic matter
Single-celled prokaryotic eubacteria
Aerobic, multicellular, nonphotosynthetic, chemoheterotropic,
eukaryotic protist
Can grow in low moisture and low pH environment
Without the presence of fungi, the carbon cycle would soon
cease to exist and organic mater would accumulate

56. Algae
Protozoa
Biological
Rapidly reproduce in bodies of water wherein high level of N and
P are present
Single-celled eukaryotic microorganisms without cell walls
Aereobic or facultatively anaerobic
Feed on bacteria and other microscopic microorganisms

57.  Tanks or vessels used to perform physical,
chemical, and biochemical reactions.
Types of Reactors:
1. Single Batch Reactors
2. CSTR (Continuously Stirred Tank Reactor)
3. Plug Flow Reactor

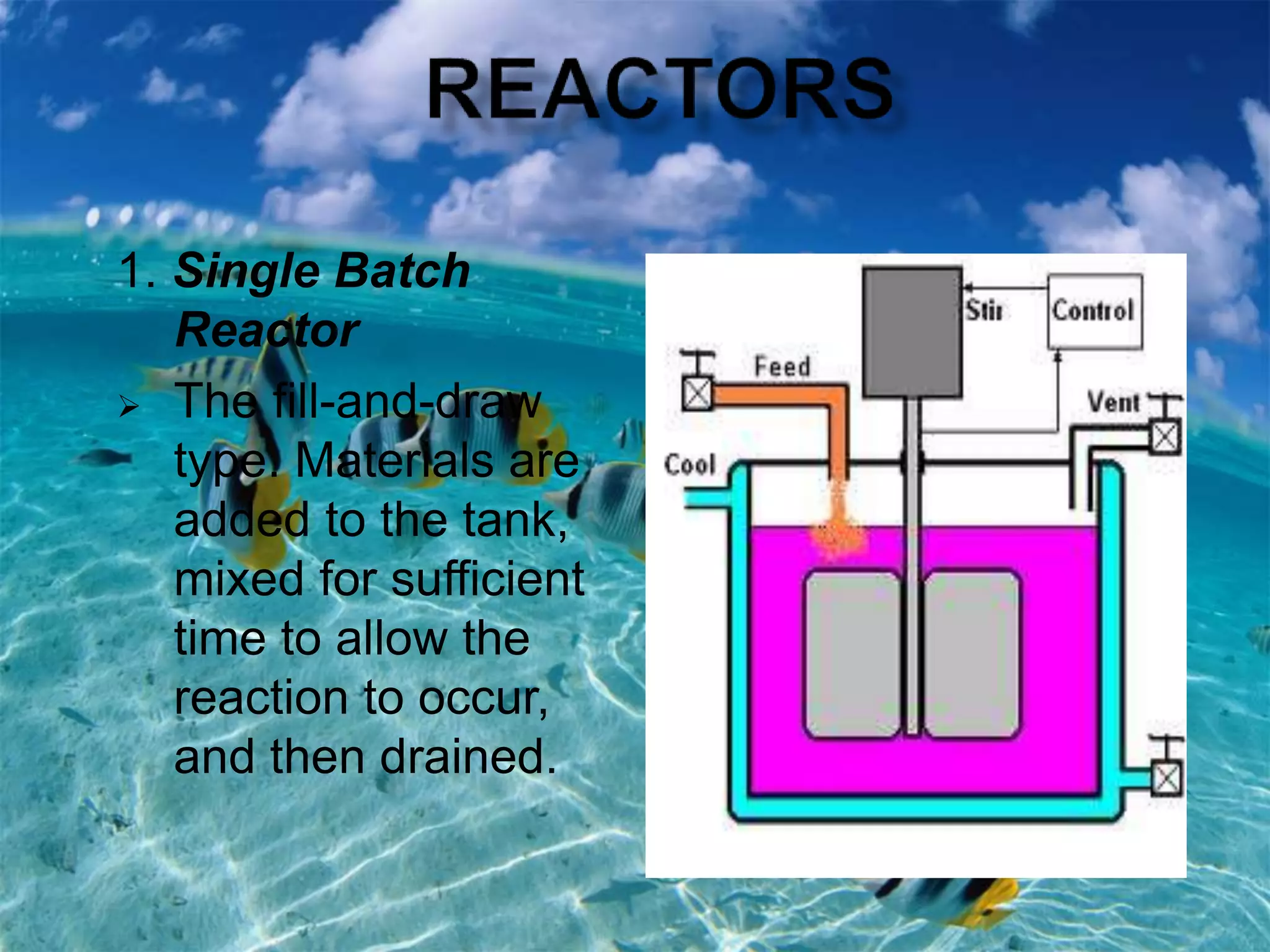

58. 1. Single Batch
Reactor
 The fill-and-draw
type. Materials are
added to the tank,
mixed for sufficient
time to allow the
reaction to occur,
and then drained.

59. 2. CSTR
(Continuously
Stirred Tank
Reactor)
 Also called a
Completely Mixed
Flow reactor
(CMF).
 The composition of
the effluent is the
same as the
composition in the
tank

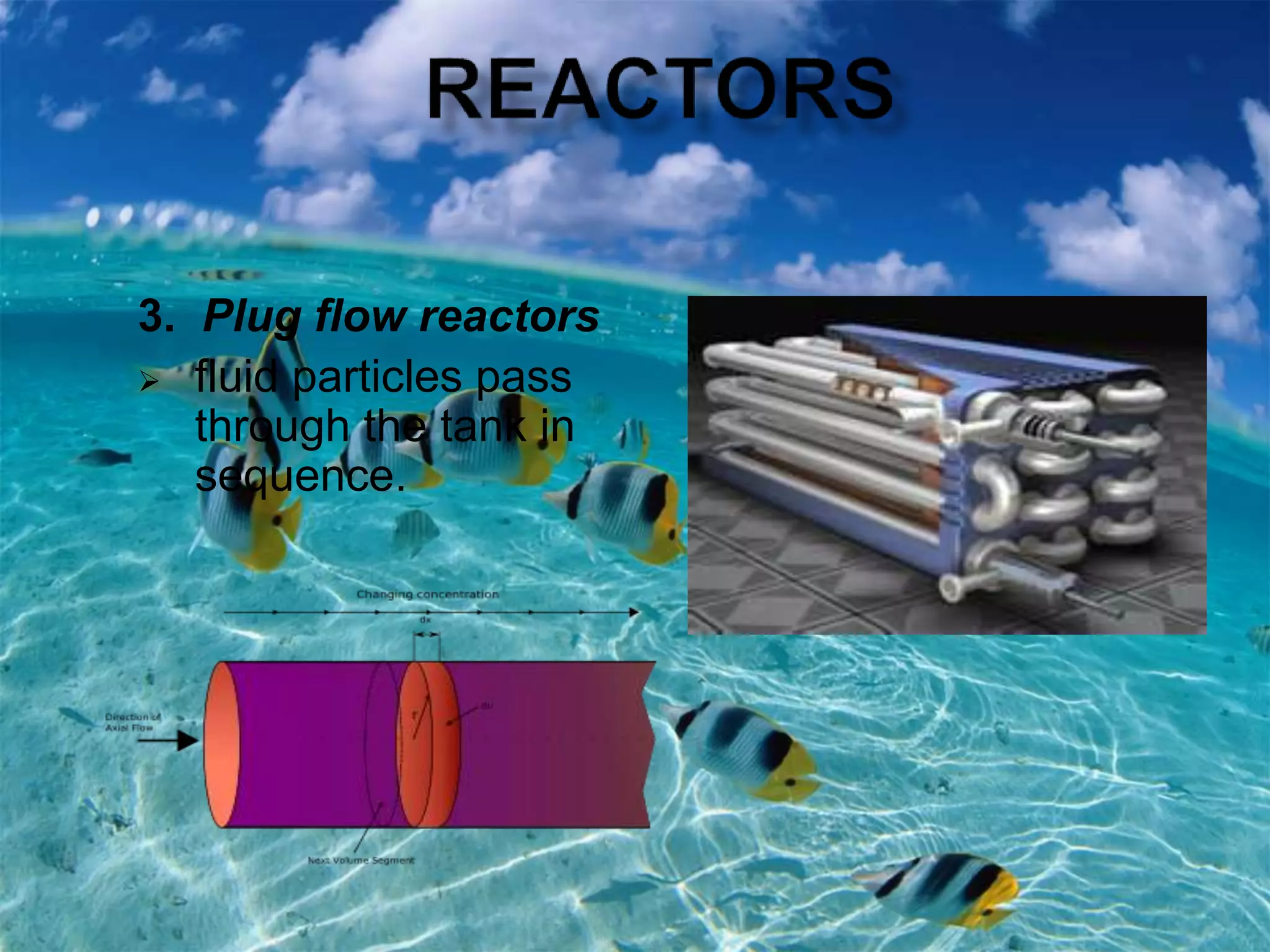

60. 3. Plug flow reactors
 fluid particles pass
through the tank in
sequence.

61. Specific factors affecting rate of Chemical
Reaction:
1. Nature of Reactant
2. Physical State
3. Concentration
4. Temperature
5. Pressure
6. Catalysts

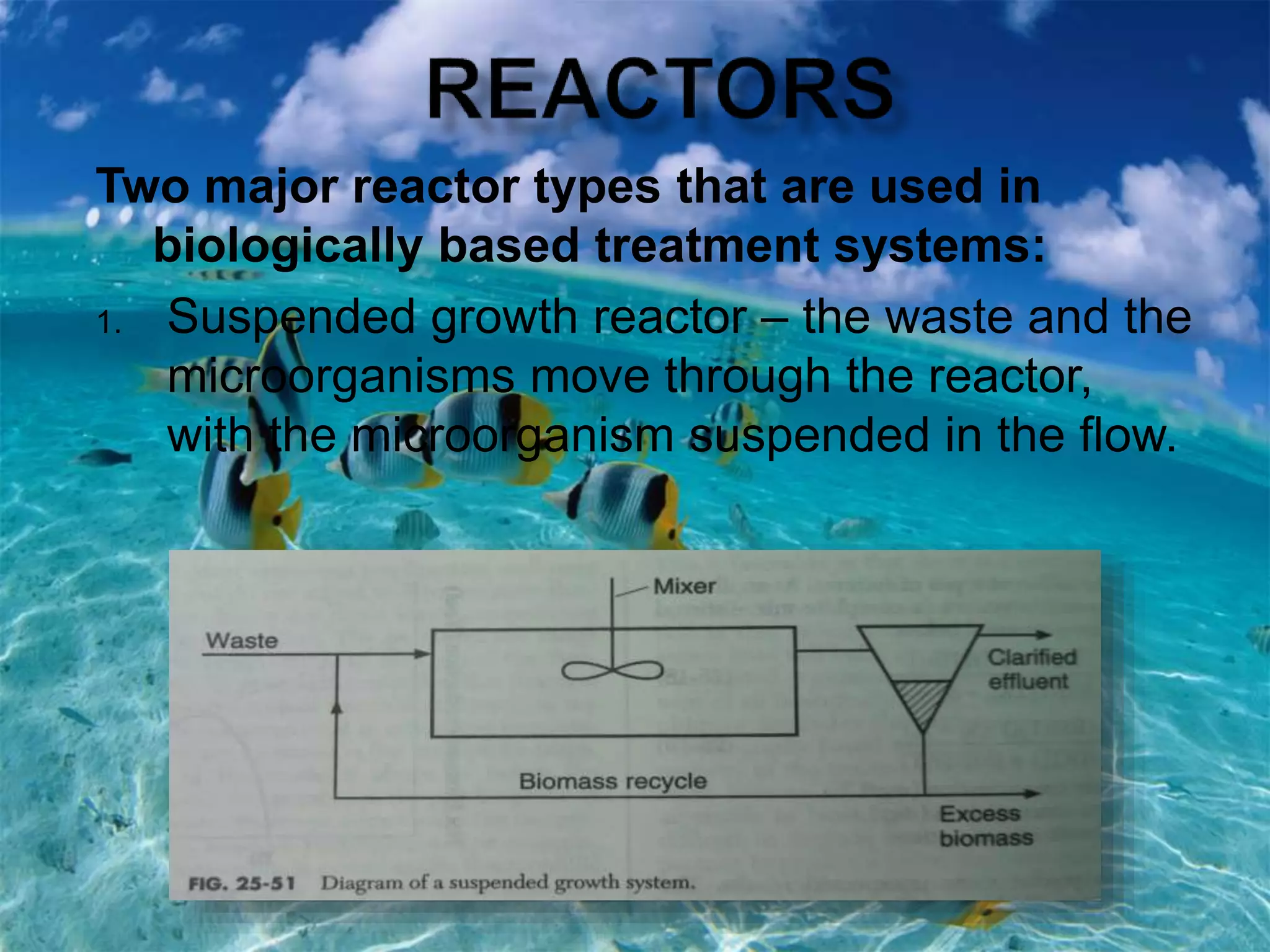

62. Two major reactor types that are used in
biologically based treatment systems:
1. Suspended growth reactor – the waste and the
microorganisms move through the reactor,
with the microorganism suspended in the flow.

63. 2. Fixed film reactor – the organisms grow on an
inert surface that is maintained in the reactor.

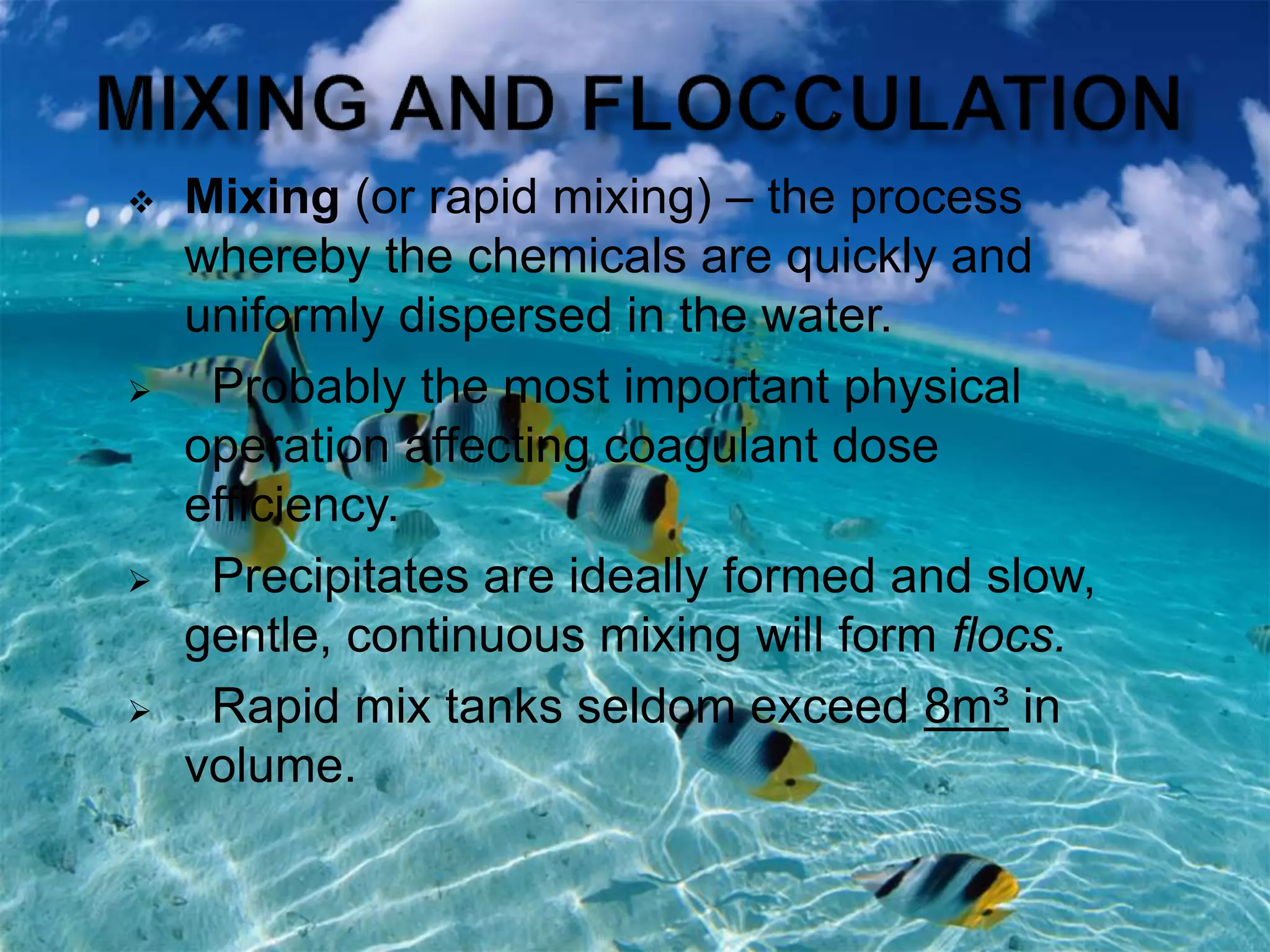

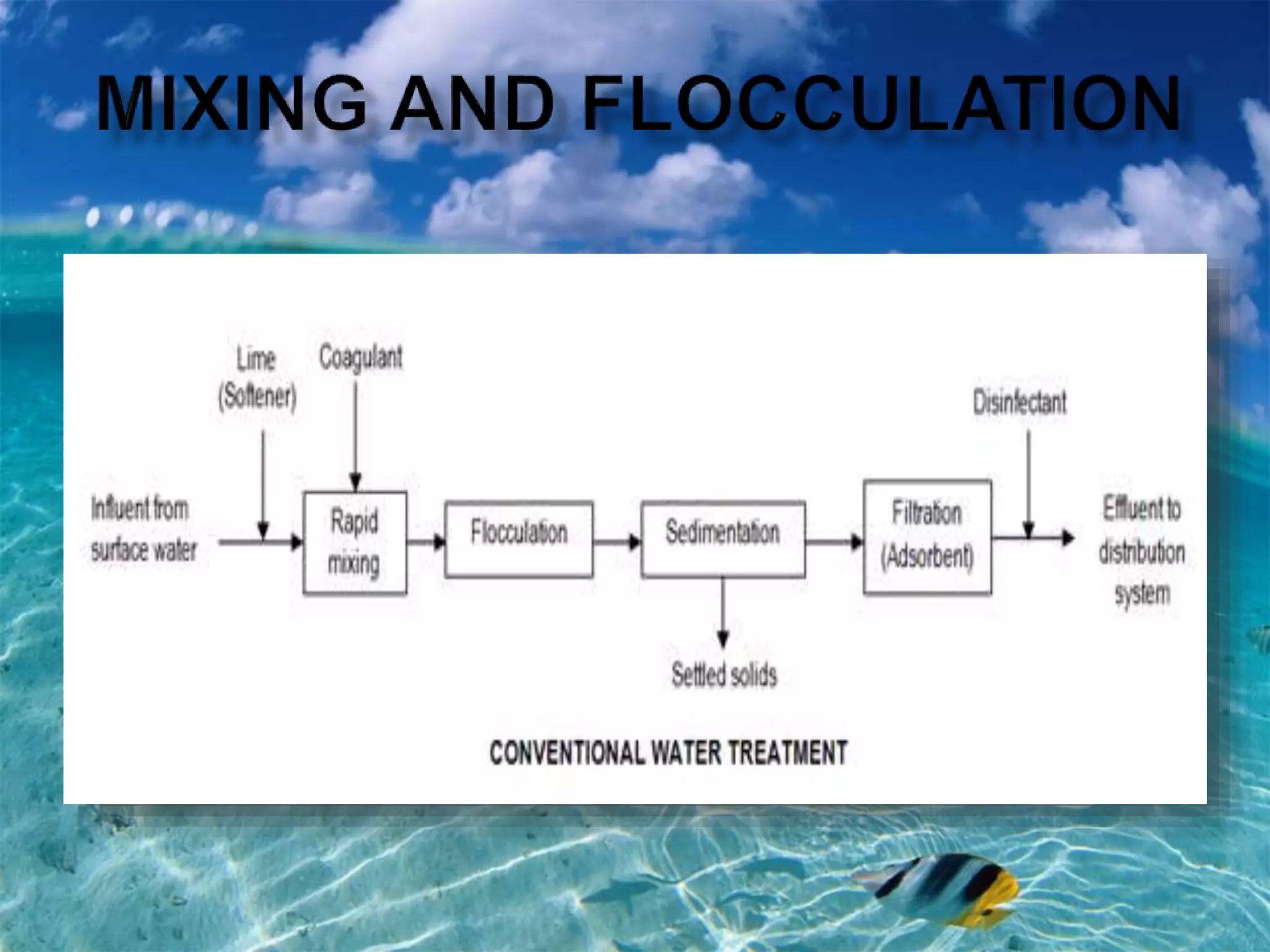

64.  Mixing (or rapid mixing) – the process
whereby the chemicals are quickly and
uniformly dispersed in the water.
 Probably the most important physical
operation affecting coagulant dose
efficiency.
 Precipitates are ideally formed and slow,
gentle, continuous mixing will form flocs.
 Rapid mix tanks seldom exceed 8m³ in
volume.

65.  Flocculation – the most important factor
affecting particle-removal efficiency.
 Objective is to bring particles into contact
so that they will collide, stick together, and
grow in size.
 Modern plants provide about 20 minutes
of flocculation time.

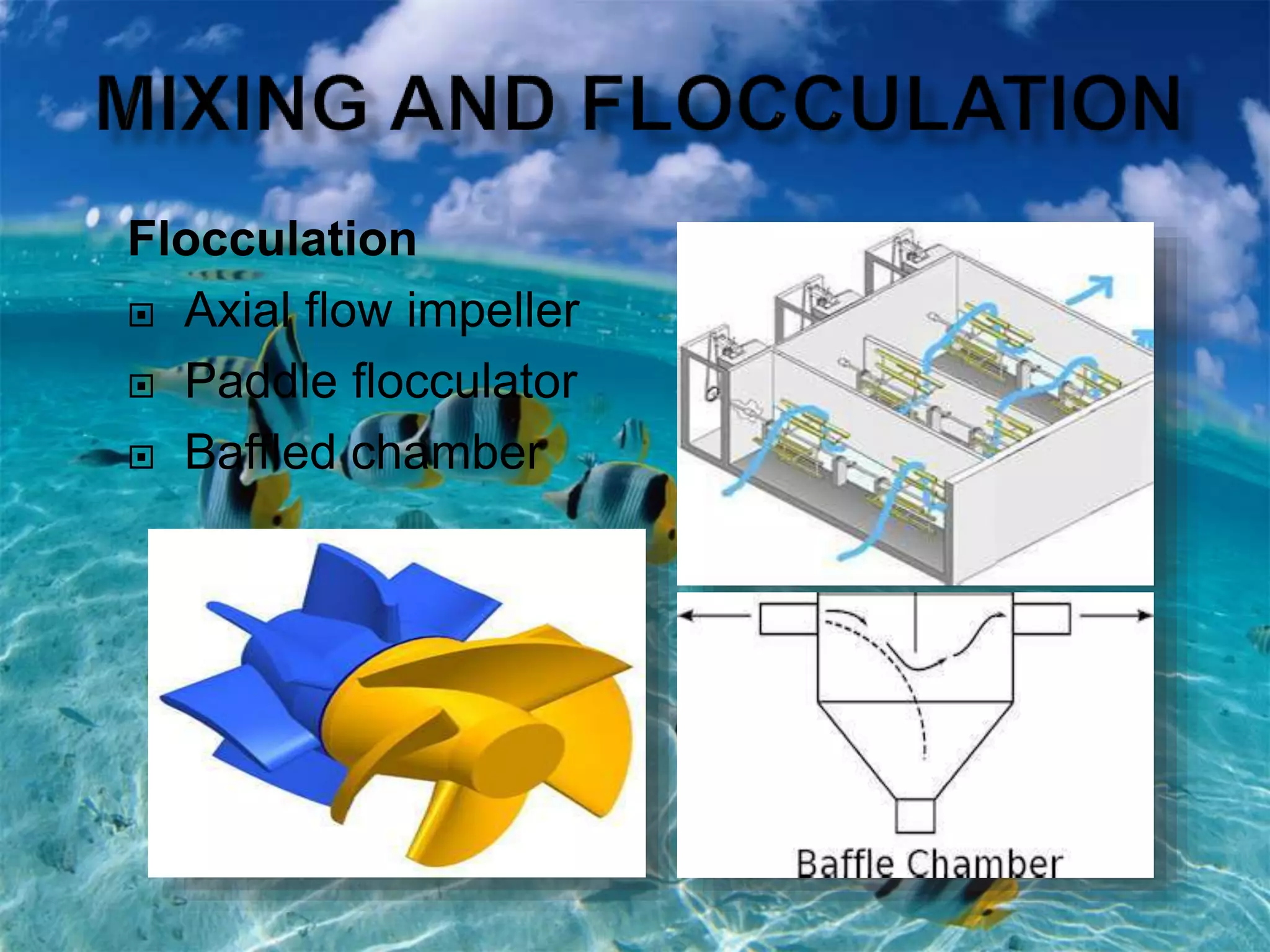

67. Flocculation
 Axial flow impeller
 Paddle flocculator
 Baffled chamber

68. Typical flow pattern in a baffled tank with a
propeller

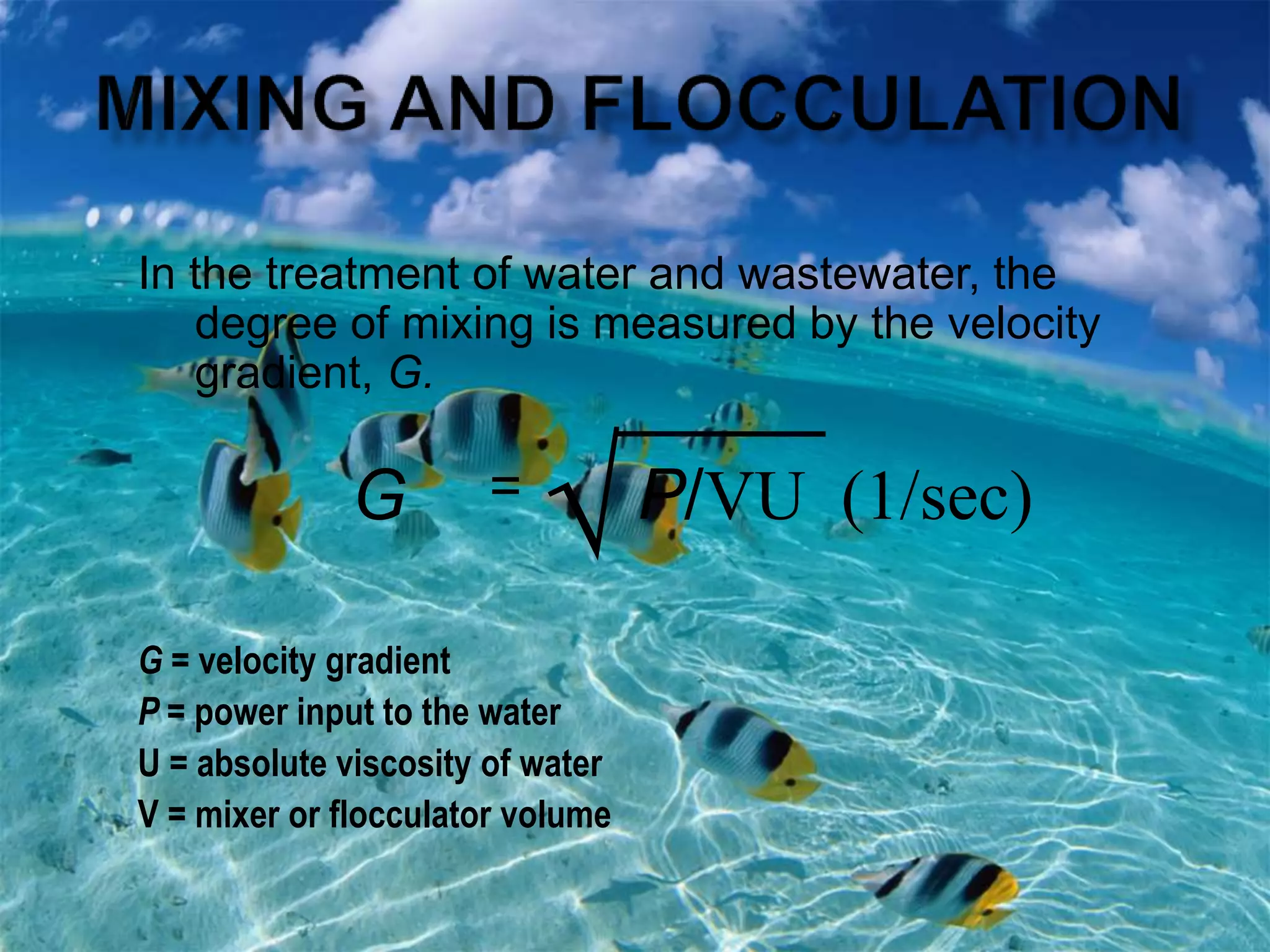

69. In the treatment of water and wastewater, the
degree of mixing is measured by the velocity
gradient, G.
G = velocity gradient
P = power input to the water
U = absolute viscosity of water
V = mixer or flocculator volume
G =
√P/VU (1/sec)

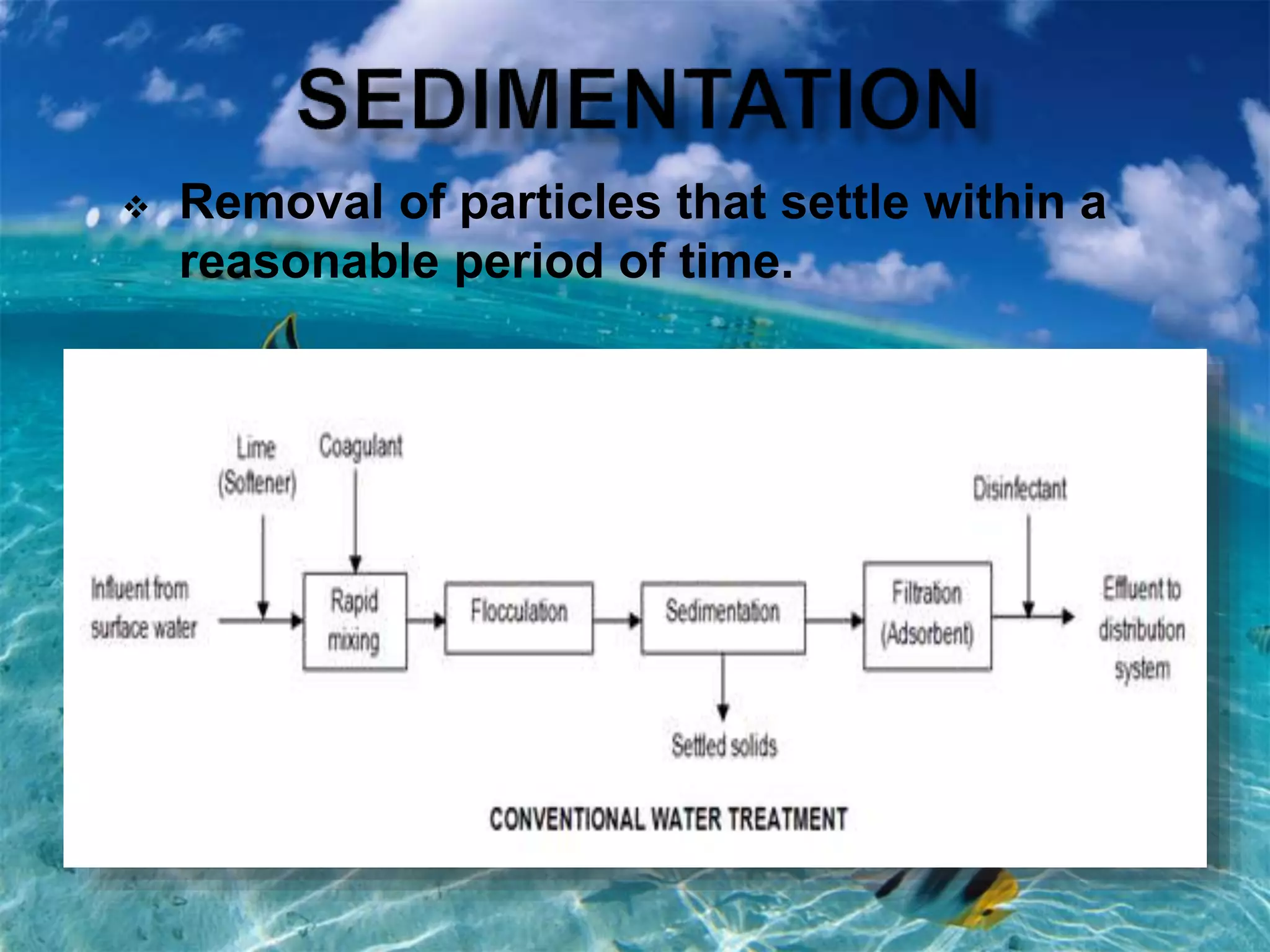

70.  Removal of particles that settle within a
reasonable period of time.

71.  Circular
sedimentation

72.  Rectangular
sedimentation

73. Types of Sedimentation:
 Type I sedimentation – particles that settle
discretely at a constant settling velocity (sand
and grit)
 Type II sedimentation – particles that flocculate
during sedimentation.
 Type III (zone sedimentation) – particles are at
high concentration (greater than 1,000 mg/L)
such that particles tend to settle as a mass.

74.  Process for separating suspended or colloidal
impurities from water by passage through a
porous medium, usually a bed of sand or
other medium.

75. Classifying filters:
 According to type of medium used:
 Sand
 Coal (anthracite)
 Dual media (coal plus sand)
 Mixed media (coal, sand, garnet)
 According to allowable loading rate:
 Slow sand filters
 Rapid sand filters
 High rate sand filters

76.  Rapid sand filters were
developed in early
1900s to prevent
epidemics.
 Filters have graded
sand within the bed
 Grain size distribution is
selected to optimize
passage of water while
minimizing the passage
of particulate matter

77. The size distribution or variation of a sample of
granular material is determined by the
sieving sample through a series of standard
sieves (screens).
Sieve
designation
number
Size of
opening (mm)
Sieve
designation
number
Size of
opening (mm)
200 0.074 20 0.84
140 0.105 18 1.00
100 0.149 16 1.19
70 0.210 12 1.68
50 0.297 8 2.38
40 0.42 6 3.36
30 0.59 4 4.76

78.  To reduce pathogens (disease producing
microorganisms) to an acceptable level

79.  Disinfection ≠ Sterilization
 Drinking water need not be sterile
 Categories of human enteric pathogens:
bacteria, viruses, and amoebic cysts
 Purposeful disinfection must be capable of
destroying all three

80. To be of practical service, water disinfectants
must:
 Destroy the kinds and numbers of
pathogens that may be introduced into
water within a practicable period of time
over an expected range in water
temperature
 Must meet possible fluctuations in
composition, concentration, and condition
of the water or wastewater

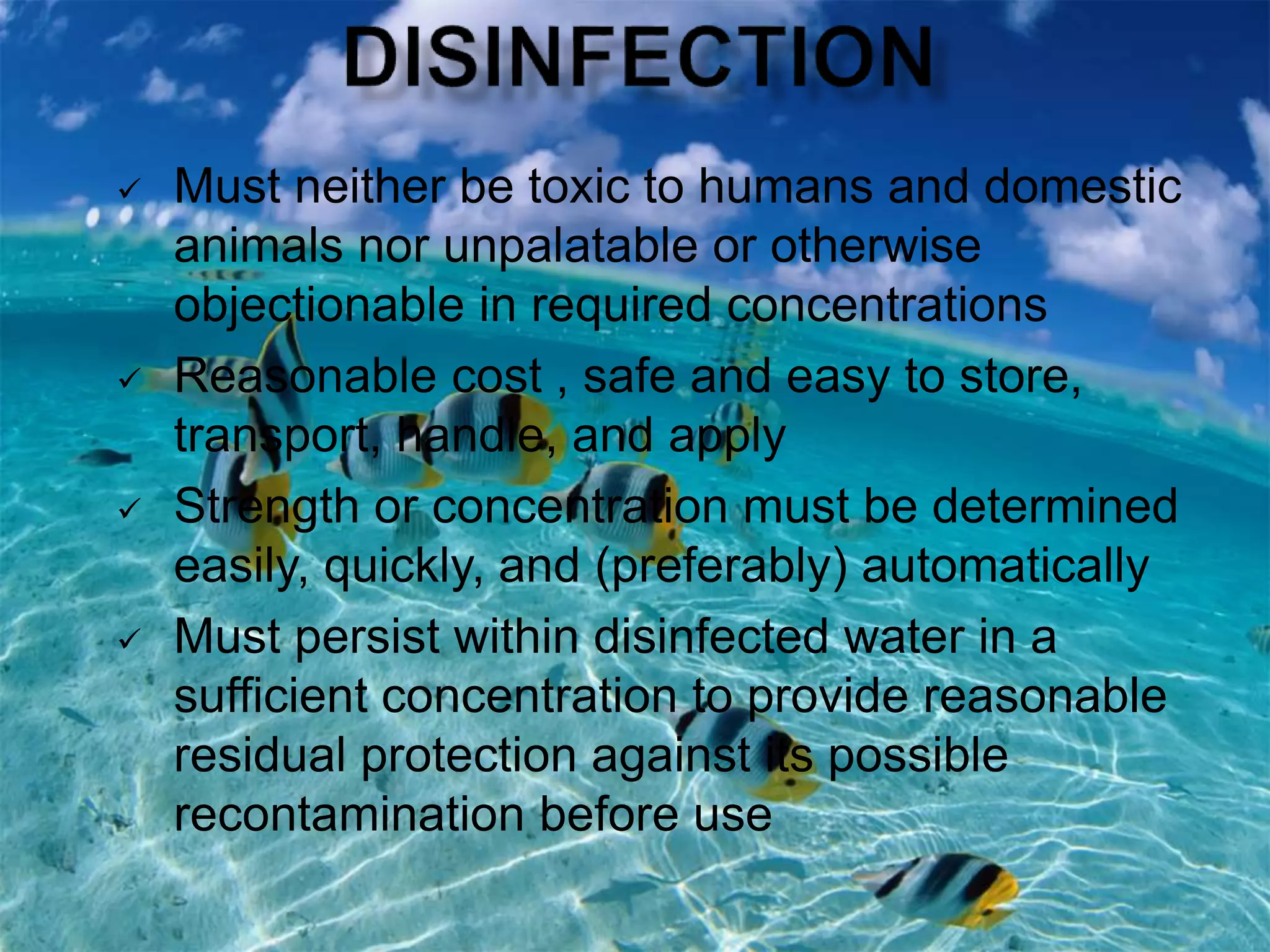

81.  Must neither be toxic to humans and domestic
animals nor unpalatable or otherwise
objectionable in required concentrations
 Reasonable cost , safe and easy to store,
transport, handle, and apply
 Strength or concentration must be determined
easily, quickly, and (preferably) automatically
 Must persist within disinfected water in a
sufficient concentration to provide reasonable
residual protection against its possible
recontamination before use

82.  A substance is transferred from the liquid
phase to the surface of a solid where it is
bound by chemical or physical forces

83. PAC (Powdered Activated Carbon)
 fed to raw water in a slurry
 Used to remove taste- and odor-causing
substances
 Some removal of SOCs
GAC (Granulated Activated Carbon)
 added to existing filter system or by an
additional contactor after primary filtration
 Predominately for taste and odor removal
 GAC typically last 90-120 days until it loses
adsorptive capacity – short life – GAC would
need to be regenerated or be destroyed by
burning in a high temp furnace – expensive
proposition.

84. Satisfactory treatment and disposal of water treatment
plant sludge can be the single most complex and
costly operation in the plant.
 Sludge – the precipitated chemicals and other materials
removed from raw water to make it potable and palatable.
 Sludge withdrawn from coagulation and softening
plants may have as much as 98% water.

85. Categories of water treatment plants (according to the
wastes they produce):
1. Plants that coagulate, filter and oxidize a surface water for
removal of turbidity, color, bacteria, algae, some organic
compounds, and often iron and/or manganese.
2. Plants that practice softening for the removal of calcium
and magnesium by the addition of lime, sodium hydroxide,
and/or soda ash.
3. Plants that are designed to specifically remove trace
organics such as nitrate, fluoride, radium, arsenic, etc.
4. Plants that produce air-phase wastes during the stripping
of volatile compounds.

86. Major water treatment plant wastes:
Solid/liquid wastes
-alum sludges -polymeric sludges
-iron sludges -softening sludges
-backwash wastes -slow sand filter wastes
-wastes from iron and manganese removal plants
-spent precoat filter media
Liquid phase wastes
-ion-exchange regenerant brine
-waste regenerant from activated alumina
-reverse osmosis waste streams
Gas phase wastes
-air stripping off-gases

87. The most logical sludge management program attempts to
use the following approach in disposing of sludge:
 Minimization of sludge generation
 Chemical recovery of precipitates
 Sludge treatment to reduce volume
 Ultimate disposal in an environmentally safe manner
