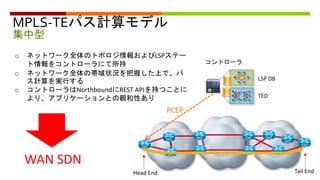

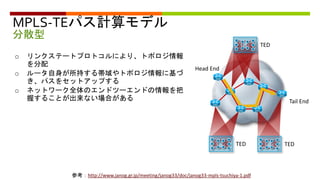

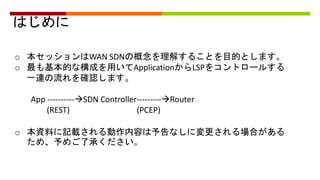

5. MPLS-TEパス計算モデル

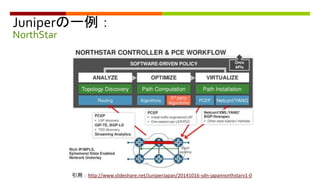

集中型
TED
LSP DB
PCEP
Head End Tail End
コントローラ
o ネットワーク全体のトポロジ情報およびLSPステー
ト情報をコントローラにて所持
o ネットワーク全体の帯域状況を把握した上で、パ
ス計算を実行する
o コントローラはNorthboundにREST APIを持つことに
より、アプリケーションとの親和性あり
WAN SDN

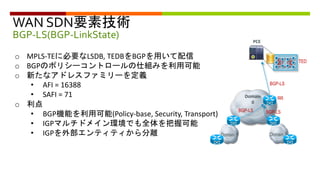

6. WAN SDN要素技術
BGP-LS(BGP-LinkState)
o MPLS-TEに必要なLSDB, TEDBをBGPを用いて配信
o BGPのポリシーコントロールの仕組みを利用可能
o 新たなアドレスファミリーを定義
• AFI = 16388
• SAFI = 71
o 利点
• BGP機能を利用可能(Policy-base, Security, Transport)
• IGPマルチドメイン環境でも全体を把握可能
• IGPを外部エンティティから分離 Domain 1 Domain 2
Domain
0
BGP-LS
TED
BGP-LS BGP-LS
RR
PCE
7. WAN SDN要素技術

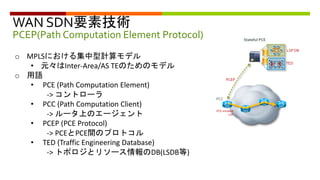

PCEP(Path Computation Element Protocol)
o MPLSにおける集中型計算モデル
• 元々はInter-Area/AS TEのためのモデル
o 用語
• PCE (Path Computation Element)
-> コントローラ
• PCC (Path Computation Client)
-> ルータ上のエージェント
• PCEP (PCE Protocol)
-> PCEとPCE間のプロトコル
• TED (Traffic Engineering Database)
-> トポロジとリソース情報のDB(LSDB等)
PCEP
Stateful PCE
TED
LSP DB
PCC
PCE-initiated
LSP

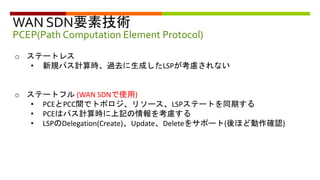

8. WAN SDN要素技術
PCEP(Path Computation Element Protocol)
o ステートレス
• 新規パス計算時、過去に生成したLSPが考慮されない
o ステートフル (WAN SDNで使用)
• PCEとPCC間でトポロジ、リソース、LSPステートを同期する
• PCEはパス計算時に上記の情報を考慮する
• LSPのDelegation(Create)、Update、Deleteをサポート(後ほど動作確認)

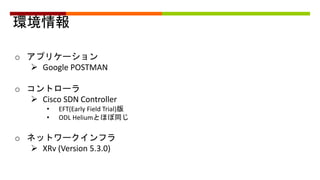

13. 環境情報
o アプリケーション
Google POSTMAN
o コントローラ
Cisco SDN Controller
• EFT(Early Field Trial)版
• ODL Heliumとほぼ同じ
o ネットワークインフラ
XRv (Version 5.3.0)

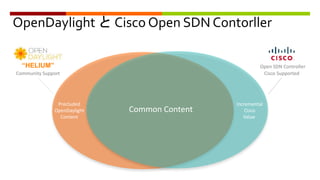

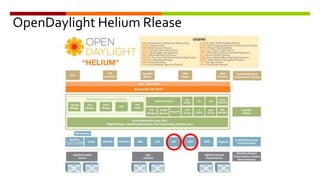

14. OpenDaylight と Cisco Open SDN Contorller
Community Support Cisco Supported
“HELIUM” Open SDN Controller
Common Content
Incremental
Cisco
Value
Precluded
OpenDaylight
Content

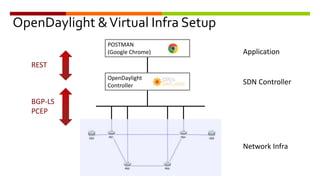

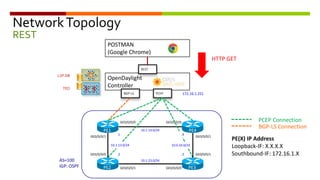

15. OpenDaylight &Virtual Infra Setup
REST
BGP-LS
PCEP
SDN Controller
Application
Network Infra
OpenDaylight
Controller
POSTMAN
(Google Chrome)

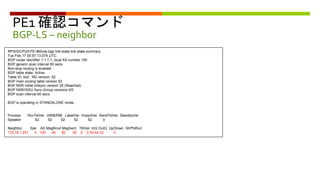

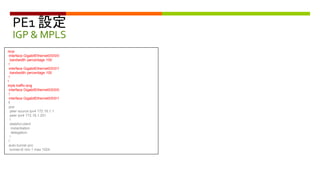

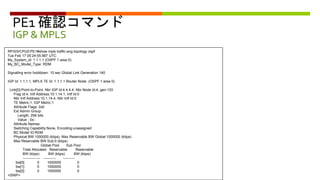

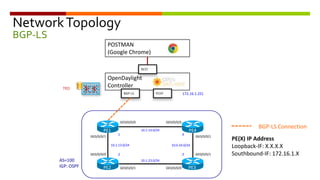

24. PE1 確認コマンド
BGP-LS – neighbor
RP/0/0/CPU0:PE1#show bgp link-state link-state summary
Tue Feb 17 05:57:13.074 UTC
BGP router identifier 1.1.1.1, local AS number 100
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0 RD version: 52
BGP main routing table version 52
BGP NSR Initial initsync version 25 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs
BGP is operating in STANDALONE mode.
Process RcvTblVer bRIB/RIB LabelVer ImportVer SendTblVer StandbyVer
Speaker 52 52 52 52 52 0
Neighbor Spk AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down St/PfxRcd
172.16.1.251 0 100 46 80 52 0 0 00:44:33 0

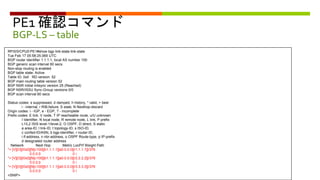

25. PE1 確認コマンド
BGP-LS – table
RP/0/0/CPU0:PE1#show bgp link-state link-state
Tue Feb 17 05:58:25.069 UTC
BGP router identifier 1.1.1.1, local AS number 100
BGP generic scan interval 60 secs
Non-stop routing is enabled
BGP table state: Active
Table ID: 0x0 RD version: 52
BGP main routing table version 52
BGP NSR Initial initsync version 25 (Reached)
BGP NSR/ISSU Sync-Group versions 0/0
BGP scan interval 60 secs
Status codes: s suppressed, d damped, h history, * valid, > best
i - internal, r RIB-failure, S stale, N Nexthop-discard
Origin codes: i - IGP, e - EGP, ? - incomplete
Prefix codes: E link, V node, T IP reacheable route, u/U unknown
I Identifier, N local node, R remote node, L link, P prefix
L1/L2 ISIS level-1/level-2, O OSPF, D direct, S static
a area-ID, l link-ID, t topology-ID, s ISO-ID,
c confed-ID/ASN, b bgp-identifier, r router-ID,
i if-address, n nbr-address, o OSPF Route-type, p IP-prefix
d designated router address
Network Next Hop Metric LocPrf Weight Path
*> [V][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r1.1.1.1]]/376
0.0.0.0 0 i
*> [V][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r2.2.2.2]]/376
0.0.0.0 0 i
*> [V][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r3.3.3.3]]/376
0.0.0.0 0 I
<SNIP>

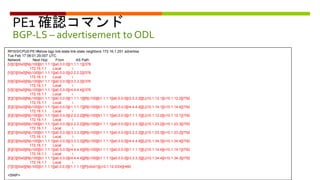

26. PE1 確認コマンド
BGP-LS – advertisement to ODL
RP/0/0/CPU0:PE1#show bgp link-state link-state neighbors 172.16.1.251 advertise
Tue Feb 17 06:01:29.007 UTC
Network Next Hop From AS Path
[V][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r1.1.1.1]]/376
172.16.1.1 Local i
[V][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r2.2.2.2]]/376
172.16.1.1 Local i
[V][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r3.3.3.3]]/376
172.16.1.1 Local i
[V][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r4.4.4.4]]/376
172.16.1.1 Local i
[E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r1.1.1.1]][R[c100][b1.1.1.1][a0.0.0.0][r2.2.2.2]][L[i10.1.12.1][n10.1.12.2]]/792
172.16.1.1 Local i
[E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r1.1.1.1]][R[c100][b1.1.1.1][a0.0.0.0][r4.4.4.4]][L[i10.1.14.1][n10.1.14.4]]/792
172.16.1.1 Local i
[E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r2.2.2.2]][R[c100][b1.1.1.1][a0.0.0.0][r1.1.1.1]][L[i10.1.12.2][n10.1.12.1]]/792
172.16.1.1 Local i
[E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r2.2.2.2]][R[c100][b1.1.1.1][a0.0.0.0][r3.3.3.3]][L[i10.1.23.2][n10.1.23.3]]/792
172.16.1.1 Local i
[E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r3.3.3.3]][R[c100][b1.1.1.1][a0.0.0.0][r2.2.2.2]][L[i10.1.23.3][n10.1.23.2]]/792
172.16.1.1 Local i
[E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r3.3.3.3]][R[c100][b1.1.1.1][a0.0.0.0][r4.4.4.4]][L[i10.1.34.3][n10.1.34.4]]/792
172.16.1.1 Local i
[E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r4.4.4.4]][R[c100][b1.1.1.1][a0.0.0.0][r1.1.1.1]][L[i10.1.14.4][n10.1.14.1]]/792
172.16.1.1 Local i
[E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r4.4.4.4]][R[c100][b1.1.1.1][a0.0.0.0][r3.3.3.3]][L[i10.1.34.4][n10.1.34.3]]/792
172.16.1.1 Local i
[T][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r1.1.1.1]][P[o0x01][p10.1.12.0/24]]/480
<SNIP>

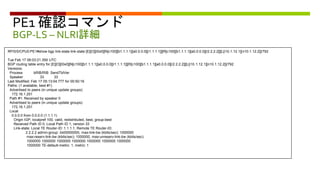

27. PE1 確認コマンド
BGP-LS – NLRI詳細
RP/0/0/CPU0:PE1#show bgp link-state link-state [E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r1.1.1.1]][R[c100][b1.1.1.1][a0.0.0.0][r2.2.2.2]][L[i10.1.12.1][n10.1.12.2]]/792
Tue Feb 17 06:03:21.359 UTC
BGP routing table entry for [E][O][I0x0][N[c100][b1.1.1.1][a0.0.0.0][r1.1.1.1]][R[c100][b1.1.1.1][a0.0.0.0][r2.2.2.2]][L[i10.1.12.1][n10.1.12.2]]/792
Versions:
Process bRIB/RIB SendTblVer
Speaker 33 33
Last Modified: Feb 17 05:13:04.777 for 00:50:16
Paths: (1 available, best #1)
Advertised to peers (in unique update groups):
172.16.1.251
Path #1: Received by speaker 0
Advertised to peers (in unique update groups):
172.16.1.251
Local
0.0.0.0 from 0.0.0.0 (1.1.1.1)
Origin IGP, localpref 100, valid, redistributed, best, group-best
Received Path ID 0, Local Path ID 1, version 33
Link-state: Local TE Router-ID: 1.1.1.1, Remote TE Router-ID:
2.2.2.2 admin-group: 0x00000000, max-link-bw (kbits/sec): 1000000
max-reserv-link-bw (kbits/sec): 1000000, max-unreserv-link-bw (kbits/sec):
1000000 1000000 1000000 1000000 1000000 1000000 1000000
1000000 TE-default-metric: 1, metric: 1

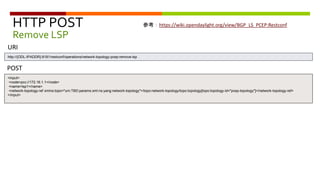

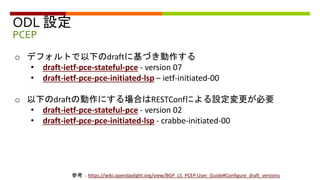

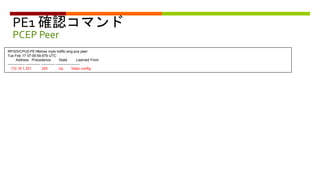

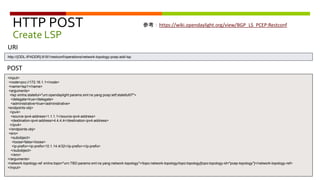

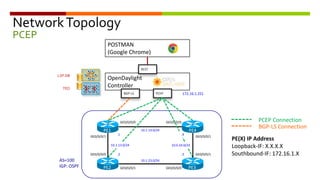

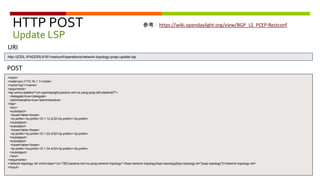

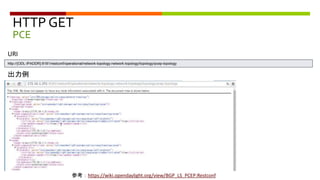

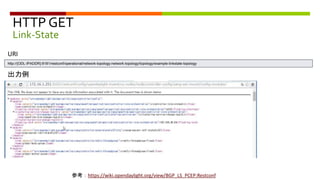

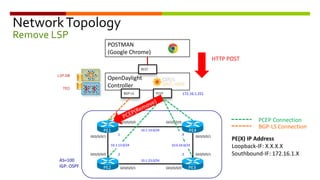

44. HTTP POST
Remove LSP
<input>
<node>pcc://172.16.1.1</node>
<name>lsp1</name>
<network-topology-ref xmlns:topo="urn:TBD:params:xml:ns:yang:network-topology">/topo:network-topology/topo:topology[topo:topology-id="pcep-topology"]</network-topology-ref>
</input>
POST
URI
http://{ODL-IPADDR}:8181/restconf/operations/network-topology-pcep:remove-lsp
参考:https://wiki.opendaylight.org/view/BGP_LS_PCEP:Restconf
Open platform for network programmability
Enables SDN for networks at any size and scale
New “Helium” release delivers new user interface and a much simpler and customizable installation process
