This document summarizes the low impact development design approach used for improvements at Siesta Beach Park in Sarasota, Florida. The goals were to improve aesthetics, environmental quality, and stormwater management. Features included new restrooms, landscaping, permeable parking areas with underground storage and infiltration, bioswales, and water quality treatment with an ultraviolet disinfection system. The $21.5 million project met its goals of enhancing the park while protecting water quality with sustainable stormwater infrastructure.

1. Siesta Beach Low Impact
Development (LID) Design
Approach
2013 APWA
Annual Meeting & Trade
Show
April 24, 2013

2. History of Siesta Beach

3. Goals and Objectives Met
• Improve appearance and aesthetics of this world
class beach
 Updated restroom and new concession facilities
 Increased landscaping throughout
 New entrance/gateway design for the park
• Improve environmental quality of the park
 Improved stormwater treatment providing better
water quality
 Low Impact Development (LID) features
 Pervious parking areas
 Bioswales in paved parking area
 Phased removal of exotic plants and enhanced
natural plantings
 Energy efficient buildings and fixtures

4. 4
BOCC Approved Project -
$21,500,000
(Includes $16,700,000 for construction)

5. 5

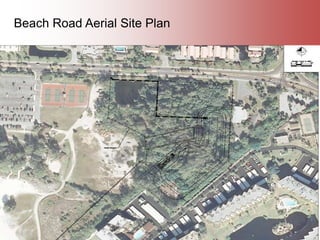

Beach Road Aerial Site Plan

6. 6

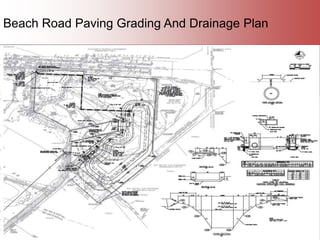

Beach Road Paving Grading And Drainage Plan

7. 7

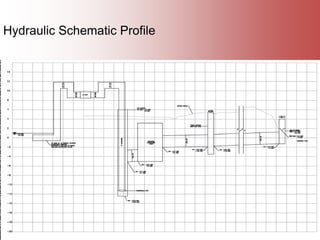

Hydraulic Schematic Profile

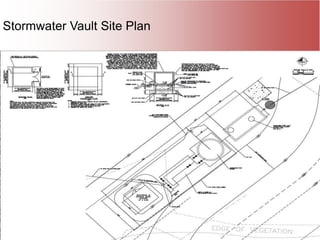

8. 8
Stormwater Vault Site Plan

9. 9

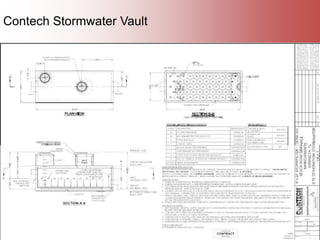

Contech Stormwater Vault

10. 10

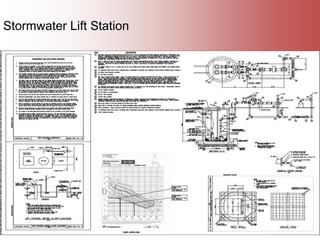

Stormwater Lift Station

11. 11
Aquionics UV Reactor

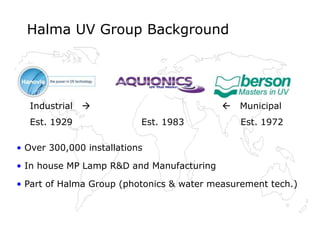

12. Halma UV Group Background
• Over 300,000 installations
• In house MP Lamp R&D and Manufacturing
• Part of Halma Group (photonics & water measurement tech.)
Industrial   Municipal
Est. 1929 Est. 1983 Est. 1972

13. Virus Disinfection
Chlorine Reduction
TOC Reduction
Bacteria Disinfection
Chloramine Reduction
SRB Control
Ozone Reduction
Syrup/Brine Disinfection
EDC Reduction

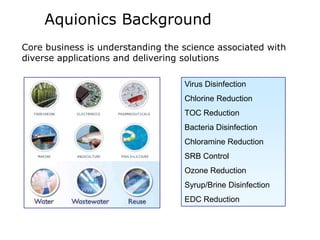

Core business is understanding the science associated with
diverse applications and delivering solutions
Aquionics Background

14. 14

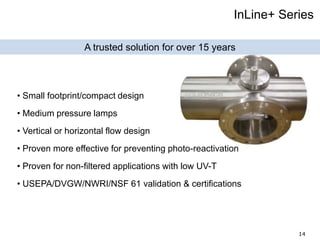

InLine+ Series
A trusted solution for over 15 years
• Small footprint/compact design
• Medium pressure lamps
• Vertical or horizontal flow design
• Proven more effective for preventing photo-reactivation
• Proven for non-filtered applications with low UV-T
• USEPA/DVGW/NWRI/NSF 61 validation & certifications

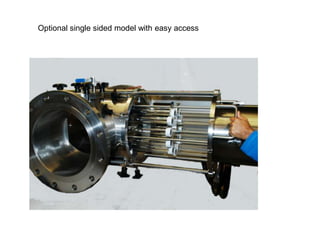

15. Optional single sided model with easy access

16. 16

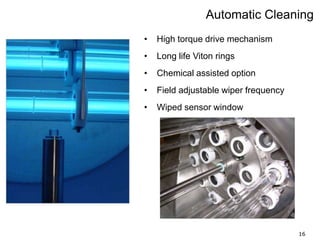

Automatic Cleaning
• High torque drive mechanism
• Long life Viton rings
• Chemical assisted option
• Field adjustable wiper frequency
• Wiped sensor window

17. 17

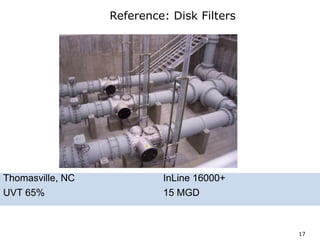

Reference: Disk Filters
Insert AQX site photo………
Thomasville, NC InLine 16000+
UVT 65% 15 MGD

18. 18

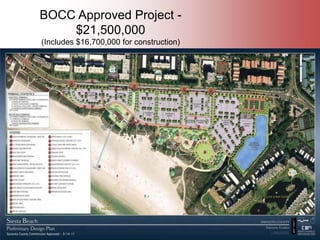

BOCC Approved Project -
$21,500,000
(Includes $16,700,000 for construction)

19. 19

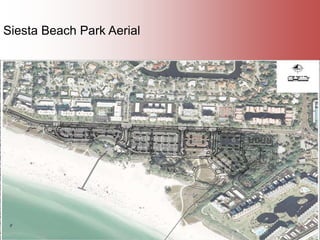

Siesta Beach Park Aerial

20. 20

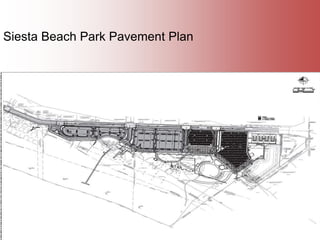

Siesta Beach Park Pavement Plan

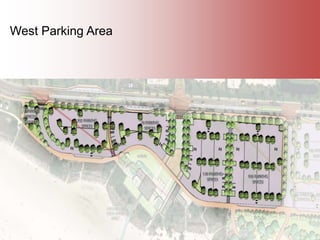

21. West Parking Area

22. 22

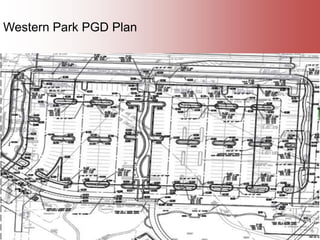

Western Park PGD Plan

23. 23
Western Park PGD Plan

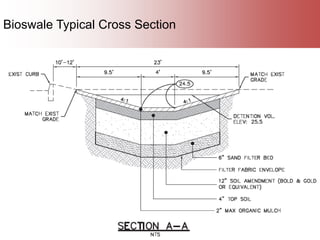

24. 24
Bioswale Typical Cross Section

25. 25
Landscaped Bioswale

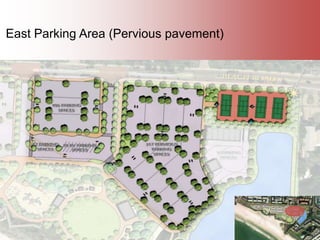

26. East Parking Area (Pervious pavement)

27. 27

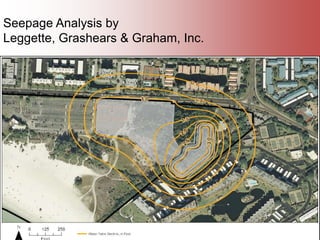

Seepage Analysis by
Leggette, Grashears & Graham, Inc.

28. 28

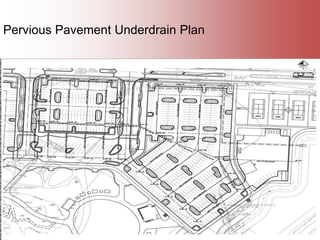

Pervious Pavement Underdrain Plan

29. 29
Eastern Park PGD Plan

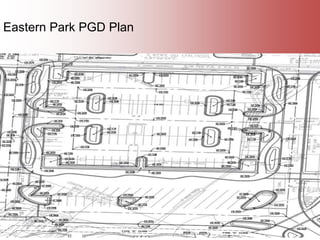

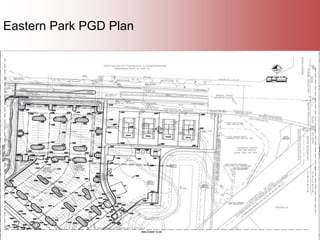

30. 30

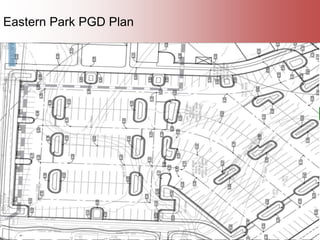

Eastern Park PGD Plan

31. 31
Eastern Park PGD Plan

32. 32

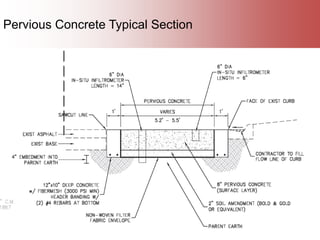

Pervious Concrete Typical Section

33. 33

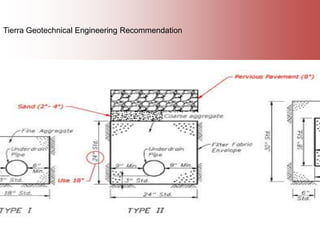

Tierra Geotechnical Engineering Recommendation

34. 34

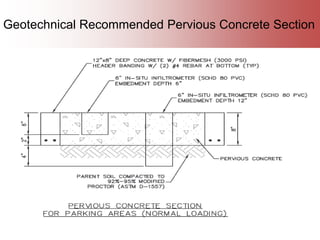

Geotechnical Recommended Pervious Concrete Section

35. 35

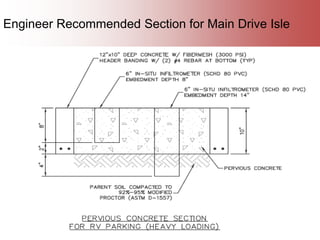

Engineer Recommended Section for Main Drive Isle

36. 36

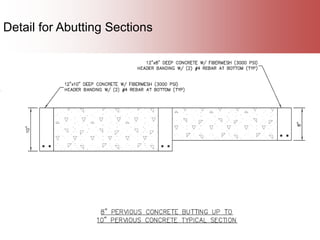

Detail for Abutting Sections

37. 37
Permeable Pavers for Cross Walks

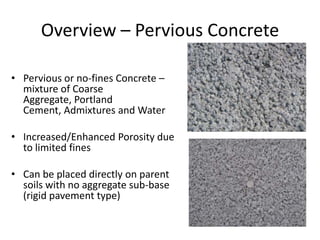

38. Overview – Pervious Concrete
• Pervious or no-fines Concrete –
mixture of Coarse
Aggregate, Portland
Cement, Admixtures and Water
• Increased/Enhanced Porosity due
to limited fines
• Can be placed directly on parent
soils with no aggregate sub-base
(rigid pavement type)

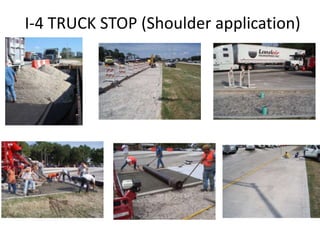

39. I-4 TRUCK STOP (Shoulder application)

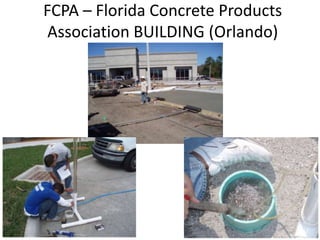

40. FCPA – Florida Concrete Products
Association BUILDING (Orlando)

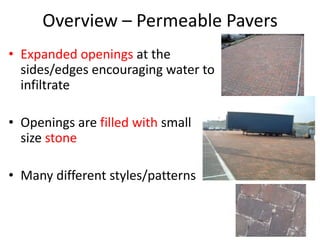

41. Overview – Permeable Pavers
• Expanded openings at the
sides/edges encouraging water to
infiltrate
• Openings are filled with small
size stone
• Many different styles/patterns

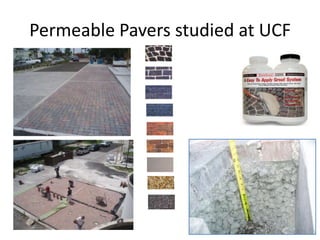

42. Permeable Pavers studied at UCF

43. ERIK TESTING

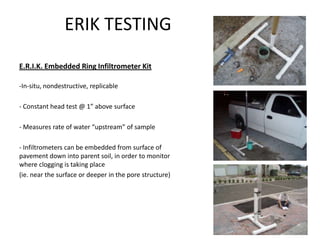

E.R.I.K. Embedded Ring Infiltrometer Kit
-In-situ, nondestructive, replicable
- Constant head test @ 1” above surface
- Measures rate of water “upstream” of sample
- Infiltrometers can be embedded from surface of
pavement down into parent soil, in order to monitor
where clogging is taking place
(ie. near the surface or deeper in the pore structure)

44. PARENT EARTH SOIL
SUB-BASE LAYER(S)
PAVEMENT LAYER(S)
1.5 "
1.5 "
3.0 "
2 " - 12 "
0 " - 24 "
4.0 "
ELEVATION VIEW
PLAN VIEW
6" ID PVC COUPLING FITTING
(SCHED 80)
INSTALLATION INSERT COLLAR
PAVEMENT SURFACE LAYER
INSTALLATION INSERT COLLAR
PERMANENT INSERT COLLAR
6 " PVC COUPLING FITTING (SCHED 80)
6 " ID PVC PIPE (SCHED 80)
FILTER FABRIC
(NON-WOVEN)
0.3 "
6.0 "
6.85"
7.53"
STORMWATERMANAGEMENTACADEMY
UNIVERSITYOFCENTRALFLORIDA
DESIGNED BY:
DRAWN BY:
CHECKED BY:
PAGE
3 OF 4
DATE:
ERIK STUART, E.I.
DR. MARTY WANIELISTA, P.E.
ERIK STUART, E.I.
01-26-10
NOTES
DRAWINGS NOT TO SCALE.
DR. MANOJ CHOPRA, P.E.

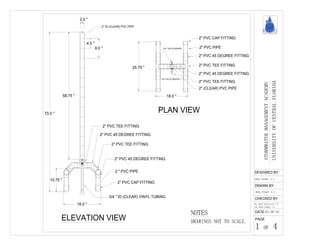

45. 18.0 "
18.0 "
73.0 "
58.75 "
4.5 "
9.0 "
10.75 "
PLAN VIEW
ELEVATION VIEW
3/4 " ID (CLEAR) VINYL TUBING
1/8 " VALVE (BRASS)
3/4" VALVE (BRASS)
2" ID (CLEAR) PVC PIPE
2" PVC TEE FITTING
2" PVC 45 DEGREE FITTING
2" PVC TEE FITTING
2" PVC 45 DEGREE FITTING
2" PVC CAP FITTING
25.75 "
2" PVC CAP FITTING
2" PVC 45 DEGREE FITTING
2" PVC TEE FITTING
2" PVC 45 DEGREE FITTING
2" PVC TEE FITTING
2" PVC PIPE
2" (CLEAR) PVC PIPE
2.0 "
2 " PVC PIPE
STORMWATERMANAGEMENTACADEMY
UNIVERSITYOFCENTRALFLORIDA
DESIGNED BY:
DRAWN BY:
CHECKED BY:
PAGE
1 OF 4
DATE:
ERIK STUART, E.I.
DR. MARTY WANIELISTA, P.E.
ERIK STUART, E.I.
01-26-10
NOTES
DRAWINGS NOT TO SCALE.
DR. MANOJ CHOPRA, P.E.

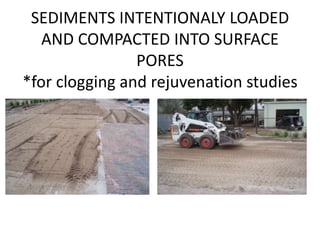

46. SEDIMENTS INTENTIONALY LOADED
AND COMPACTED INTO SURFACE
PORES
*for clogging and rejuvenation studies

47. PREVACUUMED
ERIK TESTING

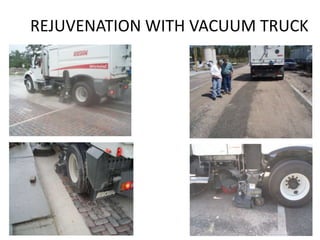

48. REJUVENATION WITH VACUUM TRUCK

49. SEDIMENTS REMOVED
SANDY SEDIMENTS FINE GRAINED SEDIMENTS

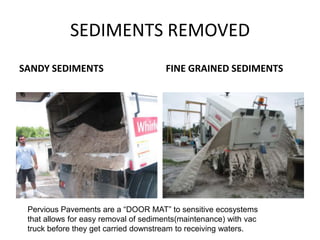

Pervious Pavements are a “DOOR MAT” to sensitive ecosystems
that allows for easy removal of sediments(maintenance) with vac
truck before they get carried downstream to receiving waters.

50. SUSTAINABLE VOID SPACE (POROSITY) TESTING OF
PAVEMENT AND AGGREGATES

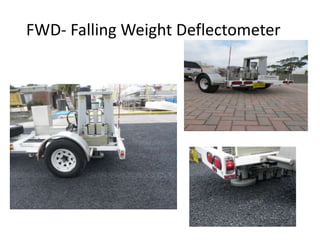

51. FWD- Falling Weight Deflectometer

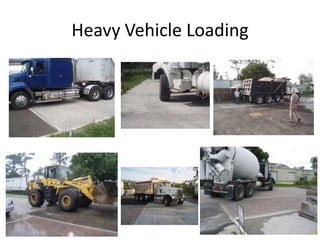

52. Heavy Vehicle Loading

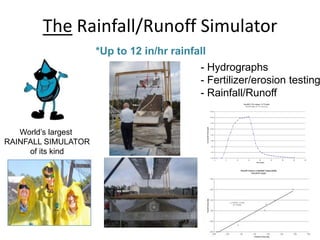

53. The Rainfall/Runoff Simulator
*Up to 12 in/hr rainfall
- Hydrographs
- Fertilizer/erosion testing
- Rainfall/Runoff
World’s largest
RAINFALL SIMULATOR
of its kind

54. 54
