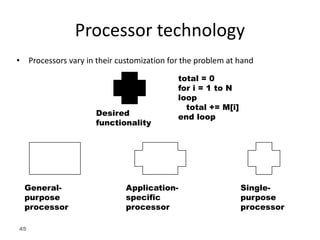

![45
Processor technology
• Processors vary in their customization for the problem at hand
total = 0
for i = 1 to N
loop
total += M[i]
end loop
General-
purpose
processor
Single-
purpose
processor
Application-
specific
processor
Desired
functionality](https://image.slidesharecdn.com/vlsiandesdesign-anoverview-220828143513-49659c06/85/VLSI-and-ES-Design-An-Overview-pptx-45-320.jpg)
![50
400 Millions of Personal Computers
worldwide (Year 2000)
- Assumed to consume 0.16 Tera kWh per
year
Equivalent to 26 nuclear power plants
Over 1 Giga kWh per year just for cooling
Including manufacturing electricity
[Ref: Bar-Cohen et al., 2000]](https://image.slidesharecdn.com/vlsiandesdesign-anoverview-220828143513-49659c06/85/VLSI-and-ES-Design-An-Overview-pptx-50-320.jpg)

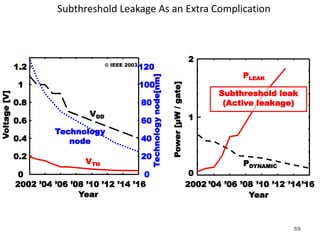

![Subthreshold Leakage As an Extra Complication
Year
2002 ’04 ’06 ’08 ’10 ’12 ’14 ’16
0
0.2
0.4
0.6
0.8
1
1.2
0
20
40
60
80
100
120
Technology
node[nm]
Voltage
[V]
VTH
VDD
Technology
node
2002 ’04 ’06 ’08 ’10 ’12 ’14’16
0
1
2
Year
PDYNAMIC
PLEAK
Power
[µW
/
gate]
Subthreshold leak
(Active leakage)
© IEEE 2003
59](https://image.slidesharecdn.com/vlsiandesdesign-anoverview-220828143513-49659c06/85/VLSI-and-ES-Design-An-Overview-pptx-59-320.jpg)

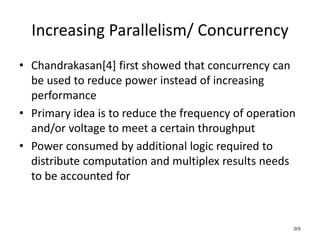

![Increasing Parallelism/ Concurrency
• Chandrakasan[4] first showed that concurrency can
be used to reduce power instead of increasing
performance
• Primary idea is to reduce the frequency of operation
and/or voltage to meet a certain throughput
• Power consumed by additional logic required to
distribute computation and multiplex results needs
to be accounted for
99](https://image.slidesharecdn.com/vlsiandesdesign-anoverview-220828143513-49659c06/85/VLSI-and-ES-Design-An-Overview-pptx-99-320.jpg)
![In practice, the summation is truncated up to a finite
number of terms, say, M (called wordlength)
:
as
generated
is
sequence
The i
End
i
sign
i
i
M
to
i
For
i
i
i
)];
1
(
[
;
)
(
)
1
(
1
0
1
,
(0)
1
0
104](https://image.slidesharecdn.com/vlsiandesdesign-anoverview-220828143513-49659c06/85/VLSI-and-ES-Design-An-Overview-pptx-104-320.jpg)
VLSI and ES Design -An Overview.pptx
- 1. VLSI and EmbeddedSystem DESIGN – (An Overview) Prof. N.S.Murthy (Former Dean and HOD/ ECE/ NIT- Warangal) nsmurthy58@gmail.com 1
- 2. Lecture Outline • Whatare the challenges in VLSI Design? • What is an Embedded System? • What is SOC? • What is FPGA? • ASIC vs FPGAs? • Applications 2

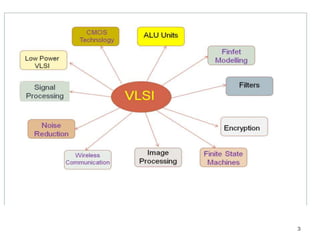

- 3.

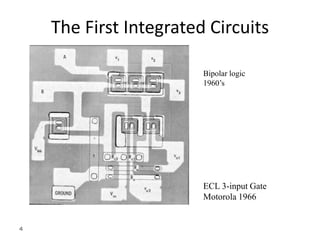

- 4. 4 The First IntegratedCircuits Bipolar logic 1960’s ECL 3-input Gate Motorola 1966

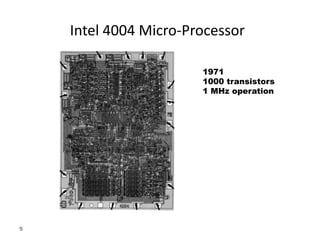

- 5. 5 Intel 4004 Micro-Processor 1971 1000transistors 1 MHz operation
- 6.
- 7. 7 Intel Pentium (IV)microprocessor

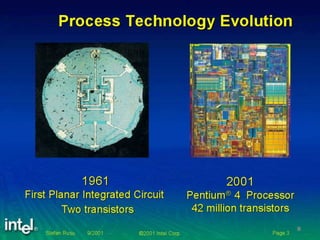

- 8.
- 9.

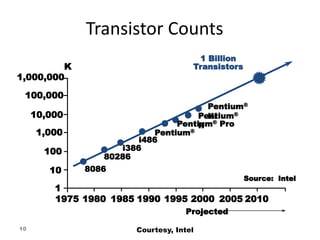

- 10. 10 Transistor Counts 1,000,000 100,000 10,000 1,000 10 100 1 1975 19801985 1990 1995 2000 2005 2010 8086 80286 i386 i486 Pentium® Pentium® Pro K 1 Billion Transistors Source: Intel Projected Pentium® II Pentium® III Courtesy, Intel

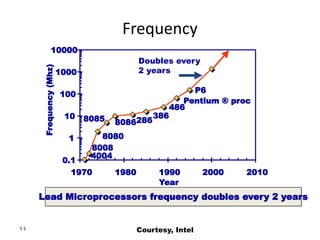

- 11. 11 Frequency P6 Pentium ® proc 486 386 286 8086 8085 8080 8008 4004 0.1 1 10 100 1000 10000 19701980 1990 2000 2010 Year Frequency (Mhz) Lead Microprocessors frequency doubles every 2 years Doubles every 2 years Courtesy, Intel
- 12. 12 Power will bea major problem 5KW 18KW 1.5KW 500W 4004 8008 8080 8085 8086 286 386 486 Pentium® proc 0.1 1 10 100 1000 10000 100000 1971 1974 1978 1985 1992 2000 2004 2008 Year Power (Watts) Power delivery and dissipation will be prohibitive Courtesy, Intel

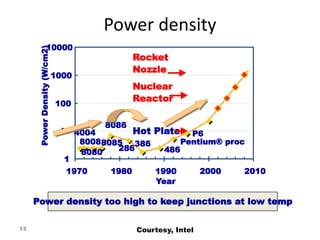

- 13. 13 Power density 4004 8008 8080 8085 8086 286 386 486 Pentium® proc P6 1 10 100 1000 10000 19701980 1990 2000 2010 Year Power Density (W/cm2) Hot Plate Nuclear Reactor Rocket Nozzle Power density too high to keep junctions at low temp Courtesy, Intel
- 14. Power Consumption • Dynamic –Transition – Short circuit • Leakage – Sub-threshold leakage – Diode/Drain leakage – Gate leakage At 250nm leakage power was only 5% but it is increasing rapidly as geometries decrease 14

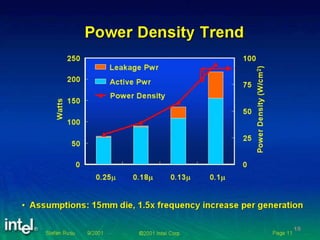

- 15.

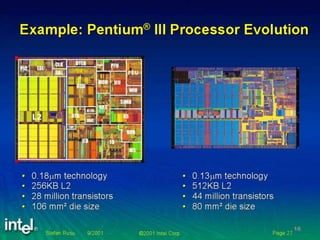

- 16.

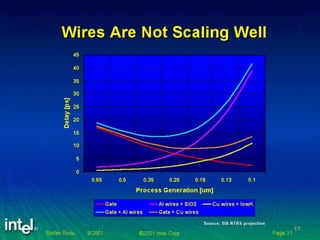

- 17.

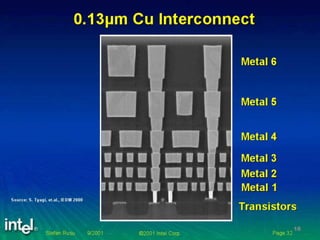

- 18.
- 19.

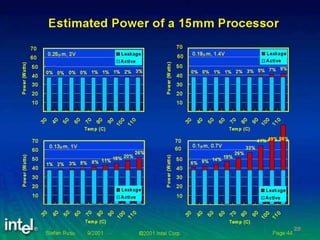

- 20.

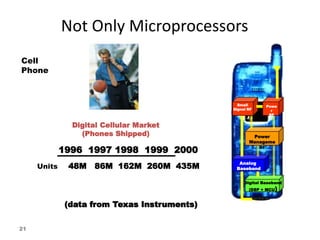

- 21. 21 Not Only Microprocessors DigitalCellular Market (Phones Shipped) 1996 1997 1998 1999 2000 Units 48M 86M 162M 260M 435M Analog Baseband Digital Baseband (DSP + MCU) Power Manageme nt Small Signal RF Powe r RF (data from Texas Instruments) Cell Phone

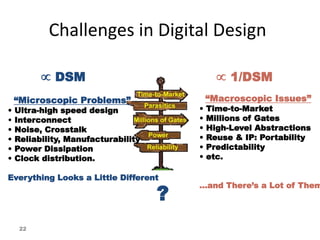

- 22. 22 Challenges in DigitalDesign “Microscopic Problems” • Ultra-high speed design • Interconnect • Noise, Crosstalk • Reliability, Manufacturability • Power Dissipation • Clock distribution. Everything Looks a Little Different “Macroscopic Issues” • Time-to-Market • Millions of Gates • High-Level Abstractions • Reuse & IP: Portability • Predictability • etc. …and There’s a Lot of Them DSM 1/DSM ?

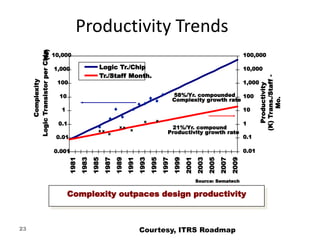

- 23. 23 Productivity Trends 1 10 100 1,000 10,000 100,000 1,000,000 10,000,000 2003 1981 1983 1985 1987 1989 1991 1993 1995 1997 1999 2001 2005 2007 2009 10 100 1,000 10,000 100,000 1,000,000 10,000,000 100,000,000 Logic Tr./Chip Tr./StaffMonth. x x x x x x x 21%/Yr. compound Productivity growth rate x 58%/Yr. compounded Complexity growth rate 10,000 1,000 100 10 1 0.1 0.01 0.001 Logic Transistor per Chip (M) 0.01 0.1 1 10 100 1,000 10,000 100,000 Productivity (K) Trans./Staff - Mo. Source: Sematech Complexity outpaces design productivity Complexity Courtesy, ITRS Roadmap

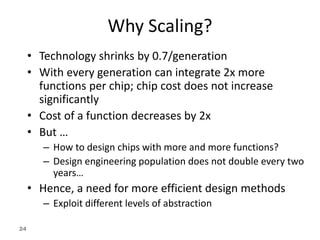

- 24. 24 Why Scaling? • Technologyshrinks by 0.7/generation • With every generation can integrate 2x more functions per chip; chip cost does not increase significantly • Cost of a function decreases by 2x • But … – How to design chips with more and more functions? – Design engineering population does not double every two years… • Hence, a need for more efficient design methods – Exploit different levels of abstraction

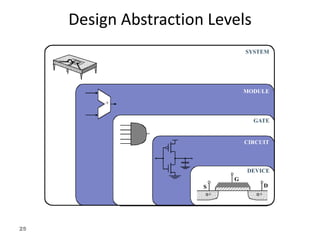

- 25.
- 26. Major Design Challenges 26 Microscopicissues ultra-high speeds power dissipation and supply rail drop growing importance of interconnect noise, crosstalk reliability, manufacturability clock distribution Macroscopic issues time-to-market design complexity (millions of gates) high levels of abstractions reuse and IP, portability systems on a chip (SoC) tool interoperability Design Approach Top – Down approach Define top-block , identify the sub blocks needed to build the top level block and divide further up to the leaf cells Bottom – Up approach Identify the available building blocks, use them to build a bigger cells and use them to build top level block Combination of both

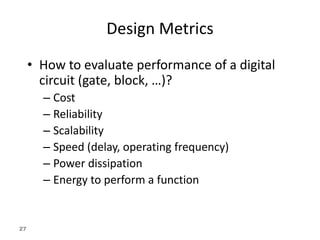

- 27. 27 Design Metrics • Howto evaluate performance of a digital circuit (gate, block, …)? – Cost – Reliability – Scalability – Speed (delay, operating frequency) – Power dissipation – Energy to perform a function
- 28. 28 Cost of IntegratedCircuits • NRE (non-recurrent engineering) costs – design time and effort, mask generation – one-time cost factor • Recurrent costs – silicon processing, packaging, test – proportional to volume – proportional to chip area
- 29. 29 NRE Cost isIncreasing

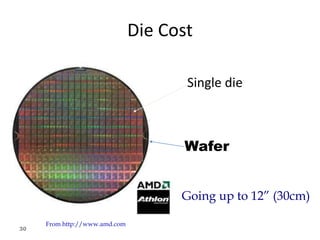

- 30. 30 Die Cost Single die Wafer Fromhttp://www.amd.com Going up to 12” (30cm)

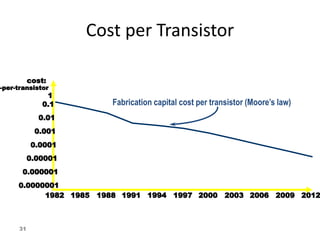

- 31. 31 Cost per Transistor 0.0000001 0.000001 0.00001 0.0001 0.001 0.01 0.1 1 19821985 1988 1991 1994 1997 2000 2003 2006 2009 2012 cost: -per-transistor Fabrication capital cost per transistor (Moore’s law)

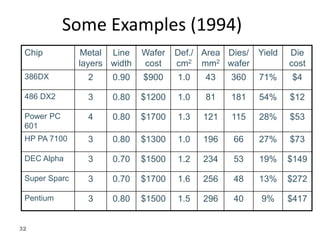

- 32. 32 Some Examples (1994) ChipMetal layers Line width Wafer cost Def./ cm2 Area mm2 Dies/ wafer Yield Die cost 386DX 2 0.90 $900 1.0 43 360 71% $4 486 DX2 3 0.80 $1200 1.0 81 181 54% $12 Power PC 601 4 0.80 $1700 1.3 121 115 28% $53 HP PA 7100 3 0.80 $1300 1.0 196 66 27% $73 DEC Alpha 3 0.70 $1500 1.2 234 53 19% $149 Super Sparc 3 0.70 $1700 1.6 256 48 13% $272 Pentium 3 0.80 $1500 1.5 296 40 9% $417
- 33. Embedded Systems Design:A Unified Hardware/Software Introduction 33 Introduction to Embedded Systems Design

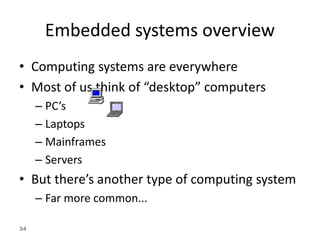

- 34. 34 Embedded systems overview •Computing systems are everywhere • Most of us think of “desktop” computers – PC’s – Laptops – Mainframes – Servers • But there’s another type of computing system – Far more common...

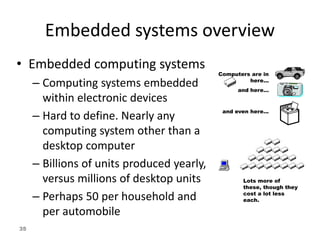

- 35. 35 Embedded systems overview •Embedded computing systems – Computing systems embedded within electronic devices – Hard to define. Nearly any computing system other than a desktop computer – Billions of units produced yearly, versus millions of desktop units – Perhaps 50 per household and per automobile Computers are in here... and here... and even here... Lots more of these, though they cost a lot less each.

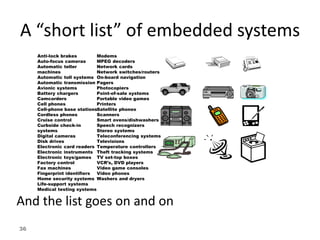

- 36. 36 A “short list”of embedded systems And the list goes on and on Anti-lock brakes Auto-focus cameras Automatic teller machines Automatic toll systems Automatic transmission Avionic systems Battery chargers Camcorders Cell phones Cell-phone base stations Cordless phones Cruise control Curbside check-in systems Digital cameras Disk drives Electronic card readers Electronic instruments Electronic toys/games Factory control Fax machines Fingerprint identifiers Home security systems Life-support systems Medical testing systems Modems MPEG decoders Network cards Network switches/routers On-board navigation Pagers Photocopiers Point-of-sale systems Portable video games Printers Satellite phones Scanners Smart ovens/dishwashers Speech recognizers Stereo systems Teleconferencing systems Televisions Temperature controllers Theft tracking systems TV set-top boxes VCR’s, DVD players Video game consoles Video phones Washers and dryers
- 37. 37 Some common characteristicsof embedded systems • Single-functioned – Executes a single program, repeatedly • Tightly-constrained – Low cost, low power, small, fast, etc. • Reactive and real-time – Continually reacts to changes in the system’s environment – Must compute certain results in real-time without delay
- 38. 38 An embedded systemexample -- a digital camera Microcontroller CCD preprocessor Pixel coprocessor A2D D2A JPEG codec DMA controller Memory controller ISA bus interface UART LCD ctrl Display ctrl Multiplier/Accum Digital camera chip lens CCD • Single-functioned -- always a digital camera • Tightly-constrained -- Low cost, low power, small, fast • Reactive and real-time -- only to a small extent
- 39. 39 Design challenge –optimizing design metrics • Obvious design goal: – Construct an implementation with desired functionality • Key design challenge: – Simultaneously optimize numerous design metrics • Design metric – A measurable feature of a system’s implementation – Optimizing design metrics is a key challenge

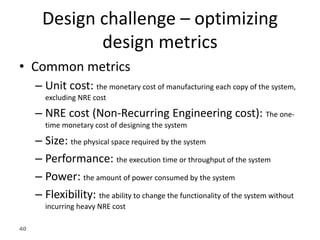

- 40. 40 Design challenge –optimizing design metrics • Common metrics – Unit cost: the monetary cost of manufacturing each copy of the system, excluding NRE cost – NRE cost (Non-Recurring Engineering cost): The one- time monetary cost of designing the system – Size: the physical space required by the system – Performance: the execution time or throughput of the system – Power: the amount of power consumed by the system – Flexibility: the ability to change the functionality of the system without incurring heavy NRE cost

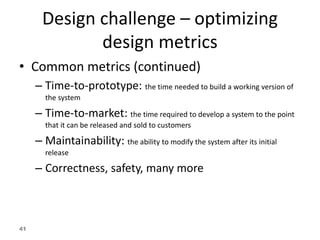

- 41. 41 Design challenge –optimizing design metrics • Common metrics (continued) – Time-to-prototype: the time needed to build a working version of the system – Time-to-market: the time required to develop a system to the point that it can be released and sold to customers – Maintainability: the ability to modify the system after its initial release – Correctness, safety, many more

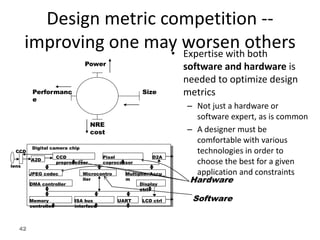

- 42. 42 Design metric competition-- improving one may worsen others • Expertise with both software and hardware is needed to optimize design metrics – Not just a hardware or software expert, as is common – A designer must be comfortable with various technologies in order to choose the best for a given application and constraints Size Performanc e Power NRE cost Microcontro ller CCD preprocessor Pixel coprocessor A2D D2A JPEG codec DMA controller Memory controller ISA bus interface UART LCD ctrl Display ctrl Multiplier/Accu m Digital camera chip lens CCD Hardware Software

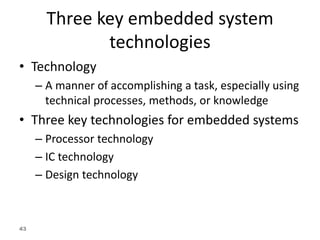

- 43. 43 Three key embeddedsystem technologies • Technology – A manner of accomplishing a task, especially using technical processes, methods, or knowledge • Three key technologies for embedded systems – Processor technology – IC technology – Design technology
- 44. 44 Processor technology • Thearchitecture of the computation engine used to implement a system’s desired functionality • Processor does not have to be programmable – “Processor” not equal to general-purpose processor Application-specific Registers Custom ALU Datapath Controller Program memory Assembly code for: total = 0 for i =1 to … Control logic and State register Data memory IR PC Single-purpose (“hardware”) Datapath Controller Control logic State register Data memory index total + IR PC Register file General ALU Datapath Controller Program memory Assembly code for: total = 0 for i =1 to … Control logic and State register Data memory General-purpose (“software”)
- 45. 45 Processor technology • Processorsvary in their customization for the problem at hand total = 0 for i = 1 to N loop total += M[i] end loop General- purpose processor Single- purpose processor Application- specific processor Desired functionality

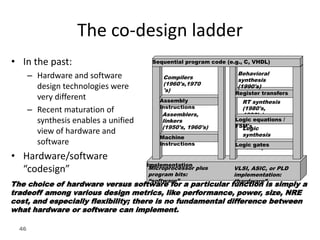

- 46. 46 The co-design ladder •In the past: – Hardware and software design technologies were very different – Recent maturation of synthesis enables a unified view of hardware and software • Hardware/software “codesign” Implementation Assembly instructions Machine instructions Register transfers Compilers (1960's,1970 's) Assemblers, linkers (1950's, 1960's) Behavioral synthesis (1990's) RT synthesis (1980's, 1990's) Logic synthesis (1970's, 1980's) Microprocessor plus program bits: “software” VLSI, ASIC, or PLD implementation: “hardware” Logic gates Logic equations / FSM's Sequential program code (e.g., C, VHDL) The choice of hardware versus software for a particular function is simply a tradeoff among various design metrics, like performance, power, size, NRE cost, and especially flexibility; there is no fundamental difference between what hardware or software can implement.

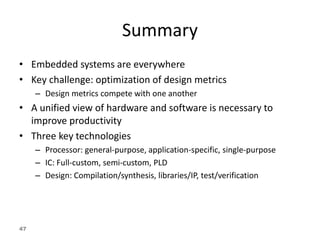

- 47. 47 Summary • Embedded systemsare everywhere • Key challenge: optimization of design metrics – Design metrics compete with one another • A unified view of hardware and software is necessary to improve productivity • Three key technologies – Processor: general-purpose, application-specific, single-purpose – IC: Full-custom, semi-custom, PLD – Design: Compilation/synthesis, libraries/IP, test/verification

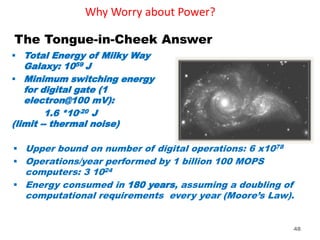

- 48. Why Worry aboutPower? Total Energy of Milky Way Galaxy: 1059 J Minimum switching energy for digital gate (1 electron@100 mV): 1.6 *10-20 J (limit -- thermal noise) Upper bound on number of digital operations: 6 x1078 Operations/year performed by 1 billion 100 MOPS computers: 3 1024 Energy consumed in 180 years, assuming a doubling of computational requirements every year (Moore’s Law). The Tongue-in-Cheek Answer 48

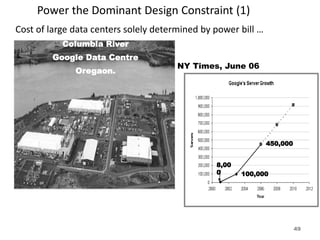

- 49. Power the DominantDesign Constraint (1) Cost of large data centers solely determined by power bill … Columbia River Google Data Centre Oregaon. 8,00 0 100,000 450,000 NY Times, June 06 49

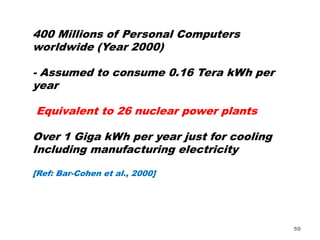

- 50. 50 400 Millions ofPersonal Computers worldwide (Year 2000) - Assumed to consume 0.16 Tera kWh per year Equivalent to 26 nuclear power plants Over 1 Giga kWh per year just for cooling Including manufacturing electricity [Ref: Bar-Cohen et al., 2000]

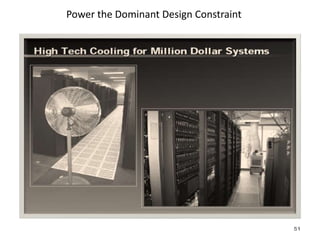

- 51. Power the DominantDesign Constraint 51

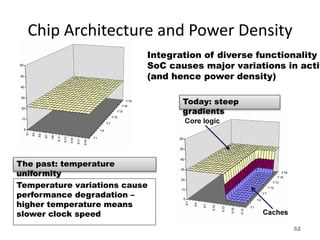

- 52. Chip Architecture andPower Density Integration of diverse functionality SoC causes major variations in activ (and hence power density) The past: temperature uniformity Today: steep gradients Temperature variations cause performance degradation – higher temperature means slower clock speed 52

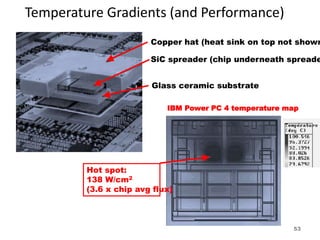

- 53. Temperature Gradients (andPerformance) IBM Power PC 4 temperature map Hot spot: 138 W/cm2 (3.6 x chip avg flux) Glass ceramic substrate SiC spreader (chip underneath spreade Copper hat (heat sink on top not shown 53
- 54.

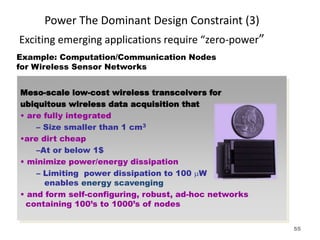

- 55. Power The DominantDesign Constraint (3) Exciting emerging applications require “zero-power” Example: Computation/Communication Nodes for Wireless Sensor Networks Meso-scale low-cost wireless transceivers for ubiquitous wireless data acquisition that • are fully integrated – Size smaller than 1 cm3 •are dirt cheap –At or below 1$ • minimize power/energy dissipation – Limiting power dissipation to 100 mW enables energy scavenging • and form self-configuring, robust, ad-hoc networks containing 100’s to 1000’s of nodes 55

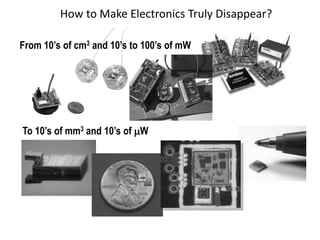

- 56. How to MakeElectronics Truly Disappear? From 10’s of cm3 and 10’s to 100’s of mW To 10’s of mm3 and 10’s of mW

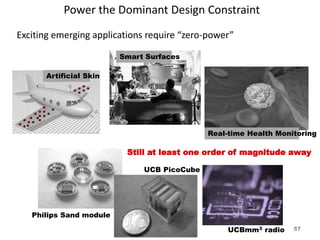

- 57. Power the DominantDesign Constraint Exciting emerging applications require “zero-power” Real-time Health Monitoring Smart Surfaces Artificial Skin Philips Sand module UCBmm3 radio UCB PicoCube Still at least one order of magnitude away 57

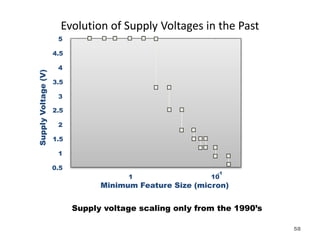

- 58. Evolution of SupplyVoltages in the Past Minimum Feature Size (micron) 10 -1 1 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 Supply Voltage (V) Supply voltage scaling only from the 1990’s 58
- 59. Subthreshold Leakage Asan Extra Complication Year 2002 ’04 ’06 ’08 ’10 ’12 ’14 ’16 0 0.2 0.4 0.6 0.8 1 1.2 0 20 40 60 80 100 120 Technology node[nm] Voltage [V] VTH VDD Technology node 2002 ’04 ’06 ’08 ’10 ’12 ’14’16 0 1 2 Year PDYNAMIC PLEAK Power [µW / gate] Subthreshold leak (Active leakage) © IEEE 2003 59

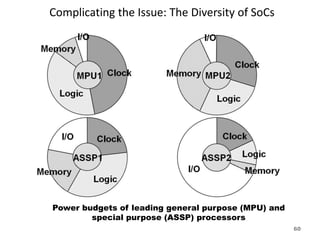

- 60. Complicating the Issue:The Diversity of SoCs Power budgets of leading general purpose (MPU) and special purpose (ASSP) processors 60

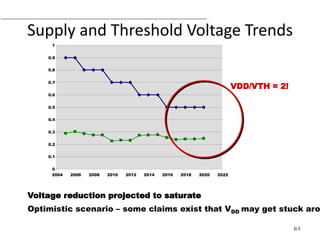

- 61. Supply and ThresholdVoltage Trends VDD VT 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 2004 2006 2008 2010 2012 2014 2016 2018 2020 2022 VDD/VTH = 2! Voltage reduction projected to saturate Optimistic scenario – some claims exist that VDD may get stuck aro 61

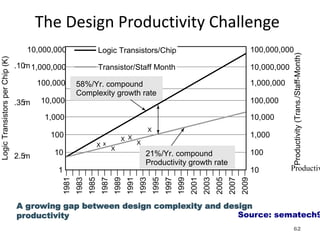

- 62. The Design ProductivityChallenge Source: sematech9 A growing gap between design complexity and design productivity Productiv 58%/Yr. compound Complexity growth rate 21%/Yr. compound Productivity growth rate 1981 10 Logic Transistors per Chip (K) Productivity (Trans./Staff-Month) 100 1,000 10,000 100,000 1,000,000 10,000,000 1 X X X X X X x 100 1,000 10,000 100,000 1,000,000 10,000,000 100,000,000 10 2.5m .35m .10m 1983 1985 1987 1989 1991 1993 1995 1997 1999 2001 2003 2005 2007 2009 Transistor/Staff Month Logic Transistors/Chip 62
- 63. Impact of ImplementationChoices Energy Efficiency (in MOPS/mW) Flexibility (or application scope) 0.1-1 1-10 10-100 100-1000 None Fully flexible Somewhat flexible Hardwired custom Configurable/Parameterizable Domain-specific processor (e.g. DSP) Embedded microprocessor 63

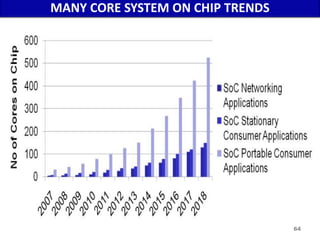

- 64. MANY CORE SYSTEMON CHIP TRENDS 64
- 65. Motivation for LowPower Design Low power design is important from three different reasons • Device temperature – Failure rate, Cooling and packaging costs • Life of the battery – Meantime between charging, System cost • Environment – Overall energy consumption 65

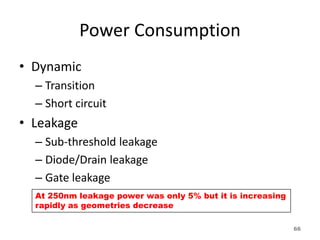

- 66. Power Consumption • Dynamic –Transition – Short circuit • Leakage – Sub-threshold leakage – Diode/Drain leakage – Gate leakage At 250nm leakage power was only 5% but it is increasing rapidly as geometries decrease 66

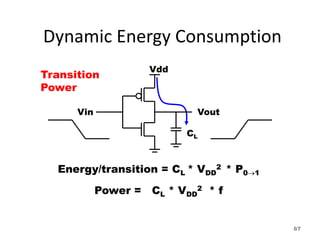

- 67. Dynamic Energy Consumption Energy/transition= CL * VDD 2 * P01 Power = CL * VDD 2 * f Vin Vout CL Vdd Transition Power 67
- 68. Leakage Energy Vout Independent ofswitching Sub- threshold current Drain junction leakage OFF Gate leakage 68

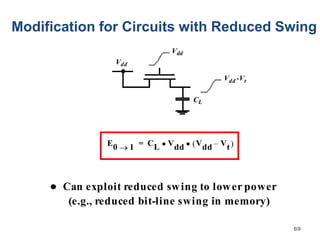

- 69. Modification for Circuitswith Reduced Swing CL Vdd Vdd Vdd -Vt E0 1 CL Vdd Vdd Vt – = Can exploit reduced swing to lower power (e.g., reduced bit-line swing in memory) 69

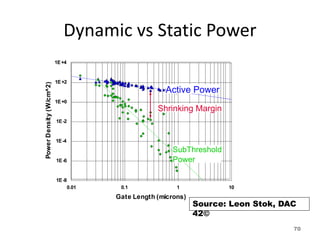

- 70. Dynamic vs StaticPower 0.01 0.1 1 10 Gate Length (microns) 1E-8 1E-6 1E-4 1E-2 1E+0 1E+2 1E+4 Power Density (W/cm^2) Shrinking Margin SubThreshold Power Active Power Source: Leon Stok, DAC 42© 70

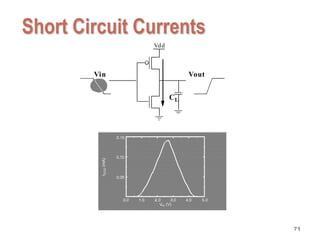

- 71. Short Circuit Currents VinVout CL Vdd I VDD (mA) 0.15 0.10 0.05 Vin (V) 5.0 4.0 3.0 2.0 1.0 0.0 71
- 72. Reverse-Biased Diode Leakage N p+p+ Reverse Leakage Current + - Vdd GATE IDL = JS A JS = 1-5pA/mm2 for a 1.2mm CMOS technology Js double with every 9o C increase in temperature JS = 10-100 pA/mm2 at 25 deg C for 0.25mm CMOS JS doubles for every 9 deg C! 72

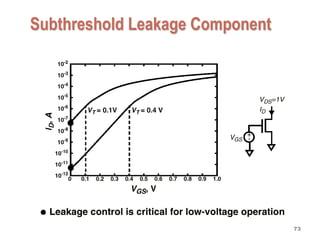

- 73.
- 74. Basic VLSI DesignFlow SYSTEM SPECIFICATION ARCHITECTURAL DESIGN LOGIC DESIGN CIRCUIT DESIGN DEVICE DESIGN LAYOUT •Fabrication, On-Wafer Testing, Packaging, Testing (Algorithmic Level) (Register Transfer Level) (Gate Level) (Transistor Level) - - - - - - - - - - - - - - - - - - Physical Design 74

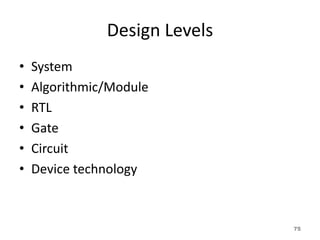

- 75. Design Levels • System •Algorithmic/Module • RTL • Gate • Circuit • Device technology 75

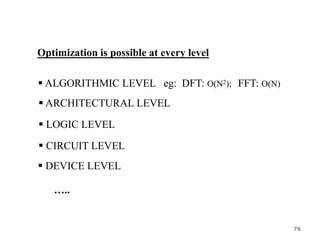

- 76. Optimization is possibleat every level ALGORITHMIC LEVEL eg: DFT: O(N2); FFT: O(N) ARCHITECTURAL LEVEL LOGIC LEVEL CIRCUIT LEVEL DEVICE LEVEL ….. 76

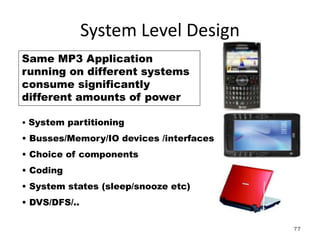

- 77. System Level Design SameMP3 Application running on different systems consume significantly different amounts of power • System partitioning • Busses/Memory/IO devices /interfaces • Choice of components • Coding • System states (sleep/snooze etc) • DVS/DFS/.. 77

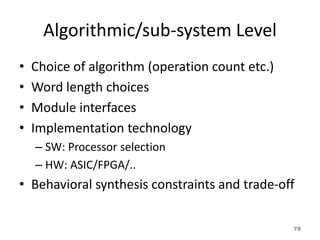

- 78. Algorithmic/sub-system Level • Choiceof algorithm (operation count etc.) • Word length choices • Module interfaces • Implementation technology – SW: Processor selection – HW: ASIC/FPGA/.. • Behavioral synthesis constraints and trade-off 78

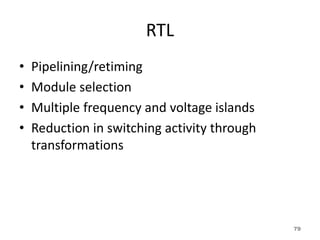

- 79. RTL • Pipelining/retiming • Moduleselection • Multiple frequency and voltage islands • Reduction in switching activity through transformations 79

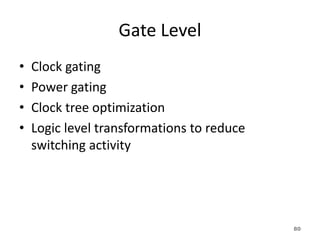

- 80. Gate Level • Clockgating • Power gating • Clock tree optimization • Logic level transformations to reduce switching activity 80

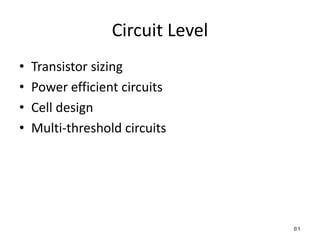

- 81. Circuit Level • Transistorsizing • Power efficient circuits • Cell design • Multi-threshold circuits 81

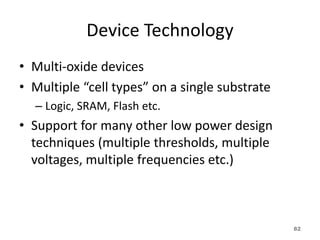

- 82. Device Technology • Multi-oxidedevices • Multiple “cell types” on a single substrate – Logic, SRAM, Flash etc. • Support for many other low power design techniques (multiple thresholds, multiple voltages, multiple frequencies etc.) 82
- 83.
- 84.

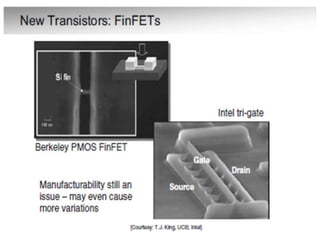

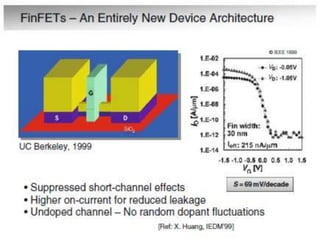

- 85.

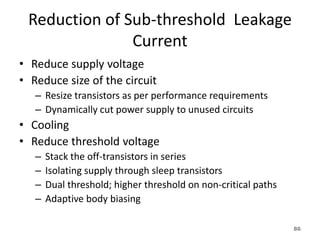

- 86. Reduction of Sub-thresholdLeakage Current • Reduce supply voltage • Reduce size of the circuit – Resize transistors as per performance requirements – Dynamically cut power supply to unused circuits • Cooling • Reduce threshold voltage – Stack the off-transistors in series – Isolating supply through sleep transistors – Dual threshold; higher threshold on non-critical paths – Adaptive body biasing 86

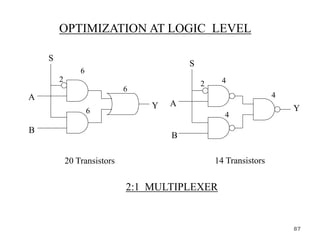

- 87. OPTIMIZATION AT LOGICLEVEL 20 Transistors 2:1 MULTIPLEXER 6 6 6 2 S A B Y 4 4 4 2 S A B Y 14 Transistors 87

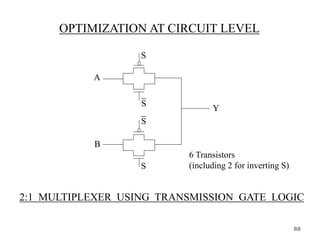

- 88. OPTIMIZATION AT CIRCUITLEVEL 2:1 MULTIPLEXER USING TRANSMISSION GATE LOGIC S A B S Y 6 Transistors (including 2 for inverting S) S S 88

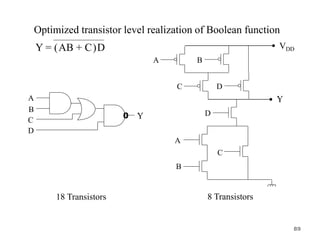

- 89. A A B B C C D D VDD Y Y = (AB+ C)D 0 A B C D Y 18 Transistors 8 Transistors Optimized transistor level realization of Boolean function 89

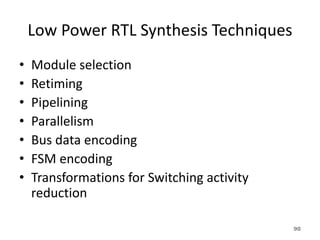

- 90. Low Power RTLSynthesis Techniques • Module selection • Retiming • Pipelining • Parallelism • Bus data encoding • FSM encoding • Transformations for Switching activity reduction 90
- 91. Module Selection • Modulesare used for implementing functional units, small memory modules etc. • Significant difference in power consumption of different implementations • Word-length as well as number coding techniques employed can play a significant role 91

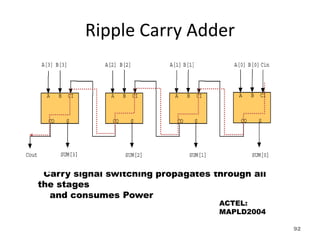

- 92. Ripple Carry Adder Carrysignal switching propagates through all the stages and consumes Power ACTEL: MAPLD2004 92

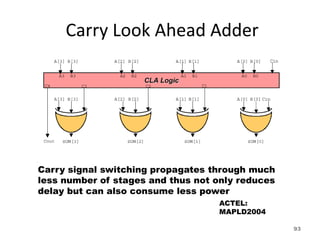

- 93. Carry Look AheadAdder Carry signal switching propagates through much less number of stages and thus not only reduces delay but can also consume less power ACTEL: MAPLD2004 93

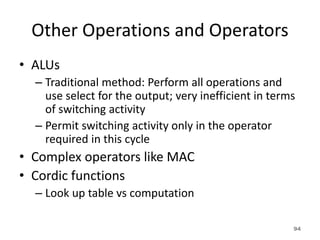

- 94. Other Operations andOperators • ALUs – Traditional method: Perform all operations and use select for the output; very inefficient in terms of switching activity – Permit switching activity only in the operator required in this cycle • Complex operators like MAC • Cordic functions – Look up table vs computation 94

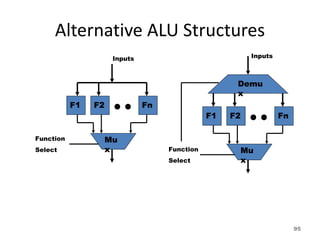

- 95. Alternative ALU Structures F1F2 Fn Function Select Mu x Inputs F1 F2 Fn Function Select Mu x Inputs Demu x 95

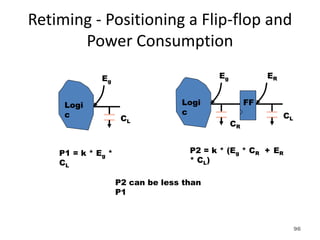

- 96. Retiming - Positioninga Flip-flop and Power Consumption Logi c Logi c FF CL CL CR Eg Eg ER P1 = k * Eg * CL P2 = k * (Eg * CR + ER * CL) P2 can be less than P1 96

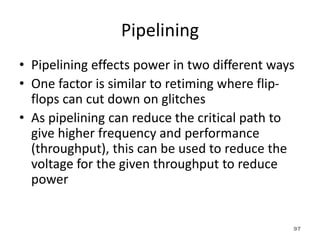

- 97. Pipelining • Pipelining effectspower in two different ways • One factor is similar to retiming where flip- flops can cut down on glitches • As pipelining can reduce the critical path to give higher frequency and performance (throughput), this can be used to reduce the voltage for the given throughput to reduce power 97
- 98. Effect of Pipelining Logi c FF Logi c Case1: No Pipelining Logi c FFLogi c Case2: Pipelining for performan ce Logi c FF Logi c FF Logi c Case 3: Pipelining for low power freq: f0 voltage: v0 f1 > f0 v1 = v0 f2 = f0 v2 < v0 98
- 99. Increasing Parallelism/ Concurrency •Chandrakasan[4] first showed that concurrency can be used to reduce power instead of increasing performance • Primary idea is to reduce the frequency of operation and/or voltage to meet a certain throughput • Power consumed by additional logic required to distribute computation and multiplex results needs to be accounted for 99

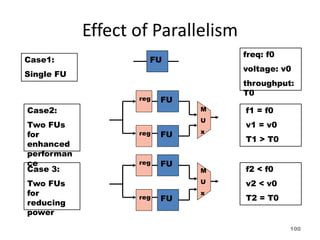

- 100. Effect of Parallelism Case1: SingleFU Case2: Two FUs for enhanced performan ce Case 3: Two FUs for reducing power freq: f0 voltage: v0 throughput: T0 f1 = f0 v1 = v0 T1 > T0 FU reg FU reg FU reg FU reg FU f2 < f0 v2 < v0 T2 = T0 M U x M U x 100

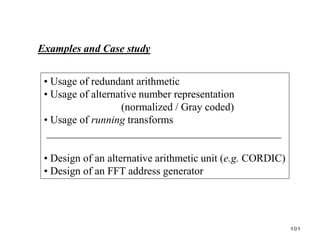

- 101. Examples and Casestudy • Usage of redundant arithmetic • Usage of alternative number representation (normalized / Gray coded) • Usage of running transforms ____________________________________________ • Design of an alternative arithmetic unit (e.g. CORDIC) • Design of an FFT address generator 101

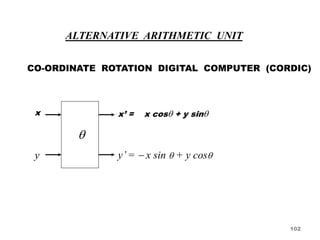

- 102. ALTERNATIVE ARITHMETIC UNIT CO-ORDINATEROTATION DIGITAL COMPUTER (CORDIC) x y x’ = x cos + y sin y’= x sin + y cos 102

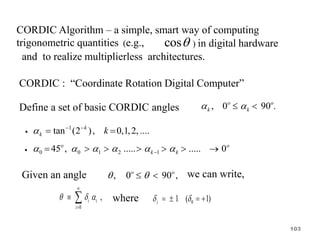

- 103. CORDIC Algorithm –a simple, smart way of computing trigonometric quantities (e.g., cos ) in digital hardware and to realize multiplierless architectures. CORDIC : “Coordinate Rotation Digital Computer” Define a set of basic CORDIC angles , 0 90 . o o k k • 1 tan (2 ), 0,1,2, .... k k k • 0 0 1 2 1 45 , ..... ..... 0 o o k k Given an angle , 0 90 , o o we can write, 0 , i i i where 0 1 ( 1) i 103
- 104. In practice, thesummation is truncated up to a finite number of terms, say, M (called wordlength) : as generated is sequence The i End i sign i i M to i For i i i )]; 1 ( [ ; ) ( ) 1 ( 1 0 1 , (0) 1 0 104

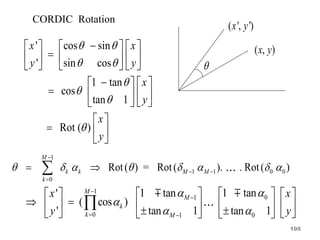

- 105. CORDIC Rotation ( ,) x y ( ', ') x y 1 1 1 0 0 0 Rot( ) = Rot( ). . Rot( ) M k k M M k ' cos sin ' sin cos 1 tan cos tan 1 Rot ( ) x x y y x y x y 1 0 1 0 1 0 1 tan 1 tan ' ( cos ) ' tan 1 tan 1 M M k k M x x y y 105

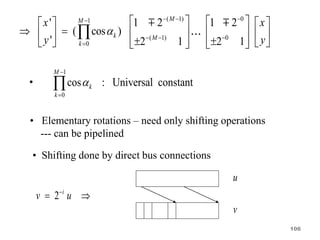

- 106. ( 1) 0 1 (1) 0 0 ' 1 2 1 2 ( cos ) ' 2 1 2 1 M M k M k x x y y • 1 0 cos : Universal constant M k k • Elementary rotations – need only shifting operations --- can be pipelined • Shifting done by direct bus connections 2 i v u u v 106

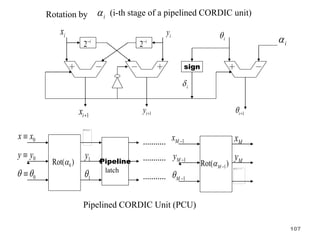

- 107. i x i y 2 i 2i i i sign 1 i x 1 i y 1 i i Rotation by i (i-th stage of a pipelined CORDIC unit) 0 x x 0 y y 0 0 Rot( ) Pipeline latch 1 y 1 1 M x 1 M y 1 M 1 Rot( ) M M x M y Pipelined CORDIC Unit (PCU) 107

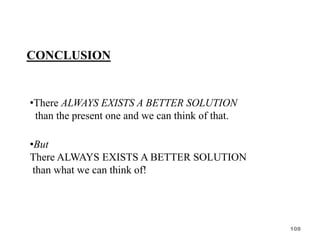

- 108. CONCLUSION •There ALWAYS EXISTSA BETTER SOLUTION than the present one and we can think of that. •But There ALWAYS EXISTS A BETTER SOLUTION than what we can think of! 108
