Visug: Say Hello to my little friend: a session on Kinect
This document provides an overview of the Kinect for Windows sensor and SDK. It describes the sensor hardware components, features like the camera, infrared, depth and skeletal tracking capabilities. It also outlines the SDK architecture and programming model, development tools, and potential application scenarios. Examples are given of using Kinect with the cloud for on-demand video, data collection, and remote monitoring applications.
More Related Content
Similar to Visug: Say Hello to my little friend: a session on Kinect
Visug: Say Hello to my little friend: a session on Kinect
- 1. Say hello tomy little friend Tom Kerkhove
- 2. Nice to meetyou Tom Kerkhove Kinect for Windows MVP Integration Professional at Codit www.kinectingforwindows.com kerkhove.tom@gmail.com +32 473 70 10 74 @TomKerkhove be.linkedin.com/in/tomkerkhove/

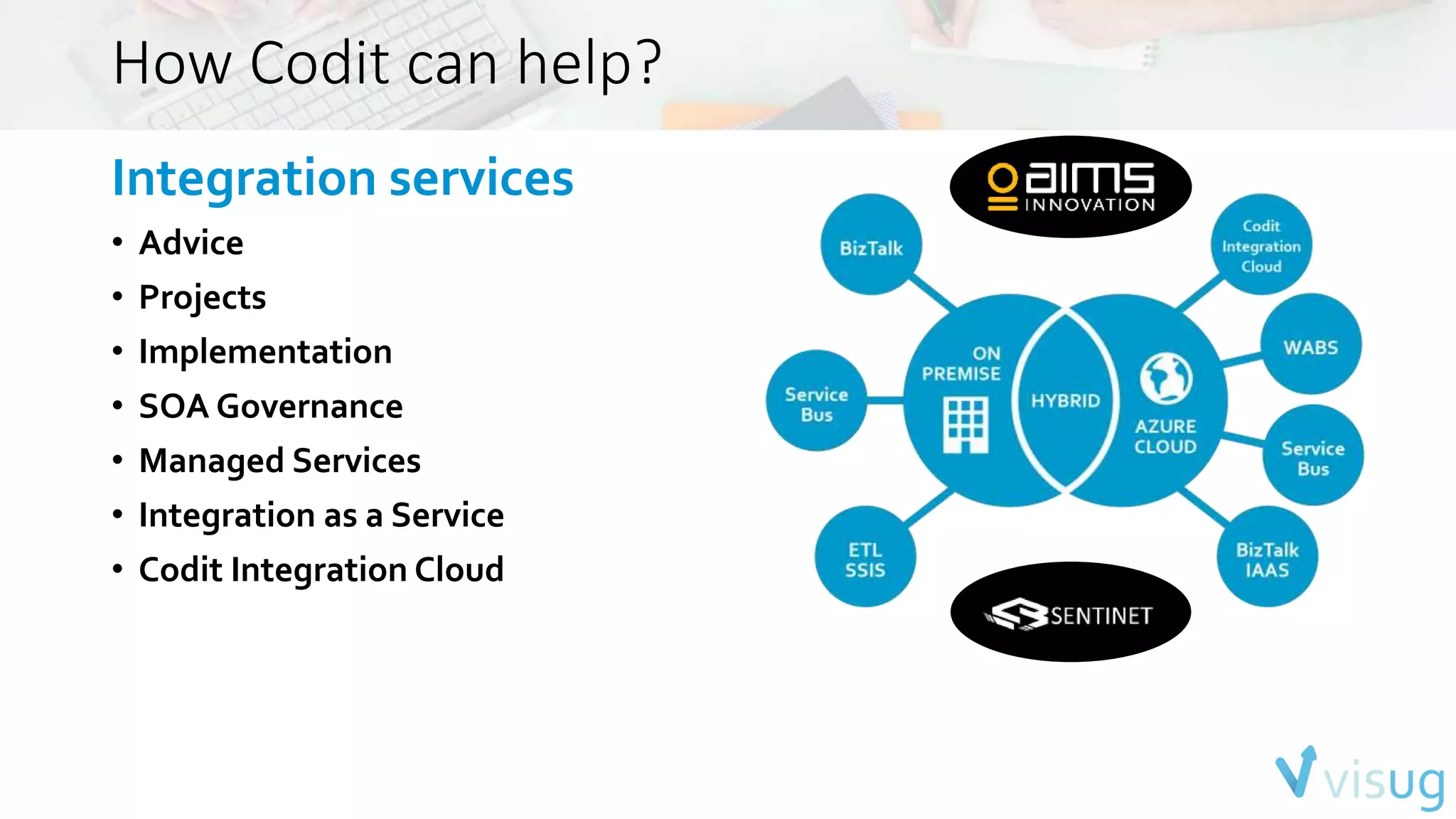

- 3. How Codit canhelp? Integration services • Advice • Projects • Implementation • SOA Governance • Managed Services • Integration as a Service • Codit Integration Cloud
- 4.

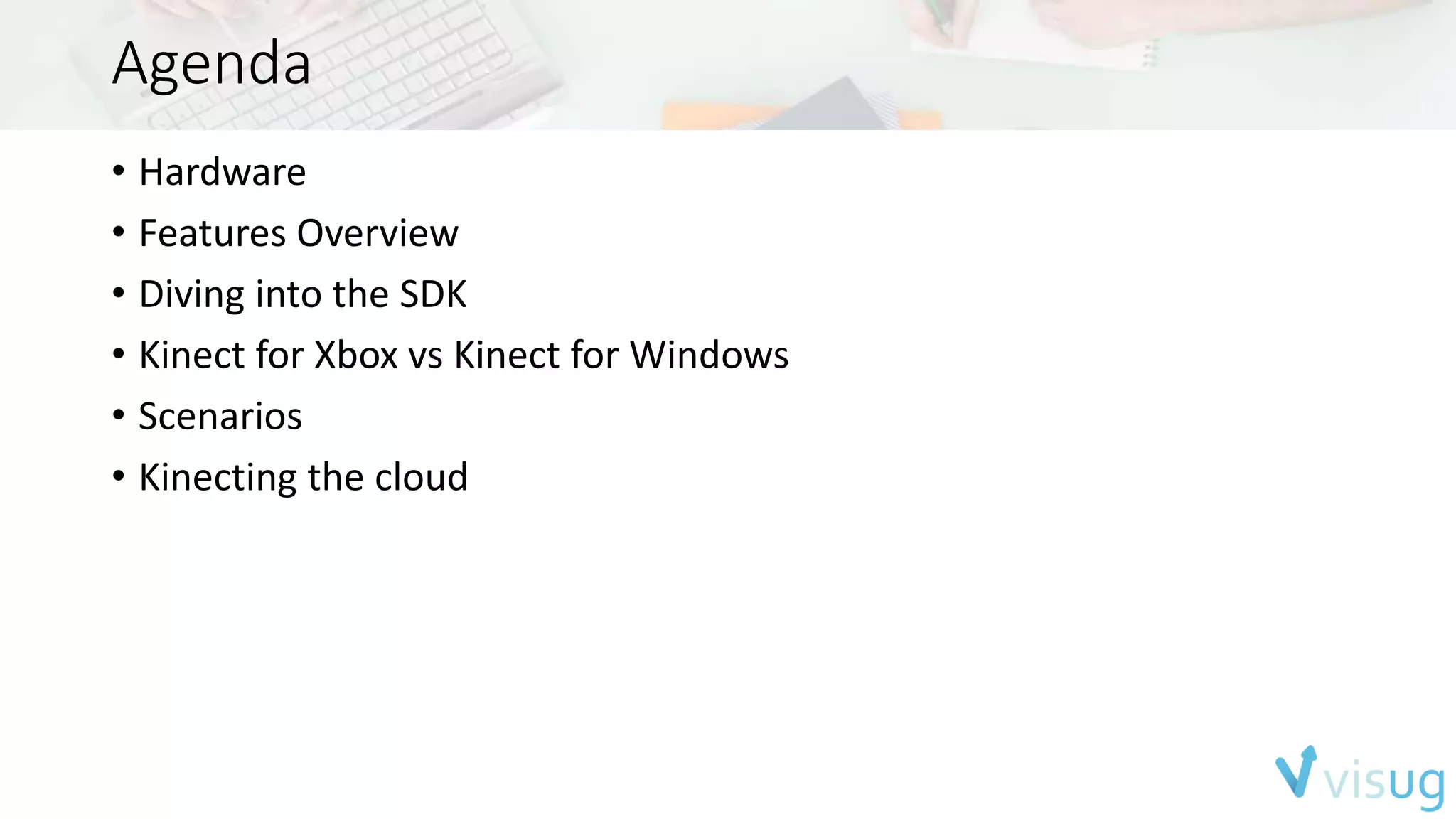

- 5. Agenda • Hardware • Features Overview • Diving into the SDK • Kinect for Xbox vs Kinect for Windows • Scenarios • Kinecting the cloud
- 6.

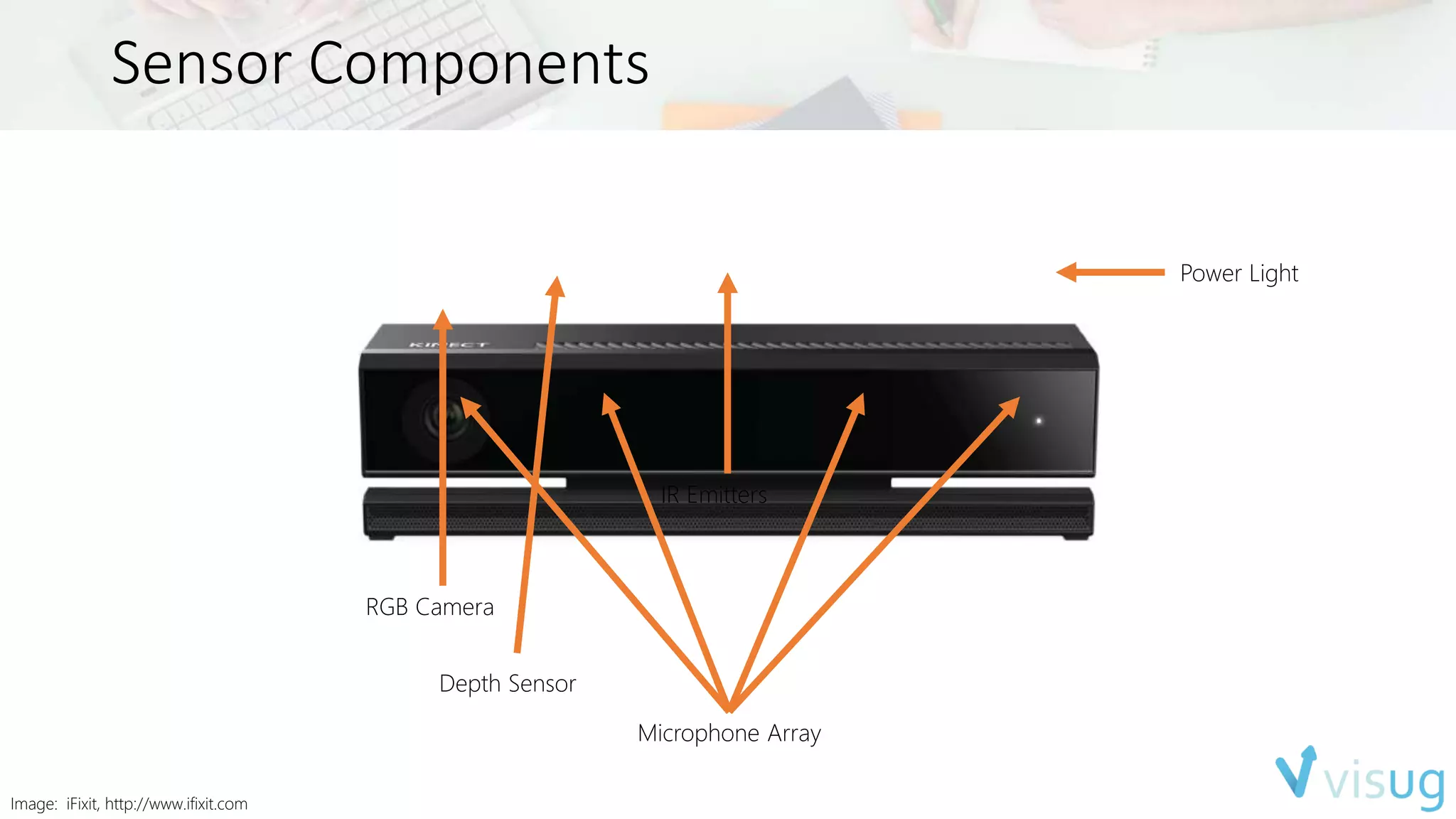

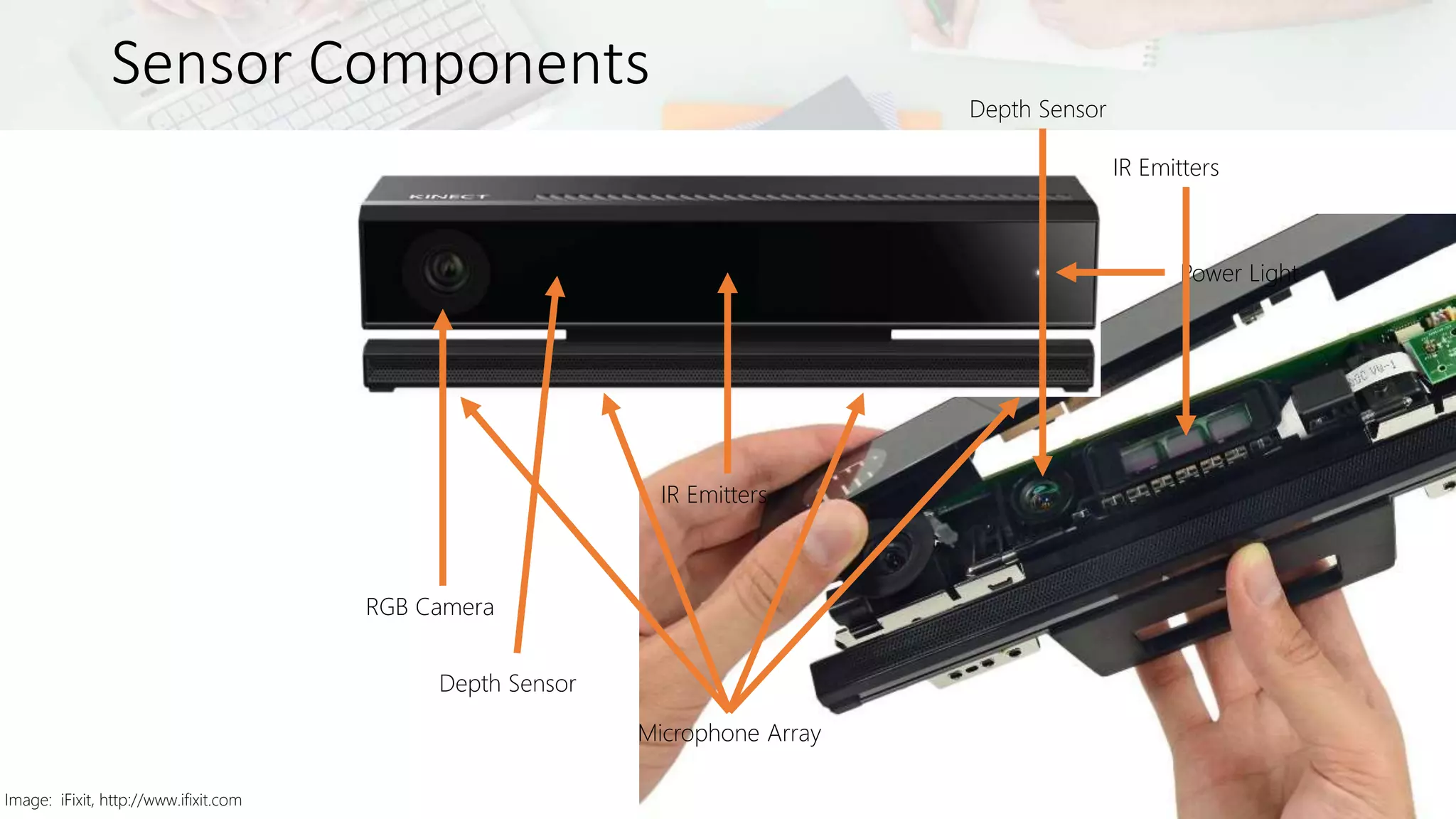

- 7. Sensor Components PowerLight RGB Camera IR Emitters Depth Sensor Microphone Array Image: iFixit, http://www.ifixit.com
- 8. Sensor Components Image:iFixit, http://www.ifixit.com Power Light RGB Camera IR Emitters Depth Sensor Microphone Array Depth Sensor IR Emitters

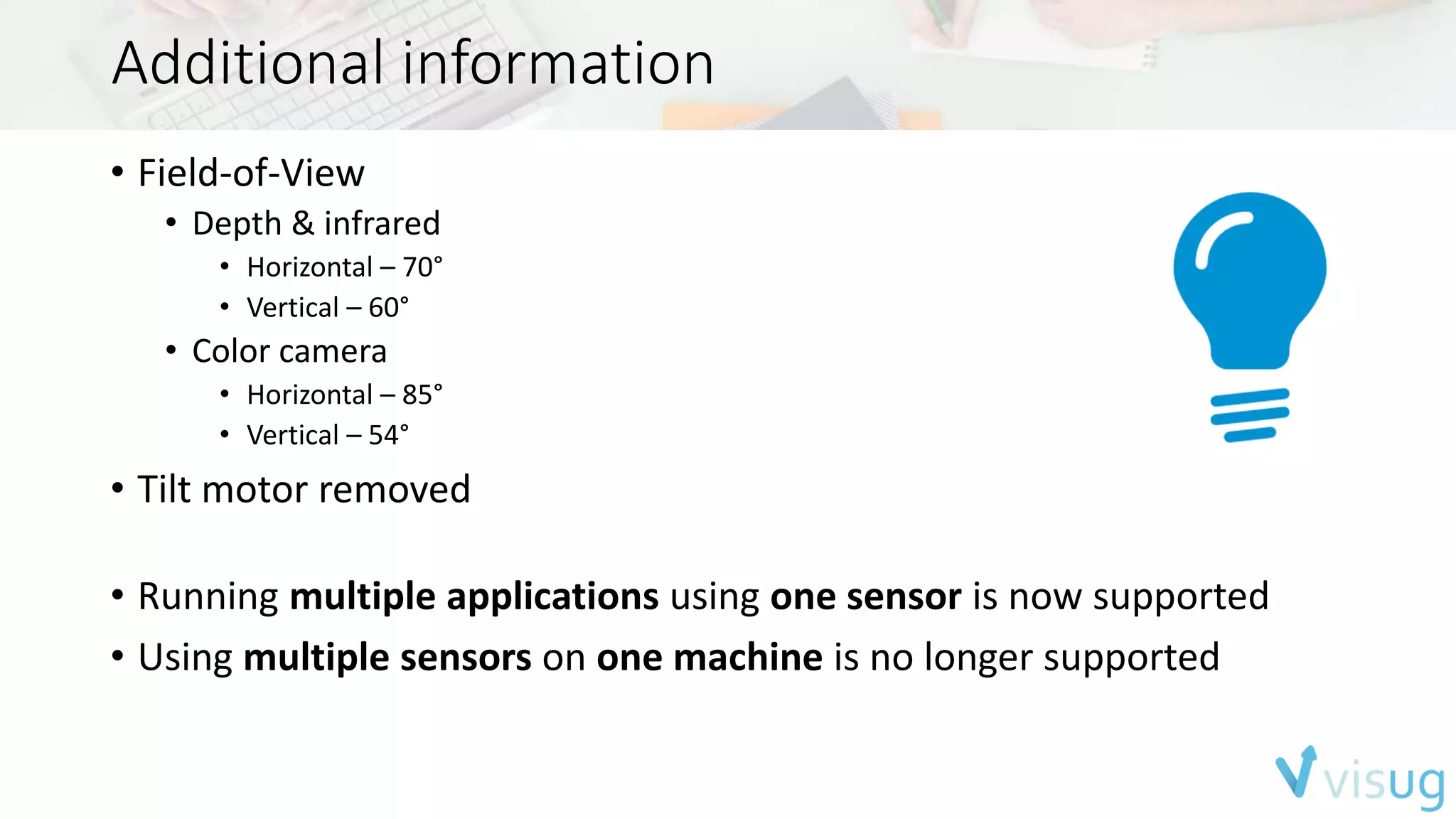

- 9. Additional information •Field-of-View • Depth & infrared • Horizontal – 70° • Vertical – 60° • Color camera • Horizontal – 85° • Vertical – 54° • Tilt motor removed • Running multiple applications using one sensor is now supported • Using multiple sensors on one machine is no longer supported
- 10.

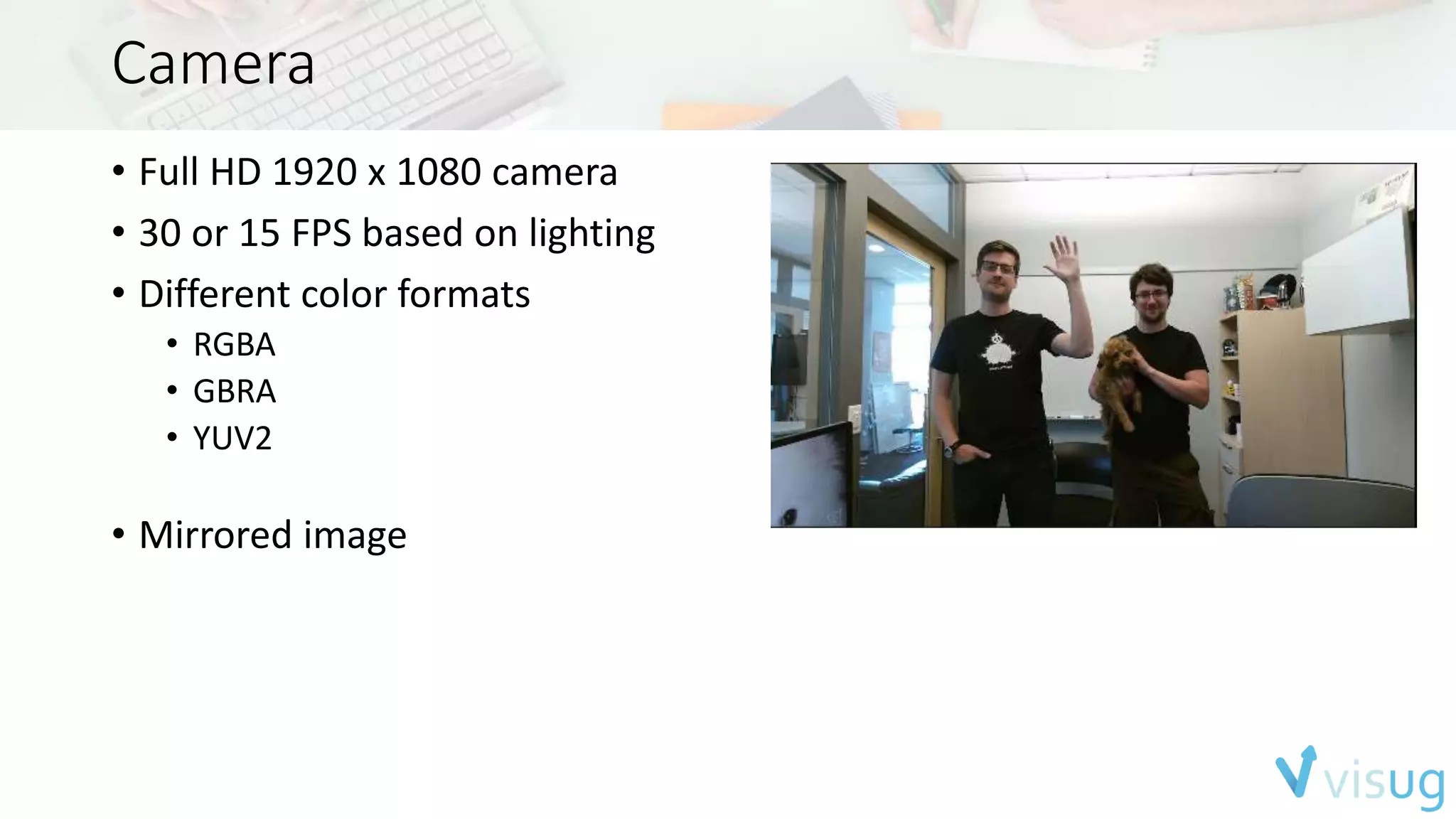

- 11. Camera • FullHD 1920 x 1080 camera • 30 or 15 FPS based on lighting • Different color formats • RGBA • GBRA • YUV2 • Mirrored image

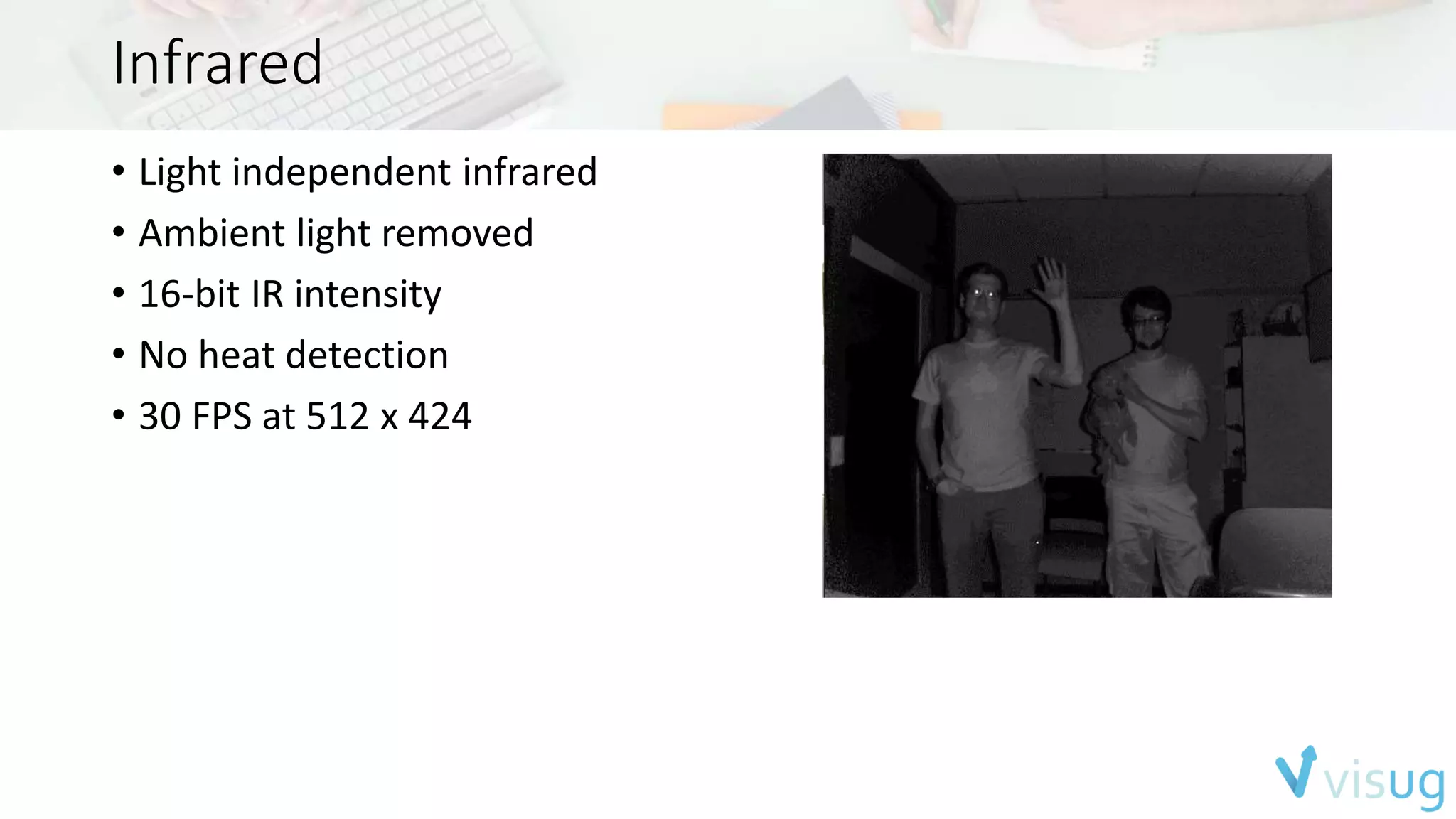

- 12. Infrared • Lightindependent infrared • Ambient light removed • 16-bit IR intensity • No heat detection • 30 FPS at 512 x 424

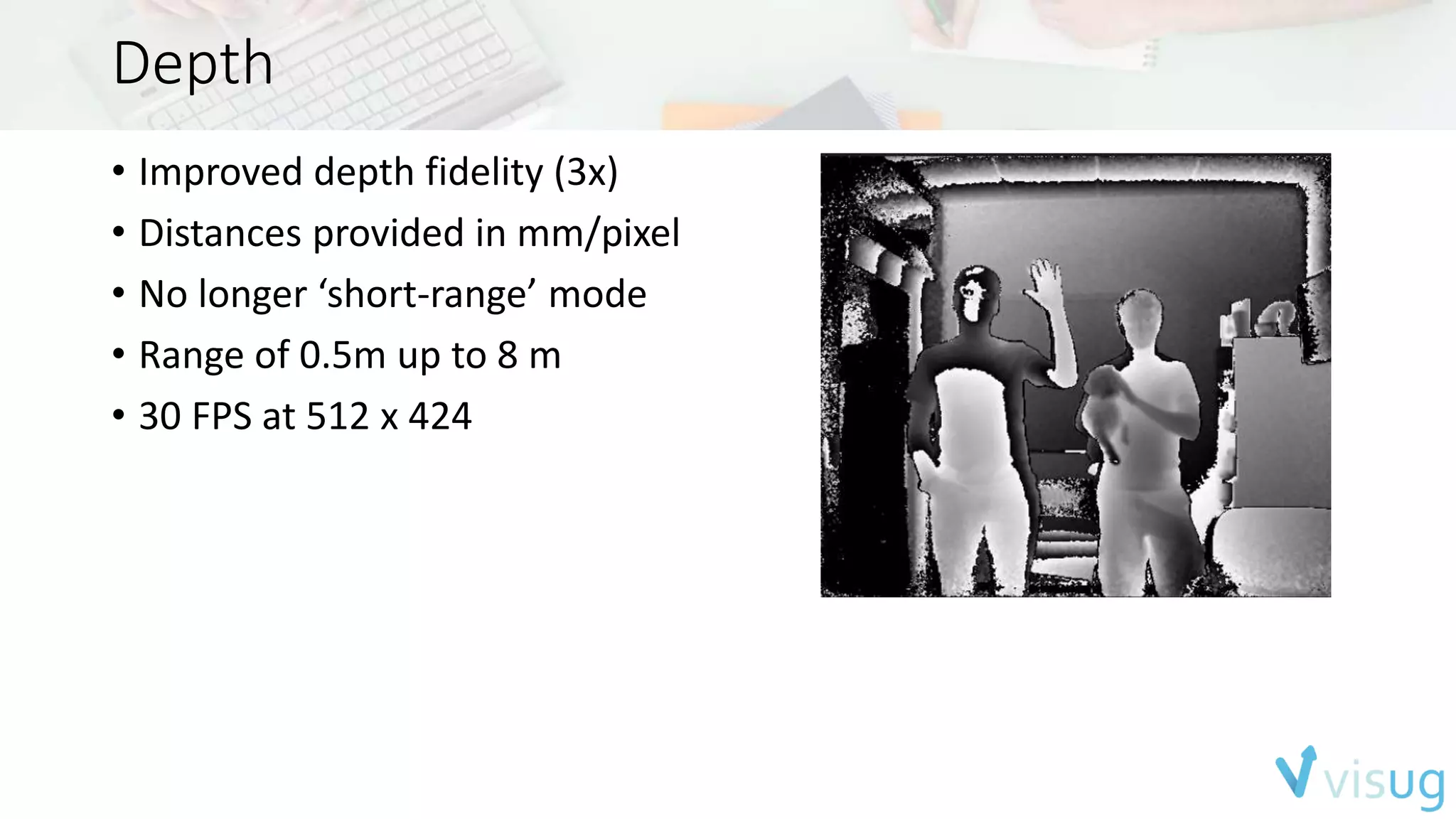

- 13. Depth • Improveddepth fidelity (3x) • Distances provided in mm/pixel • No longer ‘short-range’ mode • Range of 0.5m up to 8 m • 30 FPS at 512 x 424

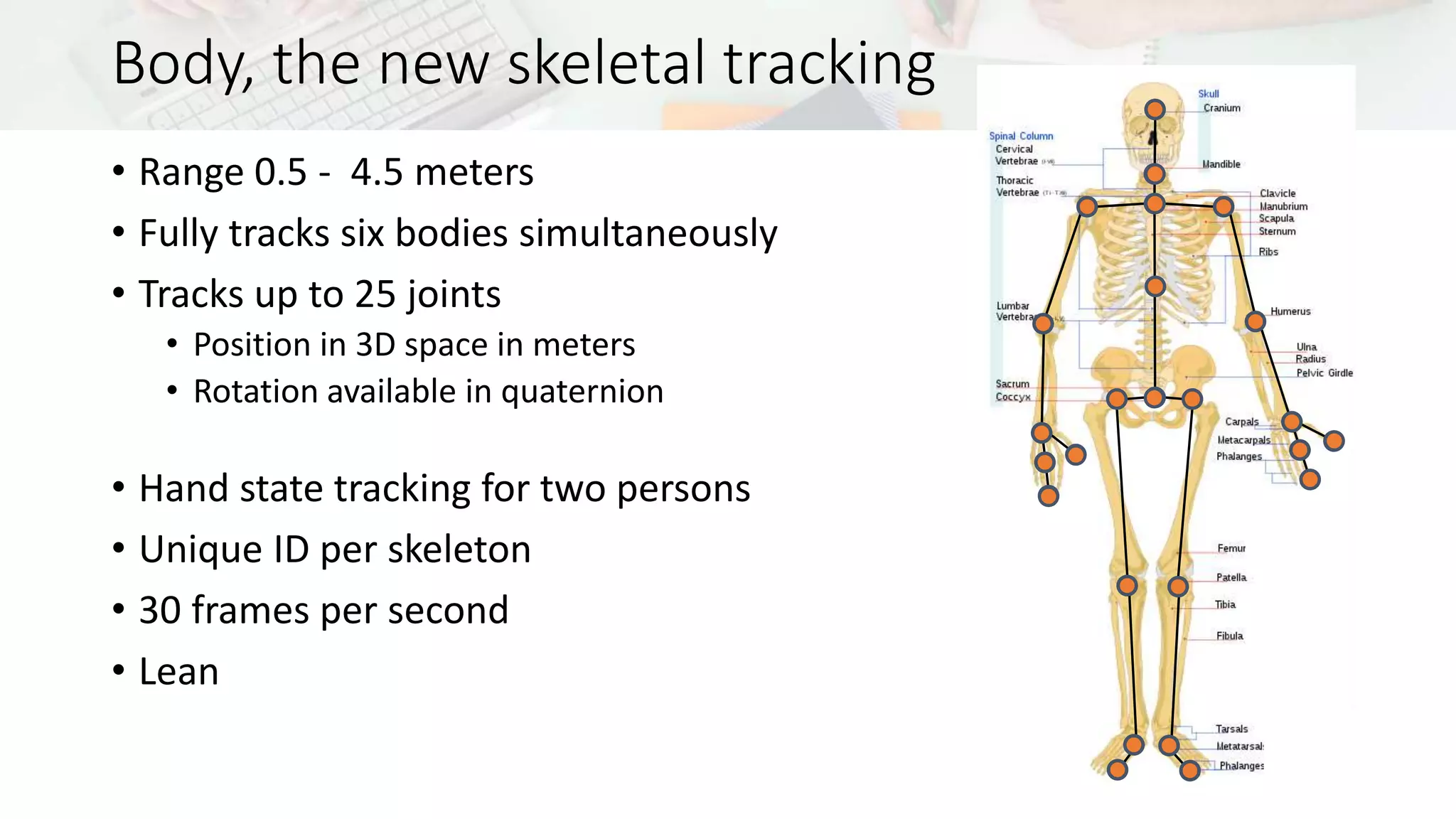

- 14. Body, the newskeletal tracking • Range 0.5 - 4.5 meters • Fully tracks six bodies simultaneously • Tracks up to 25 joints • Position in 3D space in meters • Rotation available in quaternion • Hand state tracking for two persons • Unique ID per skeleton • 30 frames per second • Lean

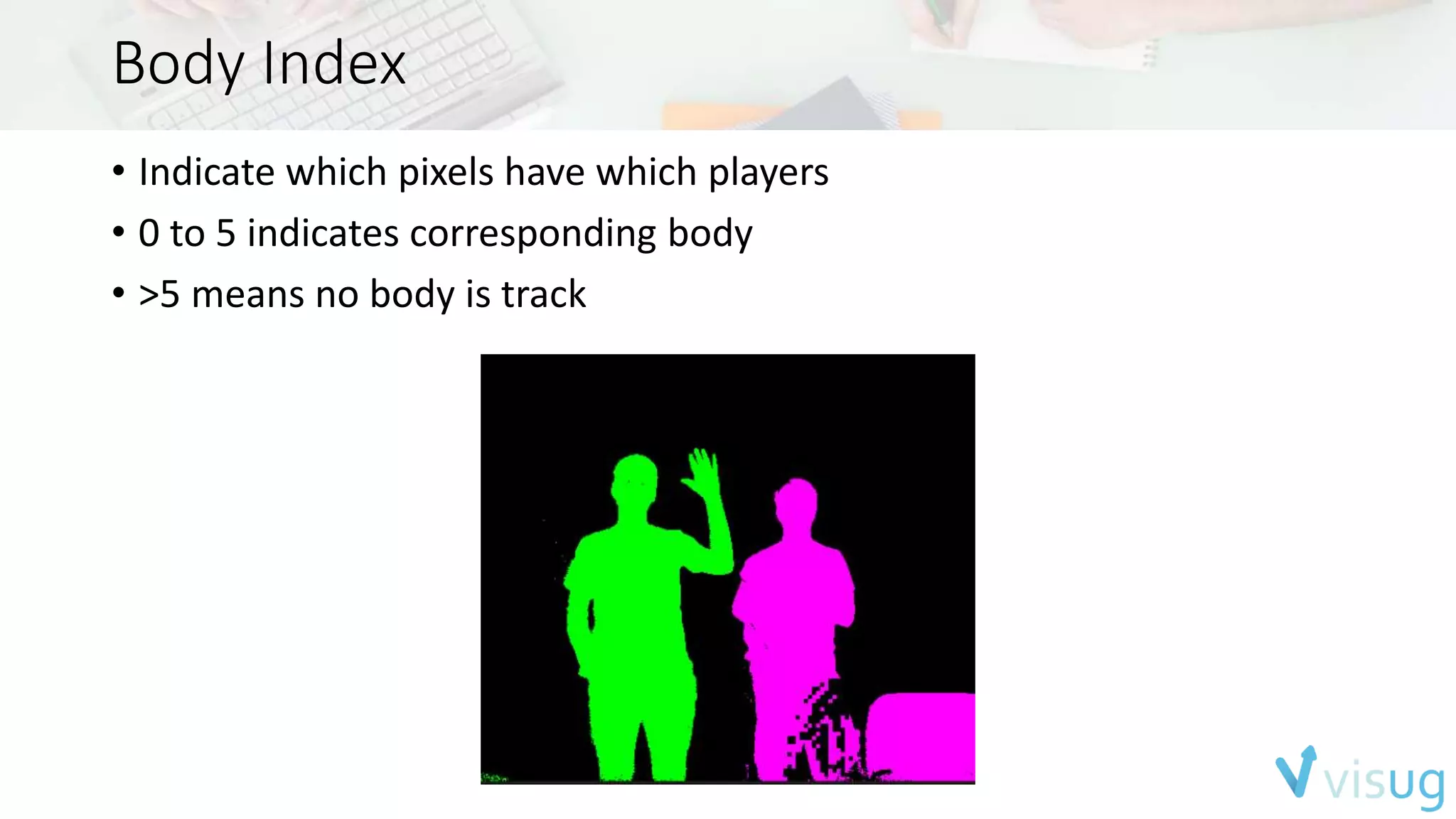

- 15. Body Index •Indicate which pixels have which players • 0 to 5 indicates corresponding body • >5 means no body is track

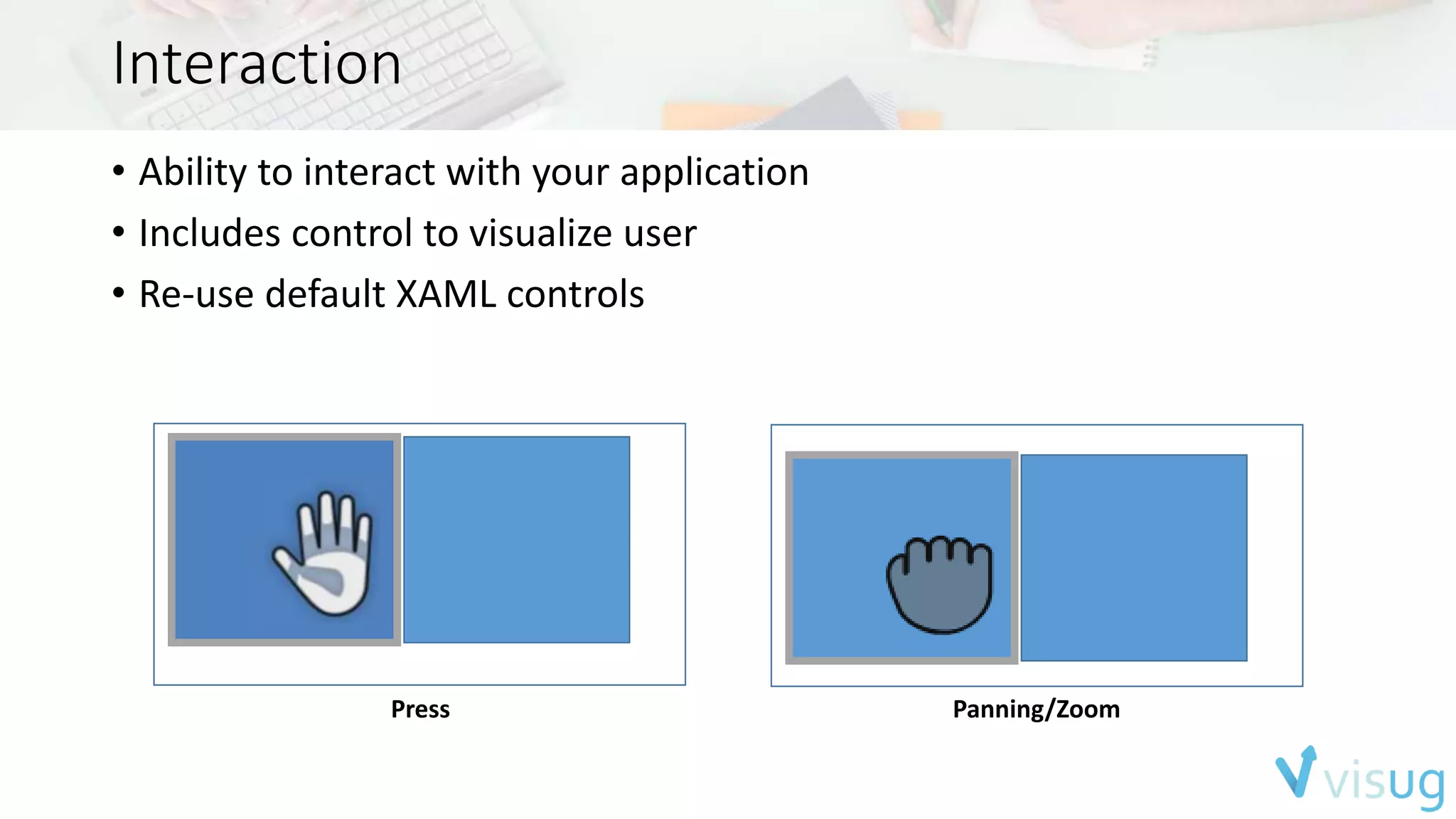

- 16. Interaction • Abilityto interact with your application • Includes control to visualize user • Re-use default XAML controls Press Panning/Zoom
- 17. Face • Upto 6 bodies simultaniously • 2-Dimensional based • Face Detection • Detects a bounding box around the face • Face Alignment • Identified 5 facial landmarks • Face Orientation • Quaternion of the head in relation with sensor • Face Expressions • Indication if person is happy, wearing glasses,...

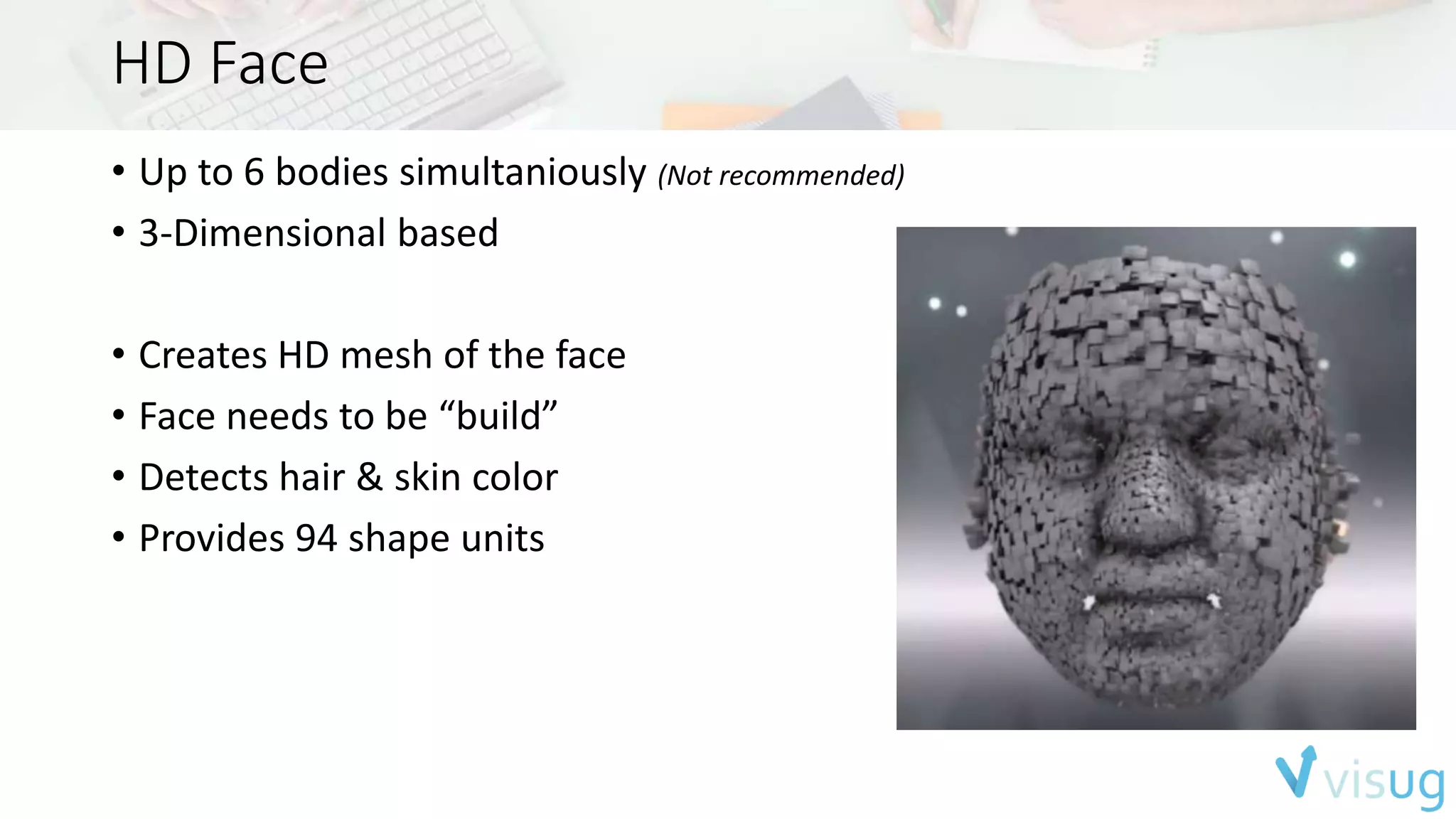

- 18. HD Face •Up to 6 bodies simultaniously (Not recommended) • 3-Dimensional based • Creates HD mesh of the face • Face needs to be “build” • Detects hair & skin color • Provides 94 shape units

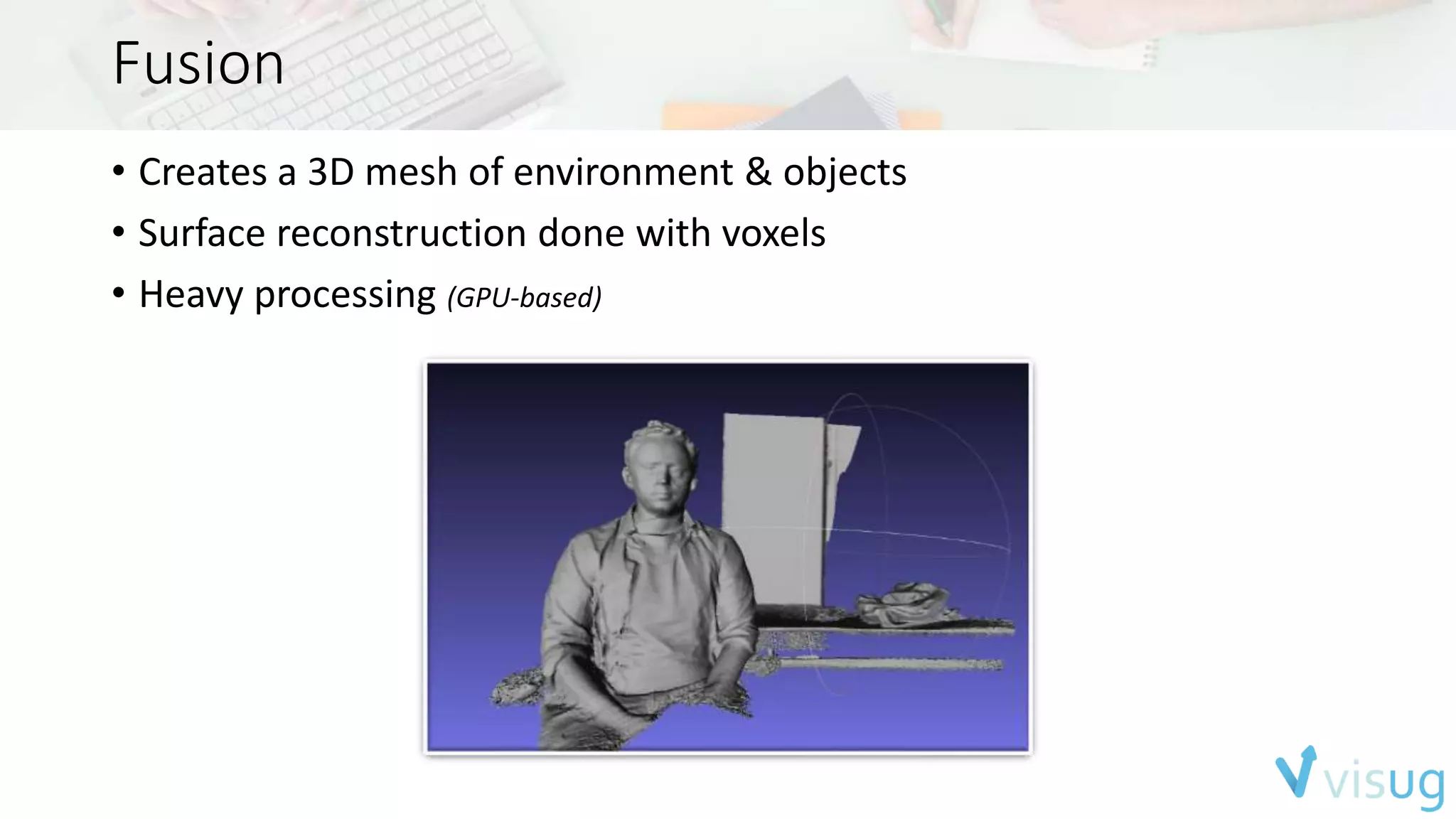

- 19. Fusion • Createsa 3D mesh of environment & objects • Surface reconstruction done with voxels • Heavy processing (GPU-based)

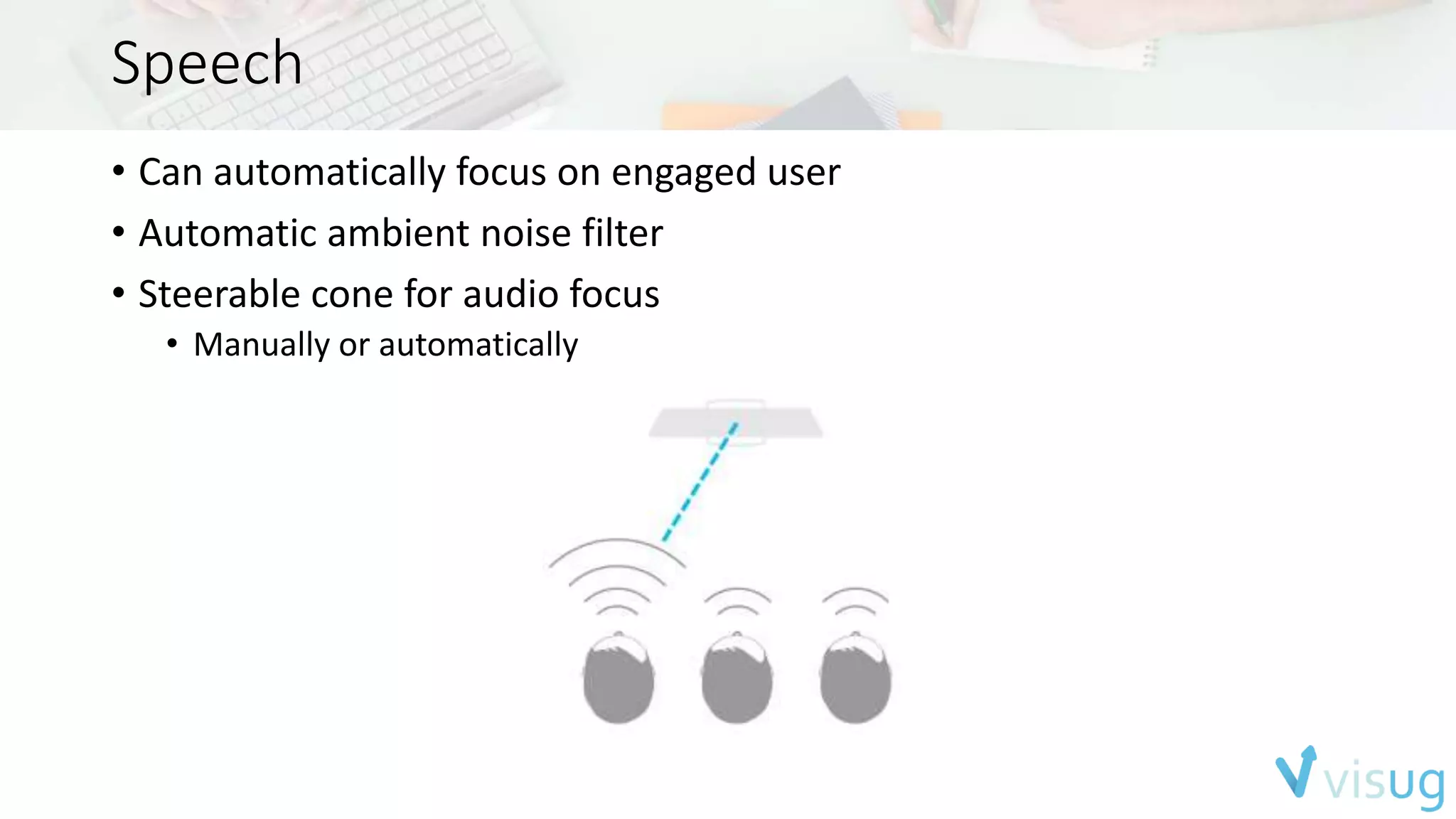

- 20. Speech • Canautomatically focus on engaged user • Automatic ambient noise filter • Steerable cone for audio focus • Manually or automatically
- 21.

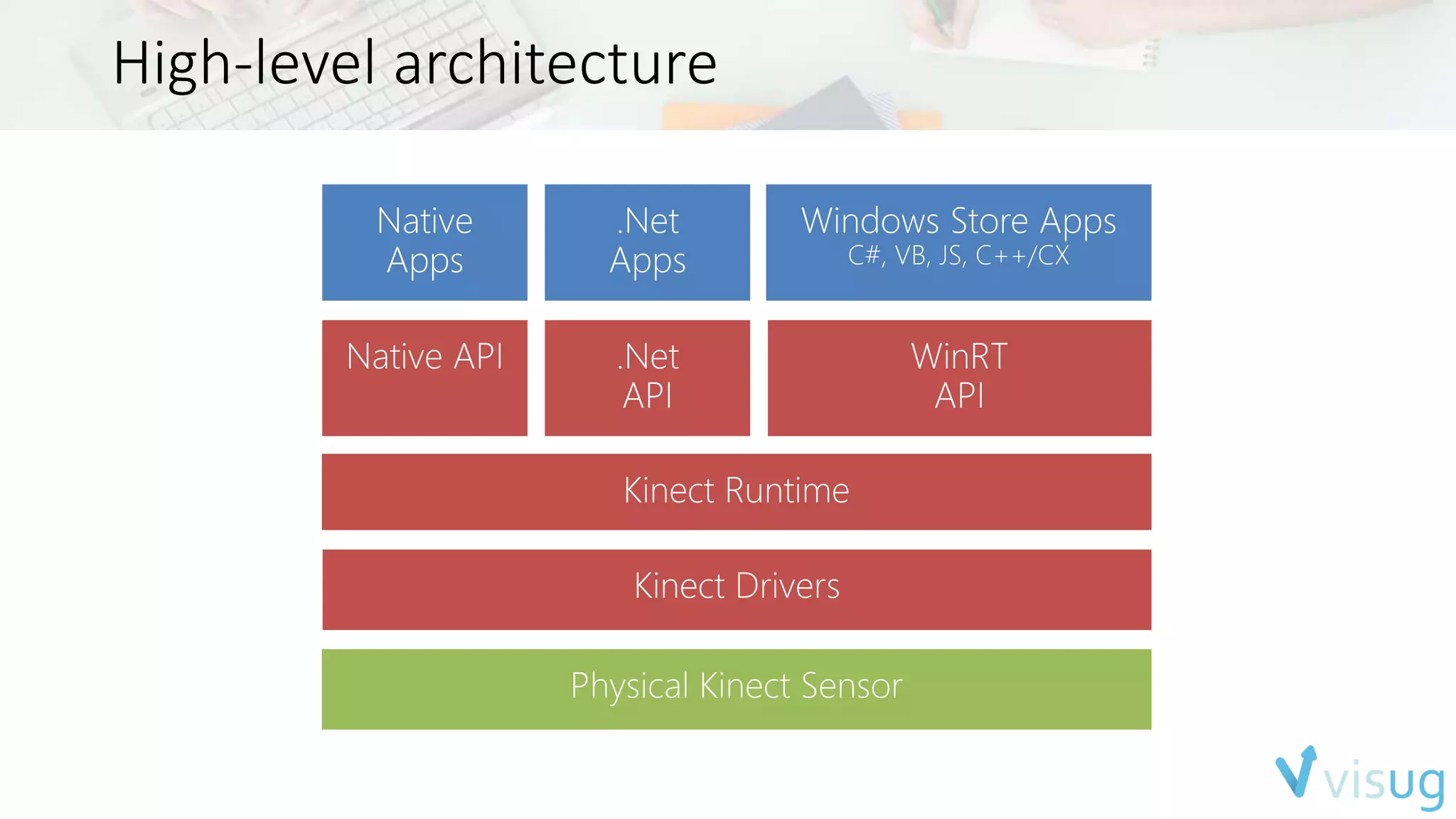

- 22.

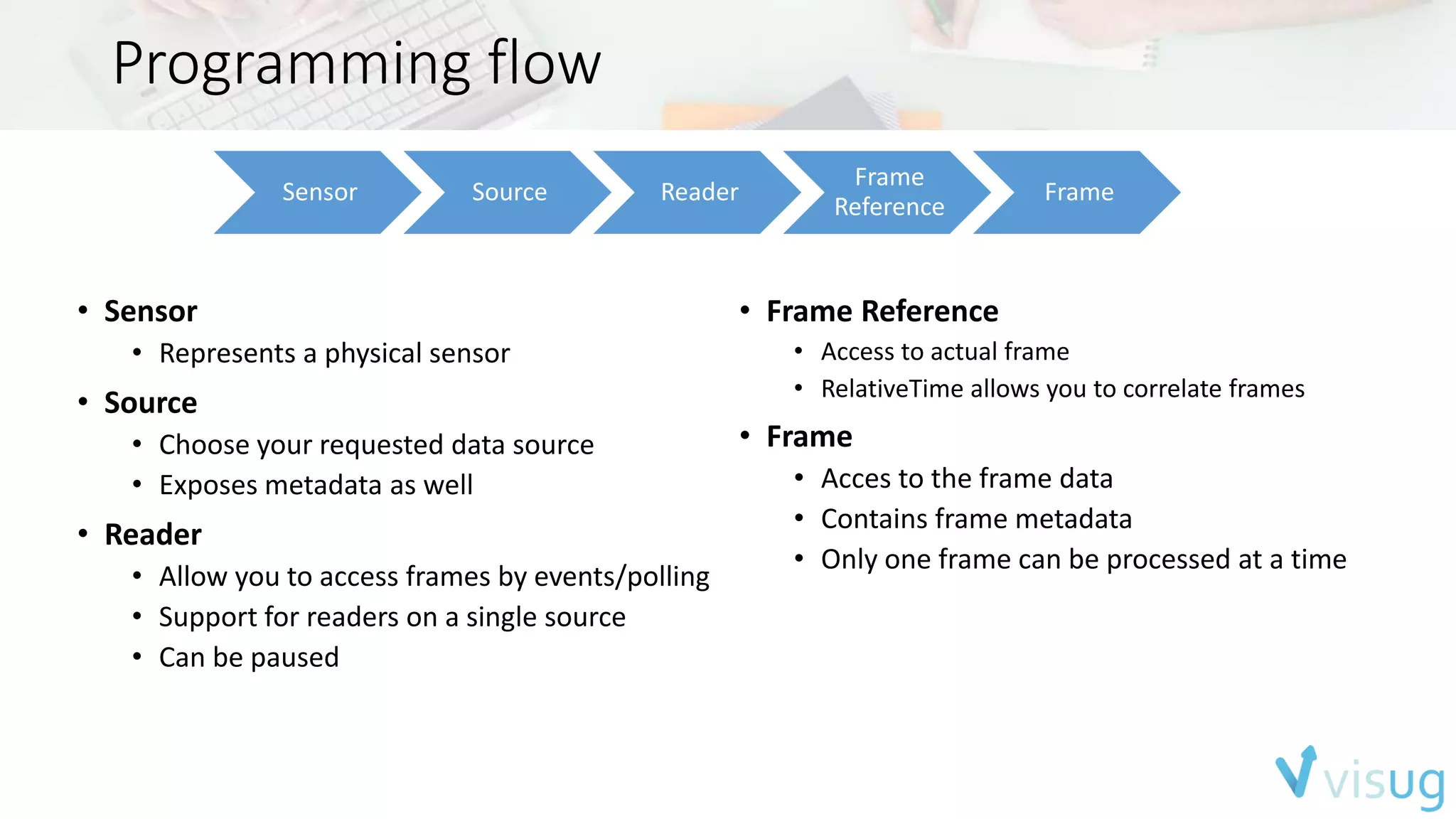

- 23. Programming flow SensorSource Reader Frame Reference Frame • Sensor • Represents a physical sensor • Source • Choose your requested data source • Exposes metadata as well • Reader • Allow you to access frames by events/polling • Support for readers on a single source • Can be paused • Frame Reference • Access to actual frame • RelativeTime allows you to correlate frames • Frame • Acces to the frame data • Contains frame metadata • Only one frame can be processed at a time

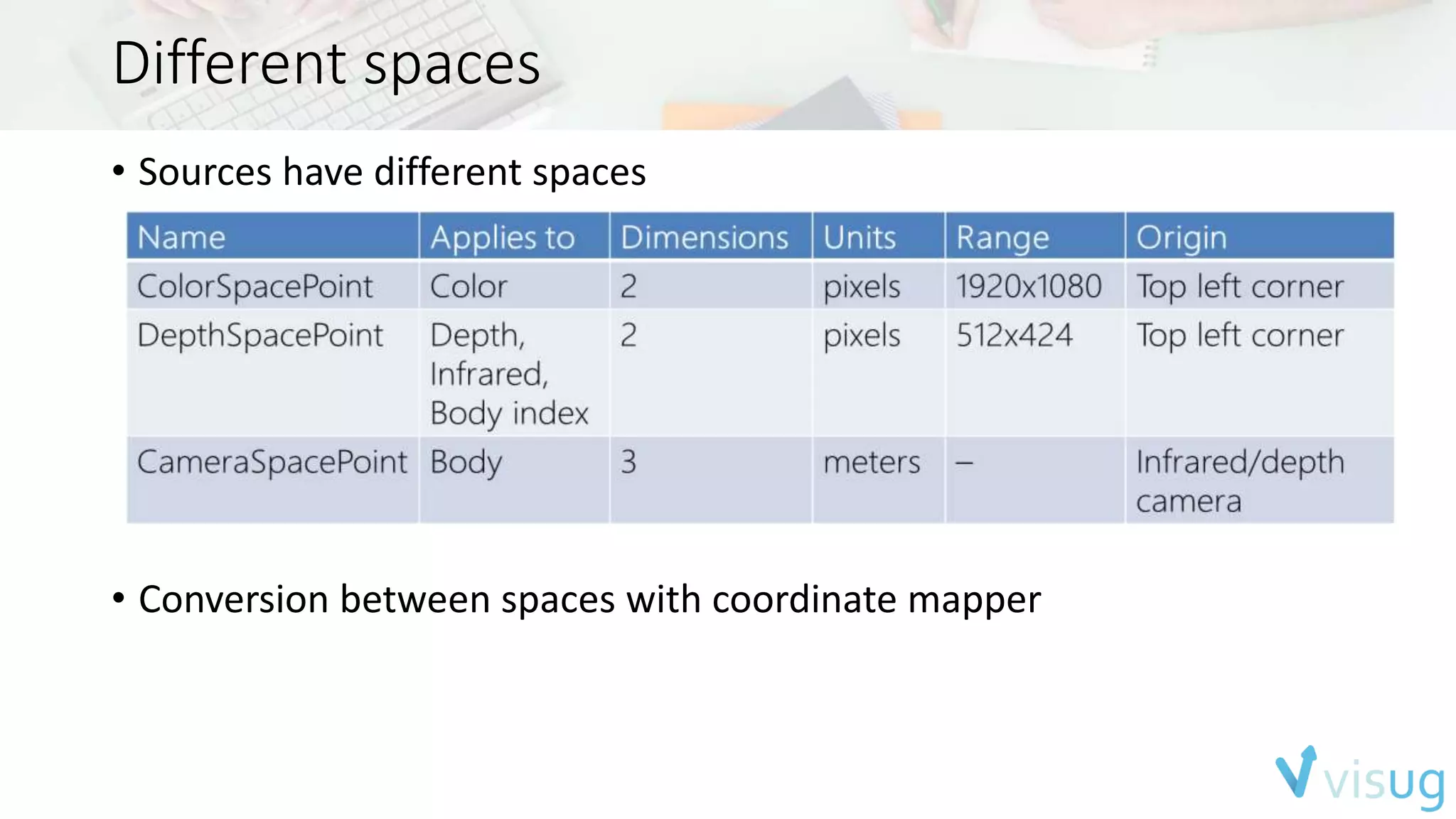

- 24. Different spaces •Sources have different spaces • Conversion between spaces with coordinate mapper

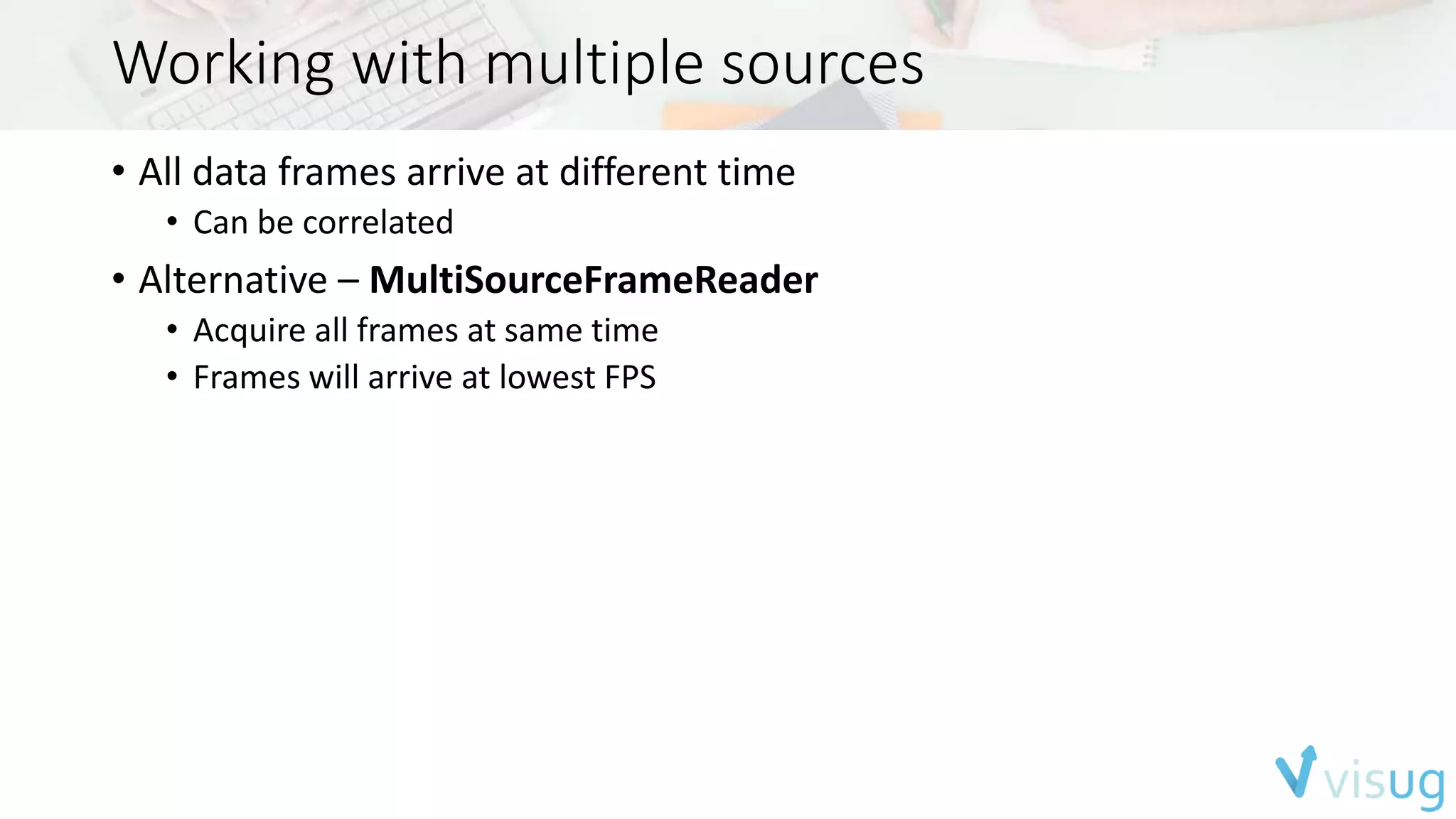

- 25. Working with multiplesources • All data frames arrive at different time • Can be correlated • Alternative – MultiSourceFrameReader • Acquire all frames at same time • Frames will arrive at lowest FPS

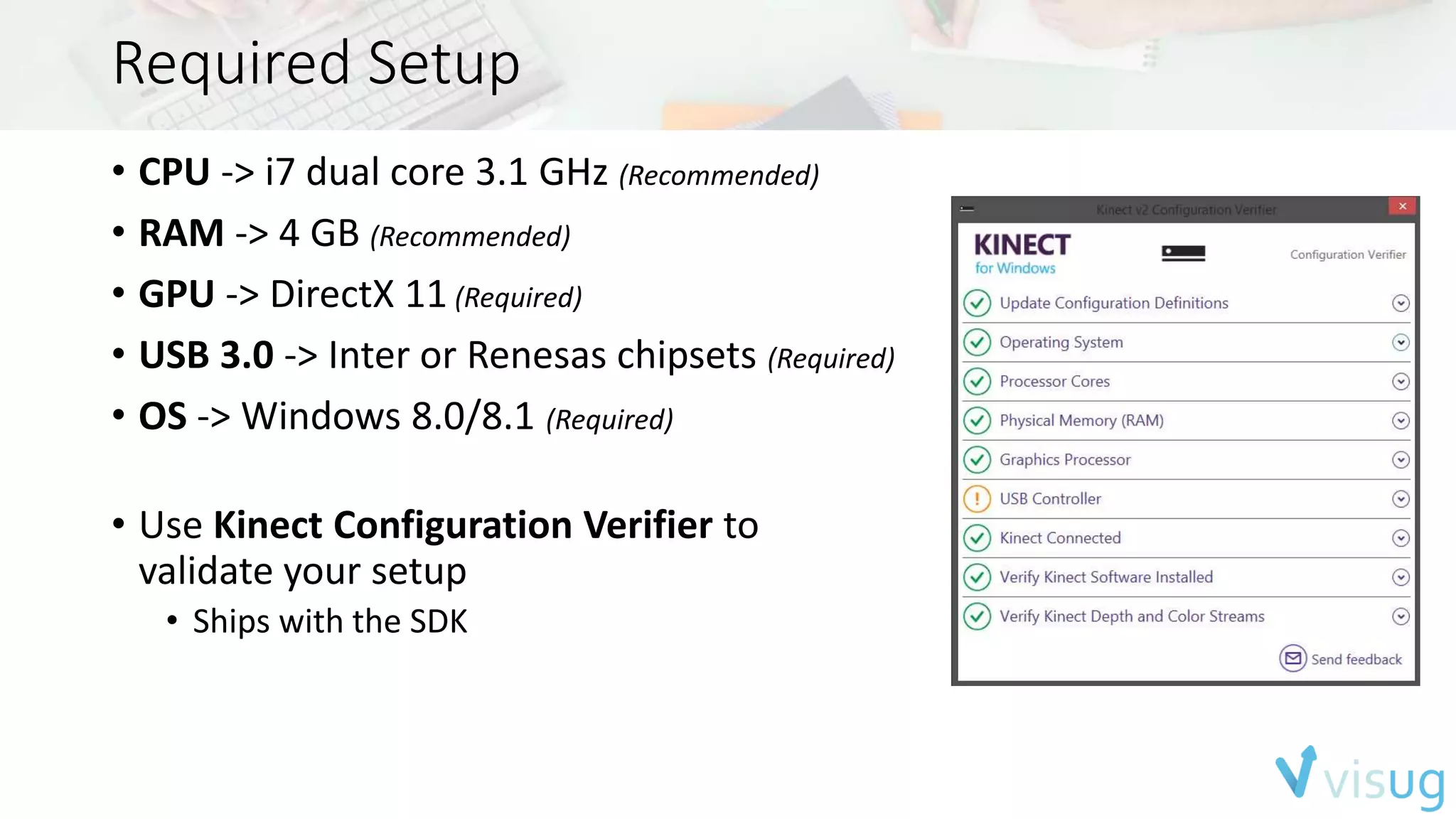

- 26. Required Setup •CPU -> i7 dual core 3.1 GHz (Recommended) • RAM -> 4 GB (Recommended) • GPU -> DirectX 11 (Required) • USB 3.0 -> Inter or Renesas chipsets (Required) • OS -> Windows 8.0/8.1 (Required) • Use Kinect Configuration Verifier to validate your setup • Ships with the SDK

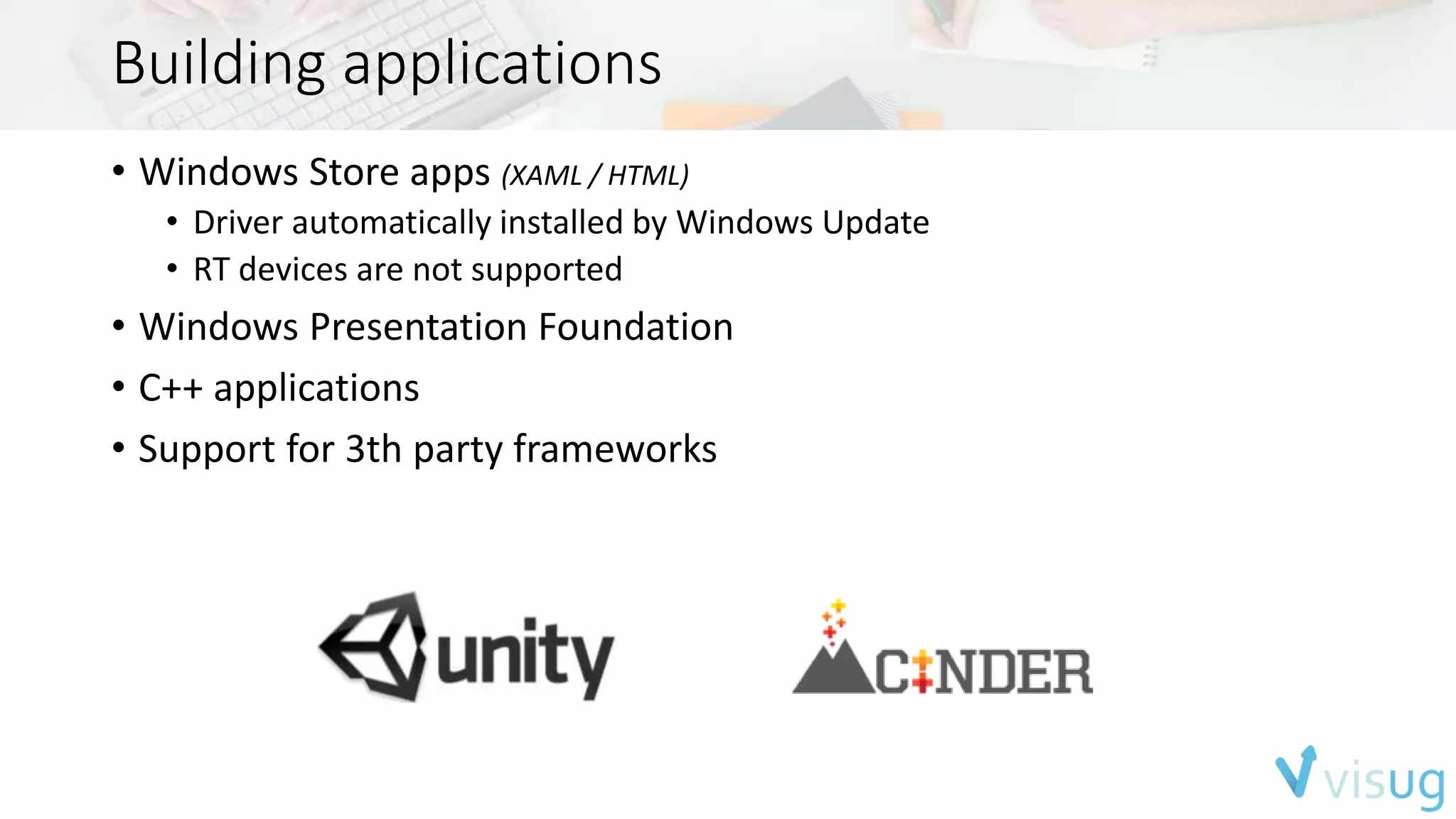

- 27. Building applications •Windows Store apps (XAML / HTML) • Driver automatically installed by Windows Update • RT devices are not supported • Windows Presentation Foundation • C++ applications • Support for 3th party frameworks

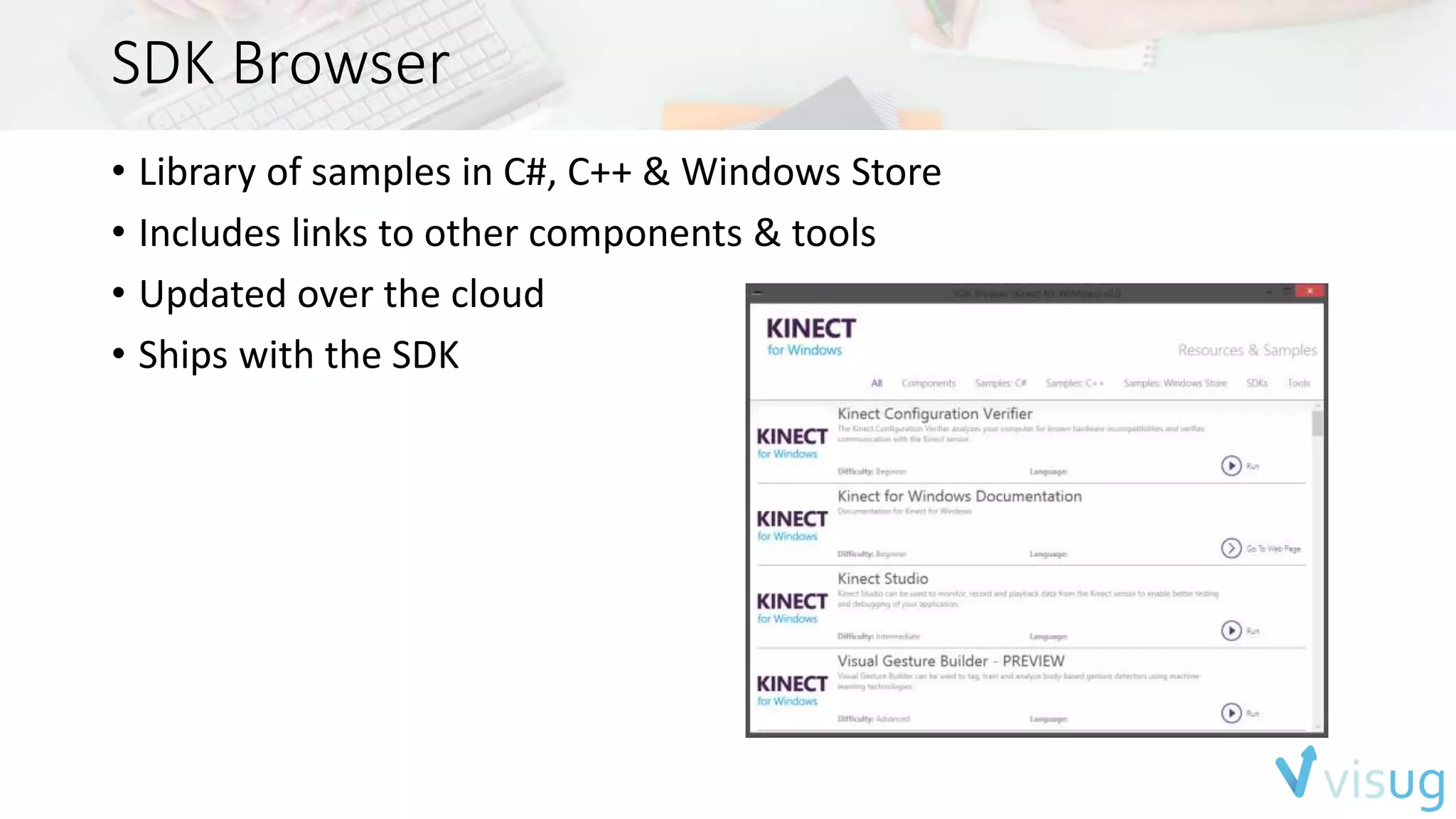

- 28. SDK Browser •Library of samples in C#, C++ & Windows Store • Includes links to other components & tools • Updated over the cloud • Ships with the SDK

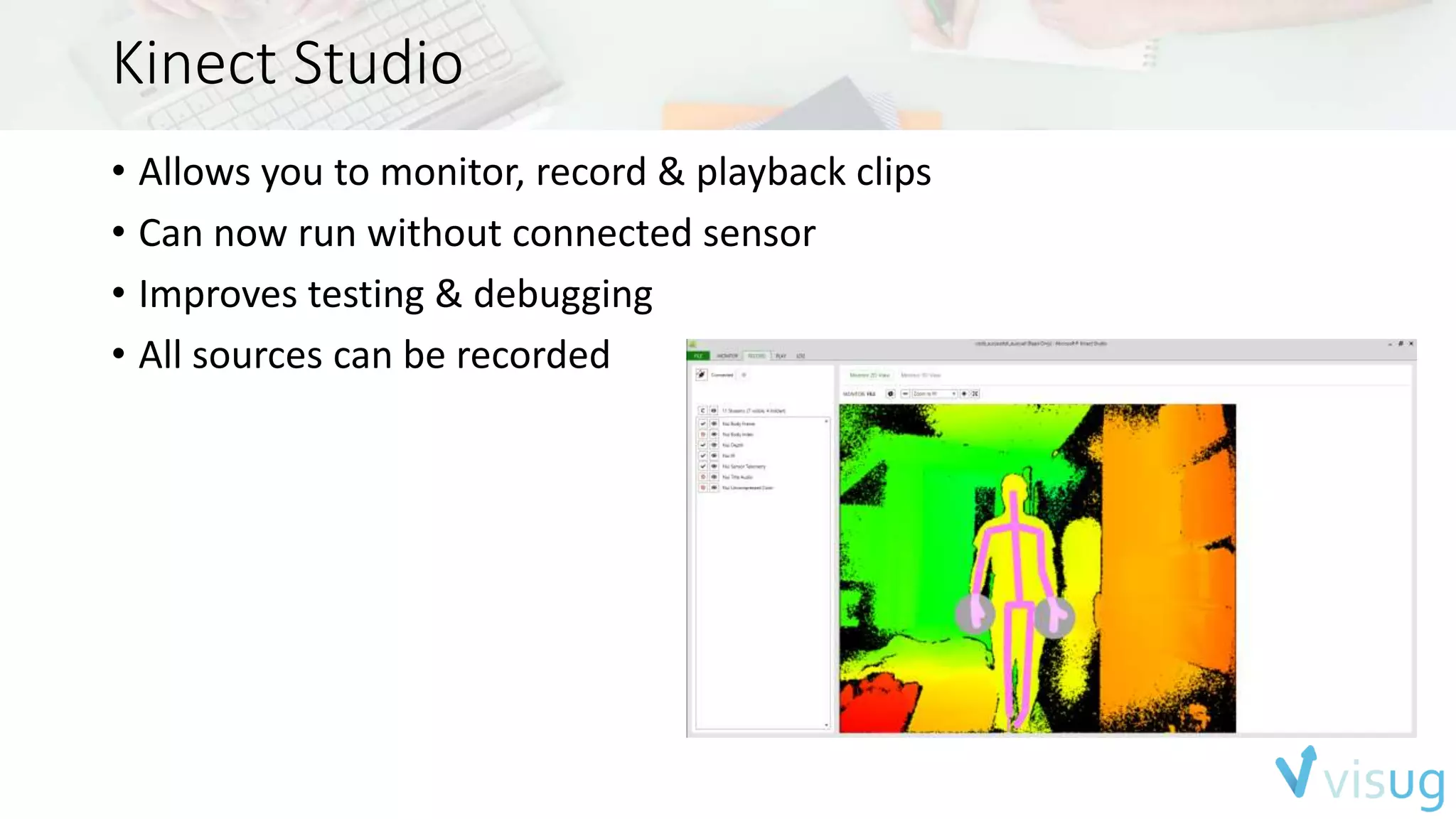

- 30. Kinect Studio •Allows you to monitor, record & playback clips • Can now run without connected sensor • Improves testing & debugging • All sources can be recorded

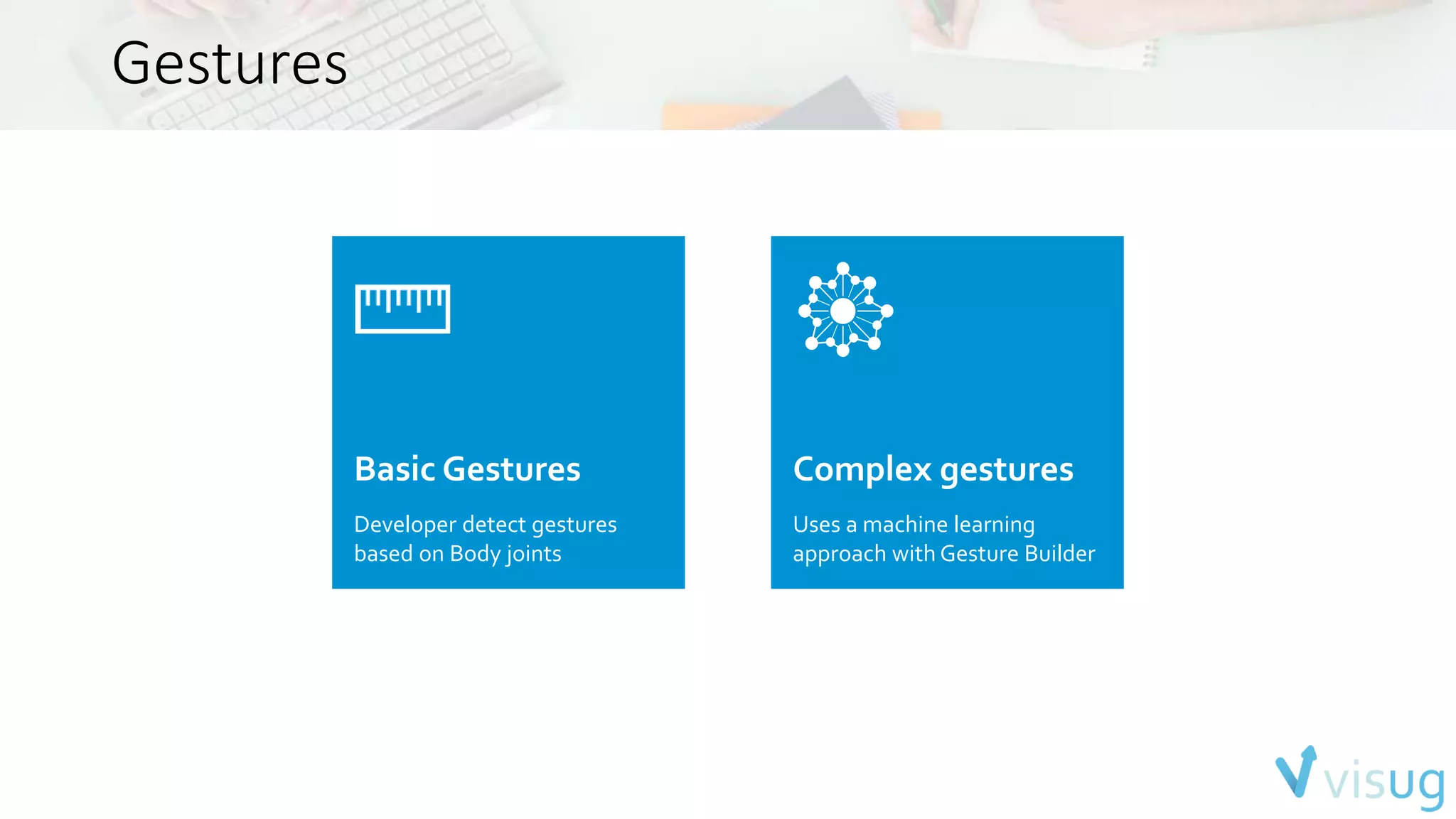

- 31. Gestures Basic Gestures Developer detect gestures based on Body joints Complex gestures Uses a machine learning approach with Gesture Builder

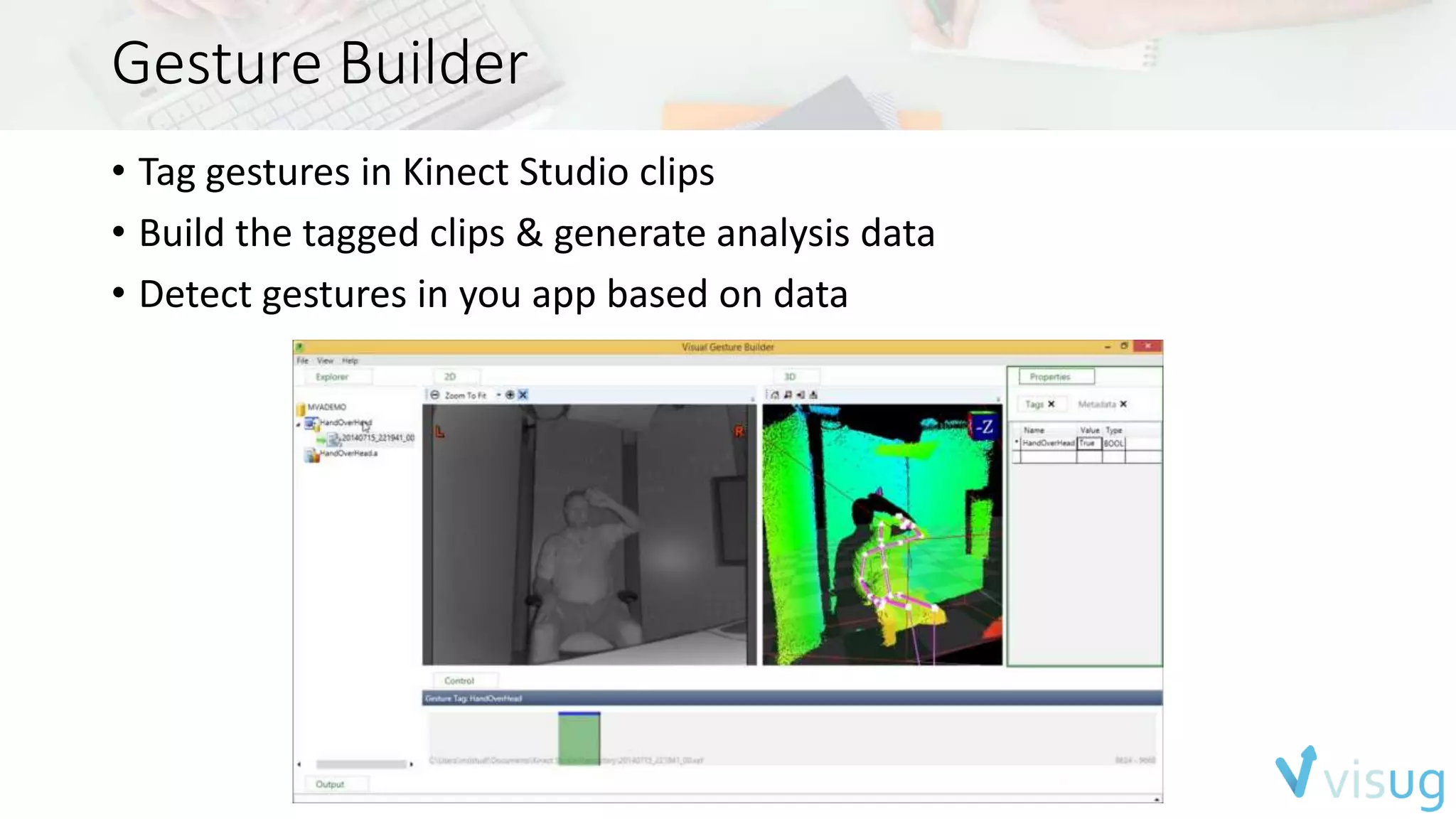

- 32. Gesture Builder •Tag gestures in Kinect Studio clips • Build the tagged clips & generate analysis data • Detect gestures in you app based on data

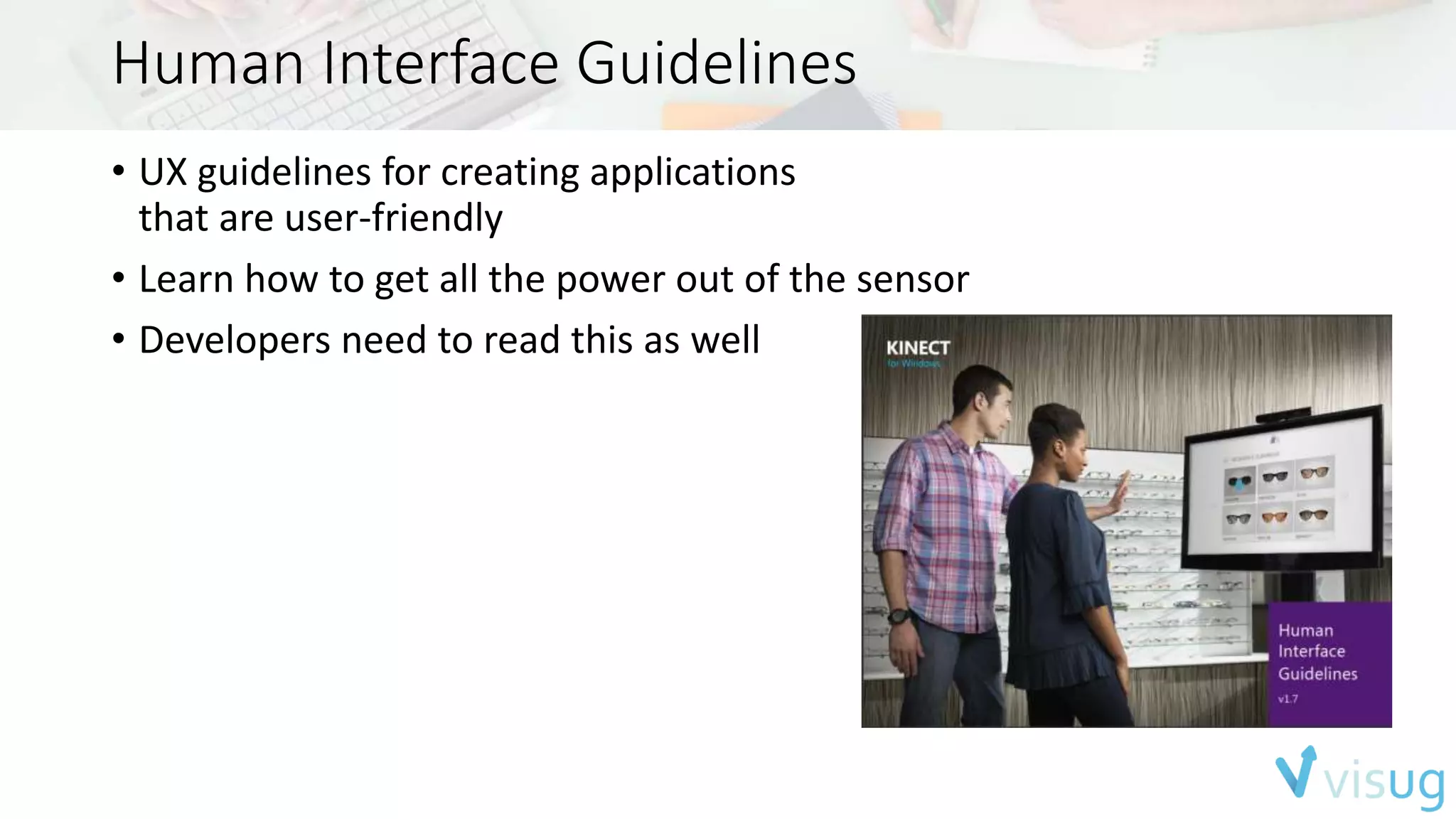

- 33. Human Interface Guidelines • UX guidelines for creating applications that are user-friendly • Learn how to get all the power out of the sensor • Developers need to read this as well
- 34. Kinect for Windows & Xbox One
- 35.

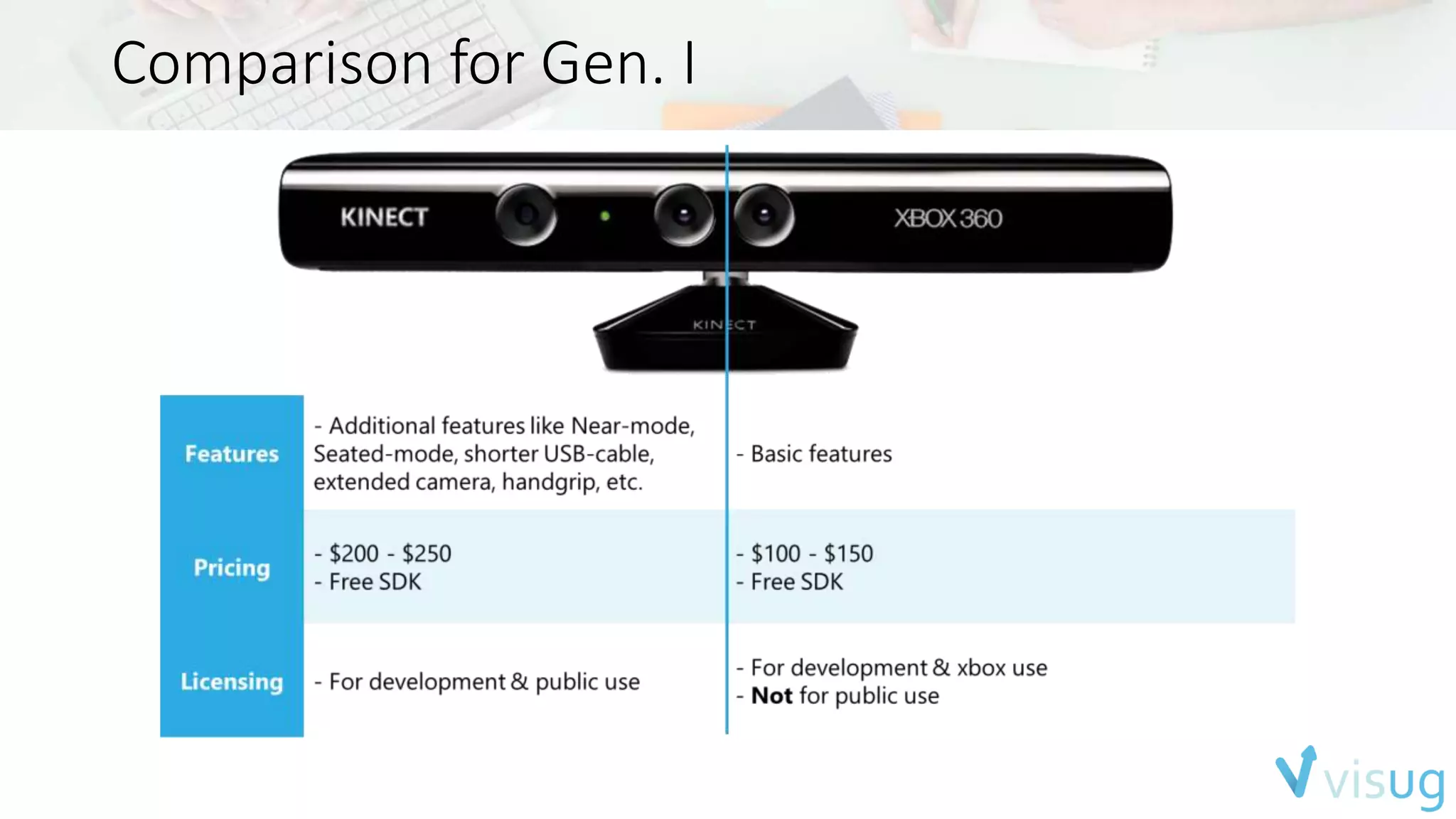

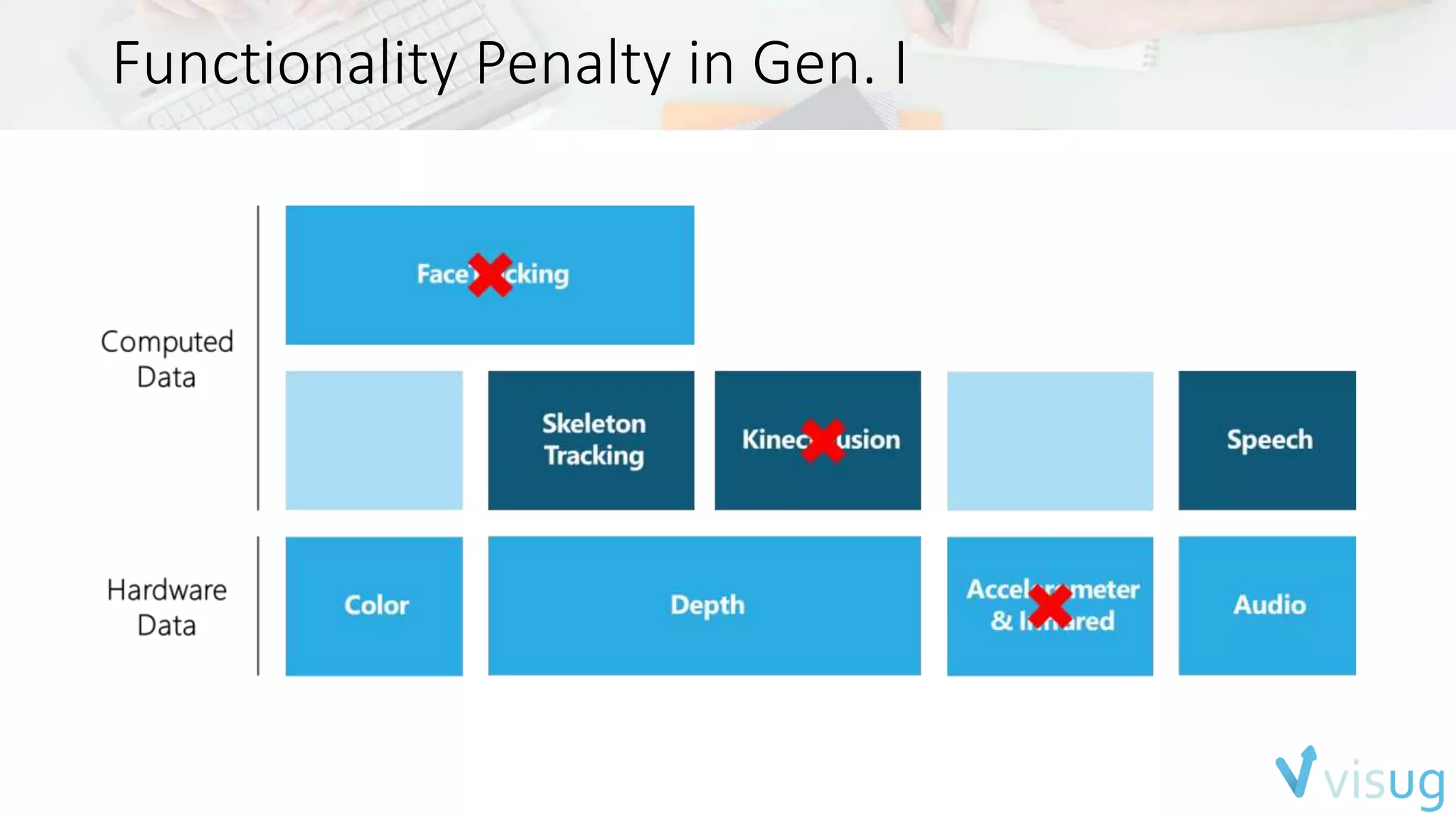

- 36. Functionality Penalty inGen. I
- 37.

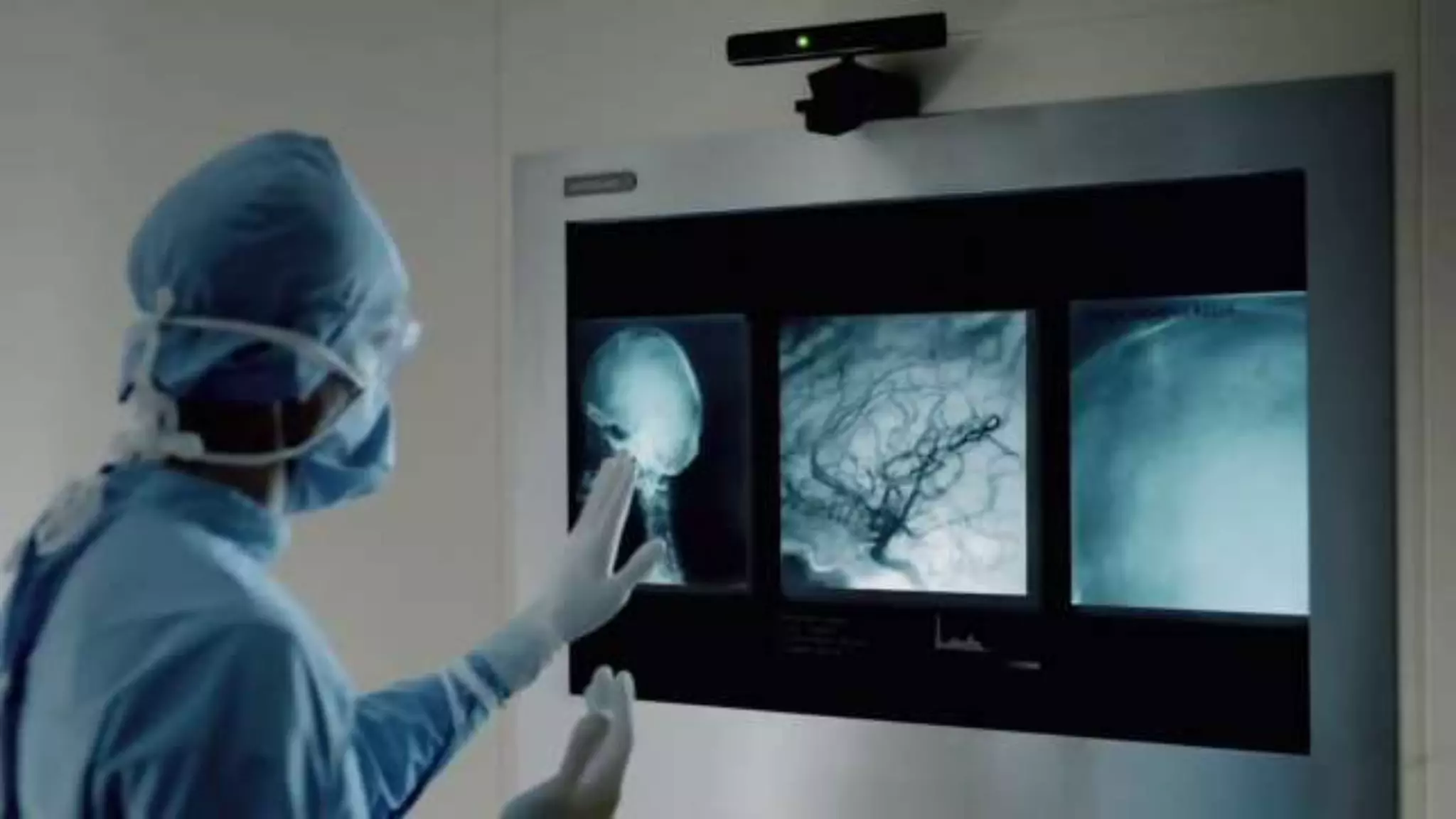

- 38. Scenarios Healthcare RetailEntertainment Education

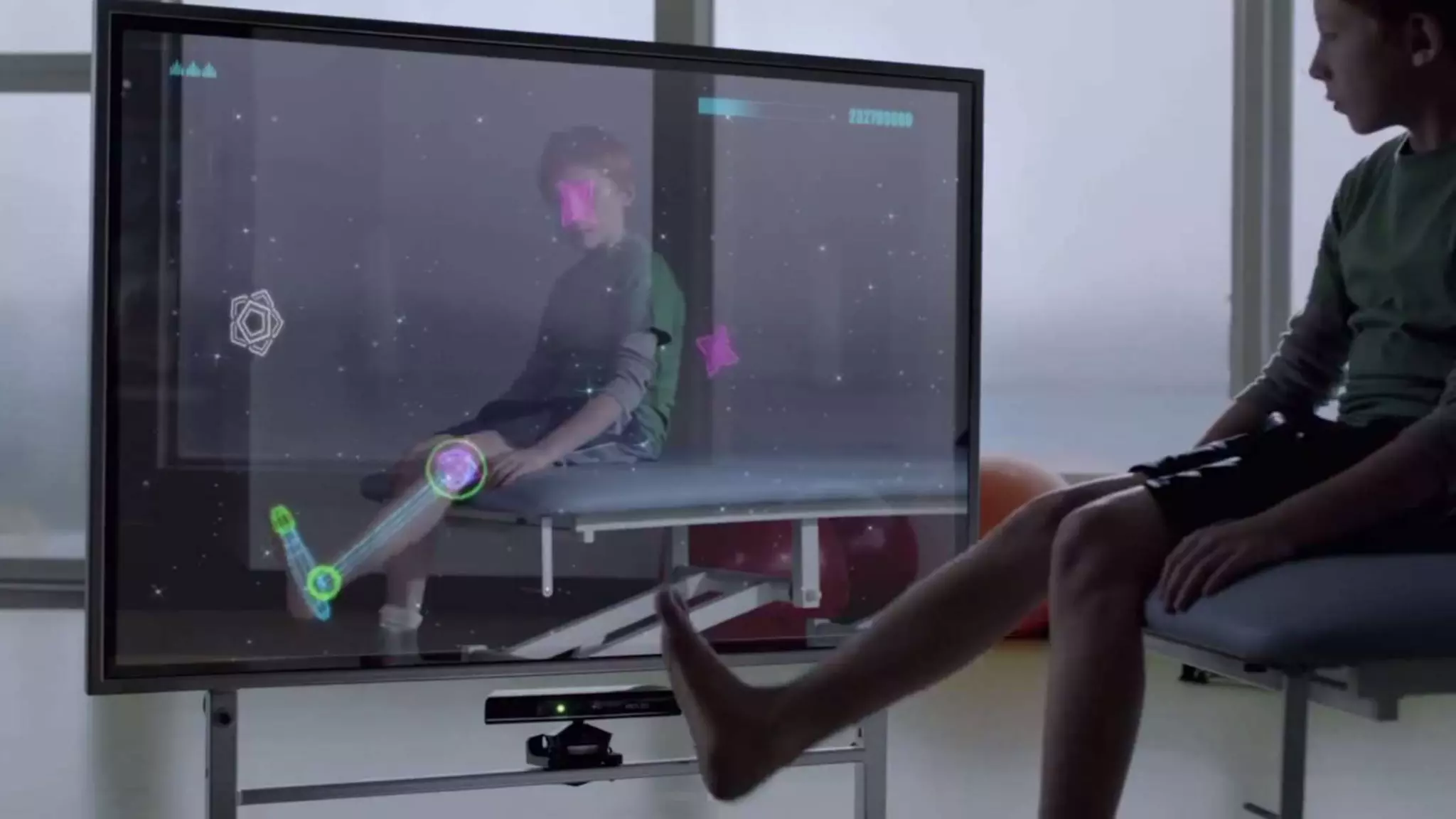

- 41.

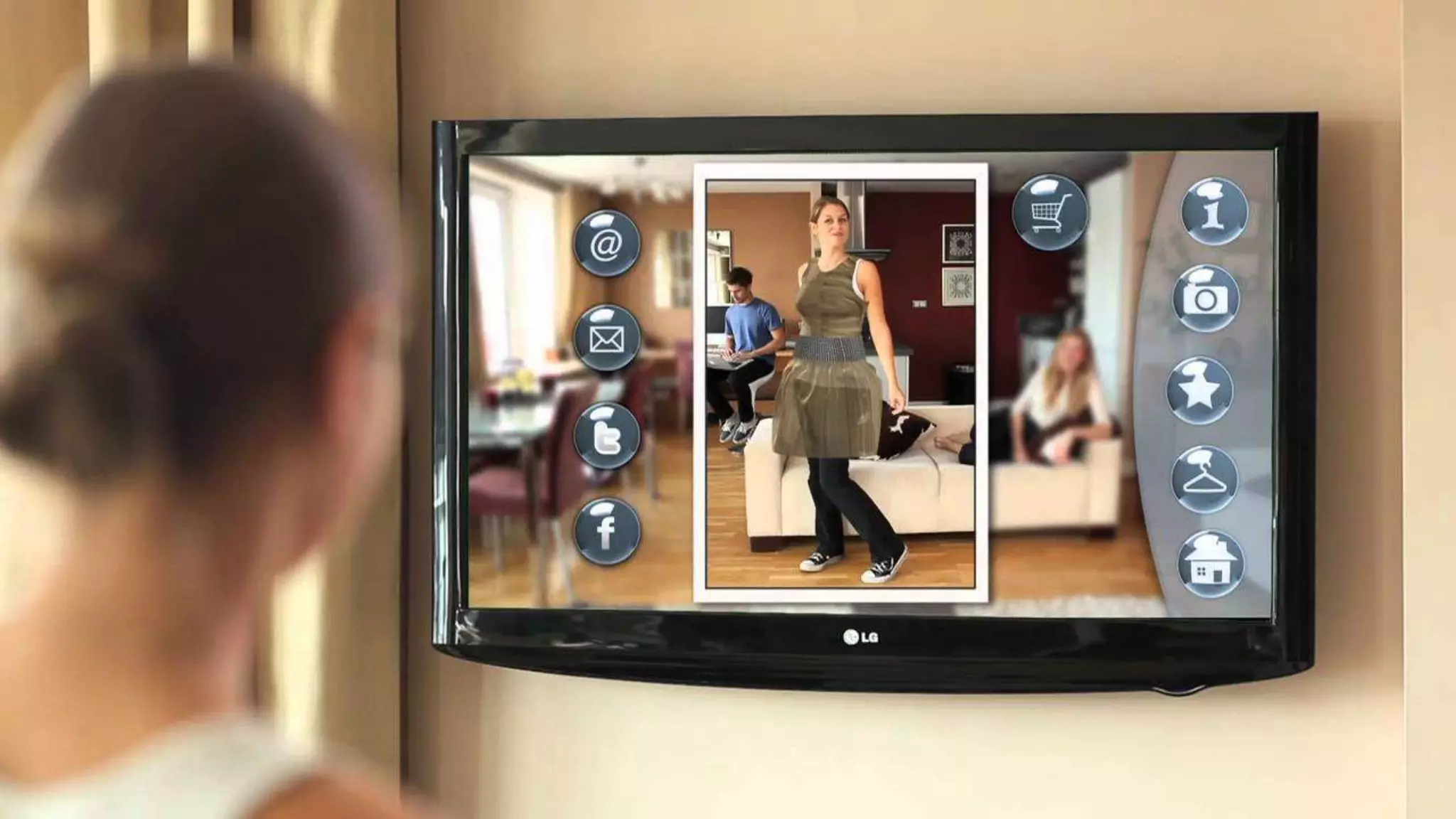

- 42.
- 47.
- 48.
- 49.

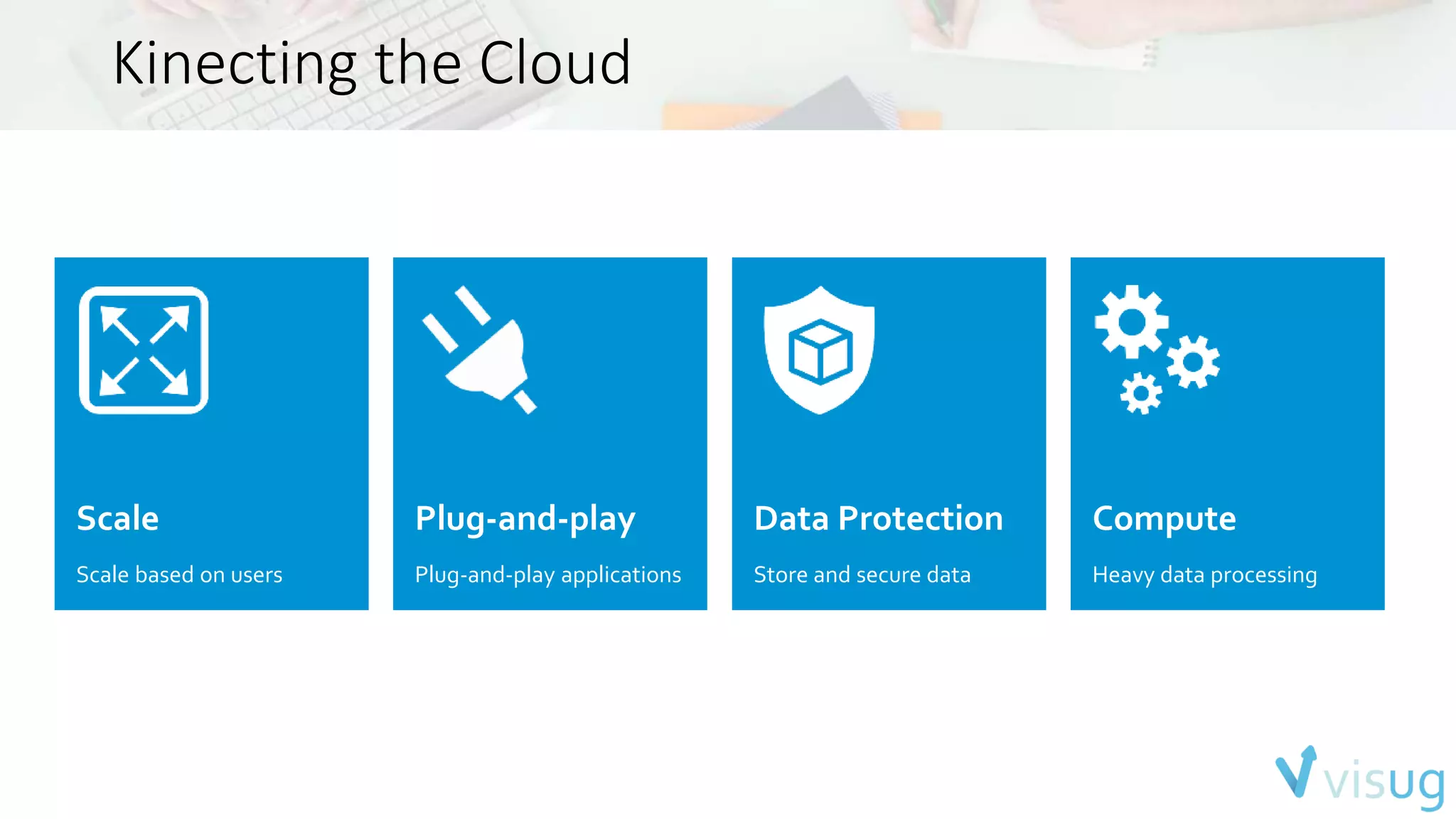

- 50. Kinecting the Cloud Scale Scale based on users Plug-and-play Plug-and-play applications Data Protection Store and secure data Compute Heavy data processing
- 51.

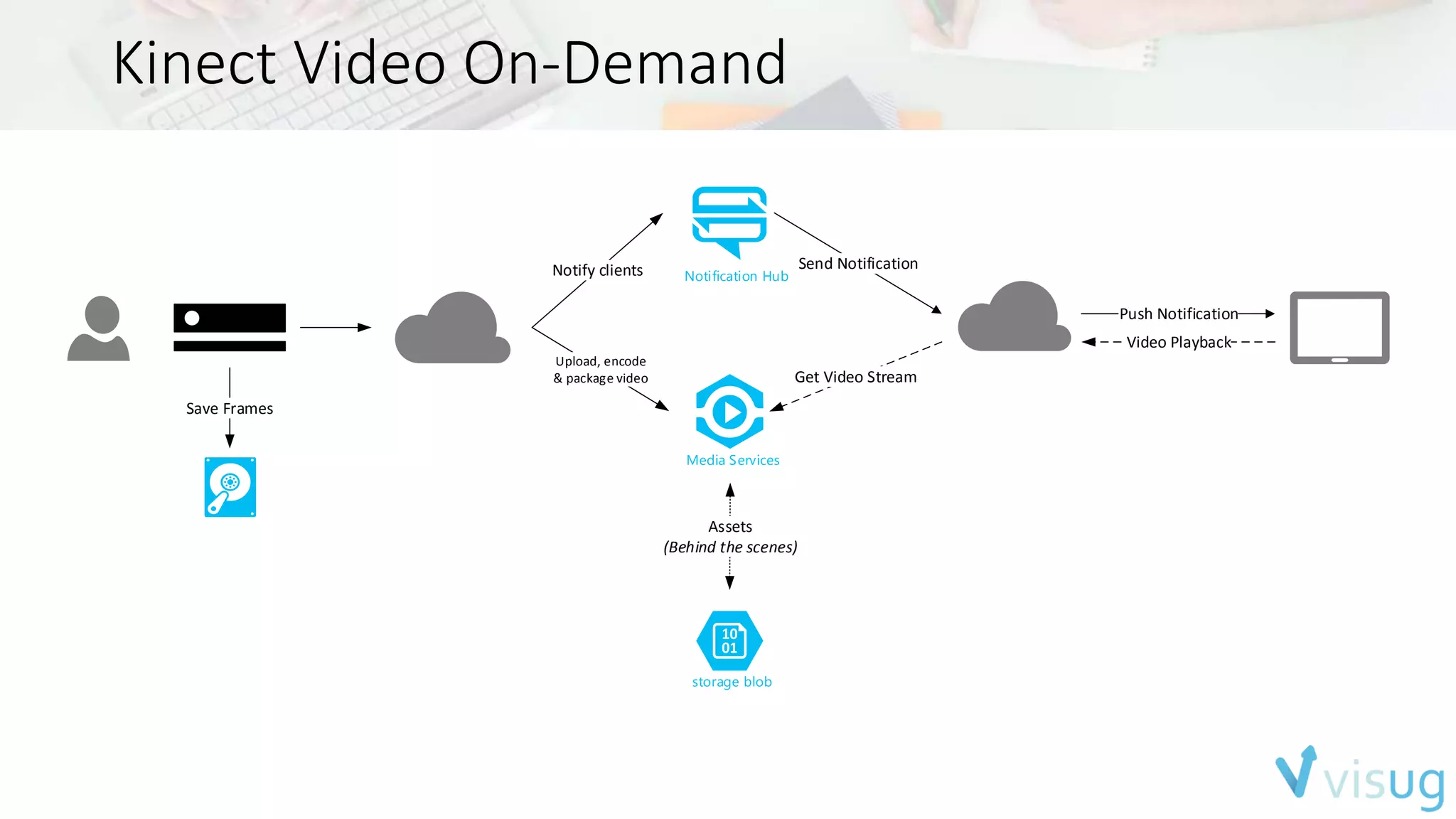

- 52. Kinect Video On-Demand Notification Hub Media Services Send Notification storage blob Get Video Stream Assets (Behind the scenes) Push Notification Video Playback Notify clients Upload, encode & package video Save Frames
- 53. Using Kinect as data farmer

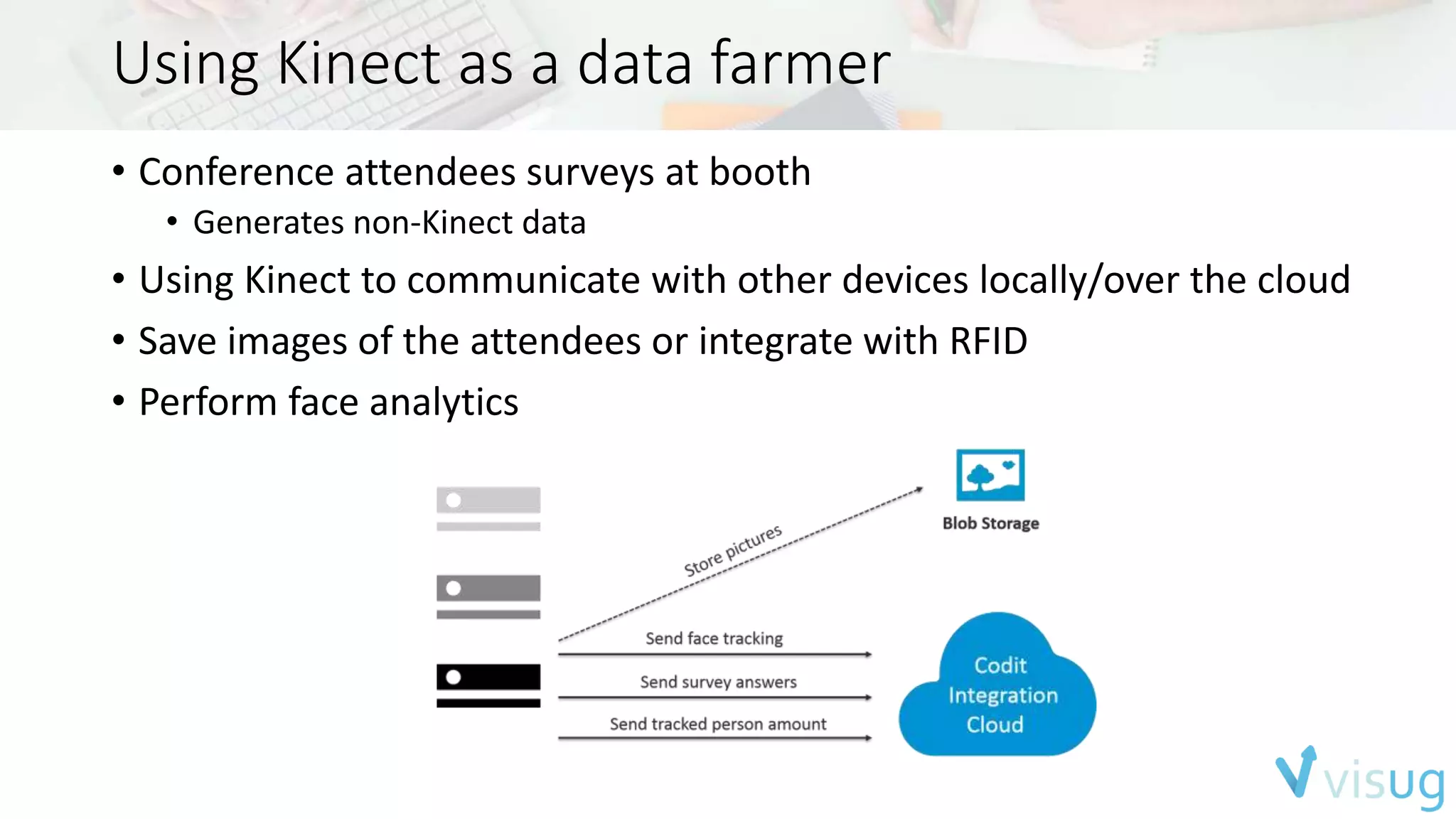

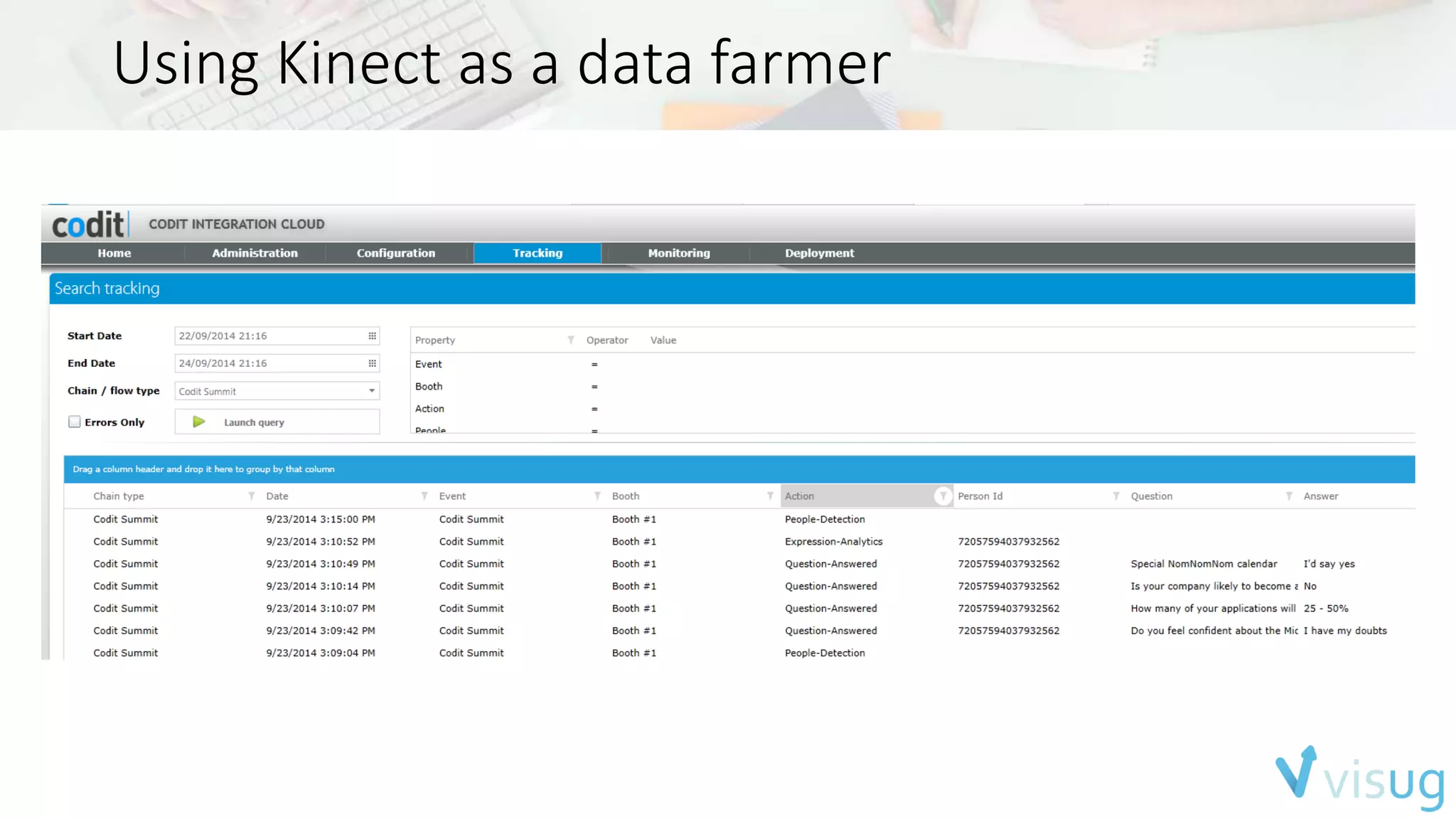

- 54. Using Kinect asa data farmer • Conference attendees surveys at booth • Generates non-Kinect data • Using Kinect to communicate with other devices locally/over the cloud • Save images of the attendees or integrate with RFID • Perform face analytics
- 55. Using Kinect asa data farmer
- 56. Using Kinect asa data farmer • Data available on central hub • Forward data for further processing or analytic

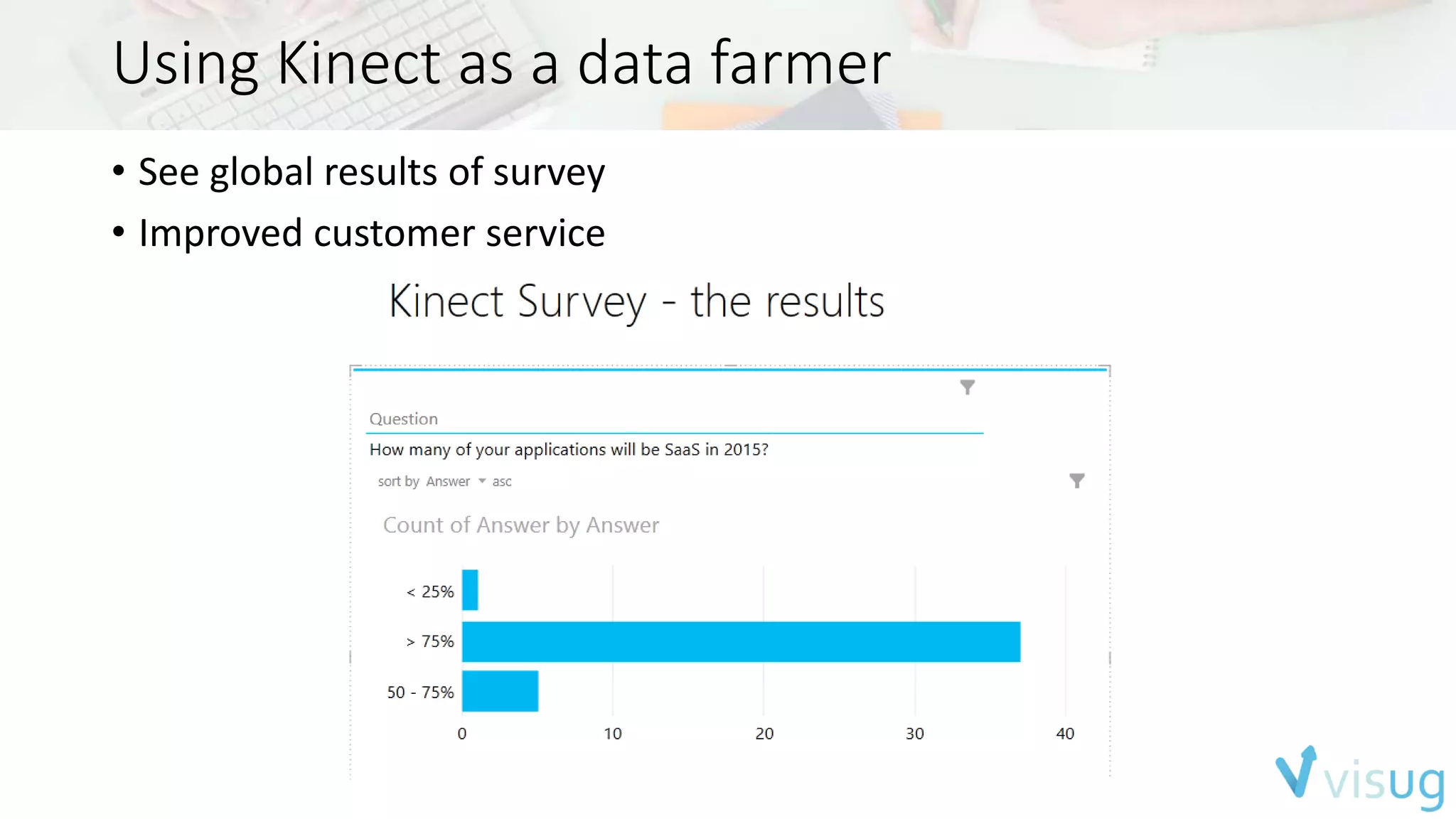

- 57. Using Kinect asa data farmer • See global results of survey • Improved customer service
- 58.

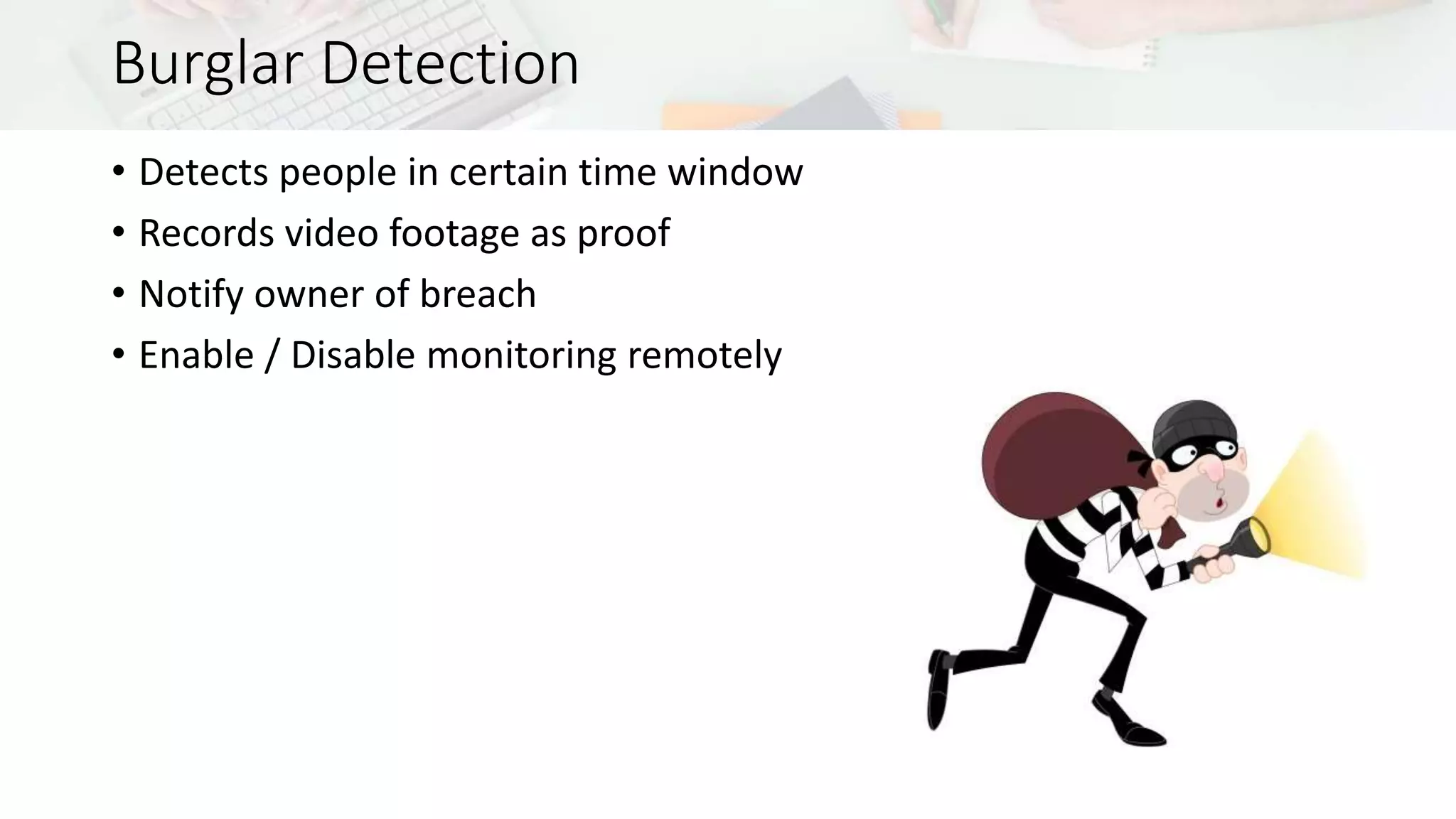

- 59. Burglar Detection •Detects people in certain time window • Records video footage as proof • Notify owner of breach • Enable / Disable monitoring remotely

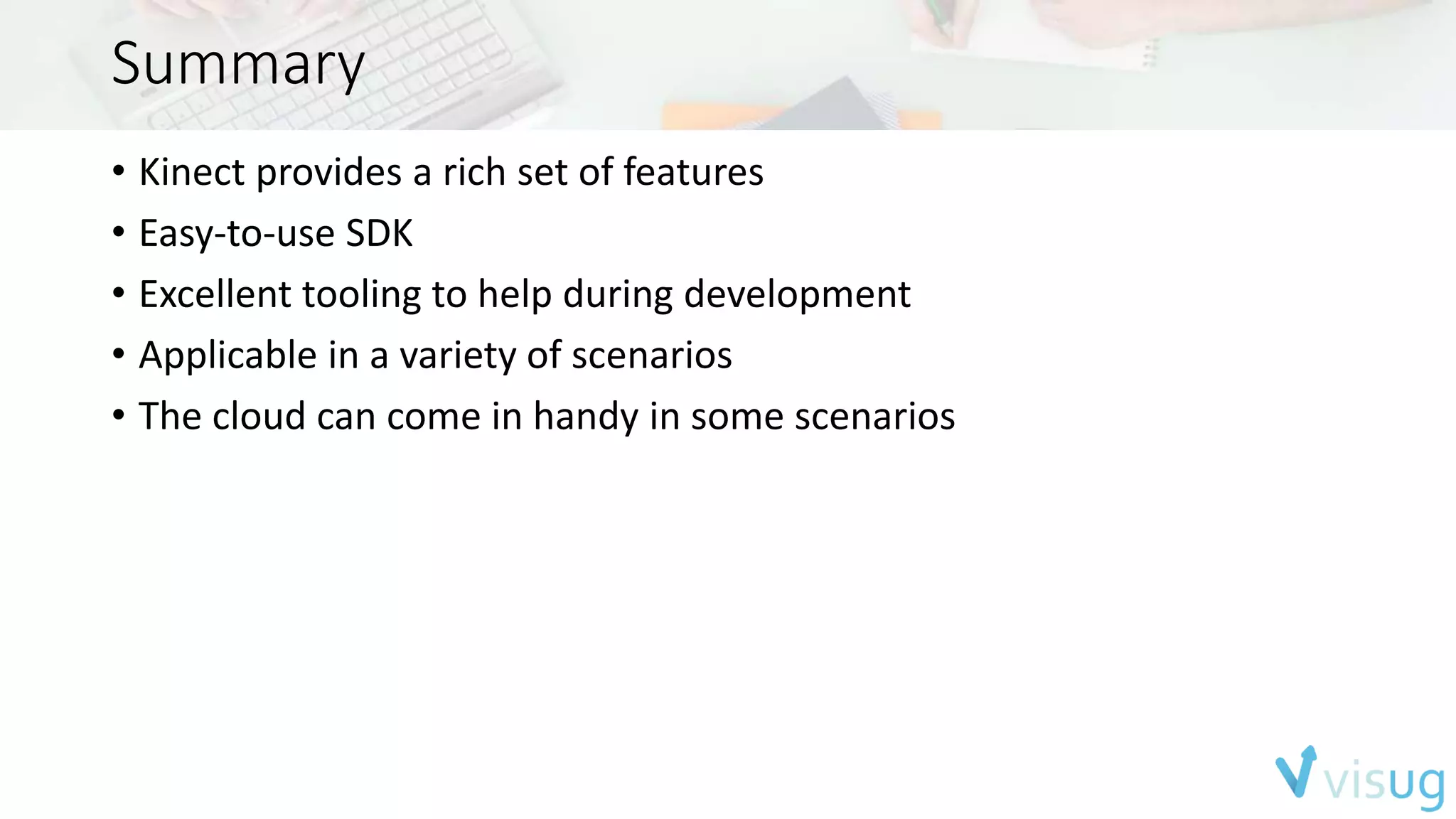

- 60. Summary • Kinectprovides a rich set of features • Easy-to-use SDK • Excellent tooling to help during development • Applicable in a variety of scenarios • The cloud can come in handy in some scenarios
- 61. Thanks for partneringwith Visug!
- 62. Thank you! Contactus via board@visug.be! Follow us via @visug.
