- 2. Topics • The explosion ofBig Data • Data • Social Networks • Technologies • Tools • Projects 2SSIIM, 2019/10/07
- 3. About me 3SSIIM, 2019/10/07 Lic.EE (6 anos) D.Phil. Prof. Assoc. Director Prof. Assoc Signals DSP Multiprocessor systems Biomedical Systems Complex systems Manufacturing systems Multi-agent systems Social systems Networks Lic. EE (6 anos) D.Phil. Prof. Assoc. Director Prof. AssocLic. EE (6 anos) D.Phil. Prof. Assoc. Director Prof. Assoc

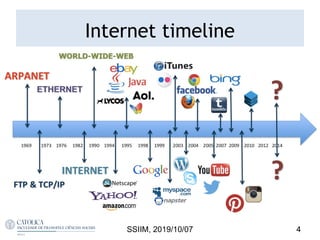

- 4.
- 5. Apollo 11 1969 5SSIIM,2019/10/07
- 6.

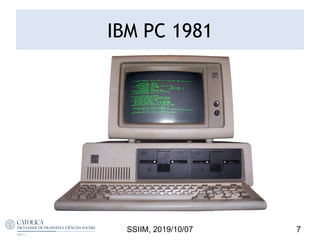

- 7. IBM PC 1981 7SSIIM,2019/10/07

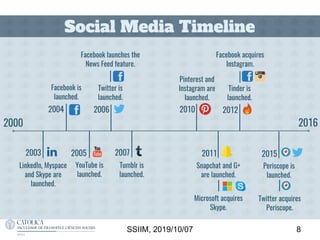

- 8.

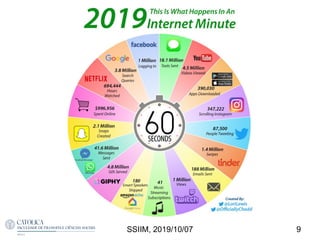

- 9.

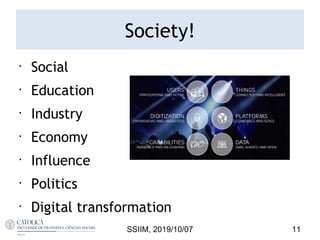

- 10. Networks • Networks are everywhere • Social,biological, financial, etc • Complex networks • Communities • Contagion • Controversies • Society! 10SSIIM, 2019/10/07
- 11.
- 12. Social networks • Like, comment,share, cite • Dating • e-Commerce • Payments • Digital marketing • Political marketing • Crime 12SSIIM, 2019/10/07

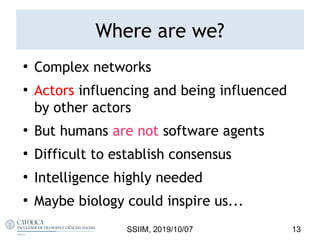

- 13. Where are we? ● Complexnetworks ● Actors influencing and being influenced by other actors ● But humans are not software agents ● Difficult to establish consensus ● Intelligence highly needed ● Maybe biology could inspire us... SSIIM, 2019/10/07 13

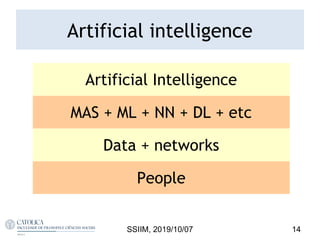

- 14. Artificial intelligence SSIIM, 2019/10/0714 Artificial Intelligence MAS + ML + NN + DL + etc Data + networks People

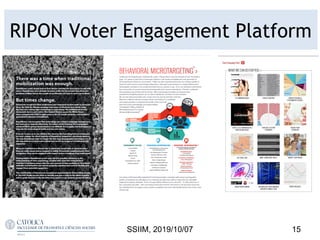

- 15. RIPON Voter EngagementPlatform SSIIM, 2019/10/07 15
- 16.
- 17.

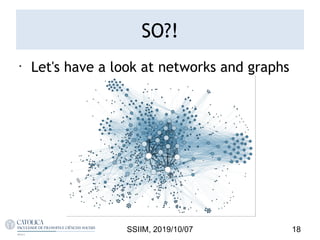

- 18. SO?! SSIIM, 2019/10/07 18 • Let'shave a look at networks and graphs

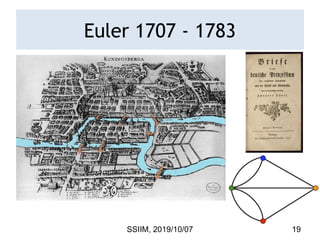

- 19. Euler 1707 -1783 SSIIM, 2019/10/07 19
- 20. Basics of graphsand networks • G = (V, E) • O(G) = |V| order • S(G) = |E| size • A adjacency matrix • Ki degree of vertex i • Directed/undirected SSIIM, 2019/10/07 20

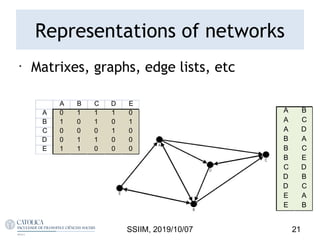

- 21. Representations of networks • Matrixes,graphs, edge lists, etc A B C D E A 0 1 1 1 0 B 1 0 1 0 1 C 0 0 0 1 0 D 0 1 1 0 0 E 1 1 0 0 0 A B A C A D B A B C B E C D D B D C E A E B SSIIM, 2019/10/07 21

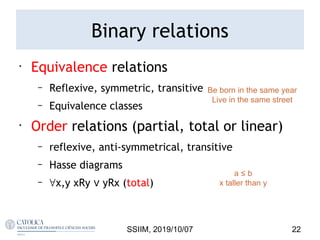

- 22. • Equivalence relations – Reflexive,symmetric, transitive – Equivalence classes • Order relations (partial, total or linear) – reflexive, anti-symmetrical, transitive – Hasse diagrams – ∀x,y xRy ∨ yRx (total) SSIIM, 2019/10/07 22 a ≤ b x taller than y Be born in the same year Live in the same street Binary relations
- 23. 23 Composition of relations AJuventus Wolves City PSV Barcelona Ronaldo 1 0 0 0 0 Moutinho 0 1 0 0 0 0 0 1 0 0 Bernardo 0 0 1 0 0 Bruma 0 0 0 1 0 Rúben 0 1 0 0 0 0 0 0 0 1 (jogador, clube) Cancelo Semedo x B Espanha Juventus 1 0 0 0 Wolves 0 1 0 0 City 0 1 0 0 PSV 0 0 1 0 Barcelona 0 0 0 1 (clube, país) Itália Inglaterra Holanda = AB Espanha Ronaldo 1 0 0 0 Moutinho 0 1 0 0 0 1 0 0 Bernardo 0 1 0 0 Bruma 0 0 1 0 Rúben 0 1 0 0 0 0 0 1 (jogador, país) Itália Inglaterra Holanda Cancelo Semedo SSIIM, 2019/10/07

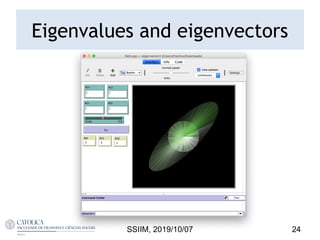

- 24. SSIIM, 2019/10/07 24 Eigenvaluesand eigenvectors

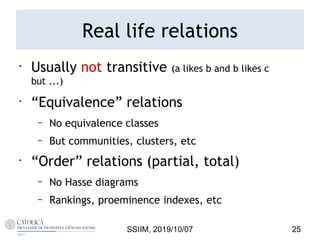

- 25. • Usually not transitive(a likes b and b likes c but ...) • “Equivalence” relations – No equivalence classes – But communities, clusters, etc • “Order” relations (partial, total) – No Hasse diagrams – Rankings, proeminence indexes, etc SSIIM, 2019/10/07 25 Real life relations

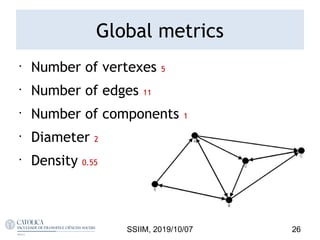

- 26. Global metrics • Number ofvertexes 5 • Number of edges 11 • Number of components 1 • Diameter 2 • Density 0.55 SSIIM, 2019/10/07 26

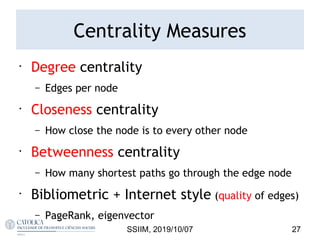

- 27. Centrality Measures • Degree centrality –Edges per node • Closeness centrality – How close the node is to every other node • Betweenness centrality – How many shortest paths go through the edge node • Bibliometric + Internet style (quality of edges) – PageRank, eigenvector 27SSIIM, 2019/10/07

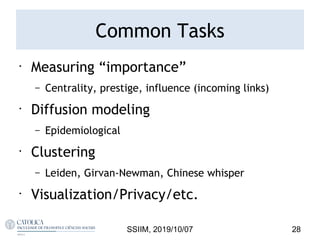

- 28. Common Tasks • Measuring “importance” –Centrality, prestige, influence (incoming links) • Diffusion modeling – Epidemiological • Clustering – Leiden, Girvan-Newman, Chinese whisper • Visualization/Privacy/etc. 28SSIIM, 2019/10/07
- 29. Dynamics • Networks may havea temporal dimension • Interactions – follow, like, share, mention, retweet, hashtag, etc – occur in sequence • Network properties evolve in time SSIIM, 2019/10/07 29
- 30.
- 31.
- 32.

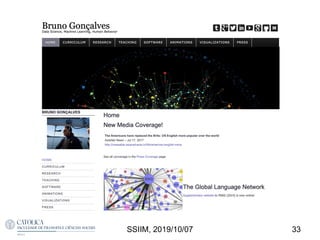

- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42.

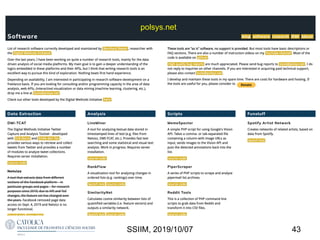

- 43.
- 44.

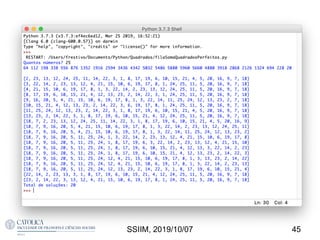

- 45.

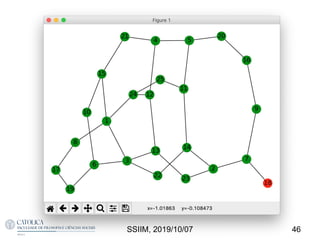

- 46.

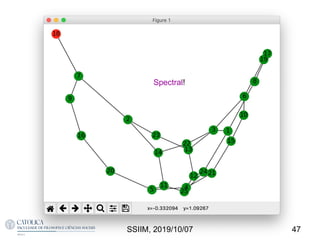

- 47.

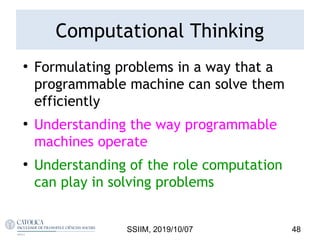

- 48. Computational Thinking ● Formulating problemsin a way that a programmable machine can solve them efficiently ● Understanding the way programmable machines operate ● Understanding of the role computation can play in solving problems SSIIM, 2019/10/07 48

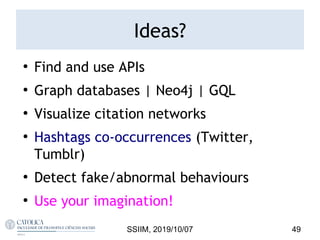

- 49. Ideas? ● Find and useAPIs ● Graph databases | Neo4j | GQL ● Visualize citation networks ● Hashtags co-occurrences (Twitter, Tumblr) ● Detect fake/abnormal behaviours ● Use your imagination! SSIIM, 2019/10/07 49
