JUDCon Brazil 2013 - Vert.x an introduction

Vert.x, an Introduction
Clebert Suconic
Samuel Tauil

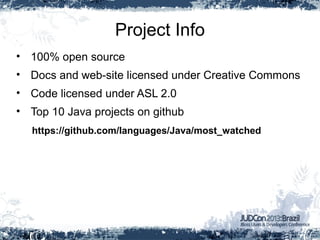

Project Info
• 100% open source
• Docs and web-site licensed under Creative Commons
• Code licensed under ASL 2.0
• Top 10 Java projects on github
https://github.com/languages/Java/most_watched

What is Vert.x?
• General purpose application platform
• VMware sponsored OS project
• Runs on the JVM
• Provides primarily asynchronous APIs
• Popular for modern web applications
• Solves similar problems as Node.js, Akka, Play…

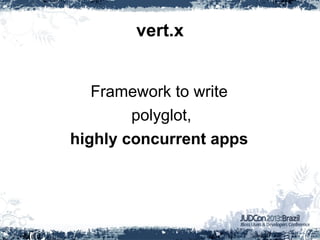

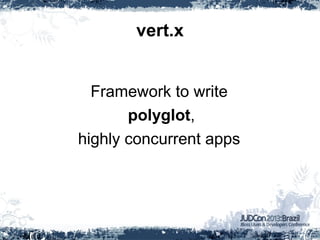

vert.x
Framework to write
polyglot,
highly concurrent apps

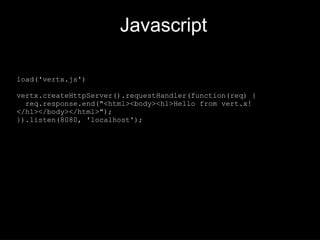

Javascript
load('vertx.js')
vertx.createHttpServer().requestHandler(function(req) {
req.response.end("<html><body><h1>Hello from vert.x!
</h1></body></html>");
}).listen(8080, 'localhost');

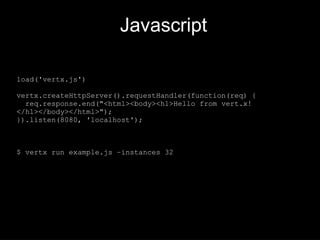

Javascript
load('vertx.js')
vertx.createHttpServer().requestHandler(function(req) {
</h1></body></html>");
}).listen(8080, 'localhost');
$ vertx run example.js –instances 32

Groovy
vertx.createHttpServer().requestHandler { req ->
req.response.end "<html><body><h1>Hello from vert.x!
</h1></body></html>"
}.listen(8080, "localhost")
$ vertx run example.groovy

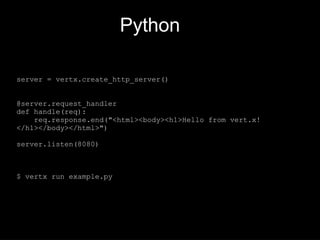

Python
server = vertx.create_http_server()
@server.request_handler
def handle(req):
</h1></body></html>")
server.listen(8080)
$ vertx run example.py

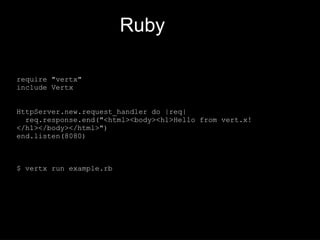

Ruby
require "vertx"
include Vertx
HttpServer.new.request_handler do |req|
</h1></body></html>")
end.listen(8080)
$ vertx run example.rb

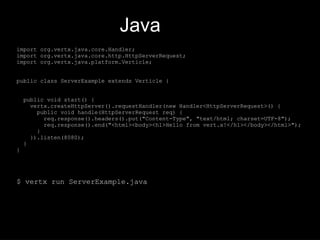

Java
import org.vertx.java.core.Handler;
import org.vertx.java.core.http.HttpServerRequest;
import org.vertx.java.platform.Verticle;
public class ServerExample extends Verticle {
public void start() {
vertx.createHttpServer().requestHandler(new Handler<HttpServerRequest>() {
public void handle(HttpServerRequest req) {
req.response().headers().put("Content-Type", "text/html; charset=UTF-8");
req.response().end("<html><body><h1>Hello from vert.x!</h1></body></html>");
}
}).listen(8080);
}
}
$ vertx run ServerExample.java

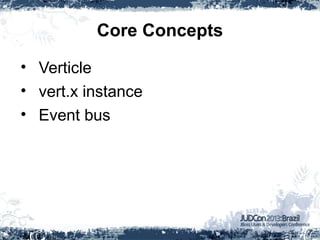

Core Concepts
• Verticle
• vert.x instance
• Event bus

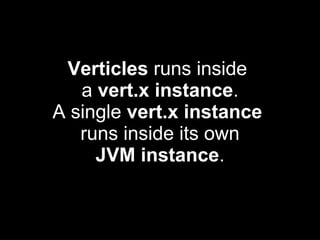

Verticles runs inside
a vert.x instance.
A single vert.x instance
runs inside its own
JVM instance.

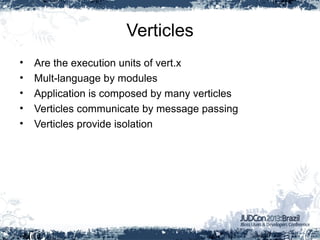

Verticles
• Are the execution units of vert.x
• Mult-language by modules
• Application is composed by many verticles
• Verticles communicate by message passing
• Verticles provide isolation

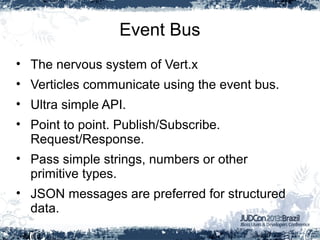

Event Bus
• The nervous system of Vert.x
• Verticles communicate using the event bus.
• Ultra simple API.
• Point to point. Publish/Subscribe.
Request/Response.
• Pass simple strings, numbers or other
primitive types.
• JSON messages are preferred for structured
data.

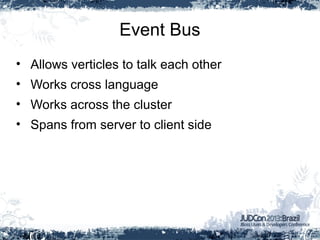

Event Bus
• Allows verticles to talk each other
• Works cross language
• Works across the cluster
• Spans from server to client side

Event Bus
• Register Handlers
• Unregister Handlers
• Addresses
• Messages (transient)

load('vertx.js')
var eb = vertx.eventBus;
var address = 'example.address'
var handler = function(message) {
stdout.println('Received message ' + message)
}
eb.registerHandler(address, handler);
function vertxStop() {
eb.unregisterHandler(address, handler);
}
Handler

load('vertx.js')
var eb = vertx.eventBus;
var address = 'example.address’
vertx.setPeriodic(2000, sendMessage)
var count = 0
function sendMessage() {
var msg = "some-message-" + count++;
eb.send(address, msg);
stdout.println("sent message " + msg)
}
Sender

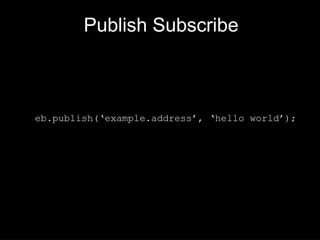

Publish Subscribe
eb.publish(‘example.address’, ‘hello world’);

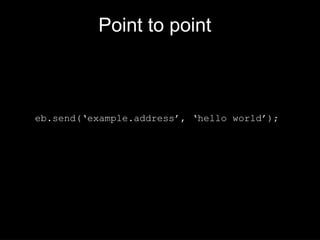

Point to point
eb.send(‘example.address’, ‘hello world’);

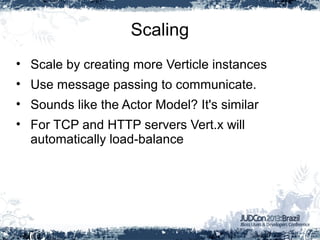

Scaling
• Scale by creating more Verticle instances
• Use message passing to communicate.
• Sounds like the Actor Model? It's similar
• For TCP and HTTP servers Vert.x will
automatically load-balance

SockJS
• Handles the communication between the
browser and the server.
• Provides a websocket-like API in client-side JS
• Works when websockets not available
• More info at http://sockjs.org

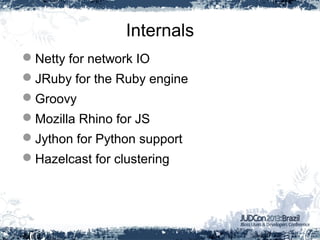

Internals
Netty for network IO
JRuby for the Ruby engine
Groovy
Mozilla Rhino for JS
Jython for Python support
Hazelcast for clustering

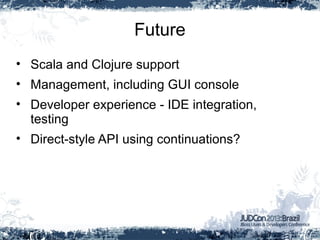

Future
• Scala and Clojure support
• Management, including GUI console
• Developer experience - IDE integration,
testing
• Direct-style API using continuations?

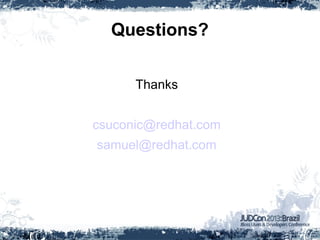

Questions?
Thanks
csuconic@redhat.com
samuel@redhat.com
