Vert.x is an asynchronous and event-driven framework that allows for highly scalable applications. It uses a multi-reactor pattern with a thread pool sized to the number of cores to avoid blocking and enable asynchronous programming. Applications are built as independent vertices that communicate asynchronously through a distributed event bus. This approach allows Vert.x applications to easily scale across multiple servers in a cluster to handle large numbers of concurrent connections from millions of devices.

1. vert.x
Bartek Zdanowski
TouK

2. vert.x
@BartekZdanowski
Bartek Zdanowski
● developer @ TouK
● co-organizer of Confitura conference
● Warszawa JUG member
● father and husband :)

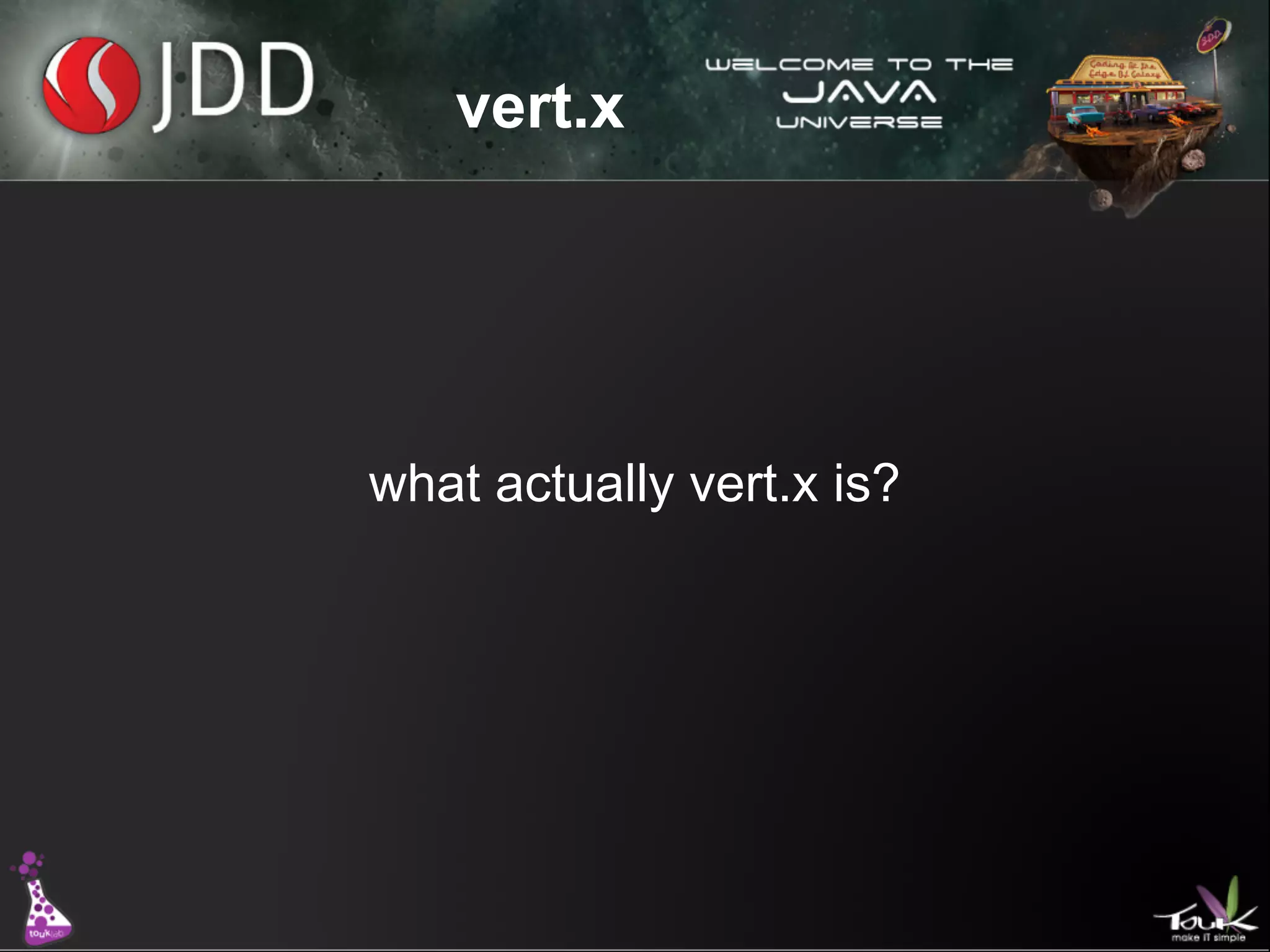

3. vert.x
what actually vert.x is?

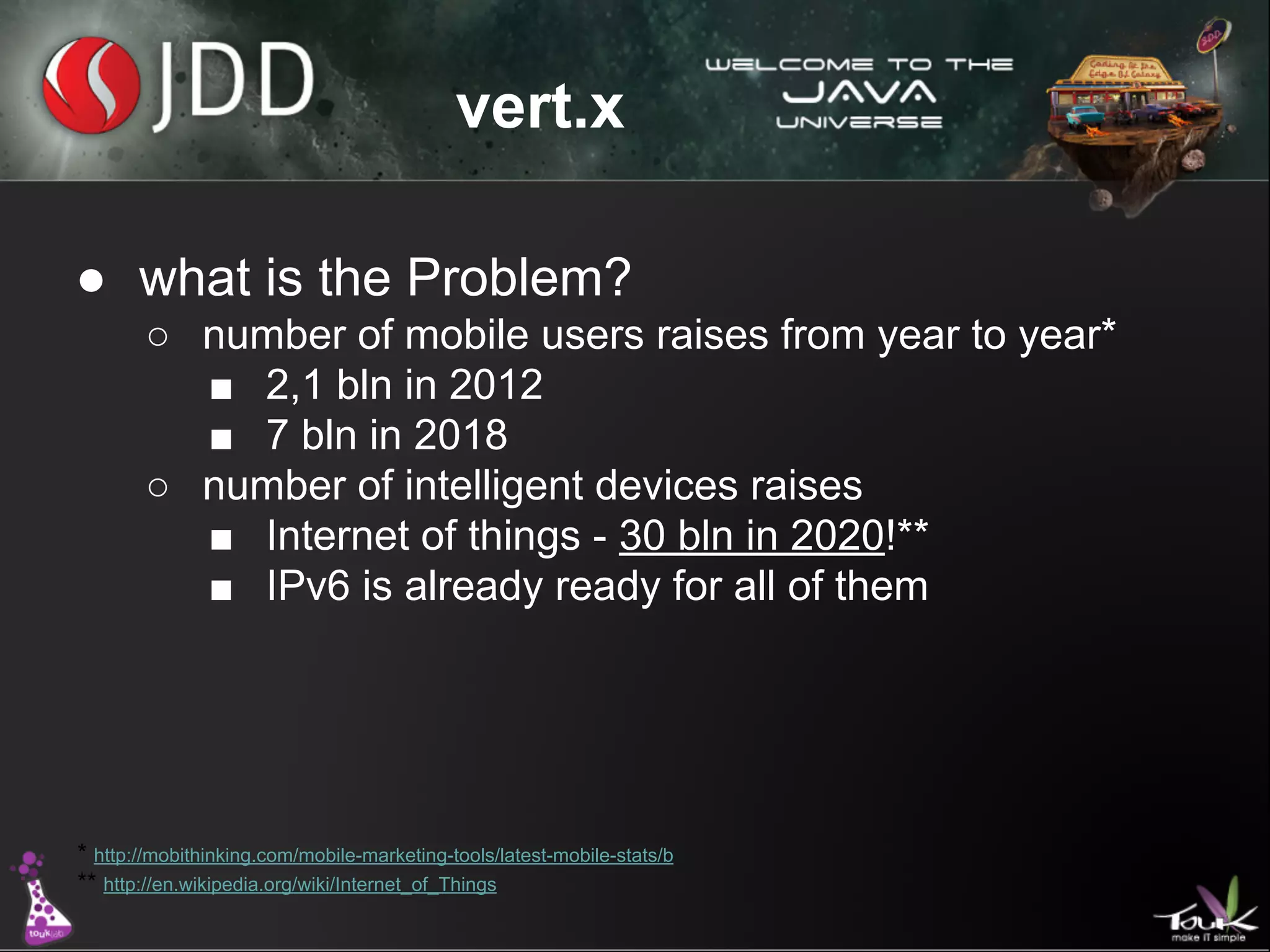

4. vert.x
● what is the Problem?
○ number of mobile users raises from year to year*
■ 2,1 bln in 2012
■ 7 bln in 2018
○ number of intelligent devices raises
■ Internet of things - 30 bln in 2020!**
■ IPv6 is already ready for all of them
* http://mobithinking.com/mobile-marketing-tools/latest-mobile-stats/b
** http://en.wikipedia.org/wiki/Internet_of_Things

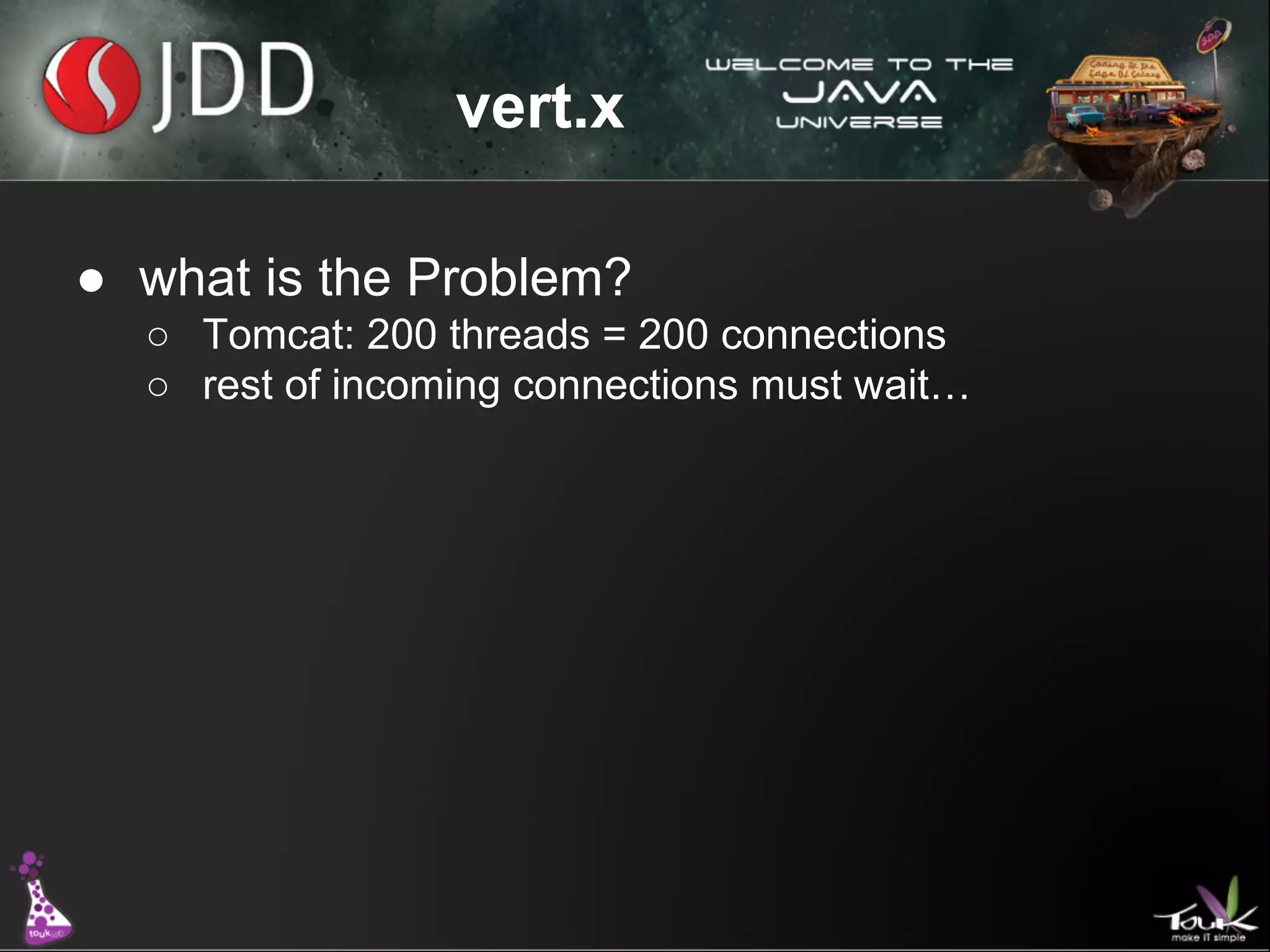

5. vert.x
● what is the Problem?
○ Tomcat: 200 threads = 200 connections
○ rest of incoming connections must wait…

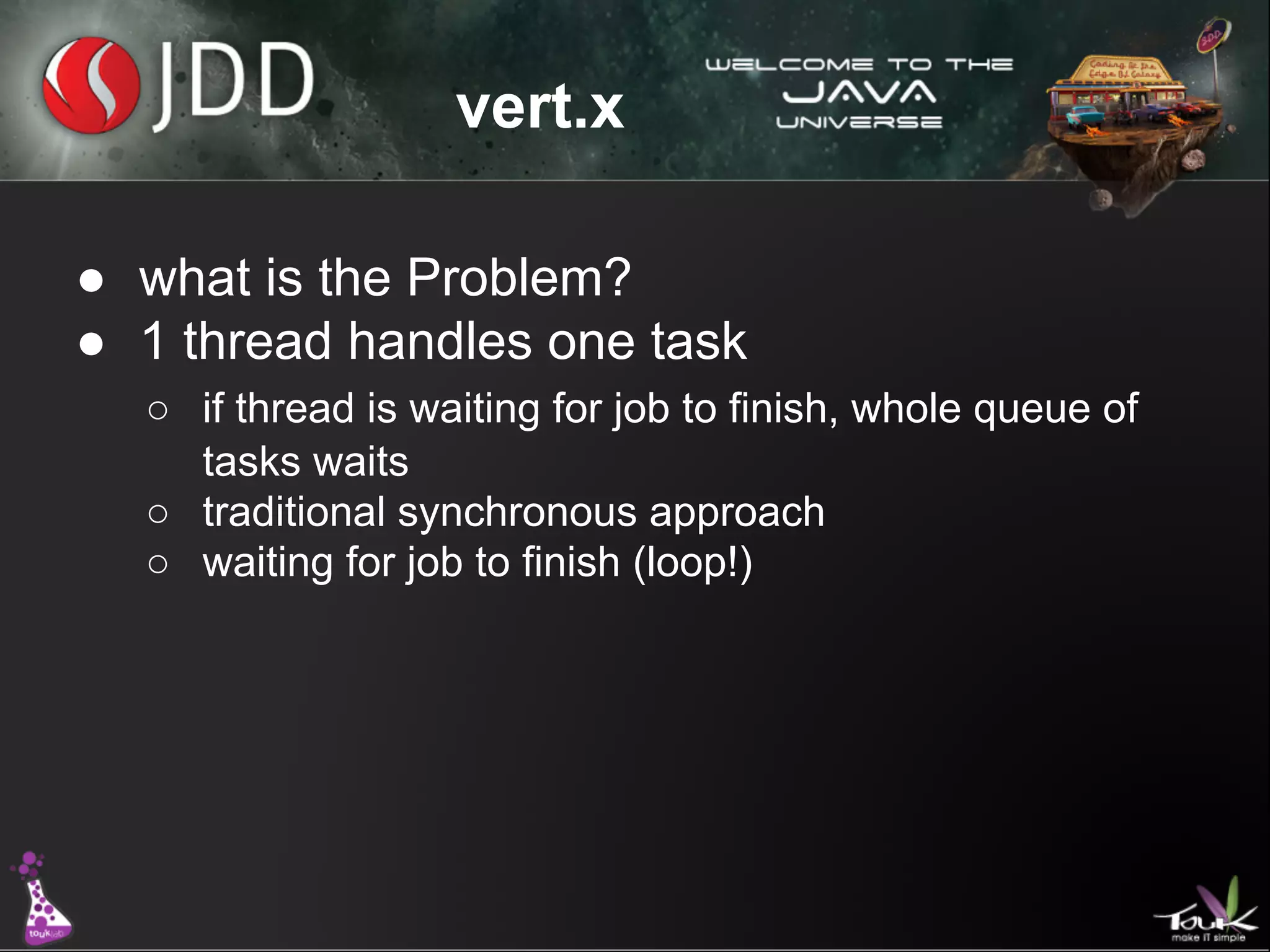

6. vert.x
● what is the Problem?
● 1 thread handles one task
○ if thread is waiting for job to finish, whole queue of
tasks waits
○ traditional synchronous approach
○ waiting for job to finish (loop!)

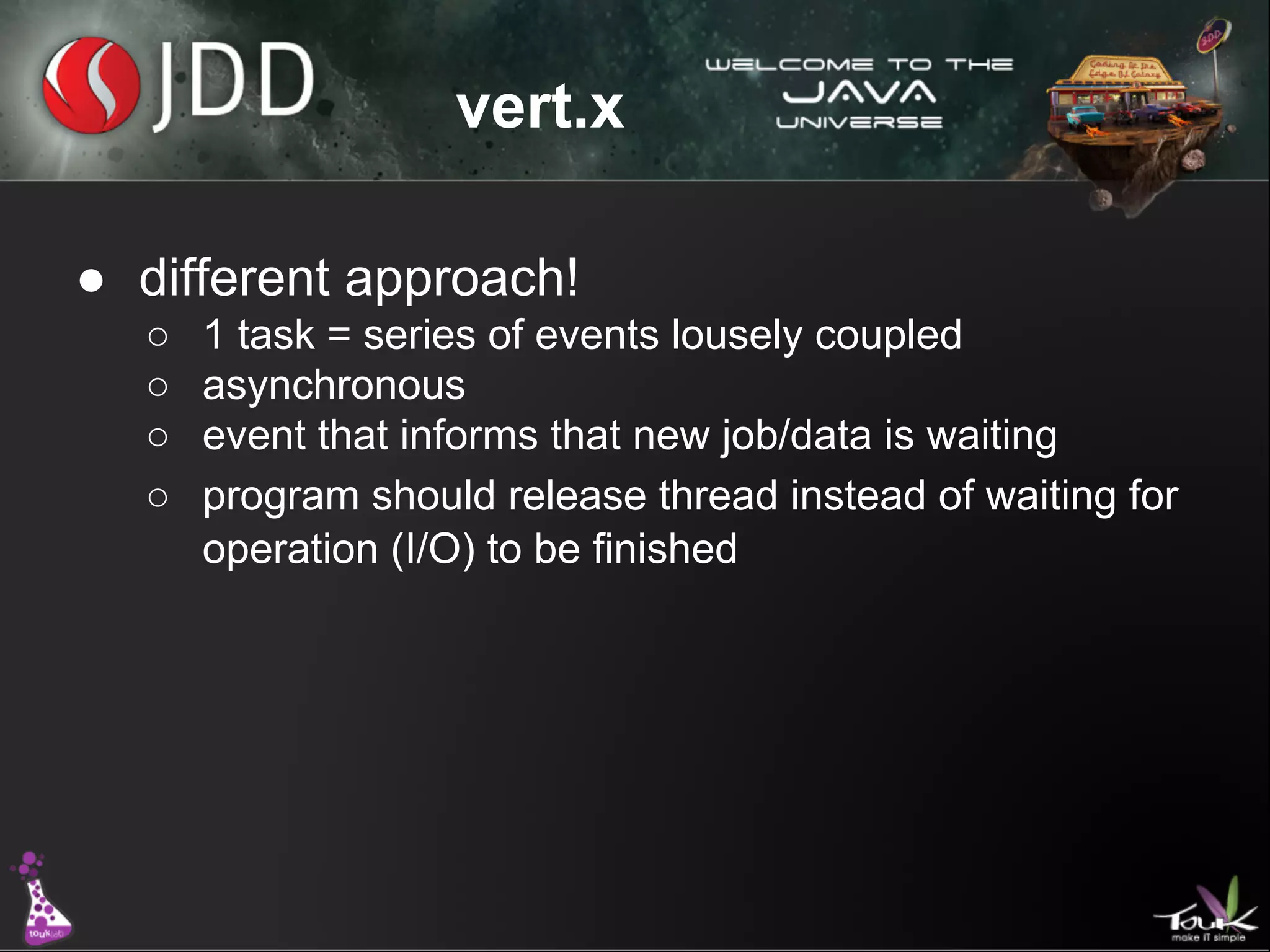

7. vert.x
● different approach!
○
○
○
○
1 task = series of events lousely coupled
asynchronous
event that informs that new job/data is waiting
program should release thread instead of waiting for
operation (I/O) to be finished

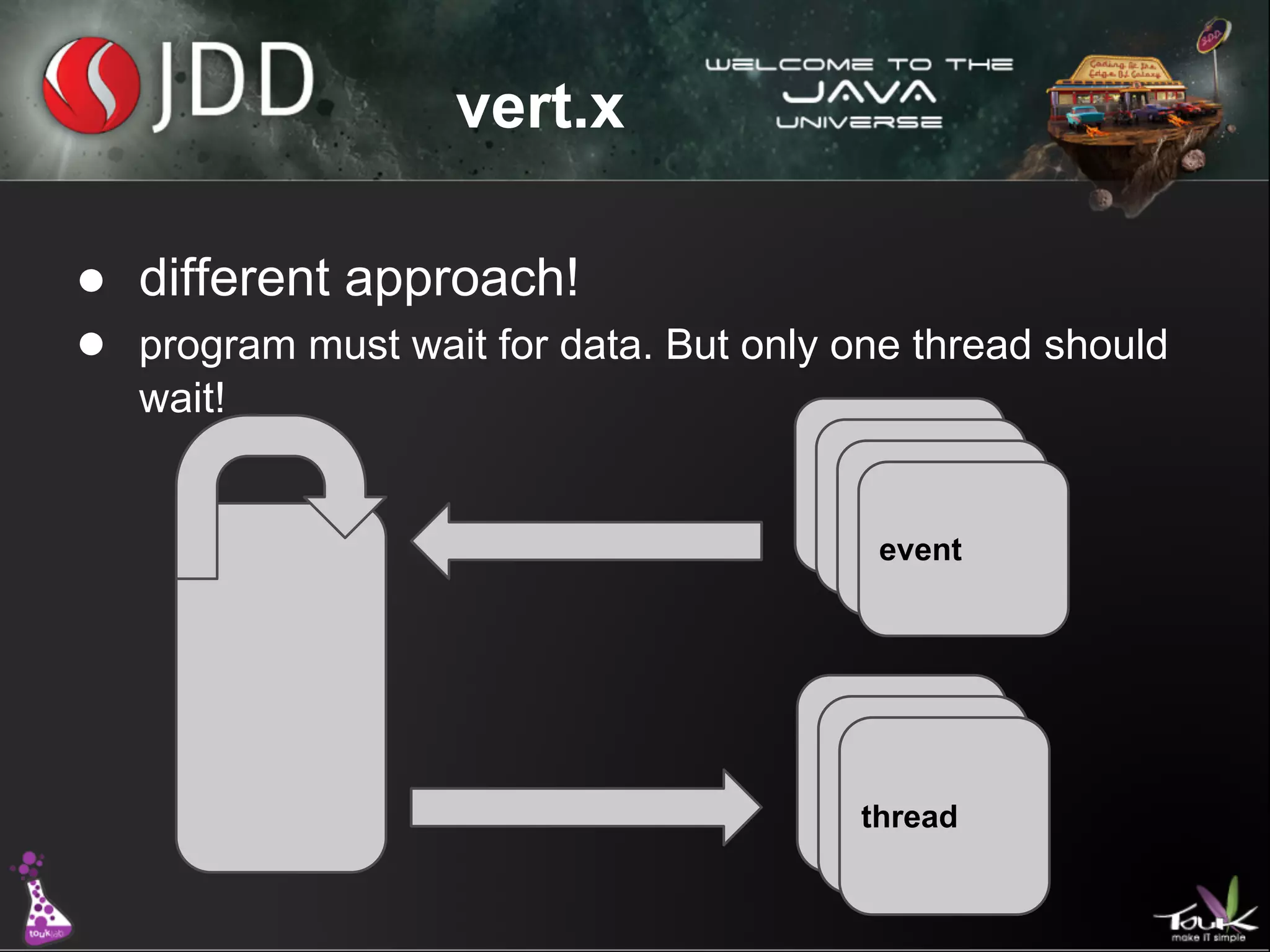

8. vert.x
● different approach!
● program must wait for data. But only one thread should
wait!
event
thread

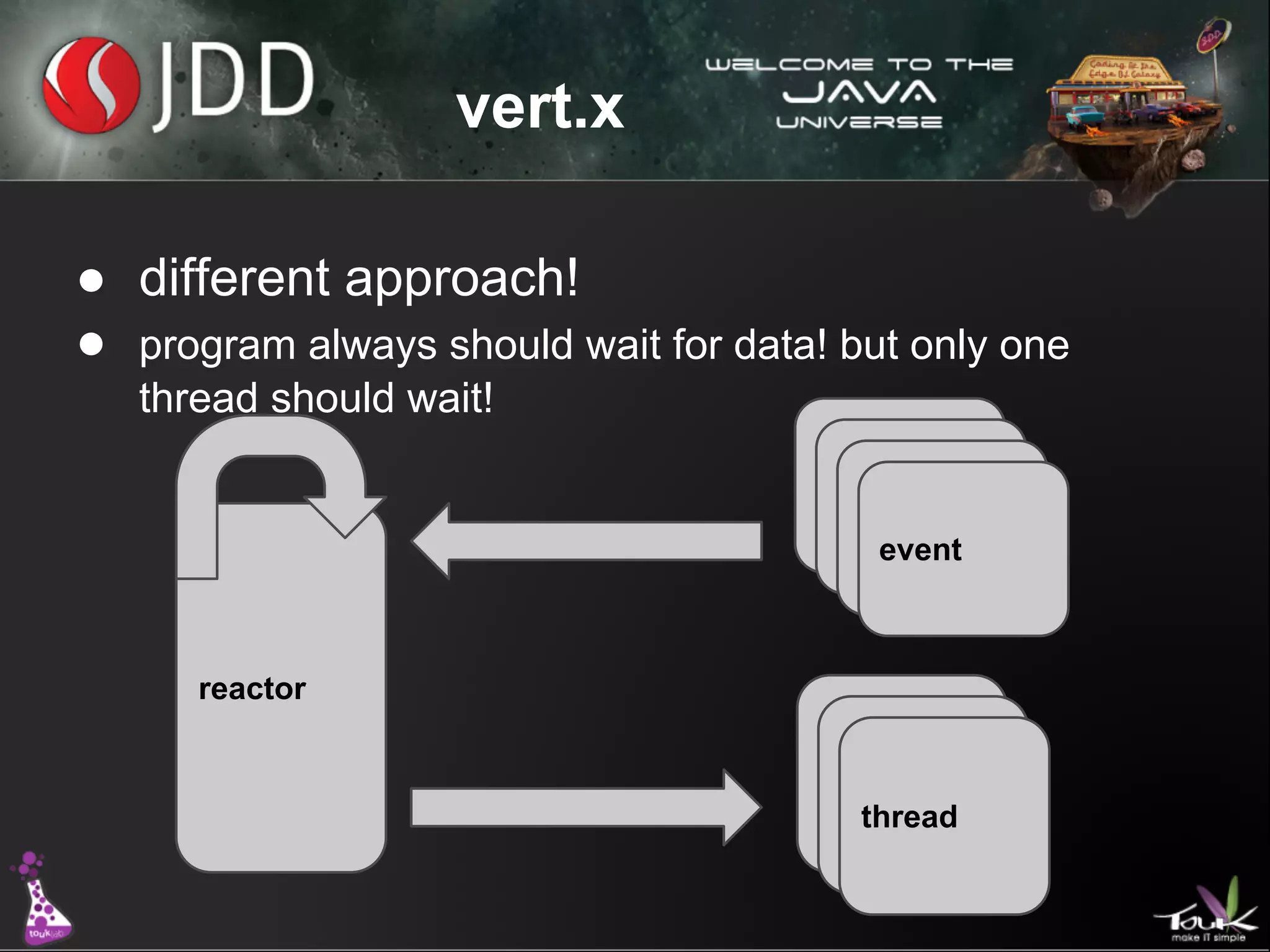

9. vert.x
● different approach!
● program always should wait for data! but only one
thread should wait!
event
reactor
thread

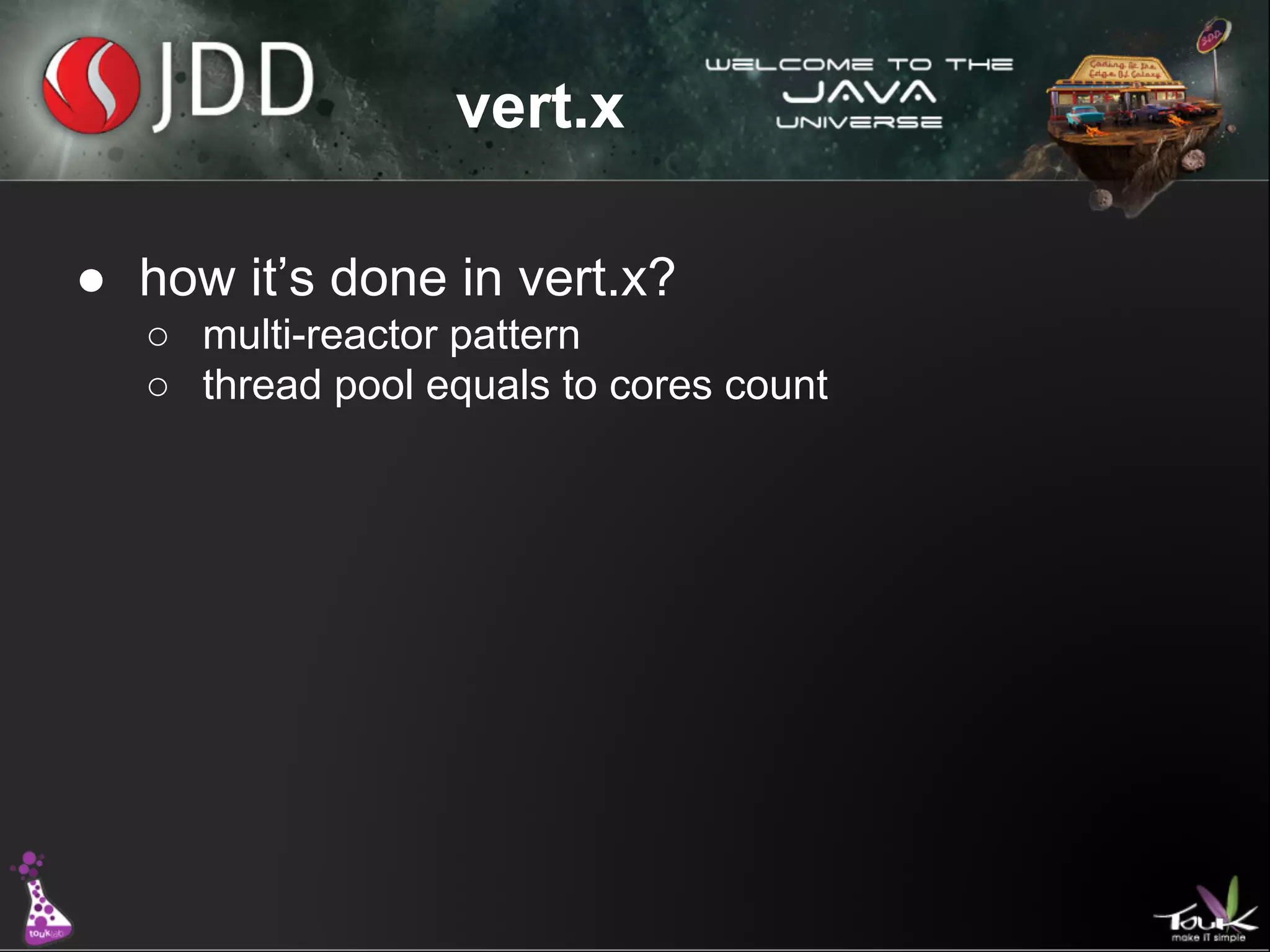

10. vert.x
● how it’s done in vert.x?
○ multi-reactor pattern
○ thread pool equals to cores count

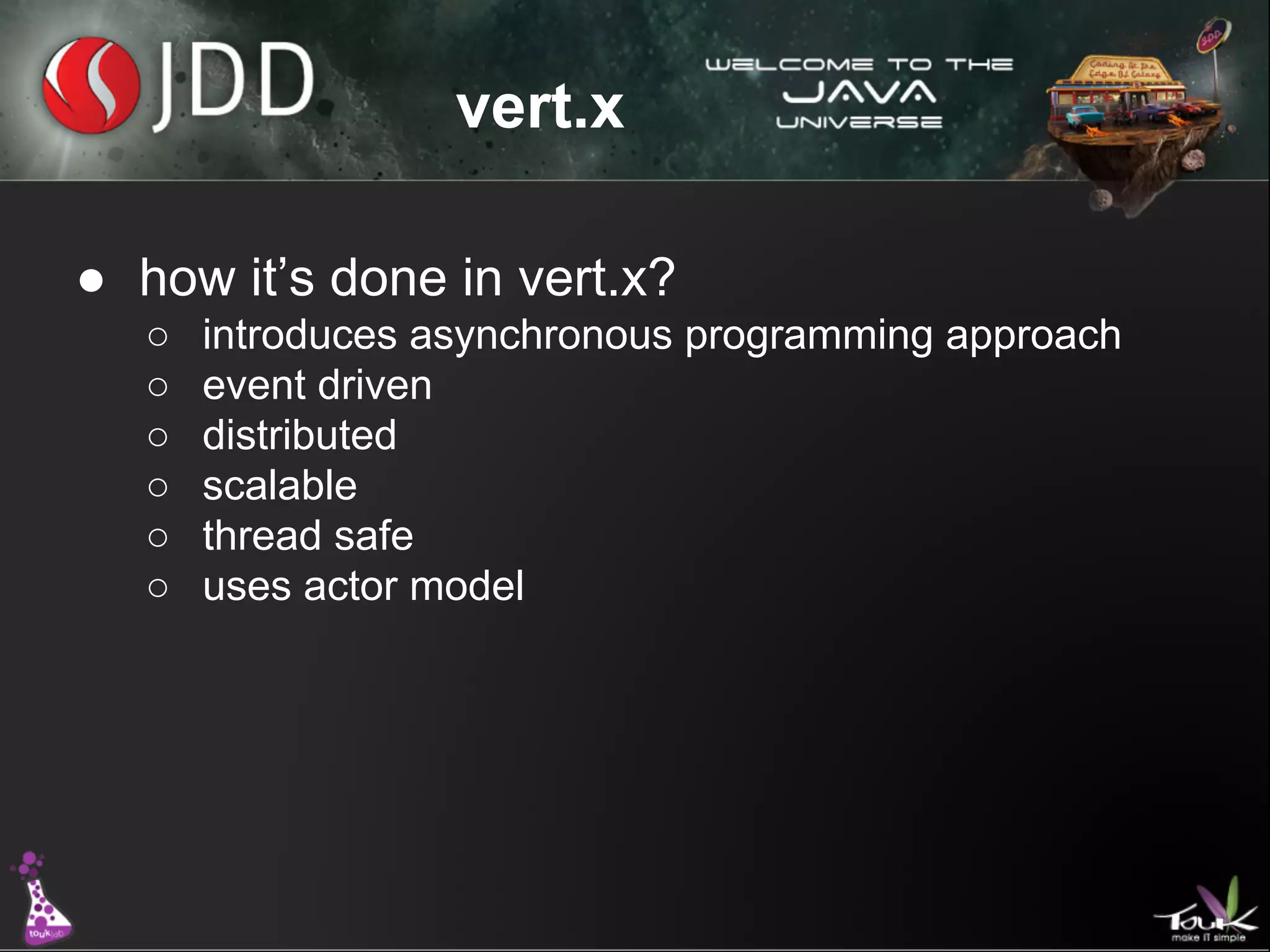

11. vert.x
● how it’s done in vert.x?
○
○
○
○
○
○
introduces asynchronous programming approach
event driven
distributed
scalable
thread safe
uses actor model

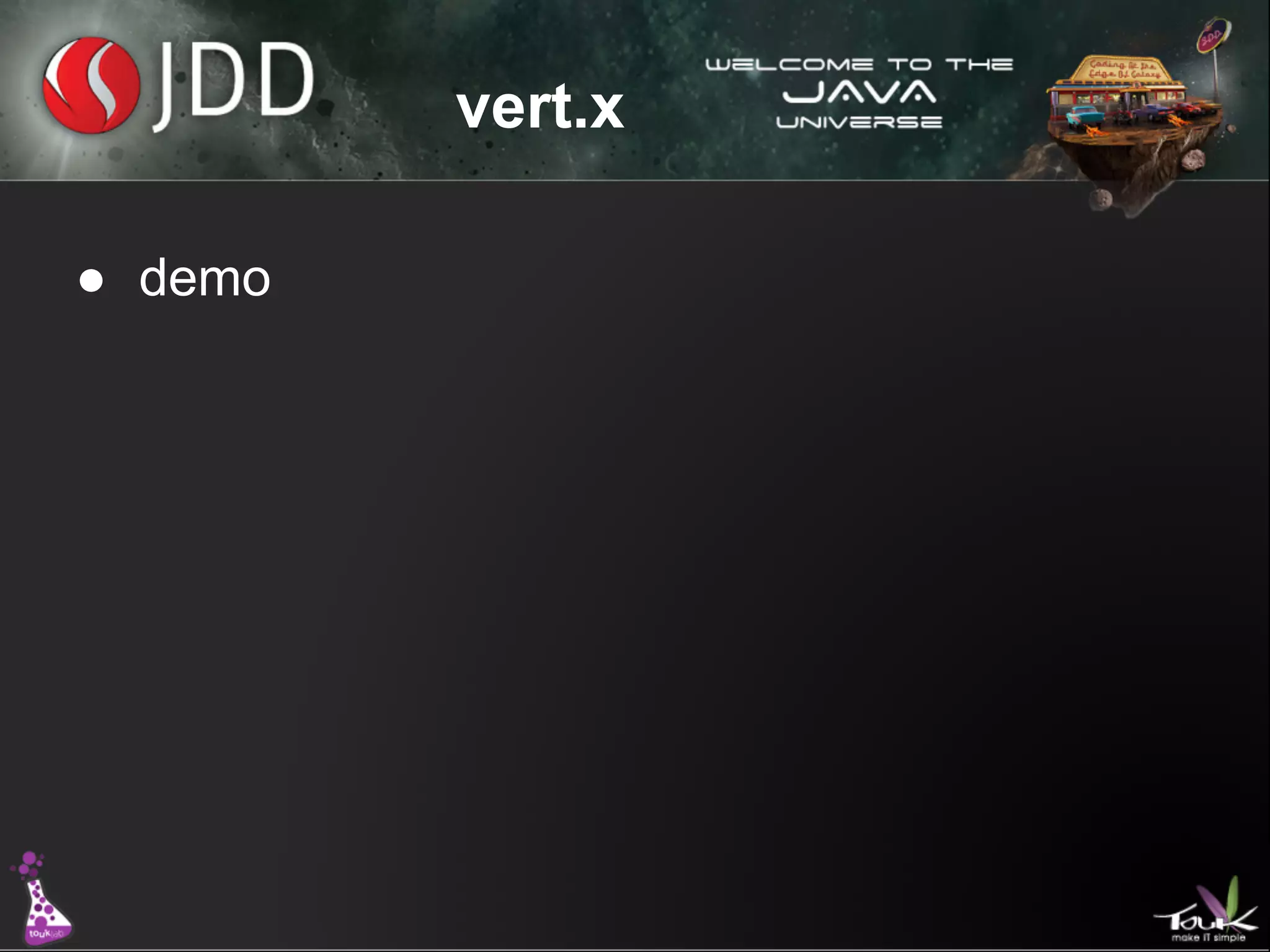

12. vert.x
● demo

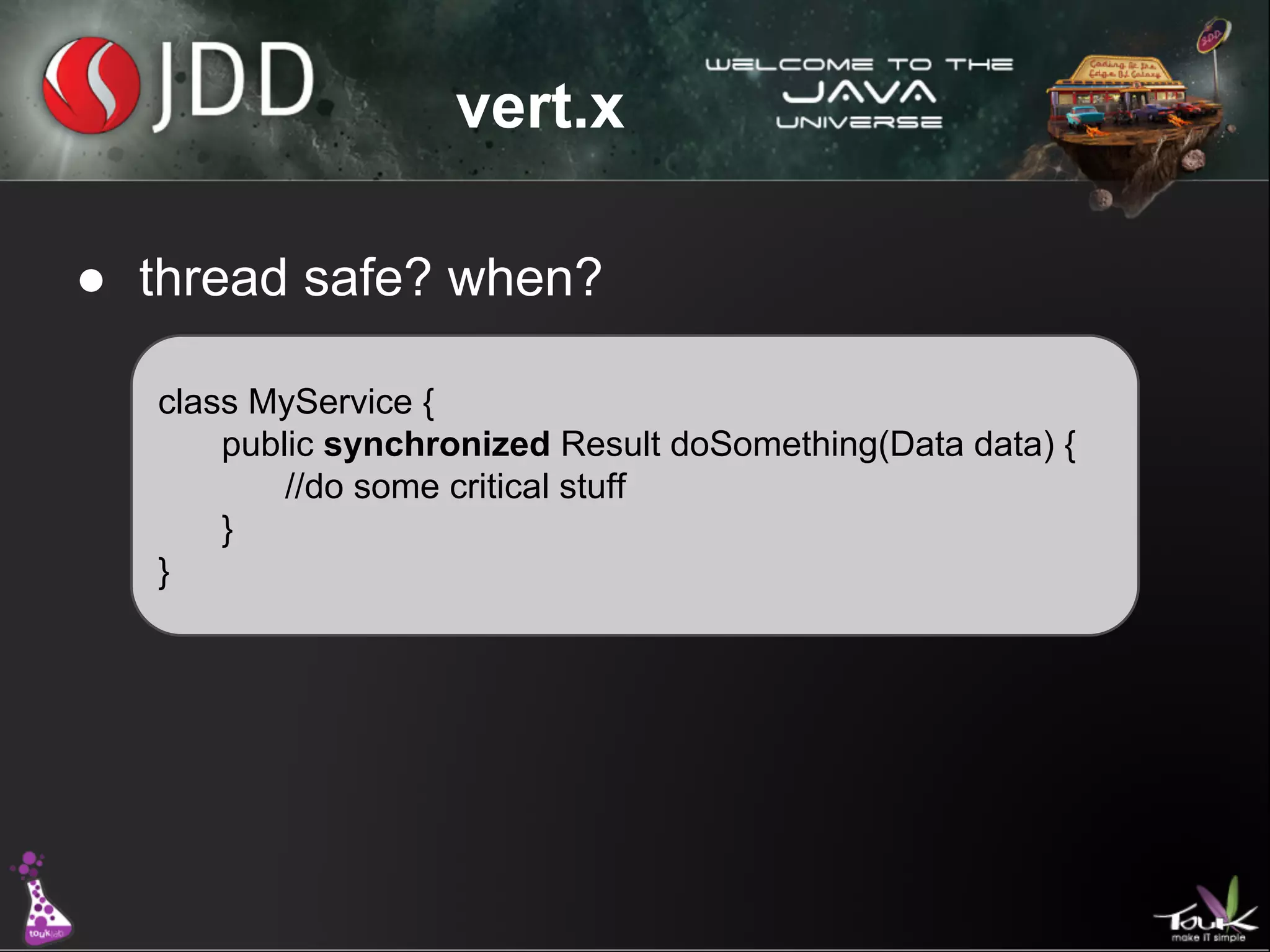

13. vert.x
● thread safe? when?
class MyService {
public synchronized Result doSomething(Data data) {
//do some critical stuff
○
}
}

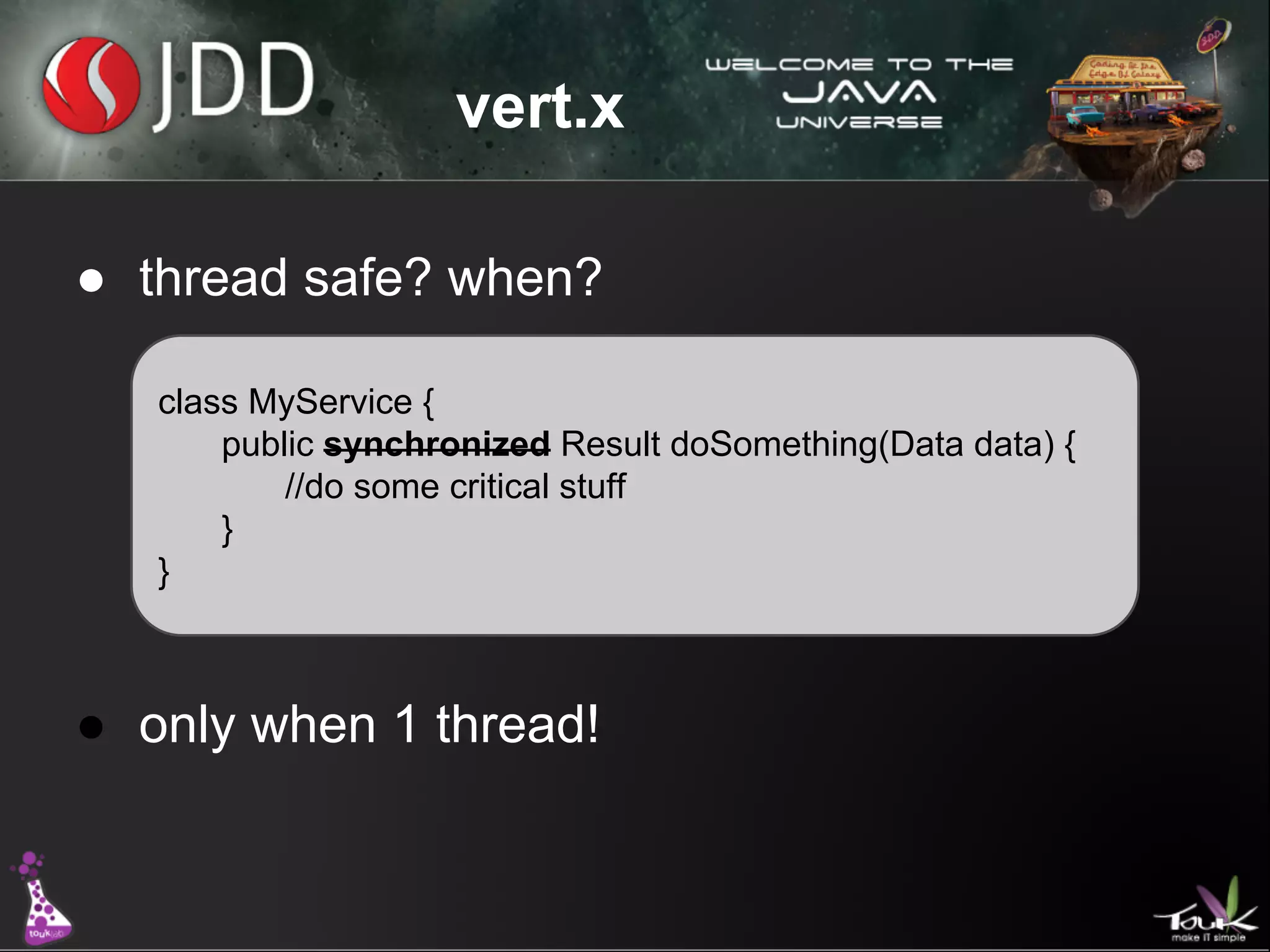

14. vert.x
● thread safe? when?
class MyService {
public synchronized Result doSomething(Data data) {
//do some critical stuff
}
}
● only when 1 thread!

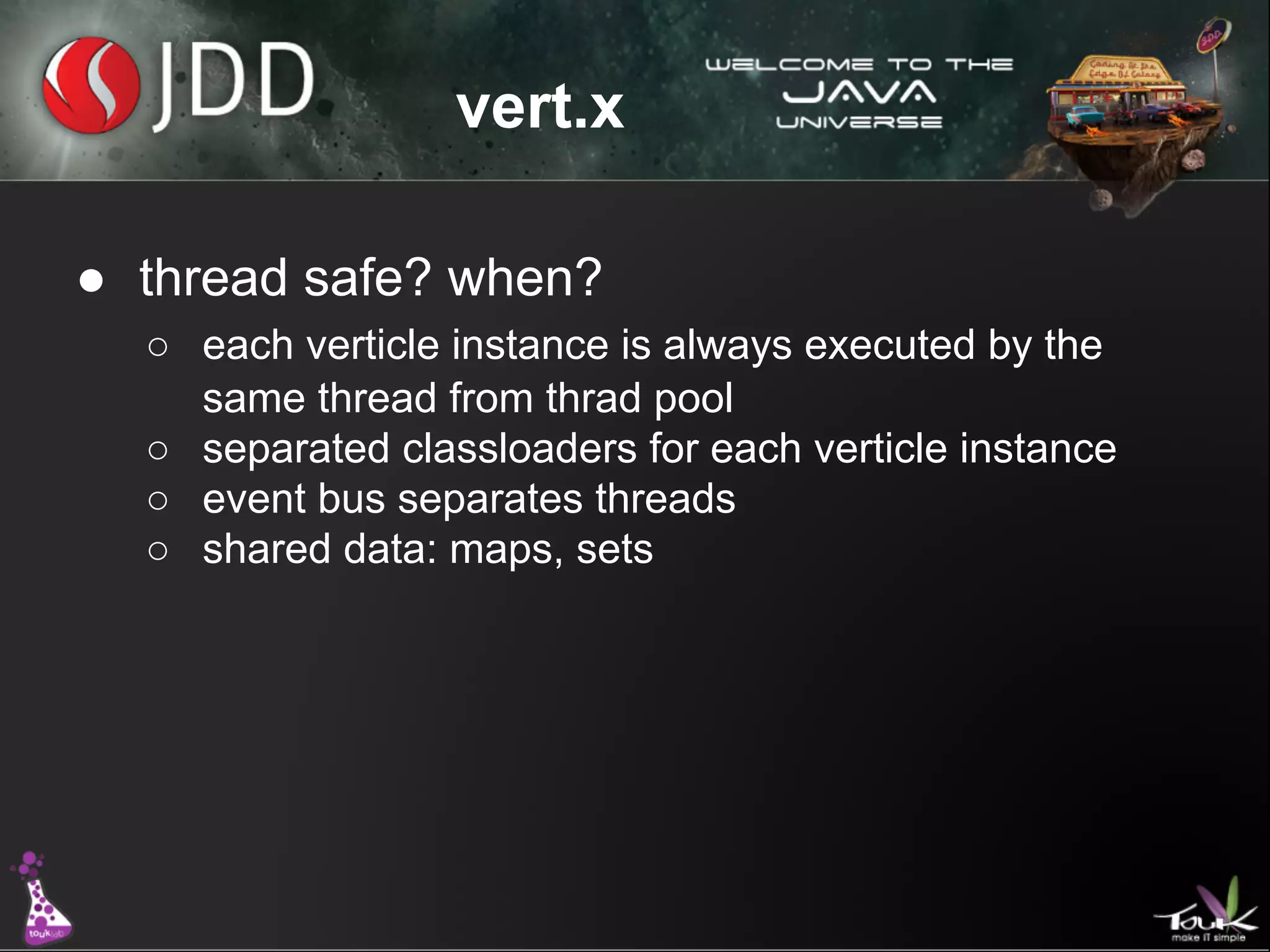

15. vert.x
● thread safe? when?
○ each verticle instance is always executed by the
same thread from thrad pool
○ separated classloaders for each verticle instance
○ event bus separates threads
○ shared data: maps, sets

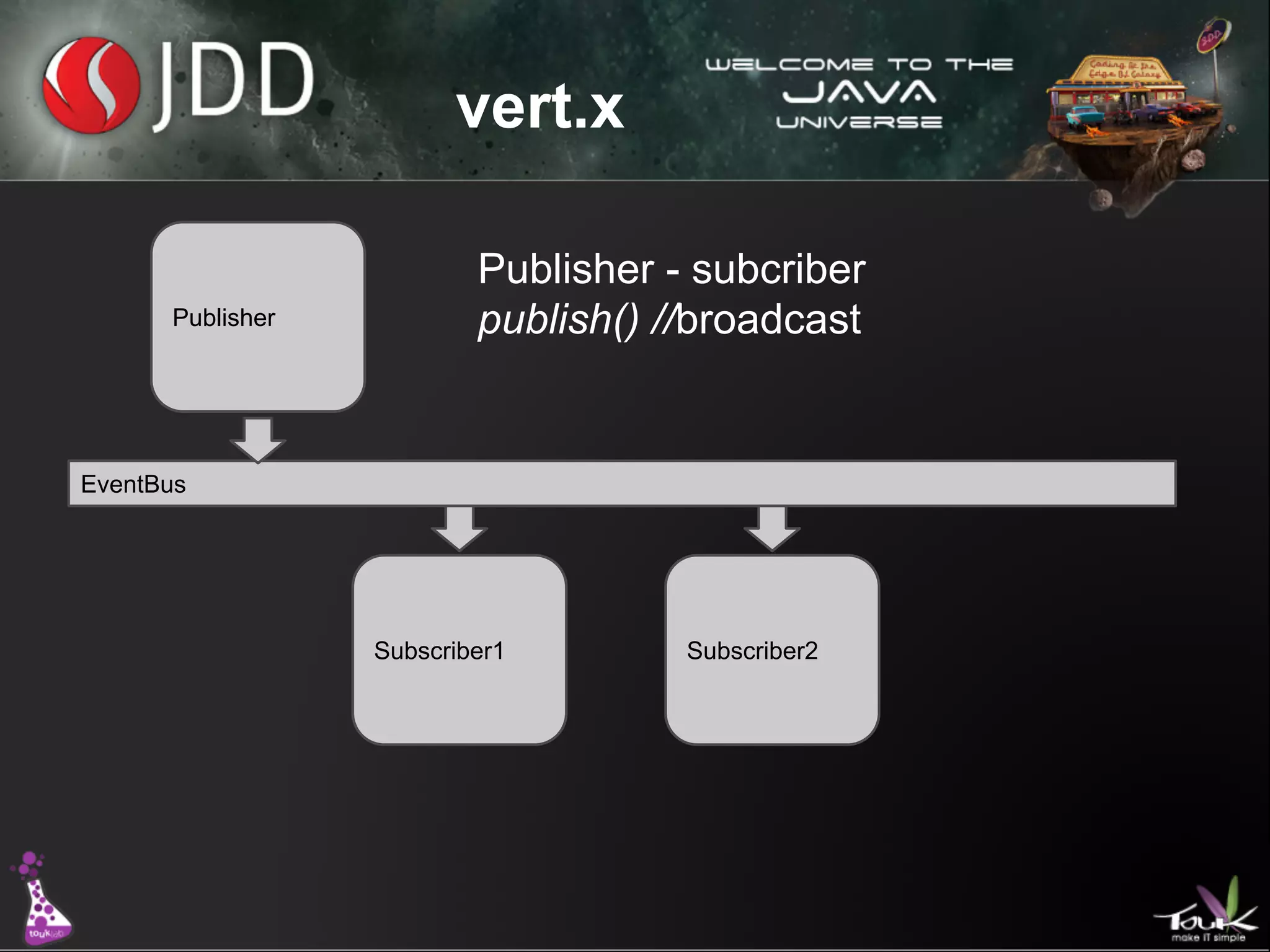

16. vert.x
Publisher
Publisher - subcriber
publish() //broadcast
EventBus
Subscriber1
Subscriber2

17. vert.x
Publisher
Publisher - subcriber
send() //point-to-point
EventBus
Subscriber1
Subscriber2

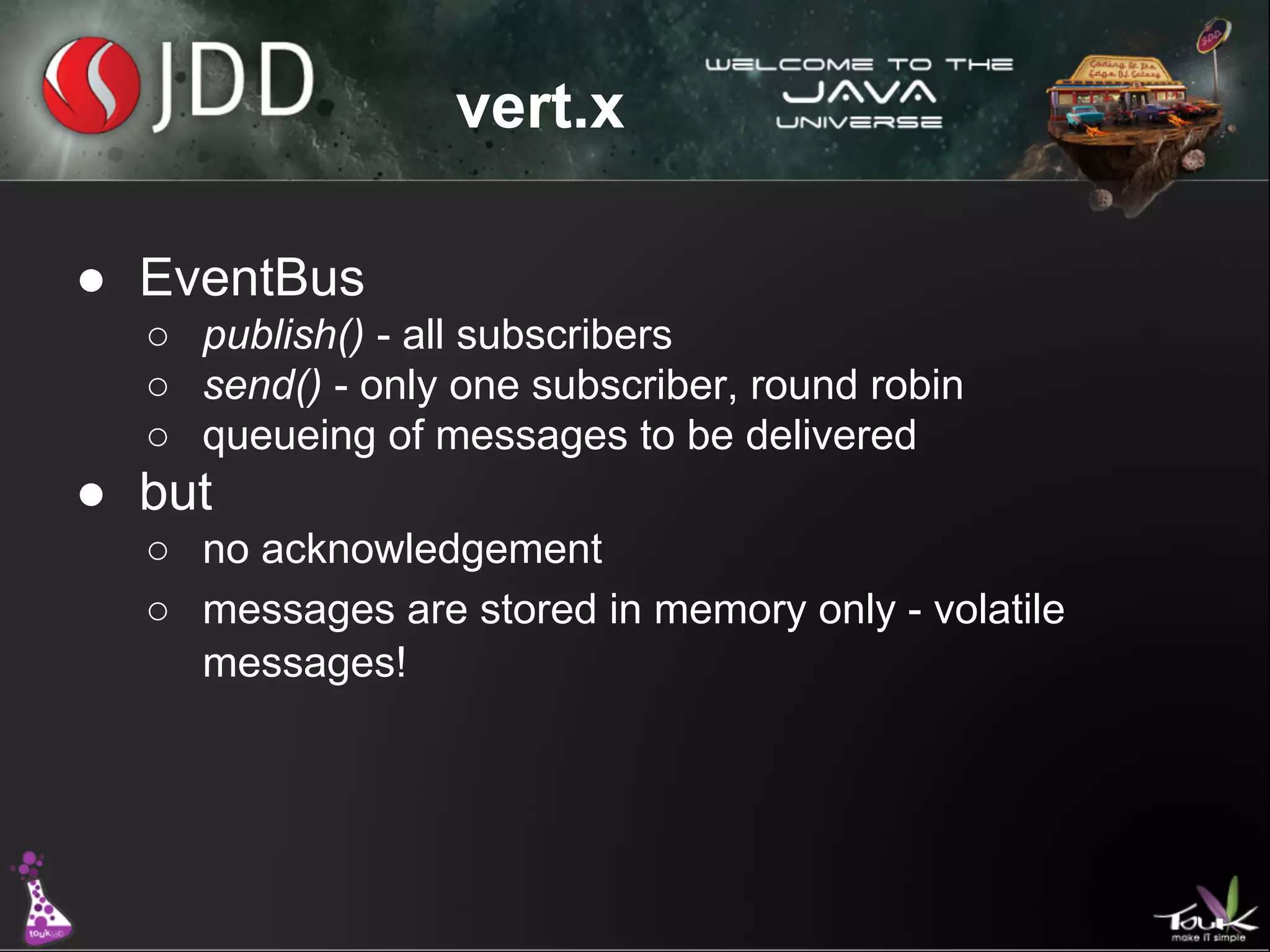

18. vert.x
● EventBus
○ publish() - all subscribers
○ send() - only one subscriber, round robin
○ queueing of messages to be delivered
● but
○ no acknowledgement
○ messages are stored in memory only - volatile
messages!

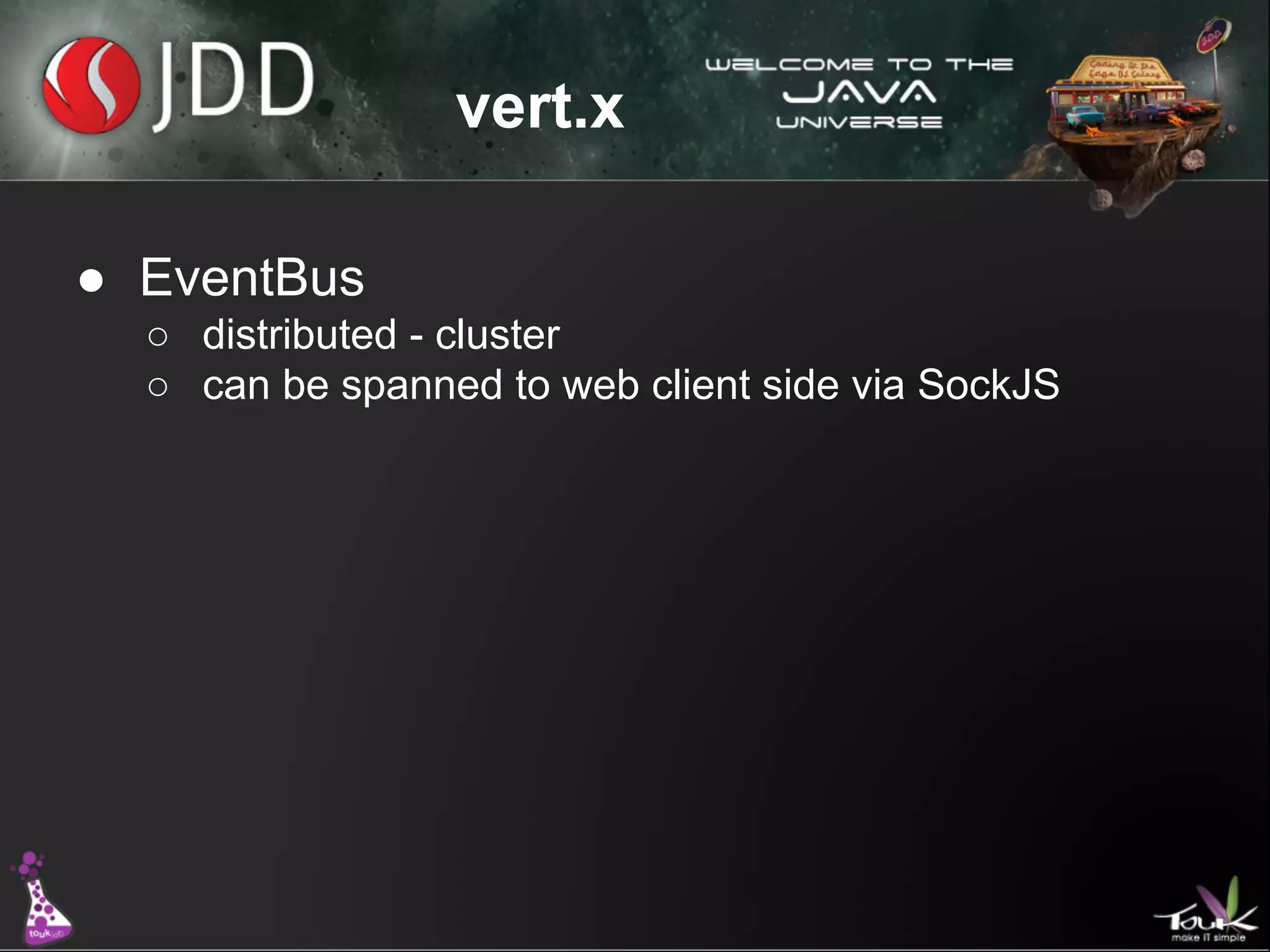

19. vert.x
● EventBus
○ distributed - cluster
○ can be spanned to web client side via SockJS

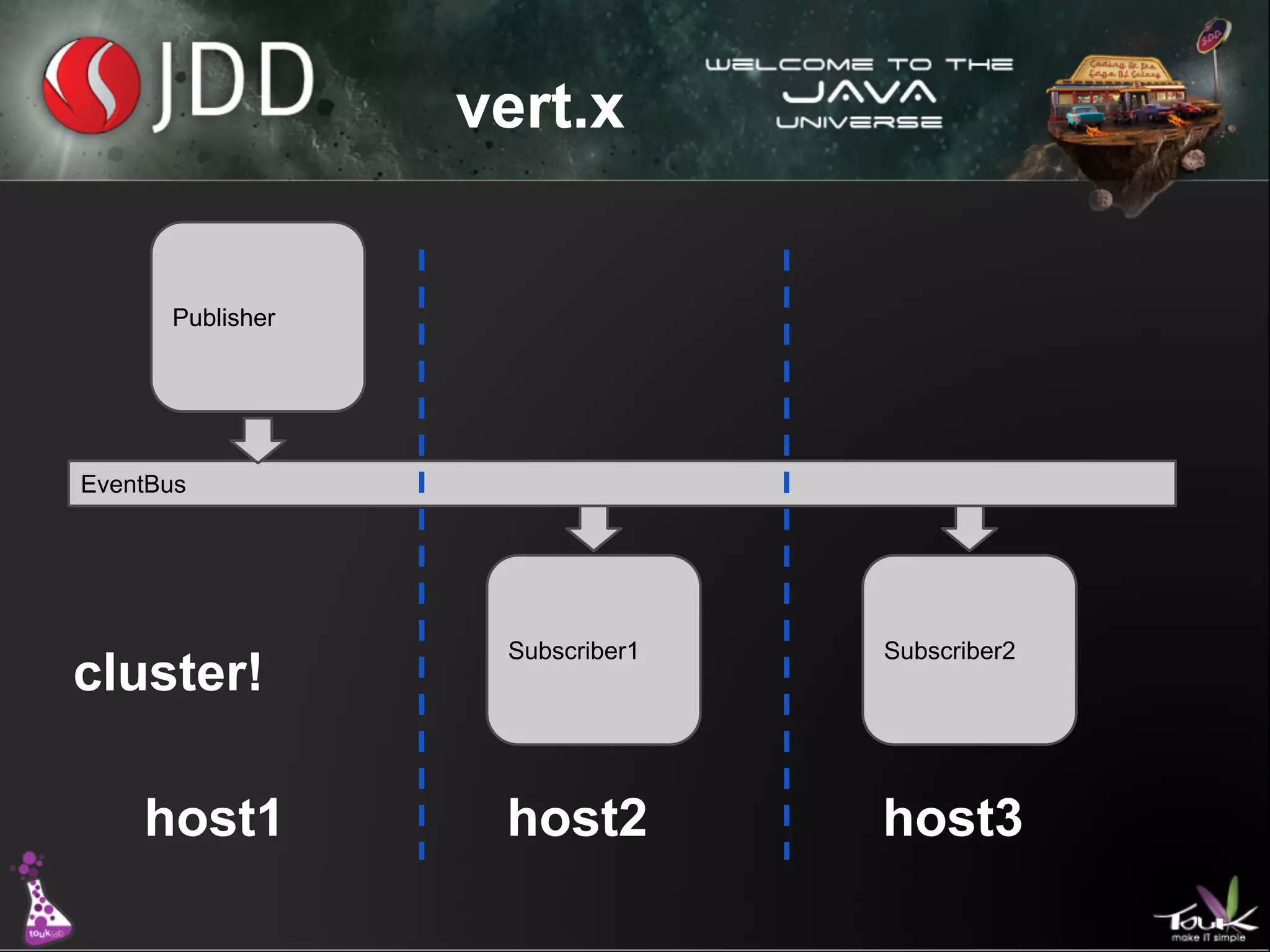

20. vert.x
Publisher
EventBus
cluster!
host1
Subscriber1
Subscriber2
host2
host3

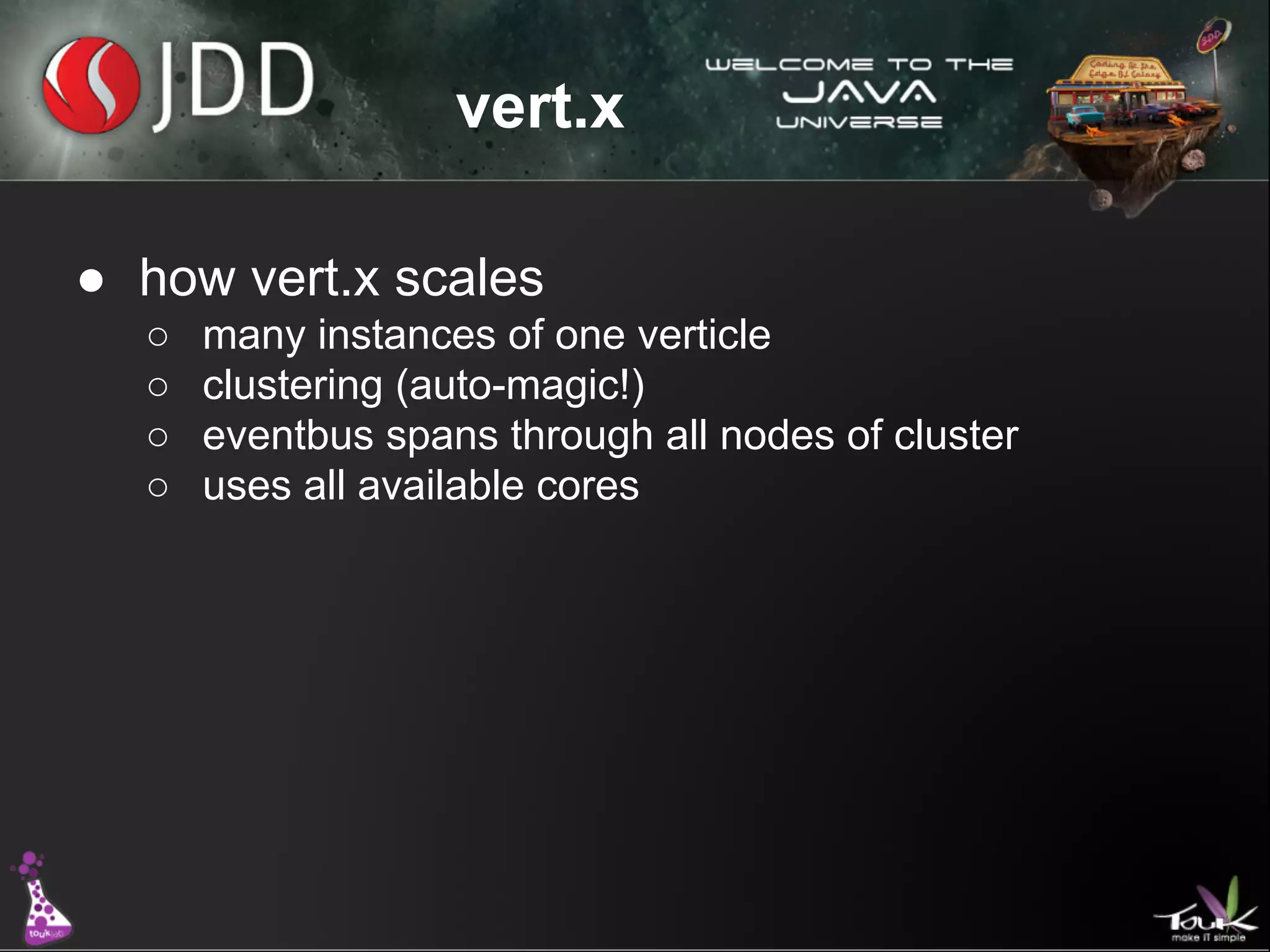

21. vert.x
● how vert.x scales
○
○
○
○
many instances of one verticle
clustering (auto-magic!)
eventbus spans through all nodes of cluster
uses all available cores

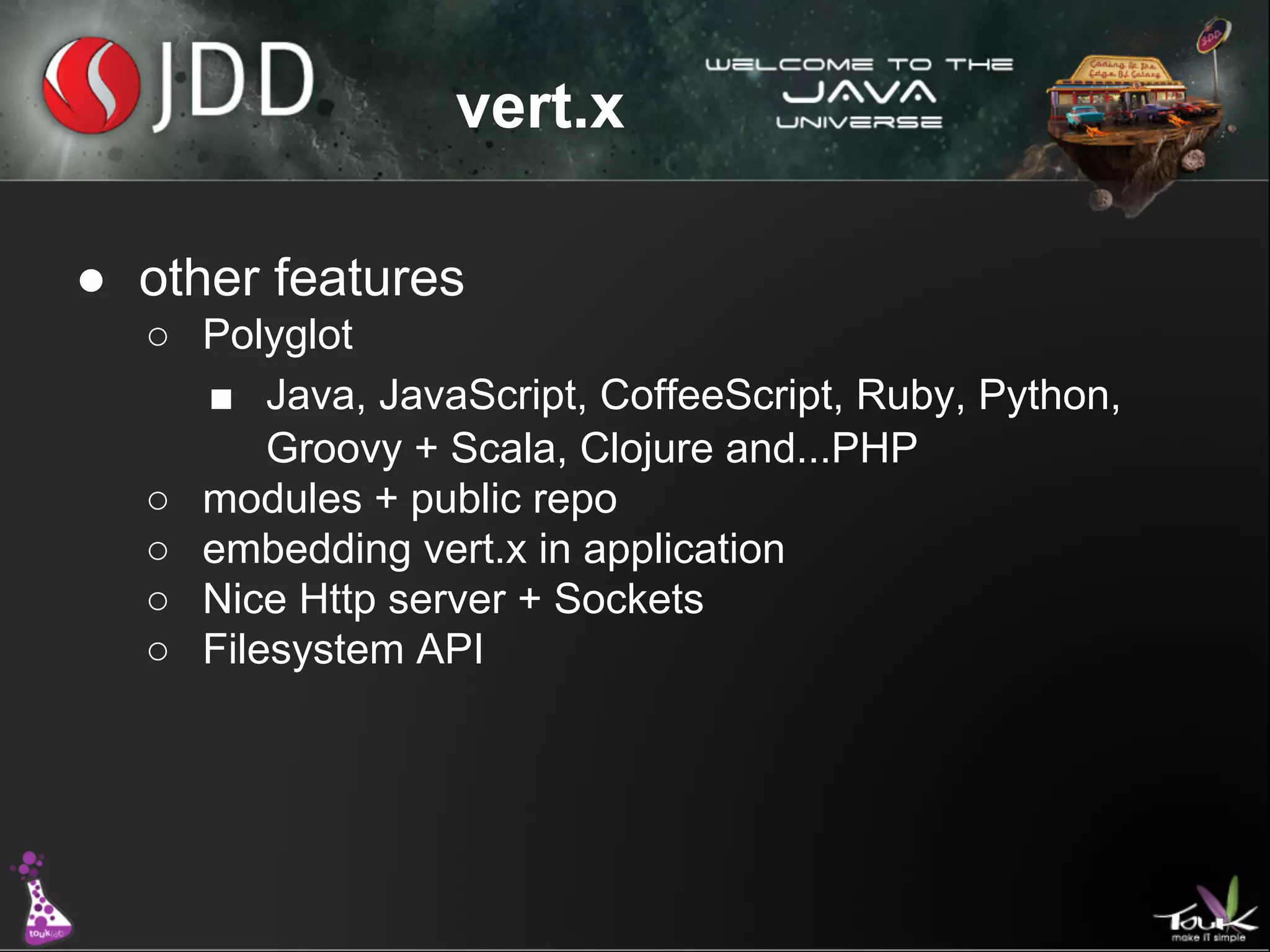

22. vert.x
● other features
○ Polyglot
■ Java, JavaScript, CoffeeScript, Ruby, Python,
Groovy + Scala, Clojure and...PHP
○ modules + public repo
○ embedding vert.x in application
○ Nice Http server + Sockets
○ Filesystem API

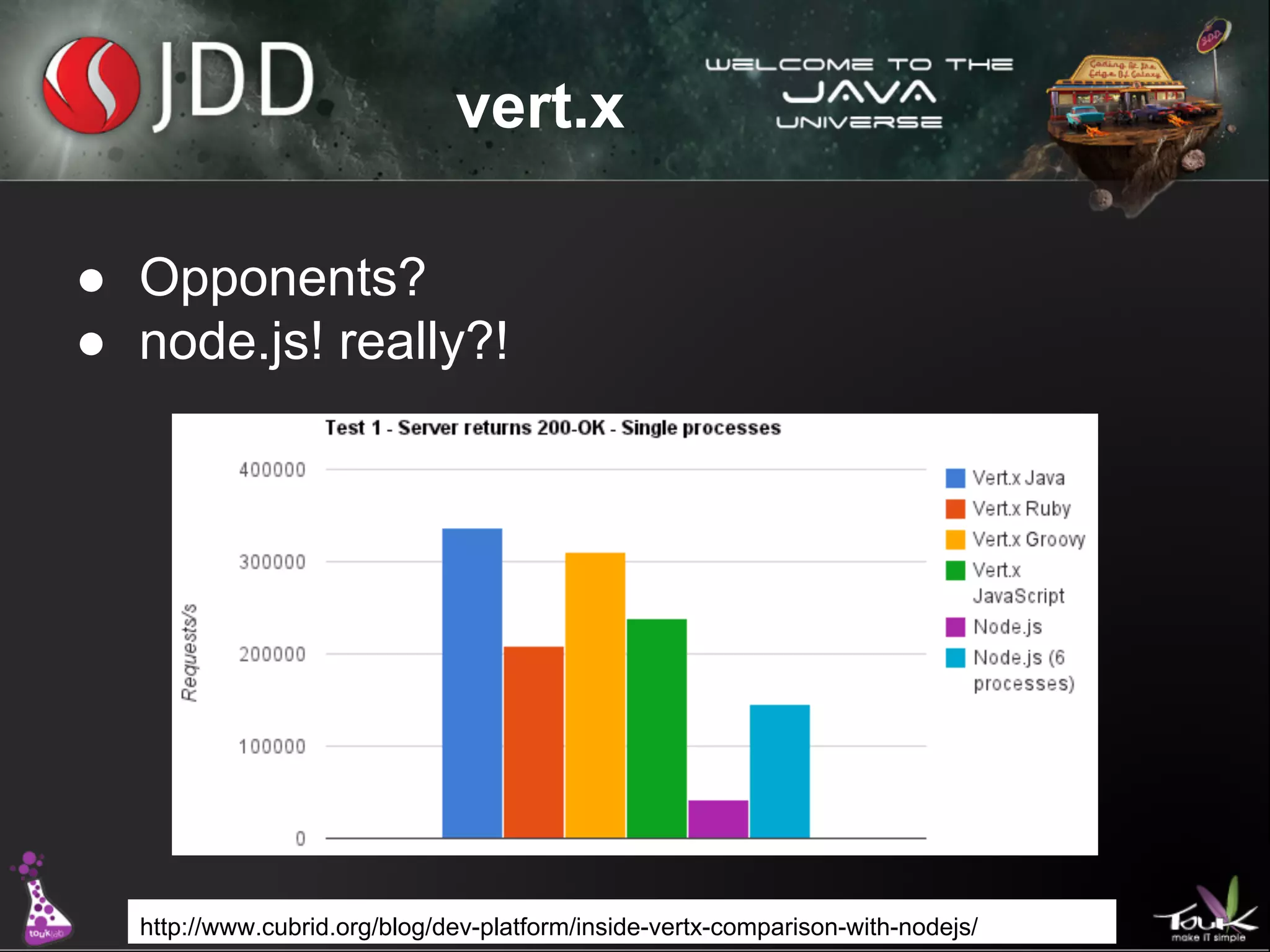

23. vert.x
● Opponents?
● node.js! really?!
http://www.cubrid.org/blog/dev-platform/inside-vertx-comparison-with-nodejs/

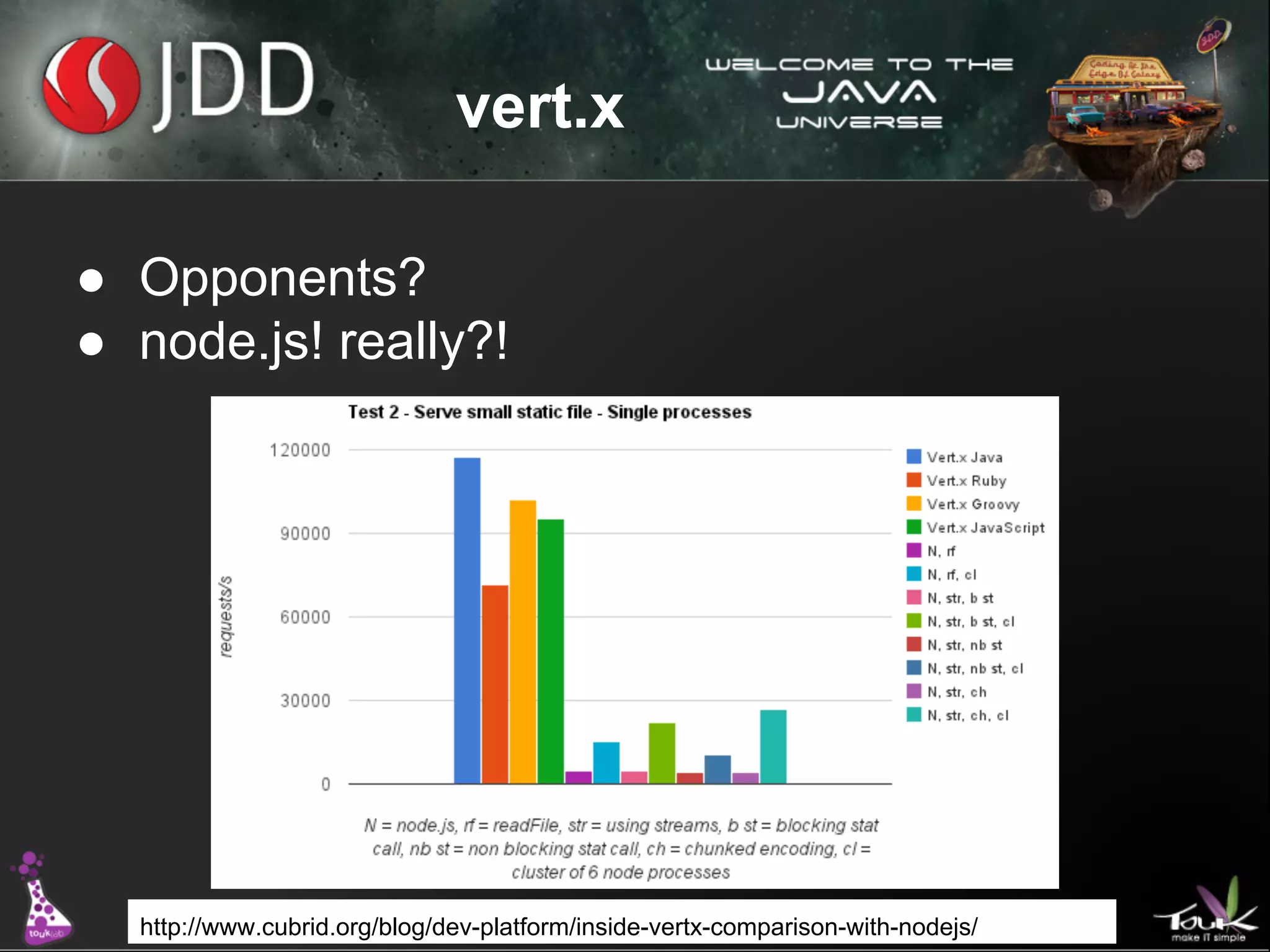

24. vert.x
● Opponents?
● node.js! really?!
http://www.cubrid.org/blog/dev-platform/inside-vertx-comparison-with-nodejs/

25. vert.x
● To summarize
○
○
○
○
○
extremely scalable
thread safe and multithreaded
distributed eventbus
polyglot
ready for year 2020 - 30 bln of devices ;)

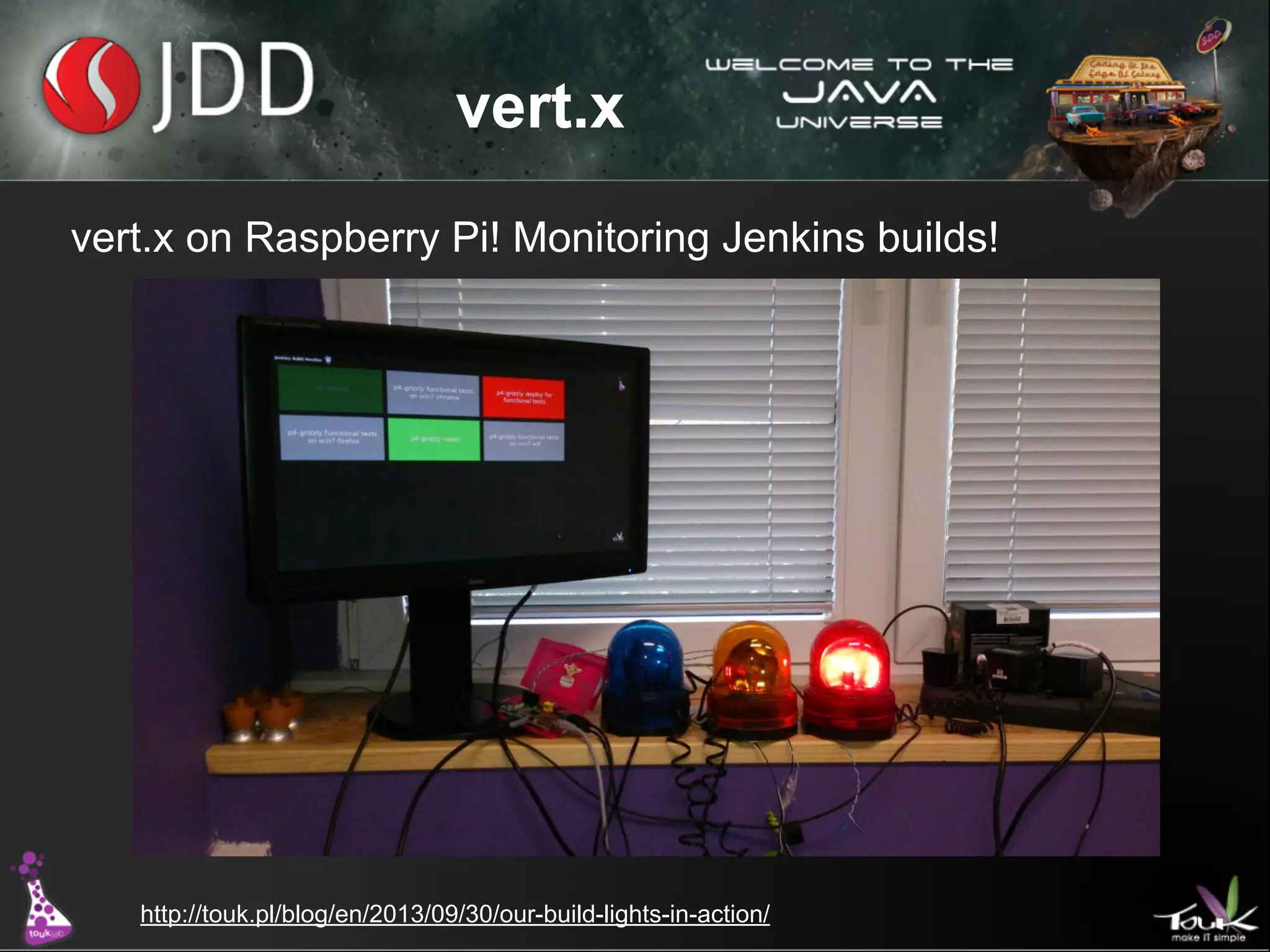

26. vert.x
vert.x on Raspberry Pi! Monitoring Jenkins builds!
http://touk.pl/blog/en/2013/09/30/our-build-lights-in-action/

27. vert.x
demo

28. vert.x
Thank you!
