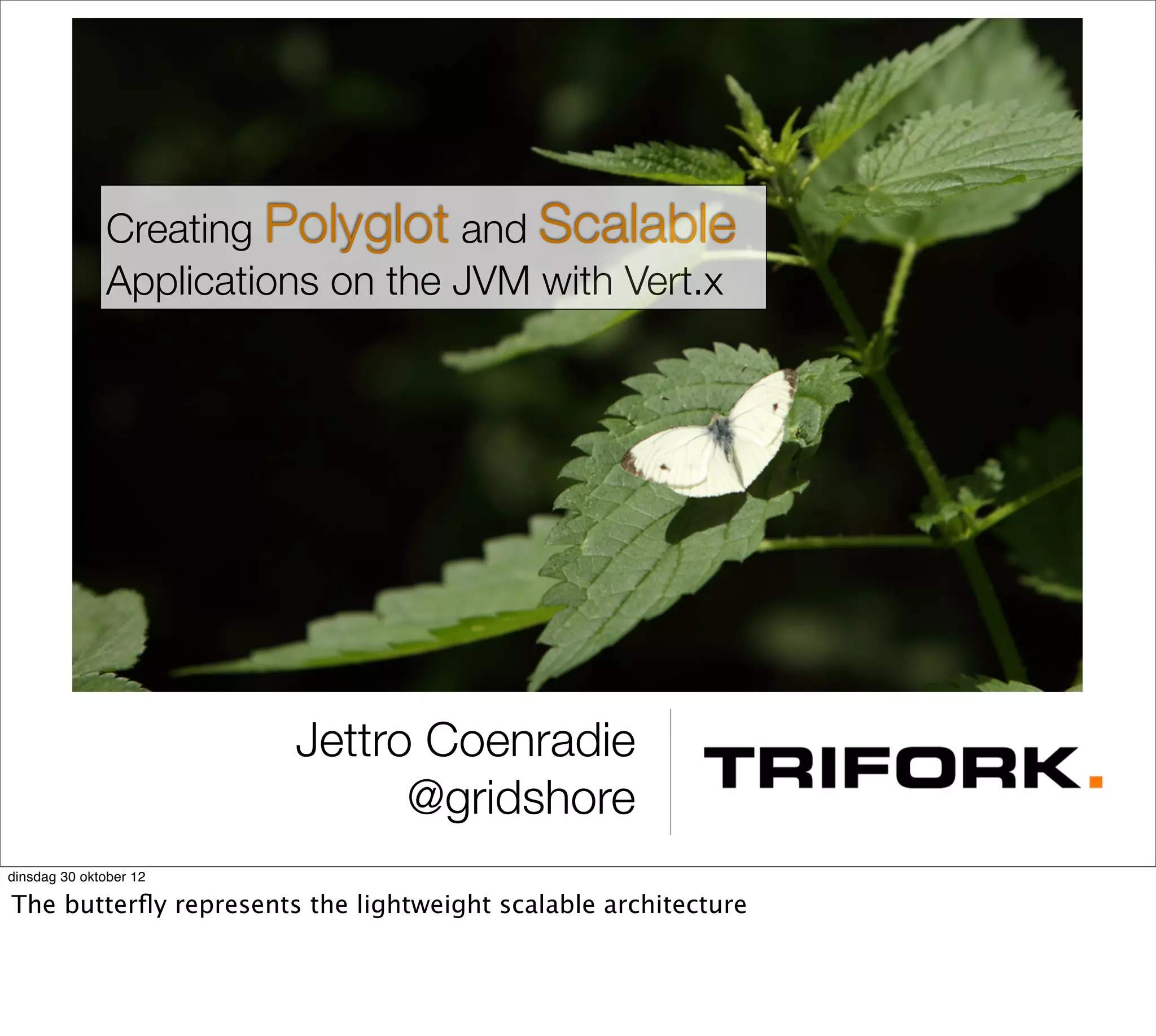

Creating Polyglot and Scalable
              Applications on the JVM with Vert.x




                        Jettro Coenradie
                              @gridshore
dinsdag 30 oktober 12

The butterfly represents the lightweight scalable architecture
http://maps.google.com


dinsdag 30 oktober 12

Does this territory look familiar?
http://maps.google.com


dinsdag 30 oktober 12

Tripoint of countries: The netherlands, Germany and Belgium
People here speak multiple languages and are therefore Polyglot
Polyglot applications



                                                                           http://maps.google.com


dinsdag 30 oktober 12

- Polyglot applications is not about writing them in Dutch, German and French
- Discuss combining multiple jvm languages in one application

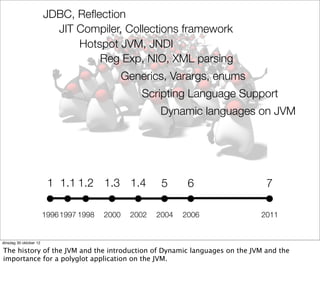

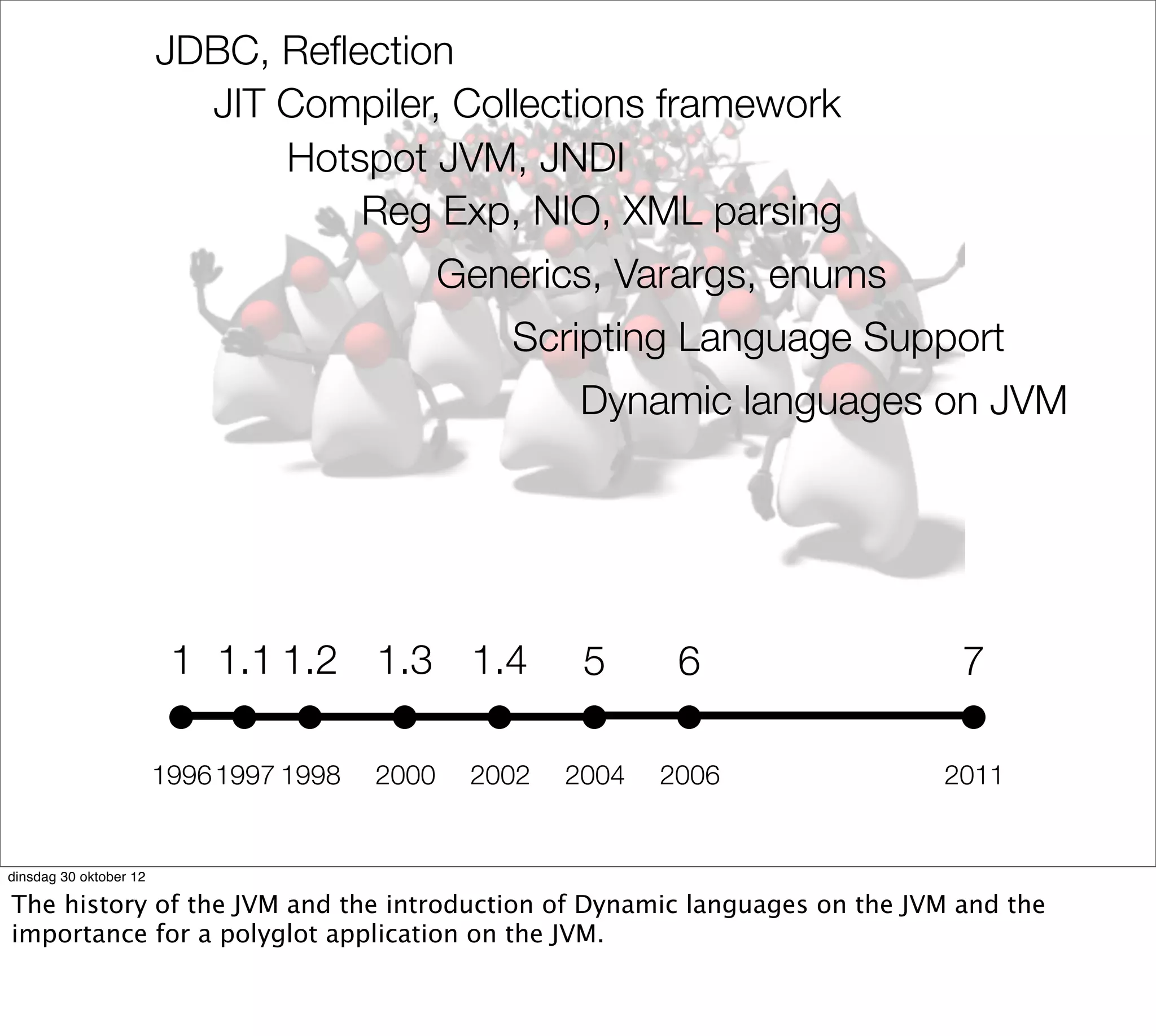

JDBC, Reflection
                          JIT Compiler, Collections framework
                              Hotspot JVM, JNDI
                                  Reg Exp, NIO, XML parsing
                                                Generics, Varargs, enums
                                                    Scripting Language Support
                                                         Dynamic languages on JVM




                         1 1.1 1.2 1.3 1.4               5      6           7

                        1996 1997 1998   2000    2002   2004   2006        2011


dinsdag 30 oktober 12

The history of the JVM and the introduction of Dynamic languages on the JVM and the
importance for a polyglot application on the JVM.

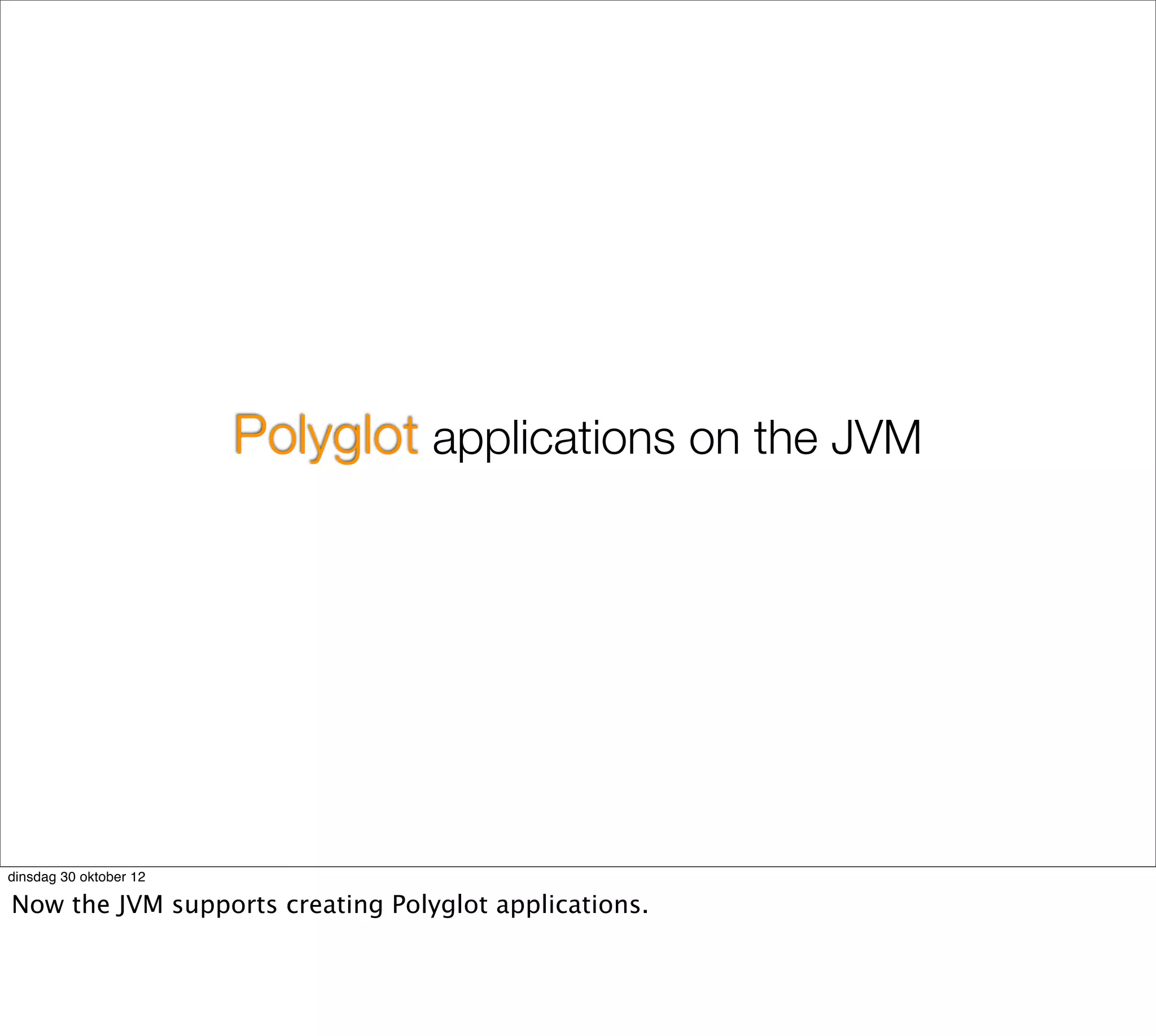

Polyglot applications on the JVM




dinsdag 30 oktober 12

Now the JVM supports creating Polyglot applications.
C10K Problem




                                             http://www.tumblr.com/tagged/rockconcert?before=1346635427
dinsdag 30 oktober 12

C10k problem
The crowd becomes to big for your platform
http://en.wikipedia.org/wiki/C10k_problem

dinsdag 30 oktober 12

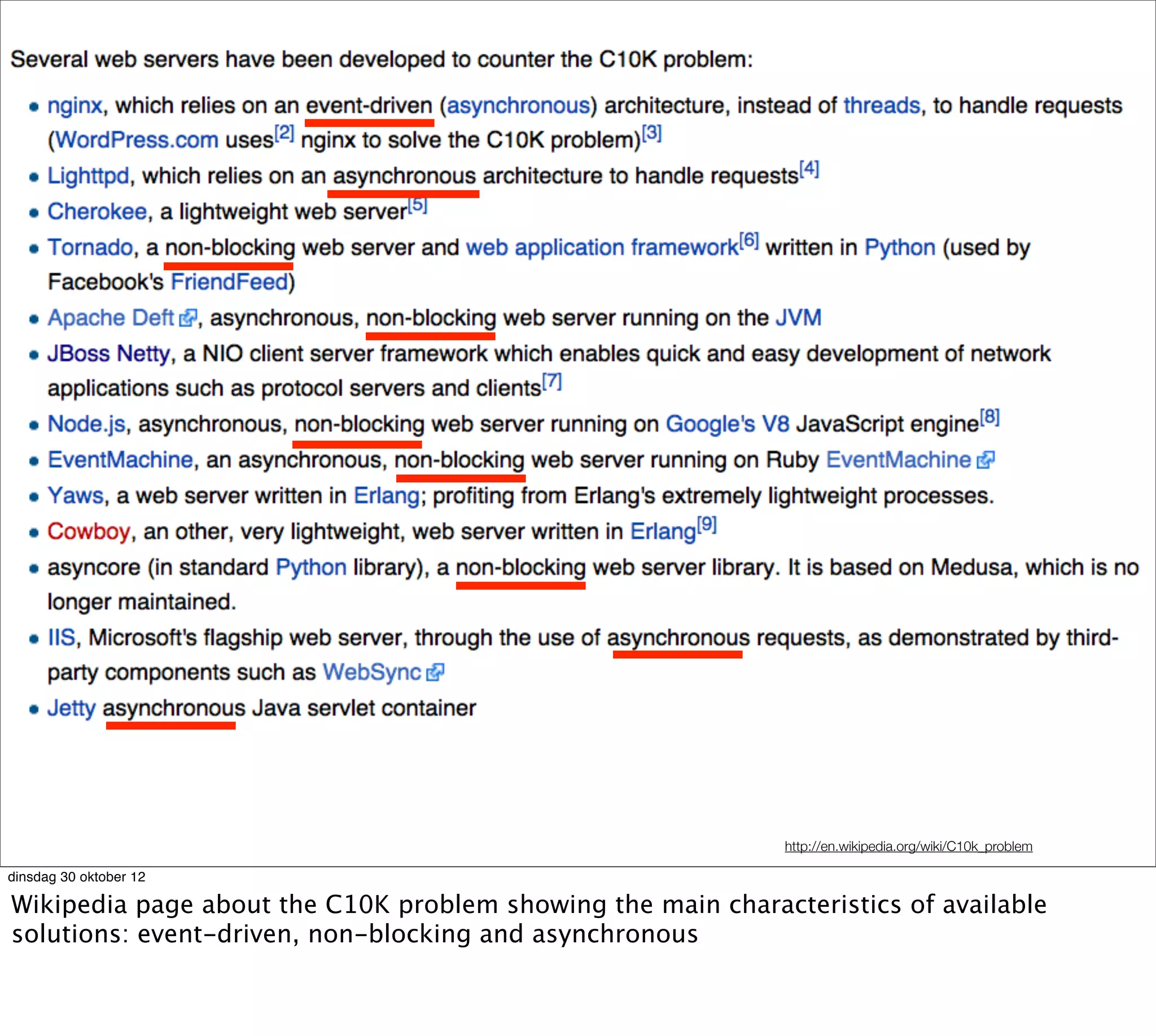

Wikipedia page about the C10K problem showing the main characteristics of available
solutions: event-driven, non-blocking and asynchronous

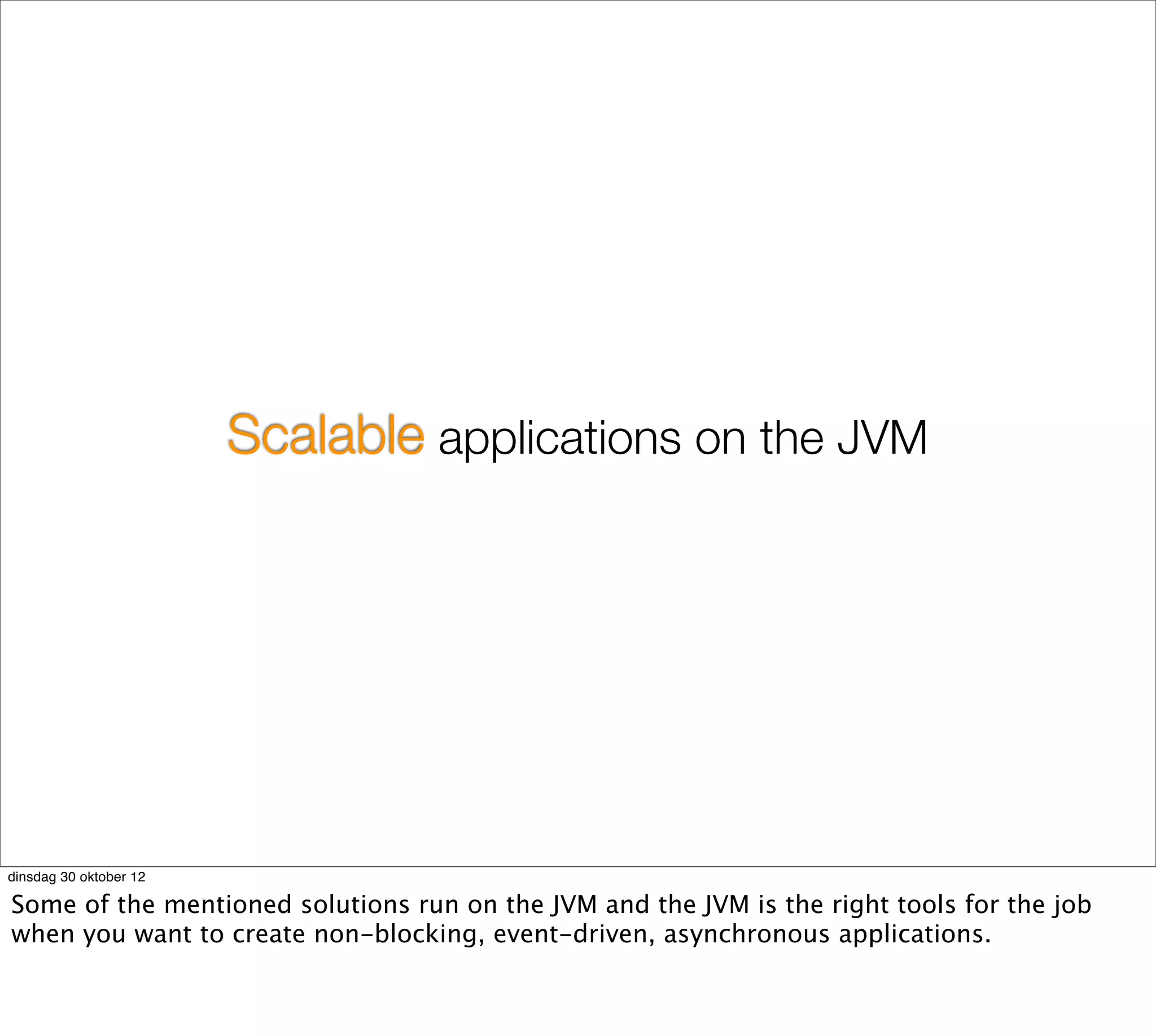

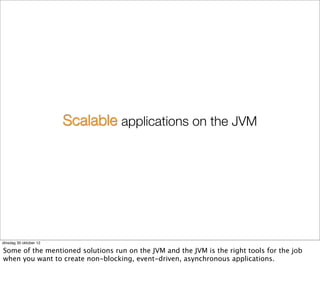

Scalable applications on the JVM




dinsdag 30 oktober 12

Some of the mentioned solutions run on the JVM and the JVM is the right tools for the job
when you want to create non-blocking, event-driven, asynchronous applications.

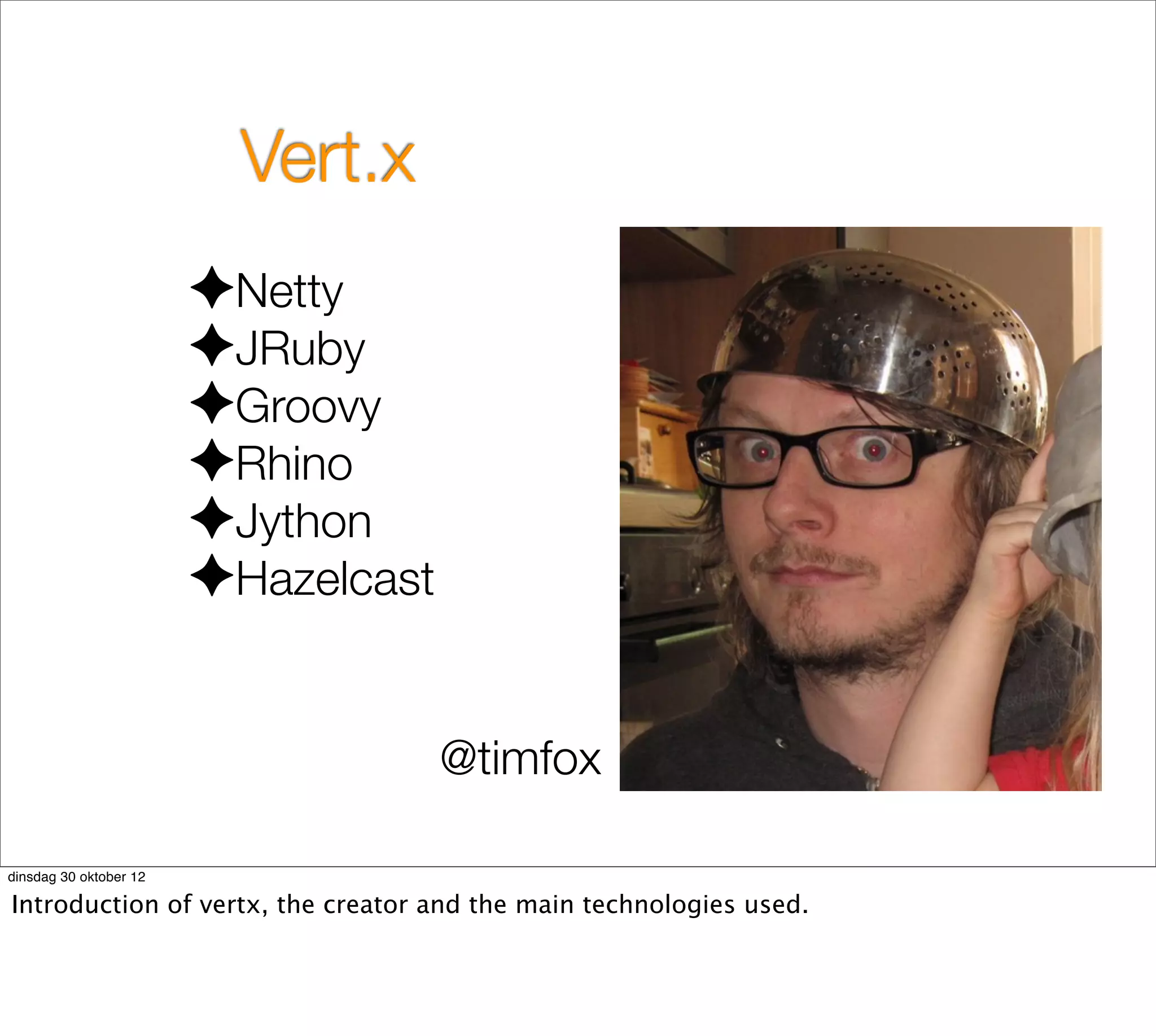

Vert.x
                        ✦Netty
                        ✦JRuby
                        ✦Groovy
                        ✦Rhino
                        ✦Jython
                        ✦Hazelcast


                                     @timfox

dinsdag 30 oktober 12

Introduction of vertx, the creator and the main technologies used.
Polyglot application platform


                        JavaScript




dinsdag 30 oktober 12

The available languages for vert.x and the languages for which support is being created.
Scalable: Blocking to non-blocking




dinsdag 30 oktober 12

Blocking has the risk that the CPU is doing nothing while a thread is waiting for input
Non-blocking: can use the CPU more effectively if there is something to do, it does not fall
asleep
Easily Concurrent




dinsdag 30 oktober 12

- We can use the multiple cores of a machine within one JVM
- Easy concurrency due to thread bound modules and verticles => No Locking
- Synchronous calling of a request handler. Therefore no concurrency issues.

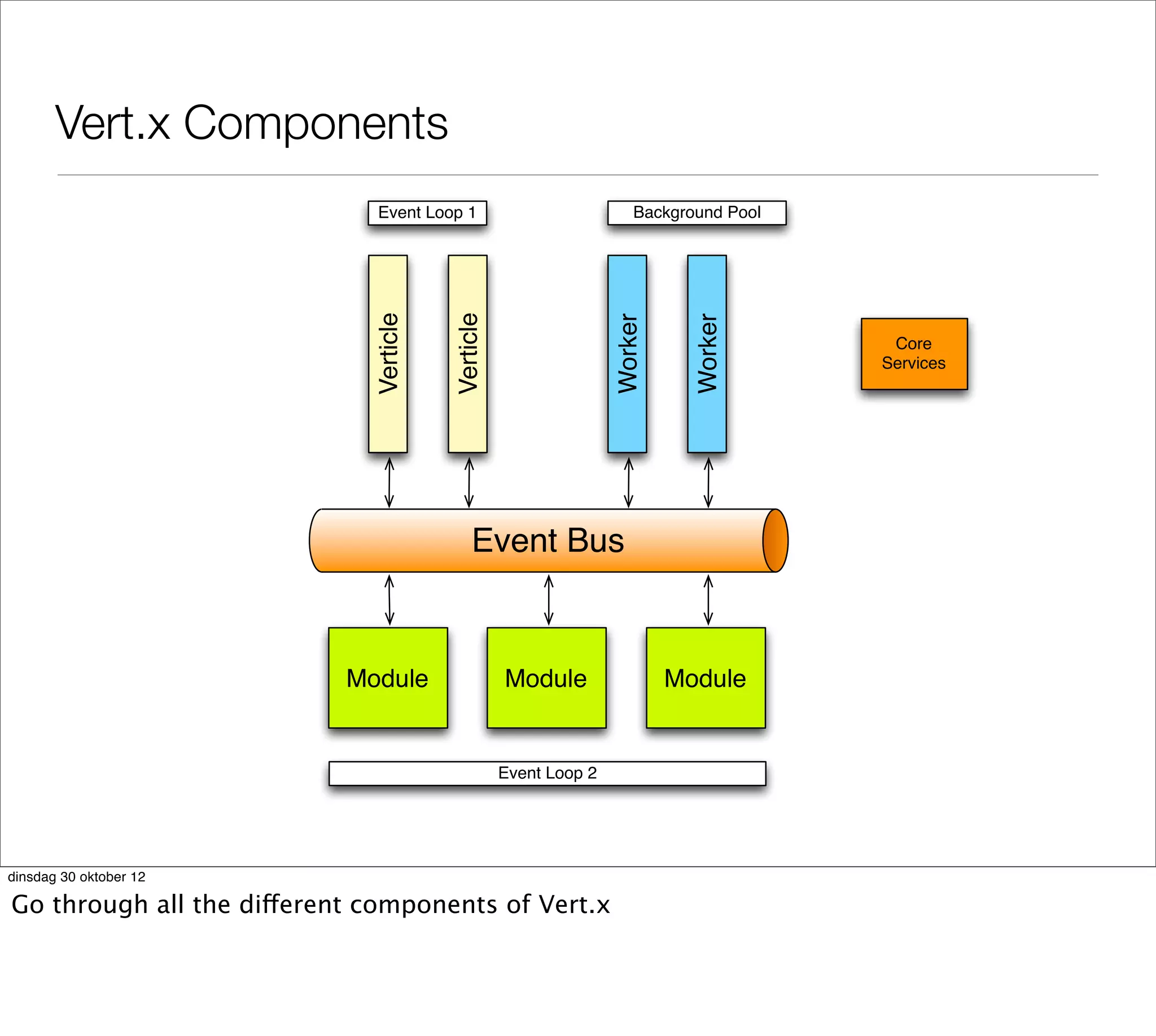

Vert.x Components
                             Event Loop 1                            Background Pool




                             Verticle


                                        Verticle




                                                                  Worker


                                                                             Worker
                                                                                        Core
                                                                                       Services




                                            Event Bus



                           Module                  Module                  Module


                                                   Event Loop 2




dinsdag 30 oktober 12

Go through all the different components of Vert.x

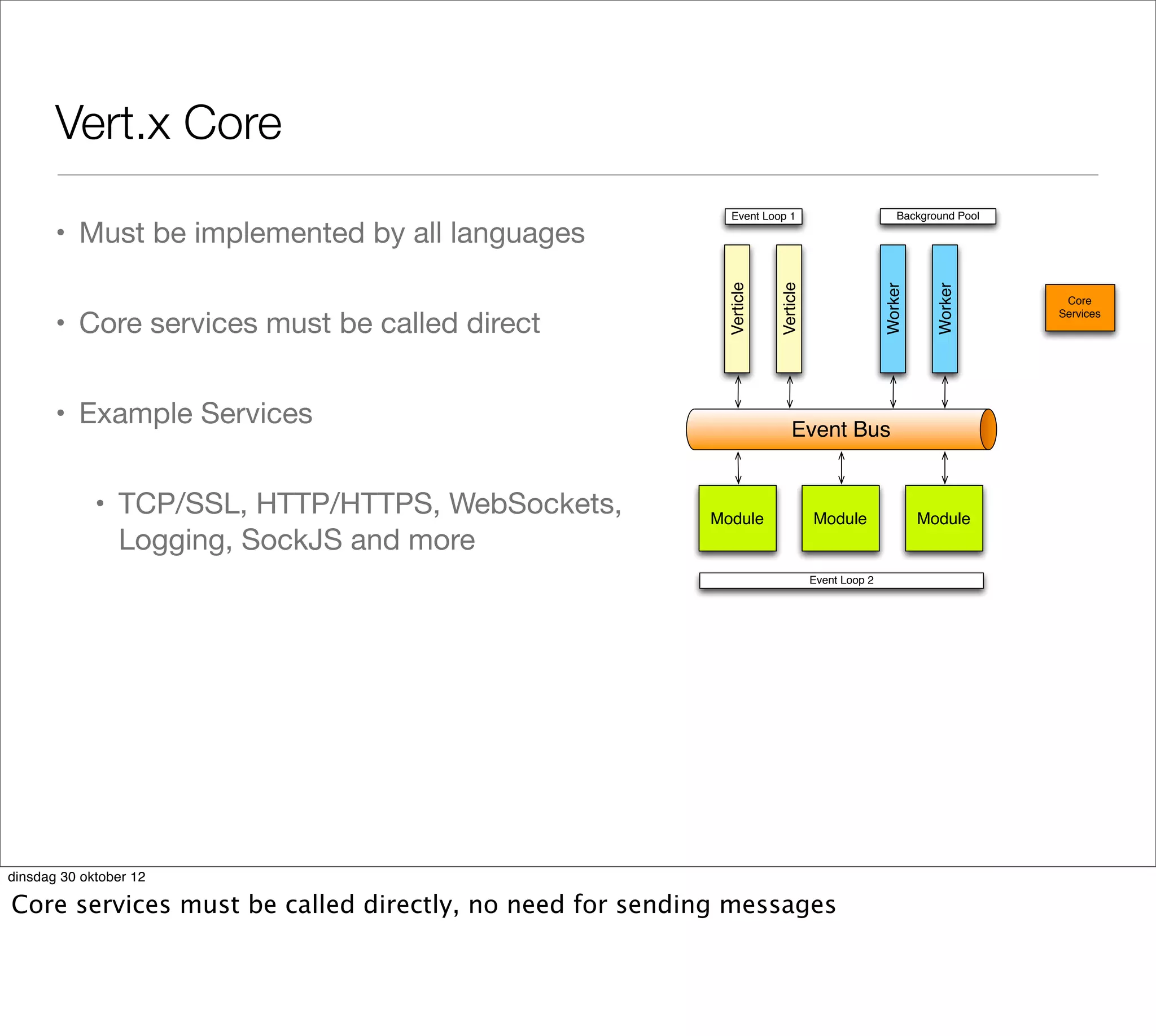

Vert.x Core
                                                          Event Loop 1                            Background Pool

       • Must be implemented by all languages




                                                          Verticle


                                                                     Verticle




                                                                                               Worker


                                                                                                          Worker
                                                                                                                     Core

       • Core services must be called direct
                                                                                                                    Services




       • Example Services                                                Event Bus


             • TCP/SSL, HTTP/HTTPS, WebSockets,         Module                  Module                  Module
               Logging, SockJS and more
                                                                                Event Loop 2




dinsdag 30 oktober 12

Core services must be called directly, no need for sending messages

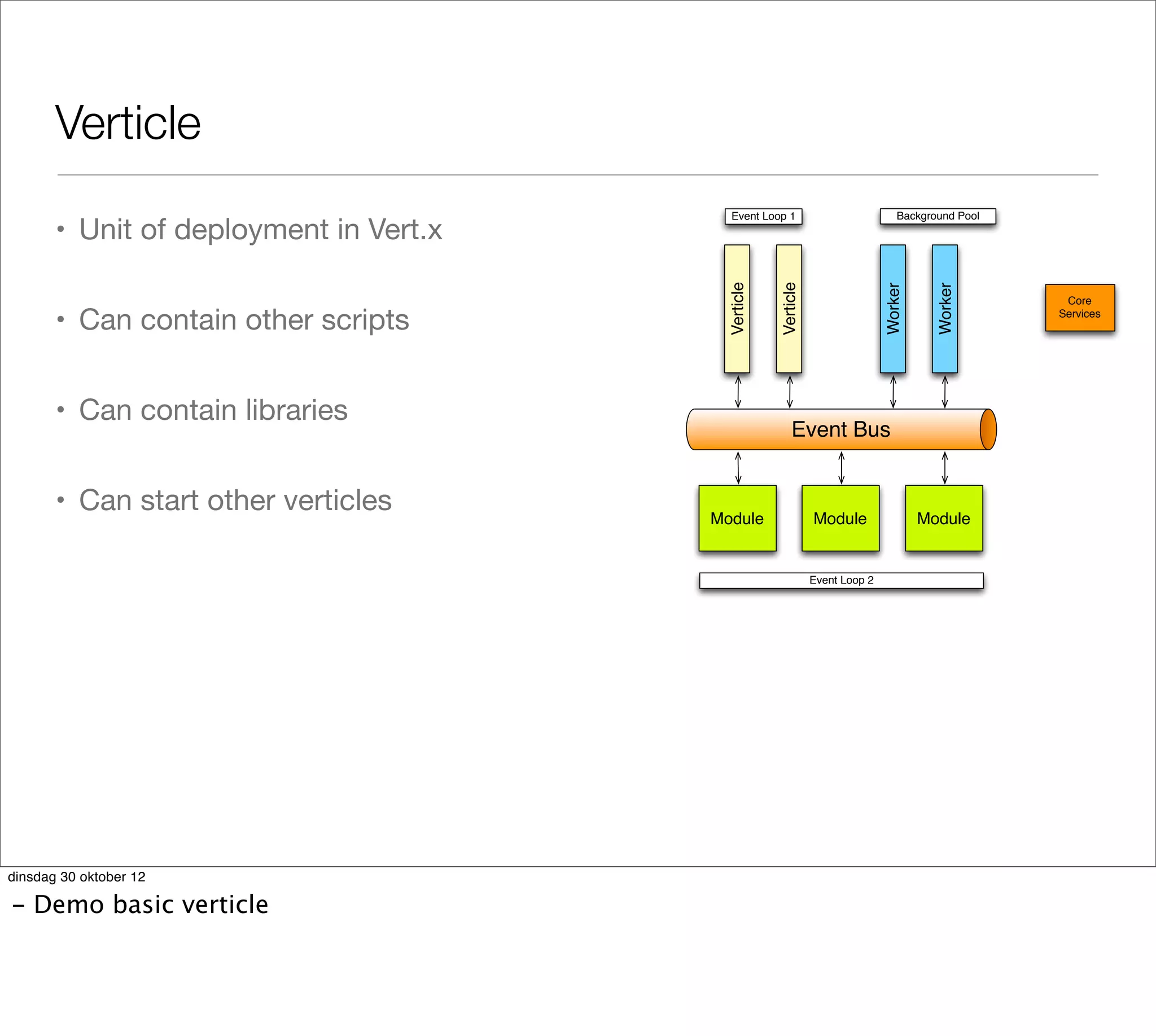

Verticle
                                                                                  Background Pool
       • Unit of deployment in Vert.x
                                          Event Loop 1




                                          Verticle


                                                     Verticle




                                                                               Worker


                                                                                          Worker
                                                                                                     Core

       • Can contain other scripts                                                                  Services




       • Can contain libraries
                                                         Event Bus


       • Can start other verticles      Module                  Module                  Module


                                                                Event Loop 2




dinsdag 30 oktober 12

- Demo basic verticle

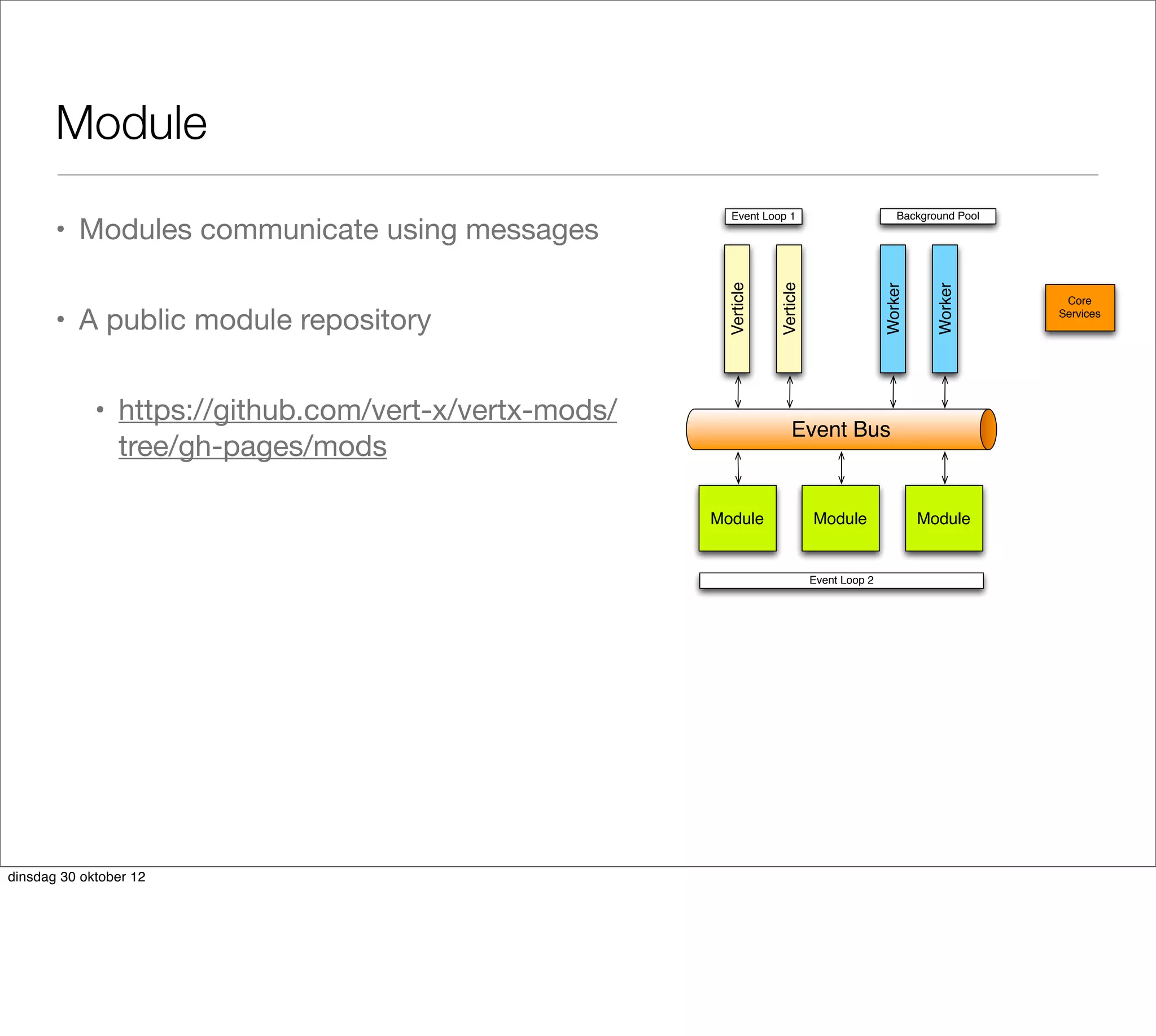

Module
                                                                                                 Background Pool
       • Modules communicate using messages
                                                         Event Loop 1




                                                         Verticle


                                                                    Verticle




                                                                                              Worker


                                                                                                         Worker
                                                                                                                    Core

       • A public module repository                                                                                Services




             • https://github.com/vert-x/vertx-mods/
                                                                        Event Bus
               tree/gh-pages/mods

                                                       Module                  Module                  Module


                                                                               Event Loop 2




dinsdag 30 oktober 12

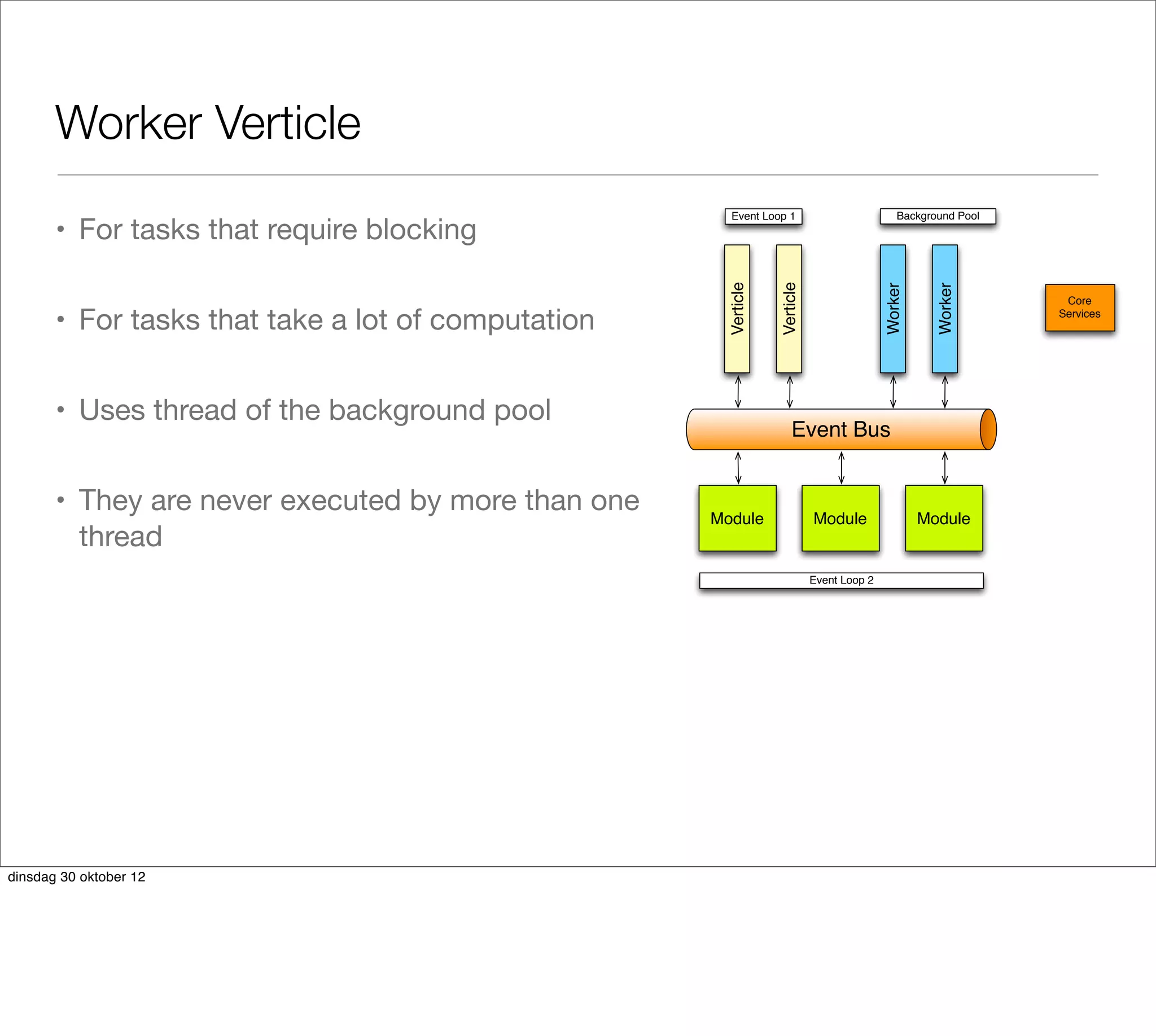

Worker Verticle
                                                                                              Background Pool
       • For tasks that require blocking
                                                      Event Loop 1




                                                      Verticle


                                                                 Verticle




                                                                                           Worker


                                                                                                      Worker
                                                                                                                 Core

       • For tasks that take a lot of computation                                                               Services




       • Uses thread of the background pool
                                                                     Event Bus


       • They are never executed by more than one   Module                  Module                  Module
         thread
                                                                            Event Loop 2




dinsdag 30 oktober 12

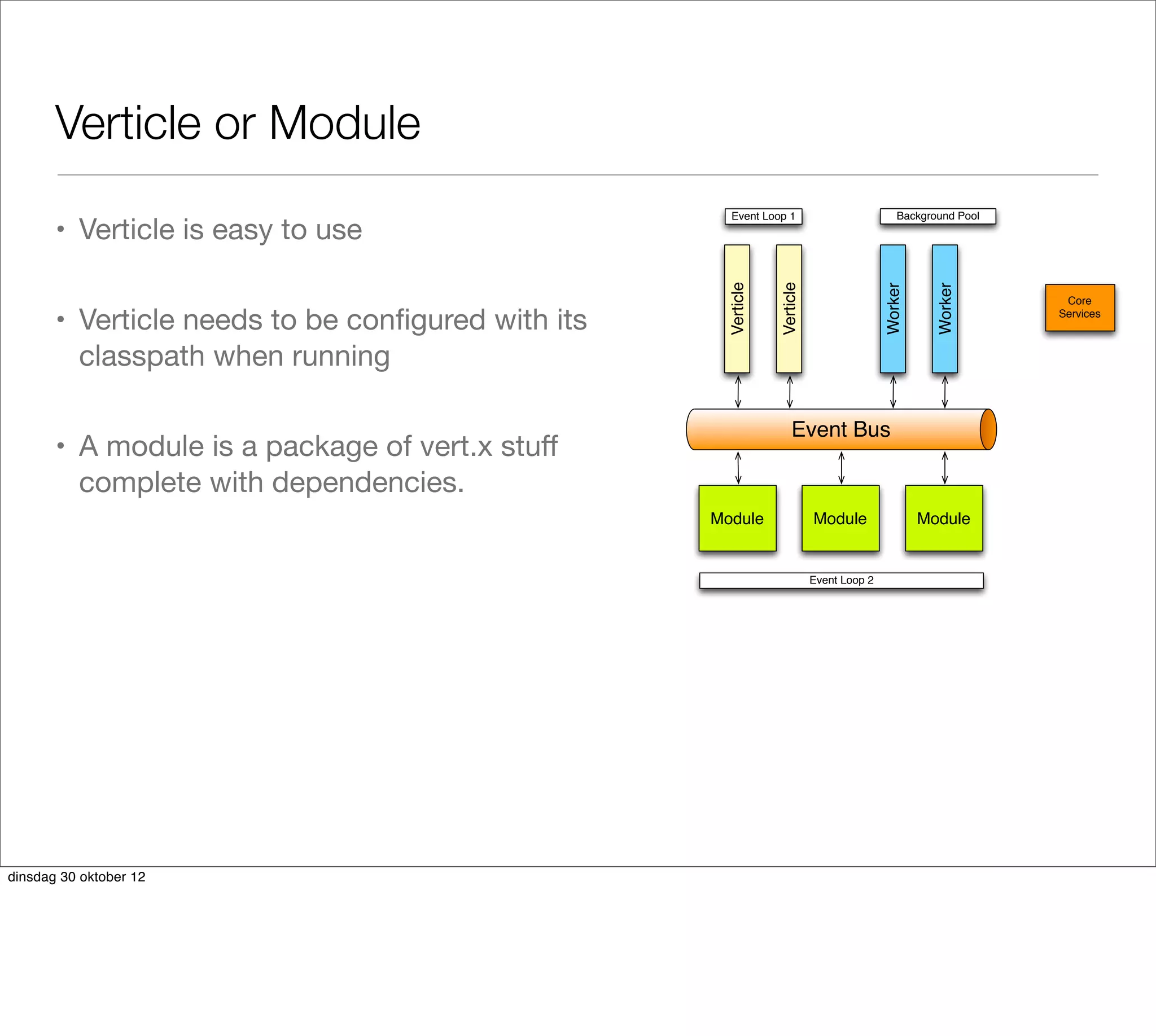

Verticle or Module
                                                                                             Background Pool
       • Verticle is easy to use
                                                     Event Loop 1




                                                     Verticle


                                                                Verticle




                                                                                          Worker


                                                                                                     Worker
                                                                                                                Core

       • Verticle needs to be configured with its                                                               Services



         classpath when running

                                                                    Event Bus
       • A module is a package of vert.x stuff
         complete with dependencies.
                                                   Module                  Module                  Module


                                                                           Event Loop 2




dinsdag 30 oktober 12

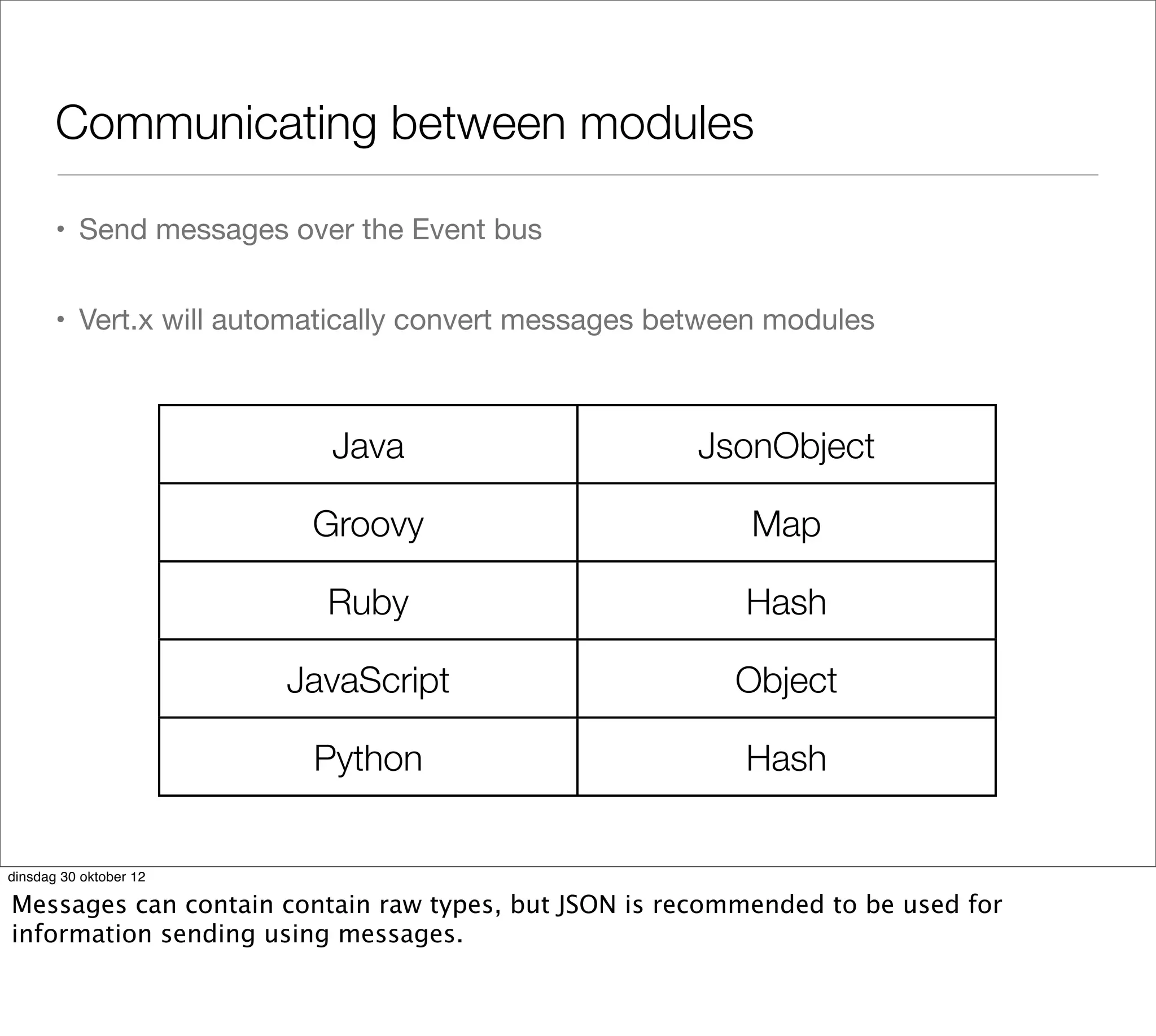

Communicating between modules

       • Send messages over the Event bus


       • Vert.x will automatically convert messages between modules



                           Java                       JsonObject

                         Groovy                           Map

                          Ruby                           Hash

                        JavaScript                      Object

                         Python                          Hash


dinsdag 30 oktober 12

Messages can contain contain raw types, but JSON is recommended to be used for
information sending using messages.

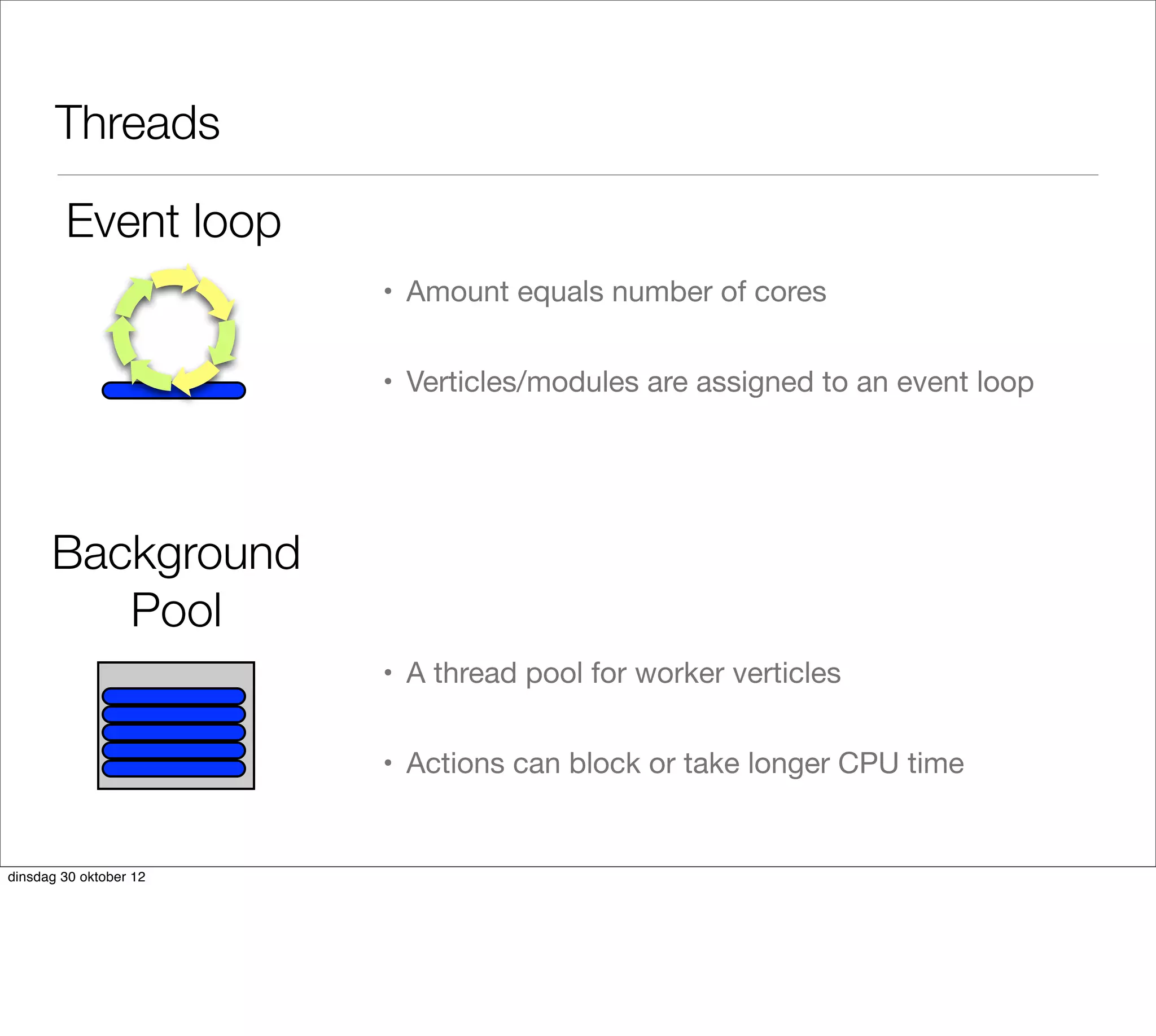

Threads

        Event loop
                        • Amount equals number of cores


                        • Verticles/modules are assigned to an event loop




      Background
         Pool
                        • A thread pool for worker verticles


                        • Actions can block or take longer CPU time


dinsdag 30 oktober 12

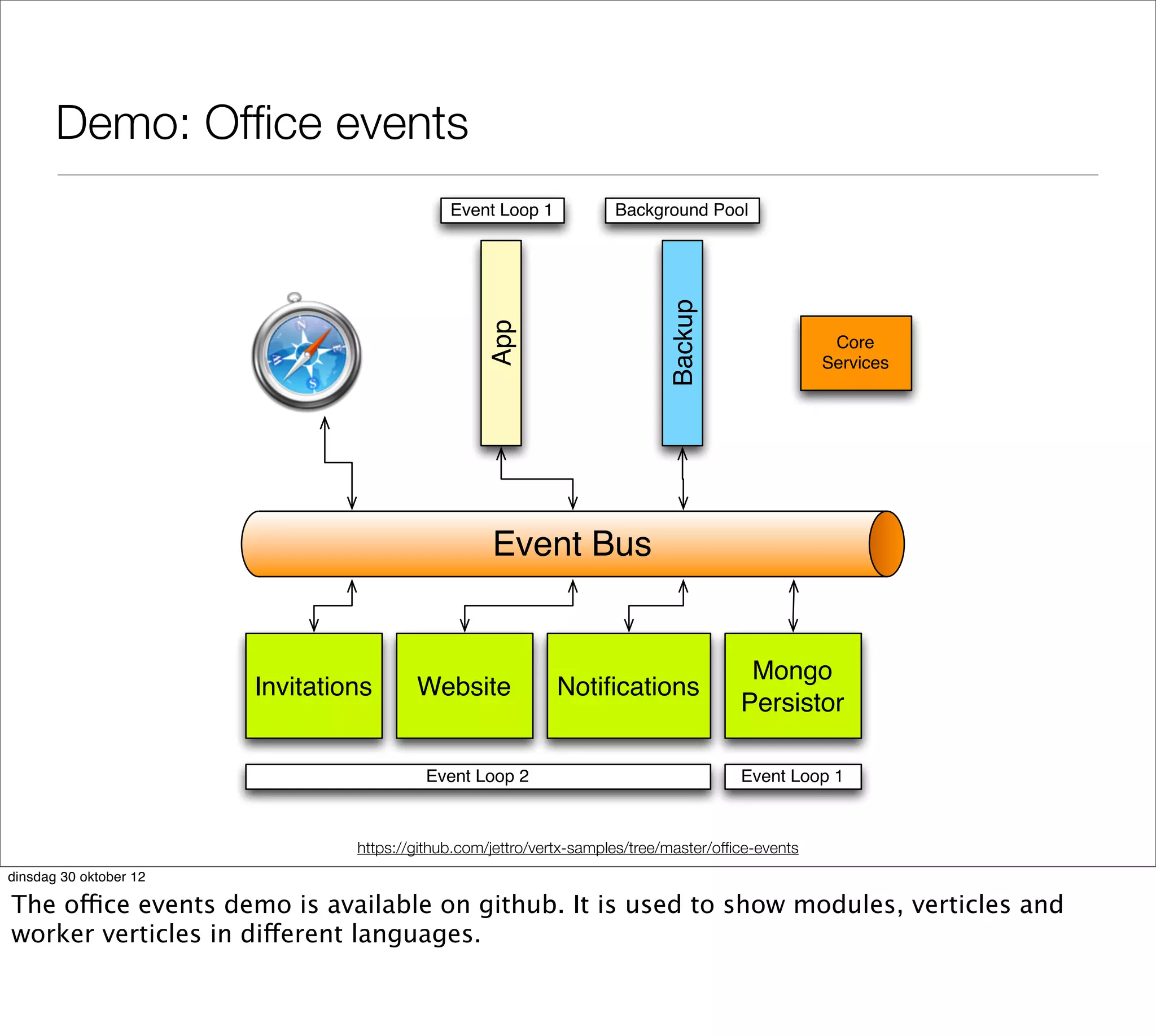

Demo: Office events
                                              Event Loop 1            Background Pool




                                                                              Backup
                                                    App
                                                                                                     Core
                                                                                                    Services




                                                    Event Bus


                                                                                         Mongo
                        Invitations      Website             Notifications
                                                                                        Persistor

                                          Event Loop 2                                  Event Loop 1



                                 https://github.com/jettro/vertx-samples/tree/master/office-events
dinsdag 30 oktober 12

The office events demo is available on github. It is used to show modules, verticles and
worker verticles in different languages.

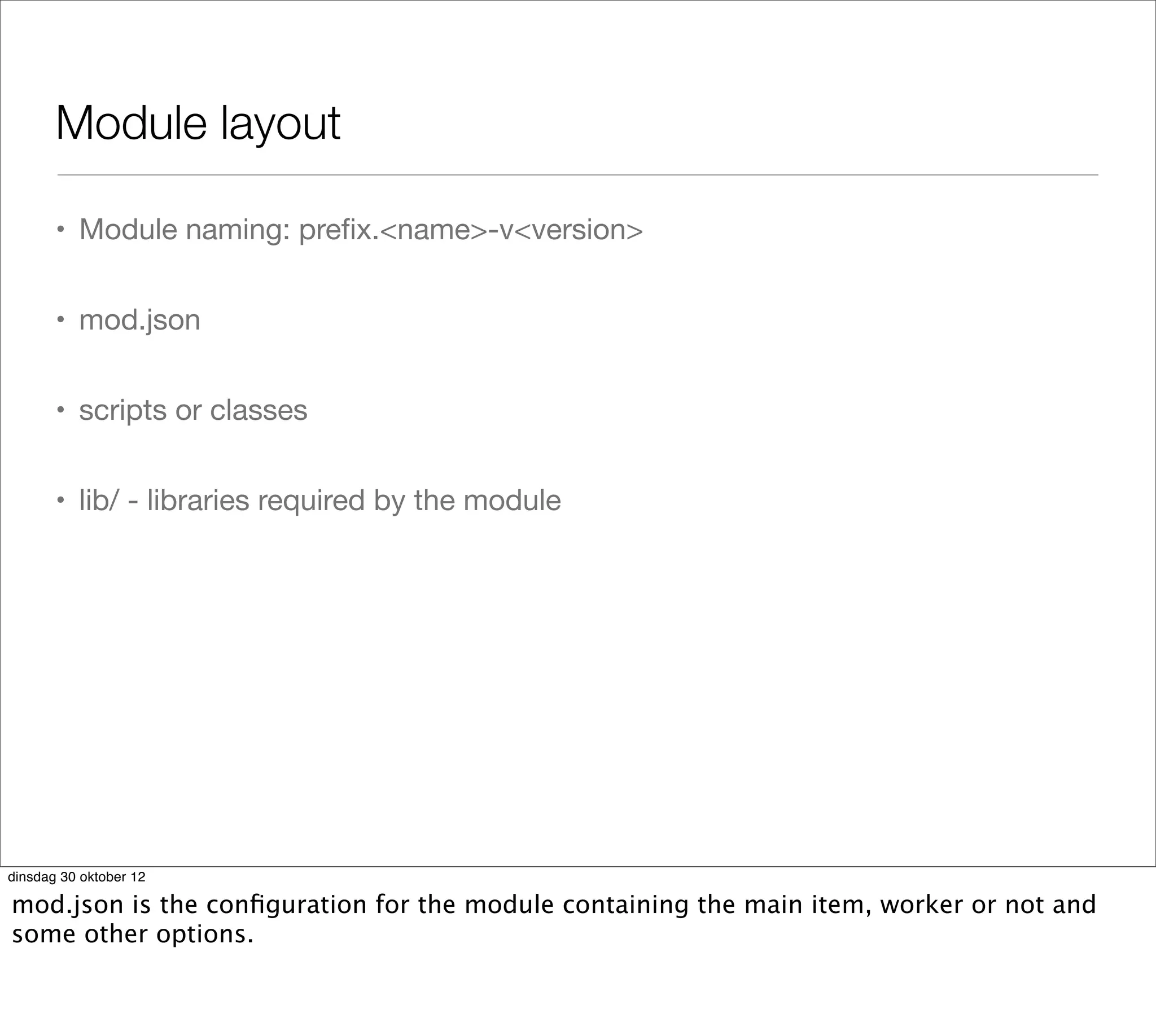

Module layout

       • Module naming: prefix.<name>-v<version>


       • mod.json


       • scripts or classes


       • lib/ - libraries required by the module




dinsdag 30 oktober 12

mod.json is the configuration for the module containing the main item, worker or not and
some other options.

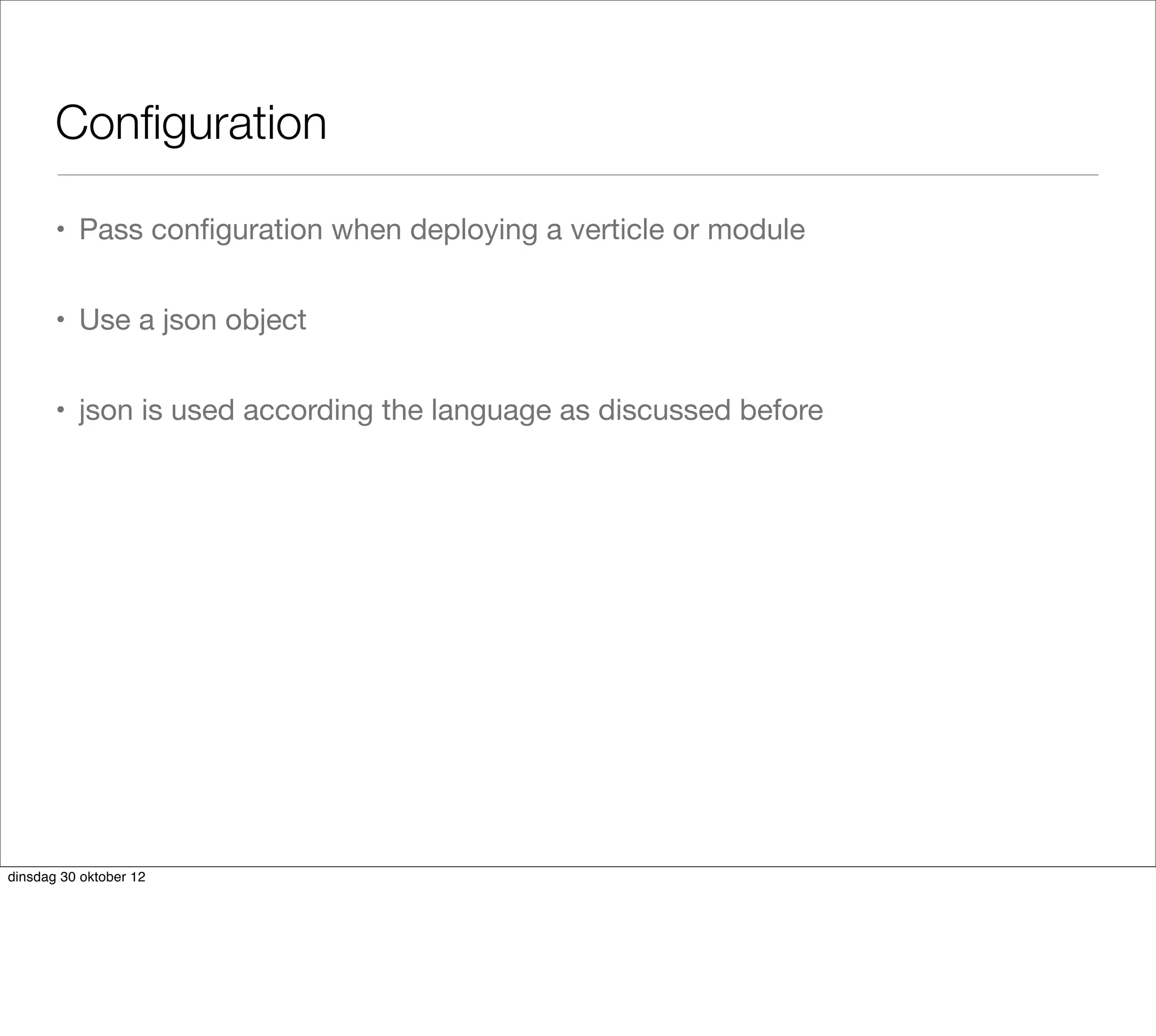

Configuration

       • Pass configuration when deploying a verticle or module


       • Use a json object


       • json is used according the language as discussed before




dinsdag 30 oktober 12

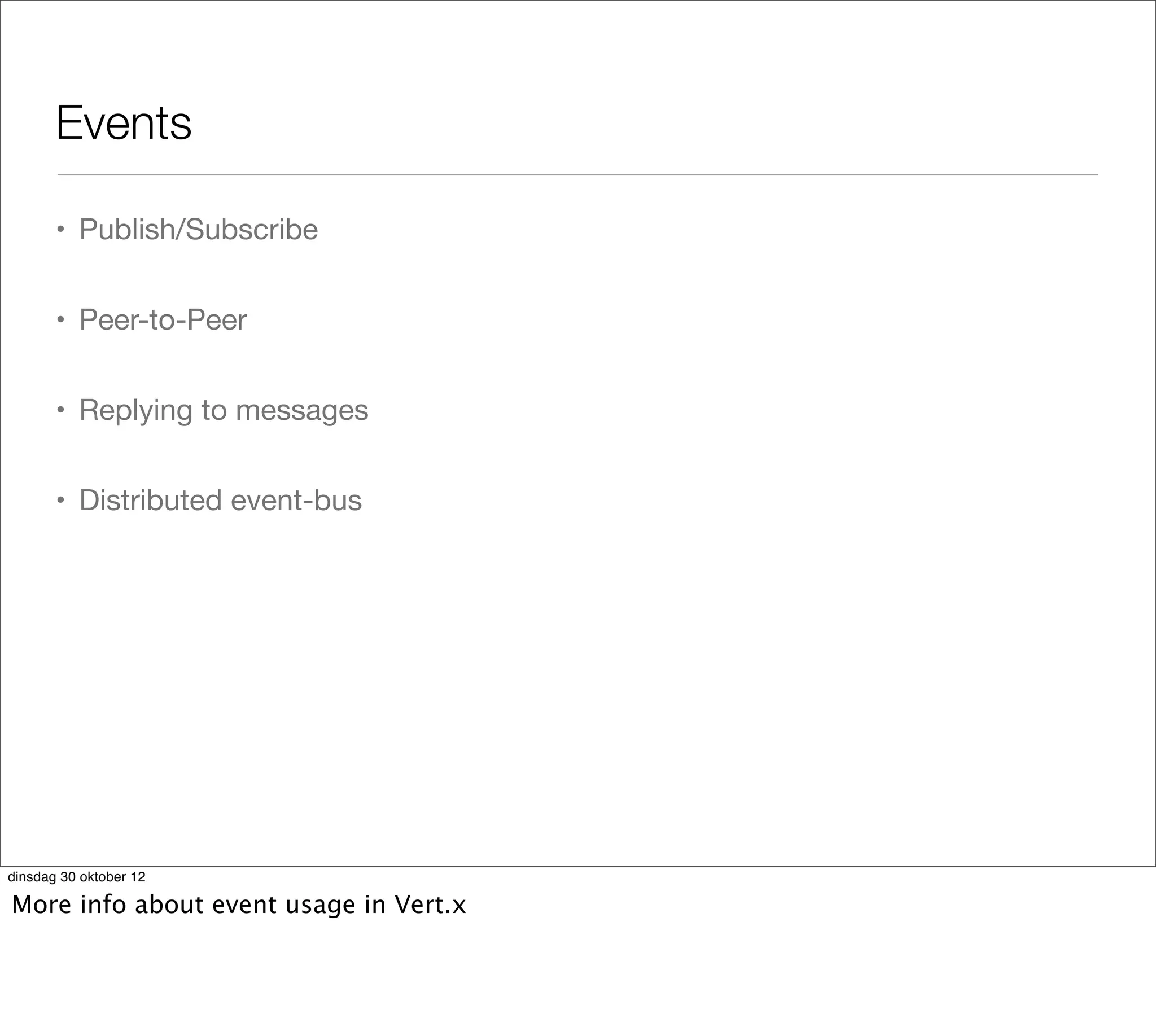

Events

       • Publish/Subscribe


       • Peer-to-Peer


       • Replying to messages


       • Distributed event-bus




dinsdag 30 oktober 12

More info about event usage in Vert.x

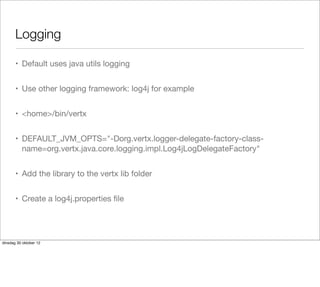

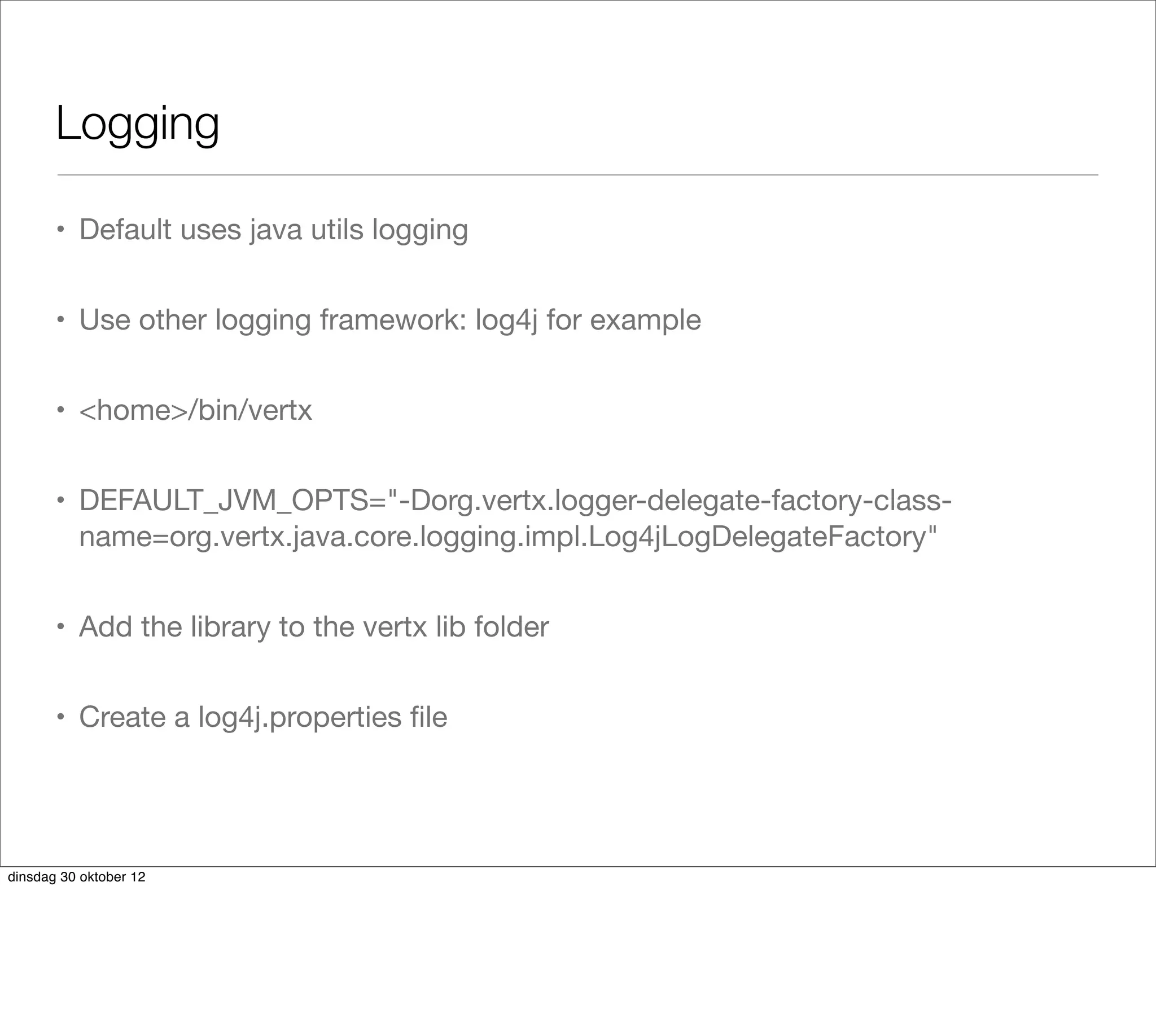

Logging

       • Default uses java utils logging


       • Use other logging framework: log4j for example


       • <home>/bin/vertx


       • DEFAULT_JVM_OPTS="-Dorg.vertx.logger-delegate-factory-class-
         name=org.vertx.java.core.logging.impl.Log4jLogDelegateFactory"


       • Add the library to the vertx lib folder


       • Create a log4j.properties file




dinsdag 30 oktober 12

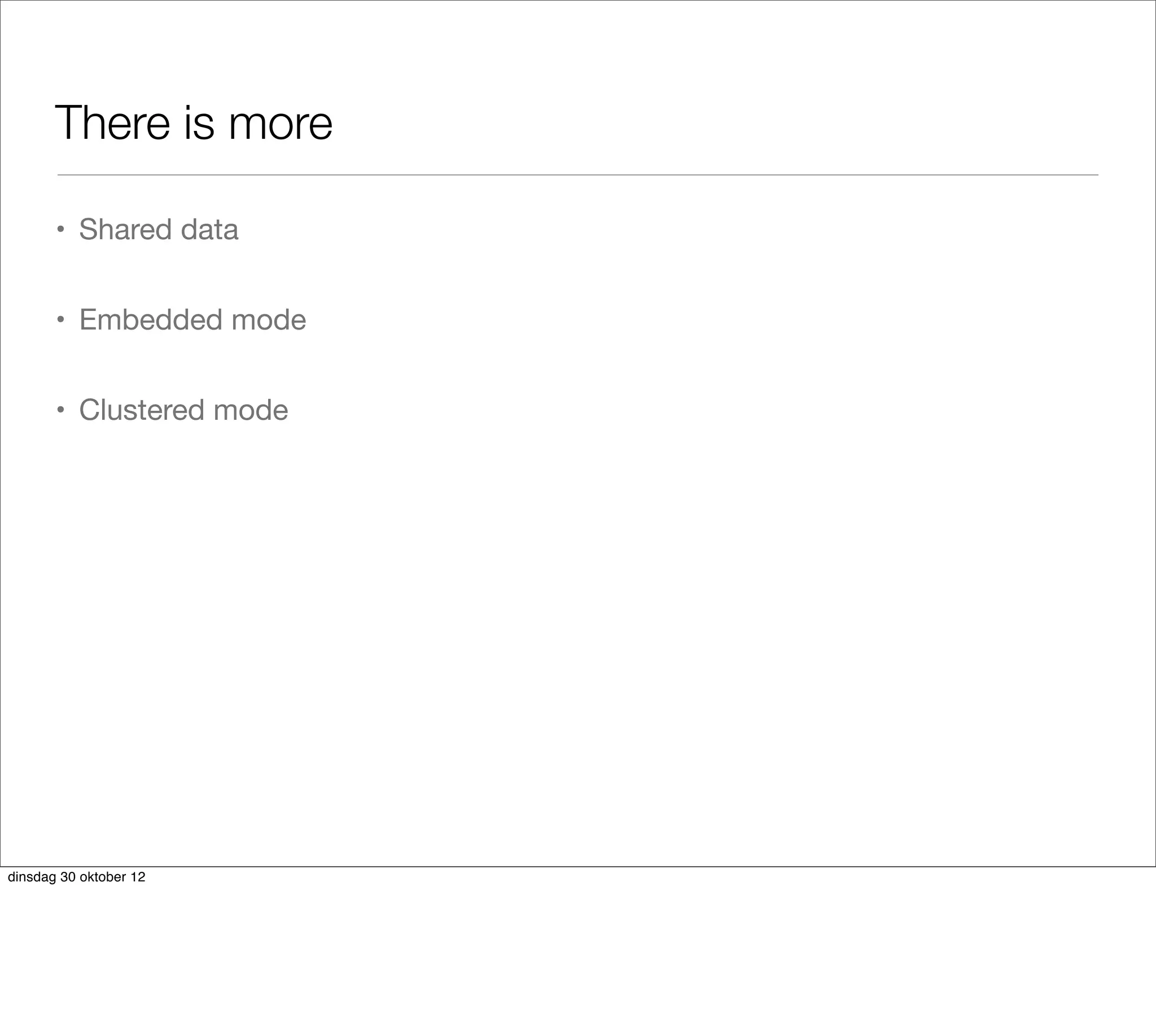

There is more

       • Shared data


       • Embedded mode


       • Clustered mode




dinsdag 30 oktober 12
More info

 Vert.x
 Tim Fox                @timfox         Jettro
 http://vertx.io Downloads and          Coenradie
 documentation

 http://groups.google.com/group/vertx
                                        @jettroCoenradie
 https://github.com/jettro/vertx-
 samples/ office-events                  @gridshore
                                        http://www.linkedin.com/in/jettro
                                        http://www.gridshore.nl
                                        http://www.trifork.nl
                                        https://github.com/jettro/

dinsdag 30 oktober 12
Questions ??



                                                 Rock ?? Concert by Rod Stewart with 3.500.000 visitors
dinsdag 30 oktober 12

Now we can scale our rock concert to around 3.5 million users.
