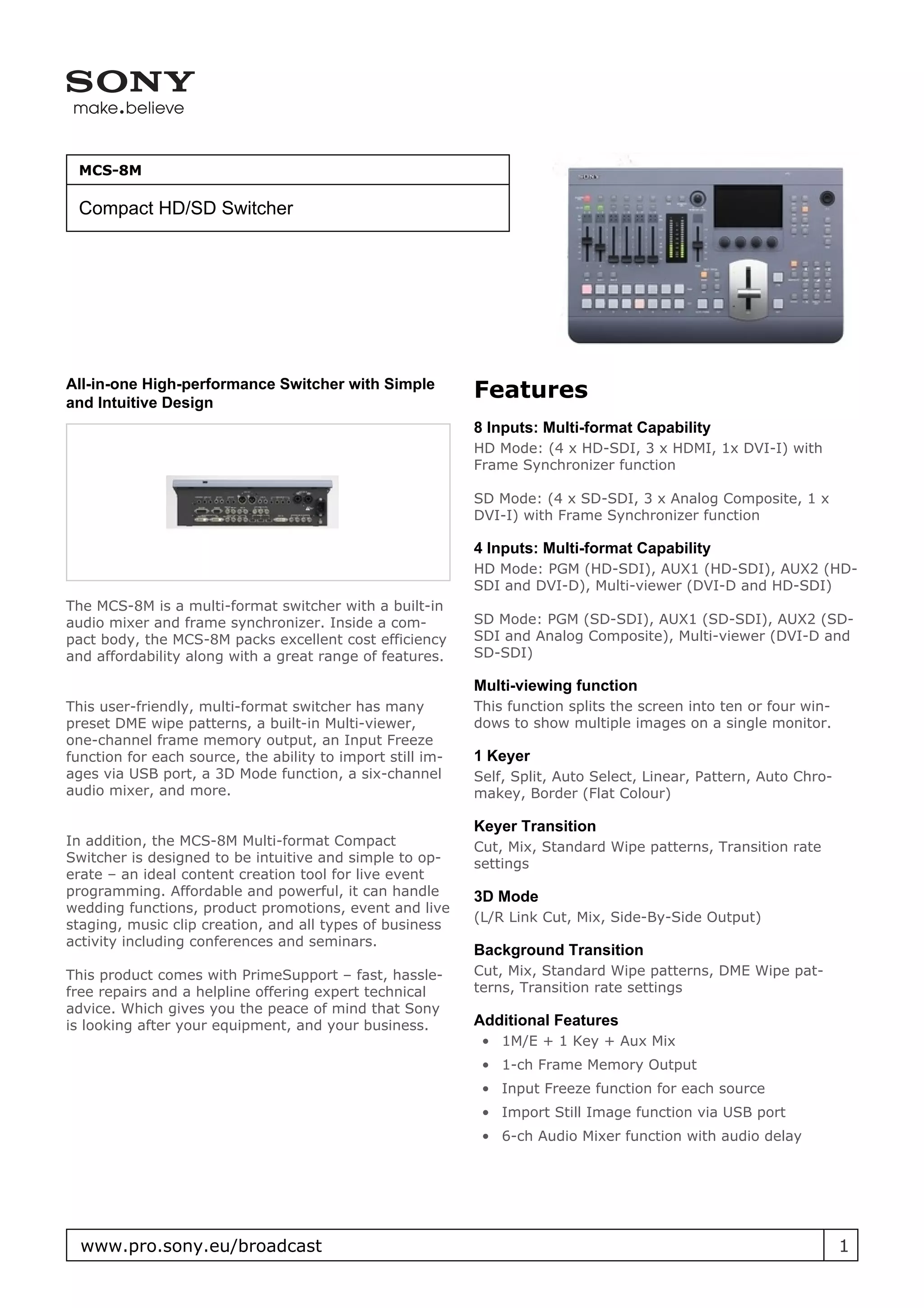

1. MCS-8M
Compact HD/SD Switcher
All-in-one High-performance Switcher with Simple
and Intuitive Design
Features
8 Inputs: Multi-format Capability
HD Mode: (4 x HD-SDI, 3 x HDMI, 1x DVI-I) with
Frame Synchronizer function
SD Mode: (4 x SD-SDI, 3 x Analog Composite, 1 x
DVI-I) with Frame Synchronizer function
4 Inputs: Multi-format Capability
HD Mode: PGM (HD-SDI), AUX1 (HD-SDI), AUX2 (HD-
SDI and DVI-D), Multi-viewer (DVI-D and HD-SDI)
The MCS-8M is a multi-format switcher with a built-in
audio mixer and frame synchronizer. Inside a com- SD Mode: PGM (SD-SDI), AUX1 (SD-SDI), AUX2 (SD-
pact body, the MCS-8M packs excellent cost efficiency SDI and Analog Composite), Multi-viewer (DVI-D and
and affordability along with a great range of features. SD-SDI)
Multi-viewing function
This user-friendly, multi-format switcher has many This function splits the screen into ten or four win-
preset DME wipe patterns, a built-in Multi-viewer, dows to show multiple images on a single monitor.
one-channel frame memory output, an Input Freeze
function for each source, the ability to import still im- 1 Keyer
ages via USB port, a 3D Mode function, a six-channel Self, Split, Auto Select, Linear, Pattern, Auto Chro-
audio mixer, and more. makey, Border (Flat Colour)
Keyer Transition
In addition, the MCS-8M Multi-format Compact Cut, Mix, Standard Wipe patterns, Transition rate
Switcher is designed to be intuitive and simple to op- settings
erate – an ideal content creation tool for live event
programming. Affordable and powerful, it can handle 3D Mode
wedding functions, product promotions, event and live
(L/R Link Cut, Mix, Side-By-Side Output)
staging, music clip creation, and all types of business
activity including conferences and seminars.
Background Transition
This product comes with PrimeSupport – fast, hassle- Cut, Mix, Standard Wipe patterns, DME Wipe pat-
free repairs and a helpline offering expert technical terns, Transition rate settings
advice. Which gives you the peace of mind that Sony
is looking after your equipment, and your business. Additional Features
• 1M/E + 1 Key + Aux Mix
• 1-ch Frame Memory Output
• Input Freeze function for each source
• Import Still Image function via USB port
• 6-ch Audio Mixer function with audio delay
www.pro.sony.eu/broadcast 1

2. MCS-8M
Technical Specifications
General Input/output connectors
Power requirement 100 V AC to 240 V AC ±10% Video input SDI: BNC (x4), HDMI (x3),
50/60 Hz DVI (x1), composite (x3)
Power consumption Max. 80 W Reference input BNC (x1)
Dimensions (W x H x D) 420 x 270 x 122 mm (16 Audio input Combo jack (x1),TRS jack
5/8 x 10 3/4 x 4 7/8 inches) (x4),RCA pin jack (x2)
Mass 5 kg (11 lb ) Video outputs SDI: BNC (x4), DVI-D (X2),
Operating temperature 5 °C to 40 ° (41 °F to 104 composite (x1)
°F C ) Reference output BNC (x1)
Compliant format 1080i/59.94, 1080i/50, Audio output XLR jack (x2),TRS jack (x4),
720p/59.94, 720p/50, 480i/ RCA pin jack (x2), Phone
59.94, jack (x2)
576i/50 Remote D-sub 9-pin (x1)
GPI D-sub 5-pin (x1)
www.pro.sony.eu/broadcast 2
