Varnish 3 The easy way to speed up your websites @fabpot fabien@symfony.com http://www.flickr.com/photos/laserstars/908946494
Varnish is an HTTP accelerator http://www.flickr.com/photos/stuckincustoms/3232133635
Varnish is a Caching Reverse Proxy http://www.flickr.com/photos/stuckincustoms/3232133635
Kinds of caches http://www.flickr.com/photos/jnarin/2993803017
Browser Browser Browser Browser Cache Browser Cache Browser Cache Within a Company On the server side Your PHP application
Browser Browser Browser Browser Browser Browser Browser Cache Browser Cache Browser Cache Browser Cache Browser Cache Browser Cache Proxy Cache Proxy Cache Within a Company Within a Company On the server side Your PHP application
Browser Browser Browser Browser Browser Browser Cache Browser Cache Browser Cache Browser Cache Browser Cache Proxy Cache Within a Company On the server side Reverse Proxy Cache Your PHP application
HTTP and Caching http://www.flickr.com/photos/hdz/5623651313
RFC 2616 – HTTP/1.1 http://www.ietf.org/rfc/rfc2616.txt http://tools.ietf.org/wg/httpbis/
The Client sends a Request to the Server The Server sends back a Response to the Client A Client (browser, bot, WS, curl, …) A Server (Apache, nginx, …) The Request and the Response are HTTP messages
GET / HTTP/1.1 Host: http.trainings.sensiolabs.com
HTTP/1.1 200 OK Date: Wed, 15 Oct 2005 07:07:07 GMT Server: Apache Content-Length: 14 Content-Type: text/html Hello World!
Caching in the HTTP Specification

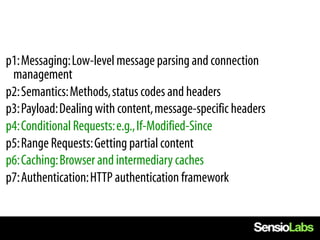

 p1: Messaging: Low-level message parsing and connection management  p2: Semantics: Methods, status codes and headers  p3: Payload: Dealing with content, message-specific headers  p4: Conditional Requests: e.g., If-Modified-Since  p5: Range Requests: Getting partial content  p6: Caching: Browser and intermediary caches  p7: Authentication: HTTP authentication framework
Expiration Cache-Control Expires
Validation Last-Modified / If-Modified-Since ETag / If-None-Match
The goal is to never generate the same response twice http://www.flickr.com/photos/donaldmacleod/3439612846
HTTP Expiration
GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Your PHP application Some Cache Browser GET /foo HTTP/1.1 200 OK Cache-Control: s- maxage=10 Hello HTTP/1.1 200 OK HTTP/1.1 200 OK Cache-­‐Control:  s-­‐maxage=10 Hello Hello
Before expiration GET /foo HTTP/1.1 Your application is not called Host: foo.org Your PHP application Some Cache Browser GET /foo HTTP/1.1 200 OK Cache-Control: s- maxage=10 Hello HTTP/1.1 200 OK Hello
After expiration GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Some Cache fresh Your PHP application Not Browser GET /foo HTTP/1.1 200 OK Cache-Control: s- maxage=10 Hello HTTP/1.1 200 OK HTTP/1.1 200 OK Cache-Control: s-maxage=10 Hello Hello
HTTP Validation
Last-Modified / If-Modified-Since Etag / If-None-Match
GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Your PHP application Some Cache Browser GET /foo HTTP/1.1 200 OK Last-Modified: Thu,   … Hello HTTP/1.1 200 OK HTTP/1.1 200 OK Last-Modified: Thu,  … Last-Modified: Thu,  … Hello Hello
If the resource has not changed GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org If-Modified-Since: Thu, Your PHP application Some Cache Browser GET /foo HTTP/1.1 200 OK Last-Modified: Thu,   … Hello HTTP/1.1 200 OK HTTP/1.1 304 Not Modified Last-Modified: Thu,  … Hello
If the resource has changed GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org If-Modified-Since: Thu, Your PHP application Some Cache Browser GET /foo /foo GET HTTP/1.1 200 200 OK HTTP/1.1 OK Last-Modified: Sun,… Last-Modified: Thu,… Hello Hello HTTP/1.1 200 OK HTTP/1.1 200 OK Last-Modified: Sun,  … Last-Modified: Sun,  … Hello Hello
You can combine HTTP headers the way you want Expiration wins over Validation
GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Your PHP application Some Cache Browser GET /foo HTTP/1.1 200 OK Etag: abcdef Cache-­‐Control:  max-­‐ age=10 … Hello HTTP/1.1 200 OK HTTP/1.1 200 OK ETag: abcdef ETag: abcdef Cache-­‐Control:  max-­‐age=10 Cache-­‐Control:  max-­‐age=10 Hello Hello
Before expiration GET /foo HTTP/1.1 Host: foo.org Your application is not called Your PHP application Some Cache Browser GET /foo HTTP/1.1 200 OK Etag: abcdef Cache-­‐Control:  max-­‐ age=10 … Hello HTTP/1.1 200 OK ETag: abcdef Cache-­‐Control:  max-­‐age=10 Hello
After expiration but resource still valid GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org If-None-Match: abcdef Your PHP application Some Cache Browser GET /foo HTTP/1.1 200 OK Etag: abcdef Cache-­‐Control:  max-­‐ age=10 … Hello HTTP/1.1 200 OK HTTP/1.1 304 Not Modified ETag: abcdef Cache-­‐Control:  max-­‐age=10 Cache-­‐Control:  max-­‐age=10 Hello
HTTP Expiration
GET /foo HTTP/1.1 GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Host: foo.org Your PHP application Reverse Proxy Cache GET /foo GET /foo HTTP/1.1 200 OK HTTP/1.1 200 OK C-C: max-age=600 C-C: max-age=600 Bob’s Cache … … Hello Hello Bob HTTP/1.1 200 OK HTTP/1.1 200 OK HTTP/1.1 200 OK C-C: max-age=600 C-C: max-age=600 C-C: max-age=600 Hello Hello Hello
GET /foo HTTP/1.1 Host: foo.org Your PHP application Reverse Proxy Cache GET /foo GET /foo HTTP/1.1 200 OK HTTP/1.1 200 OK C-C: max-age=600 C-C: max-age=600 Bob’s Cache … … Hello Hello Bob HTTP/1.1 200 OK C-C: max-age=600 Hello
GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Your PHP application Reverse Proxy Cache GET /foo GET /foo HTTP/1.1 200 OK HTTP/1.1 200 OK Browser Cache C-C: max-age=600 C-C: max-age=600 … … Hello Hello Alice HTTP/1.1 200 OK HTTP/1.1 200 OK C-C: max-age=600 C-C: max-age=600 Hello Hello
HTTP Validation
GET /foo HTTP/1.1 GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Host: foo.org Your PHP application Reverse Proxy Cache GET /foo GET /foo HTTP/1.1 200 OK HTTP/1.1 200 OK Etag: abcde Etag: abcde Bob’s Cache … … Hello Hello Bob HTTP/1.1 200 OK HTTP/1.1 200 OK HTTP/1.1 200 OK Etag: abcde Etag: abcde Etag: abcde Hello Hello Hello
GET /foo HTTP/1.1 GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Host: foo.org If-None-Match: ab If-None-Match: ab Your PHP application Reverse Proxy Cache GET /foo GET /foo HTTP/1.1 200 OK HTTP/1.1 200 OK Etag: ab Etag: ab Bob’s Cache … … Hello Hello Bob HTTP/1.1 200 OK Etag: ab 304 Not Modified 304 Not Modified Hello
GET /foo HTTP/1.1 GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Host: foo.org If-None-Match: ab Your PHP application Reverse Proxy Cache GET /foo GET /foo Browser Cache HTTP/1.1 200 OK HTTP/1.1 200 OK Etag: ab Etag: ab … … Hello Hello Alice HTTP/1.1 200 OK HTTP/1.1 200 OK Etag: ab Etag: ab 304 Not Modified Hello Hello
VCL Varnish Configuration Language http://www.flickr.com/photos/akatayama/84707813
backend default { .host = "127.0.0.1"; .port = "8080"; }
pipe vcl_pipe error vcl_error restart deliver orkflow lookup deliver Request vcl_recv vcl_hash W cached? vcl_hit pass vcl_deliver Response deliver fetch vcl_miss vcl_fetch pass vcl_pass pass
Special Subroutines
req. pipe vcl_pipe error vcl_error restart deliver lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver fetch vcl_miss vcl_fetch pass vcl_pass pass

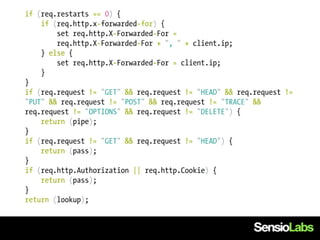

if (req.restarts == 0) { if (req.http.x-forwarded-for) { set req.http.X-Forwarded-For = req.http.X-Forwarded-For + ", " + client.ip; } else { set req.http.X-Forwarded-For = client.ip; } } if (req.request != "GET" && req.request != "HEAD" && req.request != "PUT" && req.request != "POST" && req.request != "TRACE" && req.request != "OPTIONS" && req.request != "DELETE") { return (pipe); } if (req.request != "GET" && req.request != "HEAD") { return (pass); } if (req.http.Authorization || req.http.Cookie) { return (pass); } return (lookup);
req. pipe vcl_pipe error vcl_error restart deliver lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver fetch vcl_miss vcl_fetch pass vcl_pass pass

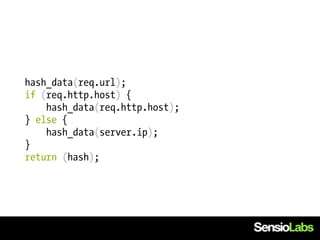

hash_data(req.url); if (req.http.host) { hash_data(req.http.host); } else { hash_data(server.ip); } return (hash);
pipe vcl_pipe error vcl_error restart deliver lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver fetch vcl_miss vcl_fetch pass vcl_pass pass
req. obj. pipe vcl_pipe error vcl_error restart deliver lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver fetch vcl_miss vcl_fetch pass vcl_pass pass
return (deliver);
req. bereq. pipe vcl_pipe error vcl_error restart deliver lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver fetch vcl_miss vcl_fetch pass vcl_pass pass
return (fetch);
req. bereq. beresp. pipe vcl_pipe error vcl_error restart deliver lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver fetch vcl_miss vcl_fetch pass vcl_pass pass
if (beresp.ttl <= 0s || beresp.http.Set-Cookie || beresp.http.Vary == "*") { set beresp.ttl = 120 s; return (hit_for_pass); } return (deliver);
resp. pipe vcl_pipe error vcl_error restart deliver lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver fetch vcl_miss vcl_fetch pass vcl_pass pass
return (deliver);
pipe vcl_pipe error vcl_error restart deliver lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver fetch vcl_miss vcl_fetch pass vcl_pass pass
set obj.http.Content-Type = "text/html; charset=utf-8"; set obj.http.Retry-After = "5"; synthetic {" <?xml version="1.0" encoding="utf-8"?> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd"> <html> <head> <title>"} + obj.status + " " + obj.response + {"</title> </head> <body> <h1>Error "} + obj.status + " " + obj.response + {"</h1> <p>"} + obj.response + {"</p> <h3>Guru Meditation:</h3> <p>XID: "} + req.xid + {"</p> <hr> <p>Varnish cache server</p> </body> </html> "}; return (deliver);
Varnish Workflow http://www.flickr.com/photos/w4nd3rl0st/6604159789
lookup Request vcl_recv vcl_hash cached? vcl_deliver Response deliver fetch vcl_miss vcl_fetch
lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response
pipe vcl_pipe Request vcl_recv Response
lookup Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver vcl_miss vcl_fetch pass vcl_pass pass
pipe vcl_pipe error vcl_error restart deliver lookup deliver Request vcl_recv vcl_hash cached? vcl_hit vcl_deliver Response pass deliver fetch vcl_miss vcl_fetch pass vcl_pass pass
VCL Recipes http://www.flickr.com/photos/christijohnstone/5474556299
backend default { .host = "127.0.0.1"; .port = "8080"; } sub vcl_recv { if ((req.request == "GET" || req.request == "HEAD") && req.url ~ ". (png|gif|jpg|swf|css|js)$") { unset req.http.cookie; return(lookup); } } sub vcl_fetch { if (req.url ~ ".(png|gif|jpg|swf|css|js)$") { remove beresp.http.set-cookie; set beresp.ttl = 2h; } }
sub vcl_hit { if (...) { if (obj.hits >= 10) { set obj.ttl = obj.ttl * 2; } } }
backend app { .host = "192.168.0.1"; .port = "8080"; } backend images { .host = "192.168.0.2"; .port = "8080"; }
sub vcl_recv { set req.backend = app; if (req.url ~ ".(gif|jpg|swf|css|js)$") { set req.backend = images; } }

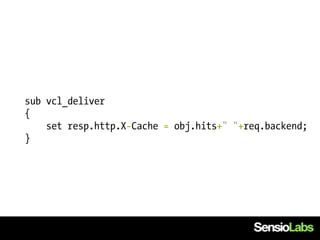

sub vcl_deliver { set resp.http.X-Cache = obj.hits+" "+req.backend; }
sub vcl_recv { if (req.http.host ~ "^(?i)example.org" && req.http.X- Forwarded-Proto !~ "(?i)https") { set req.http.x-Redir-Url = "https://example.org" + req.url; error 750 req.http.x-Redir-Url; } } sub vcl_error { if (obj.status == 750) { set obj.http.Location = obj.response; set obj.status = 302; return (deliver); } }
sub vcl_recv { if (req.http.Cookie) { set req.http.Cookie = regsuball(req.http.Cookie,"(^|; ) *__utm.=[^;]+;? *", "1"); if (req.http.Cookie == "") { remove req.http.Cookie; } } }
Saving the Request http://www.flickr.com/photos/lwr/5014290292
backend app { .host = "192.168.0.1"; .port = "8080"; } backend rescue { .host = "1.1.1.1"; .port = "8080"; }
sub vcl_fetch { if (beresp.status == 500) { return (restart); } } sub vcl_recv { set req.backend = default; if (req.restarts > 0) { set req.backend = rescue; } }
director balance round-robin { { .backend = web1; } { .backend = web2; } } director balance random { { .backend = web1; .weight = 2 } { .backend = web2; .weight = 1 } }
director balance fallback { { .backend = web1; } { .backend = web2; } } director balance client { { .backend = web1; .weight = 2 } { .backend = web2; .weight = 1 } } director balance hash { { .backend = web1; .weight = 2 } { .backend = web2; .weight = 1 } }
stale-while-revalidate - rfc5861
sub vcl_fetch { set beresp.grace = 30m; } sub vcl_recv { set req.grace = 15s; }
sub vcl_recv { set req.grace = 15s; if (!req.backend.healthy) { set req.grace = 5m; } }
probe health { .url = "/test_health"; .expected_response = 200; .interval = 5s; .timeout = 1s; .window = 5; .threshold = 3; } backend default { .host = "127.0.0.1"; .port = "8080"; .probe = health; }
stale-if-error - rfc5861
sub vcl_fetch { if (beresp.status == 500) { set beresp.saintmode = 10s; return (restart); } set beresp.grace = 30m; }
Cache Invalidation http://www.flickr.com/photos/r80o/5549288

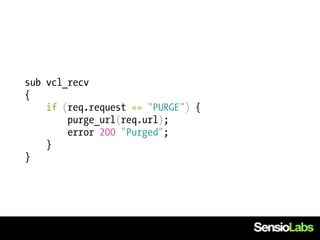

sub vcl_recv { if (req.request == "PURGE") { purge_url(req.url); error 200 "Purged"; } }
acl purge_acl { "localhost"; "192.168.55.0/24"; } sub vcl_recv { if (req.request == "PURGE") { if (!client.ip ~ purge_acl) { error 405 "Not allowed"; } purge_url(req.url); error 200 "Purged"; } }

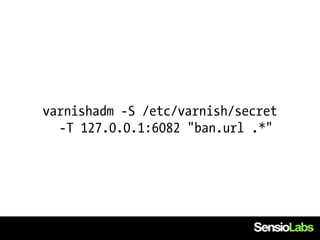

varnishadm -S /etc/varnish/secret -T 127.0.0.1:6082 "ban.url .*"
ban req.http.host == "example.com" && req.http.url ~ ".png$"
Edge Side Includes ESI
cacheable for 10 minutes cacheable for 5 seconds Lorem  ipsum  dolor  sit  amet,  consectetur   Lorem  ipsum  dolor  sit  amet,   adipiscing  elit.  In  vel  nulla  arcu,  vitae  cursus   consectetur  adipiscing  elit.   nunc.  Integer  semper  turpis  et  enim   In  vel  nulla  arcu,  vitae   porCtor  iaculis.  Nulla  facilisi.  Lorem  ipsum   cursus  nunc.  Integer   dolor  sit  amet,  consectetur  adipiscing  elit.   semper  turpis  et  enim   Mauris  vehicula  vesFbulum  dictum.  Aenean   porCtor  iaculis.  Nulla   non  velit  tortor.  Nullam  adipiscing   facilisi.  Lorem  ipsum  dolor   malesuada  aliquam.  Mauris  dignissim,  urna   sit  amet,  consectetur   quis  iaculis  tempus,  justo  libero  porCtor  est,   adipiscing  elit.  Mauris   nec  eleifend  est  elit  vitae  ante.  Curabitur   vehicula  vesFbulum  dictum.   interdum  luctus  metus,  in  pulvinar  lectus   Aenean  non  velit  tortor.   rutrum  sit  amet.  Duis  gravida,  metus  in   Nullam  adipiscing   dictum  eleifend,  dolor  risus  Fncidunt  ligula,   malesuada  aliquam.  Mauris   non  volutpat  nulla  sapien  in  elit.  Nulla   dignissim,  urna  quis  iaculis   rutrum  erat  id  neque  suscipit  eu  ultricies   tempus,  justo  libero   odio  sollicitudin.  Aliquam  a  mi  vel  eros   porCtor  est,  nec  eleifend   placerat  hendrerit.  Phasellus  porCtor,   est  elit  vitae  ante.  Curabitur   augue  sit  amet  vulputate  venenaFs,  dui  leo   interdum  luctus  metus. commodo  odio,  a  euismod  turpis  ligula  in   elit.
ESI… or Edge Side Includes http://www.w3.org/TR/esi-lang

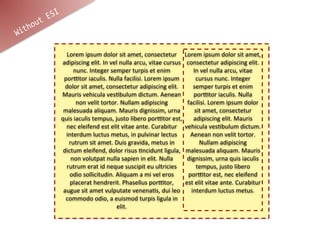

t ESI hou Wit Lorem  ipsum  dolor  sit  amet,  consectetur   Lorem  ipsum  dolor  sit  amet,   adipiscing  elit.  In  vel  nulla  arcu,  vitae  cursus   consectetur  adipiscing  elit.   nunc.  Integer  semper  turpis  et  enim   In  vel  nulla  arcu,  vitae   porCtor  iaculis.  Nulla  facilisi.  Lorem  ipsum   cursus  nunc.  Integer   dolor  sit  amet,  consectetur  adipiscing  elit.   semper  turpis  et  enim   Mauris  vehicula  vesFbulum  dictum.  Aenean   porCtor  iaculis.  Nulla   non  velit  tortor.  Nullam  adipiscing   facilisi.  Lorem  ipsum  dolor   malesuada  aliquam.  Mauris  dignissim,  urna   sit  amet,  consectetur   quis  iaculis  tempus,  justo  libero  porCtor  est,   adipiscing  elit.  Mauris   nec  eleifend  est  elit  vitae  ante.  Curabitur   vehicula  vesFbulum  dictum.   interdum  luctus  metus,  in  pulvinar  lectus   Aenean  non  velit  tortor.   rutrum  sit  amet.  Duis  gravida,  metus  in   Nullam  adipiscing   dictum  eleifend,  dolor  risus  Fncidunt  ligula,   malesuada  aliquam.  Mauris   non  volutpat  nulla  sapien  in  elit.  Nulla   dignissim,  urna  quis  iaculis   rutrum  erat  id  neque  suscipit  eu  ultricies   tempus,  justo  libero   odio  sollicitudin.  Aliquam  a  mi  vel  eros   porCtor  est,  nec  eleifend   placerat  hendrerit.  Phasellus  porCtor,   est  elit  vitae  ante.  Curabitur   augue  sit  amet  vulputate  venenaFs,  dui  leo   interdum  luctus  metus. commodo  odio,  a  euismod  turpis  ligula  in   elit.

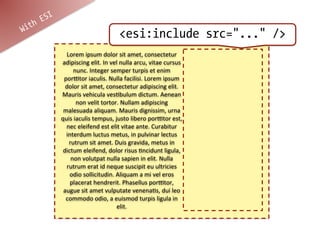

ESI W ith <esi:include src="..." /> Lorem  ipsum  dolor  sit  amet,  consectetur   adipiscing  elit.  In  vel  nulla  arcu,  vitae  cursus   nunc.  Integer  semper  turpis  et  enim   porCtor  iaculis.  Nulla  facilisi.  Lorem  ipsum   dolor  sit  amet,  consectetur  adipiscing  elit.   Mauris  vehicula  vesFbulum  dictum.  Aenean   non  velit  tortor.  Nullam  adipiscing   malesuada  aliquam.  Mauris  dignissim,  urna   quis  iaculis  tempus,  justo  libero  porCtor  est,   nec  eleifend  est  elit  vitae  ante.  Curabitur   interdum  luctus  metus,  in  pulvinar  lectus   rutrum  sit  amet.  Duis  gravida,  metus  in   dictum  eleifend,  dolor  risus  Fncidunt  ligula,   non  volutpat  nulla  sapien  in  elit.  Nulla   rutrum  erat  id  neque  suscipit  eu  ultricies   odio  sollicitudin.  Aliquam  a  mi  vel  eros   placerat  hendrerit.  Phasellus  porCtor,   augue  sit  amet  vulputate  venenaFs,  dui  leo   commodo  odio,  a  euismod  turpis  ligula  in   elit.

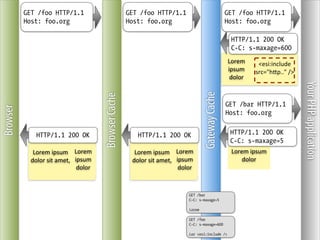

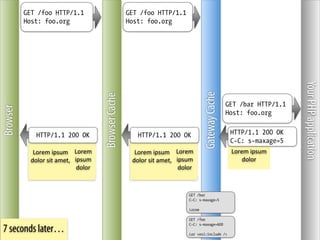

GET /foo HTTP/1.1 GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Host: foo.org HTTP/1.1 200 OK C-C: s-maxage=600 Lorem   <esi:include   ipsum   src="hNp.."  /> dolor   Your PHP application Gateway Cache Browser Cache GET /bar HTTP/1.1 Browser Host: foo.org HTTP/1.1 200 OK HTTP/1.1 200 OK HTTP/1.1 200 OK C-C: s-maxage=5 Lorem  ipsum   Lorem   Lorem  ipsum   Lorem   Lorem  ipsum   dolor  sit  amet,   ipsum   dolor  sit  amet,   ipsum   dolor dolor dolor GET /bar C-C: s-maxage=5 Lorem GET /foo C-C: s-maxage=600 Lor <esi:include />

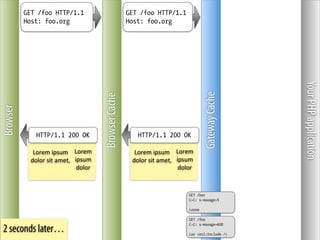

GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Your PHP application Gateway Cache Browser Cache Browser HTTP/1.1 200 OK HTTP/1.1 200 OK Lorem  ipsum   Lorem   Lorem  ipsum   Lorem   dolor  sit  amet,   ipsum   dolor  sit  amet,   ipsum   dolor dolor GET /bar C-C: s-maxage=5 Lorem GET /foo C-C: s-maxage=600 2 seconds later… Lor <esi:include />
GET /foo HTTP/1.1 GET /foo HTTP/1.1 Host: foo.org Host: foo.org Your PHP application Gateway Cache Browser Cache GET /bar HTTP/1.1 Browser Host: foo.org HTTP/1.1 200 OK HTTP/1.1 200 OK HTTP/1.1 200 OK C-C: s-maxage=5 Lorem  ipsum   Lorem   Lorem  ipsum   Lorem   Lorem  ipsum   dolor  sit  amet,   ipsum   dolor  sit  amet,   ipsum   dolor dolor dolor GET /bar C-C: s-maxage=5 Lorem GET /foo C-C: s-maxage=600 7 seconds later… Lor <esi:include />
Surrogate-Capability Surrogate-Control http://www.w3.org/TR/edge-arch
Surrogate-Capability: abc="Surrogate/1.0 ESI/1.0"
Surrogate-Control: content="ESI/1.0"
sub vcl_recv { set req.http.Surrogate-Capability = "abc=ESI/ 1.0"; } sub vcl_fetch { if (beresp.http.Surrogate-Control ~ "ESI/1.0") { unset beresp.http.Surrogate-Control; unset beresp.http.Cache-Control; set beresp.do_esi = true; } }
http://www.flickr.com/photos/atoach/2118513722
Caching only works for “safe” HTTP methods (like GET & HEAD)
Never change the state of the server when serving a GET request (we are talking about the application’s state of course, you can log, cache, …)
Cache-Control: private
Pages with cookies are not cached by default
Terminate SSL
64 bits
Thank You
