This document discusses validation controls in .NET, which determine if data entered into web controls is valid before processing. There are six main validation controls: RequiredFieldValidator, CompareValidator, RangeValidator, ValidationSummary, RegularExpressionValidator, and CustomValidator. Validation controls validate user input on both the client-side using JavaScript and server-side to prevent spoofing. They make validation easier by allowing declarative validation that is separate from input controls and provide a flexible extensible framework.

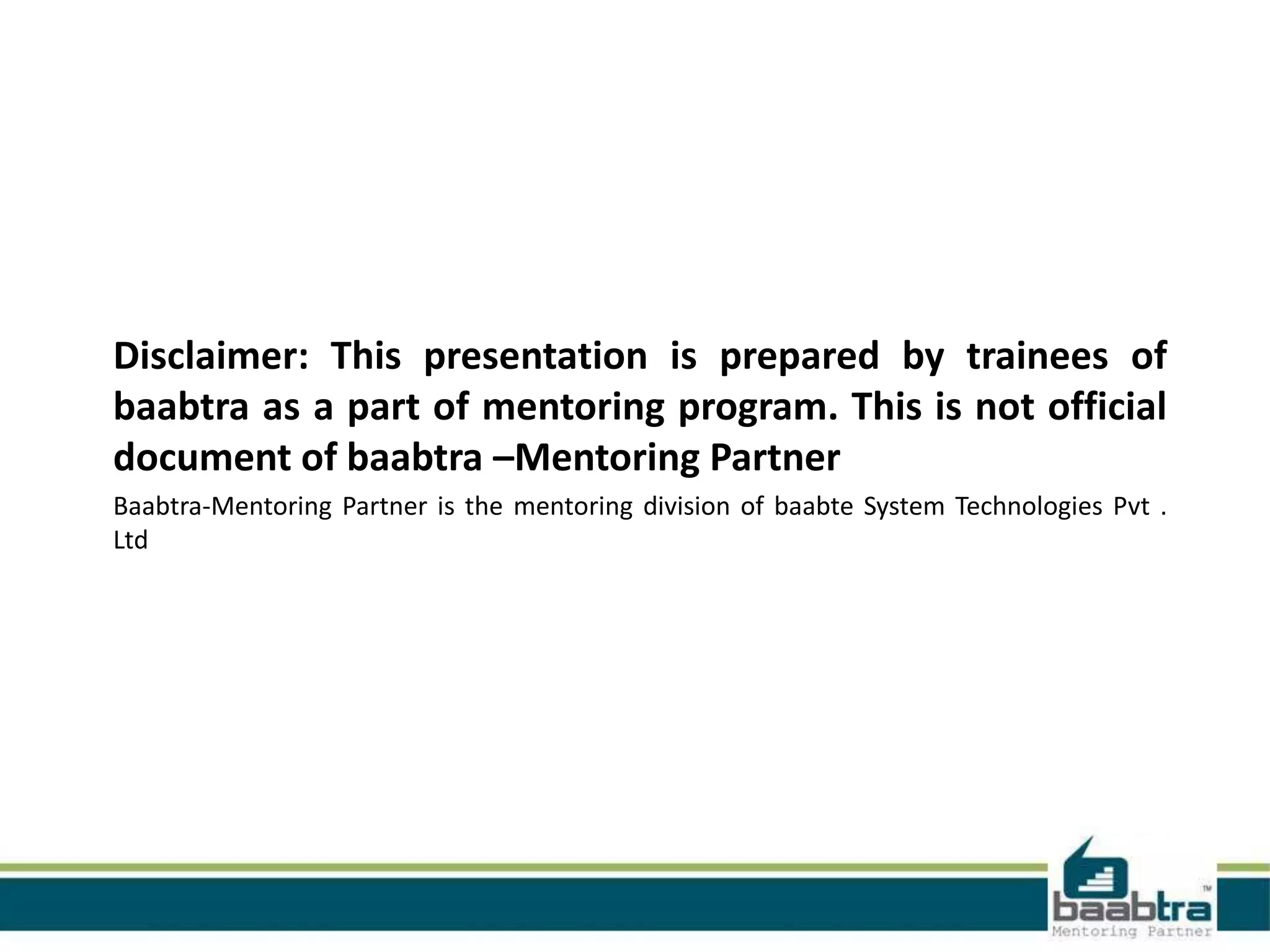

2. Disclaimer: This presentation is prepared by trainees of
baabtra as a part of mentoring program. This is not official
document of baabtra –Mentoring Partner
Baabtra-Mentoring Partner is the mentoring division of baabte System Technologies Pvt .
Ltd
3. VALIDATION CONTROLS IN .NET
ARJUN S R
Arjun.sr007@gmail.com
www.facebook.com/arjun.a
ryavartham
twitter.com/arjun.sr007
in.linkedin.com/in/arjun.sr0
07
9745649882
4. • A validation control (or validator) determines whether the
data in another web control is in the proper format, before the
data is processed.
• When the XHTML for our page is created, the validator is
converted into JavaScript that performs the validation
• JavaScript is a scripting language that enhances the
functionality and appearance of web pages and is typically
executed on the client.
• Because some clients disable or do not support scripting,
ASP.NET validation controls can function on the client,
on the server or both.

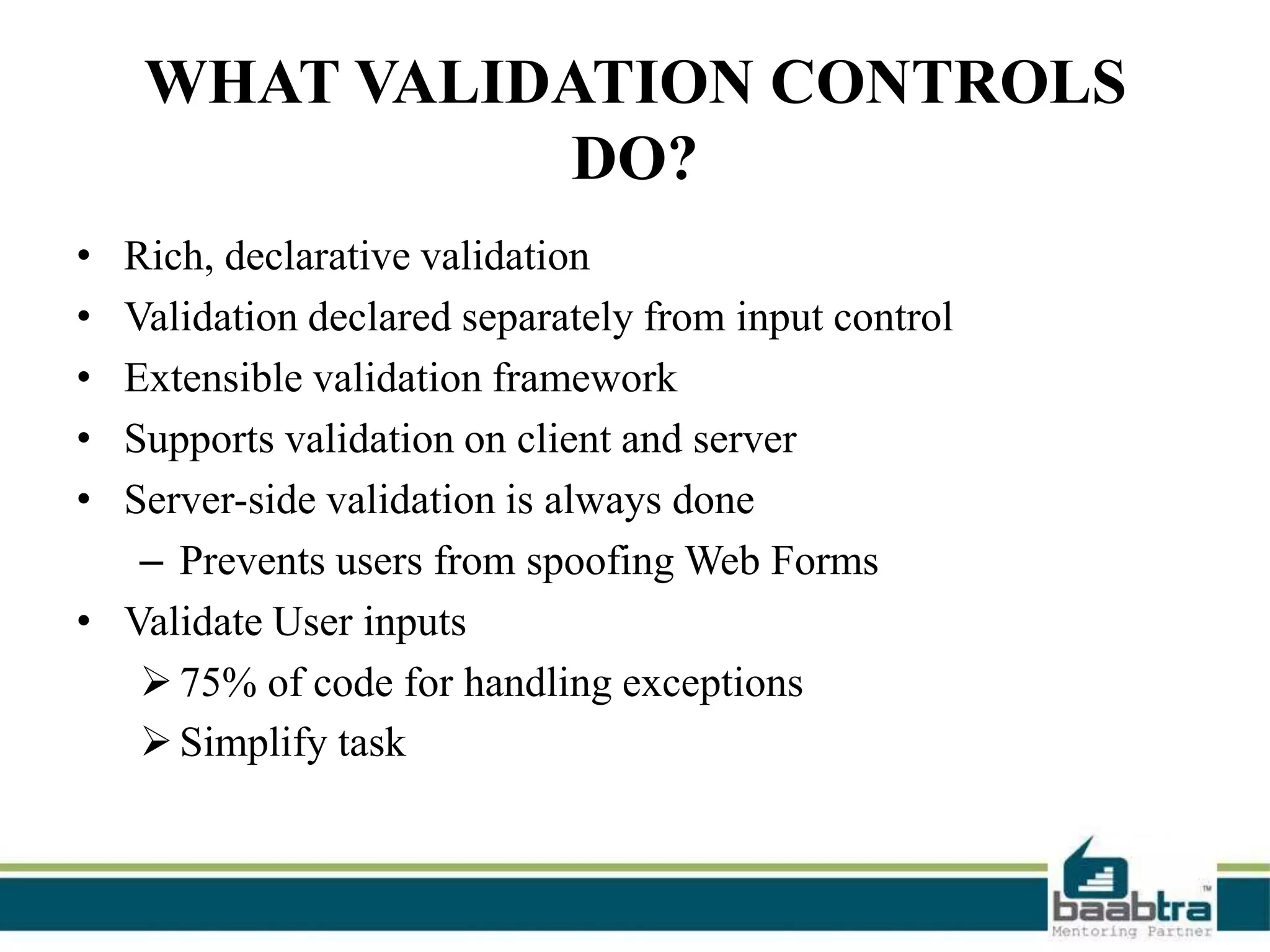

5. WHAT VALIDATION CONTROLS
DO?
• Rich, declarative validation
• Validation declared separately from input control
• Extensible validation framework
• Supports validation on client and server
• Server-side validation is always done
– Prevents users from spoofing Web Forms
• Validate User inputs
75% of code for handling exceptions
Simplify task

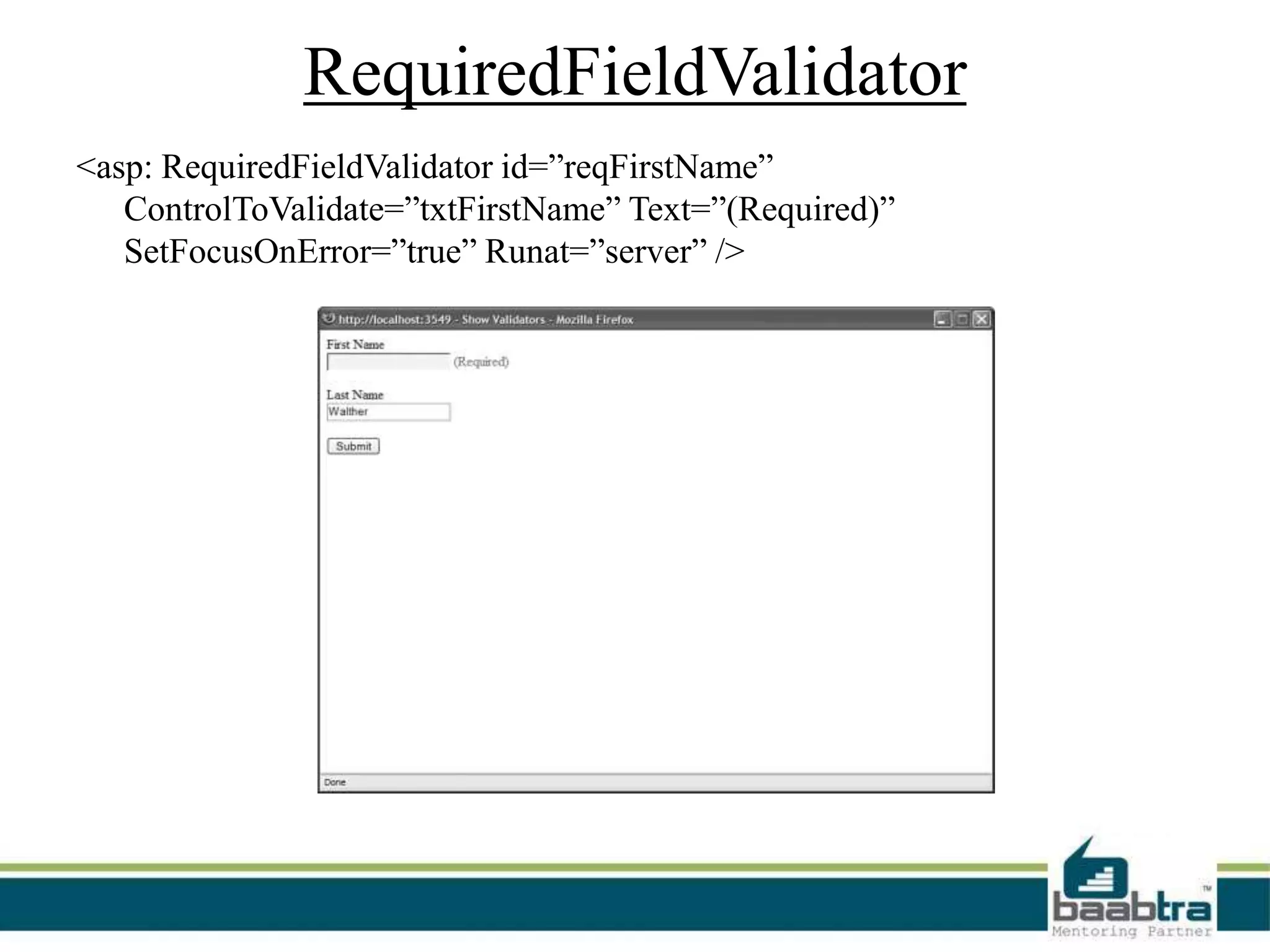

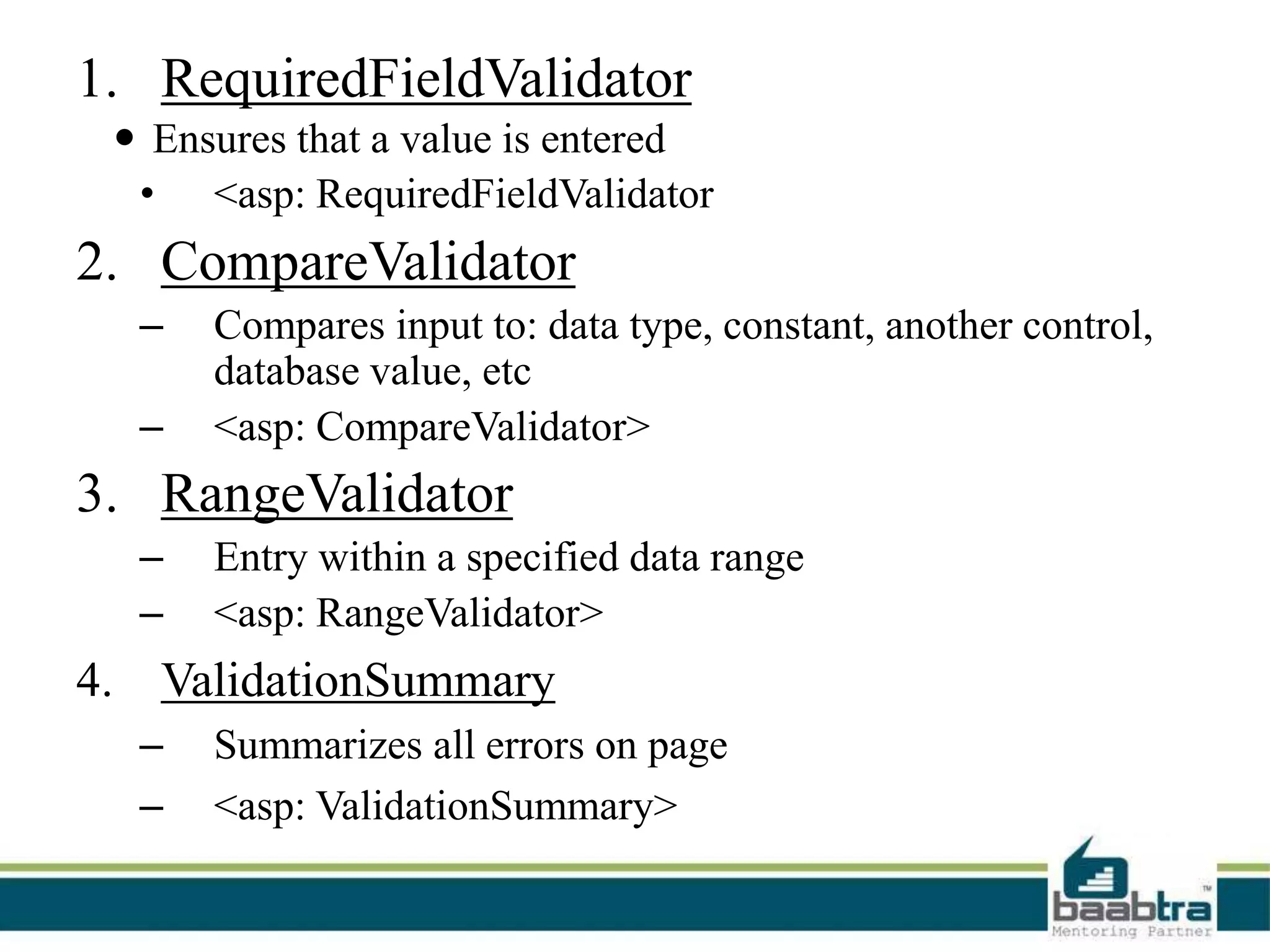

7. 1. RequiredFieldValidator
Ensures that a value is entered
• <asp: RequiredFieldValidator

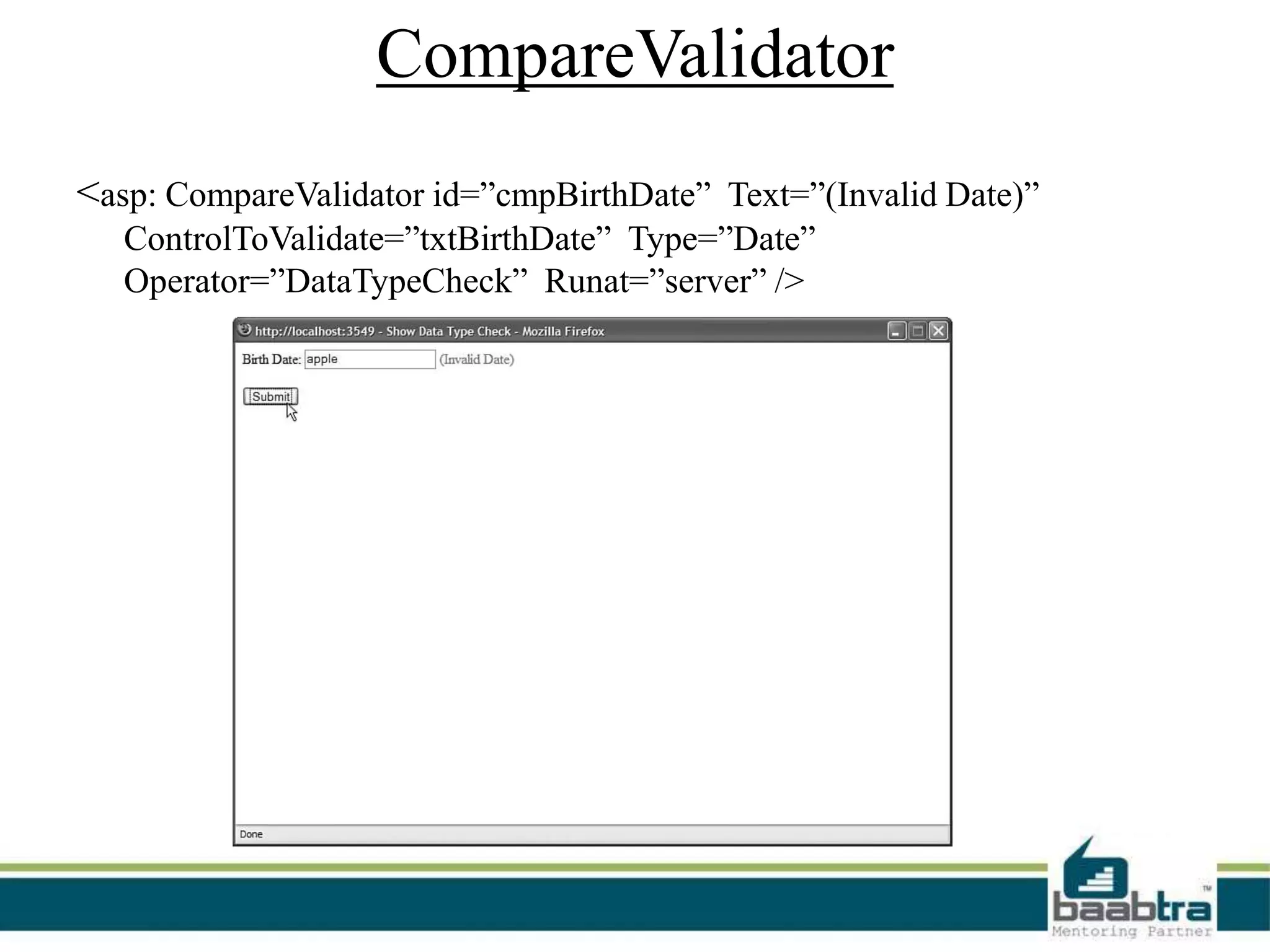

2. CompareValidator
– Compares input to: data type, constant, another control,
database value, etc
– <asp: CompareValidator>

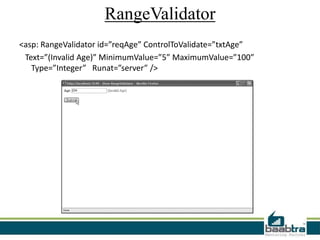

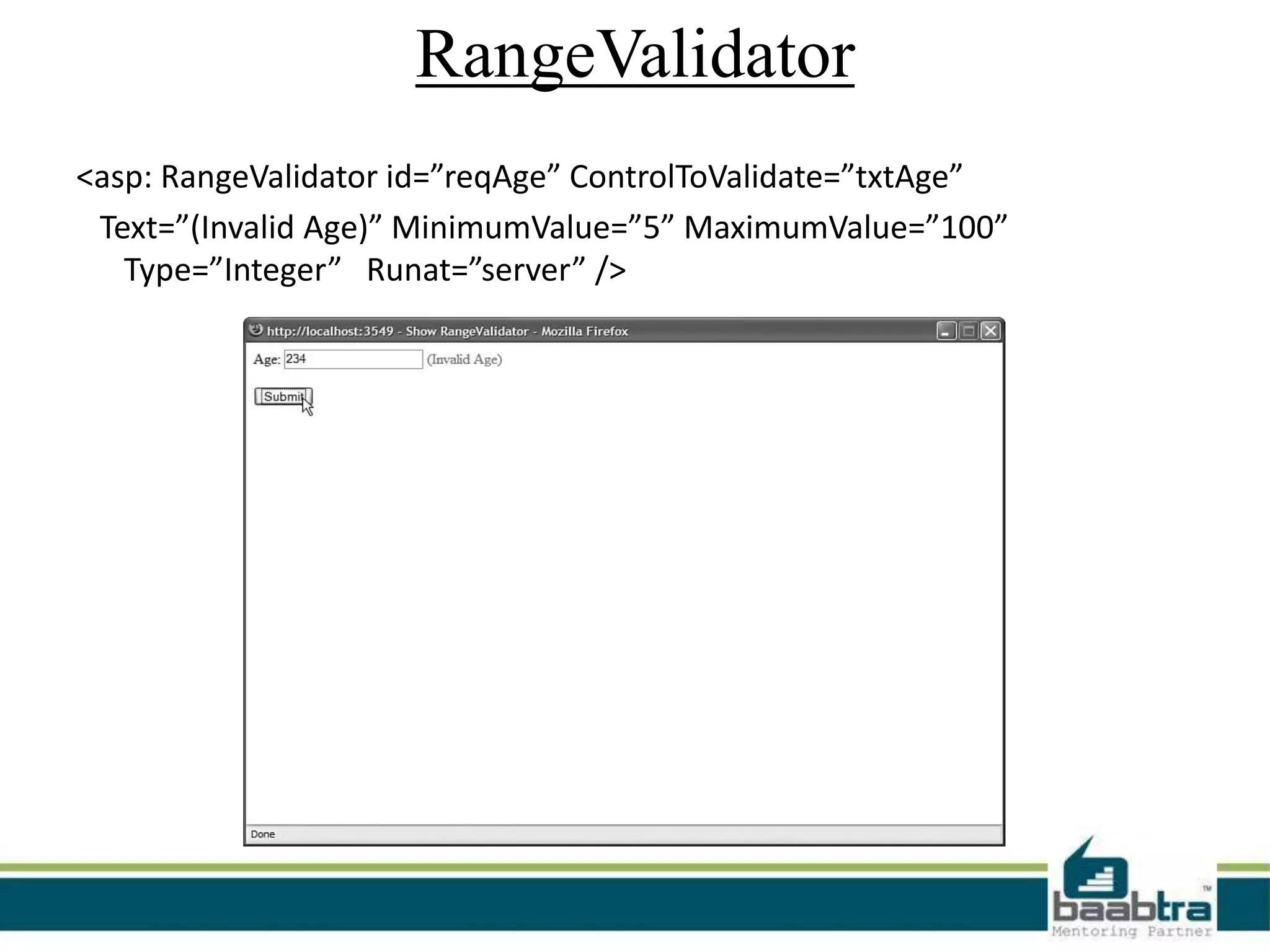

3. RangeValidator
– Entry within a specified data range
– <asp: RangeValidator>

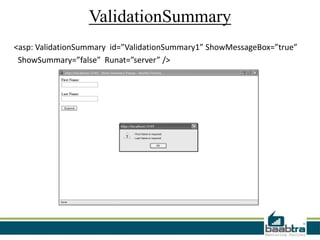

4. ValidationSummary
– Summarizes all errors on page
– <asp: ValidationSummary>

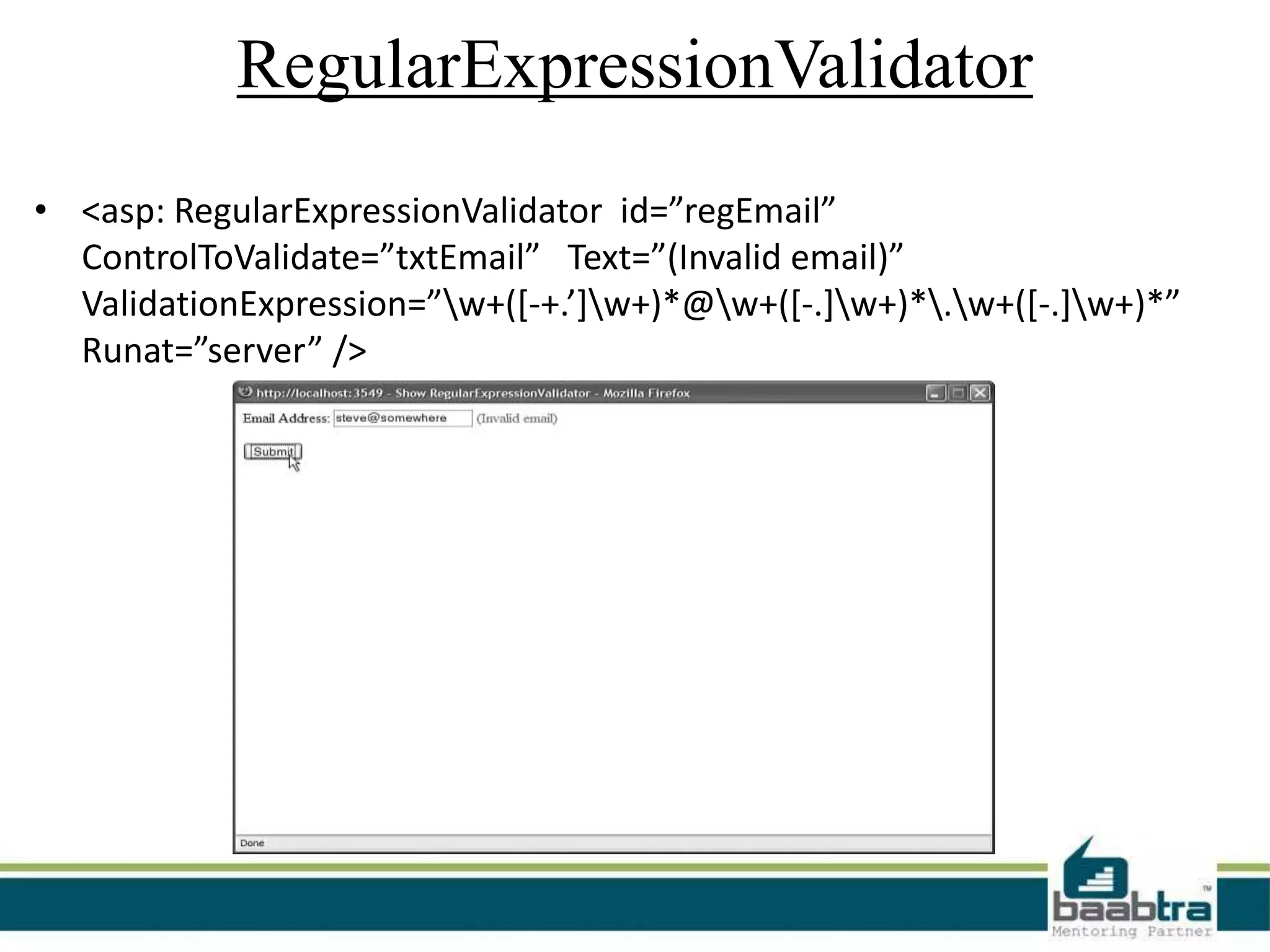

8. 4. RegularExpressionValidator
– Check format against a specific pattern
– E-mail address, phone number, zip code, etc
– <asp: RegularExpressionValidator>
5. CustomValidator
– Write own code
– Server- or client-side
– <asp: CustomValidator>

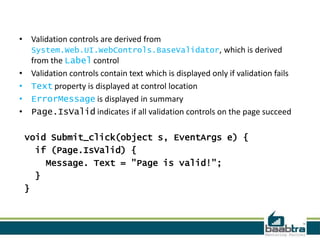

9. • Validation controls are derived from
System.Web.UI.WebControls.BaseValidator, which is derived
from the Label control
• Validation controls contain text which is displayed only if validation fails
• Text property is displayed at control location
• ErrorMessage is displayed in summary
• Page.IsValid indicates if all validation controls on the page succeed
void Submit_click(object s, EventArgs e) {
if (Page.IsValid) {
Message. Text = "Page is valid!";
}
}

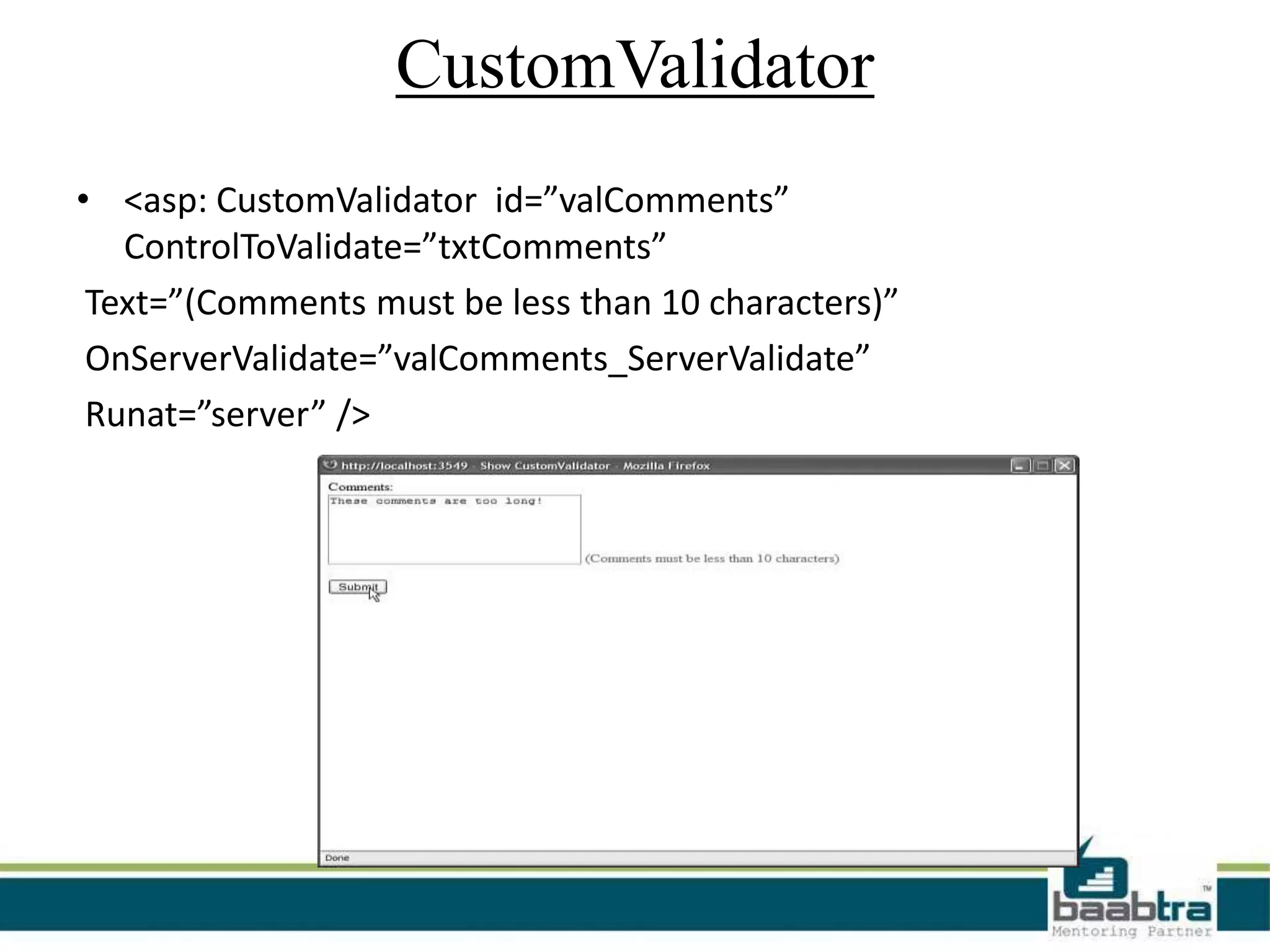

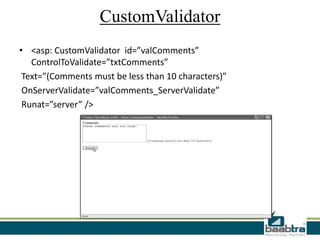

15. CustomValidator
• <asp: CustomValidator id=”valComments”
ControlToValidate=”txtComments”
Text=”(Comments must be less than 10 characters)”
OnServerValidate=”valComments_ServerValidate”
Runat=”server” />

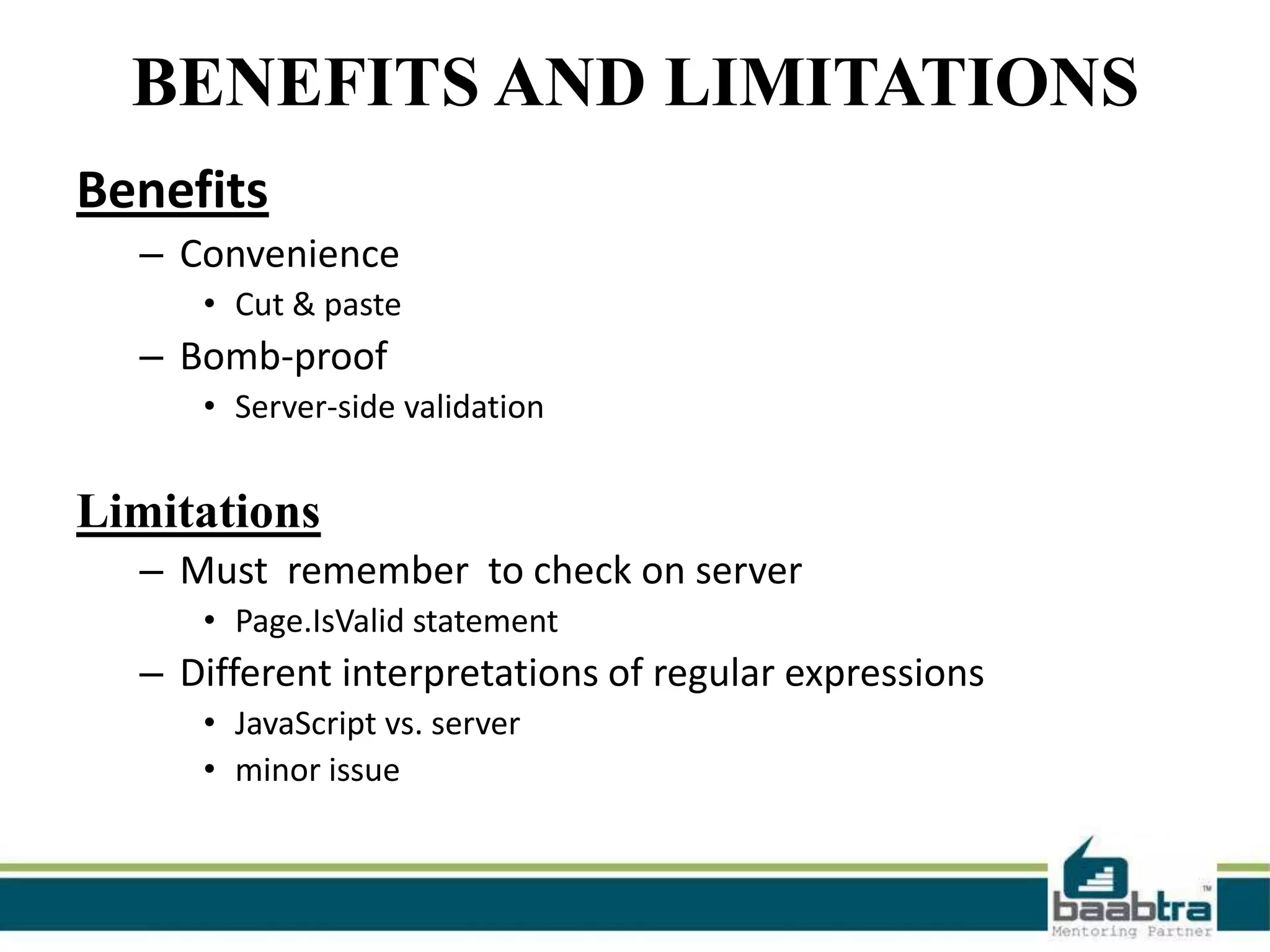

16. BENEFITS AND LIMITATIONS
Benefits
– Convenience
• Cut & paste
– Bomb-proof
• Server-side validation
Limitations
– Must remember to check on server
• Page.IsValid statement
– Different interpretations of regular expressions
• JavaScript vs. server
• minor issue

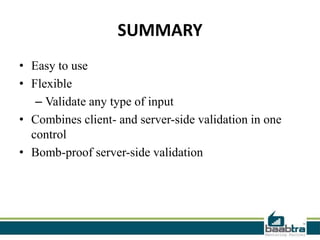

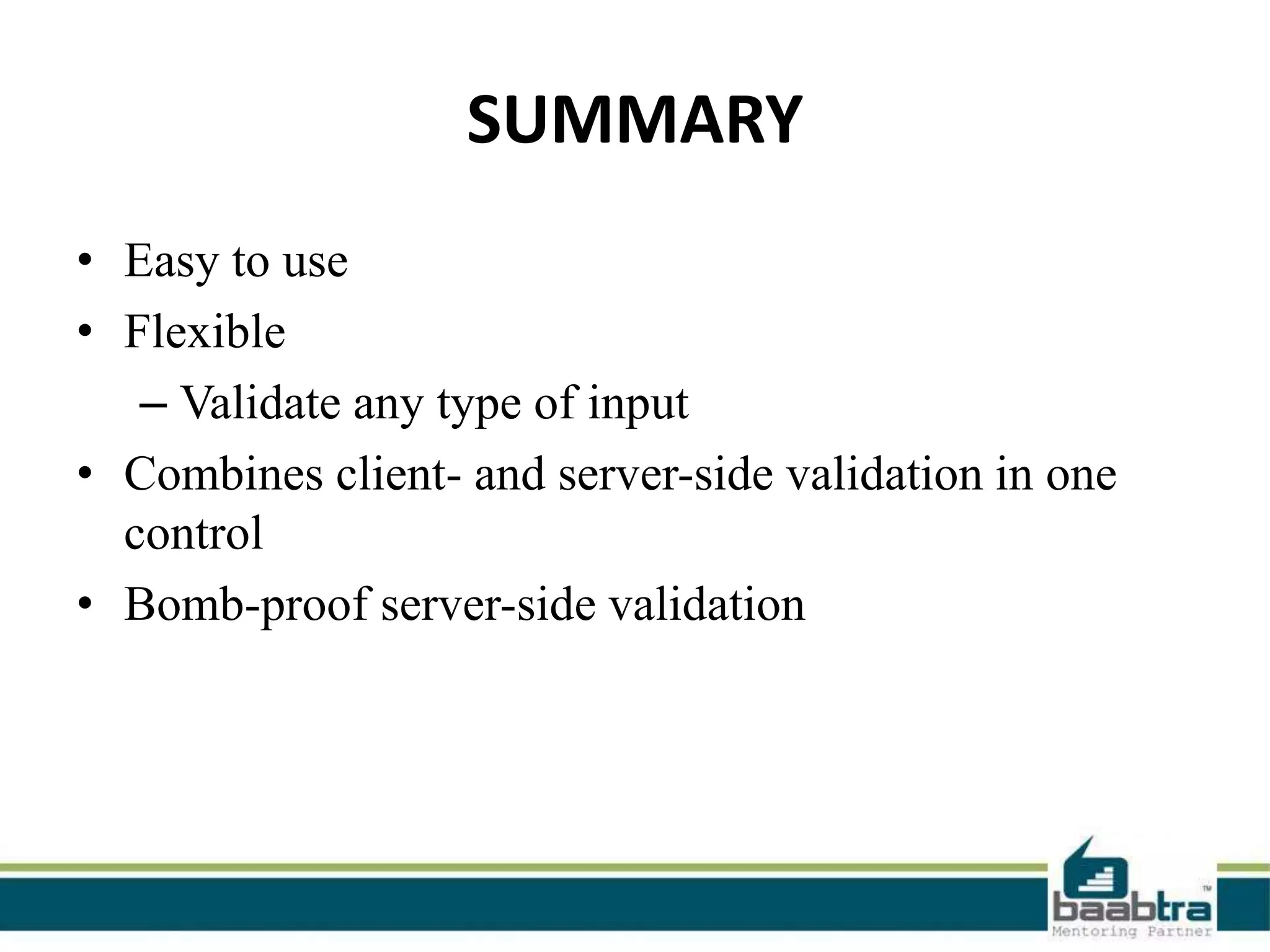

17. SUMMARY
• Easy to use
• Flexible
– Validate any type of input
• Combines client- and server-side validation in one
control
• Bomb-proof server-side validation
