This document provides instructions for setting up the Corporate Geographic Data Model for use with Subversion version control. It outlines 4 key steps: 1) installing Subversion clients, 2) checking out local copies of relevant UML repositories, 3) configuring a local Enterprise Architect file for version control, and 4) getting model packages from the repository. Editing, committing changes, viewing history, and adding new packages to the repository are also described.

1. Using the Corporate Geographic Data
Model with Subversion
Debbie Wilson
Senior Geographic Information Architect
debbie.wilson@ordnancesurvey.co.uk
16th January 2014

2. Version Control – Configuration Management
• Version control is the management of changes to resources.
• OS Information Models are concurrently developed by a diverse
team
• Need for formal management of change that supports:
• Concurrent editing (on-site/off-site environments)
• Track changes
• Roll-back changes
• Create snapshots of individual model components (e.g.
releases or baselines)
• Subversion is an open-source software for version control
• Alternates are GitHub but only Subversion is supported by
Enterprise Architect

3. Version Controlling – Configuration Management
Further Reading:
• Several internal resources for version control developed by IS Software
Configuration Management (SCM):
• Subversion Quick Reference Guide
IS Subversion Training

4. Using the CGDM with Subversion
There are 4 steps required to set up the Corporate Geographic
Data Model for use with Subversion:
1. Install Subversion Clients (complete)
2. Checkout local version of UML repositories
3. Create a local EAP file and configure version control
settings
4. Get Data Model package(s)
5. Editing version controlled packages
6. Creating version controlled packages

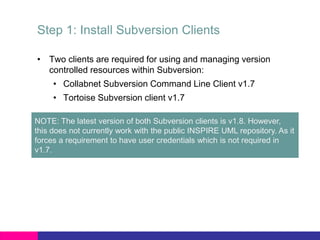

5. Step 1: Install Subversion Clients
• Two clients are required for using and managing version
controlled resources within Subversion:
• Collabnet Subversion Command Line Client v1.7
• Tortoise Subversion client v1.7
NOTE: The latest version of both Subversion clients is v1.8. However,
this does not currently work with the public INSPIRE UML repository. As it
forces a requirement to have user credentials which is not required in
v1.7.

6. Accessing the repository without SVN client
• You can access as a read-only user without dedicated SVN
clients
• All you need is a web browser and user credentials
http://svn/corp_geo_data_model/

7. What is contained within the repository?
• The Corporate Geographic Data Model repository has the
standard subversion repository structure:

8. Subversion directories
• Trunk
• This is directory containing the resources that are used for
the main line of development
• Tags
• This directory contains folders that represent snapshots of
the resources that have been tagged as notable revisions
such as releases
• Branches
• Branches are used when you are asked to “tweak” the
resource to meet the requirements of a specific user
• But their requirements are not needed as part of the core
resource

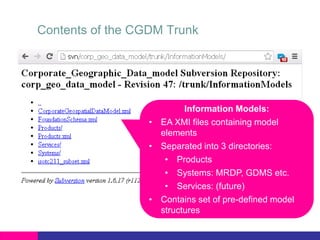

9. Contents of the CGDM Trunk
Information Models:
• EA XMI files containing model
elements
• Separated into 3 directories:
• Products
• Systems: MRDP, GDMS etc.
• Services: (future)
• Contains set of pre-defined model
structures

10. Contents of the CGDM Trunk
Resources
• Contains supporting tools for modelling
and creating schemas
• UML Profiles
• Document Templates
• MDA Transformations
• ShapeChange

11. Contents of the CGDM Trunk
schemas
• This directory shall contain the various
implementation schemas for products,
systems, services:
• GML schemas
• Ontologies
• Dictionaries/vocabularies
• DDLs

12. Contents of the CGDM Trunk
The CGDM is not limited to these resources. Can been
extended. We all have full right privileges so anyone can
create new content.

13. Step 2: Checkout local version of repository
• The Corporate Geographic Data Model contains only the UML
models created and managed by Ordnance Survey
• But Information models are built upon international standards
developed by ISO TC211, OGC and INSPIRE Directive
• Therefore several UML repositories must be checked out to use
the Corporate Geographic Data Model:
1. Corporate Geographic Data Model:
http://svn/corp_geo_data_model/
2. ISO TC211: https://inspire-twg.jrc.ec.europa.eu/svn/iso or
https://www.seegrid.csiro.au/mirrors/iso-harmonized-model/
3. INSPIRE: https://inspire-twg.jrc.ec.europa.eu/svn/inspire-
model/branches/public

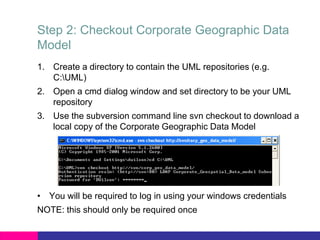

14. Step 2: Checkout Corporate Geographic Data
Model
1. Create a directory to contain the UML repositories (e.g.
C:UML)
2. Open a cmd dialog window and set directory to be your UML
repository
3. Use the subversion command line svn checkout to download a
local copy of the Corporate Geographic Data Model
• You will be required to log in using your windows credentials
NOTE: this should only be required once

15. Step 2: Checkout Corporate Geographic Data
Model

16. Step 2: Checkout INSPIRE and ISO TC211
repositories
INSPIRE repository
• You may get this message
• Accept the certificate permanently by typing the 'p' and press
return.

17. Step 2: Checkout ISO TC 211and INSPIRE
repositories
ISO TC 211 UML repository
• Can check out ISO repository using Tortoise SVN client rather
than the command line client as don’t need to edit it or accept
any certificates
• Within your UML repository directory in Windows Explorer right-
click and select SVN Checkout…
TortoiseSVN is not a
program you access
from Start Menu. It’s
added a set of SVN tools
to Windows Explorer

18. Step 2: Checkout ISO TC 211and INSPIRE
repositories
• In Checkout dialog type URL for ISO TC211 UML Repository
(can choose either INSPIRE or SEEGrid ISO mirror both same)
• Name the destination directory iso

19. Step 3: Create a local EAP file and configure
version control settings
• We will no longer be using a single corporate EAP file
• Instead each of us shall use a local enterprise architect file
which shall either contain:
• Full Corporate Geographic Data Model
• Subset view of the Corporate Geographic Data Model (e.g.
Products only or MRDP)
• User defined project made up of one or more packages from
model

20. What the benefits of moving to SVN?
1. Version controlled
• Can track changes – know who made which change
• Fully maintained history of all changes
• Roll back any changes that may been made in error
• Improve process for managing development/release – no
longer maintain archive packages in model
2. Can Work offline/off-site more effectively
• Check out packages to work on when offline
• On VPN - EA accesses local repository so responds as if in
office
3. Integrates with other tools
• JIRA/Fisheye – trace changes to back tasks/bugs
• GitHub – supports collaboration with Subversion so can
integrate with IS better in future

21. Step 3: Create a local EAP file and configure
version control settings
1. Open Enterprise Architect and create a new project and save
locally in preferred directory
2. Cancel Model Wizard dialog as importing existing models from
repository
3. Right-click on the Root Model in Project Browser, select
Package Control  Version Control Settings

22. Step 3: Configure version control settings
• In the Version Control Settings dialog need to configure
subversion settings for the three UML repositories:
• Corporate Geographic Data Model
• ISO TC211
• INSPIRE
Insert protective marking - see QSP 032

23. Step 3: Configure version control settings
1. Tick This model is private
2. In configuration details assign a unique id
for the Corporate Geographic Data Model:
CGDM
3. Select Subversion as type
4. Set working copy path to trunk directory of
checked out repository: e.g.
C:UMLcorp_geo_data_modeltrunk
5. Set Subversion Exe Path to location of the
Collabnet Subversion Client: e.g.
C:Program FilesCollabNetSubversion
Clientsvn.exe
6. Save
NOTE: this only needs to be set once it will
now be remembered.

24. Step 3: Configure version control settings
Repeat for ISO TC211 and INSPIRE
1. Select New
2. In configuration details assign the unique
id: isotc211
3. Set type as Subversion
4. Set working copy path to trunk directory of
checked out repository: e.g. C:UMLiso
5. Save

25. Step 3: Configure version control settings
1. Select New
2. In configuration details assign the unique
id: inspire-model
3. Set type as Subversion
4. Set working copy path to trunk directory of
checked out repository: e.g.
C:UMLpublicapprovedlatest
5. Save. You are now accessing models from
3 UML repositories
6. Close
Use this approach to add more
repositories as required if working on
systems (e.g. IS/1Spatial for MRDP)

26. Step 4: Get Package and import models
• Once the version control settings are configured you can import
either:
1. Pre-defined model (focus of this section)
2. Set up your own model and import individual version
controlled models from the Corporate Geographic Data
Model, Foundation Schema or other external schema as
required

27. Step 4: Import Pre-Defined Model
• Within the Corporate Geographic Data Model several pre-
defined models have been configured:
1. Corporate Geographic Data Model:
Provides a consolidated view of all models developed
within OS for products, systems and services
2. Products:
Contains the logical and implementation models for
products
3. Systems:
Contains |the various models (data models, business rules,
requirements, use cases, data flows) for data maintenance
and productions systems

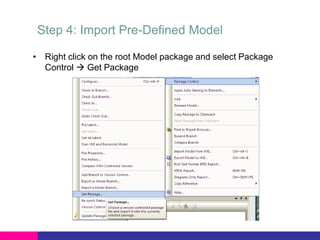

28. Step 4: Import Pre-Defined Model
• Right click on the root Model package and select Package
Control  Get Package

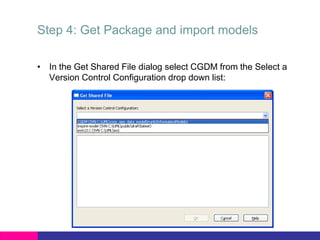

29. Step 4: Get Package and import models
• In the Get Shared File dialog select CGDM from the Select a
Version Control Configuration drop down list:

30. Step 4: Get Package and import models
• Select one of the root model packages:

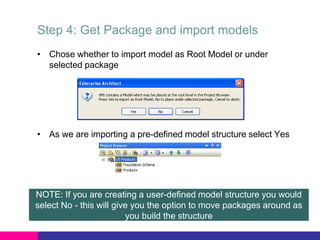

31. Step 4: Get Package and import models
• Chose whether to import model as Root Model or under
selected package
• As we are importing a pre-defined model structure select Yes
NOTE: If you are creating a user-defined model structure you would
select No - this will give you the option to move packages around as
you build the structure

32. Step 4: Get Package and import models
• Final Step is to import all models
• Right-click on a package, select Package Control  Get all
Latest  Import changed files only
NOTE: This will take a
long time the first time –
good time for a brew!

33. Corporate Geographic Data Model
• You have successfully set up
Enterprise Architect to work
with version controlled
models

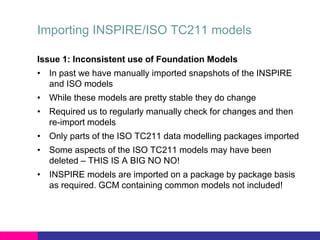

34. Importing INSPIRE/ISO TC211 models
Issue 1: Inconsistent use of Foundation Models
• In past we have manually imported snapshots of the INSPIRE
and ISO models
• While these models are pretty stable they do change
• Required us to regularly manually check for changes and then
re-import models
• Only parts of the ISO TC211 data modelling packages imported
• Some aspects of the ISO TC211 models may have been
deleted – THIS IS A BIG NO NO!
• INSPIRE models are imported on a package by package basis
as required. GCM containing common models not included!

35. Importing INSPIRE/ISO TC211 models
Issue 2: Maintenance of EA identifiers
• Can run into issues when sharing models that use manual
imports of foundation models:
• Foundation Model elements may have different EA
identifiers so “disappear” from the model
• By using formal models within repository ensure that same EA
identifiers are used
• Ensure our models can be integrated with INSPIRE/OGC/ISO
models by users
Now – we shall all use the same Foundation
Schema to ensure modelling consistency

36. Editing version controlled packages
• Lots of packages now have lock icons
• Not allowed to make any changes to any element in the
package
• To make edits to a model you need to checkout the package
from the version control repository
Right-click on package to edit  Package Control  Check Out

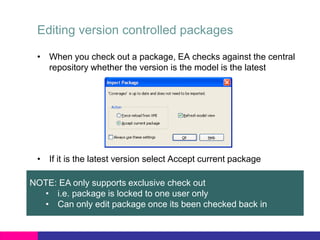

37. Editing version controlled packages
• When you check out a package, EA checks against the central
repository whether the version is the model is the latest
• If it is the latest version select Accept current package
NOTE: EA only supports exclusive check out
• i.e. package is locked to one user only
• Can only edit package once its been checked back in

38. Editing version controlled packages
• Select a package to edit – make sure its not the same package
as someone else
• Test that you can move items on diagram and add/edit classes

39. Editing version controlled packages
• To check in edits, Right-click on the package  Package
Control  Check In
• Before the check-in is committed you will be prompted to add a
Check-in comment
• This should be short description
of edits made (+ JIRA task id)

40. Editing version controlled packages
• By adding comments it makes it easier to understand what
changes occurred by whom and when
• Allows traceability when viewing history
Insert protective marking - see QSP 032

41. Viewing history
• You can view history of changes to a package either within EA
or using TortoiseSVN
• To view history in EA, select package  Right click  Package
Control  File History

42. Viewing history
• You can view history of changes to a package either within EA
or using TortoiseSVN
• To view history in EA, select package  Right click  Package
Control  File History

43. Viewing history
• Using TortoiseSVN, select xmi representing package  Right-
click  TortoiseSVN  Show log

44. Editing version controlled packages
• There may be times when you check out a package but make
no edits or do not want the edits to be committed
• EA allows you to Undo Check Out
• Undo Check Out for the package you checked out earlier

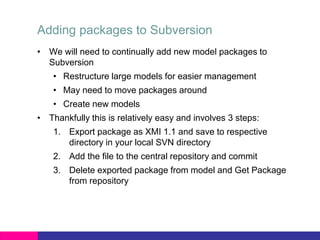

45. Adding packages to Subversion
• We will need to continually add new model packages to
Subversion
• Restructure large models for easier management
• May need to move packages around
• Create new models
• Thankfully this is relatively easy and involves 3 steps:
1. Export package as XMI 1.1 and save to respective
directory in your local SVN directory
2. Add the file to the central repository and commit
3. Delete exported package from model and Get Package
from repository

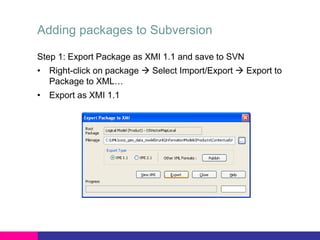

46. Adding packages to Subversion
Step 1: Export Package as XMI 1.1 and save to SVN
• Right-click on package  Select Import/Export  Export to
Package to XML…
• Export as XMI 1.1

47. Adding packages to Subversion
Step 2: Add file to central repository and commit
• Navigate to output directory in Window Explorer
• Select exported XMI file  Right-click  TortoiseSVN Add
• Commit file to central SVN Repository

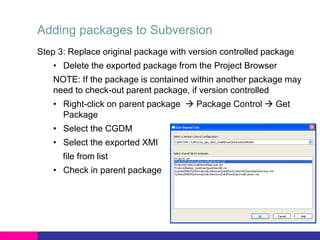

48. Adding packages to Subversion
Step 3: Replace original package with version controlled package
• Delete the exported package from the Project Browser
NOTE: If the package is contained within another package may
need to check-out parent package, if version controlled
• Right-click on parent package  Package Control  Get
Package
• Select the CGDM
• Select the exported XMI
file from list
• Check in parent package
