Upgrading to SharePoint 2013
Jerry Yasir is a SharePoint MVP who discusses upgrading from SharePoint 2010 to SharePoint 2013. He outlines some key things to know before upgrading including that there can be no reuse of existing hardware and no in-place upgrades. He also discusses authentication mode support during the upgrade and best practices for claims migration. Jerry then demonstrates converting a farm from Windows to claims authentication and upgrading content databases.
More Related Content
Similar to Upgrading to SharePoint 2013
Upgrading to SharePoint 2013
- 1. Upgrading from SharePoint 2010to SharePoint 2013 Jerry Yasir SharePoint MVP
- 2. Who Am I? SharePointServer MVP Since 2009 SharePoint Practice Lead at US TECH Solutions (Jersey City, NJ) Founder of the Largest SharePoint User Group in Middle East Riyadh SharePoint User Group RSUG Co-Lead SharePoint Pakistan User Group Microsoft Certified Trainer (MCT) since 2008. MCITP SharePoint Admin 2010, MCPD SharePoint Developer 2010 & MCTS SharePoint 2010 Configuration & Development MCTS WSS 3.0, SharePoint Server 2007, MCITP, MCTS Silverlight 4 Development, Project Server 2007 & 2010, MCTS Project Professional 2007 & 2010, MCPD.NET, MCSD.NET MCAD.NET Email: yasir.attiq@gmail.com, MSN: yasi_butt@hotmail.com Twitter: @jerry_yasir Facebook: yasir.attiq (Jerry Yasir) Blog: http://jerryyasir.wordpress.com

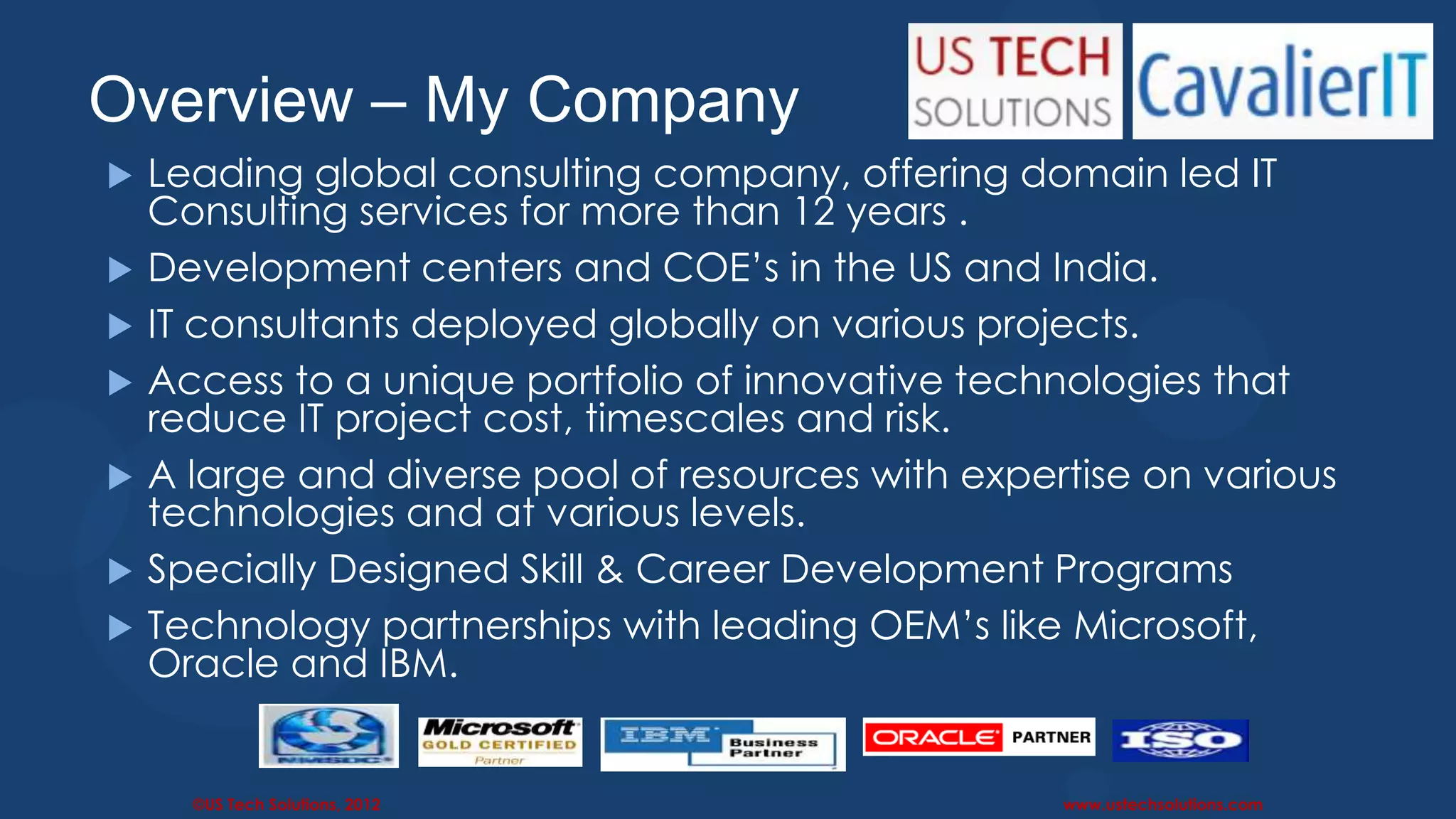

- 3. Overview – MyCompany 3 Leading global consulting company, offering domain led IT Consulting services for more than 12 years . Development centers and COE’s in the US and India. IT consultants deployed globally on various projects. Access to a unique portfolio of innovative technologies that reduce IT project cost, timescales and risk. A large and diverse pool of resources with expertise on various technologies and at various levels. Specially Designed Skill & Career Development Programs Technology partnerships with leading OEM’s like Microsoft, Oracle and IBM. ©US Tech Solutions, 2012 www.ustechsolutions.com

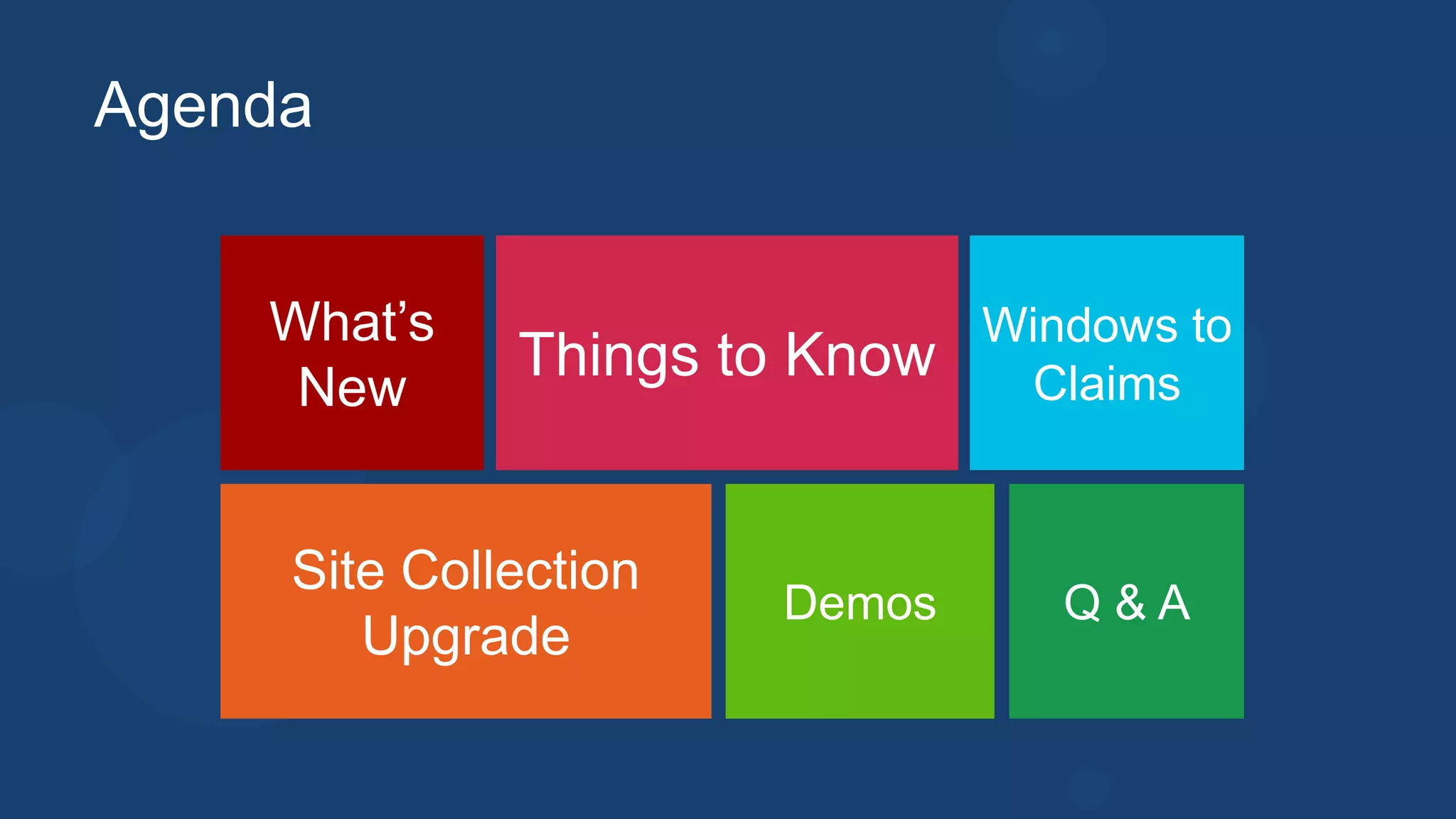

- 4. Agenda What’s Windows to Things to Know Claims New Site Collection Demos Q&A Upgrade

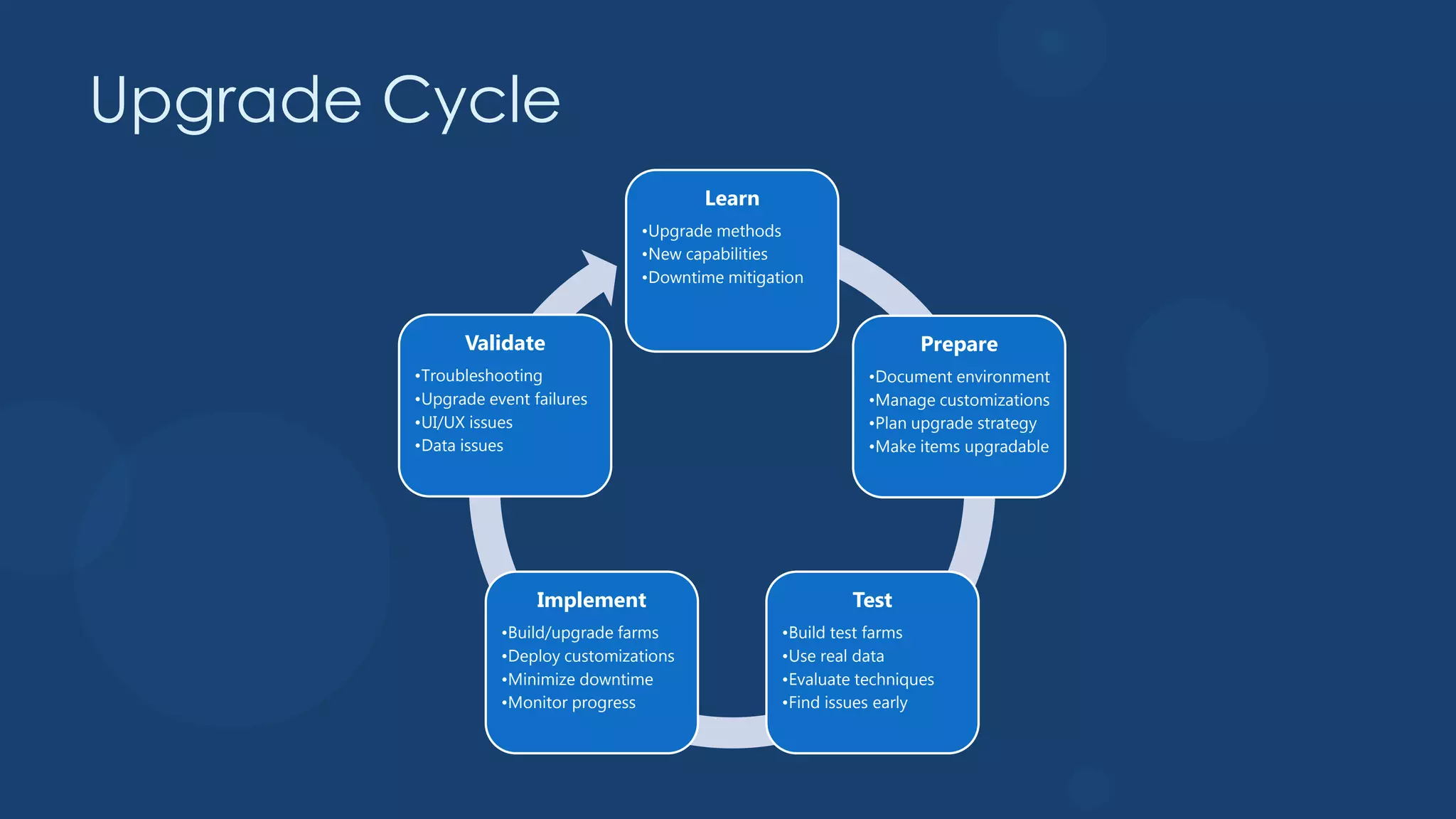

- 5. Upgrade Cycle Learn •Upgrade methods •New capabilities •Downtime mitigation Validate Prepare •Troubleshooting •Document environment •Upgrade event failures •Manage customizations •UI/UX issues •Plan upgrade strategy •Data issues •Make items upgradable Implement Test •Build/upgrade farms •Build test farms •Deploy customizations •Use real data •Minimize downtime •Evaluate techniques •Monitor progress •Find issues early

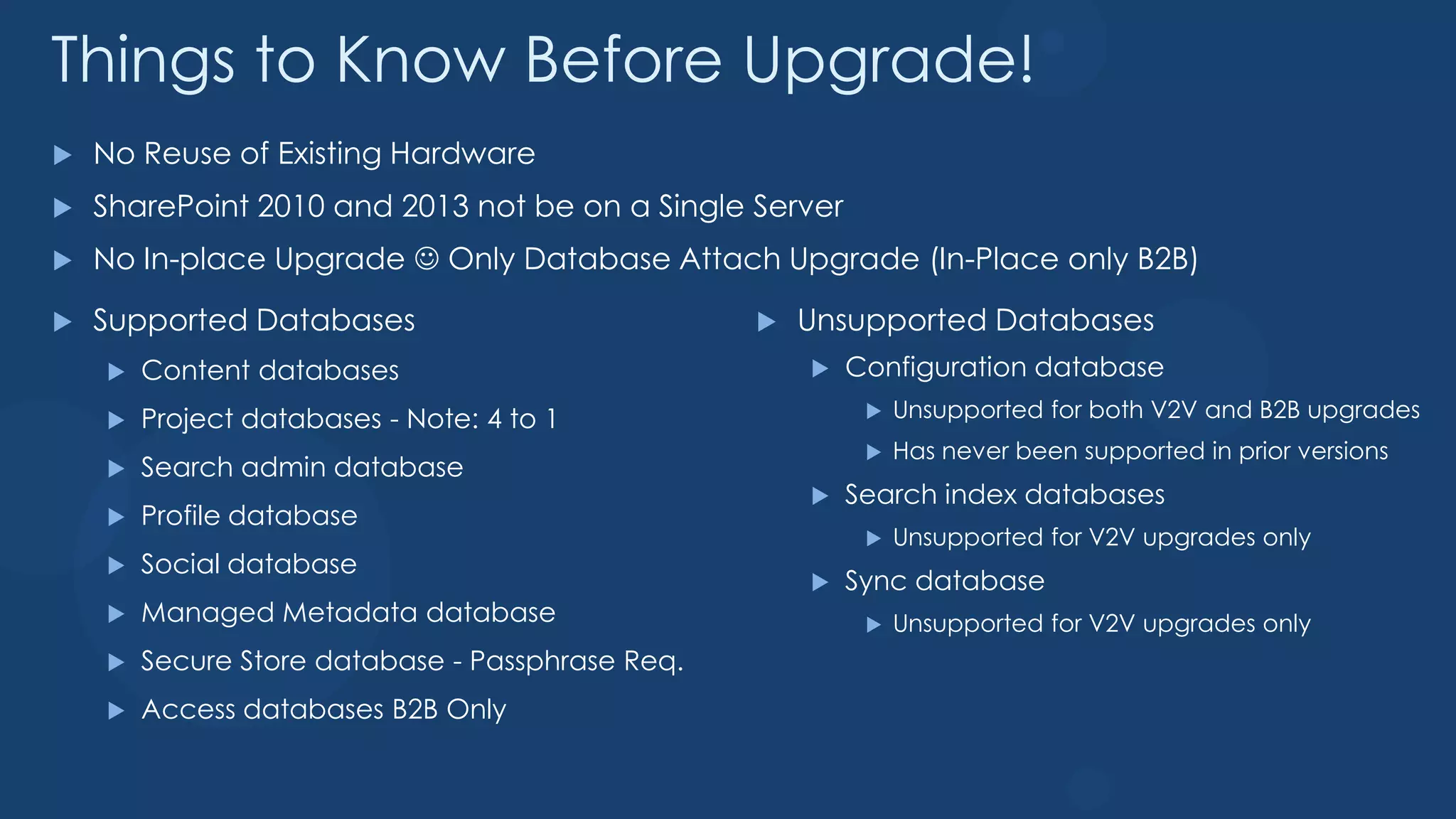

- 6. Things to KnowBefore Upgrade! No Reuse of Existing Hardware SharePoint 2010 and 2013 not be on a Single Server No In-place Upgrade Only Database Attach Upgrade (In-Place only B2B) Supported Databases Unsupported Databases Content databases Configuration database Project databases - Note: 4 to 1 Unsupported for both V2V and B2B upgrades Has never been supported in prior versions Search admin database Search index databases Profile database Unsupported for V2V upgrades only Social database Sync database Managed Metadata database Unsupported for V2V upgrades only Secure Store database - Passphrase Req. Access databases B2B Only

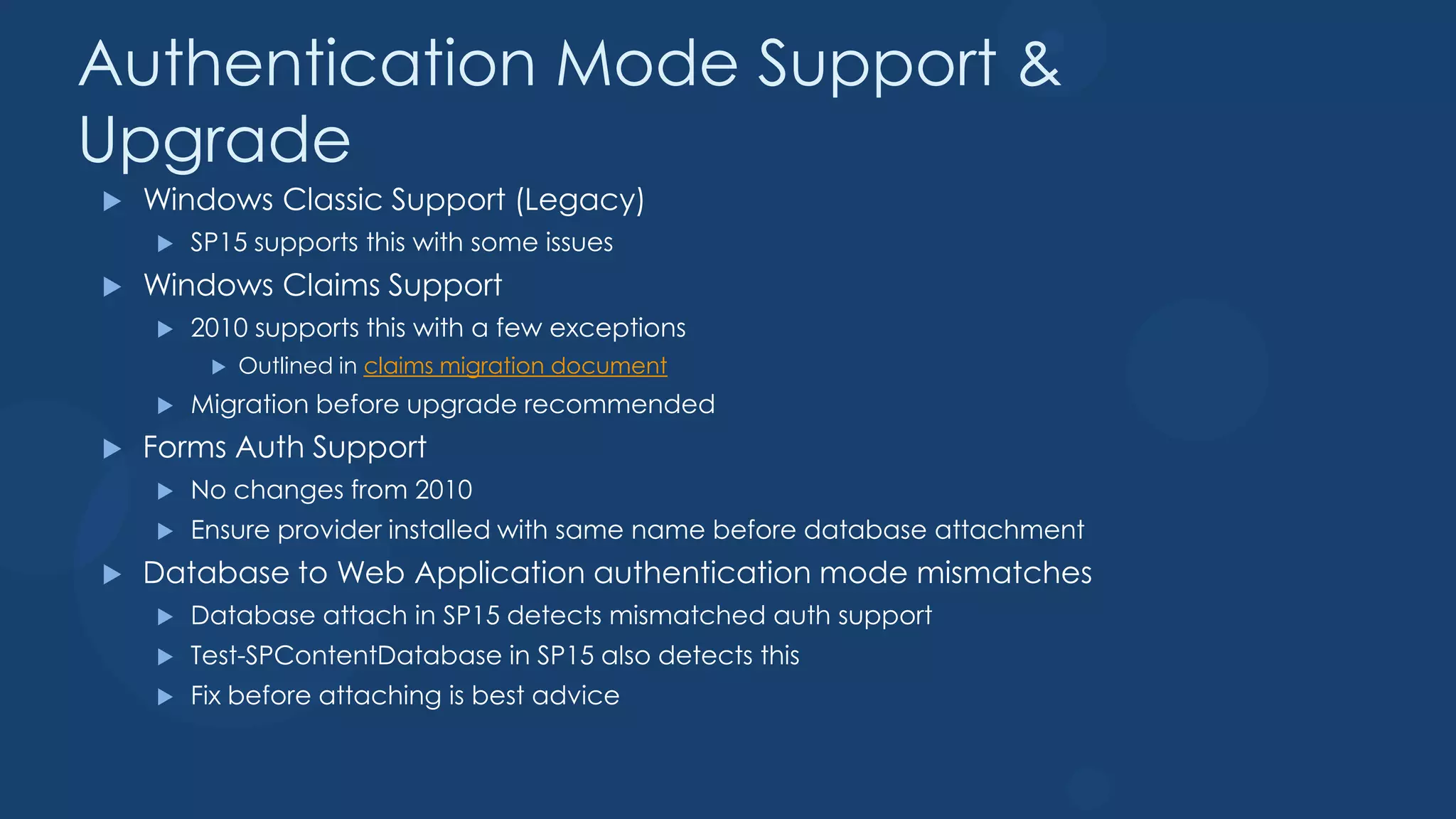

- 7. Authentication Mode Support& Upgrade Windows Classic Support (Legacy) SP15 supports this with some issues Windows Claims Support 2010 supports this with a few exceptions Outlined in claims migration document Migration before upgrade recommended Forms Auth Support No changes from 2010 Ensure provider installed with same name before database attachment Database to Web Application authentication mode mismatches Database attach in SP15 detects mismatched auth support Test-SPContentDatabase in SP15 also detects this Fix before attaching is best advice

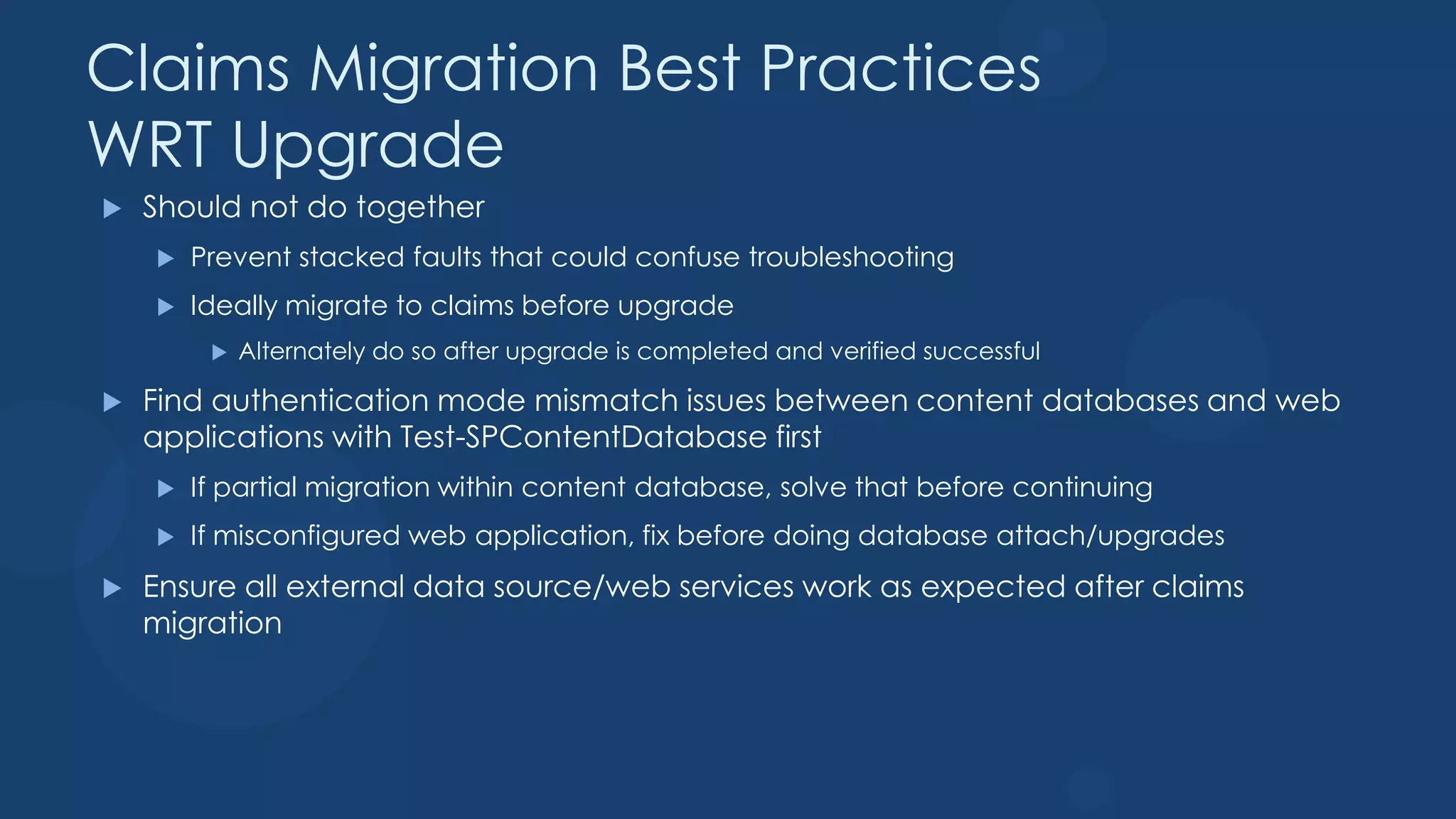

- 8. Claims Migration BestPractices WRT Upgrade Should not do together Prevent stacked faults that could confuse troubleshooting Ideally migrate to claims before upgrade Alternately do so after upgrade is completed and verified successful Find authentication mode mismatch issues between content databases and web applications with Test-SPContentDatabase first If partial migration within content database, solve that before continuing If misconfigured web application, fix before doing database attach/upgrades Ensure all external data source/web services work as expected after claims migration

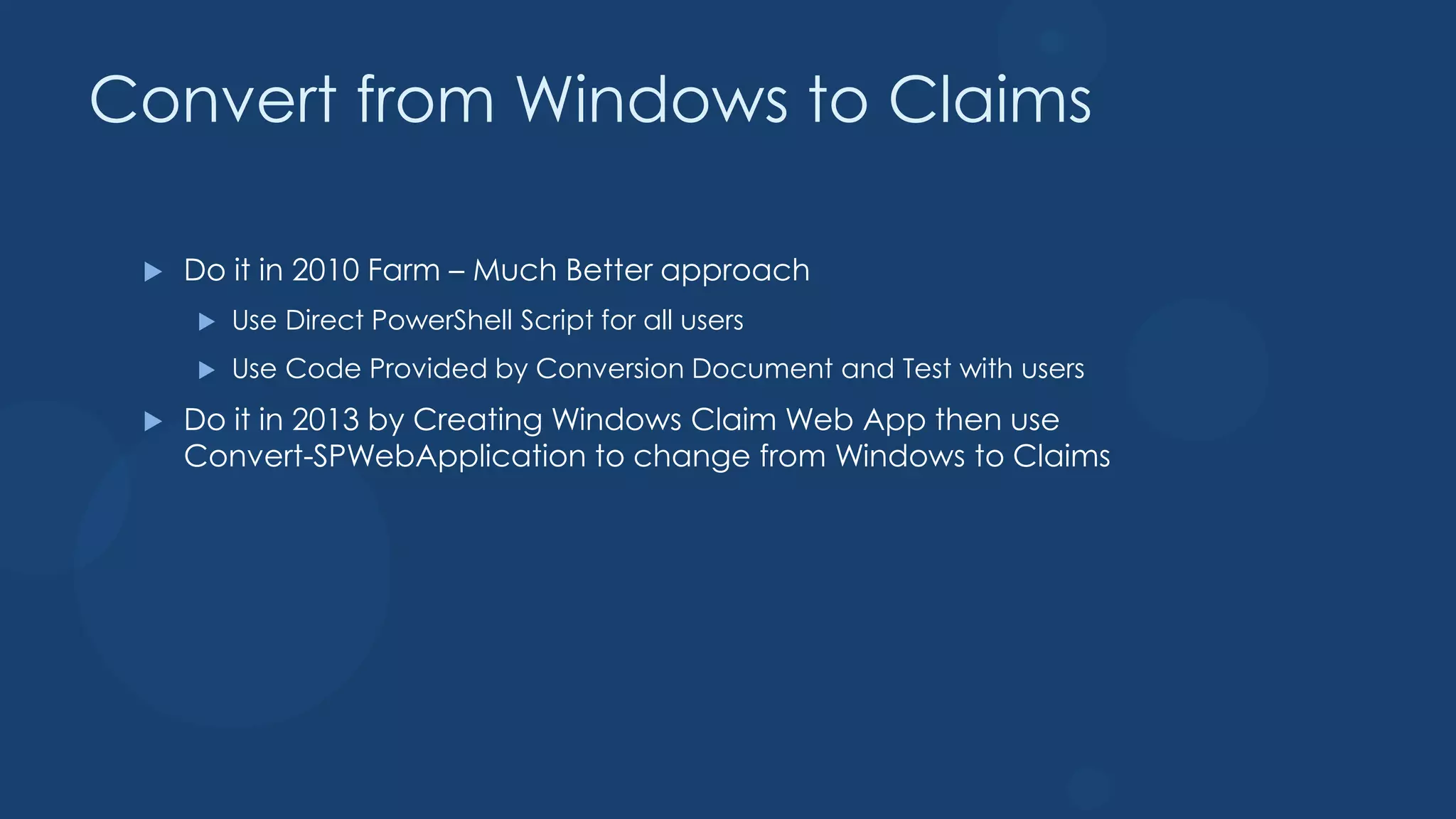

- 9. Convert from Windowsto Claims Do it in 2010 Farm – Much Better approach Use Direct PowerShell Script for all users Use Code Provided by Conversion Document and Test with users Do it in 2013 by Creating Windows Claim Web App then use Convert-SPWebApplication to change from Windows to Claims

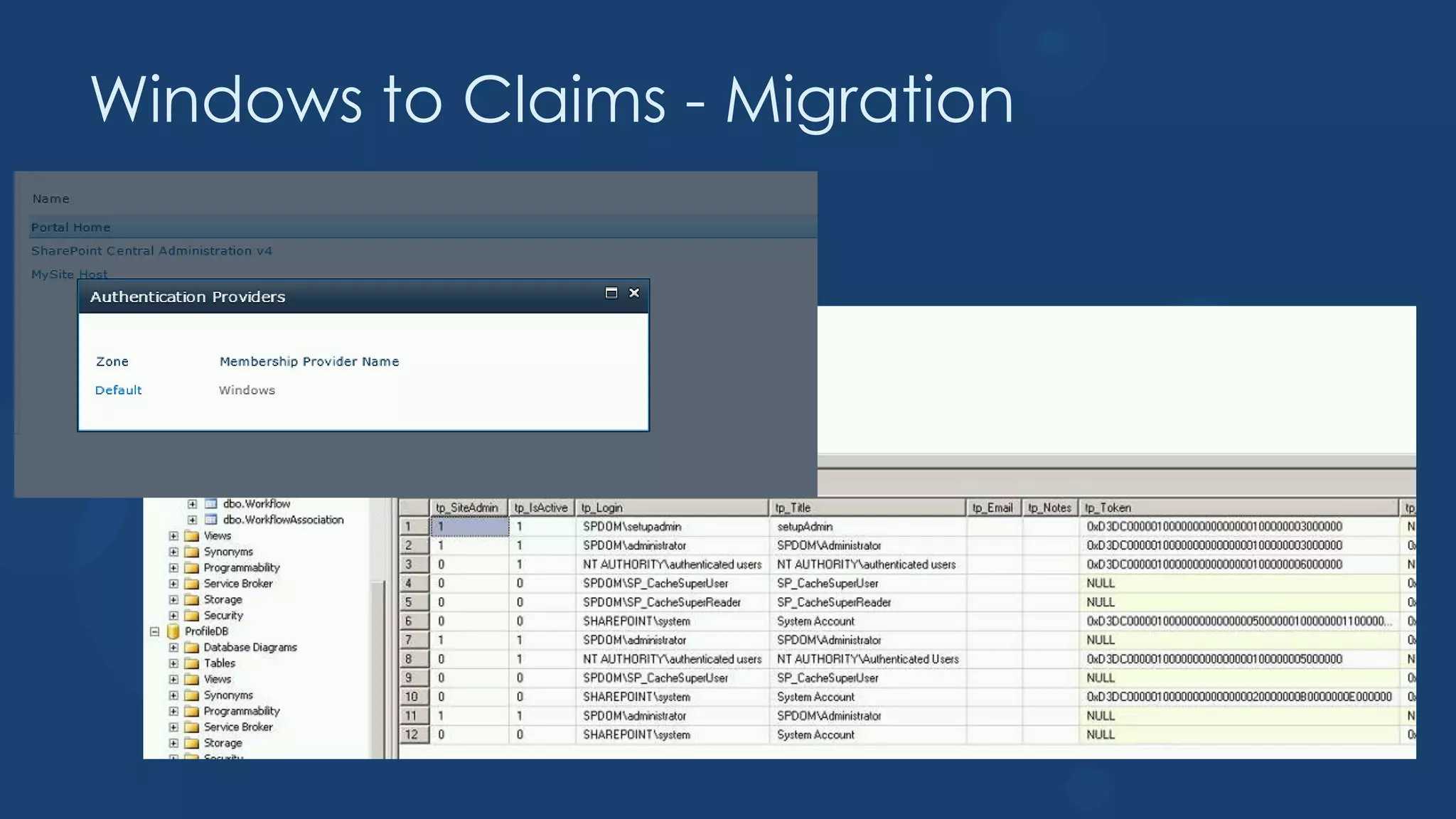

- 10. Windows to Claims- Migration

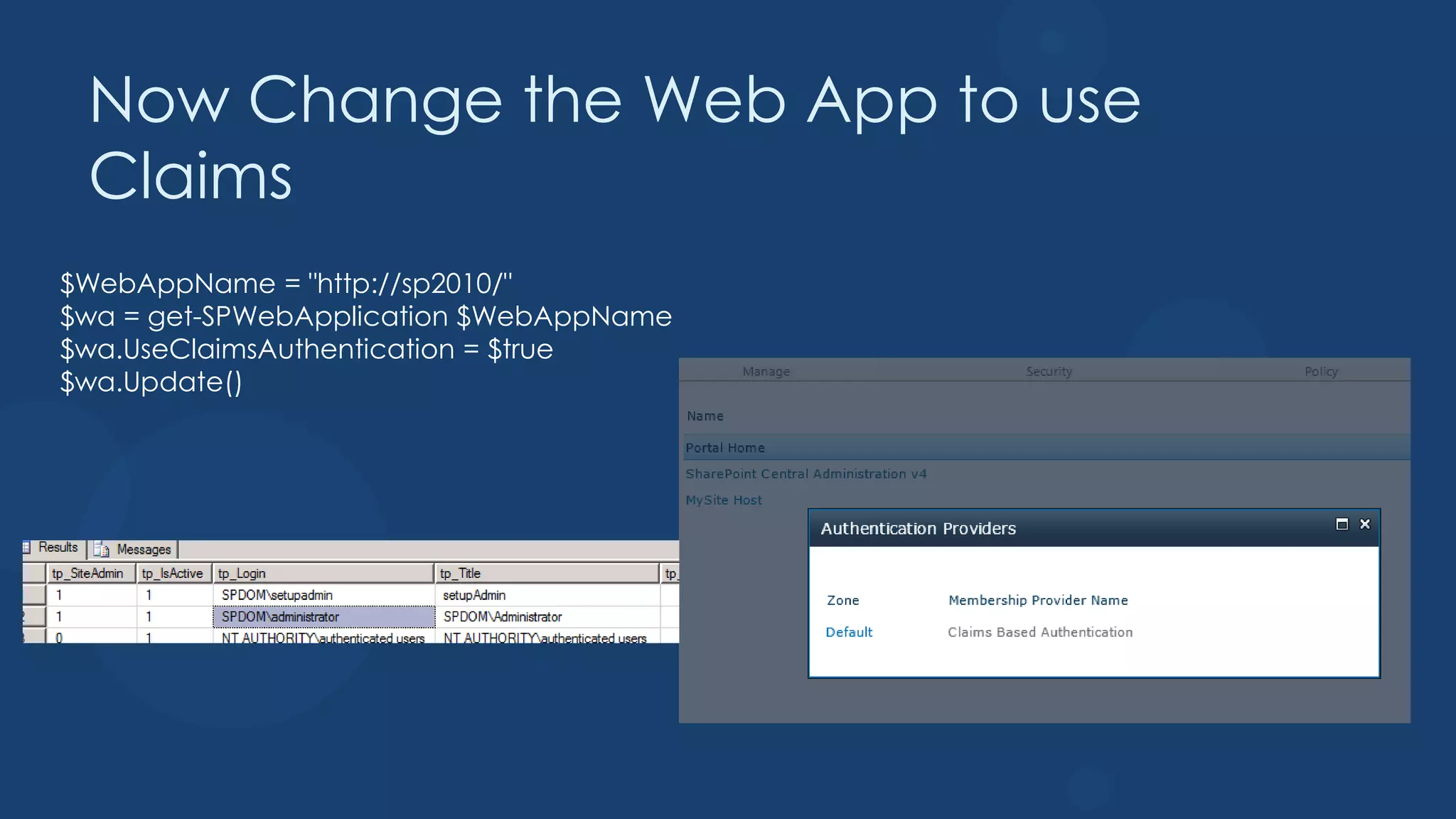

- 11. Now Change theWeb App to use Claims $WebAppName = "http://sp2010/" $wa = get-SPWebApplication $WebAppName $wa.UseClaimsAuthentication = $true $wa.Update()

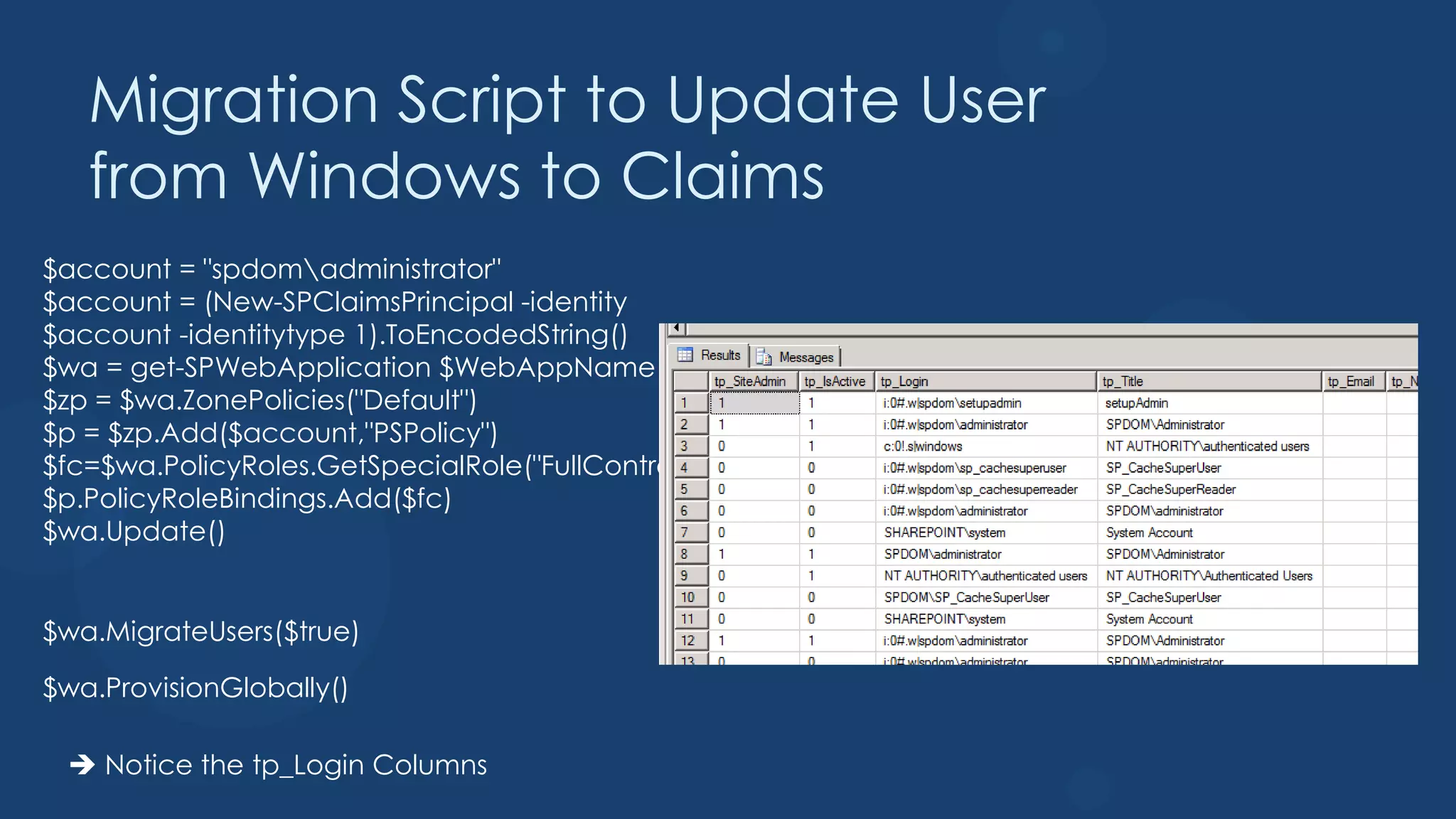

- 12. Migration Script toUpdate User from Windows to Claims $account = "spdomadministrator" $account = (New-SPClaimsPrincipal -identity $account -identitytype 1).ToEncodedString() $wa = get-SPWebApplication $WebAppName $zp = $wa.ZonePolicies("Default") $p = $zp.Add($account,"PSPolicy") $fc=$wa.PolicyRoles.GetSpecialRole("FullControl") $p.PolicyRoleBindings.Add($fc) $wa.Update() $wa.MigrateUsers($true) $wa.ProvisionGlobally() Notice the tp_Login Columns

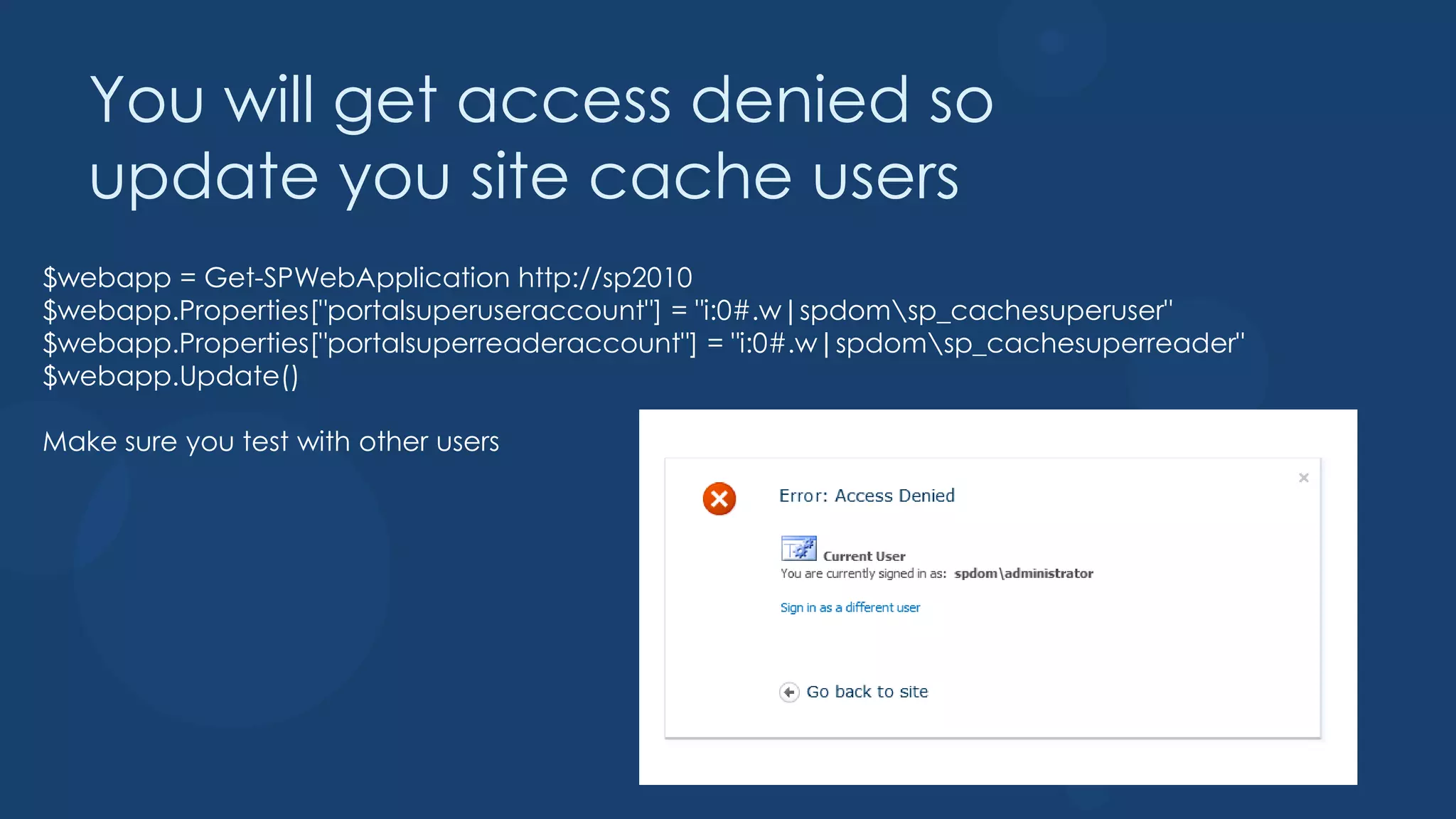

- 13. You will getaccess denied so update you site cache users $webapp = Get-SPWebApplication http://sp2010 $webapp.Properties["portalsuperuseraccount"] = "i:0#.w|spdomsp_cachesuperuser" $webapp.Properties["portalsuperreaderaccount"] = "i:0#.w|spdomsp_cachesuperreader" $webapp.Update() Make sure you test with other users
- 14.
- 15.
- 16.
- 17. Upgrade Improvements Overview Deferred Site Collection Upgrade Site Collection Health Checks Upgrade Evaluation Site Collections System Event Notifications System Logging Changes Site Collection Upgrade Throttling Federated Services Compatibility Cross Versions
- 18. Deferred Site CollectionUpgrade Allows existing 2010 site collections to work unchanged in SP15 No SharePoint 2010 installation required SP15 has all required SharePoint 2010 files included Replaces Visual Upgrade Spiritual successor Safer process Requires deep backwards compatibility All 14 features side by side with 15 ones Existing customizations should just work Default state for all site collections in upgraded databases Cannot be forced automatically on database upgrade

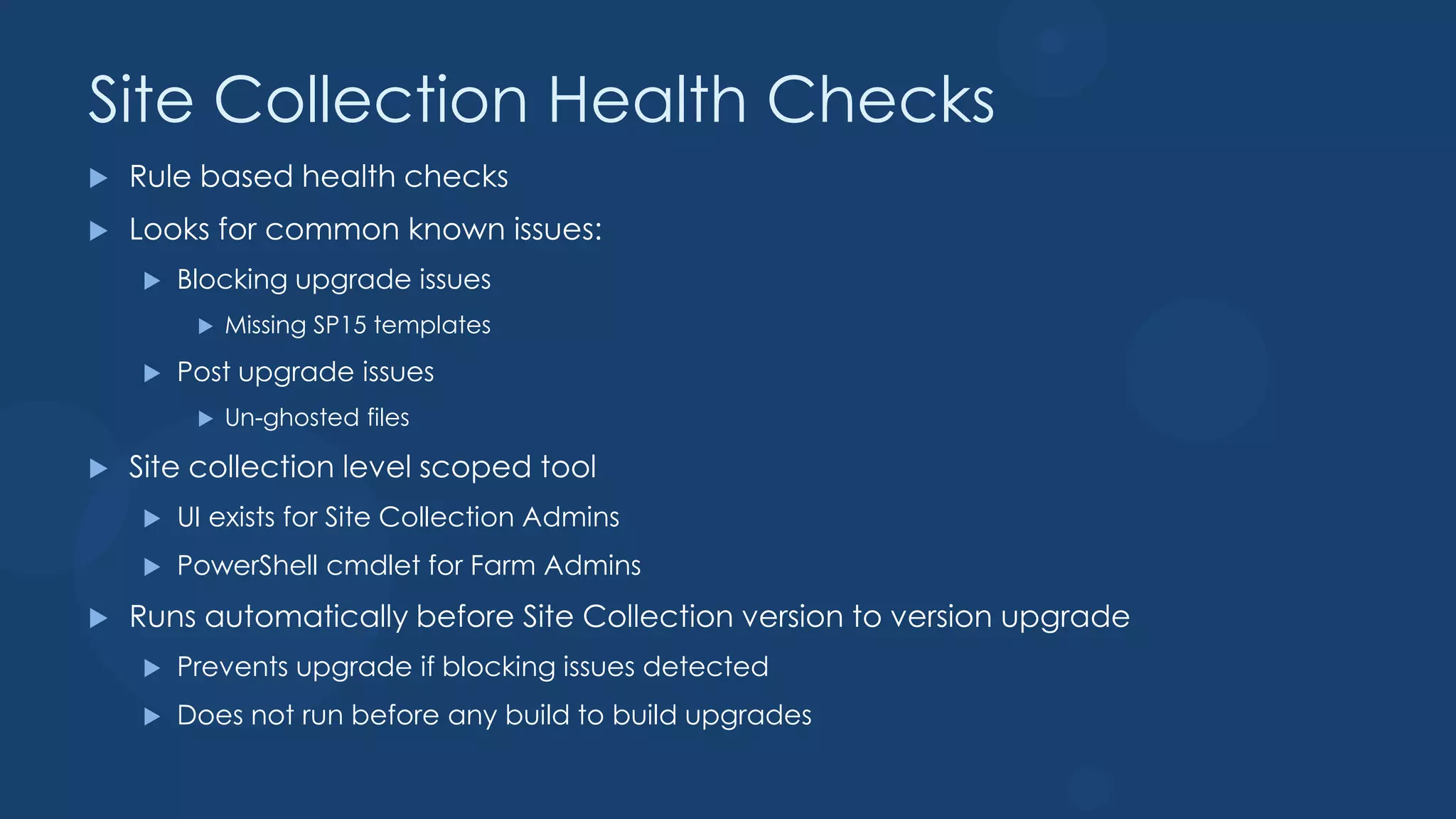

- 19. Site Collection HealthChecks Rule based health checks Looks for common known issues: Blocking upgrade issues Missing SP15 templates Post upgrade issues Un-ghosted files Site collection level scoped tool UI exists for Site Collection Admins PowerShell cmdlet for Farm Admins Runs automatically before Site Collection version to version upgrade Prevents upgrade if blocking issues detected Does not run before any build to build upgrades

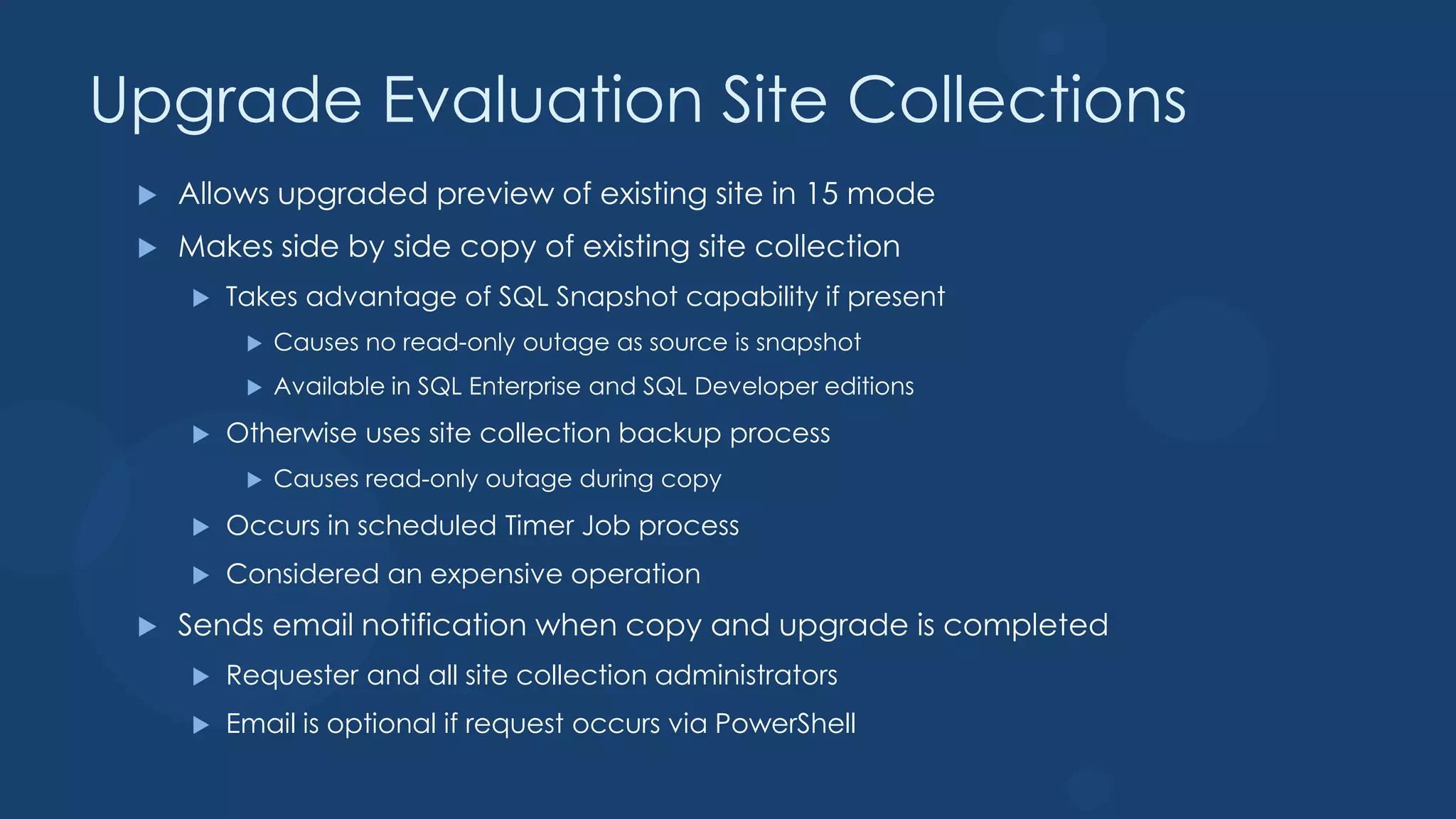

- 20. Upgrade Evaluation SiteCollections Allows upgraded preview of existing site in 15 mode Makes side by side copy of existing site collection Takes advantage of SQL Snapshot capability if present Causes no read-only outage as source is snapshot Available in SQL Enterprise and SQL Developer editions Otherwise uses site collection backup process Causes read-only outage during copy Occurs in scheduled Timer Job process Considered an expensive operation Sends email notification when copy and upgrade is completed Requester and all site collection administrators Email is optional if request occurs via PowerShell
- 21. Snapshot Creation ofUpgrade Evaluation Sites Timer Job: Create Evaluation Sites 4 SPSite “/sites/foo” 4 Site Map 5 3 / 6 1 Evaluation Clone /sites/foo SPSite SPSite 2 “/sites/foo” Cloning SPSite /sites/foo-eval “/sites/foo-eval” Content Database Filtered Copy Of AllSites AllSites AllSites R/O Content Database Filtered Copy Of AllWebs AllWebs Snapshot AllWebs Database Filtered Copy Of AllDocs Sites AllDocs AllDocs Configuration Filtered Copy Of … … … Database

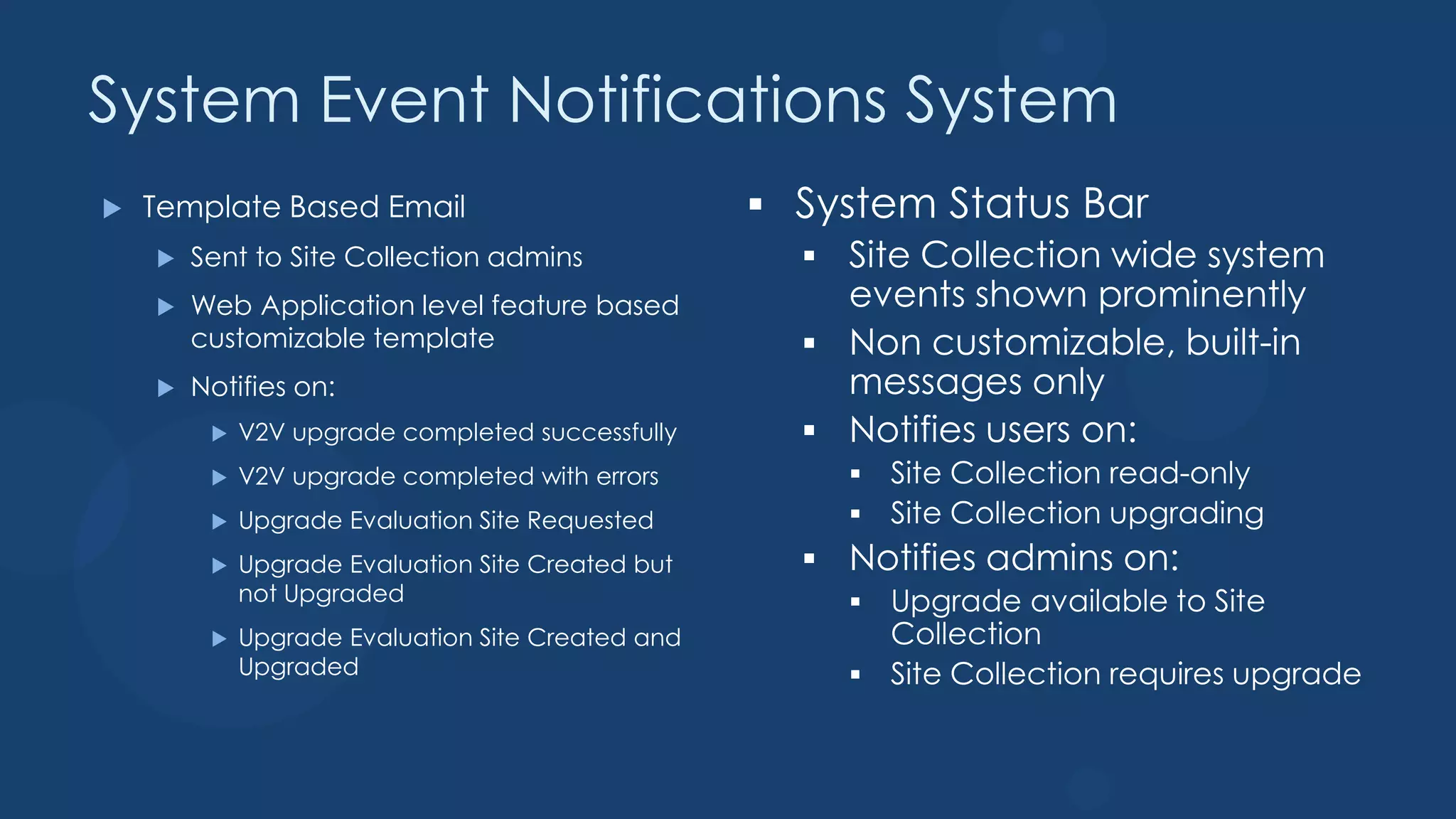

- 22. System Event NotificationsSystem Template Based Email Sent to Site Collection admins Web Application level feature based customizable template Notifies on: V2V upgrade completed successfully V2V upgrade completed with errors Upgrade Evaluation Site Requested Upgrade Evaluation Site Created but not Upgraded Upgrade Evaluation Site Created and Upgraded

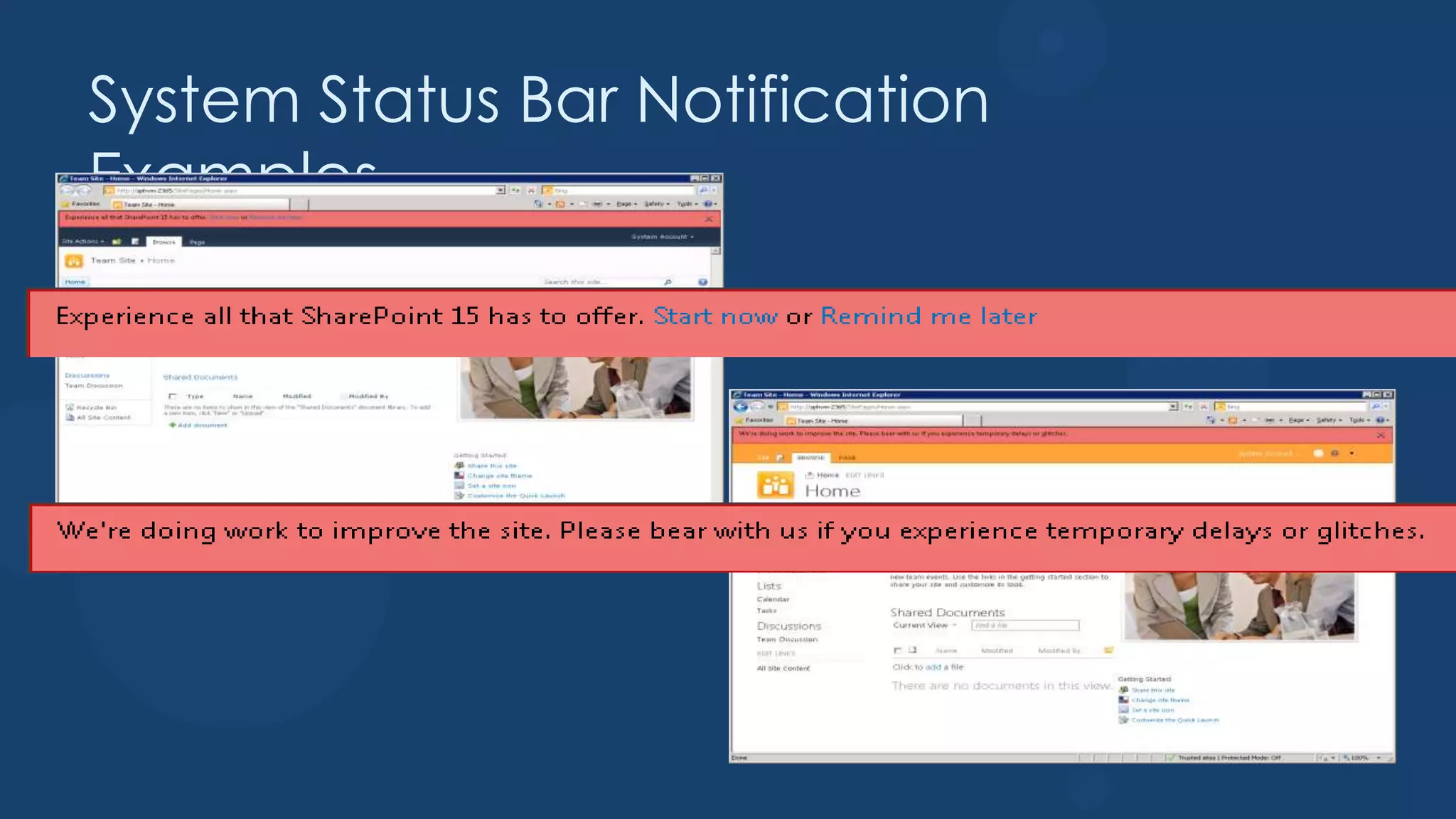

- 23. System Status BarNotification Examples
- 24. Upgrade Logging Changed to ULS format TSV format allows improved parsing Can be imported into Excel Includes Correlation ID Per SPSite logs available to Site Collection admins Uses separate logging level control than rest of upgrade Shows reduced set of information by default Created for both B2B and V2V upgrades Stored as content within Site Collection Maintenance Logs library created as Gallery Maintenance Logs secured to Site Collection Admins only Hidden feature activates during first upgrade

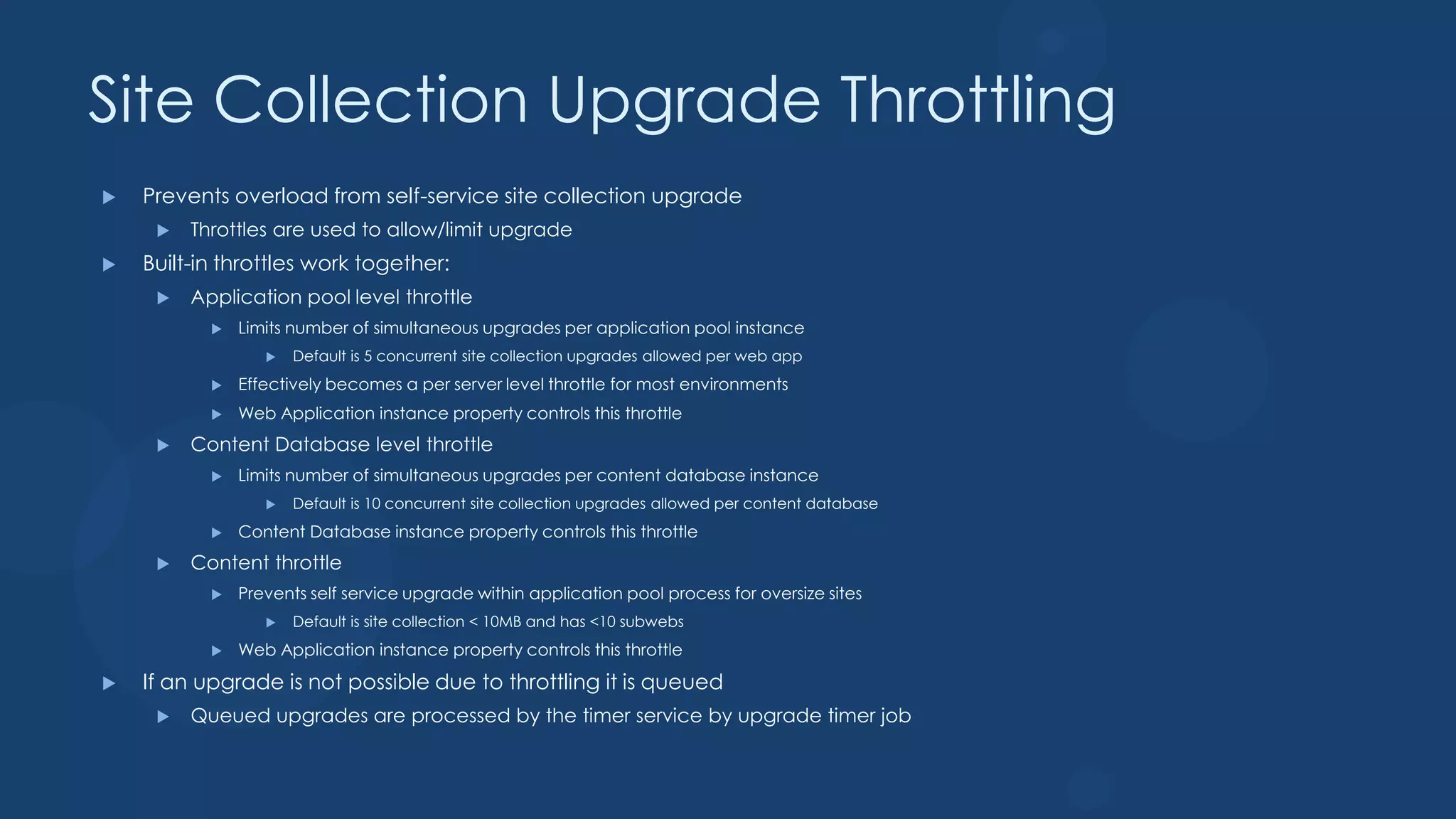

- 25. Site Collection UpgradeThrottling Prevents overload from self-service site collection upgrade Throttles are used to allow/limit upgrade Built-in throttles work together: Application pool level throttle Limits number of simultaneous upgrades per application pool instance Default is 5 concurrent site collection upgrades allowed per web app Effectively becomes a per server level throttle for most environments Web Application instance property controls this throttle Content Database level throttle Limits number of simultaneous upgrades per content database instance Default is 10 concurrent site collection upgrades allowed per content database Content Database instance property controls this throttle Content throttle Prevents self service upgrade within application pool process for oversize sites Default is site collection < 10MB and has <10 subwebs Web Application instance property controls this throttle If an upgrade is not possible due to throttling it is queued Queued upgrades are processed by the timer service by upgrade timer job
- 26. Learn Upgrade DEFERRED SITECOLLECTION UPGRADE

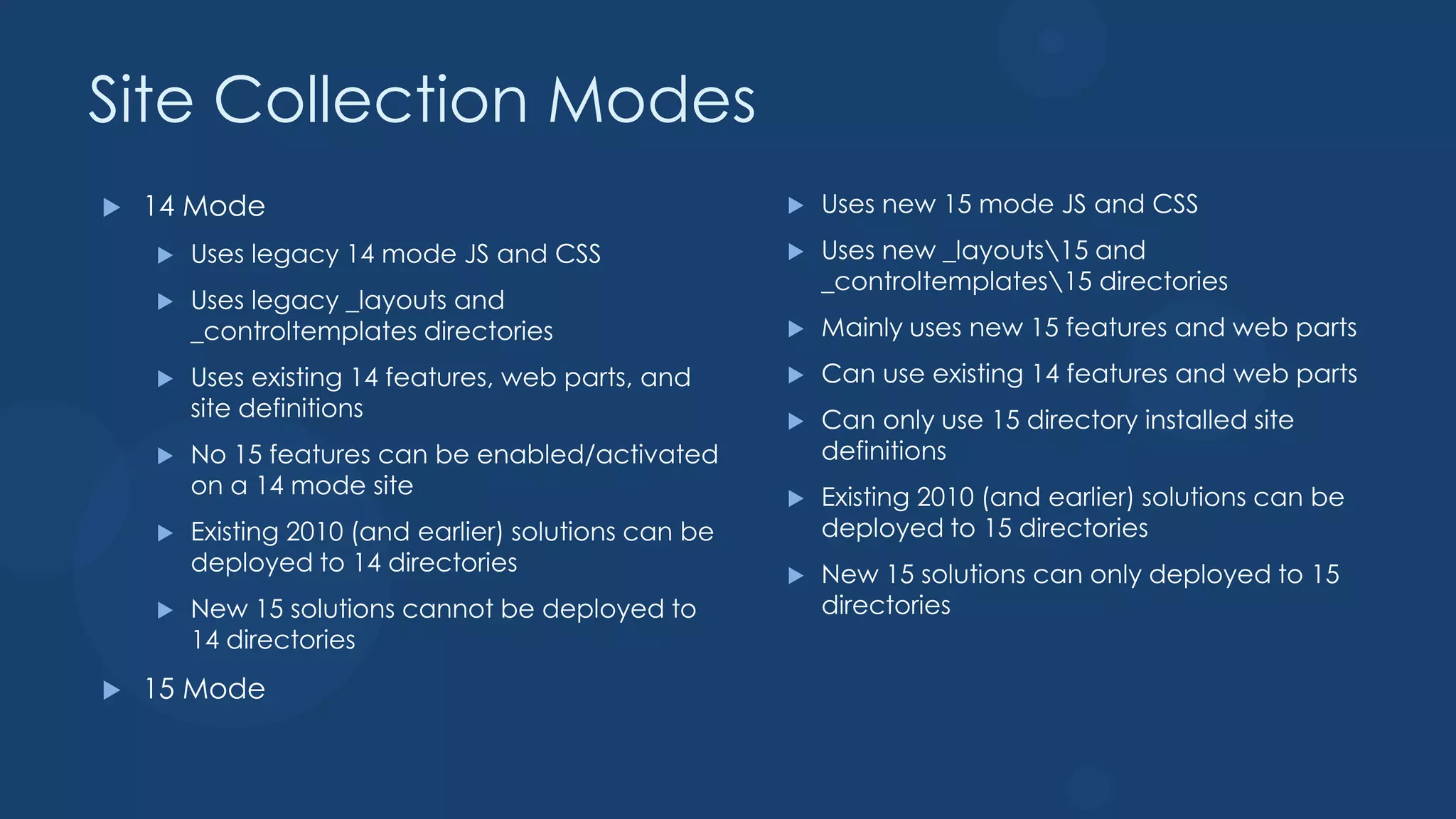

- 27. Site Collection Modes 14 Mode Uses new 15 mode JS and CSS Uses legacy 14 mode JS and CSS Uses new _layouts15 and _controltemplates15 directories Uses legacy _layouts and _controltemplates directories Mainly uses new 15 features and web parts Uses existing 14 features, web parts, and Can use existing 14 features and web parts site definitions Can only use 15 directory installed site No 15 features can be enabled/activated definitions on a 14 mode site Existing 2010 (and earlier) solutions can be Existing 2010 (and earlier) solutions can be deployed to 15 directories deployed to 14 directories New 15 solutions can only deployed to 15 New 15 solutions cannot be deployed to directories 14 directories 15 Mode

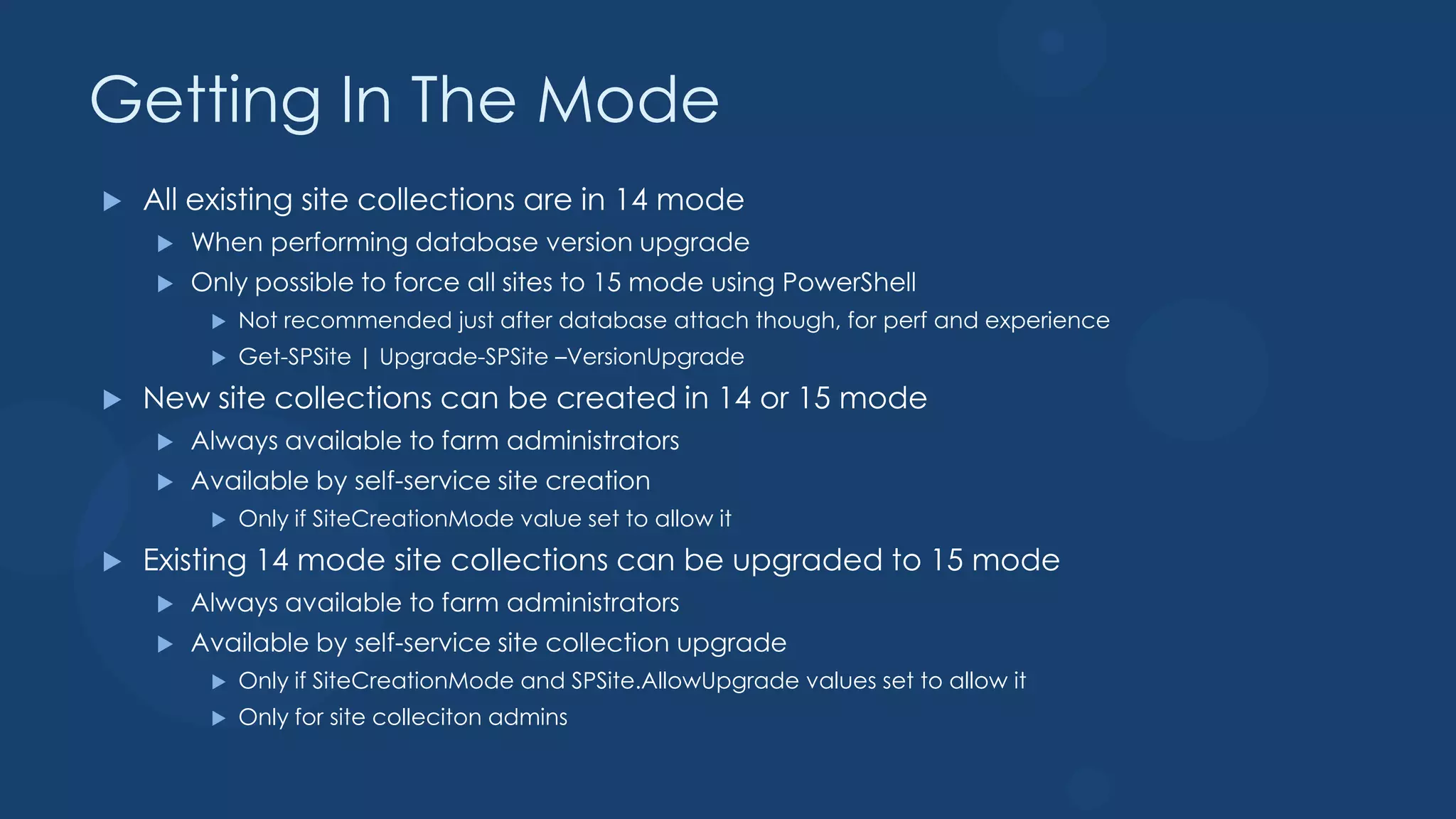

- 28. Getting In TheMode All existing site collections are in 14 mode When performing database version upgrade Only possible to force all sites to 15 mode using PowerShell Not recommended just after database attach though, for perf and experience Get-SPSite | Upgrade-SPSite –VersionUpgrade New site collections can be created in 14 or 15 mode Always available to farm administrators Available by self-service site creation Only if SiteCreationMode value set to allow it Existing 14 mode site collections can be upgraded to 15 mode Always available to farm administrators Available by self-service site collection upgrade Only if SiteCreationMode and SPSite.AllowUpgrade values set to allow it Only for site colleciton admins

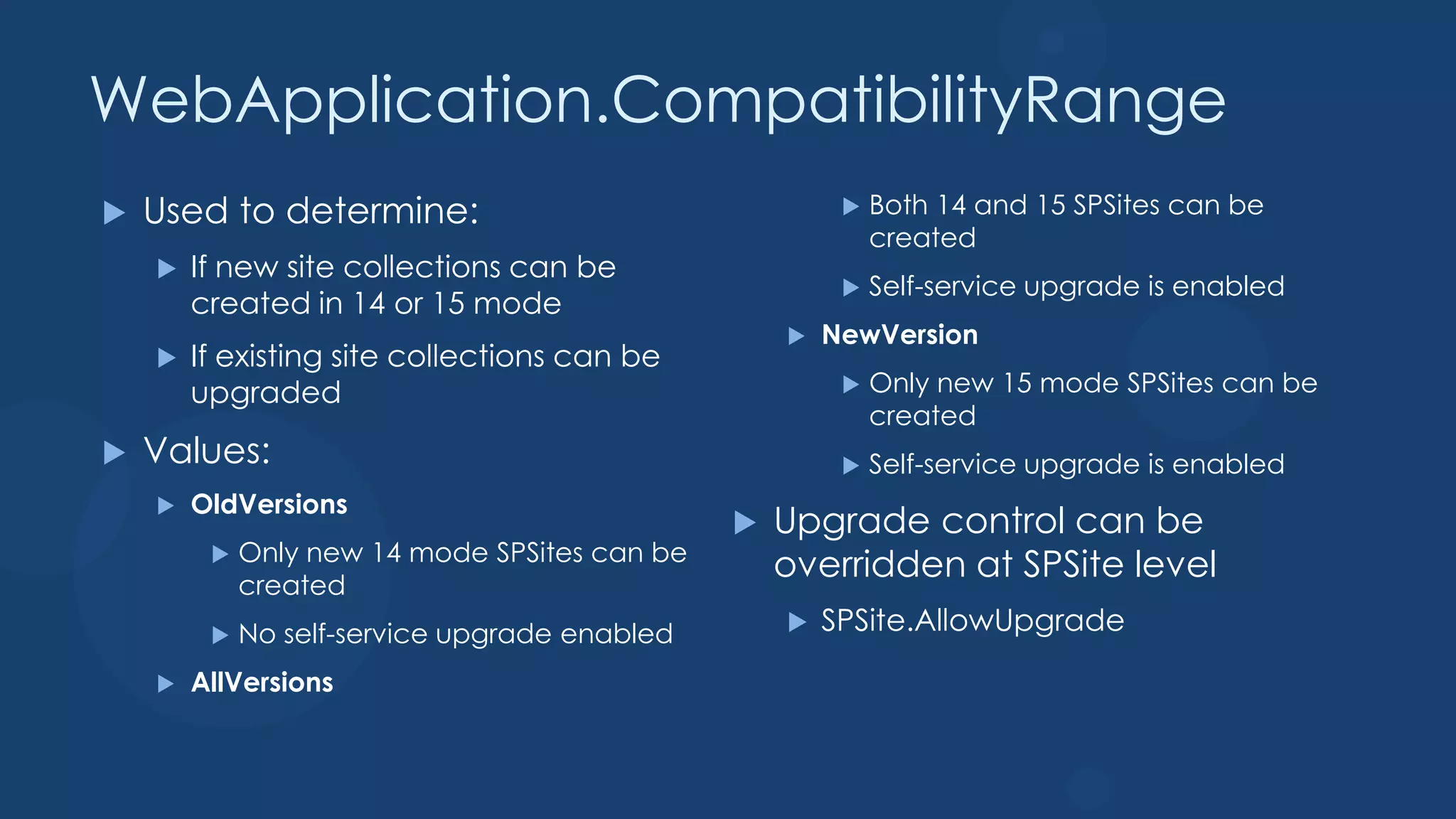

- 29. WebApplication.CompatibilityRange Used to determine: Both 14 and 15 SPSites can be created If new site collections can be Self-service upgrade is enabled created in 14 or 15 mode NewVersion If existing site collections can be upgraded Only new 15 mode SPSites can be created Values: Self-service upgrade is enabled OldVersions Upgrade control can be Only new 14 mode SPSites can be created overridden at SPSite level No self-service upgrade enabled SPSite.AllowUpgrade AllVersions

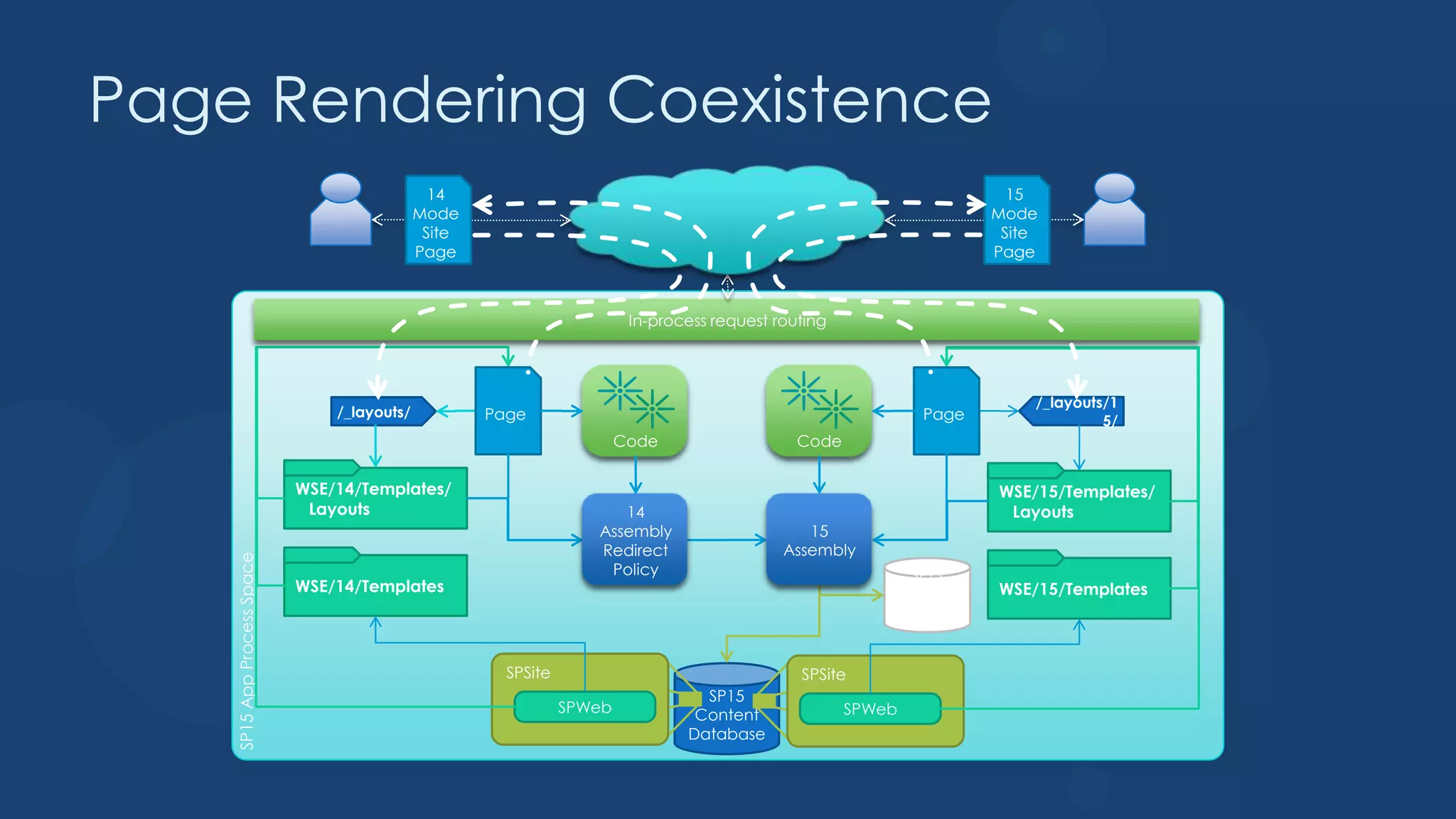

- 30. Page Rendering Coexistence 14 15 Mode Mode Site Site Page Page In-process request routing /_layouts/1 /_layouts/ Page Page 5/ Code Code WSE/14/Templates/ WSE/15/Templates/ Layouts 14 Layouts Assembly 15 Redirect Assembly SP15 App Process Space Policy SP15 WSE/14/Templates Config WSE/15/Templates Databas e SPSite SPSite SP15 SPWeb Content SPWeb Database

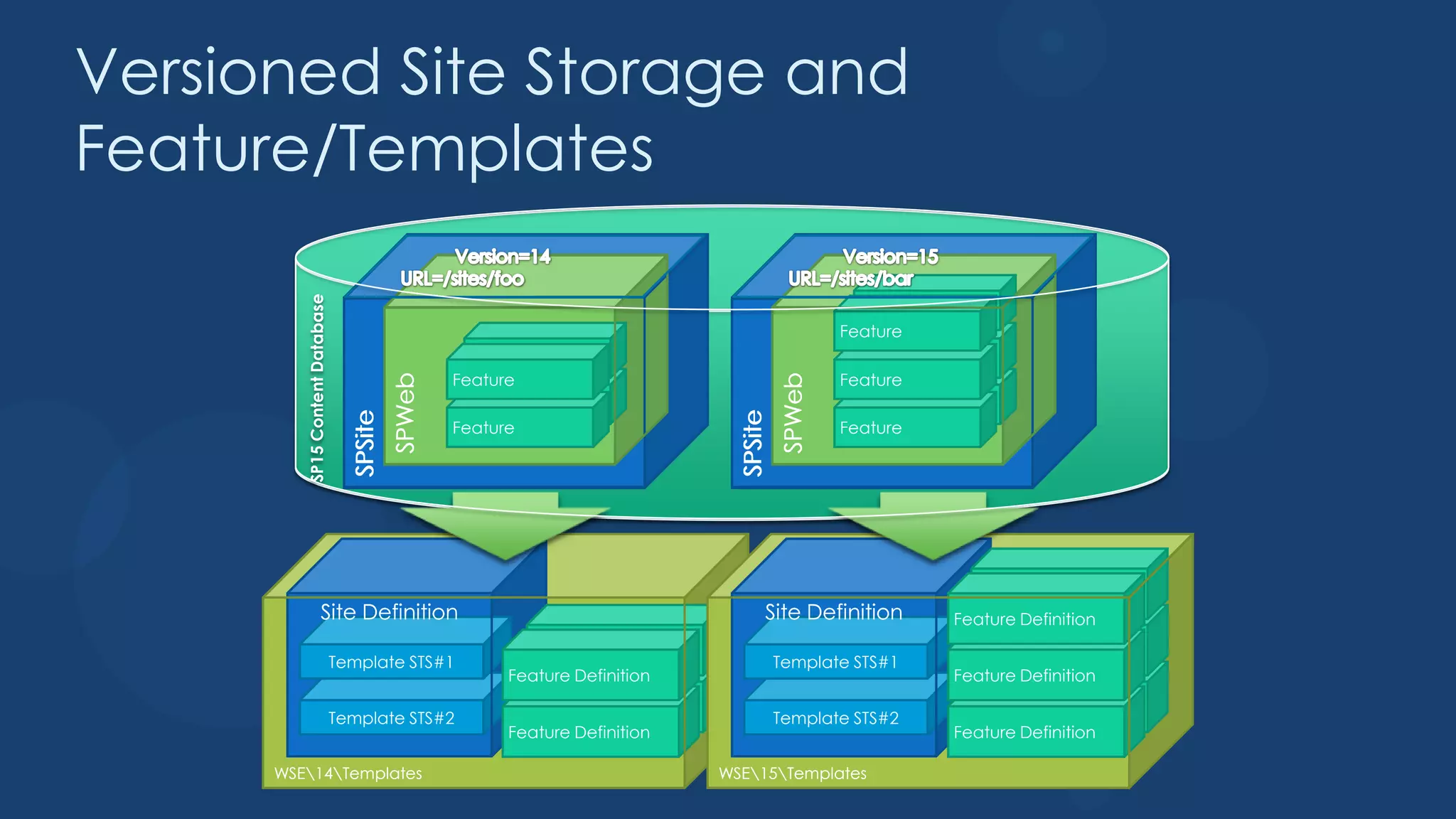

- 31. Versioned Site Storageand Feature/Templates SP15 Content Database Feature Feature Feature Feature Feature Feature SPWeb SPWeb Feature Feature SPSite SPSite Feature Feature Feature Definition Site Definition Site Definition Feature Definition Feature Definition Feature Definition Template STS#1 Template STS#1 Feature Definition Feature Definition Feature Definition Feature Definition Template STS#2 Template STS#2 Feature Definition Feature Definition WSE14Templates WSE15Templates

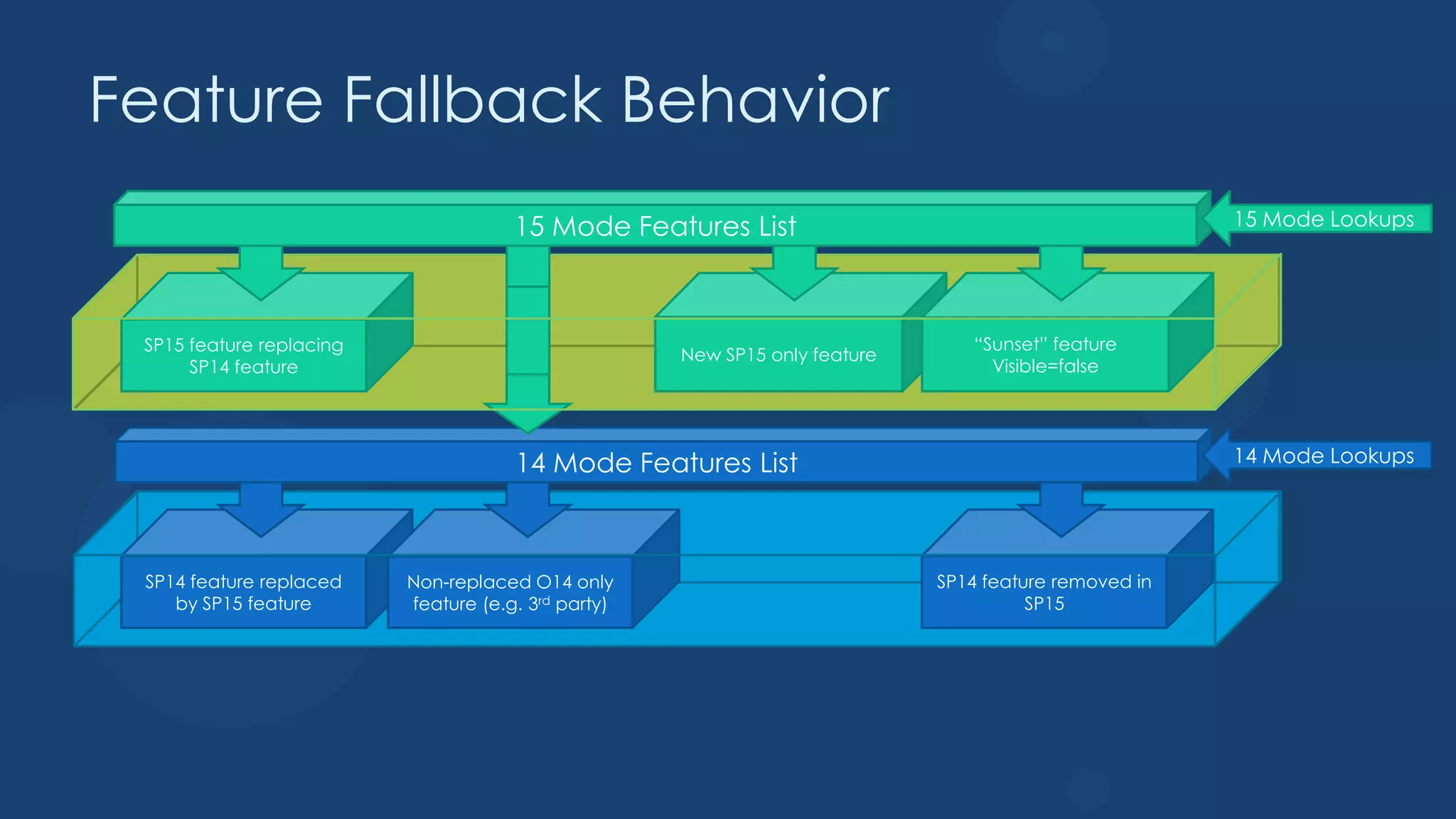

- 32. Feature Fallback Behavior 15 Mode Features List 15 Mode Lookups SP15 feature replacing “Sunset” feature New SP15 only feature SP14 feature Visible=false 14 Mode Features List 14 Mode Lookups SP14 feature replaced Non-replaced O14 only SP14 feature removed in by SP15 feature feature (e.g. 3rd party) SP15

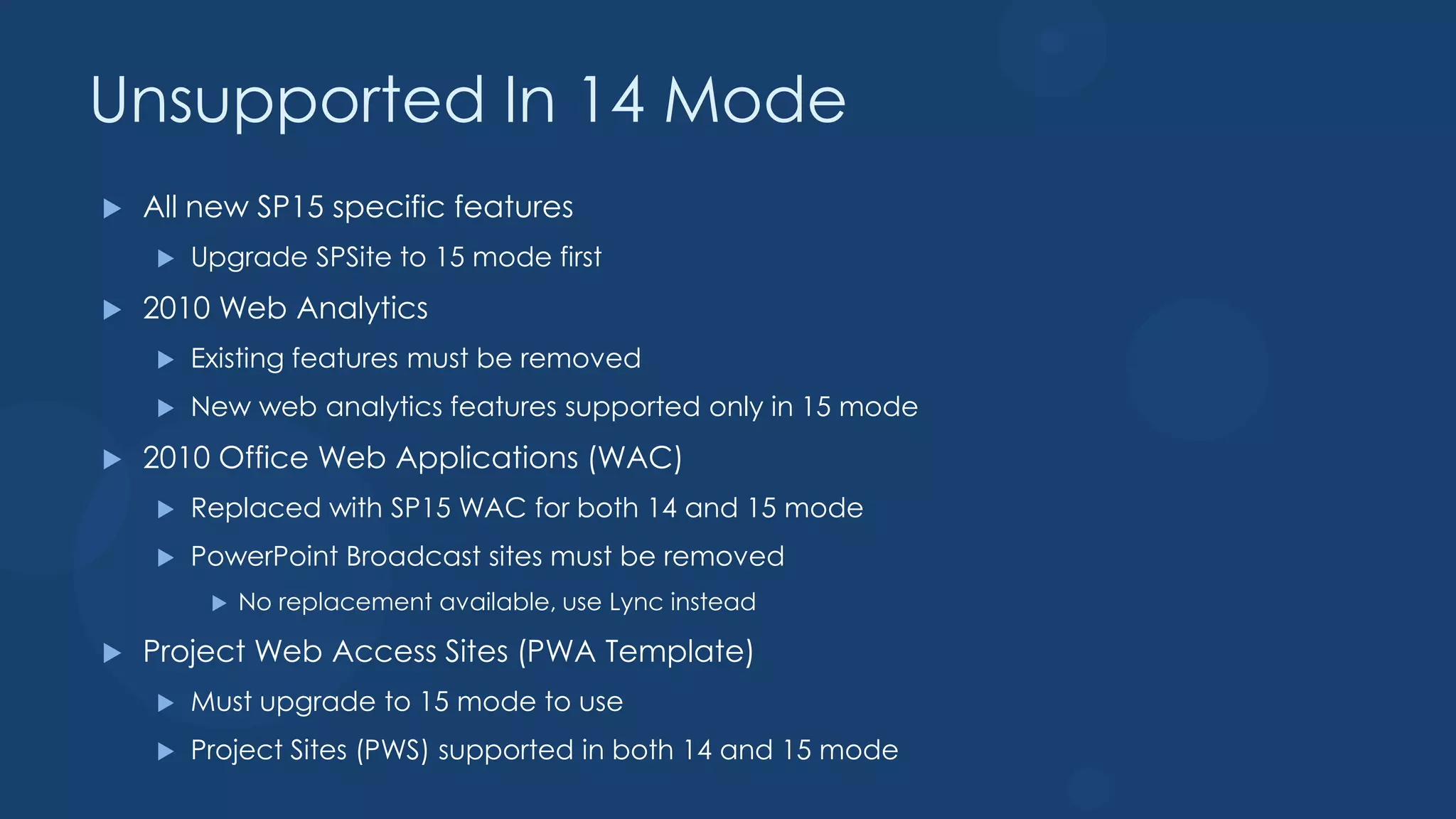

- 33. Unsupported In 14Mode All new SP15 specific features Upgrade SPSite to 15 mode first 2010 Web Analytics Existing features must be removed New web analytics features supported only in 15 mode 2010 Office Web Applications (WAC) Replaced with SP15 WAC for both 14 and 15 mode PowerPoint Broadcast sites must be removed No replacement available, use Lync instead Project Web Access Sites (PWA Template) Must upgrade to 15 mode to use Project Sites (PWS) supported in both 14 and 15 mode
- 34.

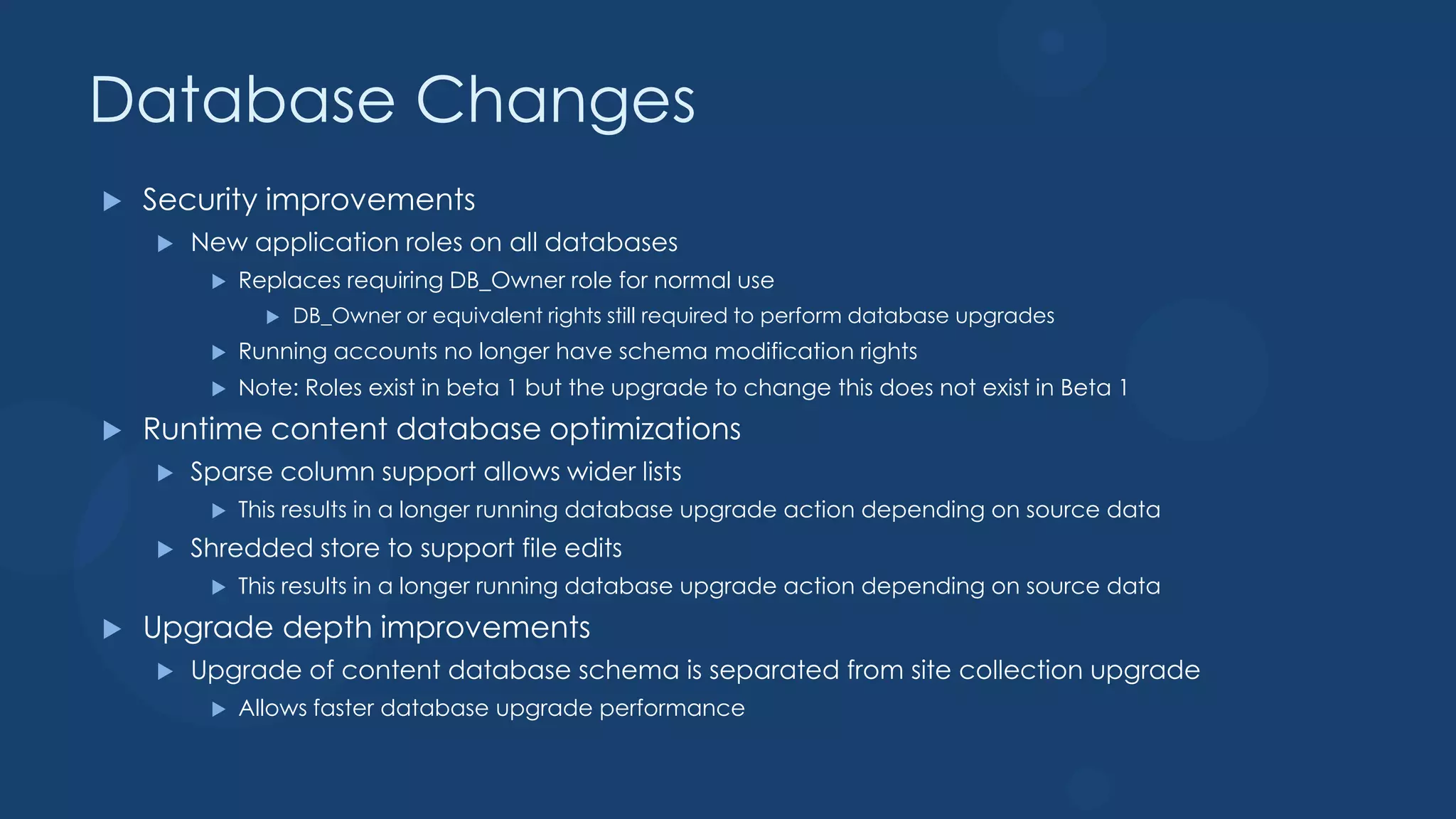

- 35. Database Changes Security improvements New application roles on all databases Replaces requiring DB_Owner role for normal use DB_Owner or equivalent rights still required to perform database upgrades Running accounts no longer have schema modification rights Note: Roles exist in beta 1 but the upgrade to change this does not exist in Beta 1 Runtime content database optimizations Sparse column support allows wider lists This results in a longer running database upgrade action depending on source data Shredded store to support file edits This results in a longer running database upgrade action depending on source data Upgrade depth improvements Upgrade of content database schema is separated from site collection upgrade Allows faster database upgrade performance

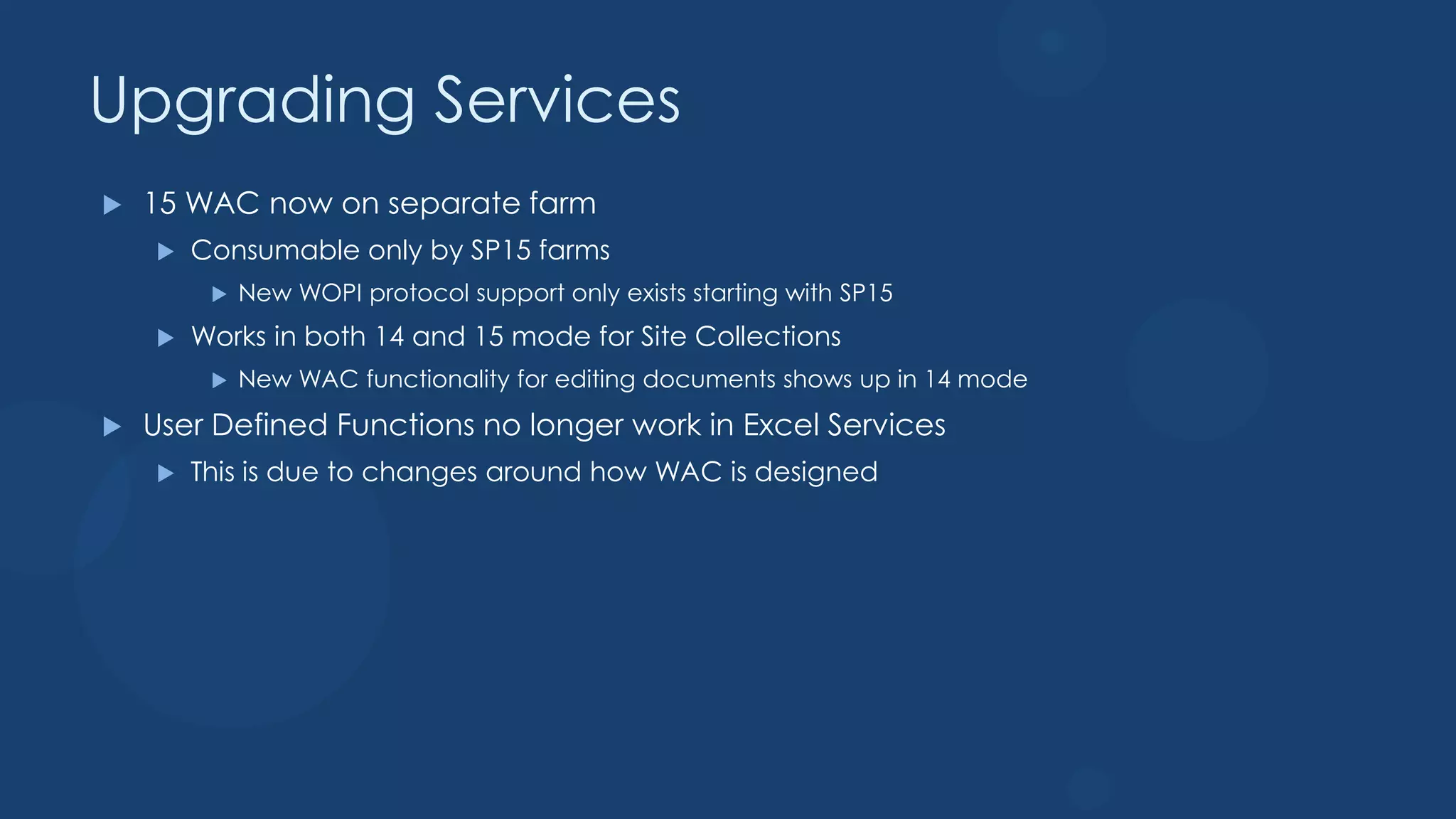

- 36. Upgrading Services 15 WAC now on separate farm Consumable only by SP15 farms New WOPI protocol support only exists starting with SP15 Works in both 14 and 15 mode for Site Collections New WAC functionality for editing documents shows up in 14 mode User Defined Functions no longer work in Excel Services This is due to changes around how WAC is designed
- 37.
- 38. Summary What’s Newin Upgrade Need New Hardware Database Attach Upgrade Only Move Service Apps First then Content Databases Deferred Site Collection Upgrade Self Service Site Collection Upgrade Upgrade Evaluation Site PowerShell for Super Admin
- 39.
- 40.
Editor's Notes
- #26 OldVersions, NewVersion, AllVersions
