2. SharePoint
Platform
Services
A collection of one or more servers,
each performing one or more functions:
Web Server
Web front end
No service or data, just serves out HTML
Scale out - Network Load Balanced
Application Server
Hosts ‘services’
Scale out depends on services
Index server is an exception
Database Server Web Application Database
Configuration Servers Servers Servers
Content
SharePoint Farm
3. SharePoint
Platform
Services
Web Front End
Shared Services Provider
Index Server
Query/Search
Excel Calculation Server
Forms Server
Database Server
Various topologies from entry-level
single machine to business critical
Web Application Database
high availability scale-out architecture Servers Servers Servers
Internet / Extranet / Intranet
SharePoint Farm
4. Web Application Database
Servers Servers Servers
SharePoint Farm
Web Web Web
Application Application Application
Config
Database
Shared
Service Provider 1
Content
Shared Databases
Service Provider 2
5. SharePoint
Platform
Services
Site Templates define Lists, Document Libraries, Web Parts,
Content Types, Metadata, Workflow, etc
Site is an instance of a Site Template definition
Site Collection is a group of Sites with common
administration
Sites / subsites are arranged in a hierarchy – typically used
for navigation & security
Compliant with
ASP.Net 2.0 Navigation
Provider Model
Over 40 application templates and
role based portals templates at
http://microsoft.com/sharepointapps

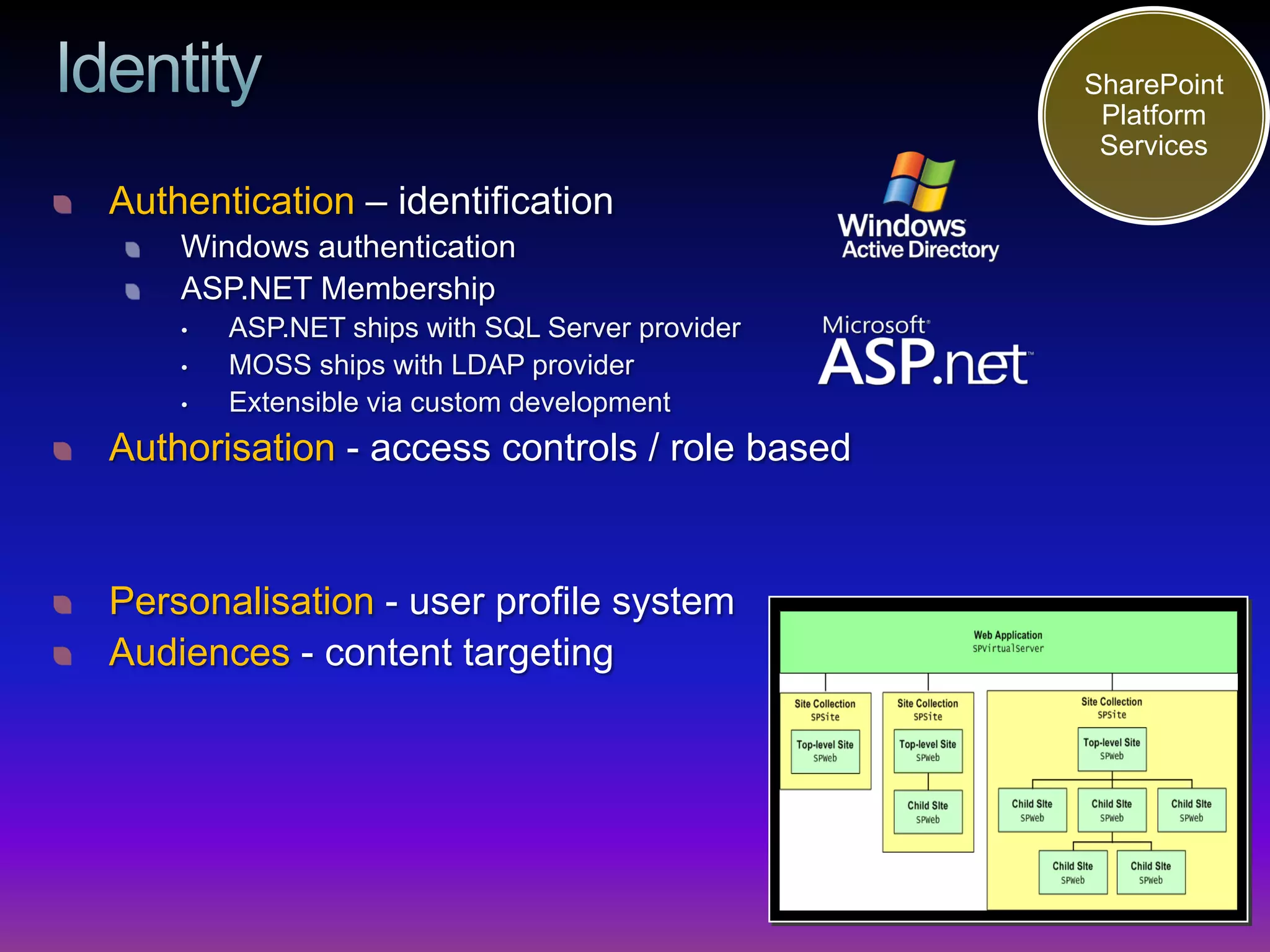

6. SharePoint
Platform
Services
Authentication – identification
Windows authentication
ASP.NET Membership
• ASP.NET ships with SQL Server provider
• MOSS ships with LDAP provider
• Extensible via custom development
Authorisation - access controls / role based
Personalisation - user profile system
Audiences - content targeting
7. SharePoint
Platform
Services
Site Customisation
Editing assets with the site’s content database
Code Development
Repeatable – reuse across multiple sites
Features - Develop / Deploy / Activate
Package features as .WSP solution packages
8. SharePoint
Platform
Services
Content Code
Traditional content Web parts
Documents Workflows
Lists Event handlers
Forms data
Feature receivers
Web Content
Digital assets
Document converters
Artifacts
CSS Stylesheets
Master Pages
Page Layouts

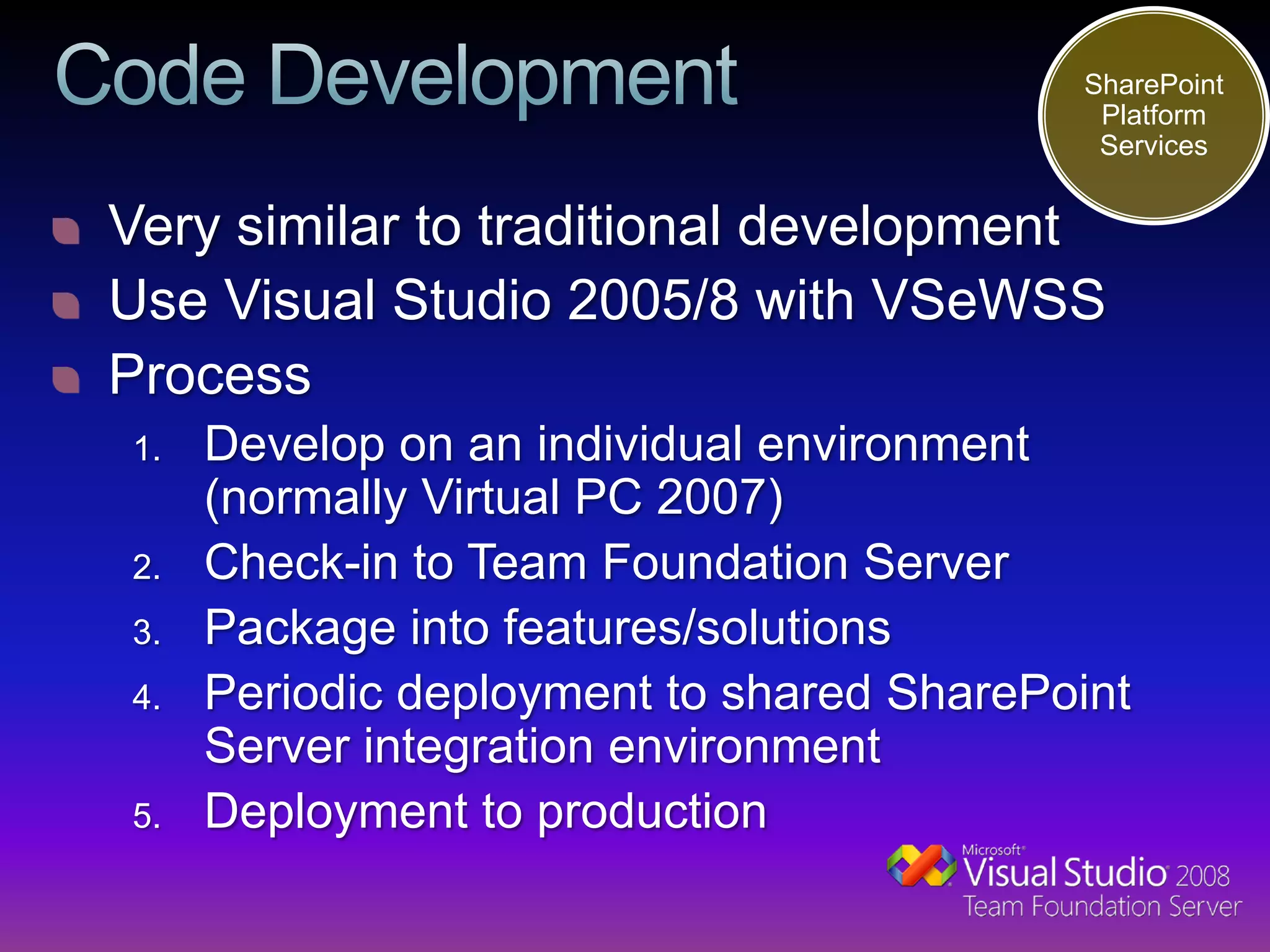

9. SharePoint
Platform
Services
Very similar to traditional development
Use Visual Studio 2005/8 with VSeWSS
Process
1. Develop on an individual environment
(normally Virtual PC 2007)
2. Check-in to Team Foundation Server
3. Package into features/solutions
4. Periodic deployment to shared SharePoint
Server integration environment
5. Deployment to production
10. SharePoint
Platform
Services

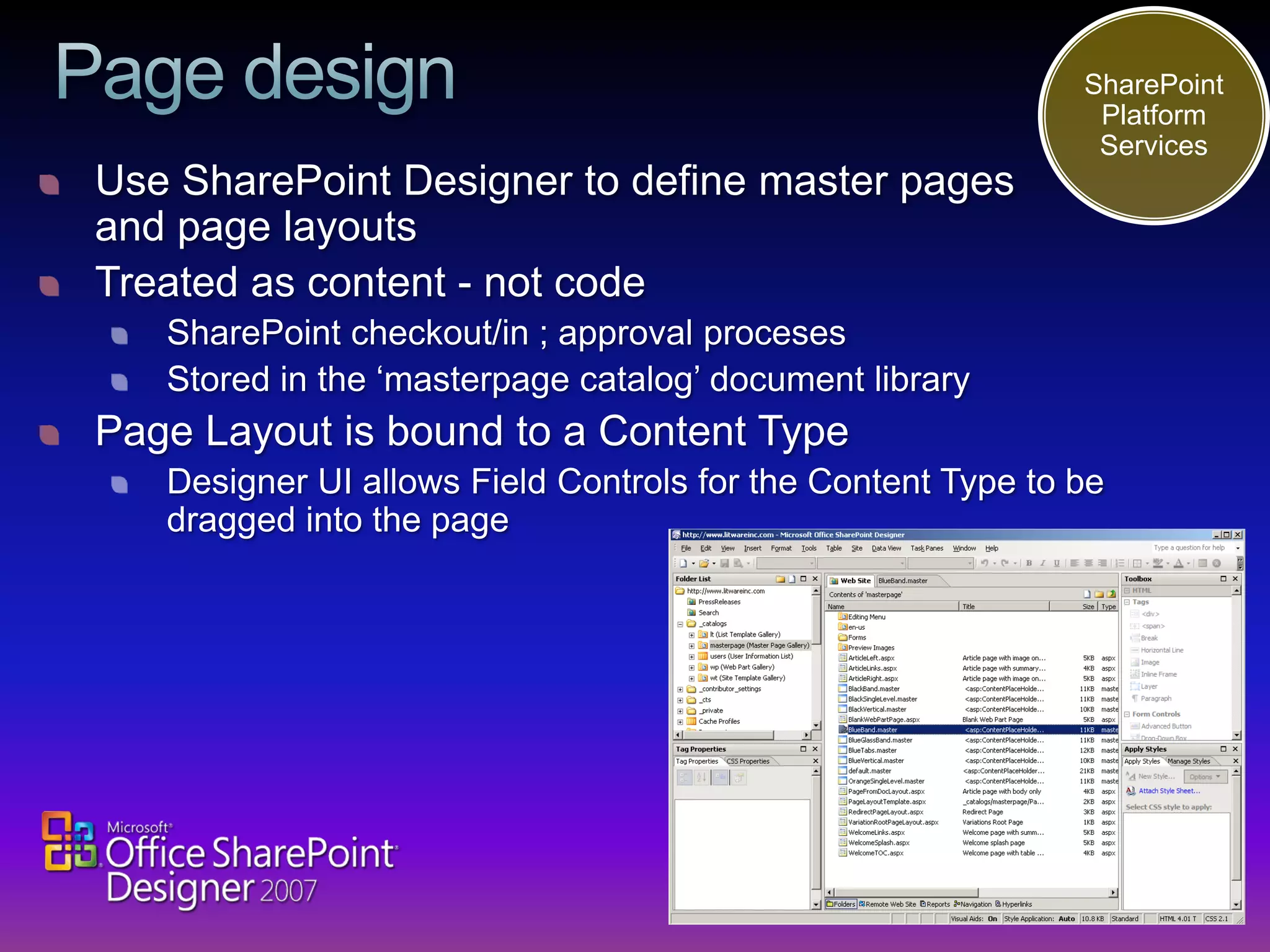

Use SharePoint Designer 2007
Master pages, page layouts
Write No-code workflows
Modify CSS files
Edit .aspx pages
Add script to pages
Customise look & feel of Web Parts
Write XSLT to customise data rendering
Artifacts are not compiled into assemblies
Treated as content, not code
Built-in source control via SharePoint document
libraries
Check-in/out; Versioning

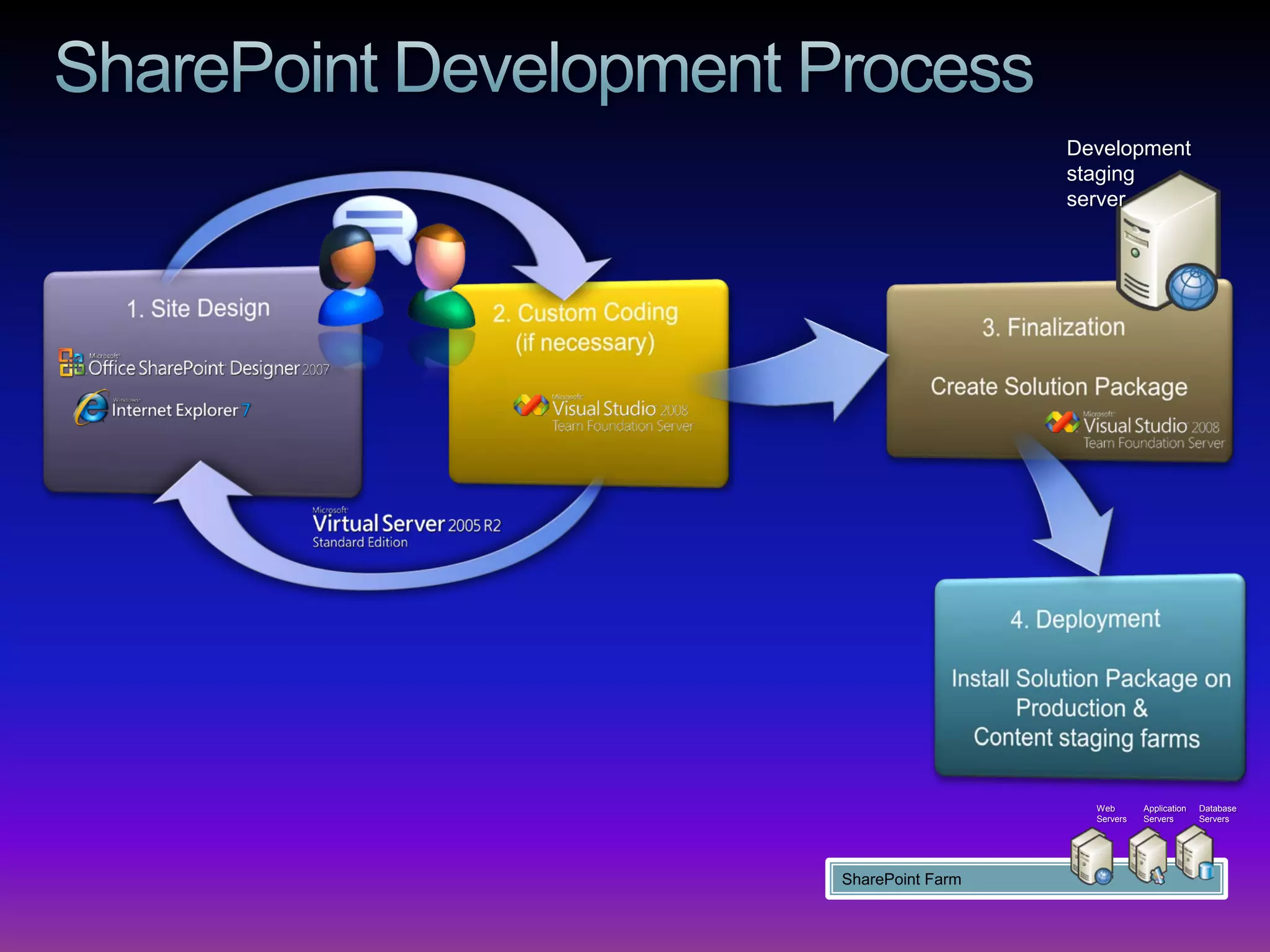

11. Development
staging
server
Web Application Database
Servers Servers Servers
SharePoint Farm

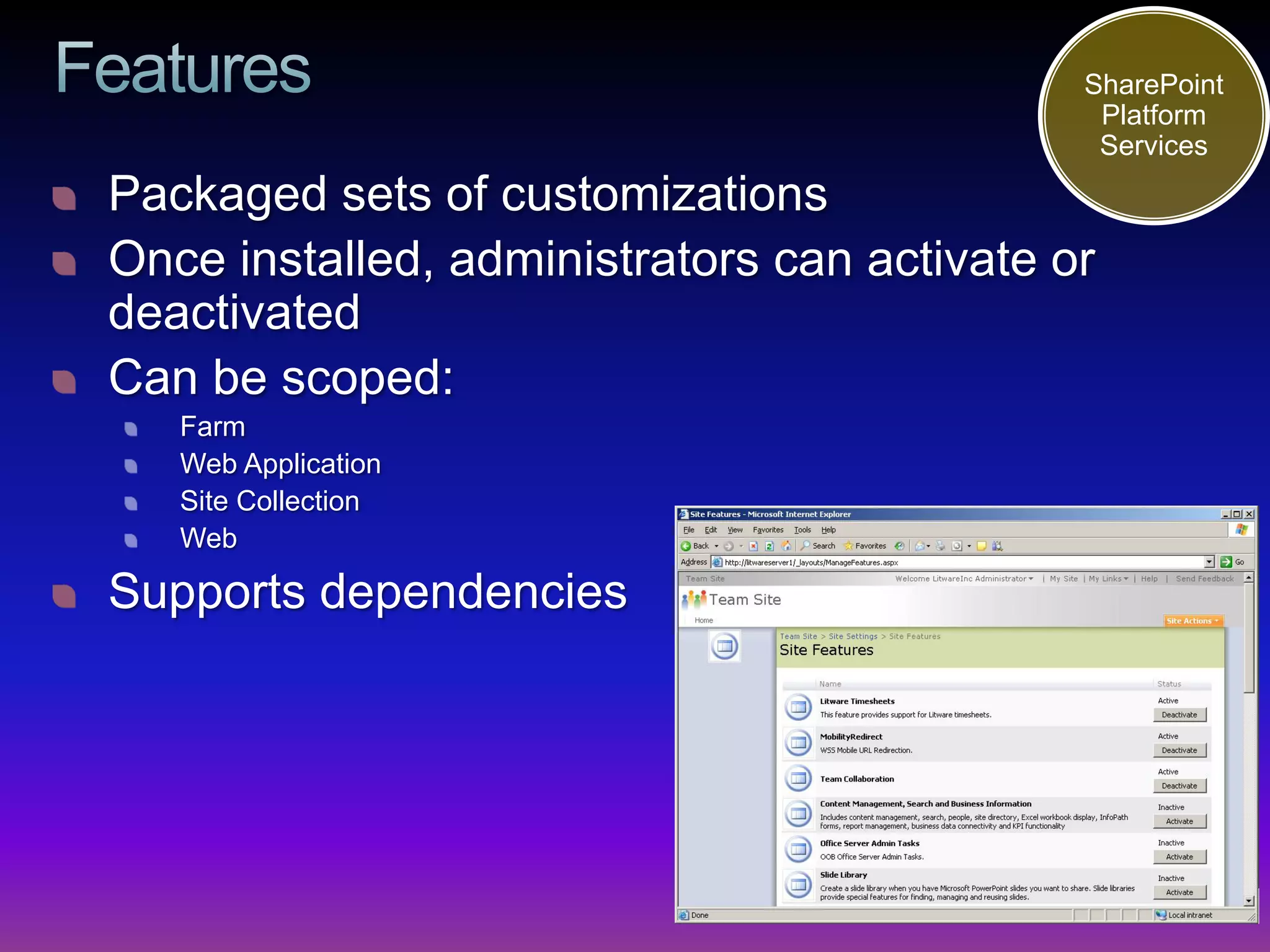

12. SharePoint
Platform
Services
Packaged sets of customizations
Once installed, administrators can activate or
deactivated
Can be scoped:
Farm
Web Application
Site Collection
Web
Supports dependencies

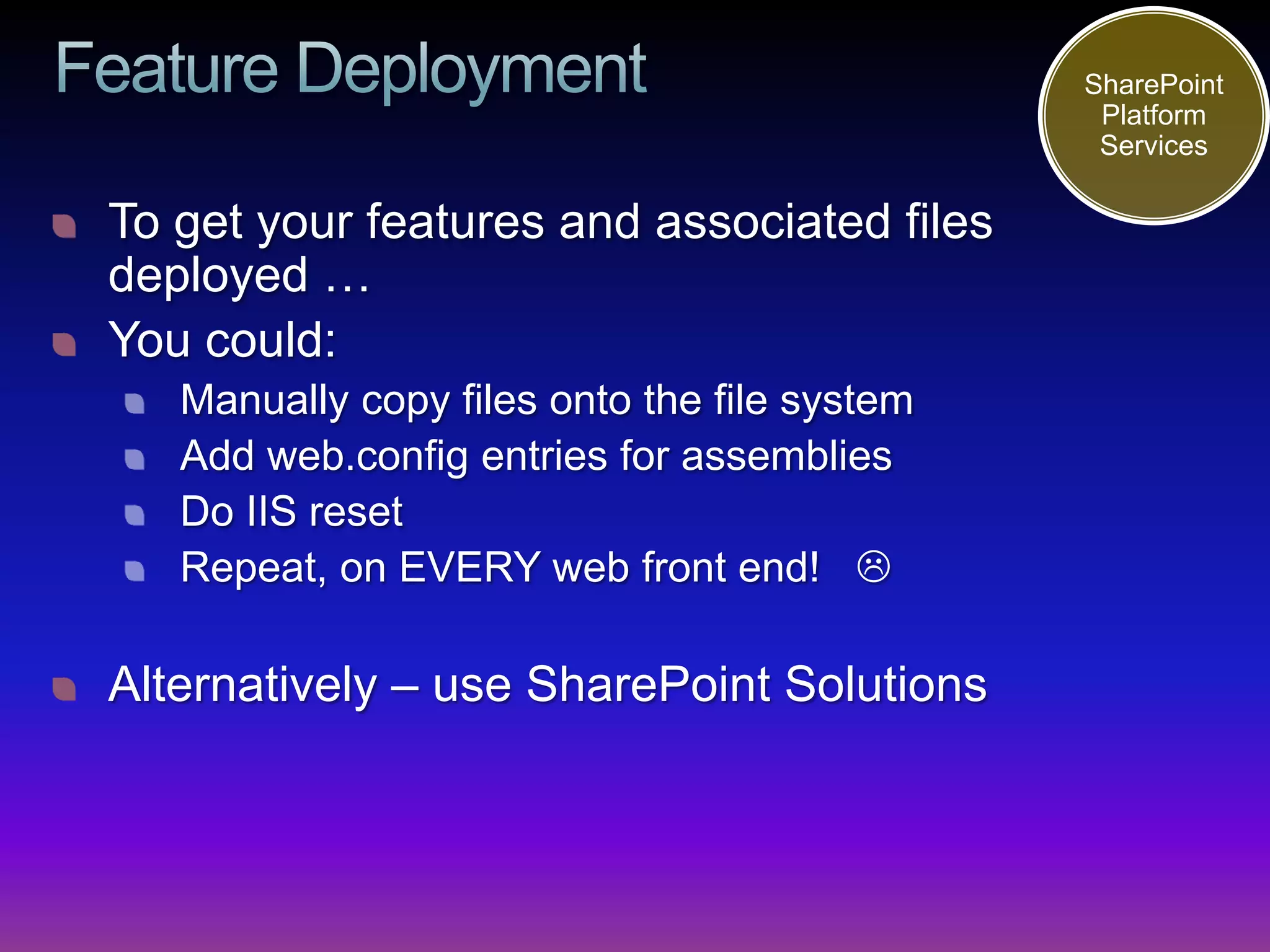

13. SharePoint
Platform
Services
To get your features and associated files
deployed …
You could:
Manually copy files onto the file system
Add web.config entries for assemblies
Do IIS reset
Repeat, on EVERY web front end!
Alternatively – use SharePoint Solutions

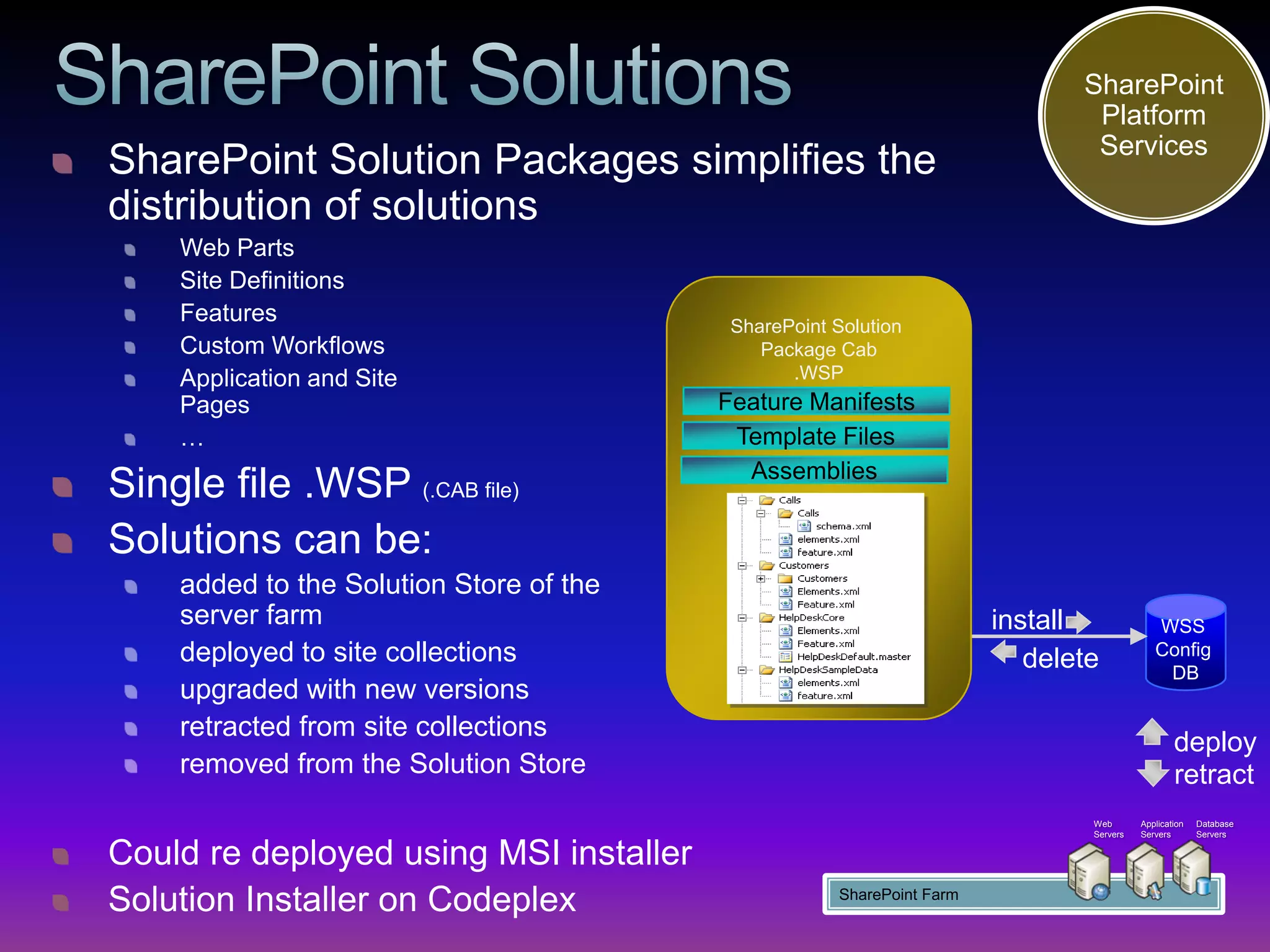

14. SharePoint
Platform
Services
SharePoint Solution Packages simplifies the
distribution of solutions
Web Parts
Site Definitions
Features SharePoint Solution
Custom Workflows Package Cab
Application and Site .WSP
Pages Feature Manifests
… Template Files
Assemblies
Single file .WSP (.CAB file)
Solutions can be:
added to the Solution Store of the
server farm install WSS
deployed to site collections delete Config
DB
upgraded with new versions
retracted from site collections
deploy
removed from the Solution Store retract
Web Application Database
Servers Servers Servers
Could re deployed using MSI installer
Solution Installer on Codeplex SharePoint Farm

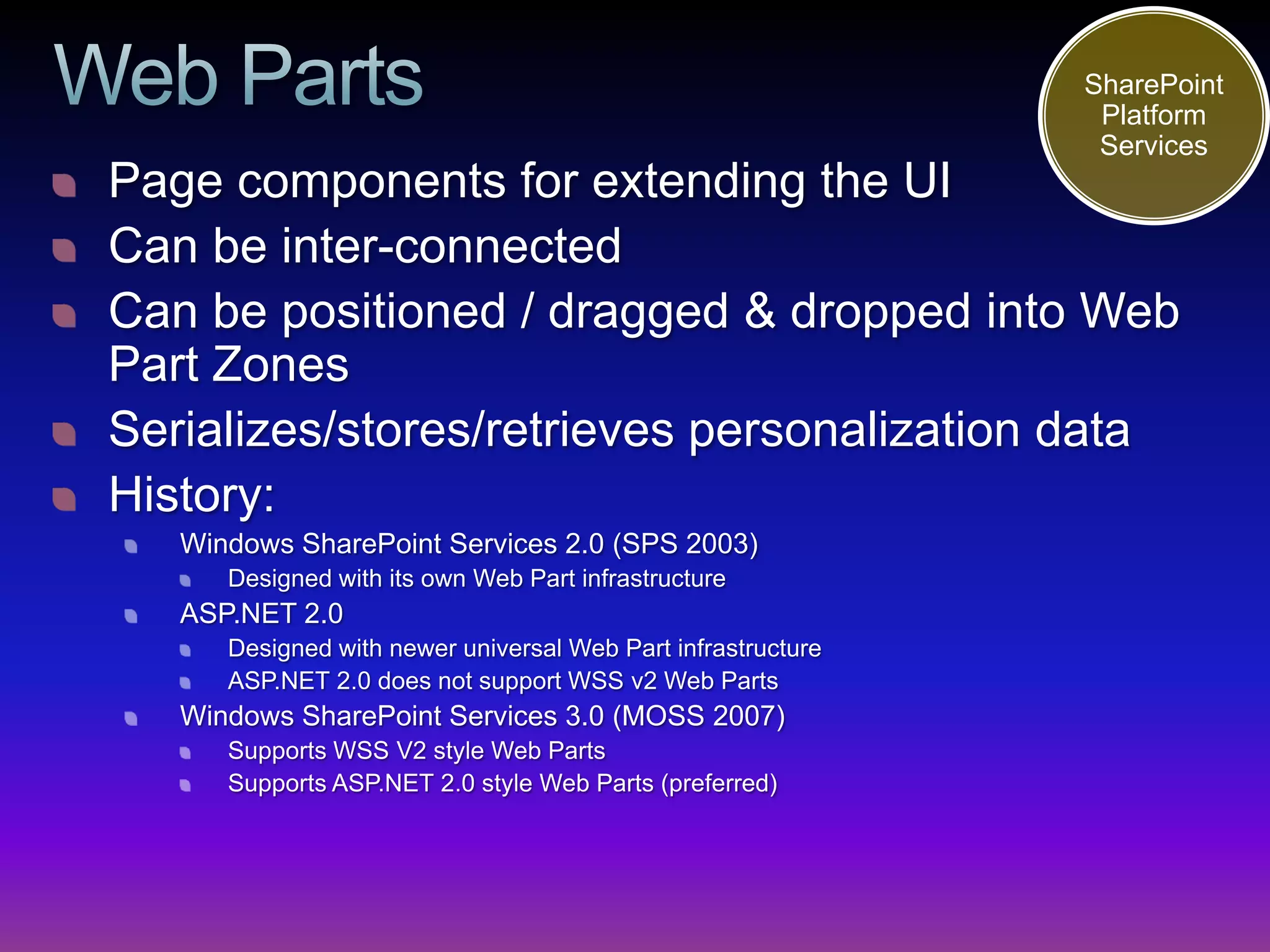

15. SharePoint
Platform
Services
Page components for extending the UI
Can be inter-connected
Can be positioned / dragged & dropped into Web
Part Zones
Serializes/stores/retrieves personalization data
History:
Windows SharePoint Services 2.0 (SPS 2003)
Designed with its own Web Part infrastructure
ASP.NET 2.0
Designed with newer universal Web Part infrastructure
ASP.NET 2.0 does not support WSS v2 Web Parts
Windows SharePoint Services 3.0 (MOSS 2007)
Supports WSS V2 style Web Parts
Supports ASP.NET 2.0 style Web Parts (preferred)

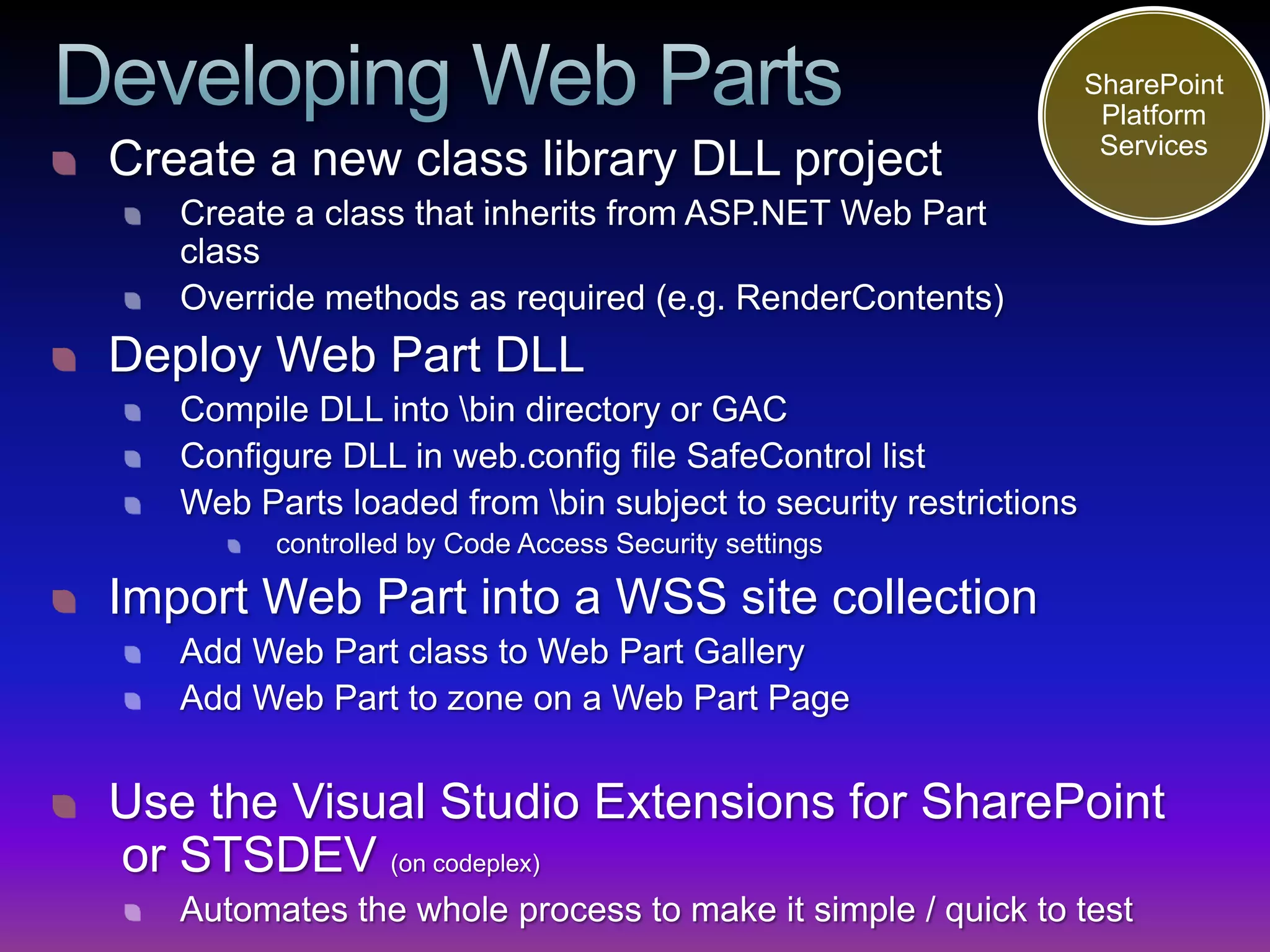

16. SharePoint
Platform
Services
Create a new class library DLL project
Create a class that inherits from ASP.NET Web Part
class
Override methods as required (e.g. RenderContents)
Deploy Web Part DLL
Compile DLL into bin directory or GAC
Configure DLL in web.config file SafeControl list
Web Parts loaded from bin subject to security restrictions
controlled by Code Access Security settings
Import Web Part into a WSS site collection
Add Web Part class to Web Part Gallery
Add Web Part to zone on a Web Part Page
Use the Visual Studio Extensions for SharePoint
or STSDEV (on codeplex)
Automates the whole process to make it simple / quick to test

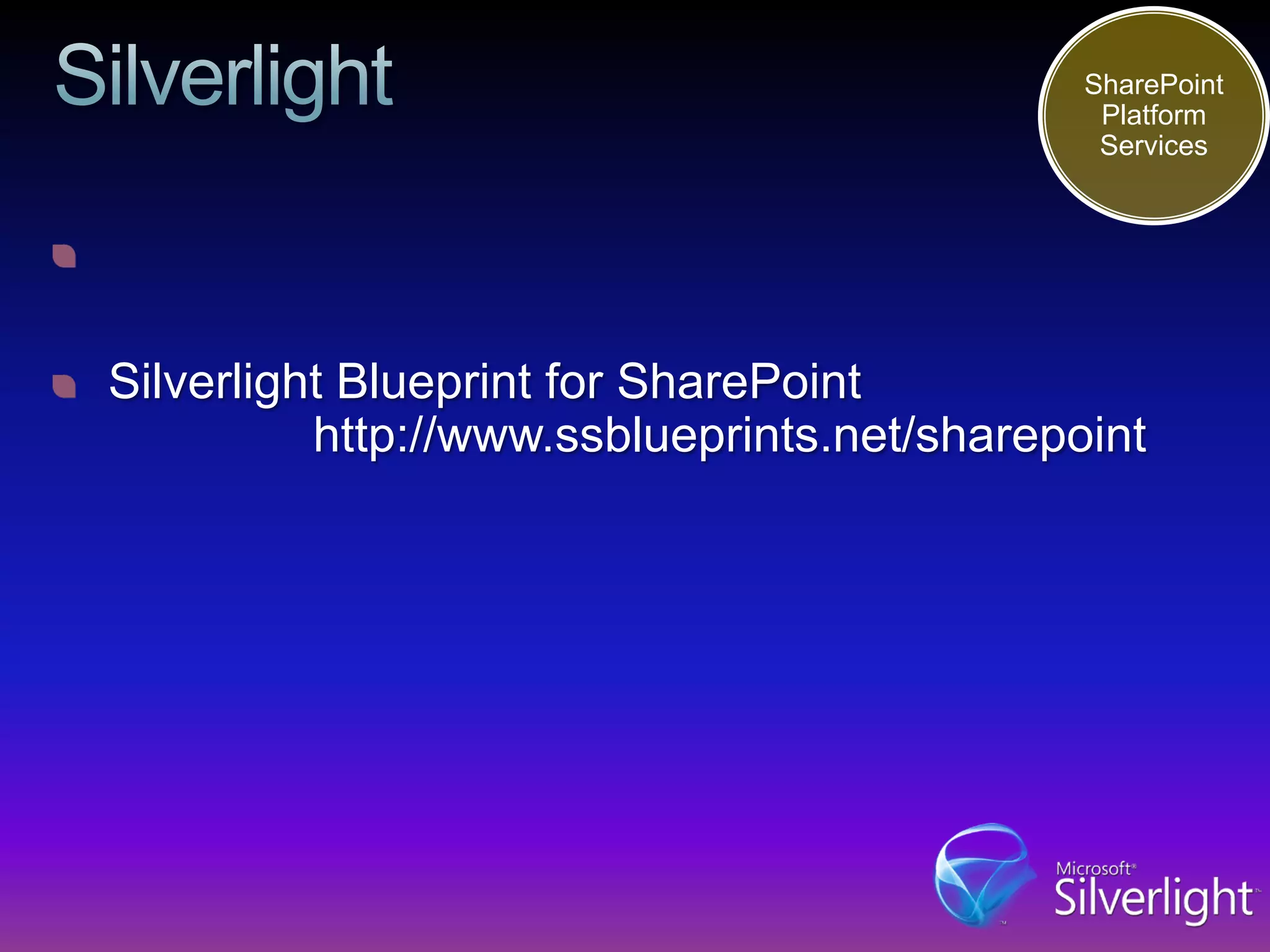

17. SharePoint
Platform
Services
Silverlight Blueprint for SharePoint
http://www.ssblueprints.net/sharepoint

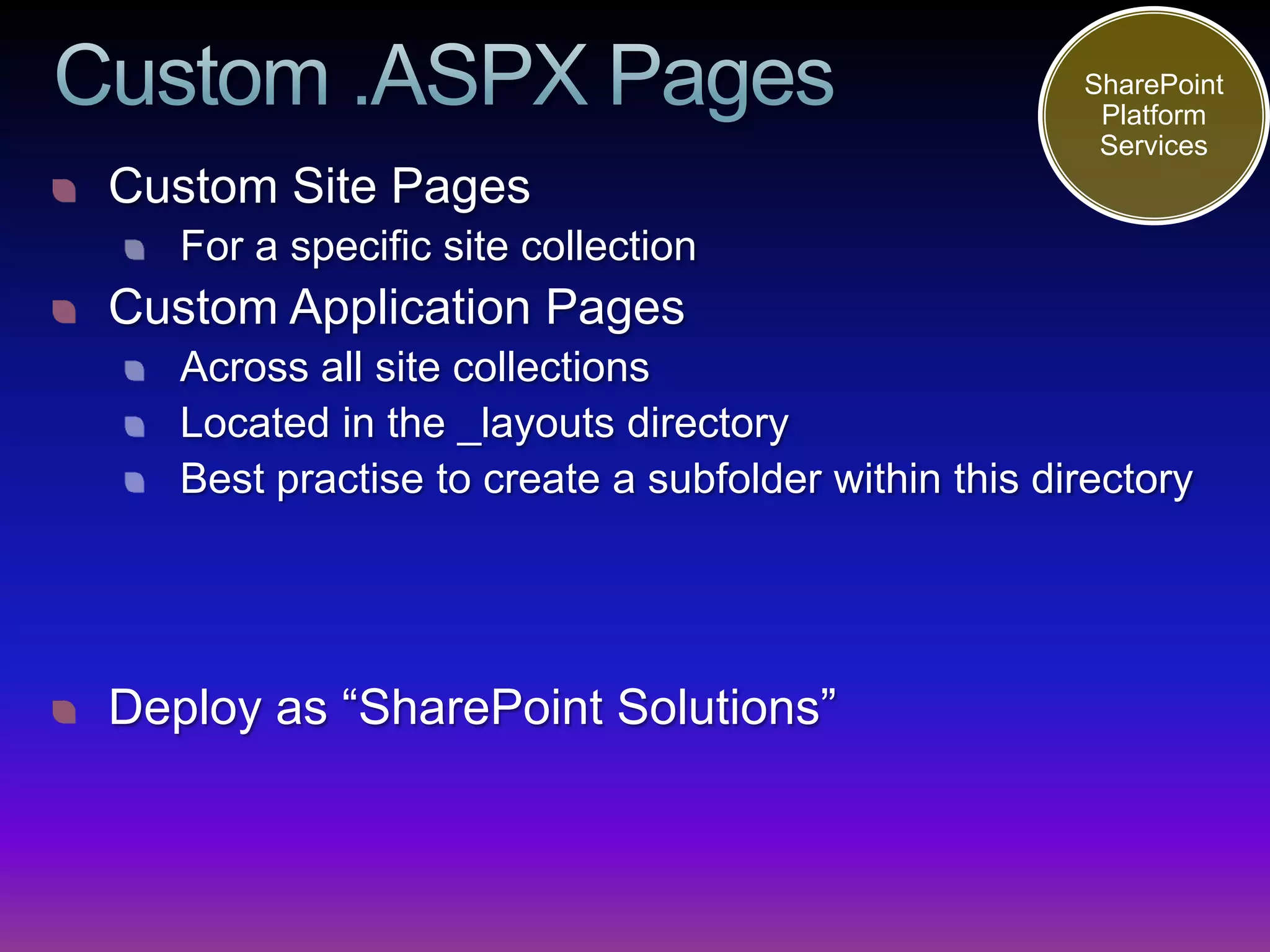

18. SharePoint
Platform
Services
Custom Site Pages
For a specific site collection
Custom Application Pages
Across all site collections
Located in the _layouts directory
Best practise to create a subfolder within this directory
Deploy as “SharePoint Solutions”

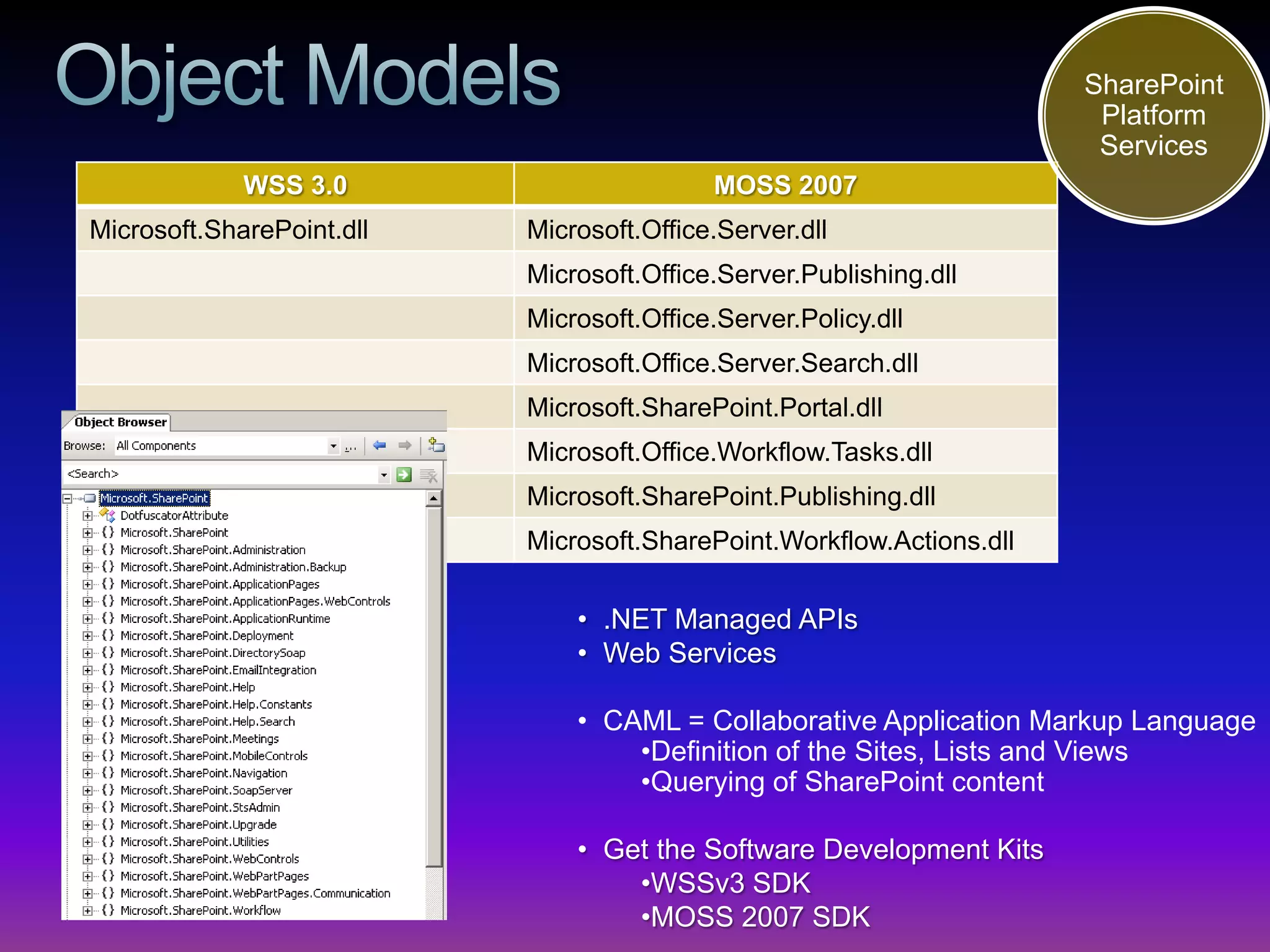

19. SharePoint
Platform
Services
WSS 3.0 MOSS 2007
Microsoft.SharePoint.dll Microsoft.Office.Server.dll
Microsoft.Office.Server.Publishing.dll
Microsoft.Office.Server.Policy.dll
Microsoft.Office.Server.Search.dll
Microsoft.SharePoint.Portal.dll
Microsoft.Office.Workflow.Tasks.dll
Microsoft.SharePoint.Publishing.dll
Microsoft.SharePoint.Workflow.Actions.dll
• .NET Managed APIs
• Web Services
• CAML = Collaborative Application Markup Language
•Definition of the Sites, Lists and Views
•Querying of SharePoint content
• Get the Software Development Kits
•WSSv3 SDK
•MOSS 2007 SDK
20. SharePoint
Platform
Master Page Services
• Publishing feature must be
‘Activated’
• ASP.NET 2.0 Master Pages
Field Controls
are used to control look and
feel of the website
• Page Layout defines the
remainder of the page
• Provides consistency for similar
types of pages

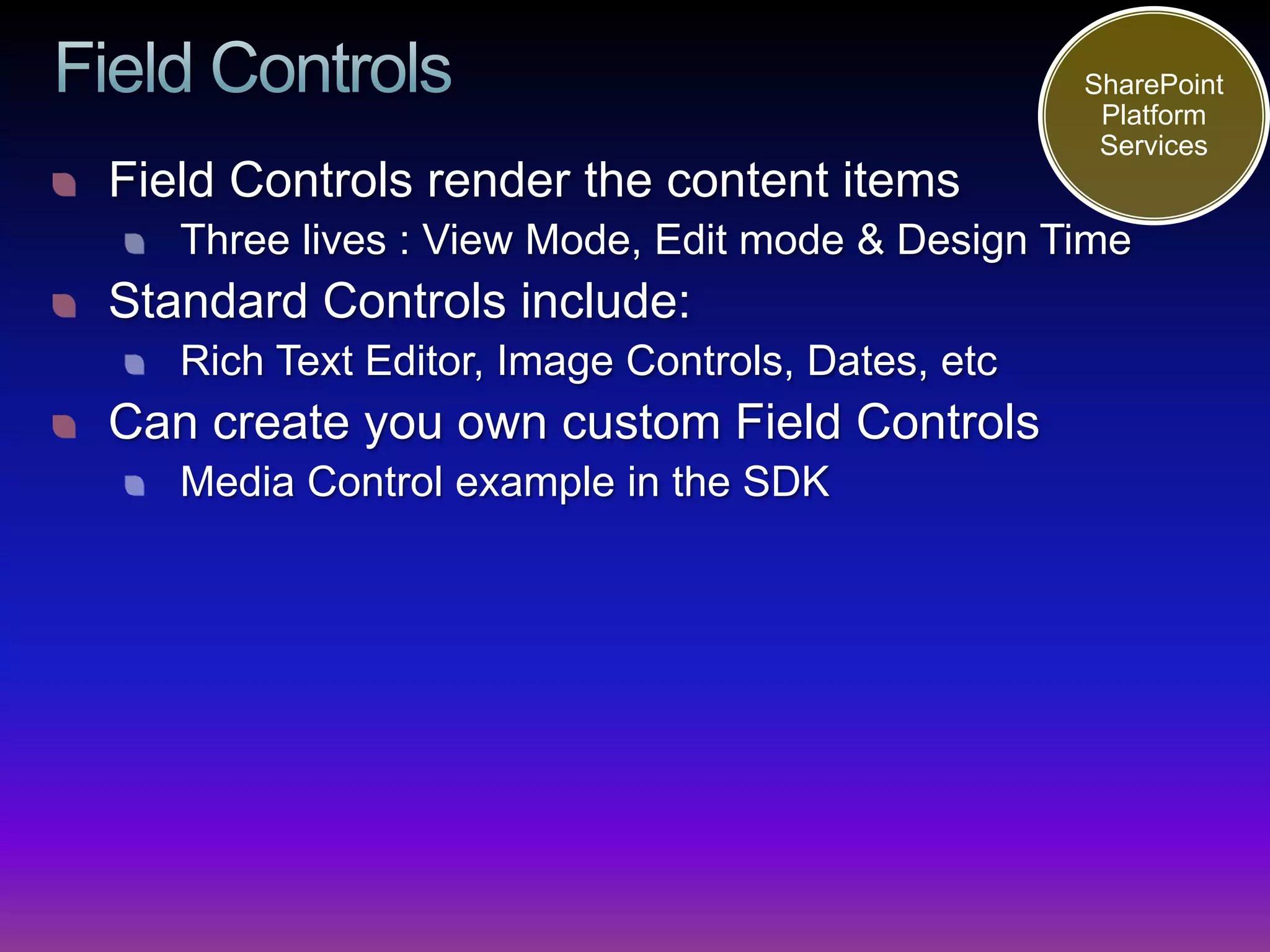

• Field Controls render the
content items
• Three lives : View Mode, Edit
Page Layout mode & Design Time
FileName PageLayout Title Body Image
Welcome.aspx PageLayout.aspx Welcome To News Lorem ipsum dolor sit ... /Images/Chair.jpg
‘Pages’ Doc Lib
2.0
CMS Page Rendering

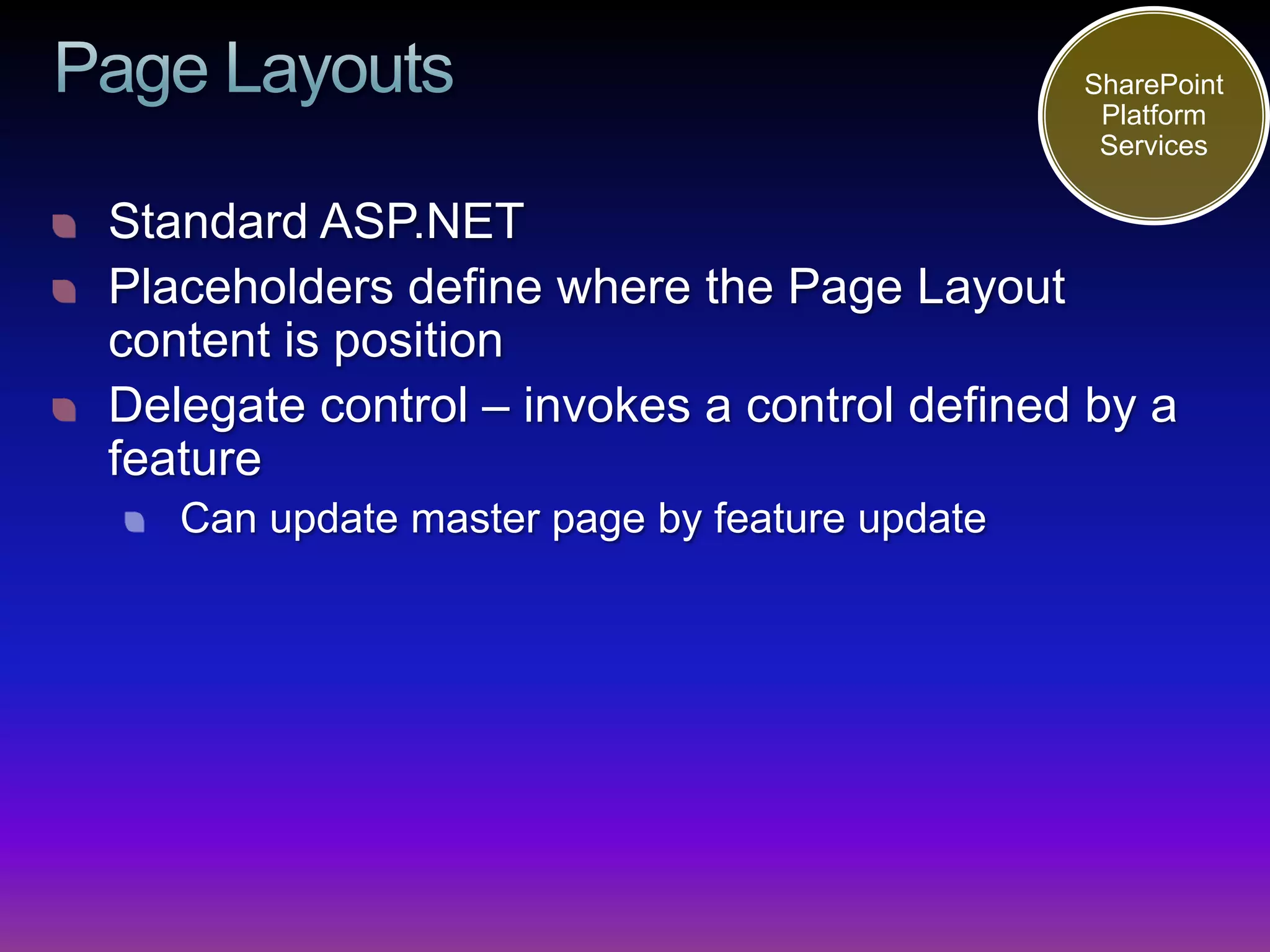

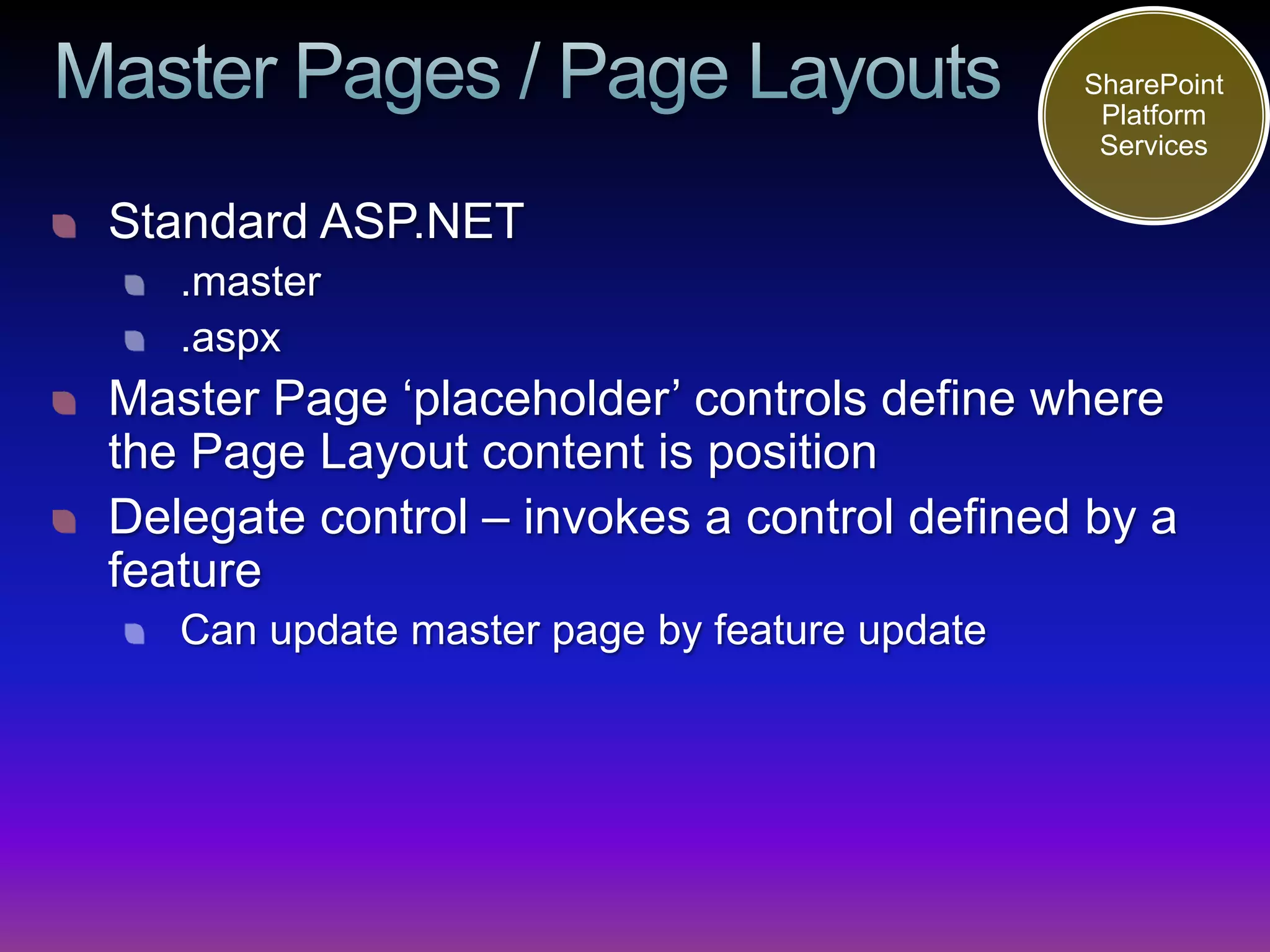

21. SharePoint
Platform
Services
Standard ASP.NET
.master
.aspx
Master Page ‘placeholder’ controls define where
the Page Layout content is position
Delegate control – invokes a control defined by a
feature
Can update master page by feature update
22. SharePoint
Platform
Services
Standard ASP.NET
Placeholders define where the Page Layout
content is position
Delegate control – invokes a control defined by a
feature
Can update master page by feature update
23. SharePoint
Platform
Services
Use SharePoint Designer to define master pages
and page layouts
Treated as content - not code
SharePoint checkout/in ; approval proceses
Stored in the ‘masterpage catalog’ document library
Page Layout is bound to a Content Type
Designer UI allows Field Controls for the Content Type to be
dragged into the page
24. SharePoint
Platform
Services
Field Controls render the content items
Three lives : View Mode, Edit mode & Design Time
Standard Controls include:
Rich Text Editor, Image Controls, Dates, etc
Can create you own custom Field Controls
Media Control example in the SDK
25.

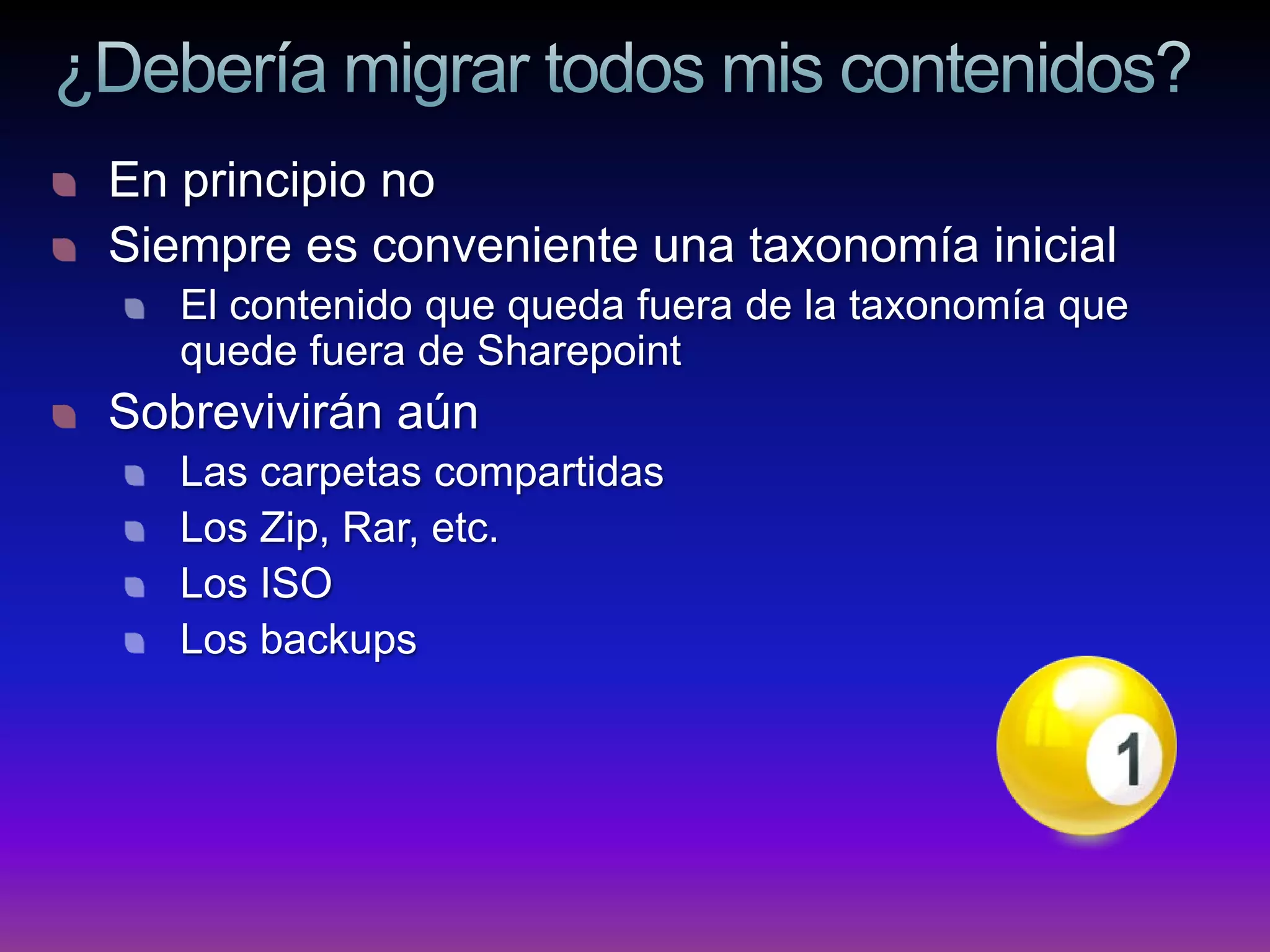

26. En principio no
Siempre es conveniente una taxonomía inicial
El contenido que queda fuera de la taxonomía que
quede fuera de Sharepoint
Sobrevivirán aún
Las carpetas compartidas
Los Zip, Rar, etc.
Los ISO
Los backups
27. Empiece por su SLA
Considere los Restore
Cuando el SLA es tiered considere mapear Site Collections a DBs
Considere la performance a nivel de las Site Collections
Sí, siempre se trata de que las Site Collections funcionen
adecuadamente, eso condiciona la creación de bases de
datos
28. Un server no es una granja
Training del Admin
Policies
Delegación de usuarios
Farm
SSP
Site Collection
Site
List
…

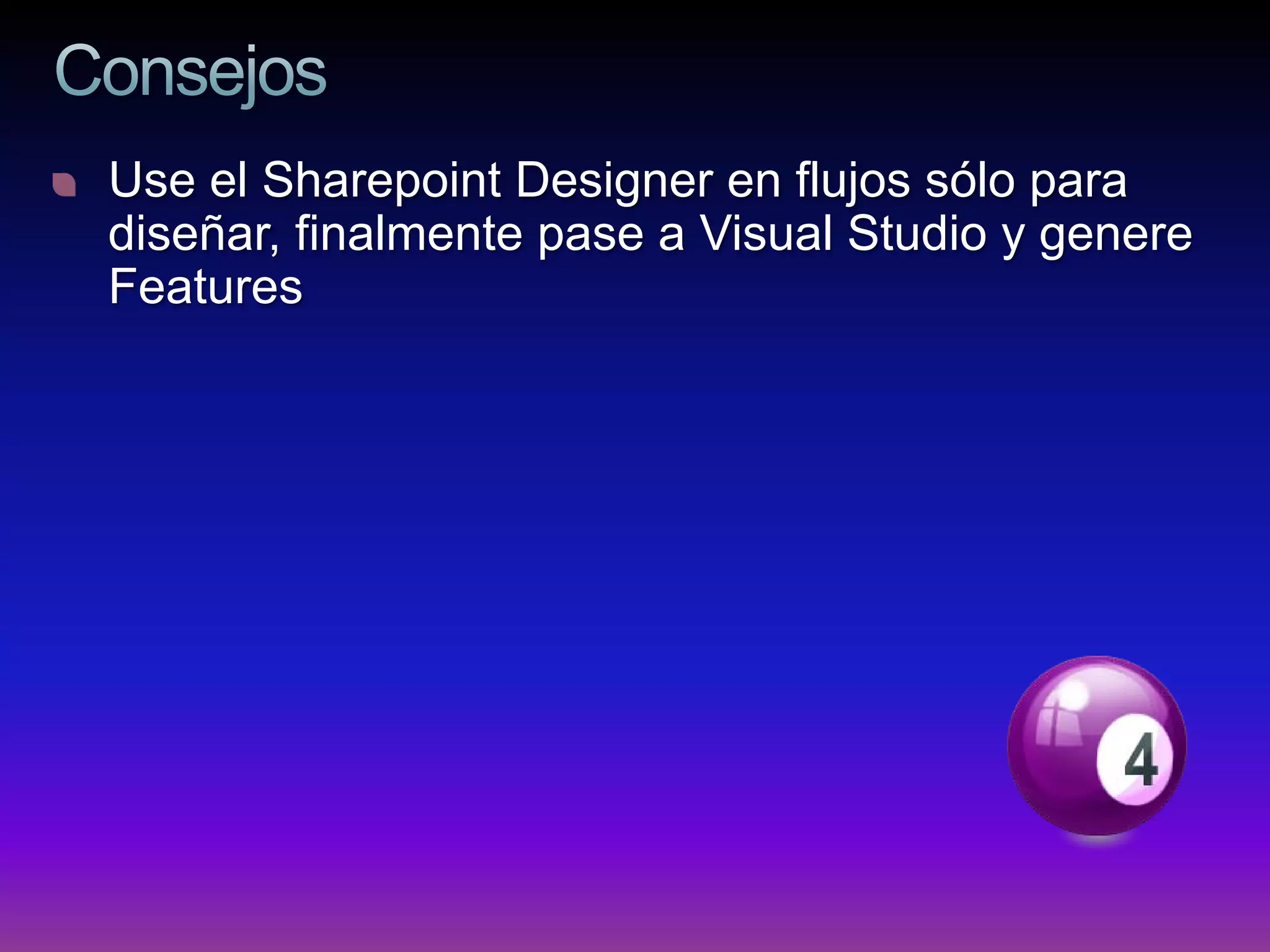

29. Use el Sharepoint Designer en flujos sólo para
diseñar, finalmente pase a Visual Studio y genere
Features

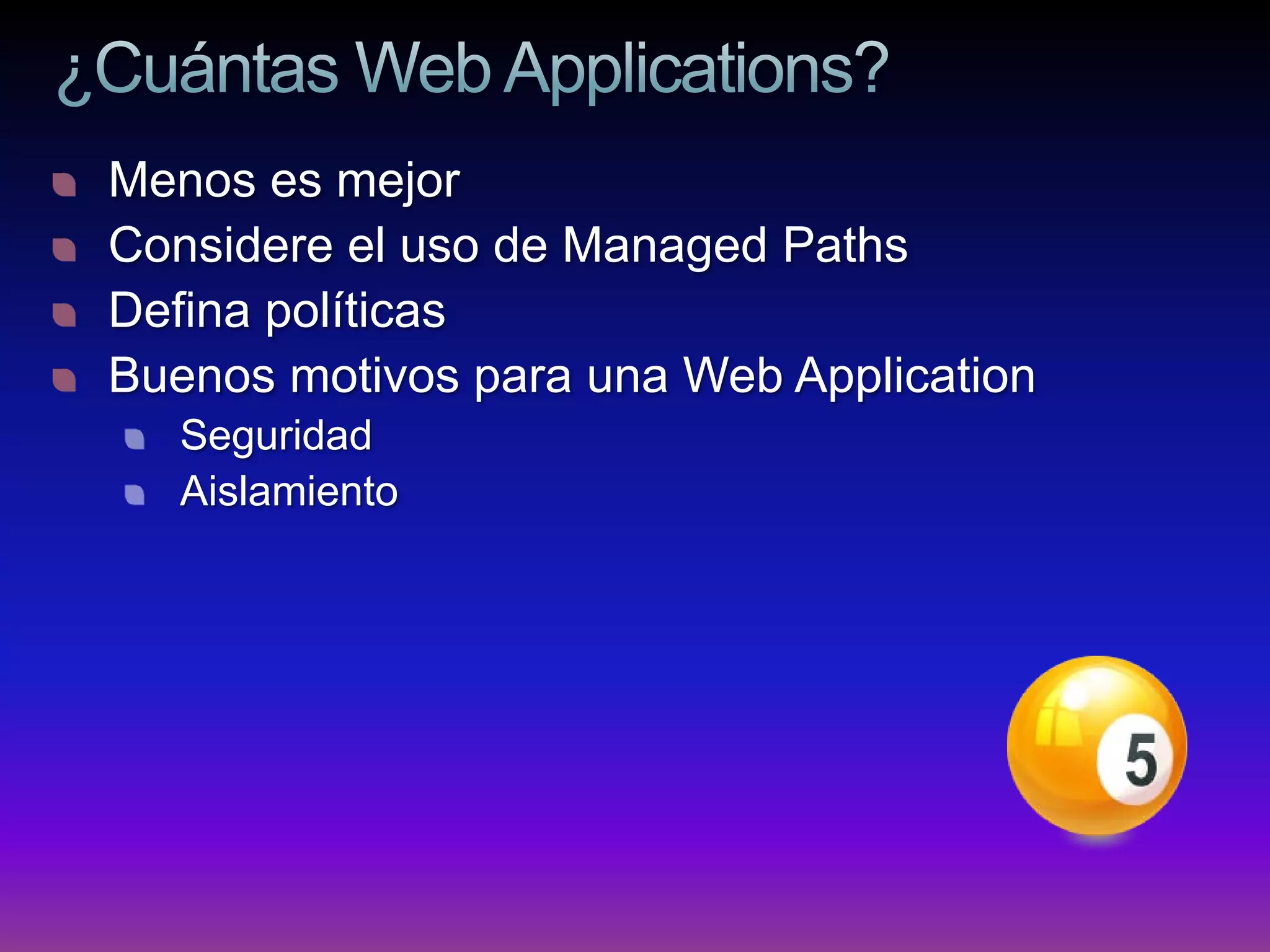

30. Menos es mejor
Considere el uso de Managed Paths
Defina políticas
Buenos motivos para una Web Application
Seguridad
Aislamiento

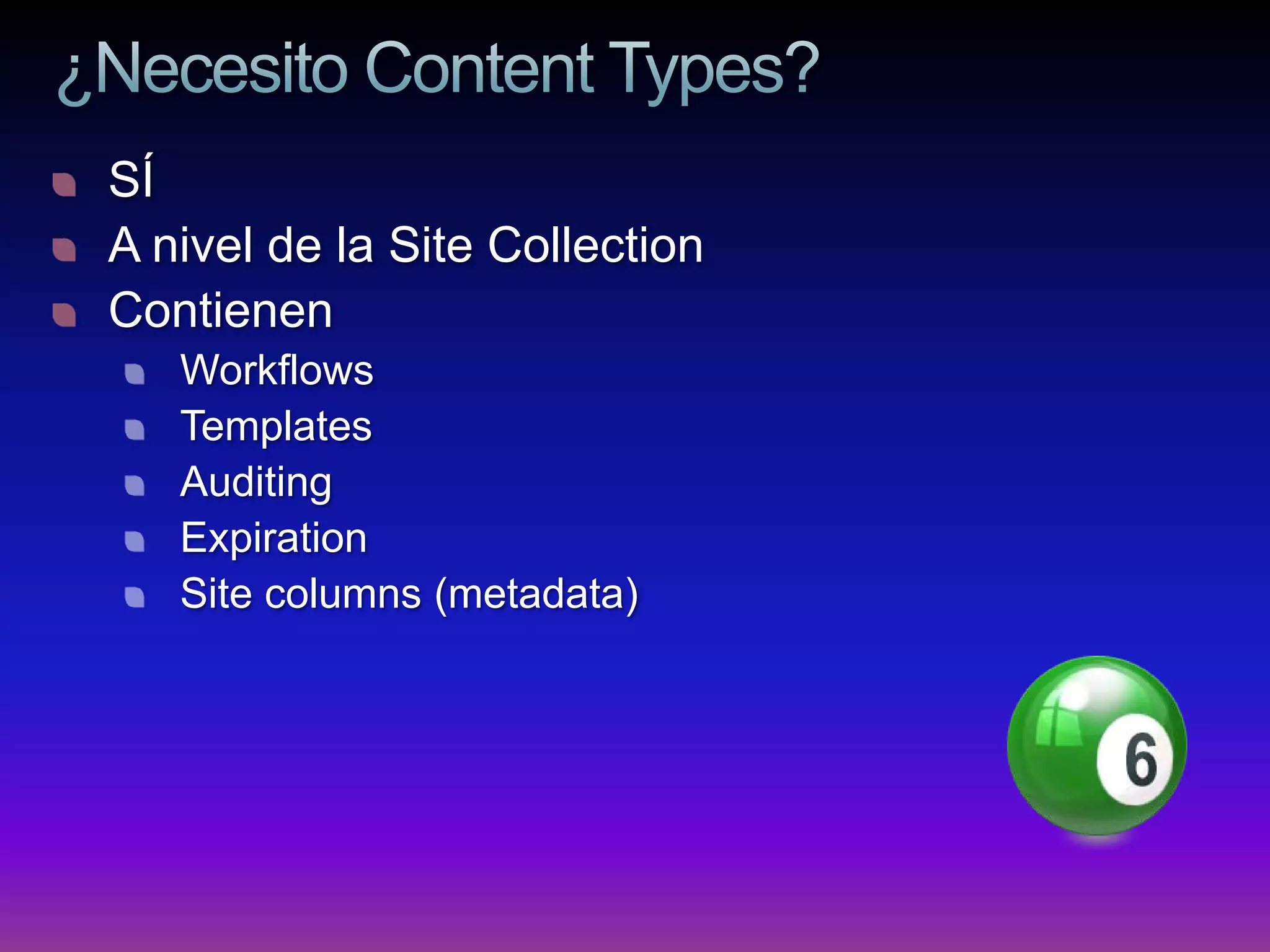

31. SÍ
A nivel de la Site Collection
Contienen
Workflows
Templates
Auditing
Expiration
Site columns (metadata)

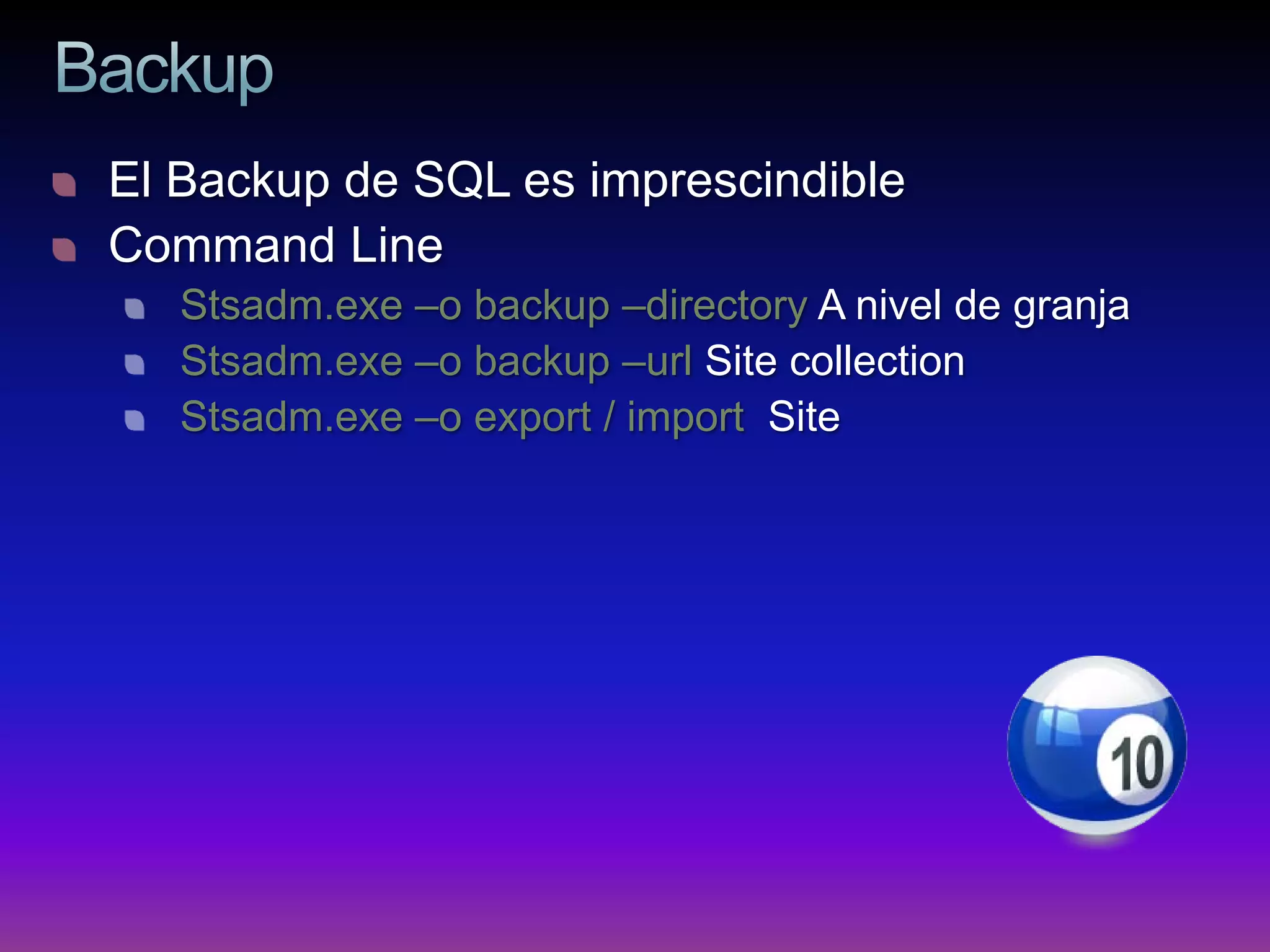

35. El Backup de SQL es imprescindible
Command Line
Stsadm.exe –o backup –directory A nivel de granja
Stsadm.exe –o backup –url Site collection
Stsadm.exe –o export / import Site
