naive bayes algorithm

1. Machine Learning
(BE Computer 2015 PAT)
A.Y. 2018-19 SEM-II
Prepared by
Mr. Dhomse G.P.

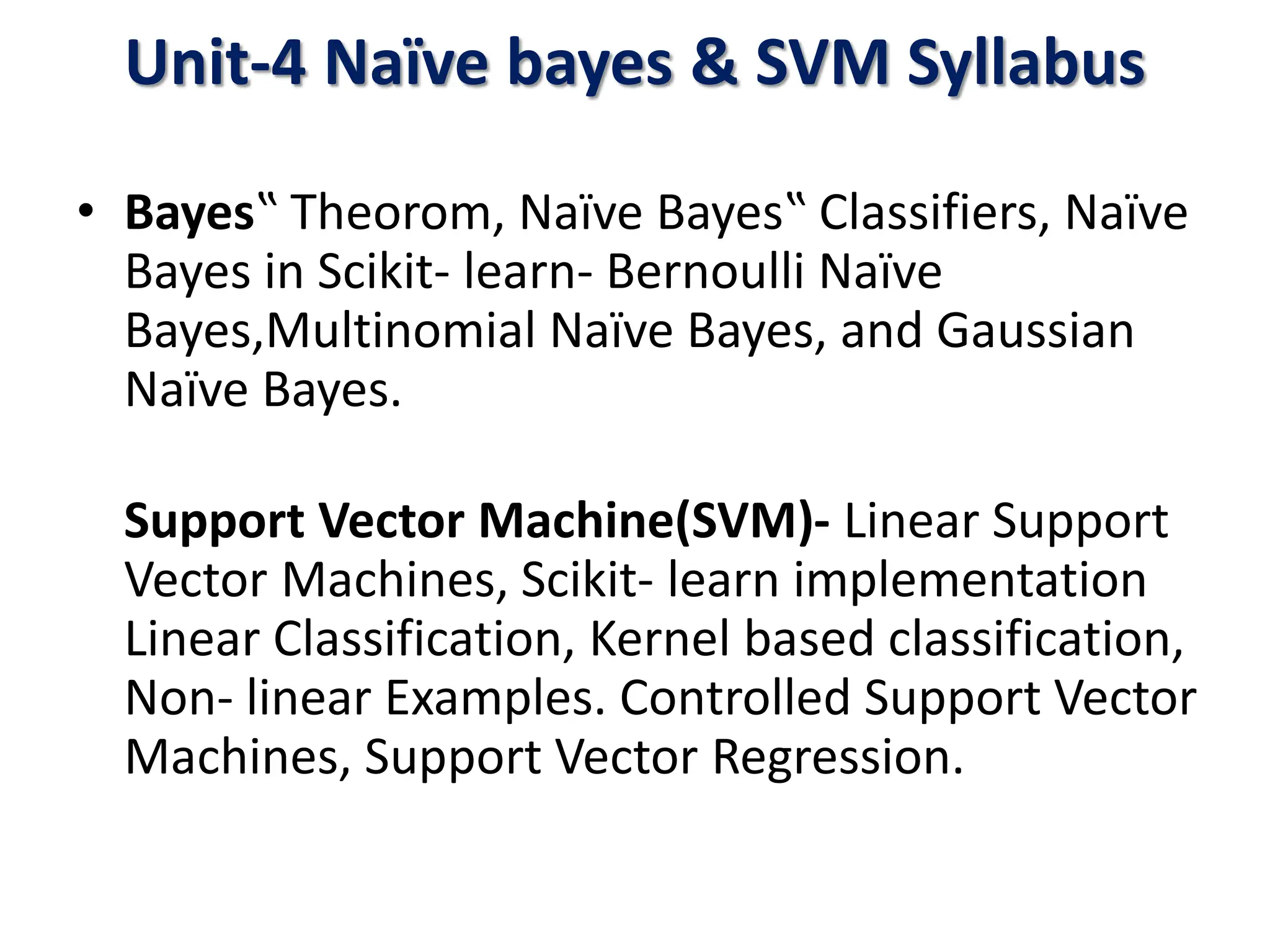

2. Unit-4 Naïve bayes & SVM Syllabus
• Bayes‟ Theorom, Naïve Bayes‟ Classifiers, Naïve
Bayes in Scikit- learn- Bernoulli Naïve
Bayes,Multinomial Naïve Bayes, and Gaussian
Naïve Bayes.
Support Vector Machine(SVM)- Linear Support
Vector Machines, Scikit- learn implementation
Linear Classification, Kernel based classification,
Non- linear Examples. Controlled Support Vector
Machines, Support Vector Regression.

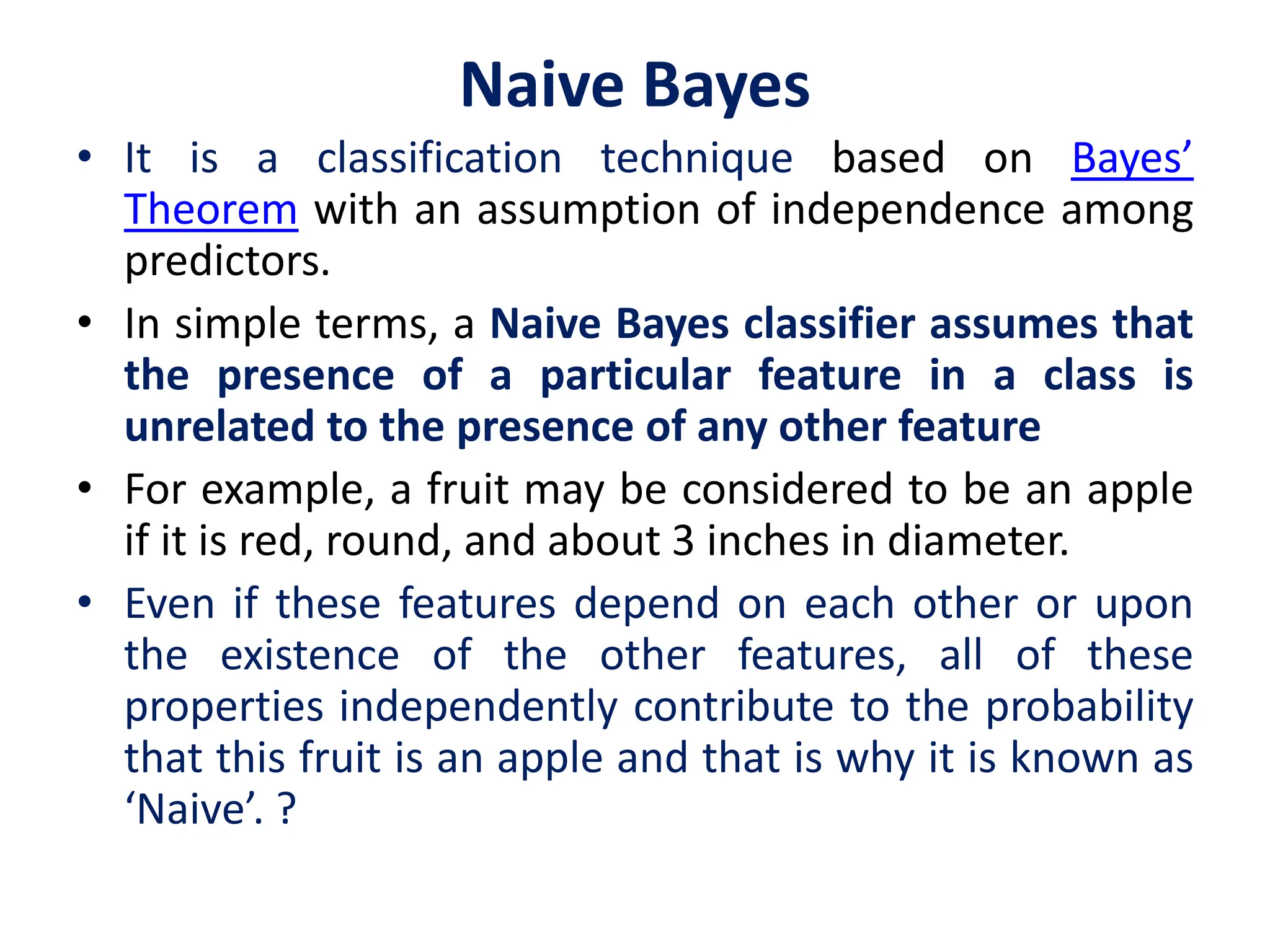

3. Naive Bayes
• It is a classification technique based on Bayes’
Theorem with an assumption of independence among
predictors.
• In simple terms, a Naive Bayes classifier assumes that
the presence of a particular feature in a class is
unrelated to the presence of any other feature
• For example, a fruit may be considered to be an apple
if it is red, round, and about 3 inches in diameter.
• Even if these features depend on each other or upon
the existence of the other features, all of these
properties independently contribute to the probability
that this fruit is an apple and that is why it is known as
‘Naive’. ?

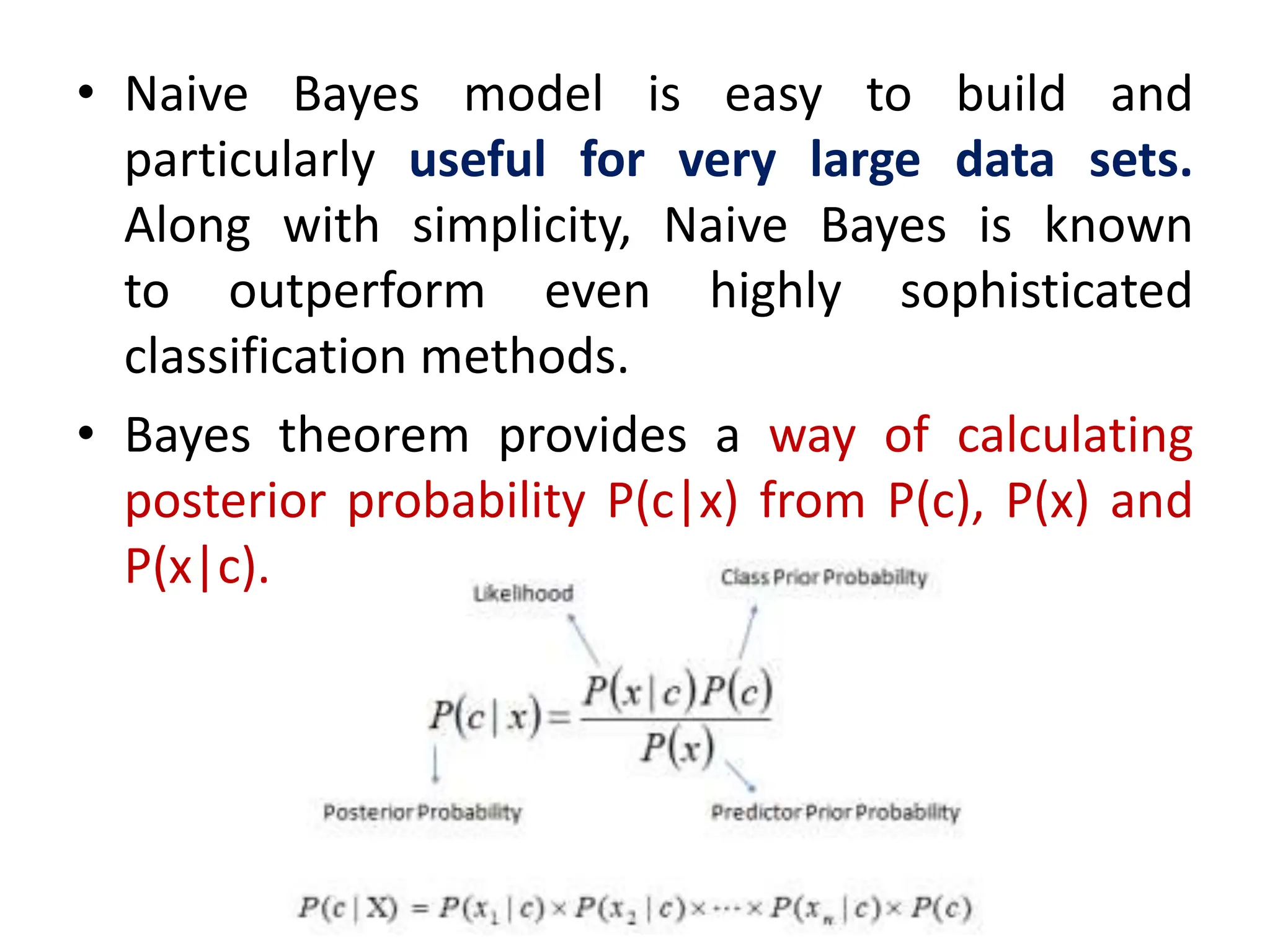

4. • Naive Bayes model is easy to build and
particularly useful for very large data sets.
Along with simplicity, Naive Bayes is known
to outperform even highly sophisticated
classification methods.
• Bayes theorem provides a way of calculating
posterior probability P(c|x) from P(c), P(x) and
P(x|c). Look at the equation below:

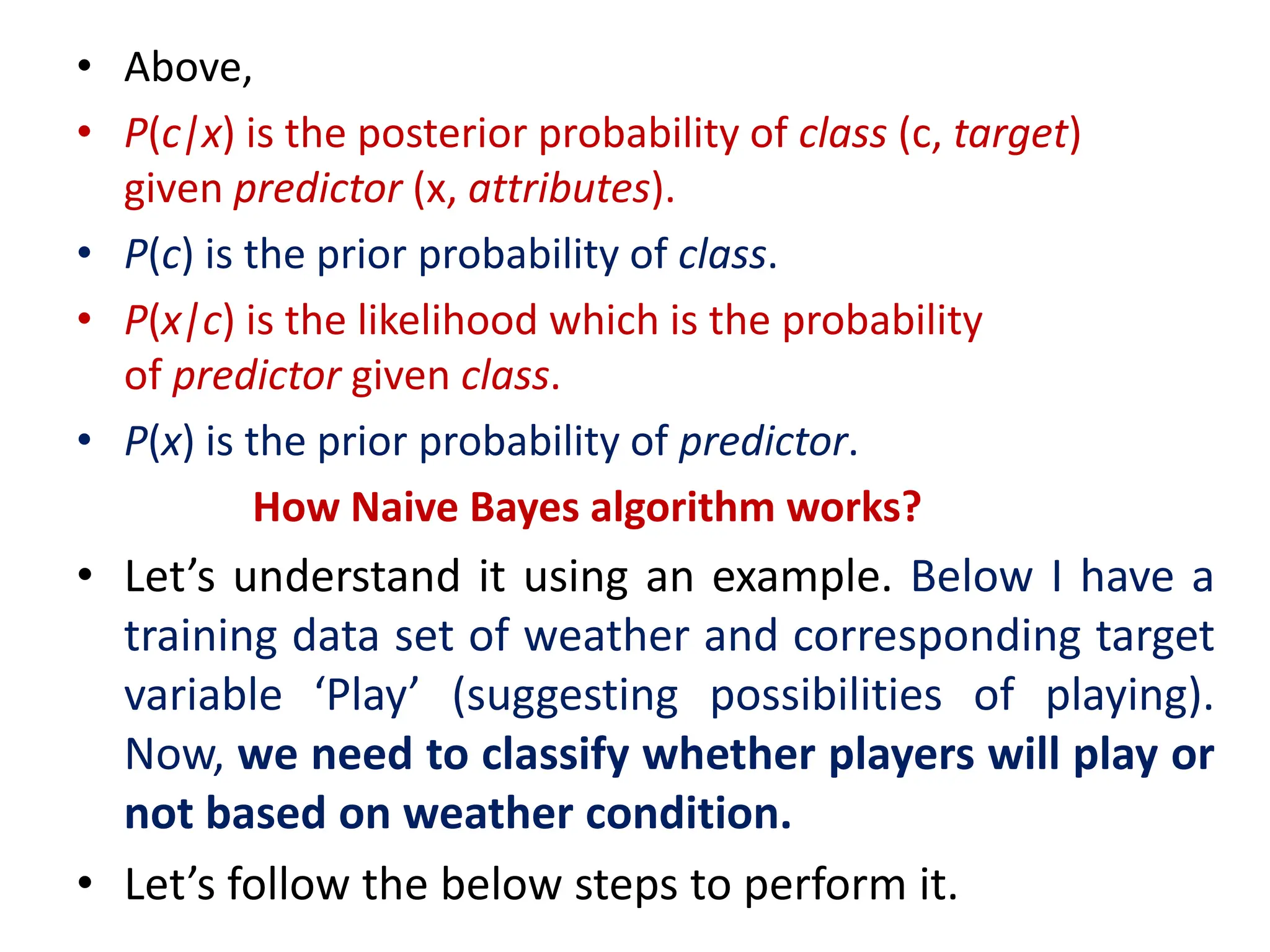

5. • Above,
• P(c|x) is the posterior probability of class (c, target)
given predictor (x, attributes).
• P(c) is the prior probability of class.
• P(x|c) is the likelihood which is the probability
of predictor given class.
• P(x) is the prior probability of predictor.
How Naive Bayes algorithm works?
• Let’s understand it using an example. Below I have a
training data set of weather and corresponding target
variable ‘Play’ (suggesting possibilities of playing).
Now, we need to classify whether players will play or
not based on weather condition.
• Let’s follow the below steps to perform it.

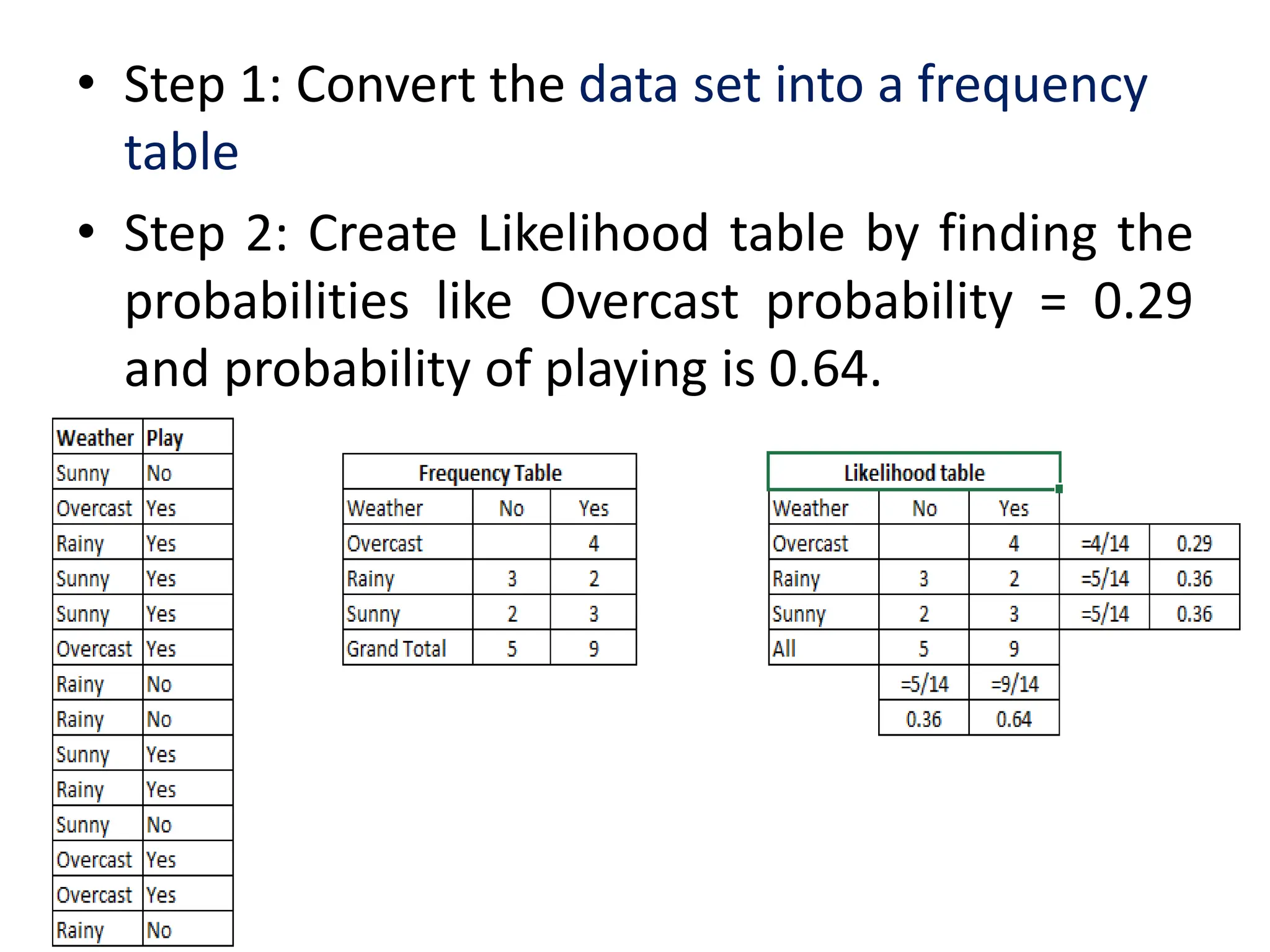

6. • Step 1: Convert the data set into a frequency
table
• Step 2: Create Likelihood table by finding the
probabilities like Overcast probability = 0.29
and probability of playing is 0.64.

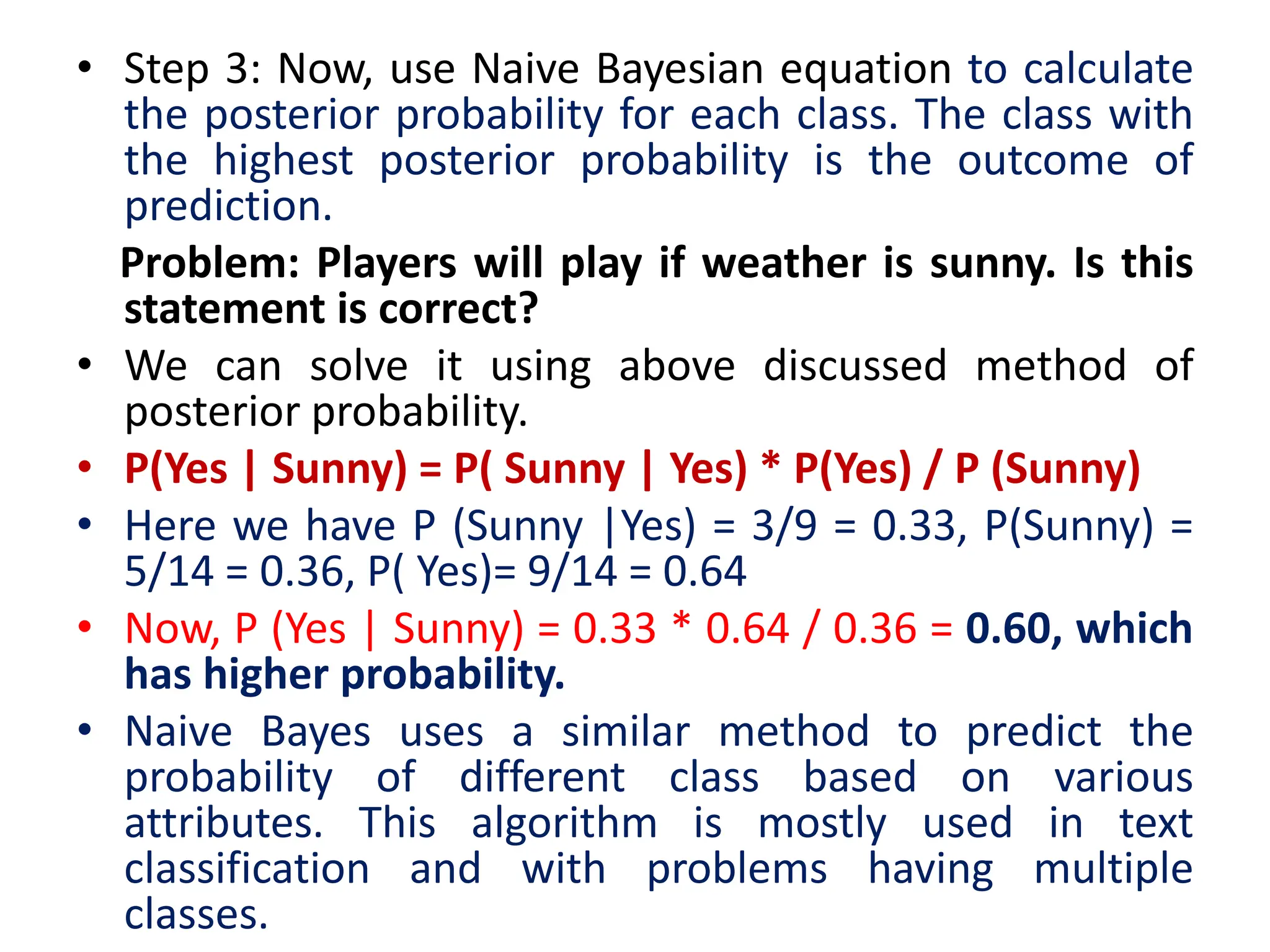

7. • Step 3: Now, use Naive Bayesian equation to calculate
the posterior probability for each class. The class with
the highest posterior probability is the outcome of
prediction.
Problem: Players will play if weather is sunny. Is this
statement is correct?
• We can solve it using above discussed method of
posterior probability.
• P(Yes | Sunny) = P( Sunny | Yes) * P(Yes) / P (Sunny)
• Here we have P (Sunny |Yes) = 3/9 = 0.33, P(Sunny) =
5/14 = 0.36, P( Yes)= 9/14 = 0.64
• Now, P (Yes | Sunny) = 0.33 * 0.64 / 0.36 = 0.60, which
has higher probability.
• Naive Bayes uses a similar method to predict the
probability of different class based on various
attributes. This algorithm is mostly used in text
classification and with problems having multiple
classes.

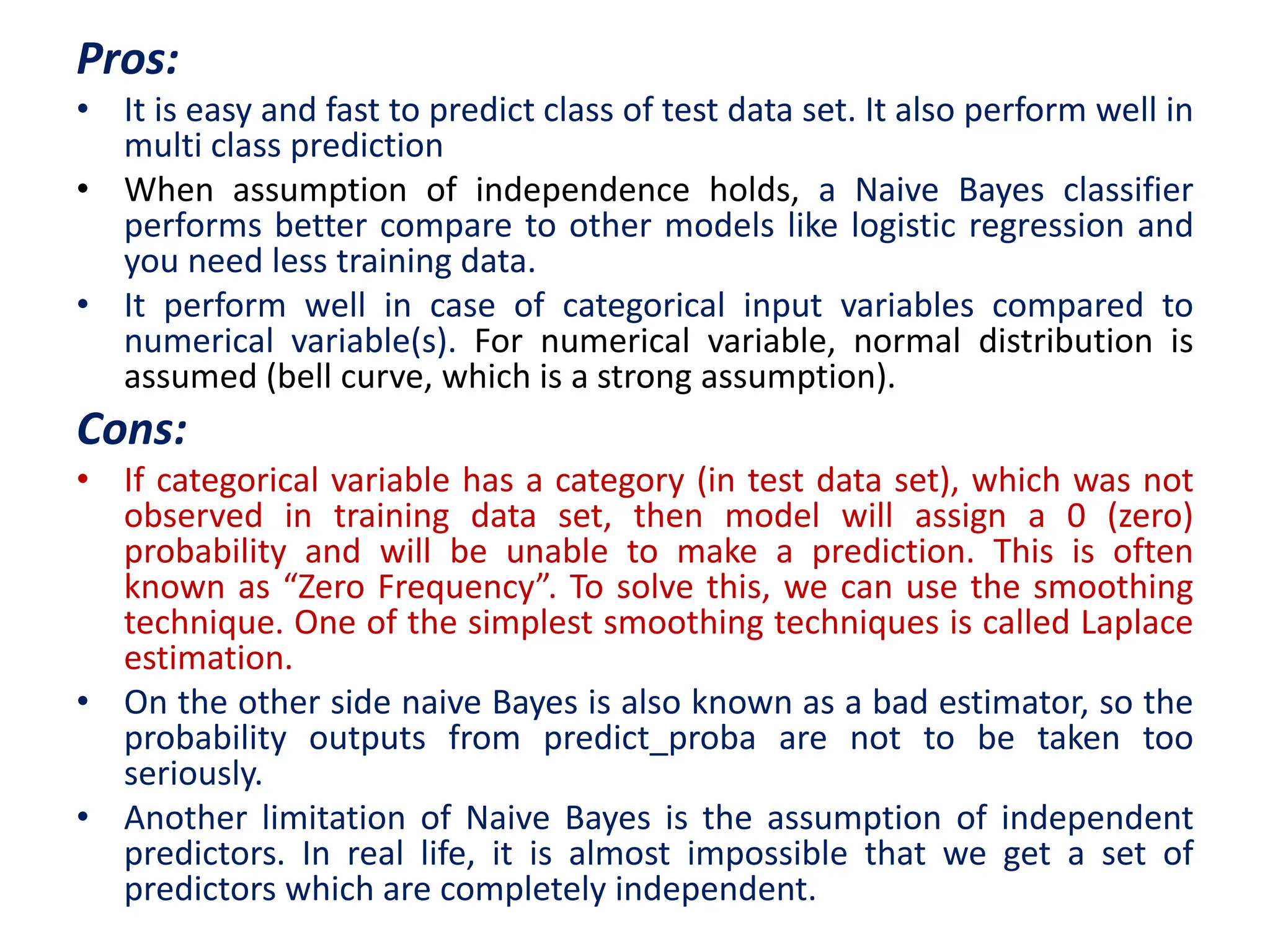

8. Pros:
• It is easy and fast to predict class of test data set. It also perform well in
multi class prediction
• When assumption of independence holds, a Naive Bayes classifier
performs better compare to other models like logistic regression and
you need less training data.
• It perform well in case of categorical input variables compared to
numerical variable(s). For numerical variable, normal distribution is
assumed (bell curve, which is a strong assumption).
Cons:
• If categorical variable has a category (in test data set), which was not
observed in training data set, then model will assign a 0 (zero)
probability and will be unable to make a prediction. This is often
known as “Zero Frequency”. To solve this, we can use the smoothing
technique. One of the simplest smoothing techniques is called Laplace
estimation.
• On the other side naive Bayes is also known as a bad estimator, so the
probability outputs from predict_proba are not to be taken too
seriously.
• Another limitation of Naive Bayes is the assumption of independent
predictors. In real life, it is almost impossible that we get a set of
predictors which are completely independent.

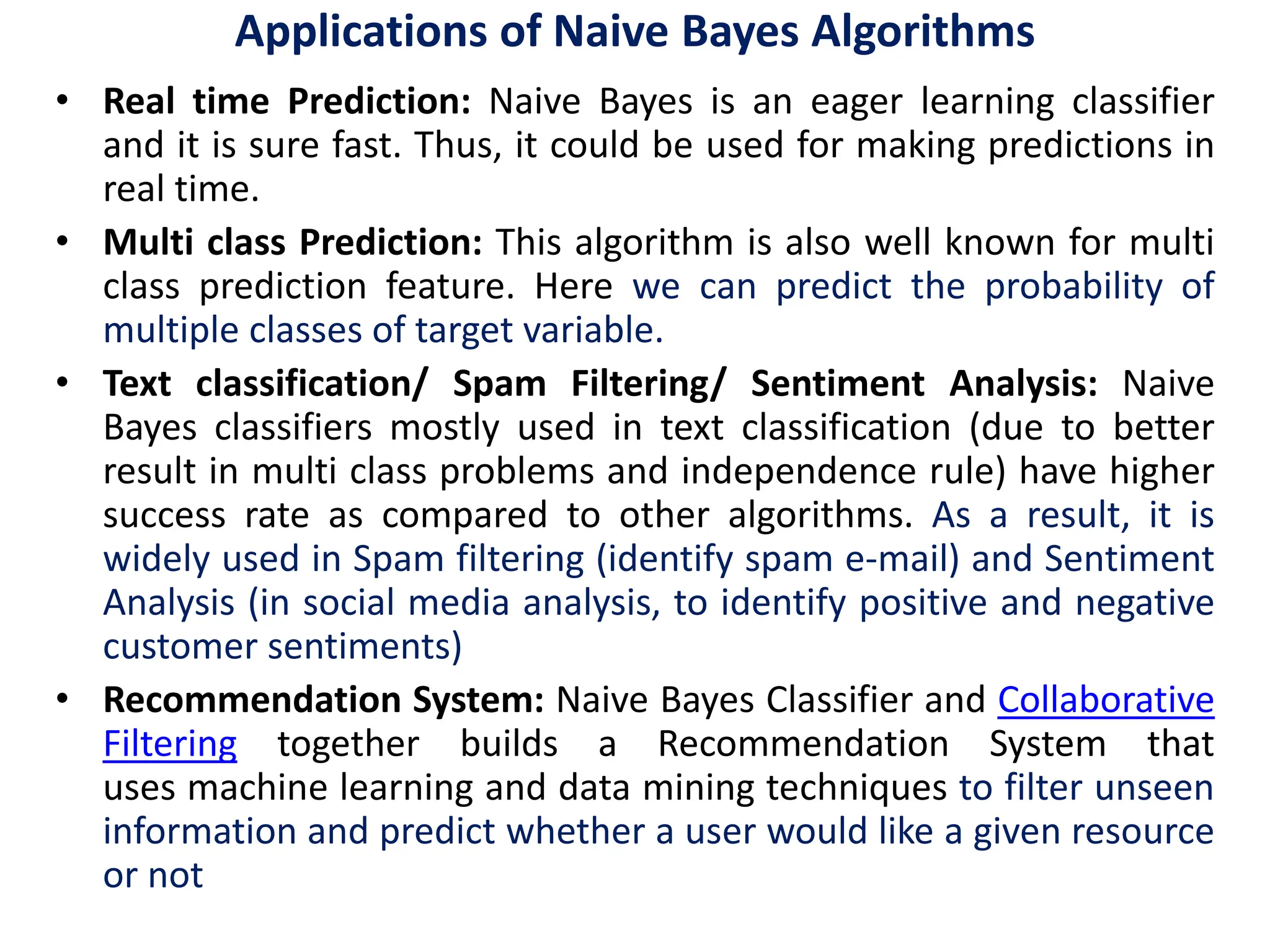

9. Applications of Naive Bayes Algorithms
• Real time Prediction: Naive Bayes is an eager learning classifier
and it is sure fast. Thus, it could be used for making predictions in
real time.
• Multi class Prediction: This algorithm is also well known for multi
class prediction feature. Here we can predict the probability of
multiple classes of target variable.
• Text classification/ Spam Filtering/ Sentiment Analysis: Naive
Bayes classifiers mostly used in text classification (due to better
result in multi class problems and independence rule) have higher
success rate as compared to other algorithms. As a result, it is
widely used in Spam filtering (identify spam e-mail) and Sentiment
Analysis (in social media analysis, to identify positive and negative
customer sentiments)
• Recommendation System: Naive Bayes Classifier and Collaborative
Filtering together builds a Recommendation System that
uses machine learning and data mining techniques to filter unseen
information and predict whether a user would like a given resource
or not

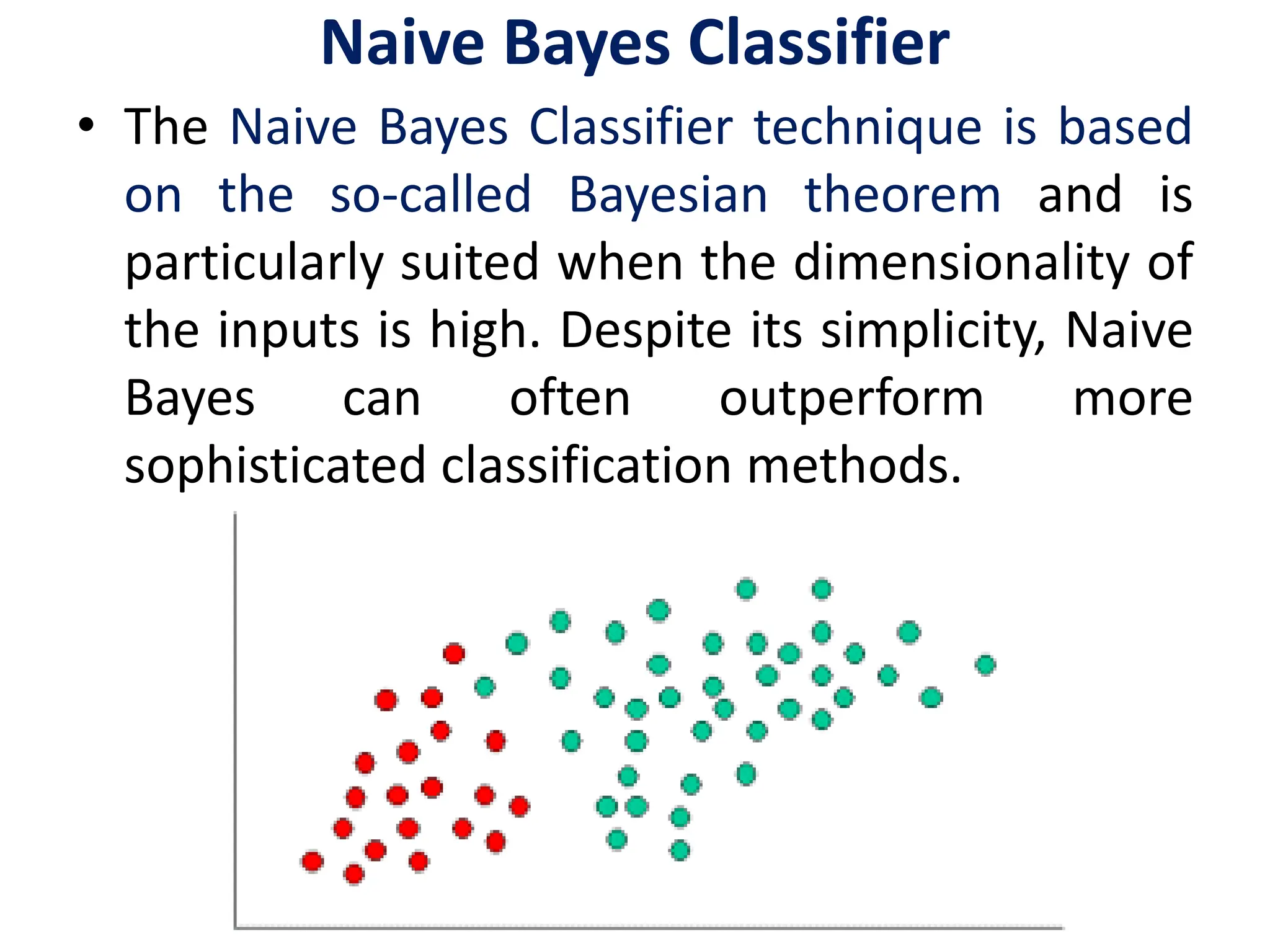

10. Naive Bayes Classifier
• The Naive Bayes Classifier technique is based
on the so-called Bayesian theorem and is
particularly suited when the dimensionality of
the inputs is high. Despite its simplicity, Naive
Bayes can often outperform more
sophisticated classification methods.

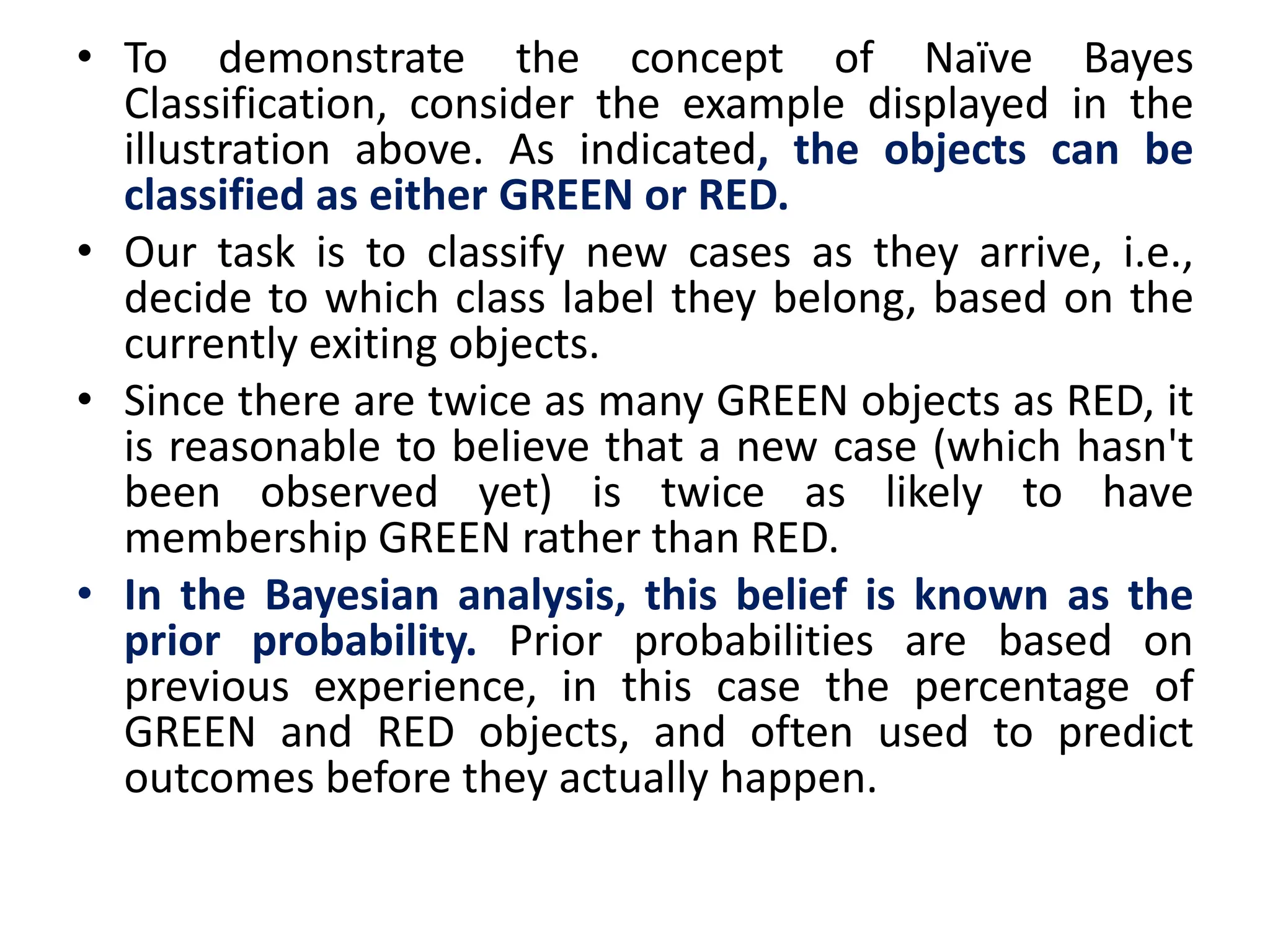

11. • To demonstrate the concept of Naïve Bayes
Classification, consider the example displayed in the
illustration above. As indicated, the objects can be
classified as either GREEN or RED.
• Our task is to classify new cases as they arrive, i.e.,
decide to which class label they belong, based on the
currently exiting objects.
• Since there are twice as many GREEN objects as RED, it
is reasonable to believe that a new case (which hasn't
been observed yet) is twice as likely to have
membership GREEN rather than RED.
• In the Bayesian analysis, this belief is known as the
prior probability. Prior probabilities are based on
previous experience, in this case the percentage of
GREEN and RED objects, and often used to predict
outcomes before they actually happen.

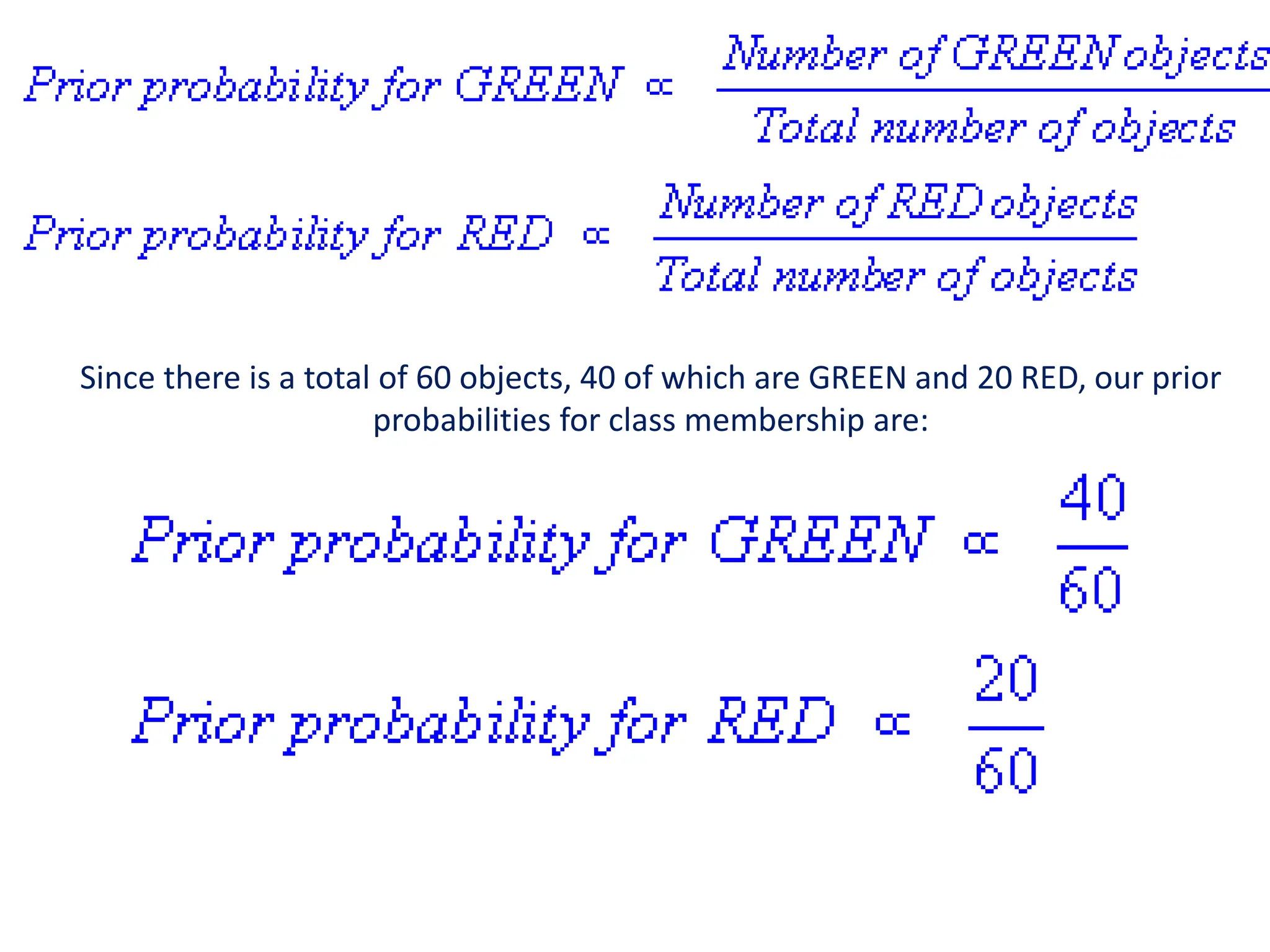

12. Since there is a total of 60 objects, 40 of which are GREEN and 20 RED, our prior
probabilities for class membership are:

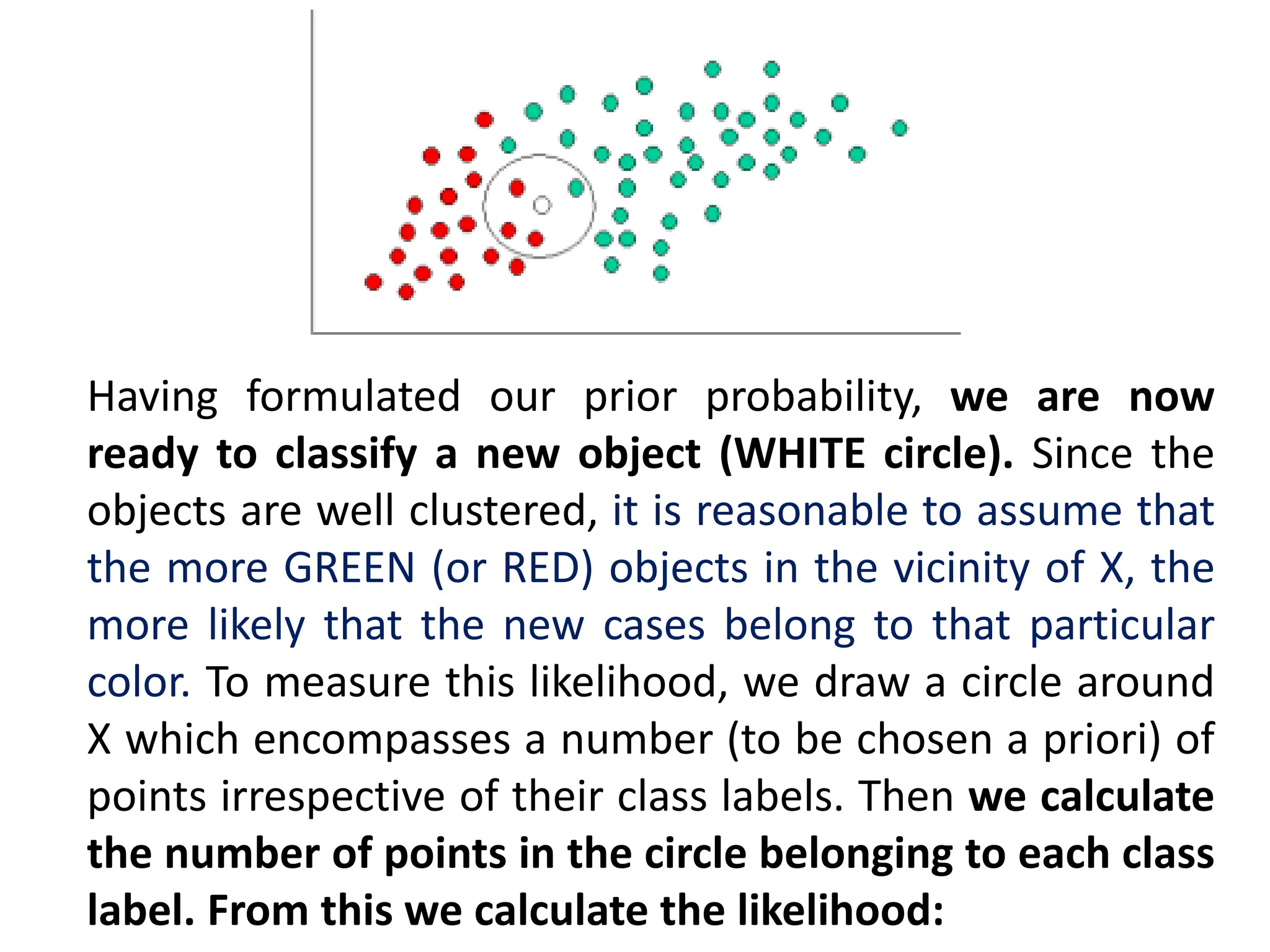

13. Having formulated our prior probability, we are now
ready to classify a new object (WHITE circle). Since the
objects are well clustered, it is reasonable to assume that
the more GREEN (or RED) objects in the vicinity of X, the
more likely that the new cases belong to that particular
color. To measure this likelihood, we draw a circle around
X which encompasses a number (to be chosen a priori) of
points irrespective of their class labels. Then we calculate
the number of points in the circle belonging to each class
label. From this we calculate the likelihood:

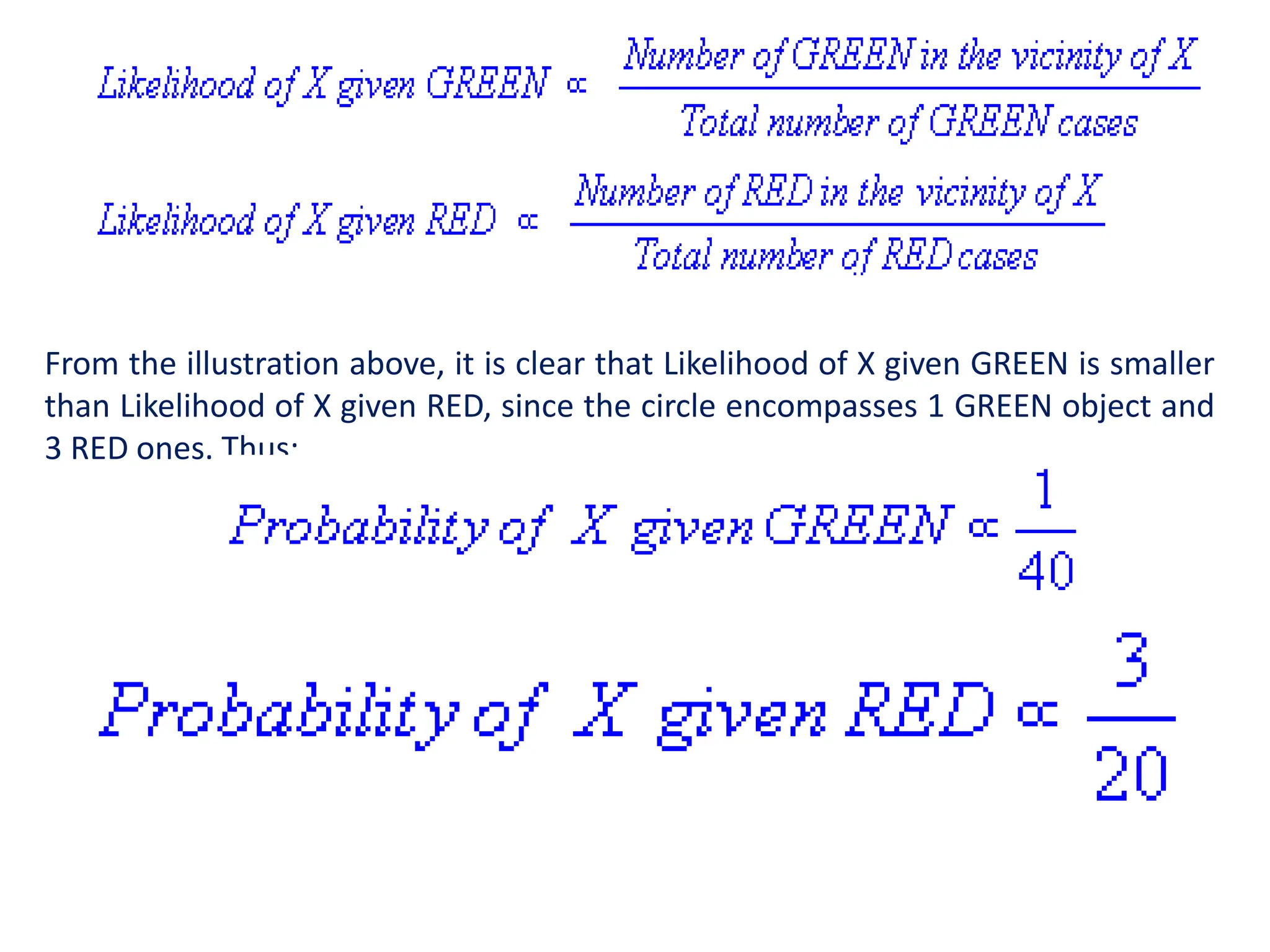

14. From the illustration above, it is clear that Likelihood of X given GREEN is smaller
than Likelihood of X given RED, since the circle encompasses 1 GREEN object and
3 RED ones. Thus:

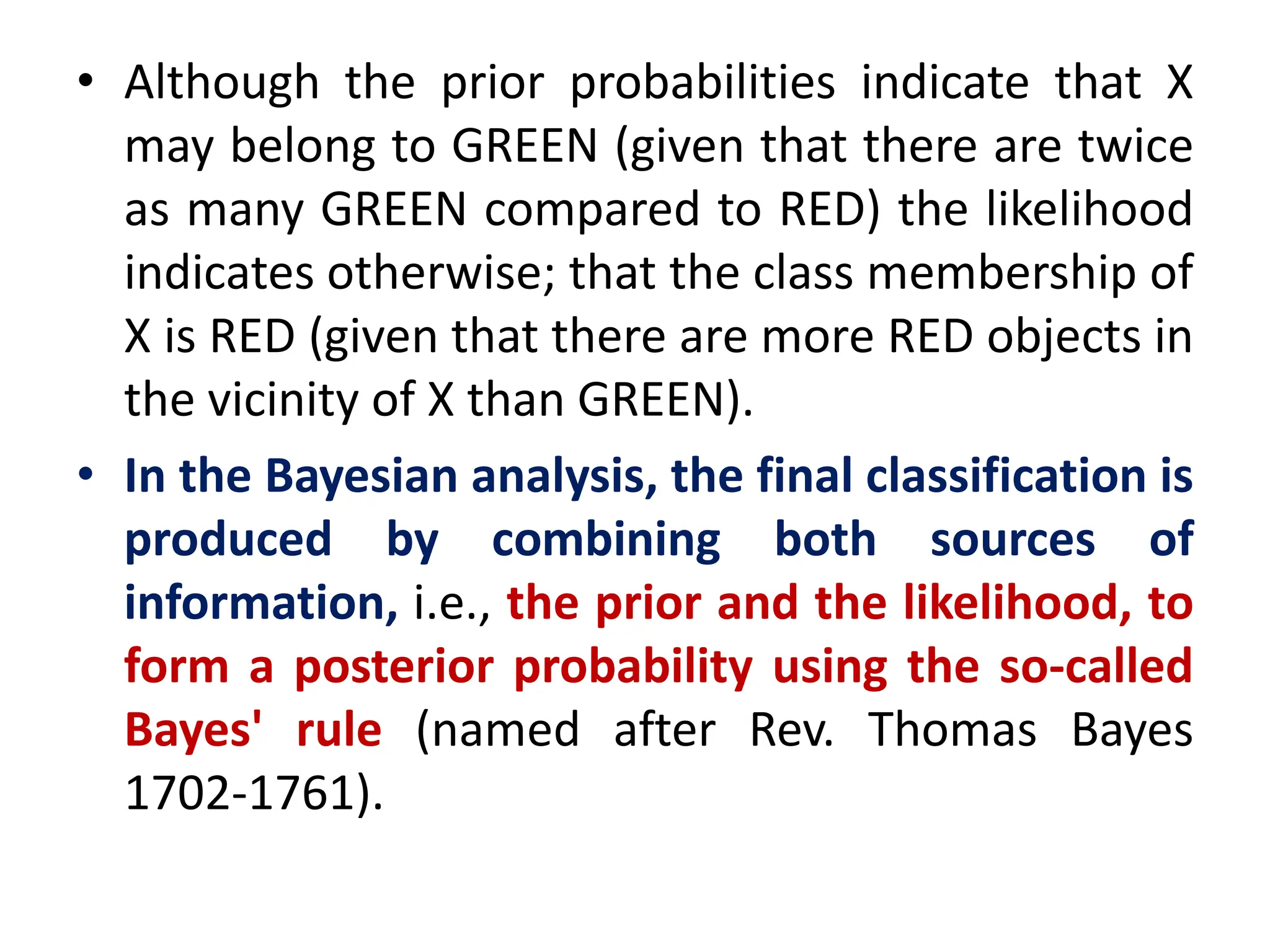

15. • Although the prior probabilities indicate that X
may belong to GREEN (given that there are twice
as many GREEN compared to RED) the likelihood
indicates otherwise; that the class membership of
X is RED (given that there are more RED objects in
the vicinity of X than GREEN).
• In the Bayesian analysis, the final classification is
produced by combining both sources of
information, i.e., the prior and the likelihood, to
form a posterior probability using the so-called
Bayes' rule (named after Rev. Thomas Bayes
1702-1761).

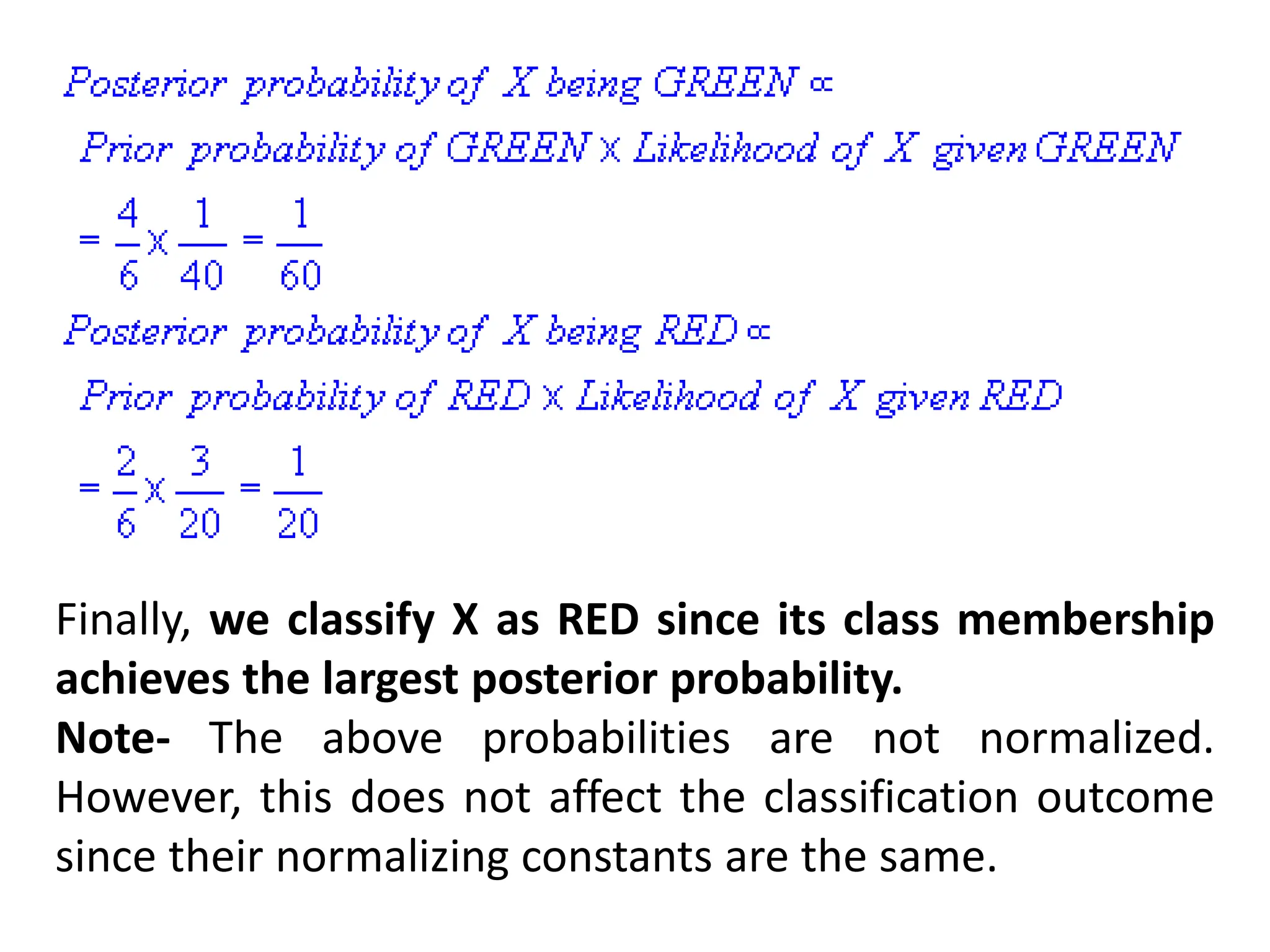

16. Finally, we classify X as RED since its class membership
achieves the largest posterior probability.
Note- The above probabilities are not normalized.
However, this does not affect the classification outcome
since their normalizing constants are the same.

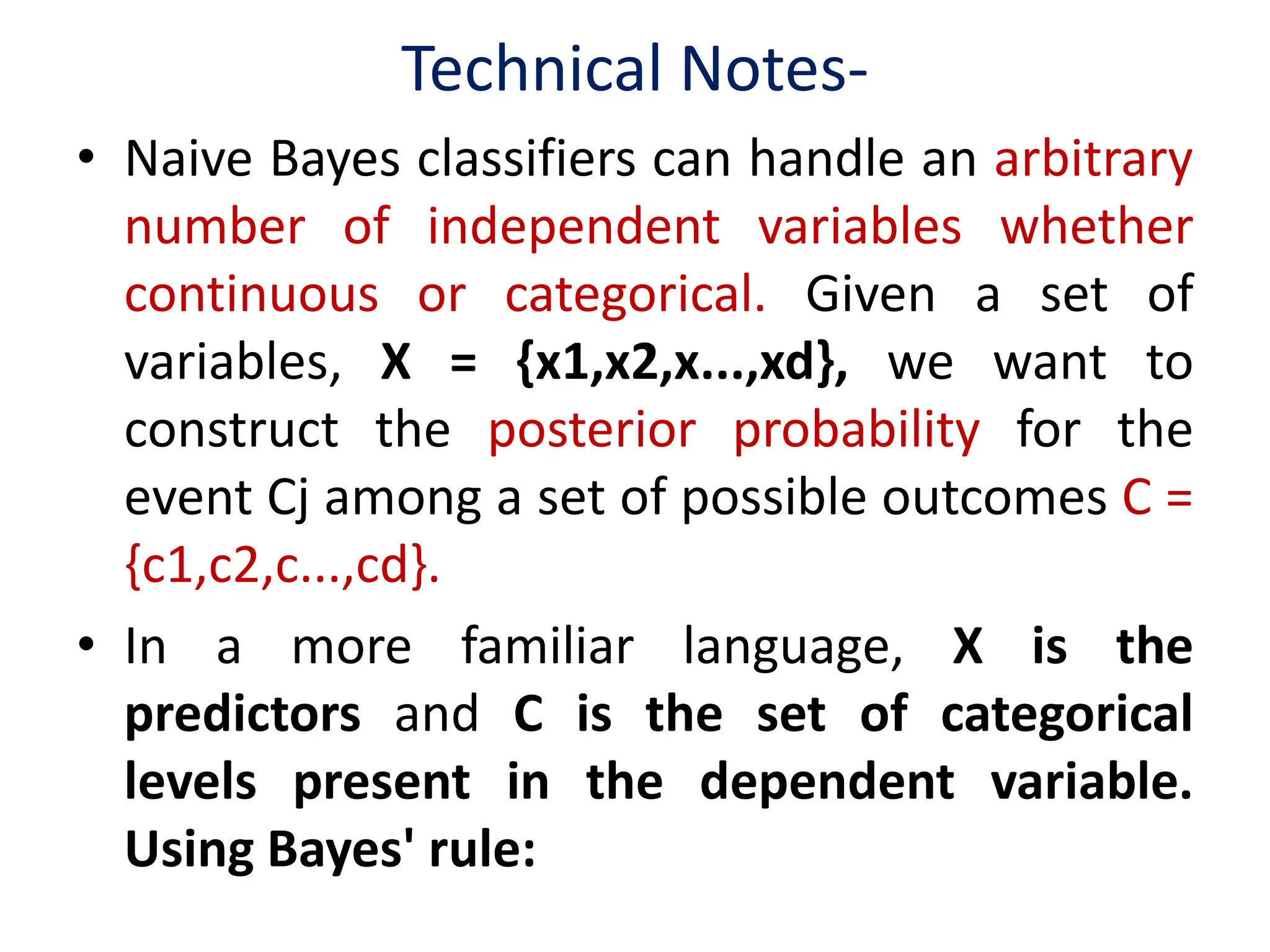

17. Technical Notes-
• Naive Bayes classifiers can handle an arbitrary
number of independent variables whether
continuous or categorical. Given a set of
variables, X = {x1,x2,x...,xd}, we want to
construct the posterior probability for the
event Cj among a set of possible outcomes C =
{c1,c2,c...,cd}.
• In a more familiar language, X is the
predictors and C is the set of categorical
levels present in the dependent variable.
Using Bayes' rule:

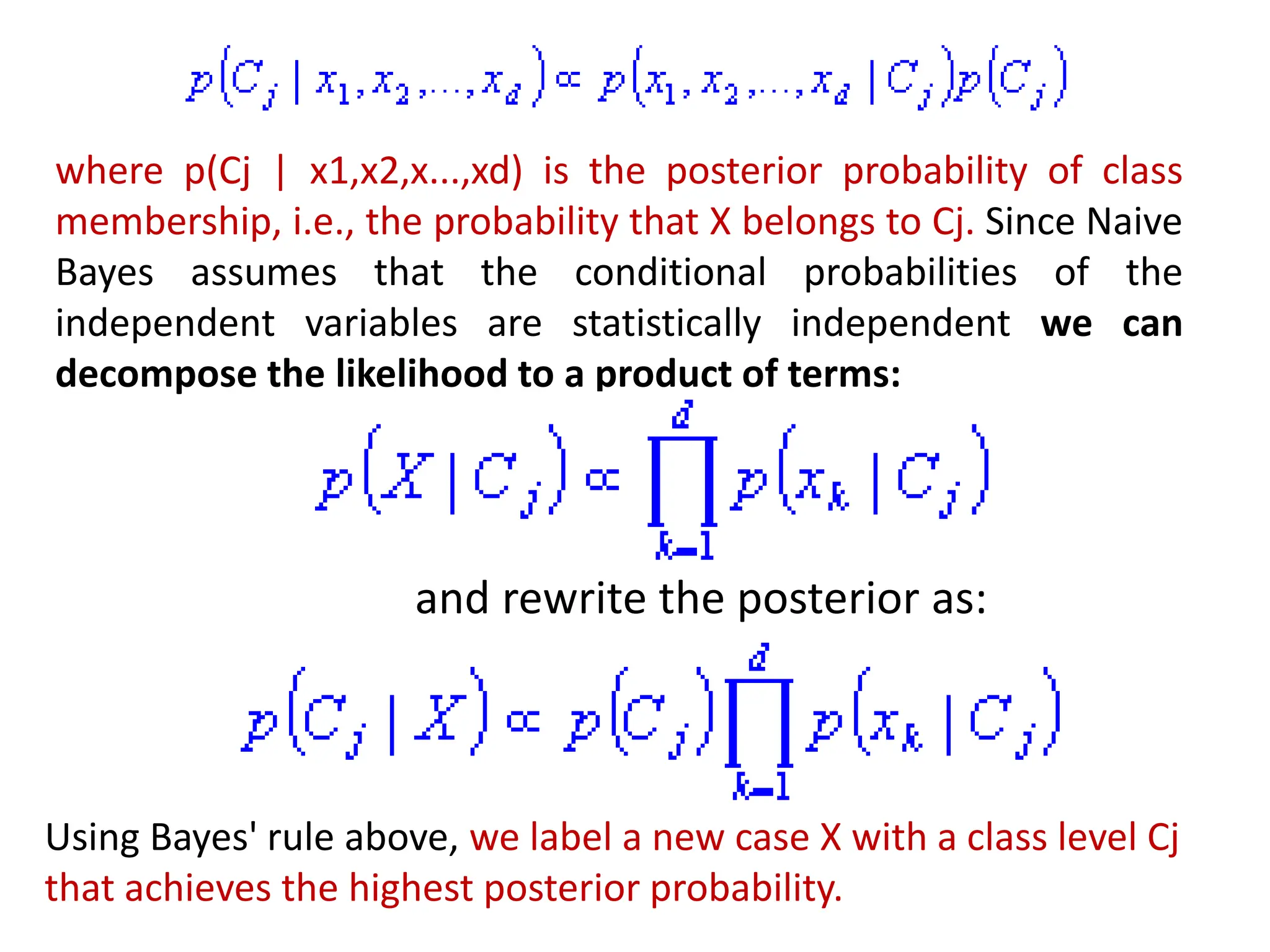

18. where p(Cj | x1,x2,x...,xd) is the posterior probability of class
membership, i.e., the probability that X belongs to Cj. Since Naive
Bayes assumes that the conditional probabilities of the
independent variables are statistically independent we can
decompose the likelihood to a product of terms:
and rewrite the posterior as:
Using Bayes' rule above, we label a new case X with a class level Cj
that achieves the highest posterior probability.

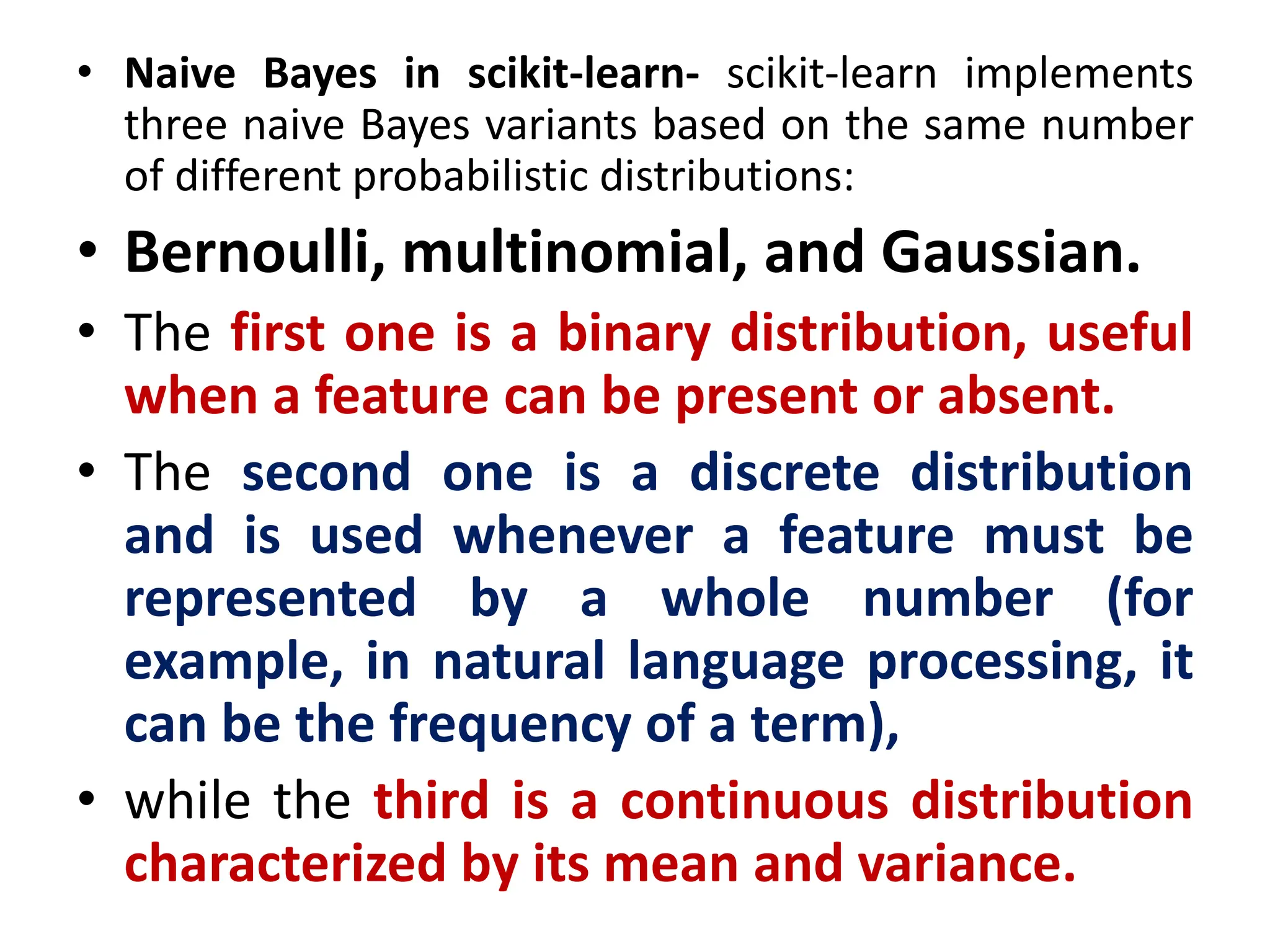

19. • Naive Bayes in scikit-learn- scikit-learn implements
three naive Bayes variants based on the same number
of different probabilistic distributions:
• Bernoulli, multinomial, and Gaussian.
• The first one is a binary distribution, useful
when a feature can be present or absent.
• The second one is a discrete distribution
and is used whenever a feature must be
represented by a whole number (for
example, in natural language processing, it
can be the frequency of a term),
• while the third is a continuous distribution
characterized by its mean and variance.

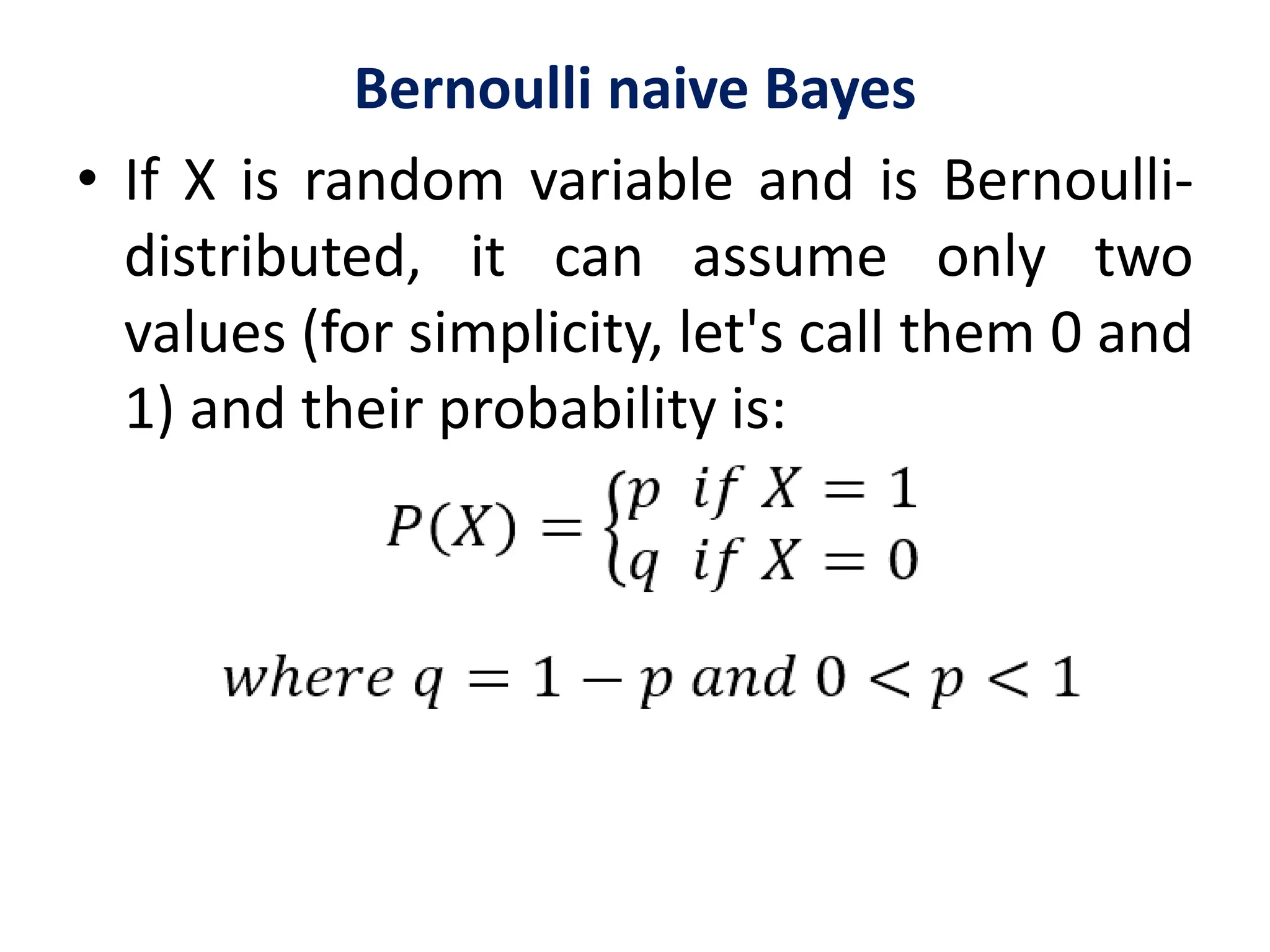

20. Bernoulli naive Bayes
• If X is random variable and is Bernoulli-
distributed, it can assume only two
values (for simplicity, let's call them 0 and
1) and their probability is:

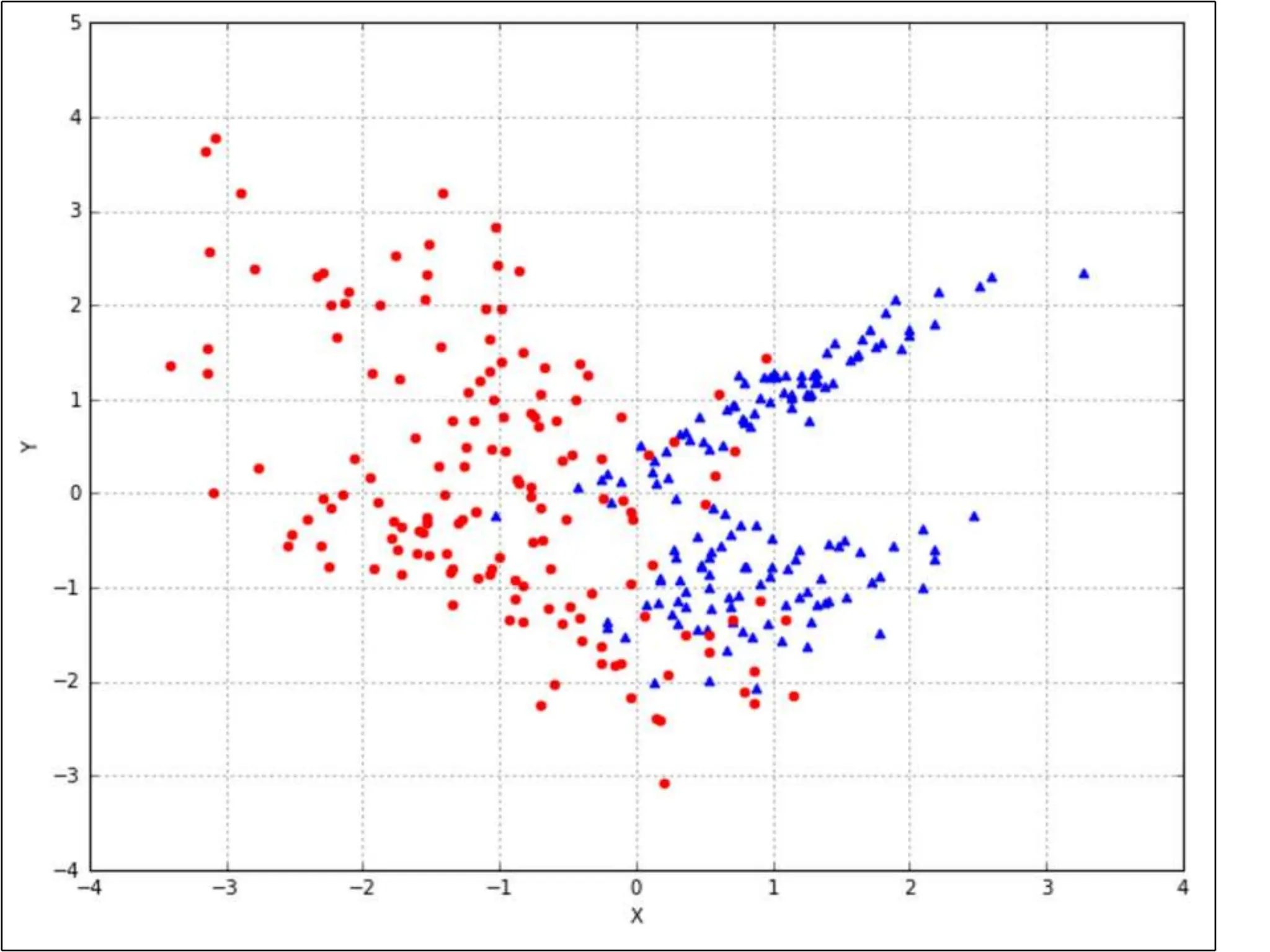

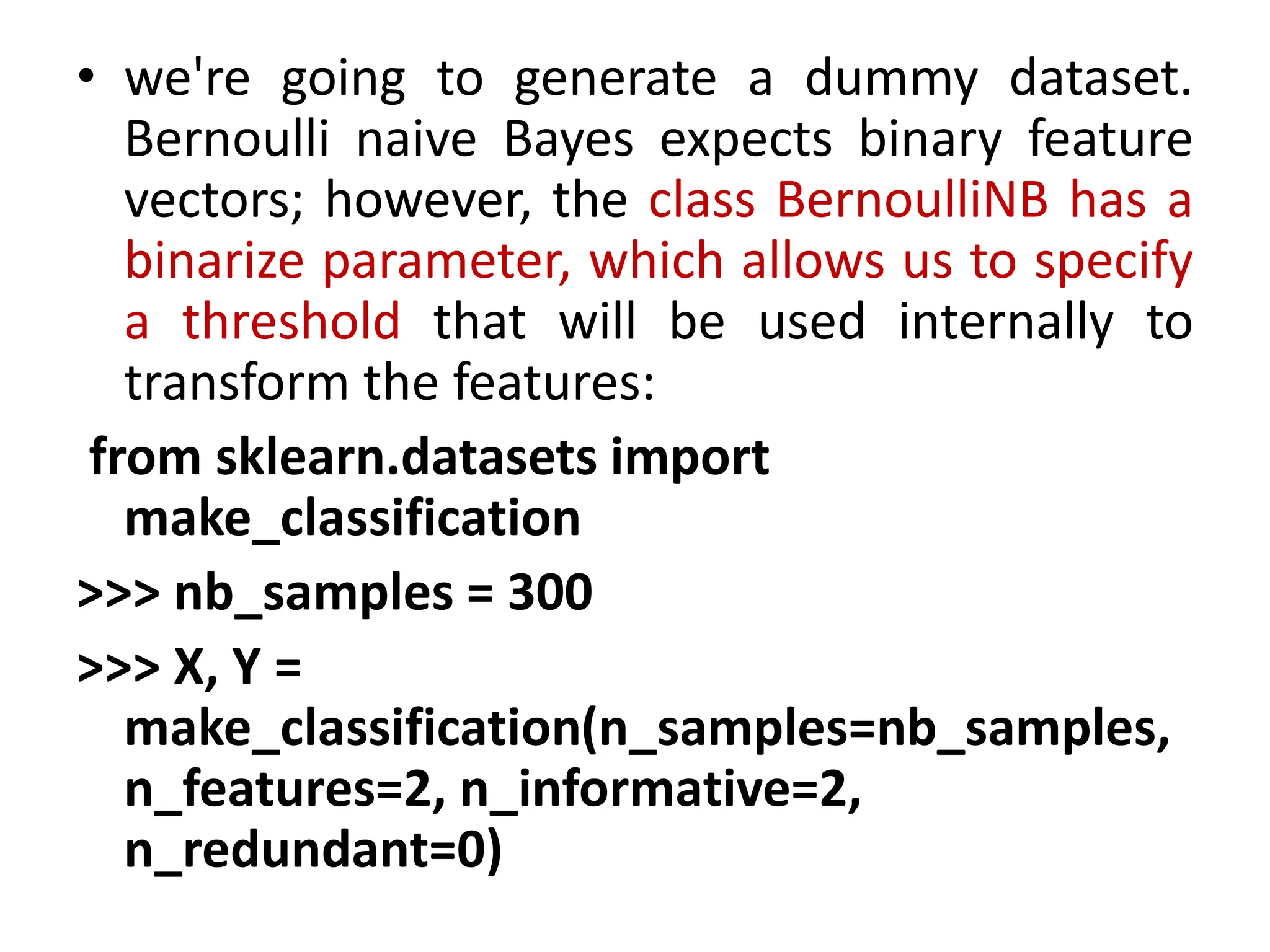

21. • we're going to generate a dummy dataset.
Bernoulli naive Bayes expects binary feature
vectors; however, the class BernoulliNB has a
binarize parameter, which allows us to specify
a threshold that will be used internally to
transform the features:
from sklearn.datasets import
make_classification
>>> nb_samples = 300
>>> X, Y =
make_classification(n_samples=nb_samples,
n_features=2, n_informative=2,
n_redundant=0)

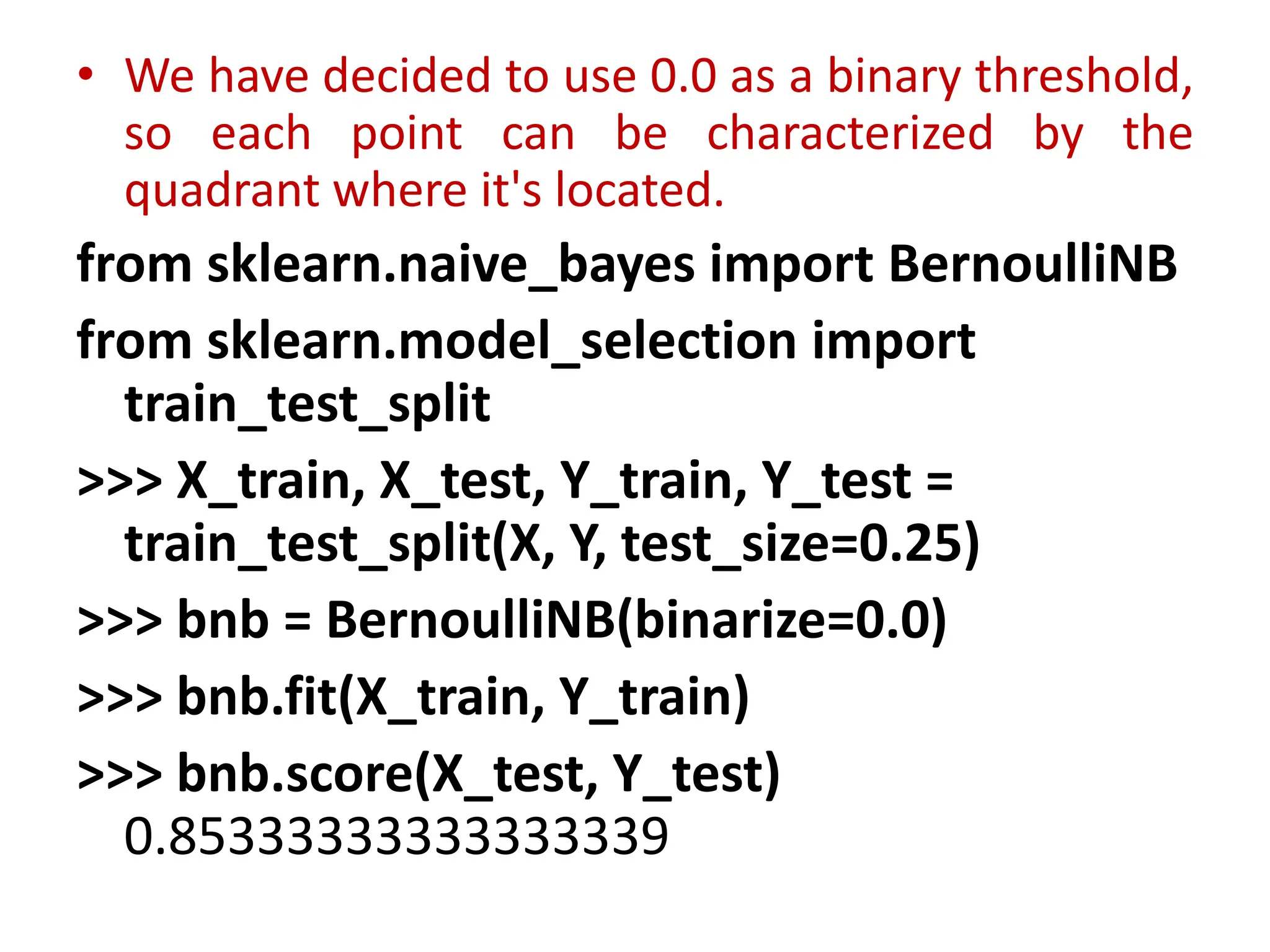

23. • We have decided to use 0.0 as a binary threshold,
so each point can be characterized by the
quadrant where it's located.
from sklearn.naive_bayes import BernoulliNB
from sklearn.model_selection import
train_test_split
>>> X_train, X_test, Y_train, Y_test =
train_test_split(X, Y, test_size=0.25)
>>> bnb = BernoulliNB(binarize=0.0)
>>> bnb.fit(X_train, Y_train)
>>> bnb.score(X_test, Y_test)
0.85333333333333339

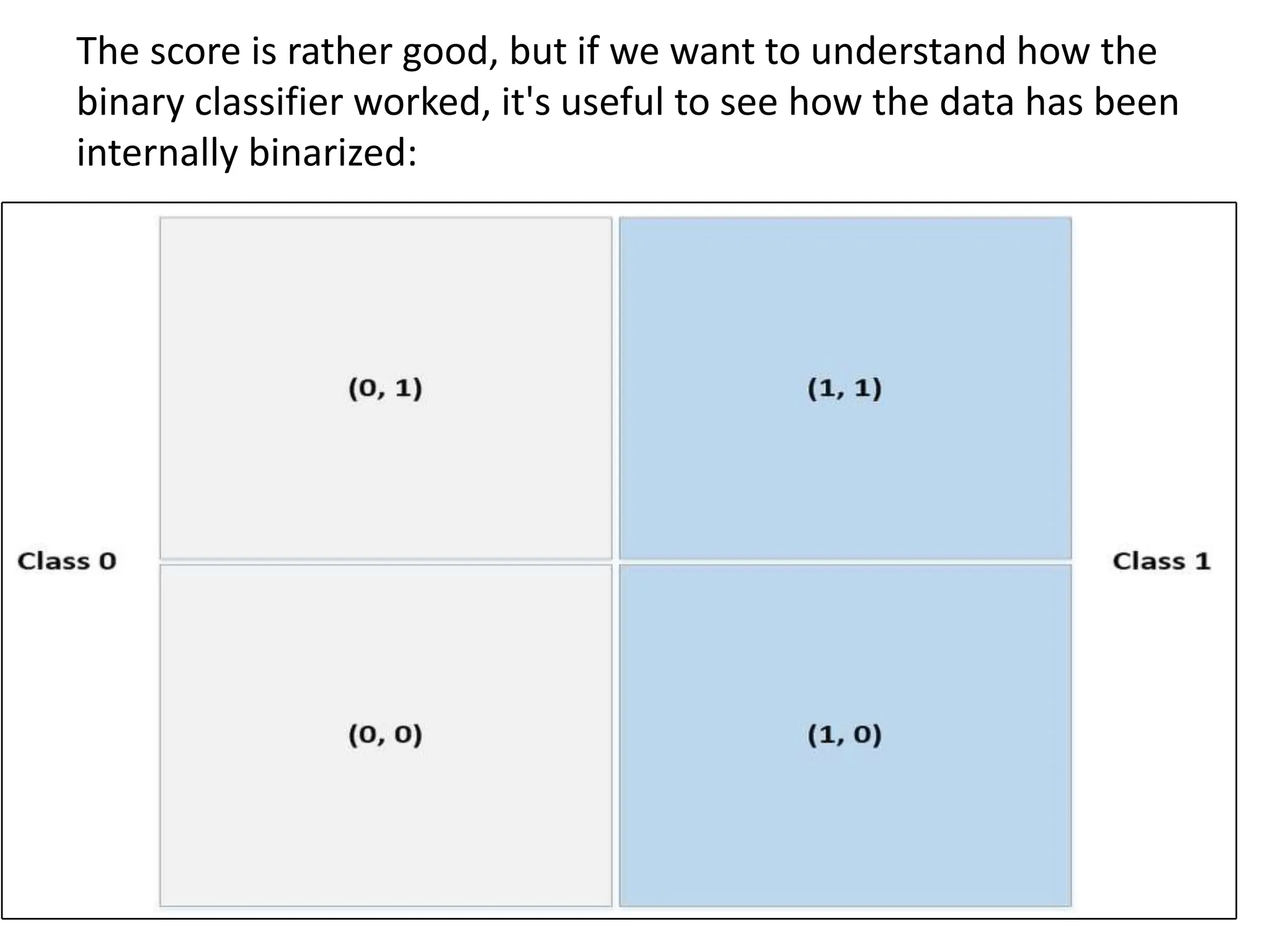

24. The score is rather good, but if we want to understand how the
binary classifier worked, it's useful to see how the data has been
internally binarized:

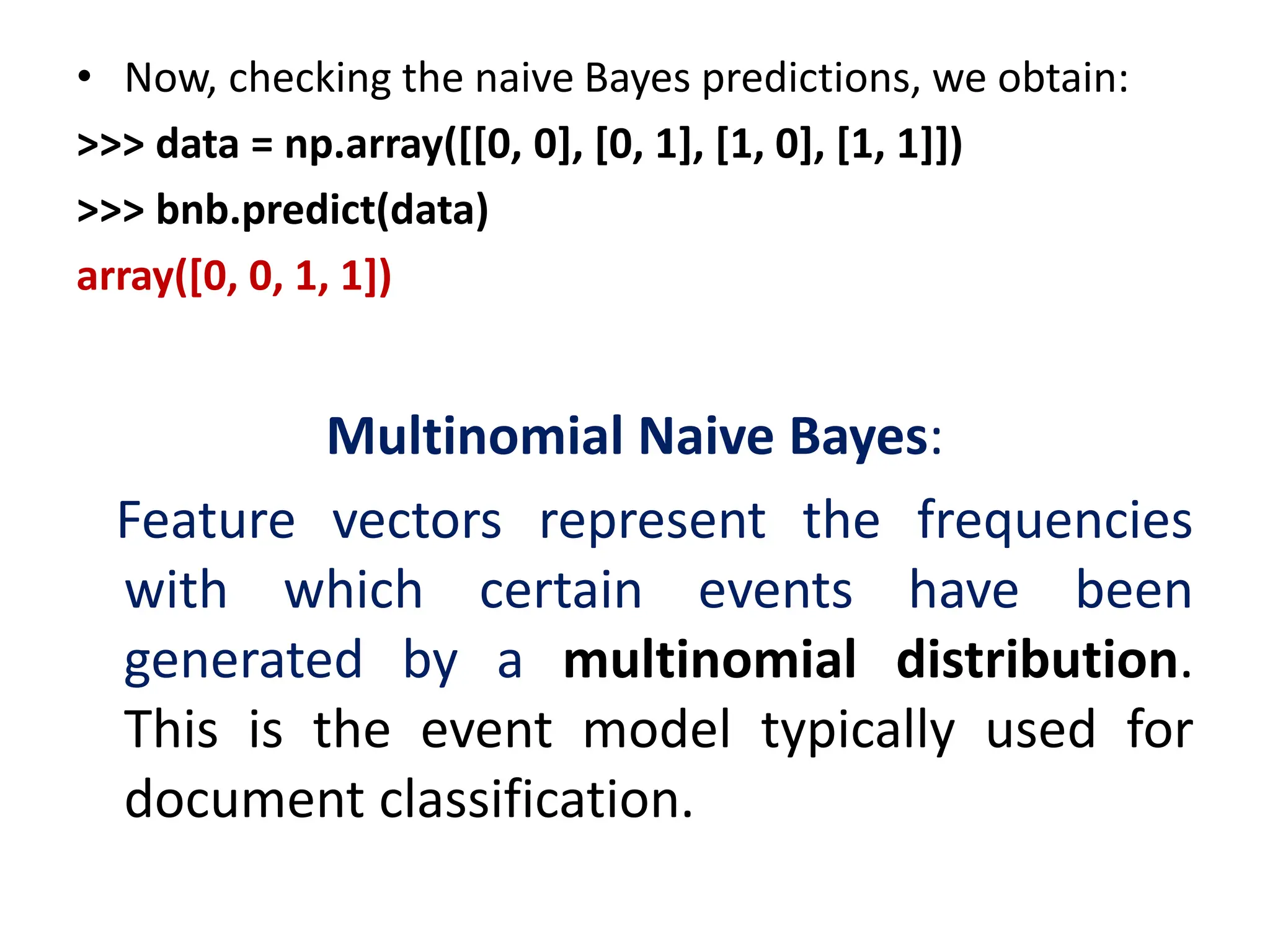

25. • Now, checking the naive Bayes predictions, we obtain:
>>> data = np.array([[0, 0], [0, 1], [1, 0], [1, 1]])
>>> bnb.predict(data)
array([0, 0, 1, 1])
Multinomial Naive Bayes:
Feature vectors represent the frequencies
with which certain events have been
generated by a multinomial distribution.
This is the event model typically used for
document classification.

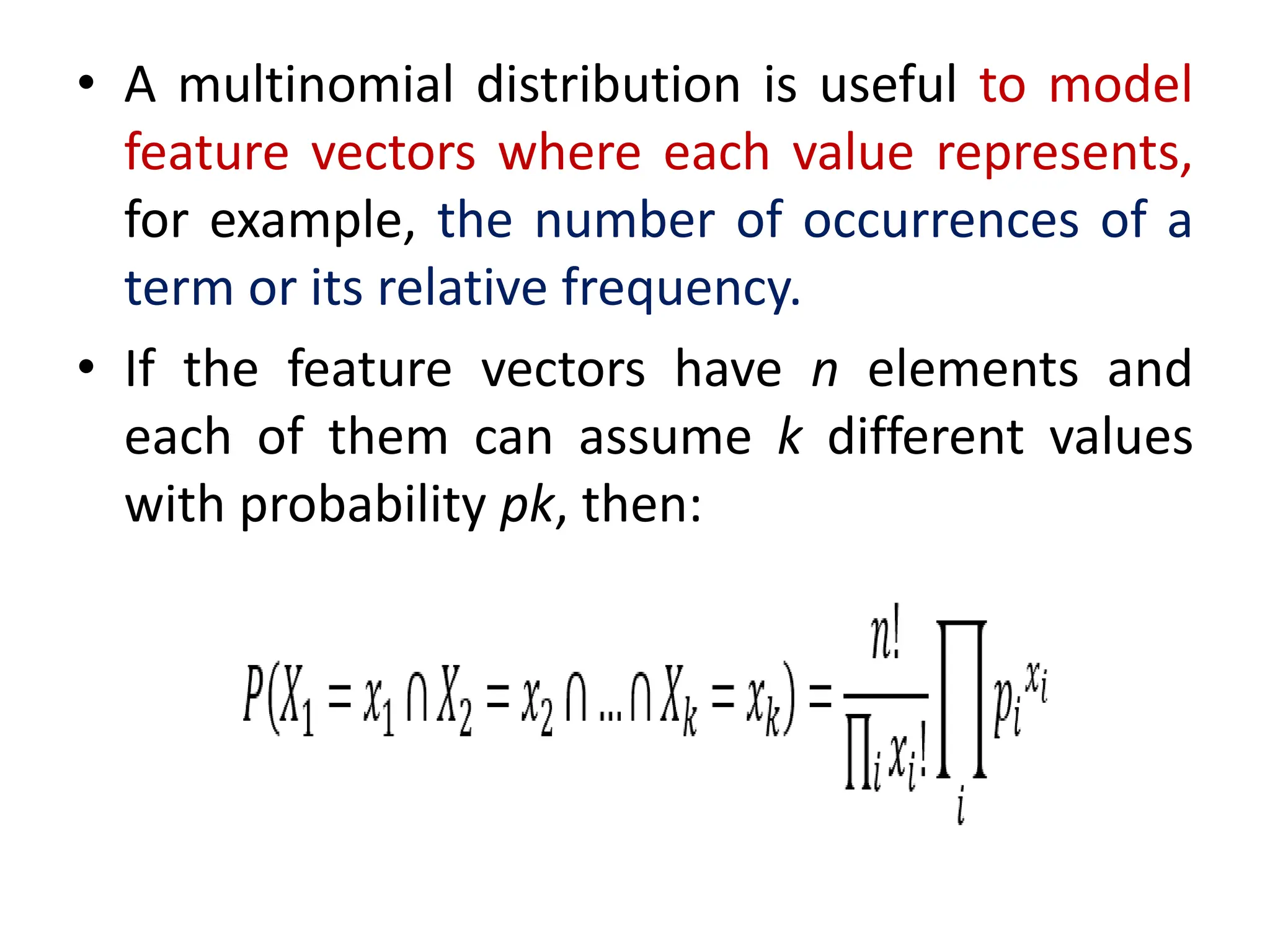

26. • A multinomial distribution is useful to model
feature vectors where each value represents,
for example, the number of occurrences of a
term or its relative frequency.
• If the feature vectors have n elements and
each of them can assume k different values
with probability pk, then:

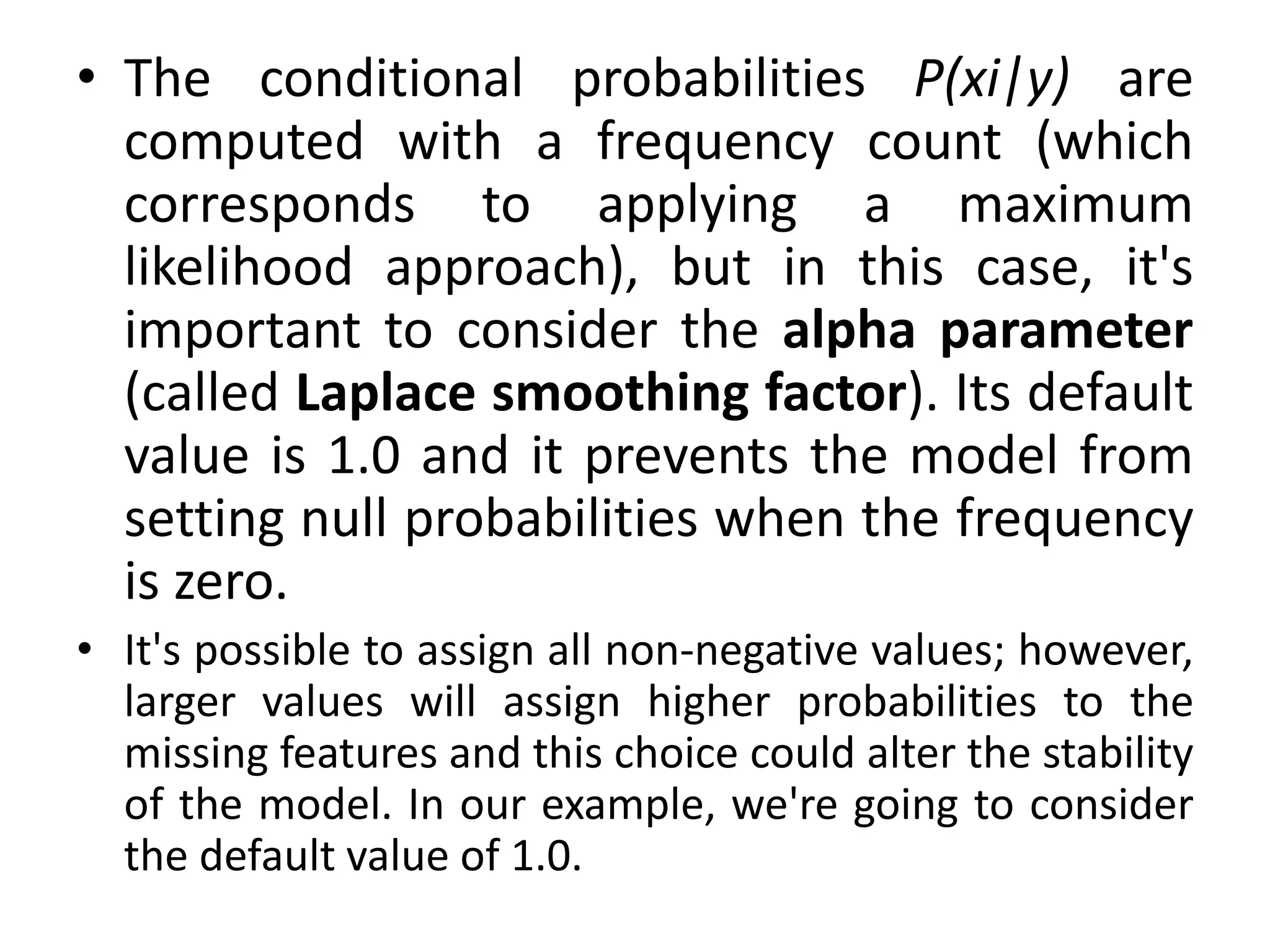

27. • The conditional probabilities P(xi|y) are
computed with a frequency count (which
corresponds to applying a maximum
likelihood approach), but in this case, it's
important to consider the alpha parameter
(called Laplace smoothing factor). Its default
value is 1.0 and it prevents the model from
setting null probabilities when the frequency
is zero.
• It's possible to assign all non-negative values; however,
larger values will assign higher probabilities to the
missing features and this choice could alter the stability
of the model. In our example, we're going to consider
the default value of 1.0.

28. from sklearn.feature_extraction import
DictVectorizer
>>> data = [
{'house': 100, 'street': 50, 'shop': 25, 'car': 100,
'tree': 20},
{'house': 5, 'street': 5, 'shop': 0, 'car': 10, 'tree':
500, 'river': 1} ]
>>> dv = DictVectorizer(sparse=False)
>>> X = dv.fit_transform(data)
>>> Y = np.array([1, 0])
>>> X
array([[ 100.,100., 0., 25., 50.,20.],
[10.,5.,1.,0.,5., 500.]])

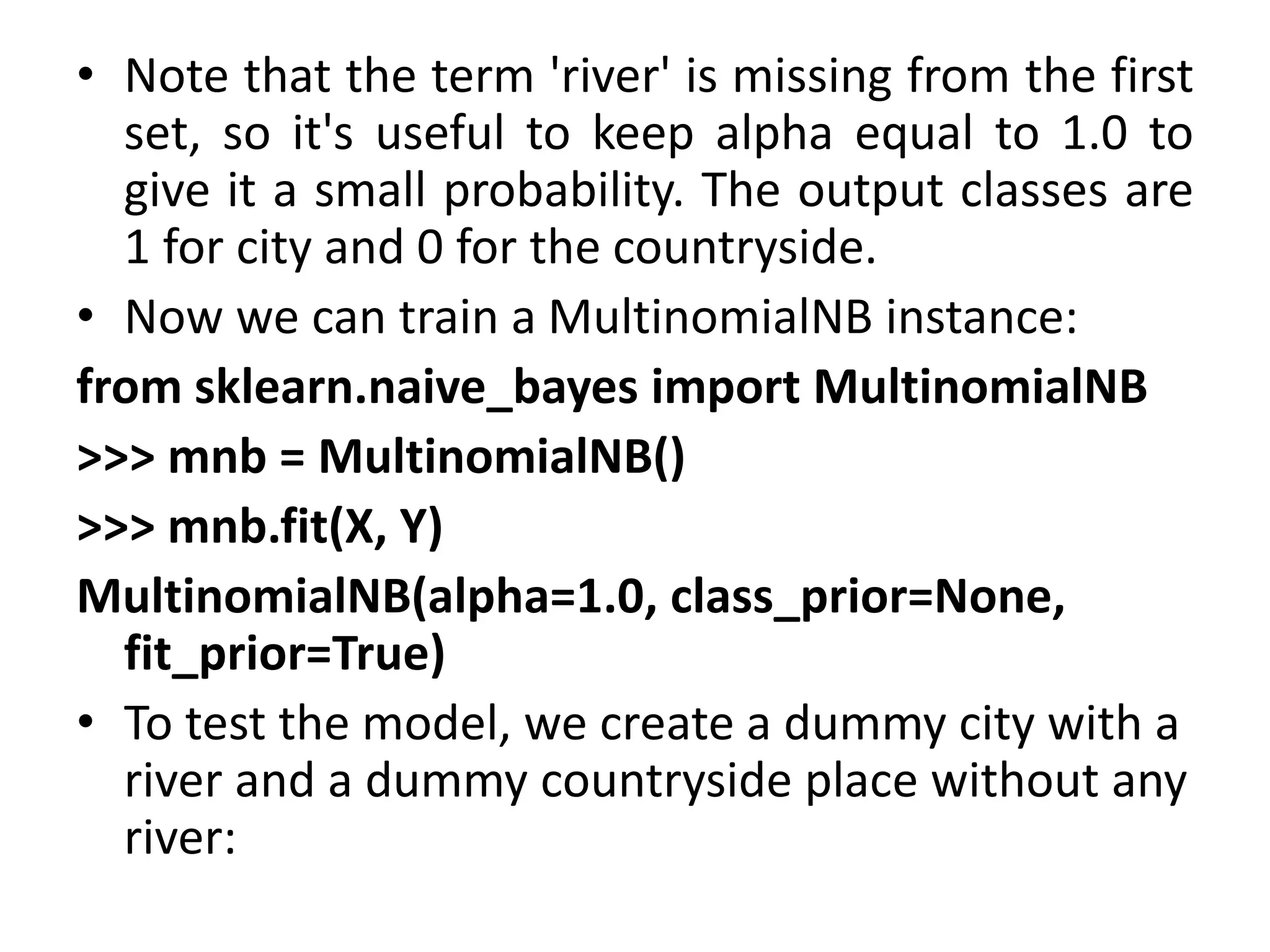

29. • Note that the term 'river' is missing from the first
set, so it's useful to keep alpha equal to 1.0 to
give it a small probability. The output classes are
1 for city and 0 for the countryside.
• Now we can train a MultinomialNB instance:
from sklearn.naive_bayes import MultinomialNB
>>> mnb = MultinomialNB()
>>> mnb.fit(X, Y)
MultinomialNB(alpha=1.0, class_prior=None,
fit_prior=True)
• To test the model, we create a dummy city with a
river and a dummy countryside place without any
river:

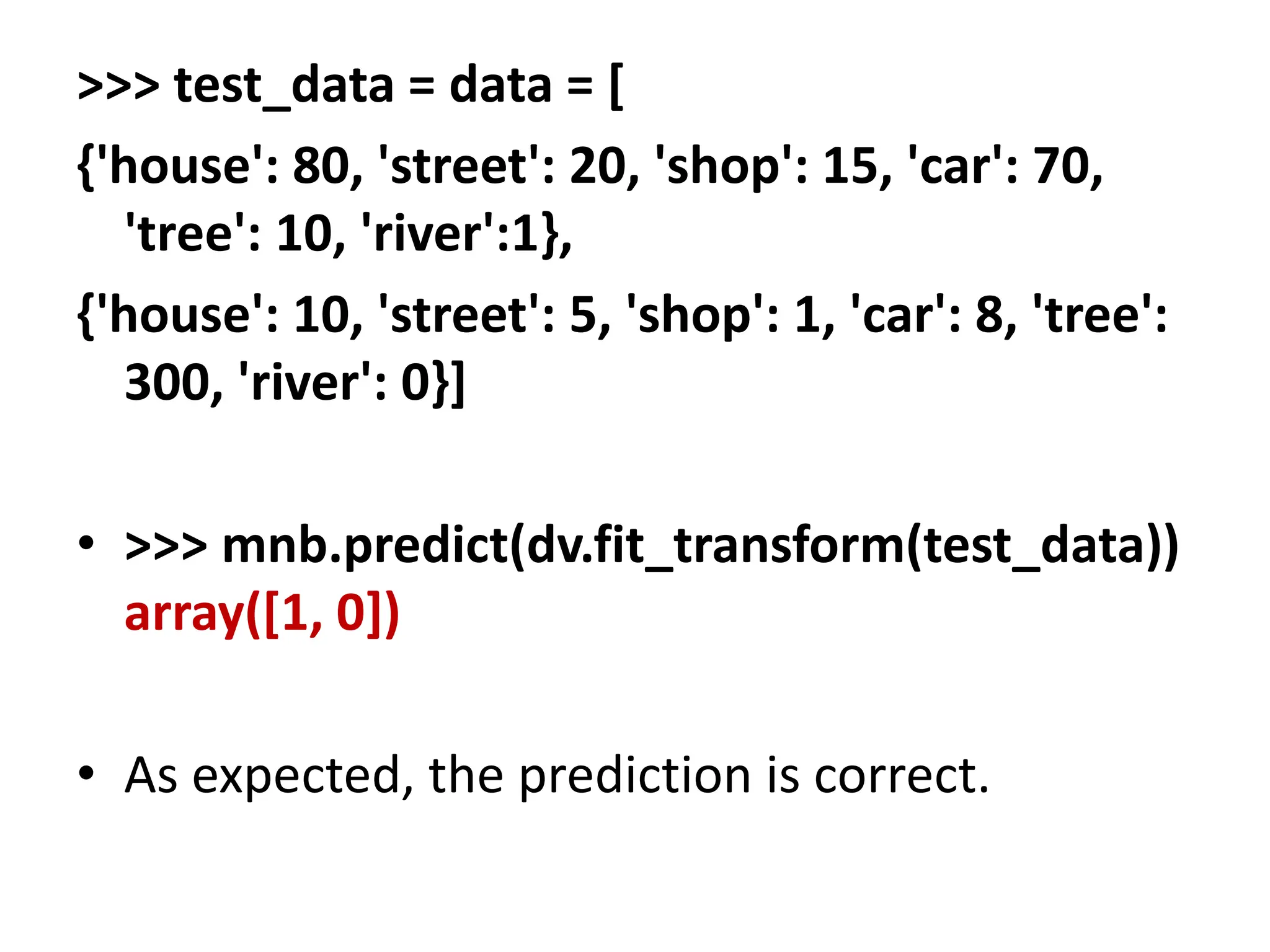

30. >>> test_data = data = [
{'house': 80, 'street': 20, 'shop': 15, 'car': 70,
'tree': 10, 'river':1},
{'house': 10, 'street': 5, 'shop': 1, 'car': 8, 'tree':
300, 'river': 0}]
• >>> mnb.predict(dv.fit_transform(test_data))
array([1, 0])
• As expected, the prediction is correct.

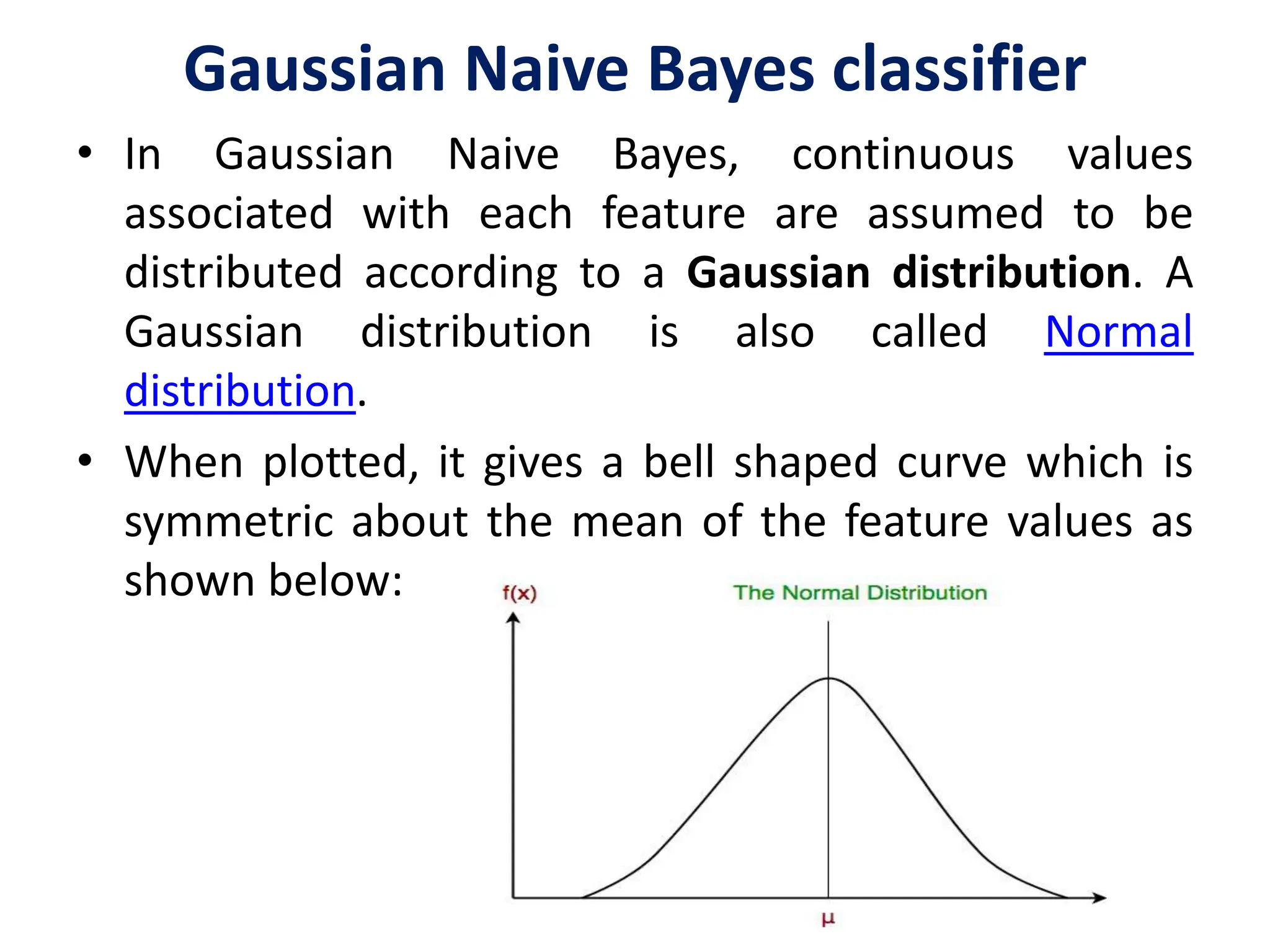

31. Gaussian Naive Bayes classifier
• In Gaussian Naive Bayes, continuous values
associated with each feature are assumed to be
distributed according to a Gaussian distribution. A
Gaussian distribution is also called Normal
distribution.
• When plotted, it gives a bell shaped curve which is
symmetric about the mean of the feature values as
shown below:

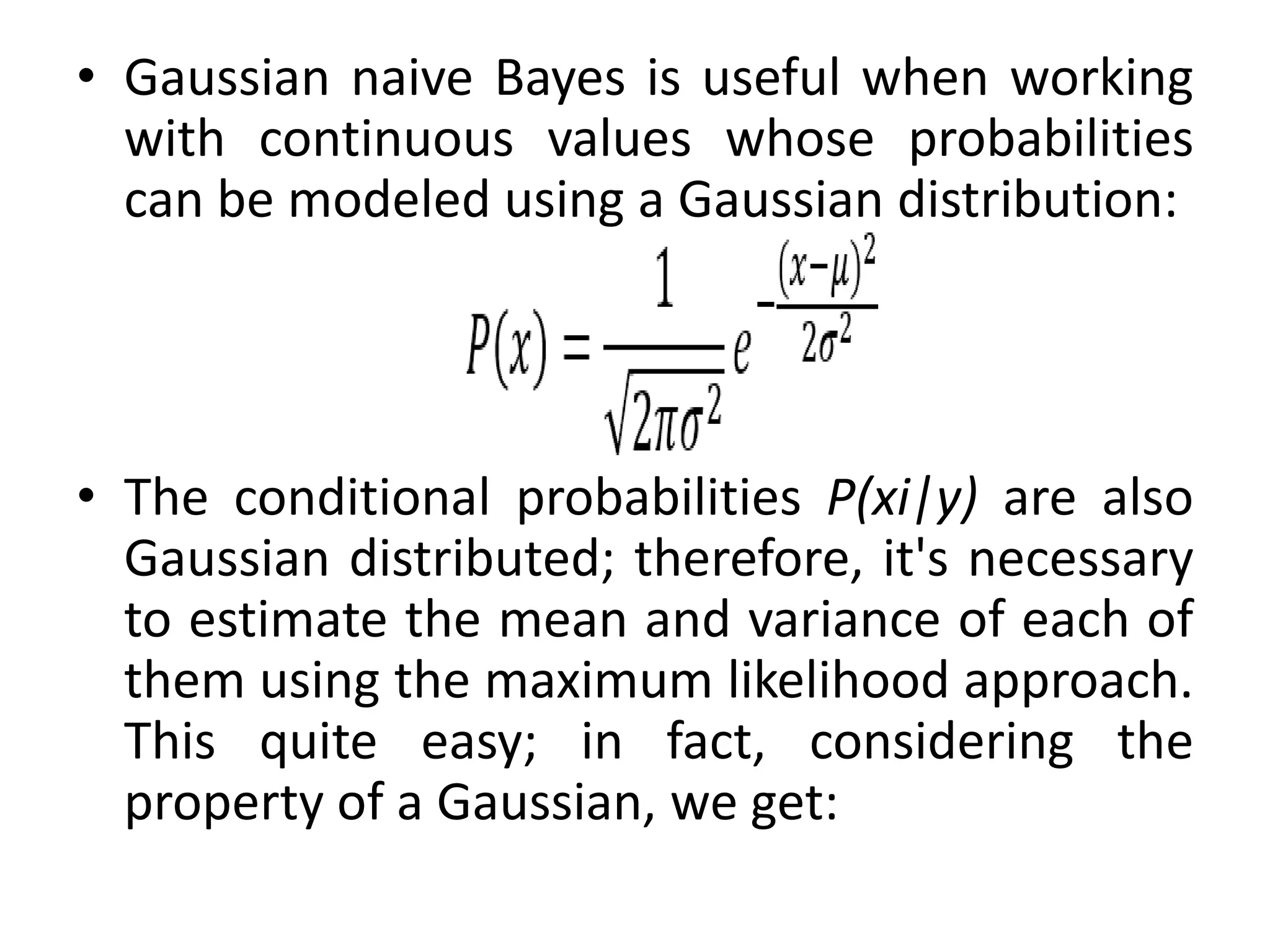

32. • Gaussian naive Bayes is useful when working
with continuous values whose probabilities
can be modeled using a Gaussian distribution:
• The conditional probabilities P(xi|y) are also
Gaussian distributed; therefore, it's necessary
to estimate the mean and variance of each of
them using the maximum likelihood approach.
This quite easy; in fact, considering the
property of a Gaussian, we get:

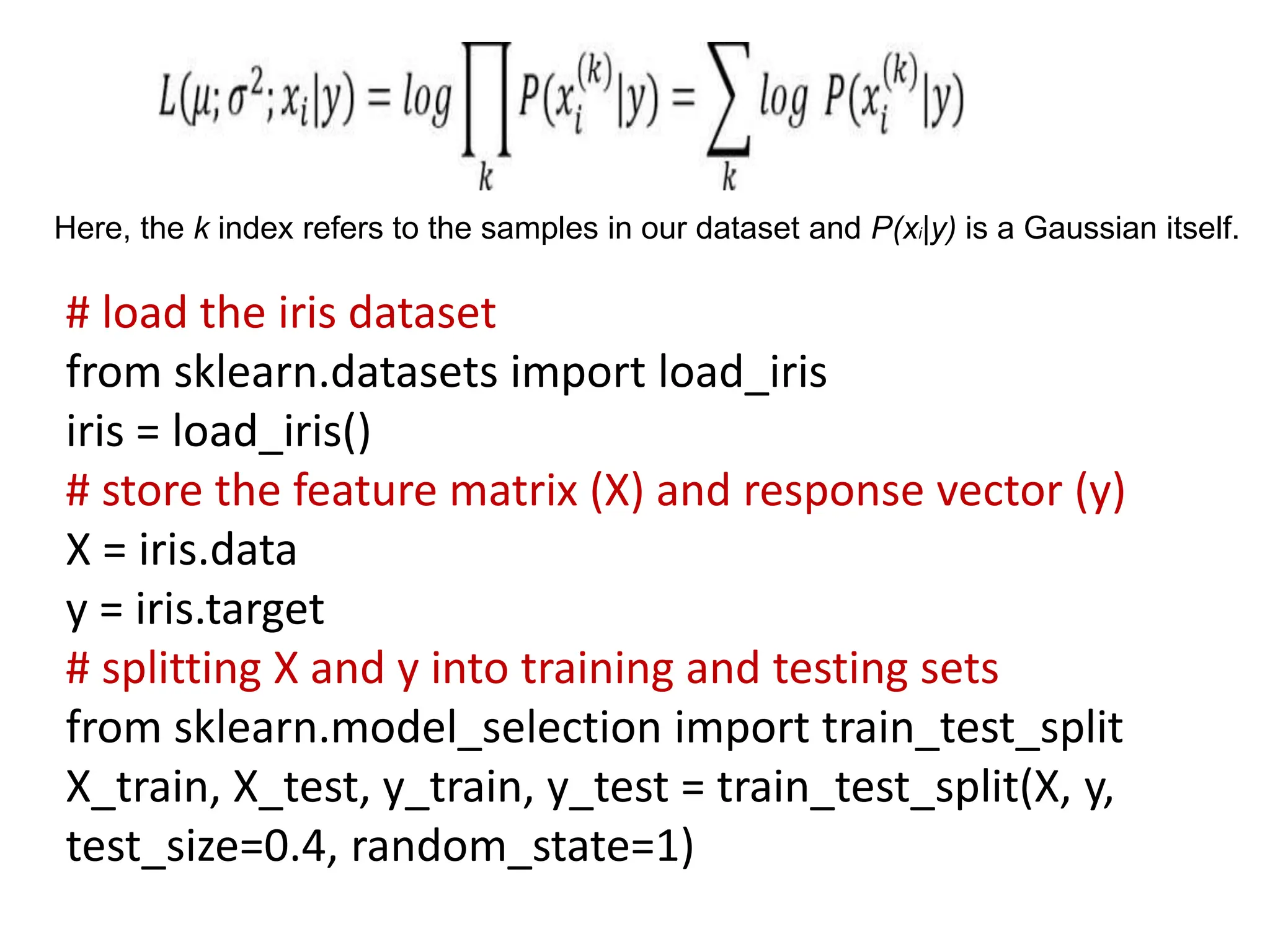

33. Here, the k index refers to the samples in our dataset and P(xi|y) is a Gaussian itself.
# load the iris dataset
from sklearn.datasets import load_iris
iris = load_iris()
# store the feature matrix (X) and response vector (y)
X = iris.data
y = iris.target
# splitting X and y into training and testing sets
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y,
test_size=0.4, random_state=1)

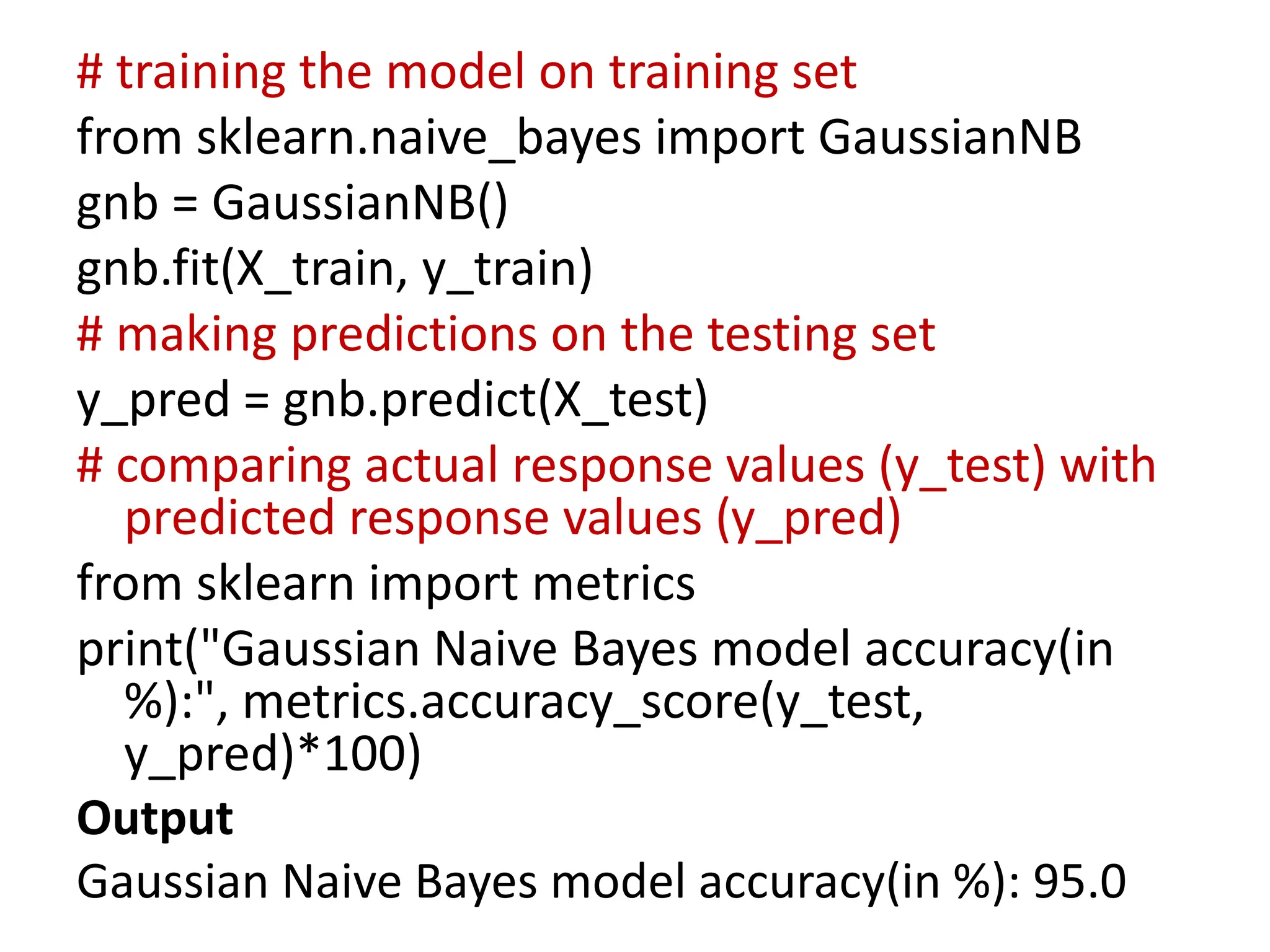

34. # training the model on training set
from sklearn.naive_bayes import GaussianNB
gnb = GaussianNB()
gnb.fit(X_train, y_train)
# making predictions on the testing set
y_pred = gnb.predict(X_test)
# comparing actual response values (y_test) with
predicted response values (y_pred)
from sklearn import metrics
print("Gaussian Naive Bayes model accuracy(in
%):", metrics.accuracy_score(y_test,
y_pred)*100)
Output
Gaussian Naive Bayes model accuracy(in %): 95.0

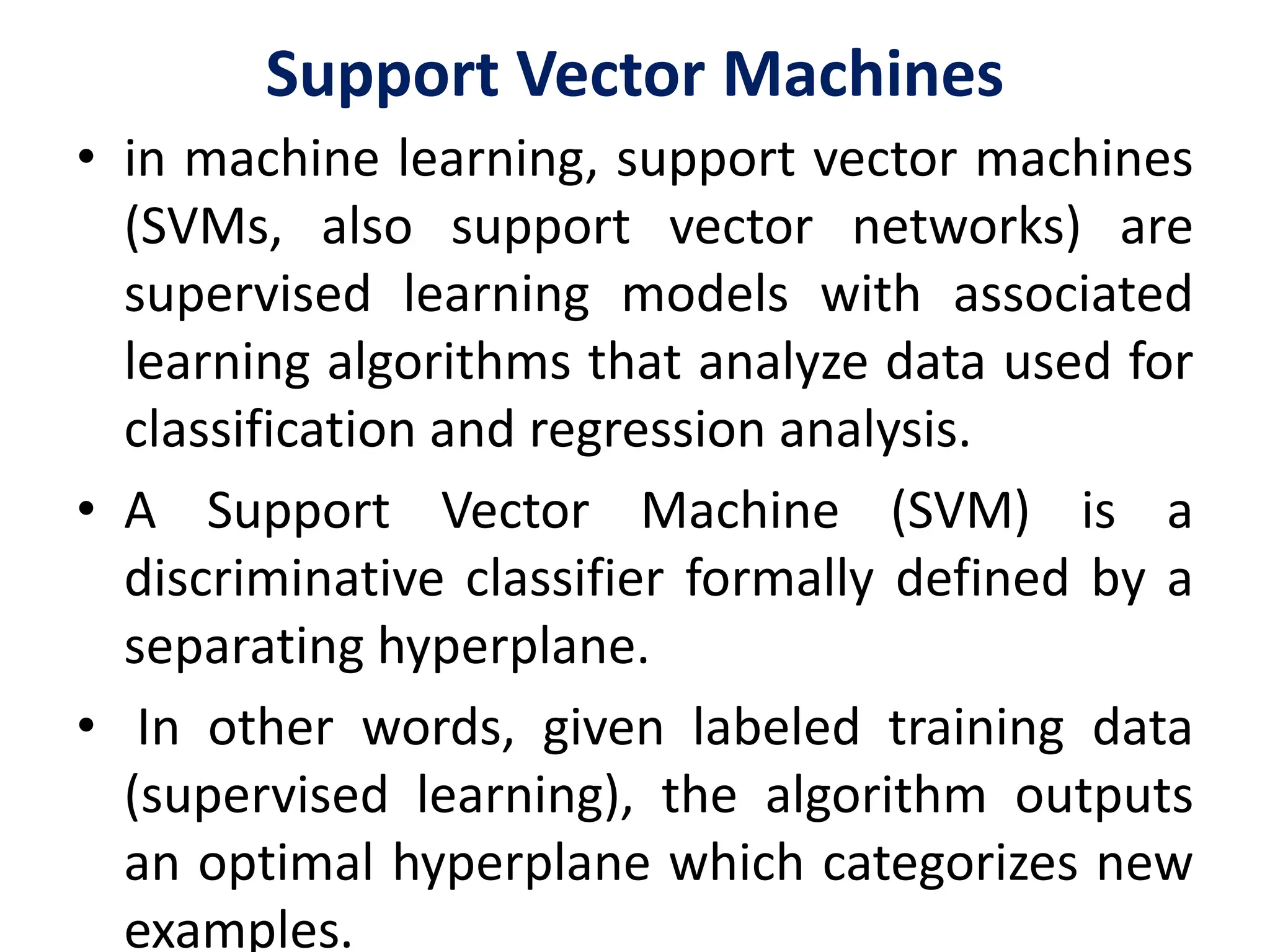

35. Support Vector Machines
• in machine learning, support vector machines
(SVMs, also support vector networks) are
supervised learning models with associated
learning algorithms that analyze data used for
classification and regression analysis.
• A Support Vector Machine (SVM) is a
discriminative classifier formally defined by a
separating hyperplane.
• In other words, given labeled training data
(supervised learning), the algorithm outputs
an optimal hyperplane which categorizes new
examples.

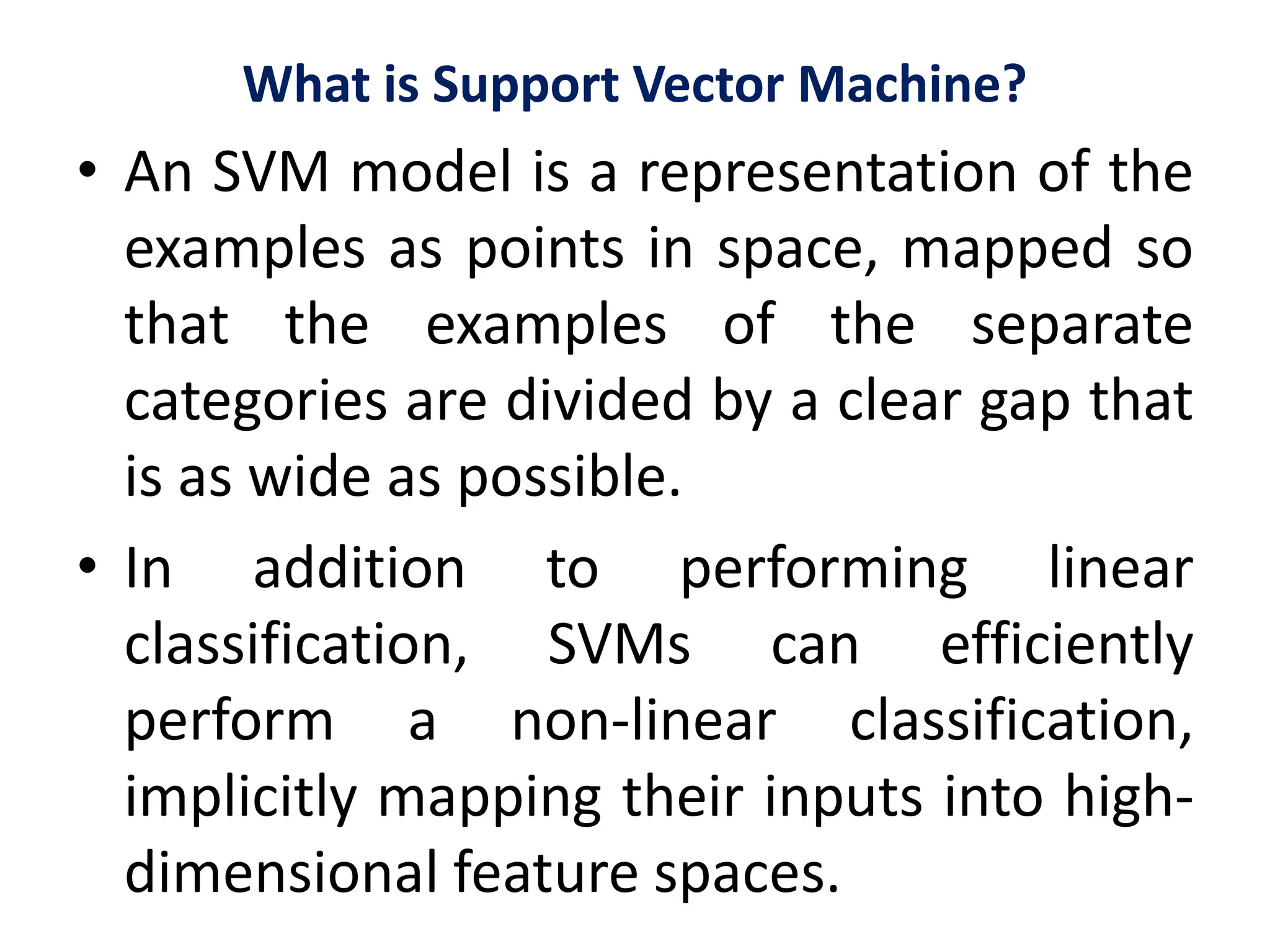

36. What is Support Vector Machine?
• An SVM model is a representation of the
examples as points in space, mapped so
that the examples of the separate
categories are divided by a clear gap that
is as wide as possible.
• In addition to performing linear
classification, SVMs can efficiently
perform a non-linear classification,
implicitly mapping their inputs into high-
dimensional feature spaces.

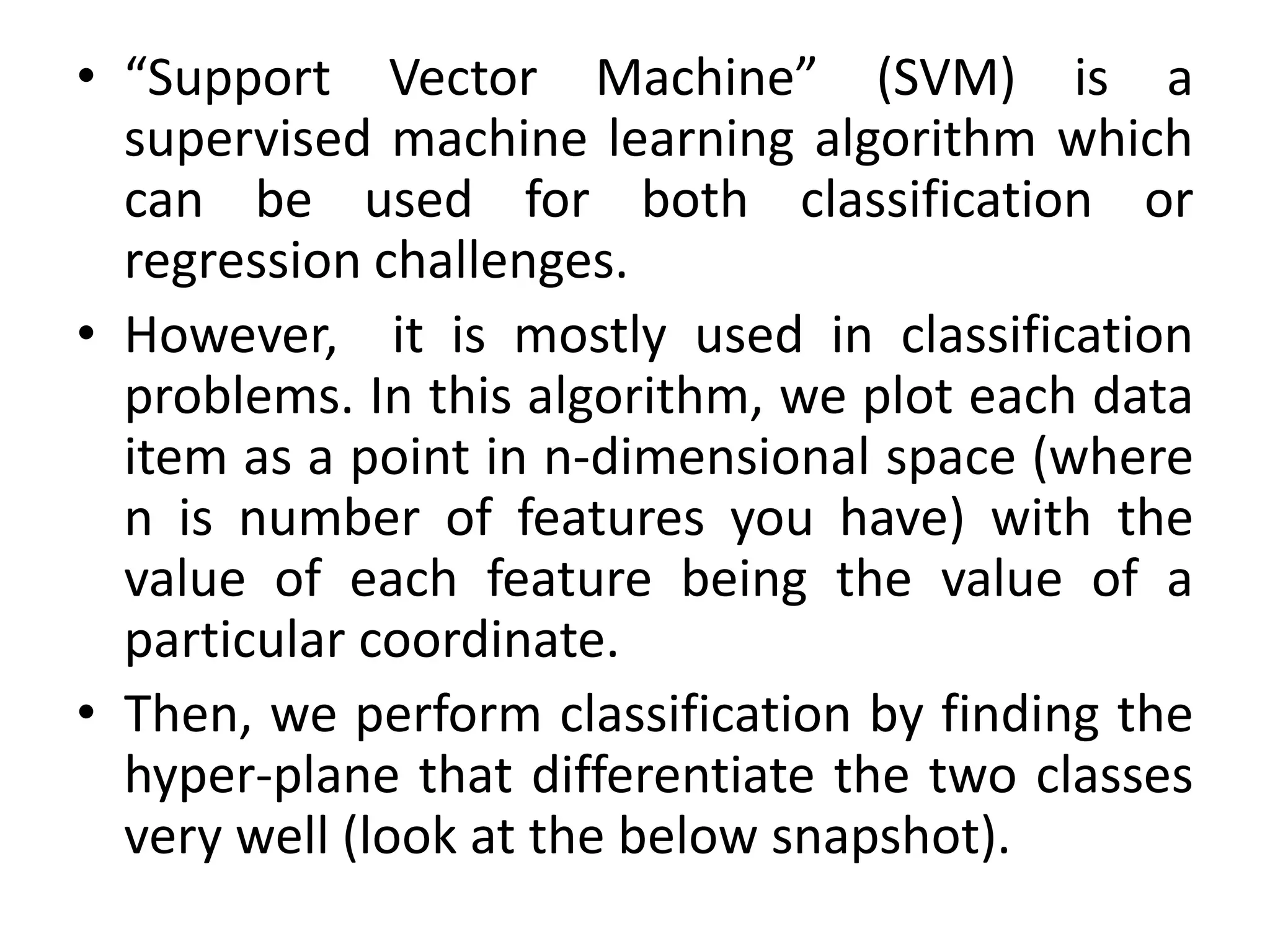

37. • “Support Vector Machine” (SVM) is a
supervised machine learning algorithm which
can be used for both classification or
regression challenges.
• However, it is mostly used in classification
problems. In this algorithm, we plot each data
item as a point in n-dimensional space (where
n is number of features you have) with the
value of each feature being the value of a
particular coordinate.
• Then, we perform classification by finding the
hyper-plane that differentiate the two classes
very well (look at the below snapshot).

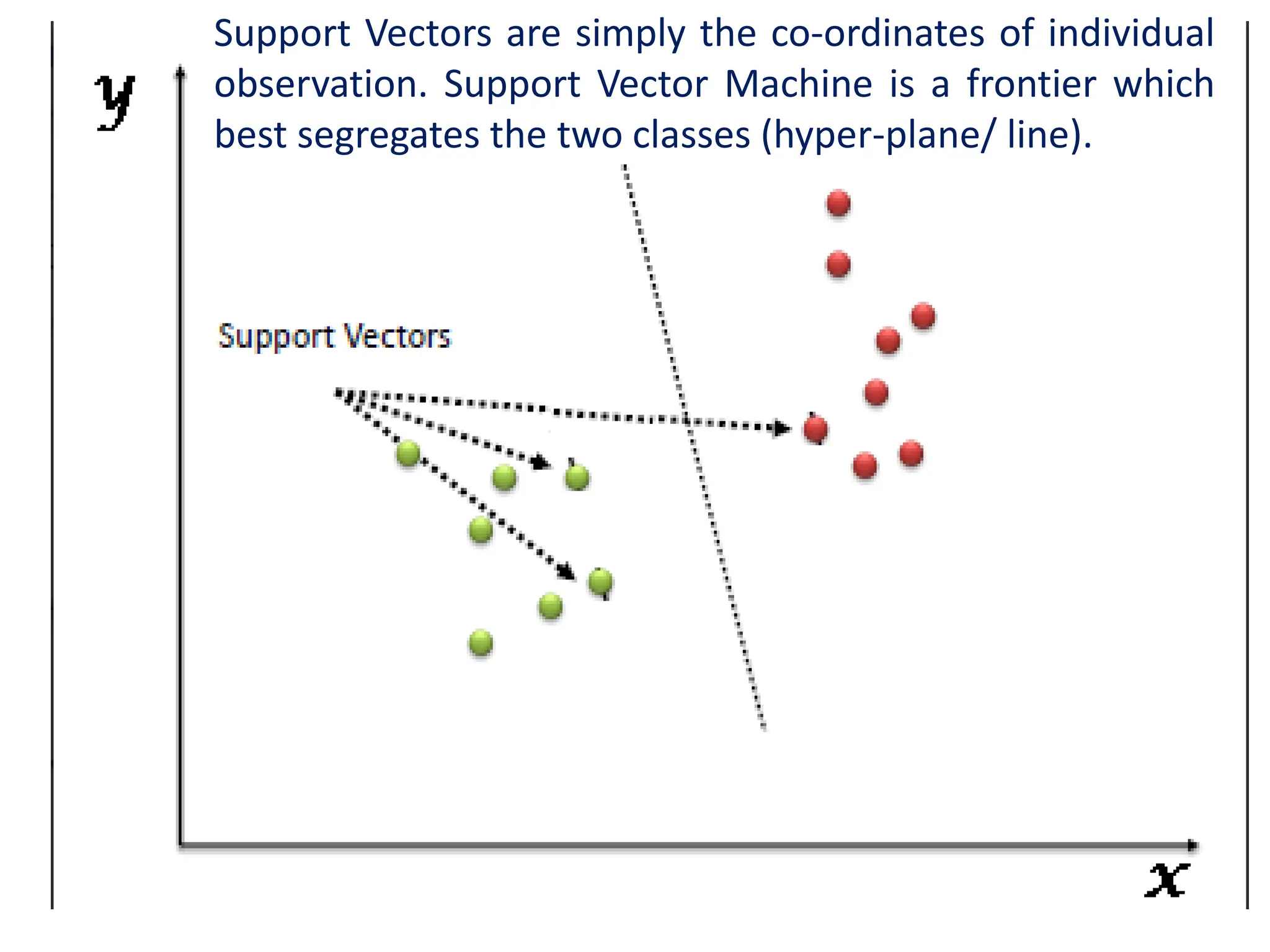

38. Support Vectors are simply the co-ordinates of individual
observation. Support Vector Machine is a frontier which
best segregates the two classes (hyper-plane/ line).

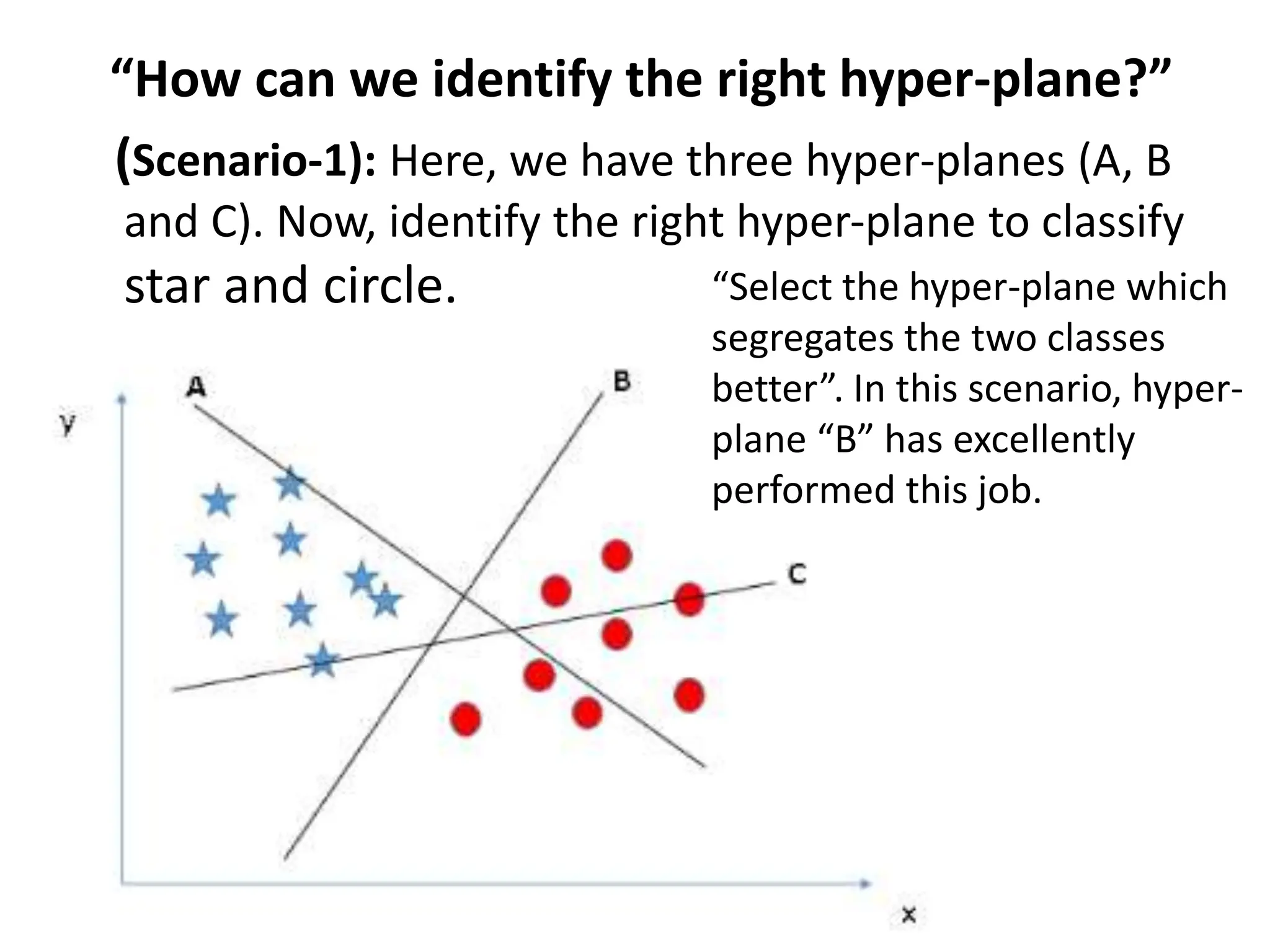

39. “How can we identify the right hyper-plane?”
(Scenario-1): Here, we have three hyper-planes (A, B
and C). Now, identify the right hyper-plane to classify
star and circle. “Select the hyper-plane which
segregates the two classes
better”. In this scenario, hyper-
plane “B” has excellently
performed this job.

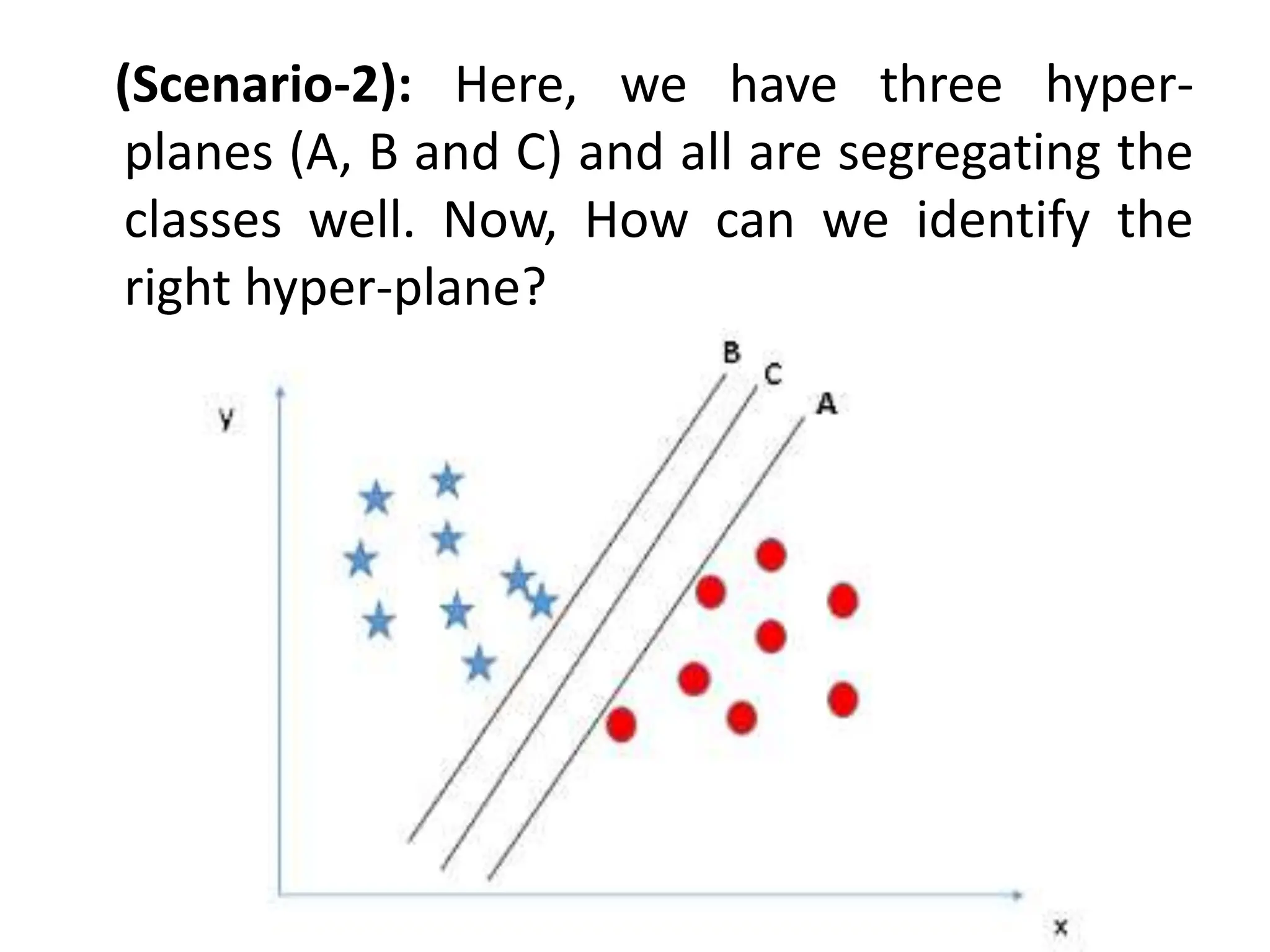

40. (Scenario-2): Here, we have three hyper-
planes (A, B and C) and all are segregating the
classes well. Now, How can we identify the
right hyper-plane?

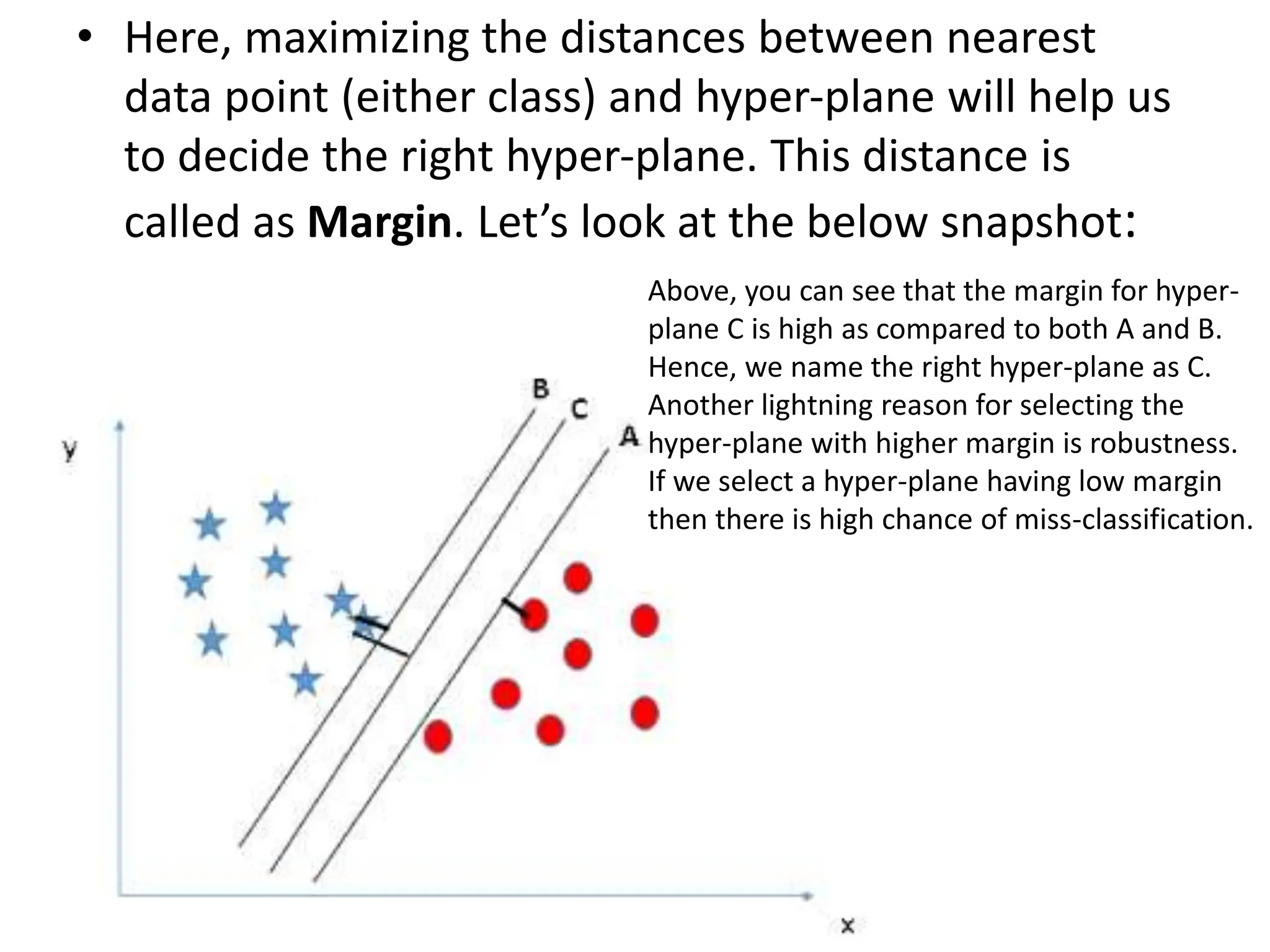

41. • Here, maximizing the distances between nearest
data point (either class) and hyper-plane will help us
to decide the right hyper-plane. This distance is
called as Margin. Let’s look at the below snapshot:
Above, you can see that the margin for hyper-
plane C is high as compared to both A and B.
Hence, we name the right hyper-plane as C.
Another lightning reason for selecting the
hyper-plane with higher margin is robustness.
If we select a hyper-plane having low margin
then there is high chance of miss-classification.

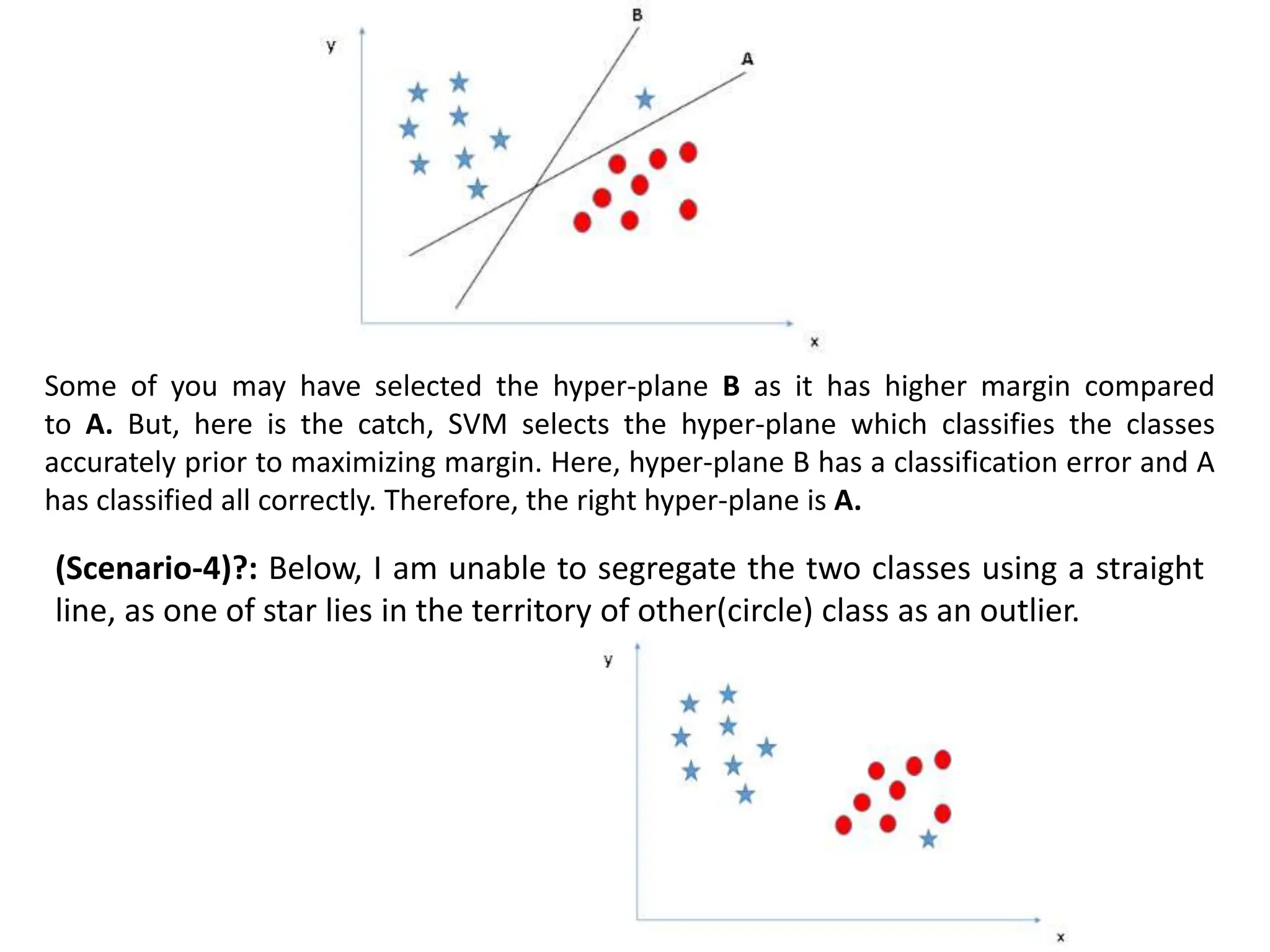

42. Some of you may have selected the hyper-plane B as it has higher margin compared
to A. But, here is the catch, SVM selects the hyper-plane which classifies the classes
accurately prior to maximizing margin. Here, hyper-plane B has a classification error and A
has classified all correctly. Therefore, the right hyper-plane is A.
(Scenario-4)?: Below, I am unable to segregate the two classes using a straight
line, as one of star lies in the territory of other(circle) class as an outlier.

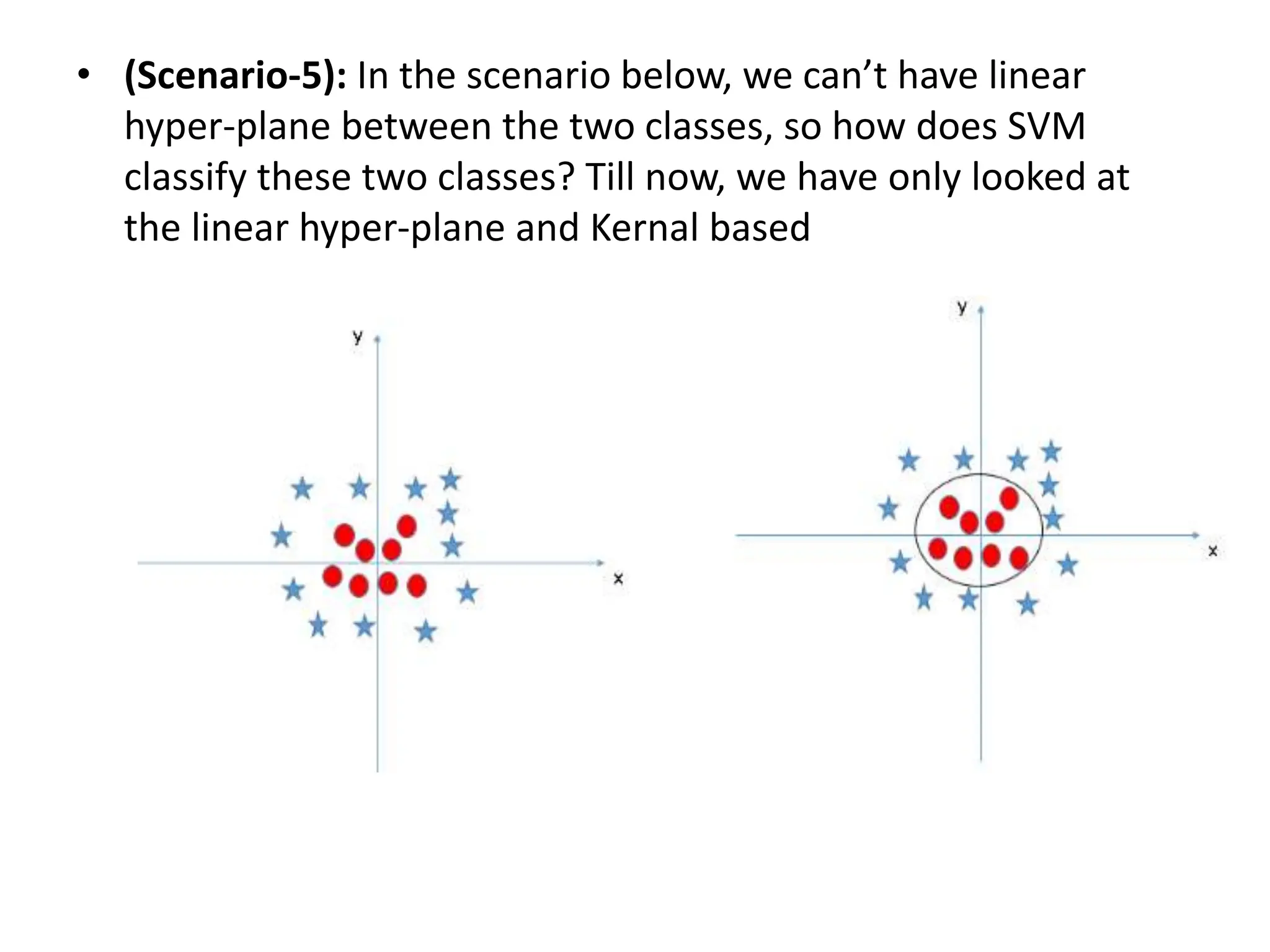

43. • (Scenario-5): In the scenario below, we can’t have linear
hyper-plane between the two classes, so how does SVM
classify these two classes? Till now, we have only looked at
the linear hyper-plane and Kernal based

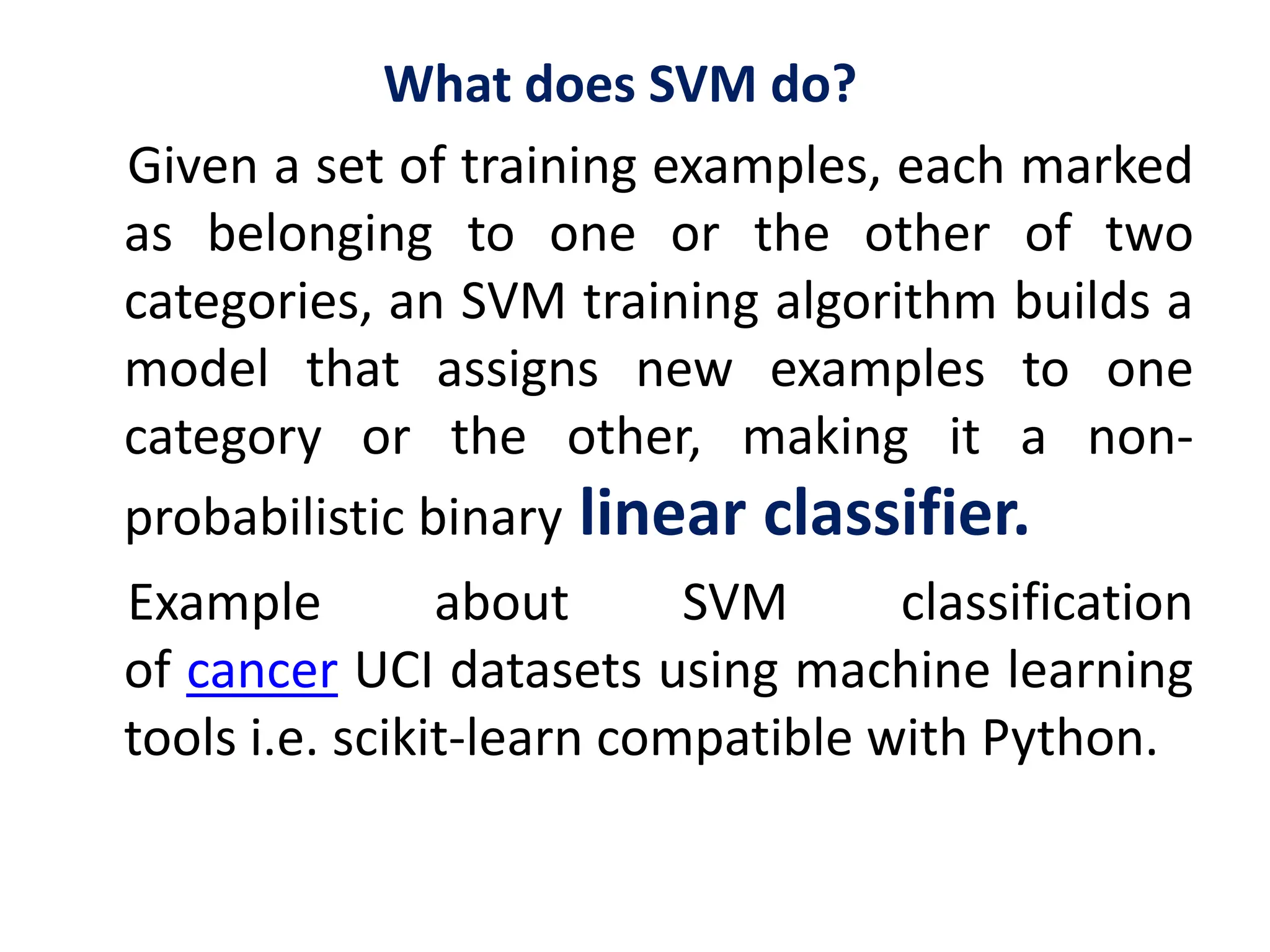

44. What does SVM do?
Given a set of training examples, each marked
as belonging to one or the other of two
categories, an SVM training algorithm builds a
model that assigns new examples to one
category or the other, making it a non-
probabilistic binary linear classifier.
Example about SVM classification
of cancer UCI datasets using machine learning
tools i.e. scikit-learn compatible with Python.

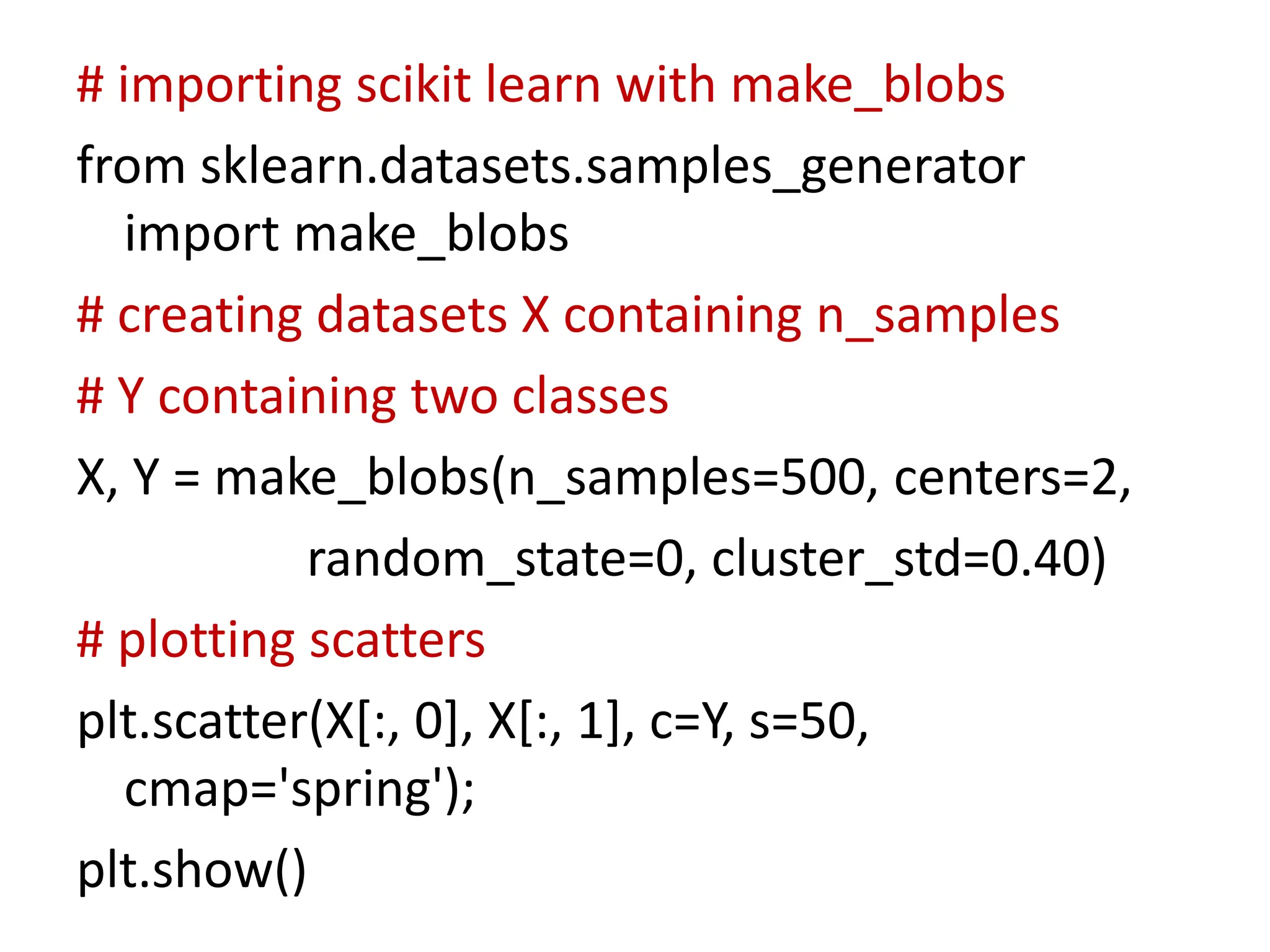

45. # importing scikit learn with make_blobs
from sklearn.datasets.samples_generator
import make_blobs
# creating datasets X containing n_samples
# Y containing two classes
X, Y = make_blobs(n_samples=500, centers=2,
random_state=0, cluster_std=0.40)
# plotting scatters
plt.scatter(X[:, 0], X[:, 1], c=Y, s=50,
cmap='spring');
plt.show()

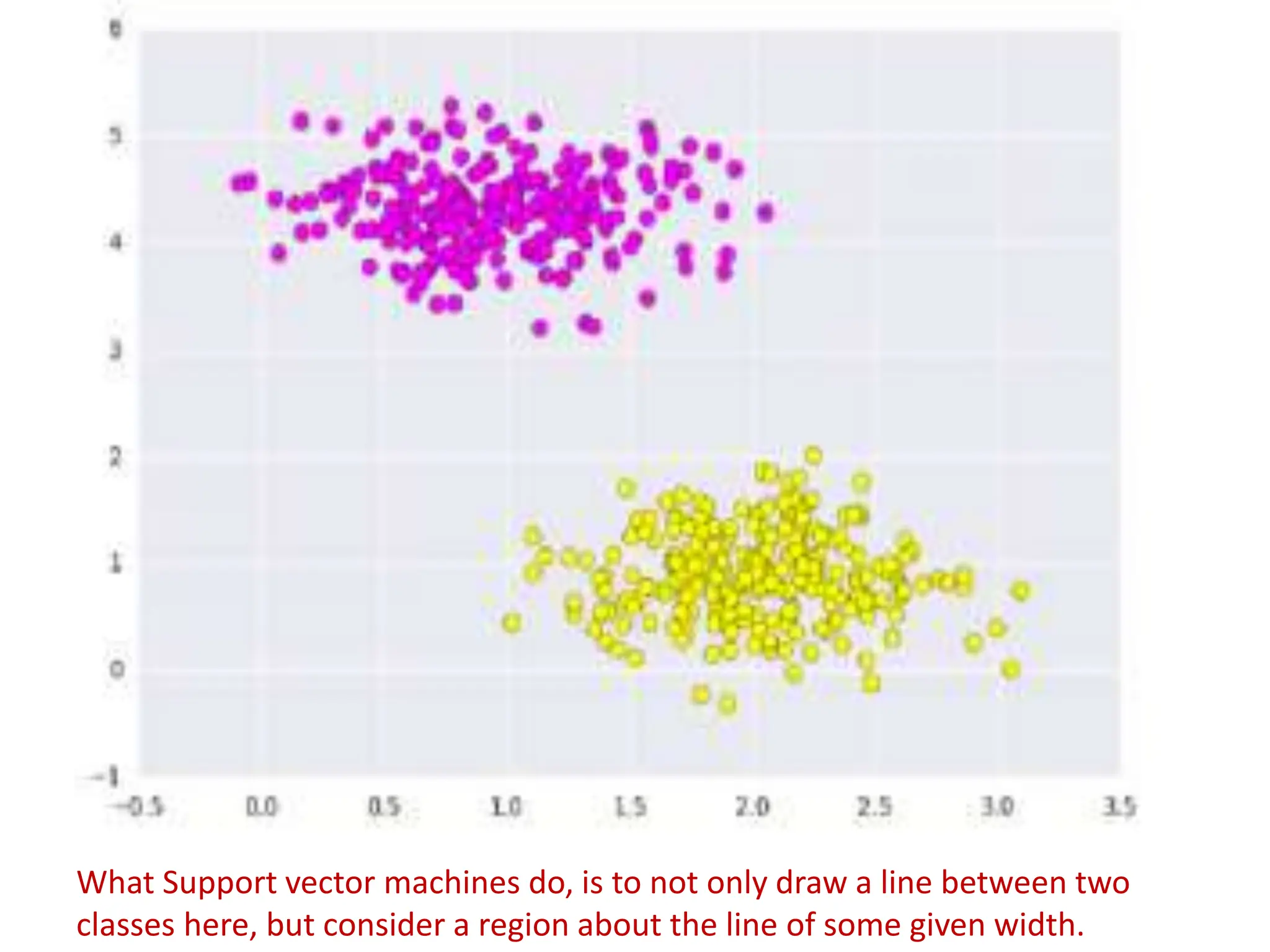

46. What Support vector machines do, is to not only draw a line between two
classes here, but consider a region about the line of some given width.

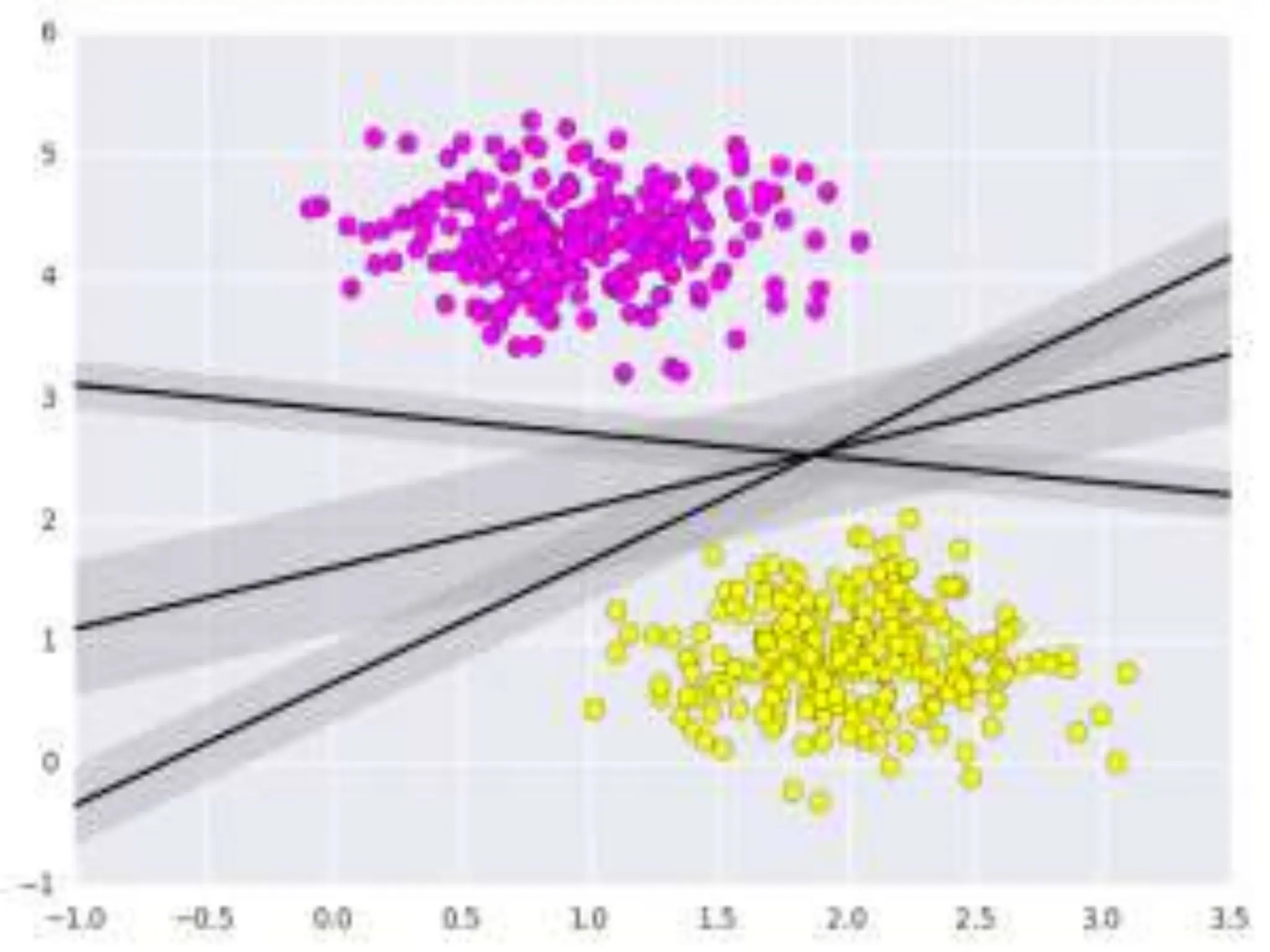

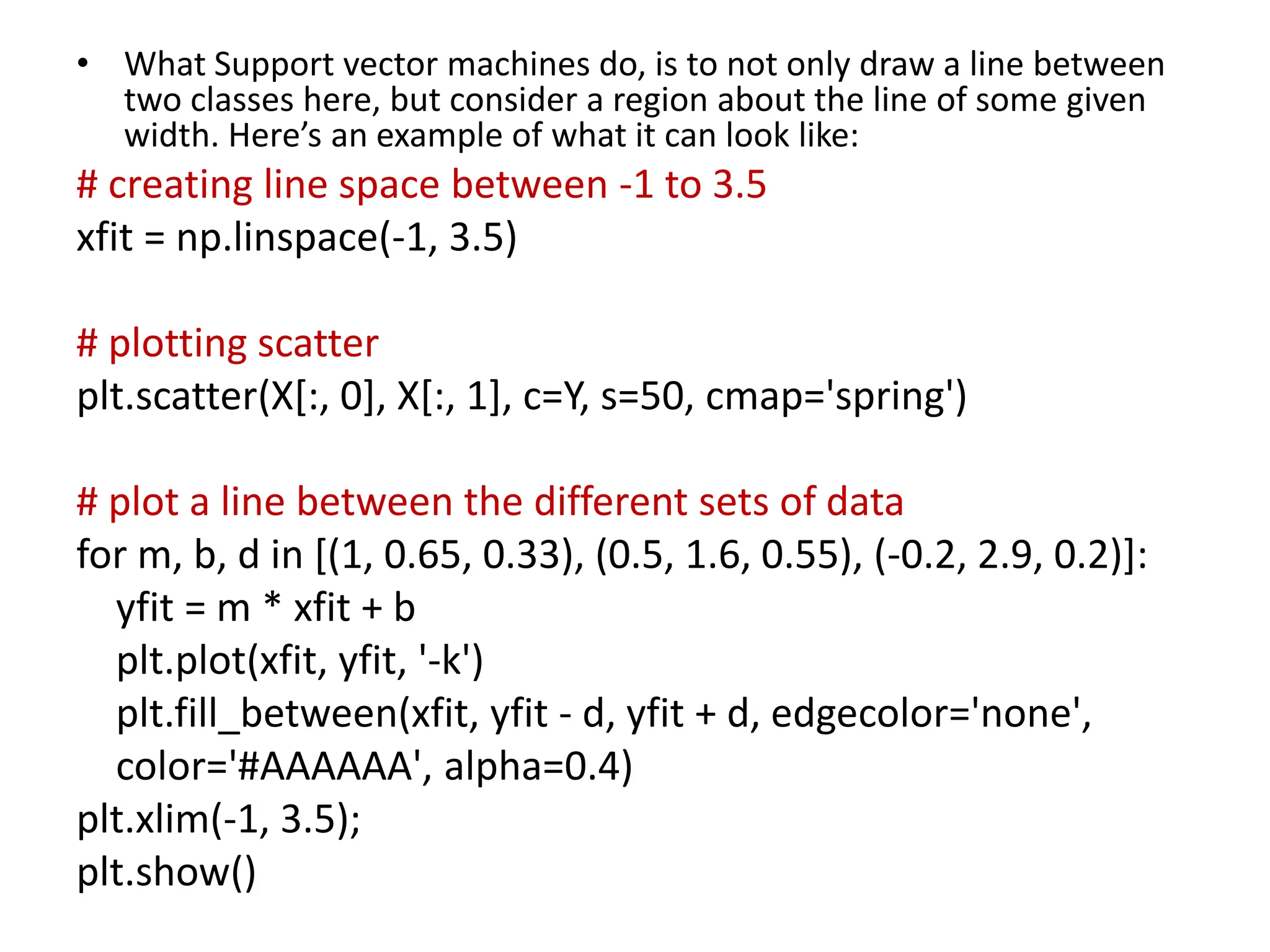

47. • What Support vector machines do, is to not only draw a line between
two classes here, but consider a region about the line of some given
width. Here’s an example of what it can look like:
# creating line space between -1 to 3.5
xfit = np.linspace(-1, 3.5)
# plotting scatter
plt.scatter(X[:, 0], X[:, 1], c=Y, s=50, cmap='spring')
# plot a line between the different sets of data
for m, b, d in [(1, 0.65, 0.33), (0.5, 1.6, 0.55), (-0.2, 2.9, 0.2)]:
yfit = m * xfit + b
plt.plot(xfit, yfit, '-k')
plt.fill_between(xfit, yfit - d, yfit + d, edgecolor='none',
color='#AAAAAA', alpha=0.4)
plt.xlim(-1, 3.5);
plt.show()

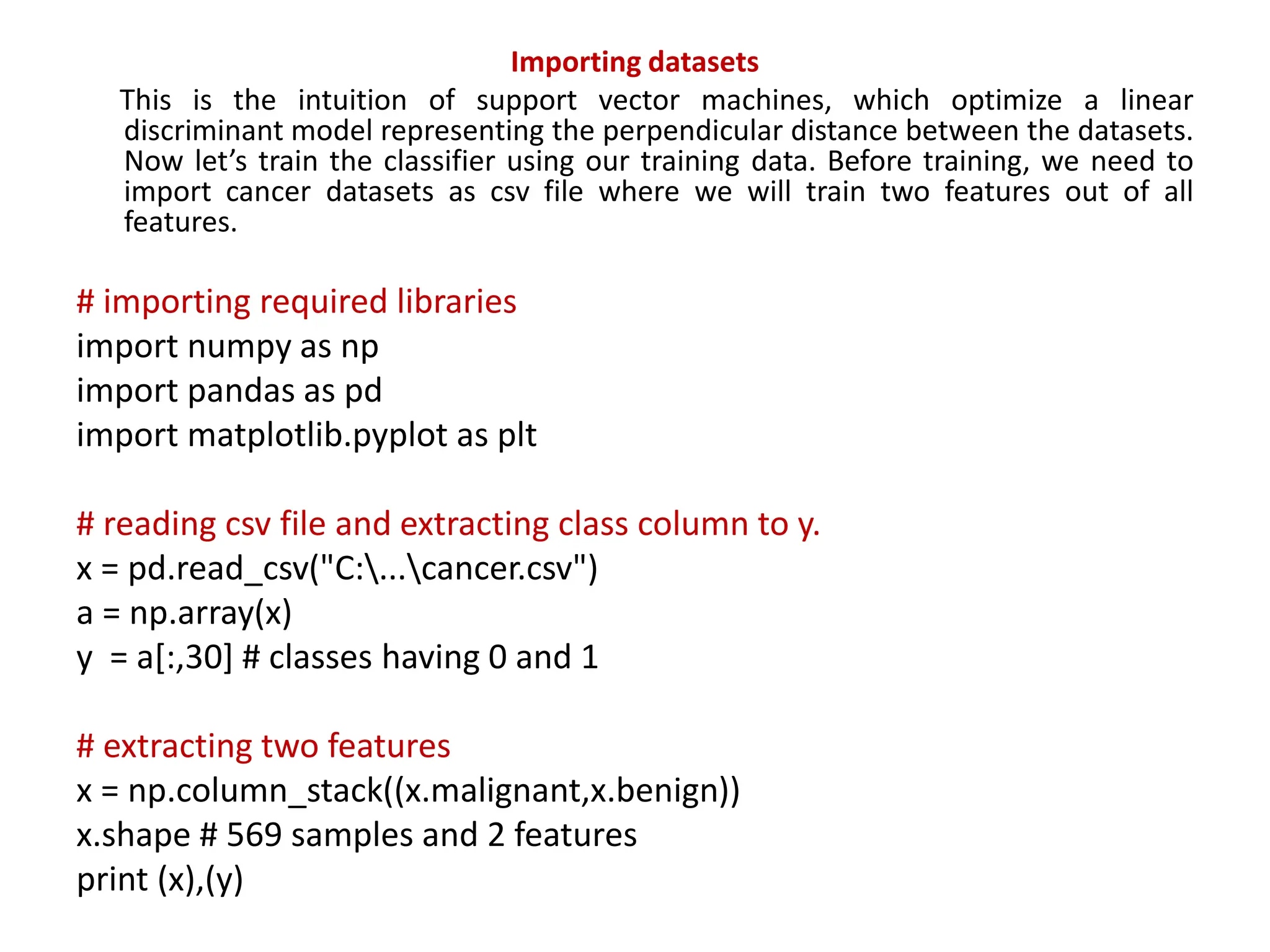

49. Importing datasets
This is the intuition of support vector machines, which optimize a linear
discriminant model representing the perpendicular distance between the datasets.
Now let’s train the classifier using our training data. Before training, we need to
import cancer datasets as csv file where we will train two features out of all
features.
# importing required libraries
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
# reading csv file and extracting class column to y.
x = pd.read_csv("C:...cancer.csv")
a = np.array(x)
y = a[:,30] # classes having 0 and 1
# extracting two features
x = np.column_stack((x.malignant,x.benign))
x.shape # 569 samples and 2 features
print (x),(y)

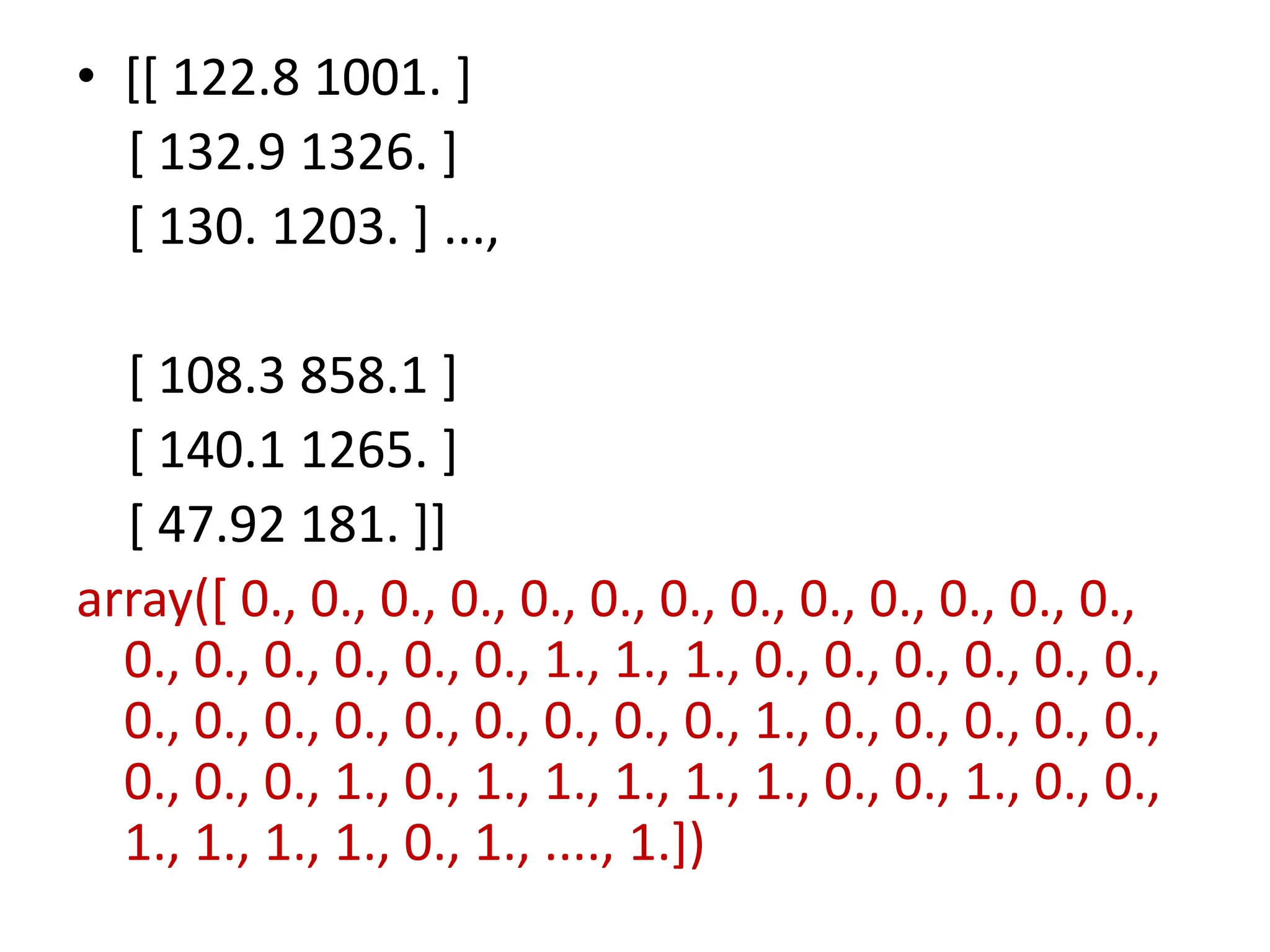

50. • [[ 122.8 1001. ]
[ 132.9 1326. ]
[ 130. 1203. ] ...,
[ 108.3 858.1 ]
[ 140.1 1265. ]
[ 47.92 181. ]]
array([ 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 1., 1., 1., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0.,
0., 0., 0., 1., 0., 1., 1., 1., 1., 1., 0., 0., 1., 0., 0.,
1., 1., 1., 1., 0., 1., ...., 1.])

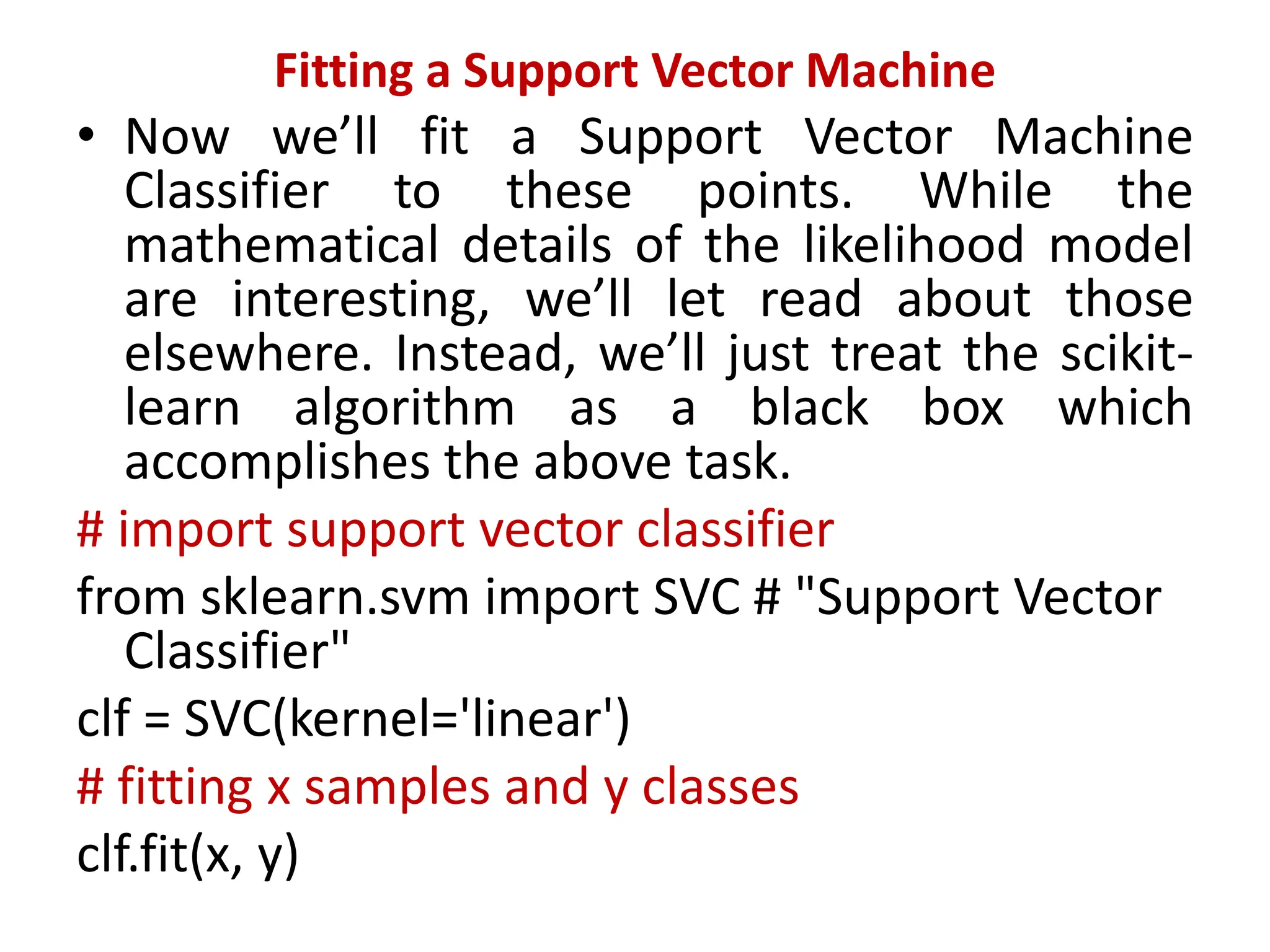

51. Fitting a Support Vector Machine
• Now we’ll fit a Support Vector Machine
Classifier to these points. While the
mathematical details of the likelihood model
are interesting, we’ll let read about those
elsewhere. Instead, we’ll just treat the scikit-
learn algorithm as a black box which
accomplishes the above task.
# import support vector classifier
from sklearn.svm import SVC # "Support Vector
Classifier"
clf = SVC(kernel='linear')
# fitting x samples and y classes
clf.fit(x, y)

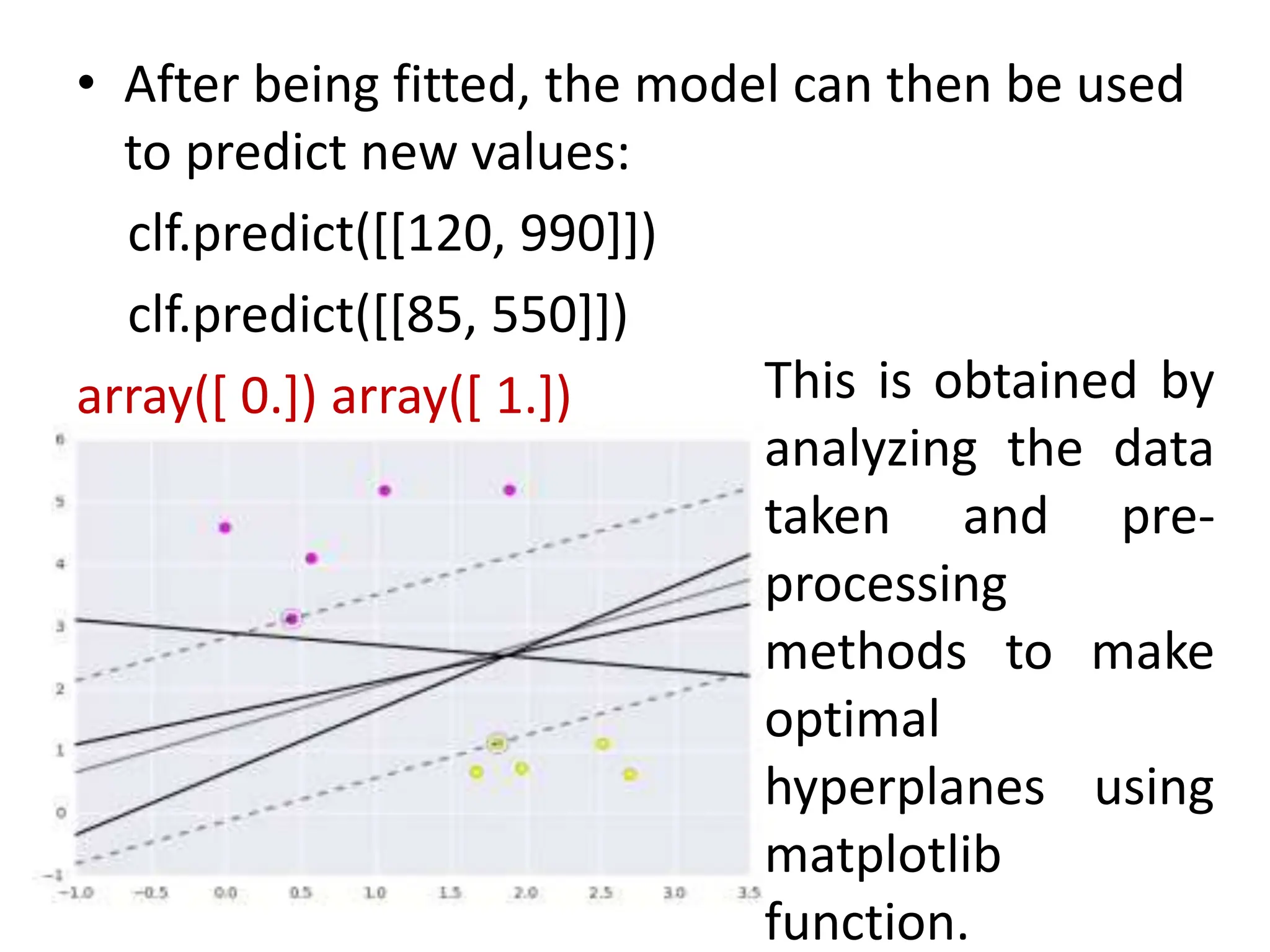

52. • After being fitted, the model can then be used
to predict new values:
clf.predict([[120, 990]])
clf.predict([[85, 550]])
array([ 0.]) array([ 1.]) This is obtained by
analyzing the data
taken and pre-
processing
methods to make
optimal
hyperplanes using
matplotlib
function.

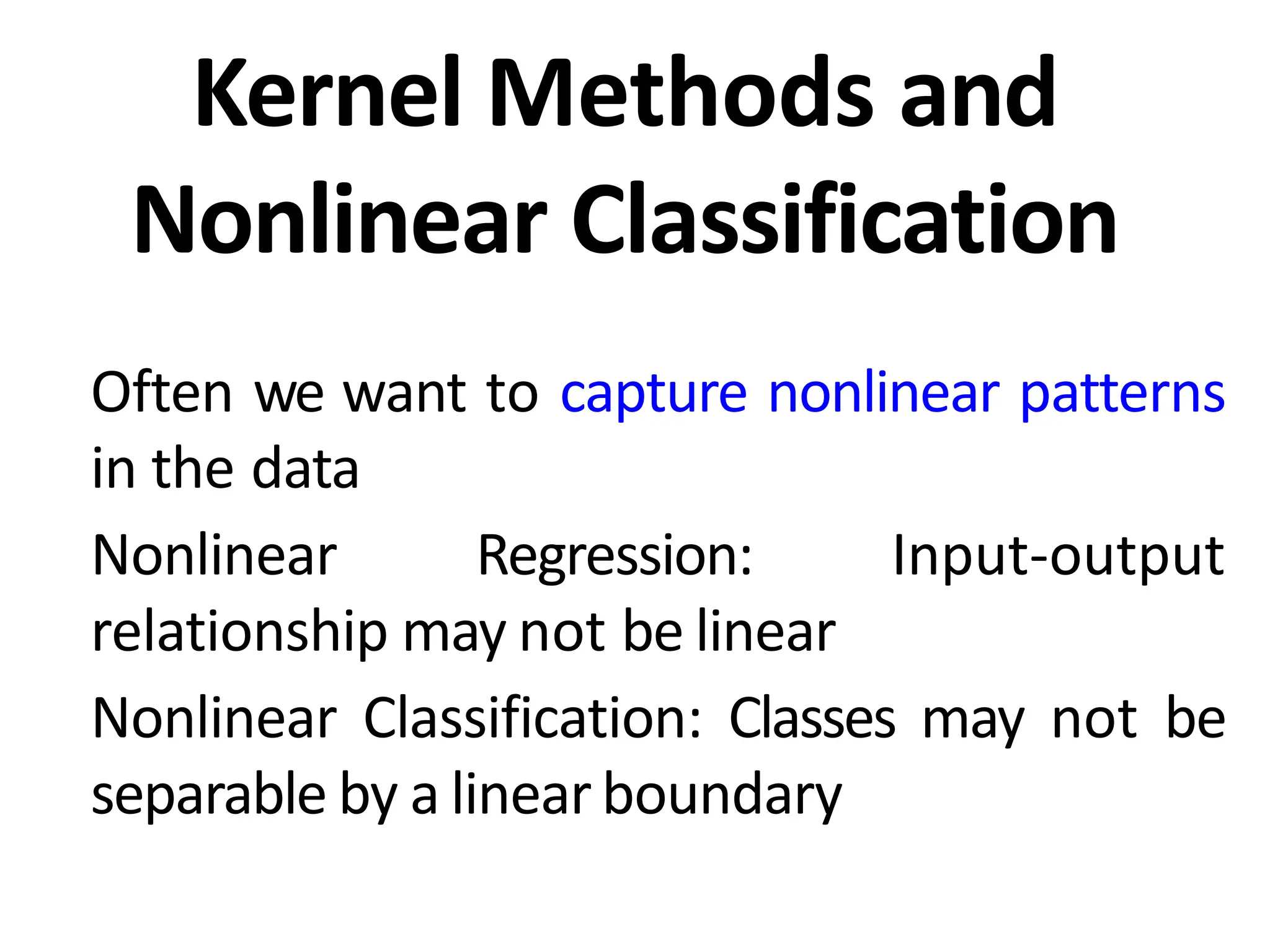

53. Kernel Methods and
Nonlinear Classification
Often we want to capture nonlinear patterns
in the data
Nonlinear Regression: Input-output
relationship may not be linear
Nonlinear Classification: Classes may not be
separable by a linear boundary

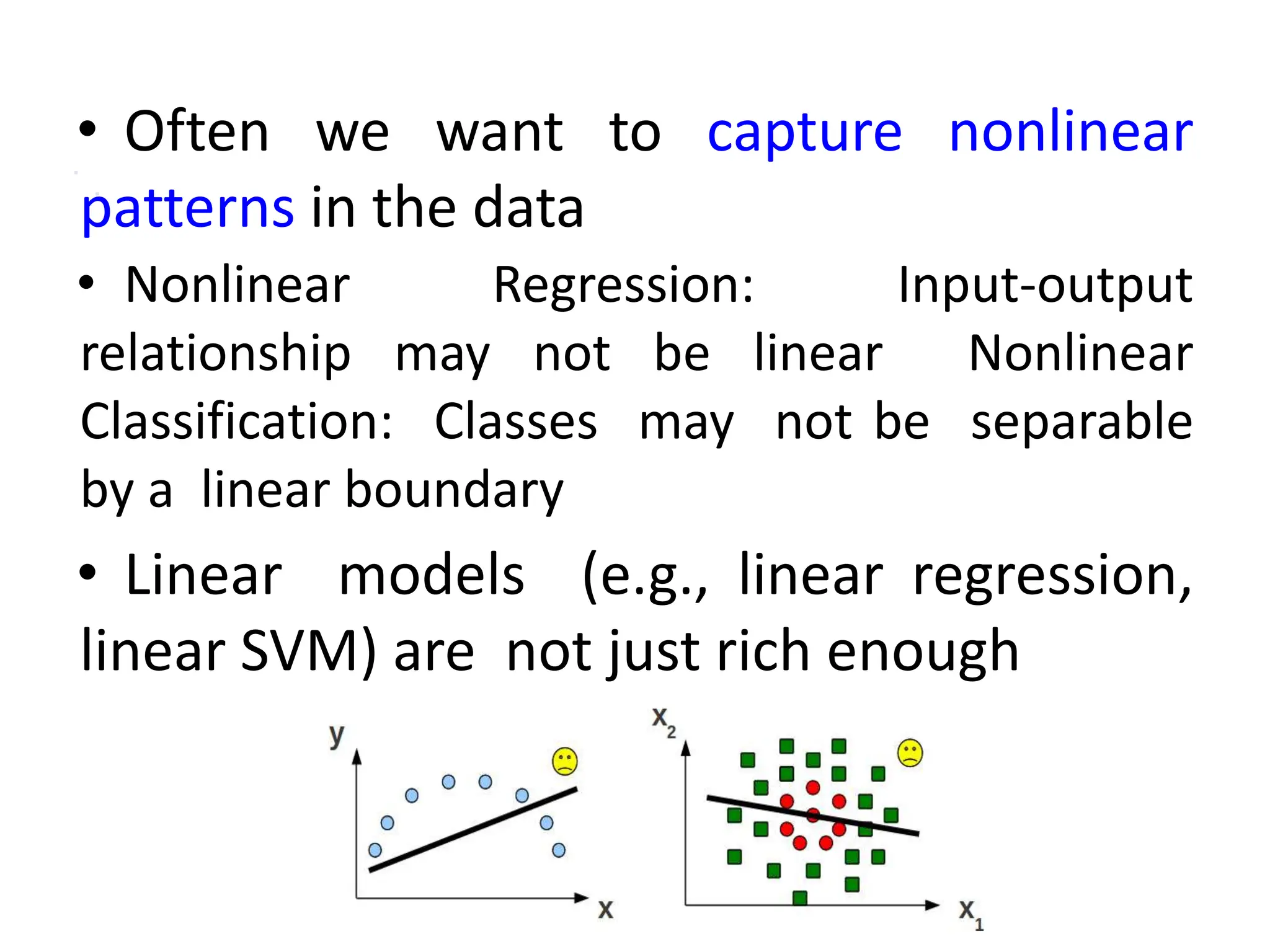

54. • Often we want to capture nonlinear
patterns in the data
• Nonlinear Regression: Input-output
relationship may not be linear Nonlinear
Classification: Classes may not be separable
by a linear boundary
• Linear models (e.g., linear regression,
linear SVM) are not just rich enough

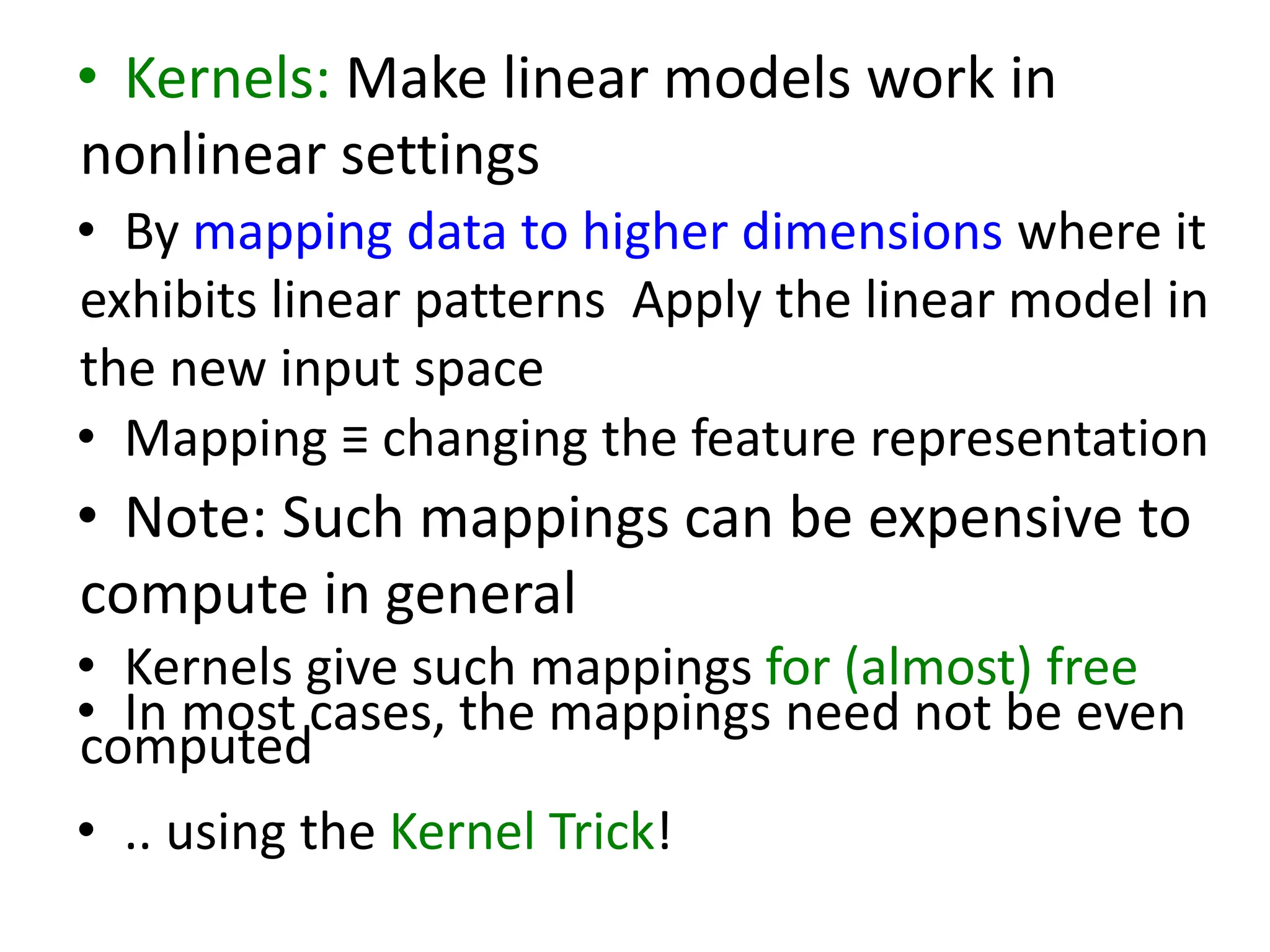

55. • Kernels: Make linear models work in
nonlinear settings
• By mapping data to higher dimensions where it
exhibits linear patterns Apply the linear model in
the new input space
• Mapping ≡ changing the feature representation
• Note: Such mappings can be expensive to
compute in general
• Kernels give such mappings for (almost) free
• In most cases, the mappings need not be even
computed
• .. using the Kernel Trick!

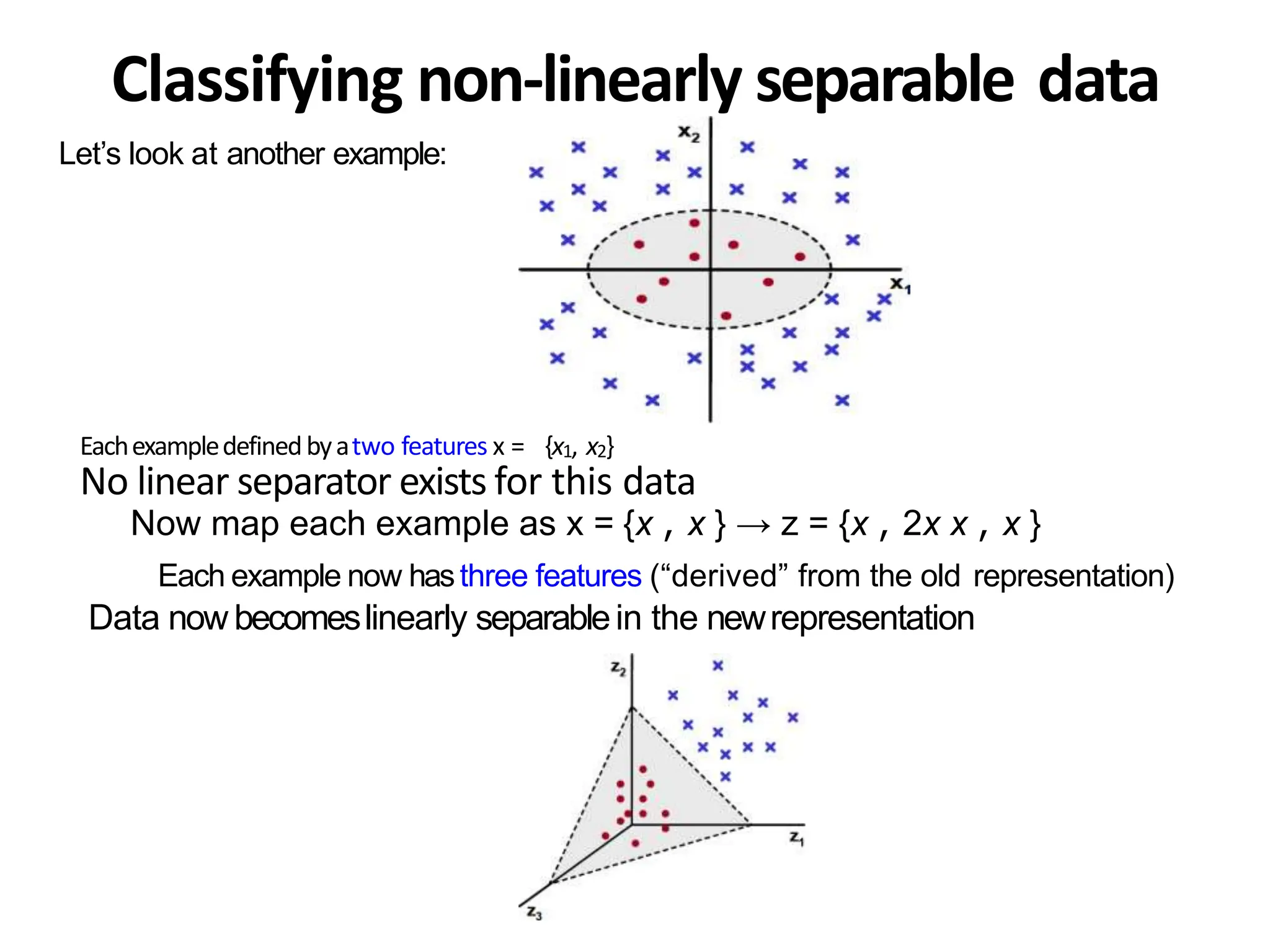

56. Classifying non-linearly separable data
Let’s look at another example:
Eachexampledefinedbyatwo features x = {x1, x2}
No linear separator exists for this data
Now map each example as x = {x , x } → z = {x , 2x x , x }
Each example now hasthree features (“derived” from the old representation)
Data now becomeslinearly separablein the newrepresentation

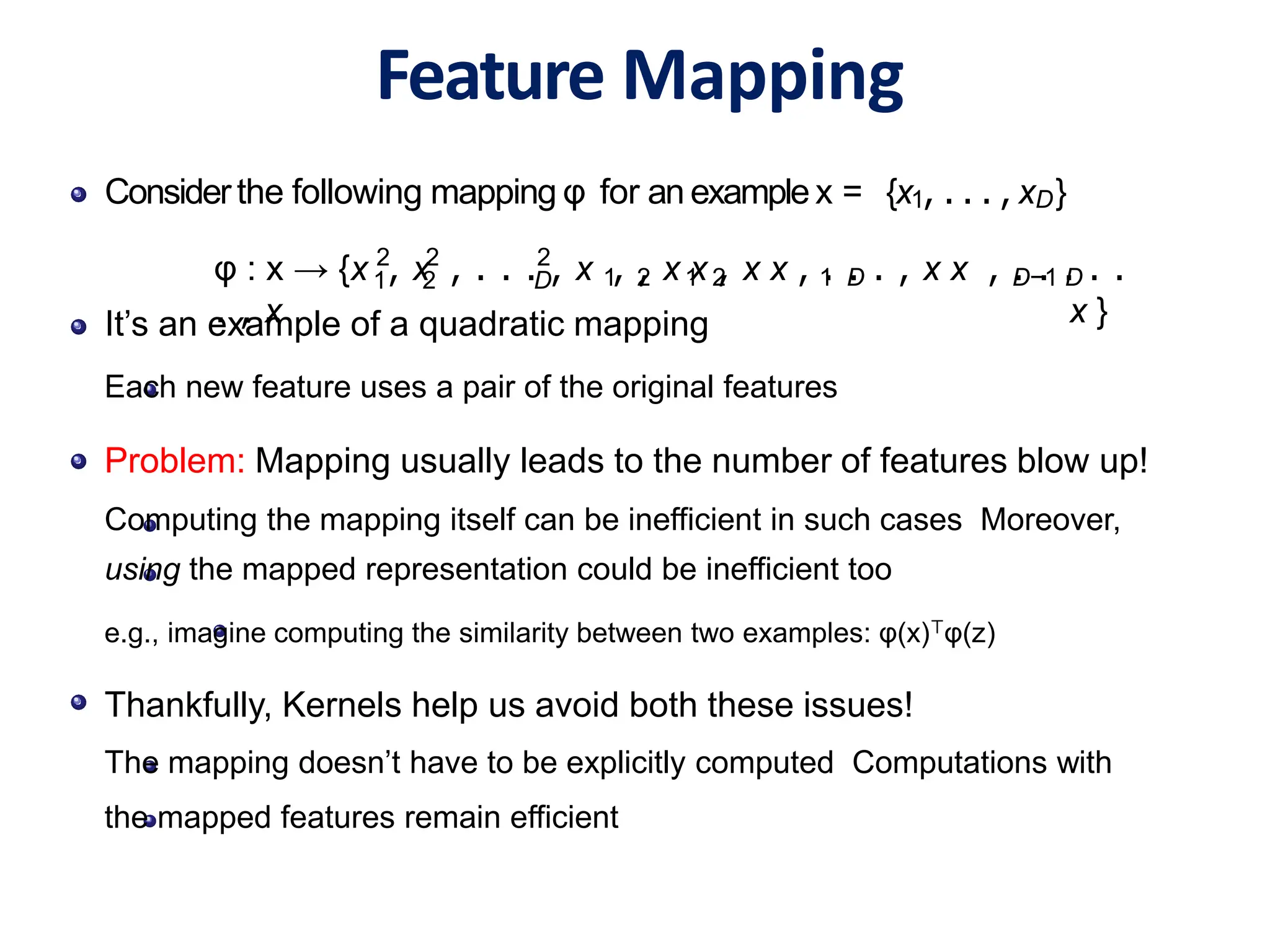

57. Feature Mapping
Considerthe following mapping φ for an example x = {x1, . . . , xD}
2 2 2
1 2 D 1 2 1 2 1 D D−1 D
φ : x → {x , x , . . . , x , , x x , x x , . . . , x x , . . . . .
. , x x }
It’s an example of a quadratic mapping
Each new feature uses a pair of the original features
Problem: Mapping usually leads to the number of features blow up!
Computing the mapping itself can be inefficient in such cases Moreover,
using the mapped representation could be inefficient too
e.g., imagine computing the similarity between two examples: φ(x)⊤φ(z)
Thankfully, Kernels help us avoid both these issues!
The mapping doesn’t have to be explicitly computed Computations with
the mapped features remain efficient

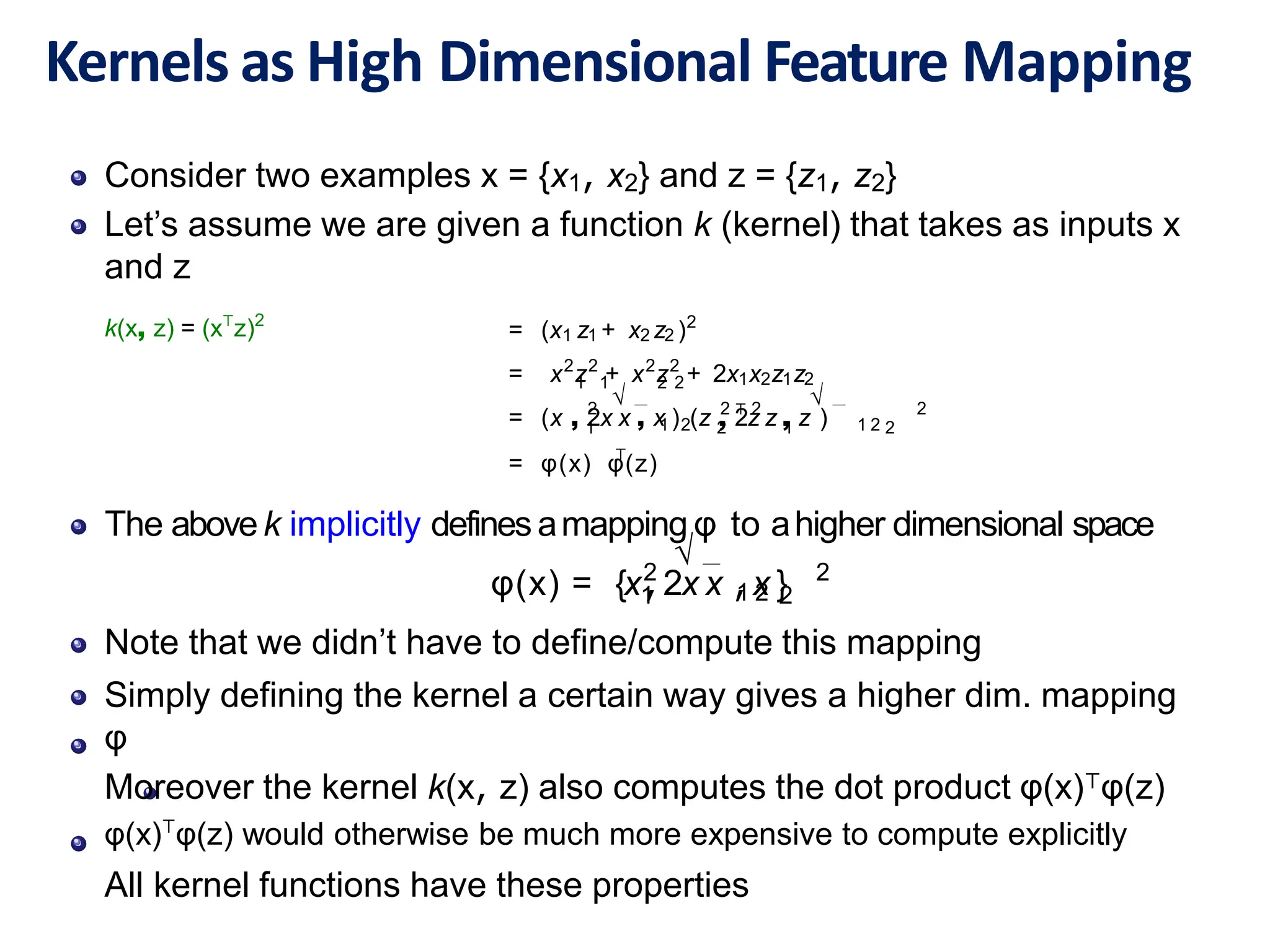

58. Kernels as High Dimensional Feature Mapping
Consider two examples x = {x1, x2} and z = {z1, z2}
Let’s assume we are given a function k (kernel) that takes as inputs x
and z
k(x, z) = (x⊤
z)2
1 1 2 2
= (x1 z1 + x2 z2 )2
= x2
z2
+ x2
z2
+ 2x1x2z1z2
2 2 ⊤ 2
1 1 2 2 1
√ √ 2
1 2 2
= (x , 2x x , x ) (z , 2z z , z )
⊤
= φ(x) φ(z)
The abovek implicitly defines amapping φ to ahigher dimensional space
√
2 2
1 1 2 2
φ(x) = {x, 2x x , x }
Note that we didn’t have to define/compute this mapping
Simply defining the kernel a certain way gives a higher dim. mapping
φ
Moreover the kernel k(x, z) also computes the dot product φ(x)⊤φ(z)
φ(x)⊤
φ(z) would otherwise be much more expensive to compute explicitly
All kernel functions have these properties

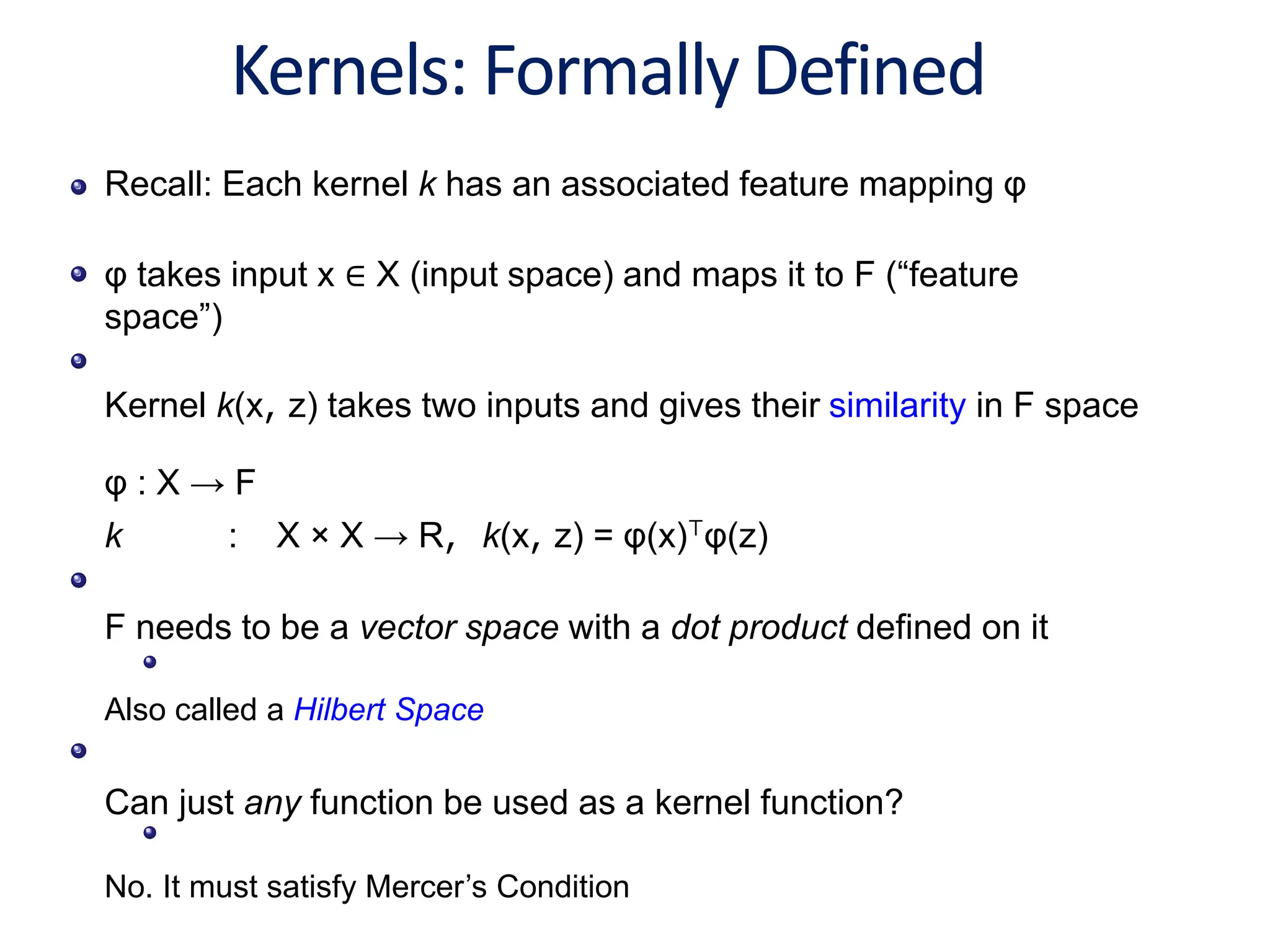

59. Kernels: Formally Defined
Recall: Each kernel k has an associated feature mapping φ
φ takes input x ∈ X (input space) and maps it to F (“feature
space”)
Kernel k(x, z) takes two inputs and gives their similarity in F space
φ : X → F
k : X × X → R, k(x, z) = φ(x)⊤φ(z)
F needs to be a vector space with a dot product defined on it
Also called a Hilbert Space
Can just any function be used as a kernel function?
No. It must satisfy Mercer’s Condition

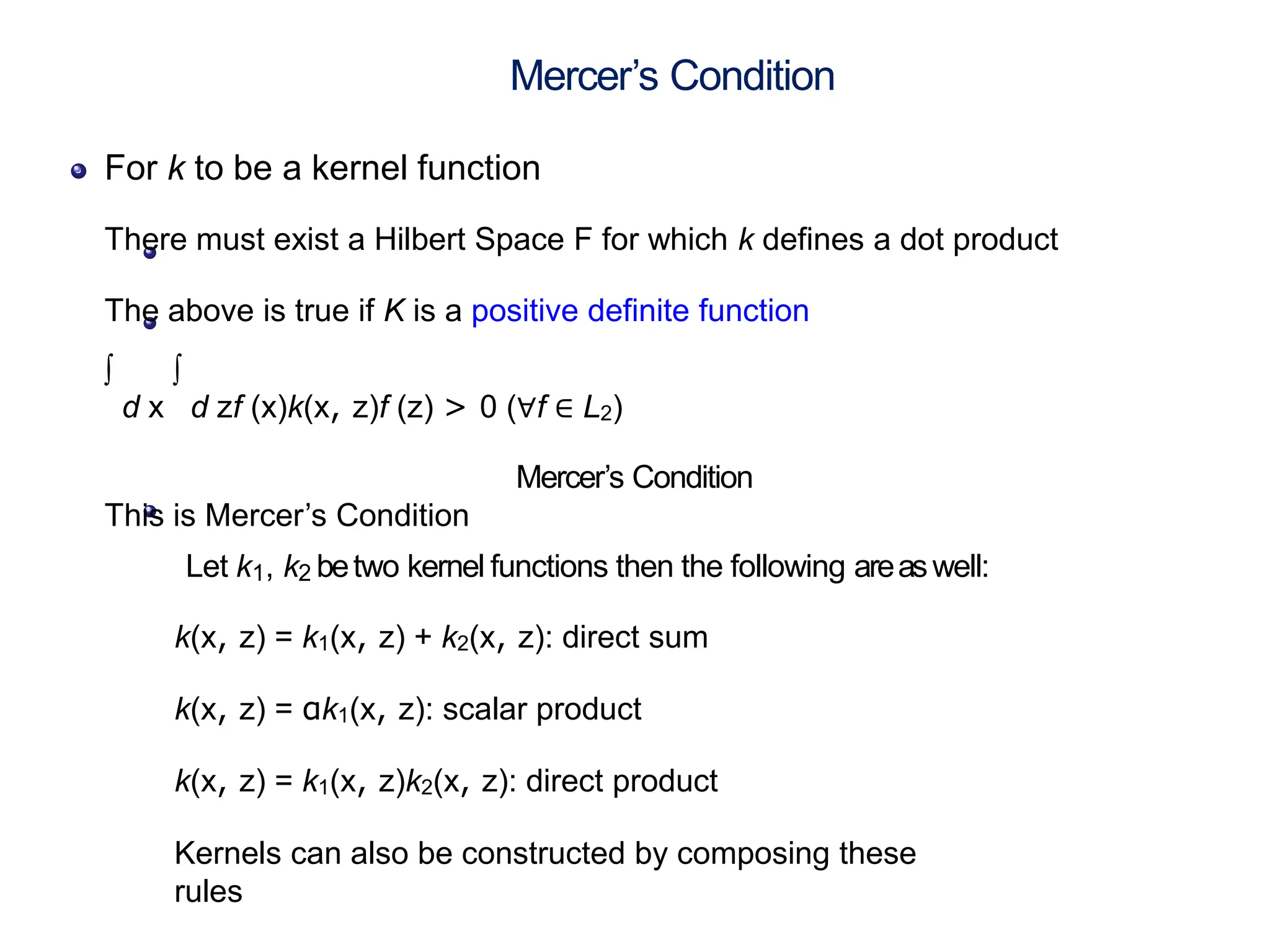

60. For k to be a kernel function
There must exist a Hilbert Space F for which k defines a dot product
The above is true if K is a positive definite function
∫
d x
∫
d zf (x)k(x, z)f (z) > 0 (∀f ∈ L2)
This is Mercer’s Condition
Let k1, k2 betwo kernel functions then the following areaswell:
Mercer’s Condition
Mercer’s Condition
k(x, z) = k1(x, z) + k2(x, z): direct sum
k(x, z) = αk1(x, z): scalar product
k(x, z) = k1(x, z)k2(x, z): direct product
Kernels can also be constructed by composing these
rules

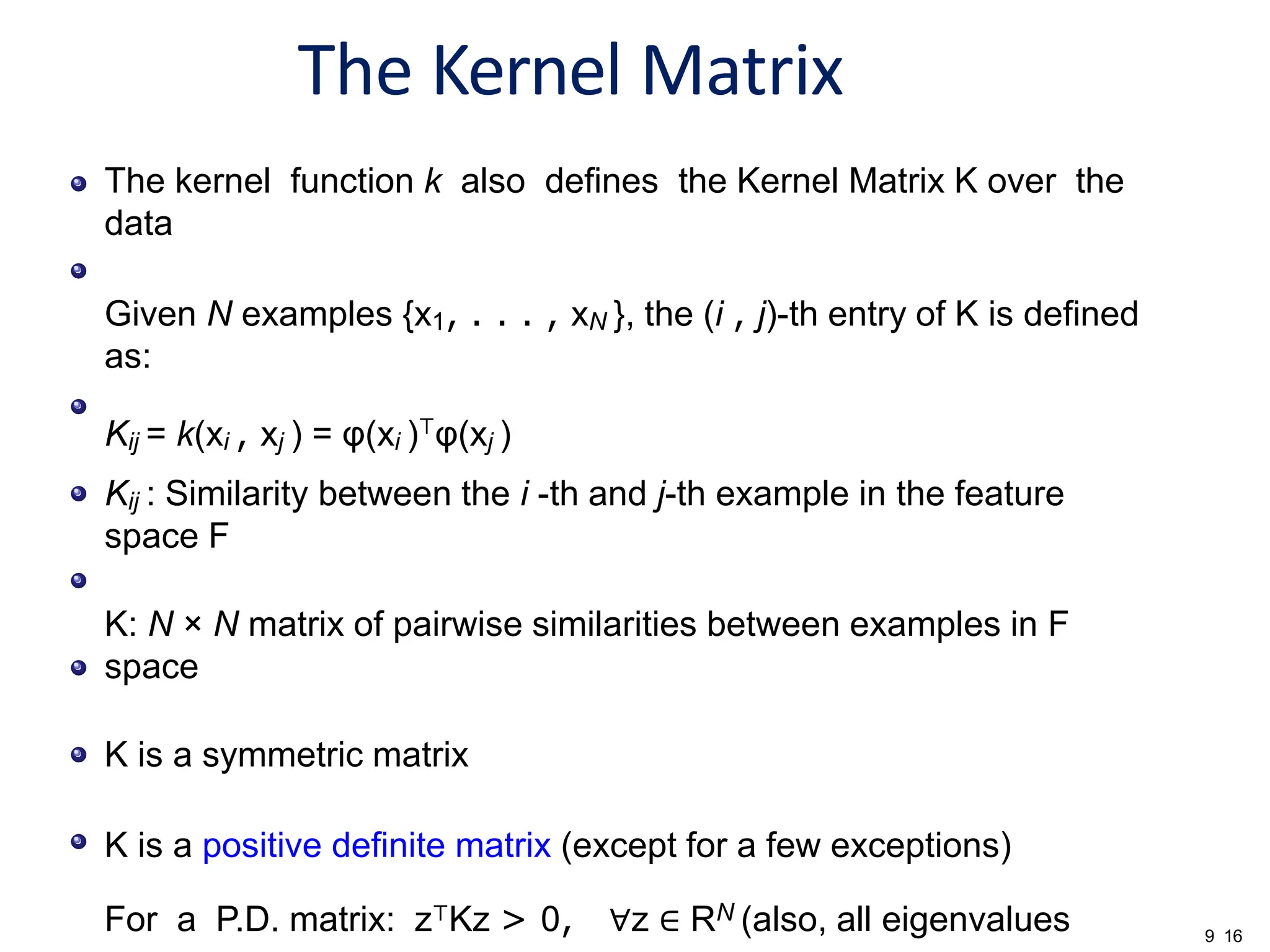

61. The Kernel Matrix
The kernel function k also defines the Kernel Matrix K over the
data
Given N examples {x1, . . . , xN }, the (i , j)-th entry of K is defined
as:
Kij = k(xi , xj ) = φ(xi )⊤φ(xj )
Kij : Similarity between the i -th and j-th example in the feature
space F
K: N × N matrix of pairwise similarities between examples in F
space
K is a symmetric matrix
K is a positive definite matrix (except for a few exceptions)
For a P.D. matrix: z⊤Kz > 0, ∀z ∈ RN (also, all eigenvalues 9 16

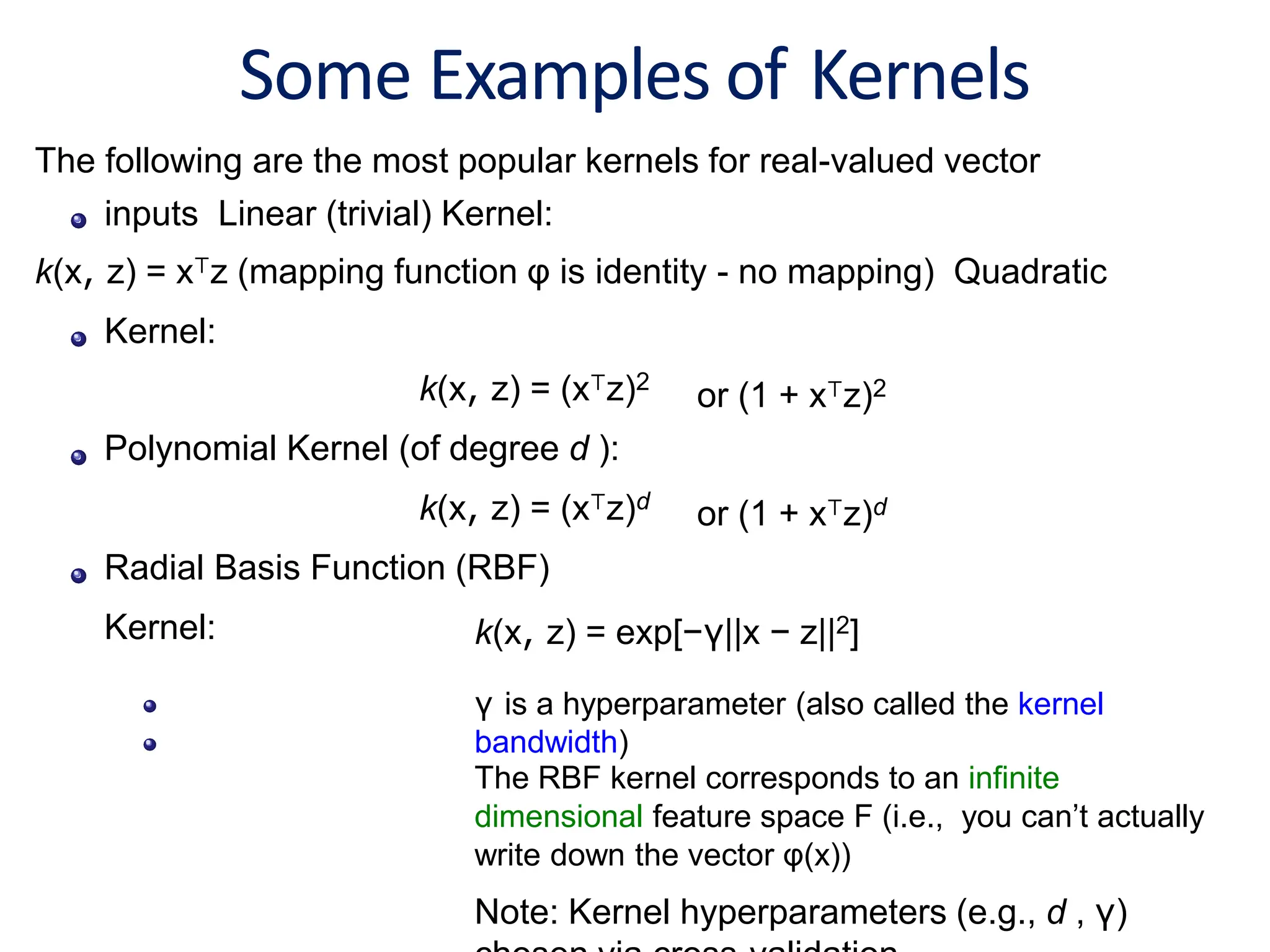

62. Some Examples of Kernels
The following are the most popular kernels for real-valued vector
inputs Linear (trivial) Kernel:
k(x, z) = x⊤z (mapping function φ is identity - no mapping) Quadratic
Kernel:
or (1 + x⊤z)2
or (1 + x⊤z)d
k(x, z) = (x⊤z)2
Polynomial Kernel (of degree d ):
k(x, z) = (x⊤z)d
Radial Basis Function (RBF)
Kernel: k(x, z) = exp[−γ||x − z||2]
γ is a hyperparameter (also called the kernel
bandwidth)
The RBF kernel corresponds to an infinite
dimensional feature space F (i.e., you can’t actually
write down the vector φ(x))
Note: Kernel hyperparameters (e.g., d , γ)

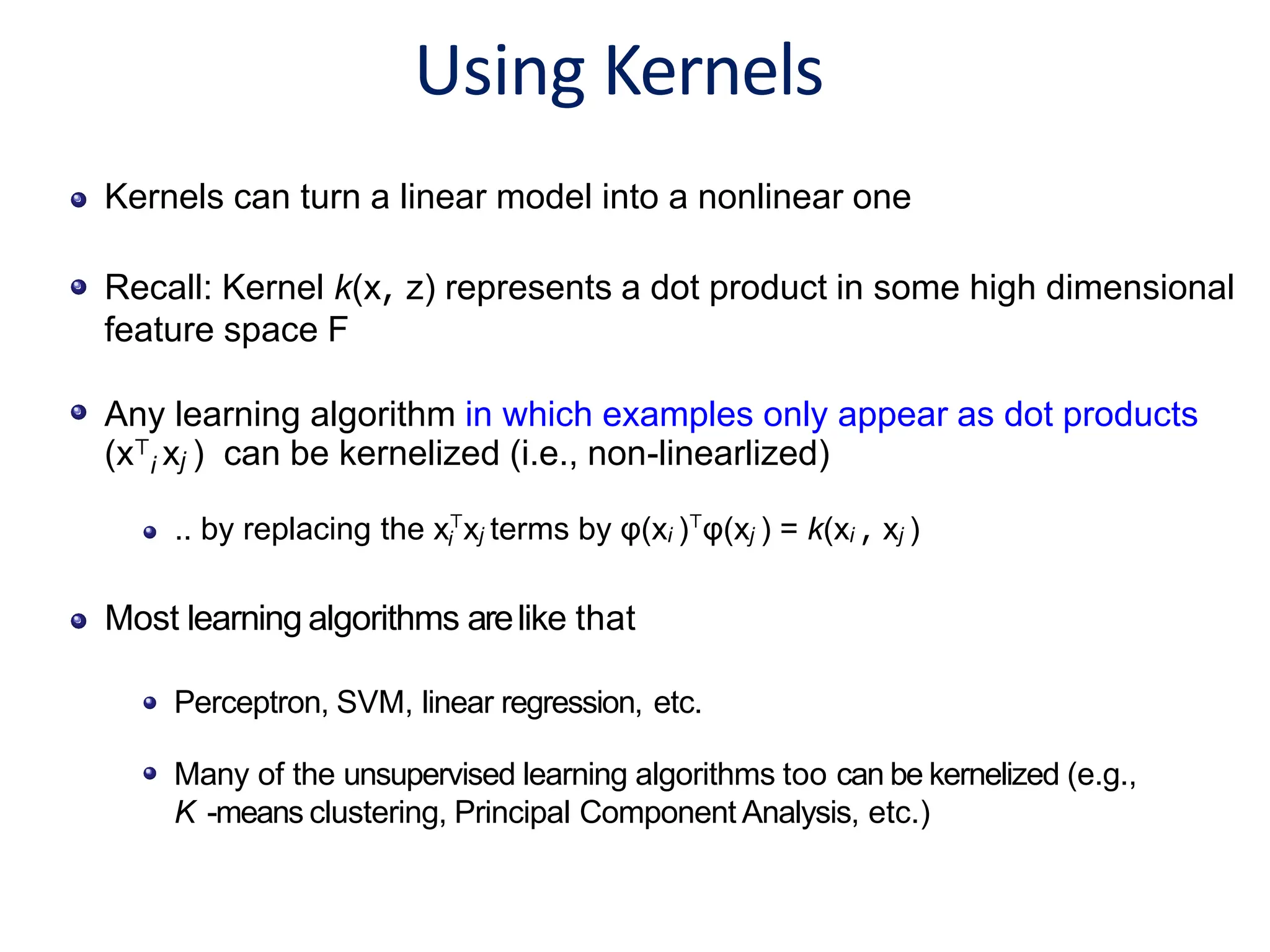

63. Using Kernels
Kernels can turn a linear model into a nonlinear one
Recall: Kernel k(x, z) represents a dot product in some high dimensional
feature space F
Any learning algorithm in which examples only appear as dot products
(x⊤
i xj ) can be kernelized (i.e., non-linearlized)
i
.. by replacing the x⊤
xj terms by φ(xi )⊤
φ(xj ) = k(xi , xj )
Most learning algorithms arelike that
Perceptron, SVM, linear regression, etc.
Many of the unsupervised learning algorithms too can be kernelized (e.g.,
K -means clustering, Principal Component Analysis, etc.)

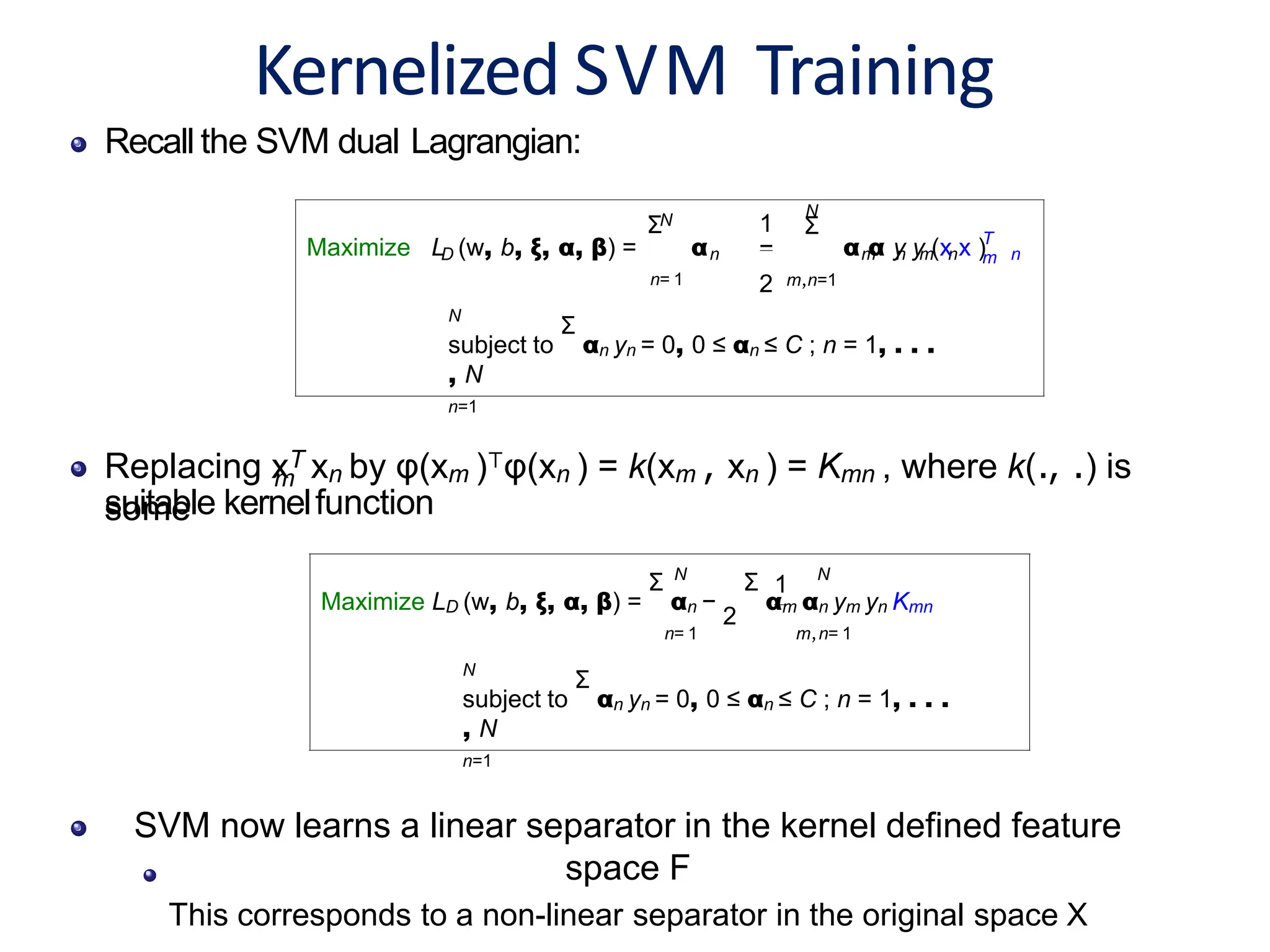

64. Kernelized SVM Training
Recall the SVM dual Lagrangian:
D
N
Σ
n= 1
Maximize L (w, b, ξ, α, β) = αn
1
−
2
N
Σ
m,n=1
T
m
m n m n n
α α y y (x x )
N
subject to
Σ
αn yn = 0, 0 ≤ αn ≤ C ; n = 1, . . .
, N
n=1
m
Replacing xT xn by φ(xm )⊤φ(xn ) = k(xm , xn ) = Kmn , where k(., .) is
some
suitable kernelfunction
1
N N
n= 1 m,n= 1
Maximize LD (w, b, ξ, α, β) =
Σ
αn −
2
Σ
αm αn ym yn Kmn
N
subject to
Σ
αn yn = 0, 0 ≤ αn ≤ C ; n = 1, . . .
, N
n=1
SVM now learns a linear separator in the kernel defined feature
space F
This corresponds to a non-linear separator in the original space X

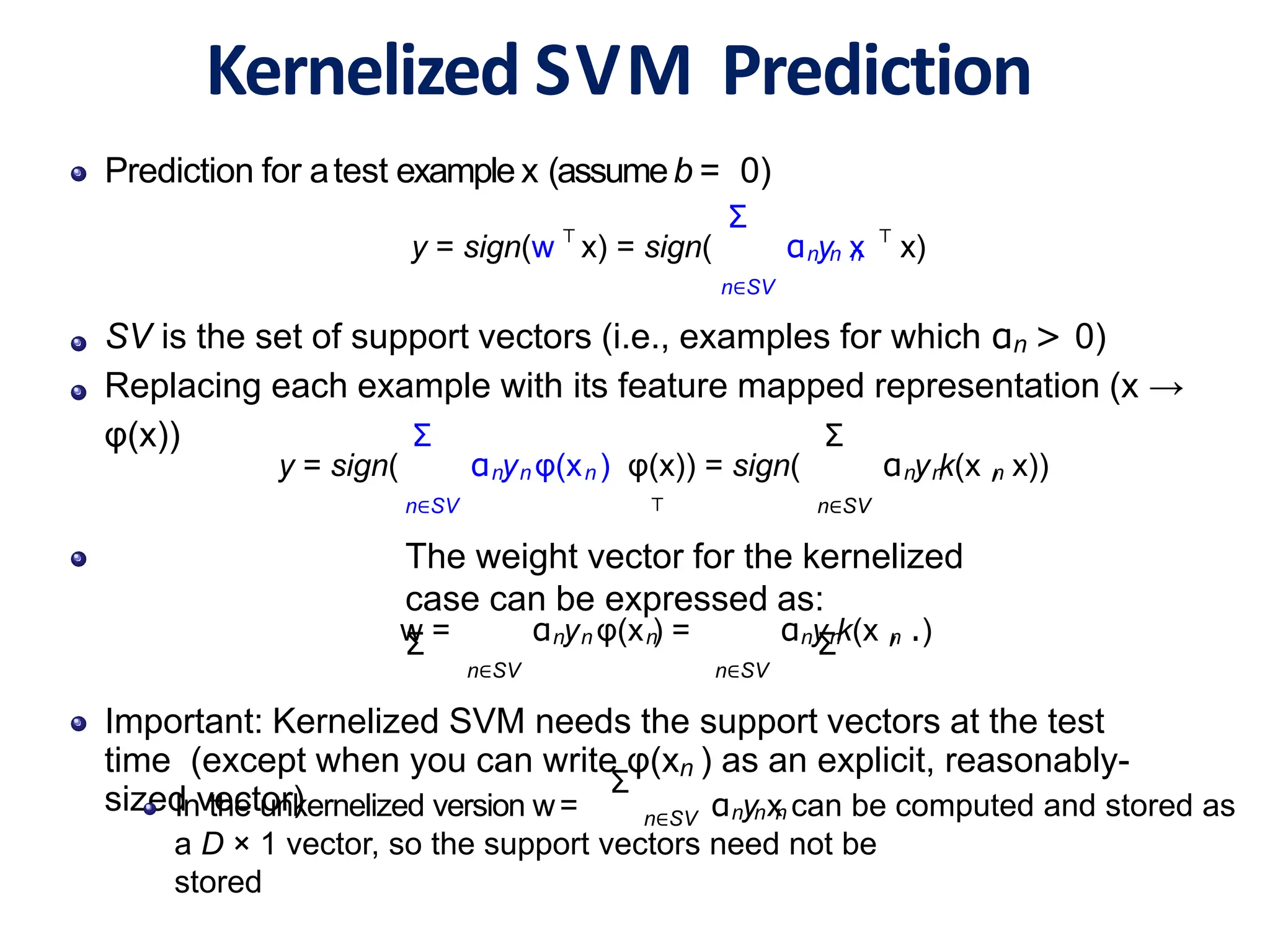

65. Kernelized SVM Prediction
Prediction for atest example x (assumeb = 0)
⊤
Σ
n∈SV
y = sign(w x) = sign( α y
n n n
⊤
x x)
n n n
SV is the set of support vectors (i.e., examples for which αn > 0)
Replacing each example with its feature mapped representation (x →
φ(x))
⊤
Σ Σ
n n n
y = sign( α y φ(x ) φ(x)) = sign( α y k(x , x))
n∈SV n∈SV
The weight vector for the kernelized
case can be expressed as:
Σ Σ
n∈SV n∈SV
n n n n n n
w = α y φ(x ) = α y k(x , .)
Important: Kernelized SVM needs the support vectors at the test
time (except when you can write φ(xn ) as an explicit, reasonably-
sized vector)
In the unkernelized version w=
Σ
n∈SV n n n
α y x can be computed and stored as
a D × 1 vector, so the support vectors need not be
stored

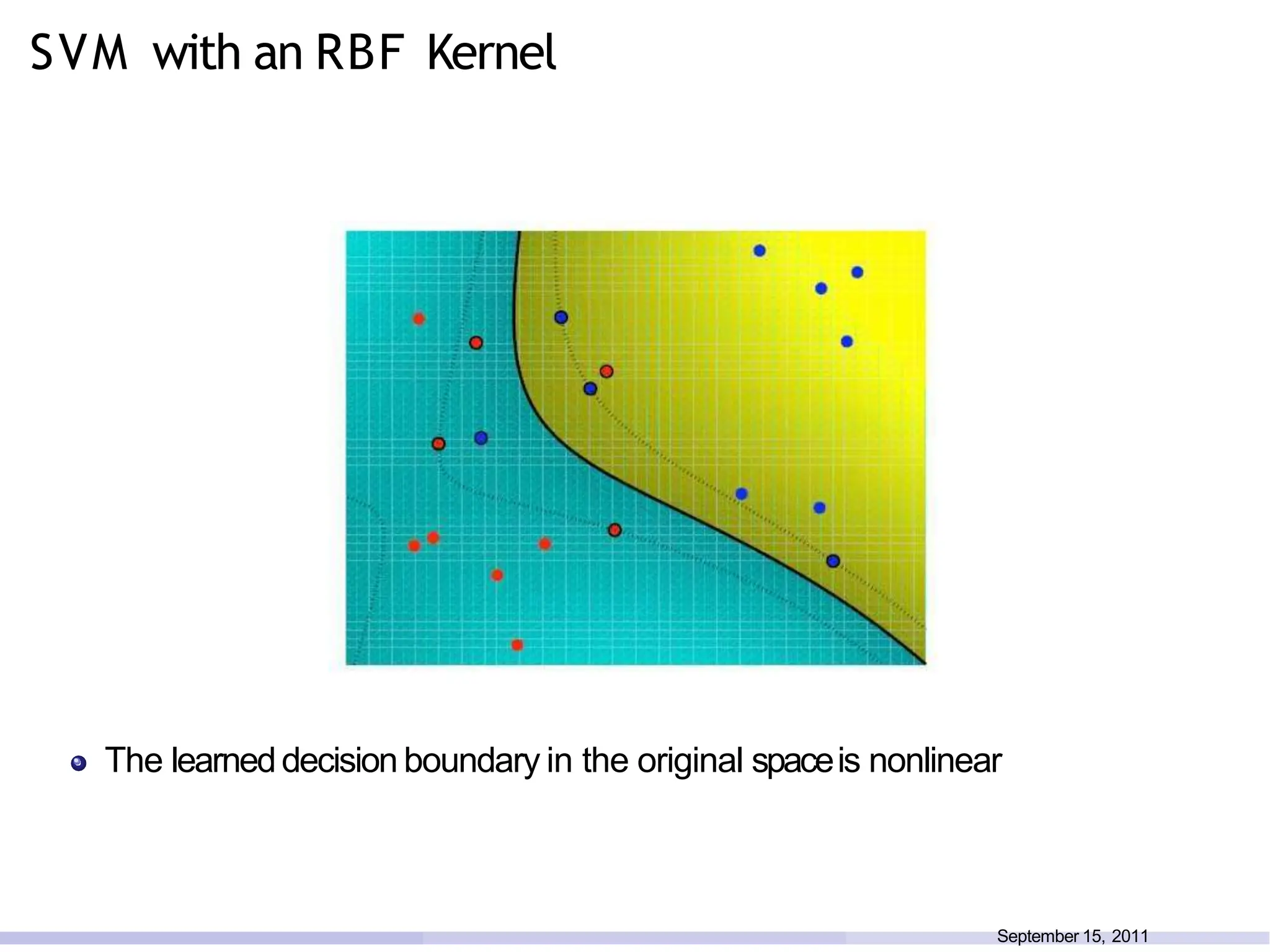

66. SVM with an RBF Kernel
The learneddecision boundary in the original spaceis nonlinear
September 15, 2011

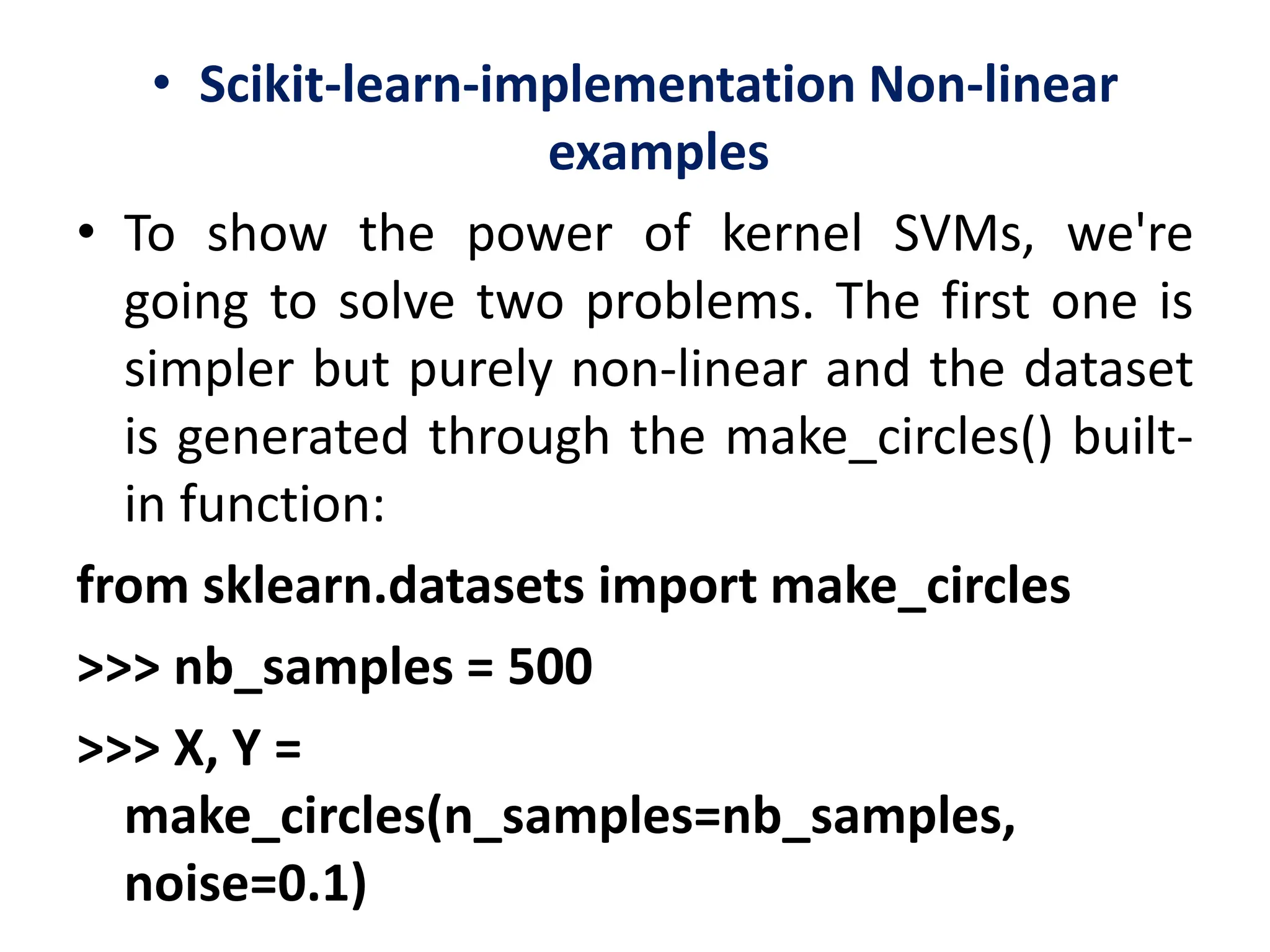

67. • Scikit-learn-implementation Non-linear
examples

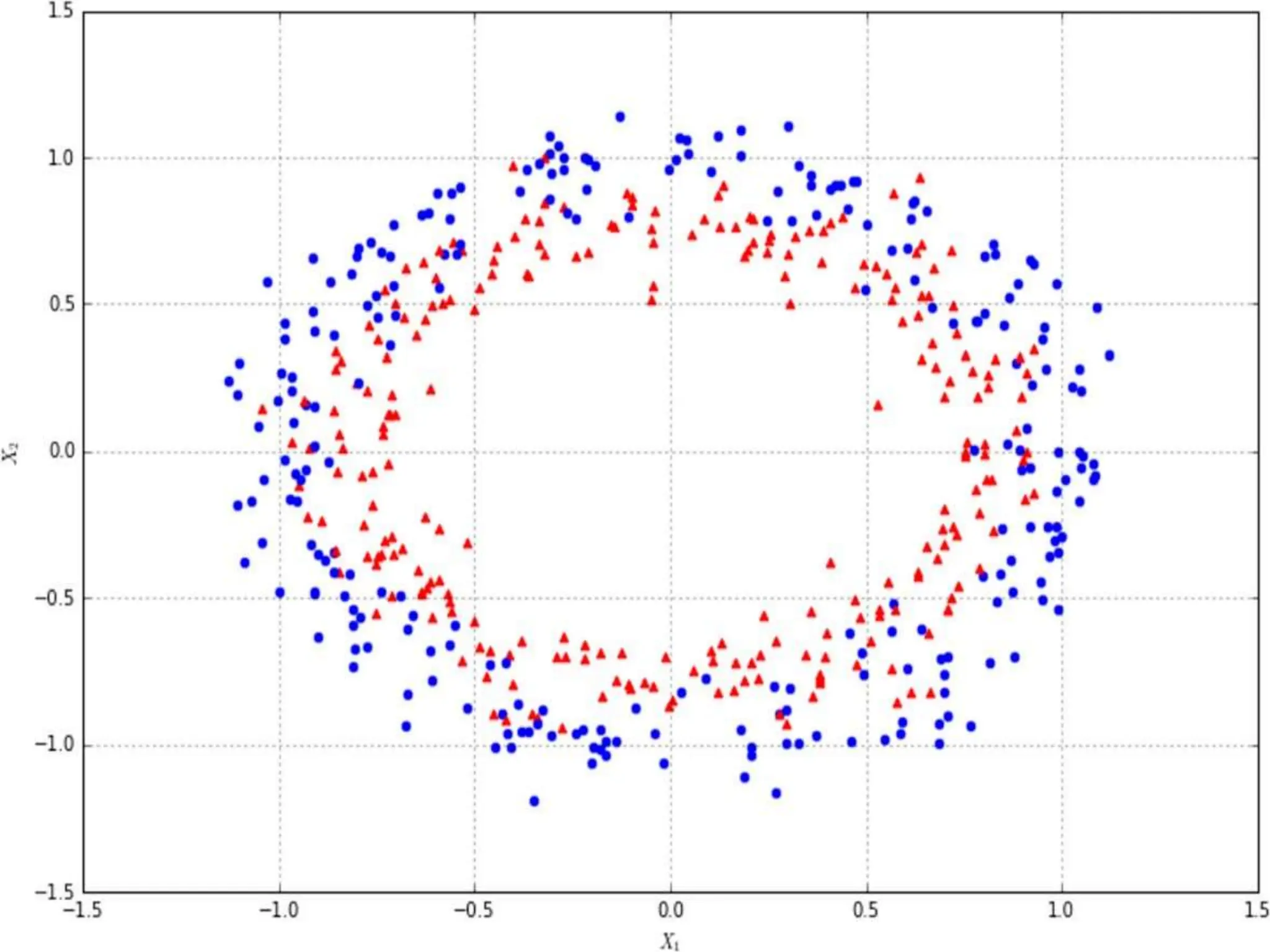

• To show the power of kernel SVMs, we're
going to solve two problems. The first one is
simpler but purely non-linear and the dataset
is generated through the make_circles() built-
in function:
from sklearn.datasets import make_circles
>>> nb_samples = 500
>>> X, Y =
make_circles(n_samples=nb_samples,
noise=0.1)

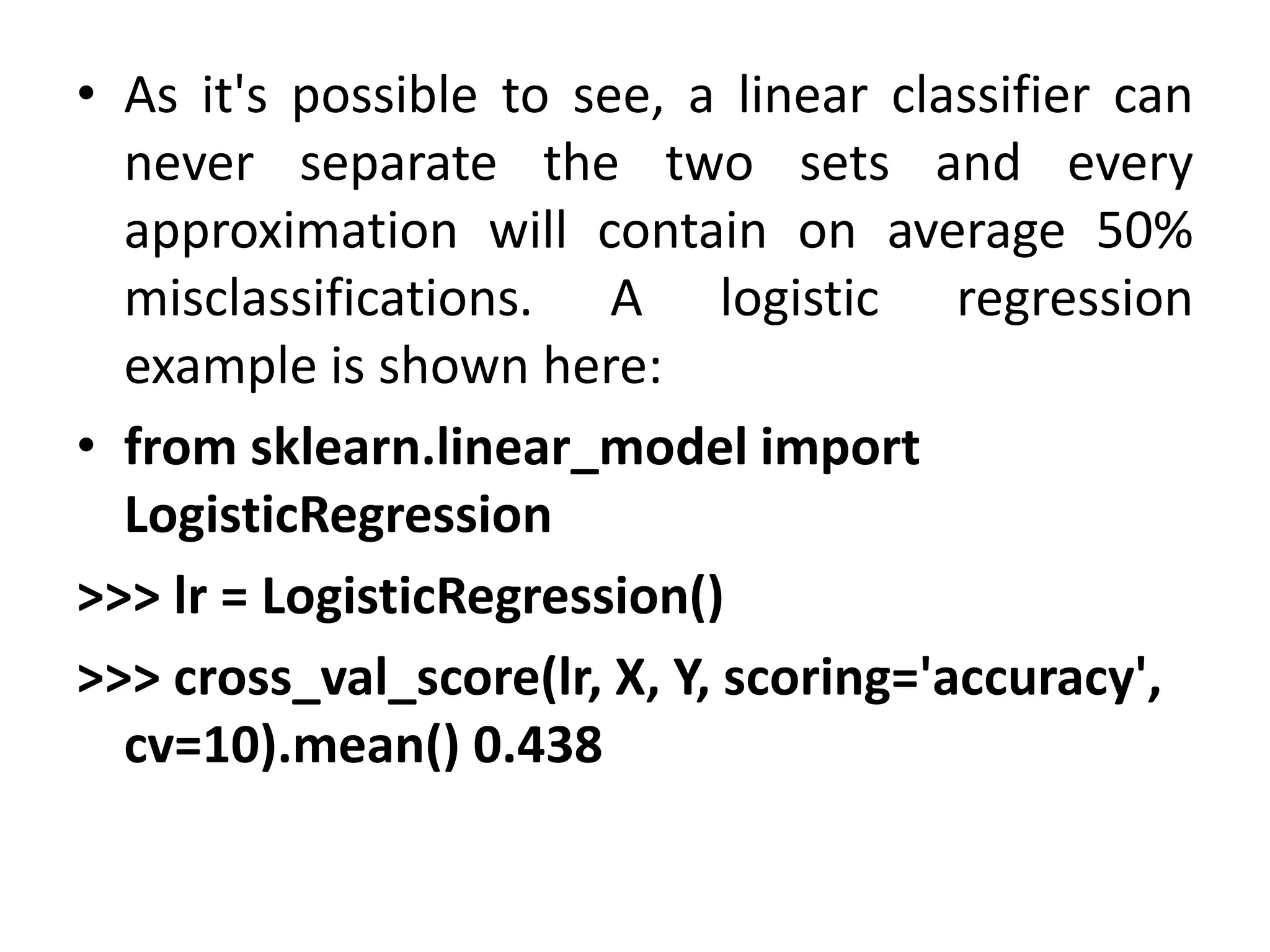

69. • As it's possible to see, a linear classifier can
never separate the two sets and every
approximation will contain on average 50%
misclassifications. A logistic regression
example is shown here:
• from sklearn.linear_model import
LogisticRegression
>>> lr = LogisticRegression()
>>> cross_val_score(lr, X, Y, scoring='accuracy',
cv=10).mean() 0.438

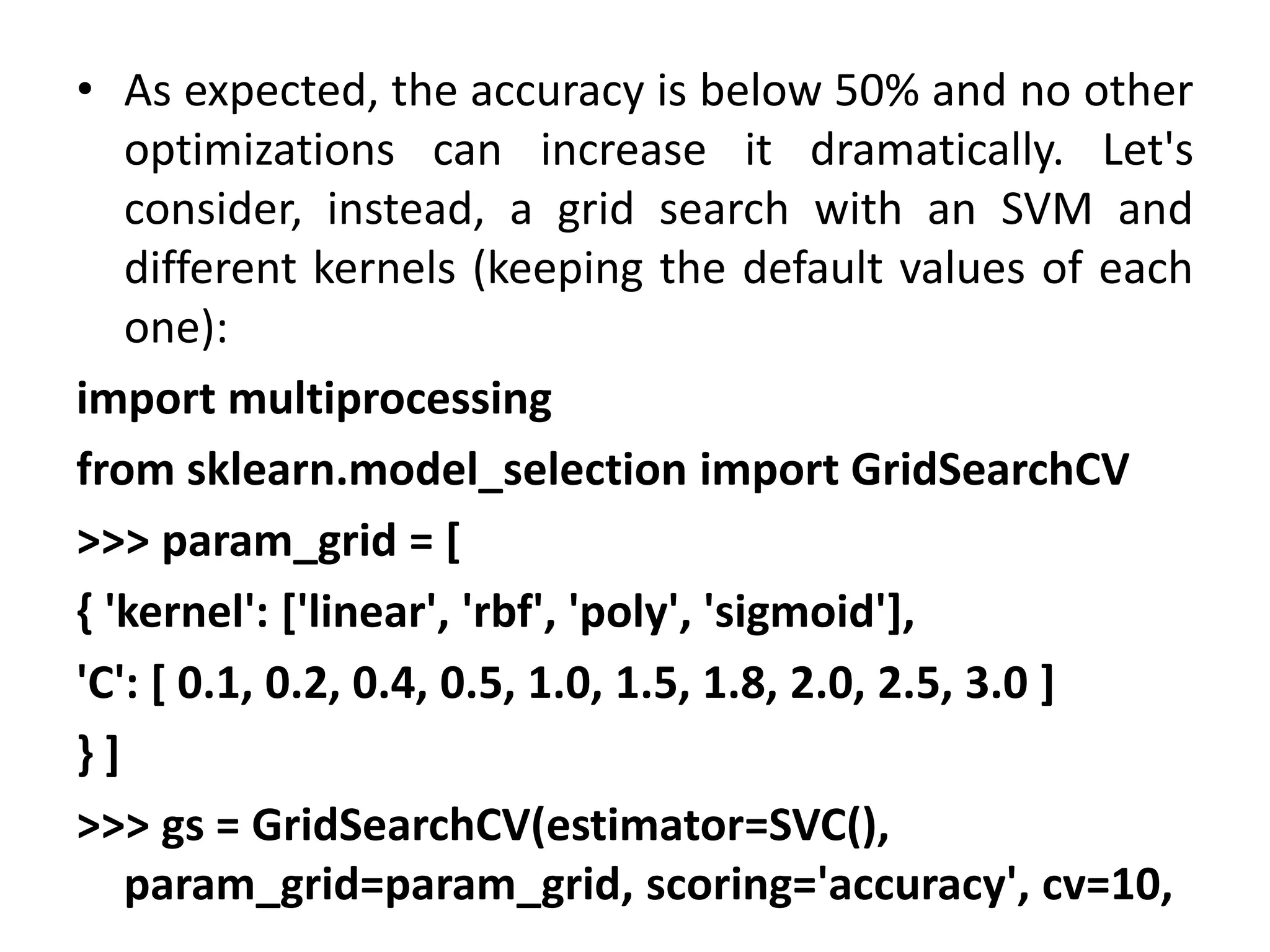

70. • As expected, the accuracy is below 50% and no other
optimizations can increase it dramatically. Let's
consider, instead, a grid search with an SVM and
different kernels (keeping the default values of each
one):
import multiprocessing
from sklearn.model_selection import GridSearchCV
>>> param_grid = [
{ 'kernel': ['linear', 'rbf', 'poly', 'sigmoid'],
'C': [ 0.1, 0.2, 0.4, 0.5, 1.0, 1.5, 1.8, 2.0, 2.5, 3.0 ]
} ]
>>> gs = GridSearchCV(estimator=SVC(),
param_grid=param_grid, scoring='accuracy', cv=10,

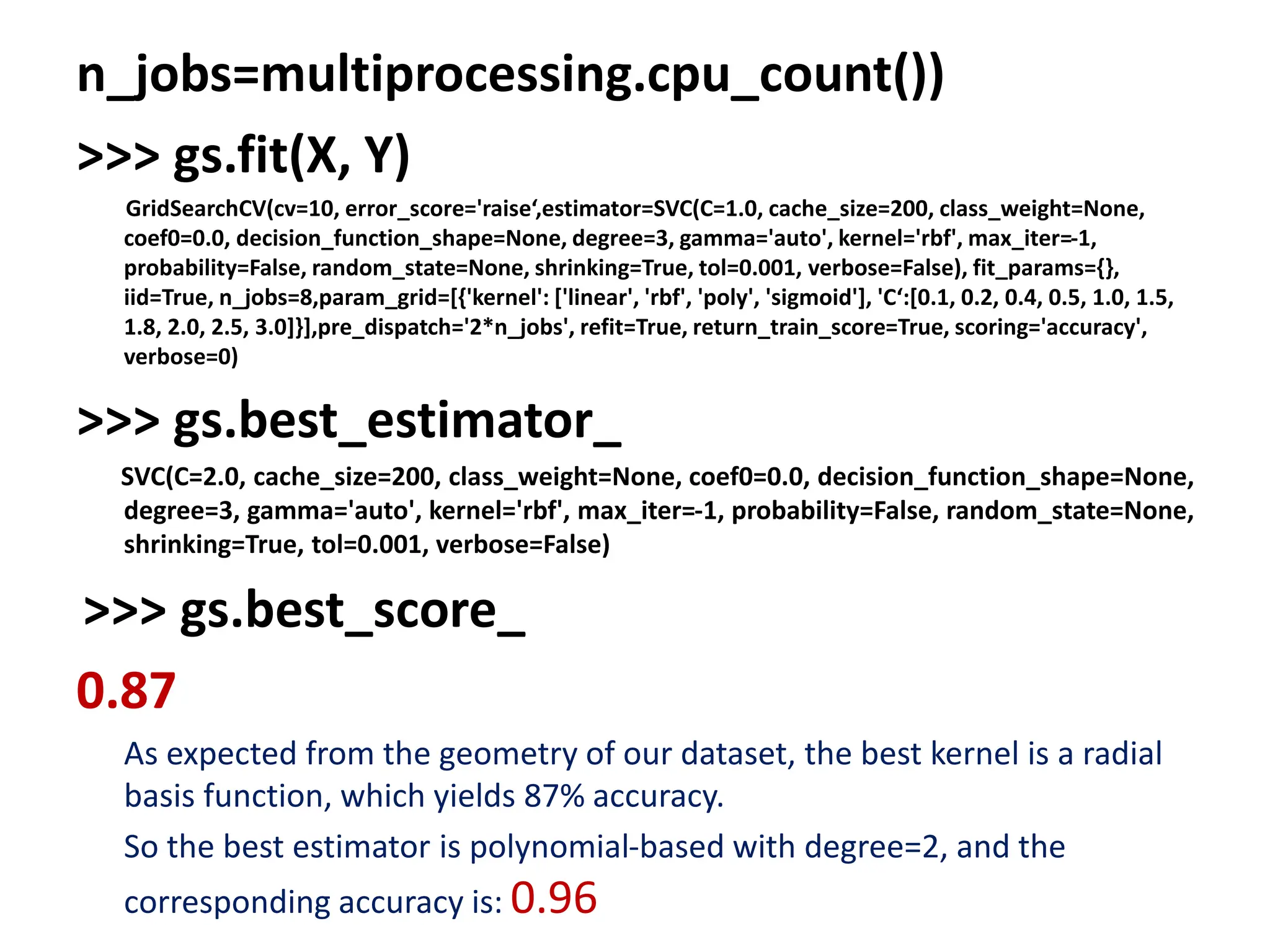

71. n_jobs=multiprocessing.cpu_count())
>>> gs.fit(X, Y)
GridSearchCV(cv=10, error_score='raise‘,estimator=SVC(C=1.0, cache_size=200, class_weight=None,
coef0=0.0, decision_function_shape=None, degree=3, gamma='auto', kernel='rbf', max_iter=-1,
probability=False, random_state=None, shrinking=True, tol=0.001, verbose=False), fit_params={},
iid=True, n_jobs=8,param_grid=[{'kernel': ['linear', 'rbf', 'poly', 'sigmoid'], 'C‘:[0.1, 0.2, 0.4, 0.5, 1.0, 1.5,
1.8, 2.0, 2.5, 3.0]}],pre_dispatch='2*n_jobs', refit=True, return_train_score=True, scoring='accuracy',
verbose=0)
>>> gs.best_estimator_
SVC(C=2.0, cache_size=200, class_weight=None, coef0=0.0, decision_function_shape=None,
degree=3, gamma='auto', kernel='rbf', max_iter=-1, probability=False, random_state=None,
shrinking=True, tol=0.001, verbose=False)
>>> gs.best_score_
0.87
As expected from the geometry of our dataset, the best kernel is a radial
basis function, which yields 87% accuracy.
So the best estimator is polynomial-based with degree=2, and the
corresponding accuracy is: 0.96

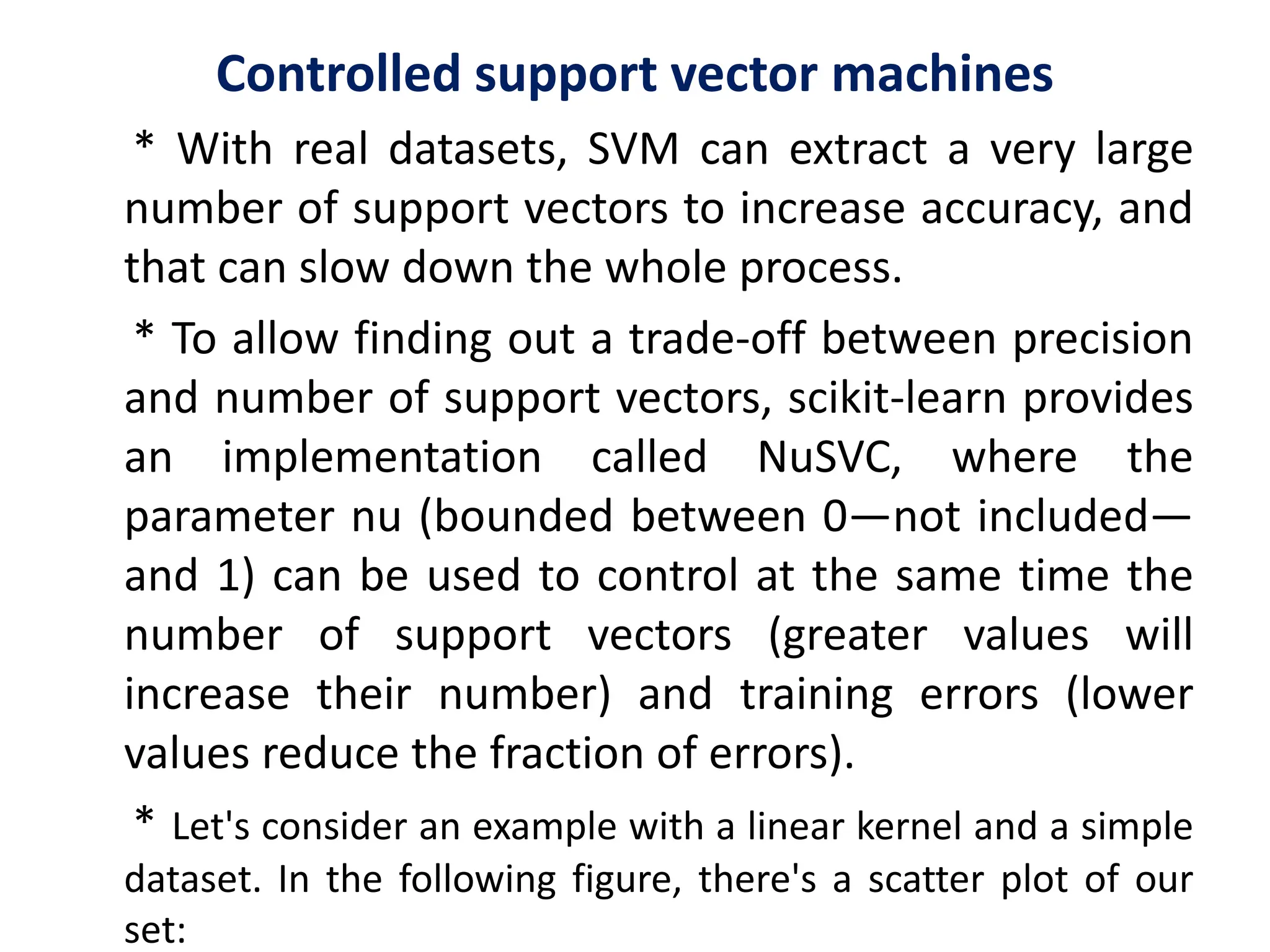

72. Controlled support vector machines
* With real datasets, SVM can extract a very large
number of support vectors to increase accuracy, and
that can slow down the whole process.
* To allow finding out a trade-off between precision
and number of support vectors, scikit-learn provides
an implementation called NuSVC, where the
parameter nu (bounded between 0—not included—
and 1) can be used to control at the same time the
number of support vectors (greater values will
increase their number) and training errors (lower
values reduce the fraction of errors).

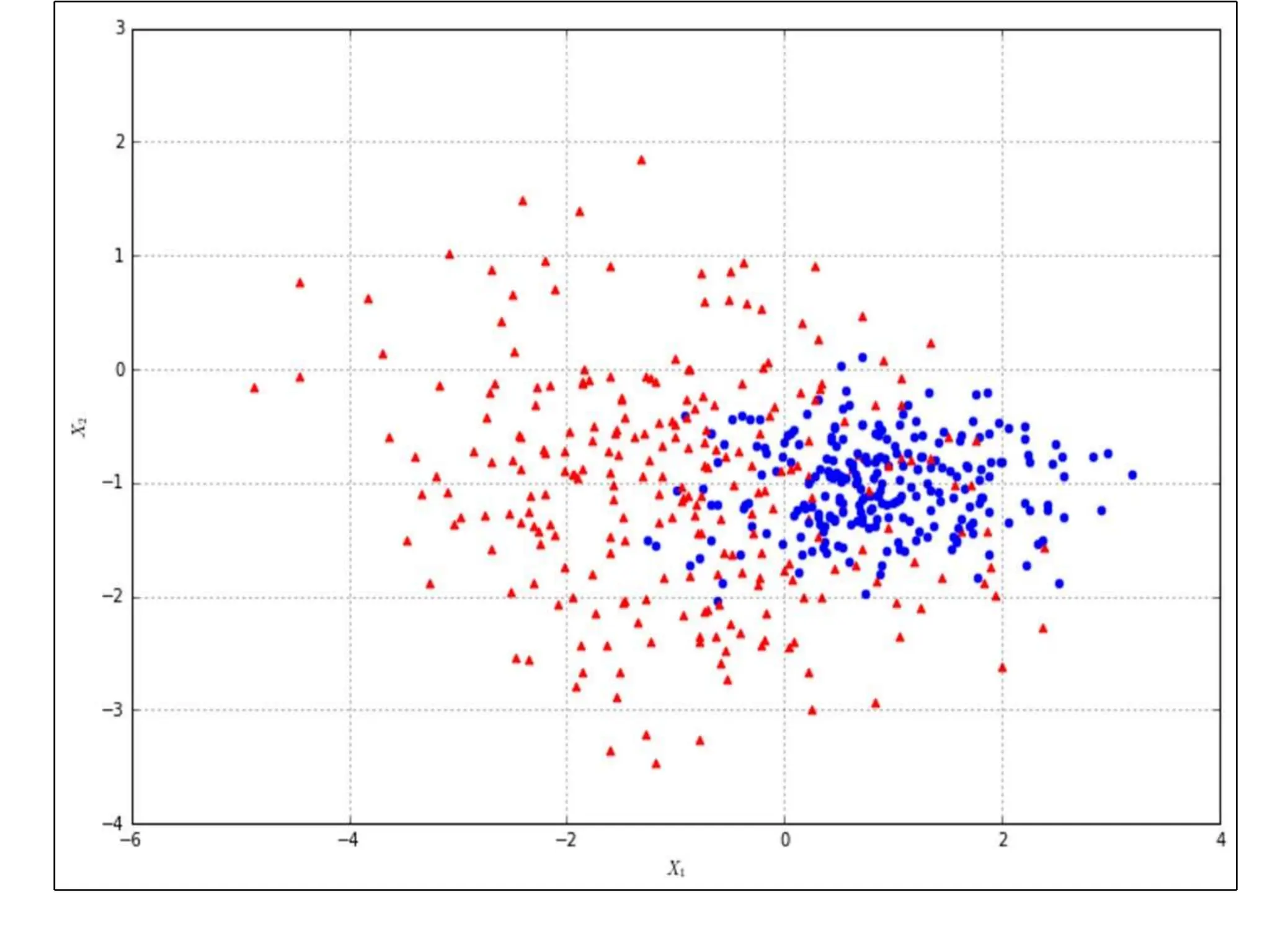

* Let's consider an example with a linear kernel and a simple
dataset. In the following figure, there's a scatter plot of our
set:

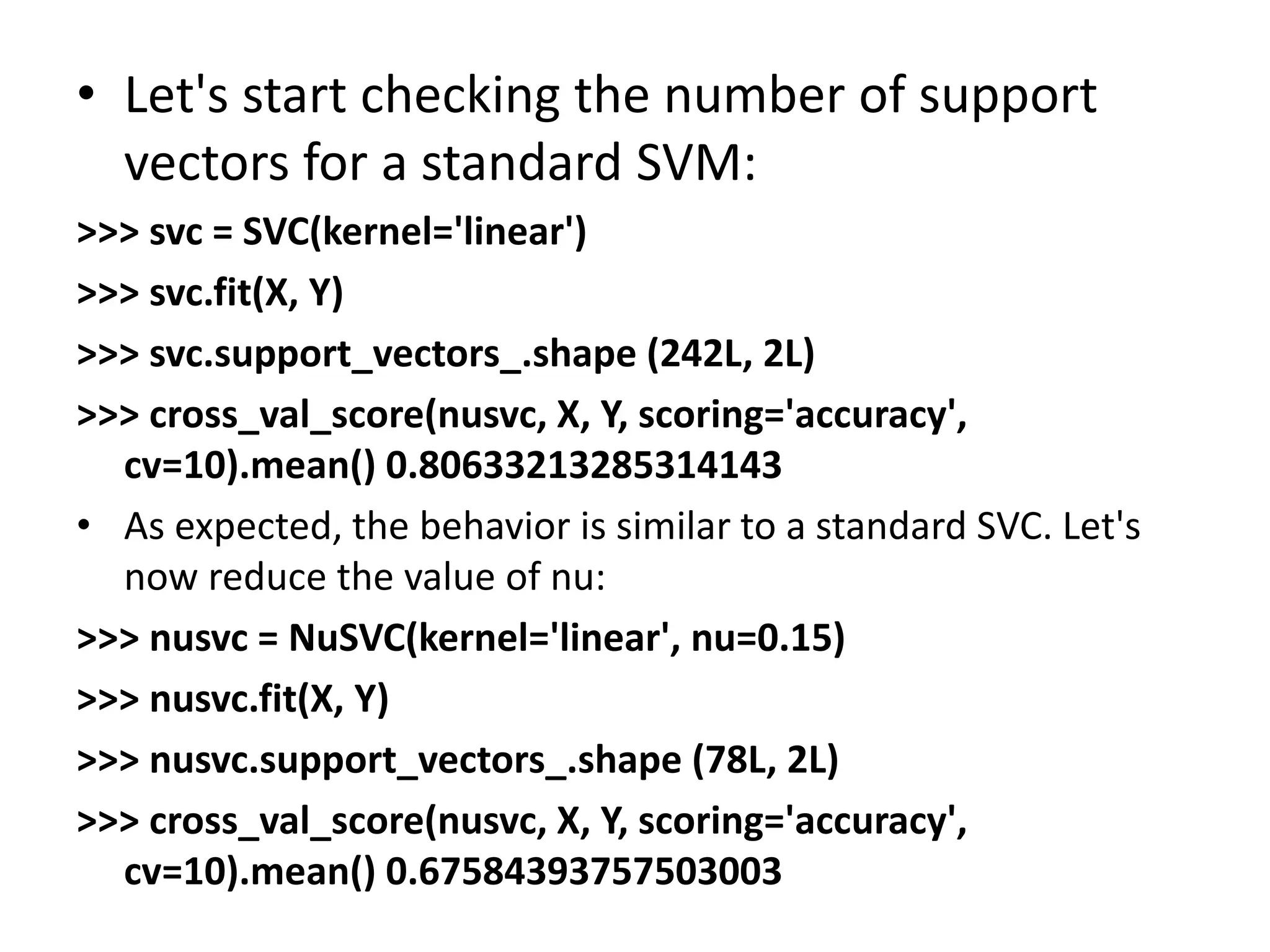

74. • Let's start checking the number of support
vectors for a standard SVM:
>>> svc = SVC(kernel='linear')
>>> svc.fit(X, Y)
>>> svc.support_vectors_.shape (242L, 2L)
>>> cross_val_score(nusvc, X, Y, scoring='accuracy',
cv=10).mean() 0.80633213285314143
• As expected, the behavior is similar to a standard SVC. Let's
now reduce the value of nu:
>>> nusvc = NuSVC(kernel='linear', nu=0.15)
>>> nusvc.fit(X, Y)
>>> nusvc.support_vectors_.shape (78L, 2L)
>>> cross_val_score(nusvc, X, Y, scoring='accuracy',
cv=10).mean() 0.67584393757503003

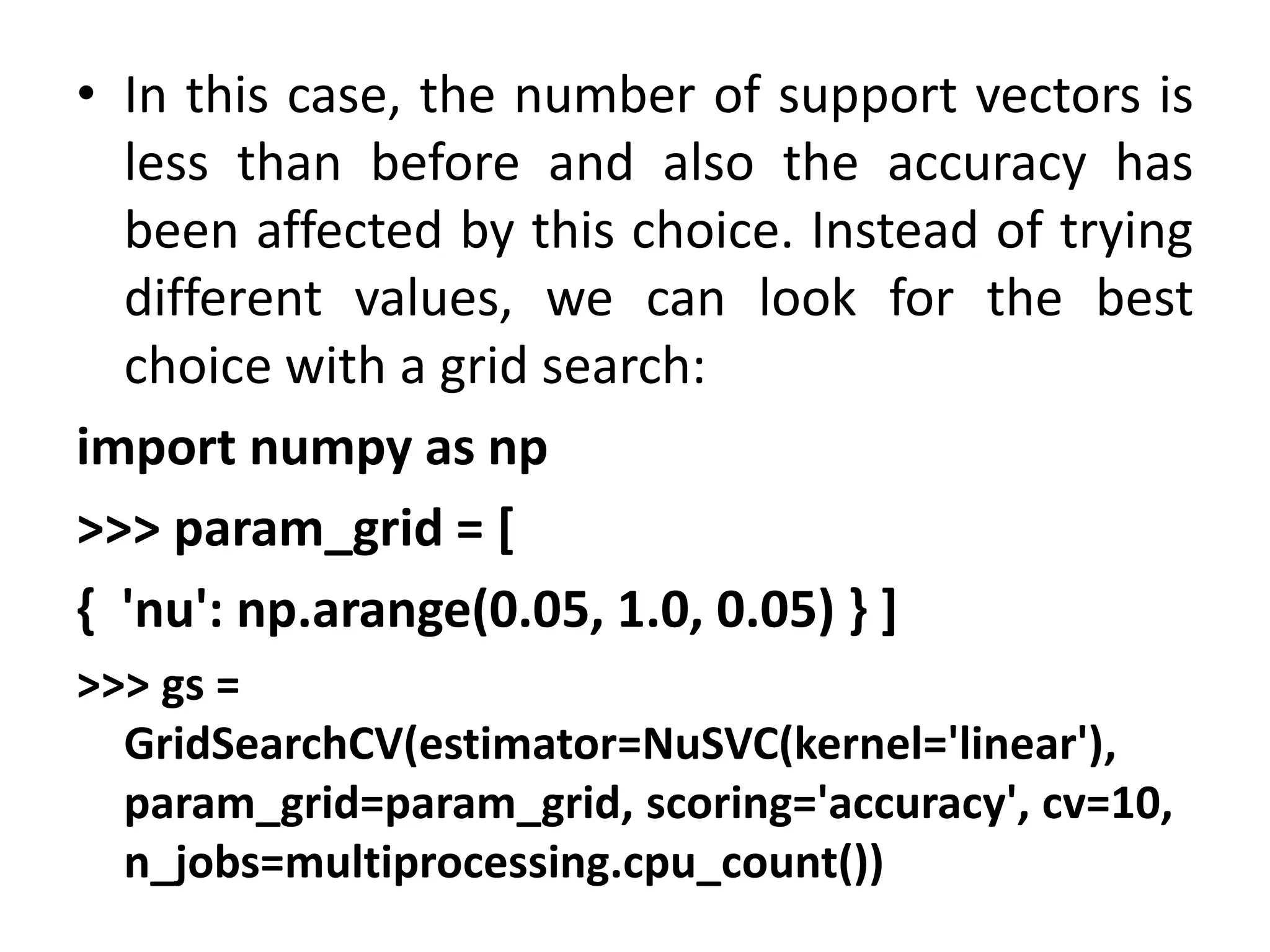

75. • In this case, the number of support vectors is
less than before and also the accuracy has
been affected by this choice. Instead of trying
different values, we can look for the best
choice with a grid search:
import numpy as np
>>> param_grid = [
{ 'nu': np.arange(0.05, 1.0, 0.05) } ]
>>> gs =
GridSearchCV(estimator=NuSVC(kernel='linear'),
param_grid=param_grid, scoring='accuracy', cv=10,
n_jobs=multiprocessing.cpu_count())

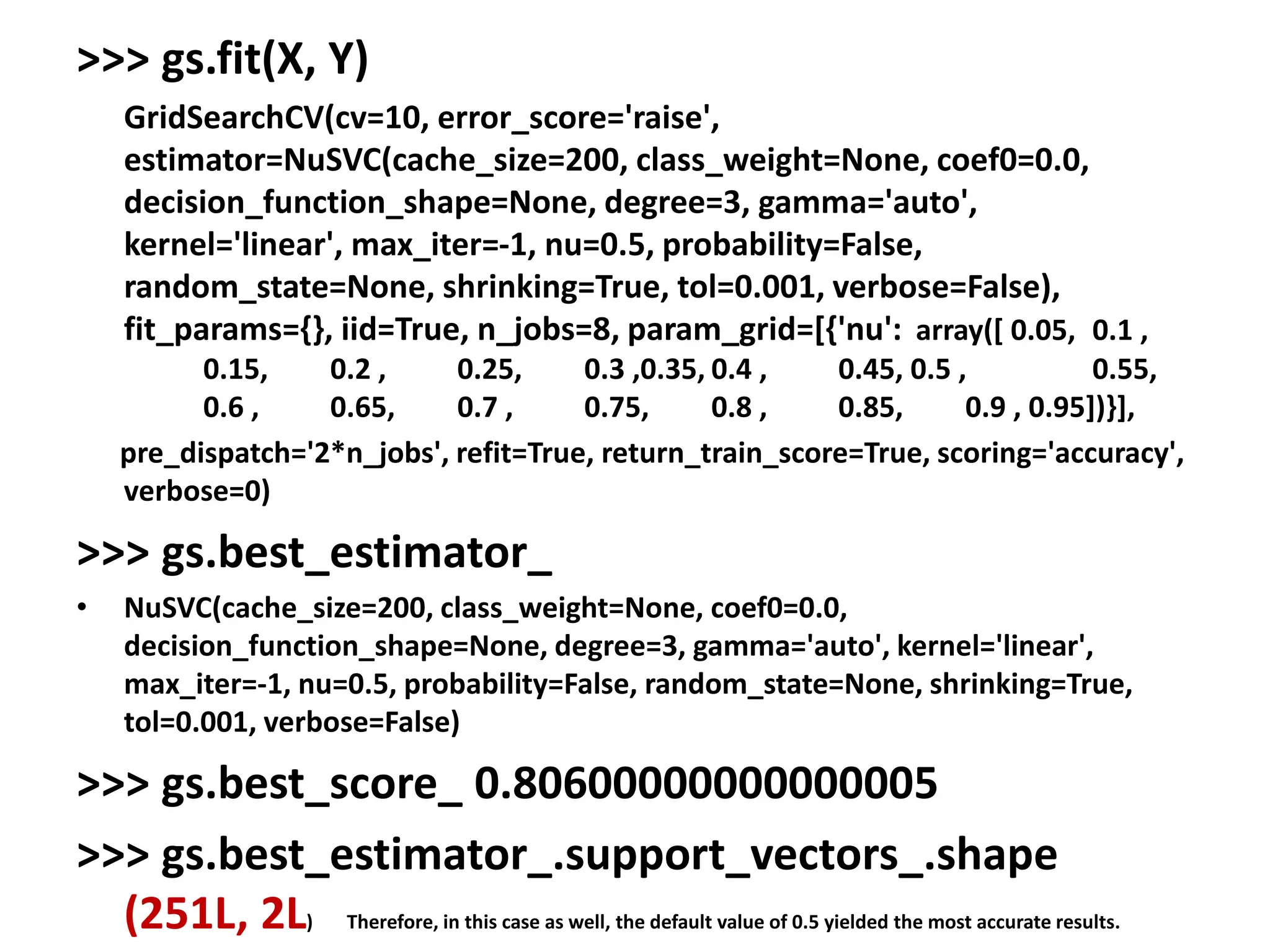

76. >>> gs.fit(X, Y)
GridSearchCV(cv=10, error_score='raise',
estimator=NuSVC(cache_size=200, class_weight=None, coef0=0.0,
decision_function_shape=None, degree=3, gamma='auto',
kernel='linear', max_iter=-1, nu=0.5, probability=False,
random_state=None, shrinking=True, tol=0.001, verbose=False),
fit_params={}, iid=True, n_jobs=8, param_grid=[{'nu': array([ 0.05, 0.1 ,
0.15, 0.2 , 0.25, 0.3 ,0.35, 0.4 , 0.45, 0.5 , 0.55,
0.6 , 0.65, 0.7 , 0.75, 0.8 , 0.85, 0.9 , 0.95])}],
pre_dispatch='2*n_jobs', refit=True, return_train_score=True, scoring='accuracy',
verbose=0)
>>> gs.best_estimator_
• NuSVC(cache_size=200, class_weight=None, coef0=0.0,
decision_function_shape=None, degree=3, gamma='auto', kernel='linear',
max_iter=-1, nu=0.5, probability=False, random_state=None, shrinking=True,
tol=0.001, verbose=False)
>>> gs.best_score_ 0.80600000000000005
>>> gs.best_estimator_.support_vectors_.shape
(251L, 2L) Therefore, in this case as well, the default value of 0.5 yielded the most accurate results.

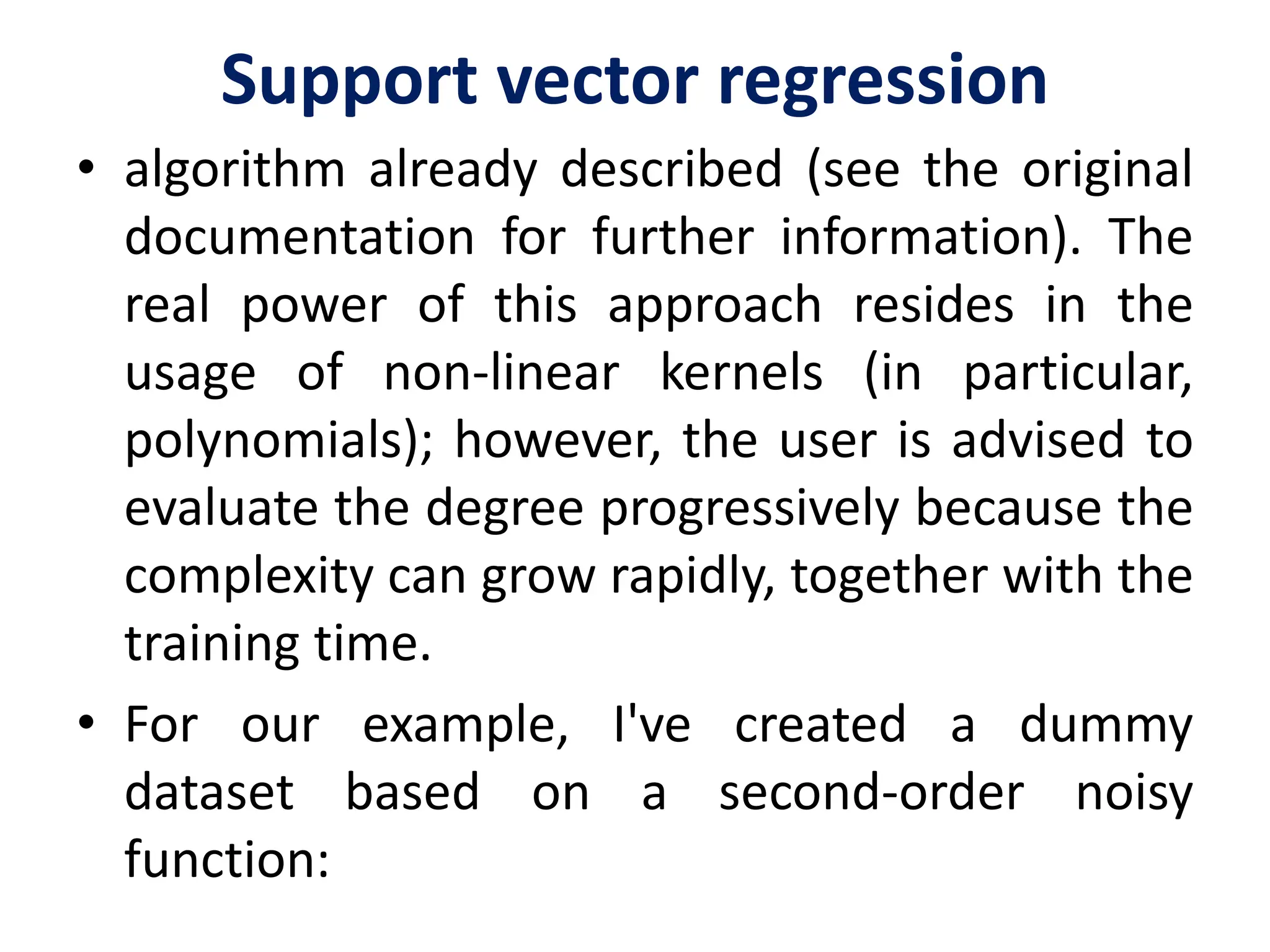

77. Support vector regression
• algorithm already described (see the original
documentation for further information). The
real power of this approach resides in the
usage of non-linear kernels (in particular,
polynomials); however, the user is advised to
evaluate the degree progressively because the
complexity can grow rapidly, together with the
training time.

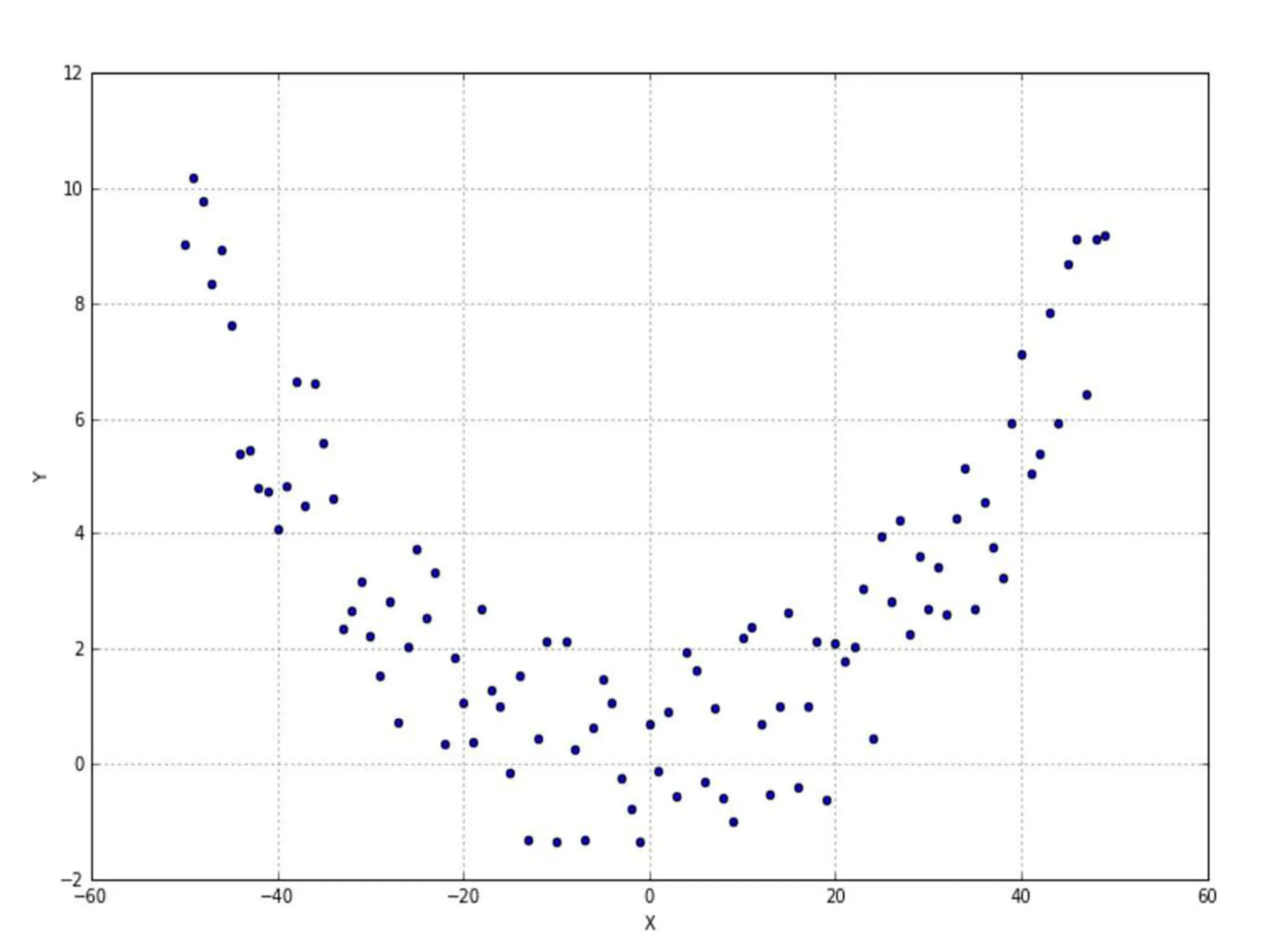

• For our example, I've created a dummy
dataset based on a second-order noisy
function:

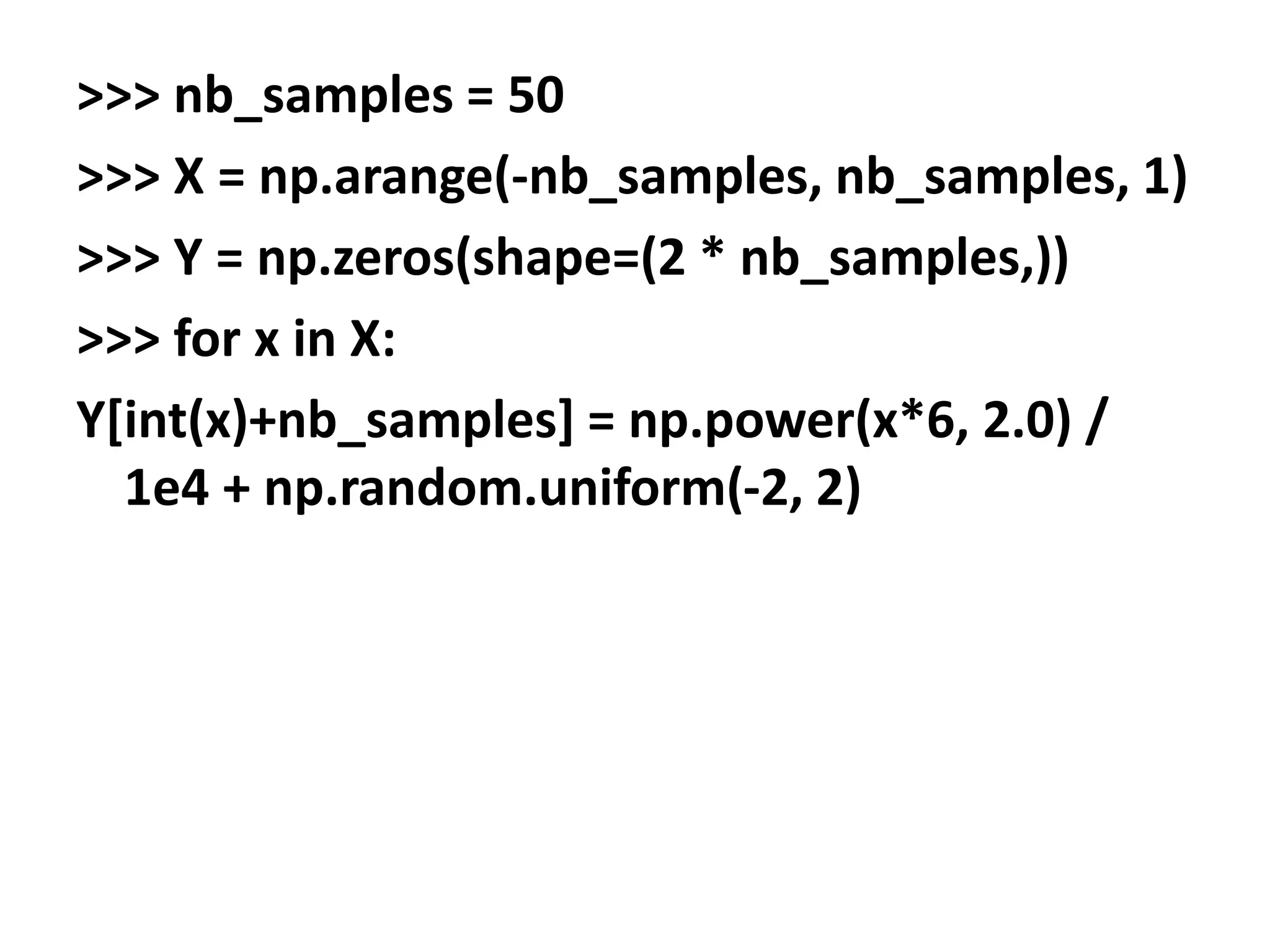

78. >>> nb_samples = 50
>>> X = np.arange(-nb_samples, nb_samples, 1)
>>> Y = np.zeros(shape=(2 * nb_samples,))
>>> for x in X:
Y[int(x)+nb_samples] = np.power(x*6, 2.0) /
1e4 + np.random.uniform(-2, 2)

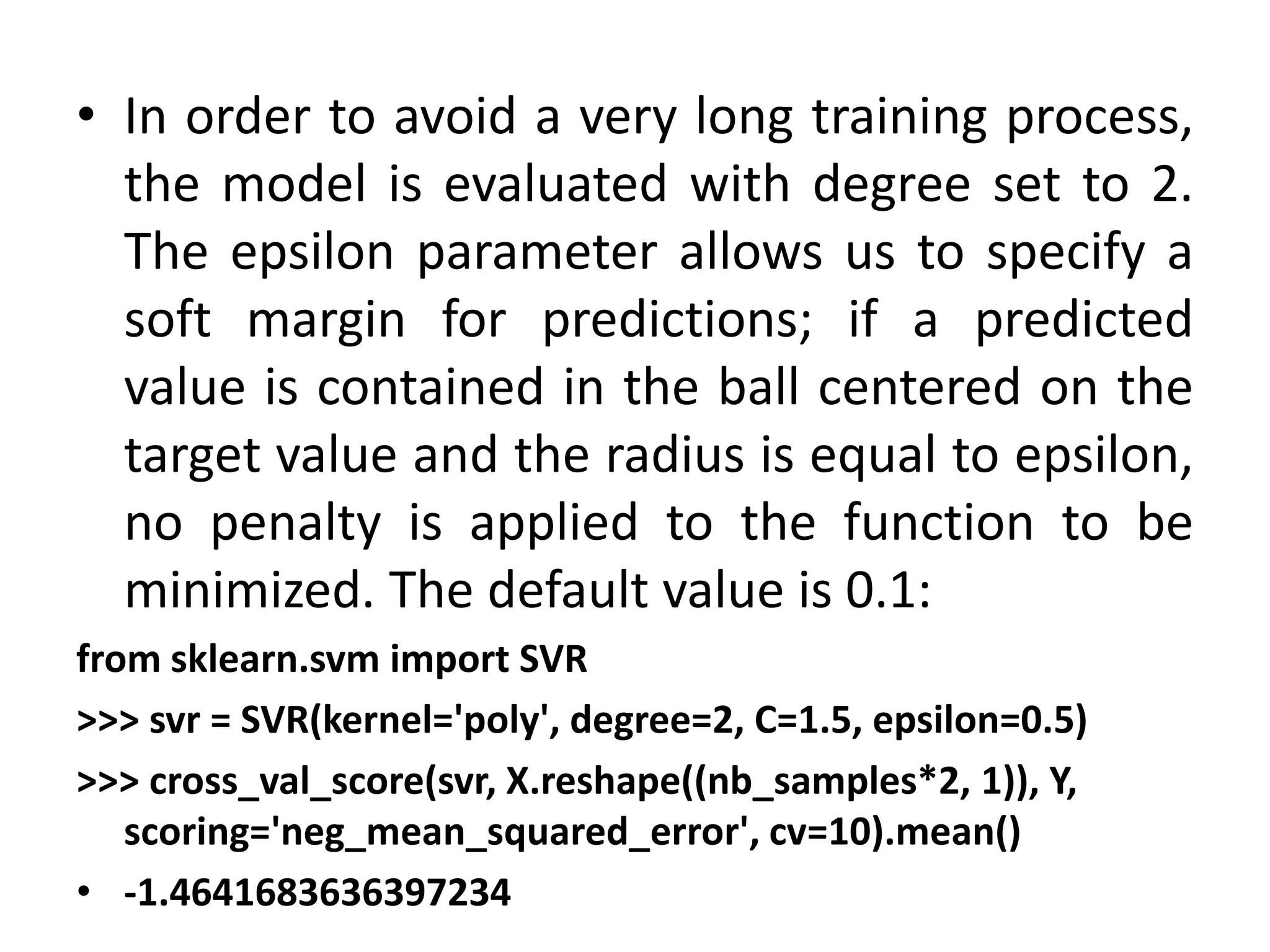

80. • In order to avoid a very long training process,
the model is evaluated with degree set to 2.
The epsilon parameter allows us to specify a
soft margin for predictions; if a predicted
value is contained in the ball centered on the
target value and the radius is equal to epsilon,
no penalty is applied to the function to be
minimized. The default value is 0.1:
from sklearn.svm import SVR
>>> svr = SVR(kernel='poly', degree=2, C=1.5, epsilon=0.5)
>>> cross_val_score(svr, X.reshape((nb_samples*2, 1)), Y,
scoring='neg_mean_squared_error', cv=10).mean()
• -1.4641683636397234
