1. Center for Uncertainty
Quantification

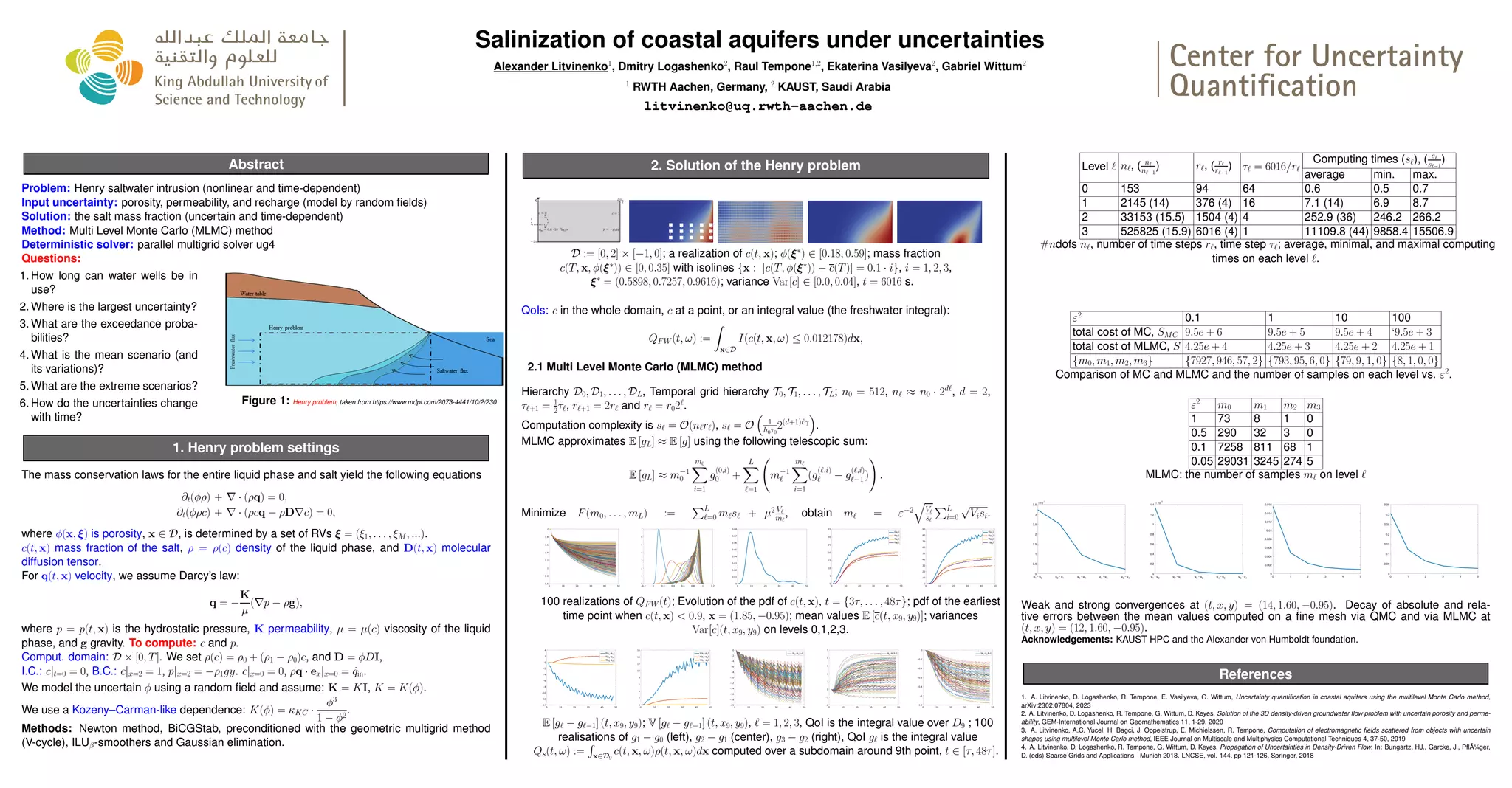

Salinization of coastal aquifers under uncertainties
Alexander Litvinenko1
, Dmitry Logashenko2
, Raul Tempone1,2
, Ekaterina Vasilyeva2
, Gabriel Wittum2
1
RWTH Aachen, Germany, 2
KAUST, Saudi Arabia
litvinenko@uq.rwth-aachen.de
Center for Uncertainty
Quantification
Center for Uncertainty
Quantification
Abstract
Problem: Henry saltwater intrusion (nonlinear and time-dependent)
Input uncertainty: porosity, permeability, and recharge (model by random fields)
Solution: the salt mass fraction (uncertain and time-dependent)
Method: Multi Level Monte Carlo (MLMC) method
Deterministic solver: parallel multigrid solver ug4
Questions:
1. How long can water wells be in
use?
2. Where is the largest uncertainty?
3. What are the exceedance proba-
bilities?
4. What is the mean scenario (and
its variations)?
5. What are the extreme scenarios?
6. How do the uncertainties change
with time?
Figure 1: Henry problem, taken from https://www.mdpi.com/2073-4441/10/2/230
1. Henry problem settings
The mass conservation laws for the entire liquid phase and salt yield the following equations
∂t(ϕρ) + ∇ · (ρq) = 0,
∂t(ϕρc) + ∇ · (ρcq − ρD∇c) = 0,
where ϕ(x, ξ) is porosity, x ∈ D, is determined by a set of RVs ξ = (ξ1, . . . , ξM, ...).
c(t, x) mass fraction of the salt, ρ = ρ(c) density of the liquid phase, and D(t, x) molecular
diffusion tensor.
For q(t, x) velocity, we assume Darcy’s law:
q = −
K
µ
(∇p − ρg),
where p = p(t, x) is the hydrostatic pressure, K permeability, µ = µ(c) viscosity of the liquid
phase, and g gravity. To compute: c and p.
Comput. domain: D × [0, T]. We set ρ(c) = ρ0 + (ρ1 − ρ0)c, and D = ϕDI,
I.C.: c|t=0 = 0, B.C.: c|x=2 = 1, p|x=2 = −ρ1gy. c|x=0 = 0, ρq · ex|x=0 = q̂in.
We model the uncertain ϕ using a random field and assume: K = KI, K = K(ϕ).
We use a Kozeny–Carman-like dependence: K(ϕ) = κKC ·
ϕ3
1 − ϕ2
.
Methods: Newton method, BiCGStab, preconditioned with the geometric multigrid method
(V-cycle), ILUβ-smoothers and Gaussian elimination.
2. Solution of the Henry problem
q̂in = 6.6 · 10−2
kg/s
c = 0 c = 1
p = −ρ1gy
0
−1 m
2 m
y
x
D := [0, 2] × [−1, 0]; a realization of c(t, x); ϕ(ξ∗
) ∈ [0.18, 0.59]; mass fraction
c(T, x, ϕ(ξ∗
)) ∈ [0, 0.35] with isolines {x : |c(T, ϕ(ξ∗
)) − c(T)| = 0.1 · i}, i = 1, 2, 3,
ξ∗
= (0.5898, 0.7257, 0.9616); variance Var[c] ∈ [0.0, 0.04], t = 6016 s.
QoIs: c in the whole domain, c at a point, or an integral value (the freshwater integral):
QFW (t, ω) :=
Z
x∈D
I(c(t, x, ω) ≤ 0.012178)dx,
2.1 Multi Level Monte Carlo (MLMC) method
Hierarchy D0, D1, . . . , DL, Temporal grid hierarchy T0, T1, . . . , TL; n0 = 512, nℓ ≈ n0 · 2dℓ
, d = 2,
τℓ+1 = 1
2τℓ, rℓ+1 = 2rℓ and rℓ = r02ℓ
.
Computation complexity is sℓ = O(nℓrℓ), sℓ = O
1
h0τ0
2(d+1)ℓγ
.
MLMC approximates E [gL] ≈ E [g] using the following telescopic sum:
E [gL] ≈ m−1
0
m0
X
i=1
g
(0,i)
0 +
L
X
ℓ=1
m−1
ℓ
mℓ
X
i=1
(g
(ℓ,i)
ℓ − g
(ℓ,i)
ℓ−1 )
!
.
Minimize F(m0, . . . , mL) :=
PL
ℓ=0 mℓsℓ + µ2 Vℓ
mℓ
, obtain mℓ = ε−2
q
Vℓ
sℓ
PL
i=0
√
Visi.
100 realizations of QFW (t); Evolution of the pdf of c(t, x), t = {3τ, . . . , 48τ}; pdf of the earliest
time point when c(t, x) 0.9, x = (1.85, −0.95); mean values E [c(t, x9, y9)]; variances
Var[c](t, x9, y9) on levels 0,1,2,3.
E [gℓ − gℓ−1] (t, x9, y9); V [gℓ − gℓ−1] (t, x9, y9), ℓ = 1, 2, 3, QoI is the integral value over D9 ; 100
realisations of g1 − g0 (left), g2 − g1 (center), g3 − g2 (right), QoI gℓ is the integral value
Qs(t, ω) :=
R
x∈D9
c(t, x, ω)ρ(t, x, ω)dx computed over a subdomain around 9th point, t ∈ [τ, 48τ].
Level ℓ nℓ, ( nℓ
nℓ−1
) rℓ, ( rℓ
rℓ−1
) τℓ = 6016/rℓ
Computing times (sℓ), ( sℓ
sℓ−1
)
average min. max.
0 153 94 64 0.6 0.5 0.7
1 2145 (14) 376 (4) 16 7.1 (14) 6.9 8.7
2 33153 (15.5) 1504 (4) 4 252.9 (36) 246.2 266.2
3 525825 (15.9) 6016 (4) 1 11109.8 (44) 9858.4 15506.9
#ndofs nℓ, number of time steps rℓ, time step τℓ; average, minimal, and maximal computing
times on each level ℓ.
ε2
0.1 1 10 100
total cost of MC, SMC 9.5e + 6 9.5e + 5 9.5e + 4 ‘9.5e + 3
total cost of MLMC, S 4.25e + 4 4.25e + 3 4.25e + 2 4.25e + 1
{m0, m1, m2, m3} {7927, 946, 57, 2} {793, 95, 6, 0} {79, 9, 1, 0} {8, 1, 0, 0}
Comparison of MC and MLMC and the number of samples on each level vs. ε2
.
ε2
m0 m1 m2 m3
1 73 8 1 0
0.5 290 32 3 0
0.1 7258 811 68 1
0.05 29031 3245 274 5
MLMC: the number of samples mℓ on level ℓ
Weak and strong convergences at (t, x, y) = (14, 1.60, −0.95). Decay of absolute and rela-
tive errors between the mean values computed on a fine mesh via QMC and via MLMC at
(t, x, y) = (12, 1.60, −0.95).
Acknowledgements: KAUST HPC and the Alexander von Humboldt foundation.
