BONE TUMORS BENIGN BONE TUMORS PRESENTOR- UMESH YADAV JR-ORTHO,PGIMS ,ROHTAK UMY

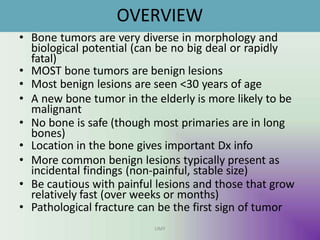

OVERVIEW UMY • Bone tumors are very diverse in morphology and biological potential (can be no big deal or rapidly fatal) • MOST bone tumors are benign lesions • Most benign lesions are seen <30 years of age • A new bone tumor in the elderly is more likely to be malignant • No bone is safe (though most primaries are in long bones) • Location in the bone gives important Dx info • More common benign lesions typically present as incidental findings (non-painful, stable size) • Be cautious with painful lesions and those that grow relatively fast (over weeks or months) • Pathological fracture can be the first sign of tumor

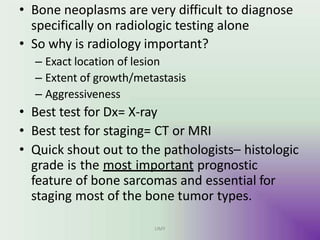

• Bone neoplasms are very difficult to diagnose specifically on radiologic testing alone • So why is radiology important? – Exact location of lesion – Extent of growth/metastasis – Aggressiveness • Best test for Dx= X-ray • Best test for staging= CT or MRI • Quick shout out to the pathologists– histologic grade is the most important prognostic feature of bone sarcomas and essential for staging most of the bone tumor types. UMY

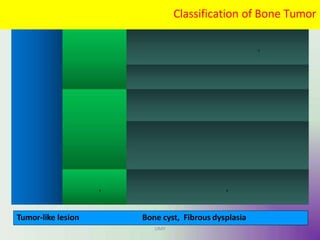

Primary Bone Tumor Tumor from Bone Tissue benign Osteochondroma, Giant cell tumor, Osteoma, Chondroma, Chondroblastoma malignant Osteosarcoma, Chondrosarcoma, Fibrosarcoma Tumor from Bone Affiliated Tissue benign Osteoangioma, Odontogenic tumor (exp. Adamantinoma) malignant Ewing's sarcoma, Reticulum cell sarcoma of bone, Notochordoma, Myeloma Metastatic Tumor Carcinoma, Sarcoma, Neuroblastoma Carcinoma, Sarcoma, Neuroblastoma Classification of Bone Tumor UMY Tumor-like lesion Bone cyst, Fibrous dysplasia

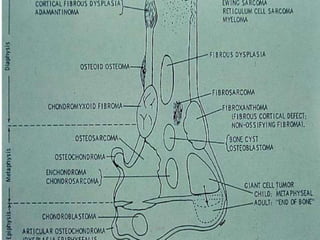

UMY

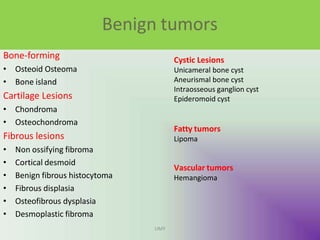

Benign tumors UMY Bone-forming • Osteoid Osteoma • Bone island Cartilage Lesions • Chondroma • Osteochondroma Fibrous lesions • Non ossifying fibroma • Cortical desmoid • Benign fibrous histocytoma • Fibrous displasia • Osteofibrous dysplasia • Desmoplastic fibroma Cystic Lesions Unicameral bone cyst Aneurismal bone cyst Intraosseous ganglion cyst Epideromoid cyst Fatty tumors Lipoma Vascular tumors Hemangioma

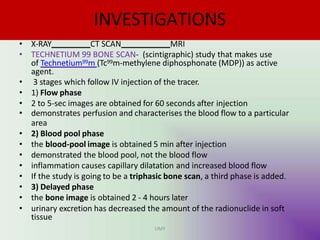

INVESTIGATIONS • X-RAY CT SCAN MRI • TECHNETIUM 99 BONE SCAN- (scintigraphic) study that makes use of Technetium99m (Tc99m-methylene diphosphonate (MDP)) as active agent. • 3 stages which follow IV injection of the tracer. • 1) Flow phase • 2 to 5-sec images are obtained for 60 seconds after injection • demonstrates perfusion and characterises the blood flow to a particular area • 2) Blood pool phase • the blood-pool image is obtained 5 min after injection • demonstrated the blood pool, not the blood flow • inflammation causes capillary dilatation and increased blood flow • If the study is going to be a triphasic bone scan, a third phase is added. • 3) Delayed phase • the bone image is obtained 2 - 4 hours later • urinary excretion has decreased the amount of the radionuclide in soft tissue UMY

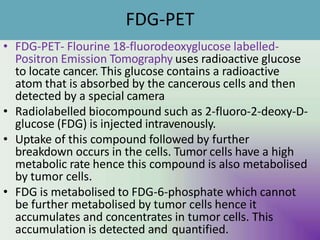

FDG-PET • FDG-PET- Flourine 18-fluorodeoxyglucose labelled- Positron Emission Tomography uses radioactive glucose to locate cancer. This glucose contains a radioactive atom that is absorbed by the cancerous cells and then detected by a special camera • Radiolabelled biocompound such as 2-fluoro-2-deoxy-D- glucose (FDG) is injected intravenously. • Uptake of this compound followed by further breakdown occurs in the cells. Tumor cells have a high metabolic rate hence this compound is also metabolised by tumor cells. • FDG is metabolised to FDG-6-phosphate which cannot be further metabolised by tumor cells hence it accumulates and concentrates in tumor cells. This accumulation is detected aU n Md Y quantified.

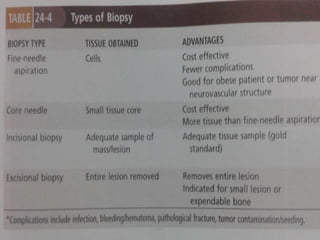

BIOPSY UMY • Most conclusive test because it confirms if the tumor is malignant or benign, the bone cancer type (primary or secondary bone cancer), and stage. • TYPES- • 1. Needle biopsy: During this procedure, a small hole is made in the affected bone and a tissue sample from the tumor is removed. two types - • Fine needle aspiration: During this procedure, the tissue sample is removed with a thin needle attached to a syringe. • Core needle aspiration: During this procedure, the surgeon removes a small cylinder of tissue sample from the tumor with a rotating knife like device. • 2. Incisional biopsy: During this procedure, the surgeon cuts into the tumor and removes a tissue sample.
UMY

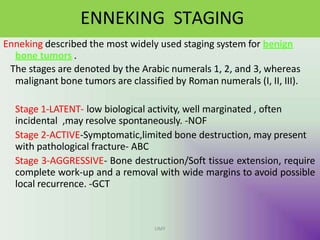

ENNEKING STAGING UMY Enneking described the most widely used staging system for benign bone tumors . The stages are denoted by the Arabic numerals 1, 2, and 3, whereas malignant bone tumors are classified by Roman numerals (I, II, III). Stage 1-LATENT- low biological activity, well marginated , often incidental ,may resolve spontaneously. -NOF Stage 2-ACTIVE-Symptomatic,limited bone destruction, may present with pathological fracture- ABC Stage 3-AGGRESSIVE- Bone destruction/Soft tissue extension, require complete work-up and a removal with wide margins to avoid possible local recurrence. -GCT

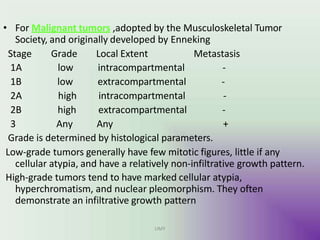

• For Malignant tumors ,adopted by the Musculoskeletal Tumor Society, and originally developed by Enneking UMY Stage Grade Local Extent Metastasis 1A low intracompartmental - 1B low extracompartmental - 2A high intracompartmental - 2B high extracompartmental - 3 Any Any + Grade is determined by histological parameters. Low-grade tumors generally have few mitotic figures, little if any cellular atypia, and have a relatively non-infiltrative growth pattern. High-grade tumors tend to have marked cellular atypia, hyperchromatism, and nuclear pleomorphism. They often demonstrate an infiltrative growth pattern

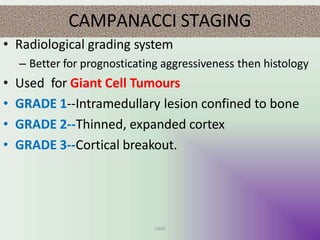

CAMPANACCI STAGING UMY • Radiological grading system – Better for prognosticating aggressiveness then histology • Used for Giant Cell Tumours • GRADE 1--Intramedullary lesion confined to bone • GRADE 2--Thinned, expanded cortex • GRADE 3--Cortical breakout.

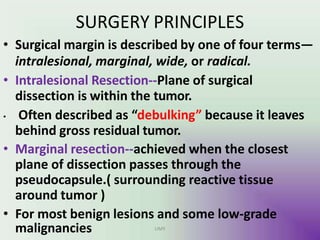

SURGERY PRINCIPLES • Surgical margin is described by one of four terms— intralesional, marginal, wide, or radical. • Intralesional Resection--Plane of surgical dissection is within the tumor. • Often described as “debulking” because it leaves behind gross residual tumor. • Marginal resection--achieved when the closest plane of dissection passes through the pseudocapsule.( surrounding reactive tissue around tumor ) • For most benign lesions and some low-grade malignancies UMY

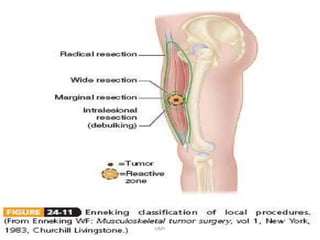

… UMY

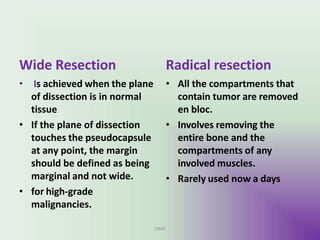

Wide Resection UMY • Is achieved when the plane of dissection is in normal tissue • If the plane of dissection touches the pseudocapsule at any point, the margin should be defined as being marginal and not wide. • for high-grade malignancies. Radical resection • All the compartments that contain tumor are removed en bloc. • Involves removing the entire bone and the compartments of any involved muscles. • Rarely used now a days

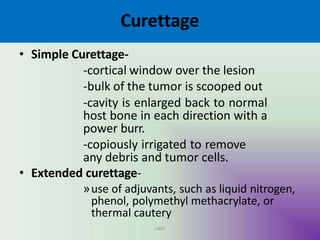

Curettage UMY • Simple Curettage- -cortical window over the lesion -bulk of the tumor is scooped out -cavity is enlarged back to normal host bone in each direction with a power burr. -copiously irrigated to remove any debris and tumor cells. • Extended curettage- »use of adjuvants, such as liquid nitrogen, phenol, polymethyl methacrylate, or thermal cautery

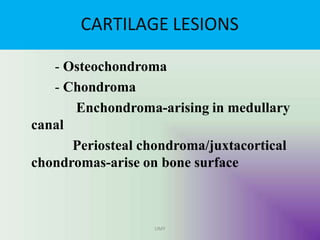

CARTILAGE LESIONS UMY - Osteochondroma - Chondroma Enchondroma-arising in medullary canal Periosteal chondroma/juxtacortical chondromas-arise on bone surface

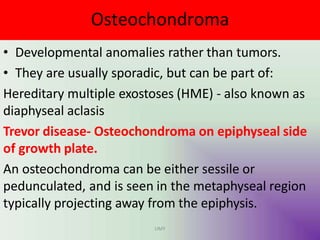

Osteochondroma UMY • Developmental anomalies rather than tumors. • They are usually sporadic, but can be part of: Hereditary multiple exostoses (HME) - also known as diaphyseal aclasis Trevor disease- Osteochondroma on epiphyseal side of growth plate. An osteochondroma can be either sessile or pedunculated, and is seen in the metaphyseal region typically projecting away from the epiphysis.

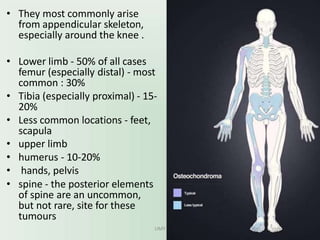

• They most commonly arise from appendicular skeleton, especially around the knee . • Lower limb - 50% of all cases femur (especially distal) - most common : 30% • Tibia (especially proximal) - 15- 20% • Less common locations - feet, scapula • upper limb • humerus - 10-20% • hands, pelvis • spine - the posterior elements of spine are an uncommon, but not rare, site for these tumours UMY

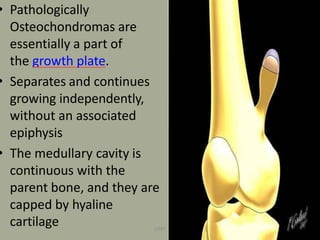

• Pathologically Osteochondromas are essentially a part of the growth plate. • Separates and continues growing independently, without an associated epiphysis • The medullary cavity is continuous with the parent bone, and they are capped by hyaline cartilage UMY

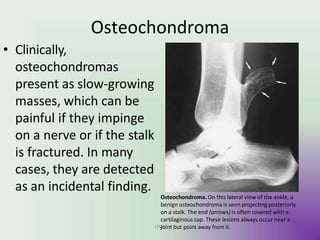

Osteochondroma • Clinically, osteochondromas present as slow-growing masses, which can be painful if they impinge on a nerve or if the stalk is fractured. In many cases, they are detected as an incidental finding. Osteochondroma. On this lateral view of the ankle, a benign osteochondroma is seen projecting posteriorly on a stalk. The end (arrows) is often covered with a cartilaginous cap. These lesions always occur near a UM jo Yint but point away from it.
• • • • MRI MRI is best at assessing cartilage thickness (and thus assessing for malignant transformation), presence of oedema in bone or adjacent soft tissues and visualising neurovascular structures in the vicinity. The cartilage cap of osteochondromas appears the same as cartilage elsewhere, with intermediate to low signal on T1 and high signal on T2 and STIR weighted images. A cartilage cap of over 1.5cm in thickness is suspicious for malignant degeneration. UMY

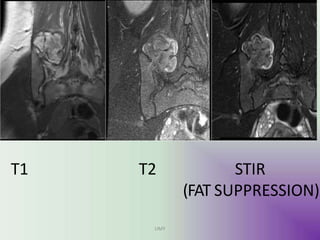

T1 T2 STIR (FAT SUPPRESSION) UMY

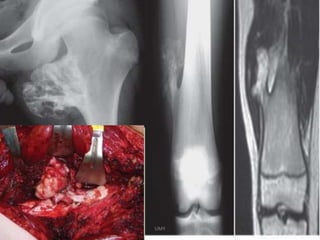

UMY

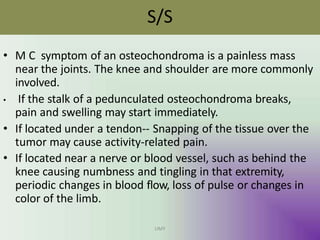

S/S UMY • M C symptom of an osteochondroma is a painless mass near the joints. The knee and shoulder are more commonly involved. • If the stalk of a pedunculated osteochondroma breaks, pain and swelling may start immediately. • If located under a tendon-- Snapping of the tissue over the tumor may cause activity-related pain. • If located near a nerve or blood vessel, such as behind the knee causing numbness and tingling in that extremity, periodic changes in blood flow, loss of pulse or changes in color of the limb.

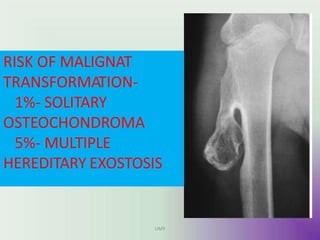

RISK OF MALIGNAT TRANSFORMATION- 1%- SOLITARY OSTEOCHONDROMA 5%- MULTIPLE HEREDITARY EXOSTOSIS UMY

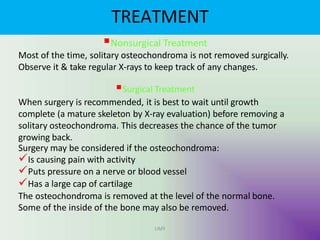

TREATMENT UMY Nonsurgical Treatment Most of the time, solitary osteochondroma is not removed surgically. Observe it & take regular X-rays to keep track of any changes. Surgical Treatment When surgery is recommended, it is best to wait until growth complete (a mature skeleton by X-ray evaluation) before removing a solitary osteochondroma. This decreases the chance of the tumor growing back. Surgery may be considered if the osteochondroma: Is causing pain with activity Puts pressure on a nerve or blood vessel Has a large cap of cartilage The osteochondroma is removed at the level of the normal bone. Some of the inside of the bone may also be removed.

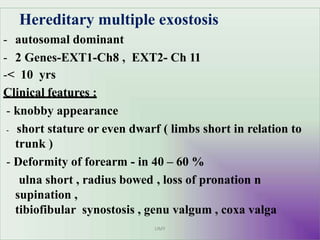

Hereditary multiple exostosis UMY - autosomal dominant - 2 Genes-EXT1-Ch8 , EXT2- Ch 11 -< 10 yrs Clinical features : - knobby appearance - short stature or even dwarf ( limbs short in relation to trunk ) - Deformity of forearm - in 40 – 60 % ulna short , radius bowed , loss of pronation n supination , tibiofibular synostosis , genu valgum , coxa valga

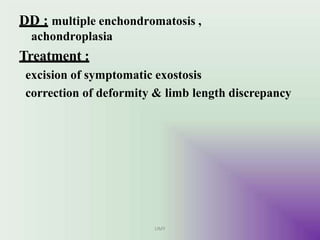

DD : multiple enchondromatosis , achondroplasia UMY Treatment : excision of symptomatic exostosis correction of deformity & limb length discrepancy
UMY

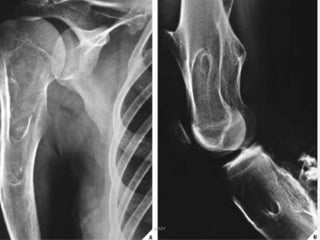

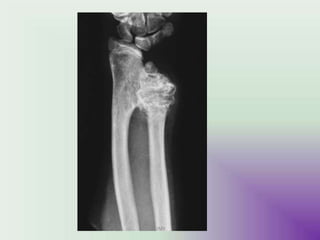

UMY

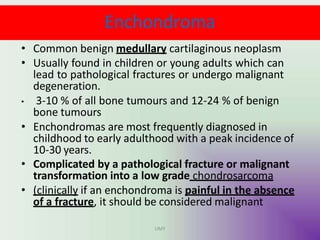

Enchondroma UMY • Common benign medullary cartilaginous neoplasm • Usually found in children or young adults which can lead to pathological fractures or undergo malignant degeneration. • 3-10 % of all bone tumours and 12-24 % of benign bone tumours • Enchondromas are most frequently diagnosed in childhood to early adulthood with a peak incidence of 10-30 years. • Complicated by a pathological fracture or malignant transformation into a low grade chondrosarcoma • (clinically if an enchondroma is painful in the absence of a fracture, it should be considered malignant

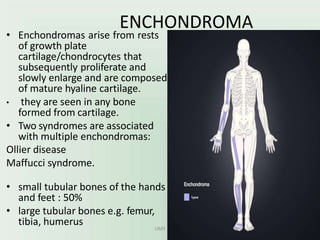

ENCHONDROMA • Enchondromas arise from rests of growth plate cartilage/chondrocytes that subsequently proliferate and slowly enlarge and are composed of mature hyaline cartilage. • they are seen in any bone formed from cartilage. • Two syndromes are associated with multiple enchondromas: Ollier disease Maffucci syndrome. • small tubular bones of the hands and feet : 50% • large tubular bones e.g. femur, tibia, humerus UMY

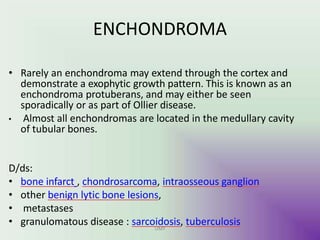

ENCHONDROMA UMY • Rarely an enchondroma may extend through the cortex and demonstrate a exophytic growth pattern. This is known as an enchondroma protuberans, and may either be seen sporadically or as part of Ollier disease. • Almost all enchondromas are located in the medullary cavity of tubular bones. D/ds: • bone infarct , chondrosarcoma, intraosseous ganglion • other benign lytic bone lesions, • metastases • granulomatous disease : sarcoidosis, tuberculosis
IMAGING • X-ray & CT Typically enchondromas are small 1 - 2cm lytic lesions with non-aggressive features. narrow zone of transition sharply defined scalloped margins : may have mild endosteal scalloping expansion of the overlying cortex may be present but there should not be cortical breakthrough unless fractured Chondroid calcifications may be present : rings and arcs calcification-STIPPLED/PUNCTATE/POPCORN no periosteal rxn. • The majority of enchondromas more frequently arise in the metaphyseal region,. A cartilaginous lesion in an epiphysis is more likely to be a chondrosarcoma . UMY

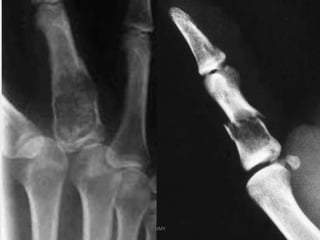

UMY

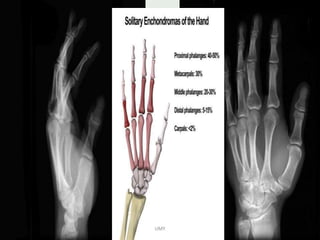

IMAGES UMY

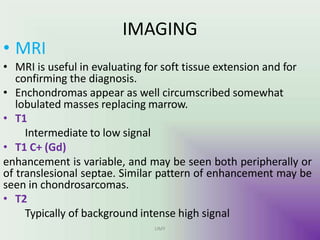

IMAGING UMY • MRI • MRI is useful in evaluating for soft tissue extension and for confirming the diagnosis. • Enchondromas appear as well circumscribed somewhat lobulated masses replacing marrow. • T1 Intermediate to low signal • T1 C+ (Gd) enhancement is variable, and may be seen both peripherally or of translesional septae. Similar pattern of enhancement may be seen in chondrosarcomas. • T2 Typically of background intense high signal

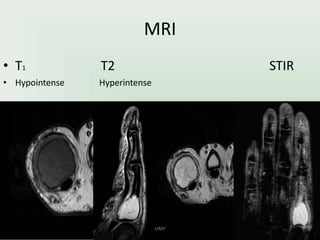

MRI STIR • T1 • Hypointense T2 Hyperintense UMY

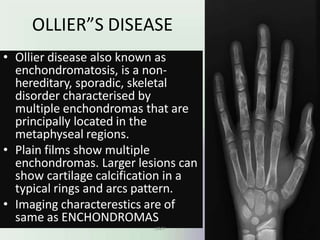

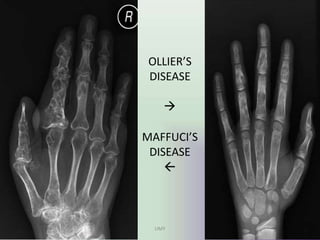

OLLIER”S DISEASE • Ollier disease also known as enchondromatosis, is a non- hereditary, sporadic, skeletal disorder characterised by multiple enchondromas that are principally located in the metaphyseal regions. • Plain films show multiple enchondromas. Larger lesions can show cartilage calcification in a typical rings and arcs pattern. • Imaging characterestics are of same as ENCHONDROMAS UMY

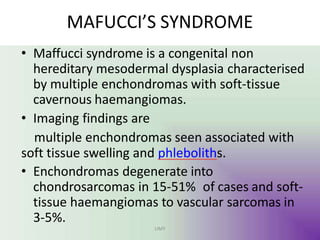

MAFUCCI’S SYNDROME UMY • Maffucci syndrome is a congenital non hereditary mesodermal dysplasia characterised by multiple enchondromas with soft-tissue cavernous haemangiomas. • Imaging findings are multiple enchondromas seen associated with soft tissue swelling and phleboliths. • Enchondromas degenerate into chondrosarcomas in 15-51% of cases and soft- tissue haemangiomas to vascular sarcomas in 3-5%.
OLLIER’S DISEASE  MAFFUCI’S DISEASE  UMY

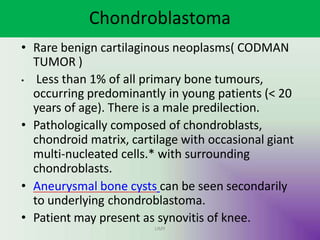

Chondroblastoma UMY • Rare benign cartilaginous neoplasms( CODMAN TUMOR ) • Less than 1% of all primary bone tumours, occurring predominantly in young patients (< 20 years of age). There is a male predilection. • Pathologically composed of chondroblasts, chondroid matrix, cartilage with occasional giant multi-nucleated cells.* with surrounding chondroblasts. • Aneurysmal bone cysts can be seen secondarily to underlying chondroblastoma. • Patient may present as synovitis of knee.

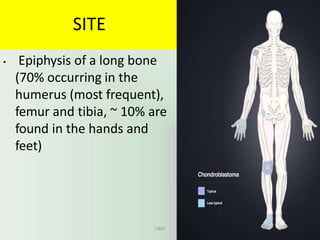

SITE • Epiphysis of a long bone (70% occurring in the humerus (most frequent), femur and tibia, ~ 10% are found in the hands and feet) UMY

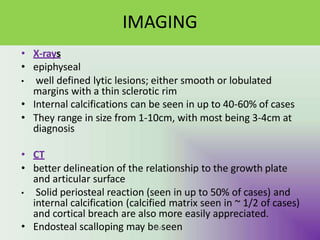

IMAGING • X-rays • epiphyseal • well defined lytic lesions; either smooth or lobulated margins with a thin sclerotic rim • Internal calcifications can be seen in up to 40-60% of cases • They range in size from 1-10cm, with most being 3-4cm at diagnosis • CT • better delineation of the relationship to the growth plate and articular surface • Solid periosteal reaction (seen in up to 50% of cases) and internal calcification (calcified matrix seen in ~ 1/2 of cases) and cortical breach are also more easily appreciated. • Endosteal scalloping may be UMs Y een

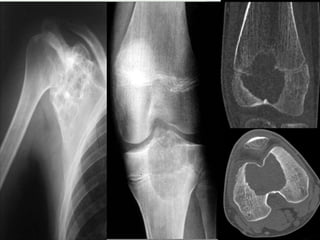

image UMY
UMY

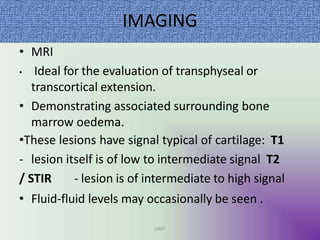

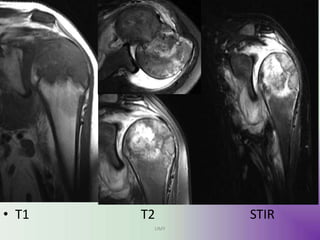

IMAGING UMY • MRI • Ideal for the evaluation of transphyseal or transcortical extension. • Demonstrating associated surrounding bone marrow oedema. •These lesions have signal typical of cartilage: T1 - lesion itself is of low to intermediate signal T2 / STIR - lesion is of intermediate to high signal • Fluid-fluid levels may occasionally be seen .
image • T1 T2 STIR UMY

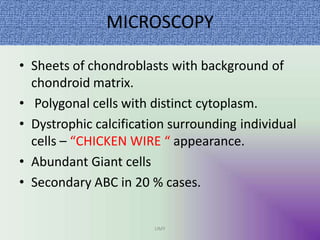

MICROSCOPY UMY • Sheets of chondroblasts with background of chondroid matrix. • Polygonal cells with distinct cytoplasm. • Dystrophic calcification surrounding individual cells – “CHICKEN WIRE “ appearance. • Abundant Giant cells • Secondary ABC in 20 % cases.

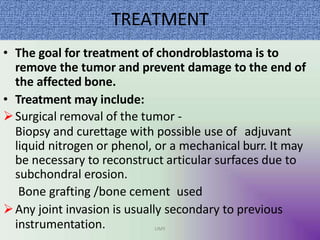

TREATMENT • The goal for treatment of chondroblastoma is to remove the tumor and prevent damage to the end of the affected bone. • Treatment may include: Surgical removal of the tumor - Biopsy and curettage with possible use of adjuvant liquid nitrogen or phenol, or a mechanical burr. It may be necessary to reconstruct articular surfaces due to subchondral erosion. Bone grafting /bone cement used Any joint invasion is usually secondary to previous instrumentation. UMY

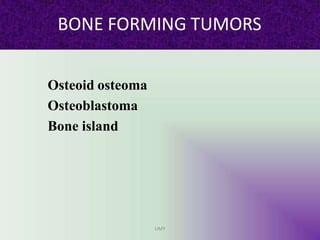

BONE FORMING TUMORS UMY Osteoid osteoma Osteoblastoma Bone island

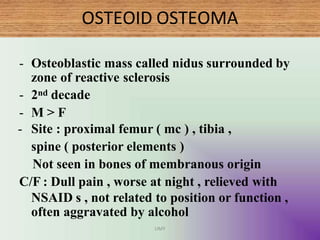

OSTEOID OSTEOMA UMY - Osteoblastic mass called nidus surrounded by zone of reactive sclerosis - 2nd decade - M > F - Site : proximal femur ( mc ) , tibia , spine ( posterior elements ) Not seen in bones of membranous origin C/F : Dull pain , worse at night , relieved with NSAID s , not related to position or function , often aggravated by alcohol

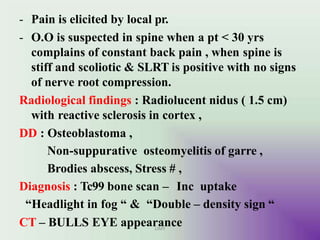

- Pain is elicited by local pr. - O.O is suspected in spine when a pt < 30 yrs complains of constant back pain , when spine is stiff and scoliotic & SLRT is positive with no signs of nerve root compression. Radiological findings : Radiolucent nidus ( 1.5 cm) with reactive sclerosis in cortex , DD : Osteoblastoma , Non-suppurative osteomyelitis of garre , Brodies abscess, Stress # , Diagnosis : Tc99 bone scan – Inc uptake “Headlight in fog “ & “Double – density sign “ CT – BULLS EYE appearance UMY

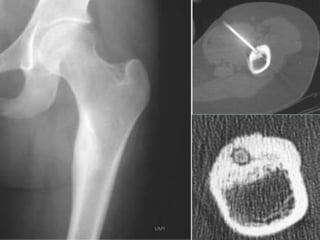

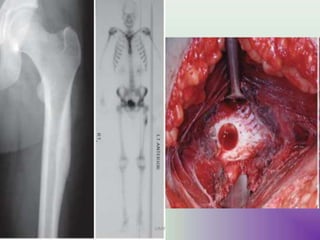

UMY
UMY

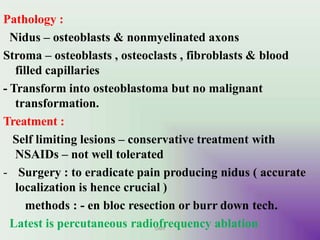

Pathology : Nidus – osteoblasts & nonmyelinated axons Stroma – osteoblasts , osteoclasts , fibroblasts & blood filled capillaries - Transform into osteoblastoma but no malignant transformation. Treatment : Self limiting lesions – conservative treatment with NSAIDs – not well tolerated - Surgery : to eradicate pain producing nidus ( accurate localization is hence crucial ) methods : - en bloc resection or burr down tech. Latest is percutaneous radiofrequency ablation UMY

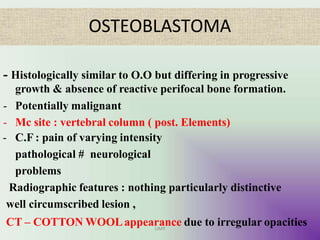

OSTEOBLASTOMA UMY - Histologically similar to O.O but differing in progressive growth & absence of reactive perifocal bone formation. - Potentially malignant - Mc site : vertebral column ( post. Elements) - C.F : pain of varying intensity pathological # neurological problems Radiographic features : nothing particularly distinctive well circumscribed lesion , CT – COTTON WOOLappearance due to irregular opacities

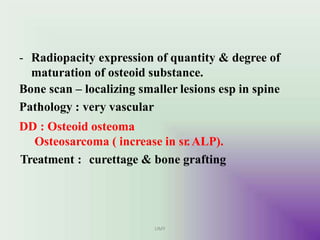

- Radiopacity expression of quantity & degree of maturation of osteoid substance. Bone scan – localizing smaller lesions esp in spine Pathology : very vascular DD : Osteoid osteoma Osteosarcoma ( increase in sr.ALP). Treatment : curettage & bone grafting UMY

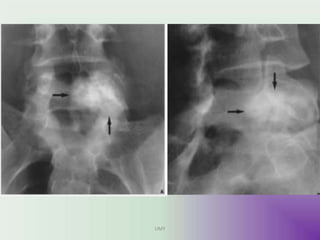

UMY

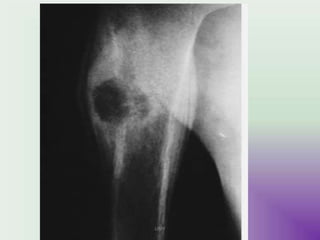

UMY

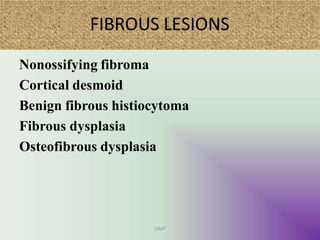

FIBROUS LESIONS UMY Nonossifying fibroma Cortical desmoid Benign fibrous histiocytoma Fibrous dysplasia Osteofibrous dysplasia

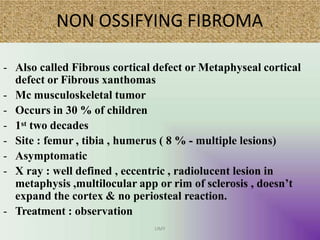

NON OSSIFYING FIBROMA UMY - Also called Fibrous cortical defect or Metaphyseal cortical defect or Fibrous xanthomas - Mc musculoskeletal tumor - Occurs in 30 % of children - 1st two decades - Site : femur , tibia , humerus ( 8 % - multiple lesions) - Asymptomatic - X ray : well defined , eccentric , radiolucent lesion in metaphysis ,multilocular app or rim of sclerosis , doesn’t expand the cortex & no periosteal reaction. - Treatment : observation

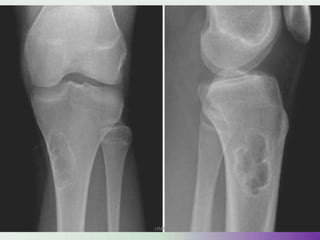

UMY

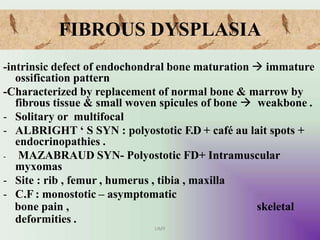

FIBROUS DYSPLASIA UMY -intrinsic defect of endochondral bone maturation  immature ossification pattern -Characterized by replacement of normal bone & marrow by fibrous tissue & small woven spicules of bone  weakbone . - Solitary or multifocal - ALBRIGHT ‘ S SYN : polyostotic F.D + café au lait spots + endocrinopathies . - MAZABRAUD SYN- Polyostotic FD+ Intramuscular myxomas - Site : rib , femur , humerus , tibia , maxilla - C.F : monostotic – asymptomatic bone pain , skeletal deformities .

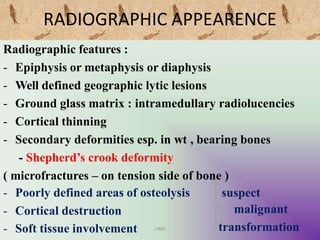

RADIOGRAPHIC APPEARENCE Radiographic features : - Epiphysis or metaphysis or diaphysis - Well defined geographic lytic lesions - Ground glass matrix : intramedullary radiolucencies - Cortical thinning - Secondary deformities esp. in wt , bearing bones - Shepherd’s crook deformity ( microfractures – on tension side of bone ) - Poorly defined areas of osteolysis - Cortical destruction - Soft tissue involvement suspect malignant transformation UMY

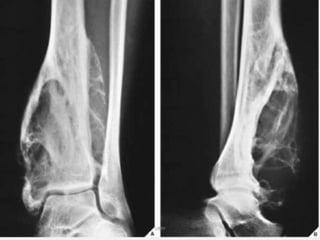

UMY

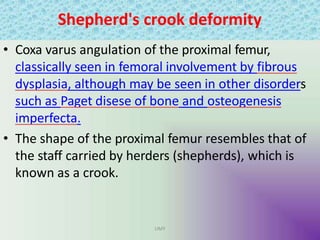

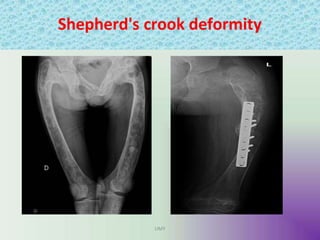

Shepherd's crook deformity UMY • Coxa varus angulation of the proximal femur, classically seen in femoral involvement by fibrous dysplasia, although may be seen in other disorders such as Paget disese of bone and osteogenesis imperfecta. • The shape of the proximal femur resembles that of the staff carried by herders (shepherds), which is known as a crook.
Shepherd's crook deformity UMY

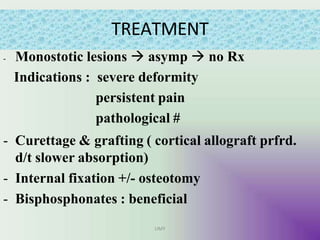

TREATMENT UMY - Monostotic lesions  asymp  no Rx Indications : severe deformity persistent pain pathological # - Curettage & grafting ( cortical allograft prfrd. d/t slower absorption) - Internal fixation +/- osteotomy - Bisphosphonates : beneficial

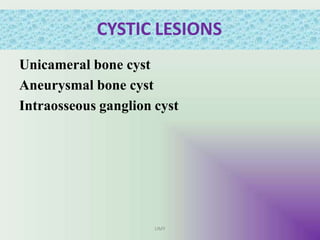

CYSTIC LESIONS UMY Unicameral bone cyst Aneurysmal bone cyst Intraosseous ganglion cyst

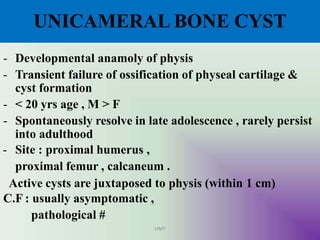

UNICAMERAL BONE CYST UMY - Developmental anamoly of physis - Transient failure of ossification of physeal cartilage & cyst formation - < 20 yrs age , M > F - Spontaneously resolve in late adolescence , rarely persist into adulthood - Site : proximal humerus , proximal femur , calcaneum . Active cysts are juxtaposed to physis (within 1 cm) C.F : usually asymptomatic , pathological #

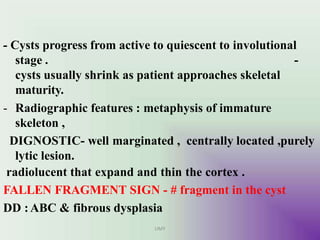

- Cysts progress from active to quiescent to involutional UMY - stage . cysts usually shrink as patient approaches skeletal maturity. - Radiographic features : metaphysis of immature skeleton , DIGNOSTIC- well marginated , centrally located ,purely lytic lesion. radiolucent that expand and thin the cortex . FALLEN FRAGMENT SIGN - # fragment in the cyst DD :ABC & fibrous dysplasia

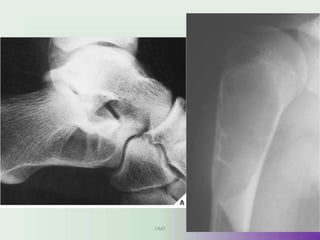

UMY

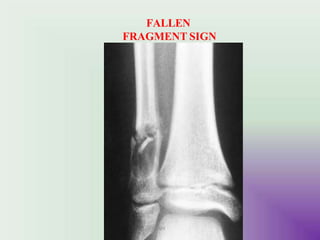

FALLEN FRAGMENT SIGN UMY
Bone cyst of humerus Pathologic fracture “Falling Fragment Sign” UMY

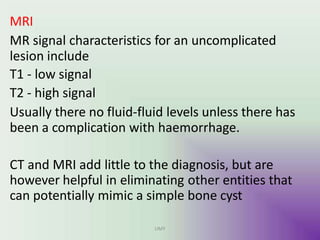

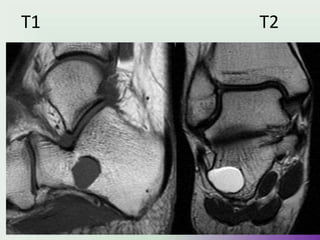

MRI MR signal characteristics for an uncomplicated lesion include T1 - low signal T2 - high signal Usually there no fluid-fluid levels unless there has been a complication with haemorrhage. CT and MRI add little to the diagnosis, but are however helpful in eliminating other entities that can potentially mimic a simple bone cyst UMY
T1 T2 UMY

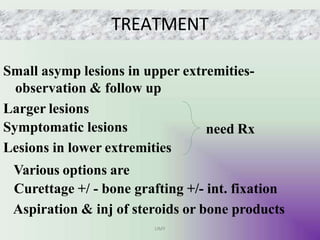

TREATMENT Small asymp lesions in upper extremities- observation & follow up Larger lesions need Rx Symptomatic lesions Lesions in lower extremities Various options are Curettage +/ - bone grafting +/- int. fixation Aspiration & inj of steroids or bone products UMY

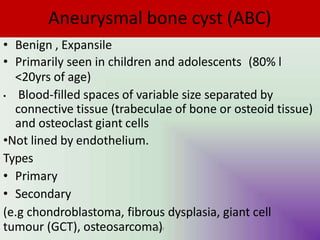

Aneurysmal bone cyst (ABC) • Benign , Expansile • Primarily seen in children and adolescents (80% l <20yrs of age) • Blood-filled spaces of variable size separated by connective tissue (trabeculae of bone or osteoid tissue) and osteoclast giant cells •Not lined by endothelium. Types • Primary • Secondary (e.g chondroblastoma, fibrous dysplasia, giant cell tumour (GCT), osteosarcoma UM )Y

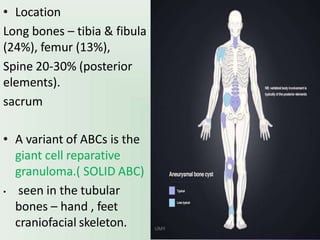

• Location Long bones – tibia & fibula (24%), femur (13%), Spine 20-30% (posterior elements). sacrum • A variant of ABCs is the giant cell reparative granuloma.( SOLID ABC) • seen in the tubular bones – hand , feet craniofacial skeleton. UMY

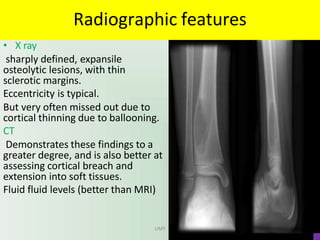

Radiographic features • X ray sharply defined, expansile osteolytic lesions, with thin sclerotic margins. Eccentricity is typical. But very often missed out due to cortical thinning due to ballooning. CT Demonstrates these findings to a greater degree, and is also better at assessing cortical breach and extension into soft tissues. Fluid fluid levels (better than MRI) UMY

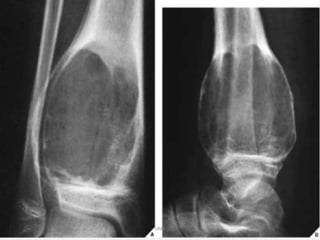

UMY

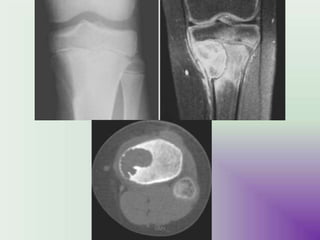

UMY

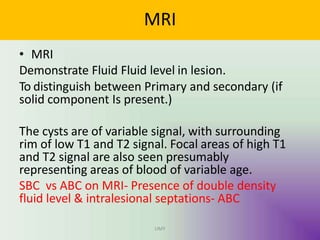

MRI UMY • MRI Demonstrate Fluid Fluid level in lesion. To distinguish between Primary and secondary (if solid component Is present.) The cysts are of variable signal, with surrounding rim of low T1 and T2 signal. Focal areas of high T1 and T2 signal are also seen presumably representing areas of blood of variable age. SBC vs ABC on MRI- Presence of double density fluid level & intralesional septations- ABC

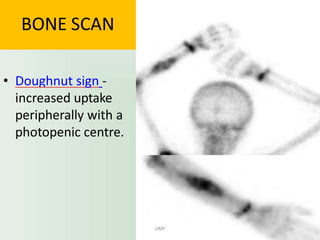

BONE SCAN • Doughnut sign - increased uptake peripherally with a photopenic centre. UMY

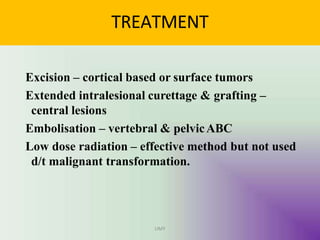

TREATMENT UMY Excision – cortical based or surface tumors Extended intralesional curettage & grafting – central lesions Embolisation – vertebral & pelvicABC Low dose radiation – effective method but not used d/t malignant transformation.

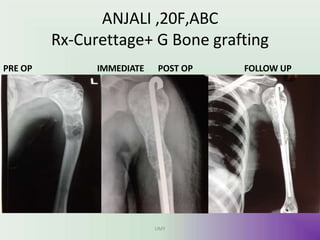

ANJALI ,20F,ABC Rx-Curettage+ G Bone grafting PRE OP IMMEDIATE POST OP FOLLOW UP UMY

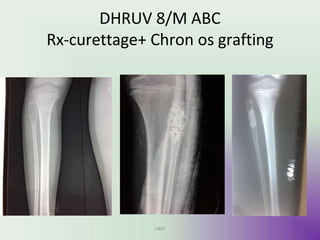

DHRUV 8/M ABC Rx-curettage+ Chron os grafting UMY

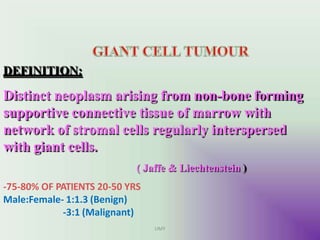

DEFINITION: Distinct neoplasm arising from non-bone forming supportive connective tissue of marrow with network of stromal cells regularly interspersed with giant cells. ( Jaffe & Liechtenstein ) -75-80% OF PATIENTS 20-50 YRS Male:Female- 1:1.3 (Benign) -3:1 (Malignant) UMY

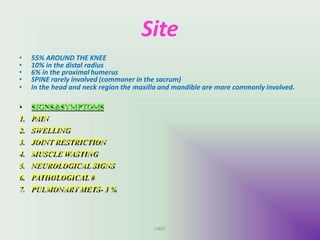

Site • 55% AROUND THE KNEE • 10% in the distal radius • 6% in the proximal humerus • SPINE rarely involved (commoner in the sacrum) • In the head and neck region the maxilla and mandible are more commonly involved. • SIGNS&SYMPTOMS 1. PAIN 2. SWELLING 3. JOINT RESTRICTION 4. MUSCLE WASTING 5. NEUROLOGICALSIGNS 6. PATHOLOGICAL# 7. PULMONARYMETS- 3 % UMY

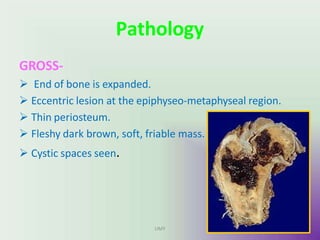

Pathology GROSS-  End of bone is expanded.  Eccentric lesion at the epiphyseo-metaphyseal region.  Thin periosteum.  Fleshy dark brown, soft, friable mass.  Cystic spaces seen. UMY

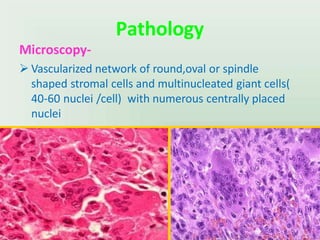

Pathology Microscopy-  Vascularized network of round,oval or spindle shaped stromal cells and multinucleated giant cells( 40-60 nuclei /cell) with numerous centrally placed nuclei UMY

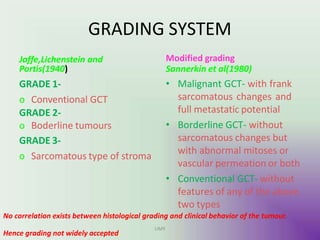

GRADING SYSTEM Jaffe,Lichenstein and Portis(1940) GRADE 1- o Conventional GCT GRADE 2- o Boderline tumours GRADE 3- o Sarcomatous type of stroma Modified grading Sannerkin et al(1980) • Malignant GCT- with frank sarcomatous changes and full metastatic potential • Borderline GCT- without sarcomatous changes but with abnormal mitoses or vascular permeation or both • Conventional GCT- without features of any of the above two types No correlation exists between histological grading and clinical behavior of the tumour. Hence grading not widely accepted. UMY

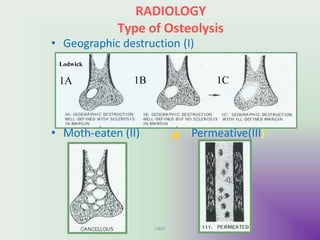

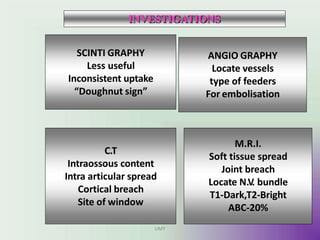

RADIOLOGY Type of Osteolysis • Geographic destruction (I) • Moth-eaten (II) Permeative(III) Lodwick 1A 1B 1C UMY

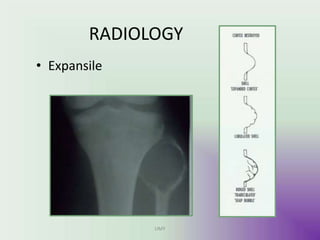

RADIOLOGY • Expansile UMY

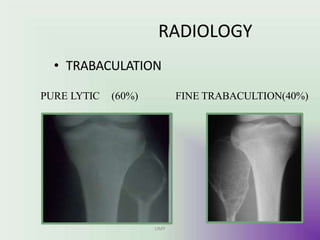

RADIOLOGY • TRABACULATION PURE LYTIC (60%) FINE TRABACULTION(40%) UMY
SCINTI GRAPHY Less useful Inconsistent uptake “Doughnut sign” M.R.I. Soft tissue spread Joint breach Locate N.V. bundle T1-Dark,T2-Bright ABC-20% C.T Intraossous content Intra articular spread Cortical breach Site of window ANGIO GRAPHY Locate vessels type of feeders For embolisation INVESTIGATIONS UMY

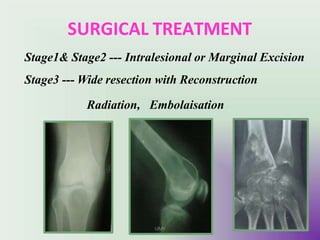

SURGICAL TREATMENT Stage1& Stage2 --- Intralesional or Marginal Excision Stage3 --- Wide resection with Reconstruction Radiation, Embolaisation UMY

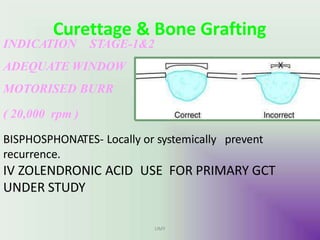

Curettage & Bone Grafting INDICATION STAGE-1&2 ADEQUATE WINDOW MOTORISED BURR ( 20,000 rpm ) BISPHOSPHONATES- Locally or systemically prevent recurrence. IV ZOLENDRONIC ACID USE FOR PRIMARY GCT UNDER STUDY UMY

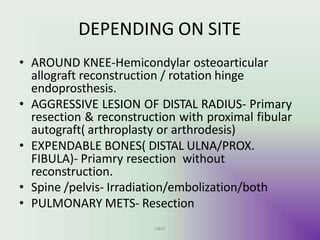

DEPENDING ON SITE UMY • AROUND KNEE-Hemicondylar osteoarticular allograft reconstruction / rotation hinge endoprosthesis. • AGGRESSIVE LESION OF DISTAL RADIUS- Primary resection & reconstruction with proximal fibular autograft( arthroplasty or arthrodesis) • EXPENDABLE BONES( DISTAL ULNA/PROX. FIBULA)- Priamry resection without reconstruction. • Spine /pelvis- Irradiation/embolization/both • PULMONARY METS- Resection

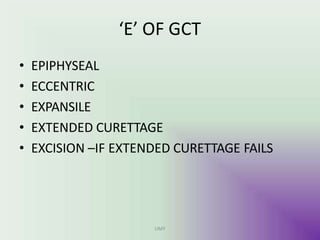

‘E’ OF GCT UMY • EPIPHYSEAL • ECCENTRIC • EXPANSILE • EXTENDED CURETTAGE • EXCISION –IF EXTENDED CURETTAGE FAILS
UMY
