The document describes the Electronet series ULT-200/ULT-200H, which are two-wire ultrasonic level transmitters for non-contact level measurement of liquids, featuring a measurement range of 0.6 to 12 meters and providing a 4-20 mA DC output. It highlights key features such as a local LCD display, automatic temperature compensation, self-diagnostics, and weather-proofaluminum housing. The transmitters are suitable for various applications including slurries and corrosive liquids, and they emphasize easy maintenance and configuration.

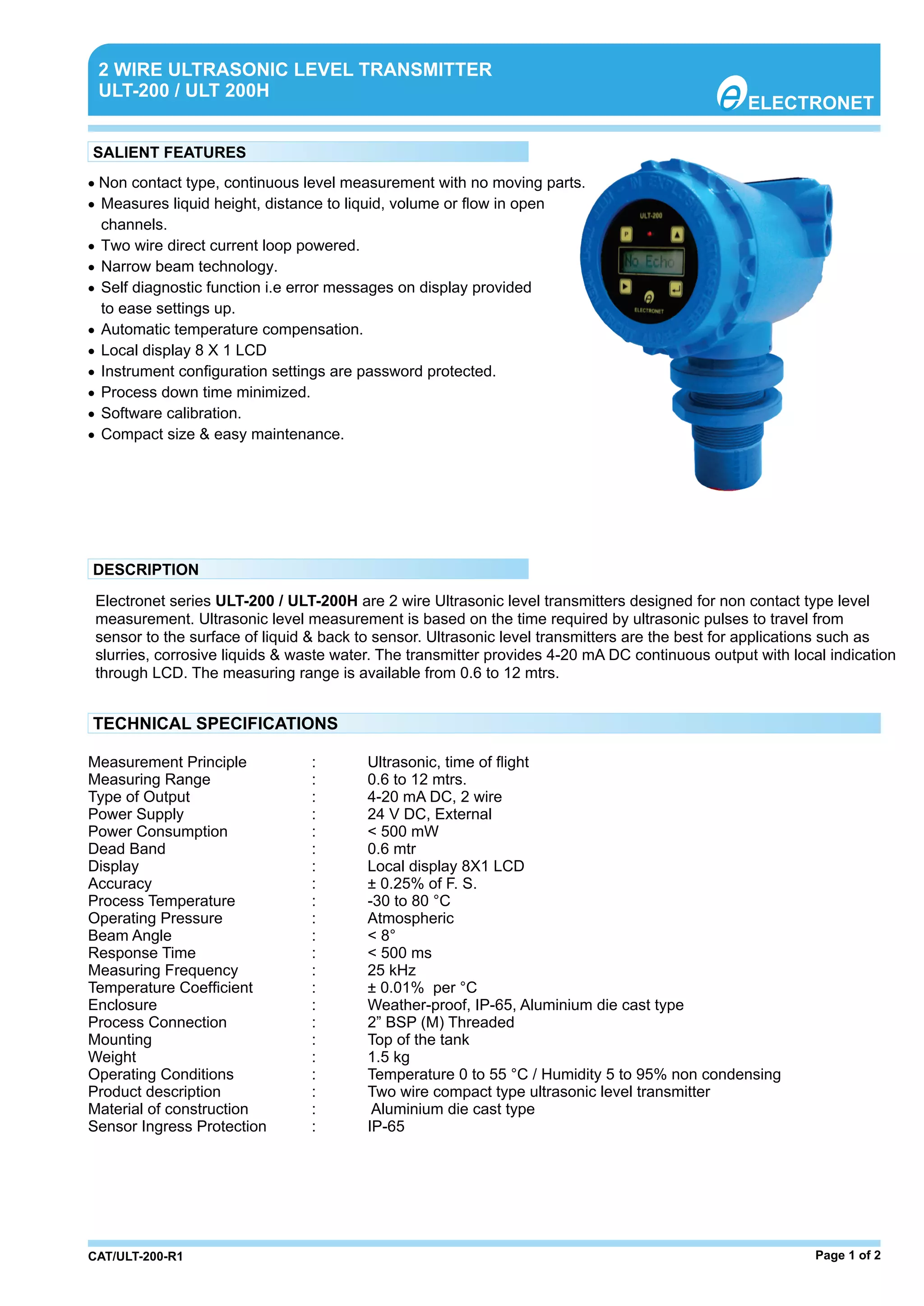

1. Page 1 of 2
Non contact type, continuous level measurement with no moving parts.•
Measures liquid height, distance to liquid, volume or flow in open•
channels.
Two wire direct current loop powered.•
Narrow beam technology.•
Self diagnostic function i.e error messages on display provided•
to ease settings up.
Automatic temperature compensation.•
Local display 8 X 1 LCD•
Instrument configuration settings are password protected.•
Process down time minimized.•
Software calibration.•
Compact size & easy maintenance.•
2 WIRE ULTRASONIC LEVEL TRANSMITTER
ULT-200 / ULT 200H
ELECTRONET
SALIENT FEATURES
DESCRIPTION
TECHNICAL SPECIFICATIONS
Electronet series ULT-200 / ULT-200H are 2 wire Ultrasonic level transmitters designed for non contact type level
measurement. Ultrasonic level measurement is based on the time required by ultrasonic pulses to travel from
sensor to the surface of liquid & back to sensor. Ultrasonic level transmitters are the best for applications such as
slurries, corrosive liquids & waste water. The transmitter provides 4-20 mA DC continuous output with local indication
through LCD. The measuring range is available from 0.6 to 12 mtrs.
Measurement Principle : Ultrasonic, time of flight
Measuring Range : 0.6 to 12 mtrs.
Type of Output : 4-20 mA DC, 2 wire
Power Supply : 24 V DC, External
Power Consumption : < 500 mW
Dead Band : 0.6 mtr
Display : Local display 8X1 LCD
Accuracy : ± 0.25% of F. S.
Process Temperature : -30 to 80 °C
Operating Pressure : Atmospheric
Beam Angle : < 8°
Response Time : < 500 ms
Measuring Frequency : 25 kHz
Temperature Coefficient : ± 0.01% per °C
Enclosure : Weather-proof, IP-65, Aluminium die cast type
Process Connection : 2” BSP (M) Threaded
Mounting : Top of the tank
Weight : 1.5 kg
Operating Conditions : Temperature 0 to 55 °C / Humidity 5 to 95% non condensing
Product description : Two wire compact type ultrasonic level transmitter
Material of construction : Aluminium die cast type
Sensor Ingress Protection : IP-65
CAT/ULT-200-R1

2. 60(±1)mm38(±1)mm
12(±1)mm
12(±1)mm
131(±1)mm
ULT 200
P
137(± 1)mm
60(±1)mm38(±1)mm
12(± 1)mm
12(± 1)mm
205(± 1)mm
131(±1)mm
ULT 200
P

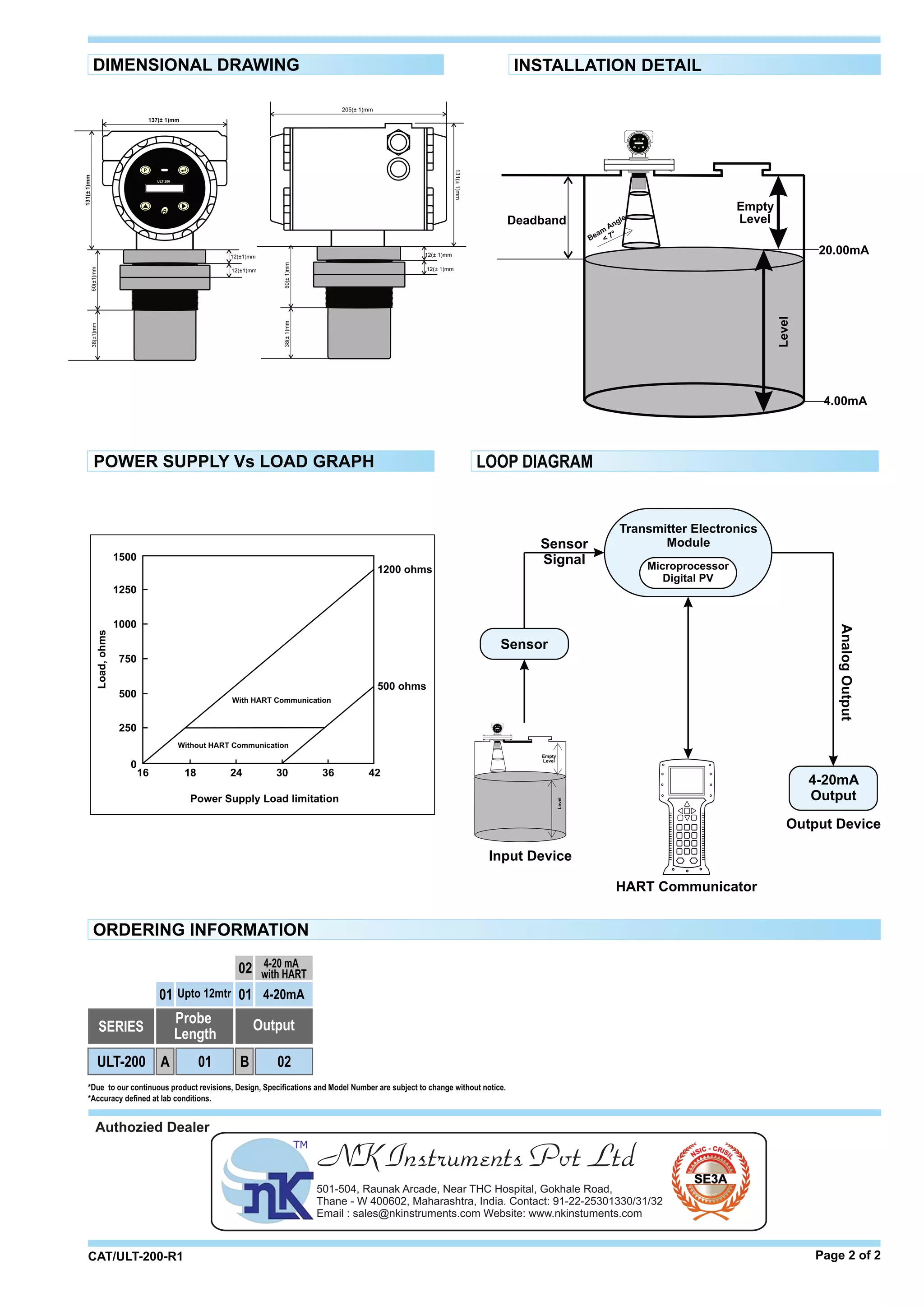

Page 2 of 2
ORDERING INFORMATION
*Accuracy defined at lab conditions.
*Due to our continuous product revisions, Design, Specifications and Model Number are subject to change without notice.
SERIES
65 mm01
01
Probe
Length
A
Upto 12mtr
CAT/ULT-200-R1
ULT-200
LOOP DIAGRAMPOWER SUPPLY Vs LOAD GRAPH
16 18 24 30 36 42
0
250
500
750
1000
1250
1500
With HART Communication
Without HART Communication
500 ohms
1200 ohms
Power Supply Load limitation
Load,ohms
65 mm02
01
02
Output
B
4-20mA
4-20 mA
with HART
DIMENSIONAL DRAWING INSTALLATION DETAIL
LOOP DIAGRAM
4-20mA
Output
Input Device
Sensor
HART Communicator
Sensor
Signal
AnalogOutput
Output Device
Level
Empty
Level
Transmitter Electronics
Module
Microprocessor
Digital PV
Deadband
Level
Empty
4.00mA
20.00mA
Level
Beam
Angle
< 7°
ULT 200
P
