January 29 2010 1/55 Some Recent Results from the MEG Experiment on µ → eγ: Benjamin Golden Joint Particle Seminar February 8, 2012 University of California, Irvine

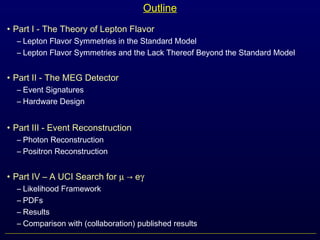

Outline • Part I - The Theory of Lepton Flavor – Lepton Flavor Symmetries in the Standard Model – Lepton Flavor Symmetries and the Lack Thereof Beyond the Standard Model • Part II - The MEG Detector – Event Signatures – Hardware Design • Part III - Event Reconstruction – Photon Reconstruction – Positron Reconstruction • Part IV – A UCI Search for µ → eγ – Likelihood Framework – PDFs – Results – Comparison with (collaboration) published results
Part I The Theory of Lepton Flavor: A Window to the UV Completion of the Standard Model

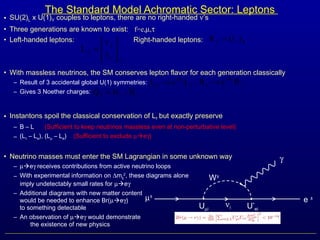

The Standard Model Achromatic Sector: Leptons • SU(2)L x U(1)Y couples to leptons, there are no right-handed ν’s • Three generations are known to exist: f=e,µ,τ • Left-handed leptons: Right-handed leptons: • With massless neutrinos, the SM conserves lepton flavor for each generation classically – Result of 3 accidental global U(1) symmetries: – Gives 3 Noether charges: • Instantons spoil the classical conservation of Lf but exactly preserve – B – L (Sufficient to keep neutrinos massless even at non-perturbative level) – (Lτ – Le), (Lµ – Le) (Sufficient to exclude µeγ) • Neutrino masses must enter the SM Lagrangian in some unknown way – µeγ receives contributions from active neutrino loops – With experimental information on ∆mij 2 , these diagrams alone imply undetectably small rates for µeγ – Additional diagrams with new matter content would be needed to enhance Br(µeγ) to something detectable – An observation of µeγ would demonstrate the existence of new physics Lf f f l       = ν L Rff l )(R = ff f LeL -iq → ff f ReR -iq → fff N-NQ = µ± e ± γ W± νiUµi U* ei

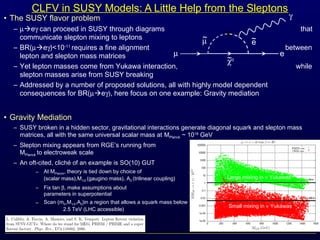

~eµ~ CLFV in SUSY Models: A Little Help from the Sleptons • The SUSY flavor problem – µeγ can proceed in SUSY through diagrams that communicate slepton mixing to leptons – BR(µeγ)<10-11 requires a fine alignment between lepton and slepton mass matrices – Yet lepton masses come from Yukawa interaction, while slepton masses arise from SUSY breaking – Addressed by a number of proposed solutions, all with highly model dependent consequences for BR(µeγ), here focus on one example: Gravity mediation • Gravity Mediation – SUSY broken in a hidden sector, gravitational interactions generate diagonal squark and slepton mass matrices, all with the same universal scalar mass at MPlanck ~ 1018 GeV – Slepton mixing appears from RGE’s running from MPlanck to electroweak scale – An oft-cited, cliché of an example is SO(10) GUT – At MPlanck, theory is tied down by choice of m0 (scalar mass),M1/2 (gaugino mass), A0 (trilinear coupling) – Fix tan β, make assumptions about parameters in superpotential – Scan (m0,M1/2,A0)in a region that allows a squark mass below 2.5 TeV (LHC accessible) × µ e γ ~χ0 Large mixing in ν Yukawas Small mixing in ν Yukawas

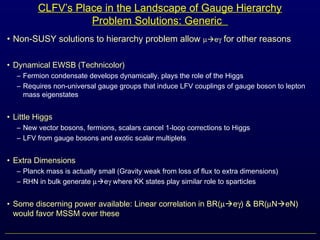

CLFV’s Place in the Landscape of Gauge Hierarchy Problem Solutions: Generic • Non-SUSY solutions to hierarchy problem allow µeγ for other reasons • Dynamical EWSB (Technicolor) – Fermion condensate develops dynamically, plays the role of the Higgs – Requires non-universal gauge groups that induce LFV couplings of gauge boson to lepton mass eigenstates • Little Higgs – New vector bosons, fermions, scalars cancel 1-loop corrections to Higgs – LFV from gauge bosons and exotic scalar multiplets • Extra Dimensions – Planck mass is actually small (Gravity weak from loss of flux to extra dimensions) – RHN in bulk generate µeγ where KK states play similar role to sparticles • Some discerning power available: Linear correlation in BR(µeγ) & BR(µNeN) would favor MSSM over these
Part II The MEG Detector: At the Frontier of Low Energy Precision Measurement

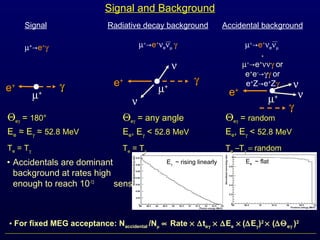

Signal and Background • Accidentals are dominant background at rates high enough to reach 10-13 sensitivity Signal µ+ →e+ γ µµ++ γγee++ Radiative decay background µ+ →e+ νeνµ γ ν ν µµ++ee++ γγ Accidental background µ+ →e+ νeνµ + µ+ →e+ ννγ or e+ e- →γγ or e+ Z→e+ Zγ ν νµµ++ee++ γγ ΘΘeeγγ == 180°180° EEee ≈≈ EEγγ ≈≈ 52.852.8 MeVMeV TTee = T= Tγγ ΘΘeeγγ = any angle= any angle EEee, E, Eγγ << 52.852.8 MeVMeV TTee = T= Tγγ ΘΘeeγγ == randomrandom EEee, E, Eγγ << 52.852.8 MeVMeV TTee –T–Tγγ == randomrandom • For fixed MEG acceptance: Naccidental /Nμ ∝ Rate × ∆teγ × ∆Ee × (∆Eγ)2 × (∆Θeγ )2 Ee ~ flatEγ ~ rising linearly

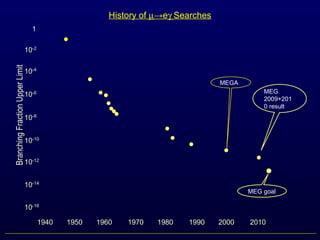

1 History of µ→eγ Searches 10-2 10-4 10-16 10-6 10-8 10-10 10-14 10-12 1940 1950 1960 1970 1980 1990 2000 2010 MEGA BranchingFractionUpperLimit MEG goal MEG 2009+201 0 result

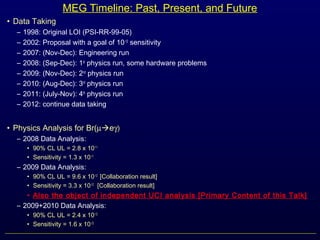

MEG Timeline: Past, Present, and Future • Data Taking – 1998: Original LOI (PSI-RR-99-05) – 2002: Proposal with a goal of 10-13 sensitivity – 2007: (Nov-Dec): Engineering run – 2008: (Sep-Dec): 1st physics run, some hardware problems – 2009: (Nov-Dec): 2nd physics run – 2010: (Aug-Dec): 3rd physics run – 2011: (July-Nov): 4th physics run – 2012: continue data taking • Physics Analysis for Br(µeγ) – 2008 Data Analysis: • 90% CL UL = 2.8 x 10-11 • Sensitivity = 1.3 x 10-11 – 2009 Data Analysis: • 90% CL UL = 9.6 x 10-12 [Collaboration result] • Sensitivity = 3.3 x 10-12 [Collaboration result] • Also the object of independent UCI analysis [Primary Content of this Talk] – 2009+2010 Data Analysis: • 90% CL UL = 2.4 x 10-12 • Sensitivity = 1.6 x 10-12

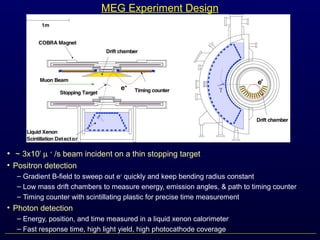

MEG Experiment Design • ~ 3x107 µ ＋ /s beam incident on a thin stopping target • Positron detection – Gradient B-field to sweep out e+ quickly and keep bending radius constant – Low mass drift chambers to measure energy, emission angles, & path to timing counter – Timing counter with scintillating plastic for precise time measurement • Photon detection – Energy, position, and time measured in a liquid xenon calorimeter – Fast response time, high light yield, high photocathode coverage

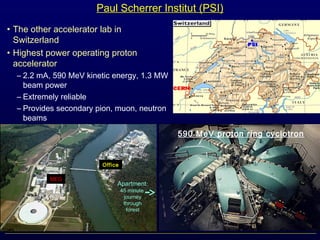

Paul Scherrer Institut (PSI) • The other accelerator lab in Switzerland • Highest power operating proton accelerator – 2.2 mA, 590 MeV kinetic energy, 1.3 MW beam power – Extremely reliable – Provides secondary pion, muon, neutron beams 590 MeV proton ring cyclotron MEG Office Apartment: 45 minute journey through forest

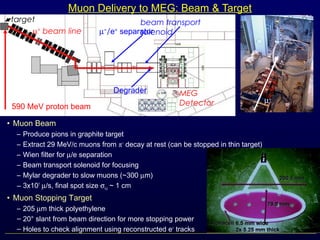

Muon Delivery to MEG: Beam & Target • Muon Beam – Produce pions in graphite target – Extract 29 MeV/c muons from π+ decay at rest (can be stopped in thin target) – Wien filter for µ/e separation – Beam transport solenoid for focusing – Mylar degrader to slow muons (~300 µm) – 3x107 µ/s, final spot size σx,y ~ 1 cm • Muon Stopping Target – 205 µm thick polyethylene – 20° slant from beam direction for more stopping power – Holes to check alignment using reconstructed e+ tracks 590 MeV proton beam target µ+ beam line µ+ /e+ separator beam transport solenoid MEG Detector Degrader µ+

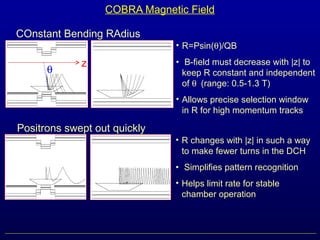

COBRA Magnetic Field COnstant Bending RAdius Positrons swept out quickly z θ • R=Psin(θ)/QB • B-field must decrease with |z| to keep R constant and independent of θ (range: 0.5-1.3 T) • Allows precise selection window in R for high momentum tracks • R changes with |z| in such a way to make fewer turns in the DCH • Simplifies pattern recognition • Helps limit rate for stable chamber operation

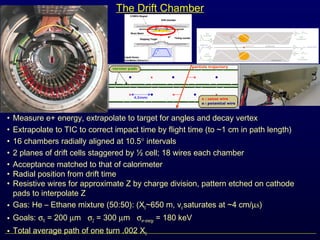

The Drift Chamber • Measure e+ energy, extrapolate to target for angles and decay vertex • Extrapolate to TIC to correct impact time by flight time (to ~1 cm in path length) • 16 chambers radially aligned at 10.5° intervals • 2 planes of drift cells staggered by ½ cell; 18 wires each chamber • Acceptance matched to that of calorimeter • Radial position from drift time • Resistive wires for approximate Z by charge division, pattern etched on cathode pads to interpolate Z • Gas: He – Ethane mixture (50:50): (X0~650 m, vd saturates at ~4 cm/µs) • Goals: σR = 200 µm σZ = 300 µm σe+ energy = 180 keV • Total average path of one turn .002 X0

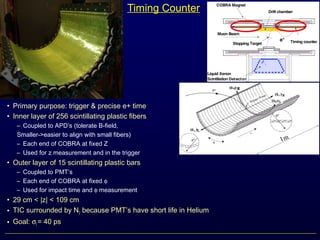

Timing Counter • Primary purpose: trigger & precise e+ time • Inner layer of 256 scintillating plastic fibers – Coupled to APD’s (tolerate B-field, Smaller->easier to align with small fibers) – Each end of COBRA at fixed Z – Used for z measurement and in the trigger • Outer layer of 15 scintillating plastic bars – Coupled to PMT’s – Each end of COBRA at fixed φ – Used for impact time and φ measurement • 29 cm < |z| < 109 cm • TIC surrounded by N2 because PMT’s have short life in Helium • Goal: σt = 40 ps

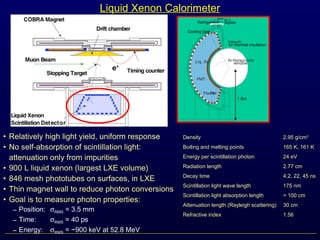

Liquid Xenon Calorimeter Liq. Xe H.V. Vacuum for thermal insulation Al Honeycomb window PMT Refrigerator Cooling pipe Signals fillerPlastic 1.5m Density 2.95 g/cm3 Boiling and melting points 165 K, 161 K Energy per scintillation photon 24 eV Radiation length 2.77 cm Decay time 4.2, 22, 45 ns Scintillation light wave length 175 nm Scintillation light absorption length > 100 cm Attenuation length (Rayleigh scattering) 30 cm Refractive index 1.56 • Relatively high light yield, uniform response • No self-absorption of scintillation light: attenuation only from impurities • 900 L liquid xenon (largest LXE volume) • 846 mesh phototubes on surfaces, in LXE • Thin magnet wall to reduce photon conversions • Goal is to measure photon properties: – Position: σRMS = 3.5 mm – Time: σRMS = 40 ps – Energy: σRMS = ~900 keV at 52.8 MeV
Dedicated Calibration Tools • Calorimeter – CEX reaction: π− +p (LH2 target)  π0 + n followed by π0  γγ (98.8%) • Select events with 83 MeV γ in NaI detector and a back-to-back γ in XEC (55 MeV) • Used to measure γ energy scale, resolution; γ time resolution, PMT time delays • Position resolution of γ from data with lead collimator in front of XEC entrance – Cockcroft-Walton proton accelerator (Li2B4O7 target) – LEDs mounted in XEC • Flash with different intensities • Calibrate PMT gains – QE measured by scintillation light from α sources mounted at known positions (241 Am) • Laser measurements of reference marks on drift chambers and target for primary alignment • Relative TIC-XEC timing from Dalitz data (π0  e+ e- γ ) Reaction Eγ [MeV] Uses p + Li → Be + γ 17.6 Monitor light yield p + B → C + γ + γ 4.4 + 11.6 Cross-time LXE and timing counter check α source wire LED LED
Part III Event Reconstruction: Getting Particle Kinematics from Waveforms I don’t know what I’m looking at.

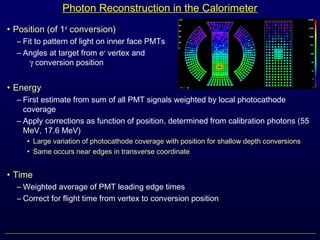

Photon Reconstruction in the Calorimeter • Position (of 1st conversion) – Fit to pattern of light on inner face PMTs – Angles at target from e+ vertex and γ conversion position • Energy – First estimate from sum of all PMT signals weighted by local photocathode coverage – Apply corrections as function of position, determined from calibration photons (55 MeV, 17.6 MeV) • Large variation of photocathode coverage with position for shallow depth conversions • Same occurs near edges in transverse coordinate • Time – Weighted average of PMT leading edge times – Correct for flight time from vertex to conversion position

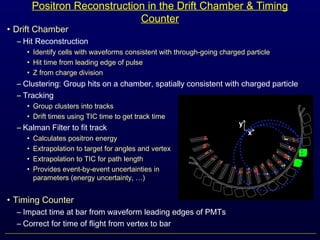

Positron Reconstruction in the Drift Chamber & Timing Counter • Drift Chamber – Hit Reconstruction • Identify cells with waveforms consistent with through-going charged particle • Hit time from leading edge of pulse • Z from charge division – Clustering: Group hits on a chamber, spatially consistent with charged particle – Tracking • Group clusters into tracks • Drift times using TIC time to get track time – Kalman Filter to fit track • Calculates positron energy • Extrapolation to target for angles and vertex • Extrapolation to TIC for path length • Provides event-by-event uncertainties in track parameters (energy uncertainty, …) • Timing Counter – Impact time at bar from waveform leading edges of PMTs – Correct for time of flight from vertex to bar
Part IV Current MEG Results & UCI Analysis on 2009 Data:

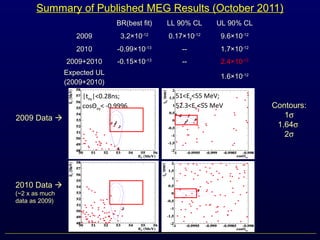

Summary of Published MEG Results (October 2011) |teγ|<0.28ns; cosΘeγ< -0.9996 51<Eγ<55 MeV; 52.3<Ee<55 MeV BR(best fit) LL 90% CL UL 90% CL 2009 3.2×10-12 0.17×10-12 9.6×10-12 2010 -0.99×10-13 -- 1.7×10-12 2009+2010 -0.15×10-13 -- 2.4×10-12 Expected UL (2009+2010) 1.6×10-12 2009 Data  2010 Data  (~2 x as much data as 2009) Contours: 1σ 1.64σ 2σ

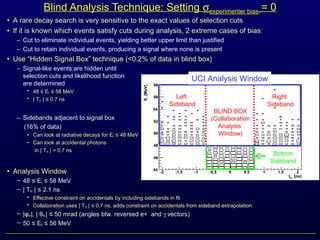

• A rare decay search is very sensitive to the exact values of selection cuts • If it is known which events satisfy cuts during analysis, 2 extreme cases of bias: – Cut to eliminate individual events, yielding better upper limit than justified – Cut to retain individual events, producing a signal where none is present • Use “Hidden Signal Box” technique (<0.2% of data in blind box) – Signal-like events are hidden until selection cuts and likelihood function are determined • 48 E≤ γ 58 MeV≤ • | Teγ | 0.7 ns≤ – Sidebands adjacent to signal box (16% of data) • Can look at radiative decays for Eγ 48 MeV≤ • Can look at accidental photons in | Teγ | > 0.7 ns • Analysis Window – 48 E≤ γ 58 MeV≤ – | Teγ | 2.1 ns≤ • Effective constraint on accidentals by including sidebands in fit • Collaboration uses | Teγ | 0.7 ns, adds constraint on accidentals from sideband extrapolation≤ – |φeγ|, | θeγ | 50 mrad (angles btw. reversed e+ and≤ γ vectors) – 50 E≤ e 56 MeV≤ Blind Analysis Technique: Setting σexperimenter bias = 0 UCI Analysis Window BLIND BOX (Collaboration Analysis Window) Left Sideband Right Sideband Bottom Sideband

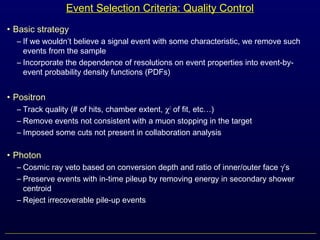

Event Selection Criteria: Quality Control • Basic strategy – If we wouldn’t believe a signal event with some characteristic, we remove such events from the sample – Incorporate the dependence of resolutions on event properties into event-by- event probability density functions (PDFs) • Positron – Track quality (# of hits, chamber extent, χ2 of fit, etc…) – Remove events not consistent with a muon stopping in the target – Imposed some cuts not present in collaboration analysis • Photon – Cosmic ray veto based on conversion depth and ratio of inner/outer face γ’s – Preserve events with in-time pileup by removing energy in secondary shower centroid – Reject irrecoverable pile-up events

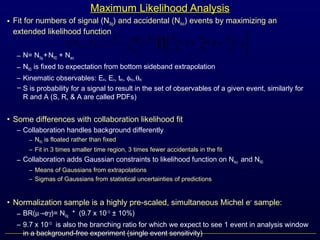

Maximum Likelihood Analysis • Fit for numbers of signal (NSig) and accidental (NAcc) events by maximizing an extended likelihood function – N= NSig +NRD + Nacc – NRD is fixed to expectation from bottom sideband extrapolation – Kinematic observables: Ee, Eγ, teγ, φeγ,θeγ – S is probability for a signal to result in the set of observables of a given event, similarly for R and A (S, R, & A are called PDFs) • Some differences with collaboration likelihood fit – Collaboration handles background differently ― NRD is floated rather than fixed ― Fit in 3 times smaller time region, 3 times fewer accidentals in the fit – Collaboration adds Gaussian constraints to likelihood function on NAcc and NRD ― Means of Gaussians from extrapolations ― Sigmas of Gaussians from statistical uncertainties of predictions • Normalization sample is a highly pre-scaled, simultaneous Michel e+ sample: – BR(µ→eγ)= NSig * (9.7 x 10-13 ± 10%) – 9.7 x 10-13 is also the branching ratio for which we expect to see 1 event in analysis window in a background-free experiment (single event sensitivity) ( ) ( ) ∏=       ++ − = obsobs N i AccRDSig obs N AccSig A N N R N N S N N N NN NNL 1! exp ,

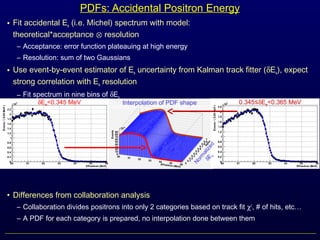

• Fit accidental Ee (i.e. Michel) spectrum with model: theoretical*acceptance ⊗ resolution – Acceptance: error function plateauing at high energy – Resolution: sum of two Gaussians • Use event-by-event estimator of Ee uncertainty from Kalman track fitter (δEe), expect strong correlation with Ee resolution – Fit spectrum in nine bins of δEe – Interpolate between bins by deforming shape of PDF from one bin to next • Differences from collaboration analysis – Collaboration divides positrons into only 2 categories based on track fit χ2 , # of hits, etc… – A PDF for each category is prepared, no interpolation done between them PDFs: Accidental Positron Energy δEe<0.345 MeV 0.345≤δEe<0.365 MeVInterpolation of PDF shape Norm alized δE e

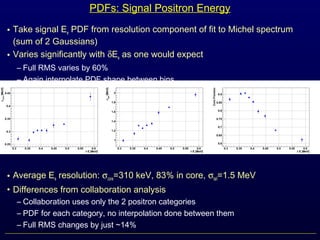

PDFs: Signal Positron Energy • Take signal Ee PDF from resolution component of fit to Michel spectrum (sum of 2 Gaussians) • Varies significantly with δEe as one would expect – Full RMS varies by 60% – Again interpolate PDF shape between bins • Average Ee resolution: σcore=310 keV, 83% in core, σtail=1.5 MeV • Differences from collaboration analysis – Collaboration uses only the 2 positron categories – PDF for each category, no interpolation done between them – Full RMS changes by just ~14%
PDFs: Signal Photon Energy • Eγ resolution from 55 MeV γ source (π0 γγ) – Gaussian high energy part (σEγ) – Exponential low energy tail from early conversions, shower escape through inner face • Response map prepared in 3D bins of conversion point – Spatial variations of performance (e.g., PMT saturation near edges) – Smooth each parameter with series of 2D linear interpolation surfaces • Resolution: 2.1% (1.1 MeV) for deep events (w>2 cm), ~3% when shallower • Differences from collaboration analysis – Same 3D response map is used – Collaboration does not smooth, arbitrarily similar events may get 40% different PDF widths σEγ

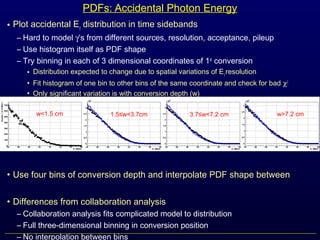

• Plot accidental Eγ distribution in time sidebands – Hard to model γ’s from different sources, resolution, acceptance, pileup – Use histogram itself as PDF shape – Try binning in each of 3 dimensional coordinates of 1st conversion • Distribution expected to change due to spatial variations of Eγresolution • Fit histogram of one bin to other bins of the same coordinate and check for bad χ2 • Only significant variation is with conversion depth (w) • Use four bins of conversion depth and interpolate PDF shape between • Differences from collaboration analysis – Collaboration analysis fits complicated model to distribution – Full three-dimensional binning in conversion position – No interpolation between bins PDFs: Accidental Photon Energy w<1.5 cm 1.5≤w<3.7cm 3.7≤w<7.2 cm w>7.2 cm

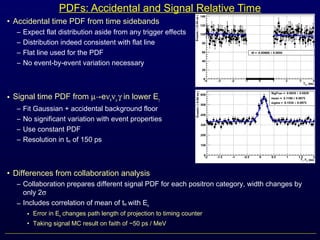

PDFs: Accidental and Signal Relative Time • Accidental time PDF from time sidebands – Expect flat distribution aside from any trigger effects – Distribution indeed consistent with flat line – Flat line used for the PDF – No event-by-event variation necessary • Signal time PDF from µ→eνeνµ γ in lower Eγ sideband – Fit Gaussian + accidental background floor – No significant variation with event properties – Use constant PDF – Resolution in teγ of 150 ps • Differences from collaboration analysis – Collaboration prepares different signal PDF for each positron category, width changes by only 2σ – Includes correlation of mean of teγ with Ee • Error in Ee changes path length of projection to timing counter • Taking signal MC result on faith of ~50 ps / MeV
PDFs: Accidental Relative Angles • Fit accidental φeγ and θeγ distributions in time sidebands to polynomials • Sensitive to trigger effects and acceptance edge effects • For fixed φeγ and θeγ, fixing the photon conversion location almost fixes the full orientation – Bin φeγ distribution in coordinate along inner face arc (v) – Bin θeγ distribution in coordinate along beam axis (u) • Interpolate PDF shape between bins • Differences with collaboration analysis – Same technique for binning in conversion coordinates – No interpolation of PDF shape between bins φ θ u<-12 cm -12 ≤u<-2.5 cm u>14.5 cm

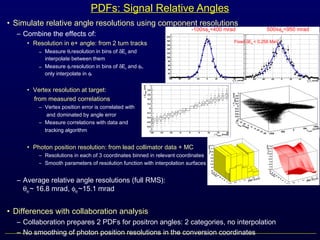

• Simulate relative angle resolutions using component resolutions – Combine the effects of: • Resolution in e+ angle: from 2 turn tracks – Measure θe resolution in bins of δEe and interpolate between them – Measure φe resolution in bins of δEe and φe, only interpolate in φe • Vertex resolution at target: from measured correlations – Vertex position error is correlated with and dominated by angle error – Measure correlations with data and tracking algorithm • Photon position resolution: from lead collimator data + MC – Resolutions in each of 3 coordinates binned in relevant coordinates – Smooth parameters of resolution function with interpolation surfaces – Average relative angle resolutions (full RMS): θeγ~ 16.8 mrad, φeγ~15.1 mrad • Differences with collaboration analysis – Collaboration prepares 2 PDFs for positron angles: 2 categories, no interpolation – No smoothing of photon position resolutions in the conversion coordinates PDFs: Signal Relative Angles -100≤φe<400 mrad 500≤φe<950 mrad Fixed δEe < 0.258 MeV

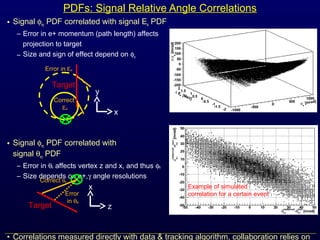

PDFs: Signal Relative Angle Correlations • Signal φeγ PDF correlated with signal Ee PDF – Error in e+ momentum (path length) affects projection to target – Size and sign of effect depend on φe • Signal φeγ PDF correlated with signal θeγ PDF – Error in θe affects vertex z and x, and thus φe – Size depends on e+,γ angle resolutions • Correlations measured directly with data & tracking algorithm, collaboration relies on Target x y Correct Ee Error in Ee Target z x Correct θe Error in θe Example of simulated correlation for a certain event

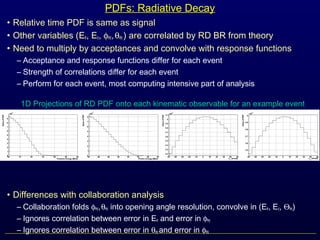

PDFs: Radiative Decay • Relative time PDF is same as signal • Other variables (Ee, Eγ, φeγ,θeγ ) are correlated by RD BR from theory • Need to multiply by acceptances and convolve with response functions – Acceptance and response functions differ for each event – Strength of correlations differ for each event – Perform for each event, most computing intensive part of analysis • Differences with collaboration analysis – Collaboration folds φeγ,θeγ into opening angle resolution, convolve in (Ee, Eγ, Θeγ) – Ignores correlation between error in Ee and error in φeγ – Ignores correlation between error in θeγ and error in φeγ 1D Projections of RD PDF onto each kinematic observable for an example event
Confidence Level and Sensitivity • Need 90% confidence interval on NSig with nuissance parameter NAcc: • Feldman-Cousins technique using profile likelihood statistic – At some test point Ni Sig calculate L ratio for data: – Generate experiments of Ni Sig according to PDFs, for each compute: – Confidence level at test point is probability P(Ri data>Ri sim) over the simulations • Collaboration analysis has 2 nuissance parameters since is NRD floated • Blind estimates of sensitivity – Set NSig=0 andNRD,NAcc=expected number in analysis window – Simulate ensemble of experiments and plot distribution of 90% UL – Median value at 4.9 x 10-12 – Collaboration result of 3.3 x 10-12 – Fit and calculate 90% UL in time sidebands where no signal is expected: 3-5 x 10-12 ( )AccSig NNL , ),(/ max max Acc i Sig i data NNLLR = ),(/ max max j j Acc i Sig i sim NNLLR = Best fit NSig Test NSig Rdata Rsim

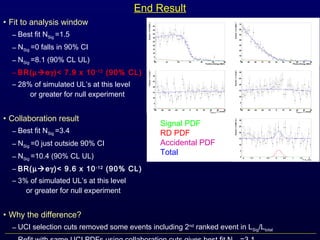

• Fit to analysis window – Best fit NSig =1.5 – NSig =0 falls in 90% CI – NSig =8.1 (90% CL UL) – BR(µeγ)< 7.9 x 10-12 (90% CL) – 28% of simulated UL’s at this level or greater for null experiment • Collaboration result – Best fit NSig =3.4 – NSig =0 just outside 90% CI – NSig =10.4 (90% CL UL) – BR(µeγ)< 9.6 x 10-12 (90% CL) – 3% of simulated UL’s at this level or greater for null experiment • Why the difference? – UCI selection cuts removed some events including 2nd ranked event in LSig/Ltotal End Result Signal PDF RD PDF Accidental PDF Total

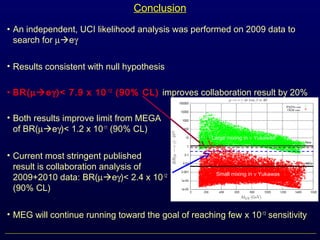

Conclusion • An independent, UCI likelihood analysis was performed on 2009 data to search for µeγ • Results consistent with null hypothesis • BR(µeγ)< 7.9 x 10-12 (90% CL) improves collaboration result by 20% • Both results improve limit from MEGA of BR(µeγ)< 1.2 x 10-11 (90% CL) • Current most stringent published result is collaboration analysis of 2009+2010 data: BR(µeγ)< 2.4 x 10-12 (90% CL) • MEG will continue running toward the goal of reaching few x 10-13 sensitivity Large mixing in ν Yukawas Small mixing in ν Yukawas
Backup

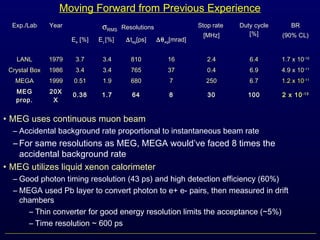

Moving Forward from Previous Experience Exp./Lab Year σRMS Resolutions Stop rate [MHz] Duty cycle [%] BR (90% CL) Ee [%] Eγ [%] ∆teg[ps] ∆θeg[mrad] LANLLANL 19791979 3.73.7 3.43.4 810810 1616 2.42.4 6.46.4 1.7 x 101.7 x 10-10-10 Crystal BoxCrystal Box 19861986 3.43.4 3.43.4 765765 3737 0.40.4 6.96.9 4.9 x 104.9 x 10-11-11 MEGAMEGA 19991999 0.510.51 1.91.9 680680 77 250250 6.76.7 1.2 x 101.2 x 10-11-11 MEG prop. 20X X 0.38 1.7 64 8 30 100 2 x 10-13 • MEG uses continuous muon beam – Accidental background rate proportional to instantaneous beam rate – For same resolutions as MEG, MEGA would’ve faced 8 times the accidental background rate • MEG utilizes liquid xenon calorimeter – Good photon timing resolution (43 ps) and high detection efficiency (60%) – MEGA used Pb layer to convert photon to e+ e- pairs, then measured in drift chambers – Thin converter for good energy resolution limits the acceptance (~5%) – Time resolution ~ 600 ps

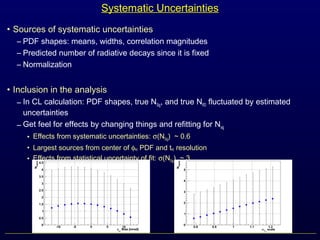

Systematic Uncertainties • Sources of systematic uncertainties – PDF shapes: means, widths, correlation magnitudes – Predicted number of radiative decays since it is fixed – Normalization • Inclusion in the analysis – In CL calculation: PDF shapes, true NSig, and true NRD fluctuated by estimated uncertainties – Get feel for effects by changing things and refitting for Nsig • Effects from systematic uncertainties: σ(NSig) ~ 0.6 • Largest sources from center of φeγ PDF and teγ resolution • Effects from statistical uncertainty of fit: σ(NSig) ~ 3
