The document discusses the three main types of rocks: igneous, sedimentary, and metamorphic. It describes how each type forms, provides examples of different sub-categories within each type, and defines key terms. For igneous rocks, it explains how they form from cooling magma and describes intrusive and extrusive varieties. For sedimentary rocks, it outlines how they are formed through erosion, transportation, deposition and cementation of sediments. Metamorphic rocks are described as forming from changes to pre-existing rocks through heat, pressure and deformation.

1. Liz LaRosa http://www.middleschoolscience.com 2010
Images from Geology.com unless otherwise noted

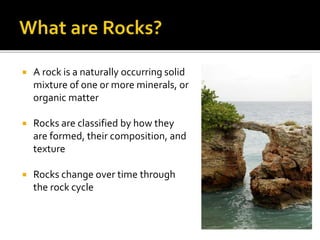

2.  A rock is a naturally occurring solid
mixture of one or more minerals, or
organic matter
 Rocks are classified by how they
are formed, their composition, and
texture
 Rocks change over time through
the rock cycle

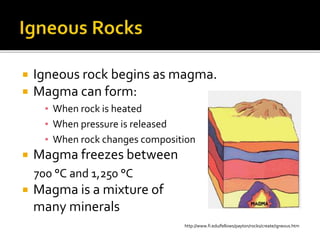

3.  Igneous rock begins as magma.
 Magma can form:
▪ When rock is heated
▪ When pressure is released
▪ When rock changes composition
 Magma freezes between
700 °C and 1,250 °C
 Magma is a mixture of
many minerals
http://www.fi.edu/fellows/payton/rocks/create/igneous.htm

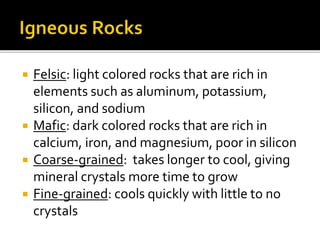

4.  Felsic: light colored rocks that are rich in
elements such as aluminum, potassium,
silicon, and sodium
 Mafic: dark colored rocks that are rich in
calcium, iron, and magnesium, poor in silicon
 Coarse-grained: takes longer to cool, giving
mineral crystals more time to grow
 Fine-grained: cools quickly with little to no
crystals

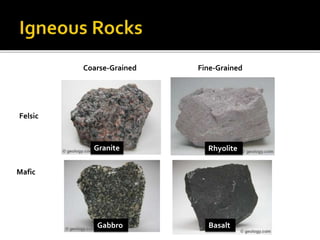

5. Felsic
Mafic
Coarse-Grained Fine-Grained
Granite
Gabbro Basalt
Rhyolite

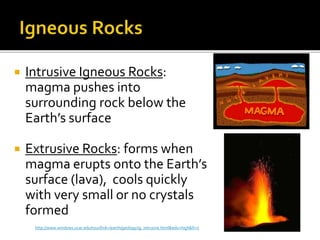

6.  Intrusive Igneous Rocks:
magma pushes into
surrounding rock below the
Earth’s surface
 Extrusive Rocks: forms when
magma erupts onto the Earth’s
surface (lava), cools quickly
with very small or no crystals
formed
http://www.windows.ucar.edu/tour/link=/earth/geology/ig_intrusive.html&edu=high&fr=t

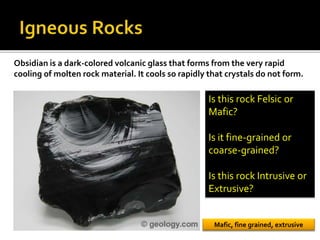

7. Obsidian is a dark-colored volcanic glass that forms from the very rapid
cooling of molten rock material. It cools so rapidly that crystals do not form.
Is this rock Felsic or
Mafic?
Is it fine-grained or
coarse-grained?
Is this rock Intrusive or
Extrusive?
Mafic, fine grained, extrusive

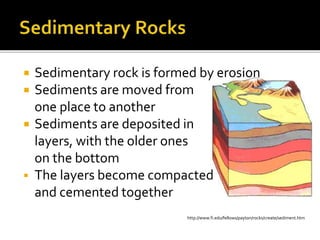

8. http://www.fi.edu/fellows/payton/rocks/create/sediment.htm
 Sedimentary rock is formed by erosion
 Sediments are moved from
one place to another
 Sediments are deposited in
layers, with the older ones
on the bottom
 The layers become compacted
and cemented together

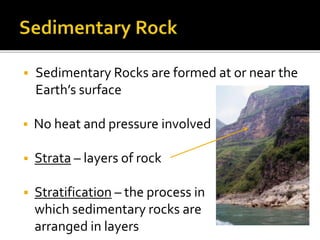

9.  Sedimentary Rocks are formed at or near the
Earth’s surface
 No heat and pressure involved
 Strata – layers of rock
 Stratification – the process in
which sedimentary rocks are
arranged in layers

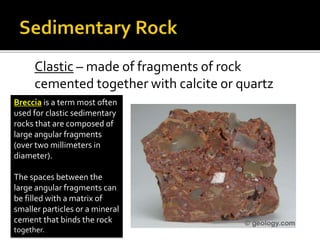

10. Clastic – made of fragments of rock
cemented together with calcite or quartz
Breccia is a term most often
used for clastic sedimentary
rocks that are composed of
large angular fragments
(over two millimeters in
diameter).
The spaces between the
large angular fragments can
be filled with a matrix of
smaller particles or a mineral
cement that binds the rock
together.

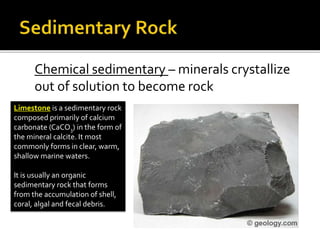

11. Chemical sedimentary – minerals crystallize
out of solution to become rock
Limestone is a sedimentary rock
composed primarily of calcium
carbonate (CaCO3) in the form of
the mineral calcite. It most
commonly forms in clear, warm,
shallow marine waters.
It is usually an organic
sedimentary rock that forms
from the accumulation of shell,
coral, algal and fecal debris.

12. Organic sedimentary – remains of plants and
animals
Coal is an organic
sedimentary rock that
forms from the
accumulation and
preservation of plant
materials, usually in a
swamp environment.
Coal is a combustible rock
and along with oil and
natural gas it is one of the
three most important
fossil fuels.

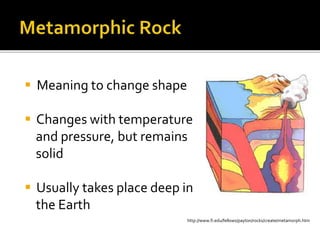

13. http://www.fi.edu/fellows/payton/rocks/create/metamorph.htm
 Meaning to change shape
 Changes with temperature
and pressure, but remains
solid
 Usually takes place deep in
the Earth

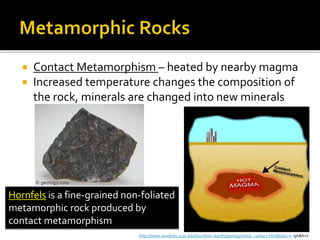

14.  Contact Metamorphism – heated by nearby magma
 Increased temperature changes the composition of
the rock, minerals are changed into new minerals
Hornfels is a fine-grained non-foliated
metamorphic rock produced by
contact metamorphism
http://www.windows.ucar.edu/tour/link=/earth/geology/meta_contact.html&edu=h igh&fr=t

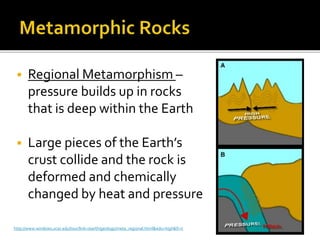

15.  Regional Metamorphism –
pressure builds up in rocks
that is deep within the Earth
 Large pieces of the Earth’s
crust collide and the rock is
deformed and chemically
changed by heat and pressure
http://www.windows.ucar.edu/tour/link=/earth/geology/meta_regional.html&edu=high&fr=t

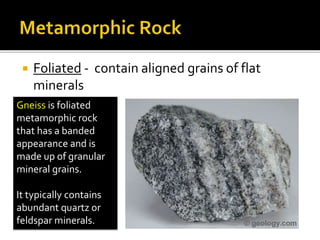

16.  Foliated - contain aligned grains of flat
minerals
Gneiss is foliated
metamorphic rock
that has a banded
appearance and is
made up of granular
mineral grains.
It typically contains
abundant quartz or
feldspar minerals.

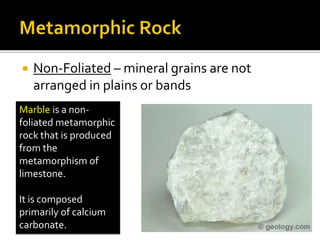

17.  Non-Foliated – mineral grains are not
arranged in plains or bands
Marble is a non-
foliated metamorphic
rock that is produced
from the
metamorphism of
limestone.
It is composed
primarily of calcium
carbonate.

18.  Determine if the following rock samples are
foliated or non-foliated:
Amphibolite Quartzite Phyllite
Foliated

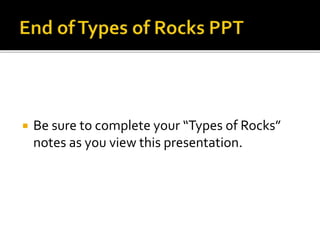

19.  Be sure to complete your “Types of Rocks”
notes as you view this presentation.
