1. TYPES OF WINDOW

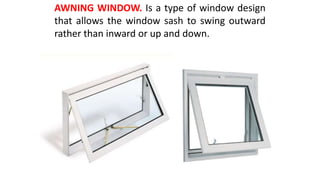

2. AWNING WINDOW. Is a type of window design
that allows the window sash to swing outward
rather than inward or up and down.

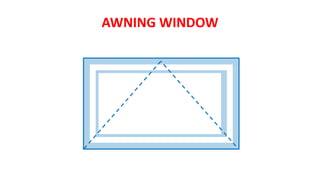

3. AWNING WINDOW

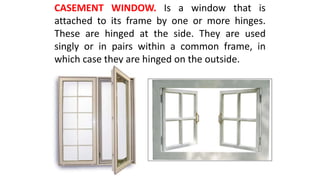

4. CASEMENT WINDOW. Is a window that is
attached to its frame by one or more hinges.
These are hinged at the side. They are used
singly or in pairs within a common frame, in
which case they are hinged on the outside.

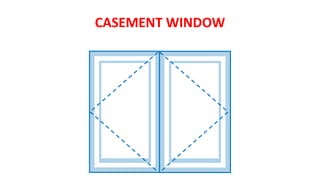

5. CASEMENT WINDOW

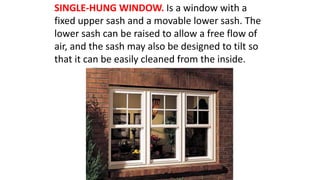

6. SINGLE-HUNG WINDOW. Is a window with a
fixed upper sash and a movable lower sash. The
lower sash can be raised to allow a free flow of
air, and the sash may also be designed to tilt so
that it can be easily cleaned from the inside.

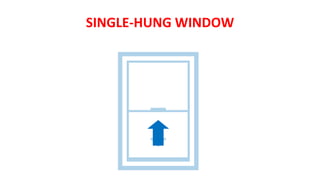

7. SINGLE-HUNG WINDOW

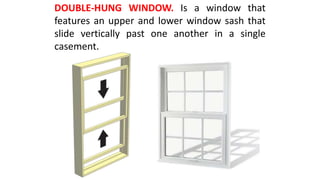

8. DOUBLE-HUNG WINDOW. Is a window that
features an upper and lower window sash that
slide vertically past one another in a single
casement.

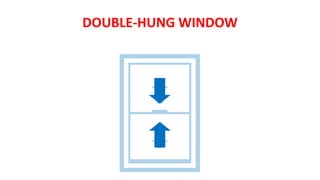

9. DOUBLE-HUNG WINDOW

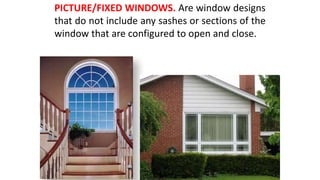

10. PICTURE/FIXED WINDOWS. Are window designs
that do not include any sashes or sections of the
window that are configured to open and close.

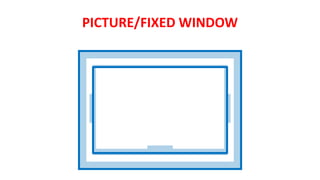

11. PICTURE/FIXED WINDOW

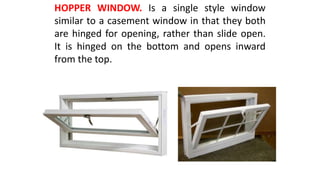

12. HOPPER WINDOW. Is a single style window
similar to a casement window in that they both
are hinged for opening, rather than slide open.
It is hinged on the bottom and opens inward
from the top.

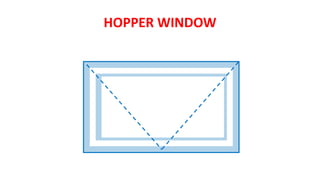

13. HOPPER WINDOW

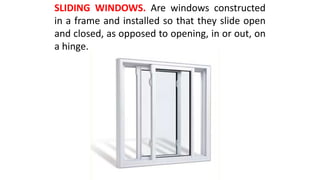

14. SLIDING WINDOWS. Are windows constructed
in a frame and installed so that they slide open
and closed, as opposed to opening, in or out, on
a hinge.

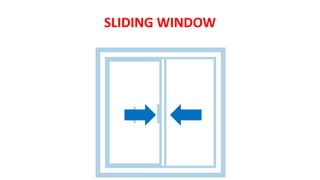

15. SLIDING WINDOW

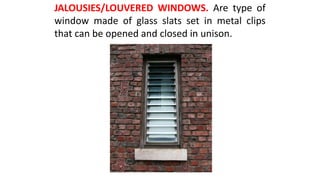

16. JALOUSIES/LOUVERED WINDOWS. Are type of
window made of glass slats set in metal clips
that can be opened and closed in unison.

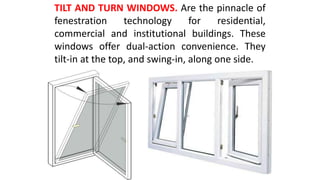

17. TILT AND TURN WINDOWS. Are the pinnacle of
fenestration technology for residential,
commercial and institutional buildings. These
windows offer dual-action convenience. They
tilt-in at the top, and swing-in, along one side.

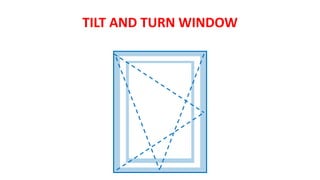

18. TILT AND TURN WINDOW

19. BAY WINDOWS. Are specially designed windows
which create a niche in a home filled with light.
Typically, they highlight a stunning view such as
the ocean or a sweeping meadow, and they are
often designed with window seats so that
people can sit in the windows and enjoy a book.

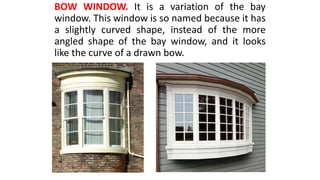

20. BOW WINDOW. It is a variation of the bay
window. This window is so named because it has
a slightly curved shape, instead of the more
angled shape of the bay window, and it looks
like the curve of a drawn bow.

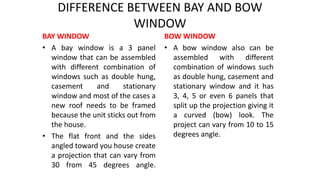

21. DIFFERENCE BETWEEN BAY AND BOW
WINDOW
BAY WINDOW
• A bay window is a 3 panel
window that can be assembled
with different combination of
windows such as double hung,
casement and stationary
window and most of the cases a
new roof needs to be framed
because the unit sticks out from
the house.
• The flat front and the sides
angled toward you house create
a projection that can vary from
30 from 45 degrees angle.
BOW WINDOW
• A bow window also can be
assembled with different
combination of windows such
as double hung, casement and
stationary window and it has
3, 4, 5 or even 6 panels that
split up the projection giving it
a curved (bow) look. The
project can vary from 10 to 15
degrees angle.

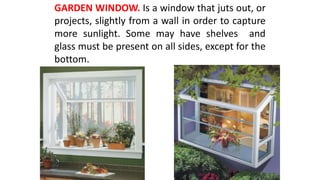

22. GARDEN WINDOW. Is a window that juts out, or
projects, slightly from a wall in order to capture
more sunlight. Some may have shelves and
glass must be present on all sides, except for the
bottom.

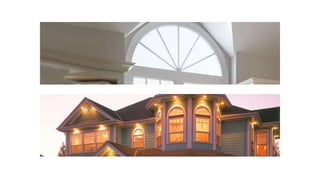

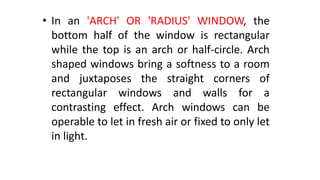

23. • In an 'ARCH' OR 'RADIUS' WINDOW, the
bottom half of the window is rectangular
while the top is an arch or half-circle. Arch
shaped windows bring a softness to a room
and juxtaposes the straight corners of
rectangular windows and walls for a
contrasting effect. Arch windows can be
operable to let in fresh air or fixed to only let
in light.

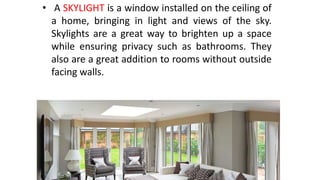

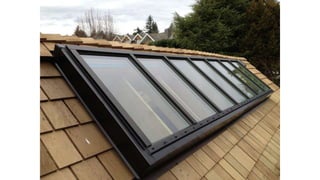

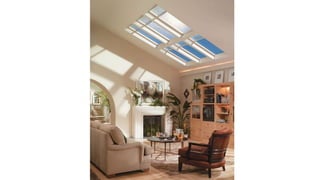

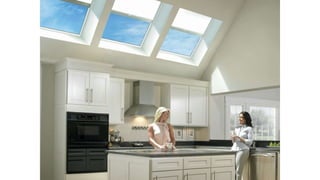

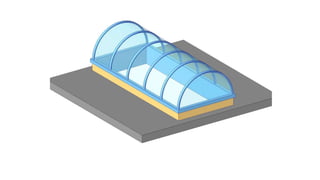

25. • A SKYLIGHT is a window installed on the ceiling of
a home, bringing in light and views of the sky.
Skylights are a great way to brighten up a space
while ensuring privacy such as bathrooms. They
also are a great addition to rooms without outside
facing walls.
