Tw8804產品

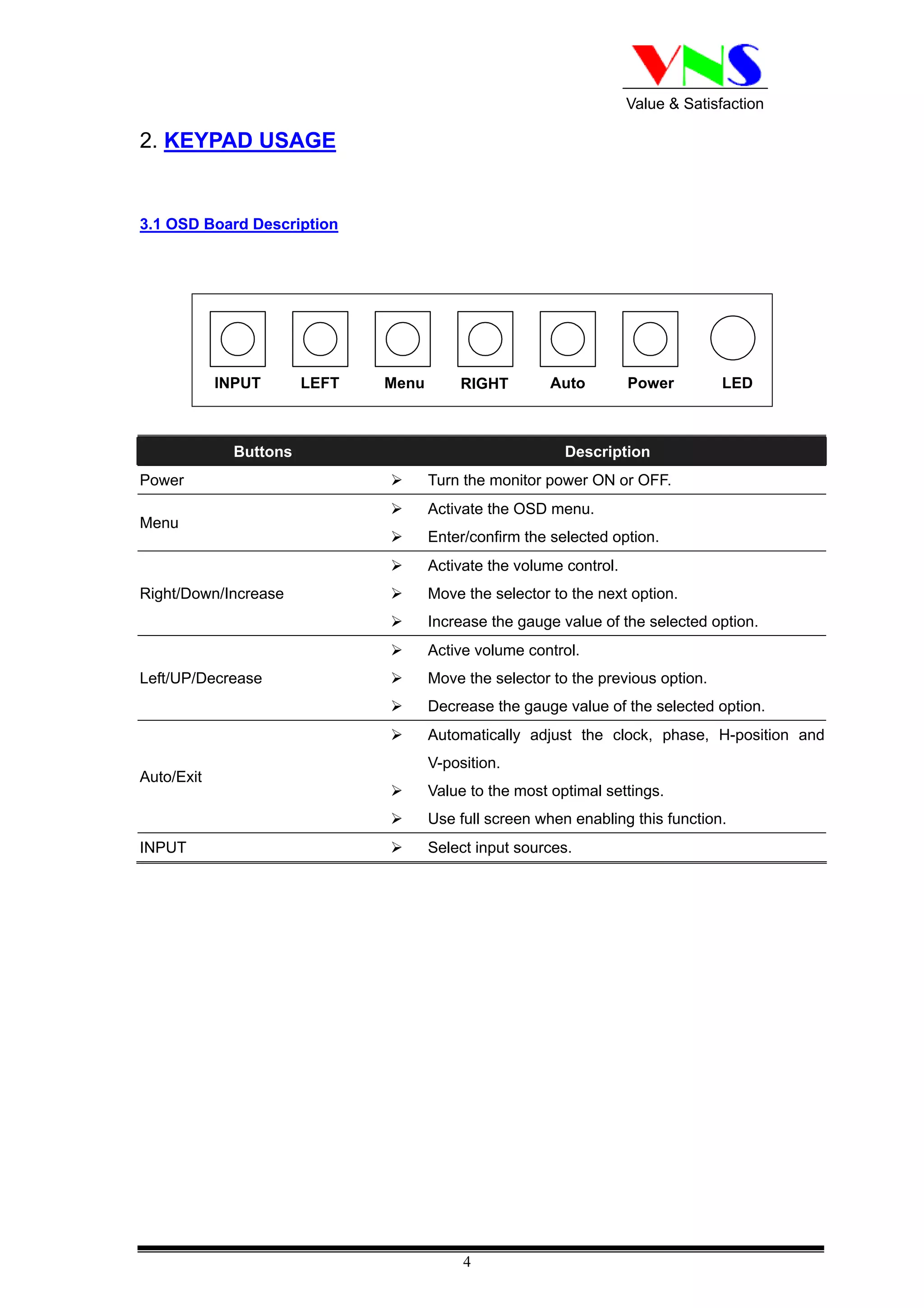

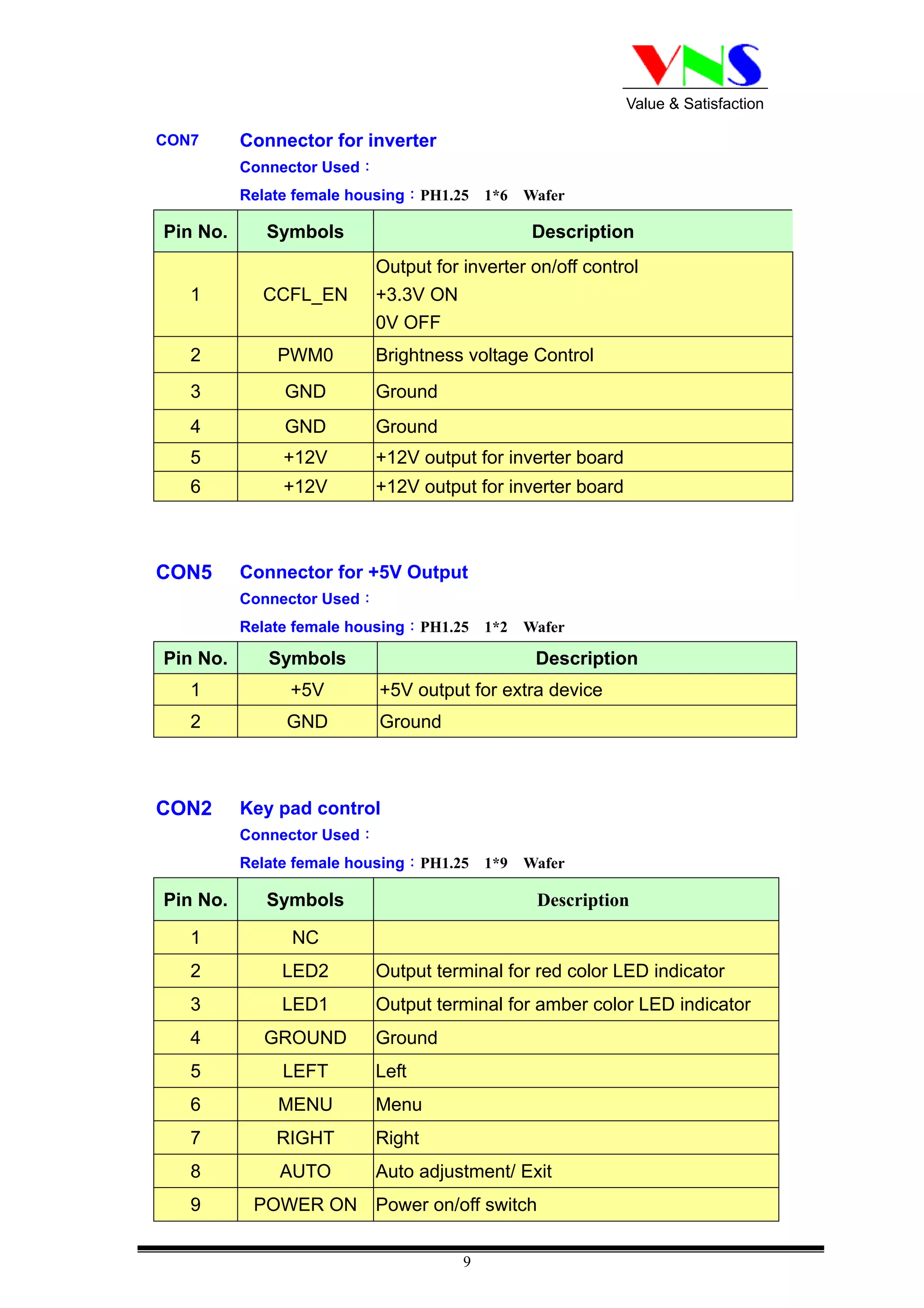

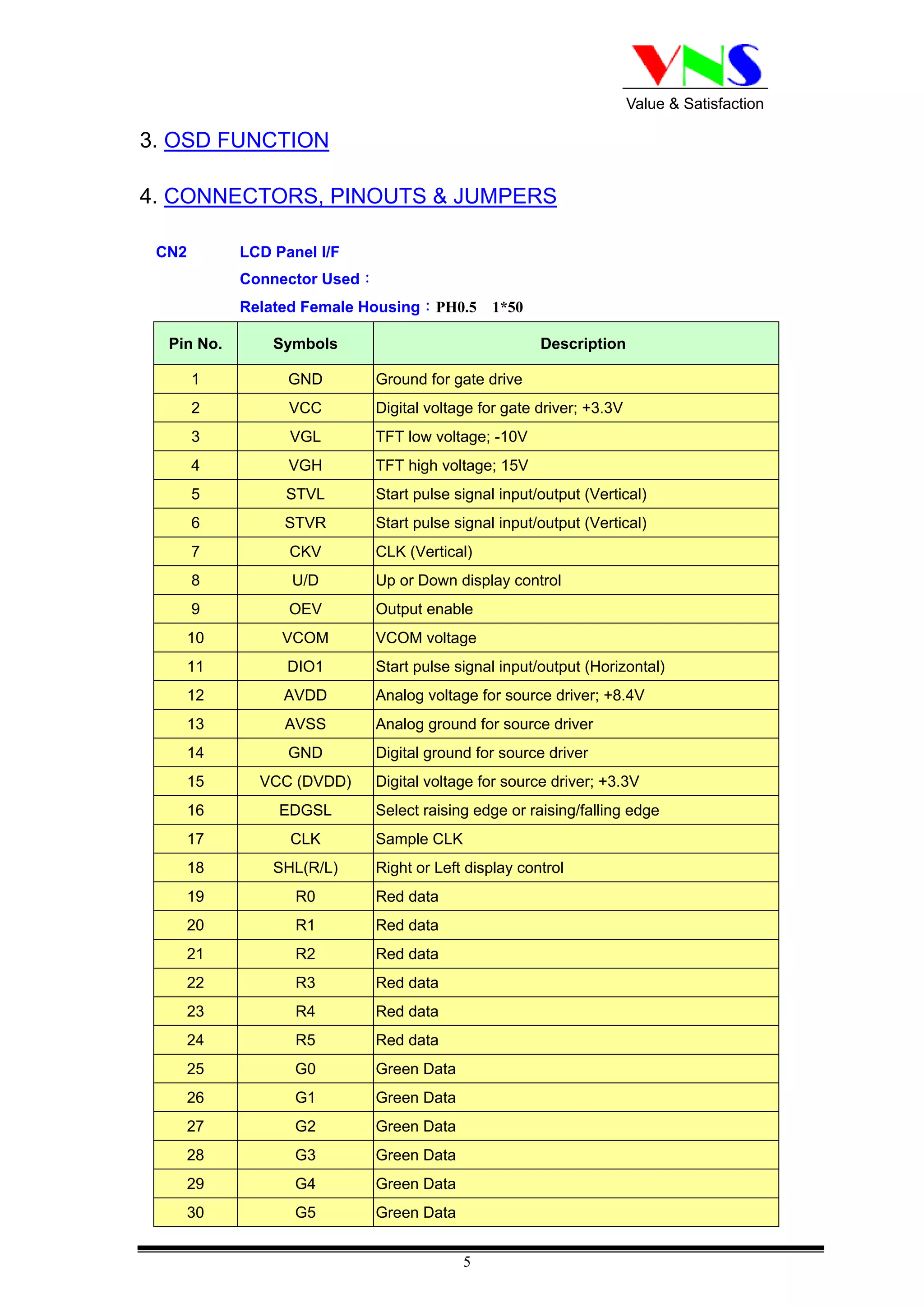

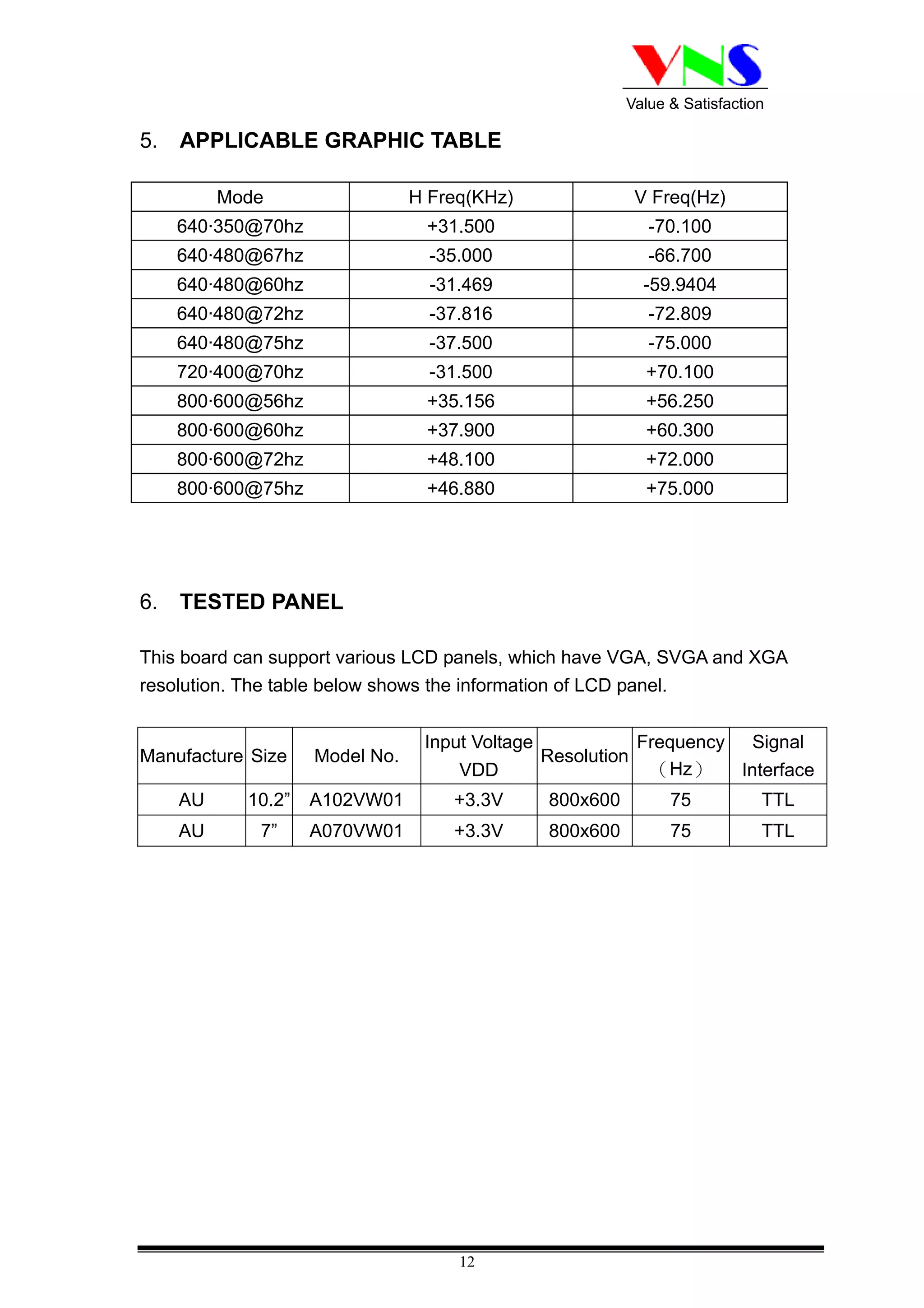

This document provides specifications for the BT-T04TSNT TFT-LCD A/D board, including: 1. It lists the key components and features of the board such as the scaler chip, graphics input/output capabilities, and connectors. 2. It describes the onboard controls including buttons for power, menu, and adjustment as well as LED indicators. 3. It provides details on the onboard menu functions and specifications for connectors, pinouts, and applicable display modes. 4. It lists compatible LCD panels that have been tested including models from AU Optronics with screen sizes of 10.2 and 7 inches.
