Trends at JavaOne 2016: Microservices, Docker and Cloud-Native Middleware

Kai Wähner
Technology Evangelist
kontakt@kai-waehner.de
LinkedIn
@KaiWaehner
www.kai-waehner.de
JavaOne 2016 – San Francisco, USA
Cloud-Native Microservices and Containers in the Middleware World

© Copyright 2000-2016 TIBCO Software Inc.

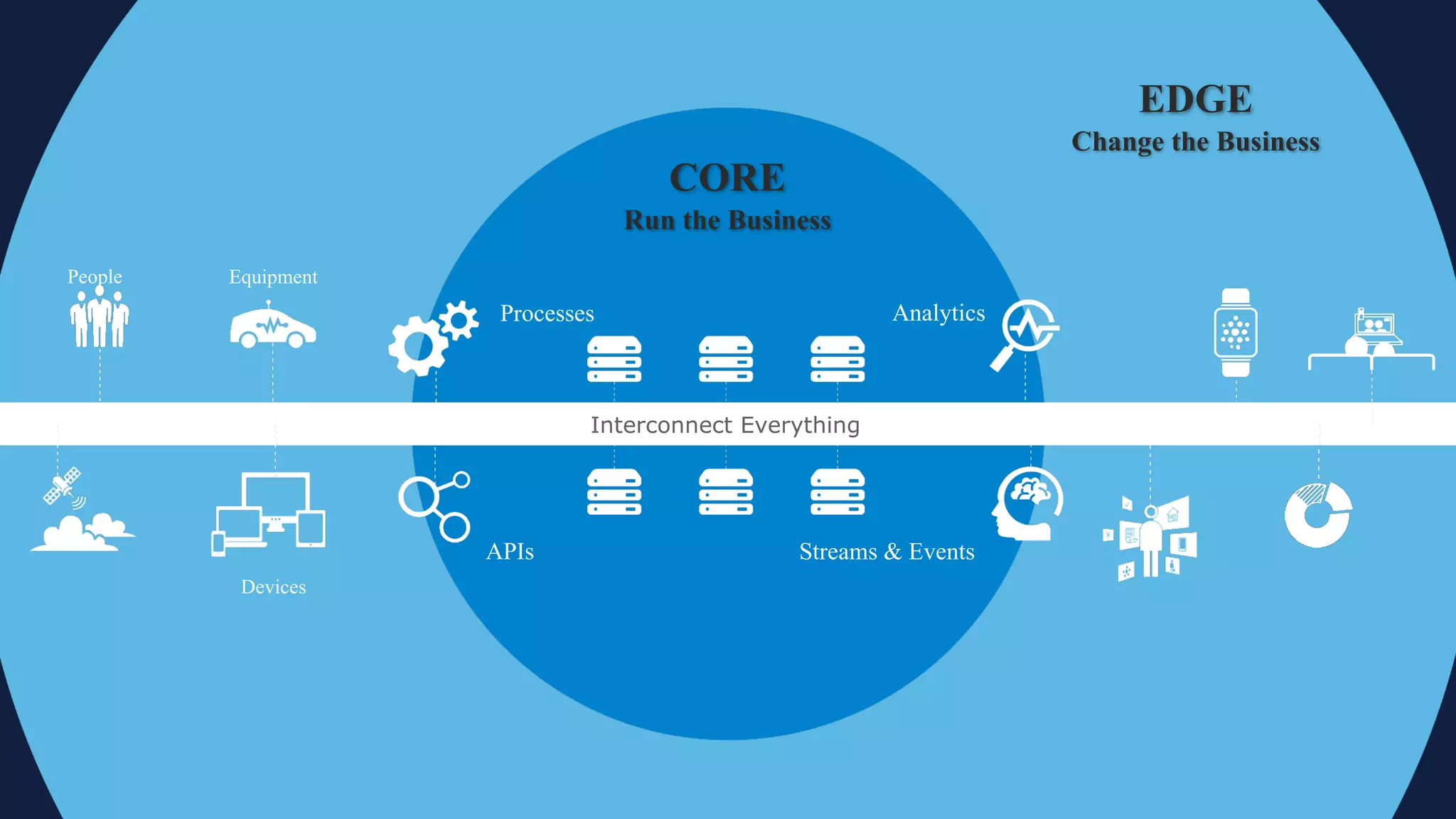

Processes Analytics
APIs Streams & Events
Interconnect Everything
Devices
Equipment
CORE
Run the Business
EDGE
Change the Business
People

Evolving Demands from the Business
AGILITY &
SPEED
REDUCED
CYCLE
TIMES
WEB
SCALE
LOWER
COST
FAIL FAST

• Integration is key for success in today’s agile and always changing world
• Modern middleware leverages containers and microservices
• A cloud-native architecture enables flexible and agile development
Key Takeaways

1) Middleware Overview
2) Microservices
3) Cloud Native
4) Cloud Native Middleware Microservices
5) Live Demo
Agenda

“Middleware is computer
software that provides services
to software applications beyond
those available from the
operating system. It can be
described as "software glue”.
Middleware makes it easier for
software developers to
implement communication and
input/output, so they can focus
on the specific purpose of their
application.”
Wikipedia
(https://en.wikipedia.org/wiki/Middleware)
Middleware

Middleware
Application Integration
„Big SOA Application“
Process Integration
„Business Process Application“
Streaming
Analytics
„Streaming Application“
Cloud-Ready
On Premise
Public Cloud
CRM ERM Host ...

#1
On premise will not die.
Not everything will or should go to the cloud!

Development Environment for Middleware
Zero
Coding
Code
Everything
or anything in between

#2
Visual coding works,
even for very complex scenarios.
Forget the early 2000 SOA days!

Microservices
• Suite of small services running in its own process
• Communication via lightweight mechanisms
• Built around business capabilities
• Independently deployable, written in different languages and using different data stores
• Bare minimum of centralized management
à Shorter time to results and increased flexibility
à Replace small pieces instead of a complete application

© Copyright 2000-2016 TIBCO Software Inc. 14
Microservices Example
http://www.ibm.com/developerworks/cloud/library/cl-bluemix-microservices-in-action-part-1-trs/
Each tile is a microservice
“bookflights” interacts
with other microservices
Height corresponds to usage
Each microservice can be
Independently managed
à Shorter time to results and increased flexibility / scalability
à Replace small pieces instead of a complete application

Middleware Microservices
Application
Integration
„Integration Service 1“
Cloud-Ready
On Premise
Public Cloud
CRM ERM Host ...
Application
Integration
Application
Integration
Process
Integration
„Business Process
Service 1“
Streaming
Analytics
„Streaming Service 1“
Process
Integration
„Business Process
Service 1“
Streaming
Analytics
„Streaming Service 2“

Various Forms of (Micro)Services
Integration
Service
Monolith application SOA
Integration
Service
Service ServiceService Service
API Management
SaaS Service BPM Service

New Challenges Emerging…
http://highscalability.com/blog/2014/4/8/microservices-not-a-free-lunch.html
”[…] when considering Microservice like architectures, it's really important to not be attracted
to the hype on this one as the challenges and costs are as real as the benefits."
• Different Languages / Technologies
• DevOps Skills Required
• Distributed System Complexity
• Distributed Configuration
• Service Discovery
• Resiliency
• Client Side Load Balancing
• Testability Challenges
• Orchestration / Integration
• Spaghetti Communication (again ?!)
• Re-Delivery
• Re-Route
• Cache
• ...

New Design Patterns Emerging…
Resilience Design Patterns
Features
• Fail fast and rapidly recover
• Prevent cascading failures
• Latency tolerance logic
• Fault tolerance logic
• Fallback Options
http://martinfowler.com/bliki/CircuitBreaker.html
https://github.com/Netflix/Hystrix/wiki
maxFailures = 5
resetTimeout = 1min
callTimeout = 10s
à maxFailures++
Example: Circuit Breaker

#3
Microservices are not free lunch.
They do not fit into every scenario!

Open API and API Management

New Design Patterns Emerging…
http://samnewman.io/patterns/architectural/bff
https://www.thoughtworks.com/insights/blog/bff-soundcloud
Example: Backends for Fronteds (BfF)
?

#4
Design Microservices
with open APIs in mind!

“Cloud washing is the purposeful and sometimes deceptive
attempt by a vendor to rebrand an old product or service by
associating the buzzword ‘cloud’ with it [and offering it via a
public cloud infrastructure].”
Cloud Washing
http://searchcloudstorage.techtarget.com/definition/cloud-washing
!

• Scalable services
• Service Discovery
• Load balancing and failover
• Resiliency
• DevOps and automation
• Usage of public cloud platforms, but also private or hybrid
• Self-service, pay-as-you-use, multi-tenancy
• Vendor-agnostic deployment
Cloud Native (à not just Microservices)
à Focus on business problems (after initial start-up efforts)

#5
Cloud-Native means much more
than a “cloud-washed” application
deployed to a cloud provider!

== The Momentum of Containers
How to deploy independent Applications or (Micro)Services?
Garden

Why Containers?
http://www.slideshare.net/andersjanmyr/docker-the-future-of-devops
Containers enable:
• Lightweight deployment
• Automation
• Better resource utilization
• Scaling up and down quickly
• Platform agnostic deployment
• Innovation and Fail Fast Concepts
• Standardization ? Ø The Open Container Initiative (OCI)
Ø Docker Fork Discussions (!!!)

#6
Microservices and Containers are often used together,
but also work very well without each other!

Cloud-Native Architecture
Containers are just the Foundation
for a Cloud Native Architecture!

Cloud Native Platform (Infrastructure-as-a-Service)
Choose your IaaS
Private or Hybrid Cloud
Reduced costs of Infra
Self-hosted & Controlled Env
Servers
Storage
Network
IaaS

Cloud Native Platform (Platform-as-a-Service)
Choose your PaaS / Container
Cloud-Native App Dev
Self-service agile
infrastructure
Elasticity & Scalability
OS & Containers
Scalability
Routing
Logging / Monitoring
PaaS

Cloud Native Platform (IaaS + PaaS)
Choose your IaaS
Choose your PaaS / Container
Private or Hybrid Cloud
Cloud-Native App Dev
Reduced costs of Infra
Self-service agile
infrastructure
Self-hosted & Controlled Env
Elasticity & Scalability
Servers
Storage
Network
OS & Containers
Scalability
Routing
Logging / Monitoring
PaaS
IaaS

Kubernetes (K8S)
http://kubernetes.io/docs/getting-started-guides/#cloud

Kubernetes on Google Cloud Platform
http://kubernetes.io/docs/hellonode/

Cloud Foundry
http://www.slideshare.net/cdavisafc/cloud-foundry-technical-overview

#7
Containers are a lower level technology.
Only the infrastructure provider should care,
but not the application developer!

“Cloud Operating System”: Apache Mesos
http://www.slideshare.net/Docker/building-web-scale-apps-with-docker-and-mesos/30
• Enterprises have to manage different clusters with different technologies
• Apache Mesos runs on bare metal, i.e. no need for another operating system

The basic resource for CaaS is a container, rather than a virtual machine (VM)
or a bare metal hardware host system”
Container-as-a-Service (CaaS)
http://searchcloudcomputing.techtarget.com/definition/Containers-as-a-Service-CaaS

Serverless Computing
• Bring a function (not an entire application) up for one single request.
• No cluster or server instance management.
• Small microservice-style functions running for a few (milli)seconds or at latest a few minutes.
• 100% utilization (!!!)
“Sponsored by Red Hat / JBoss"

#8
Be cloud platform agnostic.
The world changes fast!

DevOps Elements – Culture and Technology!
Process
Tools
Automation
Culture
Continuous Integration/
Continuous Development
APIs
MicroservicesFrequent releases
Collaboration

#9
Automation (CI / CD / DevOps) and the related
cultural change is key for success.
Especially for Cloud-Native Microservices!

1) Middleware Overview
2) Microservices
3) Cloud Native
4) Cloud Native Middleware Microserivces
5) Live Demo
Agenda

Hybrid Integration Platform (HIP)
Application
Integration
Application
Integration
(on a PaaS)
iPaaS
Integration
Platform as a Service
iSaaS
Integration
Software as a Service
Cloud-Ready Cloud-Native
API
Management
On Premise
Public Cloud
Public Cloud Public Cloud
On Premise
Public Cloud
Process
Integration
Business Process
Management Platform
Streaming
Analytics
Public Cloud
At the Edge
IoT
Gateway
Analysts are sure:
“The new default”
in most enterprises!

#10
Establish a hybrid integration architecture
to solve different business requirements!

Cloud, Container,
PaaS, iPaaS, iSaaS,
Coding, Visual Dev, …
Show me some different
cloud native middleware
examples!

• Open Source
• Runs on OpenShift PaaS (which is based on Kubernetes)
• Also available as iPaaS
• JBoss Fuse (based on Apache Camel and JBoss A-MQ)
• For Integration Specialists
• Focus on writing source code
JBoss Middleware Services
https://www.openshift.com/container-platform/middleware-services.html

JBoss Example: Apache Camel Integration Service
Java DSL
new RouteBuilder() {
public void configure() {
from(”jms:myQueue").loadBalance()
.circuitBreaker(2, 1000L, MyCustomException.class)
.to("mock:result"); }};
XML DSL
<route>
<from uri=“jms:myQueue"/>
<loadBalance>
<circuitBreaker threshold="2" halfOpenAfter="1000">
<exception>MyCustomException</exception>
</circuitBreaker>
<to uri="mock:result"/>
</loadBalance>
</route>

WSO2
http://wso2.com/cloud/paas/
• Open Source
• Runs on different cloud platforms
• Also available as iPaaS
• WSO2 Products (like ESB or CEP) containerized for cloud offerings
• WSO2 Microservices Framework for Java
• For Integration Specialists
• Focus on writing source code and configuration

• Available only as iPaaS (hosted runtime and IDE)
• Focus on visual coding and productivity
• Web IDE
• For Ad-Hoc Integrators
Dell Boomi
http://www.boomi.com

TIBCO
• Runs on different cloud platforms (TIBCO Container Edition)
• Also available as iPaaS (TIBCO Cloud Integration)
• Focus on visual coding and productivity
• Powerful IDE (Visual Coding) + Web user interface
• For Integration Specialists and Ad-hoc Integrators

• Simple – often personal - integration scenarios
• Web based integration
• For business users (also called Citizen Integrators)
iSaaS
http://bamageek.com/wp-content/uploads/2013/09/IFTTT-_-My-Recipes-1.pnghttps://www.snaplogic.com/ https://simplr.tibco.com
https://ifttt.com/

• Lightweight open source frameworks
• Connectivity to IoT technologies (MQTT, CoaP, …)
• Deployable on small computers or directly on devices (like sensors)
• For Developers / Integration Specialists
IoT Gateway

TIBCO’s Cloud Agnostic Platform
On-Premise
Cloud-Native Apps,
Managed Services
Cloud, IaaS, PaaS
(public, private, hybrid)

Develop Deploy
Commit
Build
Config
Demo Setup

Live Demo
Cloud-Native Middleware Development with
• Pivotal Cloud Foundry
• Spring Cloud Config
• Docker
• Kubernetes
• Consul
• TIBCO BusinessWorks Container Edition
• TIBCO Mashery
• Papertrail

#1 - On premise will not die. Not everything will or should go to the cloud!
#2 - Tools (visual coding) works, even for very complex scenarios. Forget the early 2000 SOA days!
#3 - Microservices are not free lunch. They do not fit into every scenario!
#4 - Design Microservices with open APIs in mind!
#5 - Cloud-Native means much more than a “cloud-washed” application deployed to a cloud provider!
#6 - Microservices and Containers are often used together, but also work very well without each other!
#7 - Containers are a lower level technology. Only the infrastructure provider should care, but not the application developer!
#8 - Be cloud platform agnostic. The world changes fast!
#9 - Automation (CI / CD / DevOps) and the related cultural change is key for success. Especially for Cloud-Native Microservices!
#10 - Establish a hybrid integration architecture to solve different business requirements!
10 Lessons Learned

Questions? Please contact me!
Kai Wähner
Technology Evangelist at TIBCO
kontakt@kai-waehner.de
@KaiWaehner
www.kai-waehner.de
LinkedIn

Trends at JavaOne 2016: Microservices, Docker and Cloud-Native Middleware

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Viewers also liked

Viewers also liked (20)

Similar to Trends at JavaOne 2016: Microservices, Docker and Cloud-Native Middleware

Similar to Trends at JavaOne 2016: Microservices, Docker and Cloud-Native Middleware (20)

More from Kai Wähner

More from Kai Wähner (20)

Recently uploaded

Recently uploaded (20)

Trends at JavaOne 2016: Microservices, Docker and Cloud-Native Middleware
