Transport SDN & NFV - What does it mean for Optical Networking?

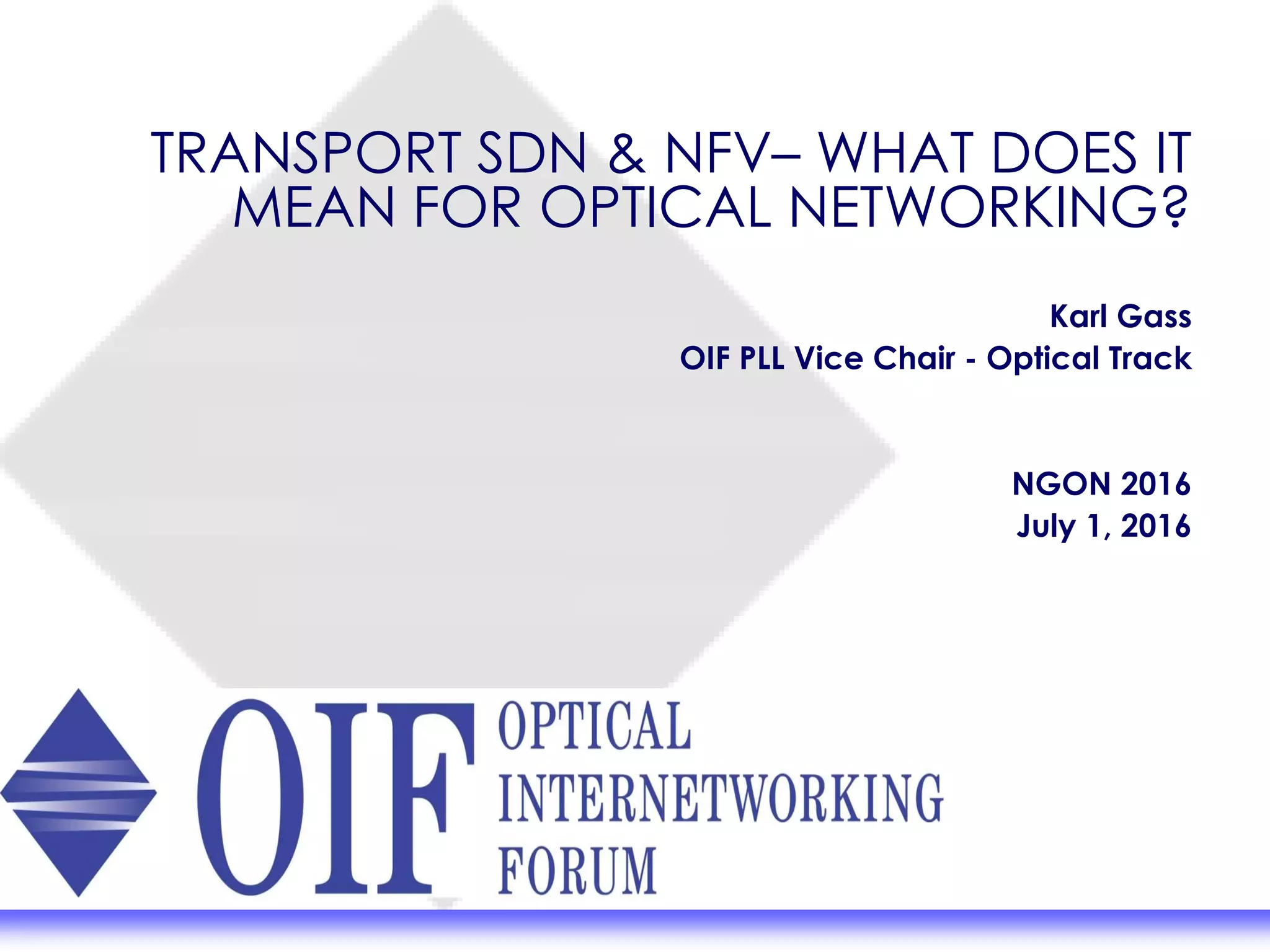

- 1. TRANSPORT SDN &NFV– WHAT DOES IT MEAN FOR OPTICAL NETWORKING? Karl Gass OIF PLL Vice Chair - Optical Track NGON 2016 July 1, 2016

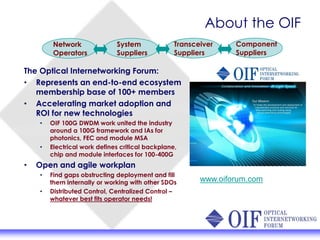

- 2. About the OIF TheOptical Internetworking Forum: • Represents an end-to-end ecosystem membership base of 100+ members • Accelerating market adoption and ROI for new technologies • OIF 100G DWDM work united the industry around a 100G framework and IAs for photonics, FEC and module MSA • Electrical work defines critical backplane, chip and module interfaces for 100-400G • Open and agile workplan • Find gaps obstructing deployment and fill them internally or working with other SDOs • Distributed Control, Centralized Control – whatever best fits operator needs! www.oiforum.com Network Operators System Suppliers Transceiver Suppliers Component Suppliers

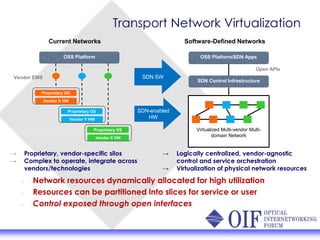

- 3. Transport Network Virtualization Networkresources dynamically allocated for high utilization Resources can be partitioned into slices for service or user Control exposed through open interfaces → Proprietary, vendor-specific silos → Complex to operate, integrate across vendors/technologies → Logically centralized, vendor-agnostic control and service orchestration → Virtualization of physical network resources OSS Platform Proprietary OS Vendor X HW Proprietary OS Vendor Y HW Proprietary OS Vendor Z HW Current Networks Software-Defined Networks OSS Platform/SDN Apps Virtualized Multi-vendor Multi- domain Network SDN SW SDN-enabled HW Open APIs Vendor EMS SDN Control Infrastructure
- 4. OIF’s Aim: Transport SDNToolkit Essential tools for Transport SDN deployment • Address carrier operations environment • Brownfield as well as Greenfield • Enable differentiated services • Speed service development through standard network APIs • Deliver scalability, security and high performance • Hierarchical structure with mix of local and central functions APIs Services SDN Architecture for Transport Interoperability demos Carrier Requirements
- 5. Working Protection Request OnLine Real-time planning Real-time setup Autonomous Control Dynamic expansion Optimization • Multi-level SLA • Recovery • Network migration Seconds Online Network Virtualization Goal: Network Slicing Real Time Open APIs Robust Data Plane Physical Optical Network Virtual Network Topology Network as a Service Online Slicing Path Computation Survivability Analysis Global Optimization Tenants T-SDN Controller
- 6. Developing an IAfor Virtual Transport Network Services Virtual networking service evolution Each service type offers greater control Fixed Connection Dynamic Connection Dynamic Connection Client site A Client site B Client site A Client site B Client site D Client site C Client site A Client site B Client site D Client site C Virtual network with vNE & vLink Client controller Ctrl of virtual XC Connection controlled by network providers Leased Line Endpoints Only Fixed virtual network topology Static Dynamic Dynamic Connection Virtual network with vNE & vLink Client controller Rent virtual network resources from provider Client site Virtual network recursive creation Client site Client site Client site Client site Client siteClient site Dynamic/recursive virtual network topology

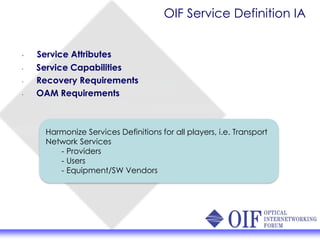

- 7. OIF Service DefinitionIA • Service Attributes • Service Capabilities • Recovery Requirements • OAM Requirements Harmonize Services Definitions for all players, i.e. Transport Network Services - Providers - Users - Equipment/SW Vendors
- 8. Application Layer Control Layer Infrastructure Layer Domain1 NE NE NE Domain 2 NE NE NE Domain 3 NE NE NE Network Orchestrator Domain Controller Domain Controller Domain Controller SBI NBI SBI Cloud Orchestrator Compute Storage NBI Enabling Multi-Domain Transport SDN Transport SDN framework for carrier networks • Can be realized over diverse carrier networks • multiple technology layers • multiple domains with differing SBI • greenfield and brownfield • Need for standards on application layer interface to control layer (NBI)

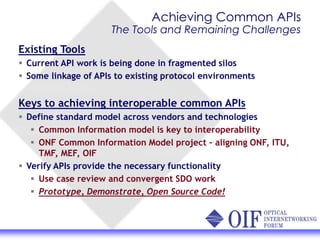

- 9. Achieving Common APIs TheTools and Remaining Challenges Existing Tools Current API work is being done in fragmented silos Some linkage of APIs to existing protocol environments Keys to achieving interoperable common APIs Define standard model across vendors and technologies Common Information model is key to interoperability ONF Common Information Model project – aligning ONF, ITU, TMF, MEF, OIF Verify APIs provide the necessary functionality Use case review and convergent SDO work Prototype, Demonstrate, Open Source Code!

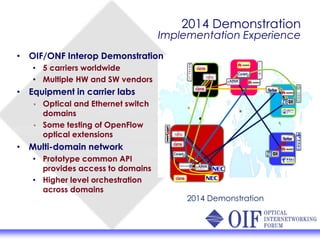

- 10. 2014 Demonstration Implementation Experience •OIF/ONF Interop Demonstration • 5 carriers worldwide • Multiple HW and SW vendors • Equipment in carrier labs • Optical and Ethernet switch domains • Some testing of OpenFlow optical extensions • Multi-domain network • Prototype common API provides access to domains • Higher level orchestration across domains 2014 Demonstration

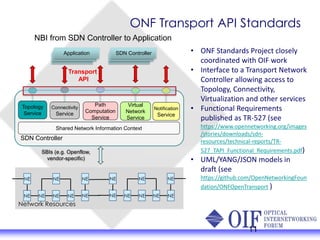

- 11. ONF Transport APIStandards 11 Network Resources SDN Controller NENESDN Controller NENEApplication Transport API SBIs (e.g. Openflow, vendor-specific) NE NE NE NE NE NE NE NE NENENE NE NE NENE NE Topology Service Connectivity Service Path Computation Service Shared Network Information Context Virtual Network Service Notification Service NBI from SDN Controller to Application • ONF Standards Project closely coordinated with OIF work • Interface to a Transport Network Controller allowing access to Topology, Connectivity, Virtualization and other services • Functional Requirements published as TR-527 (see https://www.opennetworking.org/images /stories/downloads/sdn- resources/technical-reports/TR- 527_TAPI_Functional_Requirements.pdf) • UML/YANG/JSON models in draft (see https://github.com/OpenNetworkingFoun dation/ONFOpenTransport )

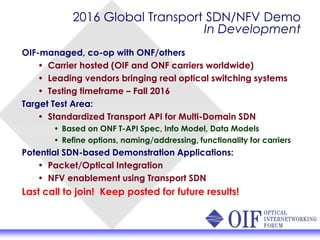

- 12. 2016 Global TransportSDN/NFV Demo In Development OIF-managed, co-op with ONF/others • Carrier hosted (OIF and ONF carriers worldwide) • Leading vendors bringing real optical switching systems • Testing timeframe – Fall 2016 Target Test Area: • Standardized Transport API for Multi-Domain SDN • Based on ONF T-API Spec, Info Model, Data Models • Refine options, naming/addressing, functionality for carriers Potential SDN-based Demonstration Applications: • Packet/Optical Integration • NFV enablement using Transport SDN Last call to join! Keep posted for future results!
