1. Chapter 6
Transmission of
Digital Data
Interfaces and Modems
• Digital Data Transmission
• DTE-DCE Interface
• Other Interface Standards
• Modems
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

2. Figure 6-1
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

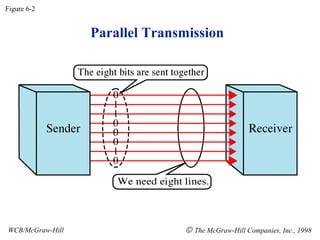

3. Parallel Transmission
Figure 6-2
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

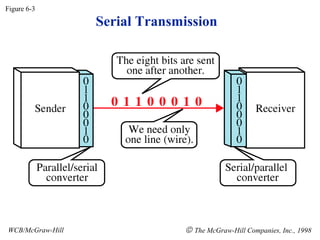

4. Serial Transmission
Figure 6-3
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

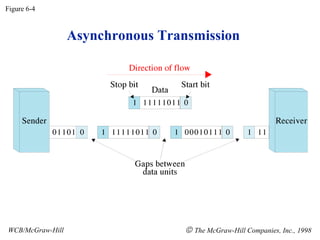

5. Asynchronous Transmission
Figure 6-4
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

6. Synchronous Transmission
Figure 6-5
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

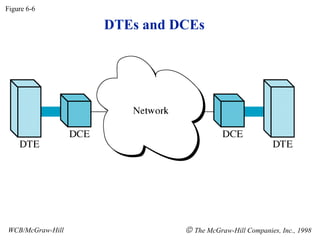

7. DTEs and DCEs
Figure 6-6
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

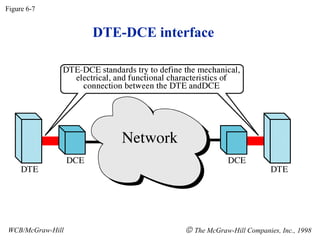

8. DTE-DCE interface
Figure 6-7
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

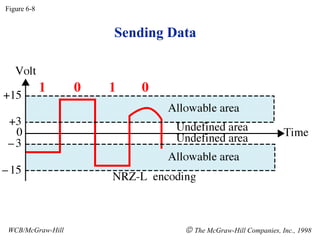

9. Sending Data
Figure 6-8
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

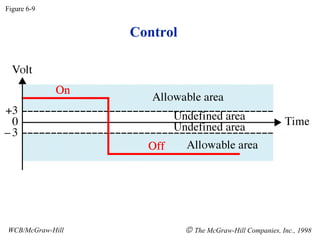

10. Control
Figure 6-9
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

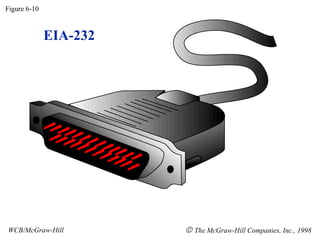

11. EIA-232
Figure 6-10
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

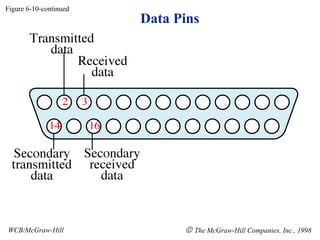

12. Data Pins
Figure 6-10-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

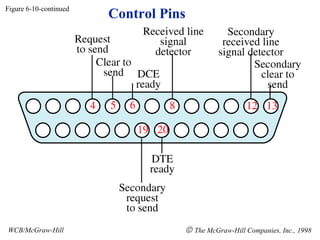

13. Control PinsFigure 6-10-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

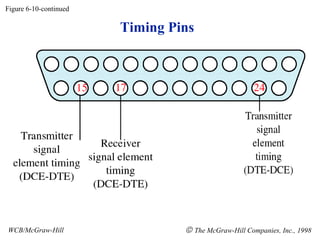

14. Timing Pins
Figure 6-10-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

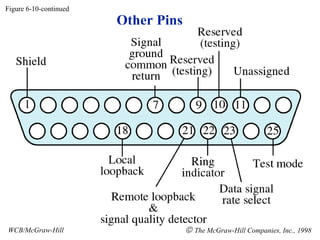

15. Other Pins
Figure 6-10-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

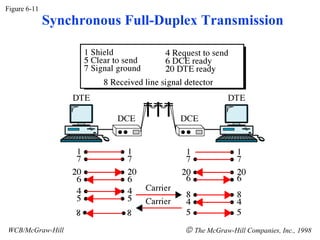

16. Figure 6-11
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Synchronous Full-Duplex Transmission

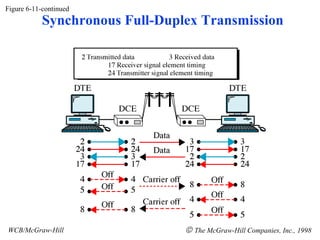

17. Figure 6-11-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Synchronous Full-Duplex Transmission

18. Figure 6-12
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Pin Connection With and Without DCEs

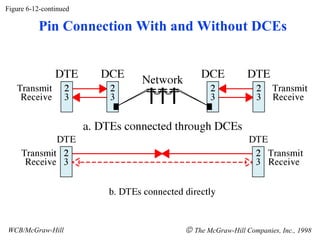

19. Figure 6-12-continued
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Pin Connection With and Without DCEs

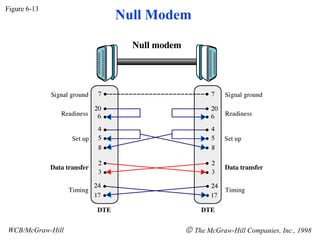

20. Figure 6-13
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Null Modem
