The document discusses multiplexing, which is a technique to combine multiple signals into one channel. It describes multiplexing as either many to one or one to many. The chapter also covers different types of multiplexing used in telecommunications networks, such as frequency-division multiplexing and time-division multiplexing, and how signals are multiplexed and demultiplexed in both the time and frequency domains.

1. Chapter 8
Multiplexing
• Many to one/one to many
• Types of multiplexing
• Telephone system
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

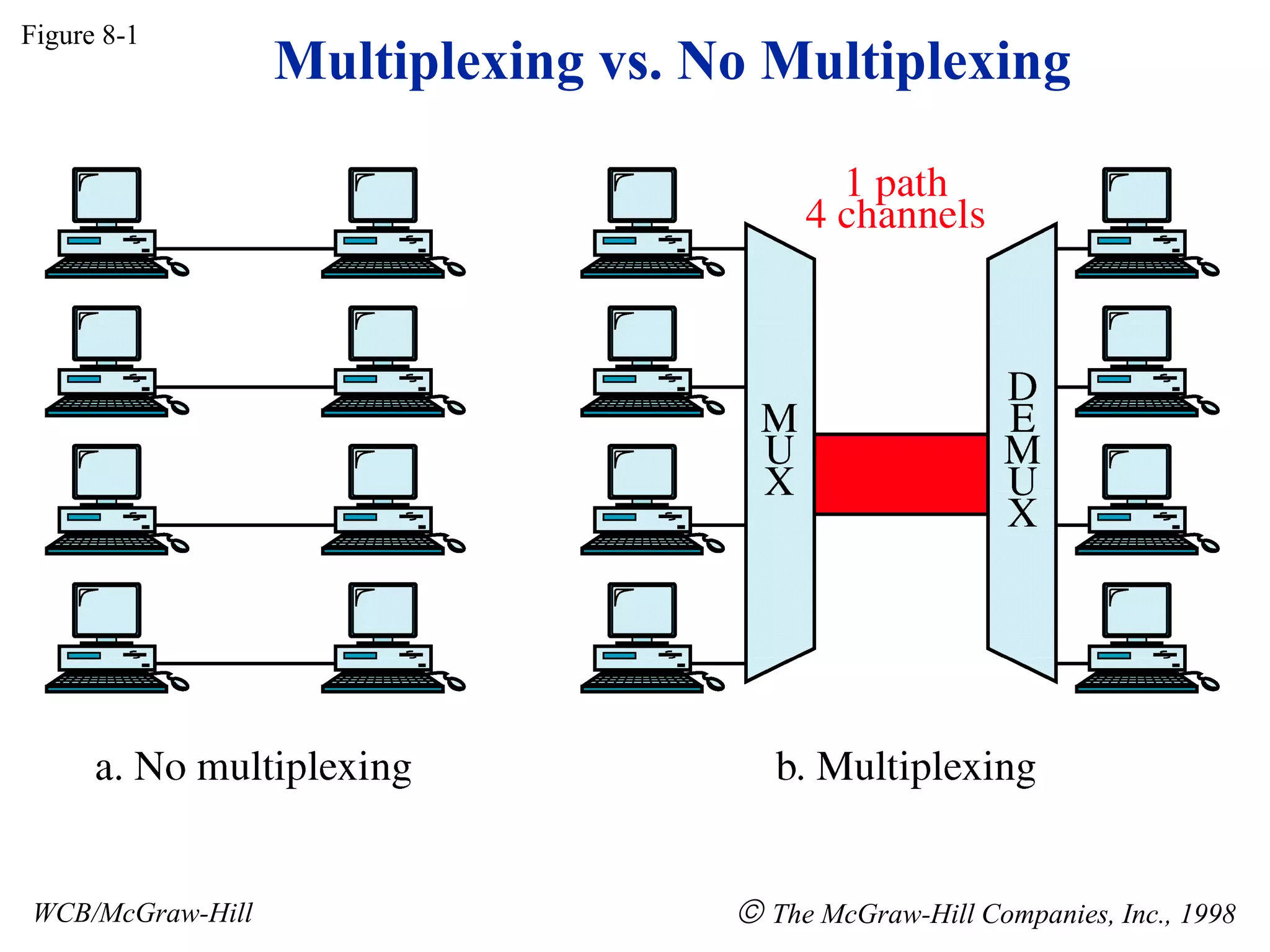

2. Figure 8-1
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Multiplexing vs. No Multiplexing

3. Figure 8-2
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

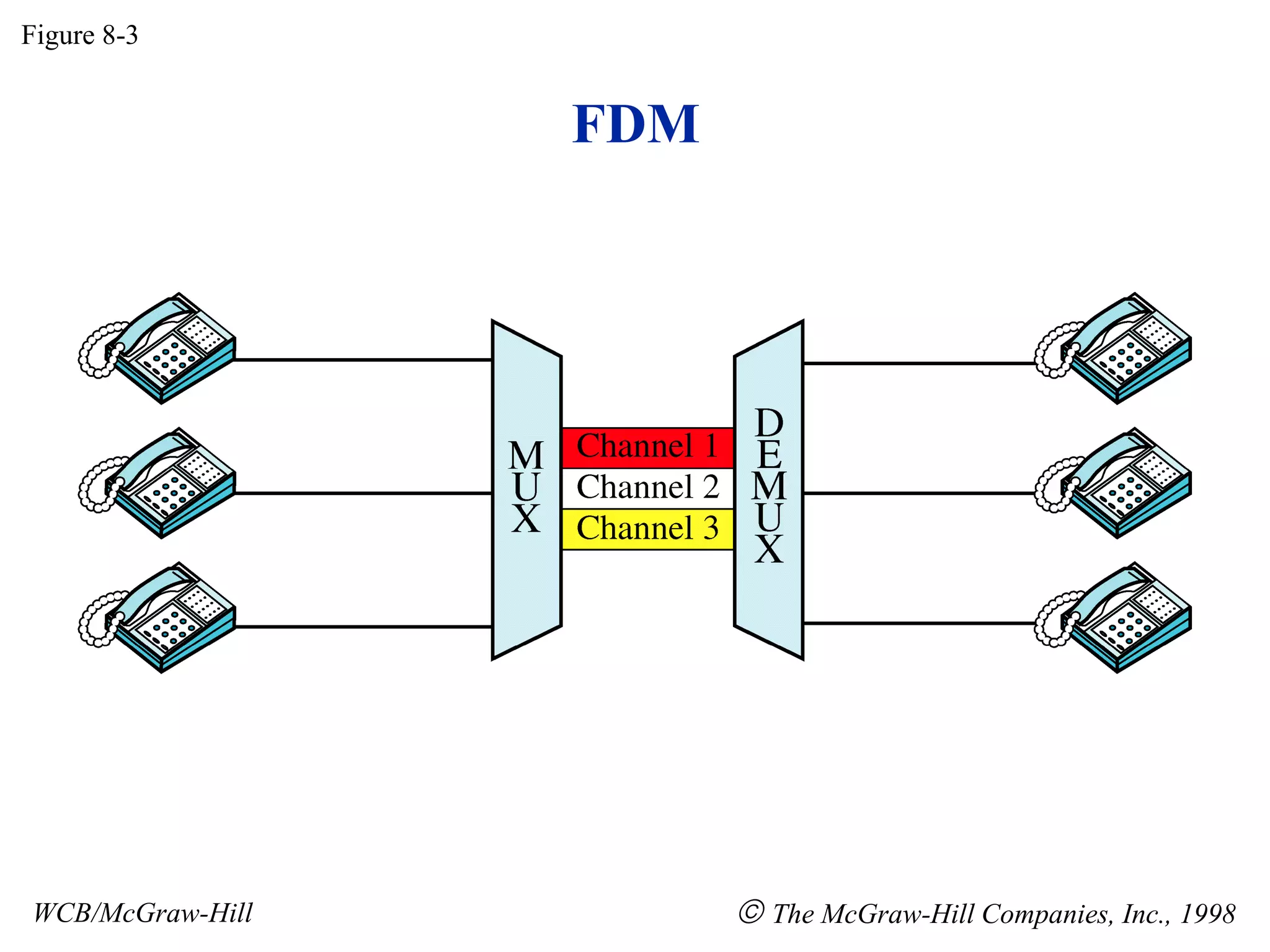

4. FDM
Figure 8-3
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998

5. Figure 8-4
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
FDM, Time Domain

6. Figure 8-5
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Multiplexing, Frequency Domain

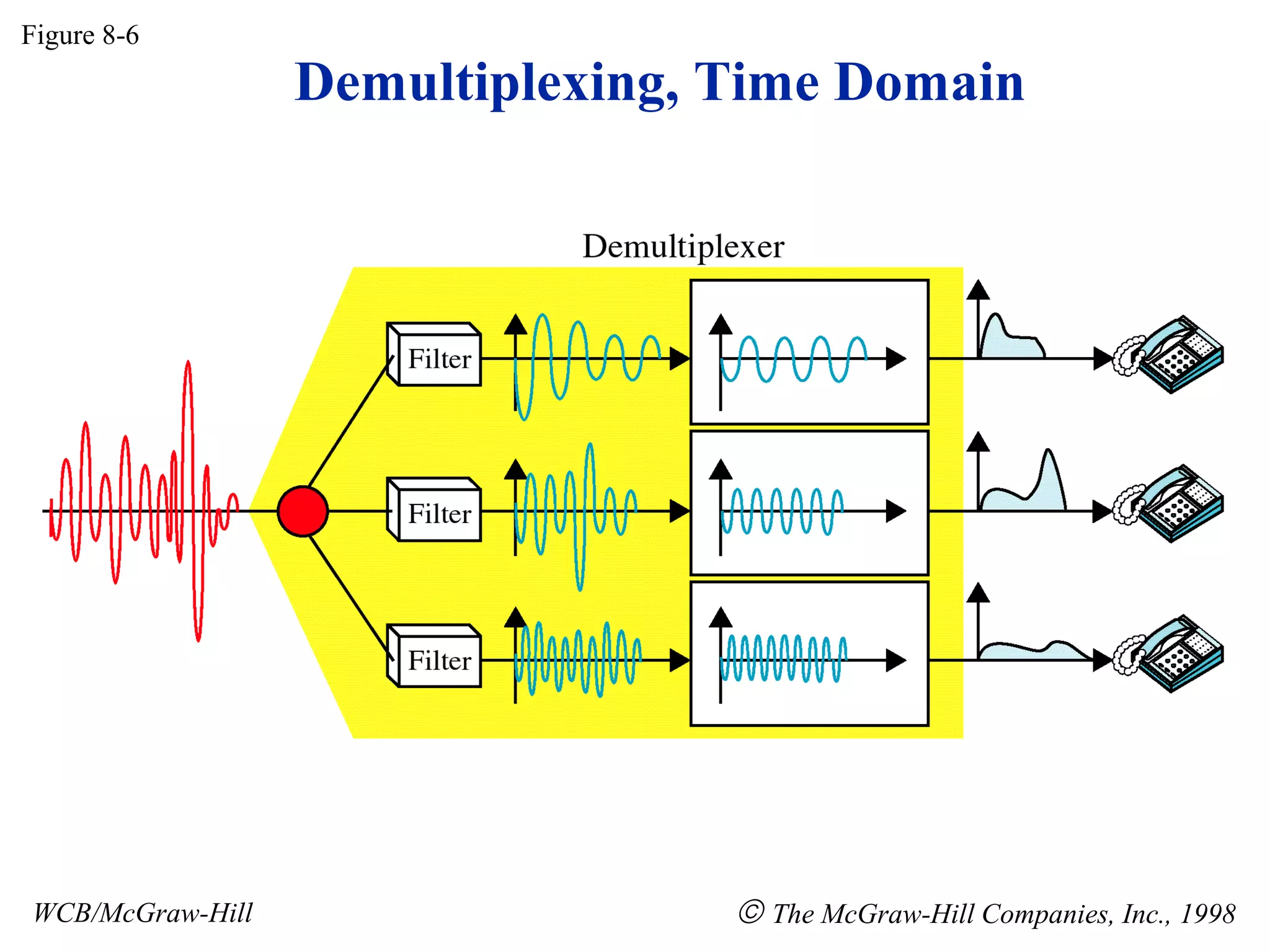

7. Figure 8-6
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Demultiplexing, Time Domain

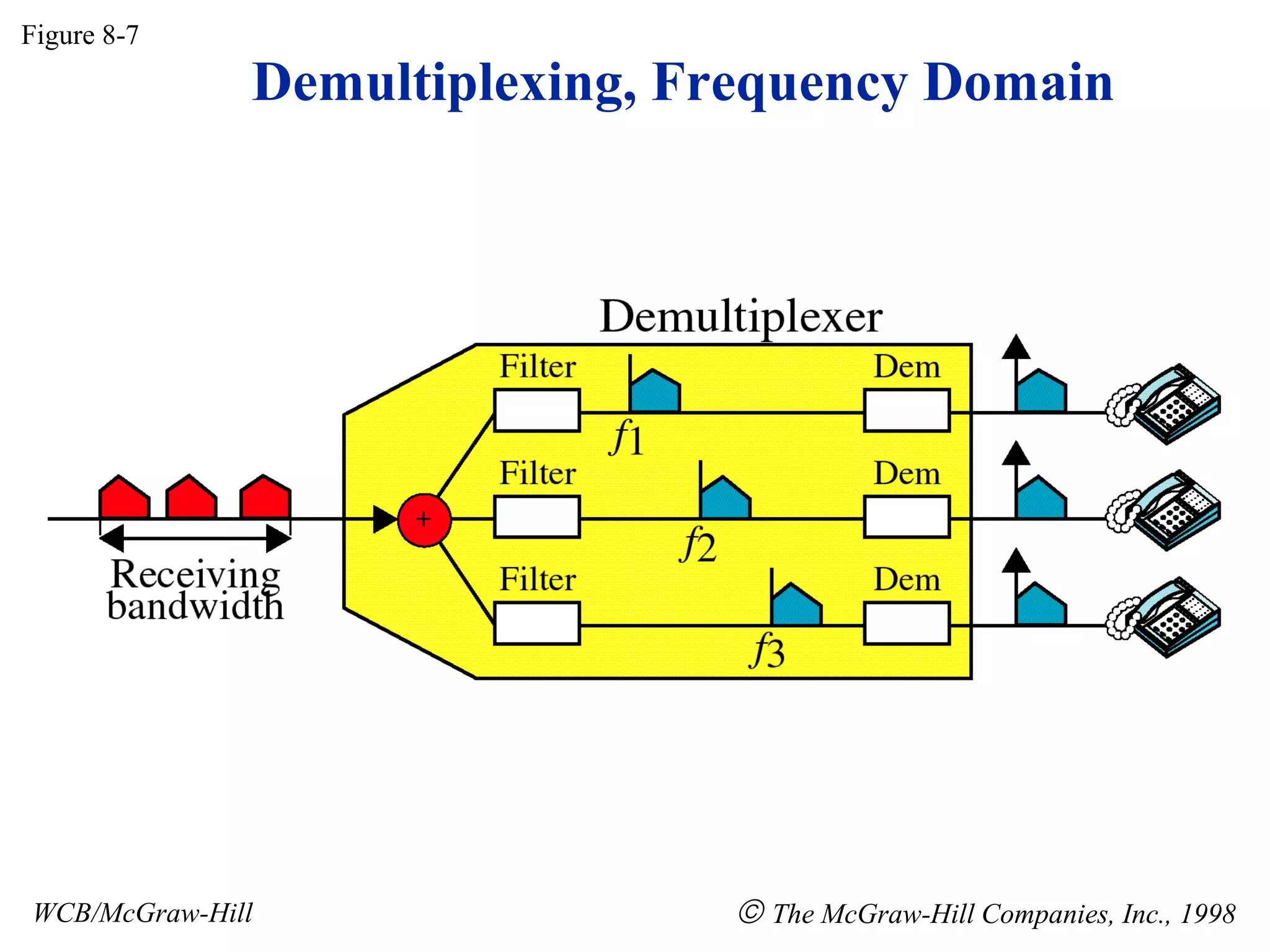

8. Figure 8-7
WCB/McGraw-Hill © The McGraw-Hill Companies, Inc., 1998
Demultiplexing, Frequency Domain
