BC Ministry of Transportation Transit Presentation

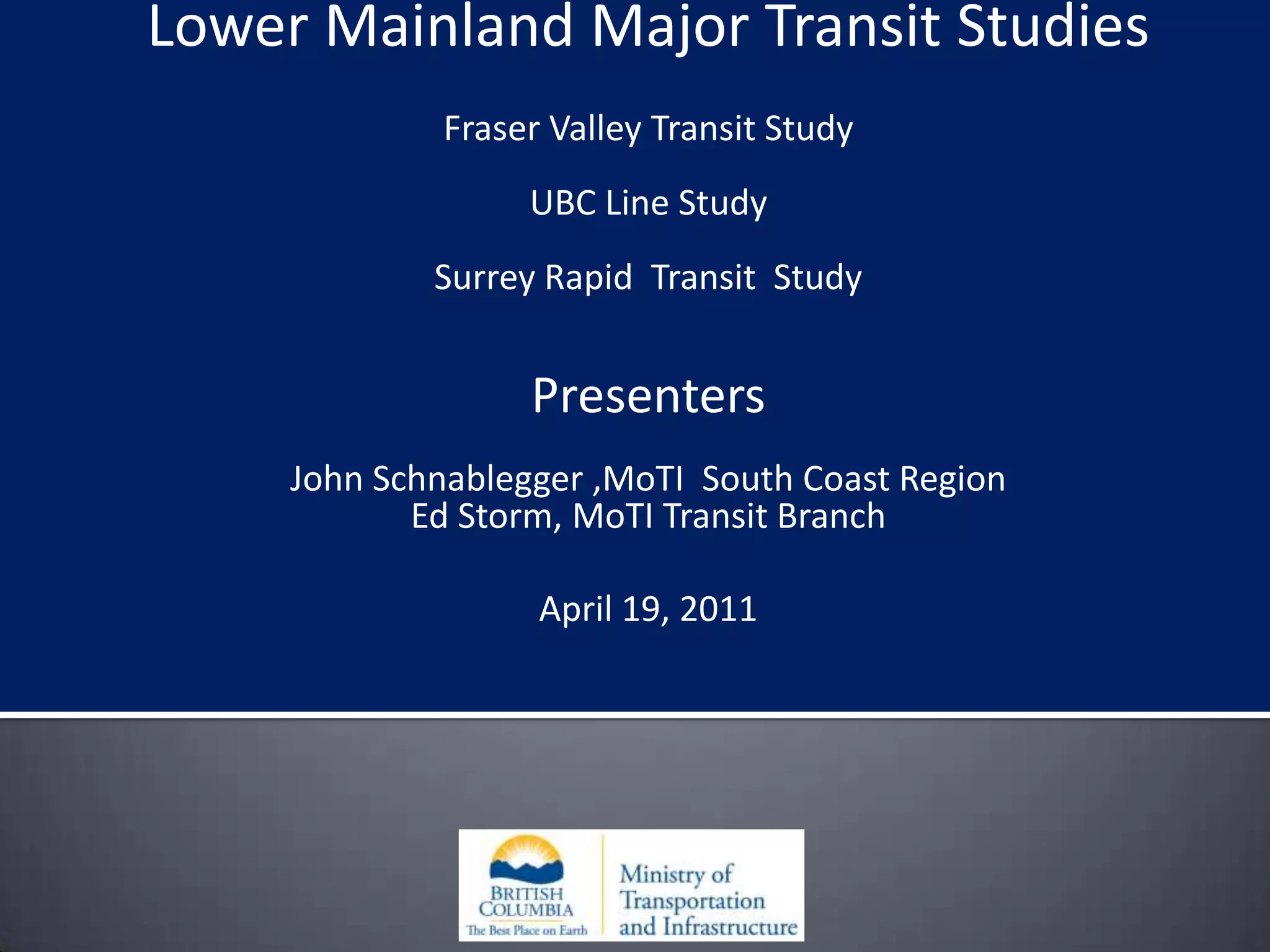

- 1. Lower Mainland Major Transit Studies Fraser Valley Transit Study UBC Line Study Surrey Rapid Transit Study Presenters John Schnablegger ,MoTI South Coast Region Ed Storm, MoTI Transit Branch April 19, 2011

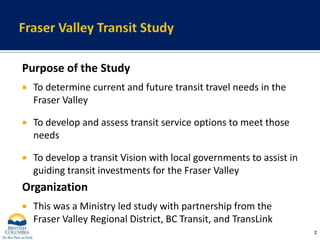

- 2. Fraser Valley Transit Study Purpose of the Study To determine current and future transit travel needs in the Fraser Valley To develop and assess transit service options to meet those needs To develop a transit Vision with local governments to assist in guiding transit investments for the Fraser Valley Organization This was a Ministry led study with partnership from the Fraser Valley Regional District, BC Transit, and TransLink 2
- 3. Fraser Valley Transit StudyTransit Market Analysis Only 1% of all trips are by transit 3 Majority of all daily travel is “local”

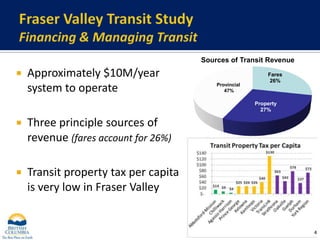

- 4. Fraser Valley Transit StudyFinancing & Managing Transit Approximately $10M/year system to operate Three principle sources of revenue (fares account for 26%) Transit property tax per capita is very low in Fraser Valley 4

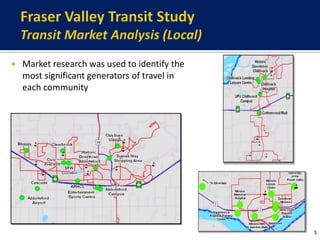

- 5. Fraser Valley Transit StudyTransit Market Analysis (Local) Market research was used to identify the most significant generators of travel in each community 5

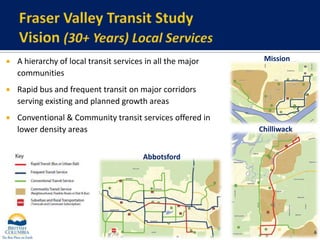

- 6. Fraser Valley Transit StudyVision (30+ Years) Local Services Mission A hierarchy of local transit services in all the major communities Rapid bus and frequent transit on major corridors serving existing and planned growth areas Conventional & Community transit services offered in lower density areas Chilliwack Abbotsford 6

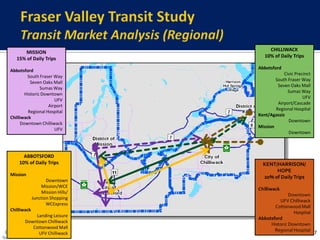

- 7. Fraser Valley Transit StudyTransit Market Analysis (Regional) 7 CHILLIWACK 10% of Daily Trips Abbotsford Civic Precinct South Fraser Way Seven Oaks Mall Sumas Way UFV Airport/Cascade Regional Hospital Kent/Agassiz Downtown Mission Downtown MISSION 15% of Daily Trips Abbotsford South Fraser Way Seven Oaks Mall Sumas Way Historic Downtown UFV Airport Regional Hospital Chilliwack Downtown Chilliwack UFV ABBOTSFORD 10% of Daily Trips Mission Downtown Mission/WCE Mission Hills/ Junction Shopping WCExpress Chilliwack Landing Leisure Downtown Chilliwack Cottonwood Mall UFV Chilliwack KENT/HARRISON/ HOPE 20% of Daily Trips Chilliwack Downtown UFV Chilliwack Cottonwood Mall Hospital Abbotsford Historic Downtown Regional Hospital
- 8. Fraser Valley Transit StudyTransit Market Analysis (Inter-regional) 8 MISSION 15% of Daily Trips Maple Ridge Haney Place Pitt Meadows Downtown Surrey Port Kells Langleys Willowbrook City Centre Vancouver Downtown Others Identified Tri-Cities SkyTrain KENT/HARRISON 10% of Daily Trips Langleys Aldergrove Langley City ABBOTSFORD 10% of Daily Trips Langleys Willowbrook Area Langley City Centre Gloucester Estates Aldergrove Surrey Port Kells Guildford Town Centre Others Identified Vancouver Downtown CHILLIWACK 5% of Daily Trips Langley Aldergrove Northwest Langley / Port Kells Others Identified Vancouver Downtown

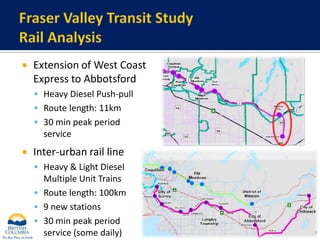

- 9. Fraser Valley Transit StudyRail Analysis Extension of West Coast Express to Abbotsford Heavy Diesel Push-pull Route length: 11km 30 min peak period service Inter-urban rail line Heavy & Light Diesel Multiple Unit Trains Route length: 100km 9 new stations 30 min peak period service (some daily) 9

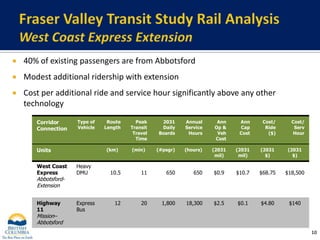

- 10. Fraser Valley Transit Study Rail Analysis West Coast Express Extension 40% of existing passengers are from Abbotsford Modest additional ridership with extension Cost per additional ride and service hour significantly above any other technology 10

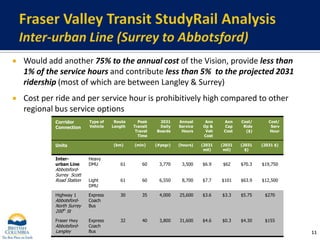

- 11. Fraser Valley Transit StudyRailAnalysis Inter-urban Line (Surrey to Abbotsford) Would add another 75% to the annual cost of the Vision, provide less than 1% of the service hours and contribute less than 5% to the projected 2031 ridership (most of which are between Langley & Surrey) Cost per ride and per service hour is prohibitively high compared to other regional bus service options 11

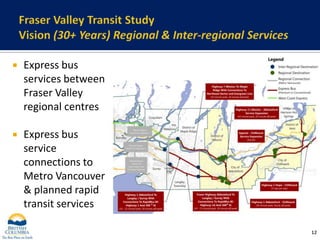

- 12. Fraser Valley Transit StudyVision (30+ Years) Regional & Inter-regional Services Express bus services between Fraser Valley regional centres Express bus service connections to Metro Vancouver & planned rapid transit services 12
- 13. Rapid Transit Studies The Ministry is participating with TransLink in two rapid transit studies UBC Line Rapid Transit Study Surrey Rapid Transit Study The Ministry and TransLink are also looking at options to increase capacity on the Expo Line
- 14. UBC Line Study A short-list of 7 alternatives is being evaluated Best Bus, Bus Rapid Transit, Light Rail Transit, Rail Rapid Transit, and Combination Alternatives; Route mainly along Broadway, West 10th, and University Blvd, but with options connecting to VCC Clark Station via Great Northern Way and to Granville Island and Main Street via 1st and Arbutus Rail Corridor;

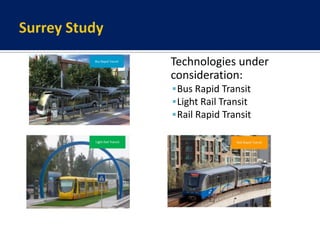

- 17. Surrey Study Technologies under consideration: Bus Rapid Transit Light Rail Transit Rail Rapid Transit

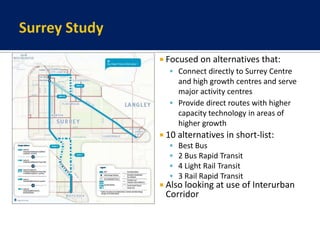

- 18. Surrey Study Focused on alternatives that: Connect directly to Surrey Centre and high growth centres and serve major activity centres Provide direct routes with higher capacity technology in areas of higher growth 10 alternatives in short-list: Best Bus 2 Bus Rapid Transit 4 Light Rail Transit 3 Rail Rapid Transit Also looking at use of Interurban Corridor

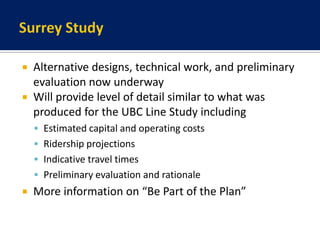

- 19. Surrey Study Alternative designs, technical work, and preliminary evaluation now underway Will provide level of detail similar to what was produced for the UBC Line Study including Estimated capital and operating costs Ridership projections Indicative travel times Preliminary evaluation and rationale More information on “Be Part of the Plan”
