Computational Topology
for
Computer Graphics
Klein bottle
What is Topology?
• The topology of a space is the definition of
a collection of sets (called the open sets)
that include:
– the space and the empty set
– the union of any of the sets
– the finite intersection of any of the sets
• “Topological space is a set with the least
structure necessary to define the
concepts of nearness and continuity”

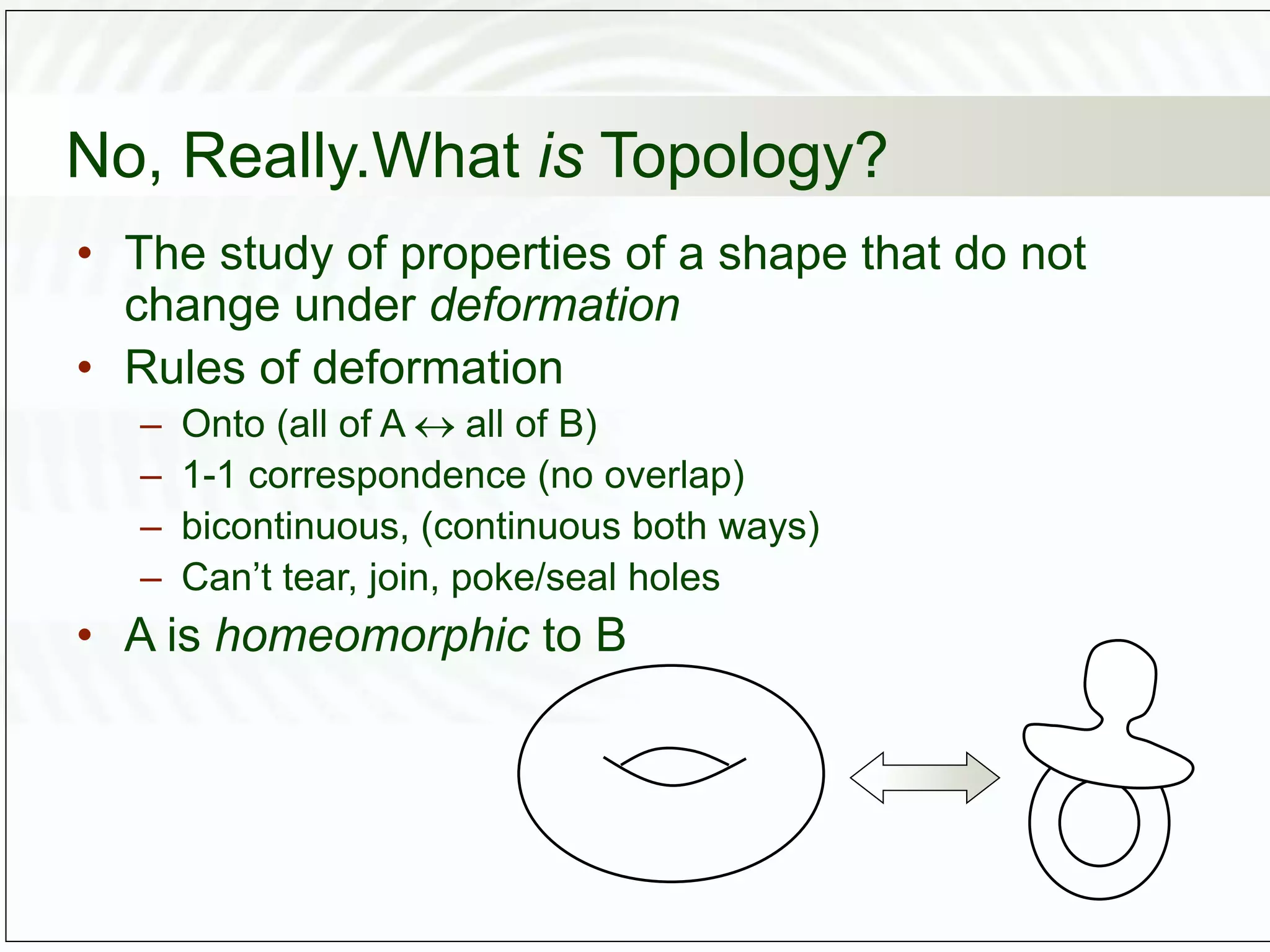

No, Really.What is Topology?
• The study of properties of a shape that do not
change under deformation
• Rules of deformation
– Onto (all of A  all of B)
– 1-1 correspondence (no overlap)
– bicontinuous, (continuous both ways)
– Can’t tear, join, poke/seal holes
• A is homeomorphic to B
Why Topology?
• What is the boundary of an object?
• Are there holes in the object?
• Is the object hollow?
• If the object is transformed in some way, are the
changes continuous or abrupt?
• Is the object bounded, or does it extend infinitely
far?
Why Do We (CG) Care?
The study of connectedness
• Understanding
How connectivity happens?
• Analysis
How to determine connectivity?
• Articulation
How to describe connectivity?
• Control
How to enforce connectivity?
For Example
How does connectedness affect…
• Morphing
• Texturing
• Compression
• Simplification

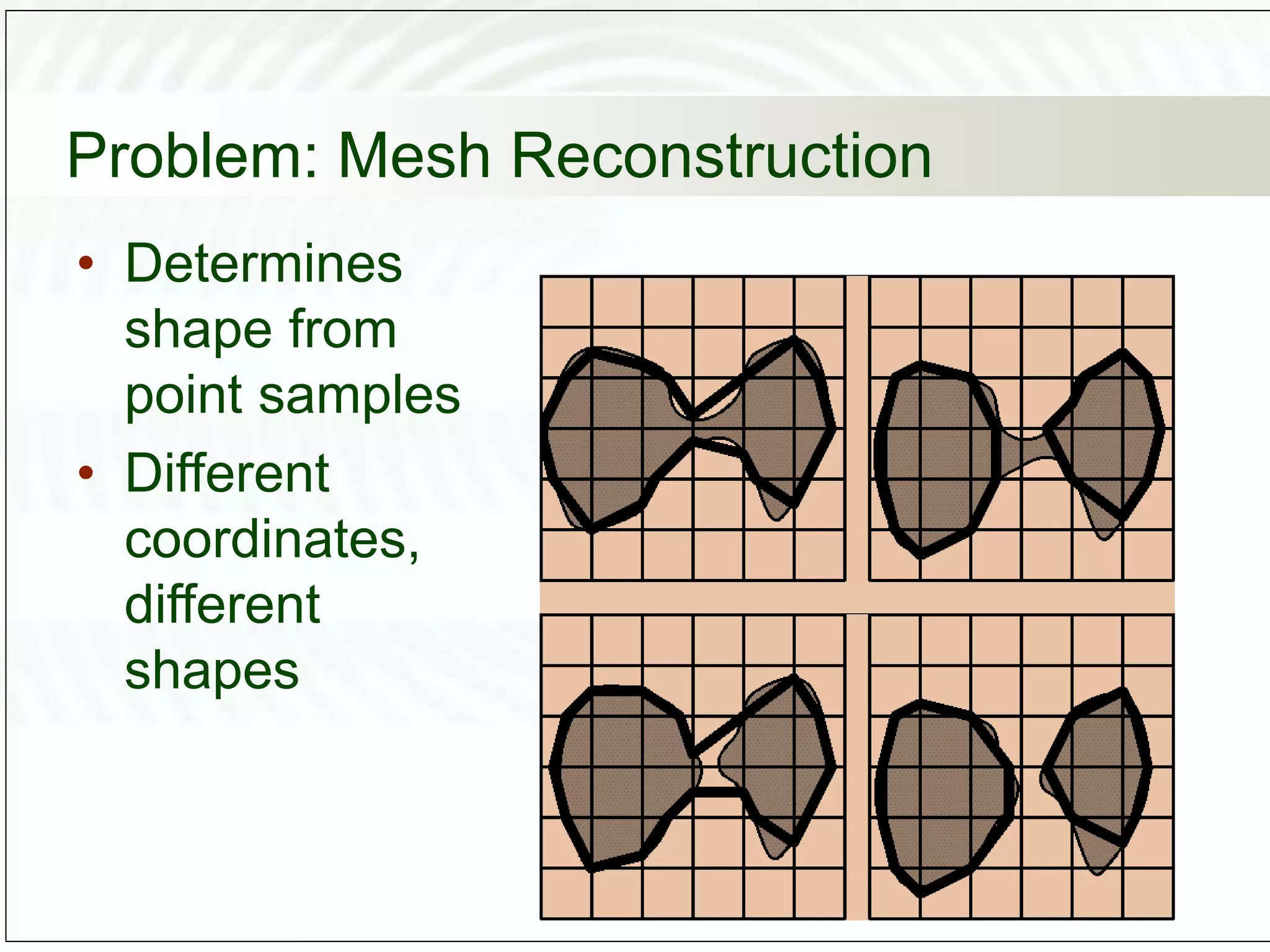

Problem: Mesh Reconstruction
• Determines
shape from
point samples
• Different
coordinates,
different
shapes
Topological Properties
• To uniquely determine the type of
homeomorphism we need to know :
– Surface is open or closed
– Surface is orientable or not
– Genus (number of holes)
– Boundary components
Surfaces
• How to define “surface”?
• Surface is a space which ”locally
looks like” a plane:
– the set of zeroes of a polynomial
equation in three variables in R3 is a
2D surface: x2+y2+z2=1
Surfaces and Manifolds
• An n-manifold is a topological space
that “locally looks like” the Euclidian
space Rn
– Topological space: set properties
– Euclidian space: geometric/coordinates
• A sphere is a 2-manifold
• A circle is a 1-manifold
Open vs. Closed Surfaces
• The points x having a
neighborhood homeomorphic to
R2 form Int(S) (interior)
• The points y for which every
neighborhood is homeomorphic to
R2
0 form ∂S (boundary)
• A surface S is said to be closed if
its boundary is empty

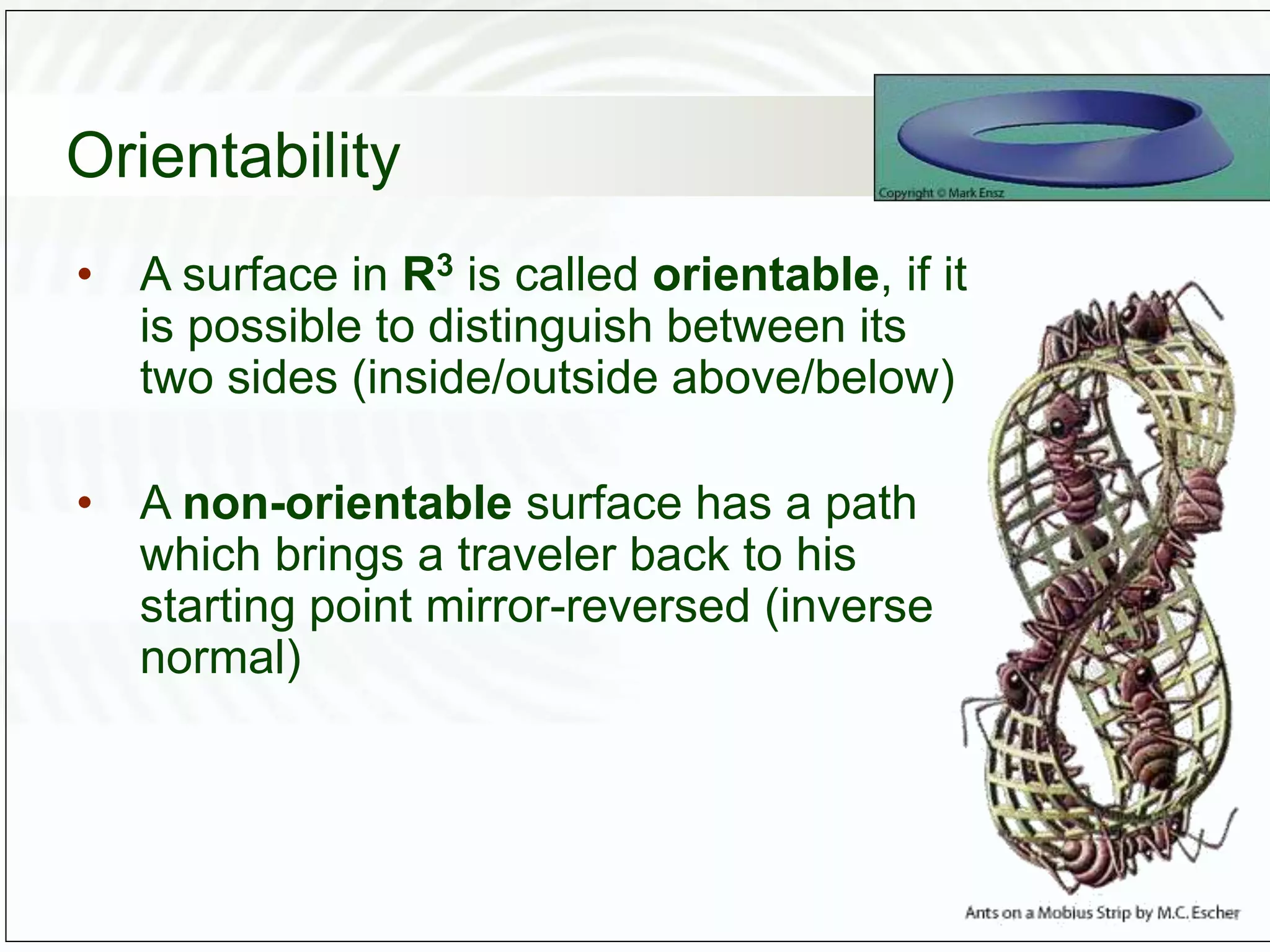

Orientability
• A surface in R3 is called orientable, if it
is possible to distinguish between its
two sides (inside/outside above/below)
• A non-orientable surface has a path
which brings a traveler back to his
starting point mirror-reversed (inverse
normal)
Orientation by Triangulation
• Any surface has a triangulation
• Orient all triangles CW or CCW
• Orientability: any two triangles
sharing an edge have opposite
directions on that edge.

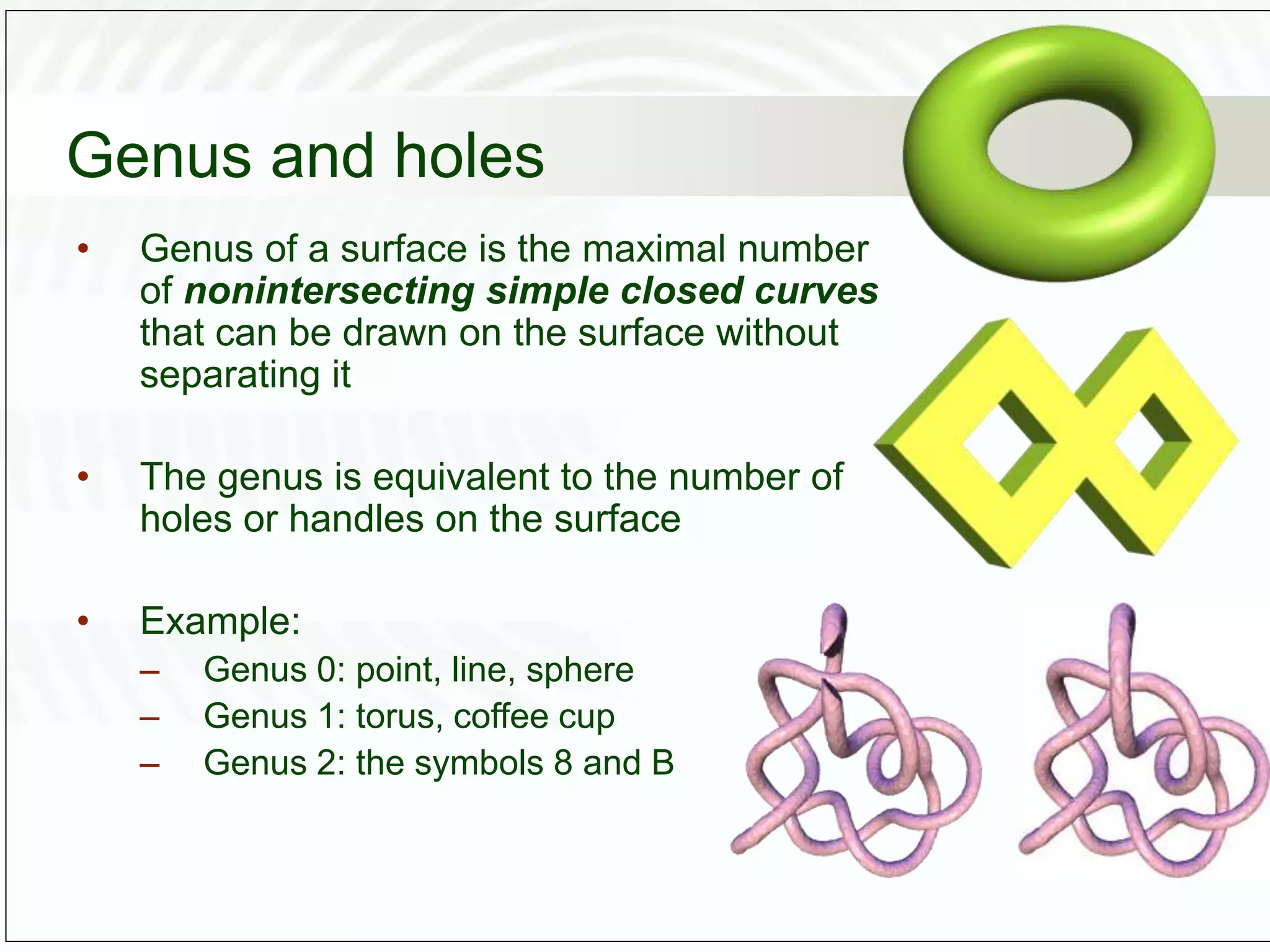

Genus and holes
• Genus of a surface is the maximal number
of nonintersecting simple closed curves
that can be drawn on the surface without
separating it
• The genus is equivalent to the number of
holes or handles on the surface
• Example:
– Genus 0: point, line, sphere
– Genus 1: torus, coffee cup
– Genus 2: the symbols 8 and B
Euler characteristic function
• Polyhedral decomposition of a surface
(V = #vertices, E = #edges, F = #faces)
(M) = V – E + F
– If M has g holes and h boundary components then
(M) = 2 – 2g – h
–(M) is independent of the polygonization
 = 1  = 2  = 0
Summary: equivalence in R3
• Any orientable closed surface
is topologically equivalent to a
sphere with g handles
attached to it
– torus is equivalent to a sphere
with one handle ( =0, g=1)
– double torus is equivalent to a
sphere with two handles ( =-2 ,
g=2)
Hard Problems… Dunking a Donut
• Dunk the donut in
the coffee!
• Investigate the
change in topology
of the portion of the
donut immersed in
the coffee

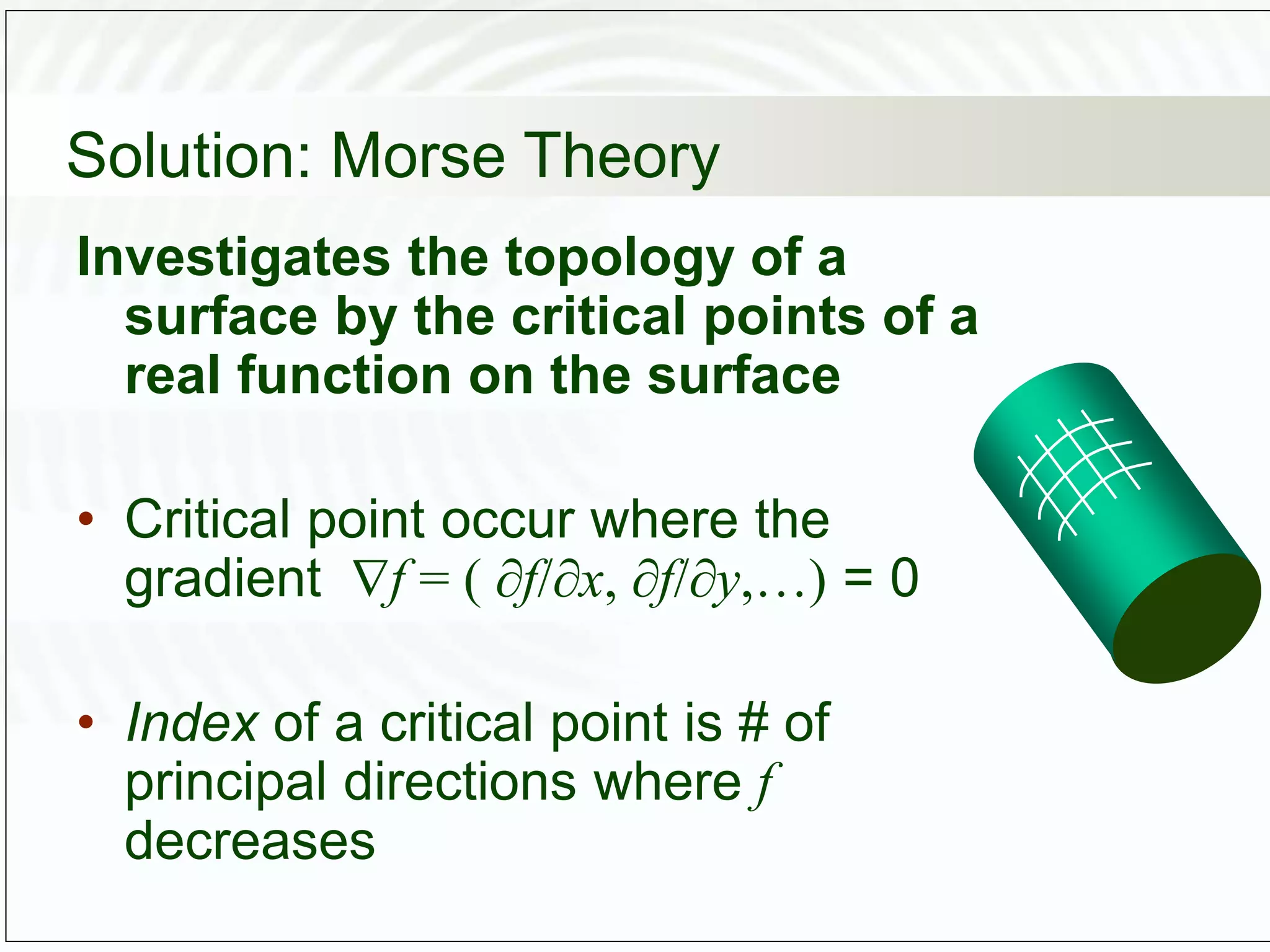

Solution: Morse Theory
Investigates the topology of a
surface by the critical points of a
real function on the surface
• Critical point occur where the
gradient f = (f/x, f/y,…) = 0
• Index of a critical point is # of
principal directions where f
decreases
Example: Dunking a Donut
• Surface is a torus
• Function f is height
• Investigate topology of f  h
• Four critical points
– Index 0 : minimum
– Index 1 : saddle
– Index 1 : saddle
– Index 2 : maximum
• Example: sphere has a function with only critical
points as maximum and a minimum

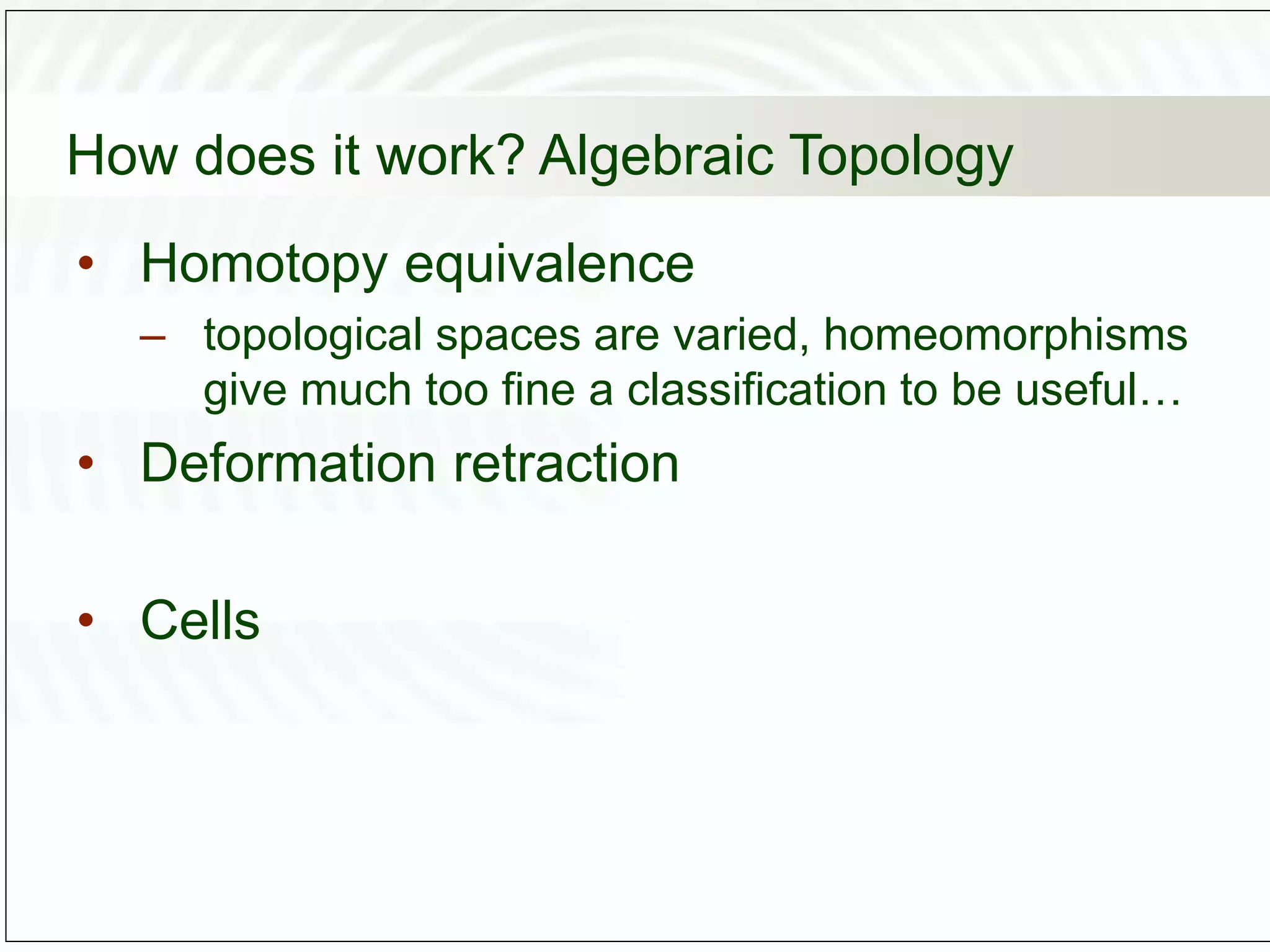

How does it work? Algebraic Topology
• Homotopy equivalence
– topological spaces are varied, homeomorphisms
give much too fine a classification to be useful…
• Deformation retraction
• Cells
Homotopy equivalence
• A ~ B  There is a continuous map between A
and B
• Same number of components
• Same number of holes
• Not necessarily the same dimension
• Homeomorphism Homotopy
~ ~

Deformation Retraction
• Function that continuously reduces a set
onto a subset
• Any shape is homotopic to any of its
deformation retracts
• Skeleton is a deformation retract of the
solids it defines
~ ~ ~
~

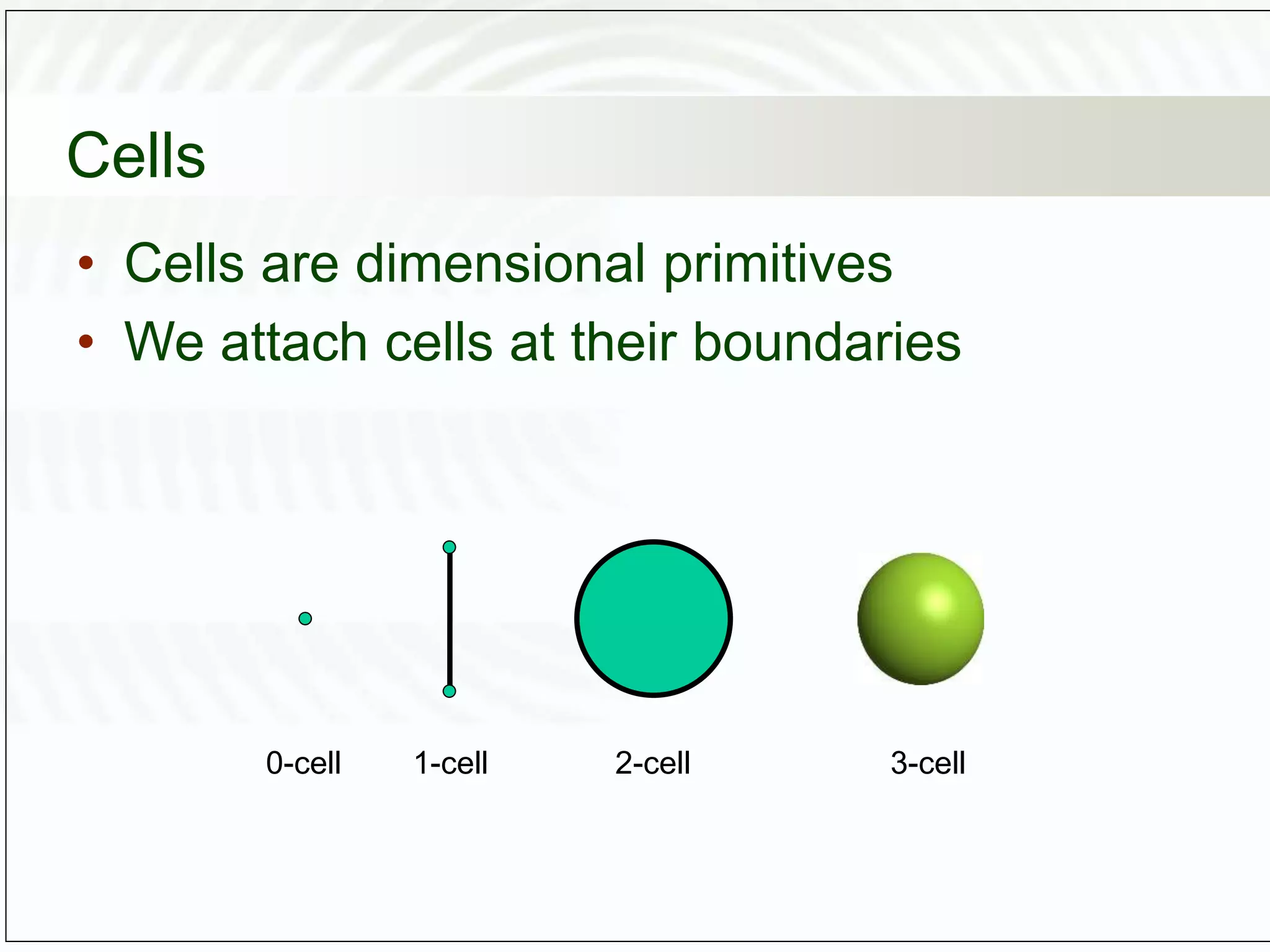

Cells
• Cells are dimensional primitives
• We attach cells at their boundaries
0-cell 1-cell 2-cell 3-cell

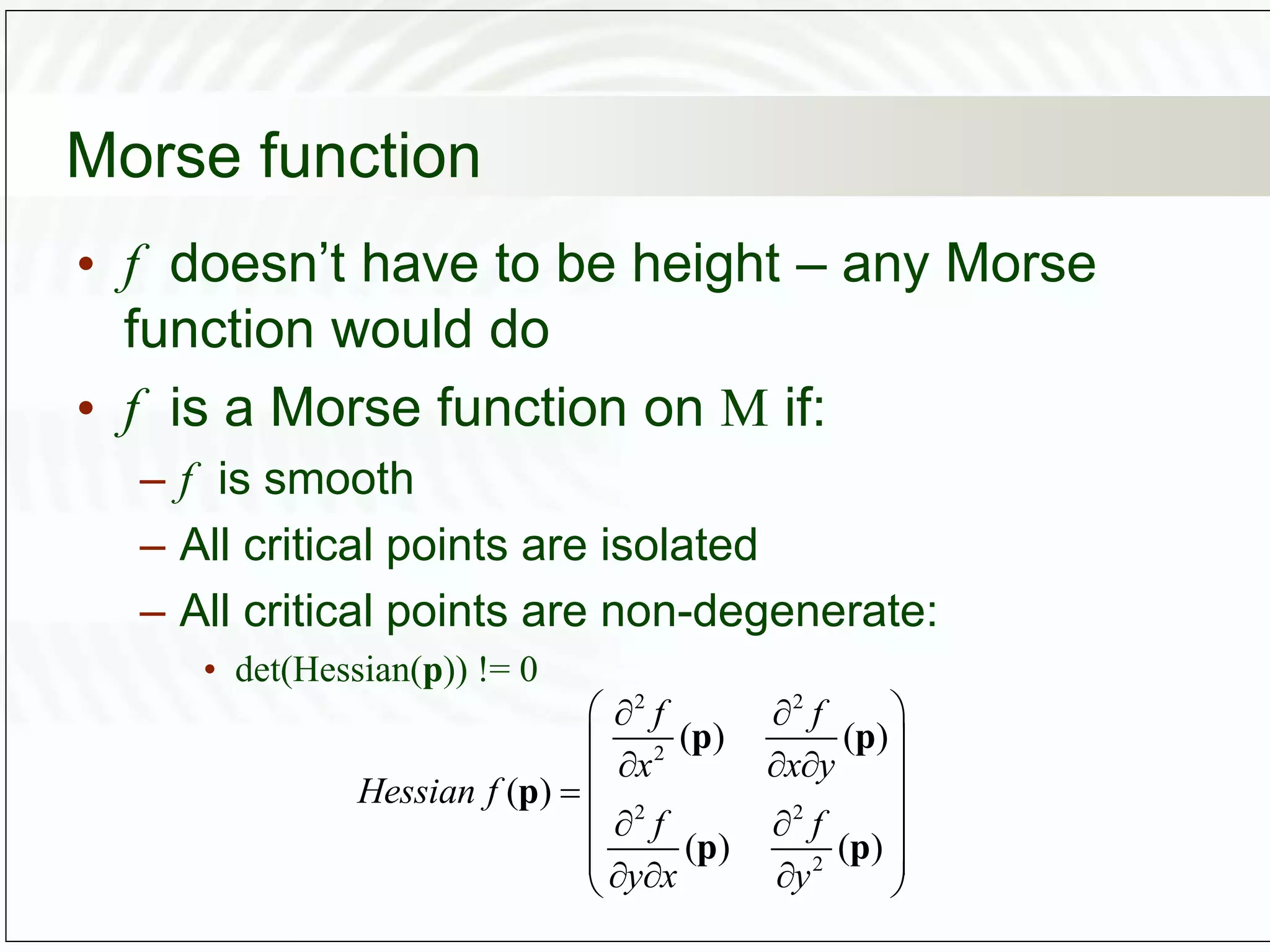

Morse function
• f doesn’t have to be height – any Morse
function would do
• f is a Morse function on M if:
– f is smooth
– All critical points are isolated
– All critical points are non-degenerate:
• det(Hessian(p)) != 0
2 2
2
2 2
2
( ) ( )
( )
( ) ( )
f f
x x y
Hessian f
f f
y x y
 
 
 
  
 

 
 
 
 
  
 
p p
p
p p
Critical Point Index
• The index of a critical point is the number of
negative eigenvalues of the Hessian:
– 0  minimum
– 1  saddle point
– 2  maximum
• Intuition: the number
of independent
directions in which
f decreases ind=0
ind=1
ind=1
ind=2
If sweep doesn’t pass critical point
[Milnor 1963]
• Denote Ma
= {p  M | f(p)  a} (the sweep
region up to value a of f )
• Suppose f 1
[a, b] is compact and doesn’t
contain critical points of f. Then Ma
is
homeomorphic to Mb
.
Sweep passes critical point
[Milnor 1963]
• p is critical point of f with index ,  is
sufficiently small. Then Mc+
has the same
homotopy type as Mc
with -cell attached.
Mc
Mc+
Mc Mc
with -cell
attached
~
Mc+
This is what happened to the doughnut…
What we learned so far
• Topology describes properties of shape that
are invariant under deformations
• We can investigate topology by
investigating critical points of Morse
functions
• And vice versa: looking at the topology of
level sets (sweeps) of a Morse function, we
can learn about its critical points
Reeb graphs
• Schematic way to present a Morse function
• Vertices of the graph are critical points
• Arcs of the graph are connected components of
the level sets of f, contracted to points
2
1
1
1
1
1
0 0

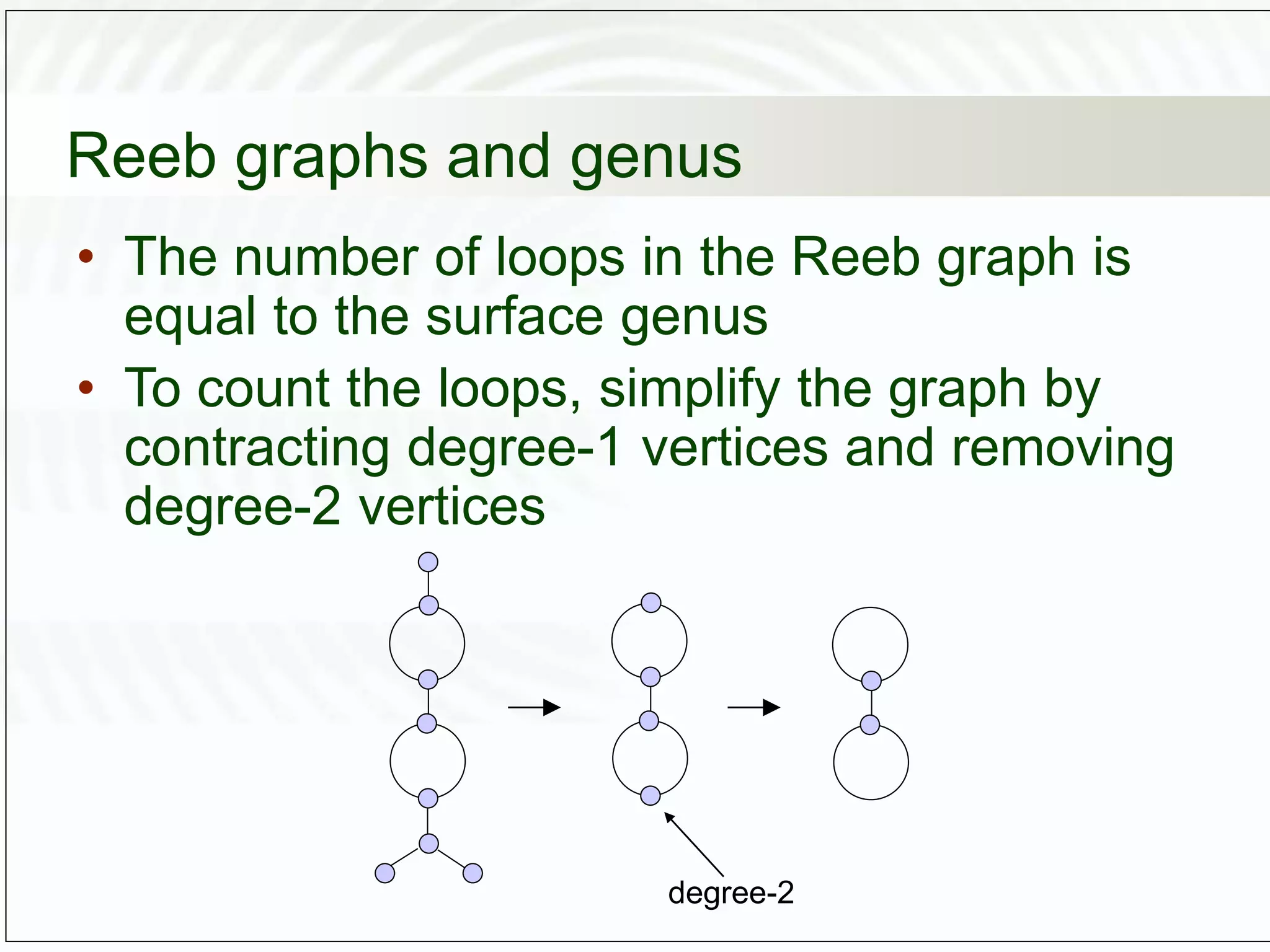

Reeb graphs and genus
• The number of loops in the Reeb graph is
equal to the surface genus
• To count the loops, simplify the graph by
contracting degree-1 vertices and removing
degree-2 vertices
degree-2

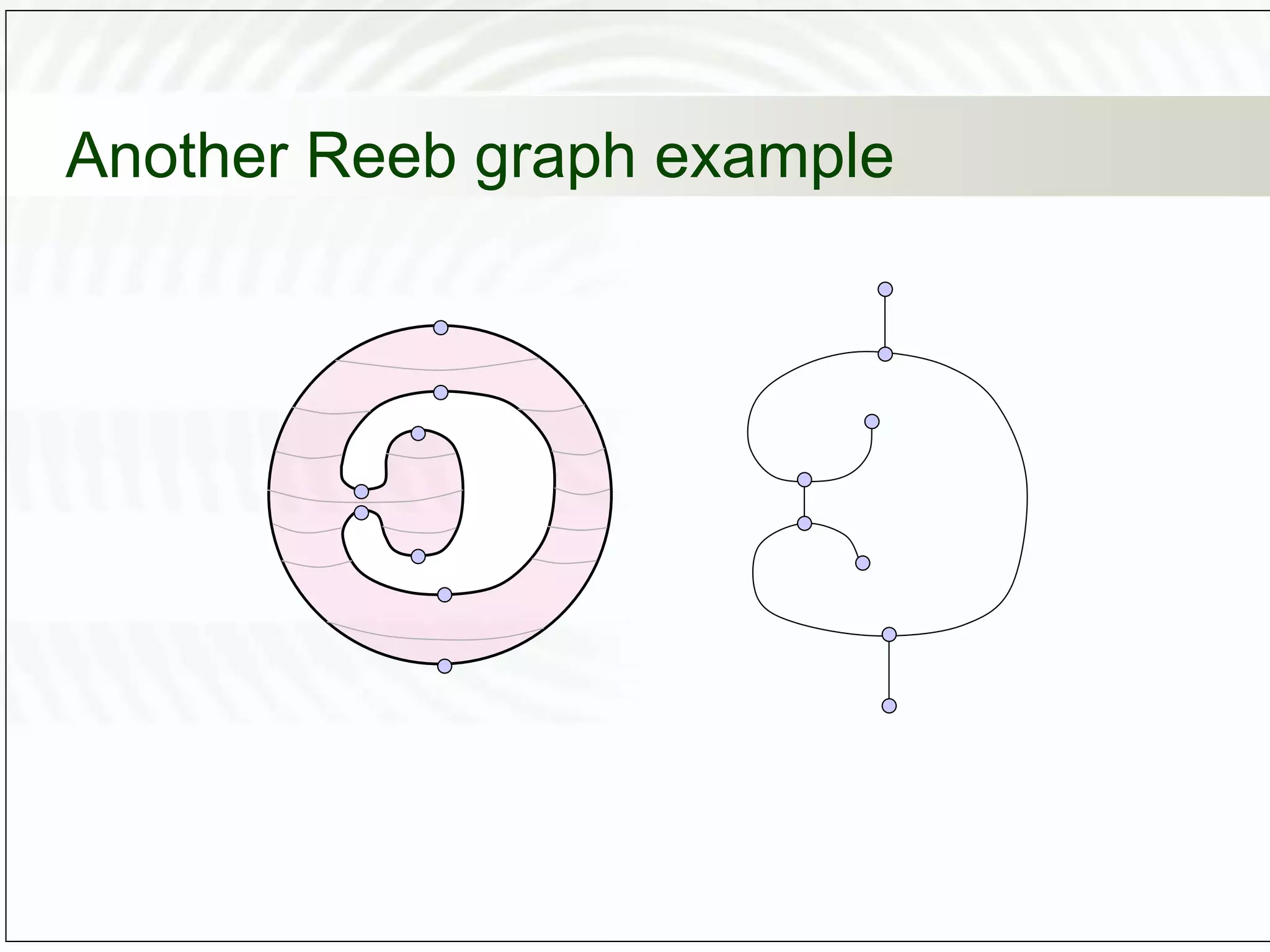

Another Reeb graph example
Discretized Reeb graph
• Take the critical points and “samples” in
between
• Robust because we know that nothing
happens between consecutive critical points
Reeb graphs for Shape Matching
• Reeb graph encodes the behavior of a
Morse function on the shape
• Also tells us about the topology of the
shape
• Take a meaningful function and use its
Reeb graph to compare between shapes!
Choose the right Morse function
• The height function f (p) = z is not good
enough – not rotational invariant
• Not always a Morse function
Average geodesic distance
• The idea of [Hilaga et al. 01]: use geodesic
distance for the Morse function!
( ) geodist( , )
( ) min ( )
( )
max ( )
M
M
M
g dS
g g
f
g






q
q
p p q
p q
p
q

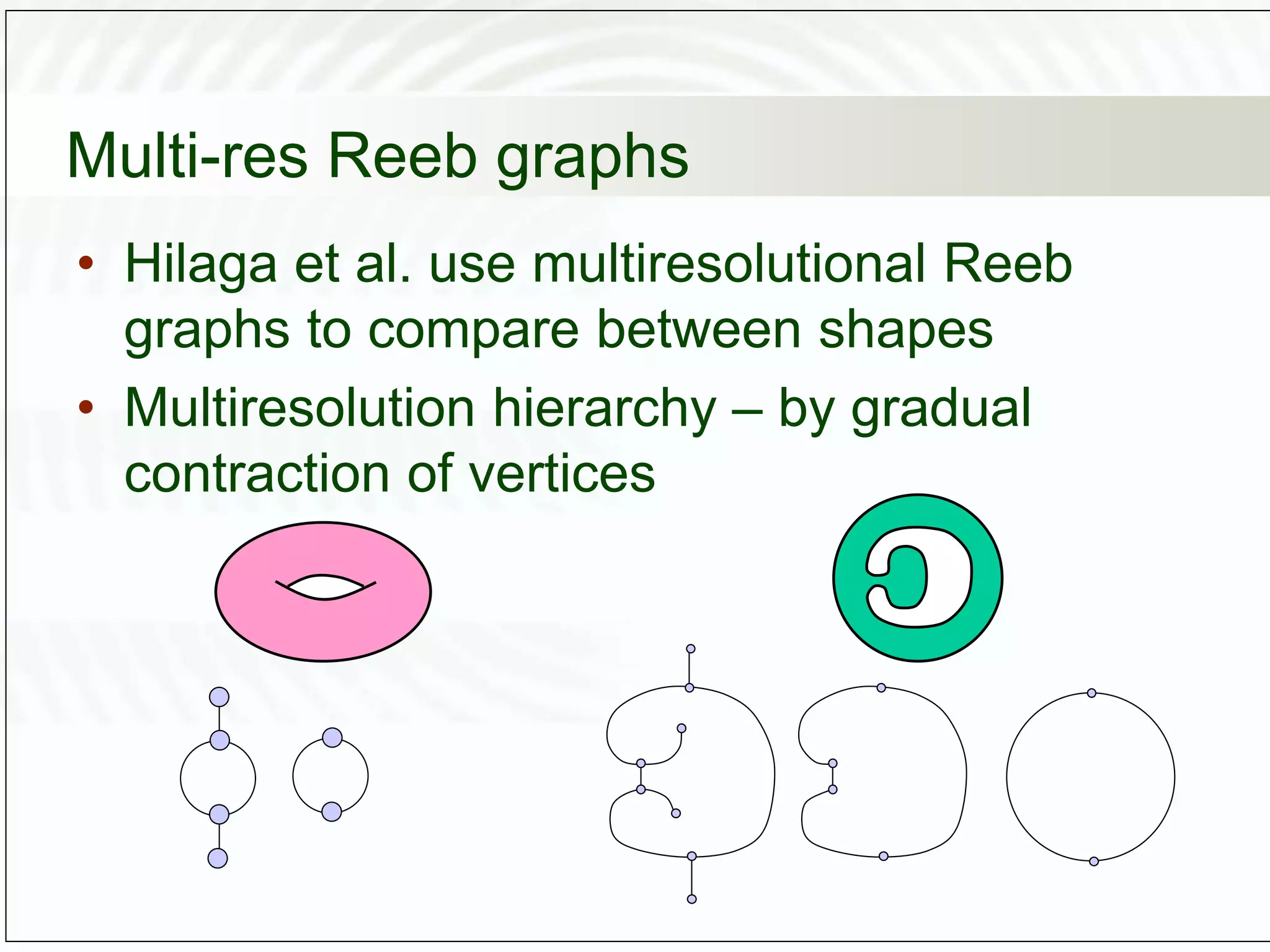

Multi-res Reeb graphs
• Hilaga et al. use multiresolutional Reeb
graphs to compare between shapes
• Multiresolution hierarchy – by gradual
contraction of vertices
Mesh Partitioning
• Now we get to [Zhang et al. 03]
• They use almost the same f as [Hilaga et al.
01]
• Want to find features = long protrusions
• Find local maxima of f !
Region growing
• Start the sweep from global minimum
(central point of the shape)
• Add one triangle at a time – the one with
smallest f
• Record topology changes in the boundary
of the sweep front – these are critical points

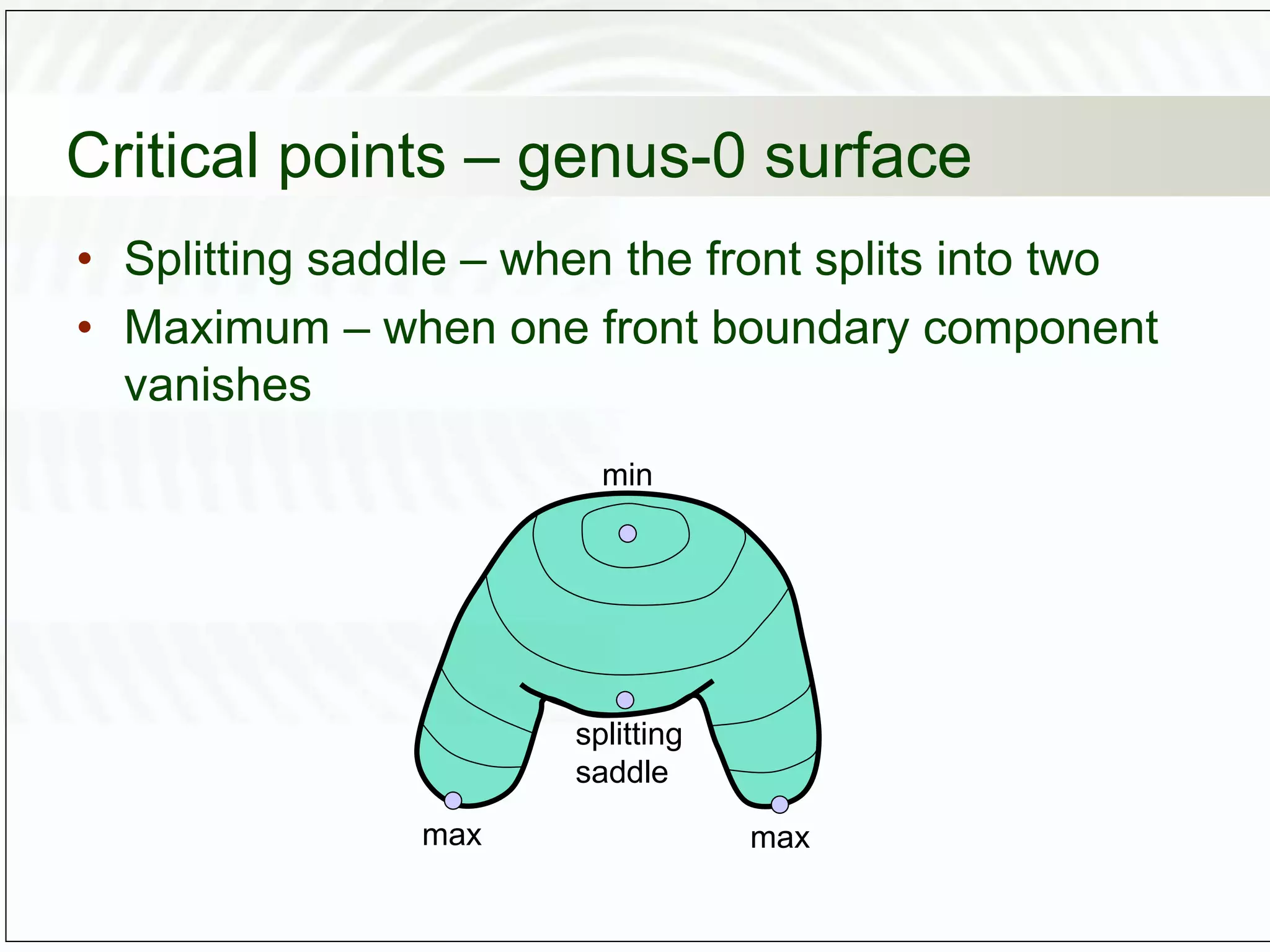

Critical points – genus-0 surface
• Splitting saddle – when the front splits into two
• Maximum – when one front boundary component
vanishes
max max
splitting
saddle
min

More Related Content

Similar to Topology.ppt

Sat index cards
Sat index cardsSat index cards
Sat index cards
tschmucker

Algorithms summary (English version)
Algorithms summary (English version)Algorithms summary (English version)
Algorithms summary (English version)
Young-Min kang

Transform as a vector? Tying functional parity with rotation angle of coordin...
Transform as a vector? Tying functional parity with rotation angle of coordin...Transform as a vector? Tying functional parity with rotation angle of coordin...
Transform as a vector? Tying functional parity with rotation angle of coordin...
SayakBhattacharjee4

Fassold-MMAsia2023-Tutorial-GeometricDL-Part1.pptx
Fassold-MMAsia2023-Tutorial-GeometricDL-Part1.pptxFassold-MMAsia2023-Tutorial-GeometricDL-Part1.pptx
Fassold-MMAsia2023-Tutorial-GeometricDL-Part1.pptx
HannesFesswald

Image morphology
Image morphologyImage morphology
Image morphology
Sonam Maurya

ANALYTIC-GEOMETRY(4).pptx
ANALYTIC-GEOMETRY(4).pptxANALYTIC-GEOMETRY(4).pptx
ANALYTIC-GEOMETRY(4).pptx
BercasioKelvin

Futher pure mathematics 3 hyperbolic functions
Futher pure mathematics 3 hyperbolic functionsFuther pure mathematics 3 hyperbolic functions
Futher pure mathematics 3 hyperbolic functions
Dennis Almeida

Instrumentation in Mathematics
Instrumentation in MathematicsInstrumentation in Mathematics
Instrumentation in Mathematics
Fate Jacaban

2A_ROBOT KINEMATICS.pptx
2A_ROBOT KINEMATICS.pptx2A_ROBOT KINEMATICS.pptx
2A_ROBOT KINEMATICS.pptx
TanujBanerji1

Resolving the schwarzchild singularity
Resolving the schwarzchild singularityResolving the schwarzchild singularity
Resolving the schwarzchild singularity
Michael Crumrine

Data structure computer graphs
Data structure computer graphsData structure computer graphs
Data structure computer graphs
Kumar

Towards an area datatype for OSM - State of the Map 2013
Towards an area datatype for OSM - State of the Map 2013Towards an area datatype for OSM - State of the Map 2013
Towards an area datatype for OSM - State of the Map 2013
OSMFstateofthemap

An Algorithm to Find the Visible Region of a Polygon
An Algorithm to Find the Visible Region of a PolygonAn Algorithm to Find the Visible Region of a Polygon
An Algorithm to Find the Visible Region of a Polygon
Kasun Ranga Wijeweera

TIU CET Review Math Session 6 - part 2 of 2
TIU CET Review Math Session 6 - part 2 of 2TIU CET Review Math Session 6 - part 2 of 2
TIU CET Review Math Session 6 - part 2 of 2
youngeinstein

Depth first traversal(data structure algorithms)
Depth first traversal(data structure algorithms)Depth first traversal(data structure algorithms)
Depth first traversal(data structure algorithms)
bhuvaneshwariA5

curve one
curve onecurve one
curve one
Mahmudul Hasan

Interpolation
InterpolationInterpolation
Interpolation
Tarun Gehlot

Non Linear Dynamics Basics and Theory
Non Linear Dynamics Basics and TheoryNon Linear Dynamics Basics and Theory
Non Linear Dynamics Basics and Theory
Anupama Kate

Lect no 13 ECC.ppt
Lect no 13 ECC.pptLect no 13 ECC.ppt
Lect no 13 ECC.ppt
DEEPAK948083

Lect no 13 ECC.ppt
Lect no 13 ECC.pptLect no 13 ECC.ppt
Lect no 13 ECC.ppt
DEEPAK948083


Similar to Topology.ppt (20)

Sat index cards
Sat index cardsSat index cards
Sat index cards

Algorithms summary (English version)
Algorithms summary (English version)Algorithms summary (English version)
Algorithms summary (English version)

Transform as a vector? Tying functional parity with rotation angle of coordin...
Transform as a vector? Tying functional parity with rotation angle of coordin...Transform as a vector? Tying functional parity with rotation angle of coordin...
Transform as a vector? Tying functional parity with rotation angle of coordin...

Fassold-MMAsia2023-Tutorial-GeometricDL-Part1.pptx
Fassold-MMAsia2023-Tutorial-GeometricDL-Part1.pptxFassold-MMAsia2023-Tutorial-GeometricDL-Part1.pptx
Fassold-MMAsia2023-Tutorial-GeometricDL-Part1.pptx

Image morphology
Image morphologyImage morphology
Image morphology

ANALYTIC-GEOMETRY(4).pptx
ANALYTIC-GEOMETRY(4).pptxANALYTIC-GEOMETRY(4).pptx
ANALYTIC-GEOMETRY(4).pptx

Futher pure mathematics 3 hyperbolic functions
Futher pure mathematics 3 hyperbolic functionsFuther pure mathematics 3 hyperbolic functions
Futher pure mathematics 3 hyperbolic functions

Instrumentation in Mathematics
Instrumentation in MathematicsInstrumentation in Mathematics
Instrumentation in Mathematics

2A_ROBOT KINEMATICS.pptx
2A_ROBOT KINEMATICS.pptx2A_ROBOT KINEMATICS.pptx
2A_ROBOT KINEMATICS.pptx

Resolving the schwarzchild singularity
Resolving the schwarzchild singularityResolving the schwarzchild singularity
Resolving the schwarzchild singularity

Data structure computer graphs
Data structure computer graphsData structure computer graphs
Data structure computer graphs

Towards an area datatype for OSM - State of the Map 2013
Towards an area datatype for OSM - State of the Map 2013Towards an area datatype for OSM - State of the Map 2013
Towards an area datatype for OSM - State of the Map 2013

An Algorithm to Find the Visible Region of a Polygon
An Algorithm to Find the Visible Region of a PolygonAn Algorithm to Find the Visible Region of a Polygon
An Algorithm to Find the Visible Region of a Polygon

TIU CET Review Math Session 6 - part 2 of 2
TIU CET Review Math Session 6 - part 2 of 2TIU CET Review Math Session 6 - part 2 of 2
TIU CET Review Math Session 6 - part 2 of 2

Depth first traversal(data structure algorithms)
Depth first traversal(data structure algorithms)Depth first traversal(data structure algorithms)
Depth first traversal(data structure algorithms)

curve one
curve onecurve one
curve one

Interpolation
InterpolationInterpolation
Interpolation

Non Linear Dynamics Basics and Theory
Non Linear Dynamics Basics and TheoryNon Linear Dynamics Basics and Theory
Non Linear Dynamics Basics and Theory

Lect no 13 ECC.ppt
Lect no 13 ECC.pptLect no 13 ECC.ppt
Lect no 13 ECC.ppt

Lect no 13 ECC.ppt
Lect no 13 ECC.pptLect no 13 ECC.ppt
Lect no 13 ECC.ppt


Recently uploaded

Mariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceXMariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceX
Mariano Tinti

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing
Aftab Hussain

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations
kumardaparthi1024

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
Neo4j

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx
danishmna97

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1
DianaGray10

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
shyamraj55

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP
Pixlogix Infotech

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
SOFTTECHHUB

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”
Claudio Di Ciccio

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices
Quotidiano Piemontese

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5
DianaGray10

GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
Neo4j

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6
DianaGray10

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
IndexBug


Recently uploaded (20)

Mariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceXMariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceX

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

Removing Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software FuzzingRemoving Uninteresting Bytes in Software Fuzzing
Removing Uninteresting Bytes in Software Fuzzing

GenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizationsGenAI Pilot Implementation in the organizations
GenAI Pilot Implementation in the organizations

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024GraphSummit Singapore | The Art of the  Possible with Graph - Q2 2024
GraphSummit Singapore | The Art of the Possible with Graph - Q2 2024

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

How to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptxHow to Get CNIC Information System with Paksim Ga.pptx
How to Get CNIC Information System with Paksim Ga.pptx

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1Communications Mining Series - Zero to Hero - Session 1
Communications Mining Series - Zero to Hero - Session 1

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with SlackLet's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slack

Best 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERPBest 20 SEO Techniques To Improve Website Visibility In SERP
Best 20 SEO Techniques To Improve Website Visibility In SERP

Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...
Why You Should Replace Windows 11 with Nitrux Linux 3.5.0 for enhanced perfor...

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”

National Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practicesNational Security Agency - NSA mobile device best practices
National Security Agency - NSA mobile device best practices

UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5UiPath Test Automation using UiPath Test Suite series, part 5
UiPath Test Automation using UiPath Test Suite series, part 5

GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024
GraphSummit Singapore | Neo4j Product Vision & Roadmap - Q2 2024

UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6UiPath Test Automation using UiPath Test Suite series, part 6
UiPath Test Automation using UiPath Test Suite series, part 6

AI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial IntelligenceAI 101: An Introduction to the Basics and Impact of Artificial Intelligence
AI 101: An Introduction to the Basics and Impact of Artificial Intelligence


Topology.ppt

  • 2. What is Topology? • The topology of a space is the definition of a collection of sets (called the open sets) that include: – the space and the empty set – the union of any of the sets – the finite intersection of any of the sets • “Topological space is a set with the least structure necessary to define the concepts of nearness and continuity”
  • 3. No, Really.What is Topology? • The study of properties of a shape that do not change under deformation • Rules of deformation – Onto (all of A  all of B) – 1-1 correspondence (no overlap) – bicontinuous, (continuous both ways) – Can’t tear, join, poke/seal holes • A is homeomorphic to B
  • 4. Why Topology? • What is the boundary of an object? • Are there holes in the object? • Is the object hollow? • If the object is transformed in some way, are the changes continuous or abrupt? • Is the object bounded, or does it extend infinitely far?
  • 5. Why Do We (CG) Care? The study of connectedness • Understanding How connectivity happens? • Analysis How to determine connectivity? • Articulation How to describe connectivity? • Control How to enforce connectivity?
  • 6. For Example How does connectedness affect… • Morphing • Texturing • Compression • Simplification
  • 7. Problem: Mesh Reconstruction • Determines shape from point samples • Different coordinates, different shapes
  • 8. Topological Properties • To uniquely determine the type of homeomorphism we need to know : – Surface is open or closed – Surface is orientable or not – Genus (number of holes) – Boundary components
  • 9. Surfaces • How to define “surface”? • Surface is a space which ”locally looks like” a plane: – the set of zeroes of a polynomial equation in three variables in R3 is a 2D surface: x2+y2+z2=1
  • 10. Surfaces and Manifolds • An n-manifold is a topological space that “locally looks like” the Euclidian space Rn – Topological space: set properties – Euclidian space: geometric/coordinates • A sphere is a 2-manifold • A circle is a 1-manifold
  • 11. Open vs. Closed Surfaces • The points x having a neighborhood homeomorphic to R2 form Int(S) (interior) • The points y for which every neighborhood is homeomorphic to R2 0 form ∂S (boundary) • A surface S is said to be closed if its boundary is empty
  • 12. Orientability • A surface in R3 is called orientable, if it is possible to distinguish between its two sides (inside/outside above/below) • A non-orientable surface has a path which brings a traveler back to his starting point mirror-reversed (inverse normal)
  • 13. Orientation by Triangulation • Any surface has a triangulation • Orient all triangles CW or CCW • Orientability: any two triangles sharing an edge have opposite directions on that edge.
  • 14. Genus and holes • Genus of a surface is the maximal number of nonintersecting simple closed curves that can be drawn on the surface without separating it • The genus is equivalent to the number of holes or handles on the surface • Example: – Genus 0: point, line, sphere – Genus 1: torus, coffee cup – Genus 2: the symbols 8 and B
  • 15. Euler characteristic function • Polyhedral decomposition of a surface (V = #vertices, E = #edges, F = #faces) (M) = V – E + F – If M has g holes and h boundary components then (M) = 2 – 2g – h –(M) is independent of the polygonization  = 1  = 2  = 0
  • 16. Summary: equivalence in R3 • Any orientable closed surface is topologically equivalent to a sphere with g handles attached to it – torus is equivalent to a sphere with one handle ( =0, g=1) – double torus is equivalent to a sphere with two handles ( =-2 , g=2)
  • 17. Hard Problems… Dunking a Donut • Dunk the donut in the coffee! • Investigate the change in topology of the portion of the donut immersed in the coffee
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23. Solution: Morse Theory Investigates the topology of a surface by the critical points of a real function on the surface • Critical point occur where the gradient f = (f/x, f/y,…) = 0 • Index of a critical point is # of principal directions where f decreases
  • 24. Example: Dunking a Donut • Surface is a torus • Function f is height • Investigate topology of f  h • Four critical points – Index 0 : minimum – Index 1 : saddle – Index 1 : saddle – Index 2 : maximum • Example: sphere has a function with only critical points as maximum and a minimum
  • 25. How does it work? Algebraic Topology • Homotopy equivalence – topological spaces are varied, homeomorphisms give much too fine a classification to be useful… • Deformation retraction • Cells
  • 26. Homotopy equivalence • A ~ B  There is a continuous map between A and B • Same number of components • Same number of holes • Not necessarily the same dimension • Homeomorphism Homotopy ~ ~ 
  • 27. Deformation Retraction • Function that continuously reduces a set onto a subset • Any shape is homotopic to any of its deformation retracts • Skeleton is a deformation retract of the solids it defines ~ ~ ~ ~
  • 28. Cells • Cells are dimensional primitives • We attach cells at their boundaries 0-cell 1-cell 2-cell 3-cell
  • 29. Morse function • f doesn’t have to be height – any Morse function would do • f is a Morse function on M if: – f is smooth – All critical points are isolated – All critical points are non-degenerate: • det(Hessian(p)) != 0 2 2 2 2 2 2 ( ) ( ) ( ) ( ) ( ) f f x x y Hessian f f f y x y                          p p p p p
  • 30. Critical Point Index • The index of a critical point is the number of negative eigenvalues of the Hessian: – 0  minimum – 1  saddle point – 2  maximum • Intuition: the number of independent directions in which f decreases ind=0 ind=1 ind=1 ind=2
  • 31. If sweep doesn’t pass critical point [Milnor 1963] • Denote Ma = {p  M | f(p)  a} (the sweep region up to value a of f ) • Suppose f 1 [a, b] is compact and doesn’t contain critical points of f. Then Ma is homeomorphic to Mb .
  • 32. Sweep passes critical point [Milnor 1963] • p is critical point of f with index ,  is sufficiently small. Then Mc+ has the same homotopy type as Mc with -cell attached. Mc Mc+ Mc Mc with -cell attached ~ Mc+
  • 33. This is what happened to the doughnut…
  • 34. What we learned so far • Topology describes properties of shape that are invariant under deformations • We can investigate topology by investigating critical points of Morse functions • And vice versa: looking at the topology of level sets (sweeps) of a Morse function, we can learn about its critical points
  • 35. Reeb graphs • Schematic way to present a Morse function • Vertices of the graph are critical points • Arcs of the graph are connected components of the level sets of f, contracted to points 2 1 1 1 1 1 0 0
  • 36. Reeb graphs and genus • The number of loops in the Reeb graph is equal to the surface genus • To count the loops, simplify the graph by contracting degree-1 vertices and removing degree-2 vertices degree-2
  • 38. Discretized Reeb graph • Take the critical points and “samples” in between • Robust because we know that nothing happens between consecutive critical points
  • 39. Reeb graphs for Shape Matching • Reeb graph encodes the behavior of a Morse function on the shape • Also tells us about the topology of the shape • Take a meaningful function and use its Reeb graph to compare between shapes!
  • 40. Choose the right Morse function • The height function f (p) = z is not good enough – not rotational invariant • Not always a Morse function
  • 41. Average geodesic distance • The idea of [Hilaga et al. 01]: use geodesic distance for the Morse function! ( ) geodist( , ) ( ) min ( ) ( ) max ( ) M M M g dS g g f g       q q p p q p q p q
  • 42. Multi-res Reeb graphs • Hilaga et al. use multiresolutional Reeb graphs to compare between shapes • Multiresolution hierarchy – by gradual contraction of vertices
  • 43. Mesh Partitioning • Now we get to [Zhang et al. 03] • They use almost the same f as [Hilaga et al. 01] • Want to find features = long protrusions • Find local maxima of f !
  • 44. Region growing • Start the sweep from global minimum (central point of the shape) • Add one triangle at a time – the one with smallest f • Record topology changes in the boundary of the sweep front – these are critical points
  • 45. Critical points – genus-0 surface • Splitting saddle – when the front splits into two • Maximum – when one front boundary component vanishes max max splitting saddle min
