1. Thinking Beyond ORM in JPA
Patrycja Wegrzynowicz
JavaOne 2015

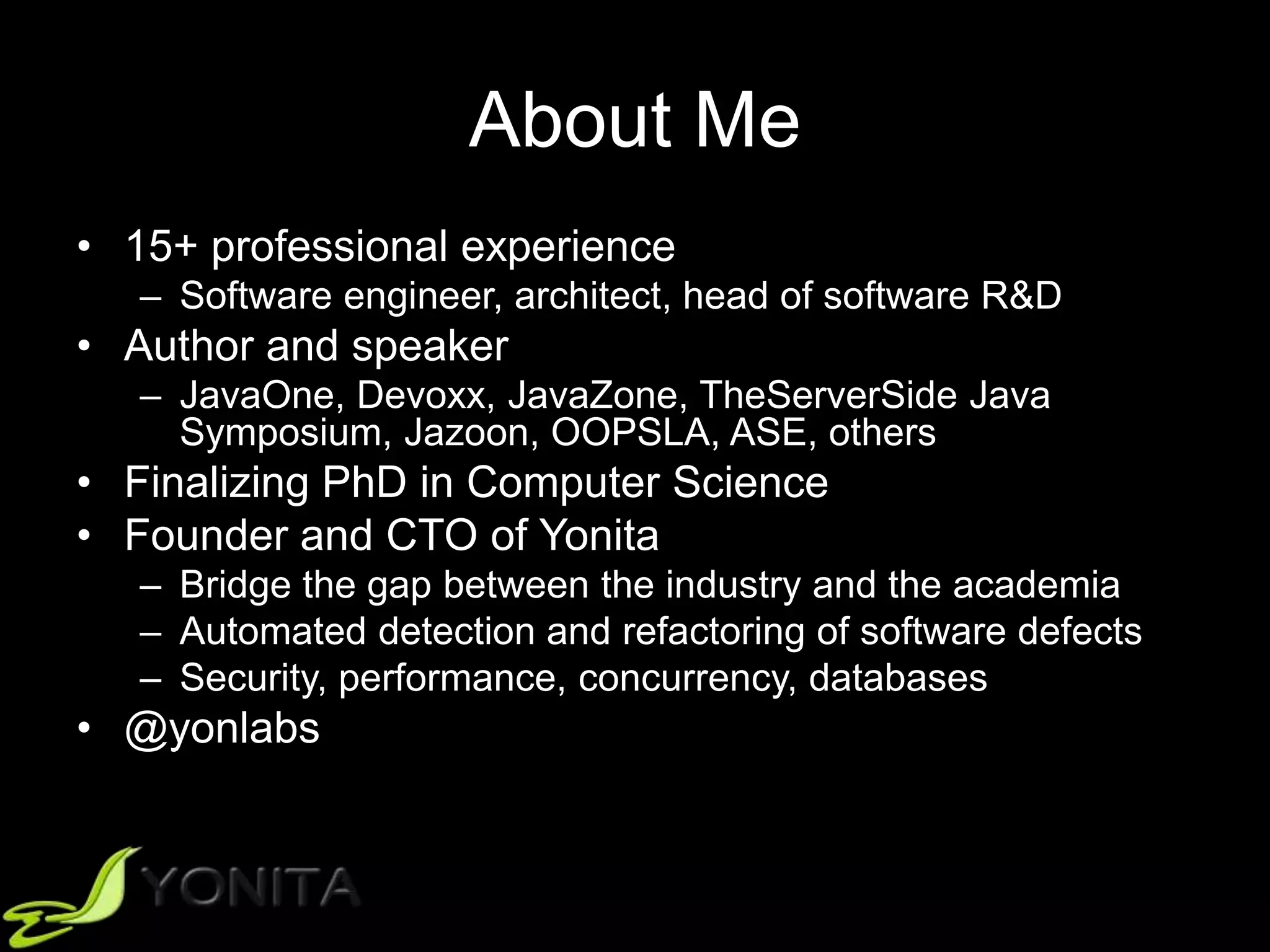

2. About Me
• 15+ professional experience
– Software engineer, architect, head of software R&D
• Author and speaker
– JavaOne, Devoxx, JavaZone, TheServerSide Java
Symposium, Jazoon, OOPSLA, ASE, others
• Finalizing PhD in Computer Science
• Founder and CTO of Yonita
– Bridge the gap between the industry and the academia
– Automated detection and refactoring of software defects
– Security, performance, concurrency, databases
• @yonlabs

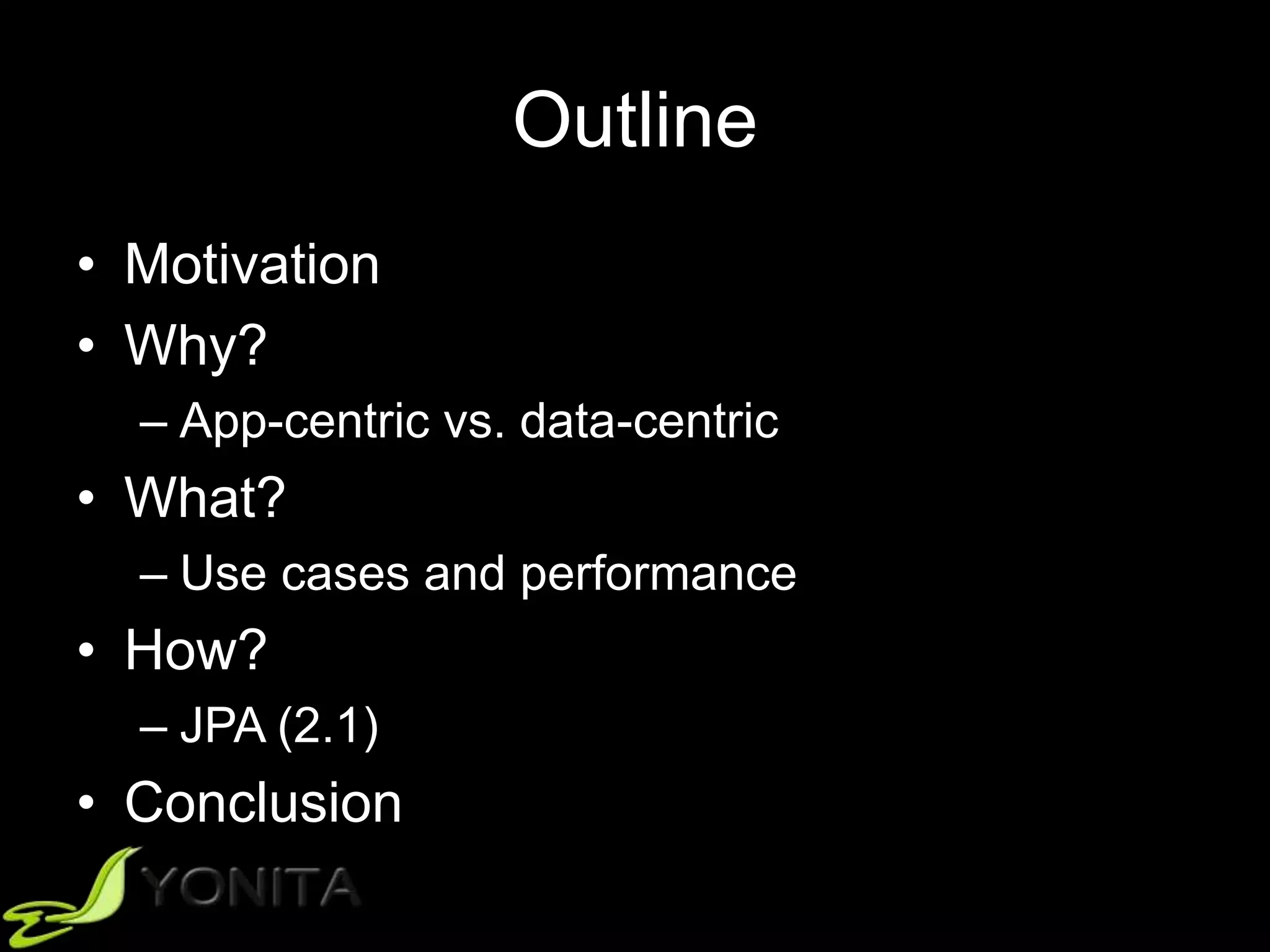

3. Outline
• Motivation
• Why?
– App-centric vs. data-centric
• What?
– Use cases and performance
• How?
– JPA (2.1)
• Conclusion

4. Database

5. Database
The Mordor of Java Devs

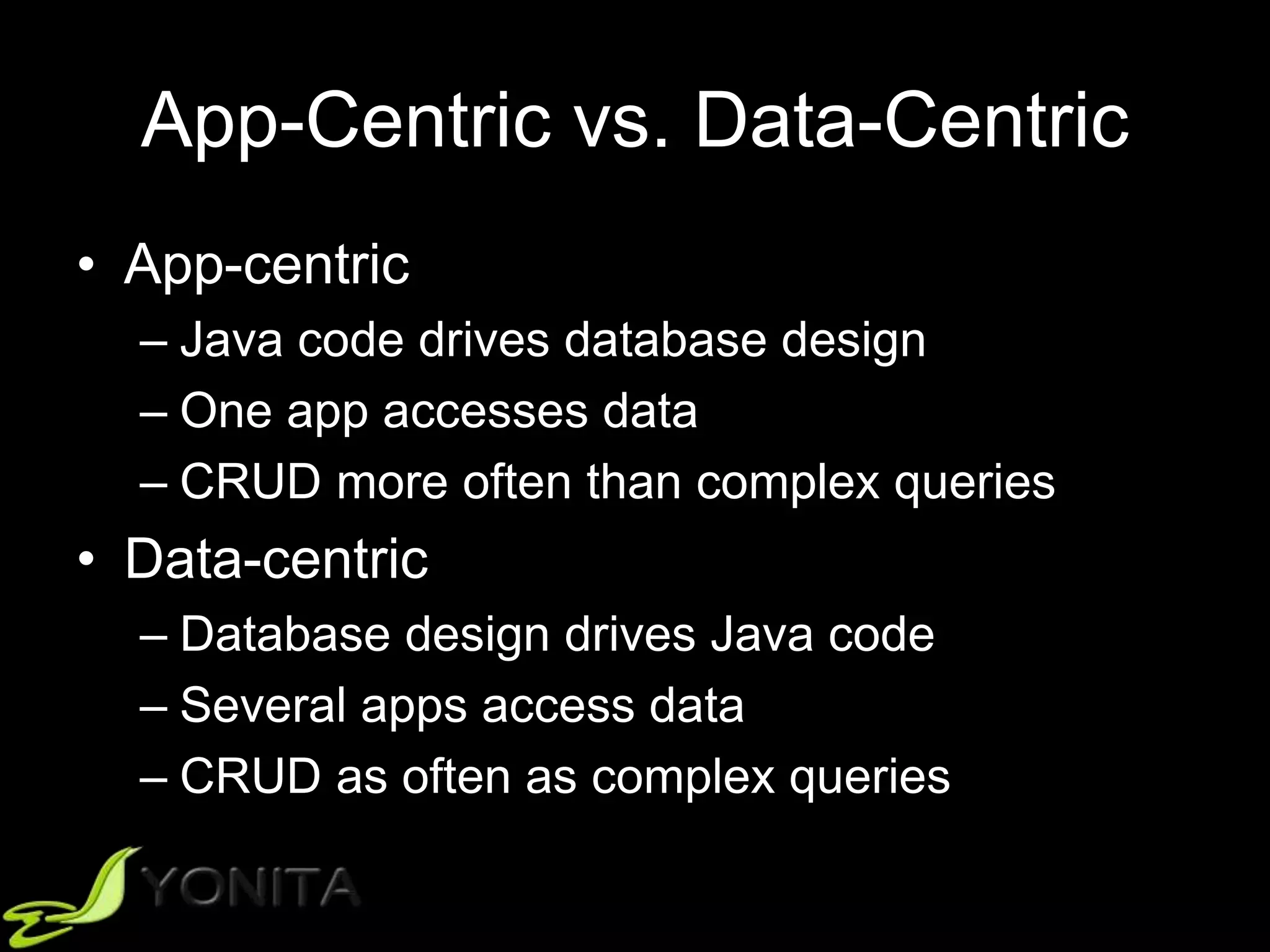

6. App-Centric vs. Data-Centric
• App-centric
– Java code drives database design
– One app accesses data
– CRUD more often than complex queries
• Data-centric
– Database design drives Java code
– Several apps access data
– CRUD as often as complex queries

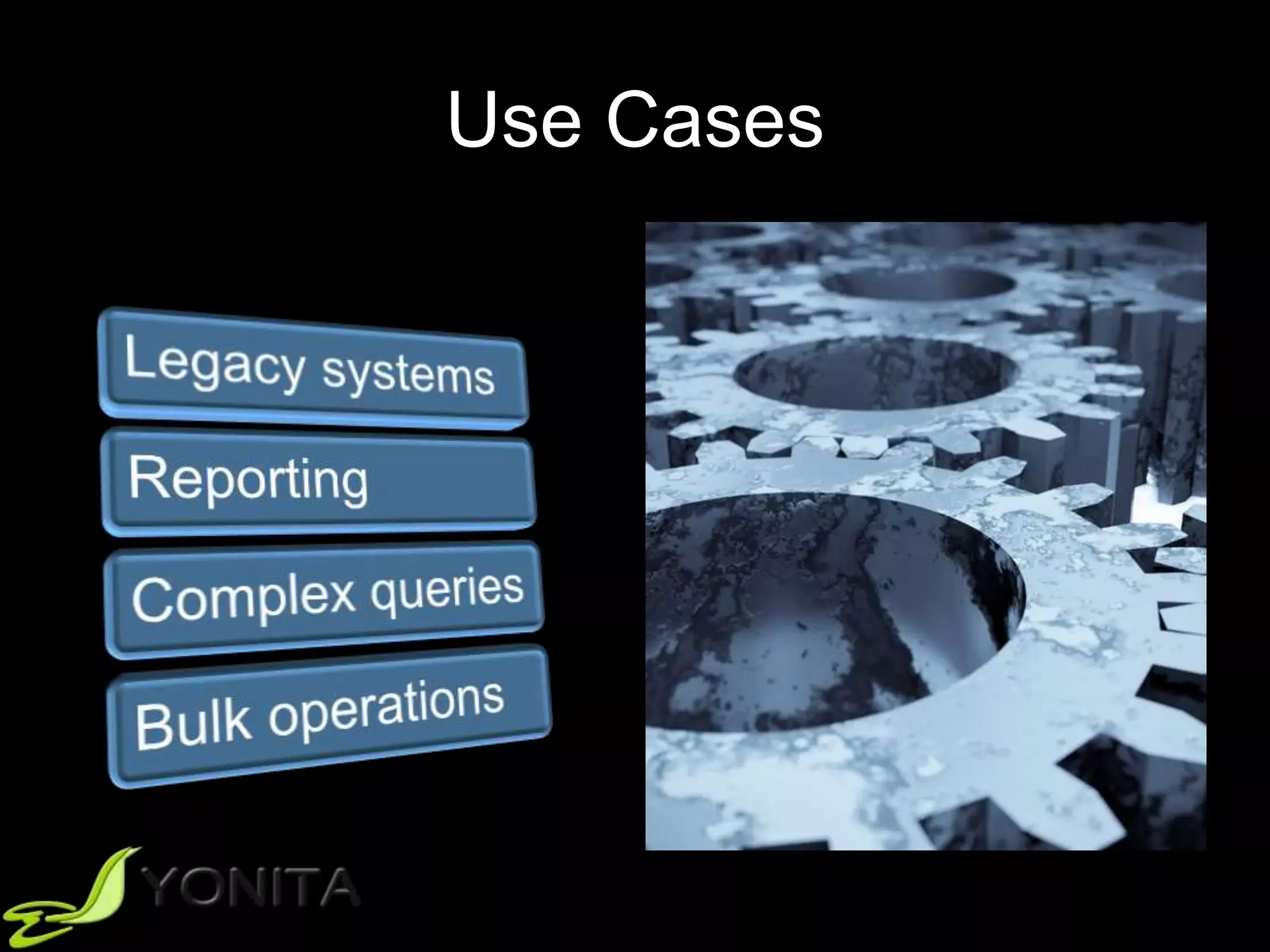

7. Use Cases

8. Performance

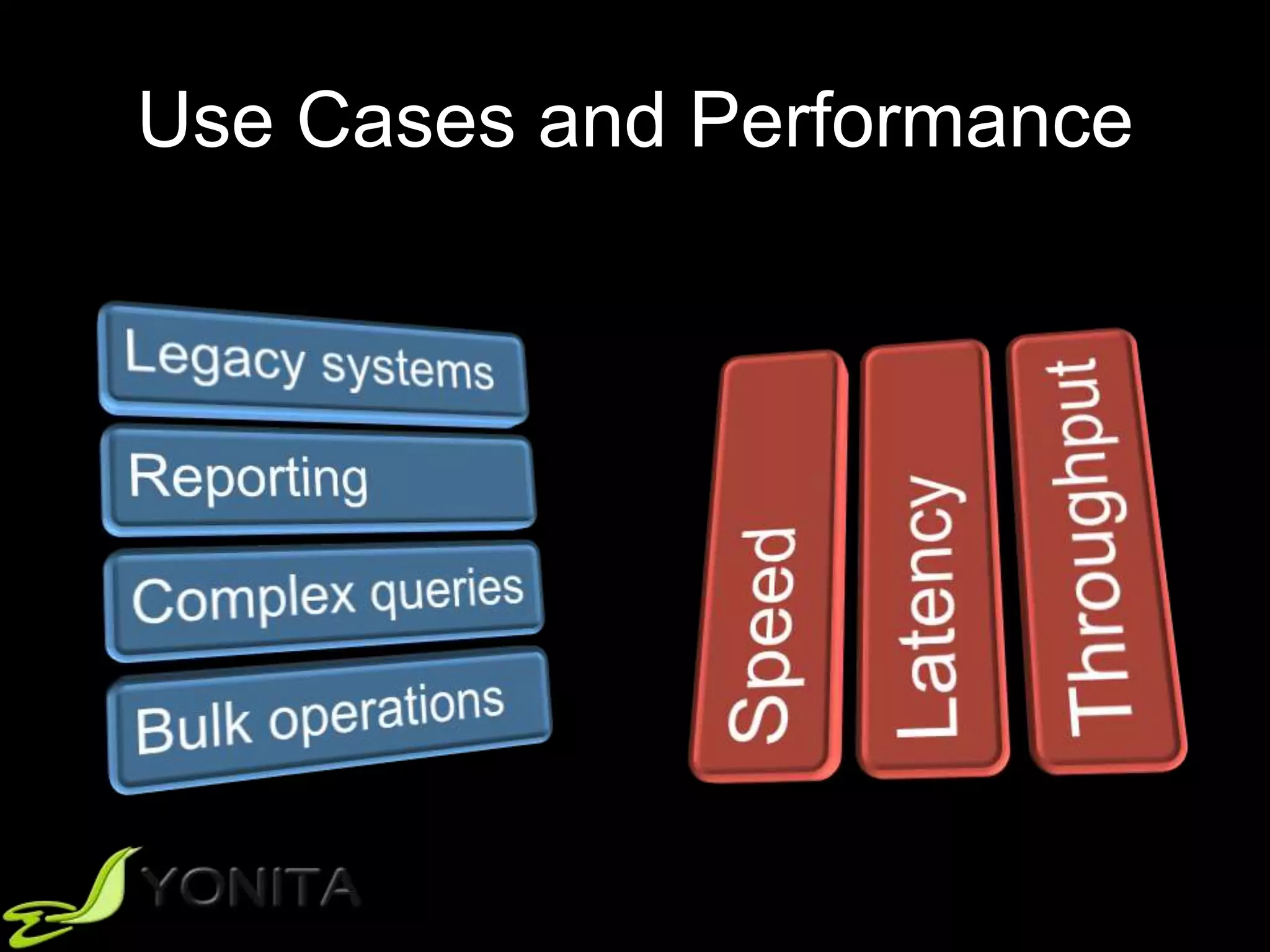

9. Use Cases and Performance

10. Legacy Systems

11. Several Apps -> One Source

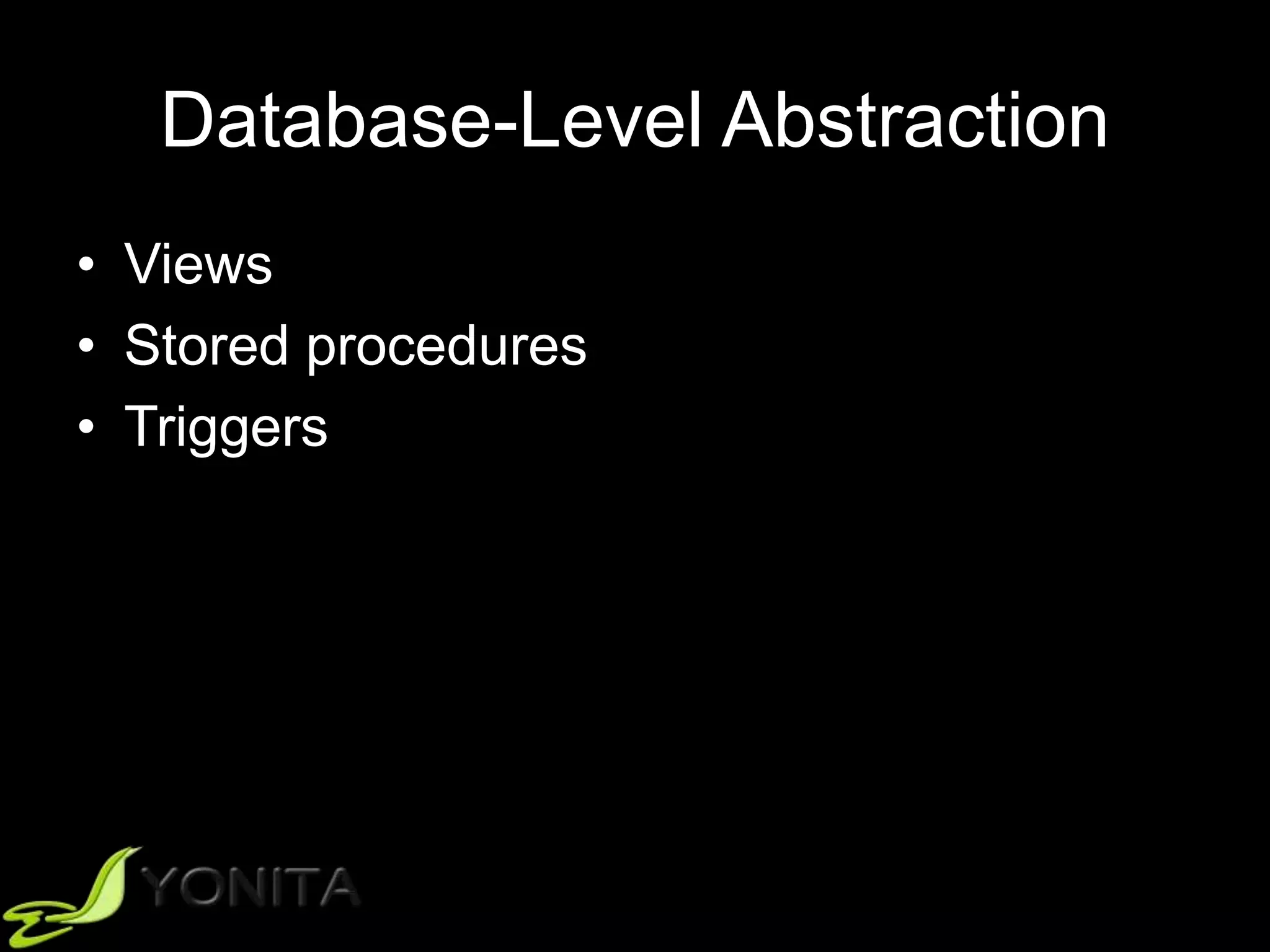

12. Database-Level Abstraction
• Views
• Stored procedures
• Triggers

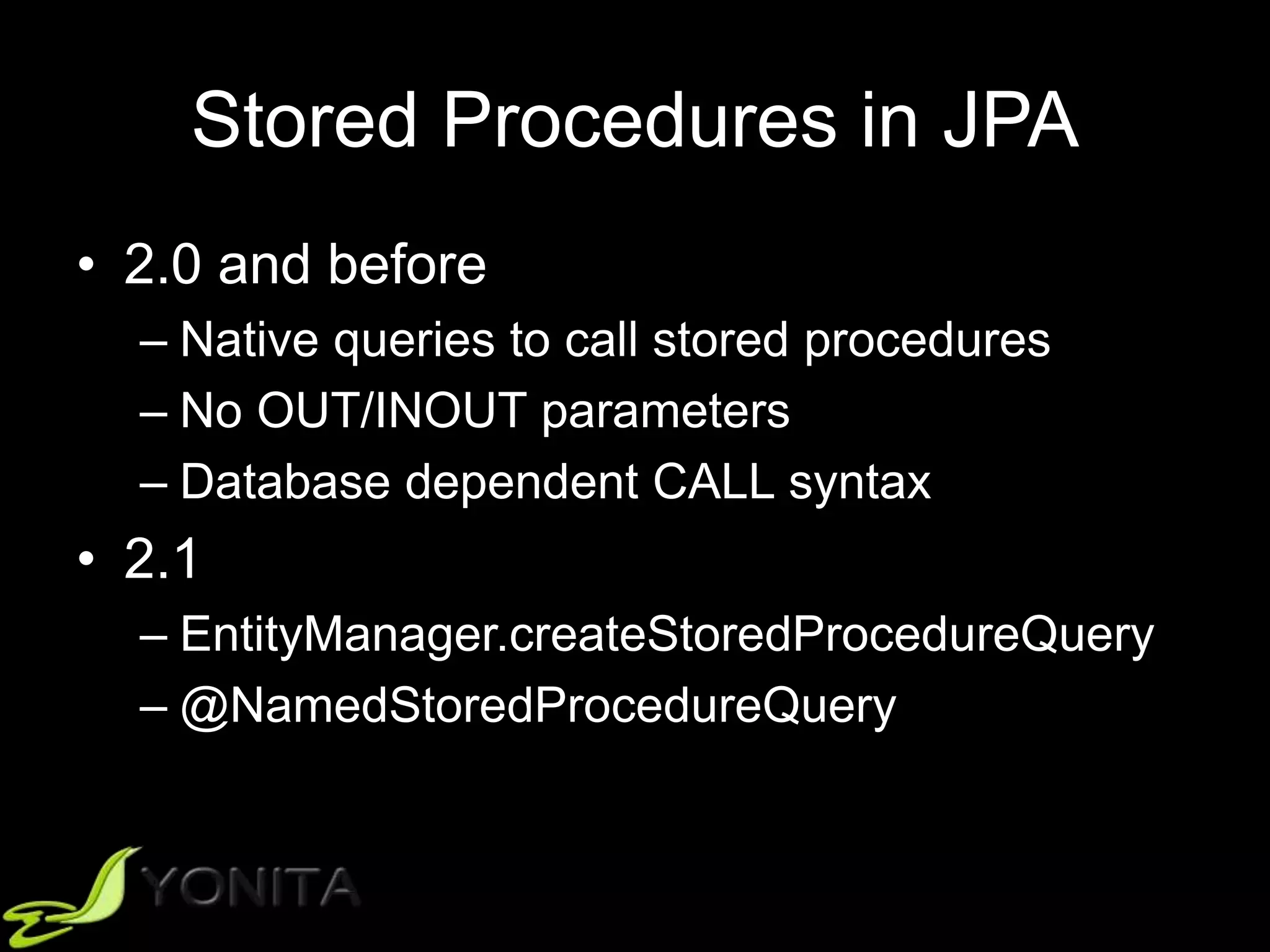

13. Stored Procedures in JPA
• 2.0 and before
– Native queries to call stored procedures
– No OUT/INOUT parameters
– Database dependent CALL syntax
• 2.1
– EntityManager.createStoredProcedureQuery
– @NamedStoredProcedureQuery

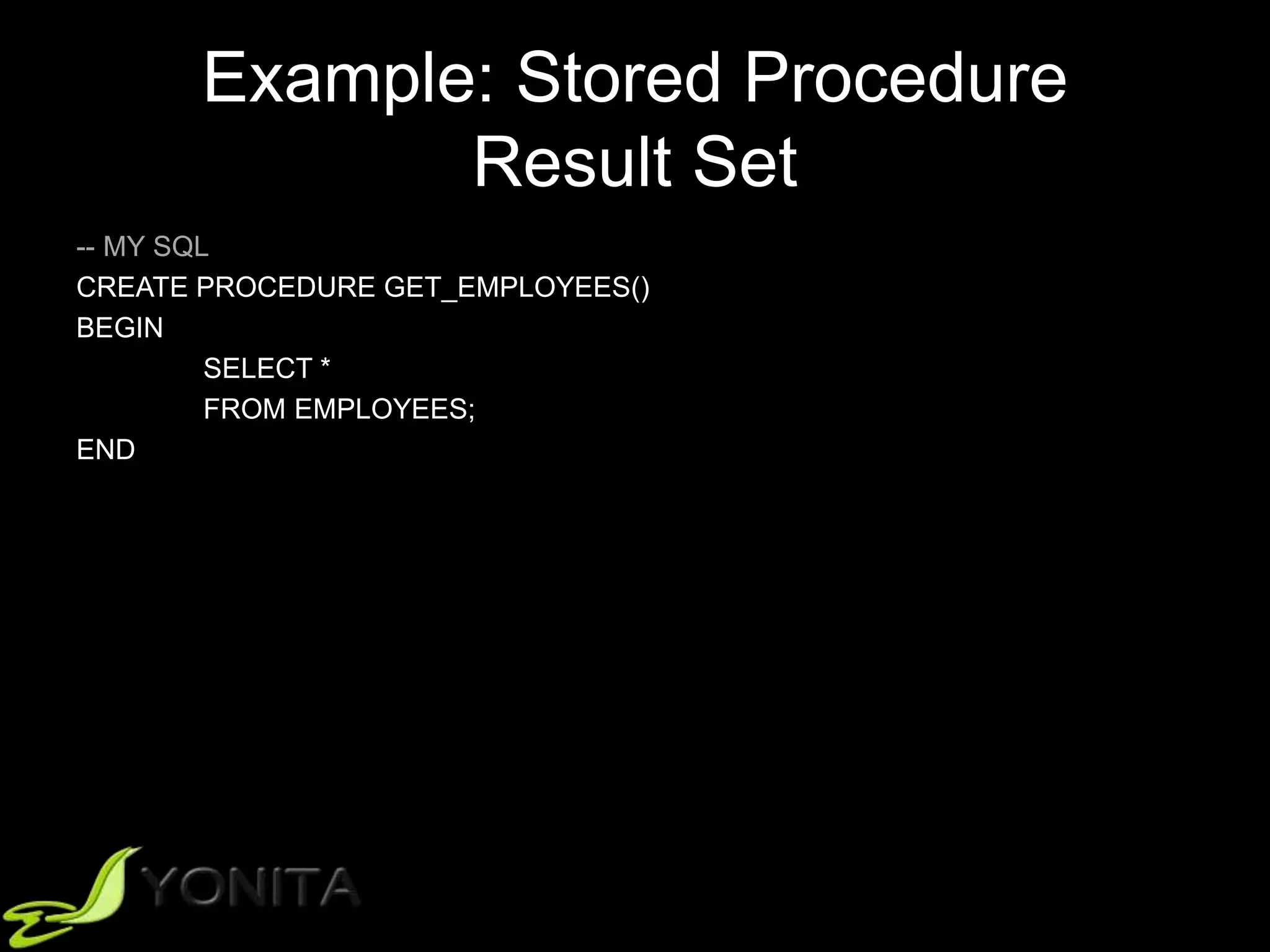

14. Example: Stored Procedure
Result Set
-- MY SQL
CREATE PROCEDURE GET_EMPLOYEES()
BEGIN
SELECT *
FROM EMPLOYEES;
END

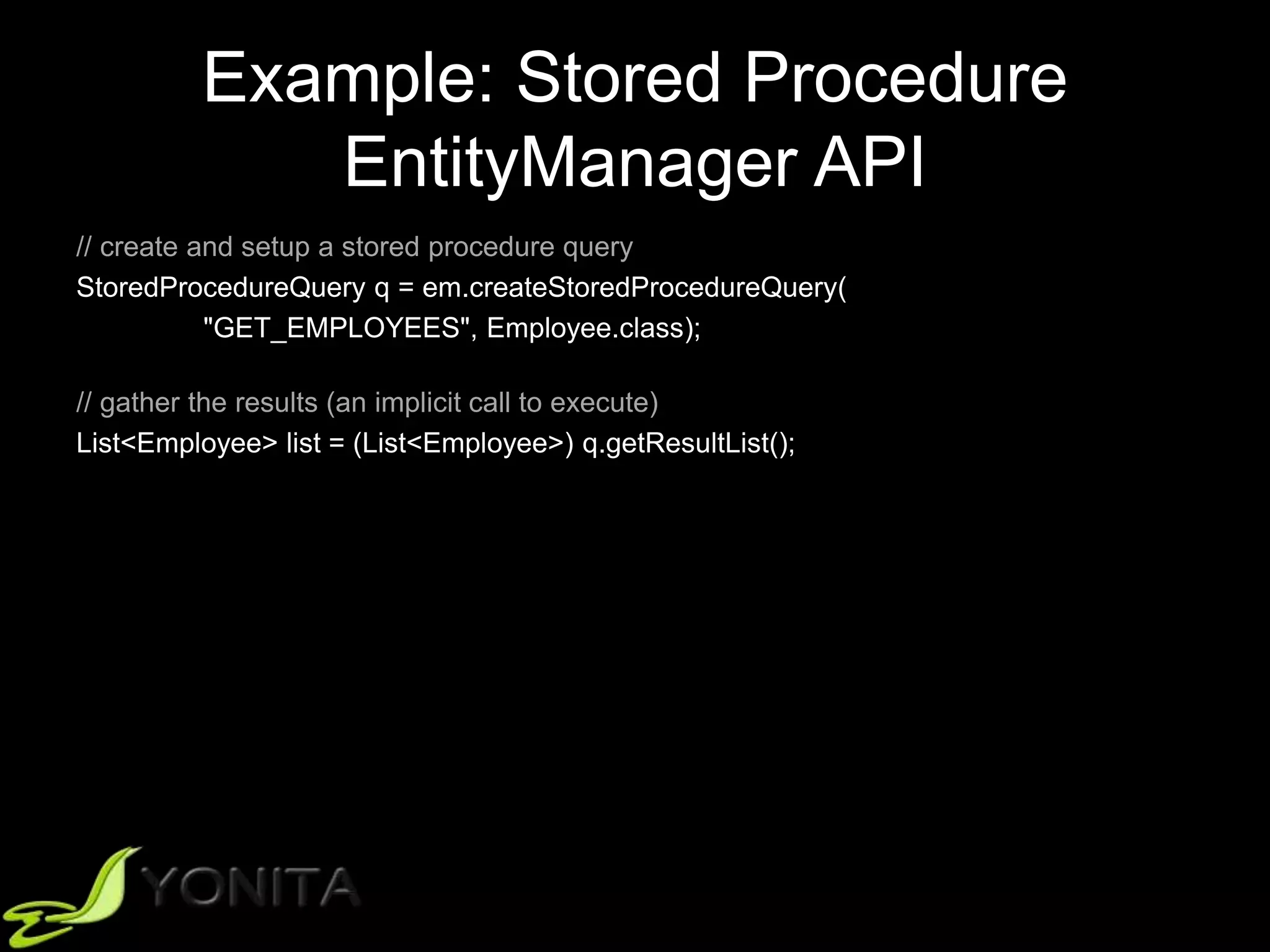

15. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
// gather the results (an implicit call to execute)
List<Employee> list = (List<Employee>) q.getResultList();

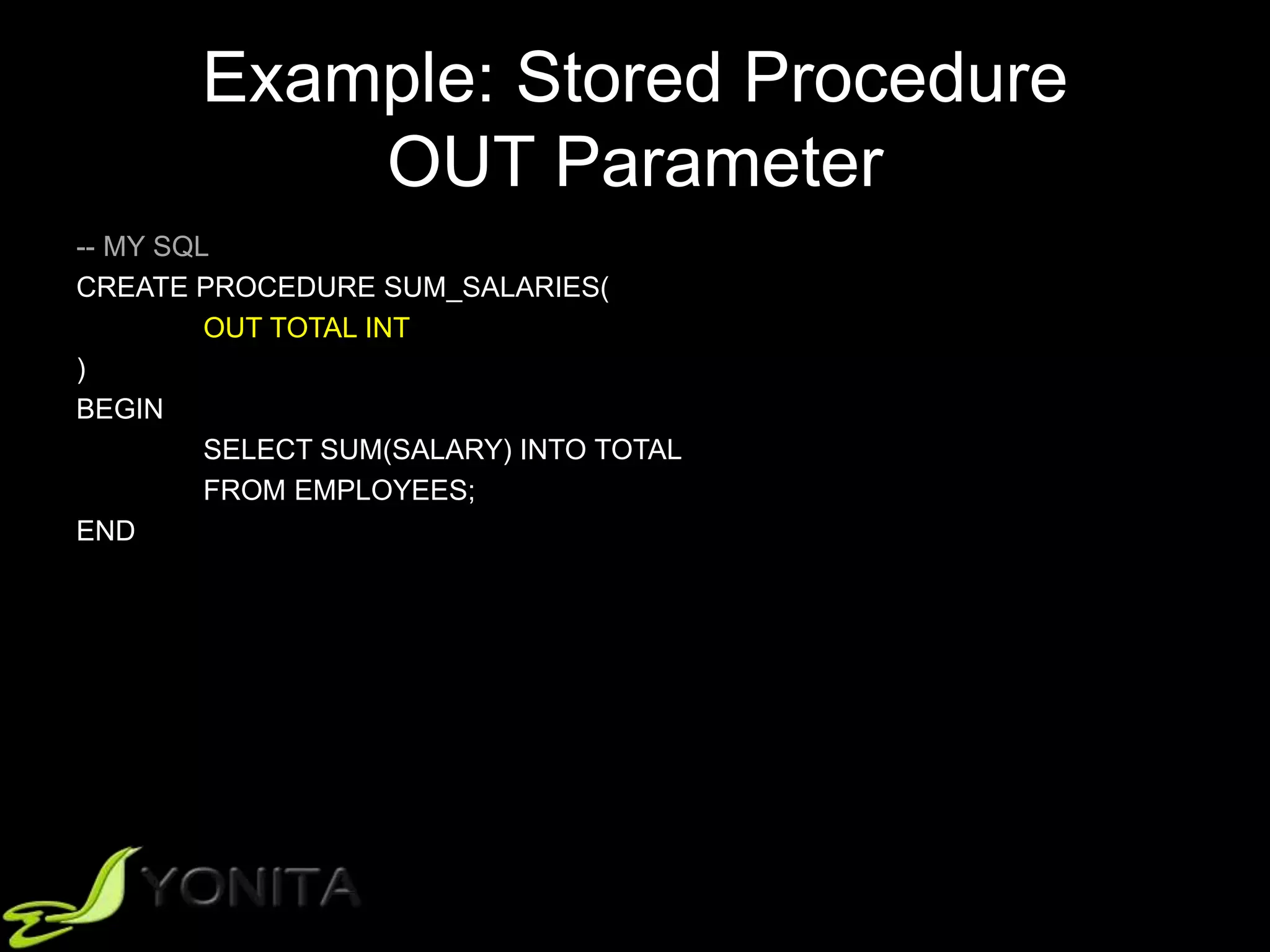

16. Example: Stored Procedure
OUT Parameter
-- MY SQL
CREATE PROCEDURE SUM_SALARIES(
OUT TOTAL INT
)
BEGIN
SELECT SUM(SALARY) INTO TOTAL
FROM EMPLOYEES;
END

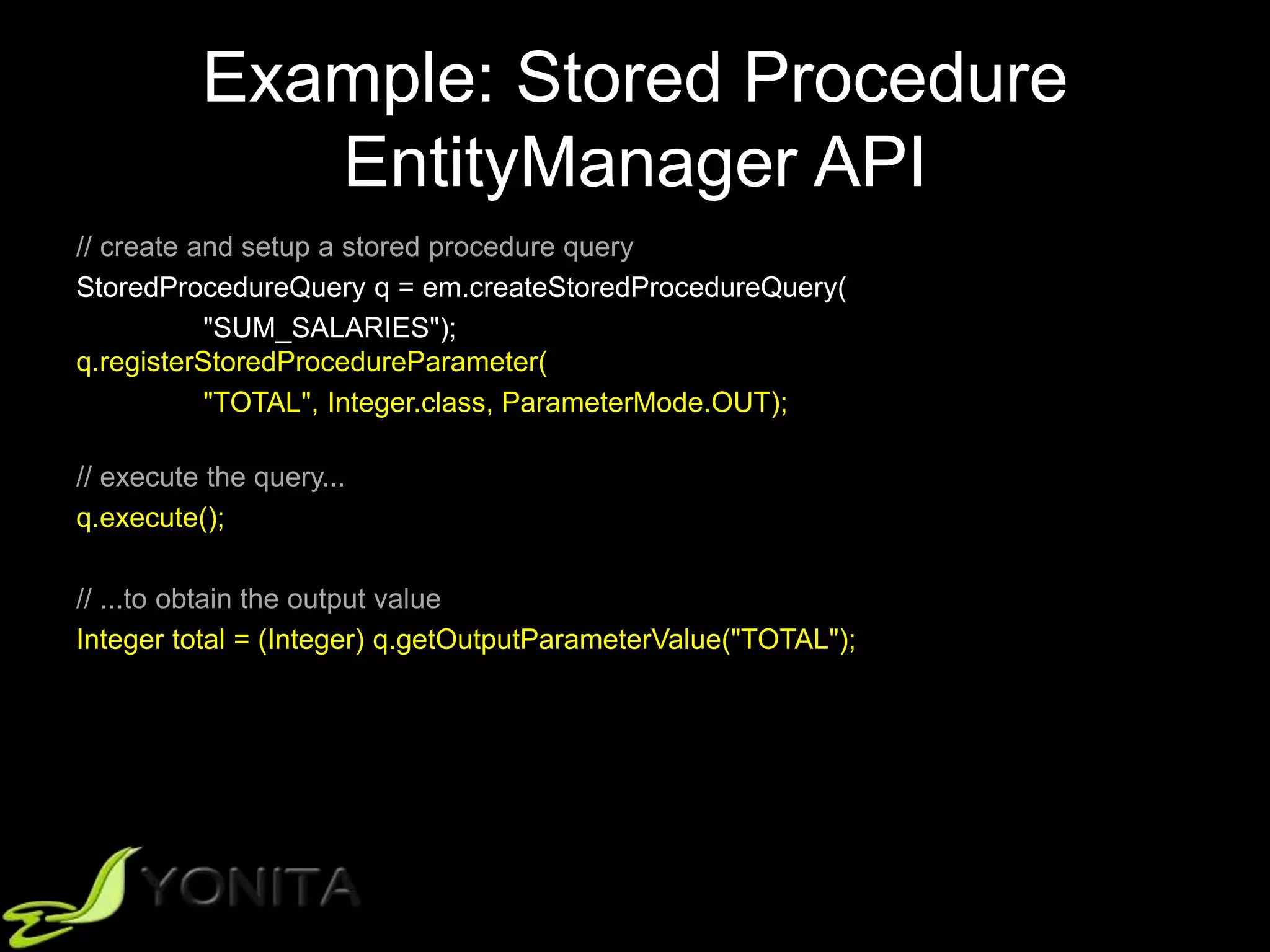

17. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"SUM_SALARIES");
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// execute the query...
q.execute();
// ...to obtain the output value
Integer total = (Integer) q.getOutputParameterValue("TOTAL");

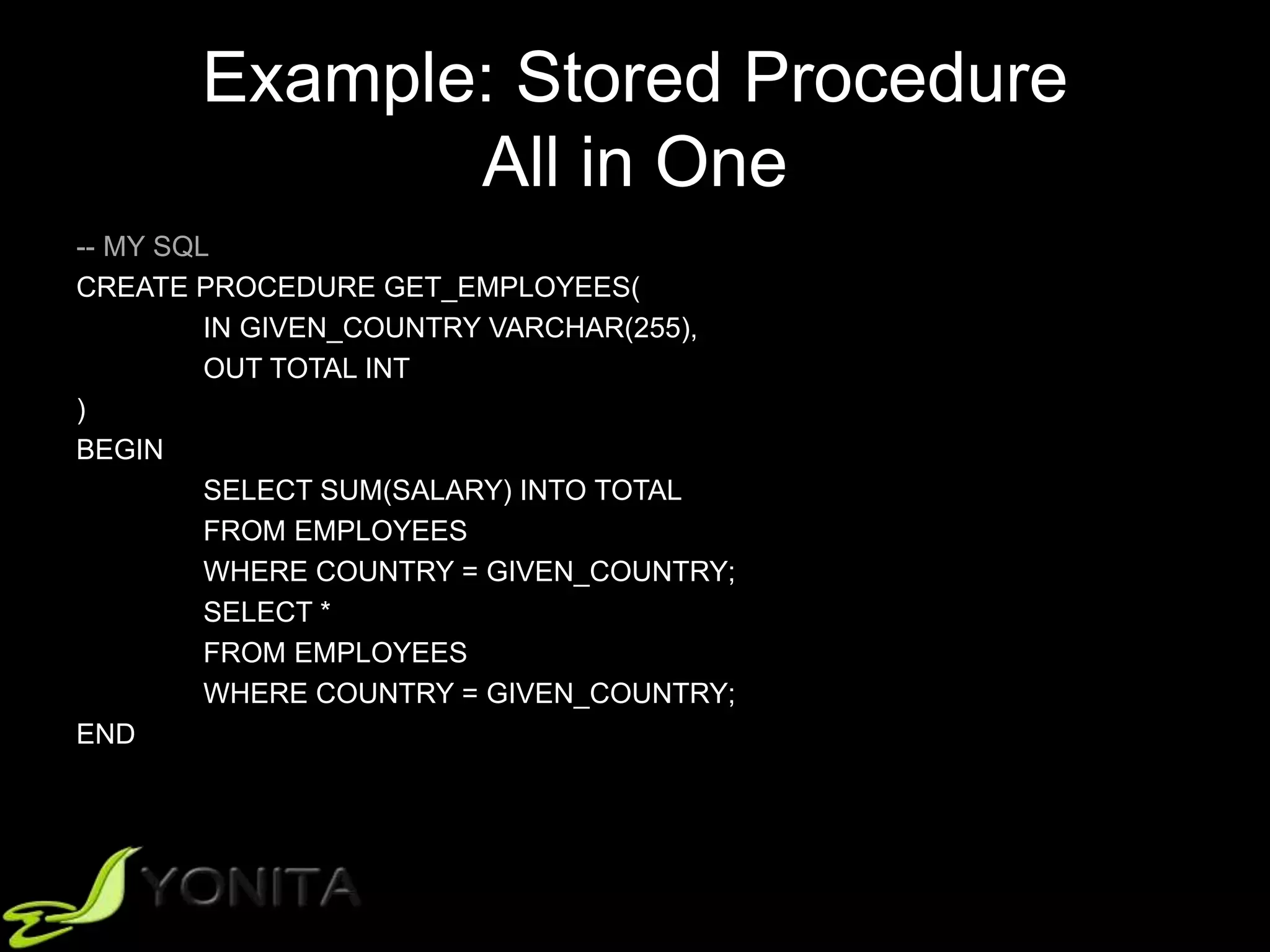

18. Example: Stored Procedure
All in One
-- MY SQL
CREATE PROCEDURE GET_EMPLOYEES(
IN GIVEN_COUNTRY VARCHAR(255),
OUT TOTAL INT
)
BEGIN
SELECT SUM(SALARY) INTO TOTAL
FROM EMPLOYEES
WHERE COUNTRY = GIVEN_COUNTRY;
SELECT *
FROM EMPLOYEES
WHERE COUNTRY = GIVEN_COUNTRY;
END

19. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// obtain the employees...
List<Employee> list = (List<Employee>) q.getResultList();
// ...and the output value
Integer total = (Integer) q.getOutputParameterValue("TOTAL");

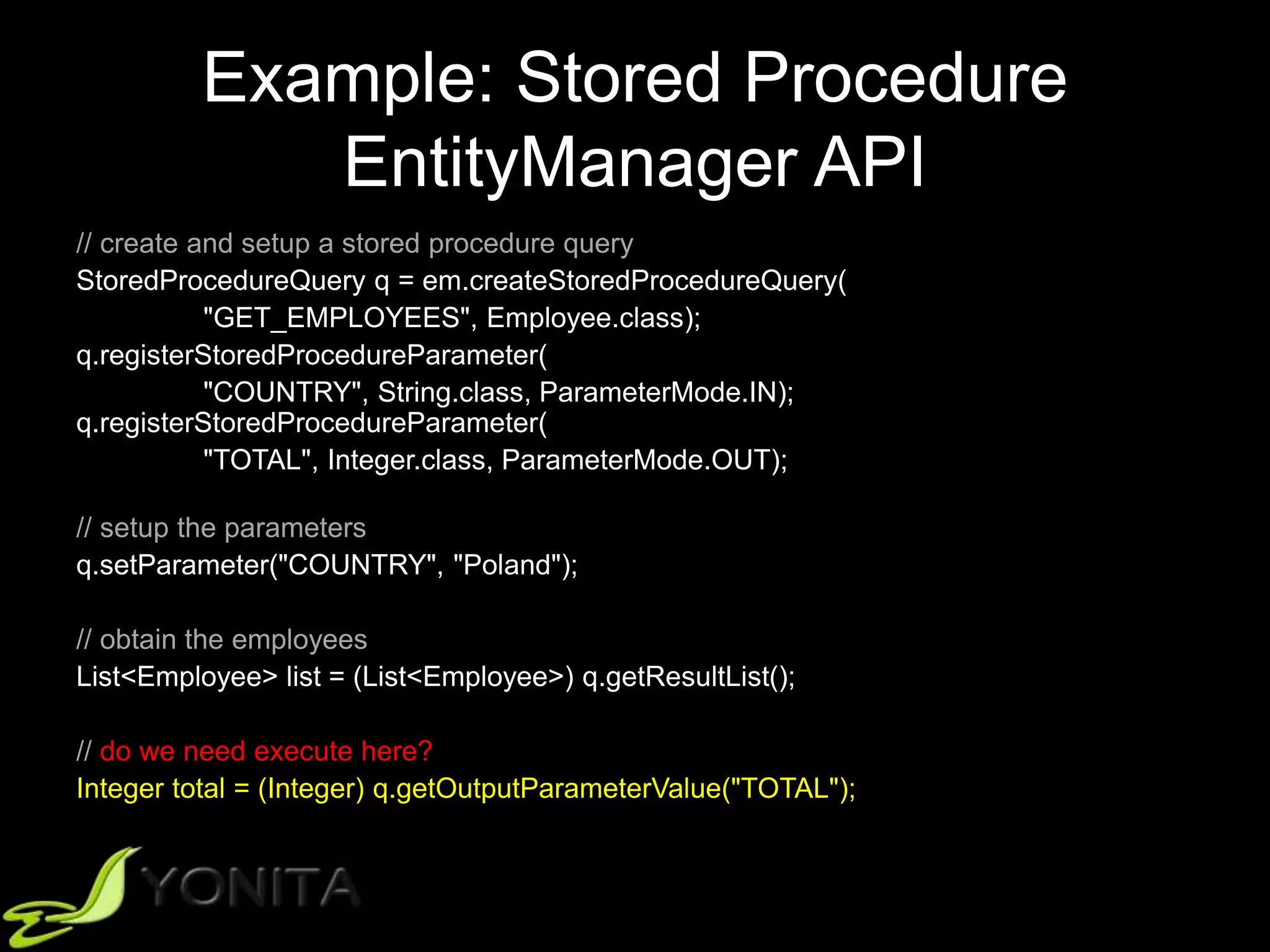

20. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// obtain the employees
List<Employee> list = (List<Employee>) q.getResultList();
// do we need execute here?
Integer total = (Integer) q.getOutputParameterValue("TOTAL");

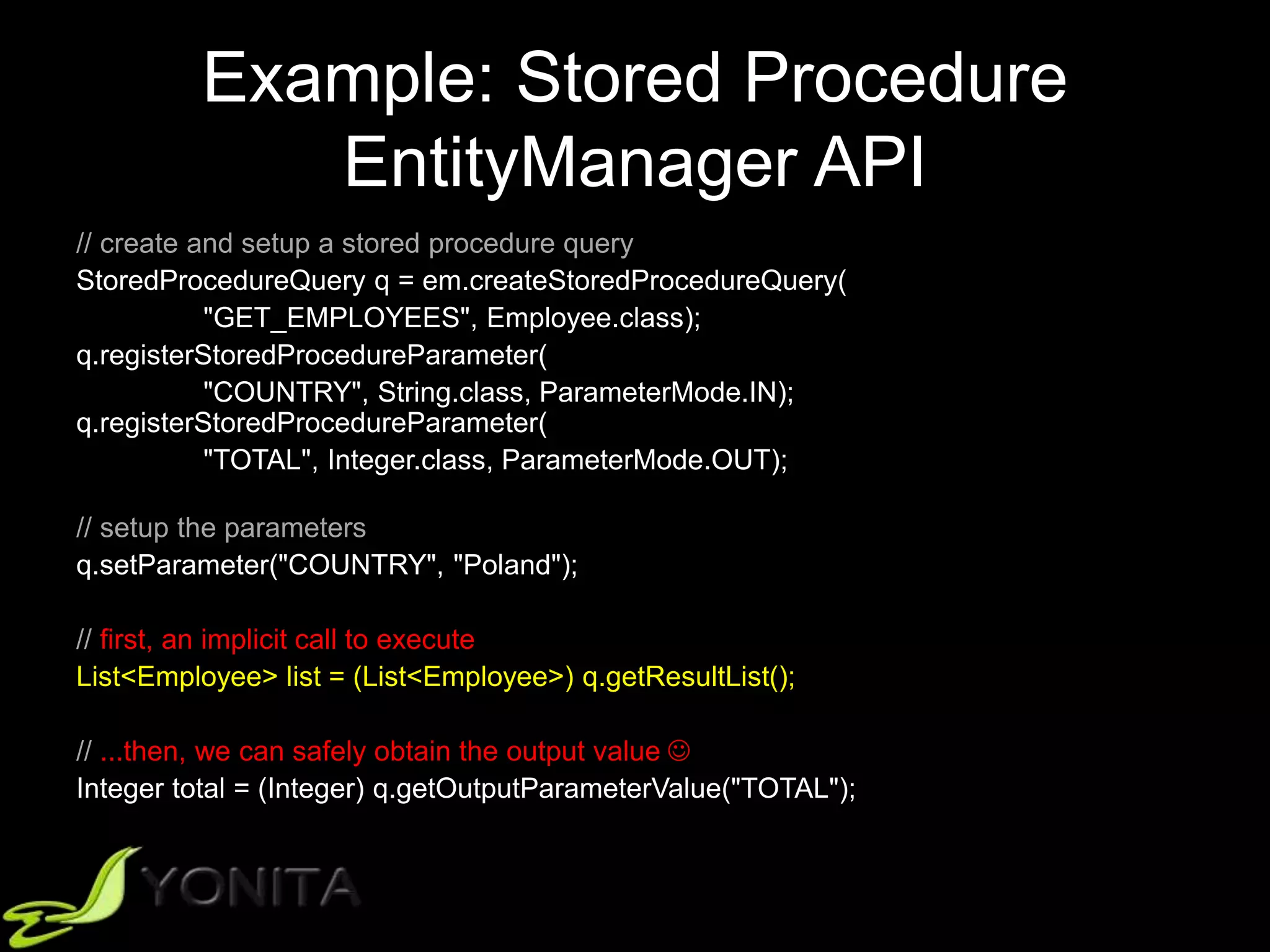

21. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// first, an implicit call to execute
List<Employee> list = (List<Employee>) q.getResultList();
// ...then, we can safely obtain the output value 
Integer total = (Integer) q.getOutputParameterValue("TOTAL");

22. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// what if we reorder the lines?
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// an implicit call to execute
List<Employee> list = (List<Employee>) q.getResultList();

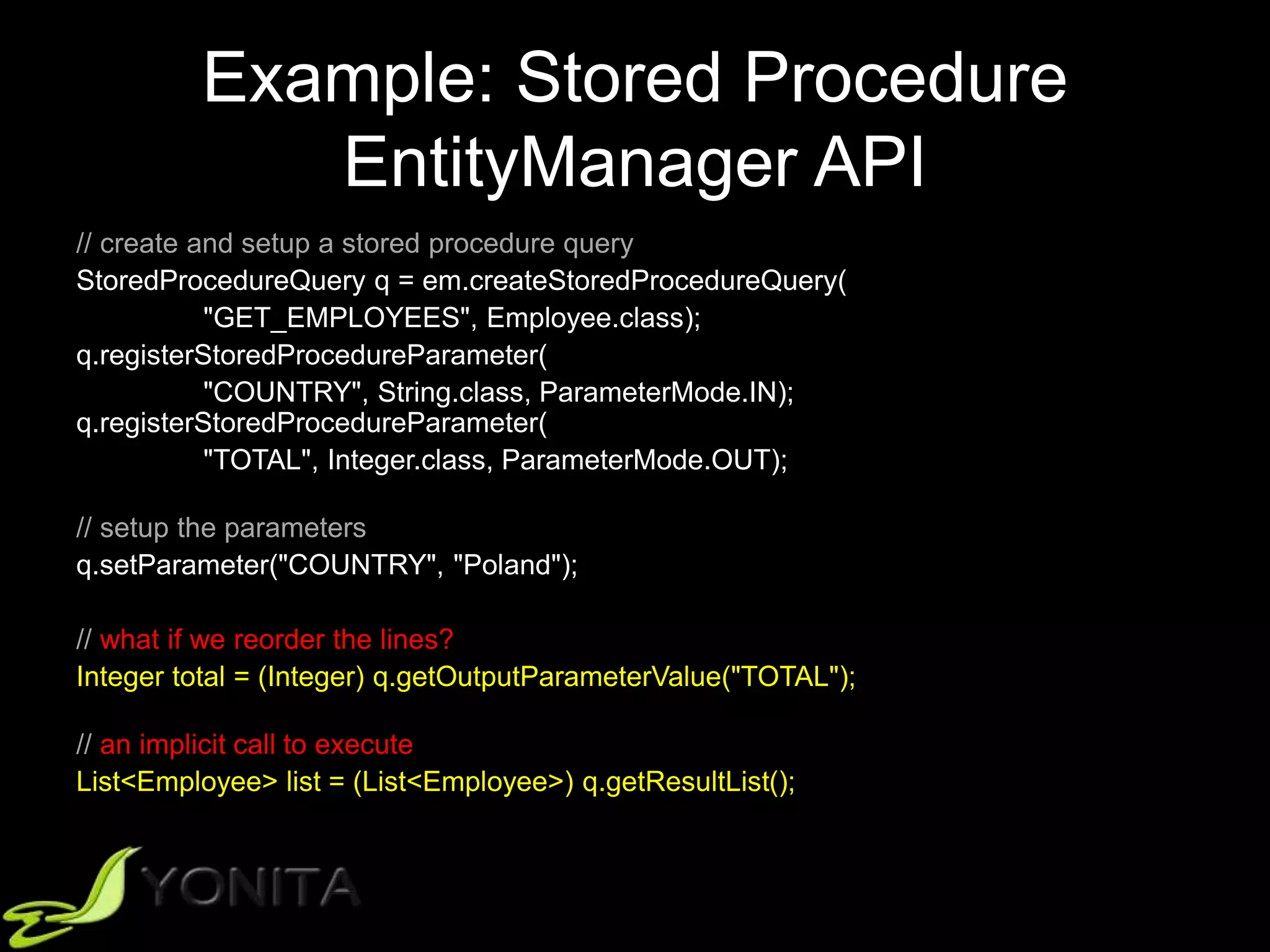

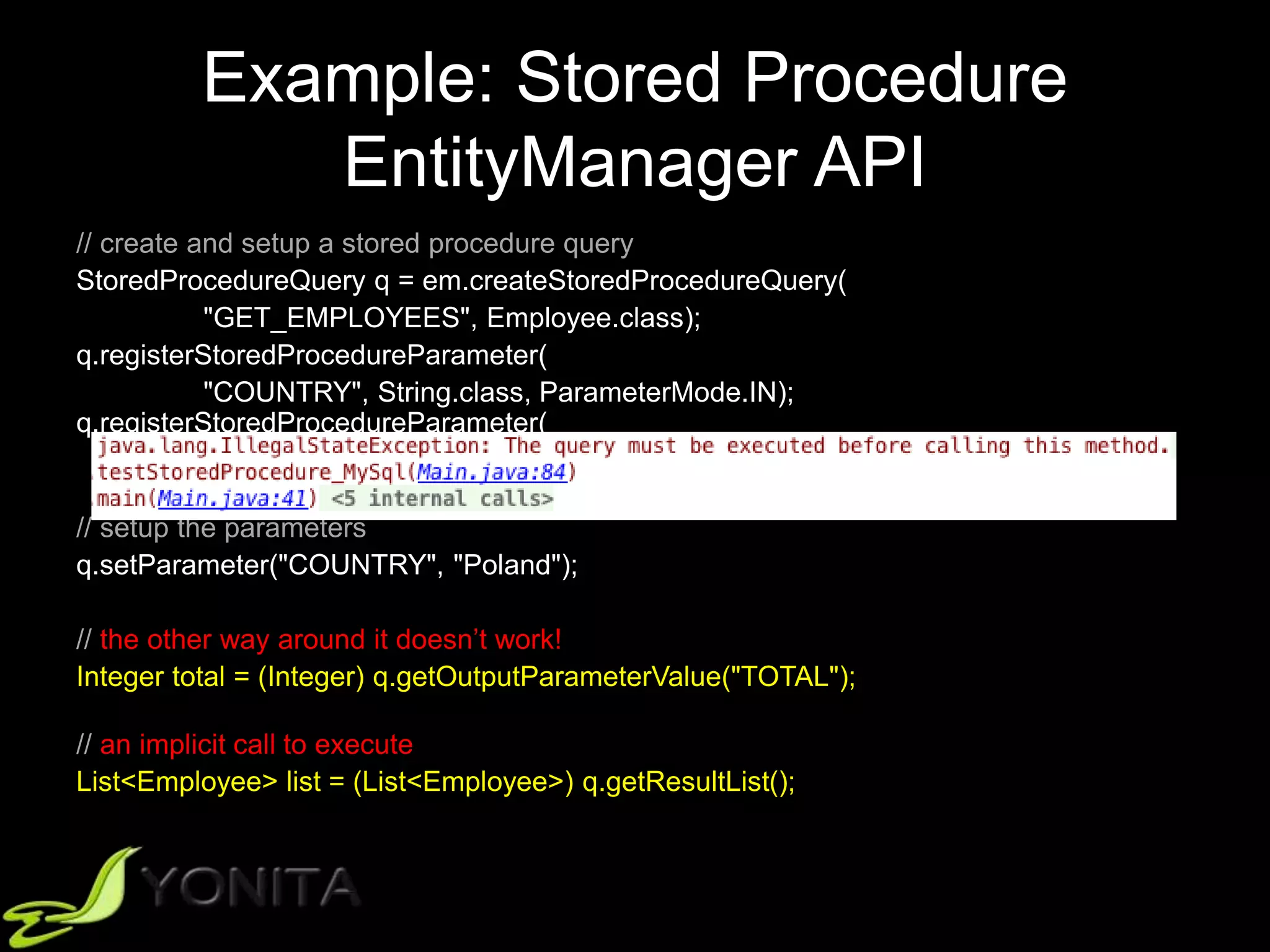

23. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// the other way around it doesn’t work!
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// an implicit call to execute
List<Employee> list = (List<Employee>) q.getResultList();

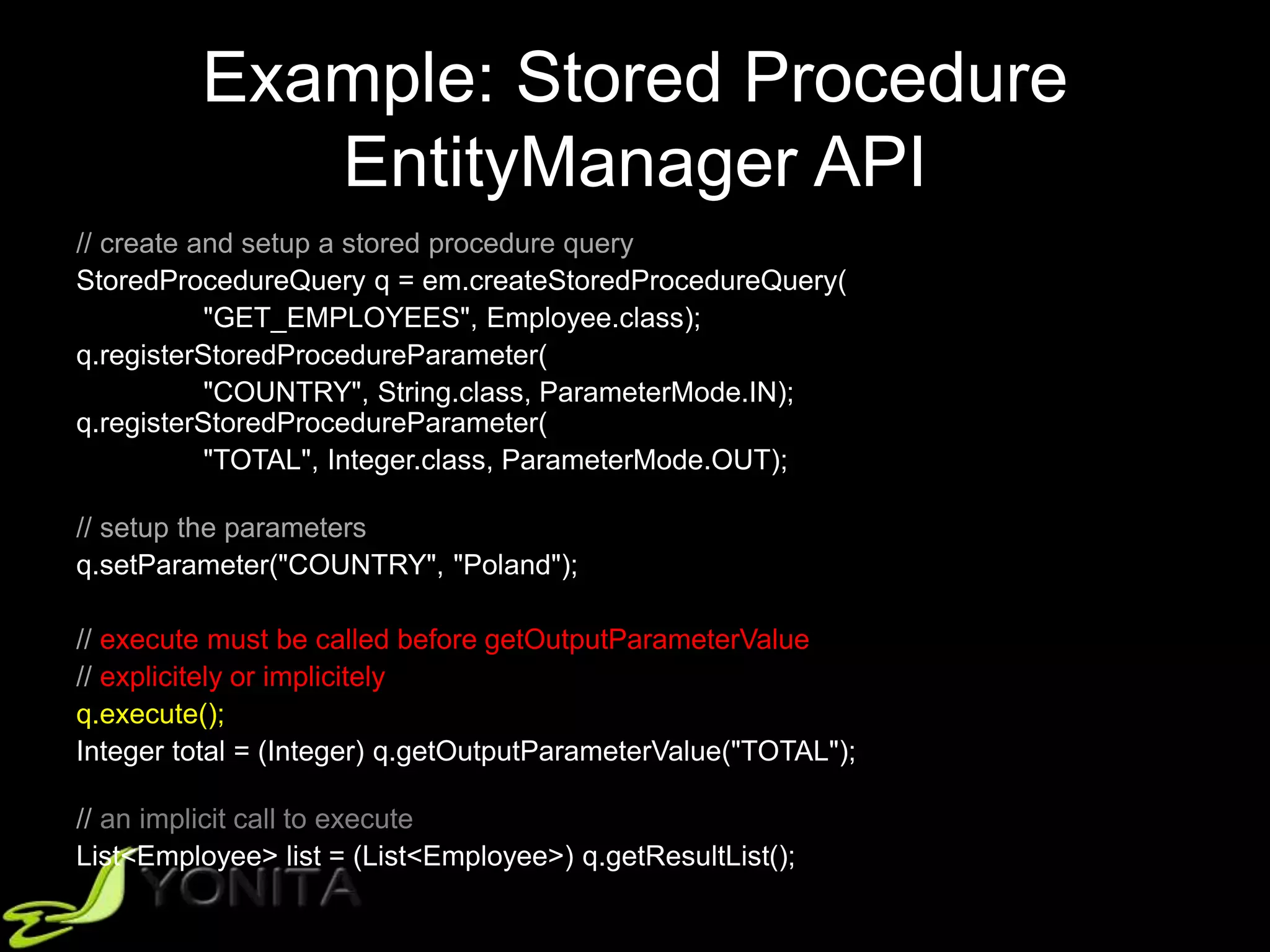

24. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// execute must be called before getOutputParameterValue
// explicitely or implicitely
q.execute();
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// an implicit call to execute
List<Employee> list = (List<Employee>) q.getResultList();

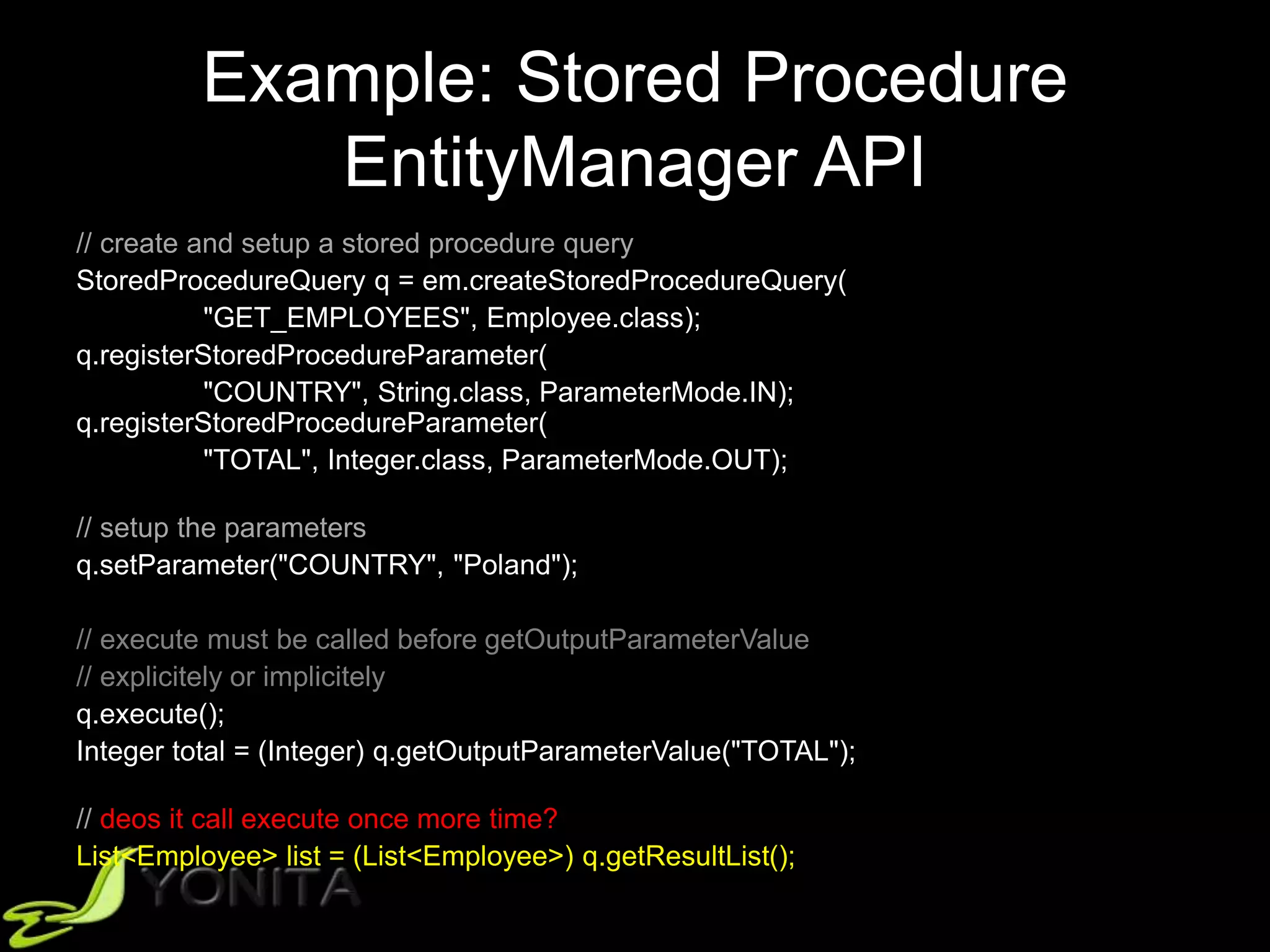

25. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// execute must be called before getOutputParameterValue
// explicitely or implicitely
q.execute();
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// deos it call execute once more time?
List<Employee> list = (List<Employee>) q.getResultList();

26. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// execute must be called before getOutputParameterValue
// explicitely or implicitely
q.execute();
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// an implicit call to execute only if not executed yet!
List<Employee> list = (List<Employee>) q.getResultList();

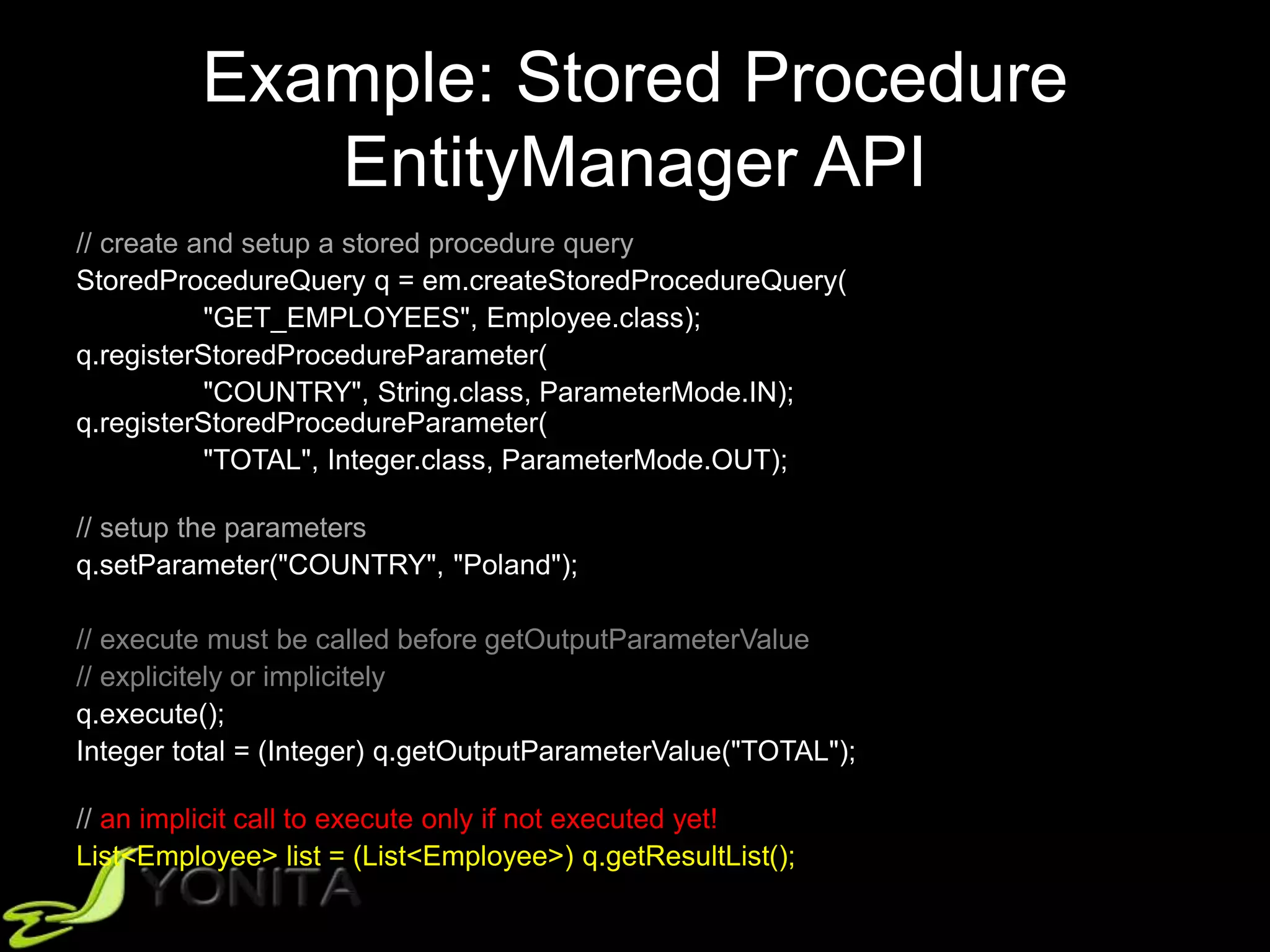

27. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// execute must be called before getOutputParameterValue
// explicitely or implicitely
q.execute();
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// an implicit call to execute only if not executed yet!
List<Employee> list = (List<Employee>) q.getResultList();

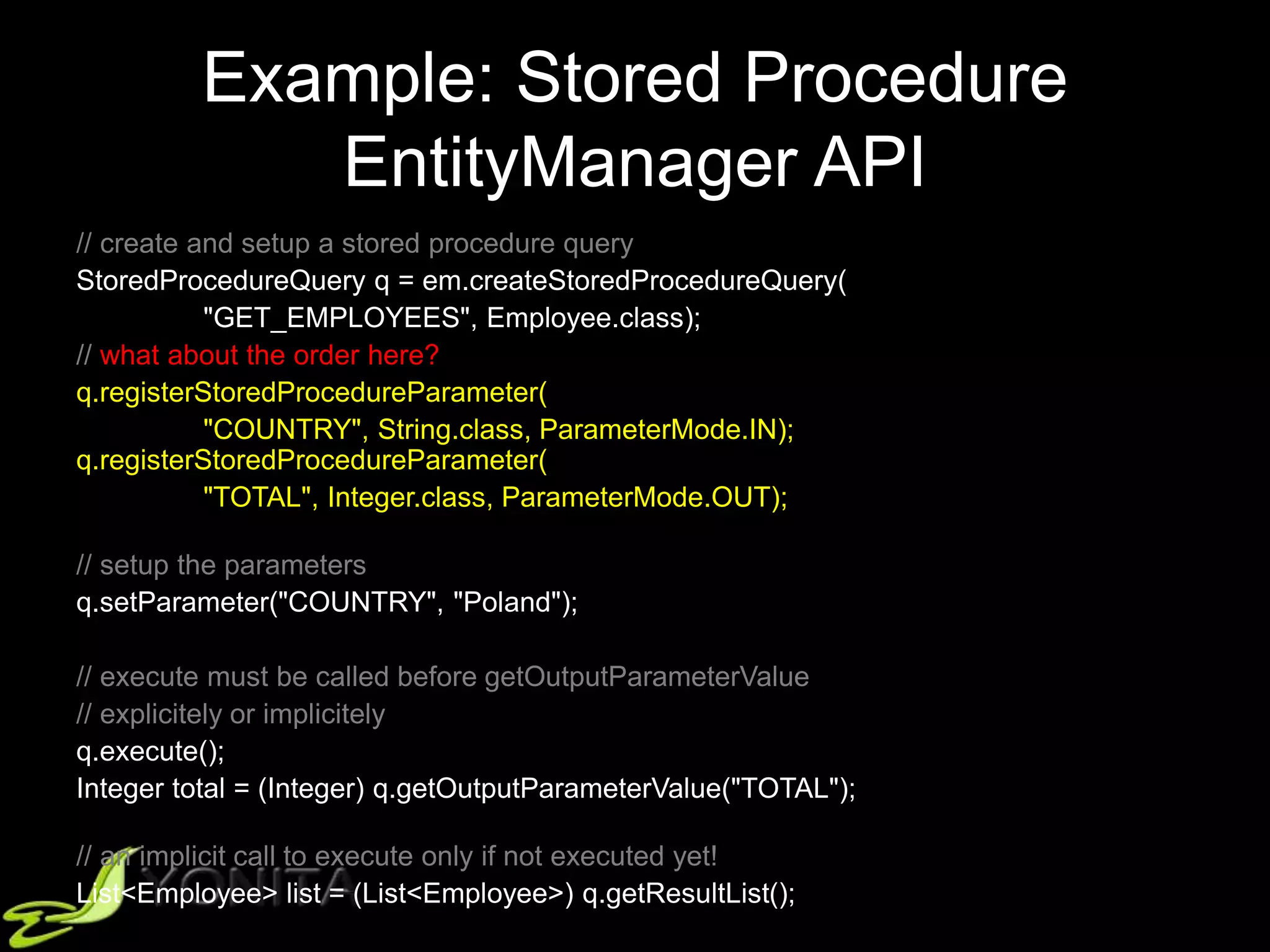

28. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
// what about the order here?
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// execute must be called before getOutputParameterValue
// explicitely or implicitely
q.execute();
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// an implicit call to execute only if not executed yet!
List<Employee> list = (List<Employee>) q.getResultList();

29. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
// what about the order here?
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// execute must be called before getOutputParameterValue
// explicitely or implicitely
q.execute();
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// an implicit call to execute only if not executed yet!
List<Employee> list = (List<Employee>) q.getResultList();

30. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
// what about the order here?
q.registerStoredProcedureParameter(
"TOTAL", Integer.class, ParameterMode.OUT);
q.registerStoredProcedureParameter(
"COUNTRY", Integer.class, ParameterMode.IN);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// execute must be called before getOutputParameterValue
// explicitely or implicitely
q.execute();
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// an implicit call to execute only if not executed yet!
List<Employee> list = (List<Employee>) q.getResultList();

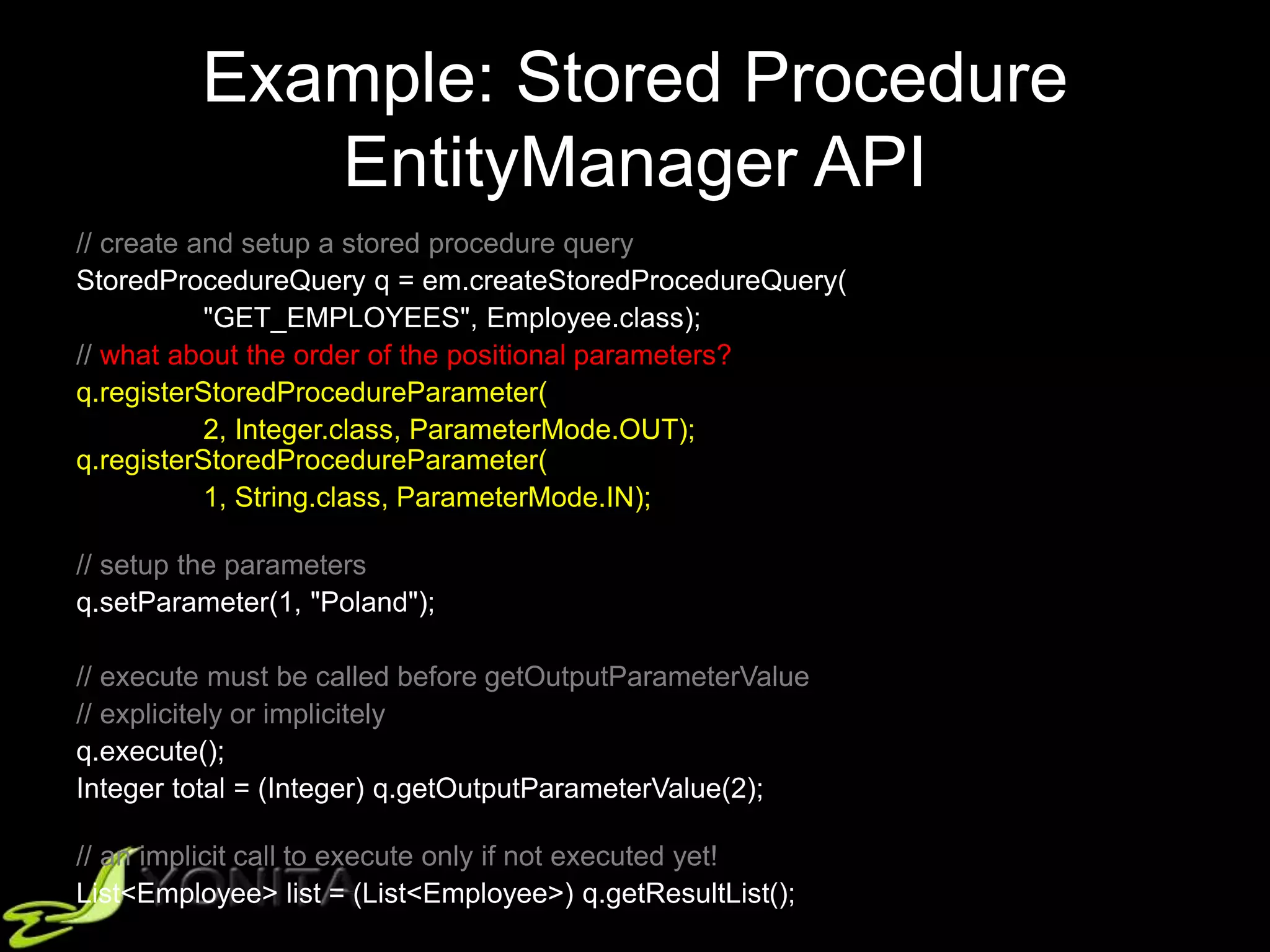

31. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
// what about the order of the positional parameters?
q.registerStoredProcedureParameter(
2, Integer.class, ParameterMode.OUT);
q.registerStoredProcedureParameter(
1, String.class, ParameterMode.IN);
// setup the parameters
q.setParameter(1, "Poland");
// execute must be called before getOutputParameterValue
// explicitely or implicitely
q.execute();
Integer total = (Integer) q.getOutputParameterValue(2);
// an implicit call to execute only if not executed yet!
List<Employee> list = (List<Employee>) q.getResultList();

32. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
// what about the order of the positional parameters?
q.registerStoredProcedureParameter(
2, Integer.class, ParameterMode.OUT);
q.registerStoredProcedureParameter(
1, String.class, ParameterMode.IN);
// setup the parameters
q.setParameter(1, "Poland");
// execute must be called before getOutputParameterValue
// explicitely or implicitely
q.execute();
Integer total = (Integer) q.getOutputParameterValue("TOTAL");
// an implicit call to execute only if not executed yet!
List<Employee> list = (List<Employee>) q.getResultList();

33. Example: Stored Procedure
Annotation
@NamedStoredProcedureQuery{
name = "getEmployees",
procedureName = "GET_EMPLOYEES",
resultClasses = Employee.class,
parameters = {
@StoredProcedureParameter(name = "COUNTRY",
mode = ParameterMode.IN, type = String.class),
@StoredProcedureParameter(name = "TOTAL",
mode = ParameterMode.OUT, type = Integer.class), }
}
@Entity
public class Employee {
...
}

34. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createNamedStoredProcedureQuery(
”getEmployees");
// setup the parameters
q.setParameter(”COUNTRY", "Poland");
// first, an implicit call to execute
List<Employee> list = (List<Employee>) q.getResultList();
// ...then, we can safely obtain the output value 
Integer total = (Integer) q.getOutputParameterValue("TOTAL");

35. Example: Stored Procedure
-- PostgreSQL
CREATE OR REPLACE FUNCTION GET_EMPLOYEES(
IN GIVEN_COUNTRY VARCHAR(255),
OUT TOTAL INT
)
RETURNS REFCURSOR AS
$BODY$
DECLARE
EMPS REFCURSOR;
BEGIN
OPEN EMPS FOR SELECT *
FROM EMPLOYEE
WHERE COUNTRY = GIVEN_COUNTRY;
RETURN EMPS;
END;
$BODY$
LANGUAGE plpgsql

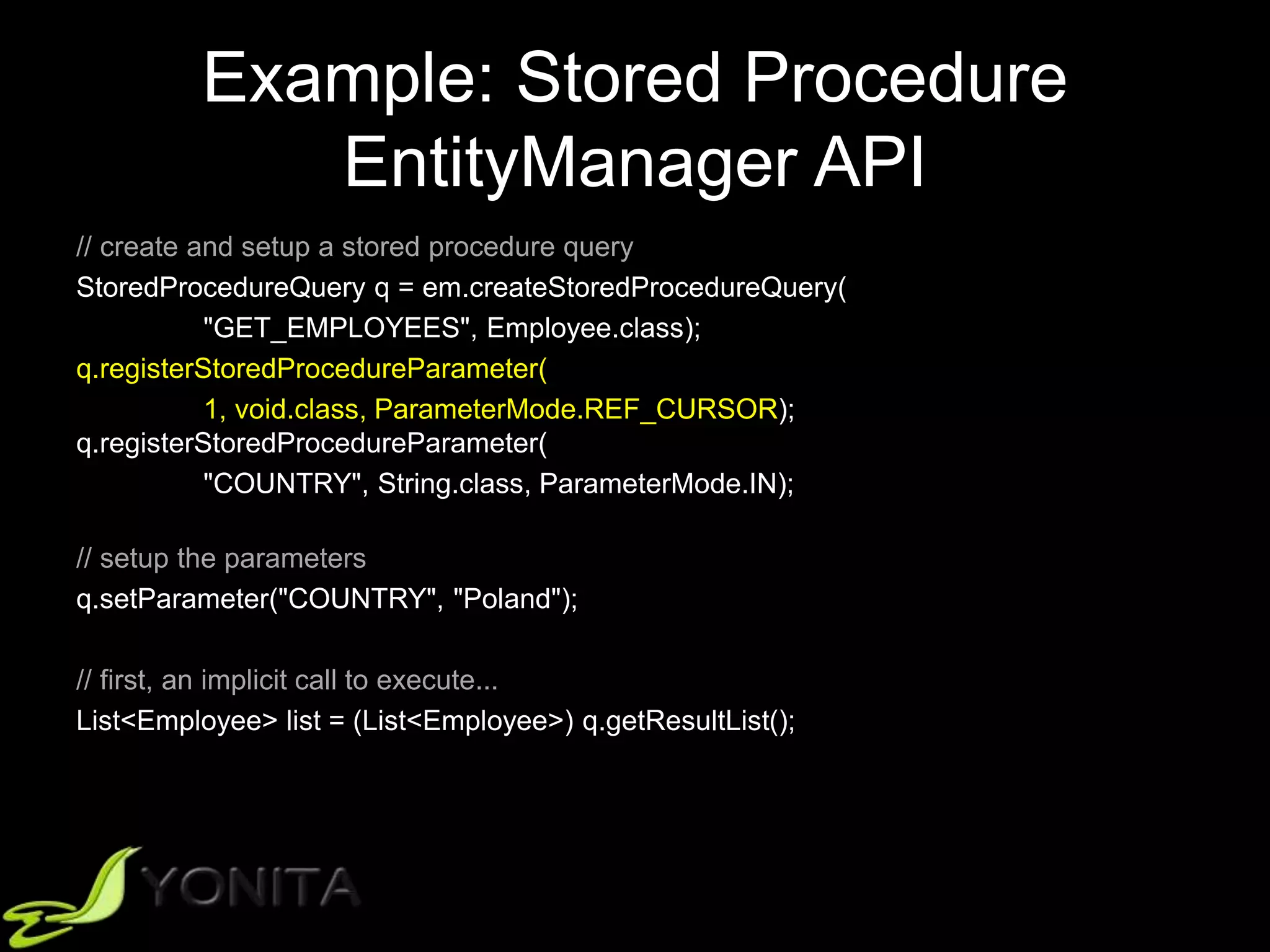

36. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createStoredProcedureQuery(
"GET_EMPLOYEES", Employee.class);
q.registerStoredProcedureParameter(
1, void.class, ParameterMode.REF_CURSOR);
q.registerStoredProcedureParameter(
"COUNTRY", String.class, ParameterMode.IN);
// setup the parameters
q.setParameter("COUNTRY", "Poland");
// first, an implicit call to execute...
List<Employee> list = (List<Employee>) q.getResultList();

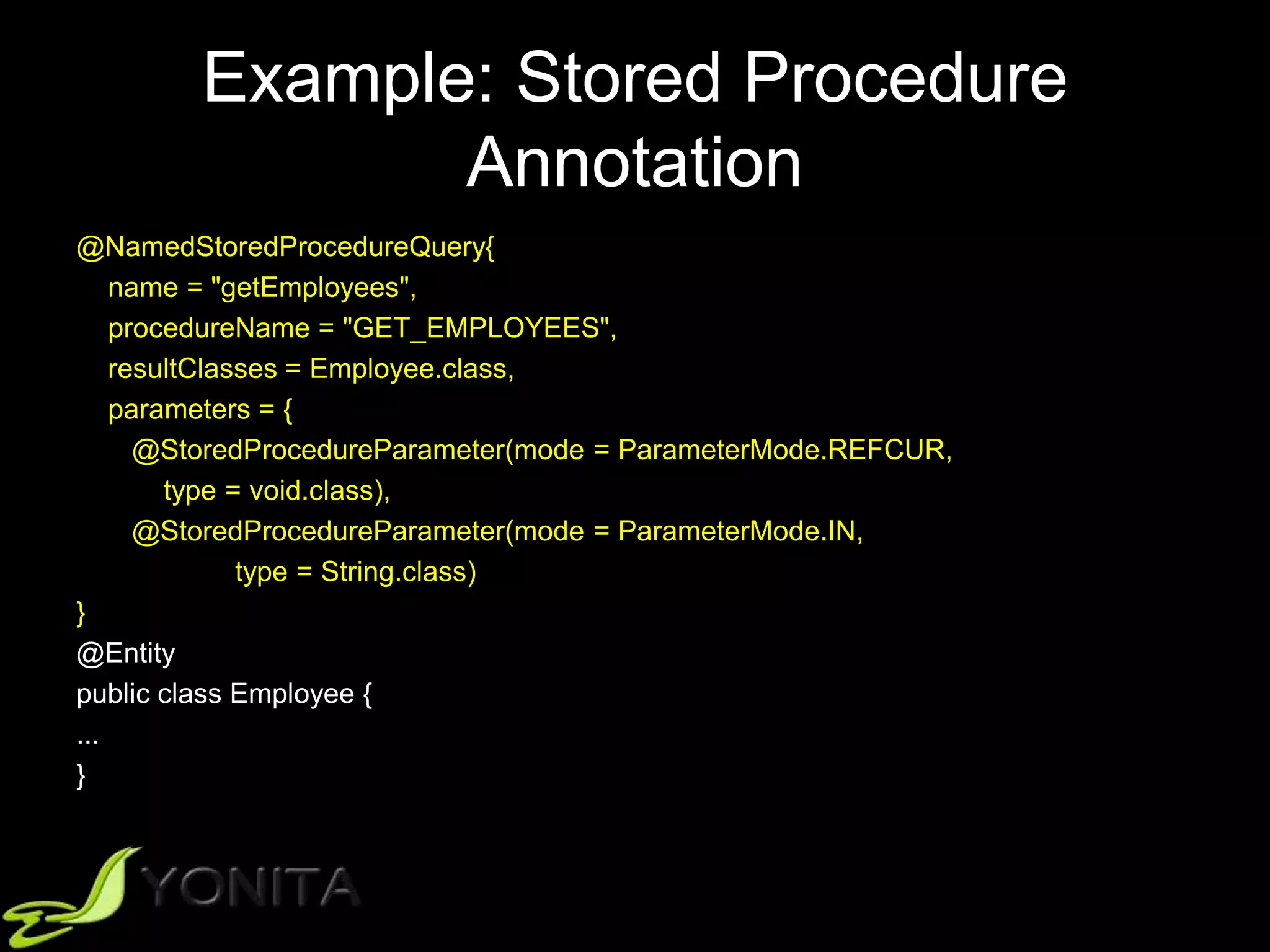

37. Example: Stored Procedure
Annotation
@NamedStoredProcedureQuery{
name = "getEmployees",
procedureName = "GET_EMPLOYEES",
resultClasses = Employee.class,
parameters = {
@StoredProcedureParameter(mode = ParameterMode.REFCUR,
type = void.class),
@StoredProcedureParameter(mode = ParameterMode.IN,
type = String.class)
}
@Entity
public class Employee {
...
}

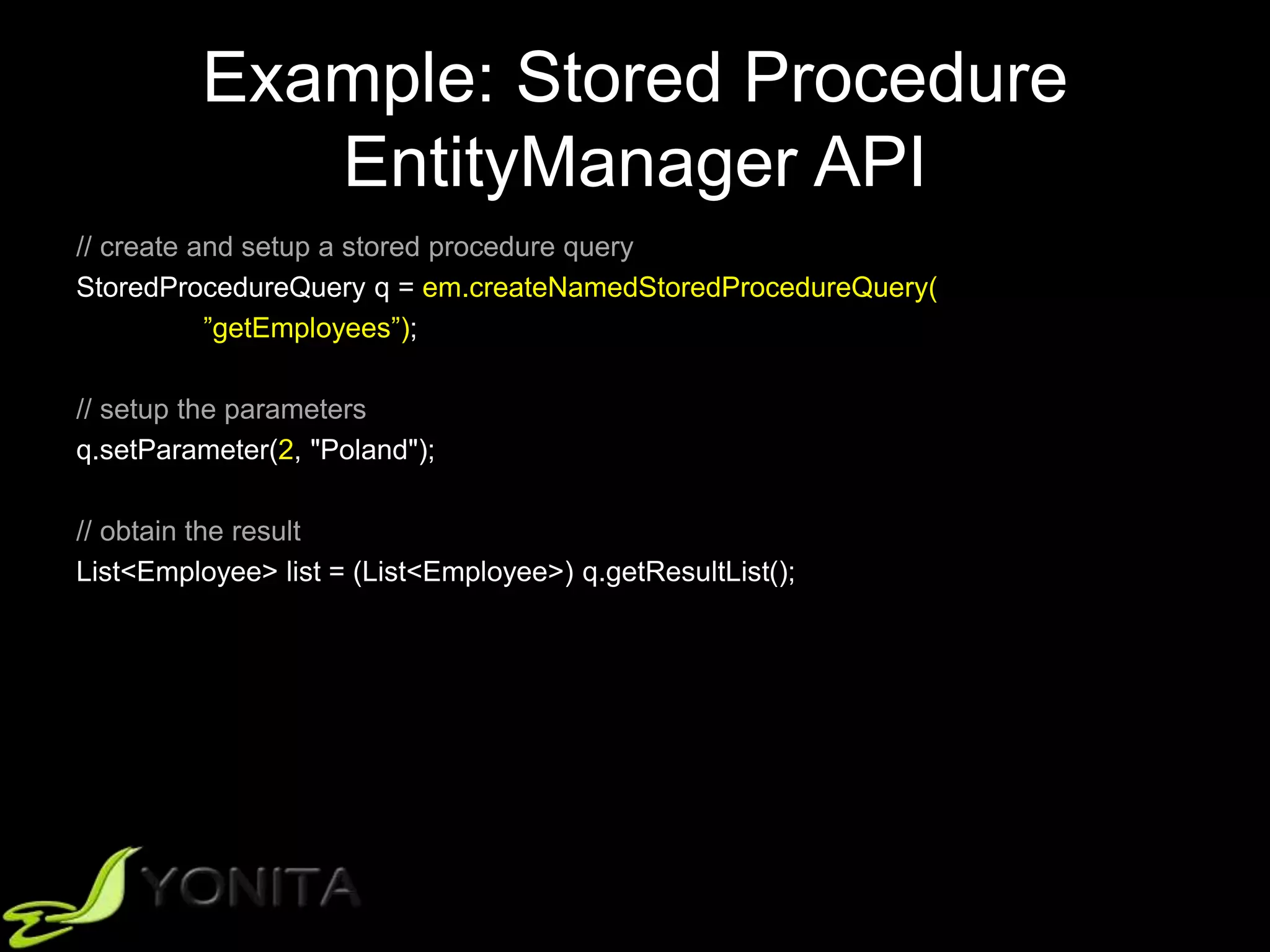

38. Example: Stored Procedure
EntityManager API
// create and setup a stored procedure query
StoredProcedureQuery q = em.createNamedStoredProcedureQuery(
”getEmployees”);
// setup the parameters
q.setParameter(2, "Poland");
// obtain the result
List<Employee> list = (List<Employee>) q.getResultList();

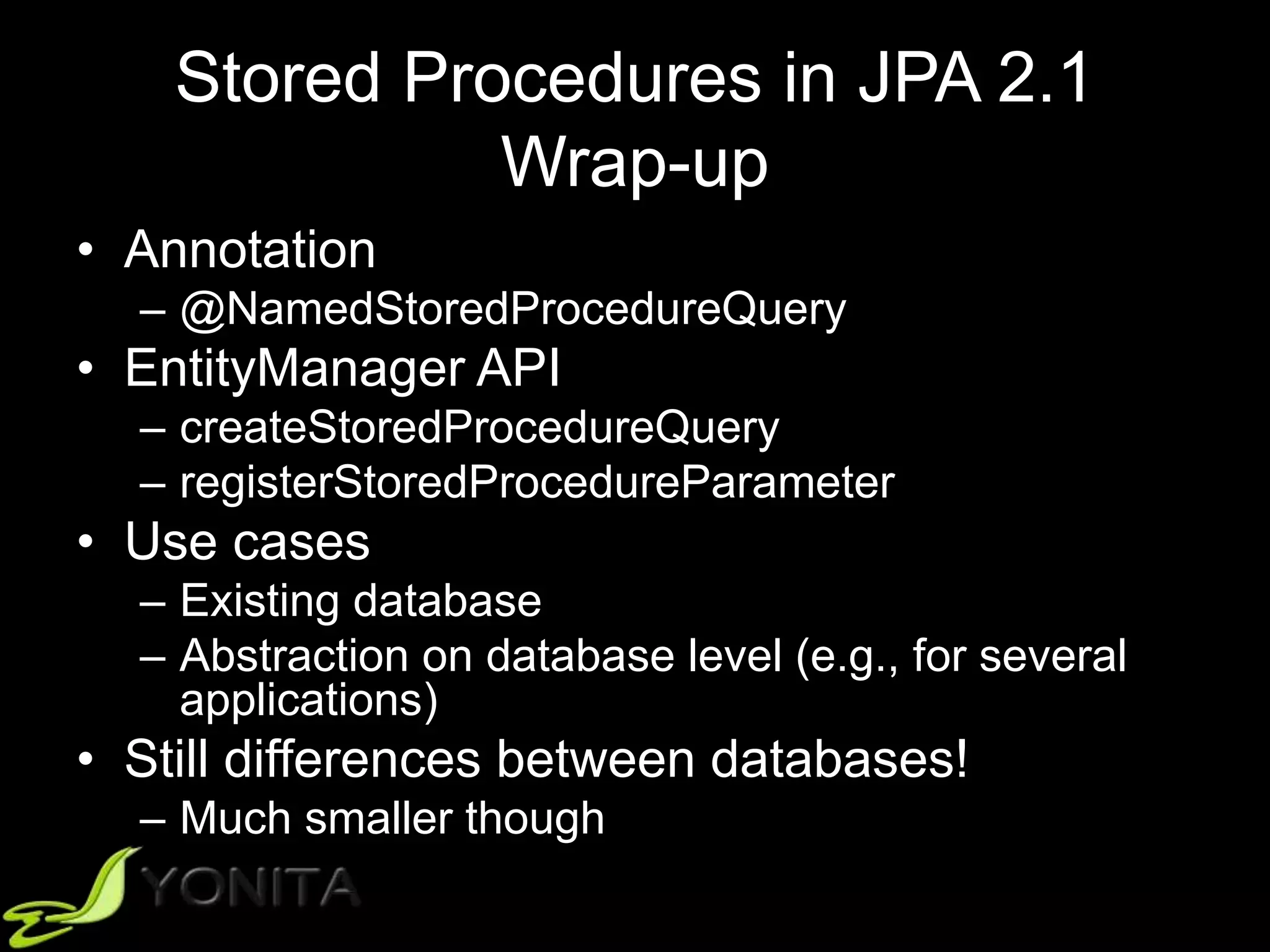

39. Stored Procedures in JPA 2.1
Wrap-up
• Annotation
– @NamedStoredProcedureQuery
• EntityManager API
– createStoredProcedureQuery
– registerStoredProcedureParameter
• Use cases
– Existing database
– Abstraction on database level (e.g., for several
applications)
• Still differences between databases!
– Much smaller though

40. Reporting

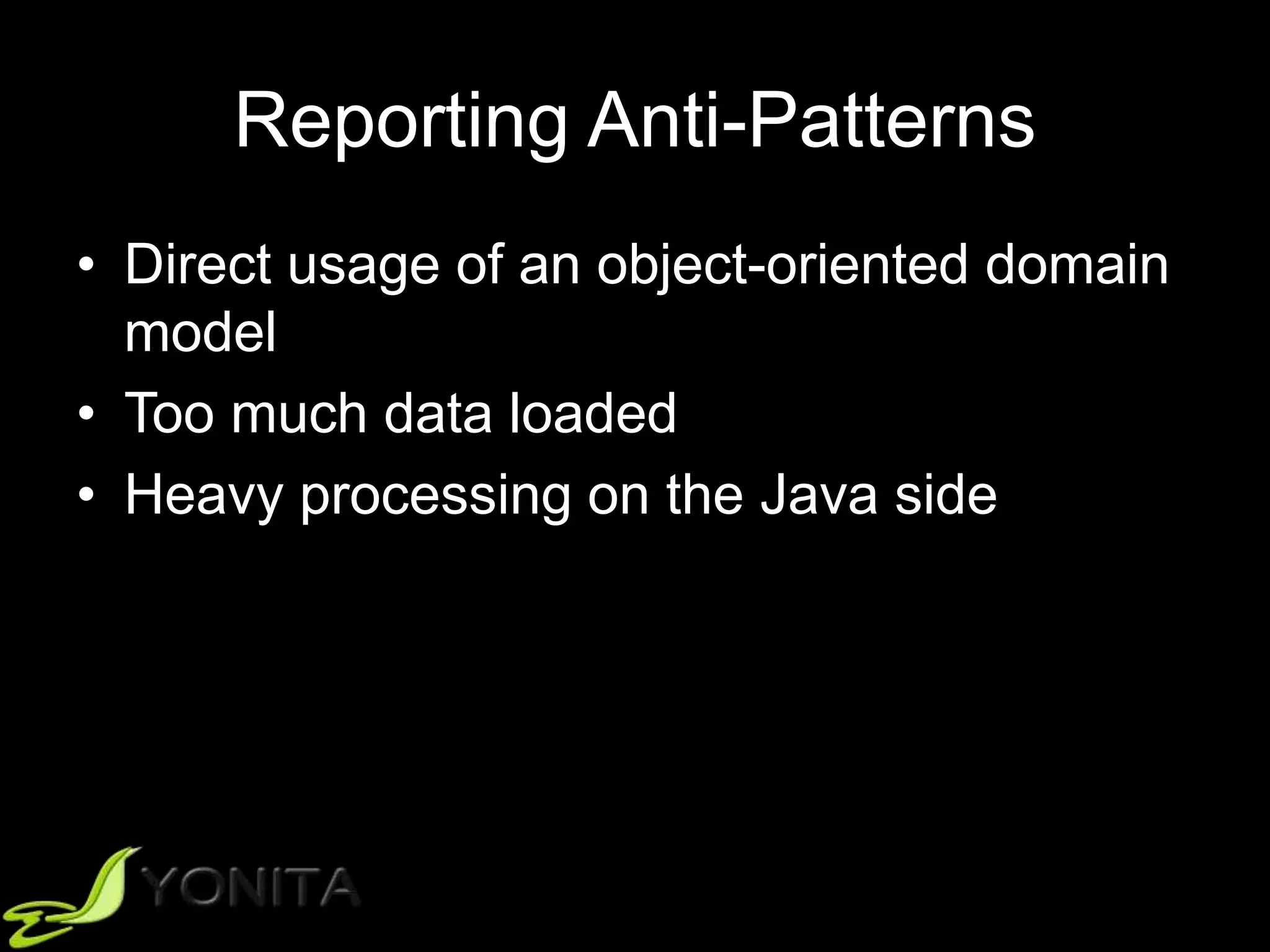

41. Reporting Anti-Patterns
• Direct usage of an object-oriented domain
model
• Too much data loaded
• Heavy processing on the Java side

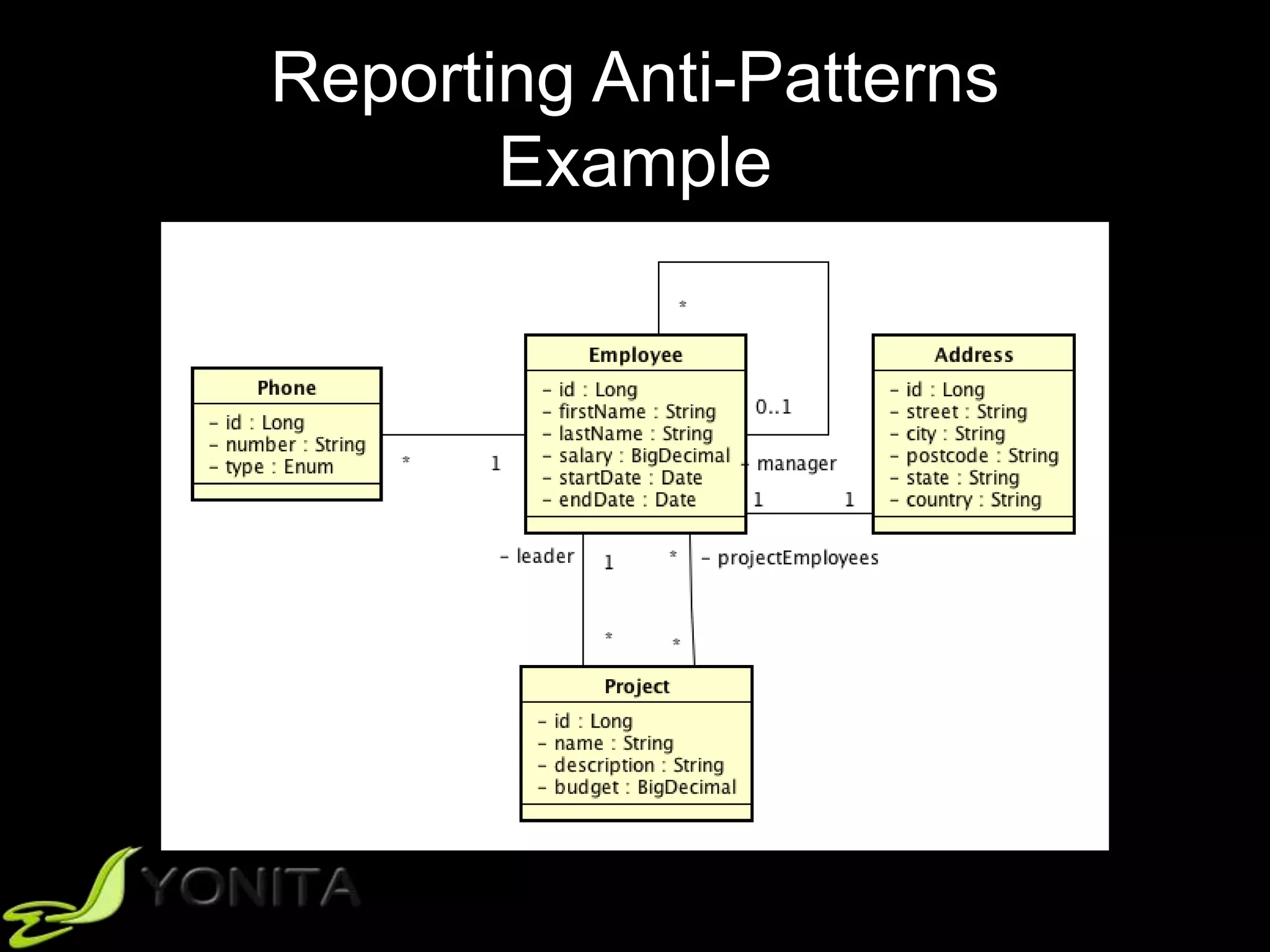

42. Reporting Anti-Patterns
Example

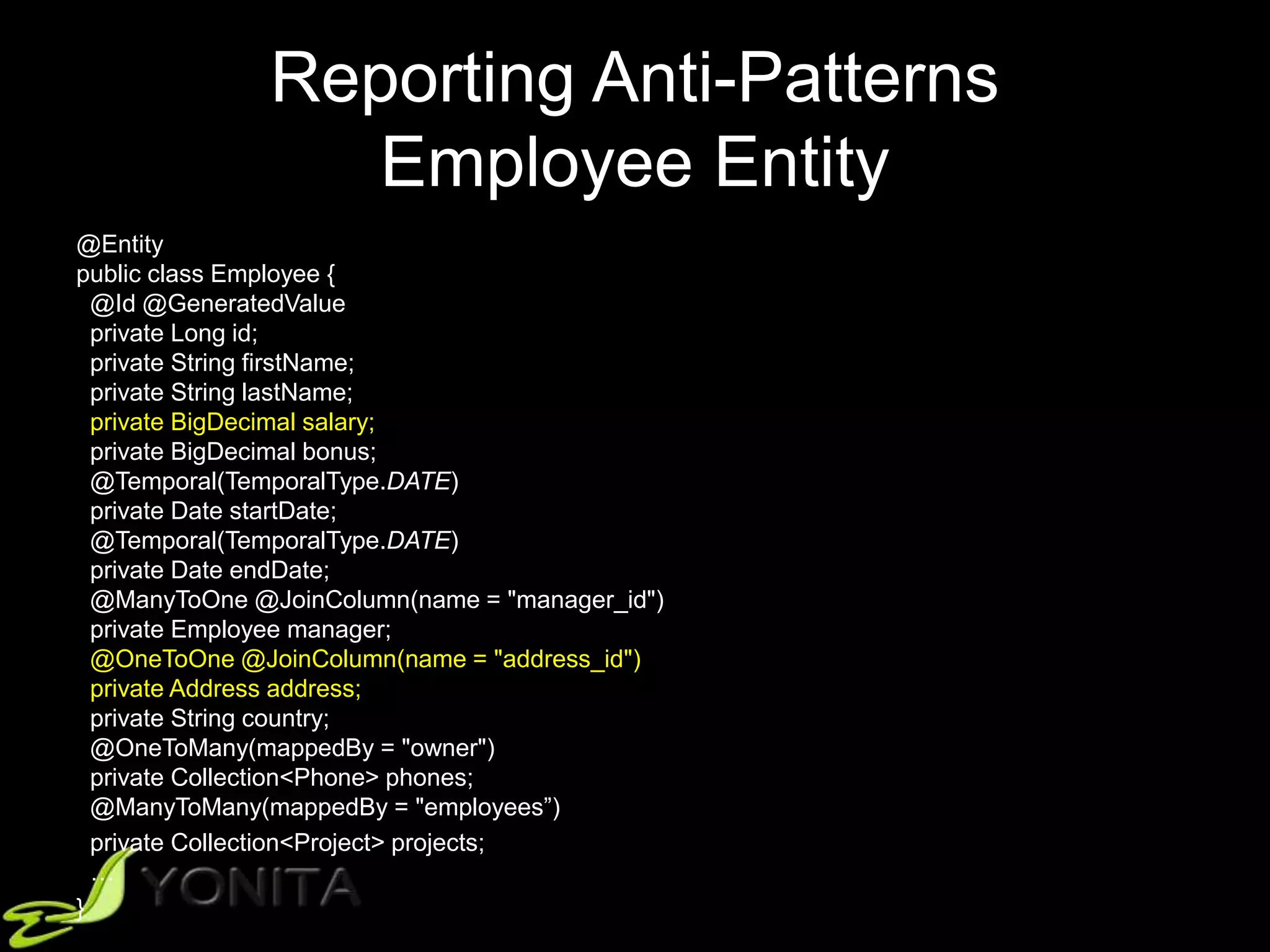

43. Reporting Anti-Patterns
Employee Entity
@Entity
public class Employee {
@Id @GeneratedValue
private Long id;
private String firstName;
private String lastName;
private BigDecimal salary;
private BigDecimal bonus;
@Temporal(TemporalType.DATE)
private Date startDate;
@Temporal(TemporalType.DATE)
private Date endDate;
@ManyToOne @JoinColumn(name = "manager_id")
private Employee manager;
@OneToOne @JoinColumn(name = "address_id")
private Address address;
private String country;
@OneToMany(mappedBy = "owner")
private Collection<Phone> phones;
@ManyToMany(mappedBy = "employees”)
private Collection<Project> projects;
…
}

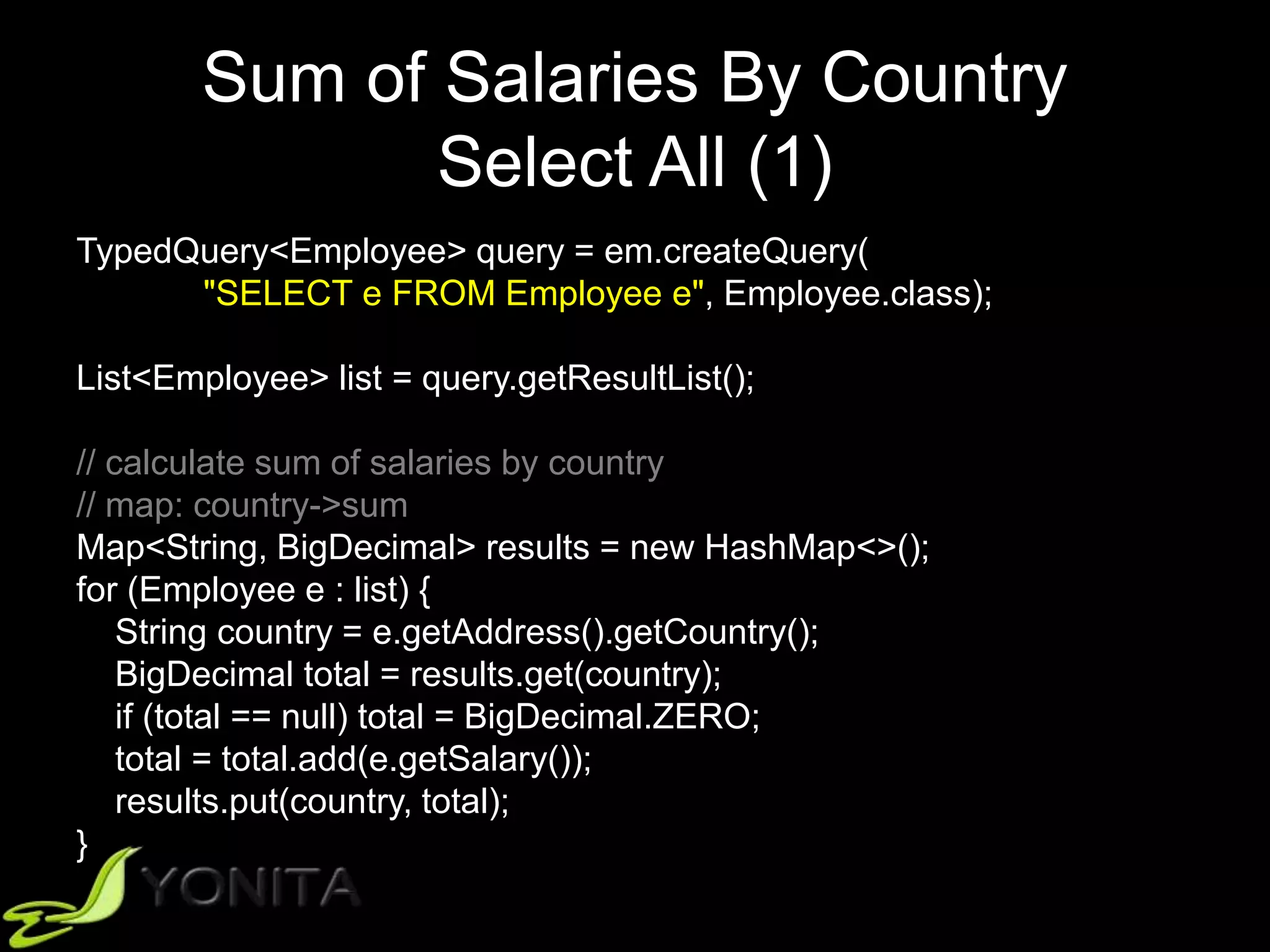

44. Sum of Salaries By Country
Select All (1)
TypedQuery<Employee> query = em.createQuery(
"SELECT e FROM Employee e", Employee.class);
List<Employee> list = query.getResultList();
// calculate sum of salaries by country
// map: country->sum
Map<String, BigDecimal> results = new HashMap<>();
for (Employee e : list) {
String country = e.getAddress().getCountry();
BigDecimal total = results.get(country);
if (total == null) total = BigDecimal.ZERO;
total = total.add(e.getSalary());
results.put(country, total);
}

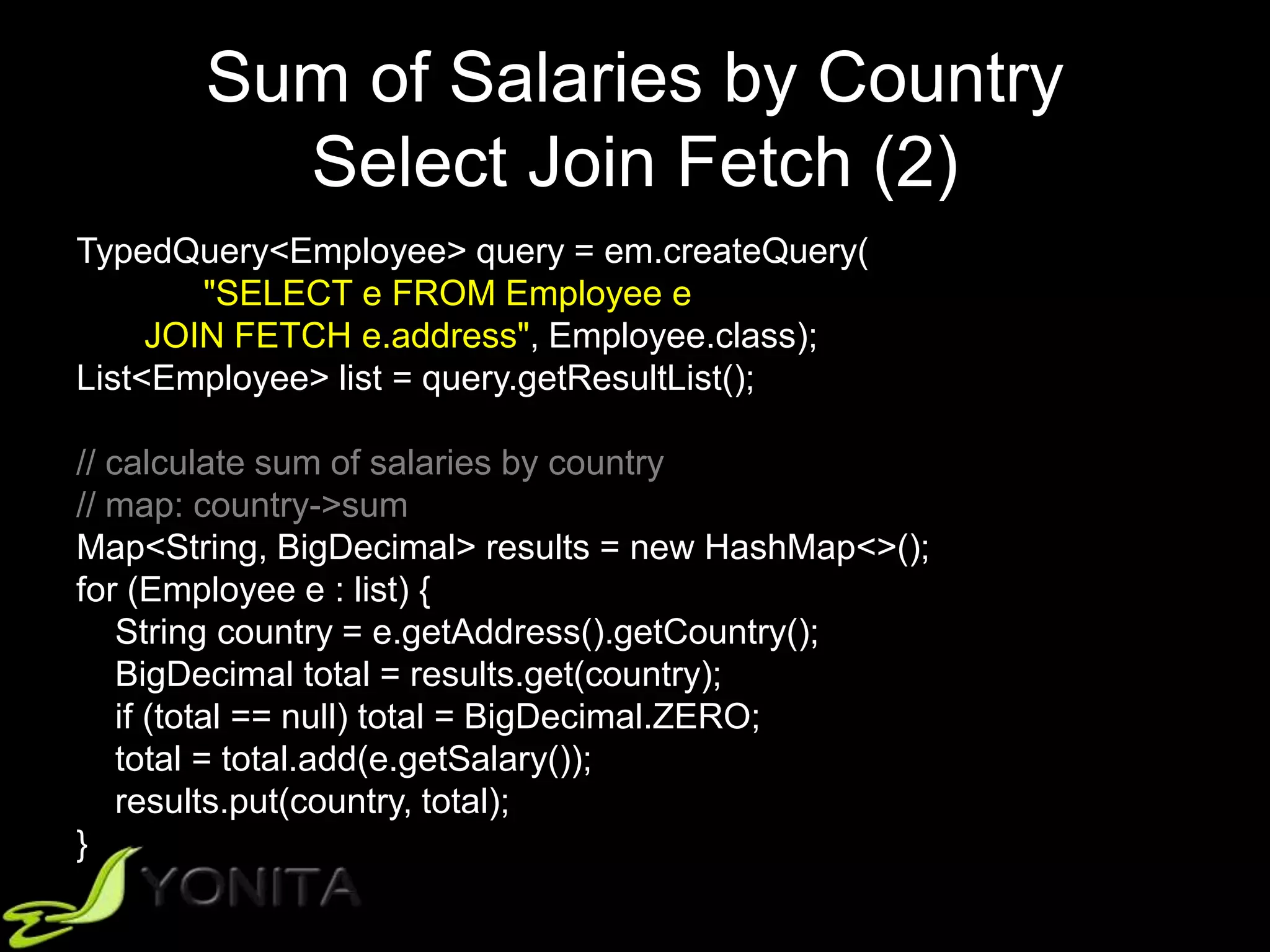

45. Sum of Salaries by Country
Select Join Fetch (2)
TypedQuery<Employee> query = em.createQuery(
"SELECT e FROM Employee e
JOIN FETCH e.address", Employee.class);
List<Employee> list = query.getResultList();
// calculate sum of salaries by country
// map: country->sum
Map<String, BigDecimal> results = new HashMap<>();
for (Employee e : list) {
String country = e.getAddress().getCountry();
BigDecimal total = results.get(country);
if (total == null) total = BigDecimal.ZERO;
total = total.add(e.getSalary());
results.put(country, total);
}

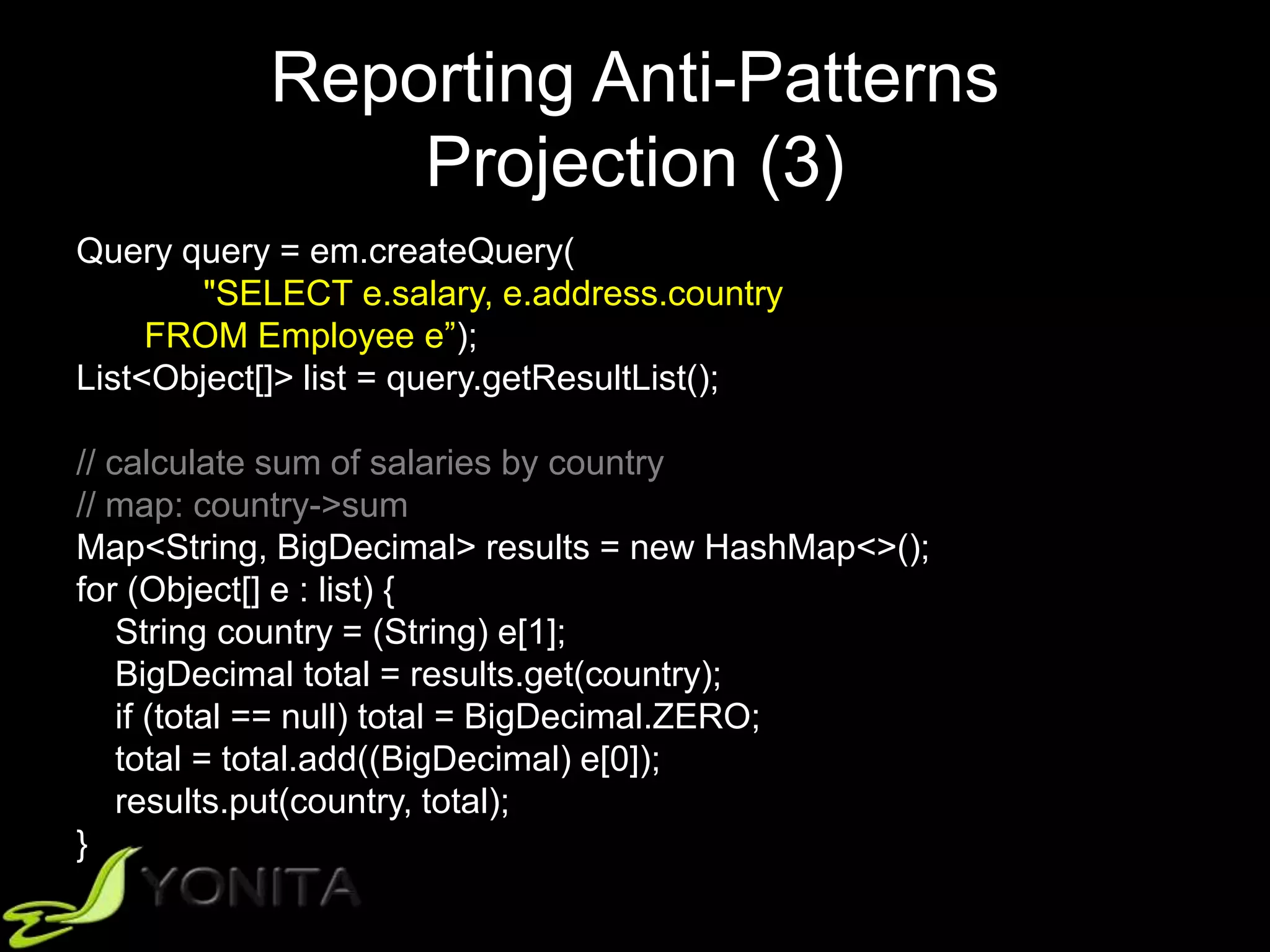

46. Reporting Anti-Patterns
Projection (3)
Query query = em.createQuery(
"SELECT e.salary, e.address.country
FROM Employee e”);
List<Object[]> list = query.getResultList();
// calculate sum of salaries by country
// map: country->sum
Map<String, BigDecimal> results = new HashMap<>();
for (Object[] e : list) {
String country = (String) e[1];
BigDecimal total = results.get(country);
if (total == null) total = BigDecimal.ZERO;
total = total.add((BigDecimal) e[0]);
results.put(country, total);
}

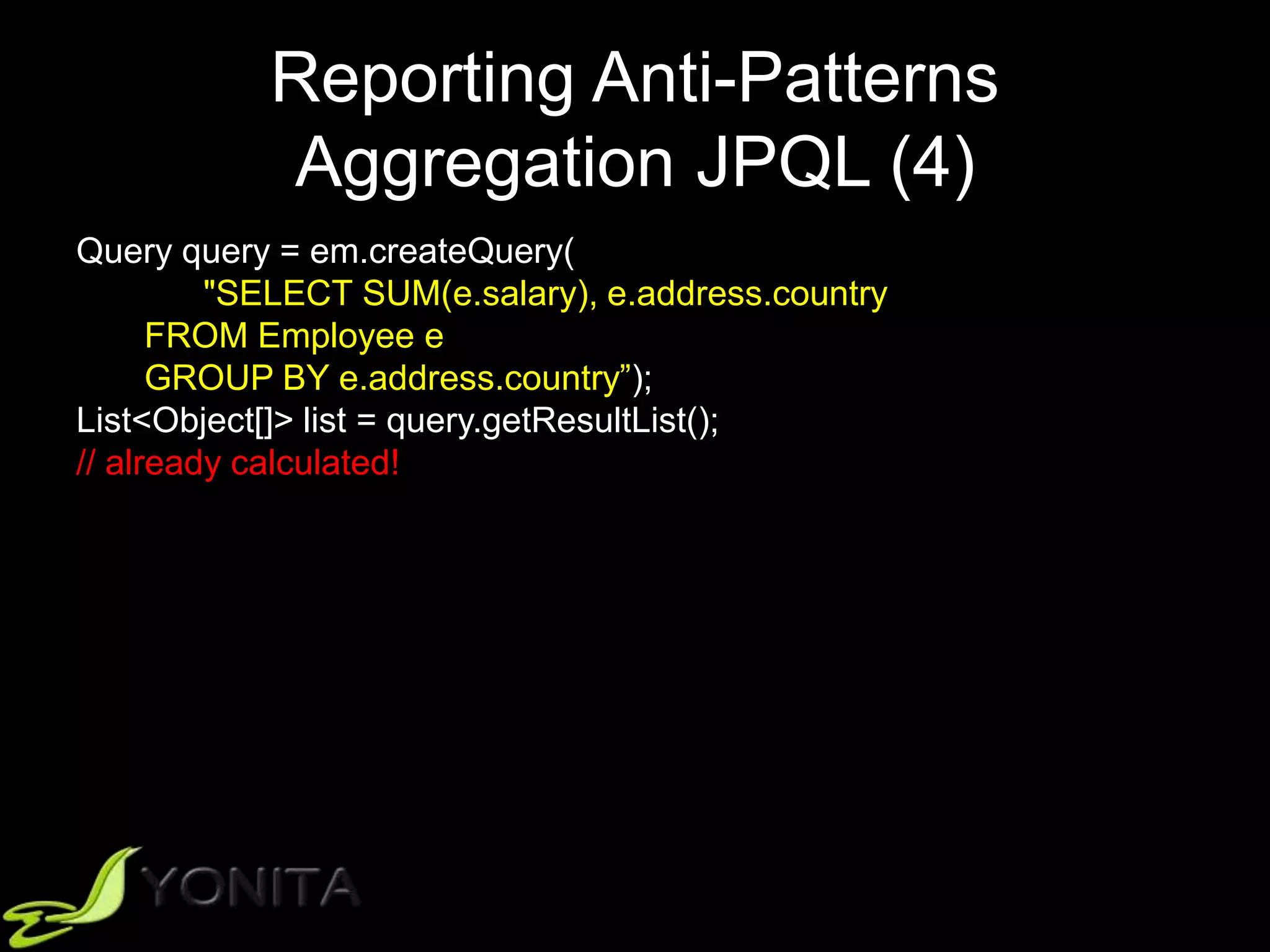

47. Reporting Anti-Patterns
Aggregation JPQL (4)
Query query = em.createQuery(
"SELECT SUM(e.salary), e.address.country
FROM Employee e
GROUP BY e.address.country”);
List<Object[]> list = query.getResultList();
// already calculated!

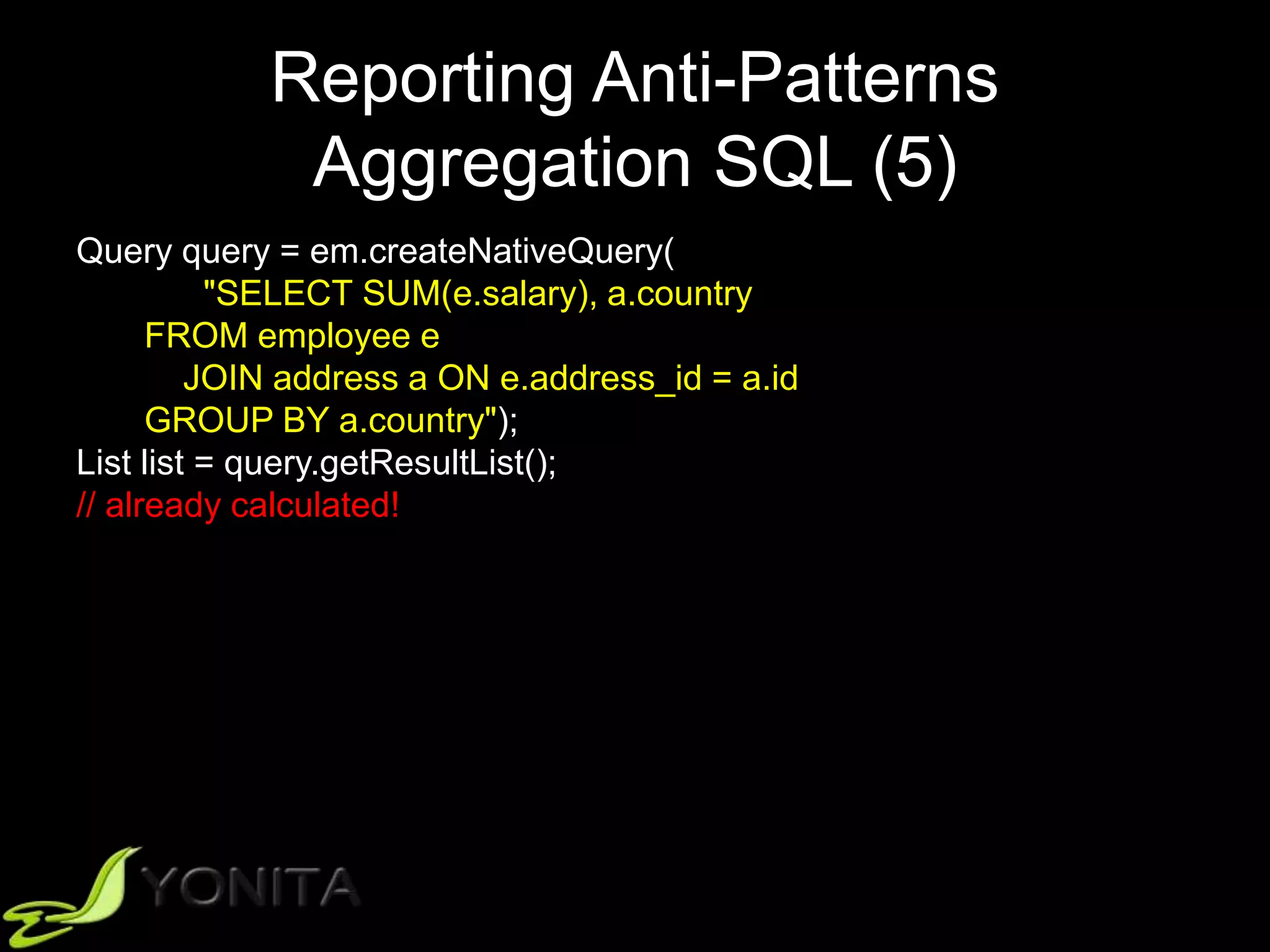

48. Reporting Anti-Patterns
Aggregation SQL (5)
Query query = em.createNativeQuery(
"SELECT SUM(e.salary), a.country
FROM employee e
JOIN address a ON e.address_id = a.id
GROUP BY a.country");
List list = query.getResultList();
// already calculated!

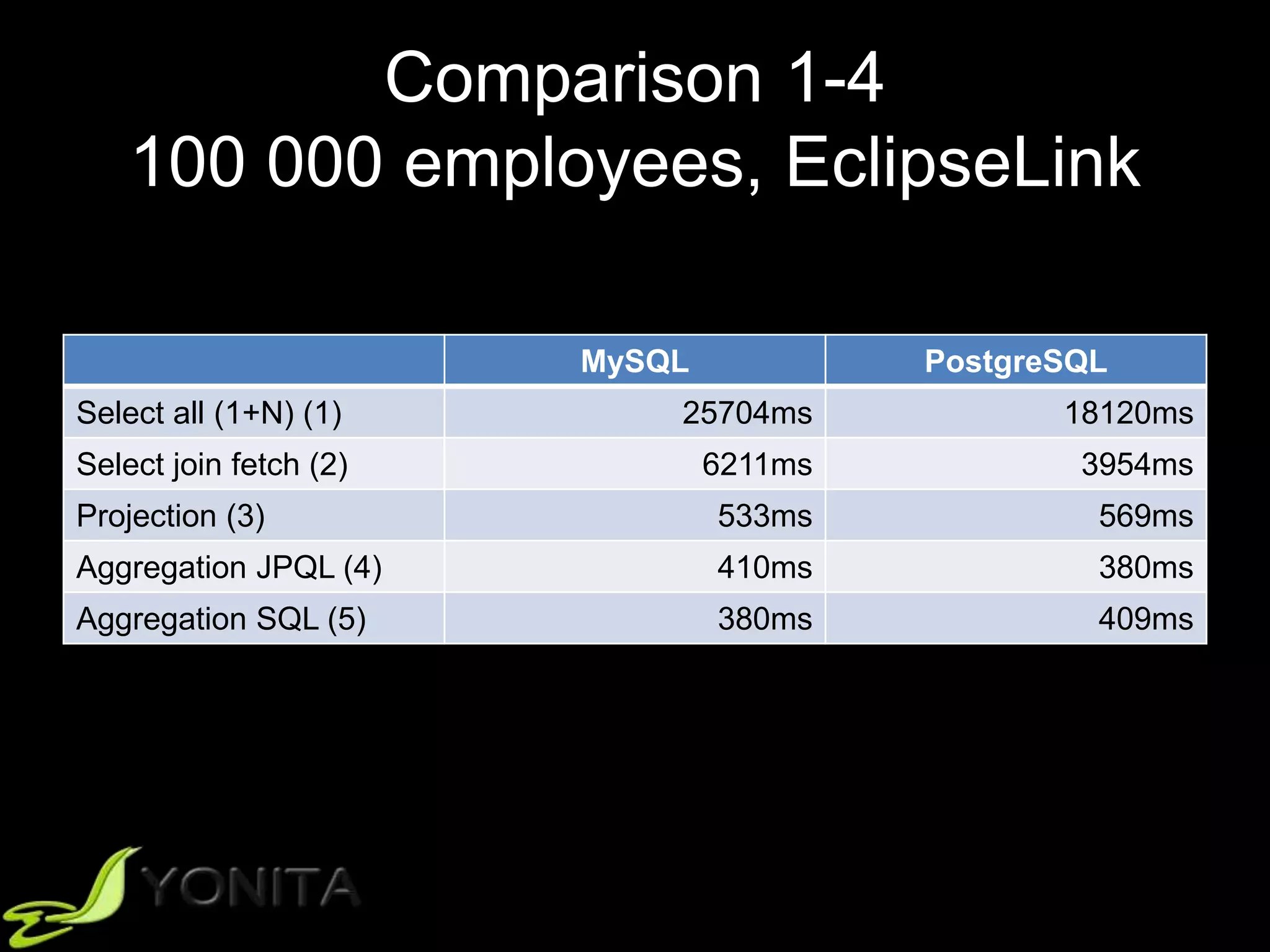

49. Comparison 1-4
100 000 employees, EclipseLink
MySQL PostgreSQL
Select all (1+N) (1) 25704ms 18120ms
Select join fetch (2) 6211ms 3954ms
Projection (3) 533ms 569ms
Aggregation JPQL (4) 410ms 380ms
Aggregation SQL (5) 380ms 409ms

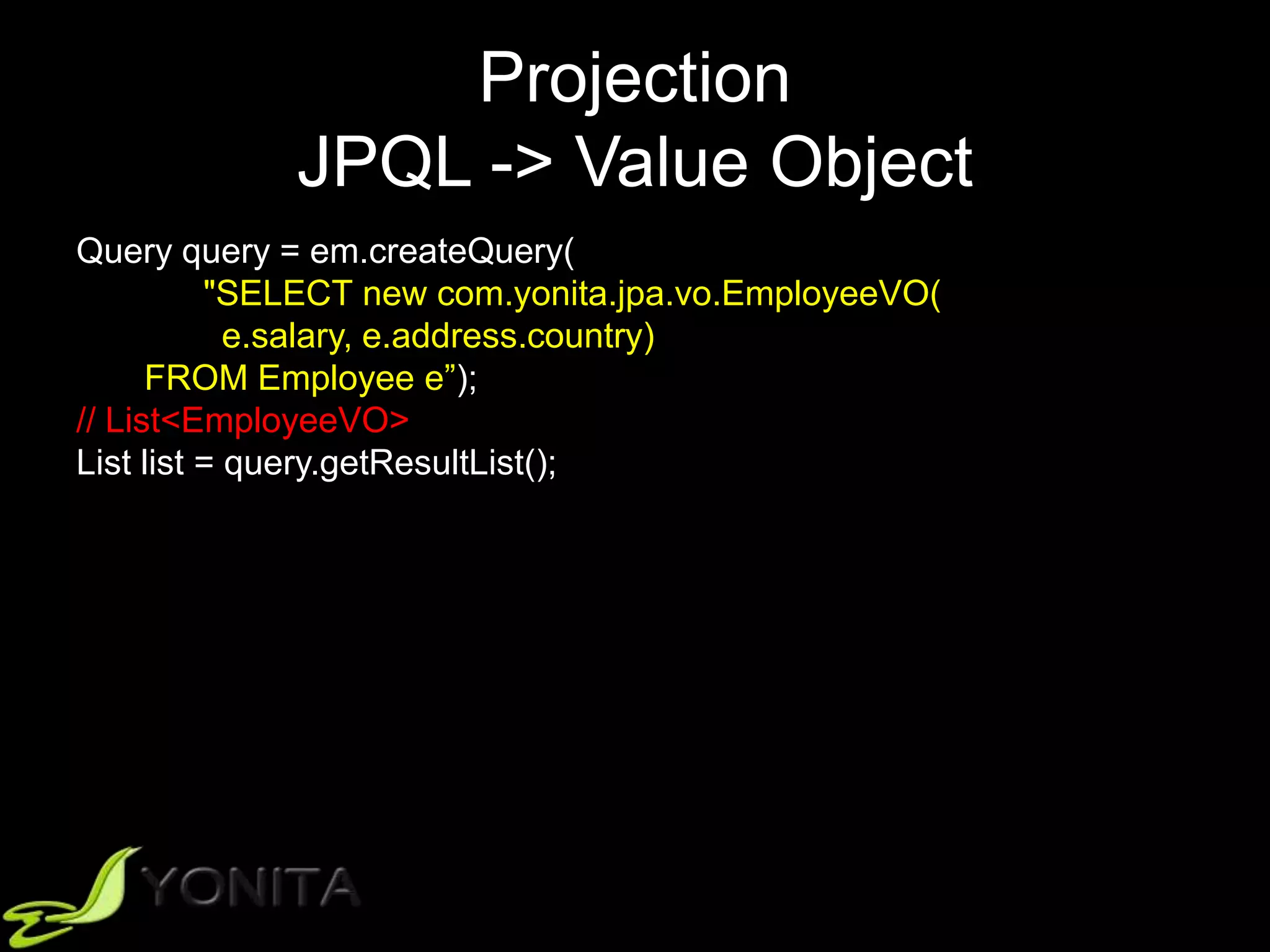

50. Projection
JPQL -> Value Object
Query query = em.createQuery(
"SELECT new com.yonita.jpa.vo.EmployeeVO(
e.salary, e.address.country)
FROM Employee e”);
// List<EmployeeVO>
List list = query.getResultList();

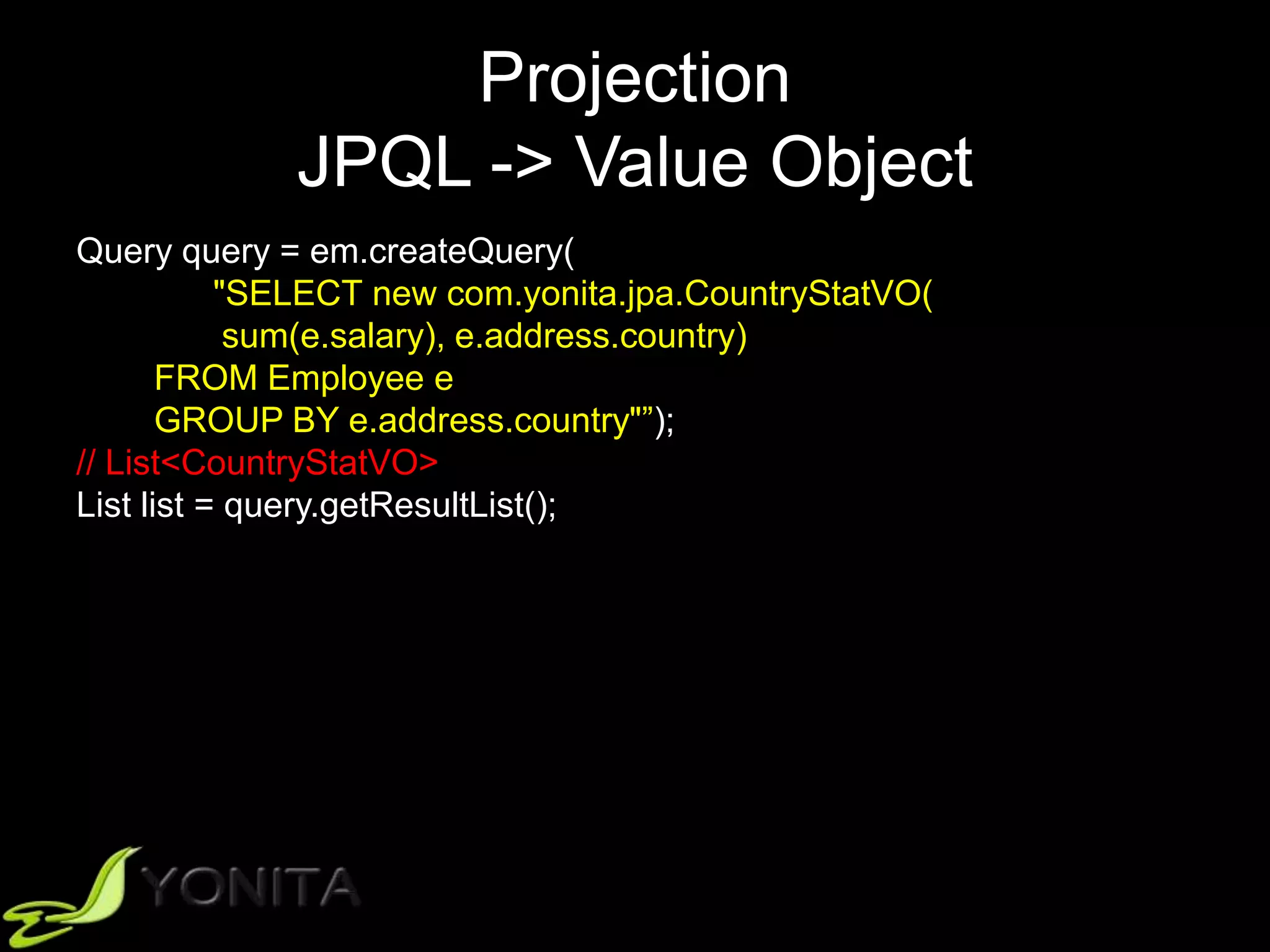

51. Projection
JPQL -> Value Object
Query query = em.createQuery(
"SELECT new com.yonita.jpa.CountryStatVO(
sum(e.salary), e.address.country)
FROM Employee e
GROUP BY e.address.country"”);
// List<CountryStatVO>
List list = query.getResultList();

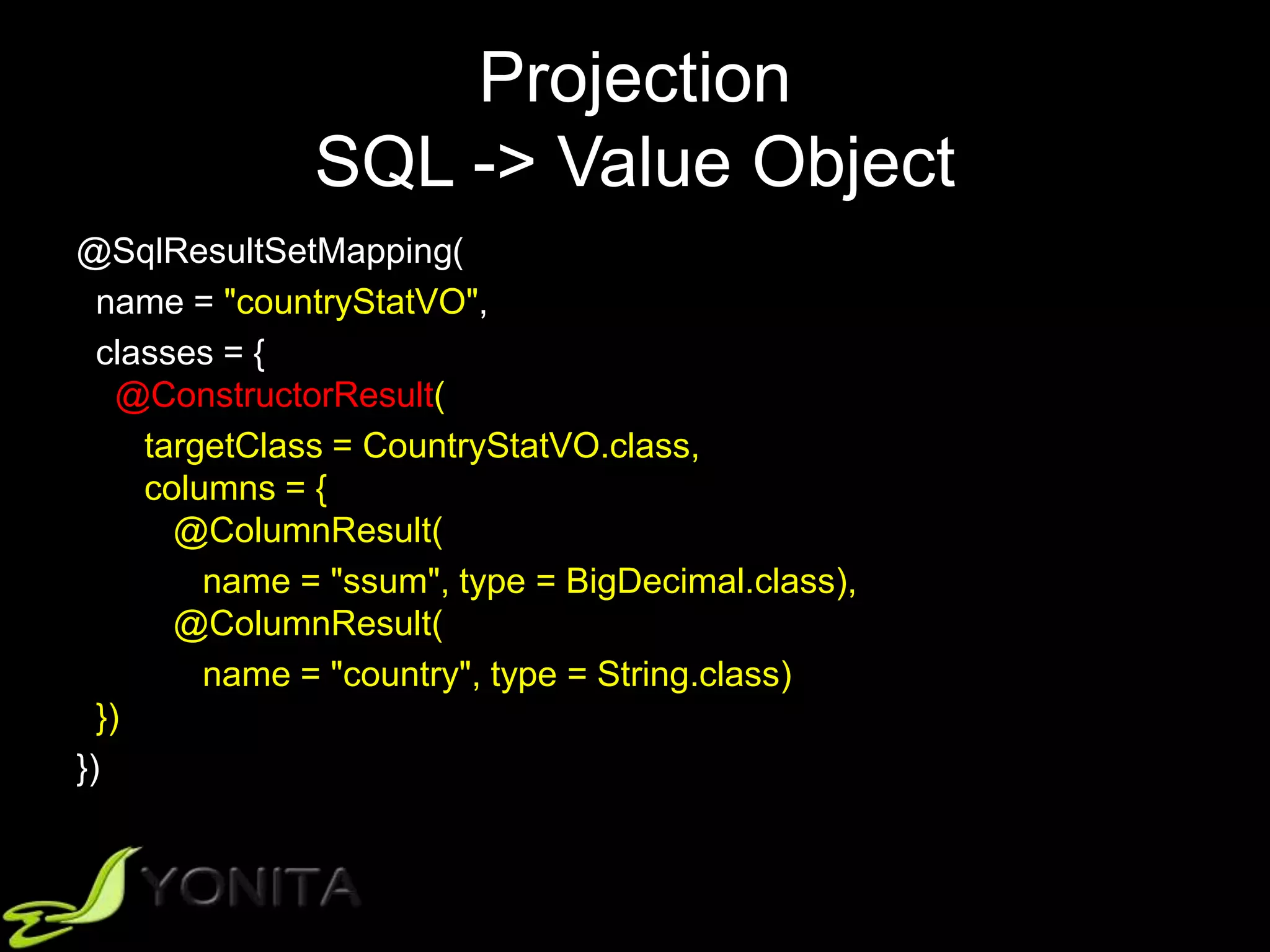

52. Projection
SQL -> Value Object
@SqlResultSetMapping(
name = "countryStatVO",
classes = {
@ConstructorResult(
targetClass = CountryStatVO.class,
columns = {
@ColumnResult(
name = "ssum", type = BigDecimal.class),
@ColumnResult(
name = "country", type = String.class)
})
})

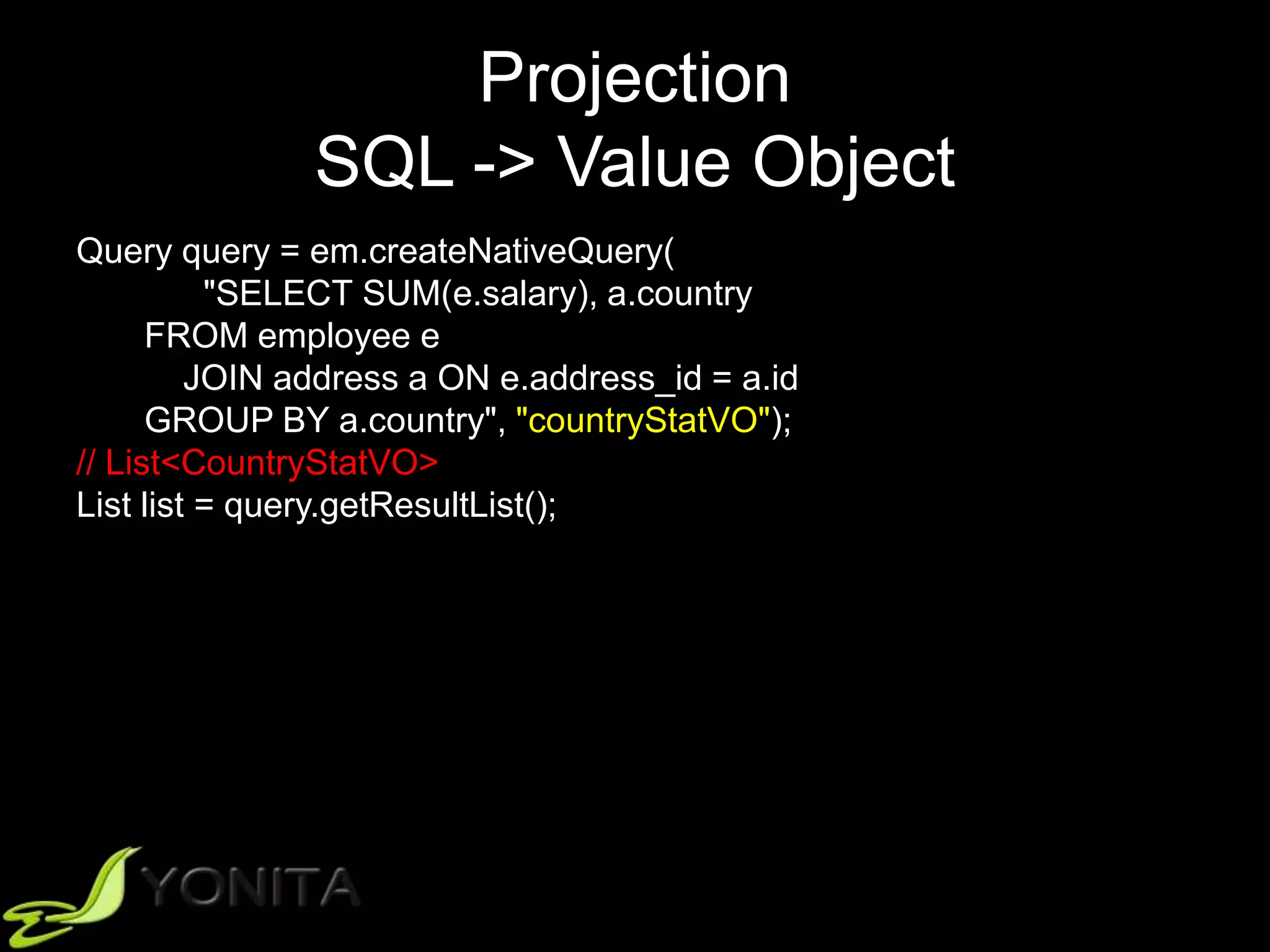

53. Projection
SQL -> Value Object
Query query = em.createNativeQuery(
"SELECT SUM(e.salary), a.country
FROM employee e
JOIN address a ON e.address_id = a.id
GROUP BY a.country", "countryStatVO");
// List<CountryStatVO>
List list = query.getResultList();

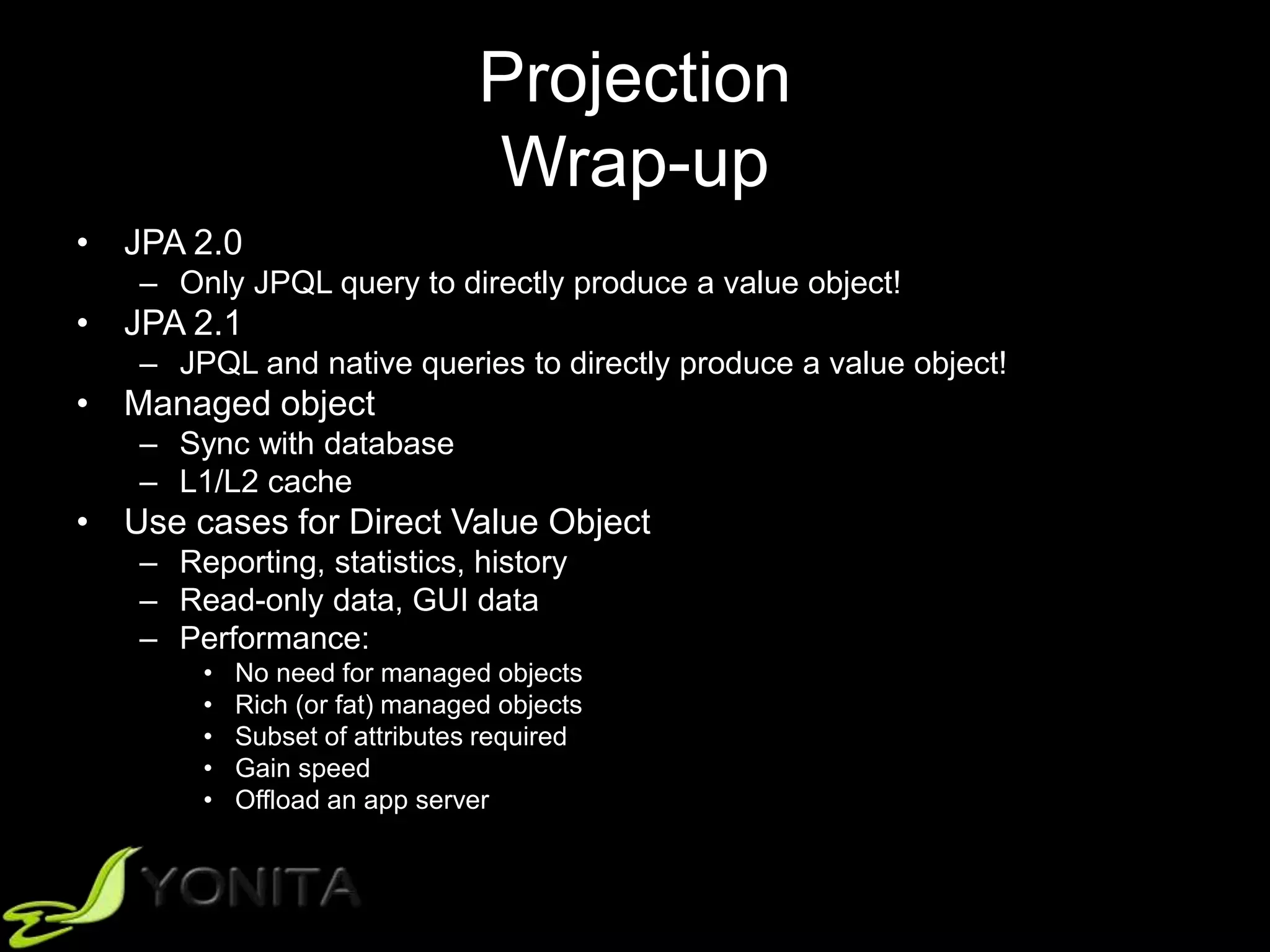

54. Projection
Wrap-up
• JPA 2.0
– Only JPQL query to directly produce a value object!
• JPA 2.1
– JPQL and native queries to directly produce a value object!
• Managed object
– Sync with database
– L1/L2 cache
• Use cases for Direct Value Object
– Reporting, statistics, history
– Read-only data, GUI data
– Performance:
• No need for managed objects
• Rich (or fat) managed objects
• Subset of attributes required
• Gain speed
• Offload an app server

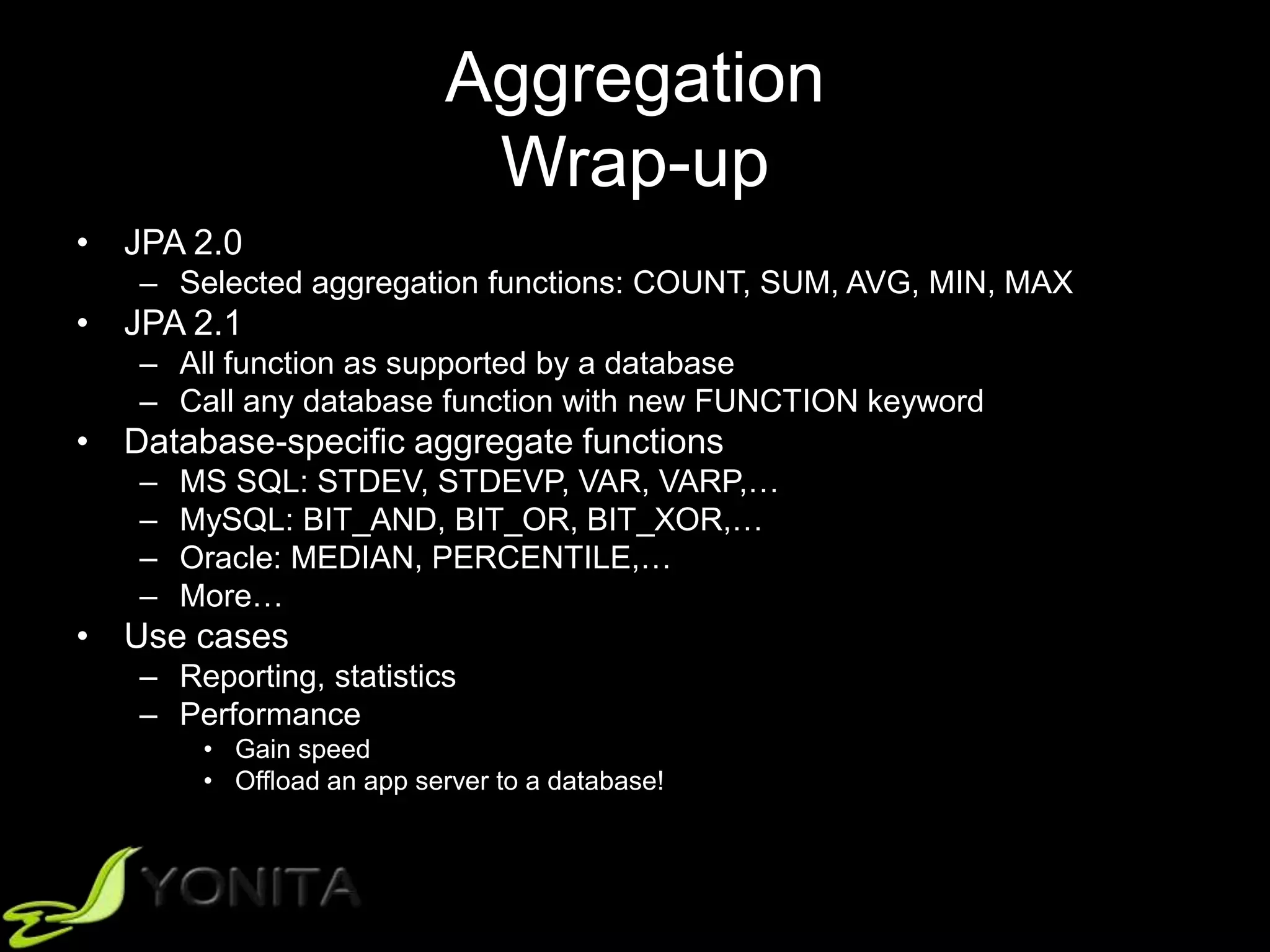

55. Aggregation
Wrap-up
• JPA 2.0
– Selected aggregation functions: COUNT, SUM, AVG, MIN, MAX
• JPA 2.1
– All function as supported by a database
– Call any database function with new FUNCTION keyword
• Database-specific aggregate functions
– MS SQL: STDEV, STDEVP, VAR, VARP,…
– MySQL: BIT_AND, BIT_OR, BIT_XOR,…
– Oracle: MEDIAN, PERCENTILE,…
– More…
• Use cases
– Reporting, statistics
– Performance
• Gain speed
• Offload an app server to a database!

56. Complex Queries

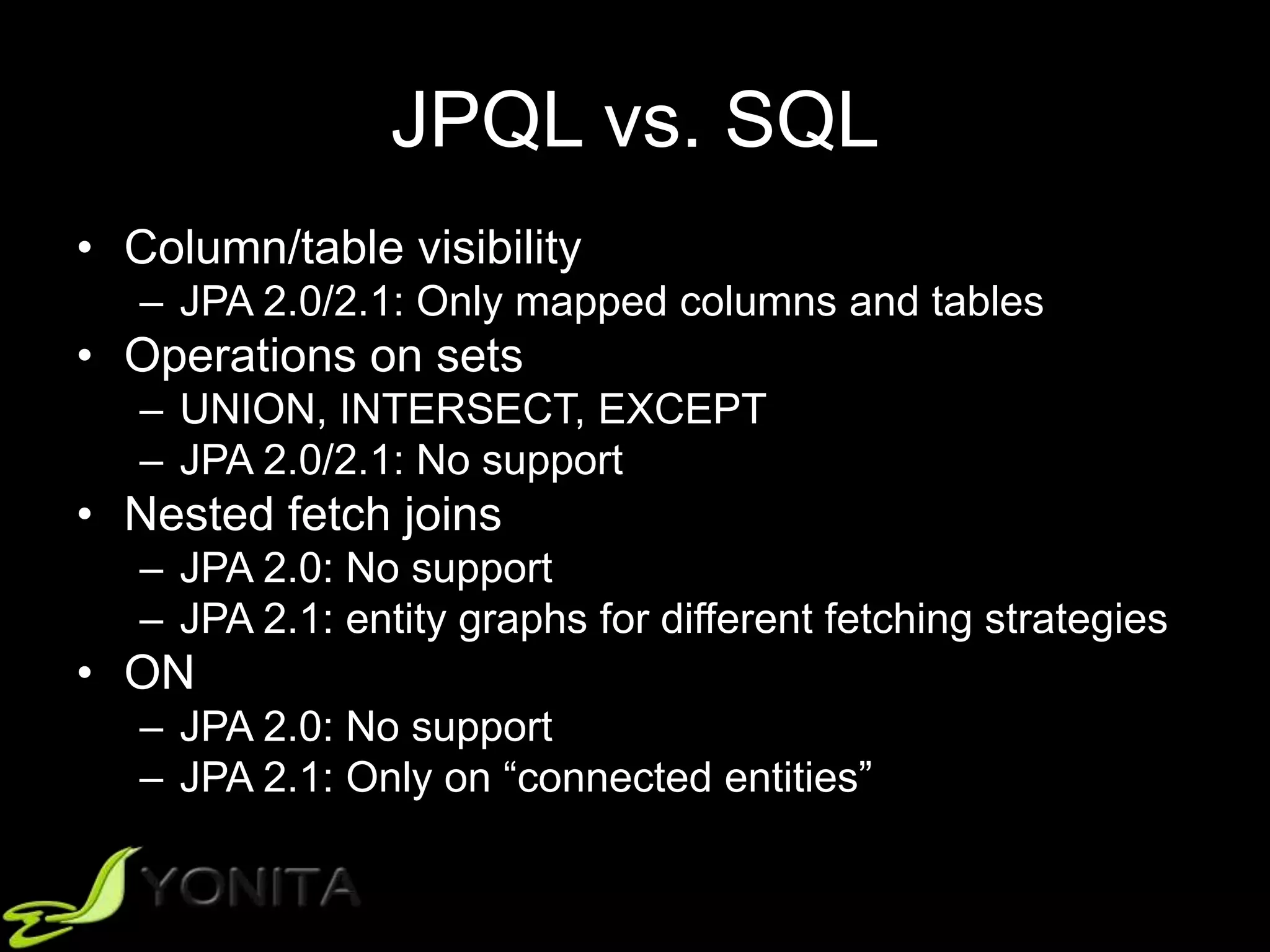

57. JPQL vs. SQL
• Column/table visibility
– JPA 2.0/2.1: Only mapped columns and tables
• Operations on sets
– UNION, INTERSECT, EXCEPT
– JPA 2.0/2.1: No support
• Nested fetch joins
– JPA 2.0: No support
– JPA 2.1: entity graphs for different fetching strategies
• ON
– JPA 2.0: No support
– JPA 2.1: Only on “connected entities”

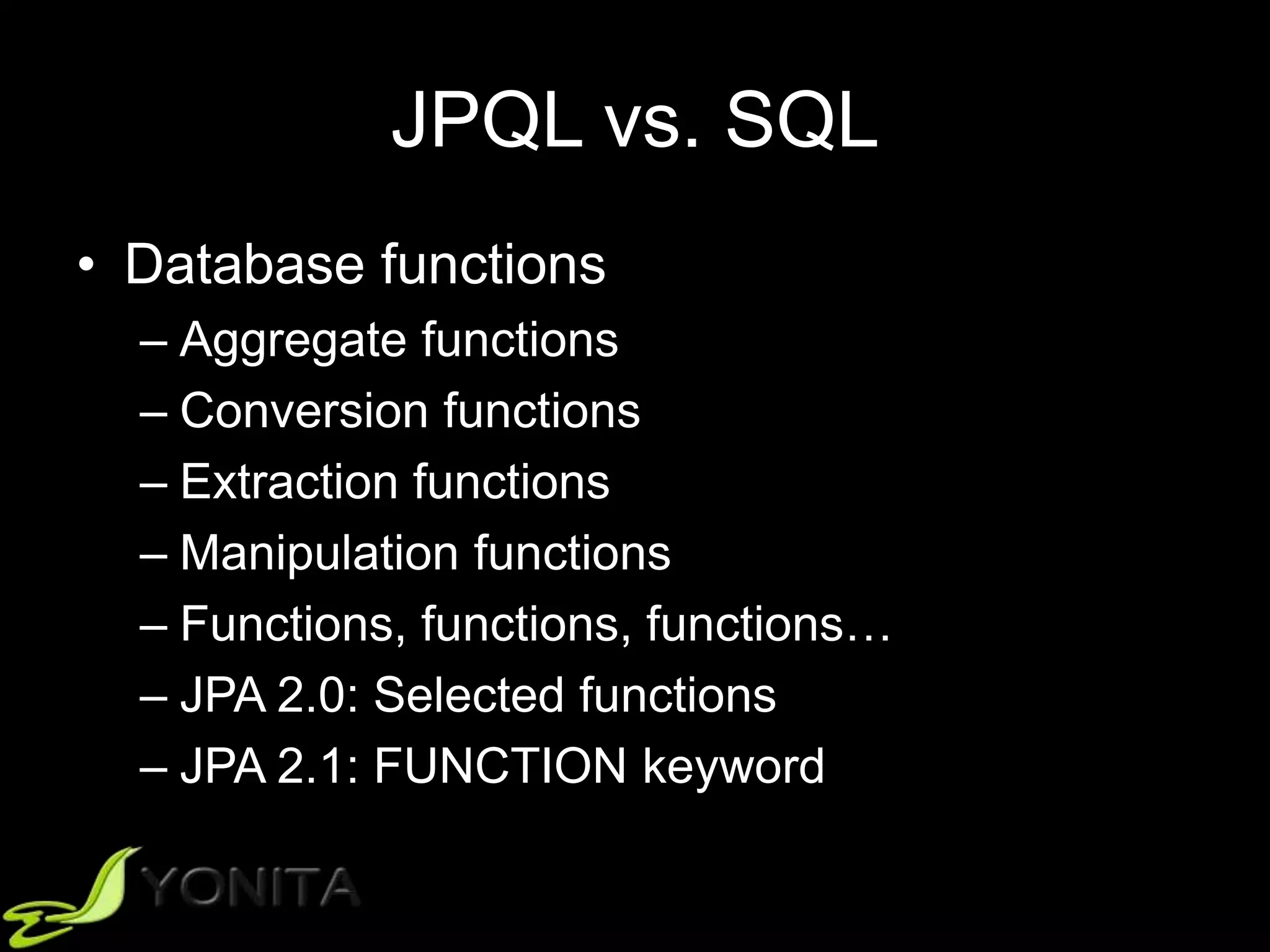

58. JPQL vs. SQL
• Database functions
– Aggregate functions
– Conversion functions
– Extraction functions
– Manipulation functions
– Functions, functions, functions…
– JPA 2.0: Selected functions
– JPA 2.1: FUNCTION keyword

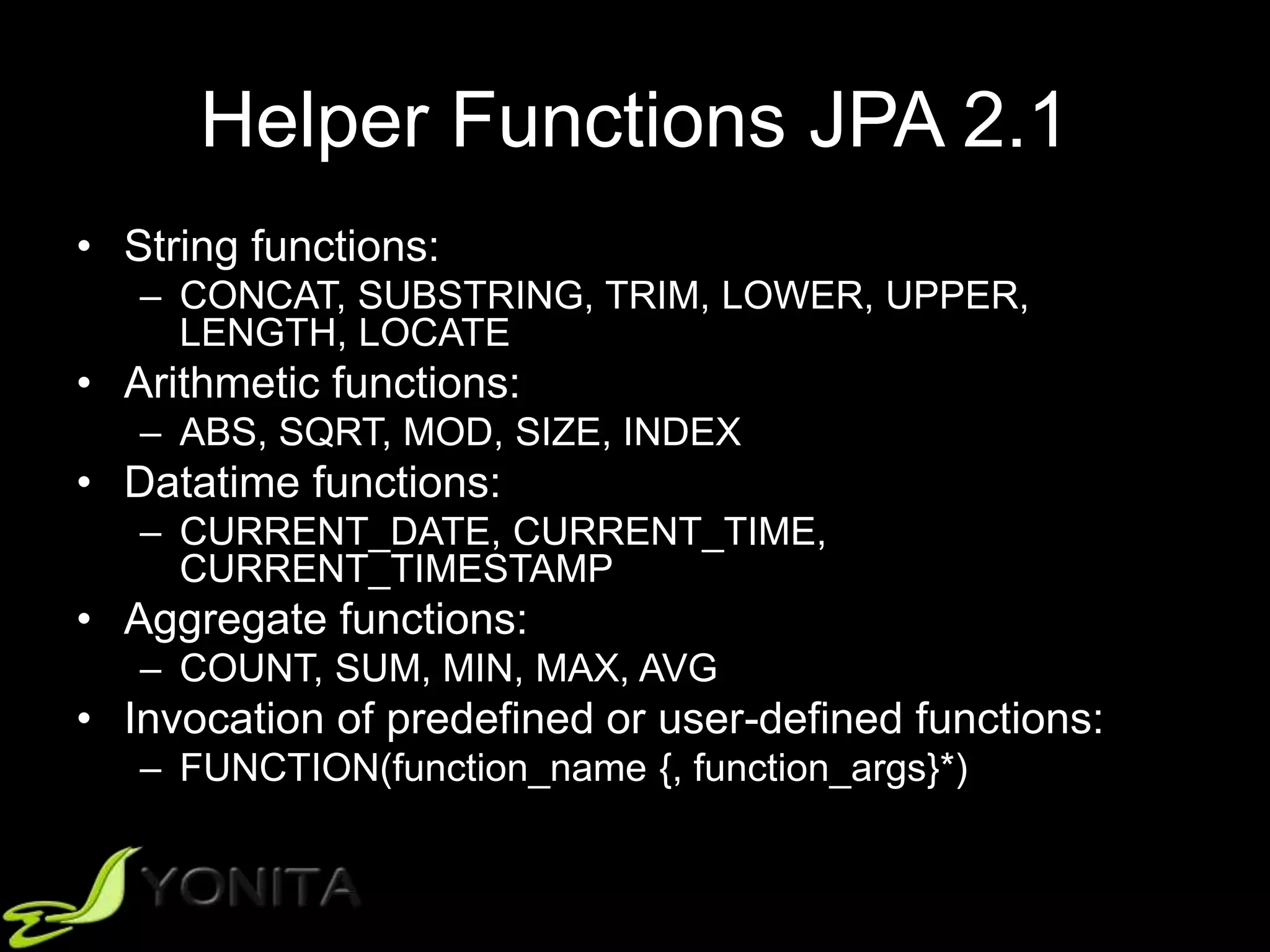

59. Helper Functions JPA 2.1
• String functions:
– CONCAT, SUBSTRING, TRIM, LOWER, UPPER,
LENGTH, LOCATE
• Arithmetic functions:
– ABS, SQRT, MOD, SIZE, INDEX
• Datatime functions:
– CURRENT_DATE, CURRENT_TIME,
CURRENT_TIMESTAMP
• Aggregate functions:
– COUNT, SUM, MIN, MAX, AVG
• Invocation of predefined or user-defined functions:
– FUNCTION(function_name {, function_args}*)

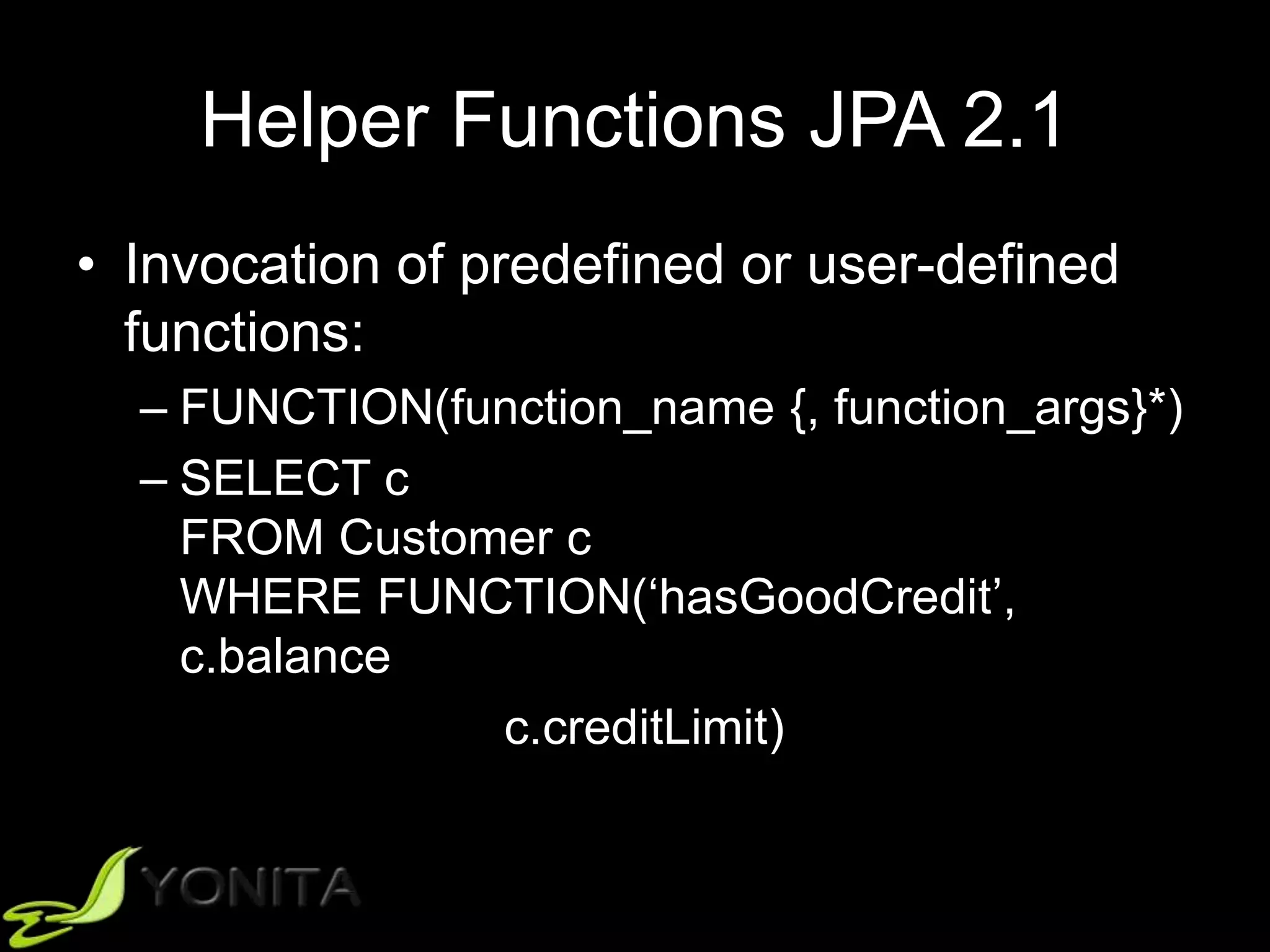

60. Helper Functions JPA 2.1
• Invocation of predefined or user-defined
functions:
– FUNCTION(function_name {, function_args}*)
– SELECT c
FROM Customer c
WHERE FUNCTION(‘hasGoodCredit’,
c.balance
c.creditLimit)

61. JPA 2.1

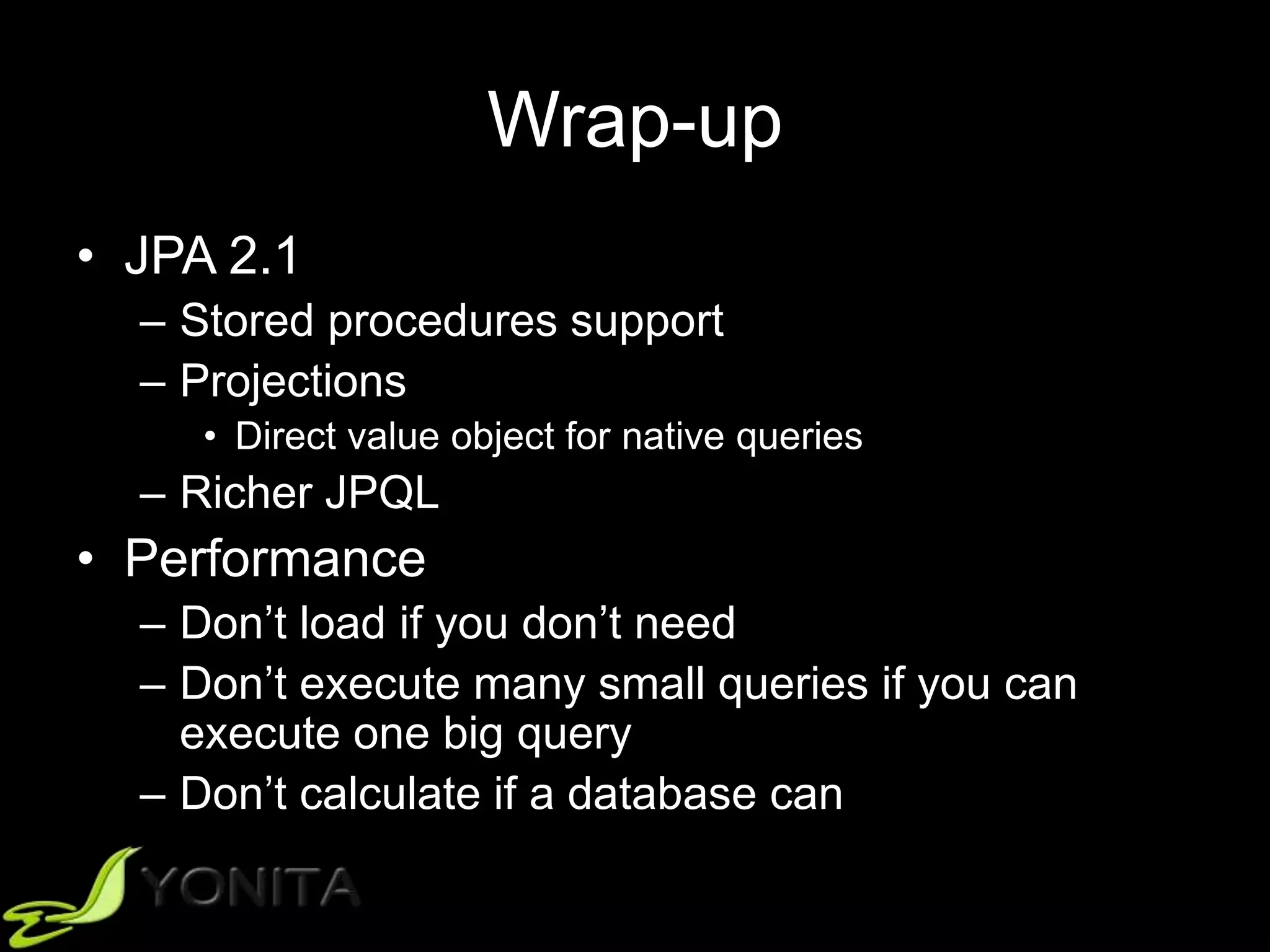

62. Wrap-up
• JPA 2.1
– Stored procedures support
– Projections
• Direct value object for native queries
– Richer JPQL
• Performance
– Don’t load if you don’t need
– Don’t execute many small queries if you can
execute one big query
– Don’t calculate if a database can

63. Continuous Learning Paradigm
• A fool with a tool is still a fool
• Let’s educate ourselves! 

64. Q&A
patrycja@yonita.com
@yonlabs
