Thermogym is a company that specializes in designing and manufacturing customized heat exchangers and thermal solutions. They have over 9 years of experience working with clients in industries like electronics, lasers, and medical devices. Thermogym offers a full range of thermal engineering services from design to production to meet clients' customized needs.

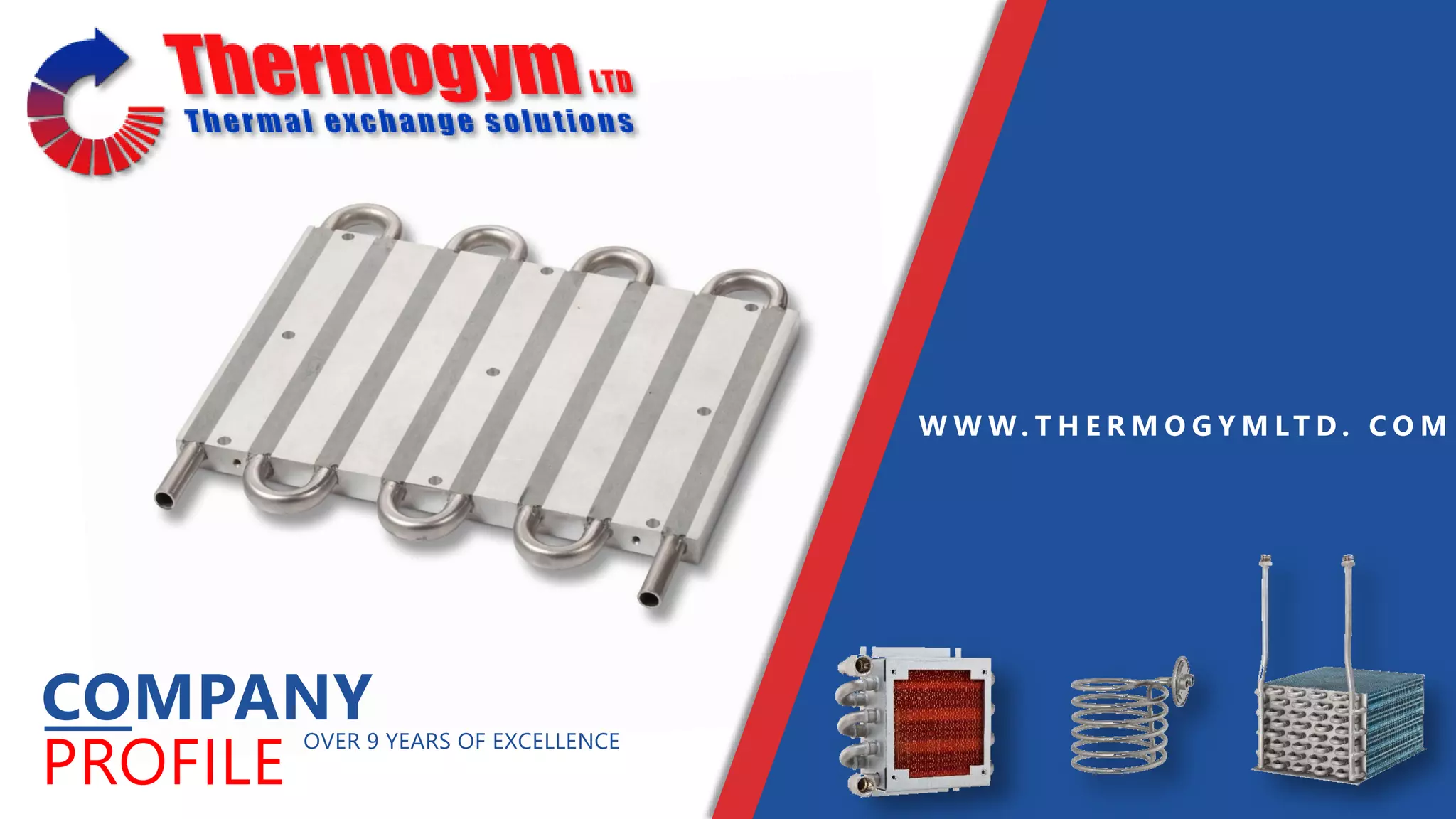

1. COMPANY
PROFILE
OVER 9 YEARS OF EXCELLENCE
W W W . T H E R M O G Y M LT D . C O M

2. We at Thermogym are a team of experts
specializing in the design and production of
customized heat exchangers. we see the growing
need of cost-efficient, durable and custom made
solutions across different technology savvy
industries. Understanding our client’s needs
while paying attention to details enabled us to
support our clients R&D in key areas
comprehensively and professionally. All the while
ensuring perfect fit, satisfaction and always ahead
of schedule.
We look forward to solve any thermal-mechanic
challenge that our customers may face in the
future.
WELCOME
MESSAGE

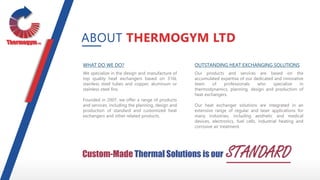

3. WHAT DO WE DO?
We specialize in the design and manufacture of
top quality heat exchangers based on 316L
stainless steel tubes and copper, aluminum or
stainless steel fins.
Founded in 2007, we offer a range of products
and services, including the planning, design and
production of standard and customized heat
exchangers and other related products.
OUTSTANDING HEAT EXCHANGING SOLUTIONS
Our products and services are based on the
accumulated expertise of our dedicated and innovative
team of professionals who specialize in
thermodynamics, planning, design and production of
heat exchangers.
Our heat exchanger solutions are integrated in an
extensive range of regular and laser applications for
many industries, including aesthetic and medical
devices, electronics, fuel cells, industrial heating and
corrosive air treatment.
ABOUT THERMOGYM LTD
Custom-Made Thermal Solutions is our STANDARD

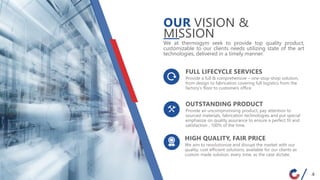

4. Provide an uncompromising product, pay attention to
sourced materials, fabrication technologies and put special
emphasize on quality assurance to ensure a perfect fit and
satisfaction , 100% of the time.
OUTSTANDING PRODUCT
We at thermogym seek to provide top quality product,
customizable to our clients needs utilizing state of the art
technologies, delivered in a timely manner.
Provide a full & comprehensive – one-stop-shop solution,
from design to fabrication covering full logistics from the
factory’s floor to customers office.
FULL LIFECYCLE SERVICES
We aim to revolutionize and disrupt the market with our
quality, cost efficient solutions, available for our clients as
custom made solution, every time, as the case dictate.
HIGH QUALITY, FAIR PRICE
OUR VISION &
MISSION
4

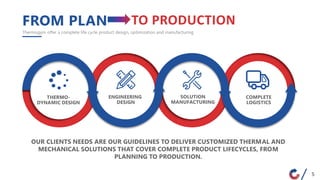

5. FROM PLAN
Thermogym offer a complete life cycle product design, optimization and manufacturing
LOGISTICSOUR CLIENTS NEEDS ARE OUR GUIDELINES TO DELIVER CUSTOMIZED THERMAL AND
MECHANICAL SOLUTIONS THAT COVER COMPLETE PRODUCT LIFECYCLES, FROM
PLANNING TO PRODUCTION.
THERMO-
DYNAMIC DESIGN
ENGINEERING
DESIGN
SOLUTION
MANUFACTURING
COMPLETE
LOGISTICS
5
TO PRODUCTION

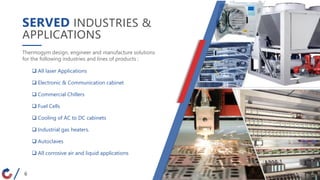

6. SERVED INDUSTRIES &
APPLICATIONS
Thermogym design, engineer and manufacture solutions
for the following industries and lines of products :
 All laser Applications
 Electronic & Communication cabinet
 Commercial Chillers
 Fuel Cells
 Cooling of AC to DC cabinets
 Industrial gas heaters.
 Autoclaves
 All corrosive air and liquid applications
6
6

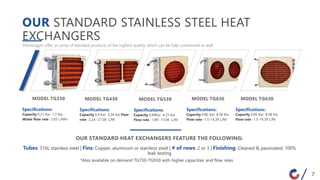

7. OUR STANDARD STAINLESS STEEL HEAT
EXCHANGERS
Thermogym offer an array of standard products of the highest quality, which can be fully customized as well
Specifications:
Capacity 0.21 Kw- 1.2 Kw
Water flow rate -2.65 L/Min
MODEL TG330
Specifications:
Capacity 0.4 Kw- 3.24 Kw Flow
rate -2.24 -21.58 L/M
MODEL TG430
Specifications:
Capacity 0.49Kw- 4.23 Kw
Flow rate -1.89 -17.04 L/M
MODEL TG530
Specifications:
Capacity 0.85 Kw- 8.58 Kw
Flow rate -1.5-14.39 L/M
MODEL TG630
Specifications:
Capacity 0.85 Kw- 8.58 Kw
Flow rate -1.5-14.39 L/M
MODEL TG630
OUR STANDARD HEAT EXCHANGERS FEATURE THE FOLLOWING:
Tubes: 316L stainless steel | Fins: Copper, aluminum or stainless steel | # of rows: 2 or 3 | Finishing: Cleaned & passivated; 100%
leak testing
*Also available on demand TG730-TG930 with higher capacities and flow rates
7

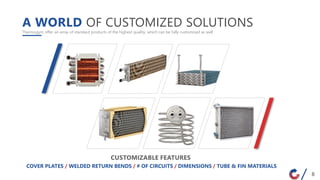

8. A WORLD OF CUSTOMIZED SOLUTIONS
Thermogym offer an array of standard products of the highest quality, which can be fully customized as well
COVER PLATES / WELDED RETURN BENDS / # OF CIRCUITS / DIMENSIONS / TUBE & FIN MATERIALS
CUSTOMIZABLE FEATURES
8

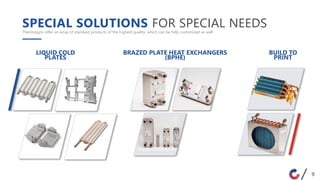

9. SPECIAL SOLUTIONS FOR SPECIAL NEEDSThermogym offer an array of standard products of the highest quality, which can be fully customized as well
BRAZED PLATE HEAT EXCHANGERS
(BPHE)
LIQUID COLD
PLATES
BUILD TO
PRINT
9

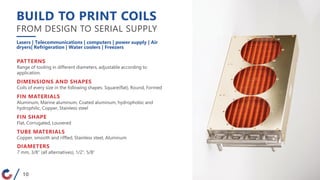

10. BUILD TO PRINT COILS
FROM DESIGN TO SERIAL SUPPLY
Lasers | Telecommunications | computers | power supply | Air
dryers| Refrigeration | Water coolers | Freezers
PATTERNS
Range of tooling in different diameters, adjustable according to
application.
DIMENSIONS AND SHAPES
Coils of every size in the following shapes: Square(flat), Round, Formed
FIN MATERIALS
Aluminum, Marine aluminum, Coated aluminum, hydrophobic and
hydrophilic, Copper, Stainless steel
FIN SHAPE
Flat, Corrugated, Louvered
TUBE MATERIALS
Copper, smooth and riffled, Stainless steel, Aluminum
DIAMETERS
7 mm, 3/8″ (all alternatives), 1/2″, 5/8″
10

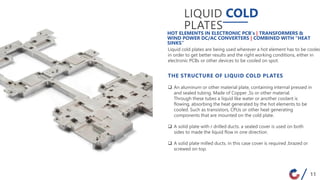

11. LIQUID COLD
PLATES
Liquid cold plates are being used wherever a hot element has to be cooled
in order to get better results and the right working conditions, either in
electronic PCBs or other devices to be cooled on spot.
HOT ELEMENTS IN ELECTRONIC PCB’s | TRANSFORMERS &
WIND POWER DC/AC CONVERTERS | COMBINED WITH “HEAT
SINKS”
THE STRUCTURE OF LIQUID COLD PLATES
 An aluminum or other material plate, containing internal pressed in
and sealed tubing. Made of Copper ,Ss or other material.
Through these tubes a liquid like water or another coolant is
flowing, absorbing the heat generated by the hot elements to be
cooled. Such as transistors, CPUs or other heat generating
components that are mounted on the cold plate.
 A solid plate with r drilled ducts. a sealed cover is used on both
sides to made the liquid flow in one direction.
 A solid plate milled ducts. in this case cover is required ,brazed or
screwed on top.
11

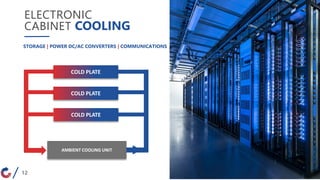

12. ELECTRONIC
CABINET COOLING
STORAGE | POWER DC/AC CONVERTERS | COMMUNICATIONS
AMBIENT COOLING UNIT
COLD PLATE
COLD PLATE
COLD PLATE
12

13. COLD PLATES
TECHNICAL CAPABILITIES
13
PROCESSING CAPABILITIES
WELDING METHODS
QUALITY ASSURANCE TESTS
SUB ASSEMBLY
EXTRUSION / FORGING / MACHINING
ARGON ARC / DEEP & VACUUM BRAZING /
SOLDERING
HEAT SINKS / VARIOUS TYPES OF TUBING
LEAKAGE TEST / VISUAL INSPECTIONS

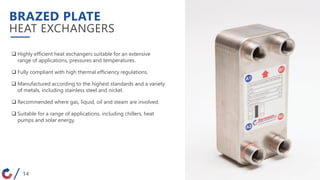

14. BRAZED PLATE
HEAT EXCHANGERS
 Highly efficient heat exchangers suitable for an extensive
range of applications, pressures and temperatures.
 Fully compliant with high thermal efficiency regulations.
 Manufactured according to the highest standards and a variety
of metals, including stainless steel and nickel.
 Recommended where gas, liquid, oil and steam are involved.
 Suitable for a range of applications, including chillers, heat
pumps and solar energy.
14

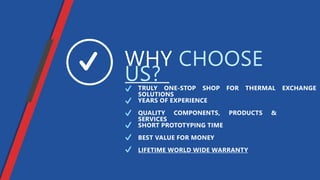

15. WHY CHOOSE
US?TRULY ONE-STOP SHOP FOR THERMAL EXCHANGE
SOLUTIONS
QUALITY COMPONENTS, PRODUCTS &
SERVICES
SHORT PROTOTYPING TIME
BEST VALUE FOR MONEY
LIFETIME WORLD WIDE WARRANTY
YEARS OF EXPERIENCE

16. Our company is well positioned to cater your next solution
OUR GLOBAL
REACH
16
HEADQUARTERS
EUROPE
BRANCHUSA
BRANCH

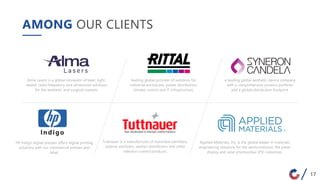

17. AMONG OUR CLIENTS
Alma Lasers is a global innovator of laser, light-
based, radio-frequency and ultrasound solutions
for the aesthetic and surgical markets.
HP Indigo digital presses offers digital printing
solutions with our commercial presses and
label.
leading global provider of solutions for
industrial enclosures, power distribution,
climate control and IT infrastructure.
Tuttnauer is a manufacturer of autoclave sterilizers,
plasma sterilizers, washer disinfectors and other
infection control products.
a leading global aesthetic device company
with a comprehensive product portfolio
and a global distribution footprint.
Applied Materials, Inc. is the global leader in materials
engineering solutions for the semiconductor, flat panel
display and solar photovoltaic (PV) industries.
17

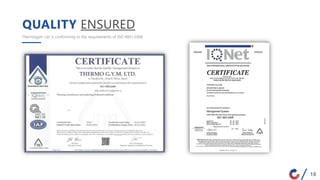

18. QUALITY ENSURED
Thermogym Ltd is conforming to the requirements of ISO 9001:2008
18

19. They are here to share their extensive
knowledge and expertise to make sure your
requirements are met in the best way
possible.
TRUST
OUR PRO.
TEAM
Thermal Analysis & Design
Mechanical Design
Leakage Test
Coating Recommendations

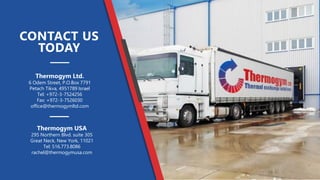

20. CONTACT US
TODAY
Thermogym Ltd.
6 Odem Street, P.O.Box 7791
Petach Tikva, 4951789 Israel
Tel: +972-3-7524256
Fax: +972-3-7526030
office@thermogymltd.com
Thermogym USA
295 Northern Blvd. suite 305
Great Neck, New York, 11021
Tel: 516.773.8086
rachel@thermogymusa.com
