The Xtext Grammar Language

Xtext Grammar Language
Jan Köhnlein
2014, Kiel

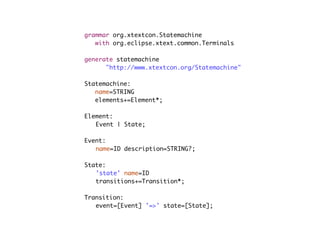

grammar org.xtextcon.Statemachine
with org.eclipse.xtext.common.Terminals
!
generate statemachine
"http://www.xtextcon.org/Statemachine"
!
Statemachine:
name=STRING
elements+=Element*;
!
Element:
Event | State;

Event:
name=ID description=STRING?;
!
State:
'state' name=ID
transitions+=Transition*;
!
Transition:
event=[Event] '=>' state=[State];

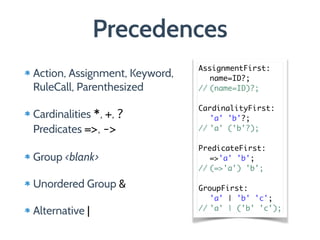

Precedences
Action, Assignment, Keyword,  
RuleCall, Parenthesized
Cardinalities *, +, ? 
Predicates =>, ->
Group <blank>
Unordered Group &
Alternative |
AssignmentFirst:
name=ID?;
// (name=ID)?;
!
CardinalityFirst:
'a' 'b'?;
// 'a' ('b'?);
!
PredicateFirst:
=>'a' 'b';
// (=>'a') 'b';
!
GroupFirst:
'a' | 'b' 'c';
// 'a' | ('b' 'c');

!
!
Statemachine:
name=STRING
('events' events+=Event+)?
states+=State*;
!
Event:
!
State:
'state' name=ID
!
Transition:
event=[Event|ID] '=>' state=[State|ID];

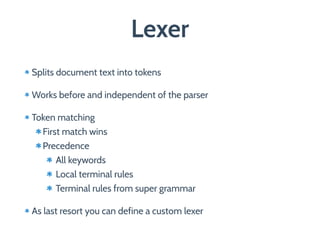

Lexer
Splits document text into tokens
Works before and independent of the parser
Token matching
First match wins
Precedence
All keywords
Local terminal rules
Terminal rules from super grammar
As last resort you can define a custom lexer

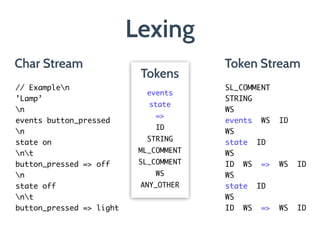

Lexing
// Examplen
’Lamp’
n
events button_pressed
n
state on
nt
button_pressed => off
n
state off
nt
button_pressed => light
SL_COMMENT
STRING
WS
events WS ID
WS
state ID
WS
ID WS => WS ID
WS
state ID
WS
ID WS => WS ID
events 
state 
=> 
ID 
STRING 
ML_COMMENT 
SL_COMMENT
WS
ANY_OTHER
Tokens
Token StreamChar Stream

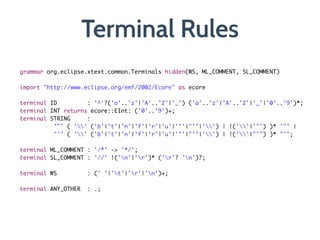

Terminal Rules
grammar org.eclipse.xtext.common.Terminals hidden(WS, ML_COMMENT, SL_COMMENT)

import "http://www.eclipse.org/emf/2002/Ecore" as ecore
!
terminal ID : '^'?('a'..'z'|'A'..'Z'|'_') ('a'..'z'|'A'..'Z'|'_'|'0'..'9')*;
terminal INT returns ecore::EInt: ('0'..'9')+;
terminal STRING :
'"' ( '' ('b'|'t'|'n'|'f'|'r'|'u'|'"'|"'"|'') | !(''|'"') )* '"' |
"'" ( '' ('b'|'t'|'n'|'f'|'r'|'u'|'"'|"'"|'') | !(''|"'") )* "'";

terminal ML_COMMENT : '/*' -> '*/';
terminal SL_COMMENT : '//' !('n'|'r')* ('r'? 'n')?;
!
terminal WS : (' '|'t'|'r'|'n')+;
!
terminal ANY_OTHER : .;

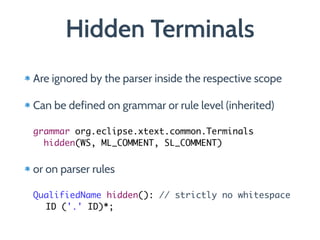

Hidden Terminals
Are ignored by the parser inside the respective scope
Can be defined on grammar or rule level (inherited) 
 
grammar org.eclipse.xtext.common.Terminals  
hidden(WS, ML_COMMENT, SL_COMMENT)
or on parser rules 
 
QualifiedName hidden(): // strictly no whitespace
ID ('.' ID)*;

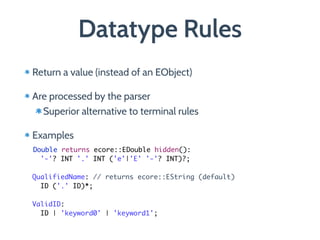

Datatype Rules
Return a value (instead of an EObject)
Are processed by the parser
Superior alternative to terminal rules
Examples 
 
Double returns ecore::EDouble hidden(): 
'-'? INT '.' INT ('e'|'E' '-'? INT)?; 
 
QualifiedName: // returns ecore::EString (default) 
ID ('.' ID)*; 
 
ValidID: 
ID | 'keyword0' | 'keyword1';

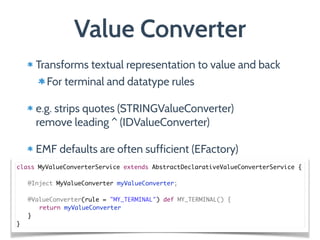

Transforms textual representation to value and back
For terminal and datatype rules
e.g. strips quotes (STRINGValueConverter) 
remove leading ^ (IDValueConverter)
EMF defaults are often sufficient (EFactory)
Value Converter
class MyValueConverterService extends AbstractDeclarativeValueConverterService {

@Inject MyValueConverter myValueConverter;
!
@ValueConverter(rule = "MY_TERMINAL") def MY_TERMINAL() {
return myValueConverter
}
}

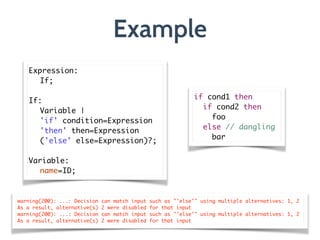

Example
Expression:
If;

If:
Variable |
'if' condition=Expression
'then' then=Expression
('else' else=Expression)?;

Variable:
name=ID;
warning(200): ...: Decision can match input such as "'else'" using multiple alternatives: 1, 2
As a result, alternative(s) 2 were disabled for that input
warning(200): ...: Decision can match input such as "'else'" using multiple alternatives: 1, 2
As a result, alternative(s) 2 were disabled for that input
if cond1 then
if cond2 then
foo
else // dangling
bar

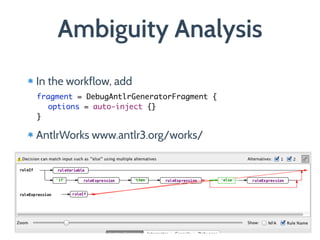

Ambiguity Analysis
In the workflow, add
!
AntlrWorks www.antlr3.org/works/
fragment = DebugAntlrGeneratorFragment {
options = auto-inject {}
}

Ambiguity Resolution
Add keywords
Use syntactic predicates: 
“If the predicated element matches in the current
decision, decide for it.”
plain 
(=>'else' else=Expression)?;  
=>('else' else=Expression)?; // not so good
first-set 
->('else' else=Expression)?;

!
!
Statemachine returns Statemachine:
name=STRING
('events' events+=Event+)?
states+=State*;
!
Event returns Event:
!
State returns State:
'state' name=ID
!
Transition returns Transition:
event=[Event|ID] '=>' state=[State|ID];
statemachine
name : String
Statemachine
name : String
Transition
name : String
State
name : String
description: String
Event
*
* *states events
transitions
event1
1
state

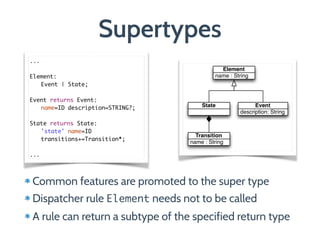

Supertypes
...
!
Element:
Event | State;
!
Event returns Event:
!
State returns State:
'state' name=ID
!
...
description: String
EventState
name : String
Element
name : String
Transition
Common features are promoted to the super type
Dispatcher rule Element needs not to be called
A rule can return a subtype of the specified return type

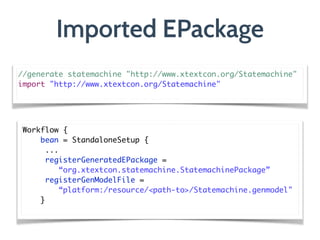

Imported EPackage
Workflow {
bean = StandaloneSetup {
...
registerGeneratedEPackage = 
“org.xtextcon.statemachine.StatemachinePackage”
registerGenModelFile =  
“platform:/resource/<path-to>/Statemachine.genmodel"
}
//generate statemachine "http://www.xtextcon.org/Statemachine"
import "http://www.xtextcon.org/Statemachine"

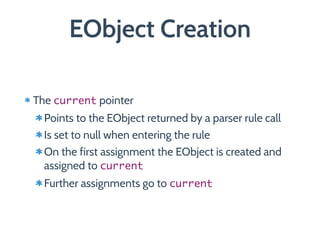

EObject Creation
The current pointer
Points to the EObject returned by a parser rule call
Is set to null when entering the rule
On the first assignment the EObject is created and
assigned to current
Further assignments go to current

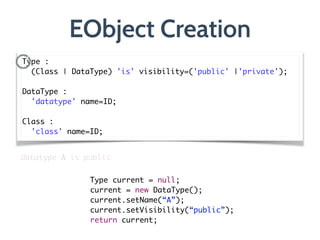

EObject Creation
Type :
(Class | DataType) 'is' visibility=('public' |'private');

DataType :
'datatype' name=ID;

Class :
'class' name=ID;
datatype A is public
Type current = null;
current = new DataType();
current.setName(“A”);
current.setVisibility(“public”);
return current;

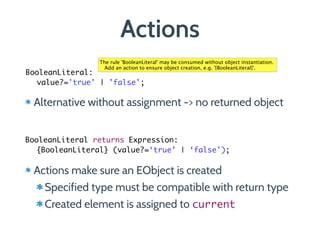

Actions
Alternative without assignment -> no returned object 
 
 
Actions make sure an EObject is created
Specified type must be compatible with return type
Created element is assigned to current
BooleanLiteral:
value?='true' | 'false';
BooleanLiteral returns Expression:
{BooleanLiteral} (value?=‘true’ | ‘false');
The rule 'BooleanLiteral' may be consumed without object instantiation.
Add an action to ensure object creation, e.g. '{BooleanLiteral}'.

Left Recursion
Expression :
Expression '+' Expression |
Number;
!
Number :
value = INT;
The rule 'Expression' is left recursive.

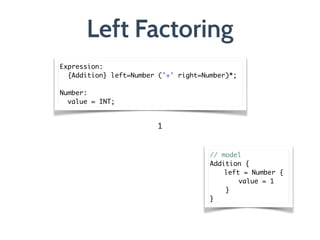

Left Factoring
Expression:
{Addition} left=Number ('+' right=Number)*;

Number:
value = INT;
1
// model
Addition {
left = Number {
value = 1
}
}

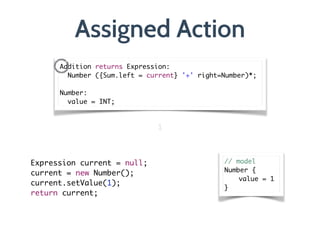

Assigned Action
Addition returns Expression:
Number ({Sum.left = current} '+' right=Number)*;

Number:
value = INT;
1
Expression current = null;
current = new Number();
current.setValue(1);
return current;
// model
Number {
value = 1
}

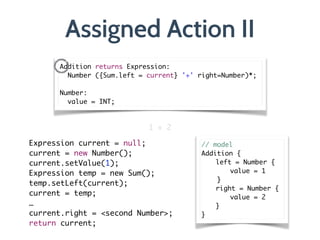

Assigned Action II
Addition returns Expression:
Number ({Sum.left = current} '+' right=Number)*;

Number:
value = INT;
1 + 2
Expression current = null;
current = new Number();
current.setValue(1);
Expression temp = new Sum();
temp.setLeft(current);
current = temp;
…
current.right = <second Number>;
return current;
// model
Addition {
left = Number {
value = 1
}
right = Number {
value = 2
}
}

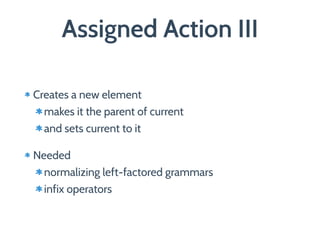

Assigned Action III
Creates a new element
makes it the parent of current
and sets current to it
Needed
normalizing left-factored grammars
infix operators

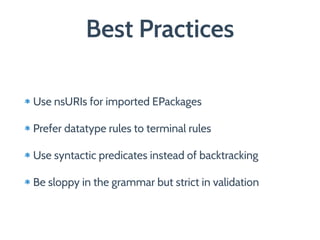

Best Practices
Use nsURIs for imported EPackages
Prefer datatype rules to terminal rules
Use syntactic predicates instead of backtracking
Be sloppy in the grammar but strict in validation
