Scoping, Linking andIndexing Jan Köhnlein / Moritz Eysholdt – itemis AG

2.
Agenda I. Overview II. ScopeUsage III. Scope Implementation IV. The Index V. Best Practices

3.
I. Overview

4.

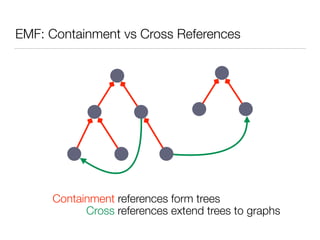

EMF: Containment vsCross References Containment references form trees Cross references extend trees to graphs

5.

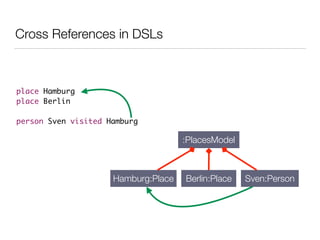

Cross References inDSLs :PlacesModel Hamburg:Place Berlin:Place Sven:Person place Hamburg place Berlin ! person Sven visited Hamburg

6.

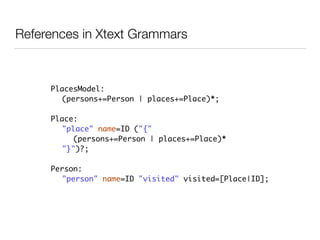

PlacesModel: (persons+=Person |places+=Place)*; ! Place: "place" name=ID ("{" (persons+=Person | places+=Place)* "}")?; ! Person: "person" name=ID "visited" visited=[Place|ID]; References in Xtext Grammars

7.

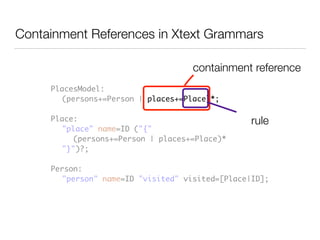

PlacesModel: (persons+=Person |places+=Place)*; ! Place: "place" name=ID ("{" (persons+=Person | places+=Place)* "}")?; ! Person: "person" name=ID "visited" visited=[Place|ID]; Containment References in Xtext Grammars containment reference rule

8.
PlacesModel: (persons+=Person |places+=Place)*; ! Place: "place" name=ID ("{" (persons+=Person | places+=Place)* "}")?; ! Person: "person" name=ID "visited" visited=[Place|ID]; Cross References in Xtext Grammars cross reference target EClass identiﬁer syntax

9.

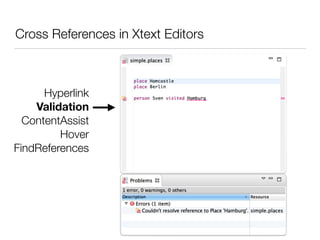

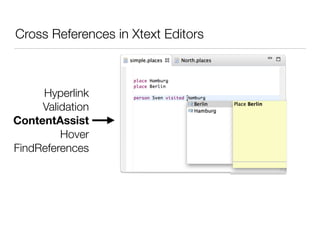

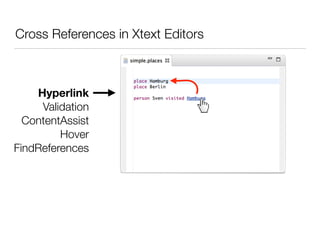

Cross References inXtext Editors Hyperlink Validation ContentAssist Hover FindReferences

10.

11.

12.

13.

14.
II. Scope Usage

15.

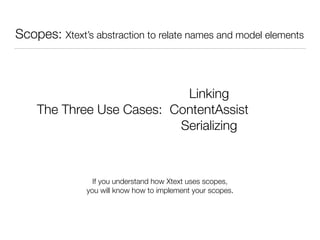

Scopes: Xtext’s abstractionto relate names and model elements Linking ContentAssist Serializing If you understand how Xtext uses scopes, you will know how to implement your scopes. The Three Use Cases:

16.
Scopes: The ThreeUse Cases: Linking ContentAssist Serializing Linking

17.

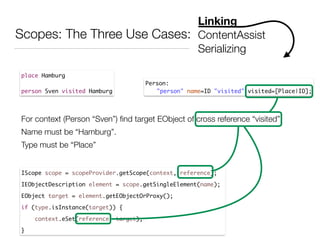

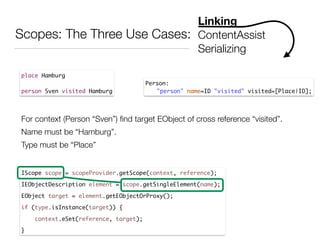

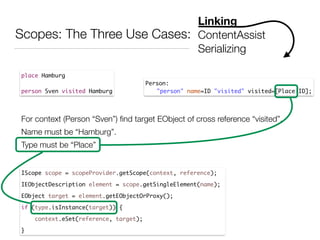

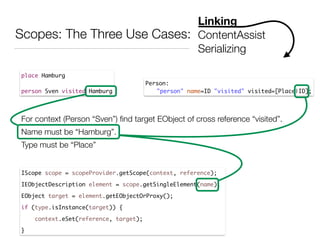

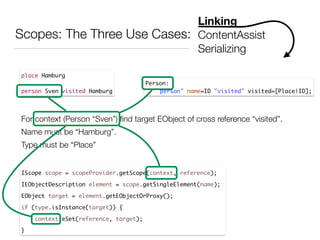

Scopes: The ThreeUse Cases: Linking ContentAssist Serializing place Hamburg ! person Sven visited Hamburg Person: "person" name=ID "visited" visited=[Place|ID]; IScope scope = scopeProvider.getScope(context, reference); IEObjectDescription element = scope.getSingleElement(name); EObject target = EcoreUtil.resolve(element.getEObjectOrProxy(), context); if (type.isInstance(target)) { context.eSet(reference, target); } Parsed Document Grammar Xtext’s linking implementation

18.

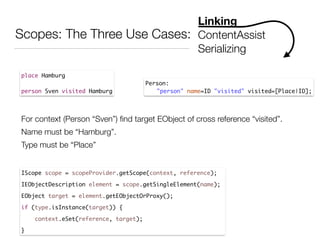

Scopes: The ThreeUse Cases: Linking ContentAssist Serializing place Hamburg ! person Sven visited Hamburg Person: "person" name=ID "visited" visited=[Place|ID]; For context (Person “Sven”) ﬁnd target EObject of cross reference “visited”. Name must be “Hamburg”. Type must be “Place” IScope scope = scopeProvider.getScope(context, reference); IEObjectDescription element = scope.getSingleElement(name); EObject target = element.getEObjectOrProxy(); if (type.isInstance(target)) { context.eSet(reference, target); }

19.

20.

21.

22.

23.

24.

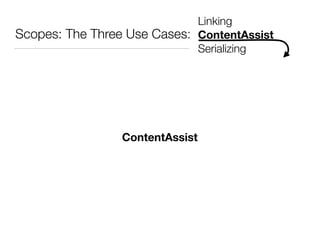

Scopes: The ThreeUse Cases: Linking ContentAssist Serializing ContentAssist

25.

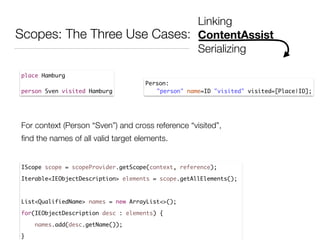

Scopes: The ThreeUse Cases: Linking ContentAssist Serializing place Hamburg ! person Sven visited Hamburg Person: "person" name=ID "visited" visited=[Place|ID]; For context (Person “Sven”) and cross reference “visited”, ﬁnd the names of all valid target elements. IScope scope = scopeProvider.getScope(context, reference); Iterable<IEObjectDescription> elements = scope.getAllElements(); List<QualifiedName> names = new ArrayList<>(); for(IEObjectDescription desc : elements) { names.add(desc.getName()); }

26.
Scopes: The ThreeUse Cases: Linking ContentAssist Serializing place Hamburg ! person Sven visited Hamburg Person: "person" name=ID "visited" visited=[Place|ID]; For context (Person “Sven”) and cross reference “visited”, ﬁnd the names of all valid target elements. IScope scope = scopeProvider.getScope(context, reference); Iterable<IEObjectDescription> elements = scope.getAllElements(); List<QualifiedName> names = new ArrayList<>(); for(IEObjectDescription desc : elements) { names.add(desc.getName()); }

27.

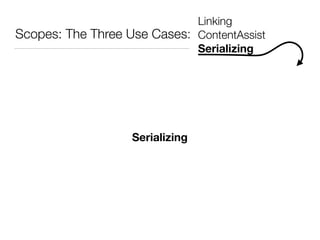

Scopes: The ThreeUse Cases: Linking ContentAssist Serializing Serializing

28.

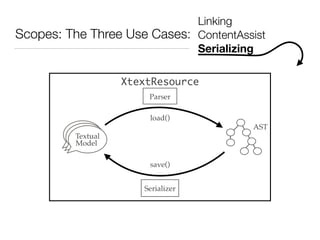

Scopes: The ThreeUse Cases: Linking ContentAssist Serializing Serializing XtextResource ModelModelTextual! Model AST Parser Serializer load() save()

29.

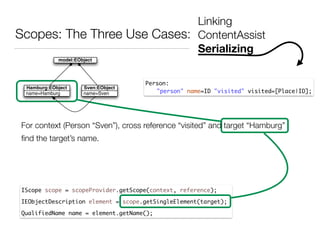

Scopes: The ThreeUse Cases: Linking ContentAssist Serializing Person: "person" name=ID "visited" visited=[Place|ID]; IScope scope = scopeProvider.getScope(context, reference); IEObjectDescription element = scope.getSingleElement(target); QualifiedName name = element.getName(); For context (Person “Sven”), cross reference “visited” and target “Hamburg” ﬁnd the target’s name. model:EObject name=Sven Sven:EObject name=Hamburg Hamburg:EObject

30.
Scopes: The ThreeUse Cases: Linking ContentAssist Serializing Person: "person" name=ID "visited" visited=[Place|ID]; IScope scope = scopeProvider.getScope(context, reference); IEObjectDescription element = scope.getSingleElement(target); QualifiedName name = element.getName(); For context (Person “Sven”), cross reference “visited” and target “Hamburg” ﬁnd the target’s name. model:EObject name=Sven Sven:EObject name=Hamburg Hamburg:EObject

31.

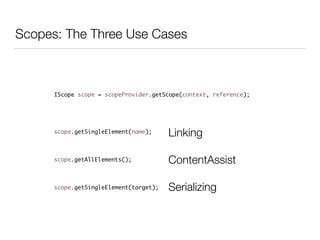

IScope scope =scopeProvider.getScope(context, reference); ! ! ! scope.getSingleElement(name); ! ! scope.getAllElements(); ! ! scope.getSingleElement(target); Scopes: The Three Use Cases Linking ContentAssist Serializing

32.

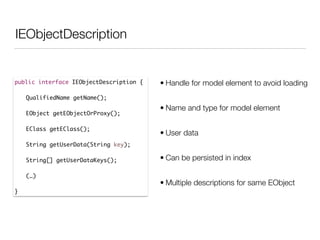

IEObjectDescription public interface IEObjectDescription{ QualifiedName getName(); ! EObject getEObjectOrProxy(); EClass getEClass(); String getUserData(String key); String[] getUserDataKeys(); ! (…) } • Handle for model element to avoid loading • Name and type for model element • User data • Can be persisted in index • Multiple descriptions for same EObject

33.

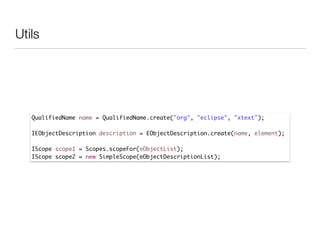

Utils QualifiedName name =QualifiedName.create("org", "eclipse", "xtext"); IEObjectDescription description = EObjectDescription.create(name, element); IScope scope1 = Scopes.scopeFor(eObjectList); IScope scope2 = new SimpleScope(eObjectDescriptionList);

34.
III. Scope Implementation

35.

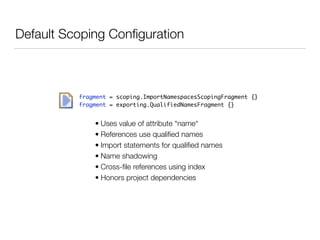

Default Scoping Configuration fragment= scoping.ImportNamespacesScopingFragment {} fragment = exporting.QualifiedNamesFragment {} • Uses value of attribute “name“ • References use qualified names • Import statements for qualified names • Name shadowing • Cross-file references using index • Honors project dependencies

36.

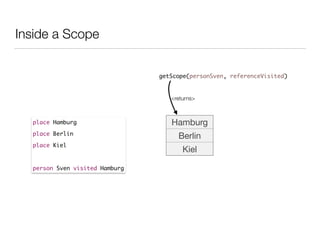

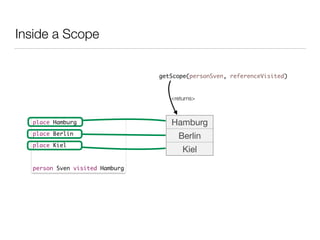

Inside a Scope placeHamburg place Berlin place Kiel ! person Sven visited Hamburg Hamburg Berlin Kiel getScope(personSven, referenceVisited) <returns>

37.
Inside a Scope placeHamburg place Berlin place Kiel ! person Sven visited Hamburg Hamburg Berlin Kiel getScope(personSven, referenceVisited) <returns>

38.

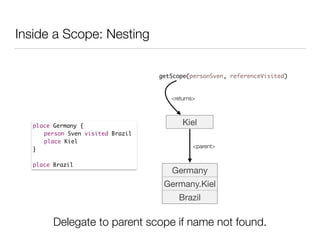

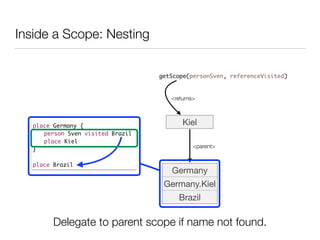

Inside a Scope:Nesting place Germany { person Sven visited Brazil place Kiel } ! place Brazil Kiel getScope(personSven, referenceVisited) <returns> Germany Germany.Kiel Brazil <parent> Delegate to parent scope if name not found.

39.
Inside a Scope:Nesting place Germany { person Sven visited Brazil place Kiel } ! place Brazil Kiel getScope(personSven, referenceVisited) <returns> Germany Germany.Kiel Brazil <parent>

40.
Inside a Scope:Nesting place Germany { person Sven visited Brazil place Kiel } ! place Brazil Kiel getScope(personSven, referenceVisited) <returns> Germany Germany.Kiel Brazil <parent> Delegate to parent scope if name not found.

41.

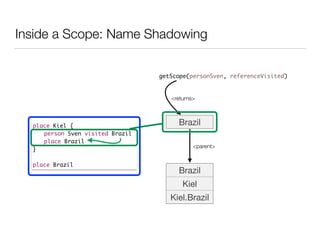

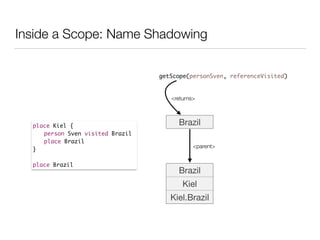

Inside a Scope:Name Shadowing place Kiel { person Sven visited Brazil place Brazil } ! place Brazil Brazil getScope(personSven, referenceVisited) <returns> Brazil Kiel Kiel.Brazil <parent>

42.
Inside a Scope:Name Shadowing place Kiel { person Sven visited Brazil place Brazil } ! place Brazil Brazil getScope(personSven, referenceVisited) <returns> Brazil Kiel Kiel.Brazil <parent>

43.

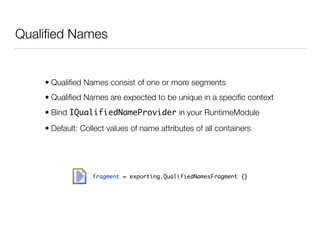

Qualified Names • QualifiedNames consist of one or more segments • Qualified Names are expected to be unique in a specific context • Bind IQualifiedNameProvider in your RuntimeModule • Default: Collect values of name attributes of all containers fragment = exporting.QualifiedNamesFragment {}

44.

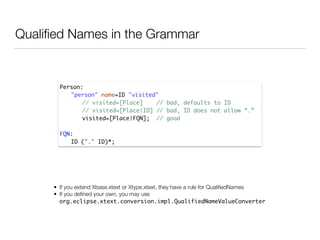

Qualified Names inthe Grammar Person: "person" name=ID "visited" // visited=[Place] // bad, defaults to ID // visited=[Place|ID] // bad, ID does not allow “.” visited=[Place|FQN]; // good ! FQN: ID ("." ID)*; • If you extend Xbase.xtext or Xtype.xtext, they have a rule for QualifiedNames • If you defined your own, you may use org.eclipse.xtext.conversion.impl.QualifiedNameValueConverter

45.

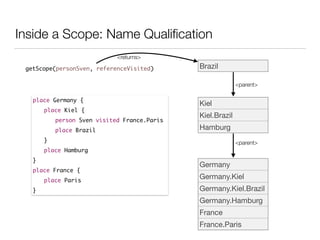

Inside a Scope:Name Qualiﬁcation place Germany { place Kiel { person Sven visited France.Paris place Brazil } place Hamburg } place France { place Paris } BrazilgetScope(personSven, referenceVisited) <returns> Kiel Kiel.Brazil Hamburg <parent> Germany Germany.Kiel Germany.Kiel.Brazil Germany.Hamburg France France.Paris <parent>

46.

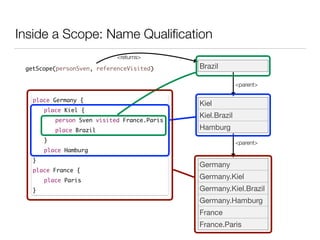

place Germany { place Kiel { person Sven visited France.Paris place Brazil } place Hamburg } place France { place Paris } Inside a Scope: Name Qualiﬁcation BrazilgetScope(personSven, referenceVisited) <returns> Kiel Kiel.Brazil Hamburg <parent> Germany Germany.Kiel Germany.Kiel.Brazil Germany.Hamburg France France.Paris <parent>

47.

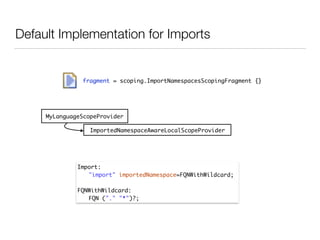

Default Implementation forImports fragment = scoping.ImportNamespacesScopingFragment {} Import: "import" importedNamespace=FQNWithWildcard; ! FQNWithWildcard: FQN ("." "*")?; MyLanguageScopeProvider ImportedNamespaceAwareLocalScopeProvider

48.

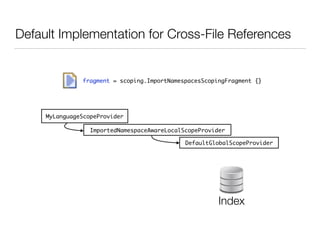

Default Implementation forCross-File References fragment = scoping.ImportNamespacesScopingFragment {} MyLanguageScopeProvider ImportedNamespaceAwareLocalScopeProvider DefaultGlobalScopeProvider Index

49.

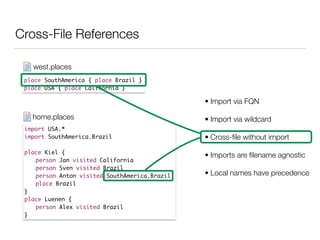

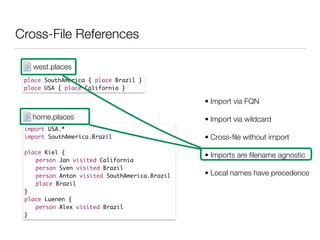

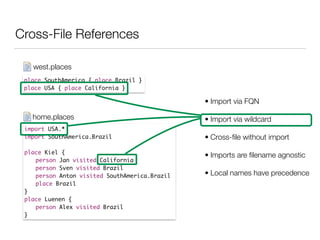

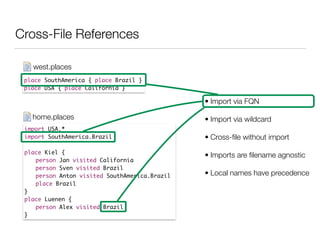

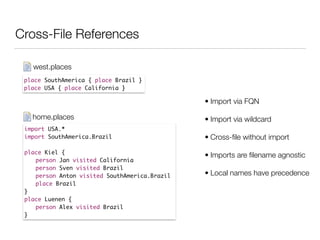

Cross-File References place SouthAmerica{ place Brazil } place USA { place California } west.places import USA.* import SouthAmerica.Brazil ! place Kiel { person Jan visited California person Sven visited Brazil person Anton visited SouthAmerica.Brazil place Brazil } place Luenen { person Alex visited Brazil } home.places • Import via FQN • Import via wildcard • Cross-ﬁle without import • Imports are ﬁlename agnostic • Local names have precedence

50.

51.

52.

53.

54.

55.

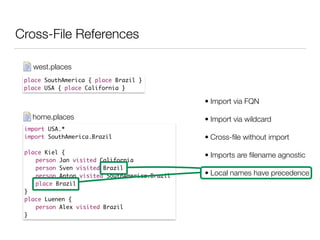

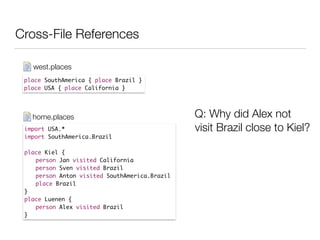

Cross-File References place SouthAmerica{ place Brazil } place USA { place California } west.places import USA.* import SouthAmerica.Brazil ! place Kiel { person Jan visited California person Sven visited Brazil person Anton visited SouthAmerica.Brazil place Brazil } place Luenen { person Alex visited Brazil } home.places Q: Why did Alex not visit Brazil close to Kiel?

56.
Cross-File References place SouthAmerica{ place Brazil } place USA { place California } west.places import USA.* import SouthAmerica.Brazil ! place Kiel { person Jan visited California person Sven visited Brazil person Anton visited SouthAmerica.Brazil place Brazil } place Luenen { person Alex visited Brazil } home.places Q: Why did Alex not visit Brazil close to Kiel? A: For context “Lünen” it has the name “Kiel.Brazil”

57.

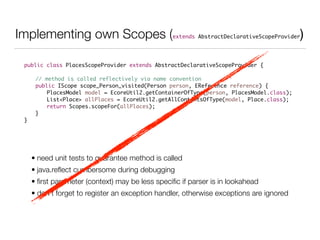

Implementing own Scopes(extends AbstractDeclarativeScopeProvider) public class PlacesScopeProvider extends AbstractDeclarativeScopeProvider { ! // method is called reflectively via name convention public IScope scope_Person_visited(Person person, EReference reference) { PlacesModel model = EcoreUtil2.getContainerOfType(person, PlacesModel.class); List<Place> allPlaces = EcoreUtil2.getAllContentsOfType(model, Place.class); return Scopes.scopeFor(allPlaces); } } • need unit tests to guarantee method is called • java.reflect cumbersome during debugging • first parameter (context) may be less specific if parser is in lookahead • don’t forget to register an exception handler, otherwise exceptions are ignored

58.

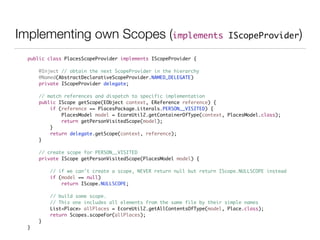

Implementing own Scopes(implements IScopeProvider) public class PlacesScopeProvider implements IScopeProvider { ! @Inject // obtain the next ScopeProvider in the hierarchy @Named(AbstractDeclarativeScopeProvider.NAMED_DELEGATE) private IScopeProvider delegate; ! // match references and dispatch to specific implementation public IScope getScope(EObject context, EReference reference) { if (reference == PlacesPackage.Literals.PERSON__VISITED) { PlacesModel model = EcoreUtil2.getContainerOfType(context, PlacesModel.class); return getPersonVisitedScope(model); } return delegate.getScope(context, reference); } ! // create scope for PERSON__VISITED private IScope getPersonVisitedScope(PlacesModel model) { // if we can't create a scope, NEVER return null but return IScope.NULLSCOPE instead if (model == null) return IScope.NULLSCOPE; // build some scope. // This one includes all elements from the same file by their simple names List<Place> allPlaces = EcoreUtil2.getAllContentsOfType(model, Place.class); return Scopes.scopeFor(allPlaces); } }

59.

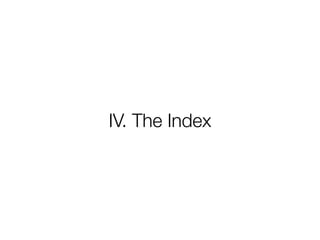

IV. The Index

60.

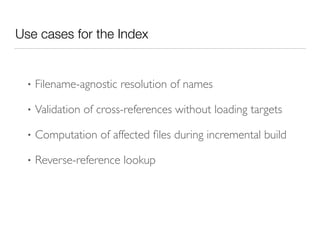

Use cases forthe Index • Filename-agnostic resolution of names • Validation of cross-references without loading targets • Computation of affected ﬁles during incremental build • Reverse-reference lookup

61.
Interactions with theIndex Index Builder Scoping <updates, reads> <reads> <reads> <reads>

62.

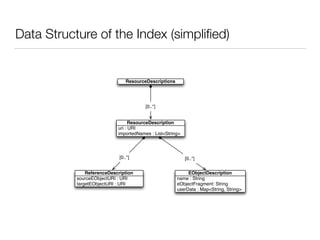

Data Structure ofthe Index (simpliﬁed) ResourceDescriptions uri : URI importedNames : List<String> ResourceDescription sourceEObjectURI : URI targetEObjectURI : URI ReferenceDescription name : String eObjectFragment: String userData : Map<String, String> EObjectDescription [0..*][0..*] [0..*]

63.

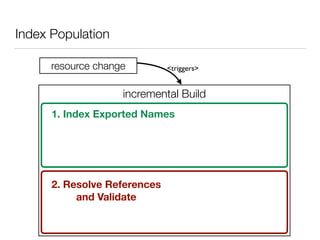

Index Population incremental Build resourcechange <triggers> 1. Index Exported Names 2. Resolve References and Validate

64.

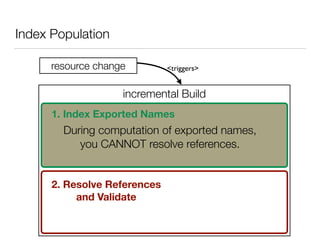

Index Population incremental Build resourcechange <triggers> During computation of exported names, you CANNOT resolve references. 1. Index Exported Names 2. Resolve References and Validate

65.

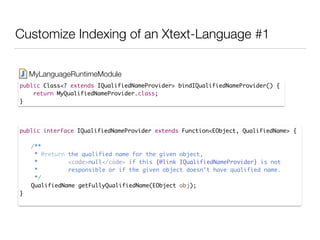

Customize Indexing ofan Xtext-Language #1 public Class<? extends IQualifiedNameProvider> bindIQualifiedNameProvider() { return MyQualifiedNameProvider.class; } MyLanguageRuntimeModule public interface IQualifiedNameProvider extends Function<EObject, QualifiedName> { ! /** * @return the qualified name for the given object, * <code>null</code> if this {@link IQualifiedNameProvider} is not * responsible or if the given object doesn't have qualified name. */ QualifiedName getFullyQualifiedName(EObject obj); }

66.

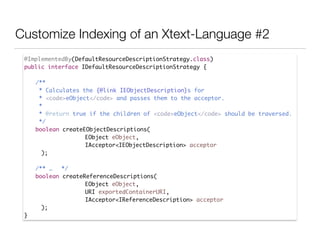

Customize Indexing ofan Xtext-Language #2 @ImplementedBy(DefaultResourceDescriptionStrategy.class) public interface IDefaultResourceDescriptionStrategy { ! /** * Calculates the {@link IEObjectDescription}s for * <code>eObject</code> and passes them to the acceptor. * * @return true if the children of <code>eObject</code> should be traversed. */ boolean createEObjectDescriptions( EObject eObject, IAcceptor<IEObjectDescription> acceptor ); ! /** … */ boolean createReferenceDescriptions( EObject eObject, URI exportedContainerURI, IAcceptor<IReferenceDescription> acceptor ); }

67.
V. Best Practices

68.

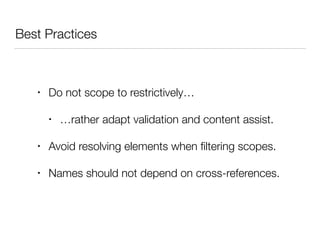

Best Practices • Donot scope to restrictively… • …rather adapt validation and content assist. • Avoid resolving elements when ﬁltering scopes. • Names should not depend on cross-references.

69.

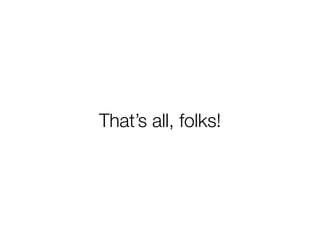

That’s all, folks!
