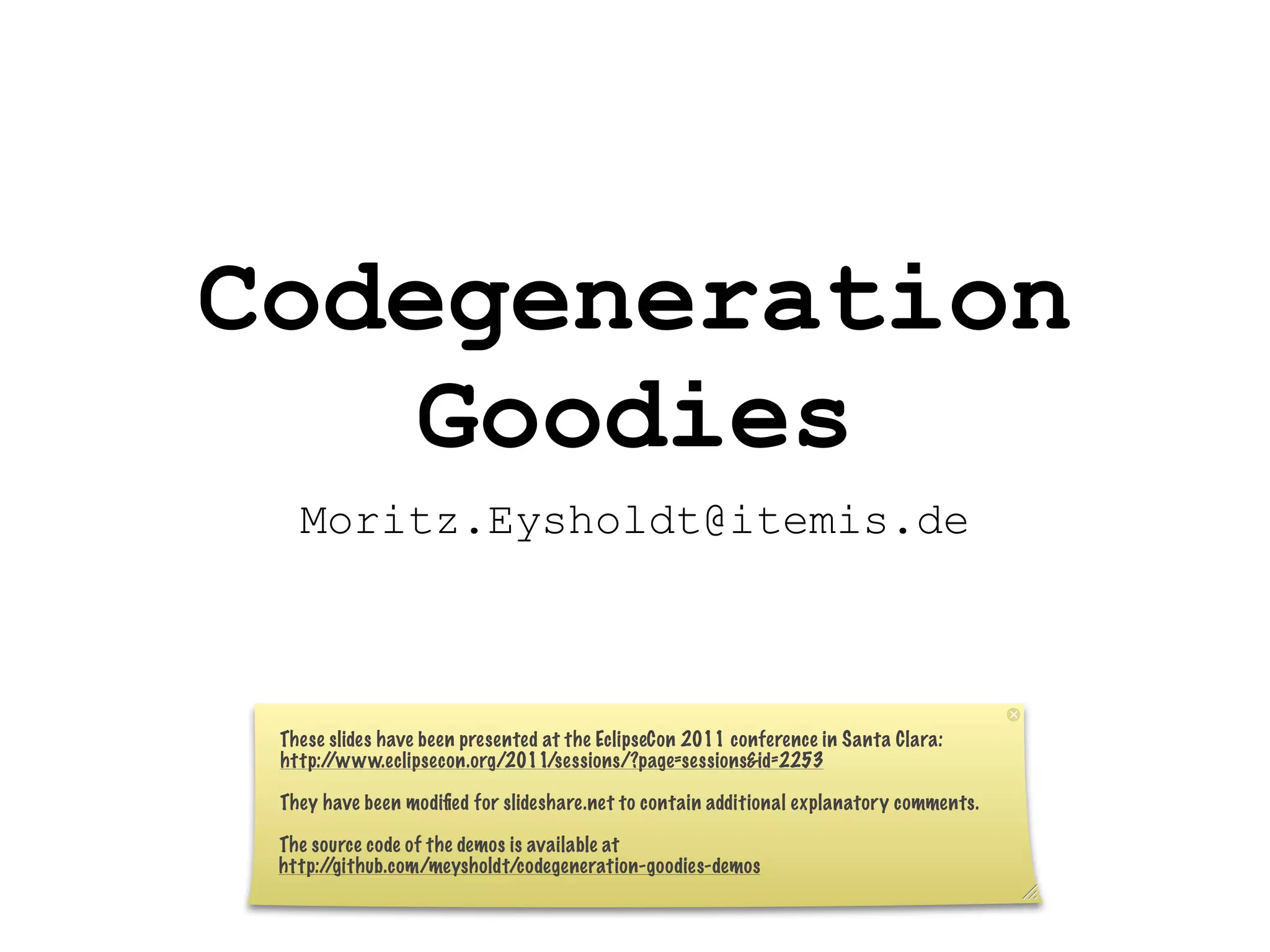

The document discusses code generation techniques using templates, XML Schema, and grammars. It compares generating code via templates versus XML Schema or grammars. XML Schema and grammars provide well-formed output, validation, formatting, and a typed Java model. Grammars also provide correct syntax and error messages. Xtext can parse models from text and serialize models to text using grammars, separating concerns like the model, syntax structure, values, and formatting. The status of Xtext's serializer was improved in version 2.0.

1. Codegeneration
Goodies
Moritz.Eysholdt@itemis.de
These slides have been presented at the EclipseCon 2011 conference in Santa Clara:
http://www.eclipsecon.org/2011/sessions/?page=sessions&id=2253
They have been modified for slideshare.net to contain additional explanatory comments.
The source code of the demos is available at
http://github.com/meysholdt/codegeneration-goodies-demos

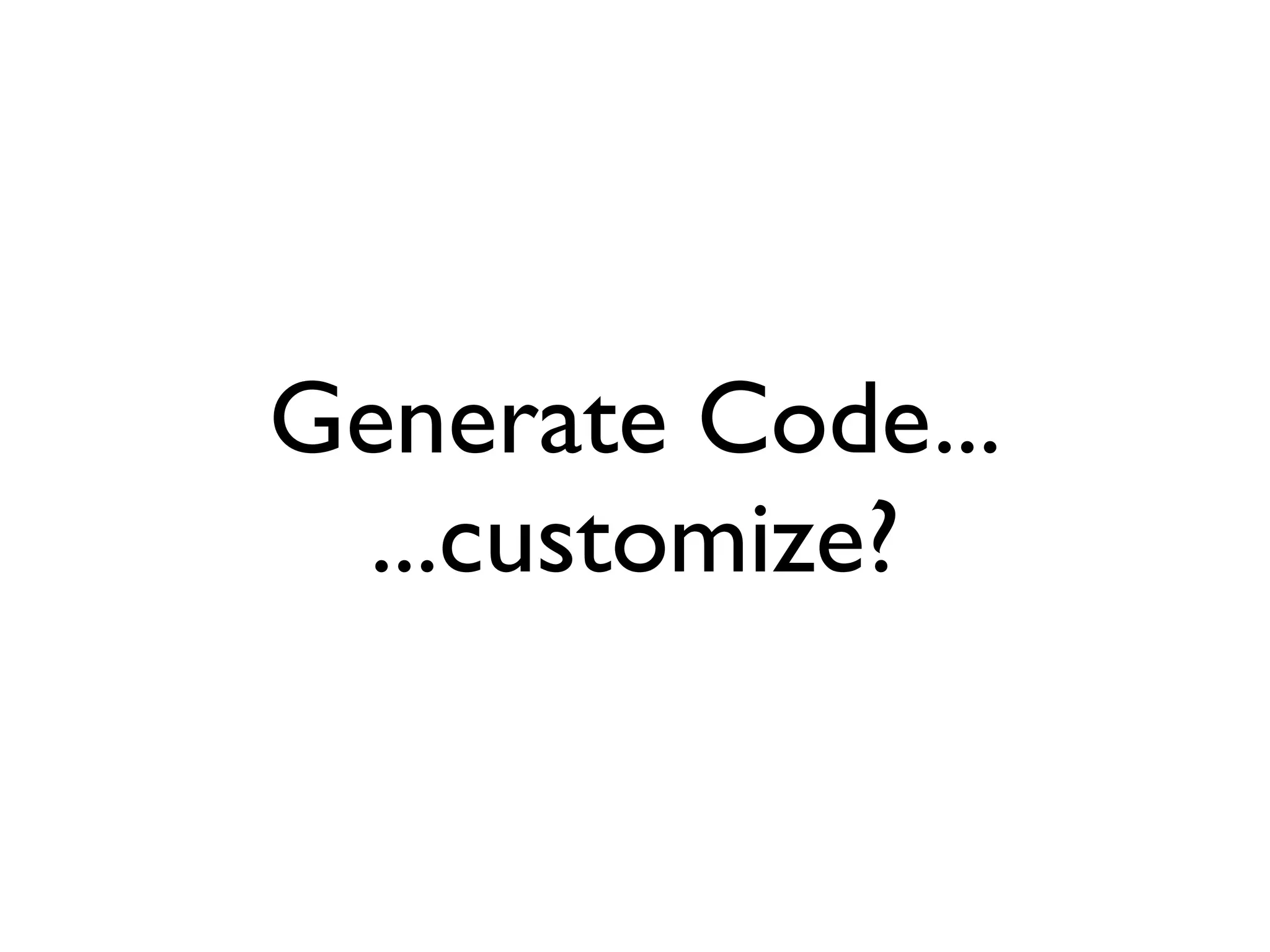

2. Generate Code...
...customize?

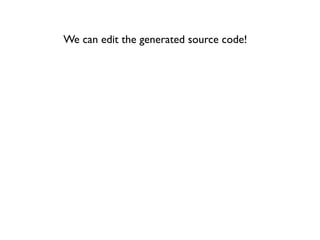

3. We can edit the generated source code!

4. We can edit the generated source code!
actually, NO.

5. We can edit the generated source code!
actually, NO.

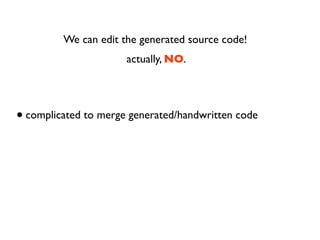

• complicated to merge generated/handwritten code

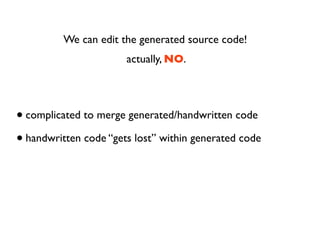

6. We can edit the generated source code!
actually, NO.
• complicated to merge generated/handwritten code
• handwritten code “gets lost” within generated code

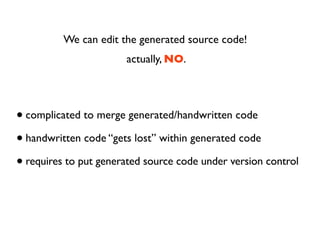

7. We can edit the generated source code!
actually, NO.
• complicated to merge generated/handwritten code
• handwritten code “gets lost” within generated code
• requires to put generated source code under version control

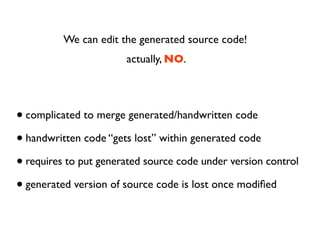

8. We can edit the generated source code!
actually, NO.
• complicated to merge generated/handwritten code
• handwritten code “gets lost” within generated code
• requires to put generated source code under version control
• generated version of source code is lost once modified

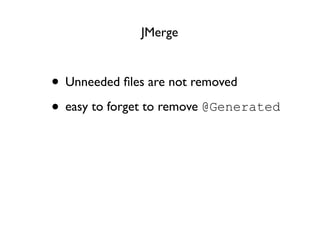

9. JMerge

10. JMerge
• Unneeded files are not removed

11. JMerge
• Unneeded files are not removed
• easy to forget to remove @Generated

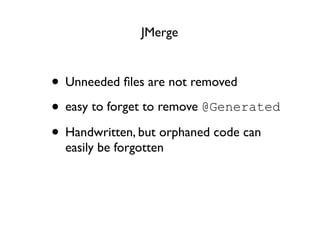

12. JMerge
• Unneeded files are not removed
• easy to forget to remove @Generated
• Handwritten, but orphaned code can
easily be forgotten

13. JMerge
• Unneeded files are not removed
• easy to forget to remove @Generated
• Handwritten, but orphaned code can

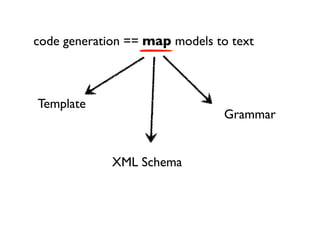

easily be forgotten
• Import statements are not organized

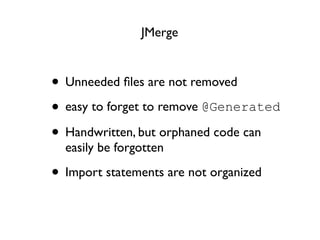

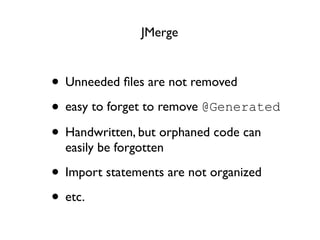

14. JMerge
• Unneeded files are not removed
• easy to forget to remove @Generated
• Handwritten, but orphaned code can
easily be forgotten
• Import statements are not organized
• etc.

15. Solution: Generation Gap

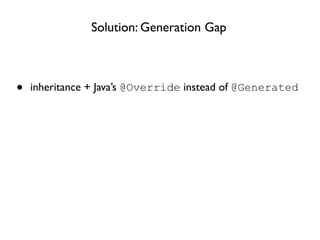

16. Solution: Generation Gap
• inheritance + Java’s @Override instead of @Generated

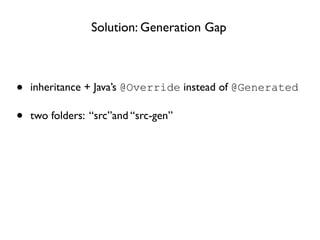

17. Solution: Generation Gap
• inheritance + Java’s @Override instead of @Generated
• two folders: “src”and “src-gen”

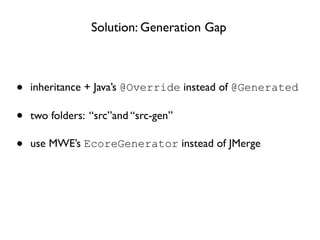

18. Solution: Generation Gap
• inheritance + Java’s @Override instead of @Generated
• two folders: “src”and “src-gen”
• use MWE’s EcoreGenerator instead of JMerge

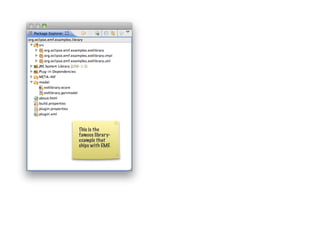

19. This is the
famous library-
example that
ships with EMF.

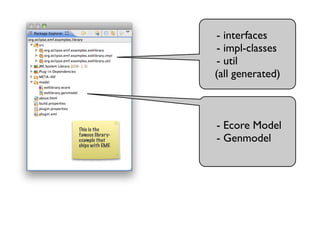

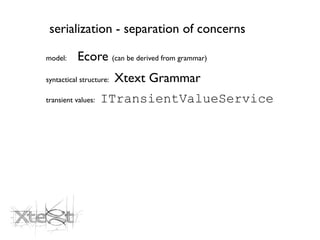

20. - interfaces

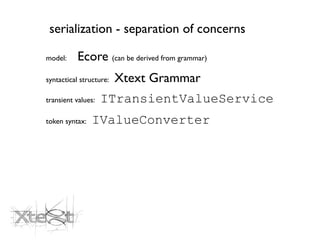

- impl-classes
- util

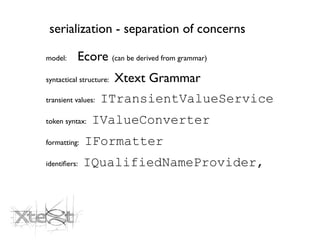

(all generated)
This is the
famous library-
example that
ships with EMF.

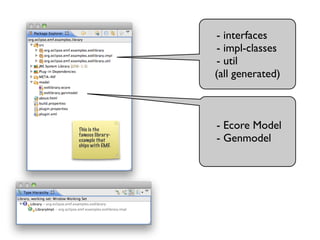

21. - interfaces
- impl-classes
- util
(all generated)
This is the - Ecore Model
famous library-
example that - Genmodel
ships with EMF.

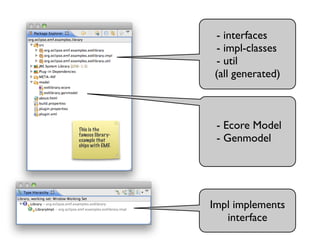

22. - interfaces
- impl-classes
- util
(all generated)
This is the - Ecore Model
famous library-
example that - Genmodel
ships with EMF.

23. - interfaces
- impl-classes
- util
(all generated)
This is the - Ecore Model
famous library-
example that - Genmodel
ships with EMF.
Impl implements
interface

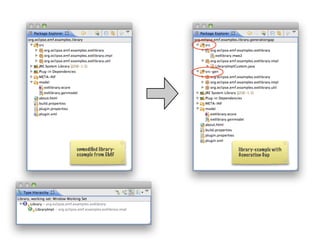

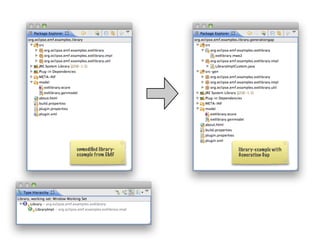

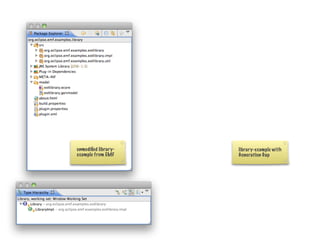

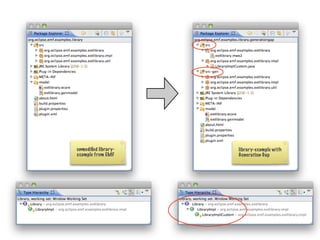

24. unmodified library- library-example with
example from EMF Generation Gap

25. unmodified library- library-example with
example from EMF Generation Gap

26. unmodified library- library-example with
example from EMF Generation Gap

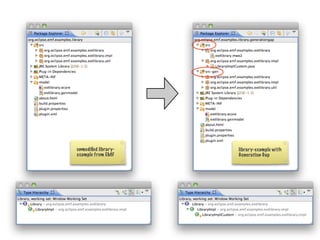

27. unmodified library- library-example with
example from EMF Generation Gap

28. unmodified library- library-example with
example from EMF Generation Gap

29. unmodified library- library-example with
example from EMF Generation Gap

30. unmodified library- library-example with
example from EMF Generation Gap

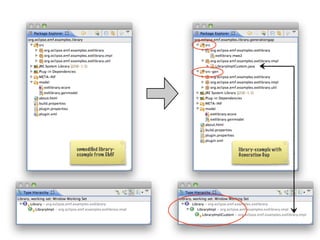

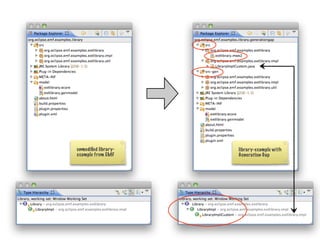

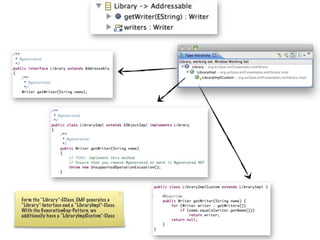

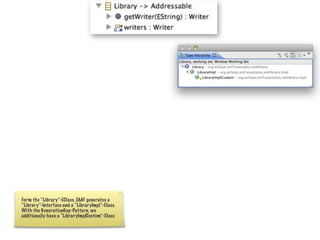

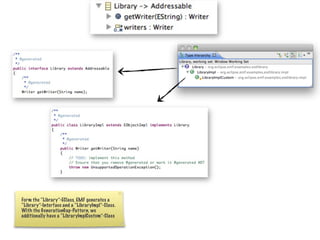

31. Form the “Library”-EClass, EMF generates a
“Library”-Interface and a “LibraryImpl”-Class.
With the GenerationGap-Pattern, we
additionally have a “LibraryImplCustom”-Class

32. Form the “Library”-EClass, EMF generates a
“Library”-Interface and a “LibraryImpl”-Class.
With the GenerationGap-Pattern, we
additionally have a “LibraryImplCustom”-Class

33. Form the “Library”-EClass, EMF generates a
“Library”-Interface and a “LibraryImpl”-Class.
With the GenerationGap-Pattern, we
additionally have a “LibraryImplCustom”-Class

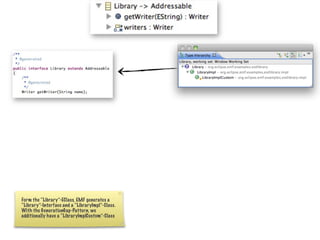

34. Form the “Library”-EClass, EMF generates a
“Library”-Interface and a “LibraryImpl”-Class.
With the GenerationGap-Pattern, we
additionally have a “LibraryImplCustom”-Class

35. generated code refers to “custom” classes
as super types
In the code that is generated by EMF, the
“Custom”-Classes are automatically used
instead of the “Impl”-Classes, when
- another “Impl” class extends them.
- the EFactory instantiated them.

36. generated code refers to “custom” classes
as super types
In the code that is generated by EMF, the
“Custom”-Classes are automatically used
instead of the “Impl”-Classes, when
- another “Impl” class extends them.
- the EFactory instantiated them.
in the EFactory

37. JMerge generation
gap
files in VCS
results of
“git clean -fdX && tree”
Here we can see which files need to be put under version
control.
- on the left-hand side, the unmodified library-example.
- on the right-hand side, the example with generation
gap. Please note that here no generated source code is
being put under version control.

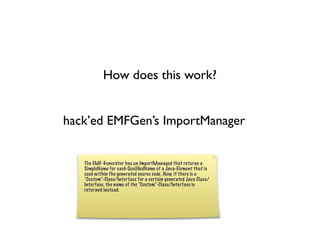

38. How does this work?
hack’ed EMFGen’s ImportManager
The EMF-Generator has an ImportManaged that returns a
SimpleName for each QualifiedName of a Java-Element that is
used within the generated source code. Now, if there is a
“Custom”-Class/Interface for a certain generated Java Class/
Interface, the name of the “Custom”-Class/Interface is
returned instead.

39. Generating Code...
...without a
Template Language

40. hey, we can generate this!

41. hey, we can generate this!

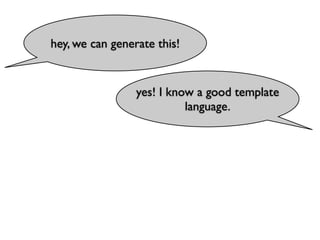

yes! I know a good template
language.

42. hey, we can generate this!
yes! I know a good template
language.
yeah, let’s do it.

43. hey, we can generate this!
yes! I know a good template
language.
yeah, let’s do it.
! not so fast...

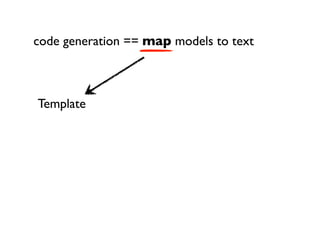

44. code generation == map models to text

45. code generation == map models to text

46. code generation == map models to text
Template

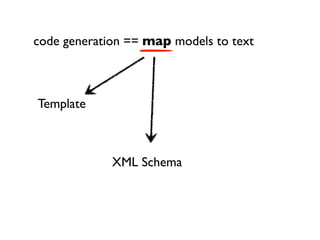

47. code generation == map models to text
Template
XML Schema

48. code generation == map models to text
Template
Grammar
XML Schema

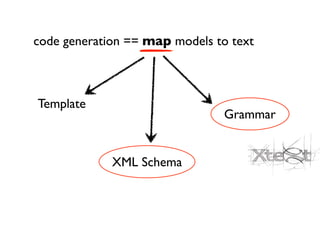

49. code generation == map models to text
Template
Grammar
XML Schema

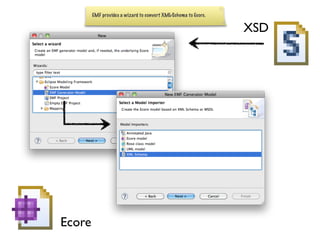

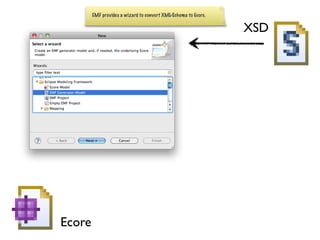

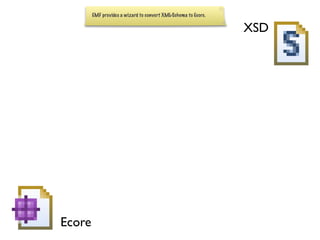

50. EMF provides a wizard to convert XML-Schema to Ecore.
XSD
Ecore

51. EMF provides a wizard to convert XML-Schema to Ecore.
XSD
Ecore

52. EMF provides a wizard to convert XML-Schema to Ecore.
XSD
Ecore

53. EMF provides a wizard to convert XML-Schema to Ecore.
XSD
Ecore

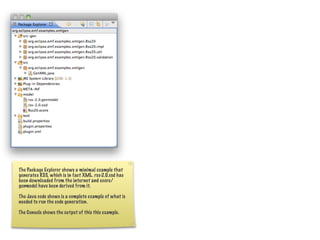

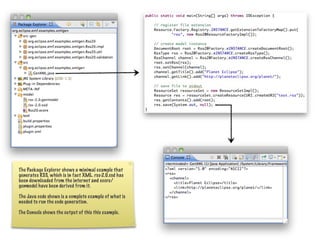

54. The Package Explorer shows a minimal example that
generates RSS, which is in fact XML. rss-2.0.xsd has
been downloaded from the internet and ecore/
genmodel have been derived from it.
The Java code shows is a complete example of what is
needed to run the code generation.
The Console shows the output of this this example.

55. The Package Explorer shows a minimal example that
generates RSS, which is in fact XML. rss-2.0.xsd has
been downloaded from the internet and ecore/
genmodel have been derived from it.
The Java code shows is a complete example of what is
needed to run the code generation.
The Console shows the output of this this example.

56. The Package Explorer shows a minimal example that
generates RSS, which is in fact XML. rss-2.0.xsd has
been downloaded from the internet and ecore/
genmodel have been derived from it.
The Java code shows is a complete example of what is
needed to run the code generation.
The Console shows the output of this this example.

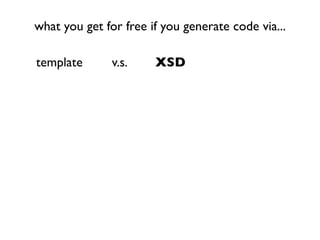

57. what you get for free if you generate code via...
template v.s. XSD

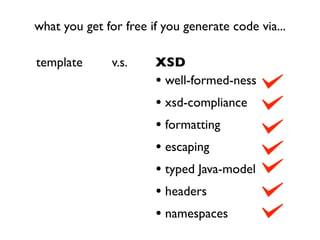

58. what you get for free if you generate code via...
template v.s. XSD
• well-formed-ness
• xsd-compliance
• formatting
• escaping
• typed Java-model
• headers
• namespaces

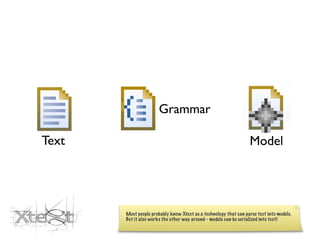

59. Grammar
Text Model

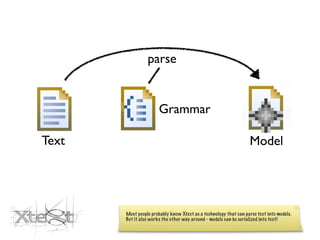

Most people probably know Xtext as a technology that can parse text into models.
But it also works the other way around - models can be serialized into text!

60. parse
Grammar
Text Model
Most people probably know Xtext as a technology that can parse text into models.
But it also works the other way around - models can be serialized into text!

61. parse
Grammar
Text Model
serialize
Most people probably know Xtext as a technology that can parse text into models.
But it also works the other way around - models can be serialized into text!

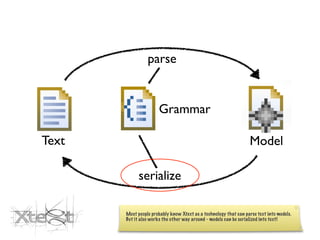

62. parse
Grammar
Text Model
serialize
Most people probably know Xtext as a technology that can parse text into models.
But it also works the other way around - models can be serialized into text!

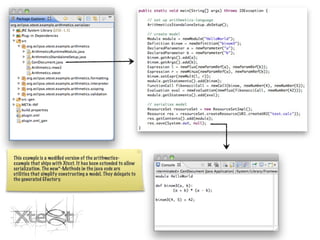

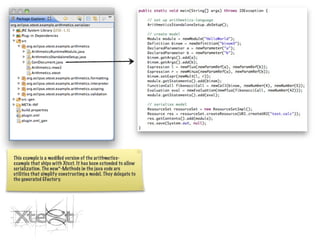

63. This example is a modified version of the arithmetics-
example that ships with Xtext. It has been extended to allow
serialization. The new*-Methods in the java code are
utilities that simplify constructing a model. They delegate to
the generated EFactory.

64. This example is a modified version of the arithmetics-
example that ships with Xtext. It has been extended to allow
serialization. The new*-Methods in the java code are
utilities that simplify constructing a model. They delegate to
the generated EFactory.

65. This example is a modified version of the arithmetics-
example that ships with Xtext. It has been extended to allow
serialization. The new*-Methods in the java code are
utilities that simplify constructing a model. They delegate to
the generated EFactory.

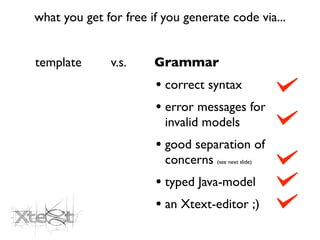

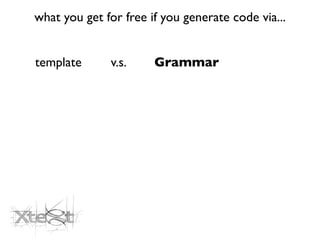

66. what you get for free if you generate code via...
template v.s. Grammar

67. what you get for free if you generate code via...
template v.s. Grammar
• correct syntax
• error messages for
invalid models
• good separation of
concerns (see next slide)
• typed Java-model
• an Xtext-editor ;)

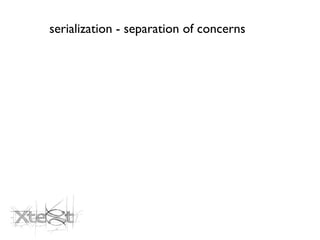

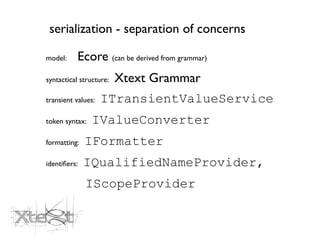

68. serialization - separation of concerns

69. serialization - separation of concerns

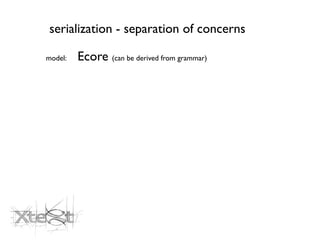

model: Ecore (can be derived from grammar)

70. serialization - separation of concerns
model: Ecore (can be derived from grammar)

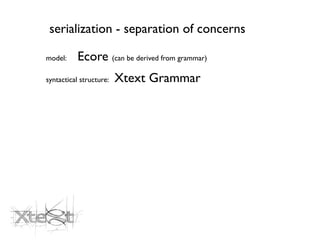

syntactical structure: Xtext Grammar

71. serialization - separation of concerns
model: Ecore (can be derived from grammar)
syntactical structure: Xtext Grammar
transient values: ITransientValueService

72. serialization - separation of concerns
model: Ecore (can be derived from grammar)
syntactical structure: Xtext Grammar
transient values: ITransientValueService
token syntax: IValueConverter

73. serialization - separation of concerns
model: Ecore (can be derived from grammar)
syntactical structure: Xtext Grammar
transient values: ITransientValueService
token syntax: IValueConverter
formatting: IFormatter

74. serialization - separation of concerns
model: Ecore (can be derived from grammar)
syntactical structure: Xtext Grammar
transient values: ITransientValueService
token syntax: IValueConverter
formatting: IFormatter
identifiers: IQualifiedNameProvider,

75. serialization - separation of concerns
model: Ecore (can be derived from grammar)
syntactical structure: Xtext Grammar
transient values: ITransientValueService
token syntax: IValueConverter
formatting: IFormatter
identifiers: IQualifiedNameProvider,
IScopeProvider

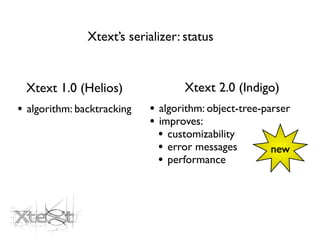

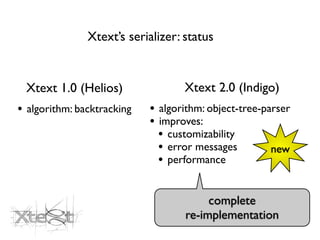

76. Xtext’s serializer: status
Xtext 1.0 (Helios) Xtext 2.0 (Indigo)
• algorithm: backtracking • algorithm: object-tree-parser
• improves:
• customizability
• error messages new
• performance

77. Xtext’s serializer: status
Xtext 1.0 (Helios) Xtext 2.0 (Indigo)
• algorithm: backtracking • algorithm: object-tree-parser
• improves:
• customizability
• error messages new
• performance
complete
re-implementation

78. Questions?
Moritz.Eysholdt@itemis.de
