1. Zope Component
Architecture
There should be a silver bullet! Let's try to
look for it with ZCA at least :)
Anatoly Bubenkov
@bubenkoff
Paylogic Groningen Office
19.08.2013

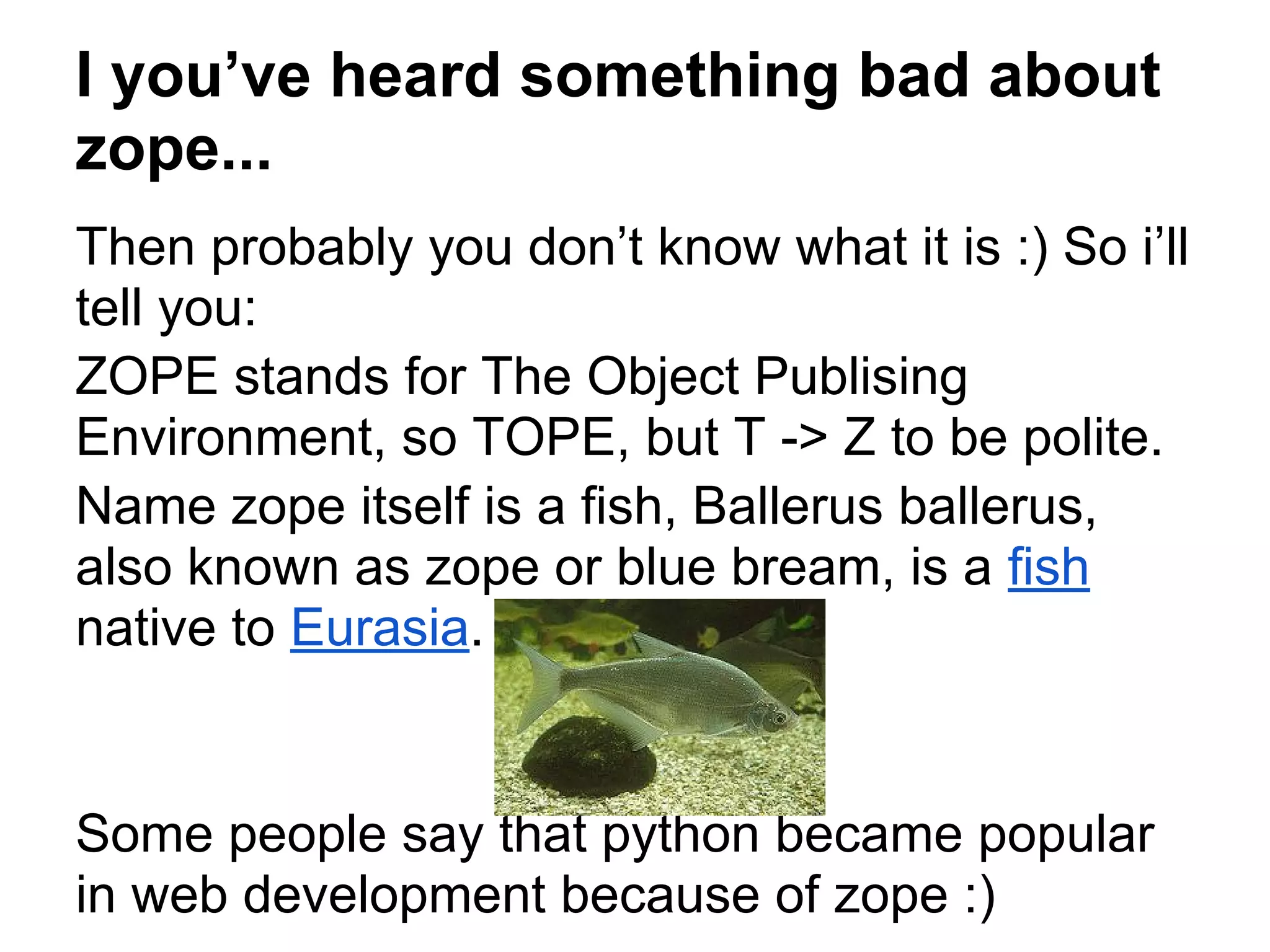

2. I you’ve heard something bad about
zope...
Then probably you don’t know what it is :) So i’ll
tell you:
ZOPE stands for The Object Publising
Environment, so TOPE, but T -> Z to be polite.
Name zope itself is a fish, Ballerus ballerus,
also known as zope or blue bream, is a fish
native to Eurasia.
Some people say that python became popular
in web development because of zope :)

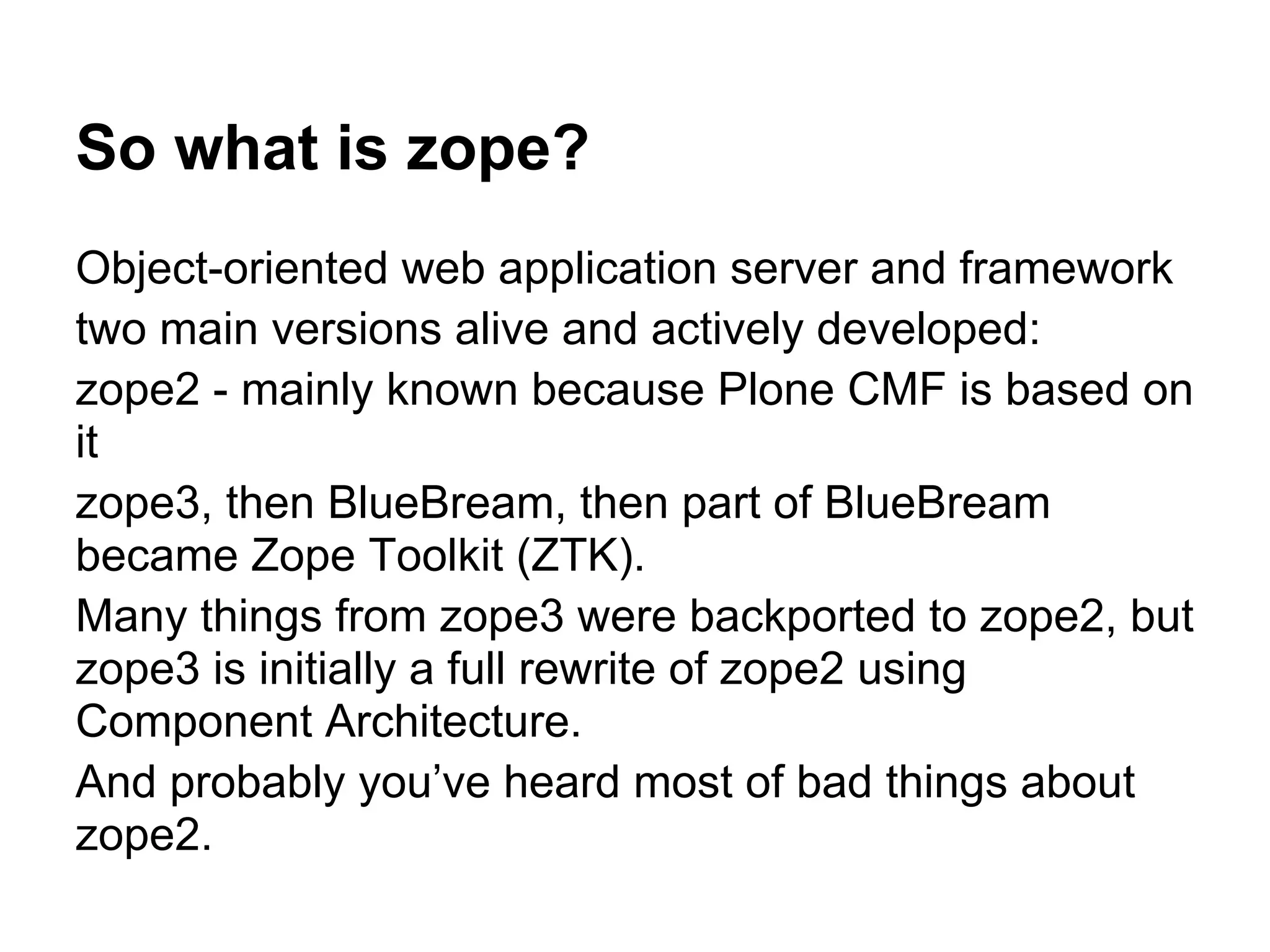

3. So what is zope?
Object-oriented web application server and framework
two main versions alive and actively developed:
zope2 - mainly known because Plone CMF is based on
it
zope3, then BlueBream, then part of BlueBream
became Zope Toolkit (ZTK).
Many things from zope3 were backported to zope2, but
zope3 is initially a full rewrite of zope2 using
Component Architecture.
And probably you’ve heard most of bad things about
zope2.

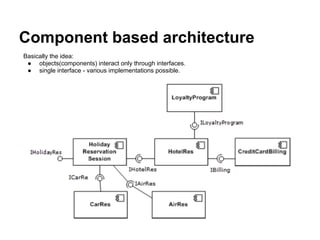

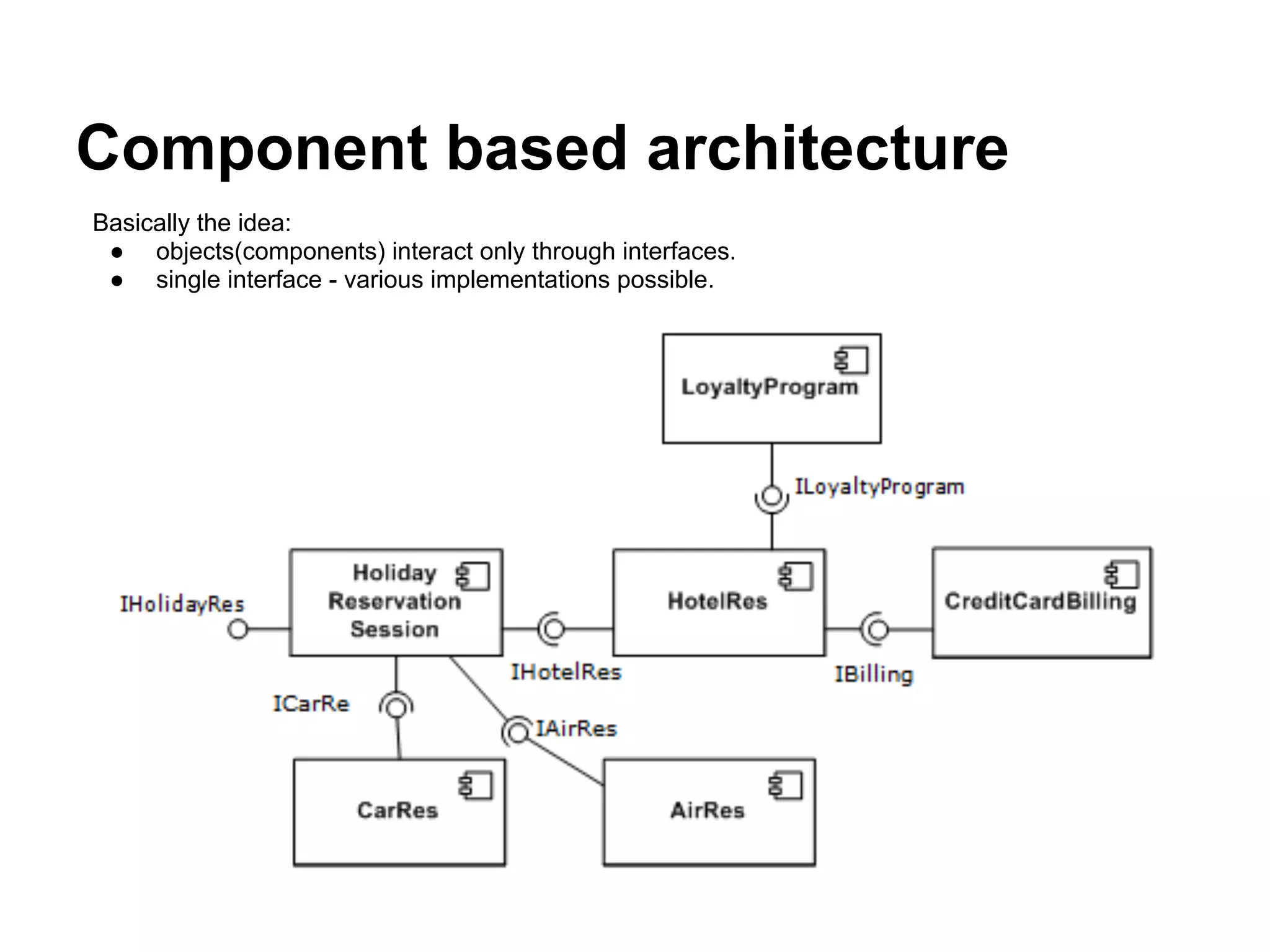

4. Component based architecture
Basically the idea:
● objects(components) interact only through interfaces.
● single interface - various implementations possible.

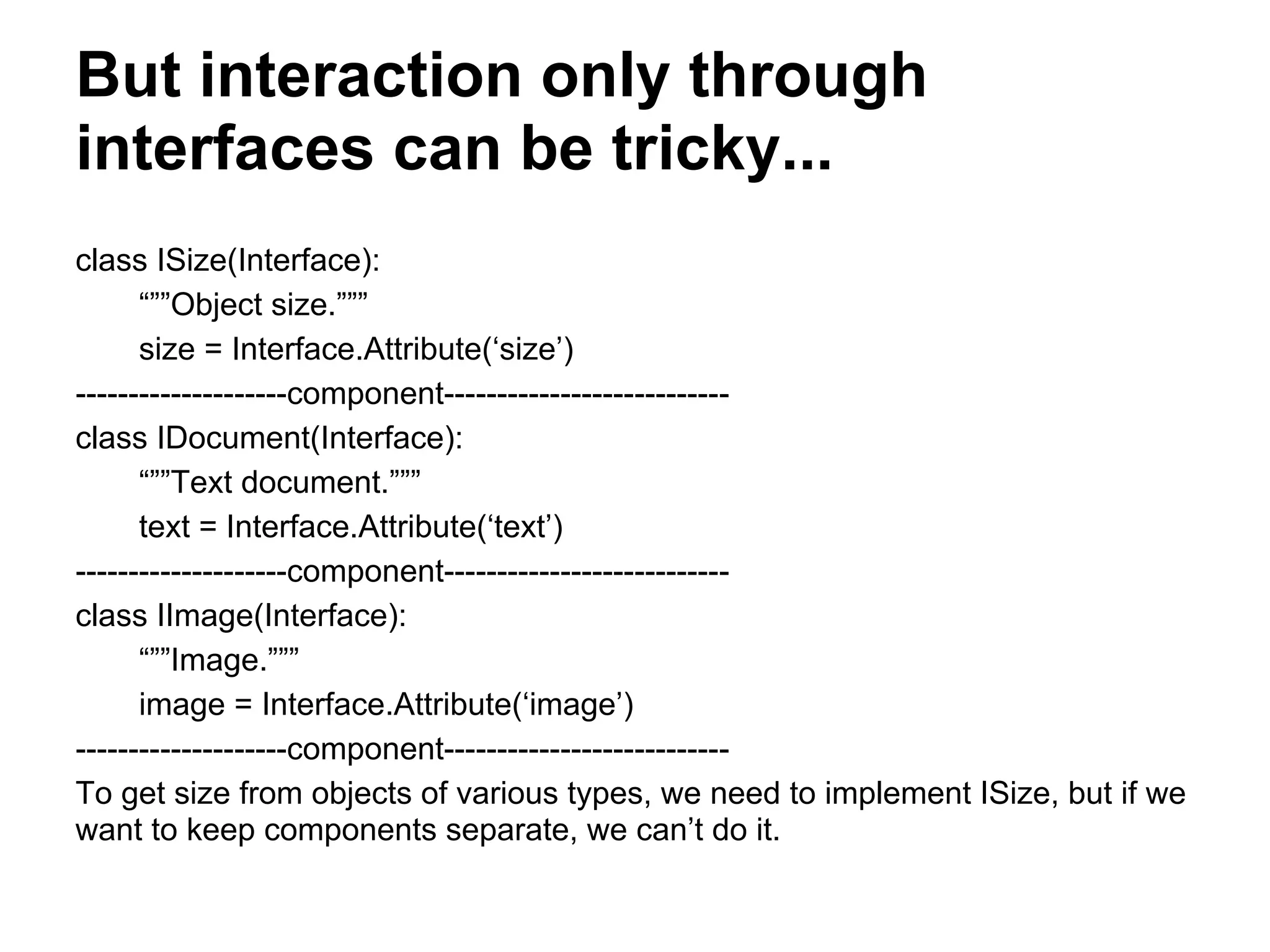

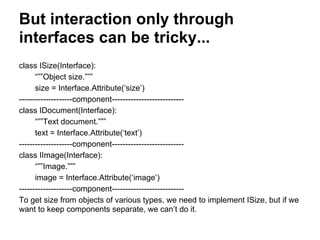

5. But interaction only through
interfaces can be tricky...
class ISize(Interface):
“””Object size.”””
size = Interface.Attribute(‘size’)
--------------------component---------------------------
class IDocument(Interface):
“””Text document.”””
text = Interface.Attribute(‘text’)
--------------------component---------------------------
class IImage(Interface):
“””Image.”””
image = Interface.Attribute(‘image’)
--------------------component---------------------------
To get size from objects of various types, we need to implement ISize, but if we
want to keep components separate, we can’t do it.

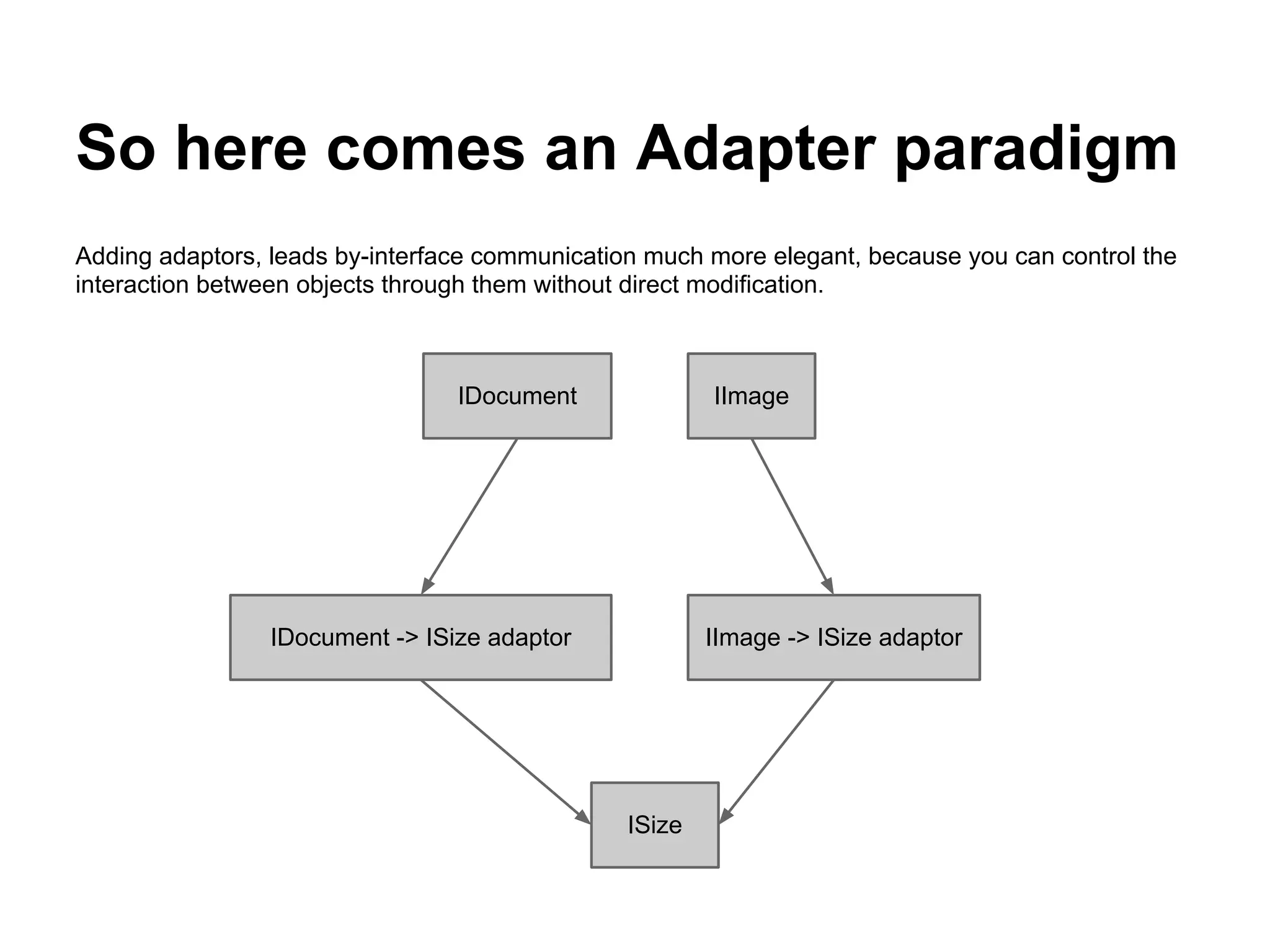

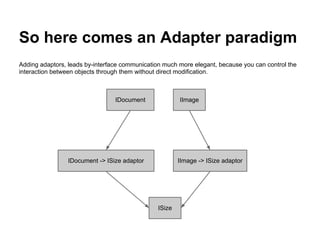

6. So here comes an Adapter paradigm
Adding adaptors, leads by-interface communication much more elegant, because you can control the
interaction between objects through them without direct modification.
IDocument -> ISize adaptor
ISize
IDocument IImage
IImage -> ISize adaptor

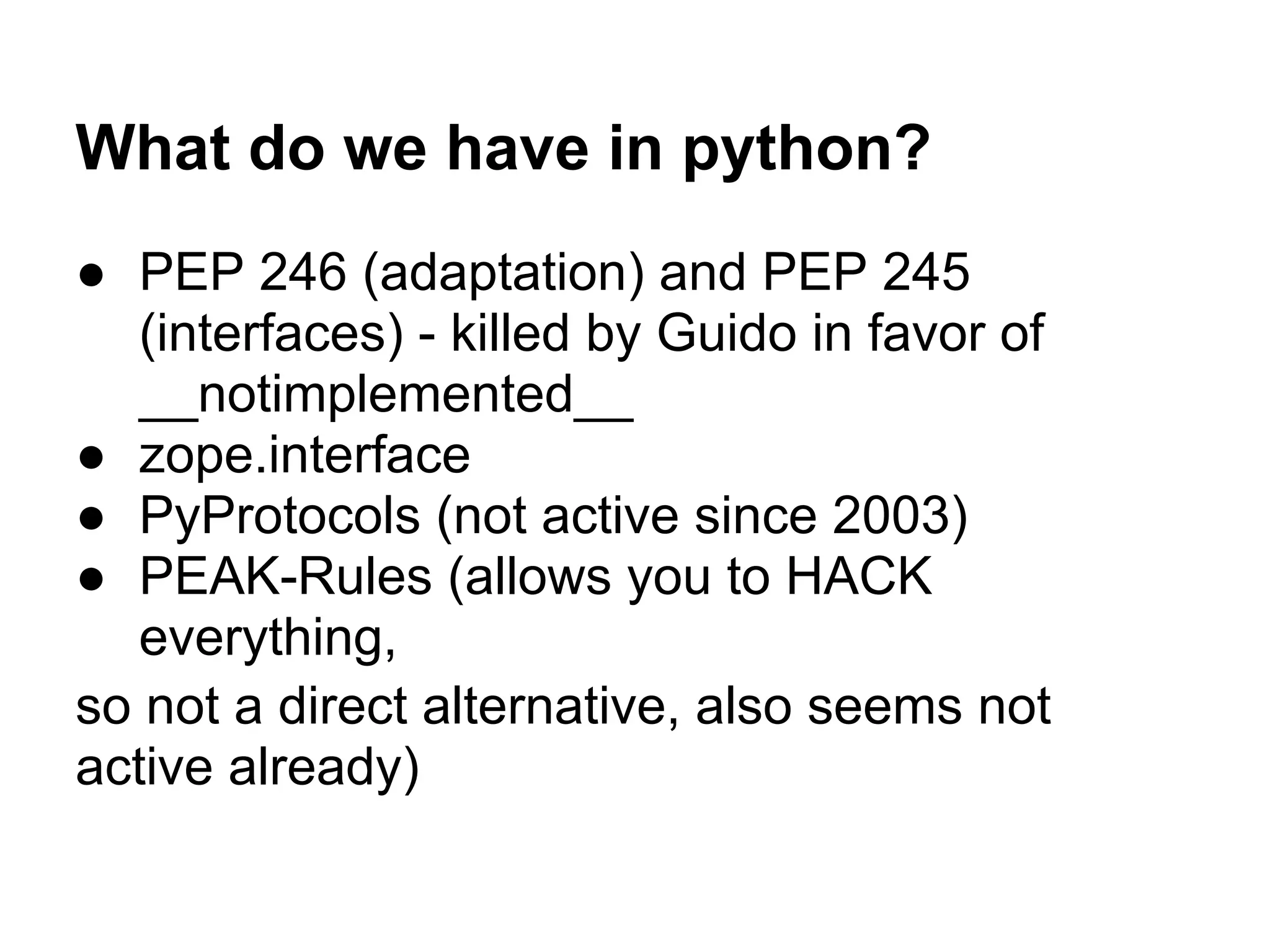

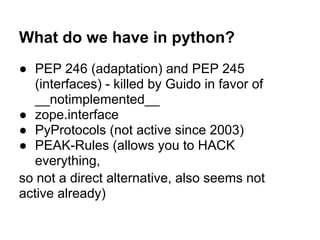

7. What do we have in python?
● PEP 246 (adaptation) and PEP 245
(interfaces) - killed by Guido in favor of
__notimplemented__
● zope.interface
● PyProtocols (not active since 2003)
● PEAK-Rules (allows you to HACK
everything,
so not a direct alternative, also seems not
active already)

8. zope.interface, here is the
implementation
The key package of:
● zope
● twisted
● pyramid
even Shipped out of the box with OSX :)
Pythonic (with C optimizations) implementation
of component architechture.
● python3 ready
● pypy compliant

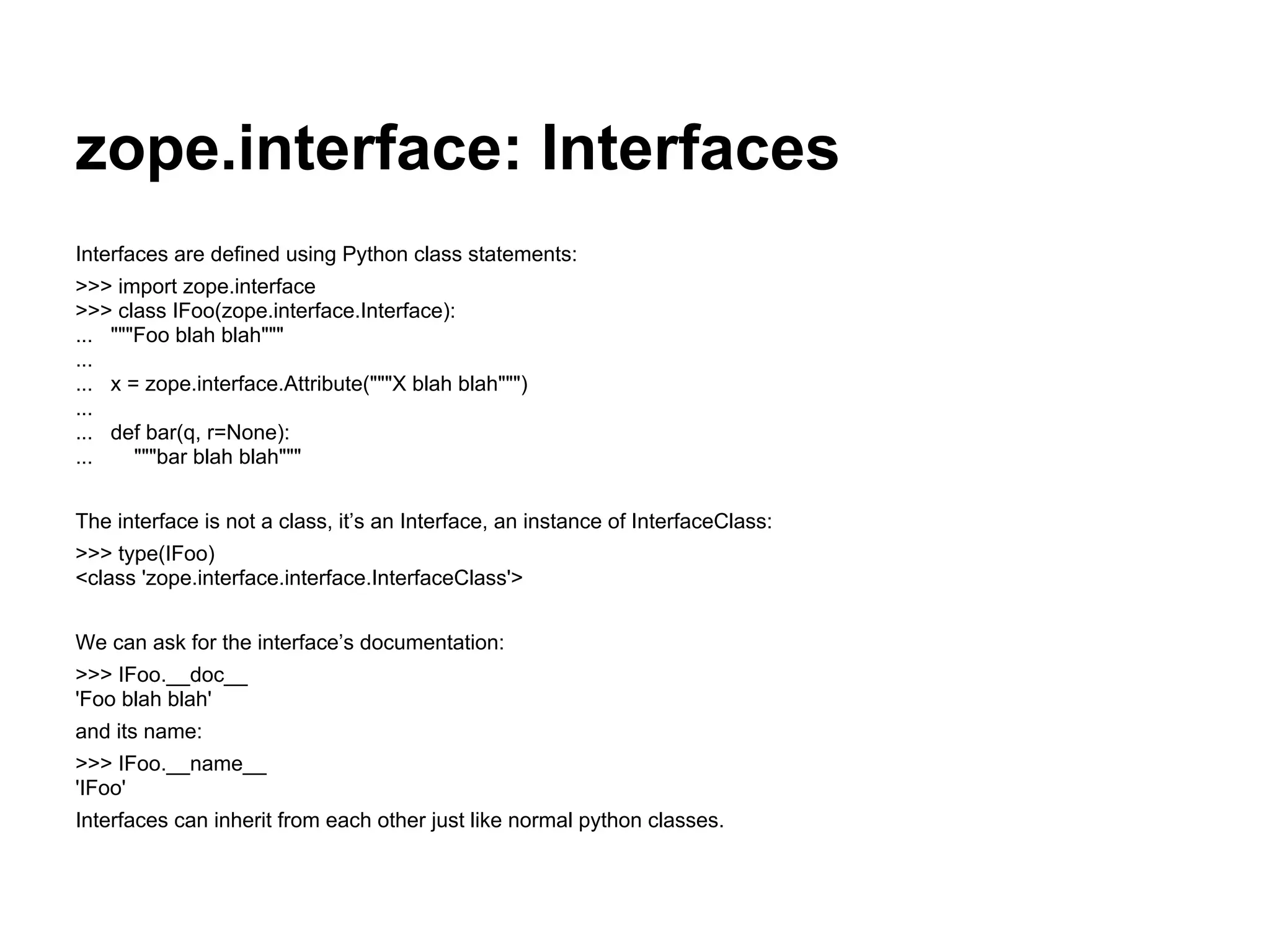

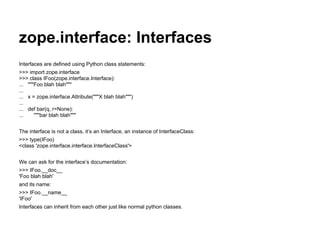

9. zope.interface: Interfaces
Interfaces are defined using Python class statements:
>>> import zope.interface
>>> class IFoo(zope.interface.Interface):
... """Foo blah blah"""
...
... x = zope.interface.Attribute("""X blah blah""")
...
... def bar(q, r=None):
... """bar blah blah"""
The interface is not a class, it’s an Interface, an instance of InterfaceClass:
>>> type(IFoo)
<class 'zope.interface.interface.InterfaceClass'>
We can ask for the interface’s documentation:
>>> IFoo.__doc__
'Foo blah blah'
and its name:
>>> IFoo.__name__
'IFoo'
Interfaces can inherit from each other just like normal python classes.

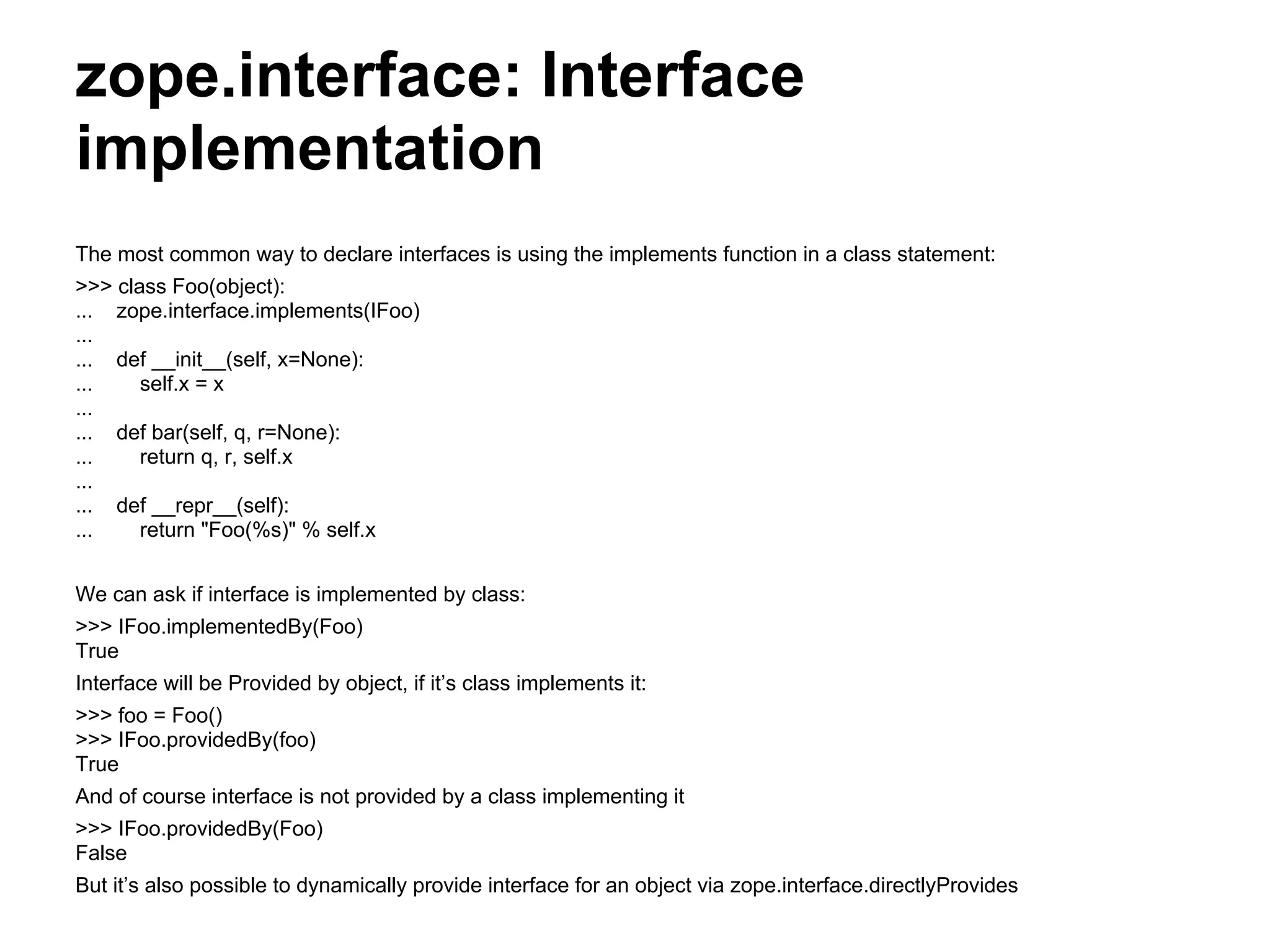

10. zope.interface: Interface
implementation
The most common way to declare interfaces is using the implements function in a class statement:
>>> class Foo(object):
... zope.interface.implements(IFoo)
...
... def __init__(self, x=None):
... self.x = x
...
... def bar(self, q, r=None):
... return q, r, self.x
...
... def __repr__(self):
... return "Foo(%s)" % self.x
We can ask if interface is implemented by class:
>>> IFoo.implementedBy(Foo)
True
Interface will be Provided by object, if it’s class implements it:
>>> foo = Foo()
>>> IFoo.providedBy(foo)
True
And of course interface is not provided by a class implementing it
>>> IFoo.providedBy(Foo)
False
But it’s also possible to dynamically provide interface for an object via zope.interface.directlyProvides

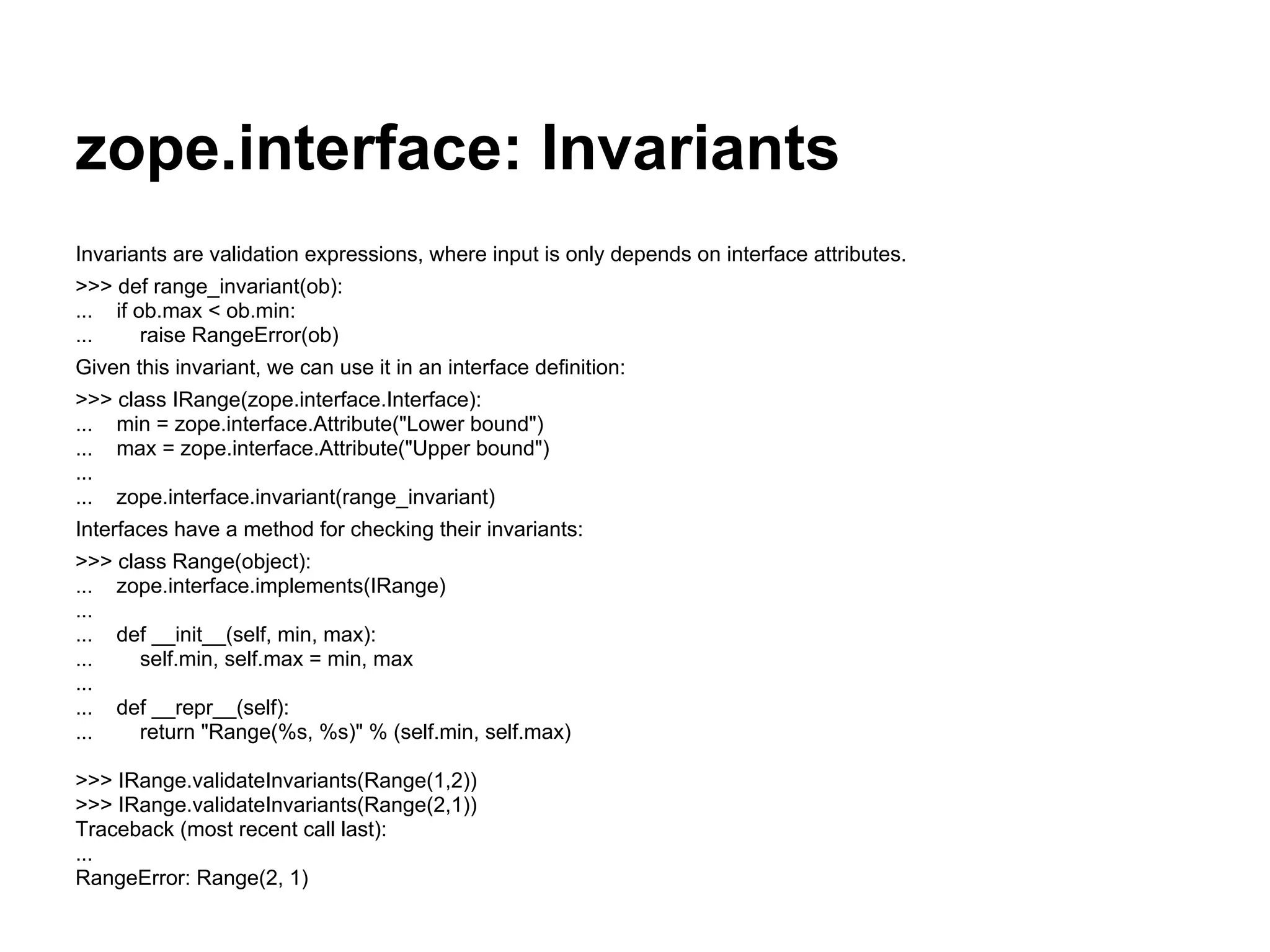

11. zope.interface: Invariants
Invariants are validation expressions, where input is only depends on interface attributes.
>>> def range_invariant(ob):
... if ob.max < ob.min:
... raise RangeError(ob)
Given this invariant, we can use it in an interface definition:
>>> class IRange(zope.interface.Interface):
... min = zope.interface.Attribute("Lower bound")
... max = zope.interface.Attribute("Upper bound")
...
... zope.interface.invariant(range_invariant)
Interfaces have a method for checking their invariants:
>>> class Range(object):
... zope.interface.implements(IRange)
...
... def __init__(self, min, max):
... self.min, self.max = min, max
...
... def __repr__(self):
... return "Range(%s, %s)" % (self.min, self.max)
>>> IRange.validateInvariants(Range(1,2))
>>> IRange.validateInvariants(Range(2,1))
Traceback (most recent call last):
...
RangeError: Range(2, 1)

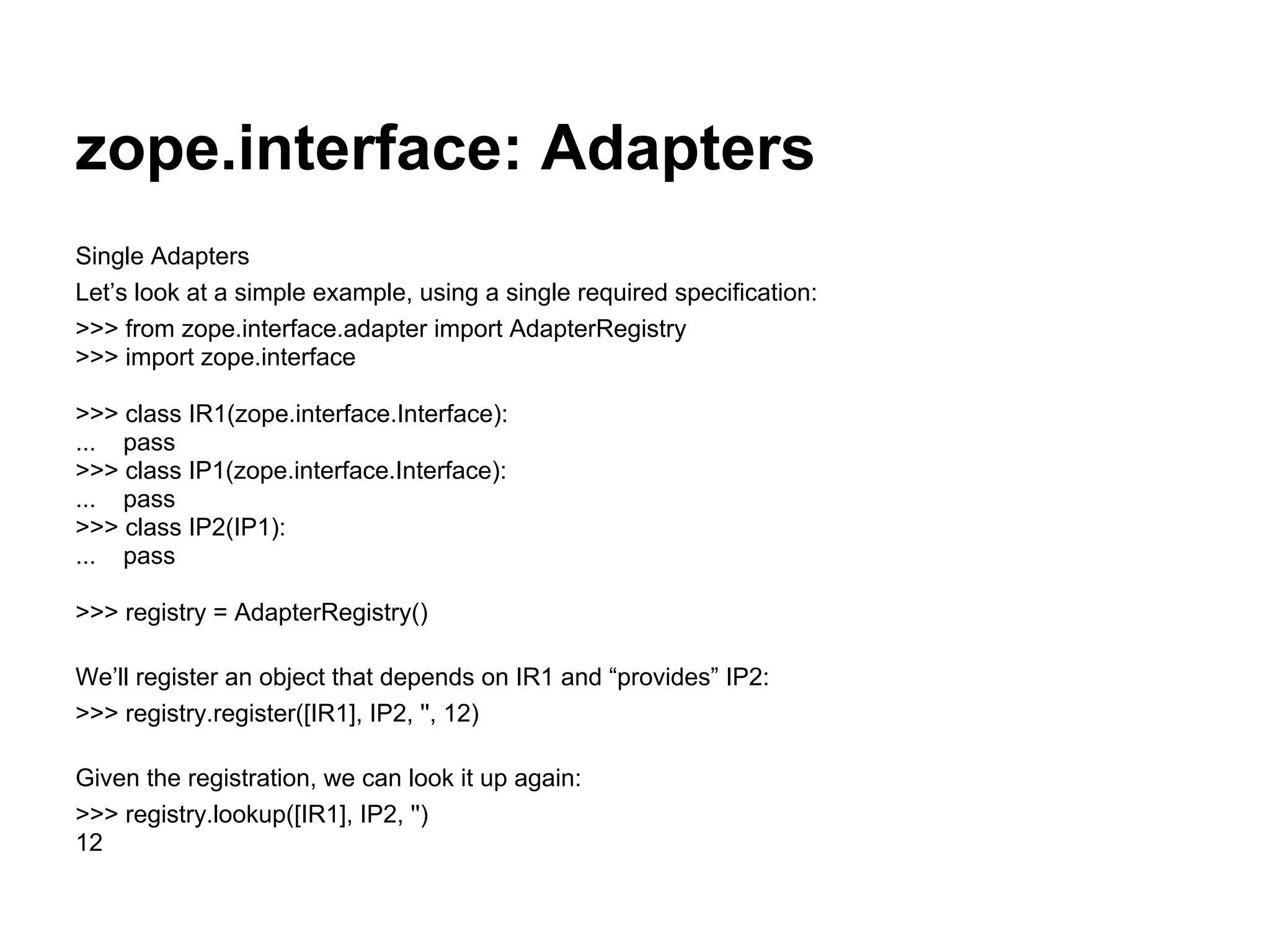

12. zope.interface: Adapters
Single Adapters
Let’s look at a simple example, using a single required specification:
>>> from zope.interface.adapter import AdapterRegistry
>>> import zope.interface
>>> class IR1(zope.interface.Interface):
... pass
>>> class IP1(zope.interface.Interface):
... pass
>>> class IP2(IP1):
... pass
>>> registry = AdapterRegistry()
We’ll register an object that depends on IR1 and “provides” IP2:
>>> registry.register([IR1], IP2, '', 12)
Given the registration, we can look it up again:
>>> registry.lookup([IR1], IP2, '')
12

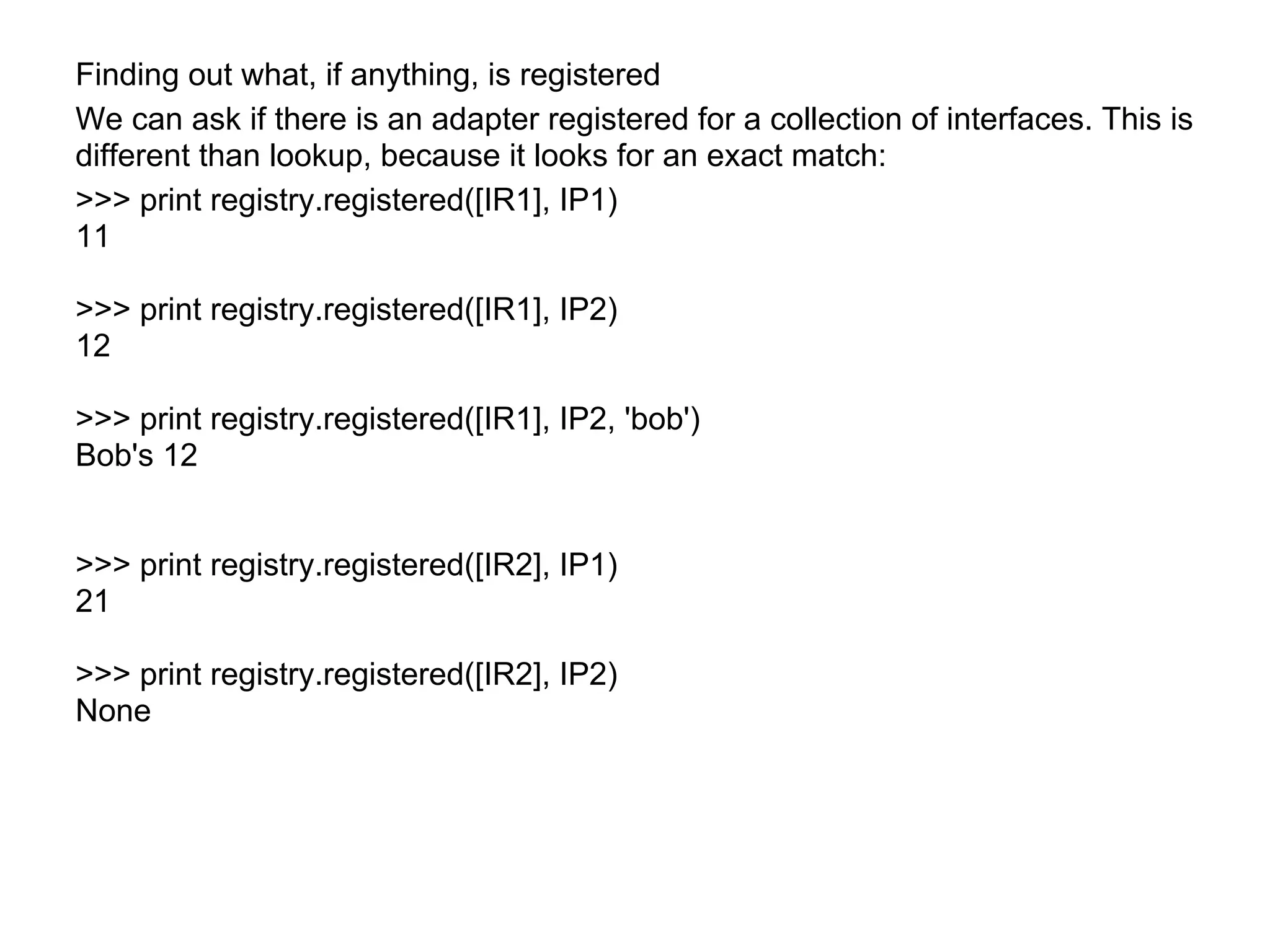

13. Finding out what, if anything, is registered
We can ask if there is an adapter registered for a collection of interfaces. This is
different than lookup, because it looks for an exact match:
>>> print registry.registered([IR1], IP1)
11
>>> print registry.registered([IR1], IP2)
12
>>> print registry.registered([IR1], IP2, 'bob')
Bob's 12
>>> print registry.registered([IR2], IP1)
21
>>> print registry.registered([IR2], IP2)
None

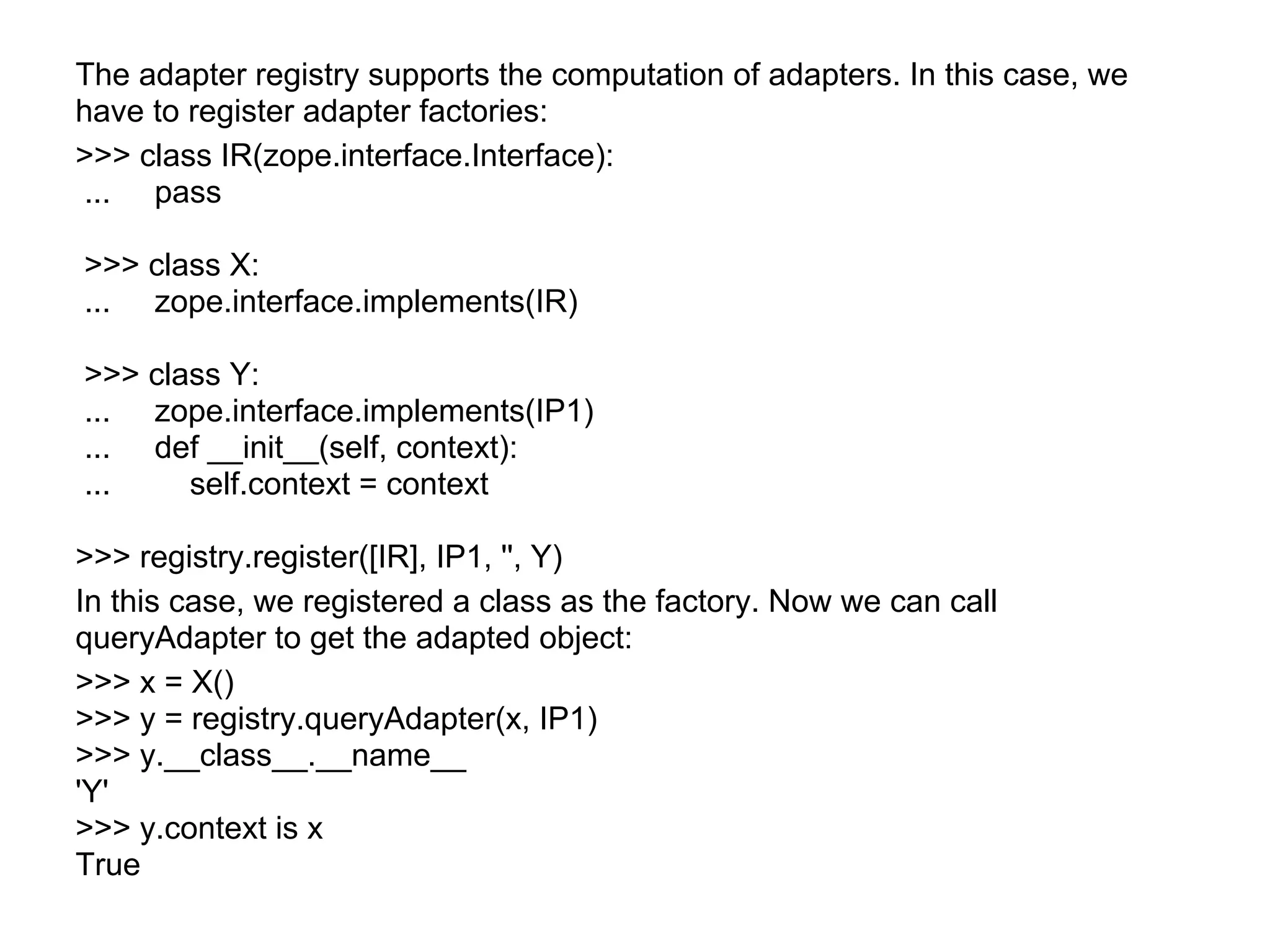

14. The adapter registry supports the computation of adapters. In this case, we
have to register adapter factories:
>>> class IR(zope.interface.Interface):
... pass
>>> class X:
... zope.interface.implements(IR)
>>> class Y:
... zope.interface.implements(IP1)
... def __init__(self, context):
... self.context = context
>>> registry.register([IR], IP1, '', Y)
In this case, we registered a class as the factory. Now we can call
queryAdapter to get the adapted object:
>>> x = X()
>>> y = registry.queryAdapter(x, IP1)
>>> y.__class__.__name__
'Y'
>>> y.context is x
True

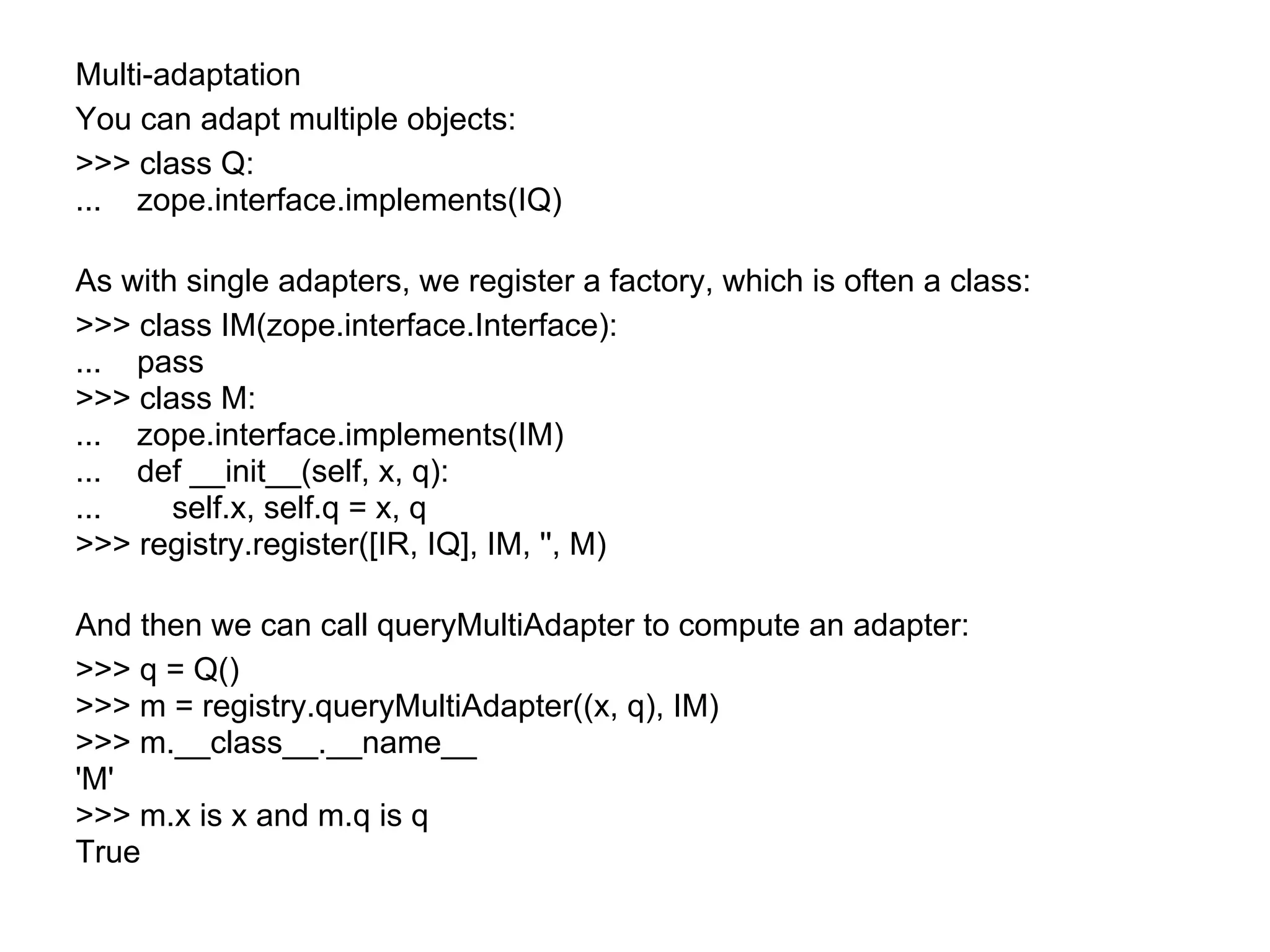

15. Multi-adaptation
You can adapt multiple objects:
>>> class Q:
... zope.interface.implements(IQ)
As with single adapters, we register a factory, which is often a class:
>>> class IM(zope.interface.Interface):
... pass
>>> class M:
... zope.interface.implements(IM)
... def __init__(self, x, q):
... self.x, self.q = x, q
>>> registry.register([IR, IQ], IM, '', M)
And then we can call queryMultiAdapter to compute an adapter:
>>> q = Q()
>>> m = registry.queryMultiAdapter((x, q), IM)
>>> m.__class__.__name__
'M'
>>> m.x is x and m.q is q
True

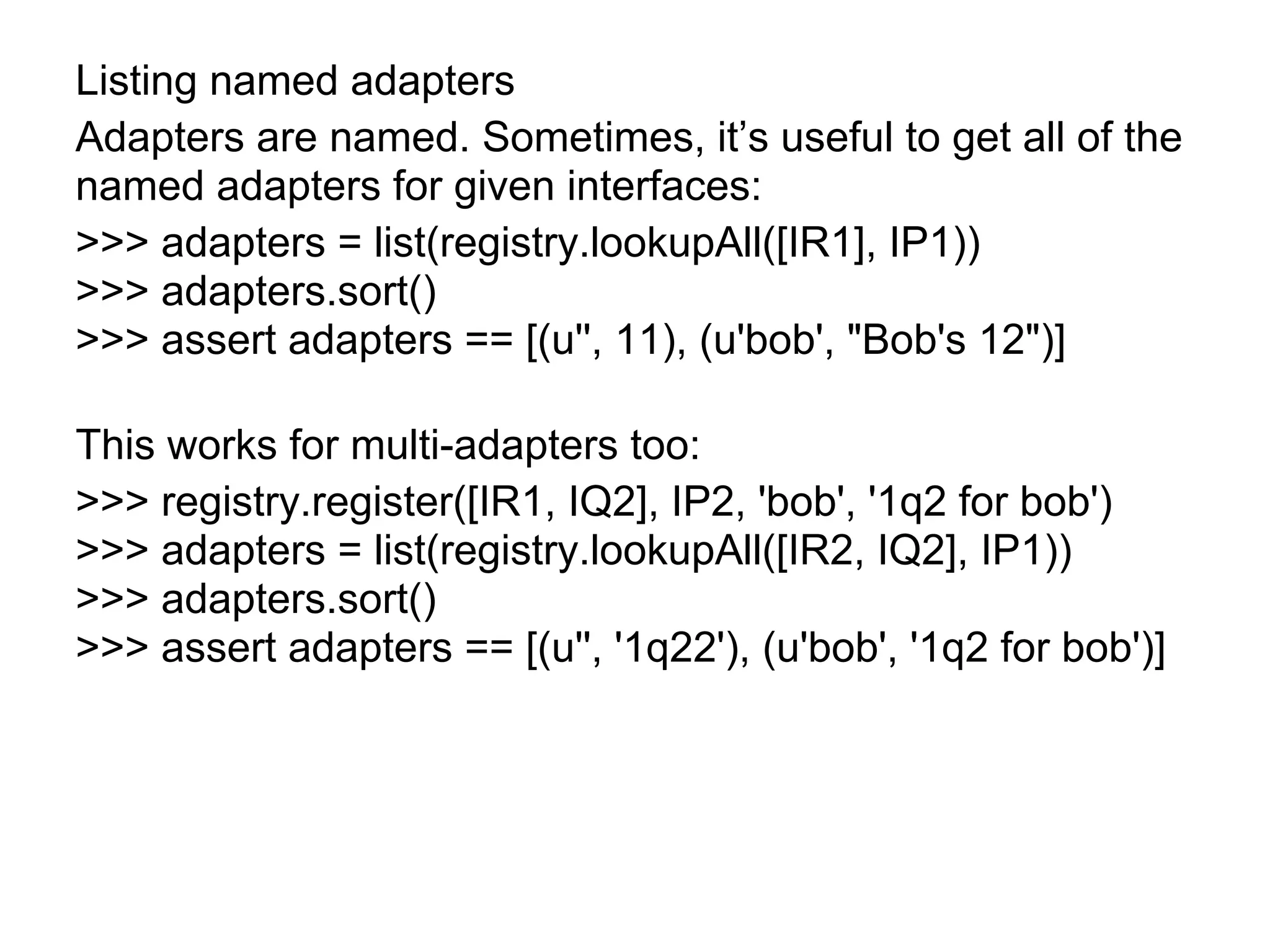

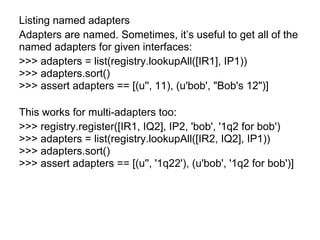

16. Listing named adapters
Adapters are named. Sometimes, it’s useful to get all of the
named adapters for given interfaces:
>>> adapters = list(registry.lookupAll([IR1], IP1))
>>> adapters.sort()
>>> assert adapters == [(u'', 11), (u'bob', "Bob's 12")]
This works for multi-adapters too:
>>> registry.register([IR1, IQ2], IP2, 'bob', '1q2 for bob')
>>> adapters = list(registry.lookupAll([IR2, IQ2], IP1))
>>> adapters.sort()
>>> assert adapters == [(u'', '1q22'), (u'bob', '1q2 for bob')]

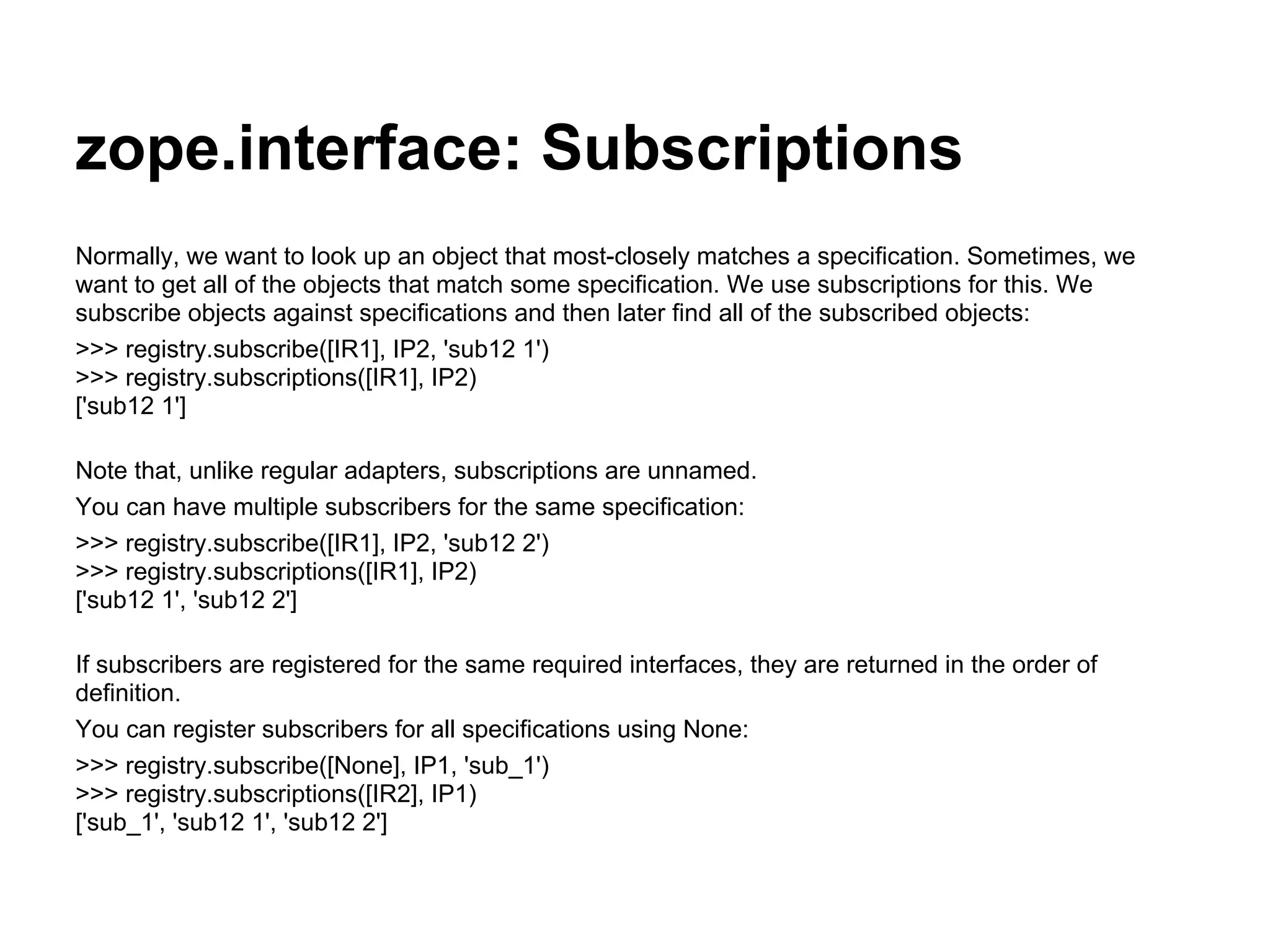

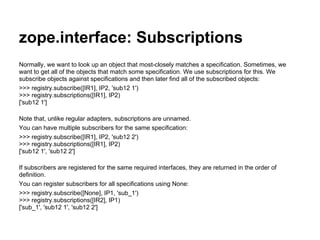

17. zope.interface: Subscriptions
Normally, we want to look up an object that most-closely matches a specification. Sometimes, we
want to get all of the objects that match some specification. We use subscriptions for this. We
subscribe objects against specifications and then later find all of the subscribed objects:
>>> registry.subscribe([IR1], IP2, 'sub12 1')
>>> registry.subscriptions([IR1], IP2)
['sub12 1']
Note that, unlike regular adapters, subscriptions are unnamed.
You can have multiple subscribers for the same specification:
>>> registry.subscribe([IR1], IP2, 'sub12 2')
>>> registry.subscriptions([IR1], IP2)
['sub12 1', 'sub12 2']
If subscribers are registered for the same required interfaces, they are returned in the order of
definition.
You can register subscribers for all specifications using None:
>>> registry.subscribe([None], IP1, 'sub_1')
>>> registry.subscriptions([IR2], IP1)
['sub_1', 'sub12 1', 'sub12 2']

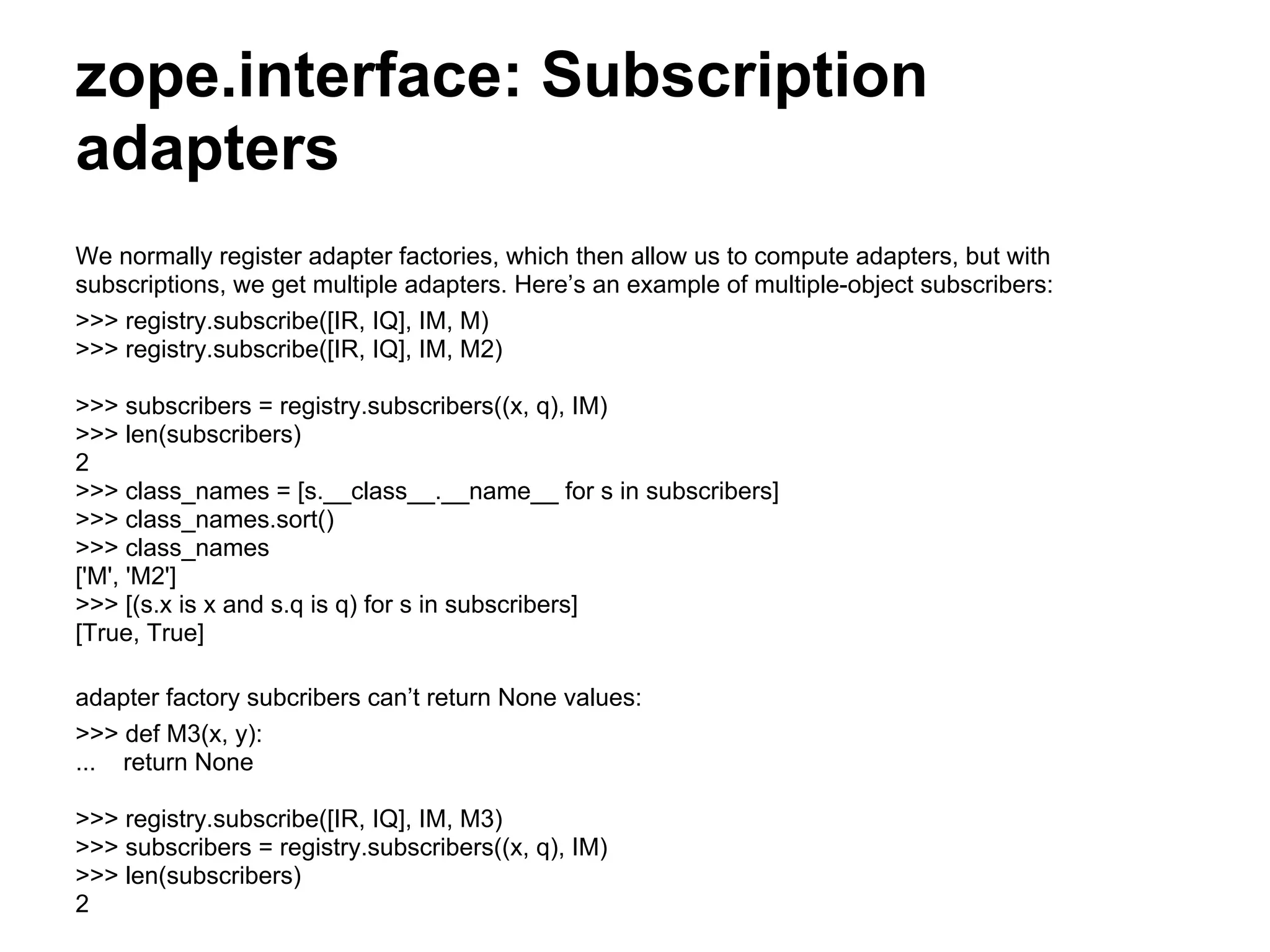

18. zope.interface: Subscription
adapters
We normally register adapter factories, which then allow us to compute adapters, but with
subscriptions, we get multiple adapters. Here’s an example of multiple-object subscribers:
>>> registry.subscribe([IR, IQ], IM, M)
>>> registry.subscribe([IR, IQ], IM, M2)
>>> subscribers = registry.subscribers((x, q), IM)
>>> len(subscribers)
2
>>> class_names = [s.__class__.__name__ for s in subscribers]
>>> class_names.sort()
>>> class_names
['M', 'M2']
>>> [(s.x is x and s.q is q) for s in subscribers]
[True, True]
adapter factory subcribers can’t return None values:
>>> def M3(x, y):
... return None
>>> registry.subscribe([IR, IQ], IM, M3)
>>> subscribers = registry.subscribers((x, q), IM)
>>> len(subscribers)
2

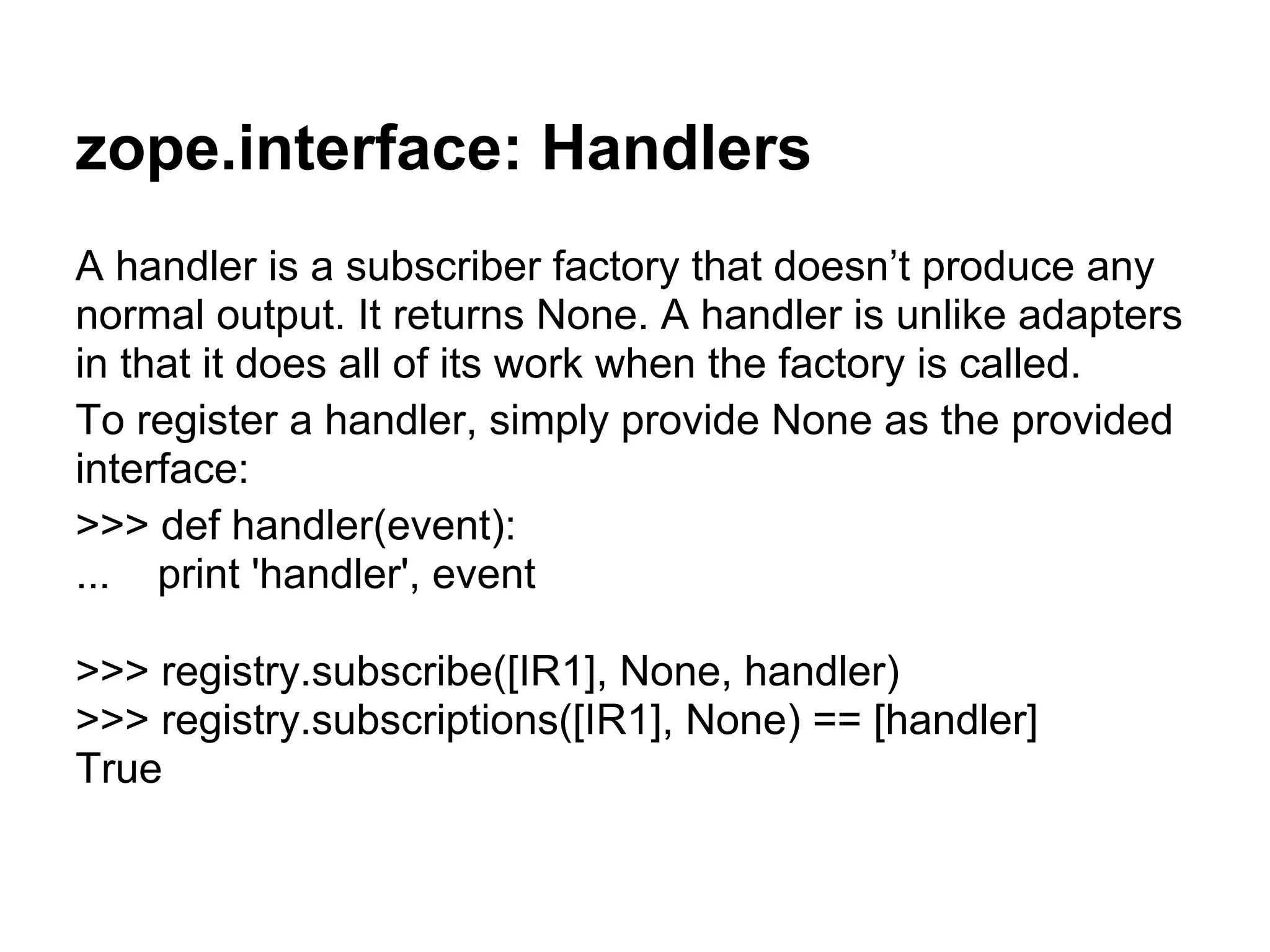

19. zope.interface: Handlers
A handler is a subscriber factory that doesn’t produce any
normal output. It returns None. A handler is unlike adapters
in that it does all of its work when the factory is called.
To register a handler, simply provide None as the provided
interface:
>>> def handler(event):
... print 'handler', event
>>> registry.subscribe([IR1], None, handler)
>>> registry.subscriptions([IR1], None) == [handler]
True

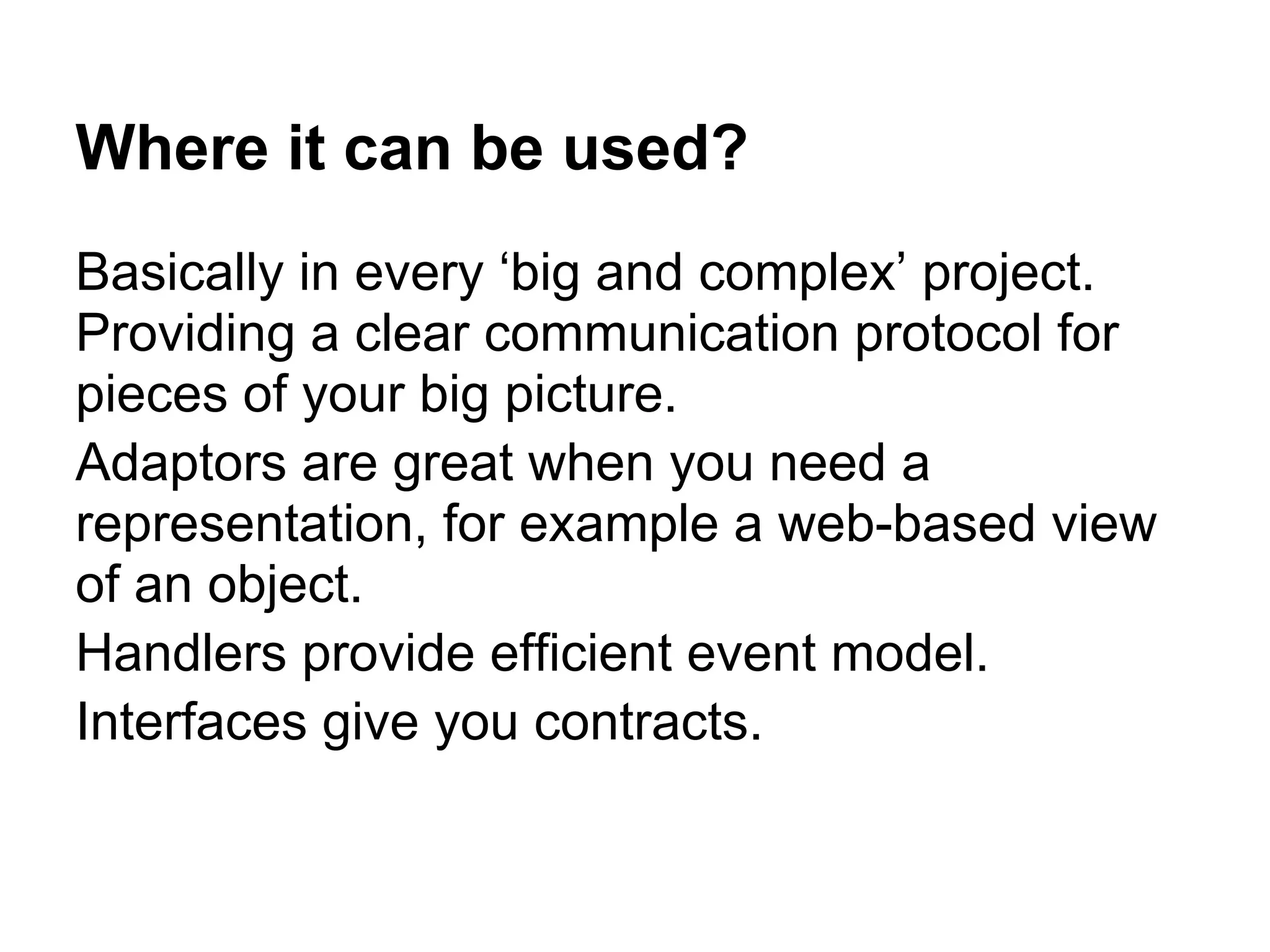

20. Where it can be used?
Basically in every ‘big and complex’ project.
Providing a clear communication protocol for
pieces of your big picture.
Adaptors are great when you need a
representation, for example a web-based view
of an object.
Handlers provide efficient event model.
Interfaces give you contracts.

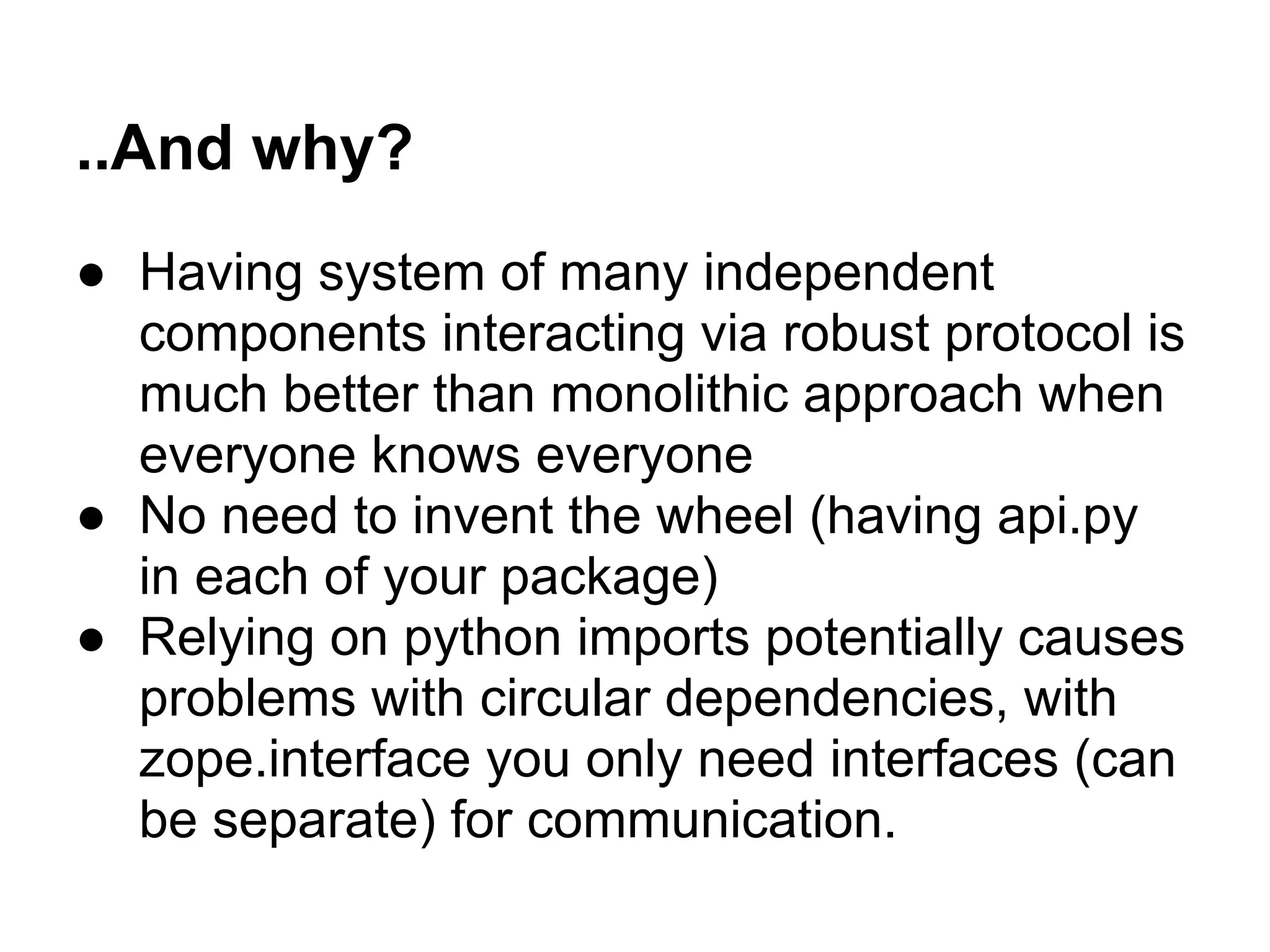

21. ..And why?
● Having system of many independent
components interacting via robust protocol is
much better than monolithic approach when
everyone knows everyone
● No need to invent the wheel (having api.py
in each of your package)
● Relying on python imports potentially causes
problems with circular dependencies, with
zope.interface you only need interfaces (can
be separate) for communication.

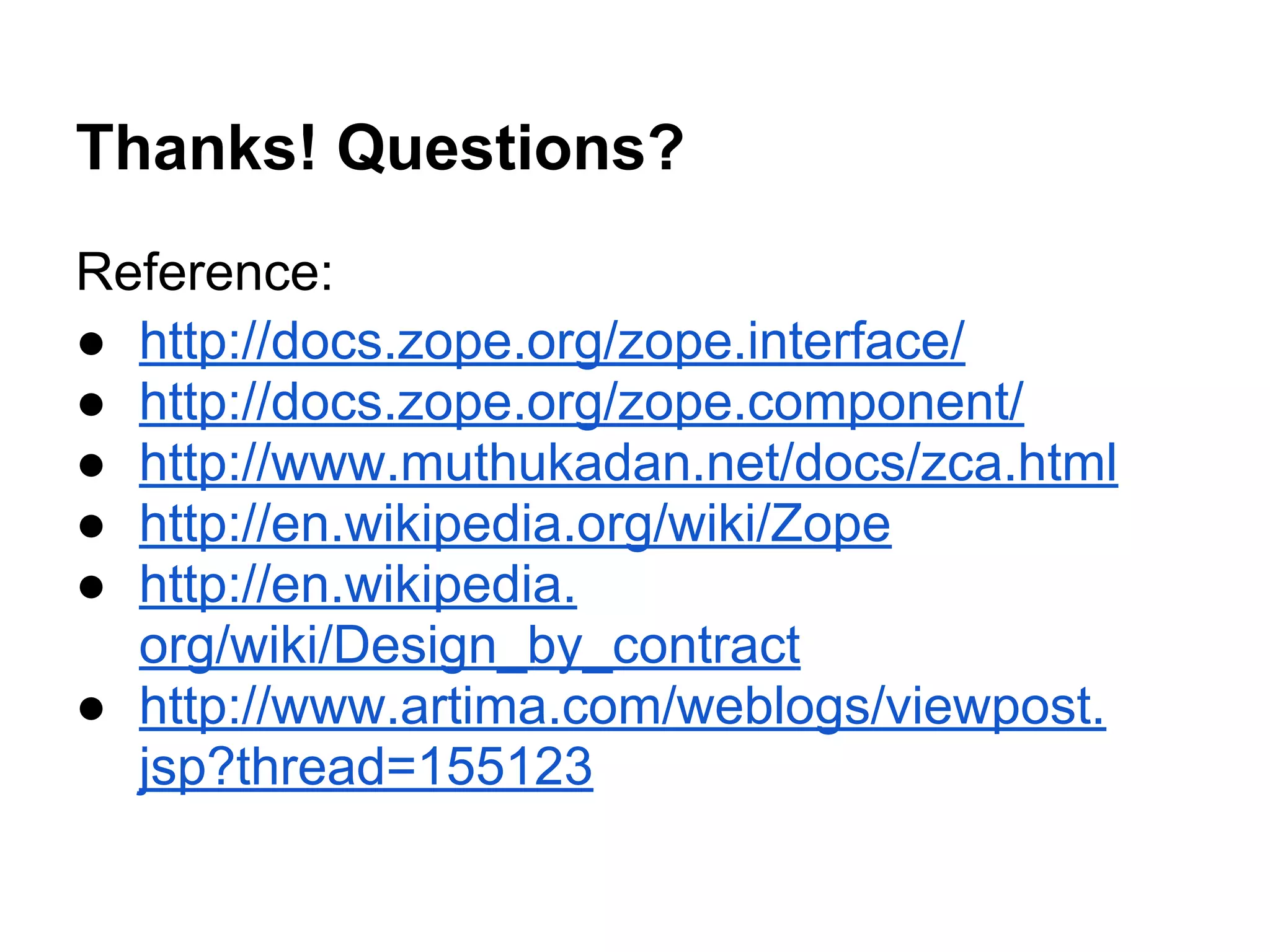

22. Thanks! Questions?
Reference:
● http://docs.zope.org/zope.interface/
● http://docs.zope.org/zope.component/
● http://www.muthukadan.net/docs/zca.html
● http://en.wikipedia.org/wiki/Zope
● http://en.wikipedia.
org/wiki/Design_by_contract
● http://www.artima.com/weblogs/viewpost.
jsp?thread=155123
