2. Accelerating the development of
low-carbon heating & cooling networks
Pilot city: GRANOLLERS
Marta Chillida, Ajuntament de Granollers
Global Power and Energy Exhibition, September 17th, 2018

3. thermos-project.euthermos-project.eu
City of Granollers
• Population: 60.658​ inh
• Total area: 14.89 km2​
• Continuous urban area > 100.000 inh
(Les Franqueses, Canovelles, i la Roca ​)
• Capital of Vallès Oriental region.​
• 28km northern Barcelona, 2nd crown
of Barcelona metropolitan area​
Covenant of Mayors (2008- SEAP2009) ​
Mayors adapt (2014- ​SECAP 2016)
Sustainable Energy and Climate
Action Plan, 2030
Eco Congost project:
REDUCTION OF FOSSIL ENERGY CONSUMPTION IN GRANOLLERS’ INDUSTRIAL PARKS
Planning high efficiency energy generation and district heating distribution with renewable
energy sources in an area with high industrial heat demand
​

4. thermos-project.euthermos-project.eu
District Heating
and Cooling
in Spain

5. thermos-project.euthermos-project.eu

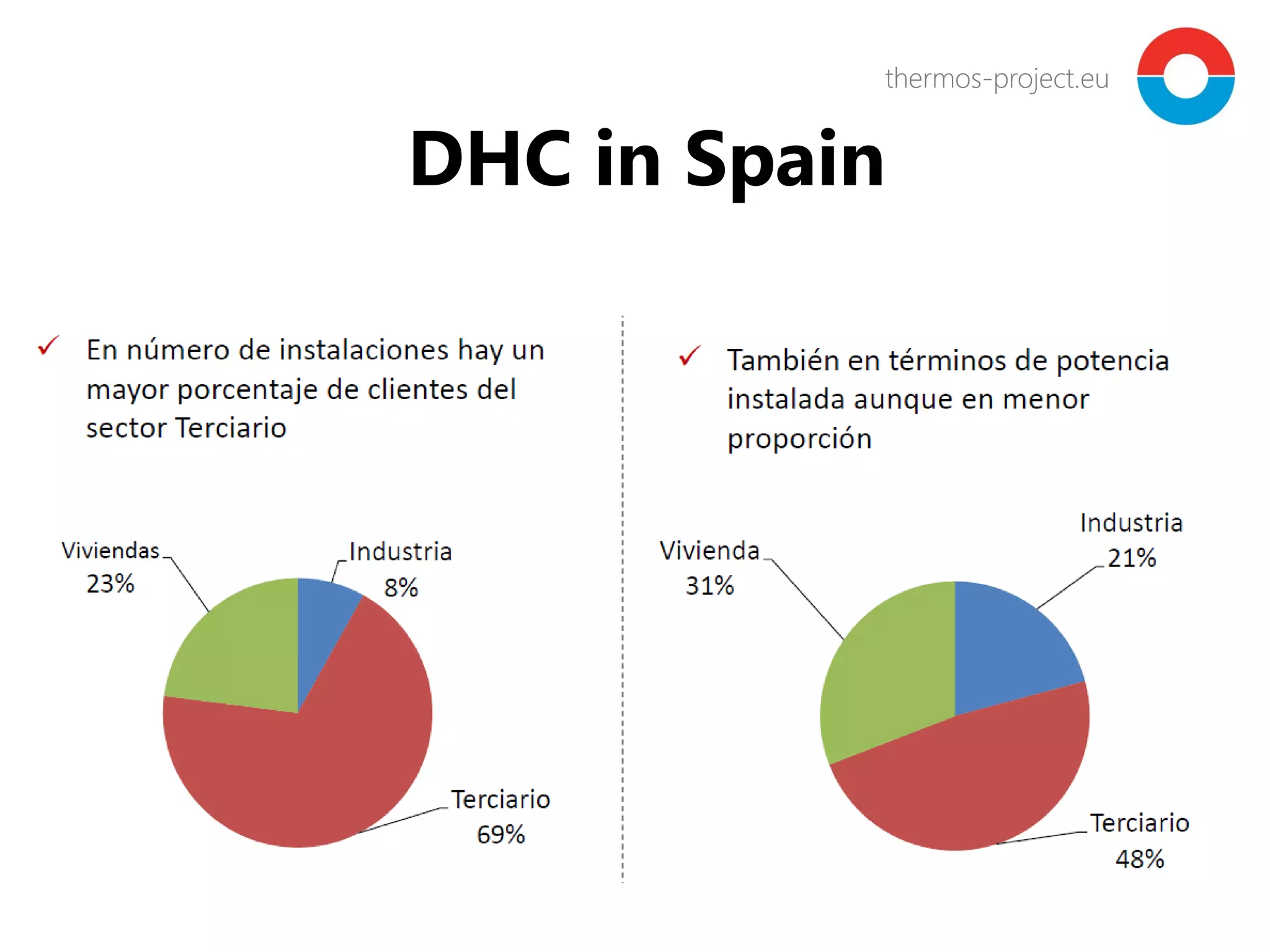

DHC in Spain

6. thermos-project.euthermos-project.eu
DHC in Spain

7. thermos-project.euthermos-project.eu
Industrial areas
• 7 industrial parks with more than 600 economic
activities
• Access to natural gas and electricity guaranteed.
Industrial
park
Activity Workers Surface
(Ha)
Congost 177 3.376 90,76
Jordi Camp 121 2.411 41.48

8. thermos-project.euthermos-project.eu

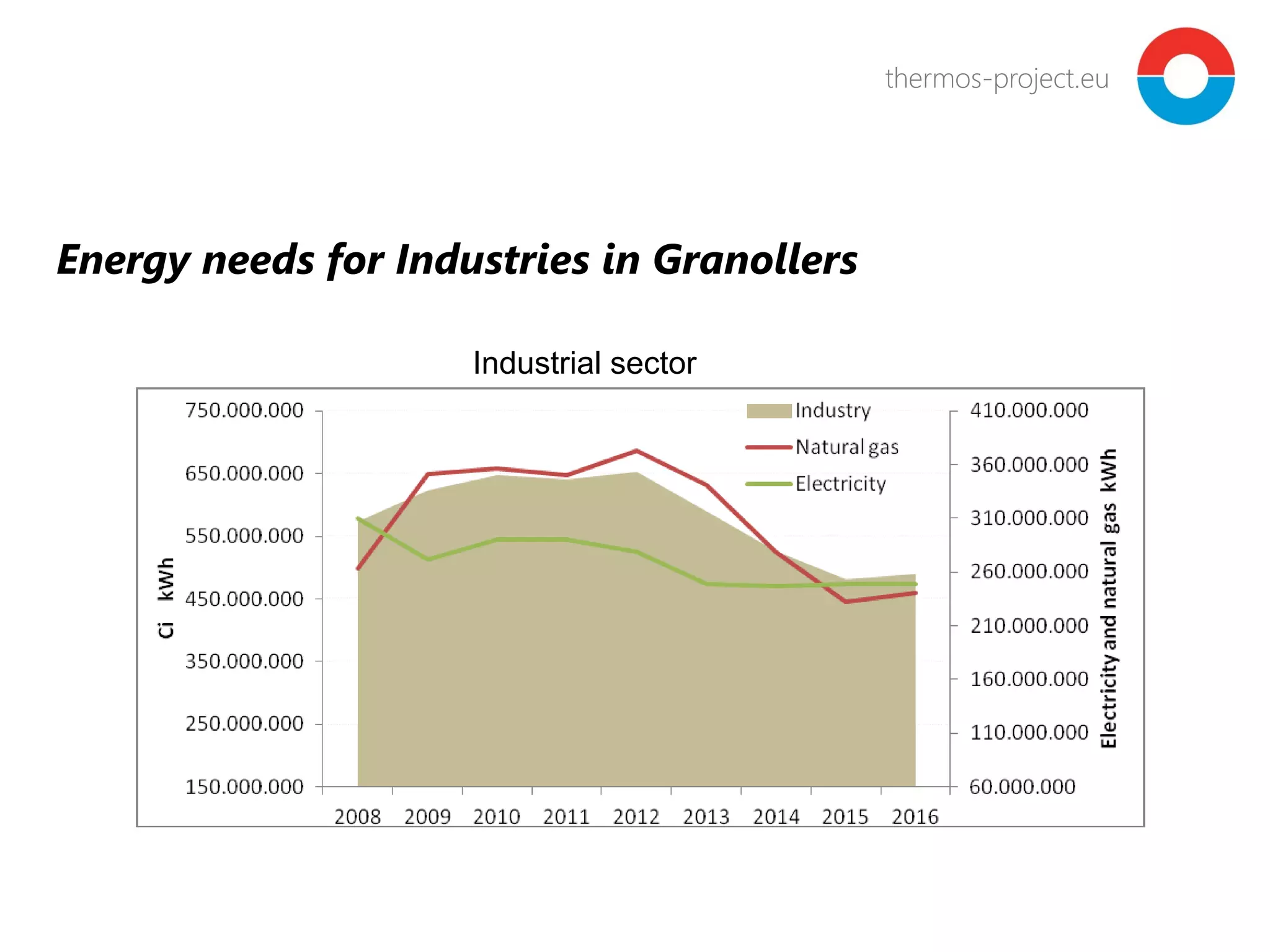

Energy needs for Industries in Granollers
Industrial sector

9. thermos-project.euthermos-project.eu

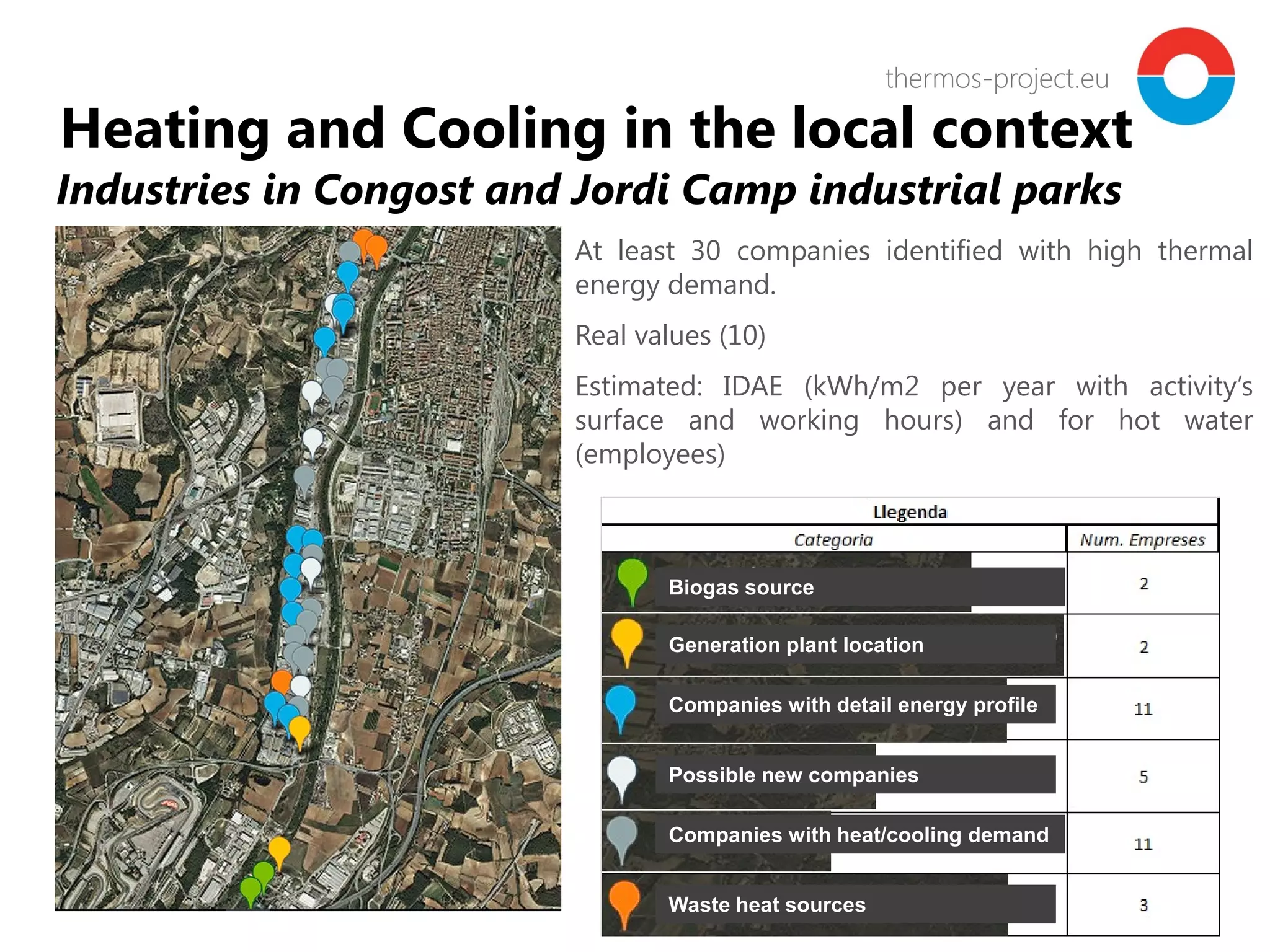

Industries in Congost and Jordi Camp industrial parks
Heating and Cooling in the local context
At least 30 companies identified with high thermal
energy demand.
Real values (10)
Estimated: IDAE (kWh/m2 per year with activity’s
surface and working hours) and for hot water
(employees)
Biogas source
Generation plant location
Companies with detail energy profile
Possible new companies
Companies with heat/cooling demand
Waste heat sources

10. thermos-project.euthermos-project.eu
Thermal power demand
all along the industrial areas
Heating and Cooling in the local context
The 86.25%, 31.5MW of the total
installed capacity (in terms of
steam or hot water boilers) is
located in the southern part of
this two industrial parks. The
northern part only means 5MW
of installed capacity.

11. thermos-project.eu
The improvement of the use
of energy in an industrial
area, using renewable
sources (two biogas
production plants : sewage
and bio-waste treatment
plant) and industrial
surplus or waste heat

12. thermos-project.euthermos-project.eu
Role in THERMOS : Pilot city
• Identify and collect required datasets WP1:
– energy sources (biogas, surplus heat, biomass, solar…)
– energy consumers (present and future)
– thermal energy network costs of building (pipes, generation, distribution, storage
…)and providing steam and hot water
• Help the leaders in modeling from a multi-scale multi-vector point of view and use
THERMOS’ application for Granollers district heating network planning (WP2-WP3)
according to our user-needs and challenges (public authority).
• Share the knowledge gained from the experience with the replication city of Cascais
(Portugal), have technicians trained (WP4) and disseminate and promote THERMOS
adoption roadmap among local and regional authorities, energy agencies, industry
and consumer associations (WP5).
• Hosting 1 project meetings (WP1) and hosting one twinning workshop (WP4)

13. thermos-project.euthermos-project.eu
Granollers’ data sets

14. thermos-project.euthermos-project.eu
Energy sources
(biogas, surplus
heat, biomass,
solar…)

15. thermos-project.euthermos-project.eu
Renewable DHC in Spain
91 in CAT

16. thermos-project.euthermos-project.eu

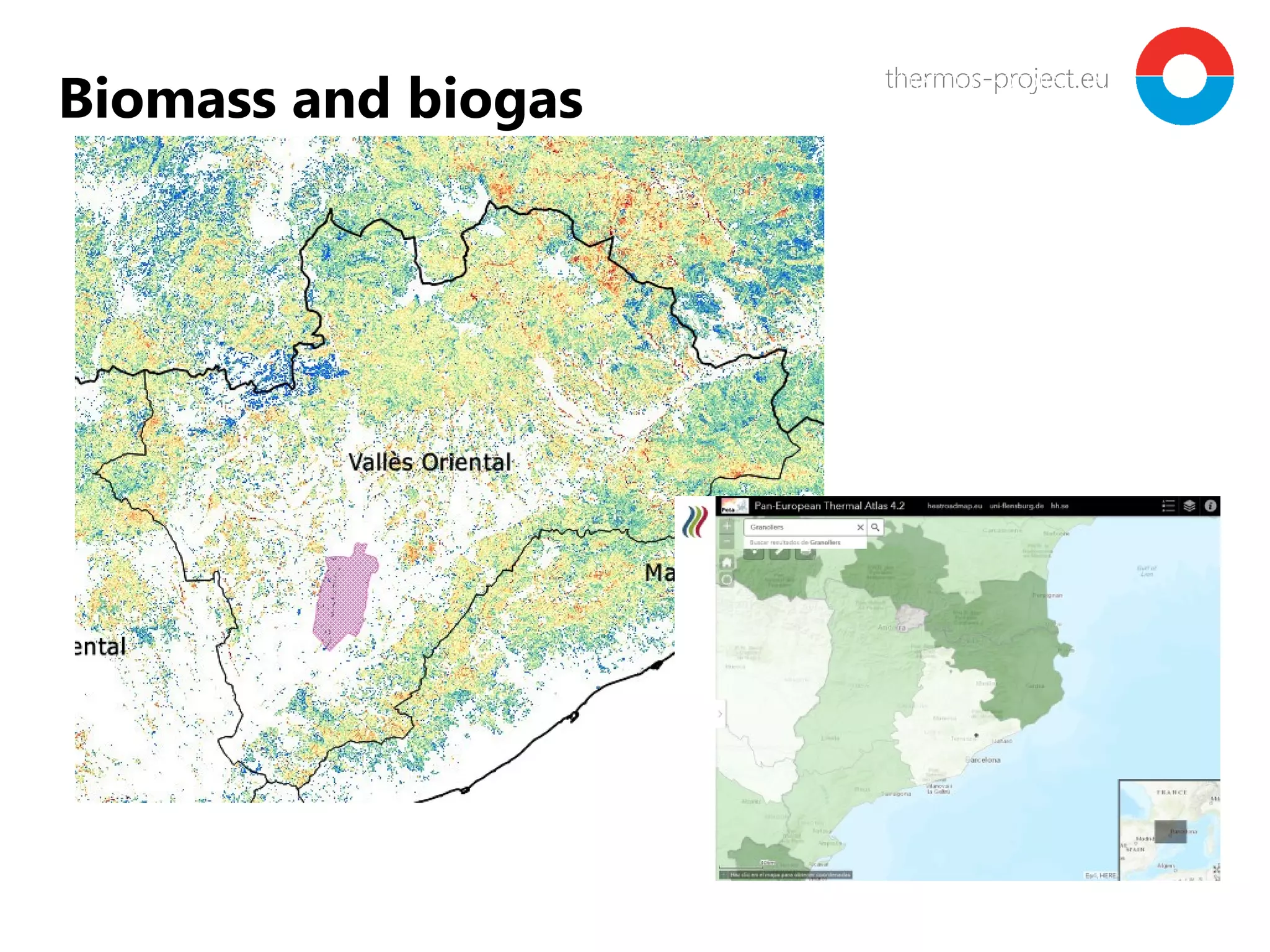

Biomass and biogas

17. thermos-project.euthermos-project.eu

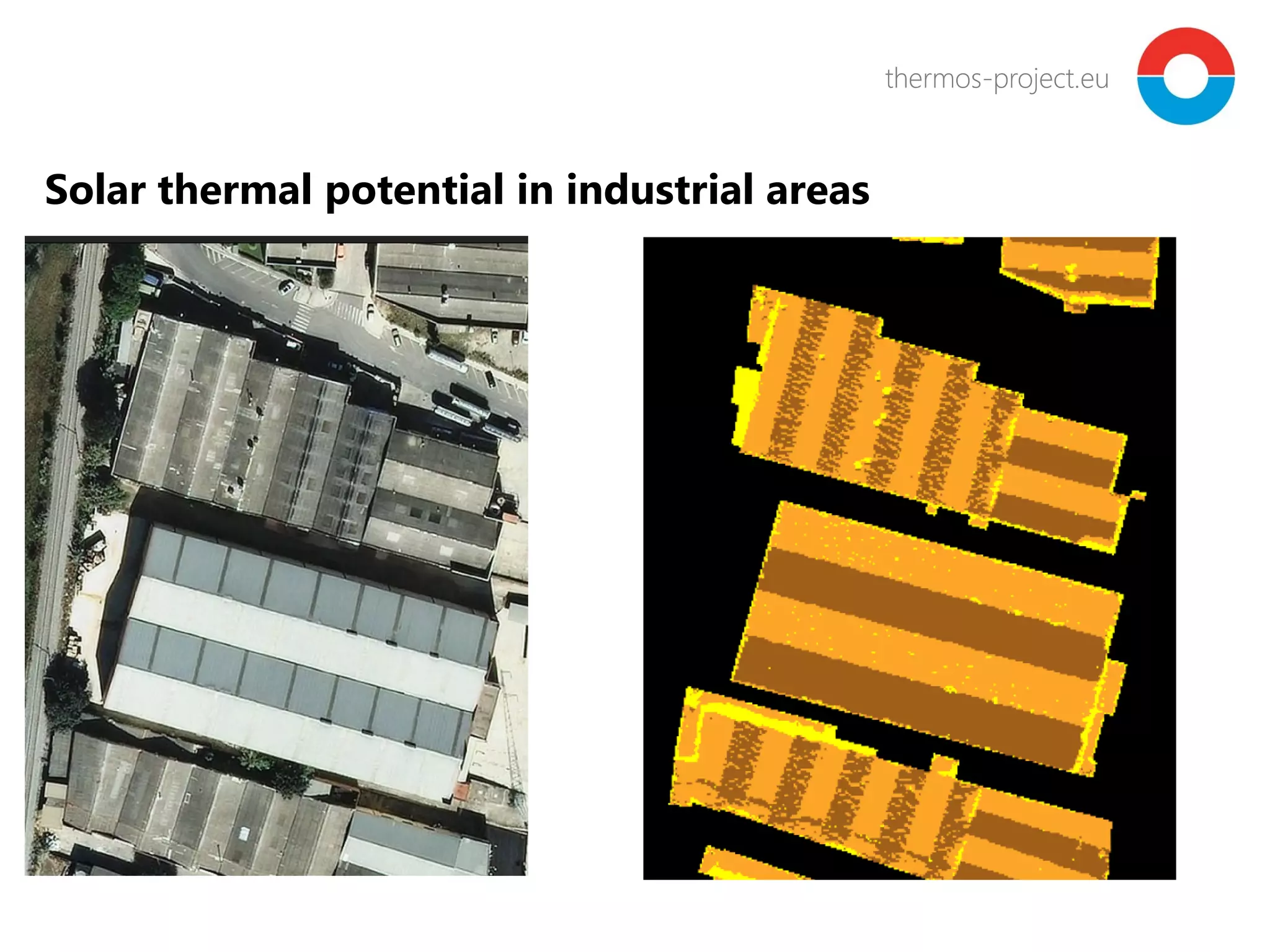

Solar thermal potential in industrial areas

18. thermos-project.euthermos-project.eu

19. thermos-project.euthermos-project.eu

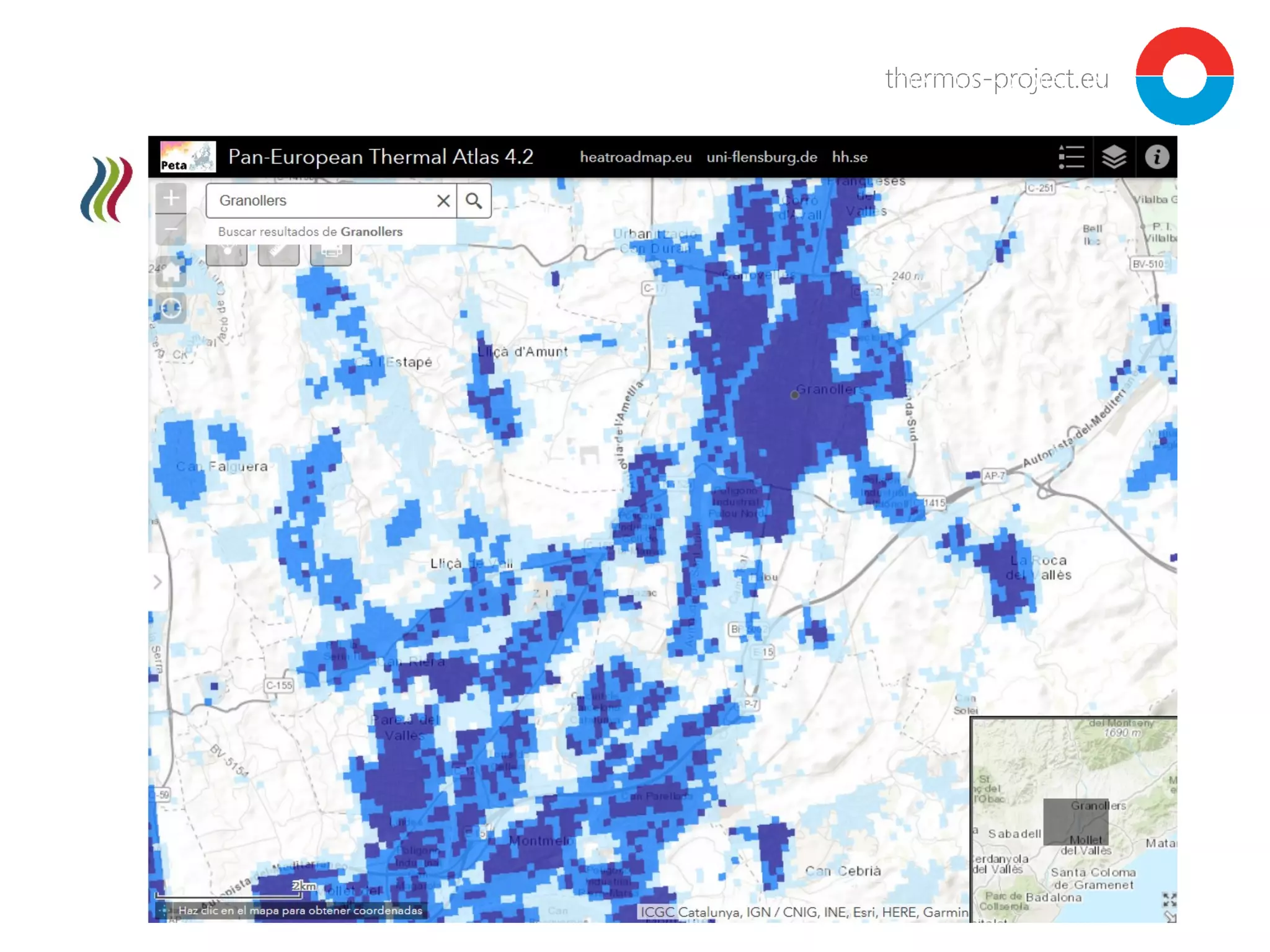

Thermal energy sources

20. thermos-project.euthermos-project.eu

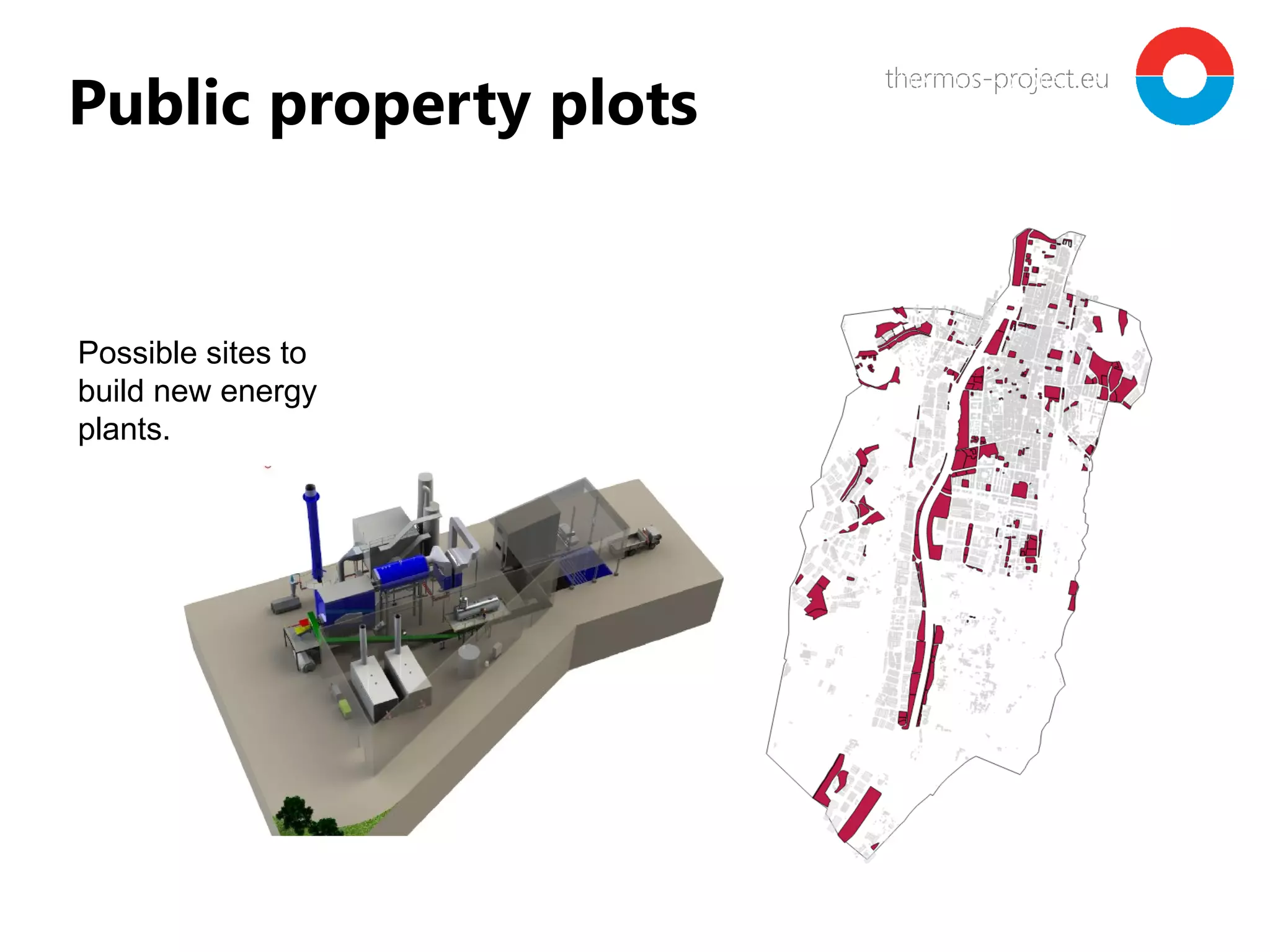

Public property plots
Possible sites to
build new energy
plants.

21. thermos-project.euthermos-project.eu
Energy consumers

22. thermos-project.euthermos-project.eu

23. thermos-project.euthermos-project.eu

24. thermos-project.euthermos-project.eu
Tipo de
certificación
Número de
certificaciones
%
A 6 0,09
B 71 1,09
C 375 5,75
D 798 12,23
E 3331 51,05
F 768 11,77
G 1176 18,02
Total 6525 100
Energy certificates with 5,070
apartments/dwellings in blocs, 306 single-
family and 946 service sector in Granollers
Total
Terciari 946
Bloc 200
Indiv en bloc 5070
Hab 3
Unifamiliar 306
6525
Primary energy demand (ENERGIA PRIMARIA [kWh/m2·any];
Emissions estimates (EMISSIONS [kg CO2/m2·any],
Energy certification of buildings

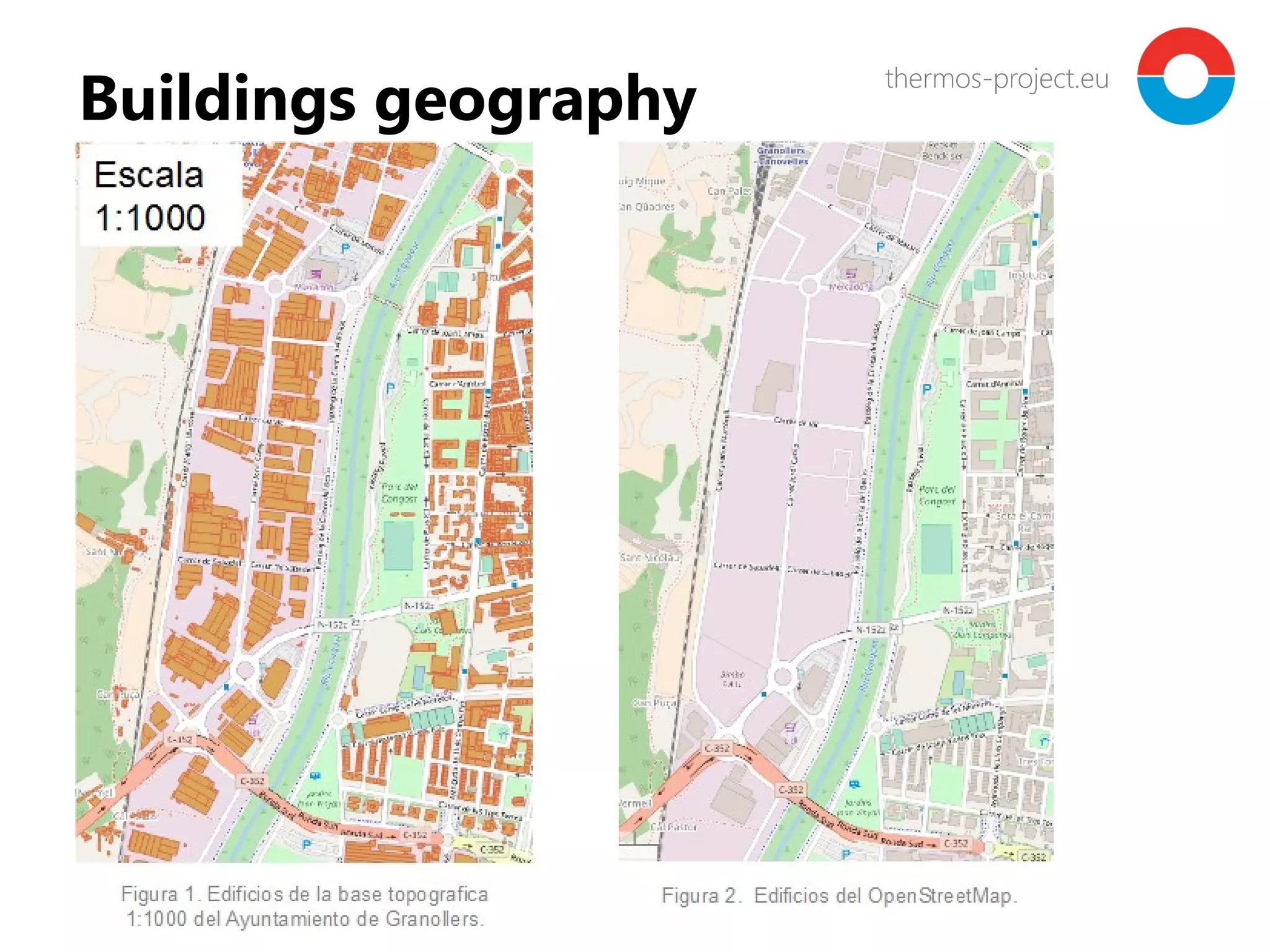

25. thermos-project.euthermos-project.eu
Buildings geography

26. thermos-project.euthermos-project.eu
296 economic activities
106 industrial heat demand
190 non-industrial heat needs
10 activities with real heat
demand
Economic activities

27. thermos-project.euthermos-project.eu
Industrial energy demands
Apart from real measured consumptions for
the 10 monitored activities (the biggest ones
in Eco Congost project) there are estimates
for the rest of activities based on :
-the surface area and economic activity
classification (CCAE) according to ICAEN
sources for industrial processes demand.
-employees and yearly working days for hot
water consumption.

28. thermos-project.euthermos-project.eu
Evolution of industrial users demand
Industrial sector
Two primary industrial
areas have been identified
for action:
Congost and Jordi Camp.
A range of solutions are
being investigated for
both areas including solar
thermal energy, PV
energy, heat exchange
between industries, the
district heating network,
and a cogeneration plant
providing steam and hot
water.

29. thermos-project.euthermos-project.eu
Thermal power demand all along the industrial areas
Available 9 energy demand profiles of boilers with real annual consumptions, with real values
every 15minutes. (EXAMPLE)
0
5
10
15
20
25
30
35
1
153
305
457
609
761
913
1065
1217
1369
1521
1673
1825
1977
2129
2281
2433
2585
2737
2889
3041
3193
3345
3497
3649
3801
3953
4105
4257
4409
4561
4713
4865
5017
5169
5321
5473
5625
5777
5929
6081
6233
6385
6537
6689
6841
6993
7145
7297
7449
7601
7753
7905
8057
8209
8361
8513
8665
Energy demand kWh

30. thermos-project.euthermos-project.eu

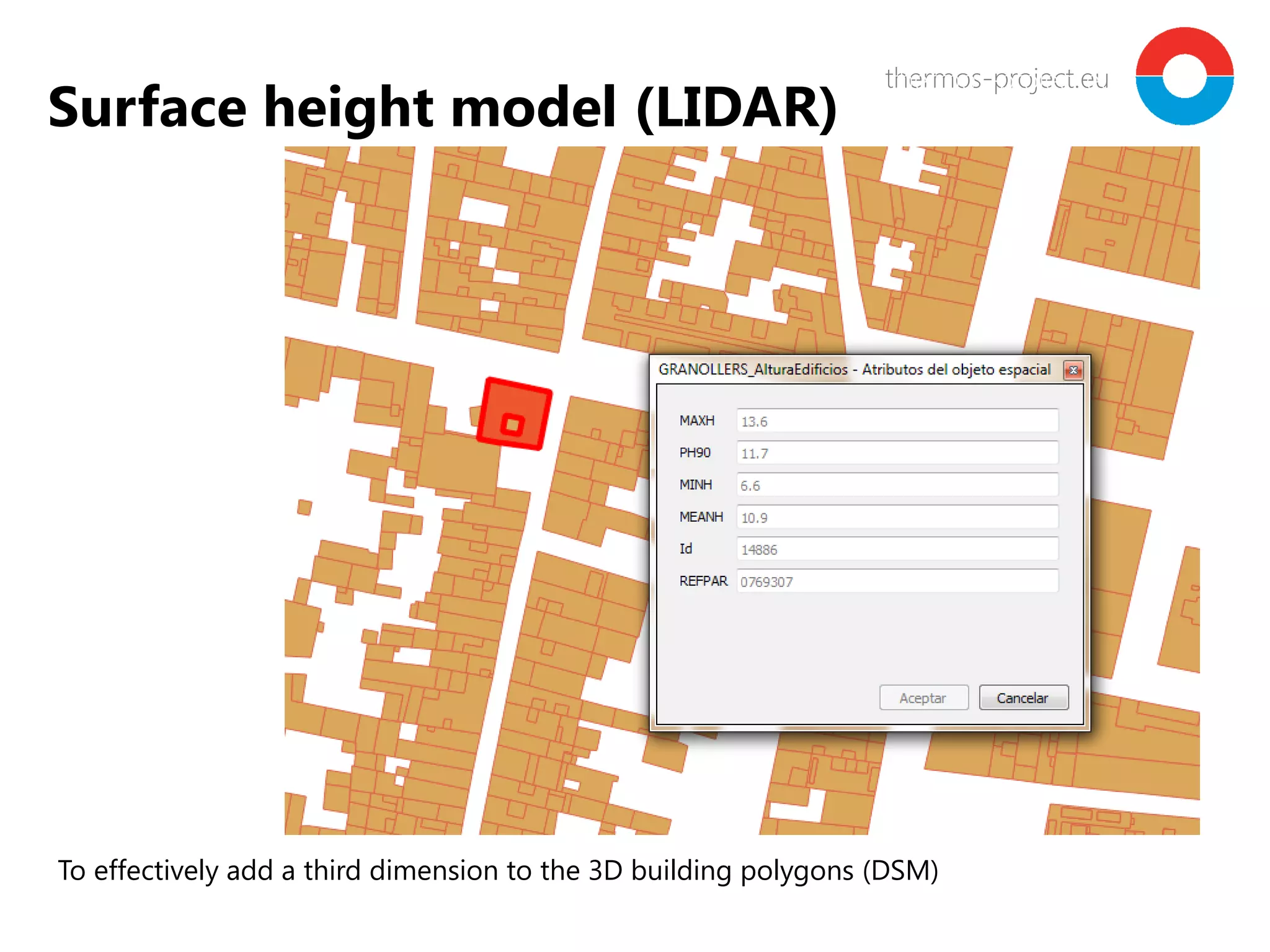

Surface height model (LIDAR)
To effectively add a third dimension to the 3D building polygons (DSM)

31. thermos-project.euthermos-project.eu

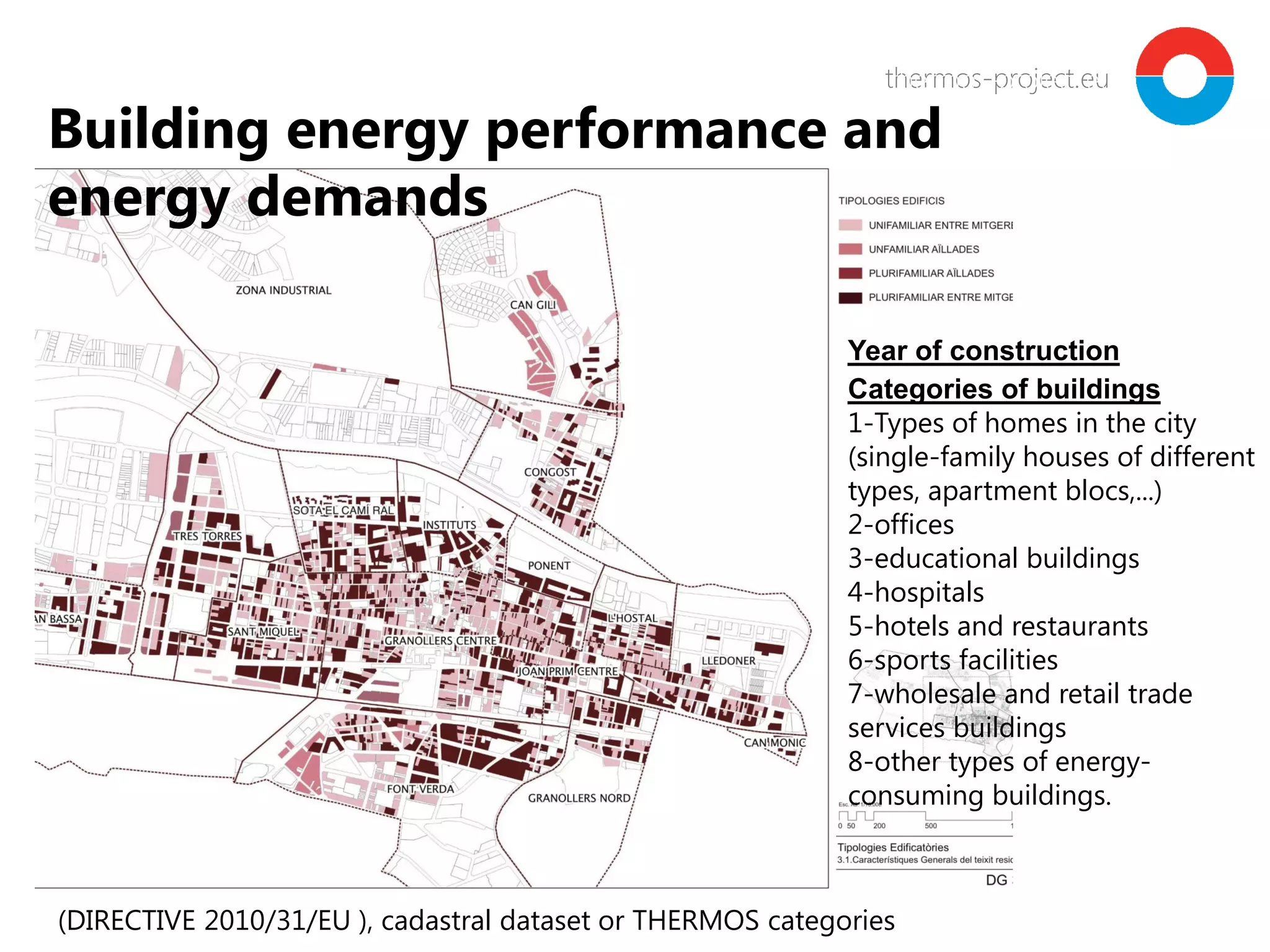

Building energy performance and
energy demands
Year of construction
Categories of buildings
1-Types of homes in the city
(single-family houses of different
types, apartment blocs,...)
2-offices
3-educational buildings
4-hospitals
5-hotels and restaurants
6-sports facilities
7-wholesale and retail trade
services buildings
8-other types of energy-
consuming buildings.
(DIRECTIVE 2010/31/EU ), cadastral dataset or THERMOS categories

32. thermos-project.euthermos-project.eu
Public buildings energy
performance and real demands

33. thermos-project.euthermos-project.eu
Thermal energy
network costs of
building (pipes,
generation,
distribution, storage
…)and providing
steam and hot water

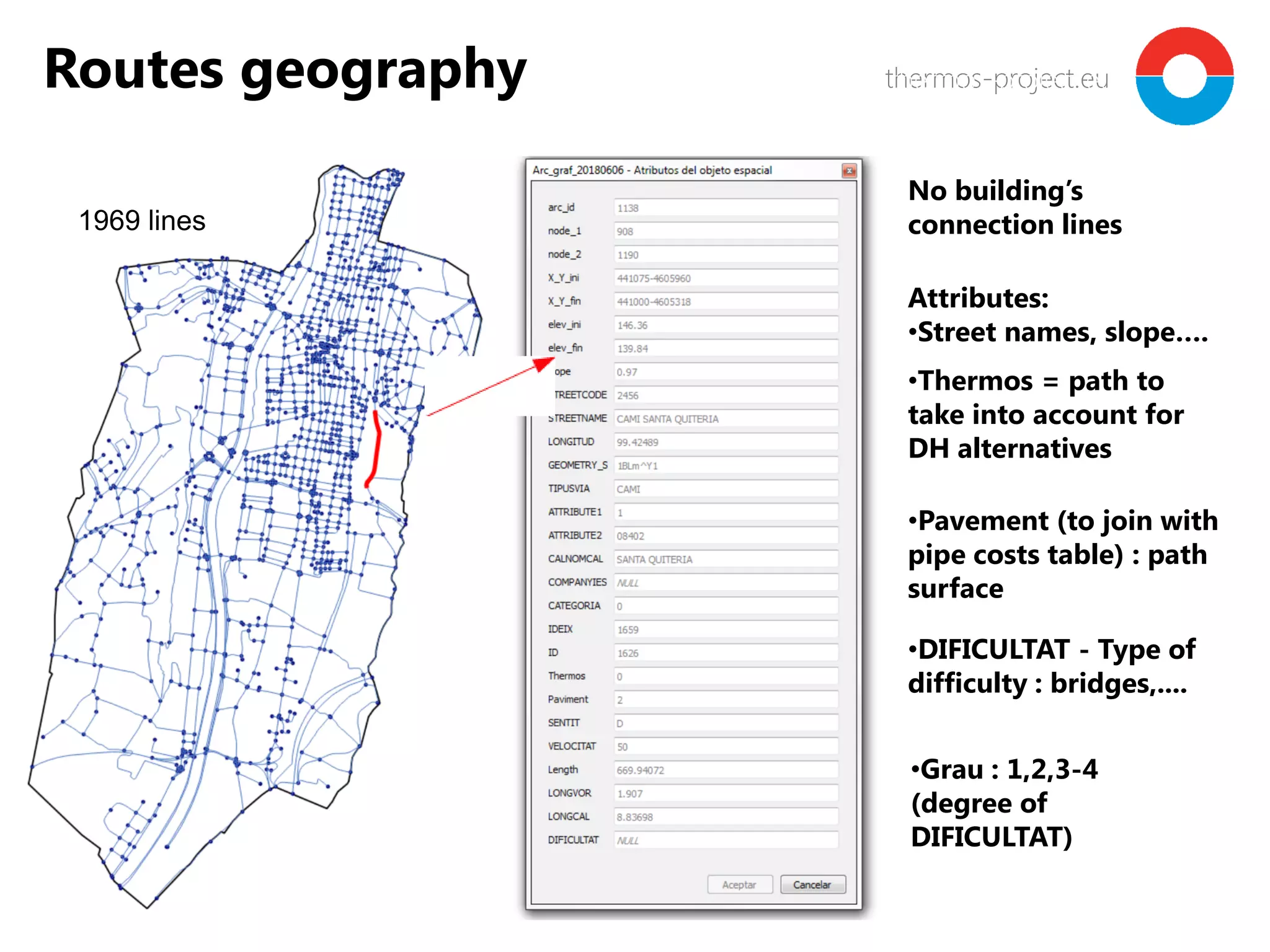

34. thermos-project.euthermos-project.eu
•DIFICULTAT - Type of
difficulty : bridges,....
Routes geography
1969 lines
No building’s
connection lines
Attributes:
•Street names, slope….
•Thermos = path to
take into account for
DH alternatives
•Pavement (to join with
pipe costs table) : path
surface
•Grau : 1,2,3-4
(degree of
DIFICULTAT)

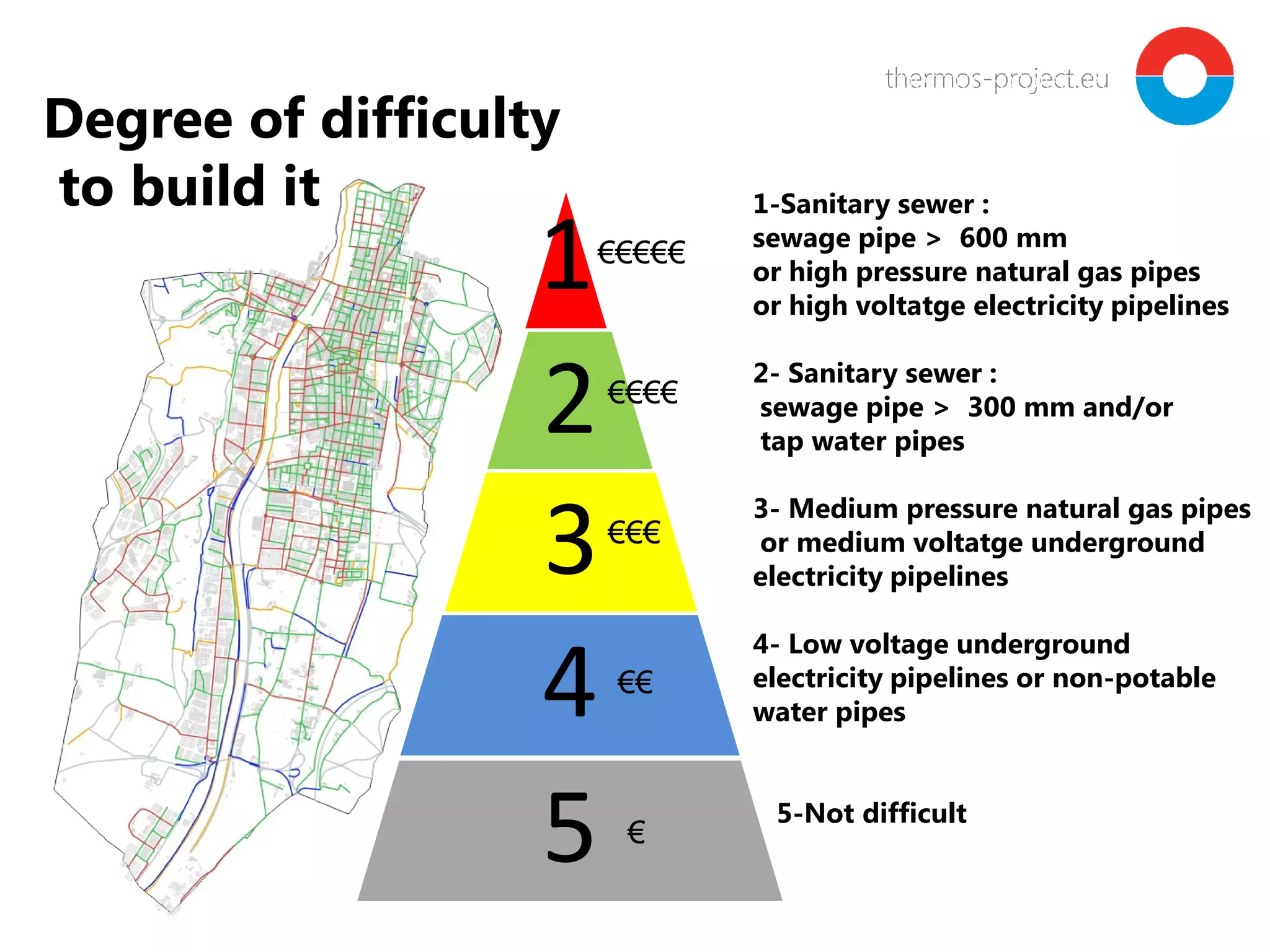

35. thermos-project.euthermos-project.eu
1-Sanitary sewer :
sewage pipe > 600 mm
or high pressure natural gas pipes
or high voltatge electricity pipelines
2- Sanitary sewer :
sewage pipe > 300 mm and/or
tap water pipes
3- Medium pressure natural gas pipes
or medium voltatge underground
electricity pipelines
4- Low voltage underground
electricity pipelines or non-potable
water pipes
5-Not difficult
Degree of difficulty
to build it
1
2
3
4
5 €
€€
€€€
€€€€
€€€€€

36. thermos-project.euthermos-project.eu
ELECTRICITY NETWORK
Electricity network layout of Endesa (2017) and Estabanell and Pahisa
Nowadays is being reviewed by Granollers' lawyers the actual Confidentiality
Agreement to be able to show data to third parties in presentation slides, or in
THERMOS' tool with this information

37. thermos-project.euthermos-project.eu
Path surface Diameters pipes CodiGIS_Pathsurface
1_200 2_280 2_315 2_400 2_560 2_710
Natural/aggregate 227,43 € 503,01 € 606,29 € 754,65 € 831,85 € 949,74 € 1
Asphalt 263,25 € 557,11 € 662,90 € 817,35 € 906,02 € 1.034,65 € 2
Coblestone 283,54 € 587,75 € 694,96 € 852,86 € 948,02 € 1.082,74 € 3,4
PIPE INSTALLATION COSTS
For every day of a typical year, and for some extreme years. - i.e. daily temperature data,
and the typical threshold temperatures at which heating and cooling start to be used.
https://www.degreedays.net/
Heating and cooling degree-days per day

38. thermos-project.euthermos-project.eu
Expectations and needs...
• Identify and quantify the best way/solutions to build a district heating
system in the city from a multi-scale multi-vector point of view, with a
dynamic local supply and demand.
• Help local energy planners to develop a DH network over the next years
in a consolidated urban area, and be able to reduce local fossil energy
consumption and local GHG emissions.
Target group
• In Spain and Catalonia we have regular contact with local and regional
authorities and networks, energy agencies, public and private utilities,
industry and investors related to thermal energy.
