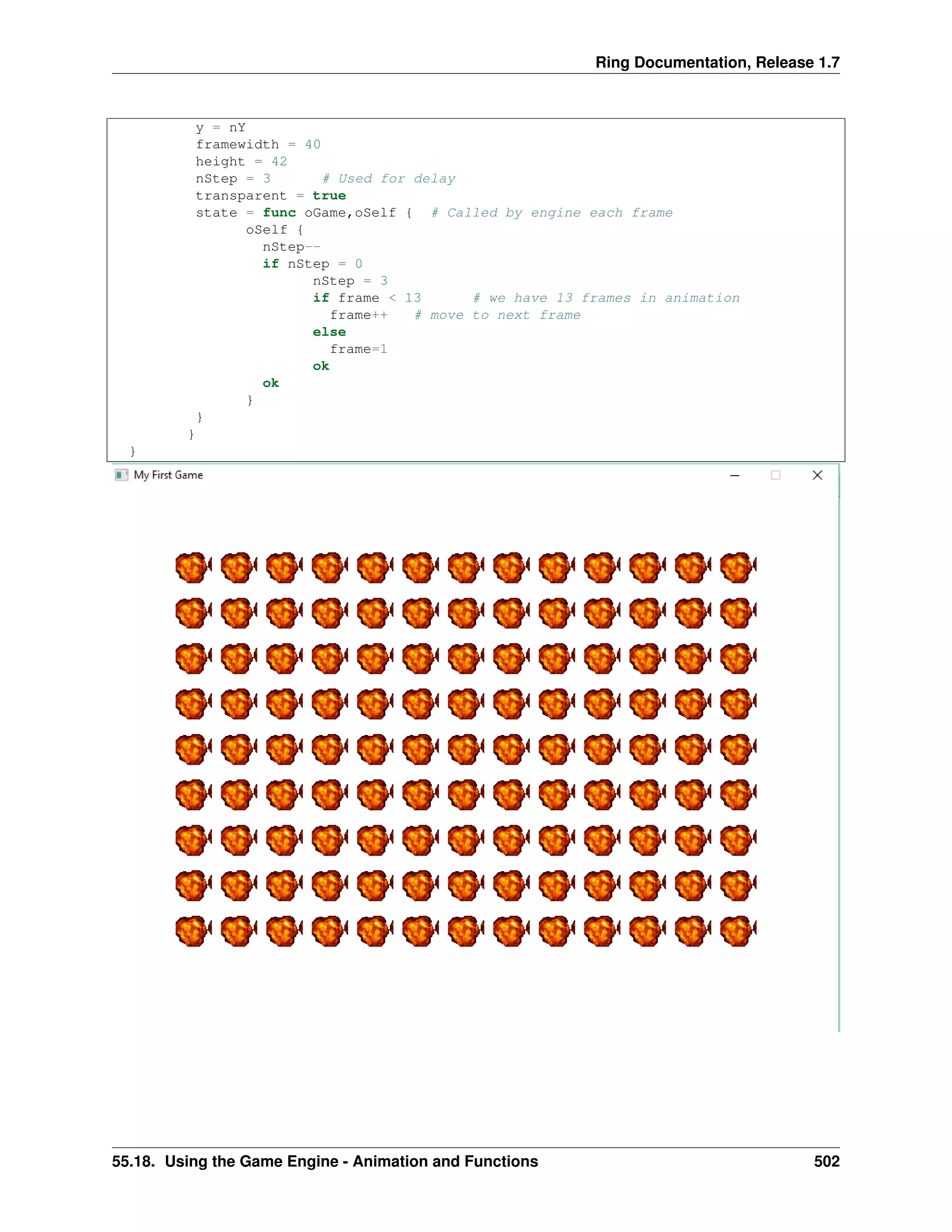

1. Ring Documentation, Release 1.7
y = nY
framewidth = 40
height = 42
nStep = 3 # Used for delay
transparent = true
state = func oGame,oSelf { # Called by engine each frame
oSelf {
nStep--
if nStep = 0
nStep = 3
if frame < 13 # we have 13 frames in animation
frame++ # move to next frame
else
frame=1
ok
ok
}
}
}
}
55.18. Using the Game Engine - Animation and Functions 502

2. Ring Documentation, Release 1.7

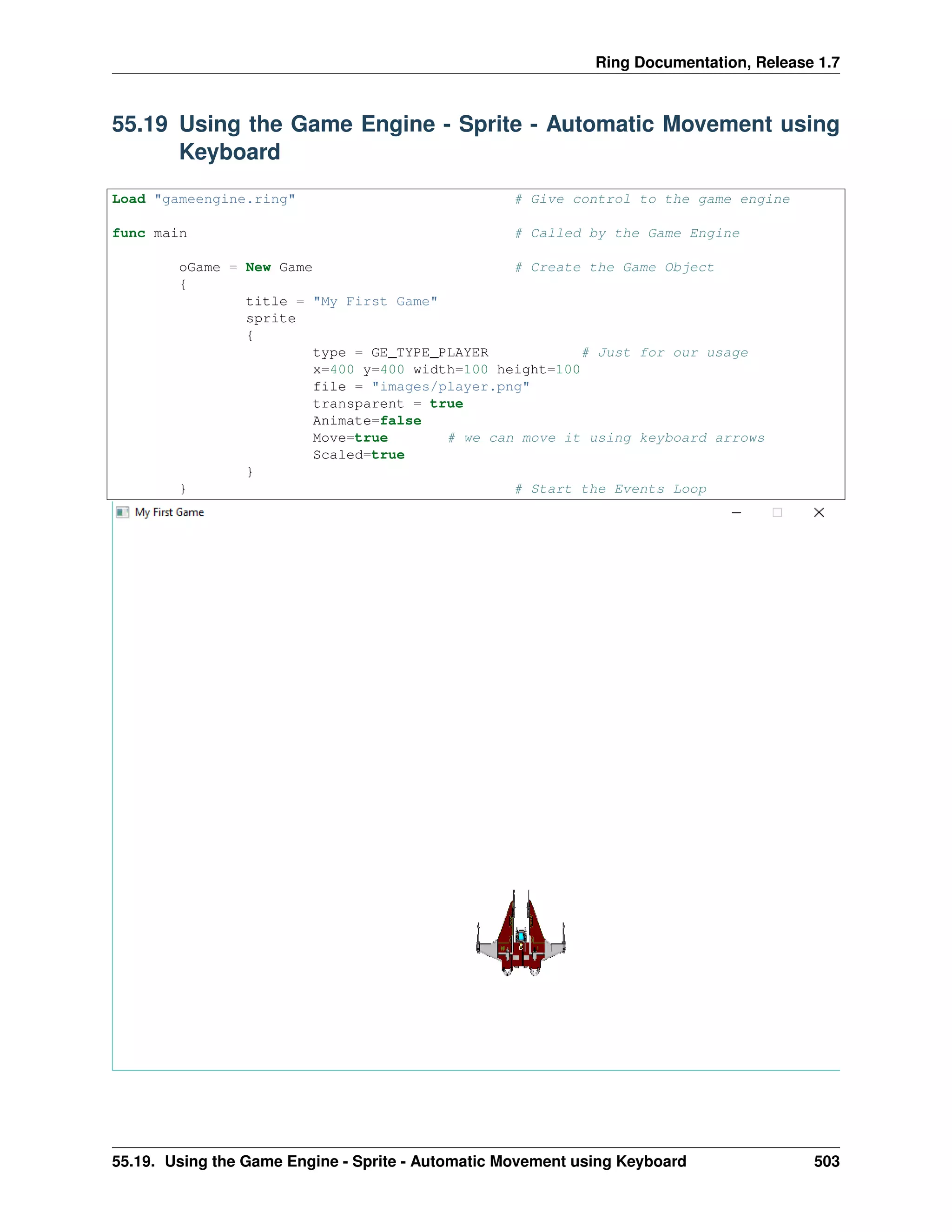

55.19 Using the Game Engine - Sprite - Automatic Movement using
Keyboard
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
sprite
{
type = GE_TYPE_PLAYER # Just for our usage
x=400 y=400 width=100 height=100
file = "images/player.png"
transparent = true
Animate=false
Move=true # we can move it using keyboard arrows
Scaled=true
}
} # Start the Events Loop
55.19. Using the Game Engine - Sprite - Automatic Movement using Keyboard 503

3. Ring Documentation, Release 1.7
55.20 Using the Game Engine - Sprite - Keypress event
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
sprite
{
type = GE_TYPE_PLAYER # Just for our usage
x=400 y=400 width=100 height=100
file = "images/player.png"
transparent = true
Animate=false
Move=false # Custom Movement
Scaled=true
keypress = func oGame,oSelf,nKey {
oSelf {
Switch nKey
on KEY_LEFT
x -= 10
on KEY_RIGHT
x += 10
on KEY_UP
y -= 10
on KEY_DOWN
y += 10
off
}
}
}
} # Start the Events Loop
55.21 Using the Game Engine - Sprite - Mouse event
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
sprite
{
type = GE_TYPE_PLAYER # Just for our usage
x=400 y=400 width=100 height=100
file = "images/player.png"
transparent = true
Animate=false
Move=false # Custom Movement
Scaled=true
keypress = func oGame,oSelf,nKey {
oSelf {
55.20. Using the Game Engine - Sprite - Keypress event 504

4. Ring Documentation, Release 1.7
Switch nKey
on KEY_LEFT
x -= 10
on KEY_RIGHT
x += 10
on KEY_UP
y -= 10
on KEY_DOWN
y += 10
off
}
}
mouse = func oGame,oSelf,nType,aMouseList {
if nType = GE_MOUSE_UP
oSelf {
x = aMouseList[GE_MOUSE_X]
y = aMouseList[GE_MOUSE_Y]
}
ok
}
}
} # Start the Events Loop
55.22 Using the Game Engine - Sprite - State event
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
sprite
{
type = GE_TYPE_PLAYER # Just for our usage
x=400 y=400 width=100 height=100
file = "images/player.png"
transparent = true
Animate=false
Move=false # Custom Movement
Scaled=true
keypress = func oGame,oSelf,nKey {
oSelf {
Switch nKey
on KEY_LEFT
x -= 10
on KEY_RIGHT
x += 10
on KEY_UP
y -= 10
on KEY_DOWN
y += 10
off
}
}
mouse = func oGame,oSelf,nType,aMouseList {
55.22. Using the Game Engine - Sprite - State event 505

5. Ring Documentation, Release 1.7
if nType = GE_MOUSE_UP
oSelf {
x = aMouseList[GE_MOUSE_X]
y = aMouseList[GE_MOUSE_Y]
}
ok
}
state = func oGame,oSelf {
oself {
if x < 0 x = 0 ok
if y < 0 y = 0 ok
if x > ogame.width-width
x= ogame.width - width ok
if y > ogame.height-height
y=ogame.height - height ok
}
}
}
} # Start the Events Loop
55.23 Using the Game Engine - Animate - Events
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
animate {
file = "images/fbbird.png"
x = 10
y = 10
framewidth = 20
scaled = true
height = 50
width = 50
nStep = 3
transparent = true
state = func oGame,oSelf {
oSelf {
# Animation
nStep--
if nStep = 0
nStep = 3
if frame < 3
frame++
else
frame=1
ok
ok
55.23. Using the Game Engine - Animate - Events 506

6. Ring Documentation, Release 1.7
# Move Down
y += 3
if y > 550 y=550 ok
}
}
keypress = func ogame,oself,nKey {
oself {
if nkey = key_space
y -= 55
if y<=0 y=0 ok
ok
}
}
mouse = func ogame,oself,nType,aMouseList {
if nType = GE_MOUSE_UP
cFunc = oself.keypress
call cFunc(oGame,oSelf,Key_Space)
ok
}
}
} # Start the Events Loop
Screen Shot:
55.23. Using the Game Engine - Animate - Events 507

7. Ring Documentation, Release 1.7
55.24 Using the Game Engine - Map
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
Map {
blockwidth = 80
blockheight = 80
aMap = [
[0,0,0,0,0,0,0,0,0,1,0,0,0,3,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0],
[0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0],
[0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,2,0,0,0,1,0,0,0],
[0,0,0,0,0,0,0,0,0,1,0,0,0,2,0,0,0,3,0,0,0,1,0,0,0,1,0,0,0],
[0,0,0,0,0,0,0,0,0,3,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,3,0,0,0],
[0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0],
55.24. Using the Game Engine - Map 508

8. Ring Documentation, Release 1.7
[0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0]
]
aImages = ["images/fbwall.png",
"images/fbwallup.png",
"images/fbwalldown.png"]
state = func oGame,oSelf {
oSelf {
x -= 3
if x < - 2100 x = 0 ok
}
}
}
} # Start the Events Loop
Screen Shot:
55.24. Using the Game Engine - Map 509

9. Ring Documentation, Release 1.7
55.25 Using the Game Engine - Map Events
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
Map {
blockwidth = 80
blockheight = 80
aMap = [
[0,0,0,0,0,0,0,0,0,1,0,0,0,3,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0],
[0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0],
[0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,2,0,0,0,1,0,0,0],
[0,0,0,0,0,0,0,0,0,1,0,0,0,2,0,0,0,3,0,0,0,1,0,0,0,1,0,0,0],
[0,0,0,0,0,0,0,0,0,3,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,3,0,0,0],
[0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0],
[0,0,0,0,0,0,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0,1,0,0,0,0,0,0,0]
]
aImages = ["images/fbwall.png",
"images/fbwallup.png",
"images/fbwalldown.png"]
state = func oGame,oSelf {
oSelf {
x -= 3
if x < - 2100 x = 0 ok
}
}
mouse = func ogame,oself,nType,aMouseList {
if nType = GE_MOUSE_UP
oSelf {
mX = aMouseList[GE_MOUSE_X]
mY = aMouseList[GE_MOUSE_Y]
nValue = GetValue(mX,mY)
nRow = GetRow(mX,mY)
nCol = GetCol(mX,mY)
Switch nValue
On 1 aMap[nRow][nCol] = 0
On 2 aMap[nRow][nCol] = 0
On 3 aMap[nRow][nCol] = 0
On 0 aMap[nRow][nCol] = 1
Off
}
ok
}
}
} # Start the Events Loop
55.25. Using the Game Engine - Map Events 510

10. Ring Documentation, Release 1.7
Screen Shot:
55.26 Using the Game Engine - Object and Drawing
We can use the Object keyword (defined by the game engine) to create objects from the GameObject class.
Example:
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
Object {
x = 0 y=300 width = 200 height=200
draw = func oGame,oSelf {
oSelf {
for t = 1 to 210
gl_draw_circle(x,y,t,
gl_map_rgb(t*random(255),
t*2,t*3),1)
55.26. Using the Game Engine - Object and Drawing 511
