1. Ring Documentation, Release 1.5.2

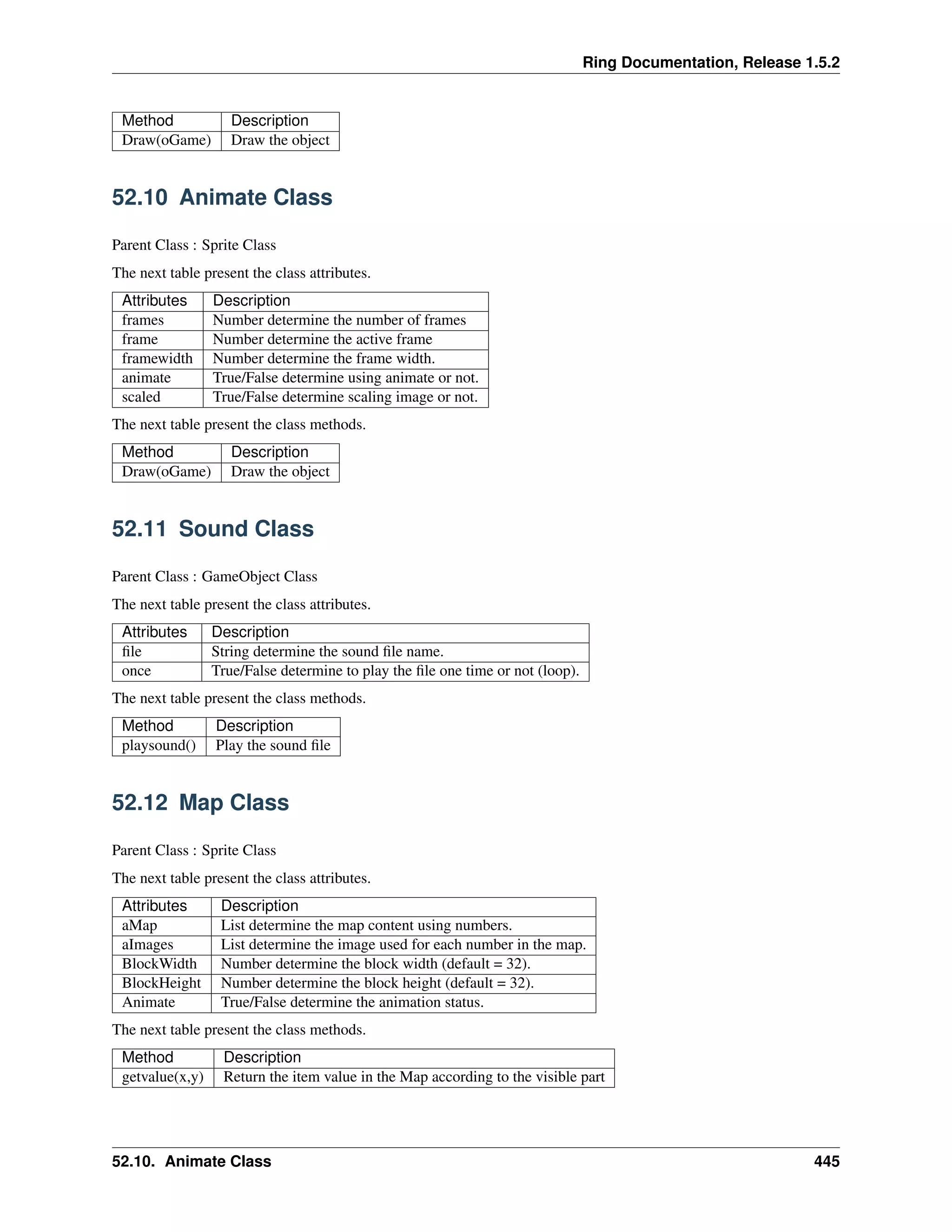

Method Description
Draw(oGame) Draw the object
52.10 Animate Class
Parent Class : Sprite Class
The next table present the class attributes.
Attributes Description
frames Number determine the number of frames
frame Number determine the active frame
framewidth Number determine the frame width.
animate True/False determine using animate or not.
scaled True/False determine scaling image or not.
The next table present the class methods.
Method Description
Draw(oGame) Draw the object
52.11 Sound Class
Parent Class : GameObject Class
The next table present the class attributes.
Attributes Description
file String determine the sound file name.
once True/False determine to play the file one time or not (loop).
The next table present the class methods.
Method Description
playsound() Play the sound file
52.12 Map Class
Parent Class : Sprite Class
The next table present the class attributes.
Attributes Description
aMap List determine the map content using numbers.
aImages List determine the image used for each number in the map.
BlockWidth Number determine the block width (default = 32).
BlockHeight Number determine the block height (default = 32).
Animate True/False determine the animation status.
The next table present the class methods.
Method Description
getvalue(x,y) Return the item value in the Map according to the visible part
52.10. Animate Class 445

2. Ring Documentation, Release 1.5.2

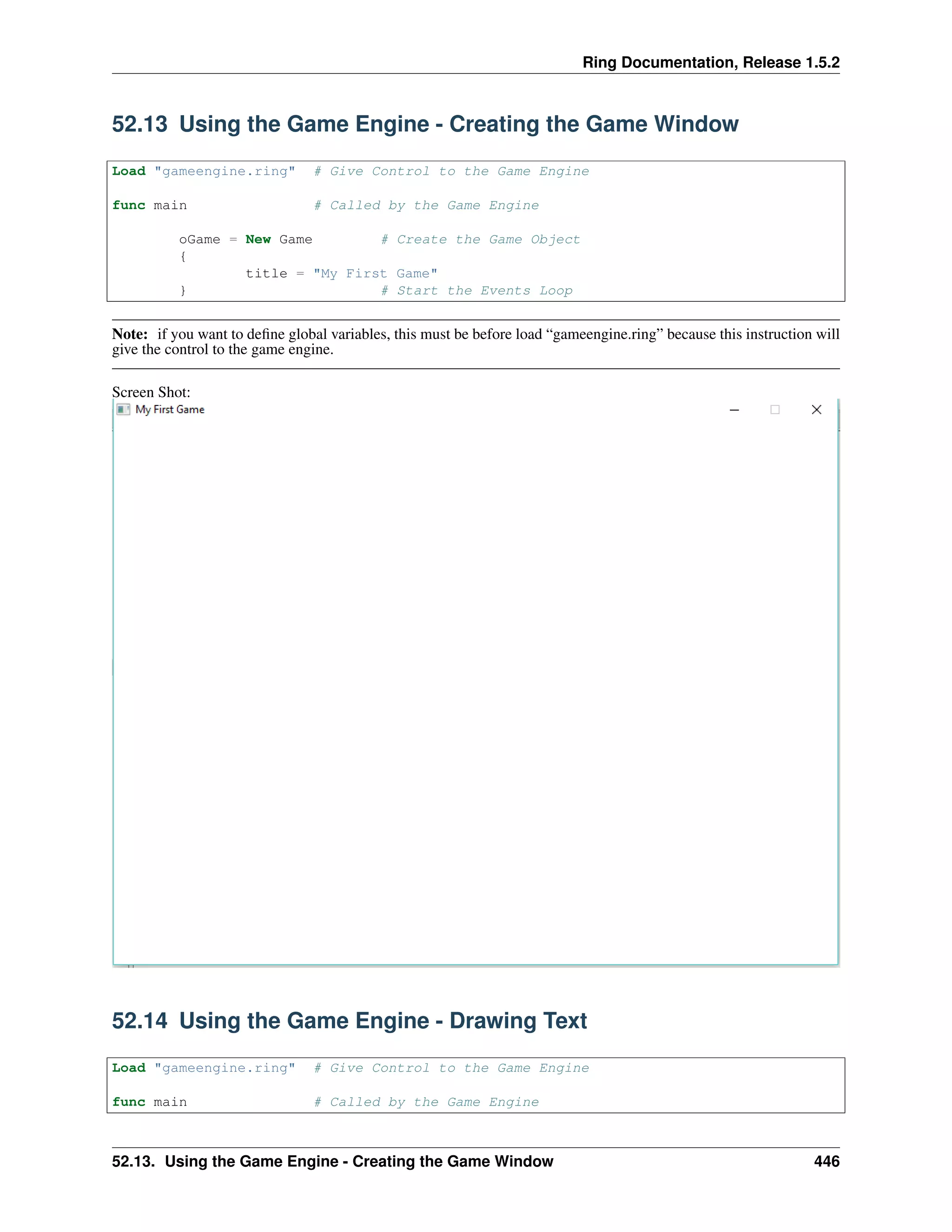

52.13 Using the Game Engine - Creating the Game Window
Load "gameengine.ring" # Give Control to the Game Engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
} # Start the Events Loop
Note: if you want to define global variables, this must be before load “gameengine.ring” because this instruction will
give the control to the game engine.
Screen Shot:
52.14 Using the Game Engine - Drawing Text
Load "gameengine.ring" # Give Control to the Game Engine
func main # Called by the Game Engine
52.13. Using the Game Engine - Creating the Game Window 446

3. Ring Documentation, Release 1.5.2
oGame = New Game # Create the Game Object
{
title = "My First Game"
text {
x = 10 y=50
animate = false
size = 20
file = "fonts/pirulen.ttf"
text = "game development using ring is very fun!"
color = rgb(0,0,0)
}
} # Start the Events Loop
Screen Shot:
52.15 Using the Game Engine - Moving Text
Load "gameengine.ring" # Give Control to the Game Engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
52.15. Using the Game Engine - Moving Text 447

4. Ring Documentation, Release 1.5.2
{
title = "My First Game"
text {
x = 10 y=50
animate = false
size = 20
file = "fonts/pirulen.ttf"
text = "game development using ring is very fun!"
color = rgb(0,0,0) # Color = black
}
text {
x = 10 y=150
# Animation Part =====================================
animate = true # Use Animation
direction = GE_DIRECTION_INCVERTICAL # Increase y
point = 400 # Continue until y=400
nStep = 3 # Each time y+= 3
#=====================================================
size = 20
file = "fonts/pirulen.ttf"
text = "welcome to the real world!"
color = rgb(0,0,255) # Color = Blue
}
} # Start the Events Loop
Screen Shot:
52.15. Using the Game Engine - Moving Text 448

5. Ring Documentation, Release 1.5.2
52.16 Using the Game Engine - Playing Sound
Load "gameengine.ring" # Give Control to the Game Engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
text {
x = 10 y=50
animate = false
size = 20
file = "fonts/pirulen.ttf"
text = "game development using ring is very fun!"
color = rgb(0,0,0) # Color = black
}
text {
x = 10 y=150
# Animation Part ======================================
animate = true # Use Animation
direction = GE_DIRECTION_INCVERTICAL # Increase y
52.16. Using the Game Engine - Playing Sound 449

6. Ring Documentation, Release 1.5.2
point = 400 # Continue until y=400
nStep = 3 # Each time y+= 3
#======================================================
size = 20
file = "fonts/pirulen.ttf"
text = "welcome to the real world!"
color = rgb(0,0,255) # Color = Blue
}
Sound { # Play Sound
file = "sound/music1.wav" # Sound File Name
}
} # Start the Events Loop
52.17 Using the Game Engine - Animation
Load "gameengine.ring" # Give Control to the Game Engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
animate {
file = "images/fire.png"
x = 100
y = 200
framewidth = 40
height = 42
nStep = 3 # Used for delay
transparent = true
state = func oGame,oSelf { # Called by engine each frame
oSelf {
nStep--
if nStep = 0
nStep = 3
if frame < 13 # we have 13 frames in animation
frame++ # move to next frame
else
oGame.remove(oself.nIndex) # remove object
ok
ok
}
}
}
} # Start the Events Loop
52.17. Using the Game Engine - Animation 450

7. Ring Documentation, Release 1.5.2
52.18 Using the Game Engine - Animation and Functions
Load "gameengine.ring" # Give Control to the Game Engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
for x = 70 to 700 step 50
for y = 70 to 500 step 50
showfire(oGame,x,y)
next
next
} # Start the Events Loop
func showfire oGame,nX,nY
oGame {
animate {
file = "images/fire.png"
x = nX
52.18. Using the Game Engine - Animation and Functions 451

8. Ring Documentation, Release 1.5.2
y = nY
framewidth = 40
height = 42
nStep = 3 # Used for delay
transparent = true
state = func oGame,oSelf { # Called by engine each frame
oSelf {
nStep--
if nStep = 0
nStep = 3
if frame < 13 # we have 13 frames in animation
frame++ # move to next frame
else
frame=1
ok
ok
}
}
}
}
52.18. Using the Game Engine - Animation and Functions 452

9. Ring Documentation, Release 1.5.2
52.19 Using the Game Engine - Sprite - Automatic Movement using
Keyboard
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
sprite
{
type = GE_TYPE_PLAYER # Just for our usage
x=400 y=400 width=100 height=100
file = "images/player.png"
transparent = true
Animate=false
Move=true # we can move it using keyboard arrows
Scaled=true
}
} # Start the Events Loop
52.19. Using the Game Engine - Sprite - Automatic Movement using Keyboard 453

10. Ring Documentation, Release 1.5.2
52.20 Using the Game Engine - Sprite - Keypress event
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
sprite
{
type = GE_TYPE_PLAYER # Just for our usage
x=400 y=400 width=100 height=100
file = "images/player.png"
transparent = true
Animate=false
Move=false # Custom Movement
Scaled=true
keypress = func oGame,oSelf,nKey {
oSelf {
Switch nKey
on KEY_LEFT
x -= 10
on KEY_RIGHT
x += 10
on KEY_UP
y -= 10
on KEY_DOWN
y += 10
off
}
}
}
} # Start the Events Loop
52.21 Using the Game Engine - Sprite - Mouse event
Load "gameengine.ring" # Give control to the game engine
func main # Called by the Game Engine
oGame = New Game # Create the Game Object
{
title = "My First Game"
sprite
{
type = GE_TYPE_PLAYER # Just for our usage
x=400 y=400 width=100 height=100
file = "images/player.png"
transparent = true
Animate=false
Move=false # Custom Movement
Scaled=true
keypress = func oGame,oSelf,nKey {
oSelf {
52.20. Using the Game Engine - Sprite - Keypress event 454
