The Quamoco Quality Modelling and Assessment Approach

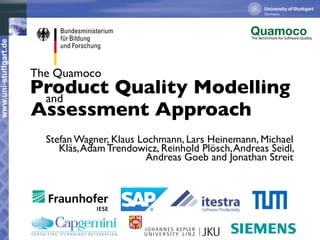

- 1. The Benchmark for Software Quality www.uni-stuttgart.de The Quamoco Product Quality Modelling and Assessment Approach Stefan Wagner Institute of Software Technology ICSE 2012 Zürich, Switzerland 8 June 2012
- 2. "Quality is a complex and multi-faceted concept... it is also the source of great confusion." –David A. Garvin

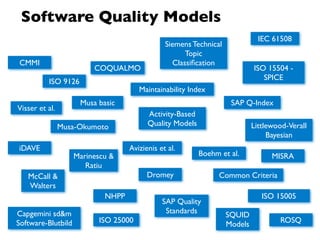

- 3. Software Quality Models IEC 61508 Siemens Technical Topic CMMI Classification COQUALMO ISO 15504 - SPICE ISO 9126 Maintainability Index Musa basic SAP Q-Index Visser et al. Activity-Based Musa-Okumoto Quality Models Littlewood-Verall Bayesian iDAVE Avizienis et al. Marinescu & Boehm et al. MISRA Ratiu McCall & Dromey Common Criteria Walters NHPP ISO 15005 SAP Quality Capgemini sd&m Standards SQUID Software-Blutbild ISO 25000 ROSQ Models
- 4. ISO 9126 Reliability Functionality Performance Quality model Maintainability Usability Portability

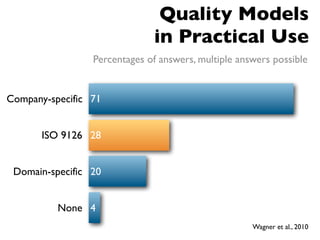

- 5. Quality Models in Practical Use Percentages of answers, multiple answers possible Company-specific 71 ISO 9126 28 Domain-specific 20 None 4 Wagner et al., 2010
- 6. „The -ilities are good for management talk only.“ –Anonymous developer Wagner et al., ESEM'09

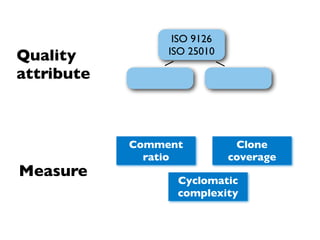

- 7. ISO 9126 ISO 25010 Quality attribute Comment Clone ratio coverage Measure Cyclomatic complexity

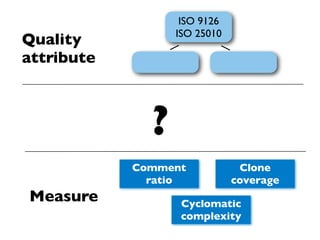

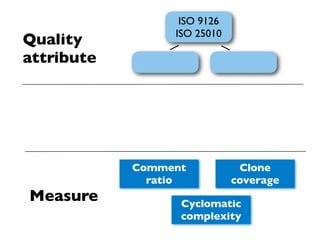

- 8. ISO 9126 ISO 25010 Quality attribute ? Comment Clone ratio coverage Measure Cyclomatic complexity

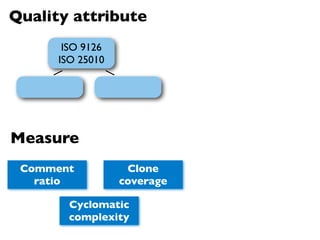

- 9. Quality attribute ISO 9126 ISO 25010 Measure Comment Clone ratio coverage Cyclomatic complexity

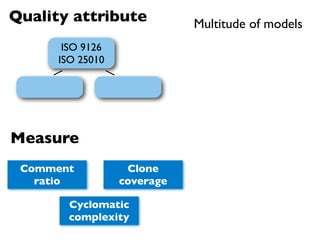

- 10. Quality attribute Multitude of models ISO 9126 ISO 25010 Measure Comment Clone ratio coverage Cyclomatic complexity

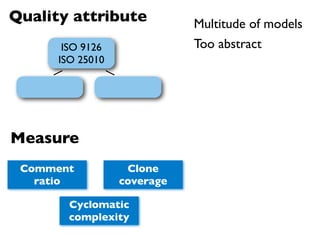

- 11. Quality attribute Multitude of models ISO 9126 Too abstract ISO 25010 Measure Comment Clone ratio coverage Cyclomatic complexity
- 12. Quality attribute Multitude of models ISO 9126 Too abstract ISO 25010 Not operationalised Measure Comment Clone ratio coverage Cyclomatic complexity

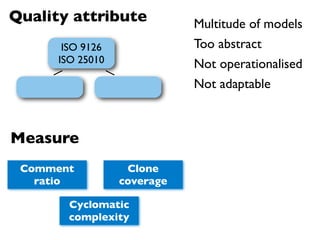

- 13. Quality attribute Multitude of models ISO 9126 Too abstract ISO 25010 Not operationalised Not adaptable Measure Comment Clone ratio coverage Cyclomatic complexity

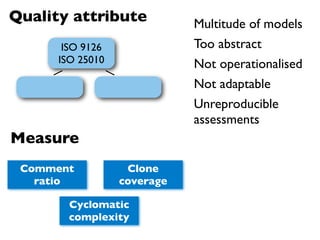

- 14. Quality attribute Multitude of models ISO 9126 Too abstract ISO 25010 Not operationalised Not adaptable Unreproducible assessments Measure Comment Clone ratio coverage Cyclomatic complexity
- 15. Quality attribute Multitude of models ISO 9126 Too abstract ISO 25010 Not operationalised Not adaptable Unreproducible assessments Measure Differing definitions Comment Clone ratio coverage Cyclomatic complexity

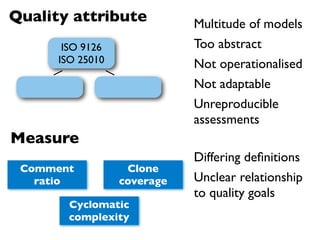

- 16. Quality attribute Multitude of models ISO 9126 Too abstract ISO 25010 Not operationalised Not adaptable Unreproducible assessments Measure Differing definitions Comment Clone ratio coverage Unclear relationship to quality goals Cyclomatic complexity
- 17. 1 Quality Model
- 18. ISO 9126 ISO 25010 Quality attribute ? Comment Clone ratio coverage Measure Cyclomatic complexity
- 19. ISO 9126 ISO 25010 Quality attribute Comment Clone ratio coverage Measure Cyclomatic complexity

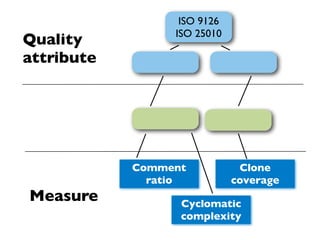

- 20. ISO 9126 ISO 25010 Quality attribute Comment Clone ratio coverage Measure Cyclomatic complexity

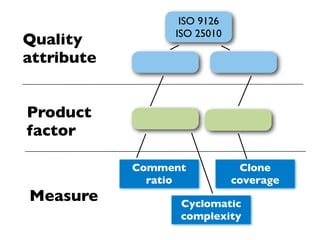

- 21. ISO 9126 ISO 25010 Quality attribute Product factor Comment Clone ratio coverage Measure Cyclomatic complexity
- 22. Maintainability Analysability Modifiability Duplication of source code parts Clone coverage

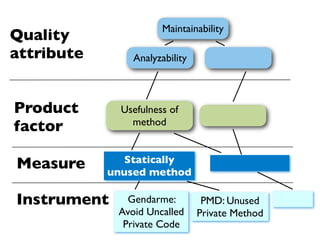

- 25. Maintainability Quality attribute Analyzability Product Usefulness of method factor Statically Measure unused method Instrument Gendarme: PMD: Unused Avoid Uncalled Private Method Private Code

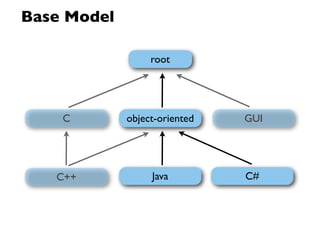

- 26. Base Model root C object-oriented GUI C++ Java C#
- 27. 2 Quality Assessment

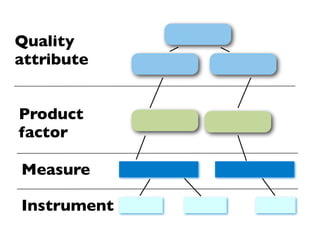

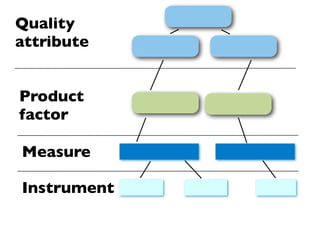

- 29. Quality attribute Product factor Measure Instrument Measurement Software product

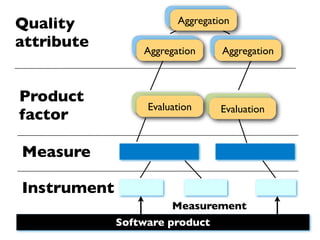

- 30. Quality Aggregation attribute Aggregation Aggregation Product Evaluation Evaluation factor Measure Instrument Measurement Software product

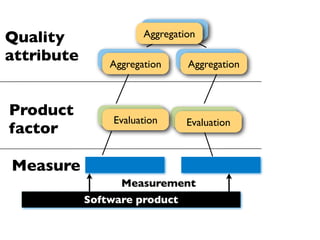

- 31. Quality Aggregation attribute Aggregation Aggregation Product Evaluation Evaluation factor Measure Measurement Software product

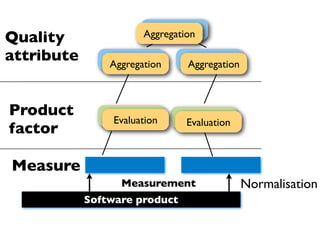

- 32. Quality Aggregation attribute Aggregation Aggregation Product Evaluation Evaluation factor Measure Measurement Normalisation Software product
- 33. Quality Aggregation attribute Aggregation Aggregation Product Utility Evaluation Evaluation factor functions Measure Measurement Normalisation Software product

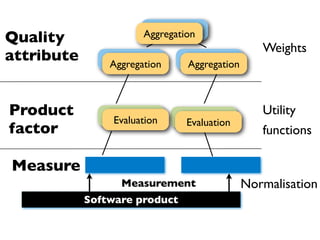

- 34. Quality Aggregation Weights attribute Aggregation Aggregation Product Utility Evaluation Evaluation factor functions Measure Measurement Normalisation Software product

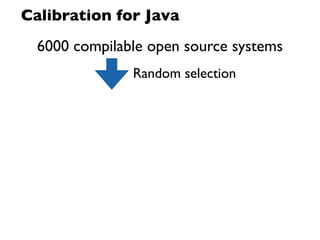

- 35. Calibration for Java 6000 compilable open source systems
- 36. Calibration for Java 6000 compilable open source systems Random selection

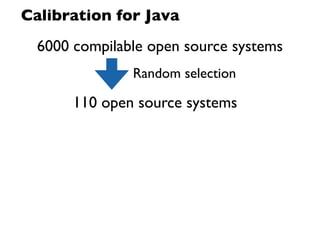

- 37. Calibration for Java 6000 compilable open source systems Random selection 110 open source systems

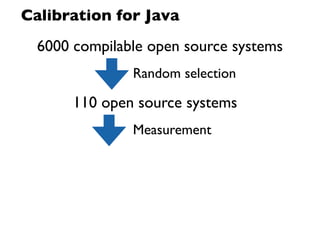

- 38. Calibration for Java 6000 compilable open source systems Random selection 110 open source systems Measurement

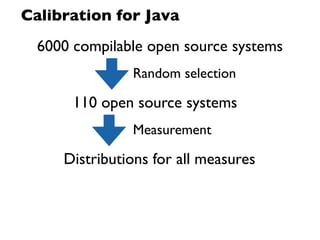

- 39. Calibration for Java 6000 compilable open source systems Random selection 110 open source systems Measurement Distributions for all measures

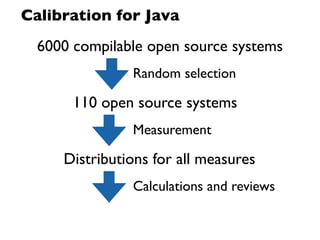

- 40. Calibration for Java 6000 compilable open source systems Random selection 110 open source systems Measurement Distributions for all measures Calculations and reviews

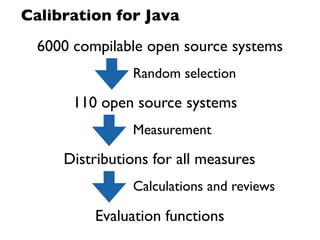

- 41. Calibration for Java 6000 compilable open source systems Random selection 110 open source systems Measurement Distributions for all measures Calculations and reviews Evaluation functions

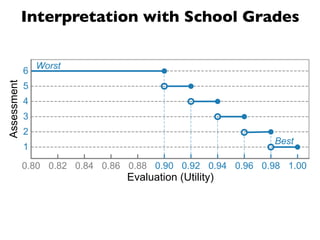

- 42. Interpretation with School Grades 10 Worst 6 Assessment 5 4 3 2 Best 1 0.80 0.82 0.84 0.86 0.88 0.90 0.92 0.94 0.96 0.98 1.00 Evaluation (Utility) Fig. 7. Interpretation Model
- 43. 3 Tool Support

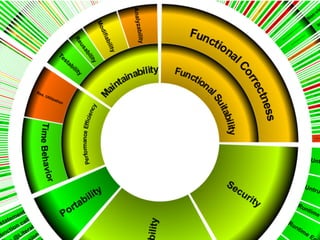

- 44. HTML Quality Model Editor Dash- board Code, documentation, tool results
- 46. Published under Apache License, Version 2.0 Available at www.quamoco.de

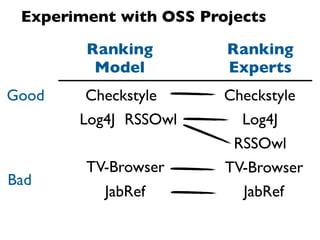

- 48. Experiment with OSS Projects Ranking Ranking Model Experts Good Checkstyle Checkstyle Log4J RSSOwl Log4J RSSOwl TV-Browser TV-Browser Bad JabRef JabRef

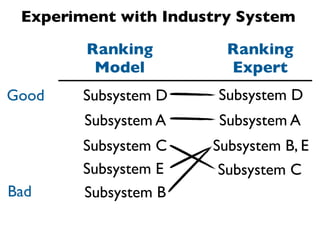

- 49. Experiment with Industry System Ranking Ranking Model Expert Good Subsystem D Subsystem D Subsystem A Subsystem A Subsystem C Subsystem B, E Subsystem E Subsystem C Bad Subsystem B

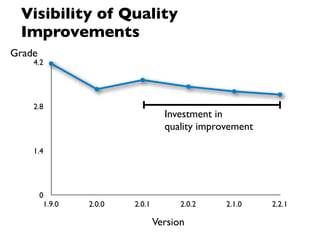

- 50. Visibility of Quality Improvements Grade 4.2 2.8 Investment in quality improvement 1.4 0 1.9.0 2.0.0 2.0.1 2.0.2 2.1.0 2.2.1 Version
- 51. Drill-Downs

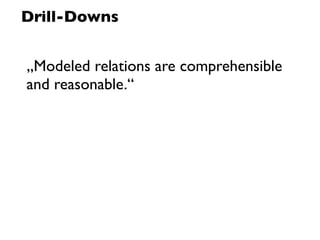

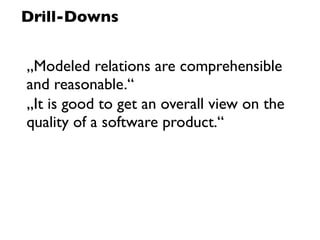

- 52. Drill-Downs „Modeled relations are comprehensible and reasonable.“
- 53. Drill-Downs „Modeled relations are comprehensible and reasonable.“ „It is good to get an overall view on the quality of a software product.“
- 54. Drill-Downs „Modeled relations are comprehensible and reasonable.“ „It is good to get an overall view on the quality of a software product.“ „It clarifies software metrics.“

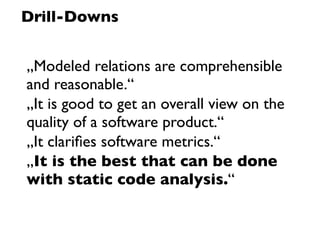

- 55. Drill-Downs „Modeled relations are comprehensible and reasonable.“ „It is good to get an overall view on the quality of a software product.“ „It clarifies software metrics.“ „It is the best that can be done with static code analysis.“

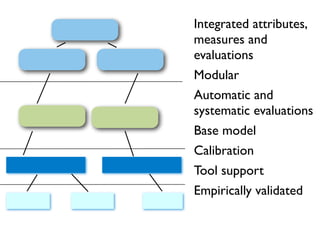

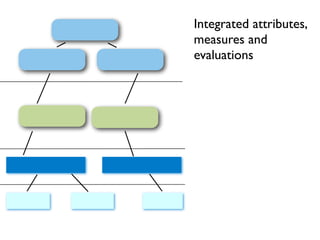

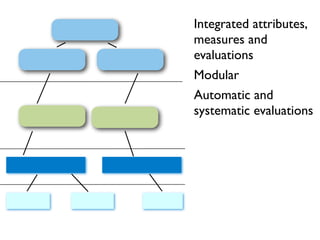

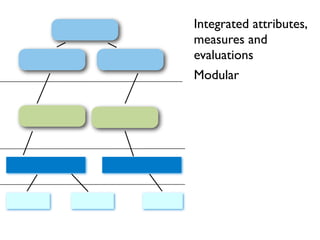

- 59. Integrated attributes, measures and evaluations Modular Automatic and systematic evaluations

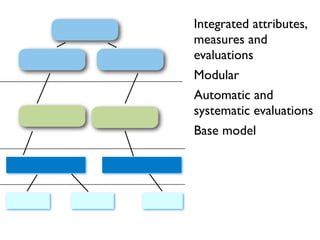

- 60. Integrated attributes, measures and evaluations Modular Automatic and systematic evaluations Base model

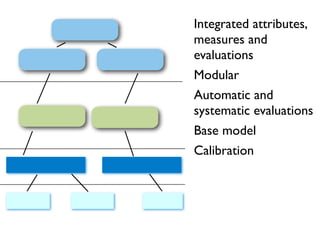

- 61. Integrated attributes, measures and evaluations Modular Automatic and systematic evaluations Base model Calibration
- 62. Integrated attributes, measures and evaluations Modular Automatic and systematic evaluations Base model Calibration Tool support

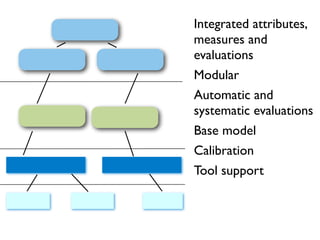

- 63. Integrated attributes, measures and evaluations Modular Automatic and systematic evaluations Base model Calibration Tool support Empirically validated
- 64. The Benchmark for Software Quality www.uni-stuttgart.de The Quamoco Product Quality Modelling and Assessment Approach Stefan Wagner, Klaus Lochmann, Lars Heinemann, Michael Kläs, Adam Trendowicz, Reinhold Plösch, Andreas Seidl, Andreas Goeb and Jonathan Streit
- 65. Linear Utility Function 1.0 Measure M4 Linear decreasing 0.74 utility function Utility 0.0 min = 0.0 M4 = 2.17E-06 max = 8.50E-6
