The Green Lab - [13 B] Future research challenges

1 Het begint met een idee
Future research challenges
(within the Green Lab)
The Green Lab team

Vrije Universiteit Amsterdam

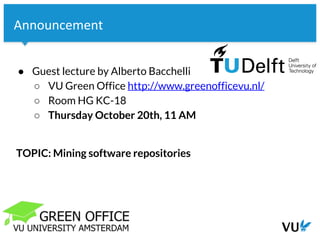

Announcement
● Guest lecture by Alberto Bacchelli
○ VU Green Office http://www.greenofficevu.nl/
○ Room HG KC-18
○ Thursday October 20th, 11 AM
TOPIC: Mining software repositories

3

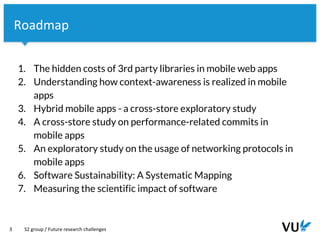

Roadmap
1. The hidden costs of 3rd party libraries in mobile web apps
2. Understanding how context-awareness is realized in mobile
apps
3. Hybrid mobile apps - a cross-store exploratory study
4. A cross-store study on performance-related commits in
mobile apps
5. An exploratory study on the usage of networking protocols in
mobile apps
6. Software Sustainability: A Systematic Mapping
7. Measuring the scientific impact of software
S2 group / Future research challenges

4
The hidden costs of 3rd party libraries in mobile
web apps
1
● Thousands of JavaScript libraries out there
● Every web developer uses them

5
web apps

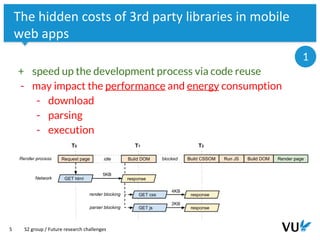

+ speed up the development process via code reuse
- may impact the performance and energy consumption
- download
- parsing
- execution
1

6

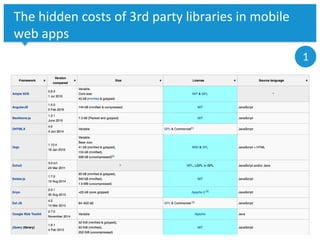

web apps
1

7
web apps
Main steps:
1. research questions formulation and experiment design
2. development of a generic slicing algorithm that reduces a
javaScript codebase to only the strictly needed functions
3. dataset building (~1000 real mobile web apps)
4. experiment execution
5. data analysis
6. reflection
Contacts: Ivano Malavolta, Giuseppe Procaccianti
1

8
web apps

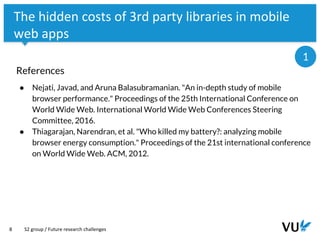

References
● Nejati, Javad, and Aruna Balasubramanian. "An in-depth study of mobile
browser performance." Proceedings of the 25th International Conference on
World Wide Web. International World Wide Web Conferences Steering
Committee, 2016.
● Thiagarajan, Narendran, et al. "Who killed my battery?: analyzing mobile
browser energy consumption." Proceedings of the 21st international conference
on World Wide Web. ACM, 2012.
1

9
Understanding how context-awareness is realized
in mobile apps
● This app works in a specific context depending on the current
location of the user
context added value
2

10
in mobile apps

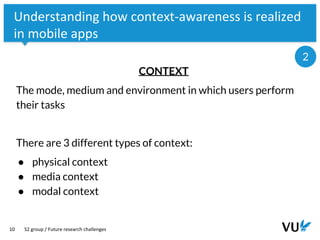

CONTEXT
The mode, medium and environment in which users perform
their tasks
There are 3 different types of context:
● physical context
● media context
● modal context
2

11
in mobile apps
2

12
in mobile apps

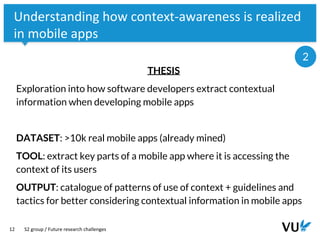

THESIS
Exploration into how software developers extract contextual
information when developing mobile apps
DATASET: >10k real mobile apps (already mined)
TOOL: extract key parts of a mobile app where it is accessing the
context of its users
OUTPUT: catalogue of patterns of use of context + guidelines and
tactics for better considering contextual information in mobile apps
2

13
in mobile apps

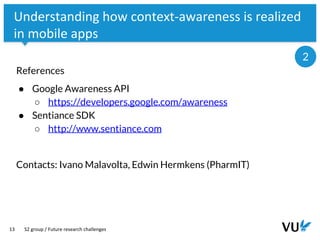

References
● Google Awareness API
○ https://developers.google.com/awareness
● Sentiance SDK
○ http://www.sentiance.com
Contacts: Ivano Malavolta, Edwin Hermkens (PharmIT)
2

14
Hybrid mobile apps - a cross-store exploratory
study
3

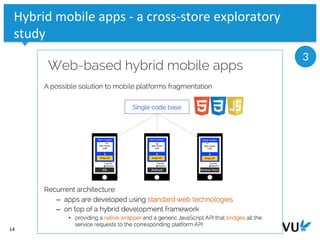

15

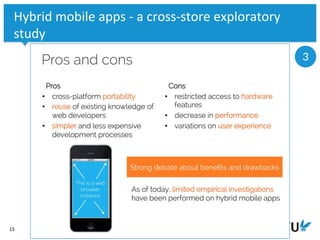

study
3

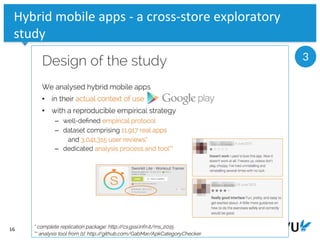

16
study
3

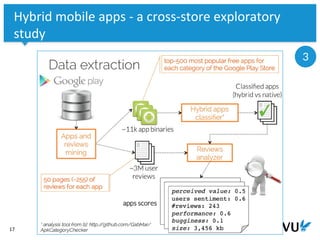

17
study
3

18
study
3

19
study

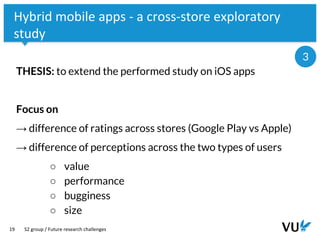

THESIS: to extend the performed study on iOS apps
Focus on
→ difference of ratings across stores (Google Play vs Apple)
→ difference of perceptions across the two types of users
○ value
○ performance
○ bugginess
○ size
3

20
study

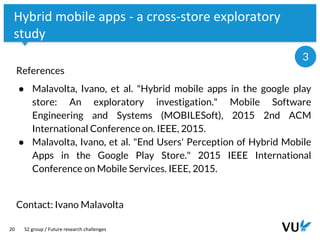

References
● Malavolta, Ivano, et al. "Hybrid mobile apps in the google play
store: An exploratory investigation." Mobile Software
Engineering and Systems (MOBILESoft), 2015 2nd ACM
International Conference on. IEEE, 2015.
● Malavolta, Ivano, et al. "End Users' Perception of Hybrid Mobile
Apps in the Google Play Store." 2015 IEEE International
Conference on Mobile Services. IEEE, 2015.
Contact: Ivano Malavolta
3

21
A cross-store study on performance-related
commits in mobile apps
4
RQ1: To what extent developers consider performance issues
of Android apps?
RQ2: What are the concerns that developers have when
dealing with performance issues of Android apps?

22
4

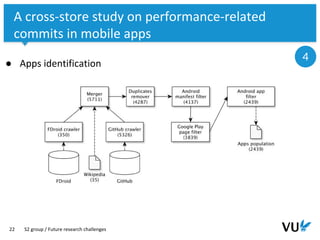

● Apps identification

23
4

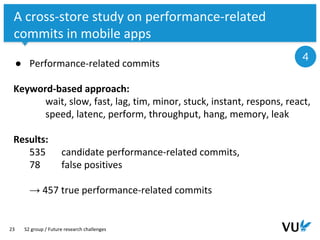

● Performance-related commits
Keyword-based approach:
wait, slow, fast, lag, tim, minor, stuck, instant, respons, react,
speed, latenc, perform, throughput, hang, memory, leak
Results:
535 candidate performance-related commits,
78 false positives
→ 457 true performance-related commits

24
4

25

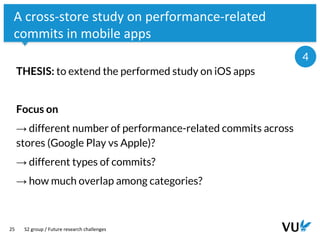

THESIS: to extend the performed study on iOS apps
Focus on
→ different number of performance-related commits across
stores (Google Play vs Apple)?
→ different types of commits?
→ how much overlap among categories?
4

26

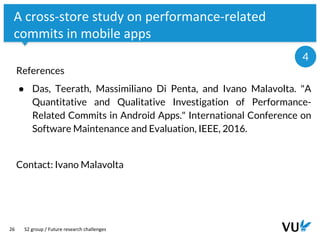

References
● Das, Teerath, Massimiliano Di Penta, and Ivano Malavolta. "A
Quantitative and Qualitative Investigation of Performance-
Related Commits in Android Apps." International Conference on
Software Maintenance and Evaluation, IEEE, 2016.
Contact: Ivano Malavolta
4

27

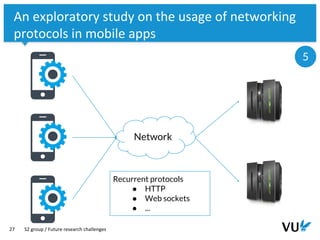

An exploratory study on the usage of networking
protocols in mobile apps
5
Network
Recurrent protocols
● HTTP
● Web sockets
● ...

28

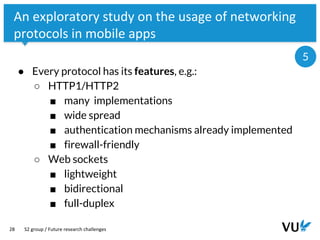

● Every protocol has its features, e.g.:
○ HTTP1/HTTP2
■ many implementations
■ wide spread
■ authentication mechanisms already implemented
■ firewall-friendly
○ Web sockets
■ lightweight
■ bidirectional
■ full-duplex
5

29

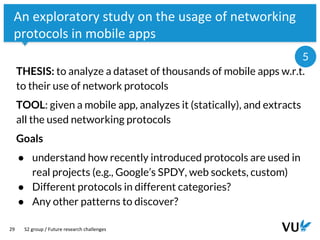

THESIS: to analyze a dataset of thousands of mobile apps w.r.t.
to their use of network protocols
TOOL: given a mobile app, analyzes it (statically), and extracts
all the used networking protocols
Goals
● understand how recently introduced protocols are used in
real projects (e.g., Google’s SPDY, web sockets, custom)
● Different protocols in different categories?
● Any other patterns to discover?
5

30

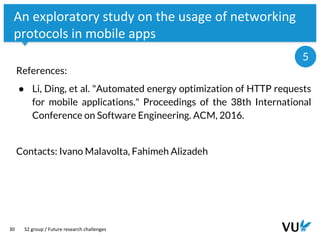

References:
● Li, Ding, et al. "Automated energy optimization of HTTP requests
for mobile applications." Proceedings of the 38th International
Conference on Software Engineering. ACM, 2016.
Contacts: Ivano Malavolta, Fahimeh Alizadeh
5

31

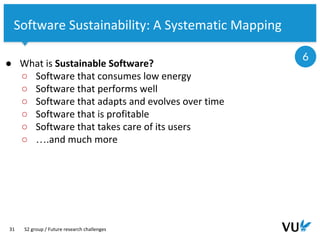

Software Sustainability: A Systematic Mapping
● What is Sustainable Software?
○ Software that consumes low energy
○ Software that performs well
○ Software that adapts and evolves over time
○ Software that is profitable
○ Software that takes care of its users
○ ….and much more
6

32

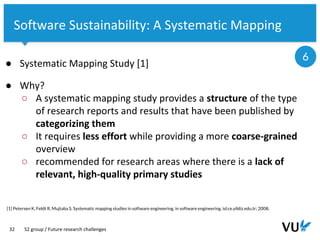

● Systematic Mapping Study [1]
● Why?
○ A systematic mapping study provides a structure of the type
of research reports and results that have been published by
categorizing them
○ It requires less effort while providing a more coarse-grained
overview
○ recommended for research areas where there is a lack of
relevant, high-quality primary studies
[1] Petersen K, Feldt R, Mujtaba S. Systematic mapping studies in software engineering. in software engineering. isl.ce.yildiz.edu.tr; 2008;
6

33

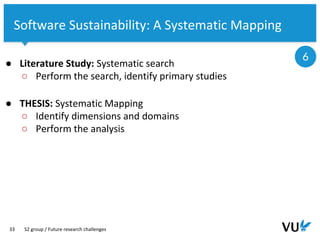

● Literature Study: Systematic search
○ Perform the search, identify primary studies
● THESIS: Systematic Mapping
○ Identify dimensions and domains
○ Perform the analysis
6

34
6

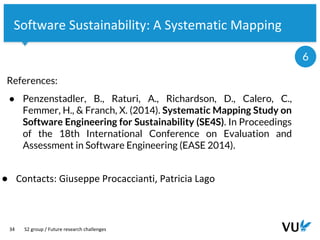

● Contacts: Giuseppe Procaccianti, Patricia Lago
References:
● Penzenstadler, B., Raturi, A., Richardson, D., Calero, C.,
Femmer, H., & Franch, X. (2014). Systematic Mapping Study on
Software Engineering for Sustainability (SE4S). In Proceedings
of the 18th International Conference on Evaluation and
Assessment in Software Engineering (EASE 2014).

35
Measuring the Scientific Impact of Software
7

36

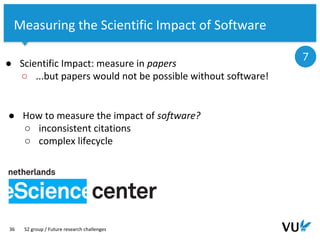

● Scientific Impact: measure in papers
○ ...but papers would not be possible without software!
7
● How to measure the impact of software?
○ inconsistent citations
○ complex lifecycle

37
● THESIS: quantify the impact and quality of scientific software
7
● Focus:
○ define metrics and indicators
○ use already known metrics (e.g. reuse, repositories…)
● Contacts: Giuseppe Procaccianti, Willem van Hage (eScience)

38

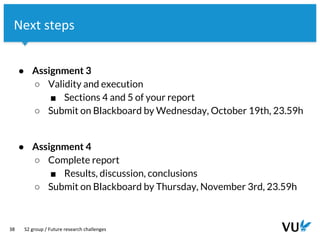

Next steps
● Assignment 3
○ Validity and execution
■ Sections 4 and 5 of your report
○ Submit on Blackboard by Wednesday, October 19th, 23.59h
● Assignment 4
○ Complete report
■ Results, discussion, conclusions
○ Submit on Blackboard by Thursday, November 3rd, 23.59h
